eSardine: A General Purpose Platform with Autonomous AI and

Explainable Outputs

es Rito Lima

1 a

, Nuno Leite

1 b

, Adriano Pinto

1 c

, Pedro Pires

2 d

, Carlos Martins

2 e

and Nuno V. Lopes

1 f

DTx Digital Transformation Colab, 4800-058, Guimar

aes, Portugal

Mobileum, 4705-319, Braga, Portugal

Keywords:

Automatic Machine Learning (AutoML), Explainable AI (XAI), General-purpose, Telecommunications,

Anomaly and Fraud Detection.

Abstract:

The combination of high computational power and data awareness triggered an increasing demand for business

applications from industrial players. However, harnessing the knowledge from data requires expertise, usually

being a time-consuming task. Additionally, the users’ trust in the results obtained is commonly compromised

due to the black box behavior of most Machine Learning models. This paper proposes a general-purpose

platform, eSardine, that leverages automatic machine learning and explainability to produce fast, reliable,

and interpretable results. The eSardine platform integrates forefront tools to enhance, and automate the data

science process, with minimal human interaction. For any tabular supervised classiﬁcation and regression

problems, predicted outputs are given, as well as an explainability report of each prediction. The inclusion

of AutoML tools, i.e. , automatic model tuning and selection, presented a strong baseline whose capabilities

are ampliﬁed by built-in, yet customizable, autonomous processing mechanisms. The explainable reports

aim to increase users’ conﬁdence in the models’ quality and robustness. Furthermore, in the industrial context,

understanding key factors unveiled in these reports is determinant to increase the business model’s proﬁtability.

The platform was evaluated in two public datasets, where it outperformed state-of-the-art results.

1 INTRODUCTION

In the past few years, the increase of computational

power associated with data awareness and database

access led to a growth of Machine Learning (ML)

methods and Artiﬁcial Intelligence (AI) capabili-

ties (Hutter et al., 2019; He et al., 2021; Do

silovi

et al., 2018). These have recently reached remark-

able performances, fulﬁlling the needs of different ar-

eas, from business to medicine, and all technological

ﬁelds in between. In this sense, this progress can be

seen, as well as have repercussions, in two main per-

spectives:

• The growth in algorithm complexity provides

both more accurate and complex results for hu-

https://orcid.org/0000-0002-9681-4740

https://orcid.org/0000-0002-8558-2956

https://orcid.org/0000-0001-9397-3722

https://orcid.org/0000-0002-9928-620X

https://orcid.org/0000-0002-0678-4868

https://orcid.org/0000-0003-0169-0616

man to understand and interpret;

• Its application context is widening with an in-

crease in the number of non-ML experts needing

to pace up with these models.

In light of recent technological and computational

developments, both these items have isolated solu-

tions. The lack of interpretation of the results can

be addressed by Explainable Artiﬁcial Intelligence

(XAI). The need for facilitating and accelerating the

ML processes, for both non-experts and experts, can

be addressed by the automation of these processes,

commonly known as Automatic Machine Learning

(AutoML).

Usually, using machine learning on any given sce-

nario follows the generic architecture of: i) input data;

ii) pre-process it, including data cleaning, feature en-

gineering and selection; iii) model selection and tune;

and iv) output results for either classiﬁcation or re-

gression problems. This is an iterative process, trying

to optimize performance, supported on expert judg-

ment and knowledge in the area. Therefore, it is a

612

Lima, I., Leite, N., Pinto, A., Pires, P., Martins, C. and Lopes, N.

eSardine: A General Purpose Platform with Autonomous AI and Explainable Outputs.

DOI: 10.5220/0010970000003116

In Proceedings of the 14th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2022) - Volume 2, pages 612-625

ISBN: 978-989-758-547-0; ISSN: 2184-433X

very time-consuming task (Hutter et al., 2019). In a

business oriented perspective of ML usage, AutoML

arises as a great solution to surpass the time and hu-

man resources invested in ML processes.

AutoML can automate both data processing and

model tuning and selection tasks, always envision-

ing the best learning performances. Overall, one of

the most challenging tasks of AutoML is the model

hyper-parameters optimization in the tuning phase.

This can be very computationally demanding and

time-consuming, according to the problem and data

inputted (Hutter et al., 2019; He et al., 2021).

However, as AutoML eases the need for human

intervention, to some extent widens the gap between

model operation and human understanding. Addi-

tionally, AutoML might return highly complex mod-

els, not tuned by human experimentation, which on

one hand represents less time consumed in building a

model, but on the other hand, less understanding of its

results.

Embedded in this context emerged the concept of

XAI (Miller, 2019). As problems become more com-

plex, less intuitive are the algorithms solving them,

where most work as black boxes. Due to the low ex-

plainability, the lack of transparency on their operat-

ing mechanisms, and on the outputted results, these

ML methods are nowadays a liability. Trust is a

commonly raised problem, as users have increasingly

more difﬁculties understanding models, and therefore

resistance to rely on a black box (Do

silovi

c et al.,

2018; Miller, 2019). With AI spreading rapidly and

reaching so many areas of business, trust is crucial

for the success of using ML in that area of applica-

tion. In this context, trust has two different mean-

ings: the trust in the result given by the model and

the trust in the model itself (Ribeiro et al., 2016).

Consequently, having the capacity to understand the

model’s operation mechanism or results given, resort-

ing to XAI methods, leads to conﬁdence in the pre-

diction obtained, trust in the model performance, or

to the identiﬁcation of any model’s inconsistencies.

Regardless of which, is undeniable the safety and re-

liability promoted by Explainable AI (Gilpin et al.,

2018; Do

silovi

c et al., 2018).

Additionally, with recent misuse of data and more

restrictive processes for data collection and use, the

necessity of understanding the models and results has

been addressed by international organizations such as

the World Economic Forum and the European Union

(EU) as a matter of safety and risk. Performance,

security, control, economical, ethical and societal

risks are the main concerning ﬁelds when it comes to

AI (Combes et al., 2018). The European Union points

out the advantages and challenges associated with AI,

underlining the importance of digital trust obtained

from XAI. It also acknowledges the risk associated

with the increasing power on AI, having released the

European Union regulations on algorithmic decision-

making and a ’right to explanation’ (Goodman and

Flaxman, 2017). It is established by these organiza-

tions the need for further research on the topic, to sur-

pass bias and improve explainability (Combes et al.,

2018; Goodman and Flaxman, 2017).

Within this context, the present work explores the

development of the eSardine platform. A tool with

Explainable, Scalable and Adaptive Risk Discovery

in Networked Ecosystems capacities.

This work proposes an advanced artiﬁcial intelli-

gence platform able to automatically learn, detect and

predict new types of fraud, providing at the same time

explainable outputs. Considering its future deploy-

ment in industrial environments, this platform was

built for real-time detection with the capability of han-

dling continuously large amounts of data received via

streaming or batch. Also, it supports model version-

ing and updates. To widen the range of business ap-

plications the platform was developed with the capa-

bility of being General Purpose (GP), i.e. , applicable

to any type of supervised learning problems, charac-

terized by tabular data.

There is already work that has focused on develop-

ing novel AutoML frameworks (Erickson et al., 2020;

Wang et al., 2021; Wang et al., 2020) with the goal of

improving some of its operating modules. Nonethe-

less, evolving to a business analytics platform, that in-

tegrates with industrial solutions and services, is still

an open issue. Furthermore, there is still a gap re-

garding the seamless combination of AutoML with

Explaianble outputs in an end-to-end analytics plat-

form, which is an attractive and valuable functional-

ity in any business context. These open issues are the

main goals of this work.

In this sense, the main contributions, in line with

the platform’s requirements, are the following:

• Integration of AutoML system with XAI capabil-

ities;

• A general-purpose platform that is capable of han-

dling a variety of datasets without previous data or

business knowledge;

• Update and versioning of both ML and XAI mod-

els;

• Distributed and parallel strategies for data pro-

cessing and model deployment in big data ori-

ented contexts.

Whereas the current section frames the conducted

work, its motivation and contributions, Section 2

eSardine: A General Purpose Platform with Autonomous AI and Explainable Outputs

613

presents the current state of the art of key method-

ologies encompassed in the platform and available li-

braries and packages that support its implementation.

Section 3 describes the key components of the eSar-

dine platform, detailing as well their conﬁgurations.

Section 4 presents the platform’s architecture and de-

scribes in detail its operation life cycle. To validate

eSardine’s capabilities in terms of model tuning and

selection, performance results on benchmark datasets,

in distinct approaches, are given in Section 5. Aligned

with eSardine’s explainable functionality, Section 6

delves on XAI output examples, highlighting its ad-

vantages. Section 7 provides an overview of the con-

ducted work and highlights future lines of research.

2 RELATED WORK

The development of the eSardine platform as an inte-

grated forefront solution for general-purpose AutoML

with explainable outputs relies on the awareness of

the current state of the art of such technologies and

how they operate.

2.1 AutoML

AutoML can be described as a Combined Algorithm

Selection and Hyperparameter optimization (CASH)

problem, which has two main difﬁculties: i) no sin-

gle machine learning method performs best on all

datasets; and ii) some machine learning methods

rely on hyperparameter optimization (Feurer et al.,

2015a).

Considering that AutoML targets both pre-

processing stages and model tuning and selection, it

is important to highlight techniques that can be used

for each of these challenges.

Datasets usually have inherent problems, such as

sparsity, missing values, categorical variables, or ir-

relevant features (Guyon et al., 2019). These can

be partially tackled by pre-processing techniques that

might help increase the model’s performance. Some

considered techniques to overcome these data con-

straints include (Feurer et al., 2015a; Guyon et al.,

2019; Guyon et al., 2016; Feurer et al., 2015b): i)

Variable Encoding – such as ordinal or one-hot encod-

ing, which convert categories to numbers; ii) Matrix

decomposition – such as Principal Component Anal-

ysis (PCA) that decompose data into maximally de-

scriptive components, translating to a dimensionality

reduction; iii) Univariate feature selection – by select-

ing features based on univariate statistical tests; iv)

Classiﬁcation based feature selection – leading to fea-

ture selection after an ML determining which are the

determinative features for the task; v) Feature cluster-

ing – capable of merging highly correlated features;

vi) Kernel approximation – without costly functions

of kernel approximation to all points; vii) Feature em-

bedding – projecting features on a feature space with

embedding methods (e.g. random forests); and viii)

Polynomial feature expansion – that expands a set of

features by computing polynomial combinations. In

the eSardine platform some of these pre-processing

techniques will be implemented separately from the

AutoML tool, in order to tailor and achieve the GP

goal.

Regarding the problem of tuning an ML model,

which is at the core of AutoML capacities, there are

several strategies known to address the Hyperparam-

eters Optimization (HPO) problem, namely (Claesen

and Moor, 2015): i) grid search (Bergstra and Ben-

gio, 2012; Snoek et al., 2012); ii) random grid search;

iii) Bayesian optimization (Snoek et al., 2012); iv)

genetic programming (Olson and Moore, 2019); v)

particle swarm optimization; vi) coupled simulated

annealing; and vii) racing algorithms. Each algo-

rithm poses a replacement of intrusive manual search,

which relies on previous domain knowledge and ex-

perience.

Regardless of the HPO technique used, a

good complementary strategy is to conduct Cross-

Validation (CV) as it helps avoid over-ﬁtting of the

hyperparameters to the training set (Bachoc, 2013).

Various open-source tools are already available

and implement the mentioned strategies. In particular,

during the research and implementation of the eSar-

dine, three were considered: Auto-SKlearn (Feurer

et al., 2015a), TPOT (Olson et al., 2016) and

H2O (LeDell and Poirier, 2020).

AutoSklearn is based on the scikit-learn pack-

age, applying Bayesian optimization to identify the

best pipeline from tested combinations. TPOT (Tree-

based Pipeline Optimization Tool) relies on genetic

programming to automatically design and optimized

ML pipelines. H2O’s AutoML is an open source tool

developed within the H2O.ai company. It can auto-

matically select the best-suited ML model, resorting

to a randomized grid search.

Other market options such as Auto-Weka or

TransmogrifAI were not considered due to its lower

performance (Gijsbers et al., 2019) and lack of inte-

gration with other programming languages.

2.2 XAI

Usually, more detailed and tailored models lead to

better performances. These are, however, more com-

plex and, therefore, less explainable. XAI aims at pro-

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

614

viding an explanation for either the overall model be-

havior, or the reason for a particular output (Guidotti

et al., 2018; Molnar, 2018; Lipton, 2018).

In this sense, the most characterizing classiﬁcation

of XAI models falls in two major classes: local or

global interpreters, i.e. , if the XAI models provide

global insights into the model learning process, or if it

explains a single prediction obtained at some instance,

respectively (Guidotti et al., 2018; Molnar, 2018).

Additionally, interpretable methods can also be

categorized with regard to the type of machine learn-

ing method subdue to interpretation, as well as, its

complexity.

XAI models classiﬁed according to ML models’

complexity can have (Molnar, 2018): i) an intrinsic

interpretation, if the ML algorithm is interpretable by

nature (e.g. linear models, tree based models); or ii)

post-hoc interpretation, if it will be applied to a black

box ML algorithm (e.g. : neural networks, ensem-

ble methods) to reverse engineer it. The core of the

explanation is also connected to the previous crite-

ria, as a: i) model-speciﬁc interpretation relies only

on features such as p-values or decision rules, ade-

quate for more interpretable ML models; whereas a ii)

model-agnostic interpretation is more useful for post-

hoc models, analyzing the input-output data interde-

pendencies.

Despite the distinction between types of XAI

models, all of them rely on interpretable explanators.

As described in (Guidotti et al., 2018), these can be

selected based on the problem faced or the type of ML

algorithm used, from a range of: i) decision trees; ii)

decision rules; iii) features importance; iv) saliency

masks; v) sensitivity analysis; vi) partial dependence

plots; vii) prototype selection; or viii) activation max-

imization.

From a wide range of current XAI solutions pre-

sented in (Guidotti et al., 2018; Molnar, 2018), two

open-source XAI tools were considered to integrate

the eSardine platform, based on their capability to

provide local explanations whilst being agnostic to

the ML model and data inputted: LIME (Ribeiro

et al., 2016)

and SHAP (Lundberg and Lee, 2017)

LIME (Local Interpretable Model-Agnostic Ex-

planations) creates a new dataset with protuberances

in data, which is given to the black-box model, to

assess its new prediction. In this sense, it evaluates

the impact of each feature in determining the out-

put (Ribeiro et al., 2016).

SHAP (SHapley Additive exPlanations), based on

Shapley Values and Game Coalition Theory, assesses

for each feature the weight of all alliances that can

https://github.com/marcotcr/lime

https://github.com/slundberg/shap

be made, i.e. , all combinations with and without the

feature, extracting its value. It gathers the marginal

contributions across all possible coalitions to indicate

the importance of that feature for the ML model out-

put (Lundberg and Lee, 2017).

2.3 Big Data Engine

Whereas the AutoML and Explainable require-

ments have each speciﬁc associated technologies, the

general-purpose and big data requirements both rely

on a single software engineering technology. As will

be further discussed, the general-purpose capability

is accomplished by the data handling and processing

strategies developed for the eSardine platform. These

methods were built resorting to a big data engine, to

achieve both data generalization and scalability.

Big data engines are usually characterized by

mechanisms that distribute tasks over various devices

within a cluster (Rao et al., 2019). Additionally, par-

allelization techniques are usually also applied in each

device to achieve higher computational performances.

Ultimately, the goal of providing big data analyt-

ical properties is to be capable of handling and pro-

cessing a variety of high volume data, at high compu-

tational speed (Rao et al., 2019).

Considering the industrial applicability desired for

the eSardine platform, technologies and mechanisms

beyond code optimization have to be applied in order

to make it scalable, both at data processing tasks and

at handling various heterogeneous workloads at the

same time.

Scaling the platform, in terms of its data process-

ing tasks, to the petabyte order can be done by using

frameworks and engines already designed for that

effect. While there has been a lot of developments

in this area, resulting in the existence of various big

data oriented frameworks, two standout: 1) Apache

Spark, deﬁned as a ”uniﬁed analytics engine for

large-scale data processing” (Spa, 2020) is, arguably,

the most acknowledge framework for large-scale data

processing; 2) Dask, known to be a ﬂexible library

for parallel and distributed computing in the Python

ecosystem (Das, 2020), has grown in active users due

to its simple integration with the enormous python

data science ecosystem.

The deep understanding of state-of-the-art key

technologies available and their functioning is

paramount for selecting compatible components,

whose combination foster the optimal performance

envisioned for the eSardine platform.

eSardine: A General Purpose Platform with Autonomous AI and Explainable Outputs

615

3 eSardine PLATFORM

ARCHITECTURE AND KEY

COMPONENTS

As previously mentioned the eSardine platform aims

to provide AutoML capacities associated with ex-

plainable outputs, easing the processes of data-

science and ML in the context of tabular data, regard-

less of its size. The platform’s general-purpose goal is

achieved by the data processing pipeline, itself devel-

oped upon a distributed framework to enable big data

capacity.

3.1 Design Goals

Combining and extending the design goals high-

lighted by (Erickson et al., 2020; Wang et al., 2020),

the eSardine platform was envisioned and developed

to fulﬁll the following design goals:

• Interoperability – between each key component in

the platform, maximizing beneﬁt from their joint

action;

• Integrability – of the proposed platform within the

business solution and service provided;

• Scalability – to be able to handle in the petabyte

order a day, according to business requirements;

• Versatility – to adjust to a variety of struc-

tured datasets that may be provided, fulﬁlling the

general-purpose business requirement;

• Reactivity – to provide near real-time predictions

when operating in the business context;

• Simplicity – in its usage, requiring few interven-

tions for both experts and non experts users;

• Conﬁgurability – enabling users to incorporate

business knowledge and maximizing performance

based on experience;

• Flexibility to pluggable operations - enabling

users to develop custom processing transformers

and ﬁlters, if not within the available ones;

• Versionability – complying with business require-

ments of retraining and improving models based

on previous ones, preserving previous knowledge

while integrating new data variability;

• Robustness – providing strong results regardless

of the input conditions or the dataset;

• Timing predictability – by being able to deﬁne and

limit training time and/or ML models’ family in

accordance with the experiments carried out by

the user.

3.2 Global Architecture

In order to fulﬁl the presented design goals, Figure 1

illustrates the global architecture of the eSardine plat-

form.

First, eSardine platform performs an analysis of

the input data, to extract the dimension of its feature

space and the different data types present. Then, the

Describer module computes a predeﬁned set of infor-

mation retrieval functions to overall describe the input

data. At the same time, this module has the capability

to propose a set of transformations ought to be applied

to the input data, by the Transformer module. Based

on either the Describer recommendations or the user

predeﬁned transformations, the eSardine platform in-

stantiates a set of pre-processing transformations in

the Pre-processor module. The Transformer module

then applies these transformations to the data. Dur-

ing the learning phase, the output of the Transformer

module, combined with the target labels, sets the clas-

siﬁcation task and validation schema. These modules

are further described in detail in Section 4.1. The ﬁnal

stage of eSardine considers h2o.autoML, to learn and

obtain estimations for each input sample, followed by

an interpretability stage, detailing the motivation for

each outputted prediction. Section 3.3.1 and Section

3.3.2 detail the speciﬁcations of H2O AutoML and

LIME, respectively, being both components evaluated

on Section 5 and Section 6, respectively.

3.3 Key Components

The core of eSardine relies on the interoperability

among three key components: AutoML, XAI, and big

data components. The selection of these components

was based on their characteristics, compatibility and

capacity to fulﬁll the eSardine requirements.

In this work, we present a fully automatic data

processing and data modeling pipeline, built upon the

open-source key players H2O AutoML, LIME, and

Apache Spark tools, as shown in Table 1.

Table 1: Key functionalities considered in the eSardine plat-

form and respective selected packages (i.e. components).

Functionalities Pacakges

Automatic Machine Learning H2O AutoML

Explainable AI LIME

Big Data Engine Apache Spark

Among the tools considered for AutoML, dis-

cussed in Section 2, H2O AutoML stands out as the

most suitable package, given its capabilities of: i) be-

ing made available by an industry leader, which im-

plies reliable and stable versions, with a strong com-

munity, for both use and support; ii) independent and

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

616

Figure 1: Overview of the eSardine modules and its operation mode during the distinct phases of application.

automatic control over the life cycle of machine learn-

ing models, as opposed to pipelines, enabling the in-

tegration with the platform capability of tailoring the

dataset preparation steps; iii) model checkpointing

easing the versioning process; iv) distributed com-

puting, enabled by H2O Clusters, aligned with plat-

form’s big data oriented requirement. Additionally,

the easy integration, based on H2O’s light system re-

quirements, and the capacity of tailoring the mod-

els selection and parameters optimization were also

considered. The model selection being conducted on

cross-validation metrics also fosters its robustness and

increases trust in models’ performance.

AutoSklearn, in the context of big data applica-

tions, was discarded given that it was developed hav-

ing as target small to medium-sized datasets (Feurer

et al., 2015a). Also, its pipeline optimization strategy

explores a ﬁxed set of pipelines, which only include

one data processor and model (Olson et al., 2016).

This interferes with GP capacities and may compro-

mise performance, integration, and tailoring of the

pre-processing steps in the eSardine platform. The

AutoSklearn is also less interoperable due to its sys-

tem requirements.

TPOT, despite based on scikit-learn package, al-

lows multiple operator combinations and distributed

training, which is essential for big data analysis.

Also, model selection is based on cross-validation

performances, and model saving is optional. These

would make TPOT the next best choice. However, its

pipeline-based approach, instead of model optimiza-

tion, the required computational time (Olson et al.,

2016), complex model retrain, and lower established

community favored the choice of the H2O AutoML

tool.

Additionally, a benchmark study, comparing Au-

toML tools, has identiﬁed the H2O AutoML tool as

H2O’s method that allows building a new model on top

of a previously trained one as new data is considered

the best performing across various datasets (Ferreira

et al., 2020), which highlight its generalization capac-

ities, useful for integration in the eSardine platform.

H2O AutoML is reported to be the most widely used

framework in the ﬁeld, outperforming other available

solutions (Erickson et al., 2020).

Simultaneously, it was assessed and veriﬁed the

integration capacity of H2O AutoML with available

XAI tools. Comparing LIME and SHAP models, it

was considered the former to be more integrable with

H2O AutoML. However, the platform was built so

that future versions can easily integrate another XAI

tool.

Being the eSardine built to be a general-purpose

AutoML tool with explainable output for small and

big data analysis, despite requirements addressing

tabular data, components were selected based on their

agnostic relation to data. In this sense, the platform

can evolve and be scaled to other data characteristics,

without future versions being limited by its compo-

nents’ limitations.

3.3.1 H2O AutoML Speciﬁcations

H2O AutoML solution (LeDell and Poirier, 2020),

automatically trains, tunes, and selects the best per-

forming model, for a given dataset, from a leader-

board of trained and tuned models. It resorts to a ran-

domized grid search for the HPO problem, training

and cross-validating both classiﬁcation and regression

models. The leader models are obtained from cross-

validation results, being the performance metrics ad-

justed to the problem considered, which increases re-

liability in the overall performance of the model to be

deployed. The number of models trained, the metrics

by which they are assessed, the time available to tune

them, and which models should be included/excluded

are all conﬁgurable parameters. This allows a more

problem-speciﬁc adjustment of the tool. The models

eSardine: A General Purpose Platform with Autonomous AI and Explainable Outputs

617

available include a default Random Forest (DRF), an

Extremely Randomized Forest (XRT), pre-speciﬁed

H2O Gradient Boosting Machines (GBMs), a random

grid of XGBoost GBMs and H2O GMBs, a random

grid of Deep Neural Nets, and a ﬁxed grid of GLMs’.

H2O AutoML can also train two Stacked Ensemble

models, one with all models and another with the best

performing from each algorithm family. Considering

the architecture presented previously, the checkpoint-

ing capacity of the H2O models is crucial, responsible

for enabling model retrain based on new additional

data. Due to this necessity, H2O AutoML ensemble

algorithms are, by default, discarded, being a conﬁg-

urable number of models in the leaderboard saved for

retraining and posterior ensemble within the eSardine

platform. Stacked ensemble models are built inside

the eSardine platform but out of the H2O, allowing a

continuous update of the models and their versions.

3.3.2 LIME Speciﬁcations

Linked with each H2O leader model, there is a XAI

model, in this case, a LIME model. LIME (Ribeiro

et al., 2016) focuses on training local surrogate mod-

els to explain individual predictions of the black-box

model. These surrogate models are trained in order

to approximate the predictions of the associated ML

model that they try to explain (Molnar, 2018; Ribeiro

et al., 2016). To do so, LIME creates a new set by per-

turbing the original samples, from the training set pro-

vided to H2o AutoML, and assesses the correspond-

ing predictions using the leader model, in order to test

its behavior according to those data variations or per-

turbations. LIME uses feature importance as an inter-

pretable explanator, thus varying them and identifying

separately which features lead to which result.

While capable of providing explanations for any

ML model and any type of data (tabular, text and im-

ages) (Molnar, 2018; Ribeiro et al., 2016), the main

drawback of LIME is the fact that it relies on data per-

turbations, which might be unstable or prone to sam-

pling issues (Molnar, 2018).

Considering the possible retrain and versioning

of H2O leaders and leaderboards, every new update

to the leader model requires a newly trained LIME

model, which is equally versioned and coupled with

its associated ML model.

3.3.3 Platform’s Big Data Oriented

Requirements

Selecting a big data oriented engine capable of han-

dling up to the petabyte order a day in near real-time

requires thorough assessment between the considered

frameworks: Apache Spark and Dask. Whereas Spark

is known to be a strong choice for scalable analyt-

ics, Dask enables easy integration with various python

packages. Therefore, a benchmark analysis was con-

ducted to identify the optimal big data engine to op-

erate at the core of the eSardine platform.

This analysis resorted to the New York City Yel-

low Taxi Trip (YTT-NYC) Record Data, years 2011,

2012 and 2013

, whose column’s type heterogene-

ity (including numeric, Boolean and categorical vari-

ables) and volume are representative of the challenges

that the eSardine platform might face. Each year’s

data is accountable for 32 GB, which were organized

into 4 distinct datasets: 1) YTT-NYC’11, compris-

ing the year 2011 of YTT-NYC; 2) YTT-NYC’11

and YTT-NYC’12; 3) YTT-NYC’11, YTT-NYC’12

and YTT-NYC’13; 4) In the union of the 2011, 2012

and 2013 datasets, followed by the union with itself

which, in terms of size, made this last dataset have

around 190 GB of size.

For each of these sets of data, the benchmark pro-

cess followed the following guidelines strictly:

• Every execution was performed three times and

the value considered was the average of those

three executions. The goal was to rule out one-

hit wonders.

• Any failure and recovery that happened was not

disregarded and was made part of the comparison,

providing information regarding the consistency

and availability of the engine.

• The frameworks were test-stressed at 10%-20%,

i.e. , the underlying hardware in terms of RAM

(Random Access Memory) should only cover 10

to 20% of the size of the dataset in, at least, two

different end-to-end executions.

• Every end-to-end execution should go through

and measure execution times of four main steps:

1. build the dataset (reading and appending) and

persisting it in the Dask or Spark cluster;

2. calculate the average trip distance grouped by

the passenger count;

3. calculate the average fare amount grouped by

the payment type; and

4. ﬁt and transform the data with a pre-processing

pipeline. The pre-processing pipeline applies

10 operations: eight standard scaling normal-

ization operations and two ordinal encoding op-

erations.

The computational capability enabled by the hard-

ware used in both Dask and Spark runs was equivalent

Amazon S3 bucket: https://registry.opendata.aws/nyc-

tlc-trip-records-pds/

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

618

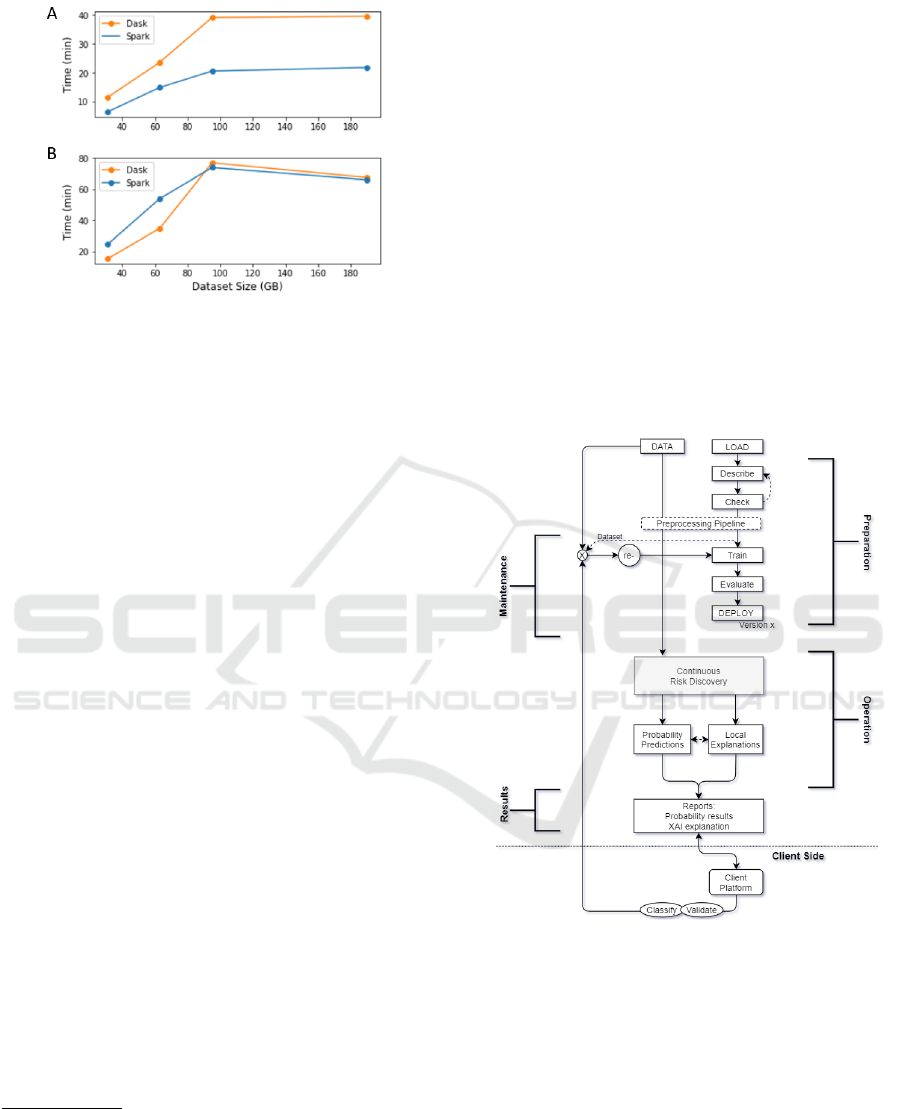

Figure 2: Frameworks comparison as data volume in-

creases: A) when applying the pre-processing pipeline

(step 4); and B) when reading data and applying the pre-

processing pipeline (steps 1 and 4).

for comparison purposes. The ﬁrst 3 datasets (with

31 GB, 63 GB and 95 GB) were executed (end-to-

end) on a cluster with two workers

, having these

resources been doubled for the last dataset (190 GB).

The stress test evaluated the frameworks’ robust-

ness by increasingly diminishing computational ca-

pacity as data volume increased

This big data oriented assessment compared both

frameworks’ performances, at each processing step,

as data volume increases (Figure 2).

It was found that, while Dask surpassed Spark

performances during step 1 (reading and appending),

Spark strongly outperformed Dask in both grouping

operations (steps 2 and 3). Please see the supplemen-

tary material for additional information.

. Consid-

ering the background of the eSardine platform and

the challenges it might face, grouping operations are

likely to be more recurrent and demanding than step 1

operations. The performance results obtained for step

4 are presented in Figure 2 A), showing that Spark

is consistently and increasingly faster than Dask in

applying a pre-processing pipeline. Figure 2 B) il-

lustrates the summed time required for reading and

applying the given pre-processing pipeline, to better

perceive how both frameworks would behave in a real

use case.

Although Dask handled the 2 lower-sized datasets

faster, mainly due to its higher efﬁciency in data in-

gestion tasks, Spark overthrown Dask as data volume

increased, establishing itself as the overall best frame-

Each worker included four cores and 8GB of RAM

Computational capacity determined by RAM/Size,

with 51.6%, 25.4%, 16.8% and 16.8% ratios for each

dataset respectively

Besides being less efﬁcient, one of Dask’s workers ran

out of memory and was not able to automatically reboot,

requiring human interaction

work to include in the eSardine platform. Addition-

ally, apart from the high performance in applying a

pre-processing module, Spark’s efﬁciency when han-

dling grouping, aggregation, and ﬁltering tasks make

it the optimal framework to implement customized

operations with.

4 PLATFORM LIFE CYCLE

The eSardine platform architecture was designed in

order to cohesively connect its key components in a

distributed strategy, to ensure that all requirements

are fulﬁlled. The platform architecture integrates four

main stages: preparation, operation, results and main-

tenance, as illustrate in Figure 3. These stages com-

prehend the entire cycle of data and models through

time.

Figure 3: eSardine platform data ﬂowchart.

4.1 Preparation

Preparation is a key stage of the eSardine platform,

built in accordance with the GP requirement, to al-

low full control over data pre-processing actions. This

stage is responsible for setting the platform ready for

operation on demand.

This stage comprehends actions ranging from the

inputted dataset to a trained ML and XAI models for

deployment. After loading the dataset that will ini-

tially be used to train and test the models, the ﬁrst

provided output from the platform is a description

eSardine: A General Purpose Platform with Autonomous AI and Explainable Outputs

619

and analysis of the dataset. This description phase

allows the user to understand any characteristics and

highlight concerns regarding the dataset, such as the

type of features included, the nature of their corre-

lation, the occurrence of missing values, the features

relevance and their contribution to the dataset global

information, class imbalance, among others. From

this analysis, the describer module also suggests a

schema, which globally characterizes the type of data

of each feature, and recommends applicable ﬁlters

and transformations, to foster an increase of models’

performance. The criteria for inclusion/exclusion of

data is conﬁgurable, but default parameters are set

to ensure the ﬂow in case of no intervention from

the user. Explanations on the actions to be taken are

given, to increase users’ awareness and foster inter-

vention and customization. This process occurs iter-

atively, since after checking which actions are sug-

gested, the user can customize this schema as many

times as necessary before training. If no user input

is given, the suggested schema is used, automating

the pipeline and ﬂow of data in the eSardine plat-

form. The pre-processing pipeline established by this

schema is preserved, since new data must undertake

the same processing actions before being assessed by

the model or used for retraining.

Once data is pre-processed, the training module

resorts to AutoML to identify the best performing

model from a leaderboard of tuned models. The num-

ber of models, training time, metrics applied, among

other criteria, can be conﬁgured by the user. As dis-

cussed, the leader model selection is based on cross-

validation performance to increase model reliability

for deployment. Using a podium of conﬁgurable

number of models from the leaderboard, a stacked en-

semble is computed for each combination of the mod-

els from that podium. The ensembles’ performance

is also assessed in cross-validation and the best en-

semble is compared to the leader, in order to identify

which model should be deployed in the initial version

of this pipeline.

Once the ML model is selected, the XAI model

can be trained. In each deployed version are released

both an ML model and its own XAI model There-

fore, each ML model has its own XAI model, being

both deployed in each version. Along with the leader

and its associated XAI model, the conﬁgured podium

is saved, as it will be necessary for the maintenance

stage.

This stage ends with the deployment of a fully

trained and tuned H2O model and its respective LIME

model.

4.2 Operation

With the deployment of a stable version of an ML

model and its respective LIME explanator, the eSar-

dine platform operates continuously in order to pre-

dict and explain each sample that arrives by stream-

ing or batch. This data has previously been processed

by the pre-processing pipeline approved during the

preparation stage.

The output of continuous risk discovery has two

parcels: the ML model deployed is responsible for

providing the prediction’s probability, and LIME for

the explanation of that prediction.

4.3 Results

The results correspond to the outputs of the operation

stage which are made available to the user. These can

be accessed in a report, that includes, for each sample,

both the probabilities given by the ML model, and the

explanation provided by LIME. The classiﬁcation is

conducted at the user’s end, having control over the

best suited threshold for the task, which in turn al-

lows the possibility of deﬁning a gray zone threshold,

i.e. , a range of probabilities that require additional at-

tention from the user. The samples in the gray zone

can be targeted for a new manual classiﬁcation useful

for future models’ retrain.

4.4 Maintenance

Maintenance is the stage responsible for keeping the

models up to date and reactive to changing data

trends. The eSardine platform allows models ver-

sioning, i.e. , replacing the deployed models with new

ones trained on new or corrected data, guaranteeing

the best performance, adjusted to subtle differences

in data through time. New versions will be released

as a result of the maintenance stage, and this process

can be conﬁgured to occur automatically after a given

time or number of samples processed.

The new data, that is continuously assessed by the

currently deployed version, can be used for posterior

model retrain and version update, allowing this model

to absorb more information and update its previously

tuned parameters.

Also, as shown in Figure 3, the platform interacts

with the client through users, whose expert judgment

can be useful to increase models’ performance. The

user’s feedback to the obtained results grants model

validation and might unlock further performance lev-

els. Apart from the classiﬁcations given that do not

attract attention, the samples that have a grey area

probability, which by nature underline bias scenarios,

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

620

might be manually classiﬁed by an experienced user,

and fed for model retraining.

Model’s maintenance occurs not only on the

leader of the current version, but also to the podium

saved during preparation. In fact, new data may lead

one of these models to outperform the retrained past

leader, especially considering ML models that require

large amounts of data to adequately tune their param-

eters. Besides retraining the podium and assessing

its new performances on CV, the stacked ensemble of

each combination of these retrained models is com-

puted, and its performance analyzed. From this pro-

cess, a new leader and podium are saved. In case the

best performing algorithm is the one from the pre-

vious version, it shall remain the operating model.

However, the retrained podium is saved and used in

the next retrain iteration, as it contains the last overall

data information.

Once deﬁned the leader, the LIME model is com-

puted, and that version is deployed for operation. In

this sense, for each version, it is preserved the leader,

the podium and the associated XAI model.

5 PLATFORM’S PERFORMANCE

To assess the eSardine platform capabilities, two

datasets were considered: the CrowdAnalytix Churn

prediction dataset and the Wine Quality prediction

dataset. The selection of these datasets, which require

different processing techniques and are handled as

distinct ML tasks, aimed to demonstrate the general-

purpose capabilities of the platform. Having this plat-

form been built in partnership with a player in the

telecommunication industry, the Churn dataset exem-

pliﬁes a use case for this sector, handled as a binary

classiﬁcation problem. The Wine Quality dataset is

handled as a regression problem, with the particular-

ity of the model’s performance being evaluated as a

multi-class classiﬁcation problem.

Also, addressing the open issue highlighted by

(Hanussek et al., 2020) stating the lack of compari-

son between expert human tuning and AutoML, this

work evaluates the performance of the eSardine plat-

form with the interaction of a human data scientist.

To emphasize the advantages of resorting to the

eSardine platform, model’s performances were ob-

tained for 3 independent analysis scenarios: i) us-

ing purely the H2O AutoML tool; ii) using the eSar-

dine platform set by its default parameters and with

the automatic schema; and iii) customizing parame-

ters in the eSardine platform, both in terms of pro-

cessing schema and training settings. The presented

performance metrics were obtained with CV, aver-

aged among 3 isolated training runs. Methodology

was deﬁned to be equivalent to the previous work on

these datasets (Churn -(Umayaparvathi and Iyakutti,

2016) , Wine Quality - (Cortez et al., 2009)), having

the Churn dataset been evaluated on 10 fold cross-

validation metrics and the Wine Quality dataset as-

sessed resorting to 5 fold cross-validation metrics.

Churn Prediction

Churn is a major problem in the telecommunication

industry, which reﬂects the will of a customer to un-

subscribe a given service. Since the costs of obtaining

a new costumer are higher than retaining an existing

one (Umayaparvathi and Iyakutti, 2016), the task of

predicting churn costumers can represent signiﬁcant

savings. The dataset considered has 3333 samples,

with 20 features to predict the binary target variable

of Churn, whose occurrence accounts for 14.5% of

all data. H2O AutoML evaluated the performance on

this dataset resorting to the accuracy as ranking score

to select the top classiﬁcation model. In addition, it

also computed commonly used metrics for classiﬁca-

tion tasks, namely the F1-Score, Precision and Recall.

Following the described methodology, Table 2

summarizes the performance results obtained for the

Churn dataset

910

The results obtained outperform current the State-

of-the-Art (SoA) (Umayaparvathi and Iyakutti, 2016),

with incremental performance between the three eval-

uated scenarios. The best results are obtained from

slight tweaking the automatically proposed process-

ing phase of the eSardine platform. As shown, H2O

tool provides a solid baseline in comparison with SoA

performance, whose results are only enhanced by the

processing architecture of the eSardine platform. This

automatic processing architecture emerges based on

the inherent characteristics of the dataset and its fea-

ture types. It included: the exclusion of 4 features

due to the high correlation value with other features,

the exclusion of another feature based on the percent-

age of the unique values, the encoding of 4 categori-

cal features (including the target) having one of these

been segmented into an others class due to its spar-

sity. Upon these strong processing steps suggested by

the platform, the customization added a standard scal-

ing of data, binning and encoding of features based on

business context. Additional class balancing (ratio of

Number of cross-validation folds and performance

metrics

Performance metrics focus the class Churn, i.e. , com-

puted using the occurrence of Churn as the positive class

The AutoML tunes as selects leader models, being the

most common models in the H2O methodology the GBM,

and in both eSardine methodologies the XGBoost

eSardine: A General Purpose Platform with Autonomous AI and Explainable Outputs

621

Table 2: Performance results obtained for the CrowdAnalytix Churn dataset.

H2O eSardine eSardine custom SoA

Accuracy 0.9492 ± 0.0148 0.9558 ± 0.0124 0.9601 ± 0.0123 0.9520

Precision 0.8561 ± 0.0603 0.8849 ± 0.0590 0.9166 ± 0.0656 0.9088

Recall 0.7872 ± 0.0376 0.8016 ± 0.0492 0.8029 ± 0.0387 0.7433

F1-Score 0.8195 ± 0.0405 0.8399 ± 0.0423 0.8544 ± 0.0362 0.8178

0.9 and 1.5 for the under and over-sampled classes, re-

spectively) was implemented without signiﬁcant per-

formance increase.

Wine Quality Prediction

Considering the wine quality prediction task, the

dataset used was originally developed by (Cortez

et al., 2009), and it is split between white and red

wine. The analysis conducted resorted to the white

wine dataset, which includes 4898 samples of distinct

white wines and 11 characteristics to characterize the

quality. Conceptually, the quality can range from 0

(very bad) to 10 (excellent), yet the present dataset

only contains ranges between 3 and 9. Although there

are multiple quality classes, this dataset was handled

as a regression problem, evaluated with Mean Aver-

age Error (MAE) and then cross-validation predic-

tions accuracy computed within different tolerances,

promoting adequate comparison with the SoA results

from (Cortez et al., 2009). Tolerance of 0.25, 0.5, and

1 (T=0.25, T=0.5, T=1) were considered, meaning a

class is considered to be well predicted if within these

ranges (above and below). The results of these 3 dif-

ferent scenarios are shown in Table 3, averaged across

3 independent runs, each with 5 fold cross-validation

metrics

Overall, results show that every scenario con-

sidered outperformed current SoA results, either

in deviance from the original value, and in each

computed accuracy. As the White Wine dataset used

is already very clean, the automatic pre-processing

schema provided by the eSardine platform does not

add any step. Therefore, the results obtained between

H2O and automatic eSardine do not present signiﬁ-

cant variance. For this type of dataset, since data do

not require processing for performance enhancement,

the pre-processing stage focused on fostering the

understanding of dataset’s characteristics. For the

customized runs of the eSardine platform, a standard

normalization of zero mean and unit deviation was

included. Due to the unbalanced nature of data

a class balancing with under and oversampling was

The AutoML tuning and selection elected as leaders

mostly XGBoost models across all three methodologies

Class relative frequency: 3: <1%; 4: 3%; 5: 30%; 6:

45%; 7: 18%; 8: 4%; 9: <1%

also considered

. The combination of these two

additional processing stages led to an increase of

performances across all metrics, achieving the top

rank in this analysis.

The obtained results on both datasets demon-

strate that eSardine has the capability to outperform

the current SoA. Furthermore, it has been already

evaluated in a real-life conﬁdential business dataset

attaining robust classiﬁcation performances. Thus, in

an era where the increasing use and demand of Au-

toML highlights the need for more robust solutions

(Wang et al., 2021), eSardine platform presents itself

as ready to fulﬁll the promise of increasing business

value in demanding industrial contexts.

6 EXPLAINABLE OUTPTS

As previously mentioned, explainable outputs im-

prove user experience with ML, since these promote

trust in both the quality and reliability of the models

and in the accuracy of the results. In business con-

texts, this is fundamental so that decisions are made

based on solid knowledge of What is happening and

Why is happening.

To exemplify LIME’s behavior within the eSar-

dine platform, a set of examples on the CrowdAna-

lytix Churn dataset is given. The explainer was built

on top of an ML model, in this case, a model obtained

during a customized eSardine platform run. There-

fore, the pre-processing stages considered in the pre-

vious section are built-in the model and expressed in

the explanations given.

In this analysis, three distinct scenarios are cov-

ered: i) an instance is correctly predicted as not churn;

ii) an instance is predicted as churn; iii) an instance is

incorrectly predicted as not churn. Figure 4 presents

the results obtained for these scenarios, respectively.

In this ﬁgure, the color blue is associated with

characteristics and probabilities of not incurring in

churn, whereas orange is linked to churn. To the

left are the probabilities computed by the ML model,

which in this case is an XGBoost classiﬁer, follow-

ing the customized eSardine pre-processing, with 117

Sampling ratio per class, in ascendant order: 1.3; 1.2;

1; 0.8; 1; 1.2; 1.3

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

622

Table 3: Performance results obtained for the White Wine Quality dataset. Bold values comprehend the highest scores per

each evaluated metric.

H2O eSardine eSardine custom SoA

MAE 0.3878 ± 0.0094 0.3872 ± 0.0090 0.3830 ± 0.0083 0.4500

Accuracy

T = 0.25

0.5284 ± 0.0109 0.5295 ± 0.0096 0.5317 ± 0.0149 0.5030 ± 0.0110

Accuracy

T = 0.50

0.6967 ± 0.0112 0.6969 ± 0.0113 0.6997 ± 0.0094 0.6460 ± 0.0040

Accuracy

T = 1.00

0.9034 ± 0.0079 0.9028 ± 0.0073 0.9048 ± 0.0057 0.8680 ± 0.0020

Figure 4: LIME Explanations: A) correctly predicted not churn; B) correctly predicted churn; and C) incorrectly predicted as

not churn.

trees, 10 fold cross-validation, and trained with 90%

of data. The remaining 10% were considered as test-

ing set so that new data could be impartially pre-

dicted and explained by both the model and its LIME

explanator, respectively. Due to the mentioned pro-

cessing, only 15 features are valuable for predicting

churn, being presented in the explanations only the

top-10 contributing ones. The tables on the right side

of this ﬁgure indicate in descending ranking the fea-

tures which contributed to the prediction/explanation

and their true value, shaded in the color of the bi-

nary class for which they have contributed. The center

column provides a visual explanation of the individ-

ual contribution of the key features towards a speciﬁc

class. These features, displayed against the central

black line of zero weight for the prediction, are as

long as their contribution, and in the color and side

of the class they promote. Analysing this information

increases reliability in the model, as features with the

same value are consistently placed towards the same

class. For example, the international plan: no targets

the no not Churn class or the number vmail messages

in the bin [-0.051, 10.2], i.e. , below 10 calls fosters

a Churn classiﬁcation. These are criteria guidelines

towards each class, internally computed by the XAI,

which the user can validate if aligned with previous

business knowledge and limitations (it may be ac-

knowledged that a given state is more likely to churn,

or that the subscription of a speciﬁc plan encourages

the user to not churn).

By observing the features contributions and their

consistency across different instances, scenarios A)

and B) of Figure 4 are easily understood by their

adequate prediction of not churn and churn, respec-

tively. However, scenario C) where a churn case was

missed and predicted as non-churn demands a more

in depth analysis. While the classiﬁcation conﬁdence

(i.e. the output probability) is not as certain as in the

previous scenarios, the international plan: no has a

high contribution to this prediction. In fact, this fea-

ture contributes with 0.24 to the 0.72 certainty of not

churn, for which, without this speciﬁc characteristic,

eSardine: A General Purpose Platform with Autonomous AI and Explainable Outputs

623

this scenario would only be predicted to 0.48 as not

churn, and therefore accurately predicted. Although

misclassiﬁed, this instance also increases trust in the

robustness of this model, since this speciﬁc feature is

the one with the biggest weight on the intrinsic cri-

teria, and even though this costumer has churned, its

behavior was similar to a non-churn client.

Overall, the concept of AutoML increases the

lack of trust in models, since there is little control

over which model and tuned parameters are selected.

The inclusion of LIME explanations in the eSardine

platform is a step forward to help increase reliabil-

ity and intelligibility in the models obtained and to

help mitigate the concept of black boxes in ML. De-

spite extremely helpful, future work still needs to be

conducted to increase XAI results’ interpretability to

users not familiar with data analytics processes.

7 CONCLUSION

The eSardine is a general-purpose platform, big data

oriented, capable of providing new insights into data

and extract powerful models, while accessible and

understandable by a wide range of users in various

sectors. This platform provides a fully functional

and independent operating system, with adequate pre-

processing steps, visual feedback on the data distribu-

tion and its properties, AutoML capacities associated

with explainable outputs, and the possibility to retrain

and update. In this way, the models can be updated,

for a continuous life cycle of operation, which is a key

functionally in the business sector.

Although automatic and autonomous, the user can

tailor each step in the process to improve perfor-

mance, from how to handle missing values, to which

meta-learner is used in the ensemble, or when should

the model be retrained. For new users or new data,

the platform can provide, without intervention and

knowledge on the data, the best customization of its

GP processes based on the inherent characteristics of

the dataset.

Ultimately, this is both a versatile and highly efﬁ-

cient platform, allowing an automatic functioning for

fast and reliable results, with the tailoring functionali-

ties that a user may require to enhance performance

for a given task. Nonetheless, there is still room

for improvement, where we envision the inclusion

of NLP and image recognition processing pipelines,

which will be uniﬁed with the AutoML and XAI mod-

ules, promoting a fully data-agnostic GP platform.

Being explainability a recent area of research, efforts

will also be conducted to ensure that reports built on

XAI outputs are understandable outside the data sci-

ence line of business.

The general-purpose function enabled by the inte-

gration of GP tools and the tailoring of each process-

ing pipeline and data description widens the range of

applications. The concern for the use of distributed

computing tools ensures top and fast performances

while handling big data. The integration of AutoML

and XAI models enables fast results without compro-

mising performance and ensuring user’s trust in both

the model and results given. The understanding is also

fundamental in business to understand weak spots and

liabilities and target them with preventive and correc-

tive actions. Retrain enables the use of this tool by

companies, where data is collected ceaselessly.

The uniﬁcation of these functionalities in the eSar-

dine platform results in a powerful analytics tool that

can foster the growth of several businesses while un-

veiling the power of ML in an understandable manner.

ACKNOWLEDGEMENTS

This work has been supported by NORTE-06-3559-

FSE-000018, integrated in the invitation NORTE-59-

2018-41, aiming the Hiring of Highly Qualiﬁed Hu-

man Resources, co-ﬁnanced by the Regional Opera-

tional Programme of the North 2020, thematic area of

Competitiveness and Employment, through the Euro-

pean Social Fund (ESF).

REFERENCES

(2020). Apache Spark - Uniﬁed analytics engine. https:

//spark.apache.org/.

(2020). Dask - Scalable analytics in Python. https://dask.

org/.

Bachoc, F. (2013). Cross validation and maximum likeli-

hood estimations of hyper-parameters of gaussian pro-

cesses with model misspeciﬁcation. Computational

Statistics & Data Analysis, 66:55–69.

Bergstra, J. and Bengio, Y. (2012). Random search for

hyper-parameter optimization. Journal of Machine

Learning Research, 13(10):281–305.

Claesen, M. and Moor, B. D. (2015). Hyperparameter

Search in Machine Learning. XI Metaheuristics In-

ternational Conference, pages 10–14.

Combes, B., Herweijer, C., Ramchandani, P., and Sidhu,

J. (2018). Fourth Industrial Revolution for the Earth

Harnessing Artiﬁcial Intelligence for the Earth. World

Economic Forum.

Cortez, P., Cerdeira, A., Almeida, F., Matos, T., and Reis,

J. (2009). Modeling wine preferences by data mining

from physicochemical properties. Decision Support

Systems, 47(4):547–553.

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

624

silovi

c, F. K., Br

c, M., and Hlupi

c, N. (2018). Ex-

plainable artiﬁcial intelligence: A survey. In 2018 41st

International convention on information and commu-

nication technology, electronics and microelectronics

(MIPRO), pages 0210–0215. IEEE.

Erickson, N., Mueller, J., Shirkov, A., Zhang, H., Larroy,

P., Li, M., and Smola, A. (2020). Autogluon-tabular:

Robust and accurate automl for structured data. arXiv

preprint arXiv:2003.06505.

Ferreira, L., Pilastri, A., Martins, C., Santos, P., and Cortez,

P. (2020). An automated and distributed machine

learning framework for telecommunications risk man-

agement. In ICAART (2), pages 99–107.

Feurer, M., Klein, A., Eggensperger, K., Springenberg, J.,

Blum, M., and Hutter, F. (2015a). Efﬁcient and robust

automated machine learning. In Advances in neural

information processing systems, pages 2962–2970.

Feurer, M., Klein, A., Eggensperger, K., Springenberg,

J. T., Blum, M., and Hutter, F. (2015b). Supplemen-

tary material for efﬁcient and robust automated ma-

chine learning. Advances in Neural Information Pro-

cessing Systems, pages 1–13.

Gijsbers, P., LeDell, E., Thomas, J., Poirier, S., Bischl, B.,

and Vanschoren, J. (2019). An open source automl

benchmark. arXiv preprint: 1907.00909.

Gilpin, L. H., Bau, D., Yuan, B. Z., Bajwa, A., Specter,

M., and Kagal, L. (2018). Explaining explanations:

An overview of interpretability of machine learning.

In 2018 IEEE 5th International Conference on data

science and advanced analytics (DSAA), pages 80–89.

IEEE.

Goodman, B. and Flaxman, S. (2017). European union reg-

ulations on algorithmic decision-making and a “right

to explanation”. AI magazine, 38(3):50–57.

Guidotti, R., Monreale, A., Ruggieri, S., Turini, F., Gian-

notti, F., and Pedreschi, D. (2018). A survey of meth-

ods for explaining black box models. ACM computing

surveys (CSUR), 51(5):1–42.

Guyon, I., Chaabane, I., Escalante, H. J., Escalera, S.,

Jajetic, D., Lloyd, J. R., Maci

a, N., Ray, B., Ro-

maszko, L., Sebag, M., et al. (2016). A brief review of

the chalearn automl challenge: any-time any-dataset

learning without human intervention. In Workshop on

Automatic Machine Learning, pages 21–30.

Guyon, I., Sun-Hosoya, L., Boull

e, M., Escalante, H. J.,

Escalera, S., Liu, Z., Jajetic, D., Ray, B., Saeed, M.,

Sebag, M., et al. (2019). Analysis of the automl chal-

lenge series. Automated Machine Learning, page 177.

Hanussek, M., Blohm, M., and Kintz, M. (2020). Can

automl outperform humans? an evaluation on popu-

lar openml datasets using automl benchmark. arXiv

preprint arXiv:2009.01564.

He, X., Zhao, K., and Chu, X. (2021). Automl: A sur-

vey of the state-of-the-art. Knowledge-Based Systems,

212:106622.

Hutter, F., Kotthoff, L., and Vanschoren, J. (2019). Au-

tomated machine learning: methods, systems, chal-

lenges. Springer Nature.

LeDell, E. and Poirier, S. (2020). H2o automl: Scalable

automatic machine learning. In 7th ICML workshop

on automated machine learning.

Lipton, Z. C. (2018). The mythos of model interpretability.

Queue, 16(3):31–57.

Lundberg, S. M. and Lee, S.-I. (2017). A uniﬁed approach

to interpreting model predictions. In Advances in neu-

ral information processing systems, pages 4765–4774.

Miller, T. (2019). Explanation in artiﬁcial intelligence: In-

sights from the social sciences. Artiﬁcial Intelligence,

267:1–38.

Molnar, C. (2018). Interpretable Machine Learning - A

Guide for Making Black Box Models Explainable.

Olson, R. and Moore, J. (2019). Automated Machine Learn-

ing, chapter TPOT: A Tree-Based Pipeline Optimiza-

tion Tool for Automating Machine Learning, pages

151–160. Springer.

Olson, R. S., Bartley, N., Urbanowicz, R. J., and Moore,

J. H. (2016). Evaluation of a tree-based pipeline op-

timization tool for automating data science. In Pro-

ceedings of the Genetic and Evolutionary Computa-

tion Conference 2016, GECCO ’16, pages 485–492,

New York, NY, USA. ACM.

Rao, T. R., Mitra, P., Bhatt, R., and Goswami, A. (2019).

The big data system, components, tools, and technolo-

gies: a survey. Knowledge and Information Systems,

pages 1–81.

Ribeiro, M. T., Singh, S., and Guestrin, C. (2016). ” why

should i trust you?” explaining the predictions of any

classiﬁer. In Proceedings of the 22nd ACM SIGKDD

international conference on knowledge discovery and

data mining, pages 1135–1144.

Snoek, J., Larochelle, H., and Adams, R. P. (2012). Prac-

tical Bayesian Optimization of Machine Learning Al-

gorithms. Advances in Neural Information Processing

Systems 25 (NIPS), pages 1–9.

Umayaparvathi, V. and Iyakutti, K. (2016). Attribute se-

lection and customer churn prediction in telecom in-

dustry. In 2016 international conference on data min-

ing and advanced computing (sapience), pages 84–90.

IEEE.

Wang, B., Xu, H., Zhang, J., Chen, C., Fang, X., Kang,

N., Hong, L., Zhang, W., Li, Y., Liu, Z., et al.

(2020). Vega: towards an end-to-end conﬁgurable au-

toml pipeline. arXiv preprint arXiv:2011.01507.

Wang, X., Li, B., Zhang, Y., Kailkhura, B., and Nahrst-

edt, K. (2021). Robusta: Robust automl for feature

selection via reinforcement learning. arXiv preprint

arXiv:2101.05950.

eSardine: A General Purpose Platform with Autonomous AI and Explainable Outputs

625
