On Finding k Earliest Arrival Time Journeys in Public Transit Networks

Ali Al-Zoobi

, David Coudert

, Arthur Finkelstein

and Jean-Charles R

egin

Universit

e C

ote d’Azur, Inria, CNRS, I3S, Sophia Antipolis, France

Instant System, Sophia Antipolis, France

ﬁ

Keywords:

Public Transit Routing, Shortest Path, Dissimilar Paths.

Abstract:

Journey planning in (schedule-based) public transit networks has attracted interest from researchers in the last

decade. In particular, many algorithms aiming at efﬁciently answering queries of journey planning have been

proposed. However, most of the proposed methods give the user a single or a limited number of journeys in

practice, which is undesirable in a transportation context. In this paper, we consider the problem of ﬁnding

k earliest arrival time journeys in public transit networks from a given origin to a given destination, i.e., an

earliest arrival journey from the origin to the destination, a second earliest arrival journey, etc. until the k

earliest arrival journey. For this purpose, we propose an algorithm, denoted by Yen - Public Transit (Y-PT),

which extends to public transit networks the algorithm proposed by Yen to ﬁnd the top-k shortest simple paths

in a graph. Moreover, we propose a more reﬁned algorithm, called Postponed Yen - Public Transit (PY-PT),

enabling a considerable speed up in practice. Our experiments on several public transit networks show that, in

practice, PY-PT is faster than Y-PT by an order of magnitude.

1 INTRODUCTION

In the context of multimodal transportation, journey

planning in (schedule-based) public transit networks

and accelerating queries for efﬁcient journey planning

is a long-standing problem (Bast et al., 2016). In the

last decade, many algorithms have been developed

not only to efﬁciently answer basic queries like the

quickest or the earliest arrival journey, but also to op-

timize additional criteria like the number of transfers,

the cost of the trip, etc. or even to offer Pareto optimal

solutions combining several criteria (Bast et al., 2016;

Delling et al., 2015; Dibbelt et al., 2018).

A transit network is a set of stops (such as bus

stops or train stations), a set of routes (such as bus,

tramways, ferries, metro or train lines), and a set of

trips. Trips correspond to individual vehicles that visit

the stops along a certain route at a speciﬁc time of the

day. Trips can be further subdivided into sequences of

elementary connections, each given as a pair of (ori-

gin/destination) stops and (departure/arrival) times

between which the vehicle travels without stopping.

In addition, footpaths model walking transfers be-

tween nearby stops. A journey is a sequence of trips

one can take within a transit network (also referred to

as a transportation network or a timetable).

The k Shortest Simple Paths Problem. A directed

graph (digraph for short) is a set of vertices connected

by arcs. A path from a source to a destination in

a digraph is a sequence of vertices starting from the

source and ending at the destination, such that con-

secutive vertices are connected by an arc. A path is

simple if it has no repeated vertices. The length (or

weight or cost) of a path is the sum of the lengths

(or weights or costs) of its arcs. In this context, the

k shortest simple paths (kSSP) problem asks to ﬁnd

a set S of k distinct simple paths from a source to a

destination such that no path outside S has a length

strictly lower than any path in S. This problem can

be solved in time O(kn(m + nlogn)) using the algo-

rithm proposed by Yen (Yen, 1971), where n is the

number of vertices and m is the number of arcs. Since

this is the best known time complexity for this prob-

lem, a signiﬁcant research effort has been put on the

design of algorithms for efﬁciently solving the kSSP

problem in practice (Kurz and Mutzel, 2016; Al Zoobi

et al., 2020; Al Zoobi et al., 2021a). Note that, if the

paths of S are not required to be simple, the prob-

lem can be solved by Eppstein’s algorithm in time

O(k + m + n log n) (Eppstein, 1998).

In fact, a road network can be modelled using a

weighted directed graph where crossroads are repre-

sented by vertices and routes by arcs with length cor-

responding to the distances or the travel time between

314

Al-Zoobi, A., Coudert, D., Finkelstein, A. and Régin, J.

On Finding k Earliest Arrival Time Journeys in Public Transit Networks.

DOI: 10.5220/0010977200003117

In Proceedings of the 11th International Conference on Operations Research and Enterprise Systems (ICORES 2022), pages 314-325

ISBN: 978-989-758-548-7; ISSN: 2184-4372

crossroads. So, ﬁnding k “best” (shortest, fastest or

cheapest) paths from a given origin to a given des-

tination in a road network is straightforward using

any kSSP algorithm. Unfortunately, this problem be-

comes harder in public transit networks. First, be-

cause public transit networks are time dependent, i.e.,

certain segments of the network can only be traversed

at speciﬁc times. Second, several additional optimiza-

tion criteria are considered in public transit network

such as the arrival time, the departure time, the num-

ber of transfers, etc.

Journey Planning Queries in Public Transit Net-

works. A plethora of algorithms were proposed to

efﬁciently answer queries of optimal journeys from a

given origin o to a given destination d after a depar-

ture time t

in a public transit network. For instance,

the Connection Scan Algorithm (CSA) (Dibbelt et al.,

2018) is the fastest algorithm, without any prepro-

cessing routine, enabling to ﬁnd an earliest arrival

journey from o to d departing after t

. With the

help of a heavy preprocessing routine, the Transfer

Patterns algorithm (Bast et al., 2010) can achieve a

tremendous speed up with respect to the CSA. Be-

sides, Round Based Public Transit Routing (RAP-

TOR) (Delling et al., 2015) is the fastest algorithm

(also without any preprocessing routine) enabling to

compute a Pareto optimal set of journeys optimizing

the arrival time and the number of transfers of a jour-

ney. Recently, Bast et al. (Bast et al., 2016) presented

an extensive survey on the topic of journey planning

in road and public transit networks.

Related Work. Vo et al. (Vo et al., 2015) proposed a

time dependent graph modeling a bus network. Then,

they adapt Yen’s algorithm to ﬁnd alternative journeys

in this network model. Precisely, they select a set of

alternative journeys (journeys sharing only a limited

part of their common edges) among those given by

Yen’s adaptation.

As shown below, Yen’s algorithm uses Dijkstra’s

algorithm as a basic brick to compute shortest detours

of a given path. Analogously, Vo et al. (Vo et al.,

2015) used the time-dependent shortest path (TDSP)

algorithm of (Schulz et al., 2000) to compute earliest

detours of a journey in a bus network. They evalu-

ated their method on a single network of around 4000

stops and 8000 connections, resulting in an average

running time of around 1 second to ﬁnd 5 journeys.

On the other hand, Scano et al. (Scano et al.,

2015) modeled a transportation network as a labeled

directed graph where a label is an object composed

of the transportation mode (foot, car, bus, etc.) and

a travel time. This model merges road and public

transport networks together. Then, it is shown how

the k shortest path algorithms can be adapted for this

model. Precisely, they adapted Yen’s and Eppstein’s

algorithm to work on their model. In both algorithms,

a Dijkstra-like algorithm called Dijkstra Regular Lan-

guage Constraint (DRegLC) (Barrett et al., 2008)

is used to answer earliest arrival journeys queries.

Moreover, an Iterative Enumeration Algorithm (IEA)

is proposed to extract only simple journeys using Epp-

stein’s algorithm. i.e., using Eppstein’s k shortest

paths algorithm as an iterator and then selecting the

simple corresponding journeys (a journey is simple if

it does not visit a stop more than once).

Experimentally, Scano et al. showed that their

IEA is faster than Yen’s straightforward adaptation

on the transportation network of Toulouse (75 000

nodes, 500000 road edges and 43000 public transport

edges). On this network, the average running time of

Yen’s adaptation to ﬁnd 100 journeys is 250 seconds

while it is 0.6 seconds using their reﬁned IEA. How-

ever, IEA is not a polynomial-time algorithm, and its

memory consumption is too high (Scano et al., 2015).

In addition, using the labelled directed graph model

described in (Scano et al., 2015) may cause a duplica-

tion of the public transit part in practice, i.e., a large

number of journeys given by the algorithms proposed

in (Scano et al., 2015) may only differ on the footpath

part while sharing the exact same public transit part.

This is undesirable in applications requesting diverse

public transit journeys.

Our Contributions. In this paper, we aim at

answering k earliest arrival journeys queries from a

given origin to a given destination in a public tran-

sit network. To this end, we use the timetable model

of public transit networks as in (Bast et al., 2016;

Dibbelt et al., 2018; Delling et al., 2015). First, we

propose a performant adaptation of Yen’s k short-

est simple paths algorithm to public transit networks

(Yen - Public Transit, Y-PT algorithm). In contrast

with (Scano et al., 2015; Vo et al., 2015), we use the

Connection Scan Algorithm (CSA) to answer earliest

arrival journey queries in our algorithm.

Our main contribution is a novel algorithm, called

Postponed Yen’s algorithm for Public Transit net-

works (PY-PT). With the help of a lower bound on the

arrival time of a detour journey (a journey that may

be one of the k earliest arrival journeys), PY-PT post-

pones the effective computation of such detour (and

so the corresponding earliest arrival journey queries

using CSA) with the aim of skipping it.

Our experimental results on several train and pub-

lic transit networks show that the running time of our

adaptation of Yen’s algorithm is acceptable in prac-

tice. Moreover, on the same dataset, the PY-PT al-

gorithm performs 10 to 30 times faster than the Y-PT

algorithm on average.

On Finding k Earliest Arrival Time Journeys in Public Transit Networks

315

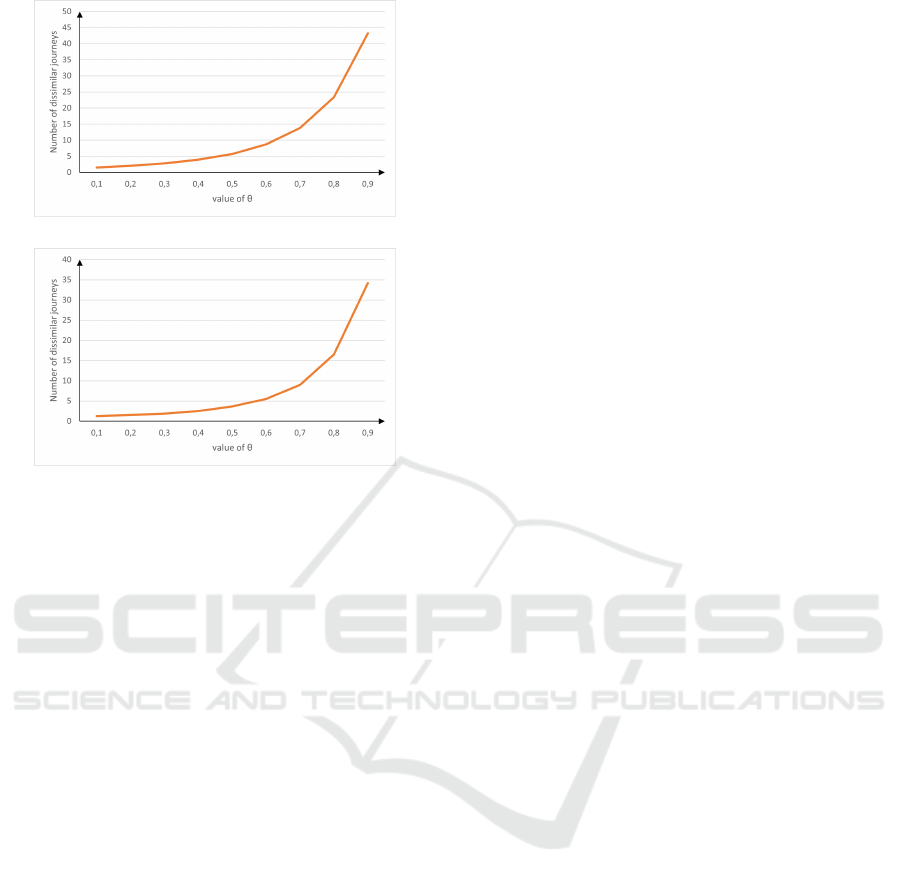

Finally, we evaluate the mutual similarity of the

journeys given by our algorithms. And we show ex-

perimentally that our algorithms can be used to extract

earliest arrival journeys that are mutually dissimilar.

2 PRELIMINARIES

In this section we formalize the inputs and algorithms

used in this work. We use almost the same formaliza-

tion used in (Dibbelt et al., 2018) for the CSA and as

in (Al Zoobi et al., 2020) for Yen’s algorithm.

2.1 Graph - Deﬁnitions and Notations

Let D = (V,A) be a digraph with n = |V | vertices and

m = |A| arcs, let N

(v) = {w ∈ V | vw ∈ A} be the set

of out-neighbors of a vertex v ∈ V , and let ℓ

: A →

be a length function over the arcs.

For every s,t ∈ V , a path from s to t in D is a

sequence P = (s = v

,··· ,v

= t) of vertices with

i+1

∈ A for all 0 ≤ i < l. An arc uv belongs to a path

P (uv ∈ P) if and only if u and v are two consecutive

vertices of P, i.e, there is 0 ≤ i < l such that u

= u

and u

i+1

= v. A path is simple if all of its vertices

are distinct, i.e, v

̸= v

for all 0 ≤ i < j ≤ l. The

length of the path P is the sum of the lengths of its

arcs, ℓ

(P) =

∑

0≤i<l

ℓ

i+1

) The distance d

(s,t)

between two vertices s,t ∈ V is the length of a shortest

s-t path, i.e, a path with the smallest length among all

the s-t paths. Given two paths P = (v

,··· ,v

) and

Q = (w

,··· ,w

), and an arc v

∈ A, we denote by

P.Q the v

-w

path resulting from the concatenation

of P and Q. That is, P.Q = (v

,··· ,v

,··· ,w

) =

,··· ,v

,Q) = (P,w

,··· ,w

Given s,t ∈ V , a set of top-k shortest simple s-t

paths is any set S of s-t simple paths such that |S| = k

and ℓ(P) ≤ ℓ(P

′

) for every s-t path P ∈ S and s-t path

′

/∈ S. The k shortest simple paths problem takes as

input a digraph D = (V,A), a length function over the

arcs ℓ

: A → R

and a pair of vertices (s,t) ∈ V

and

asks to ﬁnd a set of top-k shortest simple s-t paths.

Dijkstra’s algorithm ﬁnds an s-t shortest path in D

with worst-case time complexity in O(m + n log n).

Let P = (v

,··· ,v

) be any path in D. Let 0 ≤

i < l, any path P

′

= (v

,··· ,v

′

,··· ,v

′

= v

) s.t.

′

̸= v

i+1

is called a detour of P at v

. Note that neither

P nor P

′

are required to be simple. However, if P

′

simple, it will be called a simple detour of P at v

In addition, P

′

is called a shortest (simple) detour at

if and only if P

′

is a detour with minimum length

among all (simple) detours of P at v

. Finally, the

subpath π

= (v

,··· ,v

i−1

) of P starting from s and

ending at v

i−1

for 0 ≤ i ≤ l is called i-preﬁx path of P

(the 0−preﬁx of any path is an empty path)

2.2 Yen’s Algorithm

We now describe Yen’s algorithm for ﬁnding a set of

top-k shortest simple s-t paths in D. For the sake of

simplicity, we assume that D has at least k s-t simple

paths.

Yen’s algorithm starts by computing a shortest s-

t path P

= (s = v

,··· ,v

= t) by applying Di-

jkstra’s algorithm. Note that P

is simple since the

weights of D are non-negative. Clearly, a second

shortest simple s-t path is a shortest simple detour

of P

at one of its vertices. Yen’s algorithm com-

putes, for every vertex v

in P

, a shortest simple de-

tour of P

at v

. For this purpose, for 0 ≤ i < r, Yen’s

algorithm removes the vertices of the i-preﬁx path

= (v

,··· ,v

i−1

) of P

and the arc v

i+1

, then it

computes, using Dijkstra’s algorithm, a shortest path

from v

to t. Let C

= π

be the concatenation

of π

and Q

. First, C

is simple as Q

is computed af-

ter removing π

. Second, v

i+1

/∈ C

as the arc v

i+1

of P

is removed before computing Q

and construct-

ing C

. Therefore, C

is a shortest simple detour of

at i. Note that the index i (called below deviation-

index) where the path (v

,··· ,v

i−1

) deviates from

is kept explicit, i.e, the path is stored with its devi-

ation index. Finally, C

is added to a set Candidates

(initially empty) for every 0 ≤ i < l. Once C

has

been added to Candidates for all 0 ≤ i < l, by remark

above, a path with minimum length in Candidates is

a second shortest simple s-t path.

Now, let us assume that a set S of top-k

′

(with

0 < k

′

< k) shortest simple s-t paths has been com-

puted and the set Candidates contains a set of sim-

ple s-t paths such that there exists a shortest path

Q ∈ Candidates with S ∪ {Q} a top-(k

′

+ 1) set of

shortest s-t simple paths.

Let R = (v

= s, · · · v

,··· ,v

= t) be a path in

Candidates with minimum length and let j be its de-

viation index. Similarly to the procedure of ﬁnding a

second shortest path, Yen’s algorithm iterates over the

vertices v

( j ≤ i < r) of R. At each vertex v

, a short-

est simple detour of R at v

is added to Candidates

(since one of these detours may be a k

′

+ 1

short-

est simple s-t path). Let, again, π

= (v

,··· ,v

i−1

) be

the i-preﬁx of R. Yen’s algorithm removes π

from

D. Then, it removes each arc v

w such that S contains

a path with (v

,··· ,v

,w) as a i + 1-preﬁx. Finally,

a shortest v

-t path Q

is computed, using Dijkstra’s

algorithm, and the path π

is added to Candidates

with i as deviation index. This process is repeated un-

til k paths have been found, i.e, when k

′

= k.

Therefore, for each path R that is extracted from

ICORES 2022 - 11th International Conference on Operations Research and Enterprise Systems

316

Candidates, O(|V (R)|) calls of Dijkstra’s algorithm

are done. This results in a worst-case time-complexity

in O(kn(m + nlog n)).

2.3 Timetable - Deﬁnitions and

Notations

In this section, we describe the data structures used by

the Connection Scan Algorithm (CSA) with the same

formalism as in (Dibbelt et al., 2018). Then we will

describe brieﬂy the CSA and one of its variant called

the proﬁle CSA (PCSA).

Timetable. A timetable represents for one speciﬁc

day the vehicles that exist (train, bus, tram, ferry, ...),

when they travel, where they travel and how a passen-

ger can go from one vehicle to another. Formally, a

timetable is a quadruple T = (S,T,C, F) of stops S,

trips T , connections C and footpaths F:

Stop: a position outside a vehicle where a passenger

can wait. At a stop (and only at a stop) a vehicle

can halt and passengers can leave or get on.

Trip: deﬁned by a vehicle going through stops at

ﬁxed times. Precisely, a trip is a scheduled ve-

hicle, i.e, a journey done by a unique vehicle from

a starting stop to a last stop at a ﬁxed time.

Connection: a vehicle going from one stop

to another with no intermediate stops.

Formally, a connection c is a quintuple

dep

stop

arr stop

dep time

arr time

trip

) whose

attributes are the departure stop, the arrival stop,

the departure time, the arrival time and the trip

of c, respectively. A connection must respect

two conditions: (1) it cannot be a self loop, i.e,

dep stop

̸= c

arr stop

and (2) it has a non-zero travel

time, i.e, c

dep time

< c

arr time

Footpath: used to model a transfer from a vehicle

to another. Formally, a footpath f is a triple

( f

dep stop

, f

arr stop

, f

dur

) whose attributes are the

departure stop, the arrival stop and the duration

of the footpath, respectively. Note that, footpaths

are neither trips, nor connections.

Note that, all the connections of a trip form a se-

quence c

... c

, such that c

arr stop

= c

i+1

dep stop

and

arr time

< c

i+1

dep time

for all 0 ≤ i ≤ φ.

Going from a connection c to a connection c

′

with

trip

̸= c

′

trip

is possible if and only if there is a footpath

from c

arr stop

to c

′

dep stop

such that c

′

is reachable

via f

, i.e, f

dur

≤ c

′

dep time

− c

arr time

. A loop is intro-

duced on each stop to allow a passenger to get off at

a stop and take another trip going through this stop.

Journeys. A journey describes how a passenger can

travel through a public transit network. It is made of

legs that are sequences of connections of the same

trip. Formally, a journey is a sequence of alternating

footpaths and legs J = ( f

, f

... f

r−1

, f

where l

= (c

,··· ,c

). That is, a passenger takes

the footpath f

from f

dep stop

to f

arr stop

, then

takes the connection c

, c

, ···, c

, proceeds to

take the footpath f

from f

dep stop

to f

arr stop

etc.

until reaching f

arr stop

. A journey must start and

end with a footpath, which can be a self loop. In

this paper, we sometimes denote a journey as a

sequence of footpaths and connection, i.e, J =

( f

,··· ,c

, f

α+1

,··· , f

r−1

γ+1

,···c

, f

)

where c

= c

,··· ,c

= c

Given two stops o and d in S, an o-d journey J is

a journey ( f

,··· ,c

, f

) such that f

starts from

o and f

ends at d. We deﬁne the departure time of a

journey dep

(J) as the departure time of its ﬁrst foot-

path, formally, dep

(J) = c

dep

time

− f

dur

. Similarly,

the arrival time of a journey arr

(J) is the arrival time

of its last footpath, i.e, arr

(J) = c

arr time

+ f

dur

A journey is called simple if it does not visit

twice the same stop (except for self loop footpaths).

Formally, let J = ( f

= (c

,··· ,c

),··· , f

,··· ,c

),··· , f

= (c

,··· ,c

),··· ,l

,··· ,c

), f

) be a journey. For all 0 ≤ i < j ≤ r,

let c

dep stop

be the departure stop of c

for 0 ≤ α ≤ δ

Similarly, for 0 ≤ β ≤ δ

, let c

′

dep

stop

be the departure

stop of c

and c

′

arr stop

be the arrival stop of c

. We

have c

dep stop

̸= c

′

dep stop

and c

dep stop

̸= c

′

arr stop

The concatenation of two journeys J =

( f

,··· ,l

, f

) and J

′

= ( f

′0

= f

′0

,··· ,l

′ℓ

, f

′ℓ

)

such that f

= f

′0

and arr

(J) ≤ dep

′

) is

the journey that starts by f

, follows J until

, and then follows J

′

until f

′ℓ

. We denote

J” = J.J

′

= ( f

,··· , f

= f

′0

,··· ,l

′ℓ

, f

′ℓ

Given a journey J = ( f

,··· ,c

, f

), a

journey Q = ( f

′0

,··· ,c

′i

,··· ,c

′w

, f

′ℓ

) is called a

detour of J at i if f

′0

= f

′0

= c

,··· ,c

′i−1

= c

i−1

but c

′i

̸= c

and f

′ℓ

arr

stop

= f

arr stop

. If Q is simple, it

is called a simple detour of J at i, and Q is called an

earliest arrival (simple) detour of J at i, if arr

(Q) ≤

arr

′

) for each (simple) detour Q

′

of J at i.

Two journeys are equal if and only if all of their

attributes are the same.

We denote by J

max

o,d

the set of o-d simple jour-

neys starting from o after t

and reaching d before

max

, i.e, J

max

o,d

= {J s.t. J is a simple o-d journey

We suppose that a leg cannot have a loop, as a user may

get off and wait outside the corresponding vehicle.

On Finding k Earliest Arrival Time Journeys in Public Transit Networks

317

with dep

(J) ≥ t

and arr

(J) ≤ t

max

2.4 Connection Scan Algorithm

The CSA answers earliest arrival time journey queries

from a given origin o to a given destination d. That is,

departing after a given time t

, how to get from o to d

as soon as possible.

Similarly to Dijkstra’s algorithm, the CSA will

store an earliest arrival time for each stop in an array.

A connection is considered reachable if a passenger

can sit in the public transit vehicle of the connection.

However, the main difference between Dijkstra’s al-

gorithm and the CSA is the fact that the CSA does

not use a priority queue. Instead, the CSA iterates

over all the connections sorted by their departure time

(the same ordering is used for all queries). The CSA

checks whether a connection is reachable or not. If

so, it improves the arrival time at the arrival stop of

the connection. Once all the connections have been

scanned, the earliest arrival time to a stop is the cur-

rent arrival time stored for the stop. The main advan-

tage of avoiding the use of a priority queue is that,

while more connections are scanned, the amount of

work per connections is signiﬁcantly reduced. There-

fore, the CSA is signiﬁcantly faster than Dijkstra’s al-

gorithm (Dibbelt et al., 2018).

2.5 Proﬁle Connection Scan Algorithm

The result of the Proﬁle Connection Scan Algorithm

(PCSA) is a mapping between a departure time from

a departure stop onto the earliest arrival time at the ar-

rival stop. In other words, the proﬁle problem solves

simultaneously the earliest arrival problem for all de-

parture times.

Compared with the CSA, the PCSA iterates on the

connections sorted decreasingly by departure time,

which leads to the fact that it solves the all-to-one

problem. The PCSA constructs journeys from late to

early and exploits the fact that an early journey can

only have later journeys as subjourneys. It has been

reported in (Dibbelt et al., 2018) that the PCSA is one

order of magnitude slower than the CSA, which is ac-

ceptable considering the fact that it solves the all-to-

one problem.

Note that, the PCSA offers, from each stop s to

the arrival stop d, a single earliest arrival s-d journey

departing after t

and reaching d before t

max

Let M be the output of the PCSA, we denote by

max

o,d

an earliest arrival journey starting from o and

reaching d, departing after t

and arriving before t

max

3 PROBLEM DEFINITION

In this section, we formalize the k Earliest Arrival

Time problem.

k Earliest Arrival Time (kEAT) Problem. In this

paper, we aim at ﬁnding k earliest arrival time (kEAT )

simple journeys from a given origin to a given destina-

tion. Formally, the problem takes as input a timetable

T = (S,T,C, F), origin and destination stops o,d in

S, a departure time t

, a maximum arrival time t

max

(often t

max

= t

+ 24h or t

max

= t

+ 48h) and an in-

teger k. It asks to ﬁnd a set J

∗

= {J

,··· ,J

} of

top-k earliest arrival o-d simple journeys i.e, J

̸= J

for 0 ≤ i < j ≤ k, and for every J in J

∗

, J

′

∈ J

max

o,d

arr

(J) ≤ arr

′

9h05→9h40

9h55→10h00

9h10→9h15

10h05→10h10

10h30→11h00

9h35→9h40

9h45→9h50

9h20→9h30

Figure 1: Toy network for k earliest arrival time journeys.

Example. In the example of Figure 1, we look

for the four earliest arrival time journeys from o to d

departing after 9h00. The earliest arrival journey J

(o,d,b) arrives at d at 9h30, starts with o and reaches

d via b, the passenger arrives at b at 9h15 and waits 5

minutes before boarding the connection going from b

to d. The second journey J

= (o,d) arrives at 9h40

and goes directly from o to d. The third journey J

(o,b,a,d) arrives at 10h10 and goes from o to b then

a then d, the passenger arrives at b at 9h15, waits 10

minutes then boards the connection going from b to a,

arrives at 9h30 and waits 35 minutes before boarding

the connection going from a to d. The fourth journey

= (o, a, d) arrives at 10h10 and goes from o to a

then d.

Note that the journey J

= (o,b,a,c,o,a,d) arriv-

ing at 10h10 is not a part of the solution as it is not

simple (it visits the station o twice). Note also that

there are other o-d journeys in this example, each ar-

ICORES 2022 - 11th International Conference on Operations Research and Enterprise Systems

318

riving after 10h10. Therefore, {J

} are the

four earliest arrival simple o-d journeys.

Each edge in the graph belongs to a speciﬁc trip,

i.e, there is a self loop path between each step in the

examples.

4 PUBLIC TRANSIT YEN’s

ALGORITHM (Y-PT)

In this section, we describe our adaption of Yen’s al-

gorithm on public transit networks, called Y-PT al-

gorithm. As described before, Y-PT algorithm solves

the kEAT problem. So, it takes as input a timetable

T = (S,T,C,F), origin and destination stops o, d

in S, a departure time t

, a maximum arrival time

max

(= t

+ 48h) and an integer k, and returns a set

Output = {J

,··· ,J

} of top-k earliest arrival o-d

simple journeys in T .

Roughly, Y-PT algorithm starts by computing a

ﬁrst earliest arrival journey, iterates over its connec-

tions in order to compute its earliest arrival simple de-

tours and adds their minimum (the detour with min-

imum arrival time) to the output. Then, Y-PT algo-

rithm repeats this process until k journeys are added

to the output.

Now, let us give a precise and formal descrip-

tion of Y-PT algorithm whose pseudocode is pre-

sented in Algorithm 1. Analogously to Yen’s algo-

rithm, Y-PT starts by computing an earliest arrival

journey J

and adding it (with 0 as deviation index)

to a set of candidate journeys called Candidates. The

journeys of the set Candidates are non-decreasingly

sorted by their arrival time. Also, the algorithm ini-

tializes the output set Out put as an empty set. After

this initialization phase, the algorithm extracts a min-

imum element from the set Candidates, i.e, a jour-

ney J = ( f

,··· ,c

, f

) with minimum arrival time

among those in Candidates and adds it to Out put. Let

= (c

,··· ,c

) be the sequence of connections

of J. The algorithm iterates over the connections in C

starting from the deviation index of J. Precisely, let j

be the deviation index of J, for each connection c

dep stop

arr stop

dep time

arr time

trip

) for j ≤ i ≤

φ, the algorithm removes the preﬁx stations, i.e, each

station visited by one of the connections c

,··· ,c

i−1

(equivalent to the preﬁx path of Yen’s) from T . This

is done to ensure that the candidate journey is simple.

Moreover, in order to avoid duplications of jour-

neys, for each journey J in Out put starting with the

connections c

,··· ,c

i−1

′

, the connection c

′

removed from T . Then, using the CSA, the Y-PT

algorithm computes an earliest arrival journey Q =

( f

,··· ,c

, f

ℓ

) from c

i−1

arr stop

to d with c

i−1

arr time

Algorithm 1: Public Transit - Yen’s algorithm (PT-Y).

1: Input A timetable T = (S,T,C,F), an origin and

a destination stops (o and d), departure and max-

imum arrival time t

dep

max

and an integer k

2: Output a set of top-k earliest arrival journeys

from o to d departing after t

dep

3: J

← CSA(T , o, d,t

dep

max

)

4: Candidates ← {(J

,0)}

5: Out put ←

6: while | Out put |< k and Candidate ̸=

0 do

7: ε = (J, j) ← extractmin(Candidates)

8: Let C

= (c

,··· ,c

) be the sequence of con-

nections of J

9: add J to Out put

10: for each connection c

with j ≤ i ≤ φ in C

11: c

arr stop

←the arrival stop of c

i−1

12: c

arr time

←the arrival time of c

i−1

13: π = ( f

,··· ,c

i−1

)

14: S

← the set of stations visited by one of

the connections (c

,··· ,c

i−1

)

15: C

dev

← {c

′

s.t. there is a journey J

′

Out put starting with (c

,··· ,c

i−1

′

)}

16: T

′

= (S \ S

,T,C \C

dev

,F)

17: Q ← CSA(T

′

arr stop

,d,c

arr time

max

)

18: J

new

← π.Q

19: add (J

new

,i) to Candidates

20: end for

21: end while

22: Return Out put

as departure time

. Let J

new

be the concatena-

tion of the preﬁx of J and Q, i.e, J

new

= ( f

··· ,c

i−1

, f

,··· ,c

, f

ℓ

). The journey J

new

added to Candidates with i as deviation index.

Y-PT algorithm repeats this process until k jour-

neys are added to Out put.

5 PUBLIC TRANSIT POSTPONED

YEN’s ALGORITHM (PY-PT)

We now present the Postponed Yen algorithm for pub-

lic transit (PY-PT algorithm) whose pseudocode is

presented in Algorithm 2. It is inspired from the Post-

poned Node Classiﬁcation algorithm (PNC) for the

kSSP described in (Al Zoobi et al., 2021a).

If the element right before c

is a footpath, i.e, J =

( f

,· ·· , f

), it is possible to have journeys with

two consecutive footpaths. In order to avoid such scenario,

the CSA call is forced to compute a journey starting with a

self loop footpath.

On Finding k Earliest Arrival Time Journeys in Public Transit Networks

319

PY-PT algorithm has the same input as Y-PT algo-

rithm, and it also returns a set of top-k earliest arrival

simple journeys from the origin to the destination in a

timetable. However, the journeys given by Y-PT are

not necessarily the same as those given by PY-PT, i.e,

the order of extraction of journeys is not necessarily

the same. This may occur in scenarios where several

journeys from the origin to the destination have the

same arrival time.

The main drawback of Y-PT algorithm is its ex-

cessive number of calls of the CSA. Here, with the

help of lower bounds on the arrival time of simple de-

tours, we propose to postpone these calls in order to

avoid some of them. We show that this can be done

while preserving the correctness of the algorithm. In

contrast with Y-PT algorithm where all journeys in the

set Candidates are simple, the PY-PT algorithm may

add non-simple journeys to the set Candidates. As

shown below, this corresponds to detours whose ef-

fective computation (and so their corresponding CSA

calls) are postponed.

Let us now describe PY-PT algorithm in details.

For a query from the origin o to the destination d

starting at time t

, the PY-PT algorithm ﬁrst uses the

Proﬁle CSA (PCSA). Let M be the mapping output

by PCSA. The mapping M associates to each station

s ∈ S and each departure time t ≥ t

the earliest arrival

s-d journey, providing it is possible to reach d from s

before t

max

when starting at t (we let t

max

= t

+ 48h

in our experiments).

Similarly to Y-PT algorithm, PY-PT algorithm

starts by adding an earliest arrival time journey J

to a set of candidate journeys called Candidates.

An element ε in Candidates has three attributes,

the journey J, its deviation index i and a boolean

ﬂag ζ indicating whether J is simple or not. So,

the element ε

= (J

,0,1) is added to Candidates.

In contrast with Y-PT algorithm where a CSA

call is consumed to compute J

, PY-PT algorithm

extract J

from the already computed mapping

M. Precisely, J

= M

max

o,d

. Then, also like Y-PT

algorithm, the Out put set is initialized with an

empty set. After these initializations steps, the

algorithms starts by extracting an earliest arrival jour-

ney (J, j,ζ) among those in Candidates. Suppose J =

( f

,··· ,c

, f

α+1

,··· ,c

, f

,··· ,c

γ+1

,··· ,c

, f

Two cases are distinguished:

if ζ = 1 (J is simple): J is added to the Out put, then

all the earliest arrival detours of J are added to

Candidates. This is done as follows, let C

,··· ,c

) be the sequence of connections of

J, at each connection c

(for j ≤ i < φ) in C

, an

earliest arrival detour J

new

of J at i is extracted.

This operation uses M as described below.

Algorithm 2: Public Transit - Postponed Yen’s algorithm

(PY-PT).

1: Input A timetable T , an origin and a destination

stops (o and d), departure and maximum arrival

time (t

dep

and t

max

), and an integer k

2: Output a set of top-k earliest arrival simple jour-

neys from o to d departing after t

dep

3: M ← PCSA(T ,o,d,t

dep

max

)

4: J

← M

dep

max

o,d

5: Candidates ← {(J

,0,ζ = 1)}

6: Out put ←

7: while Candidates ̸=

0 and |Out put| < k do

8: ε = (J, j,ζ) ← extractmin(Candidates)

9: Let C

= (c

,··· ,c

) be the sequence of con-

nections of J

10: if ζ = 1 (J is simple) then

11: add J to Out put

12: for each connection c

in C

,··· ,c

)

13: J

new

← EarliestArrivalDetour(J,i,M)

14: ζ

′

← 0

15: if J

new

is simple then

16: ζ

′

← 1

17: end if

18: add (J

new

,i,ζ

′

) to Candidates

19: end for

20: else

21: S

← the set of stations visited by one of

the connections (c

,··· ,c

j−1

)

22: C

dev

← {c s.t. there is a journey J

′

Out put starting with (c

,··· ,c

i−1

,c)}

23: T

′

= (S \ S

,T,C \C

dev

,F)

24: Q ← CSA(T

′

arr stop

,d,c

arr time

max

)

25: if Q exists then

26: J

new

← ( f

,··· ,c

,Q)

27: add (J

new

, j,ζ = 1) to Candidates

28: end if

29: end if

30: end while

31: return Out put

The journey J

new

may not be simple (also de-

scribed below). However, J

new

will be added to

the set Candidate with i as deviation index and

ζ = 1 if Q is simple (and ζ = 0 otherwise).

if ζ = 0 (J is not simple): J is “repaired”, i.e., it

is replaced (if possible) by its corresponding

earliest arrival simple journey. For this pur-

pose, the algorithm applies almost the same rou-

tine as Y-PT algorithm. Precisely, let c

dep stop

arr stop

dep time

arr time

trip

) be the

connection at the deviation index, the algorithm

ICORES 2022 - 11th International Conference on Operations Research and Enterprise Systems

320

removes the preﬁx stations, i.e, each station vis-

ited by one of the connections c

,··· ,c

j−1

, from

T . Also, for each journey J

′

in Out put starting

with the connections c

,··· ,c

j−1

′

, the con-

nection c

′

is removed from T . Then, using the

CSA, PY-PT algorithm computes an earliest ar-

rival journey Q = ( f

,··· , f

ℓ−1

, f

ℓ

) from

j−1

arr stop

to d with c

j−1

arr time

as departure time. Let

new

be the concatenation of the preﬁx of J and Q,

i.e, J

new

= ( f

,··· ,c

j−1

, f

,··· , f

ℓ

). The

journey J

new

is added to the Candidates with j as

deviation index and with ζ = 1 (as J

new

is simple).

The PY-PT algorithm repeats this process until k

journeys are added to Out put.

Algorithm 3: EarliestArrivalDetour(J,i, M).

1: c

← the i

connection of J

2: c

arr stop

← the arrival stop of c

i−1

3: c

arr time

← the arrival time of c

i−1

4: C

dev

← {c

′

s.t. there is a journey J

′

in Out put

starting with (c

,··· ,c

i−1

′

)}

5: C

= {c

′

∈ C s.t. c

′

dep stop

= c

arr stop

, c

′

dep time

≥

arr time

and c

′

/∈ C

dev

}

6: c

← a connection in C

leading to a minimum

arrival time from c

arr stop

to d after c

arr time

fol-

lowing M

7: F

dev

← { f s.t. there is a journey J

′

in Out put

starting with (c

,··· ,c

i−1

, f )}

8: F

= { f ∈ F s.t. f

dep stop

= c

arr stop

and f /∈

dev

}

9: f

← a footpath in F

leading to a minimum

arrival time from c

arr stop

to d following M

10: J

← c

arr time

max

arr stop

11: J

← f

arr time

+ f

dur

max

arr stop

12: J

min

← the earliest arrival journey among J

and

13: π = ( f

,··· ,c

i−1

)

14: J

new

← π.J

min

15: return J

new

Now, let us explain how the journey J

new

is com-

puted (in the case where ζ = 1). The pseudocode

of this procedure is described in Algorithm 3. Let

= (c

dep stop

arr stop

dep time

arr time

trip

) be the

connection of C

(for j ≤ i < φ), the following pro-

cedure is applied:

• First, the algorithm scans the connections start-

ing with c

arr stop

after c

arr time

leading to new

journeys, i.e, different from those in Out put.

Precisely, let C

dev

= {c

old

∈ C s.t. there is a

journey in Out put starting with the connections

,··· ,c

i−1

old

}, let C

= {c ∈ C s.t. c

dep stop

, c

dep time

≥ c

dep time

and c /∈ C

dev

} be the

set of new deviating connections. The algorithm

scans the connections of C

. Let c

be a connec-

tion of C

leading to an earliest arrival journey

from c

dep stop

to d using M. Formally, for each c

in C

, let J

be the journey via c following M, i.e,

let J

= c.M

arr time

max

arr stop

, then c

is a connection in

s.t. arr

) ≤ arr

) for each c in C

N 3

• Second, the algorithm scans the footpaths starting

with c

dep stop

leading to new journeys, i.e, differ-

ent from those in Out put. Again, let F

dev

= { f

old

s.t. there is a journey in Out put starting with

the connections c

,··· ,c

i−1

followed by f

old

}, let

= { f ∈ F s.t. f

dep stop

= c

dep stop

and f /∈

dev

} be the set of the new deviating footpaths and

let f

be a footpath of F

leading to an earliest

arrival journey from c

dep stop

to d using M. Pre-

cisely, for each f in F

, let J

be the journey via

f following M, i.e, J

= f .M

dep time

+ f

dur

max

f arr stop,d

, then

is a footpath in F

s.t. arr

) ≤ arr

)

for each f in F

Now let Q

min

be the journey with minimum ar-

rival time among J

and J

and let J

min

be the

journey formed by the concatenation of the preﬁx

journey of J and Q

min

, i.e, J

min

= ( f

,··· ,c

i−1

min

). Note that, J

min

may not be simple as the sub-

journey extracted from M may revisit a station of one

of the preﬁx connections. For instance, a station that

is visited by c

or c

,··· , or c

i−1

may be visited again

by J

(or by J

)

To conclude, in contrast with Y-PT algorithm

where an earliest arrival simple detour is computed

at each index of an extracted journey using the CSA,

PY-PT algorithm consider an earliest arrival detour

(not necessarily simple) given by the already com-

puted PCSA at each index, and two cases are distin-

guished: If the earliest arrival detour is simple, then

If the element right before c

is a footpath, i.e, J =

( f

,· ·· , f

). It is possible to have journeys with

two consecutive footpaths. In order to avoid such scenario,

the footpaths starting with c

arr stop

will not be scanned.

When scanning the connections starting with c

arr stop

after c

arr time

, the journey M

arr time

max

arr

sto p

can start either with

a self loop footpath or a footpath. On the other hand,

when scanning footpaths starting with c

dep stop

the journey

dep time

+ f

dur

max

f arr stop,d

cannot start with anything other than a self

loop footpath, to do so the PCSA stores journeys in two sep-

arate data structures, one for journeys starting with a self

loop footpath and one for the other journeys.

On Finding k Earliest Arrival Time Journeys in Public Transit Networks

321

a CSA call is saved and a shortest simple detour is

added to Candidates. If not, i.e, the earliest arrival de-

tour is not simple, PY-PT algorithm inserts this non-

simple detour to the set of Candidates with a ﬂag in-

dicating that it is not simple. Recall that journeys in

Candidates are non-decreasingly stored by their ar-

rival time. So, only when this non-simple detour is

extracted from Candidates, its simple version will be

computed using the CSA. In other words, the actual

computation of such simple detour is “postponed”.

Such postponement may end up saving some CSA

calls, typically when k earliest arrival journey have

been added to Out put while some non-simple jour-

neys remain in Candidates, i.e, their whole “repair”

procedure is skipped.

Note that, despite these postponements, the order

of extraction of simple journeys from Candidates re-

mains valid. This is because a journey J in Candidate

is either inserted with its real arrival time (the case

where J is simple) or with a lower bound on its arrival

time (the case where J is non-simple, by Claim 1).

Claim 1. Let J = ( f

, f

··· ,c

, f

) be an o-d

journey with J

an earliest arrival detour of J at i

and J

with an earliest simple arrival detour of J at i

(where 0 ≤ i ≤ φ). Then, arr

) ≤ arr

)

Proof. The proof follows from the fact that an earliest

arrival detour of J at i arrives earlier than any detour of

J at i. In particular, it arrives earlier than any earliest

arrival simple detour of J at i.

6 EXPERIMENTAL EVALUATION

In this section, we start describing our implementa-

tion and settings (Section 6.1). Then we discuss our

experimental results on train and public transit net-

works (Section 6.2).

6.1 Experimental Settings

Here we describe the details of the implementation

and the setting used in our experiments.

We have implemented Y-PT and PY-PT algo-

rithms in Java and our code is publicly available at

(Al Zoobi and Finkelstein, 2021).

Note that in our implementations the parameter k

is not part of the input, this enables the use of these

methods as iterators, able to return a next earliest ar-

rival itinerary as long as one exists. Despite the fact

that some additional optimizations could be added to

the implementation if k is a part of the input.

Networks Setting. We have evaluated the perfor-

mances of our algorithms on two train networks (Ger-

many and Switzerland) and three public transit net-

works (Paris, Berlin and Stockholm). The character-

istics of these networks are presented in Table 1. This

dataset is publicly available via a GTFS feed (https:

//transitfeeds.com/), we downloaded this dataset in

October 2019.

The public transit networks are denser than the

train networks, i.e. the connections to stops ratio

is smaller on train networks than public transit net-

works. This can be easily explained because the train

networks can only use trains whereas the public tran-

sit networks can use buses, trains, ferries and many

other means of transportation. Therefore, we will

show the performances of our algorithms on those two

types of networks.

In our experiments, we have randomly chosen

1000 source-destination pairs (of stops) for each pub-

lic transit network, and we have run each algorithm

for each pair for k going from 2 to 100.

We have measured the execution time and the

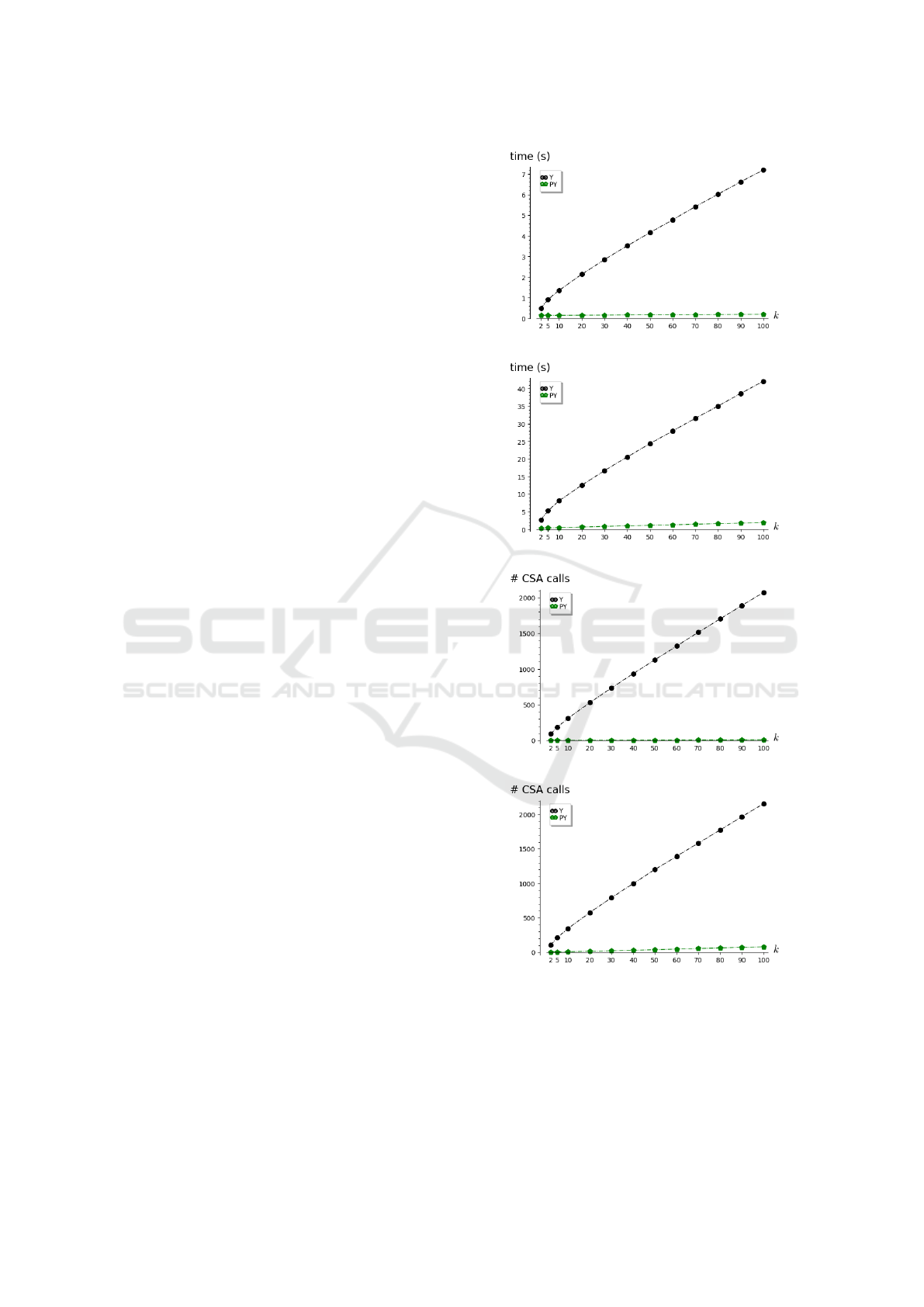

number of CSA calls. Note that the number of CSA

calls is an indication of the running time which is in-

dependent of the implementation and the architecture

of the machine.

All reported computations have been performed

on computers equipped with an Intel(R) Core(TM) i7-

1185G7 at 3.00GHz and 32 GB of RAM.

Table 1: Characteristics of the PT networks: number of

stops, connections, lines, trips and footpaths.

Network Stops Connections Lines Trips Footpaths

Germany 74 398 3 601 420 3 599 168 024 599 284

Switzerland 29 844 2 599 675 5 645 248 826 27 202

Paris 44 534 3 209 401 1 864 150 963 502 291

Berlin 28 651 1 379 755 1 296 63 569 62 456

Stockholm 14 258 703 326 664 34 799 22 138

Table 2: Running time (s) of the algorithms on PT networks,

(k = 100).

Germany Switzerland Paris Berlin Stockholm

Y-PT

avg 94.6 42.0 66 22.7 7.2

med 47.3 30.6 25.1 14 3.5

PY-PT

avg 3.6 1.9 5.4 0.8 0.2

med 1.7 1.4 3.8 0.5 0.1

Table 3: Number of CSA calls using each of the algorithms

on PT networks, (k = 100).

Germany Switzerland Paris Berlin Stockholm

Y-PT

avg 2132 2158 1355 1788 2072

med 1729 1749 1262 1604 1510

PY-PT

avg 32 77 39 7.6 8.3

med 12 56 26 7 2

ICORES 2022 - 11th International Conference on Operations Research and Enterprise Systems

322

6.2 Experimental Results

In this section, we describe and analyse our experi-

mental results on public transit networks.

We have measured the average and the median of

the algorithms’ running time in the considered net-

works. The data (the running time and the number of

CSA calls) in Tables 2 and 3 and ﬁg. 3 correspond to

the biggest experienced value of k (k = 100). While

the data in Figure 2 corresponds to their evolution

with respect to the values of k.

The average and median running times reported in

Table 2 show that the PY-PT algorithm is signiﬁcantly

faster than the Y-PT algorithm for every considered

network (the average speed up of the running time is

bigger than a factor of 10 for k = 100). Moreover,

a reﬁned comparison on the Germany and Paris net-

works (Figure 3) shows that PY-PT is faster than Y-PT

for almost all queries. In addition, Figures 2a and 2b

shows that this speed up remains considerable even

for small values of k (even for k = 2) for Stockholm

and Switzerland networks. This means that the time

consumed for the PCSA computation routine is com-

pensated by the extraction of simple detours, even for

k = 2. In addition, very similar results were obtained

on the remaining networks. Based on these remarks,

we conclude that, in practice, PY-PT is faster than Y-

PT for almost every scenario (the value of k, the query

speciﬁcations and the network structure).

Furthermore, on the Stockholm and Switzerland

networks, Table 3 and ﬁgs. 2c and 2d show that the

number of CSA calls is signiﬁcantly reduced using

PY-PT. This ensures that a similar speed up is guar-

anteed for any experimental settings (Johnson, 2002).

As the obtained results are similar, we only dis-

played data obtained from experiments on selected

networks (Stockolm and Switzerland for Figure 2,

Paris and Germany for Figure 3). However, the re-

sults/plots corresponding to the remaining networks

are very similar.

To conclude, on average, PY-PT algorithm is more

than 10 times faster than Y-PT algorithm, it is also

faster than Y-PT for almost every scenario.

7 (DIS)SIMILARITY OF THE

OUTPUT JOURNEYS

In this section, we experimentally evaluate the dissim-

ilarity of the journeys extracted by our algorithms on

the described dataset in order to check whether our

algorithms can be used to extract dissimilar journeys.

Roughly, two journeys are similar if they share a

major part of their connections and footpaths. Here,

(a) Average running time on Stockholm.

(b) Average running time on Switzerland.

(d) Average number of CSA calls on Switzerland.

Figure 2: The running time of the kEAT algorithms on

Switzerland train network and Stockholm public transit net-

work with respect to the values of k.

analogously with the Jaccard similarity measure of

paths in graphs, that measures the similarity of two

paths by the ratio of the length of the arcs they have in

common over the length of their union (eq. 1) (Chon-

On Finding k Earliest Arrival Time Journeys in Public Transit Networks

323

(a) Running time of Y-PT and PY-PT on Germany.

(b) Running time of Y-PT and PY-PT on Paris.

Figure 3: Comparison of the running time of Y-PT and PY-

PT on a train network and a public transit network.

drogiannis et al., 2017; Al Zoobi et al., 2021b).

S(P,Q) =

ℓ(P ∩Q)

ℓ(P ∪Q)

(1)

We deﬁne the similarity of two journeys as the ra-

tio between the travel time of their connections and

footpaths in common over the travel time of the union

of their connections and footpaths. Precisely, we de-

ﬁne the similarity of two journeys as follows.

Let c = (c

dep stop

arr stop

dep time

arr time

trip

)

be a connection, we deﬁne the travel time of c as the

time consumed by c, i.e, dur(c) = c

arr time

−c

dep time

Now, let J

be two journeys, the similarity between

and J

can be measured as follows.

) =

∑

c∈J

∩J

dur(c)+

∑

f ∈J

∩J

dur

∑

c∈J

∪J

dur(c)+

∑

f ∈J

∪J

dur

(2)

So, given a threshold value θ ∈ [0,1], two journeys

and J

are called θ dissimilar if their similarity does

not exceed θ, i.e., if S

) ≤ θ.

In order to evaluate the number of dissimilar jour-

neys given by our algorithms, we measured the num-

ber of journeys that are θ dissimilar among the ﬁrst

100 journeys given by our algorithm. As shown in

Figure 4, our algorithms can be used to extract, on av-

erage, 3 to 5 journeys that are 0.5 dissimilar for the

Paris network. Moreover, Figure 5 shows the num-

ber of dissimilar journeys among the 100 journeys

given by our algorithms with respect to the value of

(a) Paris

(b) Germany

Figure 4: Number of paths that are 0.5 dissimilar among

those given by our algorithms.

the similarity measure θ. We notice that, starting from

θ = 0.8, the number of dissimilar journeys starts to be

considerable (more than 15 journeys).

The plots presented in this section corresponds to

the results obtained on the Paris and Germany net-

works. However, very similar results were obtained

on the remaining networks.

Summarizing, after measuring the similarity of the

journeys given by our algorithms in practice, we claim

that algorithms Y-PT and PY-PT can be used as a tool

to extract journeys that are reasonably dissimilar.

8 CONCLUSION

In this paper, we have explored alternative journey

planning in public transit networks, offering a vast

set of interesting solutions. This is done by adapting

the k shortest simple paths problem to the public tran-

sit network context. We proposed a straightforward

adaptation of Yen’s algorithm and a more reﬁned ver-

sion answering the proposed problem in a reasonable

running time. Finally, we evaluated the similarity of

the output journeys and showed that our algorithms

can be used to extract dissimilar journeys.

Interesting questions are asked about designing al-

gorithms answering k earliest arrival journeys query

faster. Whether by improving / proposing faster meth-

ods than PY-PT algorithm, or even with the help of a

preprocessing routine. For instance, a more speciﬁc

ICORES 2022 - 11th International Conference on Operations Research and Enterprise Systems

324

(a) Paris

(b) Germany

Figure 5: Number of dissimilar paths among the ﬁrst 100

paths given by our algorithms with respect to the variation

of the similarity threshold θ.

question is whether one can use journey planning al-

gorithms like Transfer Patterns algorithm (Bast et al.,

2010) to answer k earliest arrival journeys queries.

Another interesting question concerns the design

of algorithms dedicated to extracting dissimilar jour-

neys in public transit networks. This could be done

by adapting some of the algorithms proposed to ﬁnd

shortest dissimilar paths in a graph (Chondrogiannis

et al., 2017).

REFERENCES

Al Zoobi, A., Coudert, D., and Nisse, N. (2020). Space

and time trade-off for the k shortest simple paths prob-

lem. In 18th International Symposium on Experimen-

tal Algorithms (SEA), volume 160, page 13. Schloss

Dagstuhl–Leibniz-Zentrum f

ur Informatik.

Al Zoobi, A., Coudert, D., and Nisse, N. (2021a). Finding

the k Shortest Simple Paths: Time and Space trade-

offs. Research Report hal-03196830, Inria ; I3S, Uni-

versit

e C

ote d’Azur.

Al Zoobi, A., Coudert, D., and Nisse, N. (2021b). On the

complexity of ﬁnding k shortest dissimilar paths in a

graph. Research Report hal-03187276, Inria ; CNRS

; I3S ; UCA.

Al Zoobi, A. and Finkelstein, A. (2021). PT-KSSP Github

Project. https://github.com/ﬁnk-arthur/PT-KSSP.

Barrett, C., Bisset, K., Holzer, M., Konjevod, G., Marathe,

M., and Wagner, D. (2008). Engineering label-

constrained shortest-path algorithms. In International

conference on algorithmic applications in manage-

ment, pages 27–37. Springer.

Bast, H., Carlsson, E., Eigenwillig, A., Geisberger, R., Har-

relson, C., Raychev, V., and Viger, F. (2010). Fast

routing in very large public transportation networks

using transfer patterns. In 18th Annual European Sym-

posium on Algorithms (ESA), pages 290–301.

Bast, H., Delling, D., Goldberg, A., M

uller-Hannemann,

M., Pajor, T., Sanders, P., Wagner, D., and Wer-

neck, R. F. (2016). Route planning in transportation

networks. In Algorithm engineering, pages 19–80.

Springer.

Chondrogiannis, T., Bouros, P., Gamper, J., and Leser, U.

(2017). Exact and approximate algorithms for ﬁnding

k-shortest paths with limited overlap. In 20th Interna-

tional Conference on Extending Database Technology

(EDBT), pages 414–425.

Delling, D., Pajor, T., and Werneck, R. F. (2015). Round-

based public transit routing. Transportation Science,

49(3):591–604.

Dibbelt, J., Pajor, T., Strasser, B., and Wagner, D. (2018).

Connection scan algorithm. ACM Journal of Experi-

mental Algorithmics (JEA), 23:1–56.

Eppstein, D. (1998). Finding the k shortest paths. SIAM

Journal on Computing, 28(2):652–673.

Johnson, D. S. (2002). A theoretician’s guide to the exper-

imental analysis of algorithms. Data structures, near

neighbor searches, and methodology: ﬁfth and sixth

DIMACS implementation challenges, 59:215–250.

Kurz, D. and Mutzel, P. (2016). A sidetrack-based al-

gorithm for ﬁnding the k shortest simple paths in

a directed graph. In 27th International Symposium

on Algorithms and Computation (ISAAC), volume 64

of LIPIcs, pages 49:1–49:13. Schloss Dagstuhl -

Leibniz-Zentrum f

ur Informatik.

Scano, G., Huguet, M.-J., and Ngueveu, S. U. (2015).

Adaptations of k-shortest path algorithms for trans-

portation networks. In International Conference

on Industrial Engineering and Systems Management

(IESM), pages 663–669. IEEE.

Schulz, F., Wagner, D., and Weihe, K. (2000). Dijkstra’s

algorithm on-line: An empirical case study from pub-

lic railroad transport. ACM Journal of Experimental

Algorithmics (JEA), 5:12–es.

Vo, K. D., Pham, T. V., Nguyen, H. T., Nguyen, N., and

Van Hoai, T. (2015). Finding alternative paths in city

bus networks. In 2015 International Conference on

Computer, Control, Informatics and its Applications

(IC3INA), pages 34–39. IEEE.

Yen, J. Y. (1971). Finding the k shortest loopless paths in a

network. Management Science, 17(11):712–716.

On Finding k Earliest Arrival Time Journeys in Public Transit Networks

325
