Gesture Recognition on a New Multi-Modal Hand Gesture Dataset

Monika Schak and Alexander Gepperth

Fulda University of Applied Sciences, 36037 Fulda, Germany

Keywords:

Hand Gestures, Dataset, Multimodal Data, Data Fusion, Sequence Detection.

Abstract:

We present a new large-scale multi-modal dataset for free-hand gesture recognition. The freely available

dataset consists of 79,881 sequences, grouped into six classes representing typical hand gestures in human-

machine interaction. Each sample contains four independent modalities (arriving at different frequencies)

recorded from two independent sensors: a ﬁxed 3D camera for video, audio and 3D, and a wearable accelera-

tion sensor attached to the wrist. The gesture classes are speciﬁcally chosen with investigations on multi-modal

fusion in mind. For example, two gesture classes can be distinguished mainly by audio, while the four others

are not exhibiting audio signals – besides white noise. An important point concerning this dataset is that it is

recorded from a single person. While this reduces variability somewhat, it virtually eliminates the risk of in-

correctly performed gestures, thus enhancing the quality of the data. By implementing a simple LSTM-based

gesture classiﬁer in a live system, we can demonstrate that generalization to other persons is nevertheless high.

In addition, we show the validity and internal consistency of the data by training LSTM and DNN classiﬁers

relying on a single modality to high precision.

1 INTRODUCTION

This work is in the context of multi-modal hand

gesture recognition. That is a ﬁeld of machine

learning that has profound application relevance in,

e.g., human-machine-interaction (HMI). Since mod-

ern deep learning methods are powerful but require

a large amount of data to reach their peak perfor-

mance, successful hand gesture recognition requires

sufﬁciently large and reliable datasets. Furthermore,

datasets should reﬂect the following: Present-day sen-

sors are increasingly cheap and universally available

and gesture recognition can proﬁt hugely when in-

cluding information from several sensory sources (or

modalities).

Training data for hand gesture recognition may

be characterized by the number of distinct modali-

ties, the number of included gesture classes, and the

available gesture samples per class. Another impor-

tant characteristic is sample diversity: this can be

promoted by, e.g., choosing different illumination or

background conditions. Sample diversity can be fur-

ther enhanced by choosing a large number of different

persons performing the gestures.

In the Multi-Modal Hand Gesture Dataset

(MMHG) described here, we chose to create a large-

scale dataset with relatively few classes but a large

number of samples per class. We include audio, RGB,

depth, and IMD sensing as modalities into all ges-

ture samples. For diversity, we make a rather unusual

choice: all gestures are performed by a single person.

This will certainly reduce diversity, although the ad-

vantages are signiﬁcant as well: a single person will

be well instructed in performing the gestures, so there

are few corrupted or incorrectly performed samples

in the data. This would certainly be the case if a large

number of persons were to perform the gestures, with

little time for each person to learn the correct way of

performing them. Furthermore, this is a typical ap-

plication setting, where, e.g., an infotainment system

in a modern vehicle, is mainly interacting with, and

adapted to, a single user. In this context, additional

performance boosts can be obtained by specializing

to that user. We therefore model an ”educated” user

here, one that is acquainted with the gesture recogni-

tion system being used. We show that it is possible to

train a system with our dataset and still obtain good

results when classifying hand gestures performed by

different users.

2 RELATED WORK

Numerous gesture datasets have been proposed in re-

cent years: The SHGD dataset (Kopuklu et al., 2019)

contains only depth data recorded by an RGB-D cam-

122

Schak, M. and Gepperth, A.

Gesture Recognition on a New Multi-Modal Hand Gesture Dataset.

DOI: 10.5220/0010982200003122

In Proceedings of the 11th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2022), pages 122-131

ISBN: 978-989-758-549-4; ISSN: 2184-4313

Table 1: Overview of already available hand-gesture datasets and the MMHG dataset presented in this article.

Dataset Classes Samples/ Class Persons Total Samples Modalities

SHGD (Kopuklu et al.,

2019)

15 96 27 4,500 Depth

Cambridge Dataset

(Kim and Cipolla,

2008)

10 100 2 1,000 RGB

n.A. (Marin et al.,

2016)

10 100 14 1,400 Depth, Motion

IsoGD (Wan et al.,

2016)

249 190 21 50,000 RGB, Depth

EgoGesture (Zhang

et al., 2018)

83 300 50 24,000 RGB, Depth

SKIG (Liu and Shao,

2013)

10 360 6 1,080 RGB, Depth

ChaLearn (Escalera

et al., 2013)

20 390 27 13,900 Audio, RGB, Depth

n.A. (Memo et al.,

2015)

11 3,000 - 35,200 rendered Depth

MMHG (this paper) 6 ≈ 13,300 1 79,881 RGB, Depth, Motion,

Audio

era. It consists of 15 gesture classes with 96 sequence

samples per class, recorded from 27 persons. The to-

tal dataset size is about 4,500 gesture samples. (Marin

et al., 2016) present a multi-modal dataset containing

depth data from an RGB-D and LeapMotion sensor. It

consists of ten gesture classes with 100 gesture sam-

ples per class recorded from 14 persons. In total, this

amounts to a dataset size of 1,400 gesture samples.

An interesting approach is pursued in (Memo et al.,

2015): instead of recording gesture samples, the au-

thors propose to render them using an advanced com-

puter graphics pipeline. The resulting dataset con-

tains depth data grouped into eleven gesture classes,

with about 3,000 gesture samples per class. In to-

tal, the dataset contains 35,200 gesture samples. The

Cambridge dataset (Kim and Cipolla, 2008) contains

1,000 RGB samples grouped in ten gesture classes,

with 100 gesture samples per class recorded from two

persons. The Shefﬁeld Kinect Gesture Dataset (Liu

and Shao, 2013) contains 1,080 RGB-D sequences,

grouped into ten classes, with 360 gesture samples per

class recorded from six subjects.

The ﬁrst really large-scale dataset on hand gesture

recognition to be published was the ChaLearn-2013

dataset (Escalera et al., 2013). It contains roughly

14,000 gesture samples grouped into 20 classes with

an average of 360 gesture samples per class and

recorded from 27 persons. Included modalities are

audio, RGB and depth. An even larger dataset, the

IsoGD dataset, was published in (Wan et al., 2016),

although it just includes RGB and depth modalities.

This dataset contains about 50,000 gesture samples,

grouped into 249 gesture classes, with an average of

190 gesture samples per class and recorded from 21

persons. A dataset of similar size that includes RGB

and depth was presented in (Zhang et al., 2018). Here,

24,000 gesture samples were recorded from 50 per-

sons and grouped into 83 classes with roughly 300

gesture samples per class. A particularity of this

dataset is that it is egocentric and recorded from a

head-mounted camera.

To summarize, we ﬁnd that there are no publicly

available datasets that, on one hand, include a large

number of gesture samples (> 10,000), and which,

on the other hand, contain a reasonable number of

modalities recorded from independent sensors. We

aim to close this gap with the dataset we are describ-

ing here. An overview of the mentioned datasets is

given in Table 1.

An interesting point to make here is that all

datasets we know aim to capture gestures from differ-

ent people to include as much diversity as possible.

As stated before, our approach is different: we only

record from a single person, which results in a less

diverse but more reliable dataset that closely reﬂects

applications of gesture recognition in, e.g., HMI.

For completeness: There exists a large number

of multi-modal datasets for human activity recogni-

tion (Ranasinghe et al., 2016; Romdhane et al., 2013;

Chen et al., 2015; D. Lara and Labrador, 2013; Ni

et al., 2011; Zhang and Sawchuk, 2012; Radu et al.,

2018; Sharma et al., 2016), a related but less well-

deﬁned ﬁeld. The main feature of these datasets is

data from wearable sensors (which play a role in our

Gesture Recognition on a New Multi-Modal Hand Gesture Dataset

123

dataset as well), as well as the inclusion of multiple

RGB and RGB-D sensors.

2.1 Contribution

The main contribution of this article is the presen-

tation of a new, large-scale dataset for hand gesture

recognition consisting of four modalities. It offers a

large number of samples per class. Each class is de-

signed carefully to show the beneﬁts of multi-modal

fusion. In addition, we offer carefully curated data

coming from a single person that is well-instructed.

Thus, we are ensuring a consistently high quality of

data for machine learning.

In addition, we present experiments showing the

consistency of the dataset by achieving very plausible

classiﬁcation performances on each of the modalities,

taken individually. Lastly, we describe a real-time im-

plementation of the 3D-based gesture classiﬁer and

demonstrate excellent generalization to other persons.

This last point is very important, since it shows that

the relative lack of diversity in our dataset is not an

obstacle to generalization.

3 DATASET

The dataset contains recordings of six different hand

gestures. There are around 13,300 recordings of each

gesture class, totaling 79,881 samples. All gestures

are performed by a single person as explained above.

This approach ensures that the conducted gestures

are performed correctly and consistently across the

dataset, and also that the variability of each gesture

class is not excessive. Each gesture sample, irrespec-

tively of its class, lasts for two seconds. The hand

gestures are observed by the following four modali-

ties: a wearable IMD sensor, an RGB sensor, a 3D

sensor, and a microphone.

Table 2 shows information about the provided

data before and after preprocessing. Both the

raw and preprocessed data can be downloaded at

data.informatik.hs-fulda.de.

3.1 Setup

We used a ﬁxed setup for all recordings to ensure each

gesture is recorded with the same distance to the cam-

era. For that, we bolted the camera to a board and

marked the area in which to conduct the gesture. This

setup is shown in Figure 1.

In every recording, each gesture class is repeated

ten times before moving on to the next class. There-

fore, each recording produces ten samples for each

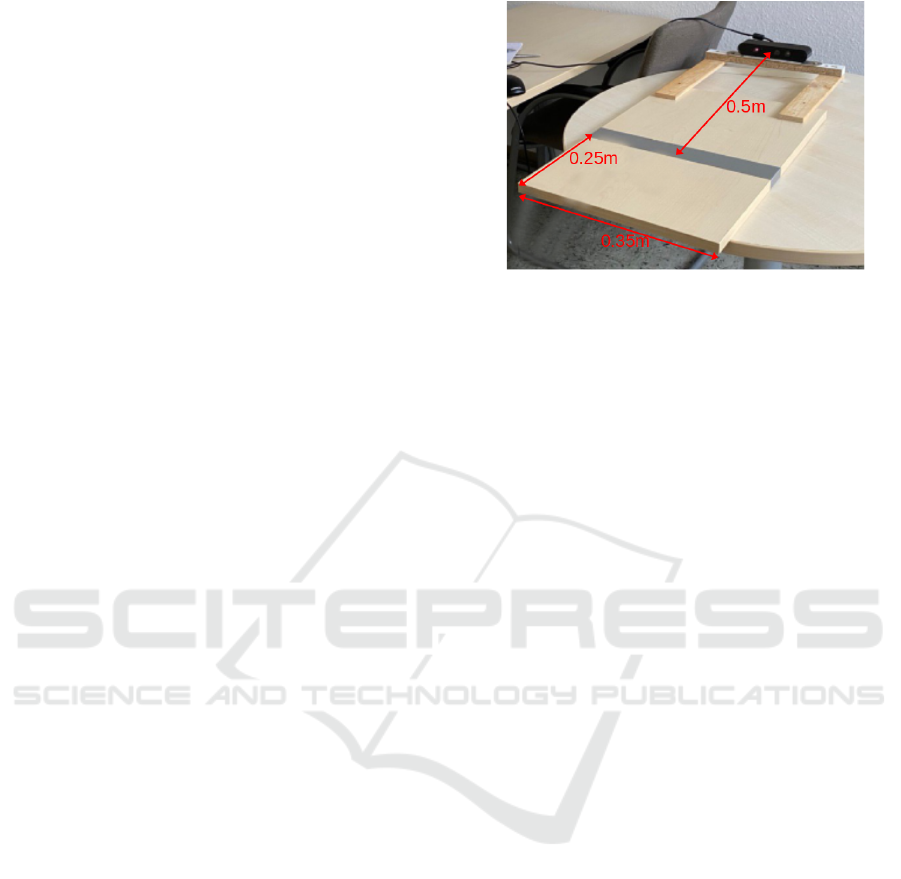

Figure 1: The ﬁxed setup to record hand gestures for our

multi-modal gesture dataset.

of the six classes or a total of sixty samples. During

the time of recording, the samples are immediately

assigned class labels. For each recording, we save

the RGB images as PNG ﬁles, the 3D point clouds as

PCD ﬁles, audio as MP3 ﬁles, the acceleration data

and labels as NumPy arrays. In a separate step, in-

dependently of the recording, we preprocess the data

into a format that can be used as training and test in-

put. The recorded data and the preprocessing step are

described in Sections 3.3 to 3.6.

3.2 Gesture Classes

Our dataset consists of six classes: two are rather sta-

tionary, two are rather dynamic and two rely on sound

to be distinguished from each other.

• Thumbs Up (0): The ﬁrst class is a thumbs-up

gesture. It is a stationary gesture with very little

movement.

• Thumbs Down (1): The second class is a thumbs

down gesture. It is also a stationary gesture with

very little movement.

• Swipe Left (2): The third class is a dynamic ges-

ture. For this, the whole hand swipes from right

to left.

• Swipe Right (3): The fourth class is also a dy-

namic gesture. In contrast to the third class, the

whole hand swipes from left to right.

• One Snap (4): The ﬁfth class is a rather station-

ary hand gesture as well. The thumb and middle

ﬁnger make a snapping sound, therefore sound is

important for this gesture.

• Two Snaps (5): The sixth class is comparable

to the ﬁfth class, with the difference of snapping

twice instead of once. Therefore, sound is also

important for this gesture.

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

124

Table 2: Information about the provided data in our new multi-modal hand gesture dataset before and after preprocessing.

Before preprocessing After preprocessing

Modal. Format Size Format Size

RGB PNG, 640 × 480 pixel, 12/gest. 546.0 GB Numpy, (N, 12, 756) 39.8 GB

3D PCD, 12/gesture 372.6 GB Numpy, (N, 8, 625) 2.0 GB

Audio MP3, 16 kHz, 1/gesture 1.8 GB Numpy, (N, 182, 181, 1) 21.2 GB

IMD Numpy, (N, 20, 7), 10/gesture 124.0 MB Numpy, (N, 10, 3, 6) 114.9 MB

3.3 RGB Data

To record RGB data, we use the video stream

provided by an Orbbec Astra 3D sensor. It sends a

stream of 800 × 600 RGB images which we record.

Preprocessed as follows: after cropping the images to

the part in which the hand is visible, we scale them to

72 ×48 pixels. Afterward, we calculate the histogram

of oriented gradients (HOG) descriptor (McConnell,

1986; William T. Freeman, 1994) for each image,

using the OpenCV implementation. We use the

default parameters except for cell size which is set

to be 8 × 8 pixels, and block size which is 16 × 16

pixels, resulting in a descriptor of 756 entries. We set

the frame rate such as to receive twelve images per

gesture. Thus, a gesture is characterized by twelve

HOG descriptors, each having a ﬁxed size of 756

values. The preprocessing results in a NumPy array

for the RGB data with a shape of (N, 12, 756).

Figure 2: Example of one frame for an RGB sample of class

5 (One Snap).

Figure 2 shows one of the recorded RGB images

for class 5 (One Snap). The setup – as in position

and distance to the camera – is always the same, the

background as well as the lighting might vary.

3.4 3D Data

To record 3D data, we use the stream of depth images

provided by an Orbbec Astra 3D sensor. The depth

images have a size of 640 × 480 and are converted

to point clouds, then stored. During the two-second

window for each gesture, we receive a total of twelve

point clouds. Each of these point clouds is passed

through the ﬁve steps of processing:

• Downsampling: At ﬁrst, we reduce the size of

the point clouds to lower the computational costs.

Therefore, we create a 3D-voxel grid over the in-

put point cloud data. For every voxel, we calculate

the centroid of all its points and use this to repre-

sent the voxel.

• VoI Filtering: In the second step, we use condi-

tional removal to crop the point cloud to a deﬁned

volume of interest. Thus, removing background

data and leaving just the area in which the hand is

present.

• Removing NaN: Afterwards, we remove measure-

ment errors by deleting all points whose x-, y-, or

z-value is equal to NaN.

• Computing Normals: In the fourth step, we use

approximations to infer the surface normals for all

remainng points in the point cloud.

• Creating a Point Feature Histogram (PFH): To

get a descriptor of ﬁxed length, regardless of the

size of the point clouds, that can be fed to a ma-

chine learning model, we decided on a representa-

tion with PFH (Sachara et al., 2017; Sarkar et al.,

2017). These descriptors characterize the phe-

nomenology of hand, palm, and ﬁngers in a pre-

cise manner while remaining computationally fea-

sible at the same time. PFH is based on the surface

normals computed in the previous step. Now, we

repeatedly select two points and compute their de-

scriptor (Rusu et al., 2008), which provides four

values based on the length and relative orienta-

tion of the surface normals. Each of the four val-

ues is subdivided into ﬁve intervals, giving a to-

tal of 625 discrete possibilities. The result is a

625-dimensional histogram for each point cloud.

Lastly, we normalize the histogram.

We receive eight frames for every gesture. Each frame

consists of 625 values. Figure 3 shows the point fea-

ture histogram of one frame of one gesture (bottom)

and the corresponding point cloud (top). The result-

ing NumPy array after preprocessing has a shape of

(N, 12, 625).

Gesture Recognition on a New Multi-Modal Hand Gesture Dataset

125

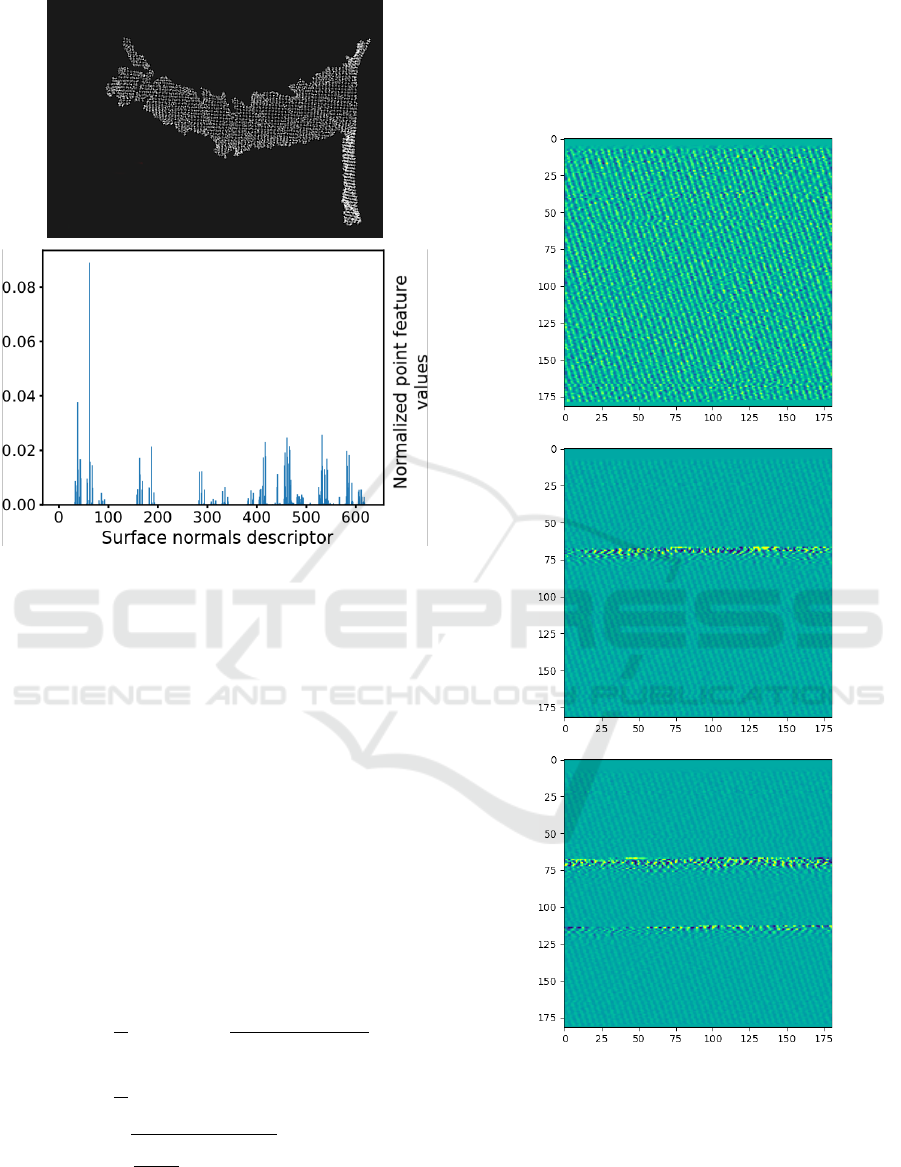

Figure 3: Example of a point feature histogram (bottom)

corresponding to one frame of a ”Thumbs Up” gesture (top:

point cloud from which the histogram was computed).

3.5 IMD Data

To record the acceleration data, we use a 9-axis accel-

eration sensor (BWT901CL von Bitmotion) attached

to the wrist of the user’s hand. It can record 3-

axis acceleration data and 3-axis yaw rates as well

as gyroscopic and magnetic ﬁeld measurements at a

frequency of 200 Hz. We store a 7-tuple for each

of the 400 measurements containing the timestamp,

the acceleration data and the yaw rates. Prepro-

cessing cleans the rather noisy signals: for this, we

gather all N = 20 7-tuples from each consecutive 200-

millisecond window into a block and calculate statis-

tical values for each entry except the timestamp, as

shown in equations 1-3.

¯x =

∑

i=1

+ x

+ ·· · + x

(1)

Var(x) =

∑

i=1

− ¯x)

(2)

S(x) =

N − 1

∑

i=1

− ¯x)

(3)

Thus, we receive ten descriptors (200ms ·10 frames =

2s) for every gesture sample. Each descriptor consists

of 18 values: three statistical values for each of the

six axes. This results in a NumPy array for the pre-

processed IMD data with the shape of (N, 10, 3, 6).

3.6 Audio Data

Figure 4: Examples of plotted STFT data. Sample without

sound (top, class 2 - swipe left), with one snapping sound

(middle, class 4 - snap once) and with two snapping sounds

(bottom, class 5 - snap twice). STFT provides the frequency

information and displays how much the frequency varies

during a time frame.

To record the audio data, we use the audio stream pro-

vided by the Orbbec Astra 3D sensor. The sensor al-

lows to record audio between 20 and 16,000 Hz and

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

126

has a sensitivity of 30 dB.

For the entire length of the recording, we save the

wave data and later down-sample it to a frequency of

8,000 Hz. To ensure each sample has the same length,

we use zero-padding and randomly pick the offset for

each sample.

Afterward, we compute the Short-Time Fourier

Transform (Nasser, 2008) (STFT) for each data sam-

ple. Over a window of 455 data points with an overlap

of 420 points, the STFT provides the frequency infor-

mation and displays how much the frequency varies

during that time frame. The result of this computa-

tion is 2D data in the shape of 181× 182. The prepro-

cessing step is based on data conversion conducted on

the AudioMNIST dataset (Becker et al., 2018) and re-

sults in a NumPy array for the audio data with shape

(N, 182, 181, 1).

Figure 4 shows three examples of the plotted STFT

data: one for a sample without any particular noise,

one for a sample with one snapping sound, and one

for a sample with two snapping sounds. This shows

the differences between the classes that can be used

by an algorithm to perform classiﬁcation.

4 EXPERIMENTS

We provide uni-modal classiﬁcation results as a

benchmark for our dataset. Each experiment is re-

peated ﬁve times, and the average classiﬁcation accu-

racy on a test set is reported. We train a distinct deep

LSTM network (Hochreiter and Schmidhuber, 1997)

on preprocessed data for each modality. The recorded

gestures from the dataset are randomly split into train-

ing and test sets at a proportion of 80:20 before train-

ing and subsequently used as training and test data in

all uni-modal experiments.

In preliminary experiments, we identify the net-

work parameters that result in the highest classiﬁca-

tion accuracy. We vary the learning rate ε, the num-

ber of hidden Layers L, the number of cells per layer

S, the batch size b, and the number of iterations I.

Then, we compare the resulting accuracy and use the

parameters that achieved the best results for our ex-

periments thus resulting in the network architectures

used for our experiments as shown in Table 3.

Table 3: Architectures of the LSTM networks used for our

experiments.

Modality ε L S b I

Accel. Data 0.001 5 250 500 1,000

RGB Data 0.001 2 200 250 3,000

3D Data 0.001 2 250 1,000 5,000

Tables 4 and 5 show the results of our uni-modal

experiments for acceleration data. It shows a uni-

modal gesture classiﬁcation accuracy for the acceler-

ation data at 84%.

Table 4: Confusion matrix for the unimodal gesture classi-

ﬁcation of acceleration data.

Predicted class [0-5]

Target [0-5]

3778 37 29 17 58 31

772 3128 25 5 13 7

54 408 3358 78 45 7

24 11 489 3290 128 8

39 4 25 242 3141 499

12 1 3 14 794 3126

Table 5: Classiﬁcation report for the unimodal gesture clas-

siﬁcation of acceleration data.

Class Precision Recall F1-Score

0 0.81 0.96 0.88

1 0.87 0.79 0.83

2 0.85 0.85 0.85

3 0.90 0.83 087

4 0.75 0.80 0.77

5 0.85 0.79 0.82

Tables 6 and 7 show the results of our uni-modal

experiments for RGB data, which shows that the ges-

ture classiﬁcation accuracy reaches 85%.

Table 6: Confusion matrix for the uni-modal gesture classi-

ﬁcation of RGB data.

Predicted class [0-5]

Target [0-5]

3912 38 0 0 0 0

0 3447 133 57 38 285

0 247 3637 38 38 0

0 114 95 3637 114 0

0 247 0 38 2687 988

0 475 0 57 437 2991

The results for the uni-modal experiments for 3D

data can be seen in Tables 8 and 9. The gesture clas-

siﬁcation accuracy reaches 92% for this modality.

We are not using an LSTM network to classify au-

dio data since the preprocessed data are not sequential

but a single 2D image for each gesture (cf. Figure 4).

Therefore, we use a Deep Convolutional Neural Net-

work which is the state-of-the-art technique for im-

age classiﬁcation. We chose the Adam Optimizer and

Cross-Entropy Loss Function to train our Deep CNN

in 10 epochs. The used CNN consists of the following

eight layers:

Gesture Recognition on a New Multi-Modal Hand Gesture Dataset

127

Table 7: Classiﬁcation report for the unimodal gesture clas-

siﬁcation of RGB data.

Class Precision Recall F1-Score

0 1.00 0.99 0.99

1 0.75 0.86 0.80

2 0.94 0.92 0.93

3 0.95 0.92 0.93

4 0.80 0.67 0.73

5 0.69 0.74 0.72

Table 8: Confusion matrix for the uni-modal gesture classi-

ﬁcation of 3D data.

Predicted class [0-5]

Target [0-5]

3950 0 0 0 0 0

2 3928 6 12 2 0

0 6 3900 44 0 0

0 0 24 3922 4 0

2 0 0 0 3488 460

0 0 2 0 998 2950

1. A Convolutional layer with the input shape

(182, 181, 1), a ﬁlter size of 32, and a kernel size

of (3, 3).

2. A Max Pooling layer with a pooling size of (2, 2).

3. A Convolutional layer with a ﬁlter size of 64, and

a kernel size of (3, 3).

4. A Max Pooling layer with a pooling size of (2, 2).

5. A Convolutional layer with a ﬁlter size of 64, and

a kernel size of (3, 3).

6. A Reshaping Layer that ﬂattens the input.

7. A densely connected Neural Network layer with

64 units.

8. A densely connected Neural Network layer with

10 units.

Tables 10 and 11 show the results of our uni-

modal experiments for audio data. It shows an uni-

modal gesture classiﬁcation accuracy for audio data

at 45%. Unsurprisingly, the data show a high recall

Table 9: Classiﬁcation report for the unimodal gesture clas-

siﬁcation of 3D data.

Class Precision Recall F1-Score

0 1.00 1.00 1.00

1 1.00 0.99 1.00

2 0.99 0.99 0.99

3 0.98 0.99 0.99

4 0.74 0.86 0.80

5 0.84 0.70 0.77

for gestures 4 (One Snap) and 5 (Two Snaps) and a

low recall for the other four gestures that do not de-

pend on sound to be distinguished. The purpose of

the audio modality lies in reinforcing predictions in

combination with other modalities.

Table 10: Confusion matrix for the uni-modal gesture clas-

siﬁcation of audio data.

Predicted class [0-5]

Target

[0-5]

772 251 304 2602 14 7

678 339 319 2609 3 2

690 251 394 2612 3 0

717 280 266 2684 0 3

126 79 61 89 3081 514

13 9 15 6 568 3339

Table 11: Classiﬁcation report for the uni-modal gesture

classiﬁcation of audio data.

Class Precision Recall F1-Score

0 0.26 0.19 0.22

1 0.28 0.09 0.13

2 0.29 0.10 0.15

3 0.25 0.68 0.37

4 0.84 0.78 0.81

5 0.86 0.84 0.85

We therefore also investigated the effect of fusing

different modalities using two commonly used late fu-

sion methods: max-conf, where we use the most cer-

tain uni-modal class prediction as output, and prob,

where we treat the uni-modal output layer predictions

as independent conditional probability distributions

for a class, multiply and renormalize them. We dis-

card early fusion methods because the four sensory

modalities have different numerical formats, arrive at

different frequencies, and – in the case of audio data

– are processed by a different network type.

Figure 5 shows the averaged results of our uni-

modal and multi-modal experiments.

5 LIVE SYSTEM

We conﬁrm that it is possible to train a real-time sys-

tem on our dataset so that it can be used to correctly

classify hand gestures done by different people. For

this, we implement a live demonstrator based on the

3D modality. Our live system is split into two parts:

One part is the implementation of an LSTM network

as used for the experiments described in Section 4.

The second part is an implementation for the Robot

Operating System (ROS) that receives the sensor data

and feeds it to the trained LSTM network.

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

128

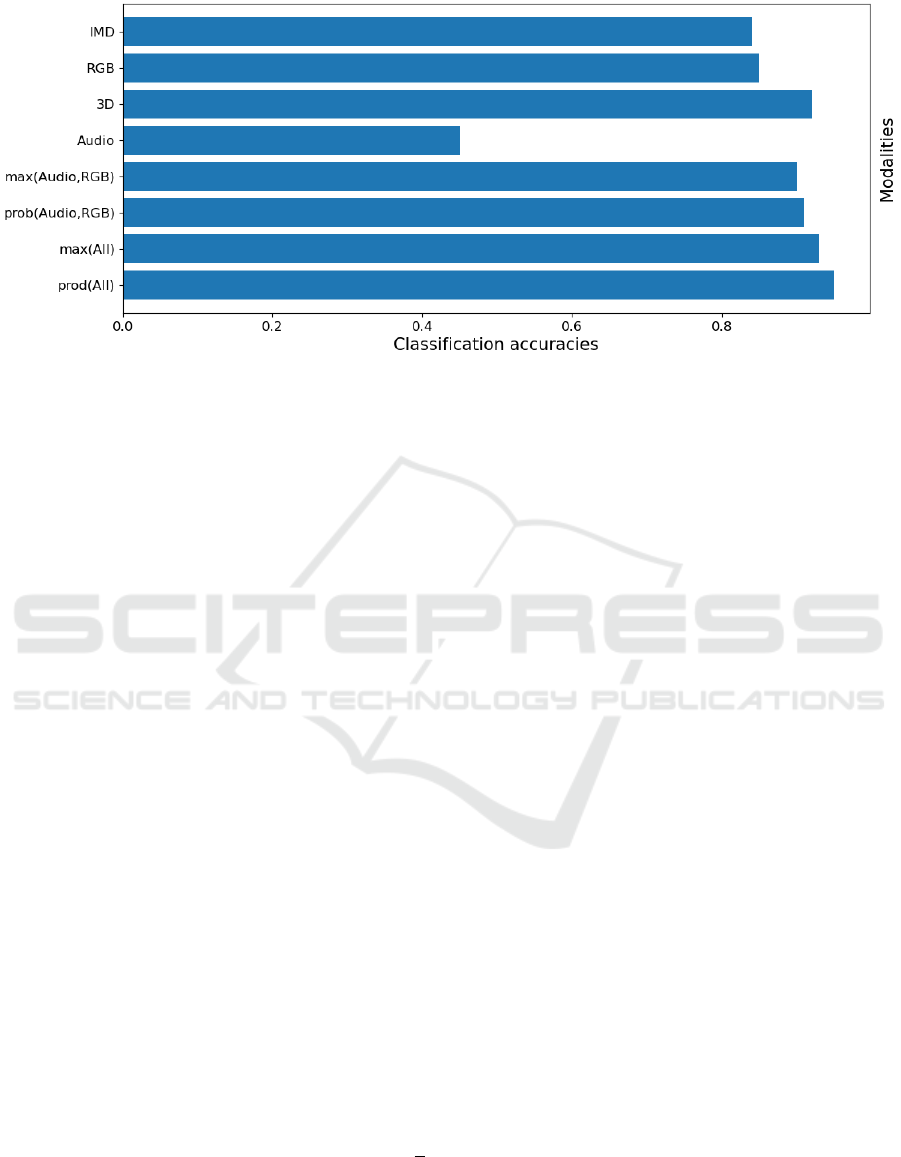

Figure 5: Gesture classiﬁcation accuracies achieved by the uni-modal experiments as well as selected results for the two

multi-modal fusion approaches max-conf and prob.

5.1 Implementation Details

As a proof of concept, we only show the details for

processing, training, and classifying 3D data. All

other modalities can be handled analogously.

5.1.1 Point Cloud Processor

The ROS node responsible for processing the point

clouds subscribes to the 3D camera sensor. The cam-

era publishes PointCloud2 messages at about 6 Hz

to correspond to the number of frames in the dataset.

Each message includes meta-information (i.e. height,

width, step size) and the point cloud data itself. In

this node, the point cloud is extracted from the mes-

sage and then converted according to the preprocess-

ing steps described in Section 3.4. Afterward, the

PFH is published for further processing.

5.1.2 LSTM Classiﬁer

The second ROS node contains the LSTM classiﬁer.

This node listens to PFH messages published by the

Point Cloud Processor. Since gestures can start at

any given moment in time, we use an approach called

Shifted Recognizer (Schak and Gepperth, 2019): N

identical classiﬁers or recognizers are run in parallel,

each of them is trained with the same dataset consist-

ing of gestures with a ﬁxed length T which determines

their Temporal Receptive Field (TRF). Each of them

receives the same data from the Point Cloud Proces-

sor. However, the classiﬁers are delayed by ∆ =

frames w.r.t. to the other classiﬁers, as shown in Fig-

ure 6, and they are reset after a full TRF. If there are

enough classiﬁers, a gesture of length l ≤ T will cor-

relate with the TRF of a single classiﬁer which will

then classify and report it.

In our live system, we use N = 12 LSTM classi-

ﬁers. Since the number of parallel classiﬁers equals

the number of frames per gesture, a gesture will al-

ways correlate to exactly one classiﬁer and there will

be neither an onset nor an offset to the gesture in that

classiﬁers TRF.

Each node follows the same steps: First, it re-

ceives the PFH message and converts it to a Numpy

array which is then fed into the LSTM model. Then, it

publishes the classiﬁcation result as a message. Each

LSTM Classiﬁer node predicts a gesture class for ev-

ery frame they receive and publishes the result. All

predictions are further handled by the Aggregator.

5.1.3 Aggregator

The Aggregator node collects and aggregates the pre-

dictions from the twelve LSTM Classiﬁer nodes. The

prediction with the highest prediction score will be

used. The result, i.e., the predicted gesture class, is

only presented to the user if the following conditions

apply: ﬁrst of all, the prediction score must be above a

predeﬁned threshold. In addition, the predicted class

of the LSTM node with the highest prediction score

must be the same for the last three frames. Otherwise,

no prediction is given. Thus, we ensure that there is

no prediction if the user is not performing a gesture.

5.2 Experiments

To prove that the described system can correctly clas-

sify gestures performed by persons which it was

not trained by, we conducted a series of experi-

ments. Four persons performed each gesture multiple

times, and the number of correct classiﬁcations was

Gesture Recognition on a New Multi-Modal Hand Gesture Dataset

129

Figure 6: Example for our Shifted Recognizer approach with ∆ =

frames. The temporal receptive ﬁelds (TRFs) of each

recognizer (R

1...4

are indicated by red or green bars, while the received PFH of a conducted gesture is indicated by a black

bar. One recognizers TRF will correlate with the gesture and therefore classify the gesture correctly (green bar).

Table 12: Results for our experiments on gesture recogni-

tion with a live system trained on the MMHG dataset. P

notates the ratio of correct classiﬁcations for the i-th user

with i ∈ {1, 2, 3, 4}, whereas C

notates the k-th class as de-

scribed in Section 3.2.

∑

5/5 1/1 1/1 3/3 100%

5/5 1/1 1/1 2/3 90%

5/5 1/1 0/1 2/3 80%

2/5 0/1 1/1 1/3 40%

5/5 1/1 1/1 2/3 90%

0/5 0/1 0/1 1/3 10%

∑

73.3% 66.7% 66.7% 61.1% 66.7%

recorded. There were two female and two male users,

with differing hand sizes and skin colors to present as

much variation as possible. Every user got instructed

on how to correctly perform the gestures. The results

are shown in Table 12.

Since we only discuss results for depth data exem-

plarily, it is not surprising that the prediction for Two

Snaps does not work. When performing Two Snaps,

the system always predicts One Snap because it does

not consider sound, and the depth data is very simi-

lar for both classes. Also, Swipe Left often gets con-

fused with Thumbs Up since the angle and movement

of the hand can be pretty similar. Including IMD data

could possibly increase the number of correct classiﬁ-

cations for this class. Recapitulatory, our experiments

show that our live system trained with gestures per-

formed by just a single person can achieve an accept-

able classiﬁcation accuracy for gestures performed by

different users.

6 SUMMARY AND CONCLUSION

In this article, we provide an in-depth description of

the new publicly available MMHG dataset, as well

as the reasoning behind the design of the gesture

classes, which is to support large-scale experiments

on multi-modal data fusion. We support the suitability

of this dataset for fusion purposes by conducting ex-

periments using (admittedly very simple) late-fusion

strategies and state-of-the-art sequence classiﬁcation

methods like LSTM and CNN networks. These ex-

periments show that, within the limits of statistical ac-

curacy, fusion with one or more other modalities does

improve the quality of uni-modal gesture recognition.

Notably, the audio modality, which by itself achieves

only very disappointing accuracies, can give a strong

boost when fused with others, since some gesture

classes are best characterized by audio-only. Also,

we show that our dataset can be used to train a sys-

tem to correctly classify hand gestures performed by

other users. Lastly, we have shown that multi-modal

gesture recognition is possible using techniques that

are real-time capable on off-the-shelf hardware.

In future research we will conduct experiments

with more individuals to estimate the bias in recog-

nition due to the single subject in our dataset. Also,

we will record more data – also with other subjects –

and update the dataset over time. Lastly, we will per-

form further research and conduct experiments using

probabilistic models for multi-modal sequence classi-

ﬁcation, outlier detection and sampling.

REFERENCES

Becker, S., Ackermann, M., Lapuschkin, S., M

uller, K.-

R., and Samek, W. (2018). Interpreting and Explain-

ing Deep Neural Networks for Classiﬁcation of Audio

Signals.

Chen, C., Jafari, R., and Kehtarnavaz, N. (2015). UTD-

MHAD: A multimodal dataset for human action

recognition utilizing a depth camera and a wearable

inertial sensor. In 2015 IEEE International Confer-

ence on Image Processing (ICIP), pages 168–172.

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

130

D. Lara, O. and Labrador, M. (2013). A Survey on Human

Activity Recognition Using Wearable Sensors. Com-

munications Surveys & Tutorials, IEEE, 15:1192–

1209.

Escalera, S., Gonz

alez, J., Bar

o, X., Reyes, M., Guyon,

I., Athitsos, V., Escalante, H., Sigal, L., Argyros,

A., Sminchisescu, C., Bowden, R., and Sclaroff, S.

(2013). Chalearn multi-modal gesture recognition

2013: grand challenge and workshop summary. In

Proceedings of the 15th ACM on International con-

ference on multimodal interaction, pages 365–368.

Hochreiter, S. and Schmidhuber, J. (1997). Long short-term

memory. Neural computation, 9:1735–80.

Kim, T.-K. and Cipolla, R. (2008). Canonical correlation

analysis of video volume tensors for action catego-

rization and detection. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 31(8):1415–1428.

Kopuklu, O., Rong, Y., and Rigoll, G. (2019). Talking with

your hands: Scaling hand gestures and recognition

with cnns. In Proceedings of the IEEE International

Conference on Computer Vision Workshops.

Liu, L. and Shao, L. (2013). Learning discriminative repre-

sentations from rgb-d video data. In Twenty-third in-

ternational joint conference on artiﬁcial intelligence.

Marin, G., Dominio, F., and Zanuttigh, P. (2016). Hand

Gesture Recognition with Jointly Calibrated Leap

Motion and Depth Sensor. Multimedia Tools Appl.,

75(22):14991–15015.

McConnell, R. (1986). Method of and apparatus for pattern

recognition.

Memo, A., Minto, L., and Zanuttigh, P. (2015). Exploiting

Silhouette Descriptors and Synthetic Data for Hand

Gesture Recognition. In Giachetti, A., Biasotti, S.,

and Tarini, M., editors, Smart Tools and Apps for

Graphics - Eurographics Italian Chapter Conference.

The Eurographics Association.

Nasser, K. (2008). Digital signal processing system design:

Labview based hybrid programming.

Ni, B., Wang, G., and Moulin, P. (2011). RGBD-HuDaAct:

A Color-Depth Video Database For Human Daily Ac-

tivity Recognition. International Conference on Com-

puter Vision Workshops, IEEE, pages 1147–1153.

Radu, V., Tong, C., Bhattacharya, S., Lane, N. D., Mascolo,

C., Marina, M. K., and Kawsar, F. (2018). Multimodal

Deep Learning for Activity and Context Recognition.

Proc. ACM Interact. Mob. Wearable Ubiquitous Tech-

nol., 1(4):157:1–157:27.

Ranasinghe, S., Machot, F. A., and Mayr, H. C. (2016).

A review on applications of activity recognition sys-

tems with regard to performance and evaluation. In-

ternational Journal of Distributed Sensor Networks,

12(8):1550147716665520.

Romdhane, R., Crispim-Junior, C. F., Bremond, F., and

Thonnat, M. (2013). Activity Recognition and Un-

certain Knowledge in Video Scenes. In IEEE Inter-

national Conference on Advanced Video and Signal-

Based Surveillance (AVSS), Krakow, Poland.

Rusu, R. B., Blodow, N., Marton, Z. C., and Beetz, M.

(2008). Aligning point cloud views using persistent

feature histograms. In 2008 IEEE/RSJ International

Conference on Intelligent Robots and Systems, pages

3384–3391. IEEE.

Sachara, F., Kopinski, T., Gepperth, A., and Handmann,

U. (2017). Free-hand gesture recognition with 3d-

cnns for in-car infotainment control in real-time. In

2017 IEEE 20th International Conference on Intelli-

gent Transportation Systems (ITSC), pages 959–964.

Sarkar, A., Gepperth, A., Handmann, U., and Kopinski, T.

(2017). Dynamic hand gesture recognition for mo-

bile systems using deep lstm. In Horain, P., Achard,

C., and Mallem, M., editors, Intelligent Human Com-

puter Interaction, pages 19–31, Cham. Springer Inter-

national Publishing.

Schak, M. and Gepperth, A. (2019). Robustness of deep

lstm networks in freehand gesture recognition. In

Artiﬁcial Neural Networks and Machine Learning –

ICANN 2019: Image Processing, pages 330–343.

Springer International Publishing.

Sharma, S., Kiros, R., and Salakhutdinov, R. (2016). Action

Recognition using Visual Attention. ICLR.

Wan, J., Zhao, Y., Zhou, S., Guyon, I., Escalera, S., and Li,

S. Z. (2016). Chalearn looking at people rgb-d iso-

lated and continuous datasets for gesture recognition.

In Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition Workshops, pages 56–

64.

William T. Freeman, M. R. (1994). Orientation histograms

for hand gesture recognition. Technical Report TR94-

03, MERL - Mitsubishi Electric Research Laborato-

ries, Cambridge, MA 02139.

Zhang, M. and Sawchuk, A. A. (2012). USC-HAD: A Daily

Activity Dataset for Ubiquitous Acitivity Recognition

Using Wearable Sensors. International Conference on

Ubiquitous Computing, pages 1036–1043.

Zhang, Y., Cao, C., Cheng, J., and Lu, H. (2018). EgoGes-

ture: A New Dataset and Benchmark for Egocentric

Hand Gesture Recognition. IEEE Transactions on

Multimedia, 20(5):1038–1050.

Gesture Recognition on a New Multi-Modal Hand Gesture Dataset

131
