PhilaeX: Explaining the Failure and Success of AI Models in Malware

Detection

Zhi Lu

and Vrizlynn L. L. Thing

Cyber Security Strategic Technology Centre, ST Engineering, Singapore

Keywords:

Cyber Security, Explainable AI, Malware Detection, Machine Learning.

Abstract:

The explanation to an AI model’s prediction used to support decision making in cyber security, is of critical

importance. It is especially so when the model’s incorrect prediction can lead to severe damages or even

losses to lives and critical assets. However, most existing AI models lack the ability to provide explanations

on their prediction results, despite their strong performance in most scenarios. In this work, we propose

a novel explainable AI method, called PhilaeX, that provides the heuristic means to identify the optimized

subset of features to form the complete explanations of AI models’ predictions. It identiﬁes the features that

lead to the model’s borderline prediction, and those with positive individual contributions are extracted. The

feature attributions are then quantiﬁed through the optimization of a Ridge regression model. We verify the

explanation ﬁdelity through two experiments. First, we assess our method’s capability in correctly identifying

the activated features in the adversarial samples of Android malwares, through the features attribution values

from PhilaeX. Second, the deduction and augmentation tests, are used to assess the ﬁdelity of the explanations.

The results show that PhilaeX is able to explain different types of classiﬁers correctly, with higher ﬁdelity

explanations, compared to the state-of-the-arts methods such as LIME and SHAP.

1 INTRODUCTION

Explaining the prediction of an AI model is critical

for the AI-based solution to modern cyber threats that

have the properties of large volume and highly com-

plexity by the AI technology. The threat detection so-

lutions based on the learnable AI technologies, which

are so called shallow machine learning and recently

emerging deep learning methods, have demonstrated

astonishing performance today. However, the high

detection performance is insufﬁcient in establishing

the trust from the users, since most models predict

the label of the suspicious sample, e.g., a malware or

a face image may be subjected to manipulation for

deception or obfuscation, through a complicated com-

putation process that people cannot understand. This

conﬁdence crisis may become more severe when the

AI model makes an erroneous prediction that causes

damage or loss to the user’s properties, assets or even

safety. Therefore, the research on explainable AI that

quantitatively explains the AI model’s successful or

failed prediction for a particular input sample through

https://orcid.org/0000-0002-7068-6728

https://orcid.org/0000-0003-4424-8596

the attribution of each data feature’s contribution to

the model’s prediction is highly desired (Do

silovi

et al., 2018).

Malware detection research has made progress

over the years. Demontis et. al. (Demontis et al.,

2017) improved the standard SVM on Android mal-

ware detection that further reduces the chance of eva-

sion by certain types of malware samples, through the

optmized selection method on the model’s parame-

ters. Zhang et. al. (Zhang et al., 2019) proposed

a malware detector using online learning technique

that is capable of adapting to the rapid evolving mal-

ware. Speciﬁcally, they combined the n-gram anal-

ysis and the online classiﬁer techniques in the de-

tection. The application of the deep learning meth-

ods in cyber security threats detection recently, such

as CNNs (Amerini et al., 2019), RNNs (G

uera and

Delp, 2018), LSTM (Xiao et al., 2019a) or Trans-

formers (Devlin et al., 2018), is a breakthrough in

the detection rate (i.e, true positive rate). The deep

learning methods also save the hand-crafted and time-

consuming efforts on the selection or transformation

of the samples’ features through the automatic end-

to-end learning, which performance was highly based

on the experience and the domain knowledge of the

Lu, Z. and Thing, V.

PhilaeX: Explaining the Failure and Success of AI Models in Malware Detection.

DOI: 10.5220/0010986700003194

In Proceedings of the 7th International Conference on Internet of Things, Big Data and Security (IoTBDS 2022), pages 37-46

ISBN: 978-989-758-564-7; ISSN: 2184-4976

developers (McLaughlin et al., 2017) (Yan et al.,

2018) (Xiao et al., 2019b) previously. However, it is

nearly impossible for humans to understand how the

deep learning models predict the class of the samples

by the non-linear computation process and millions

parameters among layers. The research effort on AI

models’ explanation is seldom considered in the de-

velopment of the machine learning algorithm.

Clearly, the AI model explanation is the posi-

tive direction to enhancing the users’ trust on the AI

model’s output, otherwise generated from a seem-

ingly black-box mechanism. Such explanation is

achieved through the quantiﬁcation on the “contribu-

tion” of each feature to the model’s prediction. The

popular model-agnostic explainable AI methods that

can explain any AI model’s predictions, regardless of

the model’s type (such as SVM, CNNs or LSTM),

may not be working well for cyber security problems.

LIME (Ribeiro et al., 2016) builds a surrogate linear

model of the original model to be explained, where

the contribution of each feature is computed through

the optimization (Efron et al., 2004). The authors as-

sumed the linear model can be understood by humans

because of its simplicity and the data used to train

the linear model is manipulated by the local pertur-

bation of the features values in the input data sam-

ple. The ﬁdelity of the linear model based explana-

tion may be deteriorated by the high dimensionality

of the data that is common in cyber security. Inte-

grated Gradients (IGs) (Sundararajan et al., 2017) at-

tributes the features as the model explanation through

the integration of the gradients on the model’s predic-

tions with respect to the input data with different fea-

tures values. These feature values are varied from the

“baseline” through a linear path, in which the base-

line refers to the zero-value feature vector or no signal

sample. The Integrated Gradients method works well

for the AI models with gradients, such as deep learn-

ing models. However, it cannot be used for certain

widely used models without gradients, such as Ran-

dom Forests (Apruzzese et al., 2020). In addition, the

baseline is unclear in certain ﬁelds, such as genomics

domain (Jha et al., 2020). Therefore, the explainable

AI method for the models used in the cyber security

ﬁeld, such as malware detection, is still desired.

In this article, we proposed a novel model-

agnostic explainable AI methodology, called Phi-

laeX, that is capable of quantitatively measuring the

features’ “contribution” in a suspicious app sample,

when its class (i.e., benign or malware) is predicted

by a given AI model, regardless of the model’s type.

Speciﬁcally, the model explanation starts from core

features selection for a given suspicious sample, by

which only the features in the sample lead the model’s

prediction towards to the border line of the two classes

(i.e., around 50% probability of the prediction con-

ﬁdence by the model) are selected. Then, in addi-

tion to these core features, PhilaeX identiﬁes a set

of features from the original data sample, in which

each feature is able to make the signiﬁcant contribu-

tion for the model’s prediction towards the predicted

class on the original input sample. This step is to

identify the features with positive individual con-

tributions to the model’s predictions, without consid-

ering the contributions from the cooperation among

features. Finally, the feature attribution is obtained

by considering both the positive individual contribu-

tions and the joint contribution when all these features

are used. The quantitative measure on each feature’s

attribution is computed by optimizing a Ridge regres-

sion, because of its simplicity in optimization and the

nature of the optimization considers the highly cor-

related features. The main advantages of the pro-

posed explainable AI method include: (1) The iden-

tiﬁcation of the core features provides a ﬁngerprint

to further identify the candidate features with positive

contributions to the model’s prediction, in an efﬁcient

and accurate manner, when compared to the random

perturbation of the sample’s values in feature space,

such as LIME; (2) The features attribution based on

the core features and those with positively individual

contributions considers both the individual and joint

contributions by the features; and (3) The optimiza-

tion by Ridge regression to quantify the features at-

tribution is efﬁcient and effective. The results from

the quantitative assessment to the proposed explain-

able AI method show the high ﬁdelity of explana-

tion by PhilaeX, regardless of the SVM (Arp et al.,

2014) (Li et al., 2015) and BERT (Devlin et al., 2018)

classiﬁers, on malware detection tasks. The ﬁrst ex-

periment aims to identify the “activated features” in

adversarial samples of Android malware. This is to

help the cyber security practitioners to analyze how

the AI model was evaded by the adversarial samples,

and enhance the model’s security accordingly. The re-

sults demonstrate that the activated features have the

higher chance to be attributed with high values by Phi-

laeX, compared to the state-of-the-arts methods, such

as LIME, SHAP (Lundberg and Lee, 2017) and MPT

Explainer (Lu and Thing, 2021). The second experi-

ment that test the explanation ﬁdelity when PhilaeX is

used to explain the SVM and Random Forest classi-

ﬁers on the PDF malware dataset (Smutz and Stavrou,

2012), where the results veriﬁes that the high ﬁdelity

can be obtained by a small number of the features with

the top attribution values by PhilaeX.

The rest of the paper is organised as follows: we

present literature review on the state-of-the-arts in ex-

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

plainable AI in cyber security in Section 2. The pro-

posed methodology, PhilaeX, is introduced in details

in Section 3. We assess the ﬁdelity of the proposed

method by two quantitative experiments in Section 4.

Finally, the conclusion of this methodology is dis-

cussed in Section 5.

2 LITERATURE REVIEW

The main aim of explainable AI is to provide a

human-understandable explanation on how the AI

model predicts the class label of the given sample.

One of the major research in explainable AI fo-

cus on the model’s interpretability (Do

silovi

c et al.,

2018), where the model’s prediction can be ex-

plained by its own prediction process, such as deci-

sion trees (Kami

nski et al., 2018). However, as the de-

velopment of the machine learning and deep learning

methods advances, the model becomes increasingly

complicated such that the computation is not visible

for the users, and it is difﬁcult to achieve the model’s

interpretability (Molnar, 2019).

The post-hoc explainable AI methods that obtain

the model’s explanation by analyzing the model’s in-

put and output in a qualitative or quantitative way,

therefore, attracts the major research interests. The

early research on post-hoc explaination method were

focusing on the model-speciﬁc explainable AI meth-

ods, where it is only able to explain the targeted type

of AI models. Zeiler et. al. (Zeiler and Fergus, 2014)

proposed a qualitative explanation method through

the visualization and observation on the neurons in

a convolutional neural networks (CNNs) that shows

how each neuron responds to different data instances.

In (Xu et al., 2015), Xu et. al. developed a caption

generator model to summarize the content of an im-

age in one sentence, where the attention mechanism

in the deep neural networks highlights the sensitive

part of the image and its corresponding words in the

caption. DREBIN (Arp et al., 2014) provided a lim-

ited explanation of the Android malware detector’s

prediction based on SVM classiﬁer. However, their

explanation method cannot be extended to other AI

models, since the quantiﬁcation of features attribution

comes from the weights of the SVM models. Thus,

the model-speciﬁc explainable AI methods lack the

ability to extend to new types of AI models, because

of its inherent nature.

As the machine learning techniques develop

rapidly, explainable AI methods that can explain dif-

ferent types of AI models is highly desired. This prop-

erty is also referred to as model-agnostic. Samek et.

al. (Samek et al., 2017) ﬁrstly proposed the expla-

nation methods using layer-wise relevance propaga-

tion (LRP) to analyze the sensitivity between the deep

learning models’ prediction w.r.t. the input sample

in the features space. Their work forms a foundation

in model-agnostic explainable AI methods, where the

model explanation was obtained by the “observation”

on the relations between the input and model’s output.

As the model structure becomes too complicated

to be accessed by humans, the directly observation

on the model’s input and output also become a time-

consuming and inaccurate way to obtain the expla-

nation. Therefore, the alternative way to obtain the

model explanation is to explain the surrogate model,

which simulates the behavior of the original model to

be explained, and is usually simple enough for hu-

man understanding. LIME (Ribeiro et al., 2016) is

proposed to explain any type of classiﬁers by learning

a linear surrogate model to mimic the target model’s

behavior. The data to train such linear model are gen-

erated through perturbation of the original input data

sample around the model’s predictions (i.e., local per-

turbation). However, the linearity of the surrogate

model and the random perturbation strategy in the lo-

cal ﬁeld limits the explanation capability of LIME,

especially when it explains complicated models, such

as CNNs. Our PhilaeX provides a high ﬁdelity expla-

nation for complicated models through a multi-stage

selection strategy for high contribution features. This

solves the limitation of the local random perturbation

in the sample’s feature space, such as non-stable ex-

planation. Wu et. al. (Wu et al., 2018) used decision

tree, which is a self-explained model, as the surrogate

model in the explanation of the deep learning models

Recently, LEMNA (Guo et al., 2018) was proposed to

explain the AI models that are speciﬁcally designed

for cyber security problems. LEMNA uses the fused

lasso (Tibshirani et al., 2005) algorithm and mixture

regression model (Khalili and Chen, 2007) to force

the explanation to consider the dependencies among

features, which solves the issues of linear approxi-

mation that considers nothing about the dependencies

among features in LIME.

3 PhilaeX: EXPLAINING

MODEL’S PREDICTIONS

In this section, we ﬁrstly formulate the model’s ex-

planation problem as the feature attribution process in

mathematics. The algorithms to identify the core fea-

tures and the features with positive individual contri-

butions are introduced. Finally, we present the op-

timization process to obtain the features attribution

by considering both the features’ individual contribu-

PhilaeX: Explaining the Failure and Success of AI Models in Malware Detection

tions and their joint contributions towards the model’s

prediction on the input sample.

3.1 Problem Statement

Given a classiﬁer f (x) → [0, 1]

|C|

to be explained, and

its predictions of the probabilities of |C| class labels

for the input data sample x = (x

, x

, ...,x

) ∈ R

(in

the features space), the data sample x ∈ R

consists

of m features. For example, the suspicious Android

app can be represented in the features space by the

TF-IDF (Rajaraman and Ullman, 2011) values of its

permissions (Arp et al., 2014). The aim of the model

explanation is to ﬁnd the optimized features attribu-

tion vector A = (a

, a

, ..., a

) ∈ R

that quantita-

tively measure how the model to be explained f (x)

makes the prediction of the input sample’s class label

according to each features contributions. That is, the

optimization can be formally represented by:

A = argmin

∗

(g(h(x), w) − f (x)) (1)

where g(·) ∈ G is the surrogate model to the orig-

inal classiﬁer f (·), which aims to mimic the predic-

tions as f (x) for the same sample x, and the weights w

measures the joint contributions by the features in this

surrogate model. The selection function h(x) returns

the optimized features set x

∗

that make the signiﬁcant

contributions to the model’s predictions, given sample

x. The attribution vector A is obtained only if the min-

imized difference between the surrogate model g(x)’s

prediction and that of the original model f (x) to be

explained is obtained. Therefore, the choice of the

surrogate model and the features x

∗

that their attri-

butions are computed is critical to the explanation ﬁ-

delity on the model’s prediction behavior on the sam-

ple x.

In the remaining part of this section, we will in-

troduce our proposed model explainer, PhilaeX, that

starts the features attribution vector construction for

the input sample x = (x

, x

, ..., x

) ∈ R

from an

empty vector (i.e., Null). The whole construction pro-

cess consists of two major stages: (1) The features se-

lection strategy, i.e., h(x) ∈ R

, n ≤ m, that picks up

the features with the signiﬁcant contributions towards

the model’s prediction on x is selected; (2) The quan-

tiﬁcation of the contribution for the selected features

through a Ridge regression that is the surrogate model

to the original model f (x).

3.2 Core Features

The perturbation of the features values to obtain the

synthetic input data samples X

in the training of the

surrogate model g(X

) may not work well in the cy-

ber security ﬁeld. In LIME (Ribeiro et al., 2016),

the response of the model to the changes of the input

variables is obtained by random perturbation of the

input sample’s feature values in a small range. This

can allow a fast preparation of a large amount of syn-

thetic data to train the surrogate linear model and help

the explainer to attribute the model’s behavior accord-

ingly. However, it can also lead to the shortage of

stable explanation that the features attribution values

may vary a little among different times of explanation,

given the same input sample. In addition, the pertur-

bation strategy on features magnitude to generate the

synthetic data to train the surrogate model may not

work well in the cyber security ﬁeld. For example,

the normal way to camouﬂage the malware to evade

the AI detector is to “add” a certain types of permis-

sion in the app, where the small perturbation of the

features values is not impossible.

In PhilaeX, the features selection function h(x) ∈

, n ≤ m is to pick up the subset of the features

from the input sample x that is optimized to describe

(i.e., explain) the model’s prediction behavior. Specif-

ically, there are two steps to obtain the candidate fea-

tures for attribution, which are core features and fea-

tures with positive individual contributions, respec-

tively. The ﬁrst step is to identify a set of core fea-

tures x

= {x

∈ x} from the original sample x, which

are the base of the sample x that leads the model

f (x

) :→ 0.5 (i.e., the boarder line of the prediction).

We assume that the model f (x

) make a “hesitated”

decision for the sample with such core features only,

where the model has around 50% conﬁdence on its

prediction of the sample’s class, and the actual pre-

diction on the original input sample f (x) is made by

the joint contribution from both the core features and

part of the remaining features.

In order to obtain the core features for the given

sample x, we start from an empty feature vector that

contain no feature. The following steps are to ﬁnd out

the candidate core features in a recursive way, where

the target is to ﬁnd the subset of features that leads

the model f (x

) :→ 0.5 as close as possible (i.e., the

local minimum of the abs( f (x

) − 0.5). The detailed

algorithm about core features identiﬁcation are in Al-

gorithm 1.

3.3 Features Individual Contributions

Once the core features x

is obtained, we are looking

for the features that can increase the prediction con-

ﬁdence of the model toward the prediction score on

the original sample x. Formally, we deﬁne the acqui-

sition of such features with positive individual contri-

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

Algorithm 1: Core Features Selection.

Input : Input sample: x and model to

explain: f (·)

MAX LEN CORE FEATURES -

maximum number of core features

Output: Core features: x

1 min prediction score gap = 1

2 x

= Null

3 while

k ≤ MAX LEN CORE FEATURES do

4 Pick up x

∈ x

5 if k f (x

+ x

) − 0.5k <

min prediction score gap then

6 x

:→ x

7 end

8 return The selected core features x

butions, i.e., x

, as:

argmin

⊂x\x

( f (x

+ x

) − f (x)) (2)

where the symbol “+” means the concatenation

of two features vectors, i.e., x

and x

. The candidate

features set is initialized as x

= φ. For every feature

∈ x\x

that is added into x

, the model’s prediction

on f (x

+ x

:→ f (x).

The aim is to identify the features in the input sam-

ple x to enhance the conﬁdence of the model signiﬁ-

cantly when it outputs the prediction of the input sam-

ple. Accordingly, those features that lead the model to

the opposite of the prediction on the sample x will be

ignored.

3.4 Quantify Joint Contribution by

Features

The features we picked up from the previous steps,

i.e., the core features x

and the features with posi-

tively individual contributions x

, form the set of the

candidate features, where features attribution by Phi-

laeX will be applied. There are two reasons that we

only attribute the subset of features in the input sam-

ple x: (1) The features attribution on such features

= x

+ x

allows the explainer to reveal the ma-

jor reason that the model made the prediction on the

original sample x. As the discussion in Section 3.3,

it is not always true for all features in the sample x

that make positive signiﬁcant contributions towards

the model’s prediction of the class label on the sam-

ple. (2) The explanation on such subset of features

will be more efﬁcient that that on the all the features

of the input sample x.

The joint contributions made by the cooperation

among these features are the necessary to form the

complete quantitative explanation (i.e., features attri-

bution) for the model f (x), which have not yet been

considered by the previous two steps in Section 3.2

and Section 3.3. In this step, we quantify each fea-

ture’s contribution to the model’s prediction by train-

ing a Ridge regression model g(·) as the surrogate

model to the original model f (·), where the weights of

each feature in the regression model are considered as

the features attribution. The reason we use the Ridge

regression as the surrogate model is for its simplicity,

efﬁciency and its nature for estimating the coefﬁcients

(i.e., weights) where independent variables are highly

correlated (Hilt and Seegrist, 1977).

Speciﬁcally, the weights w ∈ R

in Ridge re-

gression can be estimated by the optimization of the

following equation:

argmin



||y − Xw||

+ α ∗ ||w||



(3)

where the L2 regularization applies to reduce sen-

sitivity to single feature and accordingly decrease the

possibility of overﬁtting in the model training.

Finally the features attribution vector is deﬁned as

A = w that considers both the individual contribution

from each features and the joint contributions from

the cooperation among these features x

4 EXPERIMENTS

In this section, we assess the explanation capabil-

ity of PhilaeX through two quantitative experiments.

The proposed explainer will be used to explain the

prediction behaviors of three classical classiﬁers, in-

cluding SVM, Random Forest and BERT, which in-

clude the AI models in both the shallow (classical)

machine learning and deep learning ﬁelds. There

are two datasets are used in our experiments. The

datasets are DREBIN (Arp et al., 2014) dataset for

Android malware detection task and the PDF mal-

ware dataset (Smutz and Stavrou, 2012) for PDF mal-

ware detection. The explanation performance will be

evaluated quantitatively in terms of the explanation

ﬁdelity in two tasks, which are the activated features

identiﬁcation for adversarial samples of Android mal-

ware and the deduction/augmentation tests for PDF

malware samples.

4.1 Dataset

We use two datasets in the evaluation on the ex-

planation ﬁdelity by PhilaeX. The ﬁrst dataset,

DREBIN (Arp et al., 2014), was used to test a

PhilaeX: Explaining the Failure and Success of AI Models in Malware Detection

lightweight Android malware detector, where the fea-

tures of the suspicious Android apps were extracted

from the application’s manifest ﬁle AndroidMani-

fest.xml and disassembled dex code from the byte-

code by the static analysis technique. The features

that DREBIN extracted fall into 8 categories, like

requested permissions, restricted API calls and net-

work addresses, etc. In the DREBIN dataset, there

are 5,560 Android malware apps and 123,453 non-

malware apps in total. However, in our experiments,

we randomly selected 5,555 malware samples and

5,555 non-malware apps, in order to build a balanced

dataset for the model’s training. Further, the dis-joint

training set and testing set used in the evaluation are

built through a random split of these 11,110 samples,

which generates a training set of 7,442 samples and

a testing set of 3,668 samples. For each sample, the

text features data in a sample will be converted into

the features vector in the form of ﬂoating numbers.

Speciﬁcally, all the features in the training dataset will

be encoded by the tf-idf algorithm (Rajaraman and

Ullman, 2011), that measures the importance of each

feature in the dataset. The dimension of the features

vector is 43,157, which is high dimension.

The second dataset used in the experiments is the

PDF malware dataset (Smutz and Stavrou, 2012) that

has 4,999 malicious samples and 5,000 benign sam-

ples. We use the 135 features suggested by (Guo et al.,

2018), where the features have been encoded into bi-

nary (i.e., 0 or 1) values.

4.2 AI Models to be Explained

We test the explanation capability of PhilaeX for dif-

ferent AI models that cover the shallow (classical)

machine learning and the recent emerging deep learn-

ing models. First, we trained a SVM (Arp et al.,

2014) (Zhao et al., 2011) (Li et al., 2015) model,

which is a classical shallow machine learning model

and has been widely used as the classiﬁer for binary

classiﬁcation tasks before the deep learning methods

dominate this ﬁeld. For a given sample in the feature

space, SVM maps the relatively low dimension data

into a high-dimension space such that the separation

between two classes becomes more apparent, and thus

is able to predict the sample’s class more accurately.

Speciﬁcally, we trained a SVM model with the

Radial basis function (RBF) kernel (Vert et al., 2004),

where the parameter that deﬁnes the inverse degree

of the inﬂuence by a single training sample γ is set

to 1.0. We trained two SVM classiﬁers for the An-

droid malware detection task on the DREBIN dataset

and the PDF malware detection task on the PDF mal-

ware dataset. In the remaining part of this section, we

will use PhilaeX to explain the prediction behavior of

these two classiﬁers (i.e., AI models).

In addition, we also trained a deep learning model

for the Android malware detection task. BERT (De-

vlin et al., 2018), the transformer-based classiﬁer that

was proposed by Google for natural language pro-

cessing (NLP) tasks in 2018, is used to classify the

Android malware in the DREBIN dataset. We use

the BERT implementation from HuggingFace Trans-

formers library (Wolf et al., 2019) that is not sensitive

to the letters case and the default parameters, such as

the maximum length of text (128) and the learning

rate (4e-5). There are 8 samples used in a single batch

and 5 epochs were running in the training process of

the BERT model. We trained a surrogate SVM model

to the BERT Android malware detector in the model

explanation, in order to avoid the complicated word

embedding mechanism that converts the text tokens to

numerical representations. Such surrogate SVM has

highly similar prediction behavior as the BERT, given

the sample input sample, where the TPR = 0.9984 and

FPR = 0.0029.

Both the trained SVM and BERT models used

in the Android malware detection tasks present good

performance. The true positive rate (TPR) for both

classiﬁers are around 0.96 with a 0.04 false positive

rate (FPR). In addition, we also trained a separate

SVM classiﬁer and Random Forest classiﬁer for the

PDF malware detection task, which uses the default

parameters.

4.3 Explaining Evasion Attack by

Adversarial Samples

We ﬁrstly evaluate the explanation capability of Phi-

laeX on how the adversarial samples of Android mal-

ware evade the trained malware detector (that was

with high TPR and low FPR on DREBIN dataset) in

quantitative way. In the evasion attack, we assume the

attacker has full knowledge of the features space and

access to the model’s prediction score. That is, the

attacker is able to manipulate the data sample, which

class is to be predicted by the SVM or BERT classi-

ﬁer, such as adding the features in the sample.

In this experiment, we only add (i.e., activate) the

“permission” features to the existing sample’s fea-

ture vector of Android malware, because such addi-

tion operation will not change the functionality of the

original malware (Liu et al., 2019). One adversarial

sample is generated by Genetic Algorithm that is ex-

tended from (Liu et al., 2019) and the optimised set of

“permission” features is selected to help the original

sample bypasses the malware detection by the clas-

siﬁer. Speciﬁcally, in the Genetic Algorithm, the ﬁt-

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

ness value is deﬁned by the model’s prediction score

towards the non-malware class of the candidate ad-

versarial sample. The convergence of the algorithm

is fulﬁlled if (1) the Genetic Algorithm that has been

running for 500 loops that has a high possibility to

make the evasion attack by the adversarial samples

successful; (2) the prediction score towards the non-

malware class stay the same at a high level for at least

10 times; or (1) the ﬁtness value is larger than 0.99

which implies the model has extremely high conﬁ-

dence on its incorrect prediction for the adversarial

sample. In total, there are 200 malware samples from

the testing set randomly selected as the seeds to gener-

ate the adversarial samples. The adversarial samples

dataset used in the explanation for SVM has 499 sam-

ples. In the explanation for BERT, there are dis-joint

500 samples used.

The aim of the evaluation is to observe the capa-

bility of the model explanation by PhilaeX in terms of

the percentage of “good” explanations. An adversar-

ial sample has a “good explanation”, only if a certain

number of the activated features in this sample are at-

tributed with positive values. A high number of “acti-

vated features” are identiﬁed in terms of their attribu-

tion values and means that the model explanation ver-

iﬁes the assumption that the model is evaded because

of the activated features in the adversarial sample.

In the experiment, we compare the explanation

capability of PhilaeX against LIME (Ribeiro et al.,

2016), SHAP (Lundberg and Lee, 2017) and MPT ex-

plainer (Lu and Thing, 2021). The reasons that we

use these three explainable AI methods as the base-

line are: (1) LIME is a popular explainable AI method

that explains the models by learning a linear surro-

gate model. (2) The explanation generated by SHAP

is based on the computation of Shapley value (Roth,

1988), which concept has been widely used in coop-

erative game theory. (3) The recently MPT explainer

is based on the modern portfolio theory (Markowitz,

1952) that was proposed in economics to allocate the

investment to different assets for a maximum return

with minimum risk. In the evaluation, we vary the

threshold of the “good explanation” from 0% acti-

vated features in the adversarial samples identiﬁed to

90% activated features identiﬁed. This allows us to

observe the robustness of the explanations from dif-

ferent explainable AI methods. In Fig 1, it shows Phi-

laeX can identify more activated features from the ad-

versarial samples compared to LIME, MPT explainer

and SHAP, when the same threshold of “good expla-

nation” is used and the threshold value is less than

40% in SVM and 20% in BERT. In addition, Phi-

laeX’s explanation shows much robustness that is ver-

iﬁed by the slower decreasing curve, compared to

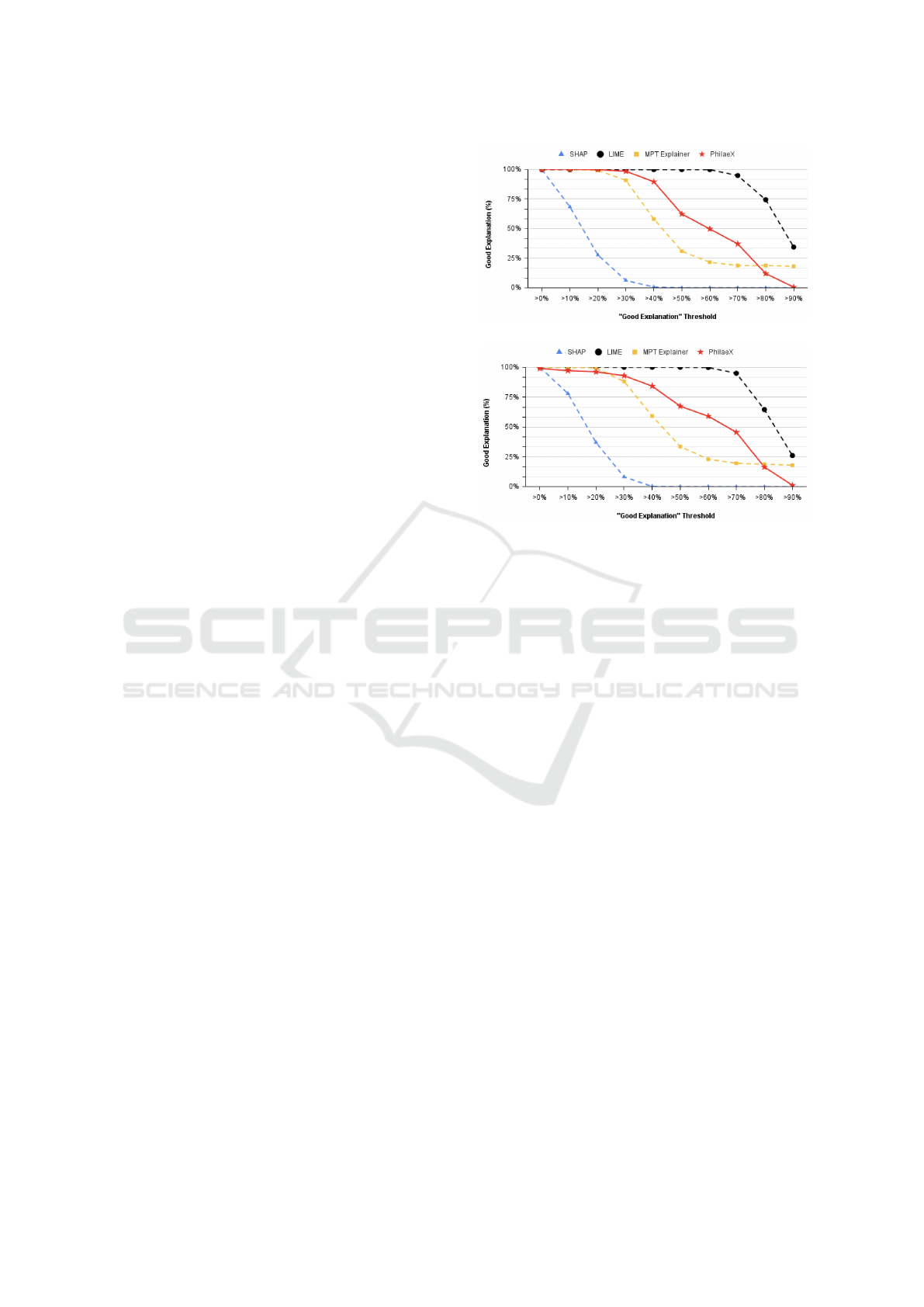

(a) “Good explanation” Percentage for SVM

(b) “Good explanation” Percentage for BERT

Figure 1: “Good Explanation” Comparison The number

of “good explanations” by PhilaeX stays in a high level (i.e.,

nearly 100% in SVM), when the threshold of “good expla-

nation” is less than 40%. This also shows the robustness of

the explanation by PhilaeX, compared to the other explain-

able AI methods.

SHAP and MPT explainer. This conclusion still holds

true when we compare the robustness of PhilaeX and

LIME, considering the unstable explanation in LIME

that is caused by the random perturbation on the fea-

tures’ values.

In the explanation of BERT, PhilaeX shows slight

lower ratio of “good explanations”, when the thresh-

old of “good explanation” is less than 30%. This is

possibly because BERT considers more joint contri-

butions among the features that reduces the effect by

single features accordingly. However, we see that

PhilaeX still presents a relatively robust explanation

capability among these explainable AI methods, be-

cause of its slower curve decline.

4.4 Explaining PDF Malware Detector

In the ﬁdelity test, the aim is to evaluate if the ex-

plainer attributes high values for the features that

has high impact on the model’s prediction behavior.

Speciﬁcally, there are two kinds of tests we used in the

experiments: (1) Deduction test that removes a cer-

tain number of features with high attribution values

will lead the model to predict the manipulated sam-

ple as the opposite class. That is, the less such high

attribution value features are removed, the higher the

PhilaeX: Explaining the Failure and Success of AI Models in Malware Detection

(a) Deduction Test for Random Forest (b) Deduction Test for SVM

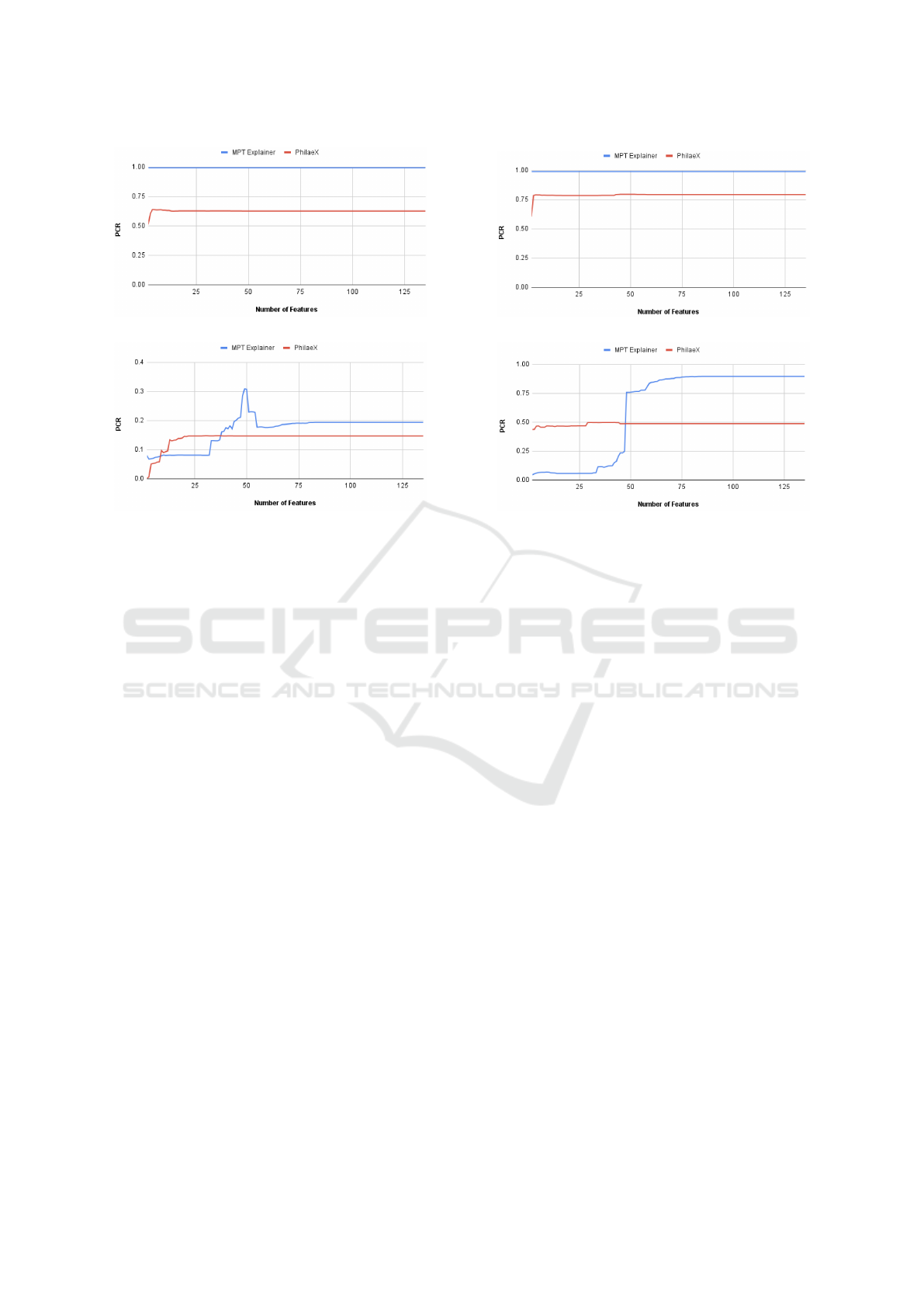

Figure 2: Fidelity Test In the deduction test results (a) and (b), PhilaeX shows higher ﬁdelity of explanation for both Random

Forest and SVM classiﬁers, where the PCR value of deduction test should be as lower as possible. In the augmentation test,

PhilaeX shows higher PCR values (better) for both Random Forest and SVM classiﬁers, when a small number of features

used (i.e., < 30 features in RF and < 50 features in SVM).

explanation ﬁdelity. For example, the SVM model

predicts a manipulated sample of malware as non-

malware, if the feature with the top attribution value

is removed. This means that this feature is correctly

attributed in the explanation; (2) In Augmentation

test, we activate a certain number of features in a non-

malware sample. These features are from a malware

sample and are attributed with high attribution values

in the model explanation on this malware sample. It

is expected that the model’s prediction on the manip-

ulated non-malware sample as malware, if the expla-

nation is correct. That is, the correctly attributed fea-

tures in a malware sample may have strong individual

impact on the model’s prediction behavior that lead

the model towards the malware class.

We use the positive classiﬁcation rate (PCR) (Guo

et al., 2018) as the evaluation metric to quantify the

ﬁdelity of the explanations. The PCR is deﬁned as the

ratio of samples which retains their original class after

the manipulation through deduction or augmentation.

The PCR in an explanation with high ﬁdelity will be

as low as possible through a deduction test, and as

high as possible by the augmentation test.

In this experiment, we test the explanation ﬁdelity

by PhilaeX, when it is used to explain the Random

Forest and SVM classiﬁers on the PDF malware de-

tection task. In Fig. 2a and Fig. 2b, we can ob-

serve that for both RF and SVM, PhilaeX has a sig-

niﬁcant higher ﬁdelity explanation than that of MPT

explainer, which are measured by the lower PCRs.

This ﬁnding veriﬁes that the features selection func-

tion h(x) in Section 3 guarantees the following fea-

tures attribution to assign high attribution values to

the important features. In addition, the high ﬁdelity

(in terms of PCR) is stable although the number of

features used is increasing. This means that PhilaeX

is more capable of identifying the important features

(by attributing it with higher value) than that of MPT

explainer.

In Fig. 2c and Fig. 2d, the features with high at-

tribution values by PhilaeX will generally guarantee

a high PCR for both RF and SVM, when the number

of features used are small. However, the PCRs for

PhilaeX are getting lower than that of MPT explainer

when around 50 and more features are used in the aug-

mentation test. This is probably due to the joint con-

tribution by all the features becoming stronger as the

number of features used increases.

4.5 Running Time Performance

The average running time to explain the SVM’s pre-

diction on a single data sample of Android malware

apps is around 6.37 seconds, compared to the MPT

explainer with around 15.44 seconds. This is prob-

ably due to the efﬁcient the optimization process of

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

Ridge regression.

5 CONCLUSION

In this article, we presented a novel model-agnostic

explainable AI method, PhilaeX, that is featured by

the features selection strategy and more suitable to

explain the AI models used in cyber security tasks.

The explanation is in the form of features attribution

for machine learning classiﬁers. This method has a

multi-stage feature selection function that identiﬁes

the candidate features to be explained: (1) the core

features to ﬁnd the features that lead the model to

make a borderline prediction; (2) the features with

positive individual contributions towards the model’s

prediction on the original sample to restrict the ex-

plainer to focus on important features’ attribution,

which is helpful in revealing the model’s behavior in

a more accurate way; and (3) the Ridge regression

model as the surrogate model quantiﬁes the contri-

butions of these features, considering the joint con-

tributions made by them. The explanation ﬁdelity

of the proposed method is evaluated by two experi-

ments. The ﬁrst experiment aims to ﬁnd the activated

features from the adversarial sample of Android mal-

ware, through the attribution values (positive values)

by PhilaeX. The results shows PhilaeX has higher ca-

pability of the identiﬁcation on such activated fea-

tures than those by LIME, SHAP and MPT Explainer.

The second experiment consists of two ﬁdelity tests,

which are the deduction test and augmentation test.

In the deduction test, PhilaeX has signiﬁcantly higher

ﬁdelity explanations than that of the MPT explainer.

The augmentation test reveals that PhilaeX has higher

PCRs when a small number of features used. Both

experiments results show that PhilaeX can be helpful

for explanation of the AI models, such as those used

in the cyber security ﬁeld.

REFERENCES

Amerini, I., Galteri, L., Caldelli, R., and Del Bimbo, A.

(2019). Deepfake video detection through optical ﬂow

based cnn. In Proceedings of the IEEE/CVF Inter-

national Conference on Computer Vision Workshops,

pages 0–0.

Apruzzese, G., Andreolini, M., Colajanni, M., and

Marchetti, M. (2020). Hardening random forest cy-

ber detectors against adversarial attacks. IEEE Trans-

actions on Emerging Topics in Computational Intelli-

gence, 4(4):427–439.

Arp, D., Spreitzenbarth, M., Hubner, M., Gascon, H.,

Rieck, K., and Siemens, C. (2014). Drebin: Effec-

tive and explainable detection of android malware in

your pocket. In Ndss, volume 14, pages 23–26.

Demontis, A., Melis, M., Biggio, B., Maiorca, D., Arp,

D., Rieck, K., Corona, I., Giacinto, G., and Roli, F.

(2017). Yes, machine learning can be more secure! a

case study on android malware detection. IEEE Trans-

actions on Dependable and Secure Computing.

Devlin, J., Chang, M.-W., Lee, K., and Toutanova, K.

(2018). Bert: Pre-training of deep bidirectional trans-

formers for language understanding. arXiv preprint

arXiv:1810.04805.

silovi

c, F. K., Br

c, M., and Hlupi

c, N. (2018). Ex-

plainable artiﬁcial intelligence: A survey. In 2018 41st

International convention on information and commu-

nication technology, electronics and microelectronics

(MIPRO), pages 0210–0215. IEEE.

Efron, B., Hastie, T., Johnstone, I., Tibshirani, R., et al.

(2004). Least angle regression. The Annals of statis-

tics, 32(2):407–499.

uera, D. and Delp, E. J. (2018). Deepfake video detection

using recurrent neural networks. In 2018 15th IEEE

international conference on advanced video and sig-

nal based surveillance (AVSS), pages 1–6. IEEE.

Guo, W., Mu, D., Xu, J., Su, P., Wang, G., and Xing, X.

(2018). Lemna: Explaining deep learning based se-

curity applications. In Proceedings of the 2018 ACM

SIGSAC Conference on Computer and Communica-

tions Security, pages 364–379.

Hilt, D. E. and Seegrist, D. W. (1977). Ridge, a computer

program for calculating ridge regression estimates,

volume 236. Department of Agriculture, Forest Ser-

vice, Northeastern Forest Experiment . . . .

Jha, A., Aicher, J. K., Gazzara, M. R., Singh, D., and

Barash, Y. (2020). Enhanced integrated gradients: im-

proving interpretability of deep learning models us-

ing splicing codes as a case study. Genome biology,

21(1):1–22.

Kami

nski, B., Jakubczyk, M., and Szufel, P. (2018). A

framework for sensitivity analysis of decision trees.

Central European journal of operations research,

26(1):135–159.

Khalili, A. and Chen, J. (2007). Variable selection in ﬁnite

mixture of regression models. Journal of the american

Statistical association, 102(479):1025–1038.

Li, W., Ge, J., and Dai, G. (2015). Detecting malware for

android platform: An svm-based approach. In 2015

IEEE 2nd International Conference on Cyber Security

and Cloud Computing, pages 464–469. IEEE.

Liu, X., Du, X., Zhang, X., Zhu, Q., Wang, H., and Guizani,

M. (2019). Adversarial samples on android malware

detection systems for iot systems. Sensors, 19(4):974.

Lu, Z. and Thing, V. L. (2021). “How does it de-

tect a malicious app?” explaining the predictions of

ai-based android malware detector. arXiv preprint

arXiv:2111.05108.

Lundberg, S. M. and Lee, S.-I. (2017). A uniﬁed ap-

proach to interpreting model predictions. In Guyon, I.,

Luxburg, U. V., Bengio, S., Wallach, H., Fergus, R.,

Vishwanathan, S., and Garnett, R., editors, Advances

PhilaeX: Explaining the Failure and Success of AI Models in Malware Detection

in Neural Information Processing Systems 30, pages

4765–4774. Curran Associates, Inc.

Markowitz, H. (1952). Portfolio selection. Journal of Fi-

nance, 7(1):77–91.

McLaughlin, N., Martinez del Rincon, J., Kang, B., Yer-

ima, S., Miller, P., Sezer, S., Safaei, Y., Trickel, E.,

Zhao, Z., Doup

e, A., et al. (2017). Deep android mal-

ware detection. In Proceedings of the Seventh ACM

on Conference on Data and Application Security and

Privacy, pages 301–308.

Molnar, C. (2019). Interpretable Machine Learning. https:

//christophm.github.io/interpretable-ml-book/.

Rajaraman, A. and Ullman, J. (2011). Data mining. Mining

of Massive Datasets, pages 1–1.

Ribeiro, M. T., Singh, S., and Guestrin, C. (2016). “why

should i trust you?” explaining the predictions of any

classiﬁer. In Proceedings of the 22nd ACM SIGKDD

international conference on knowledge discovery and

data mining, pages 1135–1144.

Roth, A. E. (1988). The Shapley value: essays in honor of

Lloyd S. Shapley. Cambridge University Press.

Samek, W., Wiegand, T., and M

uller, K.-R. (2017). Ex-

plainable artiﬁcial intelligence: Understanding, visu-

alizing and interpreting deep learning models. arXiv

preprint arXiv:1708.08296.

Smutz, C. and Stavrou, A. (2012). Malicious pdf detection

using metadata and structural features. In Proceed-

ings of the 28th annual computer security applications

conference, pages 239–248.

Sundararajan, M., Taly, A., and Yan, Q. (2017). Axiomatic

attribution for deep networks. In Proceedings of the

34th International Conference on Machine Learning-

Volume 70, pages 3319–3328. JMLR. org.

Tibshirani, R., Saunders, M., Rosset, S., Zhu, J., and

Knight, K. (2005). Sparsity and smoothness via the

fused lasso. Journal of the Royal Statistical Society:

Series B (Statistical Methodology), 67(1):91–108.

Vert, J.-P., Tsuda, K., and Sch

olkopf, B. (2004). A primer

on kernel methods. Kernel methods in computational

biology, 47:35–70.

Wolf, T., Debut, L., Sanh, V., Chaumond, J., Delangue, C.,

Moi, A., Cistac, P., Rault, T., Louf, R., Funtowicz,

M., and Brew, J. (2019). Huggingface’s transformers:

State-of-the-art natural language processing. ArXiv,

abs/1910.03771.

Wu, M., Hughes, M. C., Parbhoo, S., Zazzi, M., Roth, V.,

and Doshi-Velez, F. (2018). Beyond sparsity: Tree

regularization of deep models for interpretability. In

Thirty-Second AAAI Conference on Artiﬁcial Intelli-

gence.

Xiao, X., Zhang, S., Mercaldo, F., Hu, G., and Sangaiah,

A. K. (2019a). Android malware detection based on

system call sequences and lstm. Multimedia Tools and

Applications, 78(4):3979–3999.

Xiao, X., Zhang, S., Mercaldo, F., Hu, G., and Sangaiah,

A. K. (2019b). Android malware detection based on

system call sequences and lstm. Multimedia Tools and

Applications, 78(4):3979–3999.

Xu, K., Ba, J., Kiros, R., Cho, K., Courville, A., Salakhudi-

nov, R., Zemel, R., and Bengio, Y. (2015). Show, at-

tend and tell: Neural image caption generation with

visual attention. In International conference on ma-

chine learning, pages 2048–2057.

Yan, J., Qi, Y., and Rao, Q. (2018). Lstm-based hierarchi-

cal denoising network for android malware detection.

Security and Communication Networks, 2018.

Zeiler, M. D. and Fergus, R. (2014). Visualizing and under-

standing convolutional networks. In European confer-

ence on computer vision, pages 818–833. Springer.

Zhang, L., Thing, V. L., and Cheng, Y. (2019). A scalable

and extensible framework for android malware detec-

tion and family attribution. Computers & Security,

80:120–133.

Zhao, M., Ge, F., Zhang, T., and Yuan, Z. (2011). An-

timaldroid: An efﬁcient svm-based malware detection

framework for android. In International Conference

on Information Computing and Applications, pages

158–166. Springer.

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security
