iProﬁle: Collecting and Analyzing Keystroke Dynamics from Android

Users

Haytham Elmiligi

1 a

and Sherif Saad

2 b

Computing Science Department, Thompson Rivers University, BC, Canada

Department of Computer Science, University of Windsor, ON, Canada

Keywords:

iProﬁle, Keystroke Dynamics, Machine Learning, Android Application, Behavioral Biometric, Smartphone,

Data Collection, Feature Extraction.

Abstract:

Keystroke dynamics is one of the most popular behavioural biometrics that are currently being used as a

second factor of authentication for many web services and applications. One of the reasons that makes it really

popular is that it is a resettable biometric, which meets one of the main usability requirements of authentication

systems. With the recent advances in mobile technologies, developers and researchers utilized several machine

learning algorithms to identify smartphone users based on their keystroke dynamics. The biggest problem that

faces researchers in this area is the ability to collect datasets from smartphone users that could be used to train

the machine learning algorithms and, hence, create accurate predictive model. This paper introduces iProﬁle, a

native Android application that collects keystroke dynamics from Android smartphone users. This application

opens the door for researchers to recruit participants from all over the world to contribute to the data collection

of keystroke dynamics. Our iProﬁle application allows researchers to study the impact of several parameters,

such as hardware brands, users’ geolocation, native language text direction, and several other factors, on the

accuracy of machine learning classiﬁers. It also helps maintain a standard benchmark for keystroke dynamics.

Having a standard benchmark helps researchers better evaluate their work based on consistent data collection

procedures and evaluation metrics. This paper explains the main building blocks of the iProﬁle application,

the algorithms used in the implementation, the communication protocol with the database server, the structure

and format of the generated dataset and the feature extraction approaches. As a proof of concept, the app was

used to develop a novel feature-set that identiﬁes Android users based on 147 features.

1 INTRODUCTION

Keystroke dynamics is currently considered one of

the most popular behavioral biometrics that are be-

ing considered, as a second factor of authentication,

to authenticate users to different services and appli-

cations (Lu et al., 2020). There are two different im-

plementations for user authentication using keystroke

dynamics: one-time or static authentication and con-

tinuous or dynamic authentication. In one-time au-

thentication, a personal proﬁle is created for the users

based on their typing patterns and then used only at

vice or application (Chen et al., 2021). In continu-

ous authentication, a personal proﬁle is crated for the

users and then used at scheduled time periods to ver-

ify the identity of those users as along as the service

https://orcid.org/0000-0003-1458-3035

https://orcid.org/0000-0002-5506-5261

is running or the session is active (Baig and Eskeland,

2021). The main two problems that face researchers

in this area are 1) the lack of data collection tools

for different smartphone operating systems, and 2) the

lack of standard benchmarks, which makes it difﬁcult

for researchers to compare the accuracy of their pre-

dictive models without questioning the impact of the

used datasets.

This paper addresses these two problems by in-

troducing iProﬁle, a native Android application that

could be used to collect keystroke dynamics data

from Android users. The proposed application al-

lows researchers to study the impact of different at-

tributes on the feature selection and the accuracy of

machine learning classiﬁers. These attributes include

the smartphone hardware brand, users’ geolocation,

and native-language text-direction. Our application

also helps in maintaining a standard benchmark for

keystroke dynamics on Android platform, which pro-

Elmiligi, H. and Saad, S.

iProﬁle: Collecting and Analyzing Keystroke Dynamics from Android Users.

DOI: 10.5220/0011002600003120

In Proceedings of the 8th International Conference on Information Systems Security and Privacy (ICISSP 2022), pages 621-628

ISBN: 978-989-758-553-1; ISSN: 2184-4356

621

vides a high level of consistency for comparative anal-

ysis. This paper explains the design of the iProﬁle ap-

plication and how the application utilizes cloud ser-

vices, the algorithms used in the implementation, the

communication protocol with the database server, the

structure and format of the generated dataset and the

feature extraction approaches.

The proposed iProﬁle application can be used in

both static and continuous authentication. The app

can be used in various application domains, such as

preventing impersonation in online exams and ensur-

ing the entire session is secure and not affected by any

unauthorized accesses.

This paper is organized as follows. Section 2 dis-

cusses related work in the literature and explains the

difference between our approach and the work pub-

lished in this research area. Section 3 discusses the

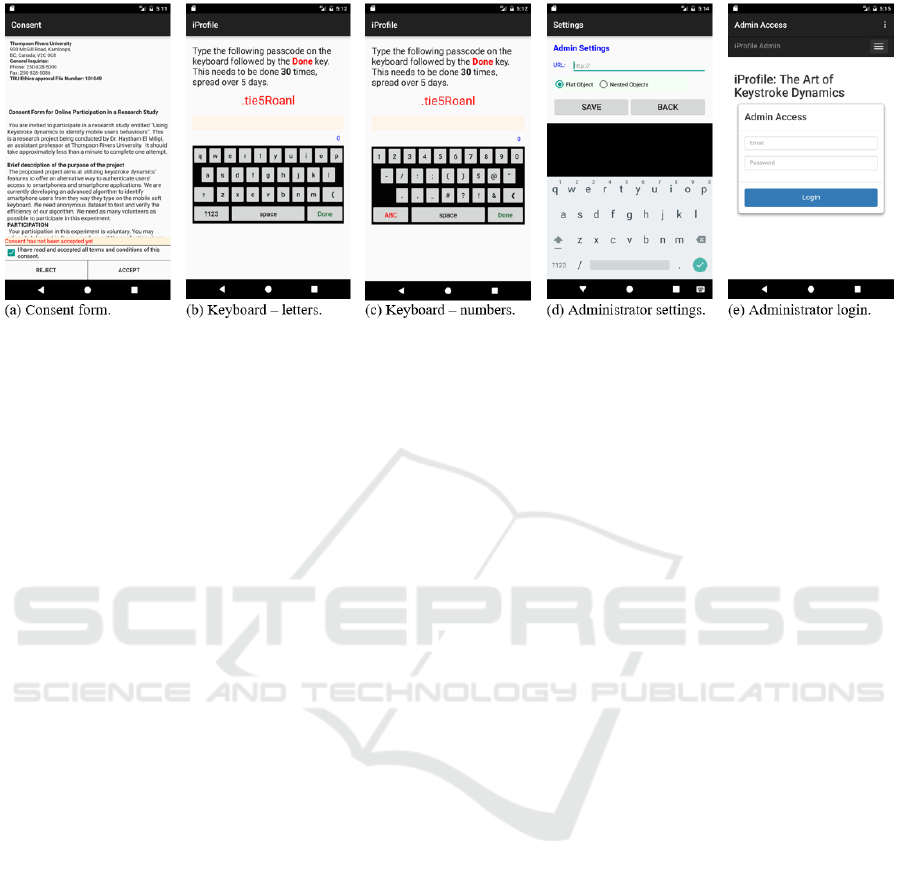

details of the application design, including user in-

terface design, administration activities, user identi-

ﬁcation, connection with could services, etc. Sec-

tion 4 focuses on the feature extraction approaches

used to create an accurate user proﬁle based on raw

data. This section compares different approaches and

uses machine-learning libraries to conduct compara-

tive analysis between different feature-sets. Section 5

presents a case study to show how researchers could

use this application to explore keystroke dynamics

authentication on Android smartphones. Finally, we

draw our conclusion and discuss future work in Sec-

tion 6.

2 LITERATURE REVIEW

There are three different research directions in the lit-

erature with respect to keystroke dynamics. The ﬁrst

research direction focuses on the implementation of

data collection tools and the different techniques used

to collect as much information as possible from the

users’ keystrokes. The second approach discusses

the feature extraction and selection methods used to

create an accurate user proﬁle. The third approach

discusses the utilization of machine learning algo-

rithms to classify users’ typing patterns into different

classes and identifying users based on their proﬁles.

Other research work also suggested mixing other

techniques, such as handwriting, with keystrokes to

create a unique proﬁle (Condorelli, 2019).

An example of the ﬁrst research direction is a soft-

ware tool for determining of the keystroke dynamics

parameters developed by Andrey A. Vyazigin et al.

(Vyazigin et al., 2019). The tool used Standard Java

libraries JAXB (Java Architecture for XML Binding)

and Java NIO.2 for conversion of java objects into ag-

gregated datasets and to implement the ﬁle I/O func-

tions, respectively. The advantage of using this design

style is that it makes it easy for developers to main-

tain the project because they have to maintain only

one workspace, while creating different interfaces for

different operating systems. However, this approach

does not capture the real touch screen events on the

main screen layout. For example, it does not handle

events on the activities in smartphone devices, such as

android nor the events on the storyboards in iOS.

Another example is the Android application devel-

oped by Antal et al. (Antal et al., 2015). This appli-

cation was developed using native Android Software

Development Kit (SDK) and created a custom layout

for the user login window to capture the keystroke dy-

namics. The application collected the touch events

time stamps and created a feature vector that has 71

features. Data collected from 42 participants with

different genders and age groups. Although this ap-

proach is more accurate than the ﬁrst example in cap-

turing the touch events using the native SDK, there

is a major drawback. Authors decided to remove all

user inputs that had errors due to typos or backspaces.

Although this approach normalizes the datasets and

makes it easy for the classiﬁer to identify similar pat-

terns, it generates a predictive model based on unre-

alistic assumptions because users make mistakes and

making typos or pressing a backspace button should

be handled in the pre-processing phase, not totally ig-

nored.

For the second research direction, data extraction

methods focused, in most cases, on the timing fea-

tures. The two main timing features that were con-

sidered in almost all research work are the dwell time

and the ﬂight time (Stavanja et al., 2020). Dwell time

is deﬁned as the time between a touch-down event

and the next touch-up event on the same key, whereas

ﬂight time is deﬁned as the time between a touch-up

event on one key and a touch-down events on the next

key. Researchers extended these two concepts to cal-

culate different time combinations, such as the time

between two consecutive touch-down events or touch-

up events. Researchers also collected other features

such keystroke pressure and touch area. An extension

to this approach is utilizing smartphone sensors. Cor-

pus et al. collected smartphone accelerometer sensor

data in conjunction with timing and swipe dynamics

features (Tse and Hung, 2019).

For the third research direction, researchers con-

sidered two different types of machine learning classi-

ﬁers: one-class classiﬁers and multi-class classiﬁers.

In the context of user authentication using keystroke

dynamics, one-class classiﬁers use binary classiﬁca-

tion to label an instance (i.e. one sample) as positive

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

622

or negative. A positive response means the instance is

accepted and hence the user is authenticated, whereas

a negative response means the instance is rejected and

the user will not be authenticated to the session or

the service. An example of one-class classiﬁers is the

one-class Support Vector Machine (SVM) (Sch

olkopf

et al., 1999). The main idea behind one-class SVM is

to create origin points in the space that represent one

class, for example X, and maximize the distance be-

tween all other data points and the space that host the

origin points. The main objective is to create a clear

gap between the origin data set and all other samples

that do not belong to the origin. In this paper context,

the X class represents the training set of the users’

keystroke dynamics. One-class SVM has been used

in the literature for many anomaly detection applica-

tions (Hejazi and Singh, 2013), and has been recently

been used for authenticating users based on keystroke

dynamics (Liu et al., 2014). In addition to one-class

SVM, few other one-class algorithms were used to au-

thenticate users using keystroke dynamics. Kazachuk

et al. discussed the utilization of fuzzy kernel-based

classiﬁer and a modiﬁed version of random-forests

one-class classiﬁer to achieve an efﬁcient implemen-

tation of user authentication systems (Kazachuk et al.,

2016).

The second type of machine learning classiﬁers

used for user authentication is the multi-class clas-

siﬁers (Sahu et al., 2020). Chinmay Sahu et al. de-

veloped a novel distance-based localization algorithm

that could be used to classify keystroke dynamics data

for multi-user biometric classiﬁcation (Sahu et al.,

2020). Abir Mhenni et al. used both long short-term

memory (LSTM) model and bidirectional long short-

term memory (BLSTM) to classify keystroke dynam-

ics data. LSTM is used to recognize a continuous se-

quences of keystroke dynamics and BLSTM is used

to maintain information about future data. There are

several studies in the literature that analyzed the dif-

ferences between single-class and multi-class classi-

ﬁers. Pui Koh et al. used the Artiﬁcial Bee Colony

(ABC) algorithm as a classiﬁer to classify keystroke

dynamics datasets (KOH and LAI, 2019). The work

published in (KOH and LAI, 2019) provided detailed

description on the development and design of a classi-

ﬁcation system to identify 10 different users based on

different sets of features. The authors also explained

the implementation of the ABC algorithm to catego-

rize users.

This paper focuses mainly on the ﬁrst and second

research directions. We explain in details the design

and implementation of a new mobile application that

is currently being used to collect keystroke dynam-

ics data from Android users. With the new releases

of Android OS, it becomes important to understand

the limitations and challenges that face developers

before implementing such an authentication mecha-

nisms into their applications or services. We also dis-

cuss the different approaches of providing administra-

tive services to manage the data collection procedure,

change the data format, and support different cloud

database servers.

3 iProﬁle DESIGN AND

IMPLEMENTATION

3.1 User Interface Design

The iProﬁle app has several user interface windows.

Figure 1 shows ﬁve screenshots of the application that

show some of its functionalities. Due to ethics re-

quirements, the iProﬁle app starts with a digital con-

sent, as shown in Figure 1(a). The digital consent is

used to: 1) explain the data collection project to the

user, 2) emphasize that users’ participation in the data

collection is voluntarily, 3) illustrate that participants

will receive no direct beneﬁts from participating in

this research study, 4) assure that data will be saved in

an anonymous format with no direct links to the iden-

tity of participants, 5) inform the user that the app col-

lects information about the device and the way users

type on the keyboard, 6) provides contact informa-

tion in case the user has questions at any time about

the study or the procedures, and ﬁnally 7) request the

user’s consent. Users have to conﬁrm that they have

read the consent, they voluntarily agree to participate,

and they are 18 years of age or older in order to pro-

ceed to the next window. Otherwise, the application

will shut down and will not allow them to proceed to

the data collection window.

Once the user accepts the digital consent form,

the data collection window will appear. Figure 1(b)

and Figure 1(c) show screenshots of the data collec-

tion window for letters and numeric entries, respec-

tively. In the data collection window, users are asked

to type the key word “.tie5Roanl” 30 times, spread

over 5 days. They keyboard shows in Figure 1(b) and

Figure 1(c) is a custom keyboard that we designed in

house and built inside the application. The keyboard

design allows users to type in small letters, capital let-

ters, numbers and special characters. There are three

standard buttons included to switch between capital

and small and to correct typos: a shift, a space and

a backspace buttons. There is also an “?123” /“ABC”

button to switch between the letter-keyboard interface

and the number-keyboard interface. After the users

iProﬁle: Collecting and Analyzing Keystroke Dynamics from Android Users

623

Figure 1: Screenshots from iProﬁle Android application. Version 2.1.

ﬁnishes typing the keyword, they must press on the

“Done” key to submit their attempt. Once the “Done”

key is pressed, a method inside the Main Activity of

the application is called to check for three conditions.

The ﬁrst conditions is whether the user types the cor-

rect keyword or not. The second condition is whether

there is at least 5 minutes gap between the current at-

tempt and the previous attempt. The third condition

is whether the user’s device is connected to the WiFi

network. If all these conditions are met, the appli-

cation 1) sends the users’ keystroke raw data to our

cloud database server along with the timestamp for

further processing, 2) displays a toast message to the

user to conﬁrm that the attempt was successful and

the keyword was entered correctly, and 3) updates a

small counter on the main screen to display the num-

ber of successful attempts and the timestamp of the

last attempt. If one or more of these conditions are

not met, the application rejects the attempts and dis-

plays an error message to the user to let them know

why this attempt was rejected. In all cases, the Text

View that holds the data entry will be cleared despite

the status of the attempt.

In addition to data collection, our iProﬁle appli-

cation provides advanced features for administrators.

Through a special menu that can be accessed after

receiving instructions from the principle investigator,

researchers can set the path to the cloud-based server

that hosts the datasets. The network connection mod-

ule inside the application expects a path to a php script

that receives either a ﬂat JSON object for each touch

event or a nested JSON array that splits the user’s fea-

tures and the device’s features into two JSON objects.

It is important to explain here that a touch event refers

to any touch-down or touch-up event on any key. That

means, for each single character, two events at least

will be sent to the database server; one for touch-

down and one for touch-up. Each event will be as-

sociated with 10 features related to the host Android

device and 10 features related to the user’s behavior.

One observation should be noted here based on

our experimental work. Depending on the touch-

screen sensitivity on the target device, the device

might send more than one touch event for a single

action. That means, a single touch on any key can

result in multiple events registered for the same key.

The redundant records are ﬁltered out in the data pre-

processing phase to make sure that only one single

event is registered for touch-up and the same thing for

touch-down for each key. Figure 1(d) shows a screen-

shot of the administrator settings window, where ad-

ministrators can change the default URL to the cloud

database server and the type of the JSON format. The

application also provides an access to a web-interface

page to access the database server from the mobile ap-

plication. Figure 1(e) shows a screenshot of the login

window from the web interface. This access is im-

plemented in the mobile application to make it easy

for administrator to retrieve or check speciﬁc records

from the data collection application. This access is

implemented as a Web View in a separate activity in-

side the application and can be accessed only through

the administrator menu.

3.2 Data Collection Logic

The data collection logic depends mainly on the event

handling mechanism. Different alternatives for event

handling have been considered before implementing

the data collection logic. One important decision de-

sign was the design of the keyboard.

The ﬁrst approach we examined was to use the

built-in keyboard in Android and create touch event

listeners to listen to touch events on the keys. Al-

though this approach is the optimum implementation,

it has limitations on extracting timestamps and pres-

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

624

Table 1: Raw data collected on a touch-down event on “t” button.

Features Value Feature Value

ID 48637 Button t

UID PMWDS1455200829526 Touch Pressure 0.2832

Language English Touch Size 0.419355

HW Model Nexus 7 X Coordinate 552.6786

SDK Version 23 Y Coordinate 753.4286

Manufacture Asus X Precision 1.12

Screen Size 6.77382 Y Precision 1.166667

Time Zone New York Action Type Down

Country Code US Action Timestamp 3747694

CPU Cores 4 HR Timestamp 2/11/2021 9:27:43 AM

sure data from the standard Android button views us-

ing the on-touch listener class. Based on our tests with

Android API 25, that target device information about

users’ touch-events. Since rooting the target device

is not a practical solution, we decided not to consider

this option.

The second approach we examined was to create

option was to create a keyboard as an Input Method

Editor (IME). To implement this option, we have to

complete three tasks: 1) creating a class that ex-

tends Input Method Service class, 2) create a settings-

activity to pass options to the IME service, and 3) cre-

ate a setting user interface that should be displayed as

part of the standard system settings on the android de-

vice. Although this option sounds promising since it

allows users to change the input method and set our

keyboard as the default one for all applications, our

surveys show that users did not like to change their

defaults password and did not like the extra step on

the setting menu.

The third approach we examined was to create

a custom keyboard layout and design the keyboard

logic from scratch to have full control over the touch

event listeners. The keyboard could be called as a

fragment inside any activity and all data collected

from the keyboard fragment can be sent back to the

Main Activity when needed. The application collects

20 features: 10 static features to create a proﬁle for

the Android device and 10 dynamic features to create

a proﬁle for the user.

Table 1 shows an example of data collected at one

of our experiments to create a proﬁle for the target

device. The ID ﬁeld is an auto-increment ﬁeld that

identiﬁes a touch event record in the database. The

UID is a randomly generated user ID that is associ-

ated with each submission from the same user. The

other 8 ﬁelds are used to identify the device. The right

hand-side of Table 1 shows an example of data col-

lected at the same experiment on a touch-down event

on “t” button. Every time a touch event is received

from any button, a method inside the on-touch lis-

tener collects the user’s features and stores them into

a local database inside the application. The database

is implemented as SQLite with a SQLiteOpenHelper

class to create a standard interface with the database.

Once the user presses the “Done” button and all three

conditions discussed before are met, all the records of

the keyword is sent to the database server as multiple

ﬂat JSON objects or nested JSON arrays based on the

settings of the application. The data is ﬁltered out and

processed later in the server to extract the timing, po-

sition and pressure features. Once the data is sent to

the database server, the application waits for a con-

ﬁrmation from the server that it received the JSON

objects correctly with no errors. The conﬁrmation is

logged in the application for debugging purposes.

The iproﬁle application provides a new set of fea-

tures, in addition to the classic features collected in

previous work, that describe the target device tech-

nical speciﬁcations. This new addition allows re-

searchers to study the impact of changing the tar-

get Android device on the user’s behavioral biometric

proﬁle.

3.3 The Server Side

The server side consists of two parts: the front-

end and the back-end. The front-end is built using

HTML5, java script, bootstrap and php. The front-

end allows administrators to run several queries and

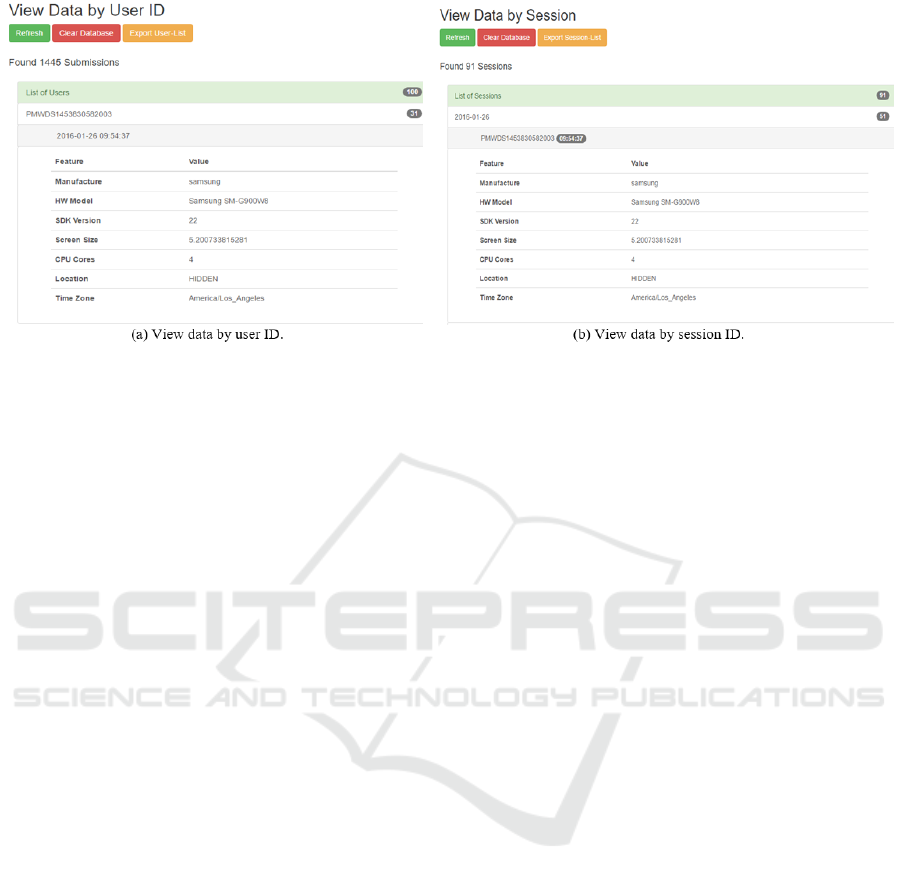

display data in four different formats: 1) view data

by user id, 2) view data by session id, 3) view data

in a summary table, and 4) view raw data. Figure 2

shows screenshots of the front-end interface. Figure

2(a) shows a query by user’s ID. There are currently

100 users registered in the system but not all of them

completed the 30 samples. We are using bootstrap

badges, which are numerical indicators of how many

items are associated with a link. The administrator

can see the number of entries per user as badges in

iProﬁle: Collecting and Analyzing Keystroke Dynamics from Android Users

625

Figure 2: Screenshots from iProﬁle administrator web interface, server side -– front-end.

the right hand side. In this example, the selected user

has entered 31 samples and is using Samsung device

that is running SDK 22. Figure 2(b) shows a different

query by sessions. A session represents 24 hours. We

currently have 91 sessions registered in the system.

These sessions are spread over more than 6-month pe-

riod. The administrator can see the number of entries

per session. In this example we have 51 entries in the

selected session and the timestamp is displayed as a

badge next to each user id.

The back-end of the server consists of three mod-

ules, MySQL database server, phpMyAdmin as an ad-

ministration platform for the database server and sev-

eral php scripts to handle the communication between

the front-end and the database server. The database

server is password protected and data can be extracted

from the server in raw format as a csv ﬁle or as an ex-

cel sheet. We were planning to collect GPS locations

and sensors data and we implemented these features

in the ﬁrst version of the application but we had may

participants declining to continue in the data collec-

tion phase because they did not feel comfortable with

registering their GPS locations. Participants felt that

they were tracked although we assured them that data

is collected in anonymous format. One of the main

reasons for getting these strong concerns from partic-

ipants is related to the Android handle permissions in

the recent releases. Android classiﬁes the access to

GPS location in the Android device as a dangerous

permission and therefore, developers has to request

that permission at runtime, which raises more con-

cerns from the user’s perspective compared to the old

traditional way of accepting all permissions at instal-

lation time. Therefore, we had to remove the part of

the code that collects the GPS collection in the latest

release of the application (Version 2.1).

4 FEATURE EXTRACTION

When we designed the communication module inside

the iProﬁle application, the highest priority was to

transfer as much raw information as possible to the

server. We made a critical design decision by no per-

forming any data processing before the transmission

stage because we did not want to lose any opportunity

to utilize the raw data in the future by creating a new

feature or analyzing certain information, etc. While

this approach preserved the raw contents, it required

a per-processing step to re-format the data before the

feature extraction phase.

The data collection was done over 2 weeks with

invitation emails sent to over 1000 users and research

groups. We also created a home page for the project

to answer all questions from participants and refer-

enced the ethics approval obtained from our home

university. Throughout the data collection phase, we

received 211,304 records for touch events from vol-

unteered from all over the world.

The raw data was sent as a collection of 32

touch events (records) for each successful attempt for

each user. Because users had to type the keyword

“.tie5Roanl”, each successful attempt generated 16

touch-down events and 16 touch-up events, as shown

in Table 2.

The “?123” key switches the keyboard from letter

to numeric and the “ABC” returns the keyboard from

numeric back to letters. The shift key is used to switch

the keyboard to upper-case letters, which lasts for the

next click only and then returns back to lower-case

letters. To prepare the dataset for the feature analy-

sis phase, a python script is developed to execute the

following procedure:

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

626

Table 2: 32 touch events for each attempt to write

.tie5Roanl.

1 ?123 Down 17 ABC Down

2 ?123 Up 18 ABC Up

3 . Down 19 Shift Down

4 . Up 20 Shift Up

5 t Down 21 R Down

6 t Up 22 r Up

7 ABC Down 23 o Down

8 ABC Up 24 o Up

9 i Down 25 a Down

10 i Up 26 a Up

11 e Down 27 n Down

12 e Up 28 n Up

13 ?123 Down 29 l Down

14 ?123 Up 30 l Up

15 5 Down 31 Done Down

16 5 Up 32 Done Up

1. Data Sorting: All record were originally sorted

based on timestamps, which makes it possible

to ﬁnd overlapped instances from different users.

The ﬁrst step in our pre-processing procedure is

to sort data based on user id and timestamp in an

ascending order.

2. Removing Redundant Records: Our volunteers

used different brands of smartphone devices with

different sensitivity levels of touch screens. We

observed in few records that one touch is generat-

ing multiple down and up events for the same key.

Our second step was to remove all the redundant

records and keep only the last registered event for

each key.

3. Excluding Users with typos or Low Number of

Samples: We decided to exclude all users with

less than 50 correct attempts and all attempts with

typos. Scince this paper focuses only on the data

collection and initial analysis, we decided to leave

the error handling to a future extension of this pa-

per.

5 FEATURE ENGINEERING AND

EXPERIMENTAL ANALYSIS

We extracted 147 unique features from each user-

attempt. Our generated features are grouped in 12

groups as shown in Table 3. We extracted these 147

features for all users. The app can be used to collect

all 147 features and report them back to the research

administrators for further processing. As a proof of

concept, we created a data-frame using pandas li-

braries in python for 10 valid users, 10 instances each.

We used the generated dataset to train various ma-

chine learning models. These models were evaluated

based on 10 K-fold cross validation. The experimen-

tal results show that Naive Bayes achieved 96% clas-

siﬁcation accuracy, Decision table achieved 89% clas-

siﬁcation accuracy, whereas Random Forest achieved

100% classiﬁcation accuracy. We believe that this ap-

plication can be used on a wide range within the re-

search community to provide a standard data collec-

tion environment. Having such a tool helps improve

the quality of comparative analysis between research

ﬁndings because the same collection tool was used

to generate the datasets used in these comparisons.

This ﬁrst version of the app is currently in review on

Google Play store (Elmiligi, 2021) and we are plan-

ning to give researchers the ability to conﬁgure the IP

address of the destination server so that they can cus-

tomize the app for their needs. We are also planning

to create an open source project to invite researchers

from allover the world to collaborate in the develop-

ment of this tool so that we can advance the research

in this ﬁeld.

6 CONCLUSION AND FUTURE

WORK

This paper presented the ﬁne implementation details

of a data collection tool for keystroke dynamics on

Android phones. The collection tool, iProﬁle, helps

the research community to use a common environ-

ment to create comparable datasets. iProﬁle can be

used as a stand-alone app for data collection or as an

Android library that can be imported in any Android

application to facilitate the data collection feature.

The paper explained how the collected data can be

analyzed and processed to create a new dataset of 147

features. Experimental results show that the new fea-

ture vector can achieve high accuracy of 100% if used

with Random Forest classiﬁer. Although this results

were obtained based on samples from only 10 users, it

proves that the feature vector created by our tool can

be used to standardize the data collection and feature

engineering processes. It also generates a feature vec-

tor that can be used to train existing machine learning

classiﬁers to achieve high accuracy compared to sim-

ilar trained models in the literature.

iProﬁle: Collecting and Analyzing Keystroke Dynamics from Android Users

627

Table 3: 147 features extracted from raw data based on touch events for 18 users, 50 valid samples per user.

N Feature-Type Deﬁnition Number of Features

1 Down-up Dwell time 16

2 Up-down Flight time 15

3 Down-Down Flight time 15

4 Up-Up Flight time 15

5 Down-up (2-graph) Flight time 15

6 Pressure Touch pressure 16

7 Size Touch area 16

8 X-Y P X-Y precision 16

9 X-Y C X-Y coordinates 16

10 Averages for timing features Average UD, DD, DU, UU, 2-graph 5

11 Average pressure Average pressure for all keys 1

12 Average size Average area for all keys 1

Total 147

REFERENCES

Antal, M., Szab

o, L. Z., and L

aszl

o, I. (2015). Keystroke

dynamics on android platform. Procedia Technology,

19:820 – 826. 8th International Conference Interdis-

ciplinarity in Engineering, INTER-ENG 2014, 9-10

October 2014, Tirgu Mures, Romania.

Baig, A. F. and Eskeland, S. (2021). Security, privacy, and

usability in continuous authentication: A survey. Sen-

sors, 21(17).

Chen, Z., Cai, H., Jiang, L., Zou, W., Zhu, W., and

Fei, X. (2021). Keystroke dynamics based user au-

thentication and its application in online examina-

tion. In 2021 IEEE 24th International Conference

on Computer Supported Cooperative Work in Design

(CSCWD), pages 649–654.

Condorelli, M. (2019). Eva lindgren and kirk p. h. sullivan

(eds.). observing writing. insights from keystroke log-

ging and handwriting. Written Language & Literacy,

22:159–162.

Elmiligi, H. (2021). iproﬁle – app land-

ing page on googleplay store -

https://play.google.com/store/apps/details?

id=blue.pyramid.iproﬁle.

Hejazi, M. and Singh, Y. P. (2013). One-class support vec-

tor machine to anomaly detection. Applied Artiﬁcial

Intelligence, 27(5):351–366.

Kazachuk, M., Kovalchuk, A., Mashechkin, I., Orpa-

nen, I., Petrovskiy, M., Popov, I., and Zakliakov, R.

(2016). One-Class Models for Continuous Authenti-

cation Based on Keystroke Dynamics, pages 416–425.

Springer International Publishing, Cham.

KOH, P. M. and LAI, W. K. (2019). Keystroke dynam-

ics identiﬁcation system using abc algorithm. In 2019

IEEE International Conference on Automatic Control

and Intelligent Systems (I2CACIS), pages 108–113.

Liu, J., Zhang, B., Zeng, H., Shen, L., Liu, J., and Zhao,

J. (2014). The beihang keystroke dynamics systems,

databases and baselines. Neurocomputing, 144:271 –

281.

Lu, X., Zhang, S., Hui, P., and Lio, P. (2020). Continuous

authentication by free-text keystroke based on cnn and

rnn. Computers & Security, 96:101861.

Sahu, C., Banavar, M., and Schuckers, S. (2020). A novel

distance-based algorithm for multi-user classiﬁcation

in keystroke dynamics. In 2020 54th Asilomar Confer-

ence on Signals, Systems, and Computers, pages 63–

67.

Sch

olkopf, B., Williamson, R., Smola, A., Shawe-Taylor,

J., and Platt, J. (1999). Support vector method for

novelty detection. In Proceedings of the 12th Interna-

tional Conference on Neural Information Processing

Systems, NIPS’99, pages 582–588, Cambridge, MA,

USA. MIT Press.

Stavanja, J., Peer, P., and Emer

c, . (2020). Use of

keystroke dynamics and a keystroke-face fusion sys-

tem in the real world. In 2020 43rd International Con-

vention on Information, Communication and Elec-

tronic Technology (MIPRO), pages 1758–1763.

Tse, K.-W. and Hung, K. (2019). Behavioral biometrics

scheme with keystroke and swipe dynamics for user

authentication on mobile platform. In 2019 IEEE

9th Symposium on Computer Applications Industrial

Electronics (ISCAIE), pages 125–130.

Vyazigin, A. A., Tupikina, N. Y., and Sypin, E. V. (2019).

Software tool for determining of the keystroke dy-

namics parameters of personal computer user. In

2019 20th International Conference of Young Special-

ists on Micro/Nanotechnologies and Electron Devices

(EDM), pages 166–171.

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

628
