NLP-based User Authentication through Mouse Dynamics

Hoseong Asher Lee

, Nikhil Prathapani

, Rajesh Paturi

, Sarp Parmaksiz

and Fabio Di Troia

2 a

Department of Computer Engineering, San Jose State University, San Jose, CA, U.S.A.

Department of Computer Science, San Jose State University, San Jose, CA, U.S.A.

Keywords:

Insider Threat Attack, Intrusion Detection, CNN, LSTM, biLSTM, NLP.

Abstract:

Insider threat attacks are increasing in most organizations yearly. It is also tough to prevent this type of attack

because the threat is within the boundary, making them more dangerous than external threat actors. There

can be a situation where a strong authentication layer is implemented for the external users, but due to cost or

maintenance effort reasons, the authentication layer for insiders might not have proper security controls. One

of the types of insider threat attacks is to exploit established sessions by legitimate users. There are certain

applications and operating systems that provide an in-built security mechanism to detect idle sessions and

automatically expire the sessions if no action is performed by the user. However, this type of protection is

still vulnerable since it cannot really detect if the user who is taking action is the legitimate user or not. In

this paper, we propose to use an advanced machine learning model based on Natural Language Processing

(NLP) algorithms to authenticate users based on their mouse dynamics in web browser contexts. The model

can provide a protective layer that continuously monitors against insider threat attacks. By this method, we

can prevent malicious users from accessing unauthorized assets and provide enhanced security to legitimate

users.

1 INTRODUCTION

The internet technology has been increasingly

adopted to our daily lives. From smartphones to

the technologies allowing us to ‘work-from-home’,

we are in an era where digital information is widely

exposed. All this led to the ﬁeld of cybersecurity

becoming more expansive. Today, cybersecurity is

needed and widely adopted than it was in the re-

cent past. In computers, we have ﬁrewalls, antivirus

software, intrusion detection and prevention technolo-

gies that protect users and companies from outside

threats. There are also operating system level pro-

tections, such as authentication that might prevent an

attacker from taking over a machine. Mac OS uses

Keychain (Apple Inc., 2021) for authentication, while

Linux systems use Pluggable Authentication Module

(PAM) (RedHat, 2020) to store authentication details.

However, there is not much security after a user is

authenticated, which is where an insider threat dam-

ages the most. The lack of internal security provides

a challenge in congregated settings, such as schools,

colleges, corporate organizations, and government of-

ﬁces. In these types of situations, users need a solu-

https://orcid.org/0000-0003-2355-7146

tion that helps them to protect their browsing data,

which might contain sensitive ﬁnancial information,

intellectual property, and personally identiﬁable in-

formation. Machine learning can be potentially a

promising solution for such problems. In the inter-

net browsers, web applications or browser extensions

can track the end-user’s mouse dynamics, and that

data can be used to train a machine learning model

to authenticate the user. As the model gets trained

and more mature, both the security and the user ex-

perience are greatly improved. The end-users do not

need to periodically authenticate themselves, rather,

they will be prompted for authentication only when

the model suspects the end-user. Also, this can pre-

vent malicious users from intercepting the victim’s

browser and stealing data from it.

The remainder of this paper is organized as fol-

lows. In Section 2, we describe the state-of-the-art

in the intrusion detection ﬁeld by brieﬂy introducing

related work in this area. In Section 3, we discuss

background topics such as the machine learning mod-

els adopted in this research. Section 4 covers the ap-

plied methodology analyzing in detail every speciﬁc

approach followed for every machine learning model.

In Section 5, we present and analyze the results of

696

Lee, H., Prathapani, N., Paturi, R., Parmaksiz, S. and Di Troia, F.

NLP-based User Authentication through Mouse Dynamics.

DOI: 10.5220/0011005900003120

In Proceedings of the 8th International Conference on Information Systems Security and Privacy (ICISSP 2022), pages 696-702

ISBN: 978-989-758-553-1; ISSN: 2184-4356

our experiments. Section 6 describes the software im-

plementation of our proposed work by introducing a

web-browser extension. Finally, Section 7 presents

the conclusions of our paper and includes a discus-

sion of possible directions for future work.

2 RELATED WORK

Several works have been piblished on the long last-

ing problem of intrusion detection. For example, the

work in (Saber, 2019) describes a machine learning-

based approach to detecting vehicle theft by analyzing

the anomalies in the driving behavior of the user. An-

other example is the work in (Manikoth et al., 2018),

where the authors implemented a detection mecha-

nism based on several classiﬁers with the goal to ﬁnd

the best subset of features to identify unauthorized

use of a mobile device. In (Huang et al., 2021), the

authors propose a new dataset to authenticate users

to their own mobile devise. This last work relies on

gesture-based authentication, where the sensors infor-

mantion are used to train machine learning models.

As seen in this examples, in order to achieve machine

learning-based user authentication, there can be dif-

ferent approaches to accomplish it. We describe now

different of such approaches proposed in academia

over the past few years. In particular, we concentrate

on browser intrusion and insider threat attacks. Three

works step forward due to their promising results and

innovative solutions in the ﬁeld of intrusion detec-

tion. One approach was to intervene with users while

they are using the computer periodically (Chen et al.,

2014). The approach was proven to be successful in

terms of achieving high accuracy to predict a legiti-

mate user. For ﬁve seconds of veriﬁcation, it achieved

2.86% False Rejection Rate (FRR) and 4.00% False

Acceptance Rate (FAR). Where, FAR is the per-

centage of identiﬁcations in which unauthorised in-

dividuals are incorrectly accepted (also called fraud

rate), while FRR is the percentage of identiﬁcations in

which authorised individuals are incorrectly rejected

(also called insult rate). Another method was to ex-

tract features from mouse operations (Jorgensen and

Yu, 2011). This approach was also fairly successful,

resulting in roughly 2% of both FRR and FAR. How-

ever, the average time to authenticate users was rela-

tively long, for example several minutes to sometimes

even more than 10 minutes. Although it can predict a

malicious user, within that time frame, the malicious

user can still performs a considerable amount of dam-

age to the victim’s data. Hence, the fact that it takes

too long to authenticate users makes this approach not

feasible to be applied in the real world. The work pro-

posed in this paper takes inspiration from a research

which proposed to use CNN algorithm to authenti-

cate users using mouse dynamics (Hu et al., 2019).

In this approach, the authors converted mouse opera-

tions into JPEG images following certain rules. They

used an open-sourced dataset for mouse dynamics.

And with that, they were able to achieve 2.96% FAR

and 2.27% FRR within only seven seconds. The great

advantage of this approach is that it does not extract

features from a model, and does not miss any infor-

mation from the user actions. Furthermore, it does not

require any other algorithms to extract features from

the dataset. For this reason, we decided to improve

further in the direction undertaken by this interesting

work. In particular, we decided to apply Natural Lan-

guage Processing (NLP) algorithms to the extracted

user data.

3 BACKGROUND

In this Section, we describe different types of machine

learning algorithms that we applied for mouse dynam-

ics user authentication in our experiments

3.1 CNN

Convolutional Neural Network (O’Shea and Nash,

2015) (CNN) is a type of neural network algorithm

that is popular for analyzing images and detecting pat-

terns. One of the characteristics of the network is that

it has multiple convolutional layers, and those layers

are responsible for ﬁnding patterns in input images.

One can think of an input image as a representation

of a mathematical matrix. CNN internally applies ﬁl-

ters to groups of cells in the matrix, and this results in

the pattern recognition. There are many types of ﬁlter

for recognizing different patters, for instance simple

shapes such as squares or edges. By utilizing those ﬁl-

ters, more sophisticated shapes can be detected, such

as a dog, a cat, or a human’s face. A representation

of the patterns recognized by a CNN is shown in Fig-

ure 1 for different classiﬁed objects.

3.2 LSTM

LSTM stands for long short term memory and it is

a type of recurrent neural network (RNN) algorithm.

Traditionally, RNN had an issue of short term mem-

ory where important data could not be propagated to

the ﬁnal layers during prediction. LTSM aims to re-

duce this problem. RNNs usually have multiple short

term memory cells. In the case of LSTM, we have

a memory cell which includes scope for long term

NLP-based User Authentication through Mouse Dynamics

697

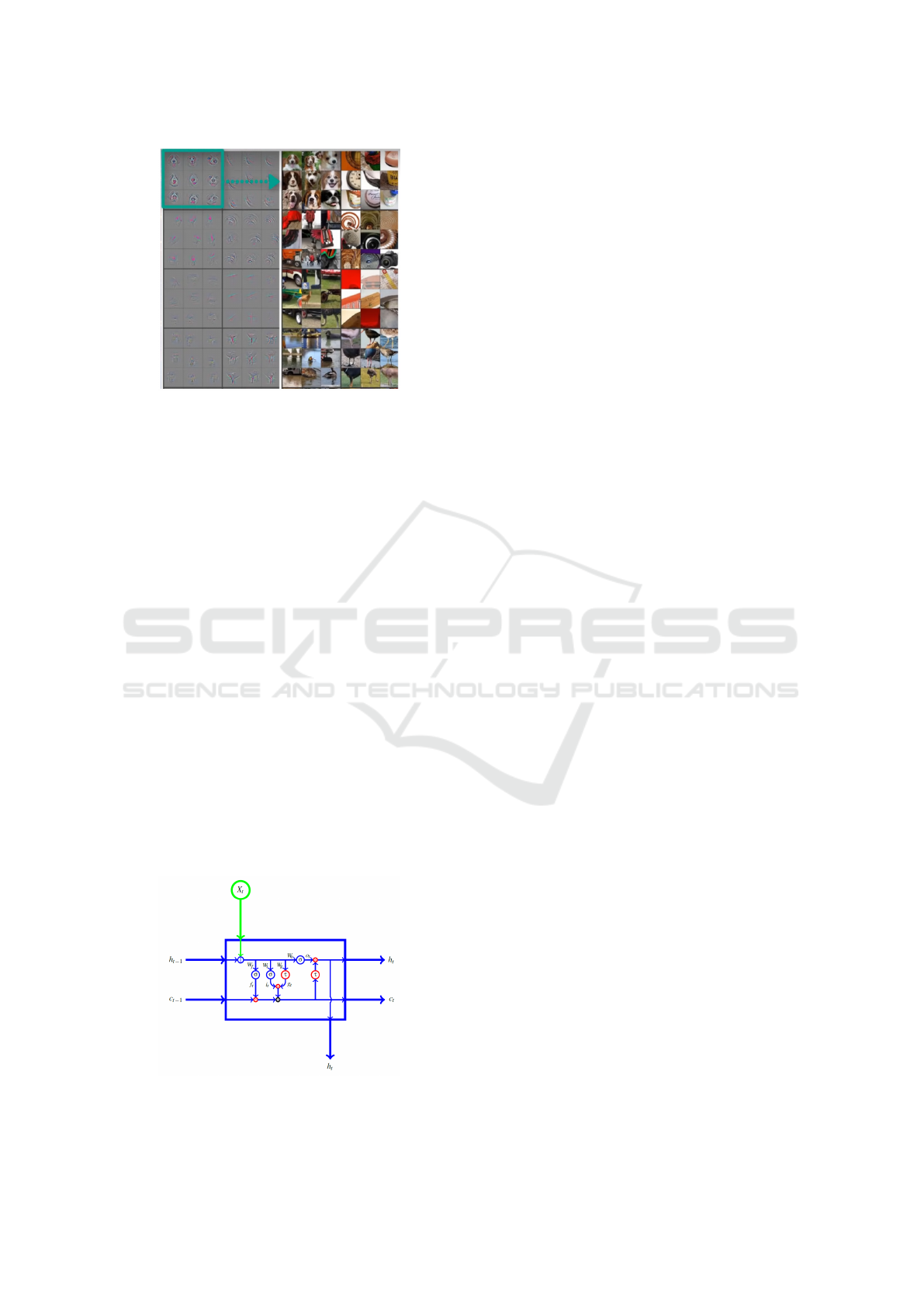

Figure 1: The left side panel contains the output result

from a CNN model, and the output results contain the pat-

terns identiﬁed from the input pictures on the right side

panel (Dshahid380, 2019).

memory and short term memory. For example, if

we have an input word in short term memory opera-

tion, it is converted into a list of numbers or a vec-

tor x(t), while previous hidden state is denoted by

h(t − 1), which is also a vector. Finally, a sigma op-

eration is computed as weighted multiplication, and

the activation function hyperbolic tangent (tanh) is

applied. During LSTM training, a large number of

statements are inputted to the algorithm which will

build the understanding in the recurrent neural net-

work. Throughout this process, the model discards

unnecessary information and stores only what is rel-

evant. A full LSTM operation comprises of a forget

gate, input gate, and output gate, as denoted in Fig-

ure 2. As the name suggests, forget gate is used to

discard information that is not needed for prediction

in future. In the case of a forget gate, the previous

hidden state h(t − 1) and the current input x(t) are ac-

tivated through a sigmoid function that restricts the

value between 0 and 1. Finally, the output of the sig-

moid function is multiplied with the previous memory

state c(t − 1).

Figure 2: LSTM gates and activation functions (Dang et al.,

2021).

In the case of the input gate (that adds new

memory-meaningful information), we have sigmoid

and tanh functions both for “h(t-1)” and “x(t)”, and

each vector is bound with a weight when is given to

the function. Both of these outputs are multiplied to-

gether, and long term memory data is then added. Fi-

nally, we have the output gate, where a weighted sum

of h(t − 1) and x(t) is computed before being acti-

vated by the sigmoid function. This computed output

is then processed to generate a new hidden state h(t).

3.3 biLSTM

Bidirectional long-short term memory (biLSTM) is

the successor of the unidirectional LSTM model. In

regular LSTM, the only information that is present is

the input from the past. Unlike unidirectional LSTM,

biLSTM can take inputs from both the past and the fu-

ture of the input sequence relatively to a given word.

This architecture style makes biLSTM more versa-

tile than the LSTM model. According to the study

in (Abduljabbar et al., 2021), when applied to the

same dataset, biLSTM outperformed unidirectional

LSTM by a large margin. Another study (Siami-

Namini et al., 2019) also proved that biLSTM is

around 38% more accurate than regular LSTM based

on the dataset under analysis.

4 METHODOLOGY

We implemented several experiments using CNN,

LSTM, and biLSTM. Here we give a description of

the methodology followed to accomplish such exper-

iments.

4.1 CNN

Overall, this approach comprises of three different

steps:

1. Conversion of CSV data to JPEG Images

2. Data Augmentation

3. Model Training

For the most part, we adopted the methods proposed

in (Balabit, 2021), where the mouse dynamics dataset

was taken from an open source data repository. We

adopted the same dataset. Since the repository pro-

vides the data in the CSV format, the data needs to be

converted before being fed to the CNN algorithms.

Hence, we converted the CSV data into JPEG im-

ages. The mouse operation is mapped to certain dif-

ferent shapes of drawing in the JPEG image. Table 1

ForSE 2022 - 6th International Special Session on FORmal methods for Security Engineering

698

shows the different input actions and the correspond-

ing graphical representation. Each JPEG image con-

tains a certain number of mouse operations, and the

number can vary by choice. In our study, we experi-

mented with 100, 500, and 1000 mouse actions.

The CNN model contains seven layers. The ﬁrst

four layers are convolutional layers, and the remain-

ing three are fully-connected layers. The ReLU acti-

vation function was applied to all layers in the model

except for the last one. The input shape to the ﬁrst

convolutional layer was set to [100, 100, 3]. The ﬁrst

two values indicate the width and height of input

JPEG, and the last value indicates the color chan-

nel. Hence, the model reads images with red, blue,

and green colors with 100 pixel width and 100 pixel

height. The kernel size was set to 3 for all convo-

lutional layers. The ﬁlter was set to 32 for the ﬁrst

convolutional layer, 32 for the second convolutional

layer, 64 for the third convolutional layer, and 128 for

the last convolutional layer. A max pooling layer was

also added after each convolutional layer.

4.2 JPEG Image Data

The open source dataset consists of 10 different users’

mouse dataset. An image rotation method to augment

the data was also implemented in our experiments.

Out of the converted JPEG images, we picked random

images and rotated them by 90, 180, or 270 degrees.

The selection of the angle was also random, and the

augmentation was accomplished until it reaches the

maximum number of images.

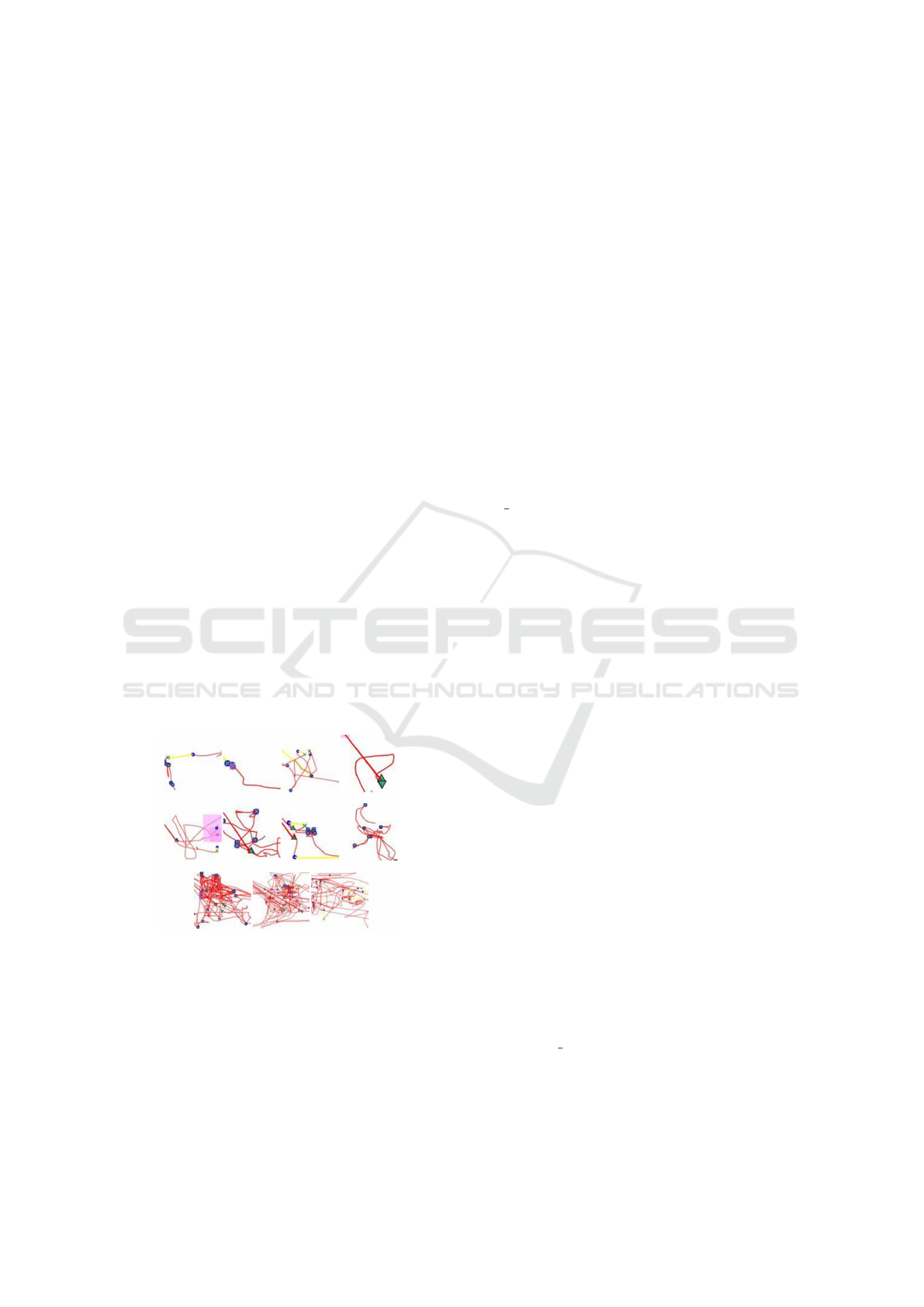

Figure 3: Converted JPEG images from CSV-formatted

mouse operation data (Balabit, 2021). Each row of images

is created with different mouse actions (m) values. From

the top row, m is set to 100, 500, and 1000, respectively.

4.3 LSTM

For LSTM , we tested three different approaches:

1. Model training with basic GRU (Gated Recurrent

Unit)

2. Unidirectional LSTM

3. Bidirectional LSTM

For all three approaches, we ﬁrst began by reading the

input dataset as numpy ﬁles. Numpy ﬁles in python

provide support for large arrays and matrices. We

also added an additional script to read the contents

of numpy data ﬁles. After we loaded the inputs as

numpy ﬁles, the next step was to choose either GRU,

unidirectional LSTM or biLSTM for model training.

After we compiled a model, the next step was to ﬁt the

model. Here, we chose the X value and Y value from

input numpy arrays. Also, we chose the number of

epochs, which basically denotes the number of passes

of the entire training dataset that the ML model has

completed. We also chose the validation split which

is the parameter specifying how much of training data

is used for validation (a value between 0 and 1). Vali-

dation data is not used for the training, but to evaluate

the loss and the accuracy. In our work, we set ”valida-

tion split=0.1”, that is, 10% of the training data was

used for validation. Next step after ﬁtting the model

was to train the model and obtain the results of accu-

racy and loss over various epochs. We also plot the

confusion matrix for the same. Confusion matrix is

used for performance measurement in machine learn-

ing classiﬁcation where the output is a table with four

different combinations of predicted and true values.

It is utilized for recall, accuracy, and precision of a

model. The four possible outcomes are True positive,

True negative, False positive, and False negative. True

positive means that you predicted positive and the out-

come was correct. True negative means that the model

predicted negative and the outcome was not correct.

False positive means that the model predicted positive

and the outcome was not correct (type 1 error). False

negative means that the model predicted negative and

the outcome was not correct (type 2 error).

5 RESULTS

We trained the models with different machine learn-

ing algorithms. Here, we describe the outcomes of

our experiments in detail.

For the fully-connected layers, the ﬁrst layer con-

tains 1024 neurons passing Dropout with probabil-

ity of 50%, and the second layer contains 512 neu-

rons passing Dropout with probability of 50%. The

Adam optimizer function was used with the parame-

ters learning rate=0.01, beta1=0.9, beta2=0.999, and

epsilon=1e-08. To train the model, the legal user data

and illegal user data were mixed randomly.

Our ﬁrst experiment relied on purely CNN as a

conﬁrmation of the work in (Hu et al., 2019), which

NLP-based User Authentication through Mouse Dynamics

699

Table 1: Mapping between mouse operations and corresponding drawings.

Operation from CSV data Mapped Drawing in JPEG image

Move Red Line

Pressed Blue Circle

Released Green ”X” Shape

Drag Yellow Line

Scroll Up Cyan Upward Triangle

Scroll Down Cyan Downward Triangle

Stay Red Translucent Square (Size of Square related to the time of Stay op-

eration)

obtain a maximum accuracy of around 81%. The

meaning of accuracy in this context is how often the

anti threat system was able to detect a malicious in-

truder. Table 2 contains the results of this experiment

with different values of mouse operations (m).

Then, we tested the GRU model, which was able

to achieve a maximum accuracy of around 75%. Ta-

ble 3 contains the model parameters and layers infor-

mation. Please note that, for this and the subsequent

experiments, there was no need to convert the data to

images. This reduced considerably the overhead in

analyzing the user’s behavior.

Unidirectional LSTM, instead, obtained a maxi-

mum average of around 78%. Table 4 describes the

parameters and layers used. Both values from LSTM

and GRU were below the results obtained in (Hu

et al., 2019), even though by a realtively small mar-

gin. However, implementing the biLSTM layer, the

best accuracy achieved was around 95%, a consider-

ably superior result when compared to the previous

work. Table 5 describes the parameters and layers

used. By these results, we see that biLSTM is a valu-

able and promising algorithm to implement when in-

sider threat attacks are a possibility. A comparison of

all the four approaches is given in Figure 4.

In Section 6, we propose a possible real-life im-

plementation of this approach as part of a browser ex-

tension.

6 IMPLEMENTATION

As mentioned earlier, the mouse dynamic authentica-

tion can be used in a browser extension. Through the

content script of a browser extension, the tool can ac-

cess the mouse operations data for end-users and pro-

vision a ML model for such user. To achieve this, the

user’s mouse operation are collected. Those collected

data is then used for both training the ML model

and for authenticating the end-user in real-time. The

project architecture follows a typical browser exten-

sion architecture where the browser extensions run

asynchronously. One possible way to implement such

architecture is to not develop a backend component.

In this way, the machine learning model can be de-

ployed in a backend server and the browser extension

can leverage the model in the backend. However,

with this design choice, it would incur in constant

backend server maintenance. Also, if hackers run a

DDoS (Distributed Denial of Service) attack against

the central server, the authentication mechanism on

the browser extension can be impacted. Hence, for

scalability and security perspective, we decided to

run the model in the browser without contacts with

the server. This is possible with the employment of

TensorFlowJS (Google, 2021). TensorFlowJS allows

developers to run machine learning models and al-

gorithms in the browser context using the JavaScript

programming language. The browser extension runs

asynchronously in the browser, and the browser col-

lects and analyzes the mouse dynamics from the end-

users by using Browser DOM API and TensorFlow

models. If the extension concludes that the end-user

is not the actual user but a malicious user, it locks

the browser and the user is not able anymore to use

it until they solve the authentication challenges. For

instance, an employee can have speciﬁc access to cer-

tain internal resources, such as app development time-

lines or codebases. Those resources are considered

conﬁdential in most cases because they can affect the

business operation if they are leaked. In the insider

threat attack scenario, an employee would have been

already authenticated for accessing a resource and the

session is active in the browser. The employee could

leave the computer unattended at risk of a bad actor

taking actions on such device. Speciﬁcally, the ma-

licious insider could access the resources and steal

them. However, with the use of the browser lock ex-

ForSE 2022 - 6th International Special Session on FORmal methods for Security Engineering

700

Table 2: CNN model prediction by the number of mouse operations (m).

m Accuracy Loss # of Legal User data # of Illegal User data

100 0.811 3.04 4219 18054

500 0.810 3.05 850 3617

1000 0.809 3.06 426 1807

Figure 4: Maximum accuracy of the four tested model over mouse actions values of 10, 100, and 1000, obtained after 10

training epochs.

Table 3: Model parameters and layers for the GRU model.

Layer (type) Output Shape Parameters

input 1 (InputLayer) (None, 100, 9) 0

gru (GRU) (None, 6) 306

dense (Dense) (None, 2) 14

Table 4: Model parameters and layers for the LSTM model.

Layer (type) Output Shape Parameters

input 1 (InputLayer) (None, 100, 9) 0

lstm (LSTM) (None, 6) 384

dense (Dense) (None, 2) 14

Table 5: Model parameters and layers for the biLSTM

model.

Layer (type) Output Shape Parameters

input 1 (InputLayer) (None, 100, 9) 0

biderectional (None, 12) 768

dense (Dense) (None, 2) 26

tension, the browser can detect the hacking attempt

by analyzing the mouse dynamics and prevent insider

threat attacks. When the browser is locked due to sus-

picious attempts, the end-user is given an authentica-

tion challenge, and only if the user solves such chal-

lenge, the browser will be unlocked. The challenge

can vary based on the implementation, but it can even

be a traditional password authentication.

7 CONCLUSIONS

As a part of this research, we worked with mouse

dynamics data to tell malicious users behavior apart

from legitimate users activity. At ﬁrst, we used a

CNN model where we converted a sequence of mouse

movements belonging to given users to JPEG images,

and use the images as input to train a CNN model for

user authentication. With the CNN model, we were

able to achieve user authentication with about 81%

of accuracy. Furthermore, we tested GRU, unidirec-

tional LSTM, and biLSTM. With a single GRU layer

after 10 epochs, the best accuracy was around 75%.

With a single LSTM layer after 10 epochs, the best ac-

curacy achieved was around 78%. With the biLSTM

layer and after 10 epochs, the best accuracy achieved

was around 95%. At the outset, the biLSTM model

result was very promising, and it might be ideal to

use this type of model for real-world applications like

browser lock extensions where we identify malicious

insider attacks.

NLP-based User Authentication through Mouse Dynamics

701

As future work, we want to use a uniﬁed dataset

where we can compare biLSTM to hybrid CNN-

LSTM and CNN-biLSTM based approaches. More-

over, the dataset used could be enhanced with ad-

ditional users and data augmentation techniques to

test even further the efﬁcacy of the proposed biLSTM

method.

REFERENCES

Abduljabbar, R. L., Dia, H., and Tsai, P.-W. (2021). Unidi-

rectional and bidirectional lstm models for short-term

trafﬁc prediction. Journal of Advanced Transporta-

tion, 2021.

Apple Inc. (2021). What is Keychain Access on Mac?

https://support.apple.com/guide/keychain-access/

what-is-keychain-access-kyca1083/mac. Online;

accessed November 2021.

Balabit (2021). Mouse-Dynamics-Challenge. https://

github.com/balabit/Mouse-Dynamics-Challenge. On-

line; accessed November 2021.

Chen, X.-j., Xu, F., Xu, R., Yiu, S.-M., and Shi, J.-q. (2014).

A practical real-time authentication system with iden-

tity tracking based on mouse dynamics. In 2014 IEEE

Conference on Computer Communications Workshops

(INFOCOM WKSHPS), pages 121–122. IEEE.

Dang, D., Di Troia, F., and Stamp, M. (2021). Malware

classiﬁcation using long short-term memory models.

arXiv preprint arXiv:2103.02746.

Dshahid380 (2019). Convolutional Neural Net-

work. https://towardsdatascience.com/

covolutional-neural-network-cb0883dd6529. Online;

accessed November 2021.

Google (2021). TensorFlow.JS. https://www.tensorﬂow.

org/js. Online; accessed November 2021.

Hu, T., Niu, W., Zhang, X., Liu, X., Lu, J., and Liu, Y.

(2019). An insider threat detection approach based

on mouse dynamics and deep learning. Security and

Communication Networks, 2019.

Huang, E., Di Troia, F., Stamp, M., and Sundaravaradhan, P.

(2021). A new dataset for smartphone gesture-based

authentication. In ICISSP, pages 771–780.

Jorgensen, Z. and Yu, T. (2011). On mouse dynamics as

a behavioral biometric for authentication. In Proceed-

ings of the 6th ACM Symposium on Information, Com-

puter and Communications Security, pages 476–482.

Manikoth, S. N. K., Di Troia, F., and Stamp, M. (2018).

Masquerade detection on mobile devices. In Guide

to Vulnerability Analysis for Computer Networks and

Systems, pages 301–315. Springer.

O’Shea, K. and Nash, R. (2015). An introduction

to convolutional neural networks. arXiv preprint

arXiv:1511.08458.

RedHat (2020). An introduction to Plug-

gable Authentication Modules (PAM) in

Linux. https://www.redhat.com/sysadmin/

pluggable-authentication-modules-pam. Online;

accessed November 2021.

Saber, A. (2019). Masquerade detection in automotive se-

curity.

Siami-Namini, S., Tavakoli, N., and Namin, A. S. (2019).

The performance of lstm and bilstm in forecasting

time series. In 2019 IEEE International Conference

on Big Data (Big Data), pages 3285–3292. IEEE.

ForSE 2022 - 6th International Special Session on FORmal methods for Security Engineering

702
