Reconstructing the Holistic Architecture of Microservice Systems using

Static Analysis

Vincent Bushong

, Dipta Das

and Tomas Cerny

Computer Science, Baylor University, One Bear Pl, Waco, TX, U.S.A.

Keywords:

Software Architecture Reconstruction, Reverse Engineering, Static Analysis, Microservices, Cloud-native.

Abstract:

Cloud-native systems, fueled by microservice architecture, provide several beneﬁts to enterprises. These

beneﬁts include scalability, short deployment cycles, and ﬂexibility for evolution. Most beneﬁts come from

microservices’ independence and decentralization. However, the pay-off comes as a lack of a centralized view

of the overall system’s architecture. The system’s data model is separated among and partially replicated

between each microservice, requiring extra effort to create a single view on the context map. Additionally,

while a microservice’s API and its interaction can be statically documented (i.e., communication diagram),

system evolution makes it difﬁcult to maintain. As a result, modiﬁcations to the system can decay from the

original intended design, and the changes will be obscured by the lack of an up-to-date centralized view. To

address this, we propose a method of software architecture reconstruction based on static code analysis of the

microservice mesh, generating a communication diagram, context map, and microservice-speciﬁc bounded

contexts. This gives developers and Development and Operations engineers (DevOps) a centralized view of

how the overall program works, useful for furthering system comprehension and observation.

1 INTRODUCTION

Cloud-native systems build on the Microservice Ar-

chitecture (MSA). The use of this architecture is more

or less standard for enterprise software development.

Microservices break the application functionality into

many small, independently developed, and deployed

services that communicate with each other. The in-

tegration and business logic are implemented within

each microservice, and thus no centralized model is

agreed upon. Microservices are aware of the pro-

ducer interfaces, which introduces loose coupling. As

a result, microservices can be developed, deployed,

and scaled independently, leading due to more rapid

development and update cycles and improved perfor-

mance of the entire system.

Due to the broad decentralization, any overall sys-

tem documentation can quickly become out of date.

A developer new to the system will likely need to

parse through documentation and code from different

projects, possibly using different technologies, cod-

ing styles, and conventions. Such complex readabil-

ity leads to increased costs: time that could have been

https://orcid.org/0000-0003-0475-4232

https://orcid.org/0000-0001-8366-2453

https://orcid.org/0000-0002-5882-5502

spent on development has to be spent on learning how

a system works. It would be difﬁcult to identify spe-

ciﬁc system concerns on the overall system since each

concern is implemented individually among the sepa-

rate microservices.

One speciﬁc feature of the microservice approach

is that there is no global data model as that would be a

form of coupling, which microservices aim to avoid.

This makes individual service development faster and

the whole system ﬂexible and loosely coupled, but it

can lead to inconsistencies in how each microservice

views and uses its data. Entities are used in certain mi-

croservices and not others, and even when they share

entities, microservices do not always need to use all

of their properties. Therefore, the extent of the data

stored about any single entity and where and how it

is used in the system is hidden among the individual

services. Creating and updating domain models and

other documentation artifacts help to alleviate this,

but in practice, the documentation does not always

remain current, especially in the decentralized envi-

ronment common for microservices.

Another hidden aspect is inter-service commu-

nication. Without an integration layer, microservice

evolution is not affected by other microservices, but

there is no central location for the business logic of the

Bushong, V., Das, D. and Cerny, T.

Reconstructing the Holistic Architecture of Microservice Systems using Static Analysis.

DOI: 10.5220/0011032100003200

In Proceedings of the 12th International Conference on Cloud Computing and Services Science (CLOSER 2022), pages 149-157

ISBN: 978-989-758-570-8; ISSN: 2184-5042

149

broader functionality. For example, to know which

services call each other to determine services affected

by an API update, a developer would have to check

each individual service for calls to the others.

Practitioners have well noticed the challenges

with microservices. In particular, a large survey on

microservice industry practice (Bogner et al., 2021)

revealed a missing system-centric view as one of the

dominant challenges. This challenge is followed by

others, such as outdated or possibly missing docu-

mentation and inter-service dependencies, causing a

ripple effect. Given that the systems evolve, there is a

clear gap in instruments that the industry practitioners

need from what they currently have.

To address issues of hidden information and chal-

lenges or microservice practitioners, we propose

a method of Software Architecture Reconstruction

(SAR) for microservices. We have introduced this

method in the Late-Breaking Results (Bushong et al.,

2021). This paper details our method, which uses

static code analysis to automatically generate context

maps and inter-service communication diagrams for

microservice projects. Using this method, we recover

the data model and communication logic of microser-

vice systems. We demonstrate our method’s effective-

ness with a case study on a benchmark system.

In the remainder of the paper, we discuss back-

ground and previous work in sections two. We de-

scribe the our method, its rationale and outline our

approach and prototype Prophet, in section three. We

demonstrate our approach’s viability with a case study

in section four. Finally, we discuss the impact and

conclusions in section ﬁve.

2 RELATED WORK

As the mainstream approach to enterprise applica-

tion development (NGINX, Inc., 2015), MSA offers

numerous beneﬁts owing much to the independence

of the individual services. Independent service scal-

ability improves performance; independent service

deployability reduces the complexity of deployment

processes and reduces the time required to push up-

dates. Independent service development allows each

piece of functionality to be developed using the most

appropriate tools (Cerny et al., 2018).

Containerization is often the underlying deploy-

ment mechanism, usually by means of a cloud-based

container orchestration framework such as Kuber-

netes. To more easily handle management and mon-

itoring concerns such as service discovery, scaling,

and load balancing, another tool such as OpenShift

is used above the cloud-based container framework.

The domain models used in MSA reﬂect the

services’ independence. The most common MSA

approach is to take a single problem domain and

separate it into bounded contexts. The idea of a

bounded context originates within Domain-Driven

Design (DDD) (Evans, 2014). Instead of creating a

single, unifying model for an entire large system, the

model is split into multiple bounded contexts. In each

bounded context, entities are deﬁned in the way most

useful for that context; this way, anyone working with

an entity in one context does not need to worry about

the details of that entity’s usage in other contexts since

they can use their own deﬁnition (Evans, 2014).

This separation is well-suited to the MSA mind-

set of independent services. Each microservice repre-

sents a different bounded context of the overall sys-

tem, created and maintained by a separate team for

that service’s particular needs (Cerny et al., 2018).

Entities in a microservice’s bounded context can be

created with only those properties needed within that

particular service, even if it uses other properties in

the wider system. This keeps the services decoupled.

However, the lack of a centralized model may require

restating information across the services. It becomes

difﬁcult to maintain a single view of how the entire

system represents its data and the business rules and

policies applicable to that data (Cerny et al., 2018).

When designing bounded contexts in DDD, it is

useful to create a context map, a diagram that shows

the bounded contexts and their entities’ relationships

across the entire system (Evans, 2014). We aim to

extract context maps and individual bounded contexts

from existing systems, yielding a view of how the sys-

tem and individual microservices view the entities.

The goal of obtaining a centralized view of how

a system works is known as commonly referred

to as Software Architecture Reconstruction (SAR)

(Rademacher et al., 2020a). SAR derives a repre-

sentation of software architecture from artifacts like

documentation or source code. SAR is a key step in

architecture veriﬁcation, conformance checking, and

trade-off analysis (Rademacher et al., 2020a). Be-

sides these, SAR itself is relevant in combating soft-

ware architecture degradation, the process wherein

changes to a software system shift the architecture

away from what was originally intended. In the rest of

this section, we will examine existing approaches to

SAR and its applications to architecture degradation.

There are three broad categorizations for SAR

methods: dynamic or runtime analysis, where a tool

constructs the view at runtime; static analysis, where

the view is constructed from artifacts available be-

fore deployment; and manual analysis, where a hu-

man examines the system and manually constructs a

representation of it. Manual analysis, while clearly

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

150

not an approach to creating an automated tool, is an

important step in proving a proposed method or val-

idating the results; we performed a manual analysis

in our case study to compare our results. Ratemacher

et al. (Rademacher et al., 2020a) manually collected

architecture-related artifacts, constructed a canonical

representation of the data model, and based on that

fused module views. They then performed archi-

tecture analysis on the results to answer hypotheses

about architecture implementations from the recon-

structed architecture information. We see this as a

promising direction to automate the SAR process.

2.1 Dynamic SAR

Dynamic analysis can operate on several different

runtime data sources. It has been used for a myriad

of end goals, ranging from analyzing runtime traces

extracted from logs in order to ﬁnd timing errors

(Cinque et al., 2019) to extracting service dependency

graphs by extracting remote procedure calls from net-

work logs in a microservice mesh (Esparrachiari et al.,

2018) or by uncovering dependencies between moni-

tored metrics for components of a distributed system

(Thalheim et al., 2017).

Runtime analysis-based SAR has taken many

forms. One technique is to use a language’s in-

strumentation features to report data based on a

framework or custom-made annotations in a program,

which can then be analyzed at runtime. This data can

be used to model some concerns of a microservice

system by detecting where microservices call each

other. This approach has been used to model mi-

croservice dependencies and ﬁnd incomplete test cov-

erage of calls across an entire microservice mesh (Ma

et al., 2018). This approach can also be used to de-

tect discrepancies between required and provided ser-

vice versions, as well as generate performance met-

rics from service error data (Ma et al., 2019).

Interceptors can be used to a similar end; (Mayer

and Weinreich, 2018) use the Spring framework’s in-

terceptors to monitor runtime calls between services

to generate an architectural view of a microservice

system. Similarly, calls could be intercepted and

rerouted through a security gateway (Torkura et al.,

2017), but this brought great performance overhead,

and violation of the distribution with potential bottle-

necks, and any approach that depends on code instru-

mentation, as in (Mayer and Weinreich, 2018), brings

additional development difﬁculty and overhead.

Another runtime approach is to utilize the under-

lying containerization engine. Since microservices

are often deployed using containers, this can be a

valuable source of information about the application’s

architecture. (Granchelli et al., 2017) query the con-

tainerization framework to retrieve calls between mi-

croservices at runtime. The extracted calls are used

along with deployment metadata collected from ser-

vice descriptors to create an architectural model for a

microservice system. This approach is limited in ex-

tracting further system concerns because not all infor-

mation is available through the containerization en-

gine, especially information relating to how the appli-

cation represents and operates on data.

These runtime analysis approaches beneﬁt from

being able to access runtime data (like performance

metrics and real-time service calls), but they require

the system to be deployed and running and cannot op-

erate on the source code alone. For these reasons, we

turn to static analysis.

2.2 Static SAR

Static analysis can be performed on a system before it

is deployed, extracting information from existing ar-

tifacts that would otherwise have to be manually an-

alyzed. In particular, analyzing a program’s source

code has played a part in formal veriﬁcation of a sys-

tem’s correctness (Chlipala, 2013; Albert et al., 2007)

It has also been applied in the realm of microser-

vices. It has been used to identify calls between mi-

croservices to generate security policy automatically

(Li et al., 2019). Also, it has been used to analyze

monolithic applications to recommend splits for con-

verting to microservices (Eski and Buzluca, 2018).

In generating a service dependency graph, (Espar-

rachiari et al., 2018) posit that source code analy-

sis is not sufﬁcient since the deployment environment

may impact the actual dependencies a given deployed

module has. Furthermore, (Soldani et al., 2021) an-

alyzes docker conﬁgurations to understand the mi-

croservice deployment topology graph and then uses

this information for dynamic analysis to monitor and

determine interactions among components. However,

our goal is different from the previous two works; we

do not necessarily target every possible call in a sys-

tem for dependency detection; rather, we ﬁnd the calls

that are part of the application’s business logic, and

for this purpose, the source code contains sufﬁcient

information.

Source code is not the only artifact available for

static analysis. Ibrahim et al. use a project’s Docker-

ﬁles to search for known security vulnerabilities of the

container images being used, which they overlay on

the system topology extracted from Docker Compose

ﬁles to generate an attack graph showing how a secu-

rity breach could be propagated through a microser-

vice mesh (Ibrahim et al., 2019). This allows the cre-

Reconstructing the Holistic Architecture of Microservice Systems using Static Analysis

151

ation of a centralized security concern for the system,

but since it does not extend to source code, it can-

not include security ﬂaws in the programs deployed

in the containers, only ﬂaws with the images them-

selves. Another static source of information is in the

API deﬁnitions. Mayer and Weinreich use API deﬁni-

tions generated by Swagger as an input to their archi-

tecture generation system, but their system is also de-

pendent on runtime data extracted from calls between

services (Mayer and Weinreich, 2018).

Another approach to pre-runtime SAR is to embed

a source of information into microservices in their de-

velopment. For example, (Salvadori et al., 2016) pro-

pose creating semantic microservices that expose in-

formation about their resources, allowing them to be

automatically composed. In this way, a centralized

view of microservice communication is always avail-

able. However, this approach depends on using a fun-

damentally different approach to development, and it

cannot be used to analyze existing codebases.

2.3 Software Architecture Degradation

Software architecture degradation is a phenomenon

where code changes cause the implemented archi-

tecture of a system to differ from its planned archi-

tecture (Baabad et al., 2020). This process goes by

many names, including architecture erosion (Perry

and Wolf, 1992), software degeneration (Hochstein

and Lindvall, 2005), etc., but the principle is the same:

the original intent for the architecture is not kept.

Software architecture degradation has many

causes. Baabad et al., in a survey of open-source soft-

ware systems, identiﬁed the most common of these

causes. Degradation tends to happen when the rapid

system changes cause small issues to go unnoticed

when the system grows in complexity through new

features or unforeseen design changes. These changes

occur when developers have a limited understanding

of the overall architecture or are not dedicated long-

term to the project. It also happens when pressures

of time and deadlines cause suboptimal and ostensi-

bly temporary solutions to become a permanent part

of the system (Baabad et al., 2020).

While the issues that tend to cause software archi-

tecture degradation overlap with more general issues

of code practice, Hochstein and Lindvall note that the

actual code that causes the offending changes to the

architecture may be functionally correct in and of it-

self (Hochstein and Lindvall, 2005). Therefore, tradi-

tional debuggers and code analysis tools may not be

sufﬁcient for combating this issue since the problems

only become apparent at higher levels of abstraction

than the tools operate at.

Because traditional code analysis tools are insuf-

ﬁcient for countering software architecture degrada-

tion, speciﬁc techniques have been developed. In their

study, Baabad et al. sorted these techniques into sev-

eral broad categories. The four most common cate-

gories which contained a majority of the approaches

were tools that detected degradation by various met-

rics (e.g., measuring stability or cohesion/coupling

measures), approaches based on deﬁning and enforc-

ing architectural rules, direct methods of detecting

problems through heuristics and known code or ar-

chitecture smells, and methods based on architecture

recovery/reconstruction (Baabad et al., 2020). Of the

four categories, our approach is most relevant to the

last category since it is a SAR-based tool; none of the

existing tools in this category are designed to recover

the architecture of a microservice-based system.

3 OUR SAR METHOD

The need for our approach is twofold. First, it ﬁlls the

niche of a SAR tool entirely dependent on static anal-

ysis, rather than dynamic analysis, that is speciﬁcally

suited for microservices. Particularly, it identiﬁes

HTTP calls between individual microservices with-

out the need for runtime analysis. These identiﬁed

calls allow us to extract a view of the system architec-

ture before it is deployed, whereas other methods re-

quire a deployed system (Mayer and Weinreich, 2018;

Granchelli et al., 2017; Esparrachiari et al., 2018;

Torkura et al., 2017). Using this method, developers

can get an updated view of the system’s service APIs

and service interactions as the code changes, rather

than waiting for deployments. This API/interaction

view was identiﬁed by (Mayer and Weinreich, 2017)

as one of the most important aspects of a microservice

monitoring tool. This view also corresponds to the

service viewpoint identiﬁed by (Rademacher et al.,

2020b) as one of the fundamental viewpoints to be

obtained from the SAR process on microservice sys-

tems. Furthermore, we include a feature to extract

the bounded context for each individual microservice,

then combine them into a single context map for the

entire system. It will combine entities that are shared

across multiple microservices into a single combined

entity, preserving all properties and relationships the

entity is part of across the entire system. This view

corresponds to the domain viewpoint also identiﬁed

by (Rademacher et al., 2020b), and to our knowledge,

ours is the only microservice-oriented SAR tool to in-

clude this viewpoint.

The second role is more speciﬁc to detecting and

ﬁxing software architecture degradation. Microser-

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

152

vices, in particular, are vulnerable to architecture

degradation; their development is characterized by

rapid evolution by developers who specialize in a sub-

set of the microservices of the whole system, perhaps

lacking knowledge of the overall view. As discussed

previously, these are major risk factors for a system to

experience architecture erosion (Baabad et al., 2020).

Our method is meant to be a complement to other

methods to combat software architecture degradation.

As a visual tool, it is useful to get a view of the sys-

tem architecture as-is, which can be used to compare

against the planned system architecture. Developers

can use this as a ﬁrst warning to detect if the architec-

ture has drifted from the original plan.

Our approach takes place in two broad phases.

A context map is built from the individual bounded

contexts extracted from each microservice in the ﬁrst

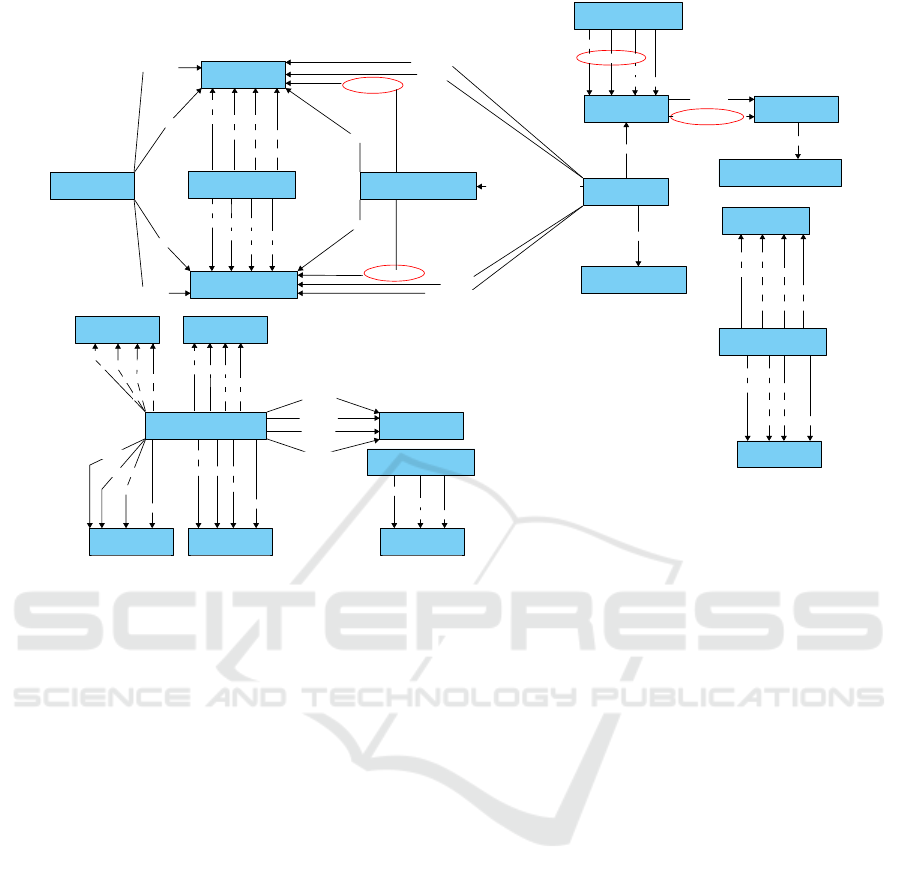

phase. In the second phase, calls between the services

are found to construct a communication diagram.

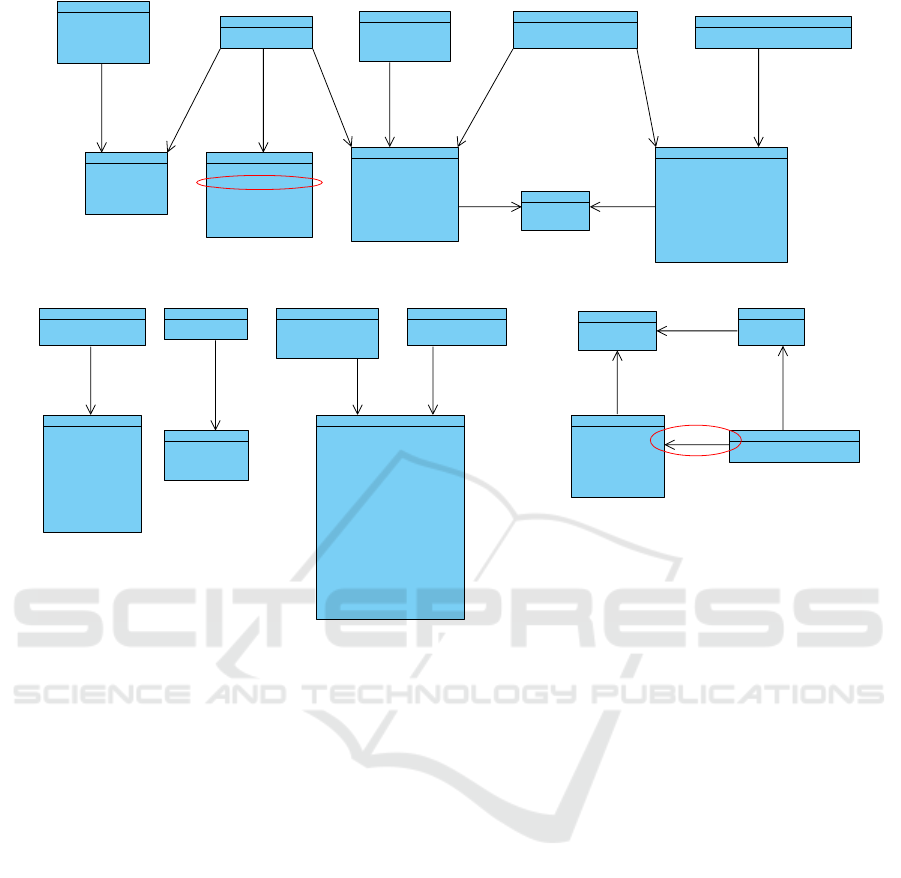

3.1 Context Map

Creating a context map consists of two parts. First,

each microservice project’s bounded context has to

be created, and second, those bounded contexts are

combined into a context map for the entire system.

Extracting a bounded context from each microser-

vice requires each service to be analyzed with static

analysis. We perform this primarily with source code

analysis, although bytecode analysis is also possible

for languages with intermediate bytecode representa-

tions; we perform bytecode analysis for Java projects,

for example. The goal of this ﬁrst analysis is to extract

a list of all local classes used in the project.

Once the classes have been identiﬁed, the next

goal is to determine which of them are serving as data

entities and which are not; for example, classes acting

as REST controllers or internal services need to be ﬁl-

tered out. This is where we use enterprise standards to

our advantage; development frameworks use standard

components and constructs involving annotation de-

scriptors that indicate a class’s semantic purpose. For

instance, there are multiple standards for persistence,

input validation, transaction boundaries, synchroniza-

tion, layering, and security. We use these descriptors

to identify which classes are acting as entities. Even

though we reference mostly Java, similar standards

are adopted across platforms.

After the entities are identiﬁed, the bounded con-

text of the microservice can be built. This is done

by identifying the relationships the entities have with

each other. These relationships have three different

components, which we extract using static analysis:

the types involved in the relationship (i.e., the entities

that are on either side of the relationship), the multi-

plicity of the relationship, and the directionality of the

relationship. Identifying the types is done on the basis

of the type names of the entities’ ﬁelds, the multiplic-

ity can be determined by whether or not the ﬁeld is a

collection, and its directionality can be determined by

whether or not there is a corresponding ﬁeld in both

of the entities involved or in only one entity.

Using the bounded contexts for all microservices,

a context map for the entire system needs to be gener-

ated by merging the bounded contexts together. Since

the mesh services should be operating on some of the

same entities, the entities in each microservice can be

merged by detecting if they have the same or similar

names. Different bounded contexts may have differ-

ent purposes for the entities they share and so may re-

tain different ﬁelds from each other. Therefore, the

next step is to merge the ﬁelds of merged entities.

Fields with the same or similar names and the same

data type are merged into a single ﬁeld in the merged

entity, while non-matching ﬁelds from all the source

entities can simply be appended to the merged entity.

The result is a context map that represents the scope

of all entities used in the mesh.

3.2 Communication Diagram

After the context map is created, the next step is

to create the communication diagram. The code is

analyzed again using static analysis to ﬁnd HTTP

calls among the microservices. This consists of two

phases: identifying each service’s API endpoints and

ﬁnding where these endpoints are called from other

services. With these two pieces of information, we

can create a graph showing the paths of communica-

tion between services. Regardless of the method of

extracting this information, certain metadata must be

collected regarding the endpoints and calls; this in-

cludes the path, HTTP method, parameters, and re-

turn type (or the expected return type for a call).

Our method depends on using the standardized

formats that enterprise standards use to encode this

information. In enterprise applications, exposing end-

points is most commonly done in code using func-

tions or annotations speciﬁc to a framework or library;

this means the deﬁnitions will appear consistent each

time they appear in code, so code analysis can be

used to identify the metadata about deﬁned endpoints.

Likewise, in enterprise applications, HTTP requests

are made from an HTTP client. The client may be

part of the same framework used to deﬁne the end-

points, but developers will likely use the same client

for all calls in the system, even if it is not. Therefore,

code analysis again can identify the metadata about

Reconstructing the Holistic Architecture of Microservice Systems using Static Analysis

153

every request in the system by ﬁnding the function

call formats appropriate to the known HTTP library.

Once the requests have been identiﬁed, they can be

matched with the catalog of known service endpoints

collected earlier; a match means there is a communi-

cation path between the two services.

By extracting the communication diagram and ag-

gregated context diagram, we now have reconstructed

the system’s architecture in how the services commu-

nicate among themselves and how the system treats

its data. Next, we will describe how we implemented

our method.

3.3 Prophet Prototype

To demonstrate the proposed approach, we imple-

mented Prophet, an implementation of our approach

suited for Java projects using the Spring framework

for creating microservices. Prophet operates in three

phases: source selection, context map generation, and

communication diagram generation.

Prophet takes as input a GitHub repository con-

taining the microservices. It downloads the repository

and generates a list of the directories of each individ-

ual microservice project.

To create the bounded context of an individual mi-

croservice, Prophet gets all local classes in the project

using a source code analyzer; this results in the anal-

ysis context. Next, we ﬁlter this list down to classes

serving as data entities, which we call the system con-

text. For this demonstration, the ﬁltering is done using

persistence annotations, including JPA standard entity

annotations, and annotations from Lombok, a tool for

automatically creating entity objects. The relation-

ships and their multiplicity and directionality are de-

termined as described above. The entities with their

ﬁelds and relationships are form the bounded context.

For the context map of the whole system, the en-

tities of the different microservices and their ﬁelds

are merged based on name similarity, as described

above. To detect name similarity, we use the WS4J

project, which uses the WordNet project (Christiane

and Brown, 2005). This creates a single context map

for the whole system.

For the communication diagram, we use the API

endpoints and their calls. Prophet scans for JAX-RS

annotations that deﬁne endpoints, combining class-

level and method-level annotations to create a deﬁni-

tion for each endpoint that includes its path, method,

parameters, and return type. We then scan each

microservice for the use of the Spring Boot REST

client (or alternative) to ﬁnd HTTP calls between the

services. If the call matches the path, parameters,

method, and return type, it is added to the diagram

as an edge between the two microservice nodes.

Once the bounded contexts, context map, and

communication diagram are completed, they are dis-

played to the user as graphs. The bounded contexts

are displayed as class diagrams showing each class’s

ﬁelds and the relationships between them, and the

communication diagram is shown as a graph with the

microservices as vertices and the calls between them

as edges, labeled with the metadata about the call,

including the HTTP method, parameters, and return

type. These diagrams are displayed in a dashboard

that could be expanded in the future to include views

of other concerns, as well as runtime analytics.

Limitations. There are currently several limita-

tions to our implementation to address. One limita-

tion is that it only searches for a single format of de-

ﬁned HTTP endpoints and requests, in this case, those

deﬁned by the functions included with the Spring

framework. Other formats can be substituted for other

frameworks with minimal refactoring, and a slightly

more extensive set of changes could deﬁne a different

target framework for each microservice while still re-

taining the same overall method. Another limitation

is that we currently only target systems using the Java

language. Again, other targets could be addressed as

long as an appropriate parser exists for the language;

however, unlike targeting a different framework, dif-

ferent languages would require non-trivial changes to

the underlying logic as the current approach depends

on Java’s annotations to identify entities and the de-

sired language may not share that feature.

4 CASE STUDY

To demonstrate the effectiveness of Prophet as a tool

for SAR, we ran it on the Train Ticket benchmark mi-

croservice system introduced in (Zhou et al., 2018).

The system consists of 41 microservices; of these,

36 microservices are Java-based, and they contain

27,259 lines of Java code, counted by the CLOC

(Count Lines of Code) tool. The benchmark was an-

alyzed using a MacBook Pro with a 2.9 GHz Quad-

Core Intel Core i7 processor and 16 GB of RAM.

Prophet took 2 minutes and 37 seconds on this de-

vice, to clone, analyze, and generate the graphs for

the repository. To manually analyze the project and

enumerate the entities and inter-service calls, it took

approximately 1.5 hours.

4.1 Results

For class entities, manual analysis of the source code

revealed 64 distinct entities in the project, and the

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

154

boolean status

String message

GetAccountByIdResult

UUID id

String accountId

String loginId

String password

int gender

String name

int documentType

String documentNum

String email

Account

UUID id

String tripId

TrainFood

UUID id

String stationId

String storeName

String telephone

String businessTime

double deliveryFee

FoodStore

String foodName

double price

Food

AllTripFood

int seatNo

String startStation

String destStation

Ticket

UUID accountId

UUID previousOrderId

String loginToken

OrderAlterInfo

UUID id

Date boughtDate

Date travelDate

Date travelTime

UUID accountId

String contactsName

int documentType

String contactsDocumentNumber

String trainNumber

int coachNumber

int seatClass

String seatNumber

String from

String to

int status

String price

String differenceMoney

Order

LeftTicketInfo

boolean status

String message

OrderTicketsResults

TransferTravelResult

String startingStation

String terminalStation

Date startingTime

Date endTime

int economyClass

int confortClass

String trainTypeId

String priceForEconomyClass

String priceForConfortClass

TripResponse

Type type

String number

TripId

boolean status

String message

TripAllDetail

String trainTypeId

String routeId

String startingStationId

String stationsId

String terminalStationId

Date startingTime

Date endTime

Trip

boolean status

double percent

String prices

String message

TravelResult

String startingPlace

String endPlace

Date departureTime

Travel

String id

int economyClass

int confortClass

int averageSpeed

TrainType

String id

String trip

String stations

Integer distances

String startStationId

String terminalStationId

Route

AdminTrip

Figure 1: The class diagram from manual analysis of the benchmark. Elements not found by Prophet circled in red.

combined relationships between those entities are

shown in Figure 1 (we included in the diagrams only

those entities that were involved in relationships due

to space constraints). This includes relationships that

are spread across several services but exclude rela-

tionships not syntactically deﬁned by the code, e.g.,

a string that is the ID of another entity without any

further connection is not included. Prophet was able

to recover all of the entities, their properties, and their

relationships, with the exception of one property and

one relationship (highlighted with red circles in Fig-

ure 1). Prophet also reported ﬁve additional classes

that were not considered entities during the manual

inspection because they were being used as data trans-

fer objects (DTO) instead of entities.

For interservice communication, the manual anal-

ysis showed 153 connections between the services

and their endpoints; separate calls. A subset of these

connections are recreated in Figure 2 (due to space

constraints, the entire communication graph is not in-

cluded). Prophet successfully identiﬁed 135 of these,

missing 18 calls. The missing calls were all due to

those calls choosing from multiple potential URLs,

an ambiguity our tool was not designed to detect. All

other calls always used a single URL. The missing

edges in the Prophet result are highlighted with red

circles in the manual result (Figure 2).

4.2 Threats to Validity

To discuss the threats to the validity of our study, we

will mention the internal and external threats and the

measures taken to mitigate them.

Internal threats to validity. The primary internal

threat to our study’s validity is the possibility that the

manually reconstructed architecture is incomplete and

thus provides a faulty reference for our tool’s recon-

struction. To combat this, the manual reconstruction

was performed before the rest of the study was con-

ducted, and two developers separately performed a

manual analysis to ensure the results were complete.

External threats to validity. One external concern

is that the benchmark we tested on is not broadly ap-

plicable. To mitigate this, the microservice bench-

mark we chose was intended to be used as a basis

for microservice research and so was designed using

common microservice designs, ensuring that meth-

ods applied to it are generalizable to other systems.

Another threat is that the method itself will not gen-

eralize. Prophet is currently limited to discovering

Reconstructing the Holistic Architecture of Microservice Systems using Static Analysis

155

ts-admin-basic-info-service

ts-contacts-service

ts-station-service

ts-train-service

ts-config-service

ts-prices-service

ts-admin-order-service

ts-order-service

ts-order-other-service

ts-admin-route-service

ts-route-service

ts-admin-travel-service

ts-travel-service

ts-travel2-service

ts-admin-user-service

ts-user-service

ts-auth-service

ts-verification-code-service

ts-cancel-service

ts-inside-payment-service

ts-notification-service

ts-execute-service

DELETE /{userId}

POST /

GET /{orderId}/{status}

GET /{orderId}

GET /{orderId}/{status}

PUT /

POST /order_cancel_success

GET /{orderId}

GET /id/{orderId}

GET /{userId}/{money}

GET /verify/{verifyCode}

DELETE /{userId}

PUT /

POST /register

GET /

DELETE /trips/{tripId}

PUT /trips

POST /trips

GET /admin_trip

DELETE /trips/{tripId}

PUT /trips

POST /trips

GET /admin_trip

DELETE /{routeId}

POST /

GET /

DELETE /{orderId}

PUT /admin

POST /admin

GET /

DELETE /{orderId}

PUT /admin

POST /admin

GET /

DELETE /

PUT /

POST /

GET /

DELETE /

PUT /

POST /

GET /

DELETE /

PUT /

POST /

GET /

DELETE /

PUT /

POST /

GET /

DELETE /

PUT /

POST /admin

GET /

Figure 2: The communication diagram from manual analysis of the benchmark. Elements not found by Prophet circled in red.

entities deﬁned using JPA or Lombok annotations,

as described above, and it only ﬁnds communica-

tion between services that use Spring Boot’s REST

client. However, this is only a limitation in imple-

mentation and not the underlying method. Differ-

ent implementations can target different frameworks

and HTTP clients simply by adjusting what pattern of

code is identiﬁed. This method is broadly applicable

to any microservice-based system that uses similarly-

named entities across its microservices, facilitates di-

rect communication between those services.

5 CONCLUSIONS

We have presented a method to analyze microser-

vice systems to generate their up-to-date data mod-

els and communication diagrams. This method pro-

vides several contributions. The analysis is fast and

re-run upon project change. It effectively serves as a

centralized source of documentation of decentralized

cloud-native systems. This makes it easier for devel-

opment teams to maintain reliable, up-to-date docu-

mentation of large, microservice projects even as it

evolves. As demonstrated in the case study, our ap-

proach can accurately extract this information with

relatively few errors. Finally, this approach can gain

a quick overview of the structure of a project for de-

velopers who are unfamiliar with it.

Future work on the Prophet tool includes research

on language agnosticism to enable other language in-

tegration. Prophet presents a basis for automated rea-

soning. Other system aspects, i.e., security, could be

targeted. We will also research novel visualization

methods since two-dimensional space becomes insuf-

ﬁcient for microservices.

The code for the Prophet can be found at GitHub:

https://github.com/cloudhubs/prophet-utils. Besides,

we host a supportive web with real-time analysis at

https://cloudhubs.ecs.baylor.edu/prophet/

ACKNOWLEDGEMENTS

This material is based upon work supported by

the National Science Foundation under Grant No.

1854049 and a grant from Red Hat Research.

REFERENCES

Albert, E., G

omez-Zamalloa, M., Hubert, L., and Puebla,

G. (2007). Veriﬁcation of java bytecode using analysis

and transformation of logic programs. In Hanus, M.,

editor, Practical Aspects of Declarative Languages,

pages 124–139, Berlin, Heidelberg. Springer.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

156

Baabad, A., Zulzalil, H. B., Hassan, S., and Baharom, S. B.

(2020). Software architecture degradation in open

source software: A systematic literature review. IEEE

Access, 8:173681–173709.

Bogner, J., Fritzsch, J., Wagner, S., and Zimmermann,

A. (2021). Industry practices and challenges for the

evolvability assurance of microservices. Empirical

Software Engineering, 26(5):104.

Bushong, V., Das, D., Al Maruf, A., and Cerny, T. (2021).

Using static analysis to address microservice architec-

ture reconstruction. In 2021 36th IEEE/ACM Interna-

tional Conference on Automated Software Engineer-

ing (ASE), pages 1199–1201.

Cerny, T., Donahoo, M. J., and Trnka, M. (2018). Contex-

tual understanding of microservice architecture: Cur-

rent and future directions. SIGAPP Appl. Comput.

Rev., 17(4):29–45.

Chlipala, A. (2013). The bedrock structured programming

system: Combining generative metaprogramming and

hoare logic in an extensible program veriﬁer. SIG-

PLAN Not., 48(9):391–402.

Christiane, F. and Brown, K. (2005). Wordnet and word-

nets. In Encyclopedia of Language and Linguistics,

pages 665–670. Oxford: Elsevier.

Cinque, M., Cotroneo, D., Corte, R. D., and Pecchia, A.

(2019). A framework for on-line timing error detec-

tion in software systems. Future Generation Com-

puter Systems, 90:521 – 538.

Eski, S. and Buzluca, F. (2018). An automatic extraction ap-

proach: Transition to microservices architecture from

monolithic application. In Proceedings of the 19th

International Conference on Agile Software Develop-

ment: Companion, XP ’18, New York, NY, USA. As-

sociation for Computing Machinery.

Esparrachiari, S., Reilly, T., and Rentz, A. (2018). Tracking

and controlling microservice dependencies. Queue,

16(4):10:44–10:65.

Evans, E. (2014). Domain-driven design: tackling complex-

ity in the heart of software. Addison-Wesley.

Granchelli, G., Cardarelli, M., Francesco, P. D., Malavolta,

I., Iovino, L., and Salle, A. D. (2017). Towards recov-

ering the software architecture of microservice-based

systems. In 2017 IEEE International Conference on

Software Architecture Workshops, pages 46–53.

Hochstein, L. and Lindvall, M. (2005). Combating archi-

tectural degeneration: A survey. Inf. Softw. Technol.,

47(10):643–656.

Ibrahim, A., Bozhinoski, S., and Pretschner, A. (2019). At-

tack graph generation for microservice architecture. In

Proceedings of the 34th ACM/SIGAPP Symposium on

Applied Computing, SAC ’19, pages 1235–1242, New

York, USA. Association for Computing Machinery.

Li, X., Chen, Y., and Lin, Z. (2019). Towards automated

inter-service authorization for microservice applica-

tions. In Proceedings of the ACM SIGCOMM 2019

Conference Posters and Demos, SIGCOMM Posters

and Demos ’19, pages 3–5, New York, NY, USA. As-

sociation for Computing Machinery.

Ma, S., Fan, C., Chuang, Y., Lee, W., Lee, S., and Hsueh,

N. (2018). Using service dependency graph to ana-

lyze and test microservices. In 2018 IEEE 42nd An-

nual Computer Software and Applications Conference

(COMPSAC), volume 02, pages 81–86.

Ma, S., Liu, I., Chen, C., Lin, J., and Hsueh, N. (2019).

Version-based microservice analysis, monitoring, and

visualization. In 2019 26th Asia-Paciﬁc Software En-

gineering Conference (APSEC), pages 165–172.

Mayer, B. and Weinreich, R. (2017). A dashboard for

microservice monitoring and management. In 2017

IEEE International Conference on Software Architec-

ture Workshops (ICSAW), pages 66–69.

Mayer, B. and Weinreich, R. (2018). An approach to extract

the architecture of microservice-based software sys-

tems. In 2018 IEEE Symposium on Service-Oriented

System Engineering (SOSE), pages 21–30.

NGINX, Inc. (2015). The Future of Application Develop-

ment and Delivery Is Now Containers and Microser-

vices Are Hitting the Mainstream.

Perry, D. E. and Wolf, A. L. (1992). Foundations for the

study of software architecture. SIGSOFT Softw. Eng.

Notes, 17(4):40–52.

Rademacher, F., Sachweh, S., and Z

undorf, A. (2020a).

A modeling method for systematic architecture re-

construction of microservice-based software systems.

In Nurcan, S., Reinhartz-Berger, I., Soffer, P., and

Zdravkovic, J., editors, Enterprise, Business-Process

and Information Systems Modeling, pages 311–326,

Cham. Springer International Publishing.

Rademacher, F., Sachweh, S., and Z

undorf, A. (2020b).

A modeling method for systematic architecture re-

construction of microservice-based software systems.

In Nurcan, S., Reinhartz-Berger, I., Soffer, P., and

Zdravkovic, J., editors, Enterprise, Business-Process

and Information Systems Modeling, pages 311–326,

Cham. Springer International Publishing.

Salvadori, I., Huf, A., Mello, R. d. S., and Siqueira, F.

(2016). Publishing linked data through semantic mi-

croservices composition. In Proceedings of the 18th

International Conference on Information Integration

and Web-Based Applications and Services, iiWAS

’16, pages 443–452, New York, NY, USA. Associa-

tion for Computing Machinery.

Soldani, J., Muntoni, G., Neri, D., and Brogi, A. (2021).

The ntosca toolchain: Mining, analyzing, and refac-

toring microservice-based architectures. Software:

Practice and Experience, 51(7):1591–1621.

Thalheim, J., Rodrigues, A., Akkus, I. E., Bhatotia, P.,

Chen, R., Viswanath, B., Jiao, L., and Fetzer, C.

(2017). Sieve: Actionable insights from monitored

metrics in distributed systems. In Proceedings of

the 18th ACM/IFIP/USENIX Middleware Conference,

Middleware ’17, pages 14–27, New York, NY, USA.

ACM.

Torkura, K. A., Sukmana, M. I., and Meinel, C. (2017). In-

tegrating continuous security assessments in microser-

vices and cloud native applications. In Proceedings

of The10th International Conference on Utility and

Cloud Computing, UCC ’17, pages 171–180, New

York, USA. Association for Computing Machinery.

Zhou, X., Peng, X., Xie, T., Sun, J., Xu, C., Ji, C., and

Zhao, W. (2018). Benchmarking microservice sys-

tems for software engineering research. In Chaudron,

M., Crnkovic, I., Chechik, M., and Harman, M., edi-

tors, Proceedings of the 40th International Conference

on Software Engineering: Companion Proceeedings,

ICSE 2018, Gothenburg, Sweden, May 27 - June 03,

2018, pages 323–324. ACM.

Reconstructing the Holistic Architecture of Microservice Systems using Static Analysis

157
