Gideon-TS: Efﬁcient Exploration and Labeling of Multivariate

Industrial Sensor Data

Tristan Langer

, Viktor Welbers

and Tobias Meisen

Chair of Technologies and Management of Digital Transformation,

University of Wuppertal, Lise-Meitner-Straße 27-31, 42119 Wuppertal, Germany

Keywords:

Labeling, Time Series Analysis, Sensor Data, Visual Analytics.

Abstract:

Modern digitization in industrial production requires the acquisition of process data that is subsequently used

in analysis and optimization scenarios. For this purpose, the use of machine learning methods has become

more and more established in recent years. However, training advanced machine learning models from scratch

requires a lot of labeled data. The creation of such labeled data is a major challenge for many companies, as

the generation process cannot be fully automated and is therefore very time-consuming and expensive. Thus,

the need for corresponding software tools to label complex data streams, such as sensor data, is steadily in-

creasing. Existing contributions are not designed for handling large datasets and forms common for industrial

applications, and offer little support for the labeling of large data volumes. For this reason, we introduce

Gideon-TS — an interactive labeling tool for sensor data that is tailored to the needs of industrial use. Gideon-

TS can integrate time series datasets in multiple modalities (univariate, multivariate, samples, with and without

timestamp) and remains performant even with large datasets. We also present an approach to semi-automatic

labeling that reduces the time needed to label large volumes of data. We evaluated Gideon-TS on an industrial

exemplary use case by conducting performance tests and a user study to show that it is suitable for labeling

large datasets and signiﬁcantly reduces labeling time compared to traditional labeling methods.

1 INTRODUCTION

Collecting data and analyzing it through the use of ad-

vanced machine learning models offers great potential

for decision making, improving product quality, and

optimizing maintenance cycles throughout the pro-

duction process (Lasi et al., 2014). Therefore, plant

and machine manufacturers as well as users of the

same have drastically increased the number and scope

of installed sensors, resulting in more and more data.

Despite the growing volume of data, many compa-

nies are ﬁnding it difﬁcult to exploit the aforemen-

tioned potential and put it into practice. One of the

biggest obstacles in this regard is that the training

of machine learning models suitable for use in pro-

duction requires a large amount of accurately labeled

data (Bernard et al., 2018; Adi et al., 2020). Hereby,

the labeling process itself is very time-consuming and

expensive, since it cannot be performed automatically

most of the time (Hu et al., 2016). Therefore, the

https://orcid.org/0000-0002-4946-0388

https://orcid.org/0000-0002-1335-6810

https://orcid.org/0000-0002-1969-559X

sensor data must be evaluated by process experts and

conspicuous behavior must be identiﬁed and anno-

tated (Walker et al., 2015). Further complicating mat-

ters, process experts are typically experts in assessing

the production process, but do not necessarily have

the skills to import data and label it using scripts. In-

teractive labeling tools that let process experts interact

directly with data and enable visual labeling provide

a solution to this problem. Unfortunately, such tools

do not necessarily ﬁt to the needs of industrial appli-

cations with large data volumes of multiple sensors.

They often do not support multivariate data samples

in which the data is recorded and are either speciﬁc

to a use case or only designed for small datasets. In

addition, they do not necessarily provide a labeling

support system to assist and speed up the labeling pro-

cess.

In this paper, we present Gideon-TS, a general pur-

pose semi-automatic labeling tool, which is tailored to

the needs of industrial sensor data. The tool supports

datasets that are available in a wide range of time se-

ries forms (see section 3.2.1) and contain an arbitrary

number of label classes. It is also suitable for visual-

Langer, T., Welbers, V. and Meisen, T.

Gideon-TS: Efﬁcient Exploration and Labeling of Multivariate Industrial Sensor Data.

DOI: 10.5220/0011037200003179

In Proceedings of the 24th International Conference on Enterprise Information Systems (ICEIS 2022) - Volume 1, pages 321-331

ISBN: 978-989-758-569-2; ISSN: 2184-4992

321

izing and interactively labeling large amounts of data

by storing sensor data in a time series database and,

based on the size of the retrieved data, sampling and

aggregating it if necessary. We also develop a support

system to obtain label suggestions and thus to explore

and label even large amounts of data in a short time.

In order to do this, we divide the time series into win-

dows and use an unsupervised learning approach to

detect anomalous windows and ﬂag them as potential

error cases if they exceed a threshold conﬁgured by

the user. Based on errors already labeled, we perform

a similarity search and assign a corresponding error

class. Finally, we evaluate our tool and its labeling

support system using the data from an exemplary in-

dustrial use case. We carry out performance testes and

conduct a qualitative user study in which we compare

a traditional labeling process against the processes of

several participants who labeled the dataset using our

tool.

In summary, our contribution is a semi-automatic

labeling tool that is suitable for (1) integration of time

series of various forms, (2) features performant visu-

alization and (3) label predictions from an integrated

labeling support system for even large time series

datasets. Furthermore, we contribute (4) an evalua-

tion of the performance and effectiveness of our ap-

plication based on a real world industrial exemplary

use case.

The rest of this paper is organized as follows. In

section 2 we give an overview of related work re-

garding the forms of time series and interactive label-

ing with regards to requirements from industrial use

cases. In section 3 we describe our own approach to

create a labeling tool that meets all the requirements

described before. Then, we evaluate and discuss per-

formance and usability of our tool in section 4. Fi-

nally, we offer conclusion and future directions of our

research in section 5.

2 RELATED WORK

In this section, we take a look at existing approaches

and tools for labeling time series data that are suitable

to label sensor data. We highlight the research gap

that we tackle to ﬁll with our approach. In particu-

lar, we focus on the three factors: supported forms of

time series, performance for processing and display-

ing large datasets, and integrated support for efﬁcient

labeling of large datasets.

2.1 Forms of Time Series

oning et al. (L

oning et al., 2019) gave an overview

of forms that a time series dataset may take. They

ﬁrst distinguished between univariate and multivari-

ate time series, where univariate means that the series

consists of the values of only one variable and mul-

tivariate of the values of several variables over time

(e.g., if multiple sensors are observed over the same

time period). They also observed that sometimes mul-

tiple independent instances of the same kinds of mea-

surements are observed. These are generally called

panel data, which in case of time series are usually

several samples of the same observation that do not

immediately follow each other in time (Dudley and

Kristensson, 2018) (e.g. if a production process runs

in irregular intervals throughout the day and the data

is only recorded during the process). Furthermore,

from the UEA time series repository (Bagnall et al.,

2018), we observed that time series can contain im-

plicit or explicit information about time as they can

occur with or without timestamps. In the case of miss-

ing timestamps, one simply assumes that the mea-

sured values are recorded at a regular interval one af-

ter the other and that the speciﬁc time is not relevant.

From these ﬁndings, in section 3.2.1, we derive the

forms of time series that we need to support in our

tool to be applicable in the majority of use cases.

2.2 Interactive Labeling

Visual interactive labeling has become a common task

in a variety of domains like text (Heimerl et al., 2012),

images (von Ahn and Dabbish, 2004) or handwrit-

ing (Saund et al., 2009). In this regard, Bernard et

al. (Bernard et al., 2018) generalized this process and

purposed the concept of Visual-Interactive Labeling

to label data by a human expert with the aid of an

appropriate tool. They also categorized labels as cat-

egorical, numerical, relevance score or relation be-

tween two instances.

Several tools already exist in the ﬁeld/area of time

series data. We review a non-exhaustive but represen-

tative selection of relevant related systems. Table 1

shows an overview of the reviewed tools and their

functional scope in terms of our evaluation factors

for use in an industrial context. Eirich et al. (Eirich

et al., 2021) presented IRVINE, a tool to label audio

data (univariate data samples) in production to detect

previously unknown errors in the production process.

IRVINE comes with an algorithm tailored for label-

ing data in this one speciﬁc use case, aggregating data

into specialized views and presenting them in the user

interface for interactive labeling. Thus, also allowing

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

322

Table 1: Overview of reviewed time series labeling tools:

IRVINE (Eirich et al., 2021), Label-less (Zhao et al.,

2019), VA tool (Langer and Meisen, 2021), Label Stu-

dio (Tkachenko et al., 2021), Curve (Curve, 2021) and

TagAnomaly (TagAnomaly, 2021).

Supported forms of

time series

Use case

independent

Visualization of

large datasets

Label prediction for

large datasets

IRVINE

univariate

samples

7 3 3

Label-

less

univariate

samples

7 7 3

tool

univariate

samples

3 7 3

Label

Studio

multivariate

series

3 7 7

Curve

multivariate

series

3 7 3

Tag-

Anomaly

multivariate

series

3 7 3

visualization and labeling of larger data volumes. An-

other specialized tool is Label-Less (Zhao et al., 2019)

by Zhao et al. The use case of their tool is the detec-

tion and labeling of anomalies in a Key Performances

Indicator (KPI) dataset (univariate data samples). The

authors presented an algorithm to support fast label-

ing of large datasets. The algorithm ﬁrst identiﬁes

anomaly candidates based on an isolation forest and

second, assigns them to existing anomaly categories

using a similarity metric based on an optimized ver-

sion of Dynamic Time Warping. However, the visual-

ization does not support the display of large amounts

of data. Langer et al. (Langer and Meisen, 2021) pre-

sented a tool for visual analytics (VA tool) of sensor

data. They support time series in .ts-format contain-

ing univariate samples and assist the labeling process

by applying different clustering methods, where the

user labels the resulting clusters and reﬁnes the labels

afterwards. Finally, the user can evaluate the quality

of the current labels by selecting test data and viewing

a confusion matrix. The application is not designed to

handle large amounts of data as it works only on plain

ﬁles and does not contain mechanisms for visualizing

larger data volumes. Furthermore, there are several

community-driven open source projects that deal with

time series labeling. The highest rated labeling tool

on Github with 7k stars is Label Studio (Tkachenko

et al., 2021). Similar projects with a smaller func-

tional scope are Baidu’s Curve (Curve, 2021) and Mi-

crosoft’s TagAnomaly (TagAnomaly, 2021). These

applications support multivariate time series, but not

samples of panel data. Thus, each sample must be

integrated and labeled individually. In addition, they

have no mechanism for displaying large amounts of

data. While Curve and TagAnomaly use algorithms

for anomaly detection in time series to support label-

ing, Label Studio only provides an API to implement

such an algorithm.

In summary, with IRVINE, Label-less and the VA

tool, entire samples are labeled, whereas with the

communiy-driven solutions, only parts of the time se-

ries are annotated. None of the reviewed tools support

labeling of multivariate time series samples. Further-

more, they are either designed for a speciﬁc use case,

do not support large datasets or do not provide label

prediction mechanisms. In the following section, we

present our approach to a labeling tool that meets all

of the criteria discussed here.

3 EXPLORATION AND

LABELING OF MULTIVARIATE

INDUSTRIAL SENSOR DATA

In this section, we describe our approach for explor-

ing and labeling industrial sensor data. First, we

present our industrial use case that we use to develop

and evaluate our approach. Afterwards, we elaborate

on the design goals and functional implementation of

our approach.

3.1 Motivating Exemplary Use Case

Deep drawing is a sheet metal forming process in

which a metal sheet is radially drawn into a forming

die by the mechanical force of a punch (DIN 8584-3,

2003). Our dataset was collected from a smart deep

drawing tool that is equipped with eight strain gauge

sensors at the blank holder of the tool. Each sen-

sors contains a strain sensitive pattern that measures

the mechanical force exerted by the punch to the bot-

tom part of the tool. The data from the sensors are

recorded per stroke. Thus, the dataset contains mul-

tivariate time series divided into several samples (one

sample per stroke).

The deformation of the metal during a stroke

sometimes causes cracks in the metal sheet, which are

shown by a sudden drop in the values of the sensors

caused by a brief loss of pressure to the bottom of the

tool. For the use case, it is desirable to detect cracks

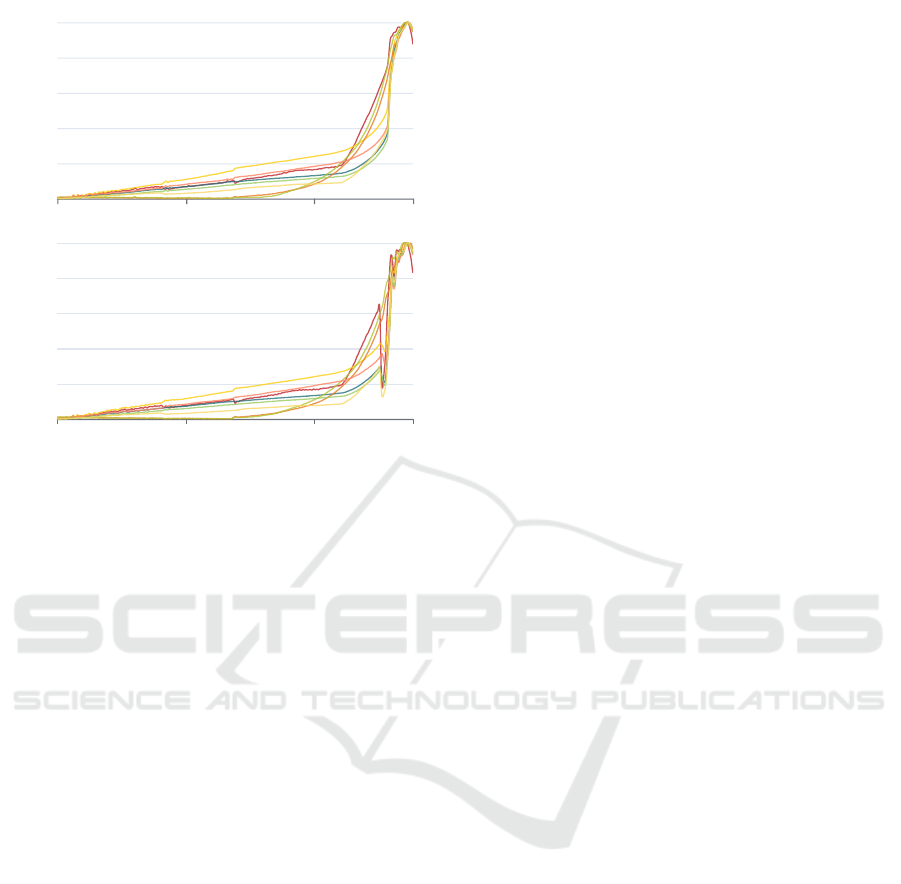

early, as they can damage the tool. Figure 1 shows

two exemplary sensor value curves: sensor curves of

Gideon-TS: Efﬁcient Exploration and Labeling of Multivariate Industrial Sensor Data

323













  













  

strain gauge sensor (normalized)

Figure 1: Two exemplary strokes of the deep drawing use

case with data from eight sensors each (distinguished by

color). Top shows a good stroke with a smooth progres-

sion of all strain gauge sensor curves. Bottom shows an

erroneous stroke with a sudden drop of some strain gauge

sensor values caused by a crack.

a good stroke at the top where the progression of the

sensor values is smooth and no crack occurred and

curves of a bad stroke at the bottom where a sudden

drop in sensor values is present. We analyzed the sen-

sor data and classiﬁed three different types of curves:

clean, small crack and large crack. The data is pub-

licly available at the following URL: https://perma.cc/

TPL7-MU58 and comprise about 3,400 strokes with

data from the eight sensors, which in turn contain

about 7,000 measurements each. So, in total, the

dataset consists of about 190,400,000 data points (4.4

GB).

3.2 Labeling Tool

Based on the presented exemplary use case and the

overview of related tools that we reviewed in sec-

tion 2.2, we derive design goals for our own label-

ing tool. We present Gideon-TS, a semi-automatic

labeling tool that supports all time series forms men-

tioned in section 2.1, is use case independent, has

a user interface that is suitable for interactive label-

ing of large data volumes and includes a function for

semi-automated labeling of large datasets. In the pre-

sented exemplary use case, our tool signiﬁcantly re-

duces the time for labeling the dataset compared to

traditional labeling methods and enables accurate la-

bels (i.e. only those areas are labeled with errors

where the error actually occured). The source code

of our tools is open source and available at https:

//github.com/tmdt-buw/gideon-ts.

3.2.1 Data Formats and Forms

For data integration we support either JSON ﬁles,

where the key time contains the timestamps of the se-

ries and the remaining keys contain the sensor val-

ues, or the ts format (see (L

oning et al., 2019) for

more information) dedicated for time series. Since

data transformation is not the focus of our work, we

leave it to the data provider to bring the data into one

of the supported formats. After a ﬁle is transferred

to our server, we integrate the data into the time series

database TimescaleDB (TimescaleDB, 2021). This al-

lows us to deﬁne high performance queries and ag-

gregated views on the data. We create hypertables for

dimensions, samples and time to retrieve data faster

if it is queried by these columns. Hypertables in

TimescaleDB refer to a virtual view on many differ-

ent tables, which are called chunks. These chunks are

generated by partitioning the data of a hypertable by

the values present in a column, whereby an interval

is used to determine how the chunks are split. E.g.

if the interval is chosen as a day for a time column,

data for a respective day would only be present in a

single chunk, while data for other days would be as-

signed to their own chunk. A query that is send to

a hypertable is forwarded to the responsible chunk,

where a local index is used, which results in a bet-

ter query performance for many aspects of time series

data retrieval (TimescaleDB, 2021).

3.2.2 Visualization

Figure 2 shows a screenshot of the user interface of

our labeling tool. The components of the view are

based on common components needed for interac-

tive labeling and derived from the user interfaces of

the tools reviewed in section 2.2. It has been modi-

ﬁed and extended e.g. to support the aforementioned

time series forms and performance improvements. On

the left side (1) there is a project overview as tree

view with the contained samples (here: deep draw-

ing strokes) and dimensions (here: sensors). For time

series without samples, we only display the dimen-

sions. In the middle (2) there is an overview of the

complete dataset and a freely conﬁgurable chart area

(3). In this area, the user creates charts by dragging

and dropping the samples and dimensions from the

project area. Each chart also contains its own leg-

end to temporarily hide individual samples and di-

mensions. This allows the user to compare, for exam-

ple, two samples that contain similar errors. During

dragging, available drop zones are highlighted above

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

324

1 2

Figure 2: Overview of our tool: 1 project structure to select sensor samples and dimensions, 2 aggregated overview of all

sensor data with data zoom, 3 conﬁgurable charts to label individual samples and dimensions, 4 label class editor 5 list

of assigned labels and 6 list of prediction algorithms for semi-automatic labeling.

or below the existing charts. On the right side (4-6)

there is an area that offers all interactions for the ac-

tual labeling of data. These will be discussed in more

detail in the following sections.

Since displaying a large number of elements

within a web browser can slow it down considerably,

we used virtual scroll components from the Angu-

lar CDK Scrolling module (Angular CDK Scrolling,

2021) for the tree views (project overview and label-

ing) and the freely conﬁgurable area of the charts to

avoid performance issues. This way, only the ele-

ments that are in the currently visible area of the user

interface are rendered. This allows us to support ar-

bitrarily large trees (e.g. overview of projects with

many samples and dimensions) and an arbitrary num-

ber of charts.

3.2.3 Label Classes and Format

In order to be able to label time periods within a time

series, label classes (typically the type of an error,

e.g., large crack) are created. For this purpose we

have added an editor in the upper label area (4) of our

labeling tool. New label classes can be added, where

a label class has a name and a severity (okay, warning,

error). On the one hand, these can be used by a data

scientist afterwards, e.g., to analyze only errors of a

certain type, and on the other hand, we use the sever-

ity in our prediction algorithm of the labeling support

system to map new error candidates to already cre-

ated error classes (see section 3.3.2). By selecting a

label class with either a click or its number shortcut,

a brush mode is activated in the displayed charts, al-

lowing the user to create labels of the selected class

directly inside a chart. For each label, the start and

end time, the corresponding label class, as well as

the sample and dimensions in the selected range are

stored in our database. A label can never span sev-

eral samples, since there can be any amount of time

between the samples. If a brush operation would span

several samples, the selection will be split by sample,

thus, creating one label per sample. There is a view of

all assigned labels (5). Labels can be displayed sorted

by time or grouped by label class or sample as a tree

view. The labels can also be downloaded with the

mentioned information in JSON-format to use them

e.g. for training a machine learning model.

3.2.4 Aggregation of Data for Large Queries

A common problem with visualizing large data vol-

umes is that web applications become slow and unre-

sponsive because of the sheer number of data points

that need to be rendered in a web browser. To prevent

Gideon-TS: Efﬁcient Exploration and Labeling of Multivariate Industrial Sensor Data

325

this, we implemented an aggregation policy which

is utilized when a deﬁned maximum number of data

points is exceeded. Hereby an exploratory approach

suggested that 500,000 data points was a suitable

maximum.

For the realization of this policy, Continuous Ag-

gregates from TimescaleDB were used. Continuous

Aggregates allow to deﬁne time intervals in which

data points are aggregated (TimescaleDB, 2021),

whereby minimum, maximum, and average for each

respective interval can be retrieved. For the applica-

tion at hand, the intervals are calculated by multiply-

ing the average time delta between two timestamps in

a series or sample t

delta

with the number of queried

data points n

datapoints

divided by the maximum num-

ber of data points n

max

interval

= t

delta

∗

datapoints

max

(1)

The amount of data points n

datapoints

is available from

the database, where it is saved for each dimension

and sample upon integration and can therefore be re-

quested before a query is attempted.

This method of calculating intervals achieves that

the amount of data points that are to be visualized are

always smaller or equal to the maximum number of

data points. Another advantage of using Continuous

Aggregates is the speed with which queries can be

performed, which was particularly important for the

underlying application. With Continuous Aggregates,

the calculations for aggregation only need to be per-

formed once and are then stored in cached views that

can be retrieved at a much higher speed than recalcu-

lating these each time (TimescaleDB, 2021).

Figure 3 shows an exemplary aggregation of data

points. Here, different colored lines show the aggre-

gated mean value of a sensor, whereby the shadows

in the respective color show the range between maxi-

mum and minimum in the particular interval.













       













      

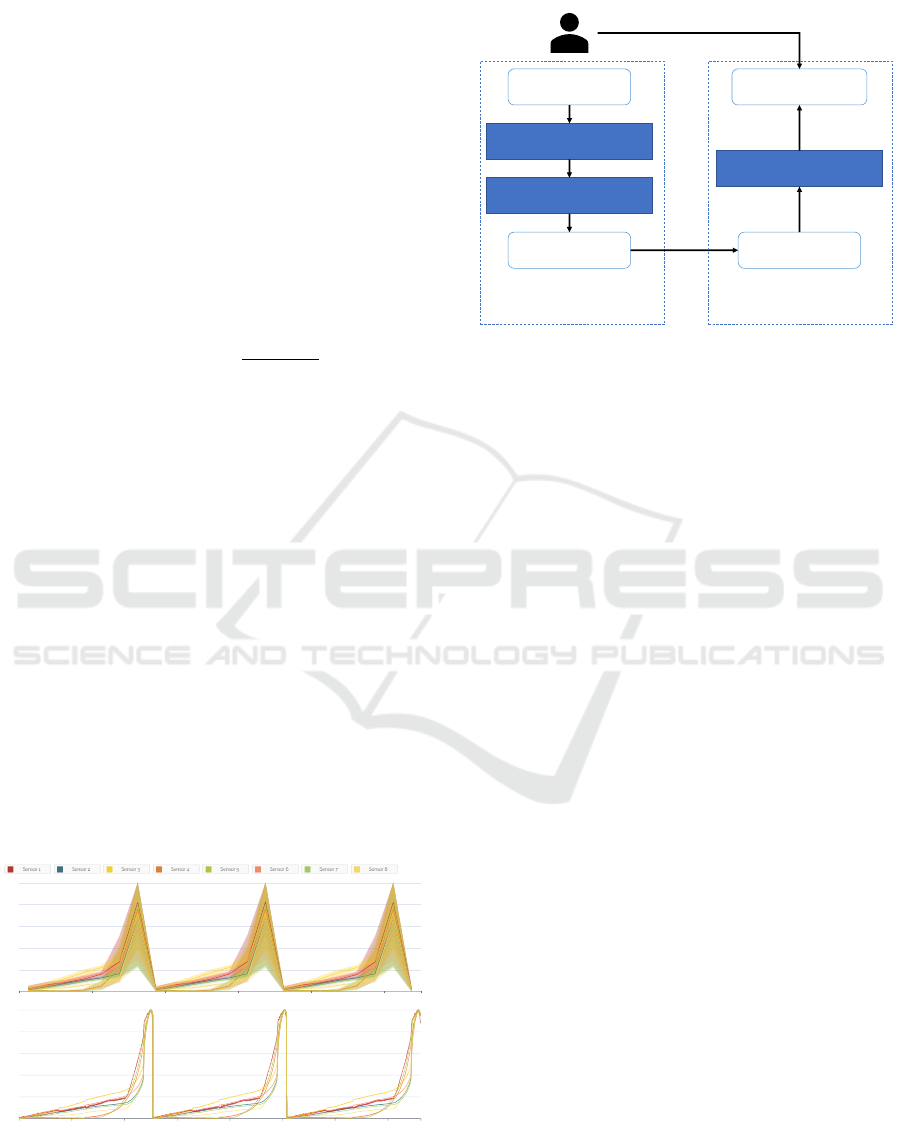

Figure 3: Aggregated view of ﬁrst three deep drawing

strokes (top) vs. original view of those strokes (bottom).

3.3 Label Predictions

Unlabeled Data

Parametrize

DBSCAN

Candidate Errors Error Templates

Optimized DTW

Label Predictions

Investigate / accept

Unsupervised Anomaly

Detection Error Similarity Search

Figure 4: Overview of our labeling support system. The

system consists of two steps: ﬁrst, we identify candidate

errors using DBSCAN. Second, we match those candidates

to patterns extracted from already assigned labels using an

optimized version of DTW.

We derived our approach for label prediction from

Zhao et al. (Zhao et al., 2019), who used feature

extraction and an isolation forest to detect outliers

in univariate KPI samples. From the outliers, error

classes were derived and assigned using an optimized

version of dynamic time warping. Instead of using

isolation forest for outlier detection, we developed a

similar approach based on DBSCAN. An overview of

our two-step label prediction approach is presented in

ﬁgure 4.

3.3.1 Unsupervised Anomaly Detection

For unsupervised anomaly detection in our work, we

employ DBSCAN. We relied on DBSCAN because it

provides an efﬁcient way to detect outliers at a fast

runtime. DBSCAN is a density based clustering ap-

proach, that ﬁnds core samples in areas of high den-

sity and creates clusters from them. Hereby an out-

lier is deﬁned by not being in EPS distance from any

of the resulting clusters (Ester et al., 1996). Samples

that are within the distance EPS from any core sample

are called non-core samples, which are still a member

of the respective cluster. For our implementation, we

utilized scikit-learn and set the parameter min sam-

ples as ﬁxed. The min samples parameter describes

the minimum amount of data points in proximity of

a data point to be considered as a core sample (Pe-

dregosa et al., 2011). This means that only a single

algorithm speciﬁc parameter that needs to be adjusted

by the user is required. This parameter was the pre-

viously mentioned distance EPS, which describes the

maximum distance between two points to be consid-

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

326

ered as neighbors.

For the clustering of time series data, we split each

time series into multiple windows, whereby each win-

dow is clustered and outliers (i.e. that cannot be as-

signed to a cluster) are returned as possible error can-

didates. Therefore, the user is also required to select

a ﬁtting window size for the speciﬁc use-case. For

multivariate time series, we concatenate the n-th win-

dow of each dimension into a single time series and let

DBSCAN cluster these concatenated windows. This

concatenation is suitable for the problem at hand be-

cause the calculation of the Euclidean distance is per-

formed point-wise (O’Searcoid, 2006). Thus, only

distances between windows of the same dimensions

are calculated, which is shown in ﬁgure 5.

Figure 5: Presentation of the concatenation of samples and

their division into windows, which are used for DBSCAN

clustering.

In conclusion, the user only needs to set two numeri-

cal parameters via the user interface. Hereby, the win-

dow size describes the accuracy of the labels: larger

windows result in more inaccurate suggestions, while

smaller windows are more precise but also require

longer runtimes. The EPS parameter describes the

threshold at which a window is declared as an out-

lier. When compared to the isolation forest based ap-

proach purposed by Zhao et al., we can omit the ad-

ditional feature engineering through this implemen-

tation, which would require more methodical knowl-

edge from the user, and also reduce the runtime as

we only work on distance and not on multiple fea-

tures. While we do not entirely eliminate that the user

needs to have a basic intuition of the two parameters

that they need to adjust, our implementation is meant

to make it simpler to use compared to the aforemen-

tioned tool.

3.3.2 Error Class Similarity Search

As an output from unsupervised outlier detection, we

get candidates that we can propose as potential er-

rors to the user. Nevertheless, we still have to sug-

gest the correct error classes (e.g. small crack or large

crack). In order to determine these, we construct ref-

erence patterns from the previously labeled instances

and assign candidates to one of these patterns using

a similarity metric. The reference pattern re f

(x) of

an error class c is calculated as the average series

re f

(x) =

(x)+ f

(x)

of all 1..n time series segments

(x) that have been labeled with this class by the user

so far (i.e. of which we are sure that it is actually this

error). We calculate the similarity of the new error

candidate to each of the reference patterns using an

optimized version of Dynamic Time Warping (DTW)

to check whether it matches any of these reference

patterns. DTW is a similarity measure between two

time series that has been suggested to perform best

in most domains compared to other measures (Ding

et al., 2008). Since DTW has a quadratic runtime by

default, we have adopted two commonly used opti-

mizations for the algorithm. We constrain the search

space for the shortest warping path using the Sakoe-

Chiba band (Sakoe and Chiba, 1978) and implement a

specialized version of early stopping (Rakthanmanon

et al., 2012), which stops the search for the best er-

ror pattern as soon as the currently processed pattern

can no longer be better than the best pattern currently

found.

With this approach we accomplish that the refer-

ence patterns become more accurate with each manu-

ally labeled instance and also that the suggestions be-

come more accurate the more data has already been

labeled.

4 EVALUATION

We evaluated several factors of our tool. We mea-

sured the performance of loading times of the exem-

plary use case presented in section 3.1. Based on the

results, we derived to what extent our tool is suitable

for large amounts of data. Then, we conducted a qual-

itative user study to evaluate the efﬁciency and usabil-

ity of our tool. We compared the time it takes to label

with our tool and the quality of the resulting labels

with traditional labeling without a special tool to see

if it provided a signiﬁcant advantage in practical use.

Gideon-TS: Efﬁcient Exploration and Labeling of Multivariate Industrial Sensor Data

327

4.1 Performance

In order to evaluate how the performance of our tool

is related to the amount of data, we extracted several

test datasets from the entire dataset of 3,400 samples

(4.4 GB) of the data from our exemplary use case. An

overview of those datasets is shown in table 2.

Table 2: An overview of our test datasets. We extracted

subsets from the dataset presented in section 3.1.

Samples

Data points

(approx. mil.)

Data size

(approx. MB)

500 28 650

1000 56 1315

2000 112 2637

3400 190 4400

We then integrated each of the datasets on a notebook

with an Intel Core i9-9980HK CPU and 64 GB of

RAM main memory and cross-referenced all the data

in the overview.

 





























       

 





















       

 



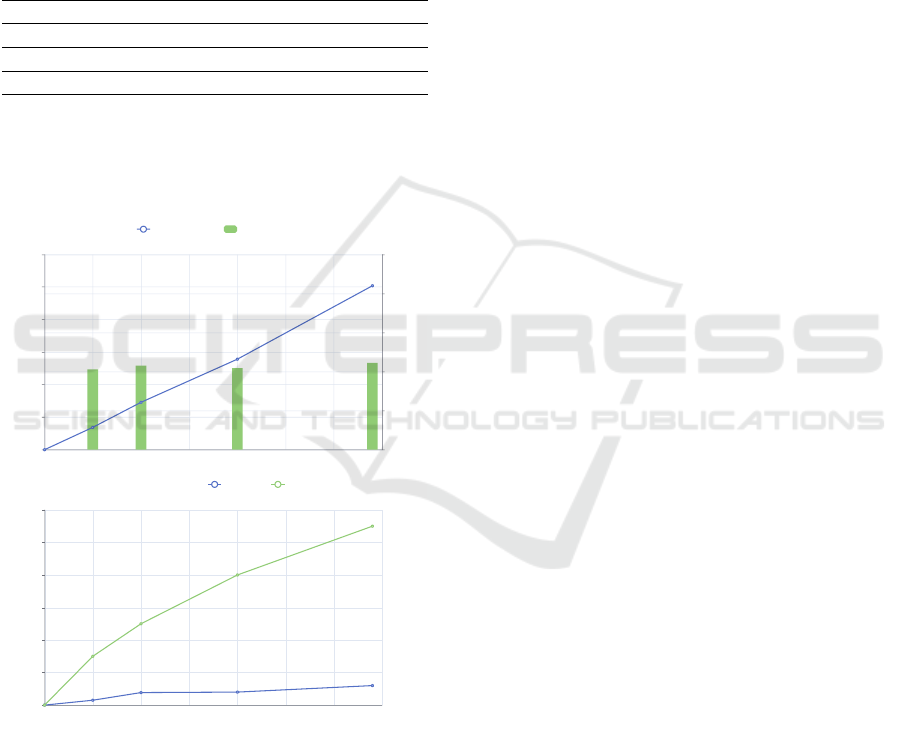

Figure 6: Results of performance test: integration perfor-

mance (top) and query and label prediction performance

(bottom).

Figure 6 shows the measured times. In the upper

chart, the number of samples is plotted on the x-axis

and the integration times on the y-axis. The integra-

tion time increases linearly with the number of sam-

ples from 3 minutes and 26 seconds for 500 sam-

ples to 25 minutes and 12 seconds for the complete

dataset, i.e. 3,400 samples. The integration time per

sample remains almost constant at just over 0.4 sec-

onds. In the chart below, we measured the query times

and label prediction times of our labeling support sys-

tem for the test datasets. We loaded the overview

chart for the corresponding dataset and tracked the

times of the request in the browser. The times ranged

from 300 milliseconds for 500 samples to 1.2 seconds

for the complete dataset. Prediction times of our sup-

port system ranged from 3 seconds to 11 seconds for

the test datasets.

Our performance tests indicate that our system is

well suited for large data volumes. While integration

takes much longer relative to query time, it increases

only linearly with data volume. That means that it

scales well with increasingly large datasets and also

allows for good estimation of waiting times, e.g., for

progress indicators. By caching speciﬁc views, we

stay within the recommended time range of 2 to 4 sec-

onds for common tasks (i.e., visualizations) and 8 to

12 seconds for more complex tasks (i.e., label pre-

diction) for interactive systems (Shneiderman et al.,

2016). Even though we are close to the limit with

our labeling support system, the individual calcula-

tions there can be parallelized well and thus scale

well, especially when using better hardware. Fur-

thermore, it has been shown that distance-based ap-

proaches can also be calculated well on sampled parts

of the dataset (Zhu et al., 2018), which opens up a lot

more potential for scaling of our support system.

4.2 User Study

The study was carried out with twelve participants

with a STEM background. We ﬁrst let a process ex-

pert label a randomly selected subset of one hundred

consecutive samples of the data from the exemplary

use case (section 3.1) with a tool of his choice to ob-

tain a reference for time required for manual labeling

and to evaluate the quality of the labels generated by

the participants with our tool. This process took him

about one and a half hours, ﬁrst spending 30 minutes

exploring and visualizing the data and then one hour

actually labeling the data. In doing so, he labeled two

small and six large cracks in the dataset.

In the study, the participants ﬁrst got a short intro-

duction to the user interface and the functionalities of

our tool and had time to familiarize themselves with

it. We then asked the participants to label this dataset

as well as possible using our tool at their own discre-

tion. For evaluation, we measured the time required

and obtained the labels saved as a JSON export. In ad-

dition, the participants were free to give us comments

on the general usability and workﬂow of the tool.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

328

  

 







































      



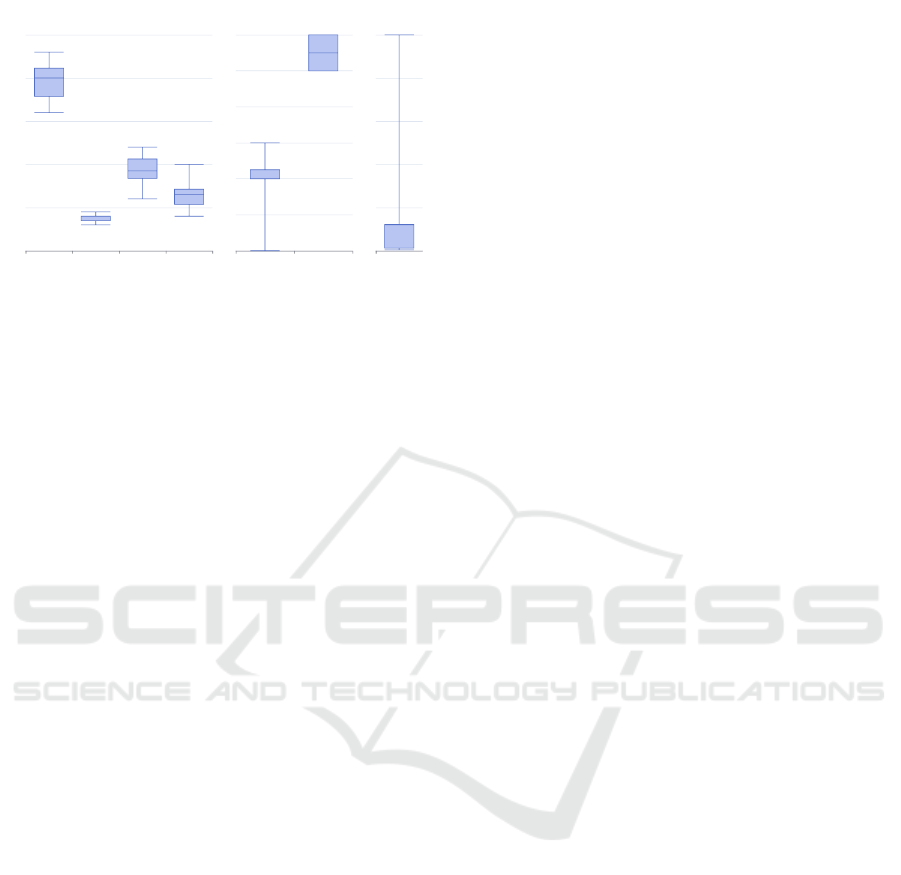

Figure 7: Summary of our user study results performed with

12 participants: labeling speed (left) and labeling quality

(right).

Figure 7 shows an overview of the labeling time

and quality that our participants achieved while com-

pleting our study. All participants proceeded in the

same way by ﬁrst tuning the clustering algorithm of

the labeling support system, then quickly going over

the generated label predictions and accepting predic-

tions that they felt were correct, and ﬁnally spending

time reﬁning the range of labels for error cases. Over-

all, participants took a median of 20 minutes to label

the complete dataset. These were distributed in me-

dian on four minutes tuning of the support system,

nine and a half minutes labeling of all samples and

six minutes reﬁnement of label ranges. They labeled

a median of two small cracks and 5.5 large cracks.

The alignment of the labels with our reference dataset

was at a median difference of 60 milliseconds and at

a maximum difference of 500 milliseconds. With a

sampling rate of two milliseconds and 7,000 values

per sample, this corresponds to a maximum difference

of 3.5% within the sample.

In summary, the time required to label the dataset

was signiﬁcantly reduced compared to our reference.

The labels were mostly assigned in the same way, but

there were also deviations in the number of identiﬁed

small and large cracks. On the one hand, we attribute

this to the fact that the distinction between small and

large cracks is subjective. On the other hand, it also

became apparent that the participants relied on the la-

beling support system, which also led to cracks being

overlooked in individual cases if the parameterization

was not optimal. The assigned labels did not deviate

much from our reference labels, so we conclude that

our system predicts labels that assist users in produc-

ing qualitatively comparable results after minor ad-

justments.

4.3 Discussion

When optimizing performance, we had to choose be-

tween the time it takes to integrate the data and the

query times, since integration takes longer to cre-

ate cached views (like the aggregates) on the dataset.

However, the data can be retrieved much faster com-

pared to the ad-hoc calculation. We decided to opti-

mize the query times at the expense of the integration

time, since we have an interactive tool and users have

less problems with waiting for a long integration pro-

cess at the beginning than with each individual query.

During our study, we noticed a change in the

workﬂow compared to manual labeling. In the man-

ual labeling process, our data scientists ﬁrst scanned

the entire dataset to get an overview and see how

anomalies might look like within the dataset. Subse-

quently, they looked closely at each sample to decide

whether or not it needed to be labeled, and labeled

errors if they applied. Using our tool, our partici-

pants spent a short time parameterizing the prediction

algorithm and then very quickly went over all sam-

ples and accepted the labeling suggestions. Finally,

they went back to the errors to ﬁne-tune the labeling

range. Therefore, we also often got the feedback that

an accept all button would be desired. However, we

have also observed that participants rely on the label-

ing support system. As with all support systems, this

carries the risk that errors are overlooked and the qual-

ity of the labels suffers. This effect would likely be

ampliﬁed with such a feature, as participants would

then look at each sample even less closely.

Although we tried to keep our approach to la-

bel prediction as generally applicable as possible, we

only tested it on one use case in our study. For typical

use cases where errors in the form of outliers, spikes,

or pattern changes rarely occur, clustering will work

well. But since time series analysis is an extremely

broad domain and the form of the data can also be

very different, the existing approach will not provide

good results for all use cases. Therefore, in such a

case, our tool must be extended with better ﬁtting al-

gorithms.

5 CONCLUSION AND OUTLOOK

As the need for labeled sensor data for the use of

machine learning in industry continues to grow, we

looked at the extent to which existing labeling tools

satisfy the requirements for use in industrial appli-

cations. We found that not all time series forms are

supported, that the tools are only use case speciﬁc

or that they do not perform well on large data vol-

Gideon-TS: Efﬁcient Exploration and Labeling of Multivariate Industrial Sensor Data

329

umes. Based on this observation, we have developed

our own labeling tool that supports these aspects. We

used a time series database that allows us to integrate

time series data in a uniform way and run efﬁcient

queries on it, as well as cache aggregated views for

displaying many data points. We developed our own

user interface, which allows the exploration and la-

beling of time periods with appropriate label classes

and is also designed for large data volumes through

the use of virtual scrolls. Furthermore, we have im-

plemented a labeling support system based on unsu-

pervised anomaly detection and error class search. Fi-

nally, we evaluated the entire tool with an exemplary

use case and a user study. The results indicate that

it is well suited for use in an industrial context and

efﬁciently generates qualitative labels.

We see the greatest potential for further devel-

opment of our tool in the integration of a dedicated

view for evaluating the current clustering result. This

would allow the user to optimize the parameterization

of the algorithm in a short time and the subsequent ad-

justment of individual labels would require less effort.

Thus, better results would be achieved even faster.

In addition, the integration of active learning aspects

into the interactive labeling process has shown partial

beneﬁts and could help improve labeling suggestions

based on the labels already assigned (Bernard et al.,

2017).

REFERENCES

Adi, E., Anwar, A., Baig, Z., and Zeadally, S. (2020). Ma-

chine learning and data analytics for the iot. Neural

Computing and Applications, 32(20):16205–16233.

Angular CDK Scrolling (2021).

https://material.angular.io/cdk/scrolling/overview.

Accessed: 01.11.2021.

Bagnall, A., Dau, H. A., Lines, J., Flynn, M., Large, J.,

Bostrom, A., Southam, P., and Keogh, E. (2018).

The uea multivariate time series classiﬁcation archive,

2018.

Bernard, J., Hutter, M., Zeppelzauer, M., Fellner, D., and

Sedlmair, M. (2017). Comparing visual-interactive la-

beling with active learning: An experimental study.

IEEE transactions on visualization and computer

graphics, 24(1):298–308.

Bernard, J., Zeppelzauer, M., Sedlmair, M., and Aigner, W.

(2018). Vial: a uniﬁed process for visual interactive

labeling. The Visual Computer, 34(9):1189–1207.

Curve (2021). baidu/curve. https://github.com/baidu/Curve.

Accessed: 01.11.2021.

DIN 8584-3 (2003). Manufacturing processes forming un-

der combination of tensile and compressive conditions

- Part 3: Deep drawing; Classiﬁcation, subdivision,

terms and deﬁnitions. Beuth Verlag, Berlin.

Ding, H., Trajcevski, G., Scheuermann, P., Wang, X., and

Keogh, E. (2008). Querying and mining of time

series data: Experimental comparison of representa-

tions and distance measures. Proc. VLDB Endow.,

1(2):1542–1552.

Dudley, J. J. and Kristensson, P. O. (2018). A review of

user interface design for interactive machine learning.

ACM Transactions on Interactive Intelligent Systems

(TiiS), 8(2):1–37.

Eirich, J., Bonart, J., Jackle, D., Sedlmair, M., Schmid, U.,

Fischbach, K., Schreck, T., and Bernard, J. (2021).

Irvine: A design study on analyzing correlation pat-

terns of electrical engines. IEEE Transactions on Vi-

sualization and Computer Graphics, pages 1–1.

Ester, M., Kriegel, H.-P., Sander, J., and Xu, X. (1996).

A density-based algorithm for discovering clusters in

large spatial databases with noise. In Proceedings of

the Second International Conference on Knowledge

Discovery and Data Mining, KDD’96, page 226–231.

AAAI Press.

Heimerl, F., Koch, S., Bosch, H., and Ertl, T. (2012). Visual

classiﬁer training for text document retrieval. IEEE

Transactions on Visualization and Computer Graph-

ics, 18(12):2839–2848.

Hu, B., Chen, Y., and Keogh, E. (2016). Classiﬁca-

tion of streaming time series under more realistic as-

sumptions. Data mining and knowledge discovery,

30(2):403–437.

Langer, T. and Meisen, T. (2021). Visual analytics for in-

dustrial sensor data analysis. In Proceedings of the

23rd International Conference on Enterprise Informa-

tion Systems - Volume 1: ICEIS, pages 584–593. IN-

STICC, SciTePress.

Lasi, H., Fettke, P., Kemper, H.-G., Feld, T., and Hoffmann,

M. (2014). Industry 4.0. Business & information sys-

tems engineering, 6(4):239–242.

oning, M., Bagnall, A., Ganesh, S., Kazakov, V., Lines, J.,

and Kir

aly, F. J. (2019). sktime: A Uniﬁed Interface

for Machine Learning with Time Series. In Workshop

on Systems for ML at NeurIPS 2019.

O’Searcoid, M. (2006). Metric spaces. Springer Science &

Business Media.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer,

P., Weiss, R., Dubourg, V., Vanderplas, J., Passos,

A., Cournapeau, D., Brucher, M., Perrot, M., and

Duchesnay, E. (2011). Scikit-learn: Machine learning

in Python. Journal of Machine Learning Research,

12:2825–2830.

Rakthanmanon, T., Campana, B., Mueen, A., Batista, G.,

Westover, B., Zhu, Q., Zakaria, J., and Keogh, E.

(2012). Searching and mining trillions of time se-

ries subsequences under dynamic time warping. In

Proceedings of the 18th ACM SIGKDD International

Conference on Knowledge Discovery and Data Min-

ing, KDD ’12, page 262–270, New York, NY, USA.

Association for Computing Machinery.

Sakoe, H. and Chiba, S. (1978). Dynamic programming

algorithm optimization for spoken word recognition.

IEEE Transactions on Acoustics, Speech, and Signal

Processing, 26(1):43–49.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

330

Saund, E., Lin, J., and Sarkar, P. (2009). Pixlabeler: User

interface for pixel-level labeling of elements in docu-

ment images. In 2009 10th International Conference

on Document Analysis and Recognition, pages 646–

650.

Shneiderman, B., Plaisant, C., Cohen, M. S., Jacobs, S.,

Elmqvist, N., and Diakopoulos, N. (2016). Design-

ing the user interface: strategies for effective human-

computer interaction. Pearson.

TagAnomaly (2021). microsoft/taganomaly.

https://github.com/Microsoft/TagAnomaly. Ac-

cessed: 01.11.2021.

TimescaleDB (2021). https://docs.timescale.com/. Ac-

cessed: 01.11.2021.

Tkachenko, M., Malyuk, M., Shevchenko, N., Holmanyuk,

A., and Liubimov, N. (2020-2021). Label Studio:

Data labeling software. Open source software avail-

able from https://github.com/heartexlabs/label-studio.

von Ahn, L. and Dabbish, L. (2004). Labeling images

with a computer game. In Proceedings of the SIGCHI

Conference on Human Factors in Computing Systems,

CHI ’04, page 319–326, New York, NY, USA. Asso-

ciation for Computing Machinery.

Walker, J. S., Jones, M. W., Laramee, R. S., Bidder, O. R.,

Williams, H. J., Scott, R., Shepard, E. L., and Wilson,

R. P. (2015). Timeclassiﬁer: a visual analytic system

for the classiﬁcation of multi-dimensional time series

data. The Visual Computer, 31(6):1067–1078.

Zhao, N., Zhu, J., Liu, R., Liu, D., Zhang, M., and Pei,

D. (2019). Label-less: A semi-automatic labelling

tool for kpi anomalies. In IEEE INFOCOM 2019

- IEEE Conference on Computer Communications,

pages 1882–1890.

Zhu, Y., Yeh, C.-C. M., Zimmerman, Z., Kamgar, K.,

and Keogh, E. (2018). Matrix proﬁle xi: Scrimp++:

Time series motif discovery at interactive speeds. In

2018 IEEE International Conference on Data Mining

(ICDM), pages 837–846.

Gideon-TS: Efﬁcient Exploration and Labeling of Multivariate Industrial Sensor Data

331
