Irreversible Applications for Windows NT Systems

Rahul Sankalana Gunawardhana

and Kavinga Yapa Abeywardena

Faculty of Graduate Studies and Research, Sri Lanka Institute of Information Technology, Colombo, Sri Lanka

Faculty of Computing, Sri Lanka Institute of Information Technology, Colombo, Sri Lanka

Keywords: Anti-reverse Engineering, Anti-cheat, Third Party Monitoring, Anti-debug, Windows NT.

Abstract: Anti-reversing or anti-debugging mechanisms refer to the implementations put in place in an application that

tries to hinder or completely halt the process of debugging and disassembly. The paper discusses the

possibility of a monitoring system that would prevent any debugger from debugging a given process in a

Windows NT environment. This project aims to facilitate a similar concept present in that of anti-cheat

monitoring programs in online games for commercial products and applications. In contrast, an anti-cheat

product monitors the game's memory pages for direct or indirect modifications either via internal (within the

process) mechanisms such as hooks and DLL injections or external mechanisms such as Read Process

Memory (RPM), Write Process Memory (WPM), named pipes, sockets. In many other scenarios, the anti-

debug program would monitor a selected process for attempts of debug or disassembly.

1 INTRODUCTION

De-compilation and debugging of commercial

software or software in general that are not released

under the GNU GPL/Open-Source Category

prohibits any person from altering the code at any

given level of execution. Thus, this is difficult to

achieve considering the technological advancements

at present. Free and Open-Source debugging and de-

compilation tools have led to widespread knowledge

in the reverse engineering area making the protection

of source codes at commercial level almost

impossible. For this reason, experts have utilized

many techniques over the years to mitigate the issue

of de-compilation and debugging using various

techniques. Some are provided by the API of an OS

itself while some get developed when observing the

internal changes present when a process of debugging

or decompilation starts. The latter is effective for the

majority of cases since these changes are

undocumented and therefore bypasses for these

mechanisms rarely exist.

Most modern techniques of reverse engineering

rely mainly on the operating system and its provided

API functions to prevent debug and disassembly.

https://orcid.org/0000-0001-6072-8544

https://orcid.org/0000-0001-7089-1476

However, this is inadequate and can be bypassed

easily using simple patches.

For the Windows environment, the papers

(Canzanese, 2012) and (Marpaung, 2017) discuss the

possibilities of mitigating the issue of disassembly

and debugging through API (Application

Programming Interface) functions of Windows and

internal Windows structures accessed by those

functions. However, these could be easily mitigated

or bypassed using suitable mechanisms as stated in

(Canzanese, 2012) since most of them are

documented and are available publicly.

Exploits or vulnerabilities within applications are

concerned as the main medium of entry into gaining

unauthorized control over a system. Unlike social-

engineering which relies on the weaknesses of human

beings, these take a more technical aspect as an

attacker would have to identify the vulnerabilities and

come up with ways to exploit them without triggering

any detection mechanisms implemented in the

system. The way an exploit is developed for a

particular application or software is first by analyzing

it for its weaknesses. These weaknesses can be in the

form of stack or buffer overflows, dangling pointers,

weak references and many other scenarios. The

finding of these types of vulnerabilities were made

Gunawardhana, R. and Abeywardena, K.

Irreversible Applications for Windows NT Systems.

DOI: 10.5220/0011051700003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 479-484

ISBN: 978-989-758-590-6; ISSN: 2184-7711

479

possible due to the ease of reverse engineering an

application. However, if there exists any possibility to

make that process extremely complex or even

impossible, then the surfacing of such exploits would

be rendered extremely unlikely.

The idea for this mainly comes from online

gaming and their anti-cheat systems. Anti-cheats are

third party software present in a computer that

monitors and detects arbitrary modification to the

process’s memory, execution flow or its file

components. These detect anomalies affecting the

games memory by having a constant memory scan

and a look up for different programs by using

techniques such as signature detection, page hooks,

mini filters, stack walking etc.

2 BACKGROUND AND RELATED

WORK

2.1 What Is an Anti-cheat?

In this discussion, the main focus would be regarding

client-sided anti-cheats in which the general concept

of this paper was derived from.

2.1.1 Server-sided

These types of anti-cheats are implemented at the

server. The purpose of them is to verify the data that

is being sent to the server and to perform analysis on

player statistics (Peter Laurens∗, 2007) in order to

determine whether they are cheating or not. This is

not the only type of server-sided anti-cheat that is but

currently, the most advanced type of implementation

that can happen at a server and this generally happens

using rules. One advantage of using this type of anti-

cheat implementation is that the typical bypassing

methods relevant to client-sided anti-cheats are

useless since an attacker has less access to a server

than they would to a physical computer.

2.1.2 Client-sided

This concept is the main focus area on this paper.

There are mainly two types of client-side anti-cheats

as kernel and user-mode but these will not be

discussed in detail due to the fact that it generally

refers to the privilege level that the anti-cheat is

operating on. Client-side anti-cheats are basically

programs that monitor the system state and the game

state at the client’s end. By system state it means the

enumeration of system processes, handles, loaded

modules and memory. More advanced systems also

perform integrity checks on both system and game

files in both live and stored memory.

To summarize, a well-established anti-cheat

consists of several modules that work together. In

kernel level anti-cheats these usually consist of a

Windows service, driver and a detection module that

gets mapped into the client process(game) at runtime.

However, in the user-mode only the driver is absent.

The use of having a driver is that it blocks user-mode

attempts at gaining access to the targeted process

using functions such as OpenProcess,

WriteProcessMemory, SetWindowsHookEx etc.

These are achieved using minifilters and preventive

callbacks (ObRegisterCallbacks) at the kernel level.

To achieve this, the anti-cheat drivers, services and

the detection modules need to get mapped into the

client (game) file before the client execution starts.

This could be achieved using TLS Callbacks. One

main advantage of these types of callbacks is that they

happen before the OEP (Original entry point) is

called. Usually these anti-cheats have a ‘heartbeat’.

This is in the case that someone simply terminates the

anti-cheat process while the client is still running.

Having a heartbeat prevents the execution of the

client when the anti-cheat is not present. The

heartbeat module has to be in both the anti-cheat and

the client and has to have a regular challenge-

response type communication either via named pipes,

sockets, mapped files etc, to determine whether or not

both of them are running

A new layer of complexity can be introduced into

reverse engineering an application if this concept of

anti-cheats can be established within the general

software development. This would not only mean that

the reverse engineer would have to know about the

anti-debug and anti-disassembly mechanisms present

within the binary itself but should be able to

circumvent a monitoring system that is capable of

detecting debuggers via different methods.

3 METHODOLOGY

3.1 Initial Prototype

The initial prototype was developed in order to assess

the effectiveness of the anti-debug mechanisms

currently present. Even though these were not

explicitly used in the final monitoring system, these

will be used by the self-defense mechanisms present

within both the monitoring system and the mapped

DLLs that was made afterwards.

The formatting and the general organization of the

prototype version was not considered to be important

SECRYPT 2022 - 19th International Conference on Security and Cryptography

480

as it was primarily done in order to demonstrate and

analyze the effectiveness of the current anti-debug

mechanisms. Credits to referenced authors and source

code are given in the source code itself. There are

several routines that can be considered as main

components in this iteration of the implementation

which will be discussed below. The prototype was

developed to be able to be used as either a TLS

callback or injected as a DLL.

3.1.1 Program Execution Flow

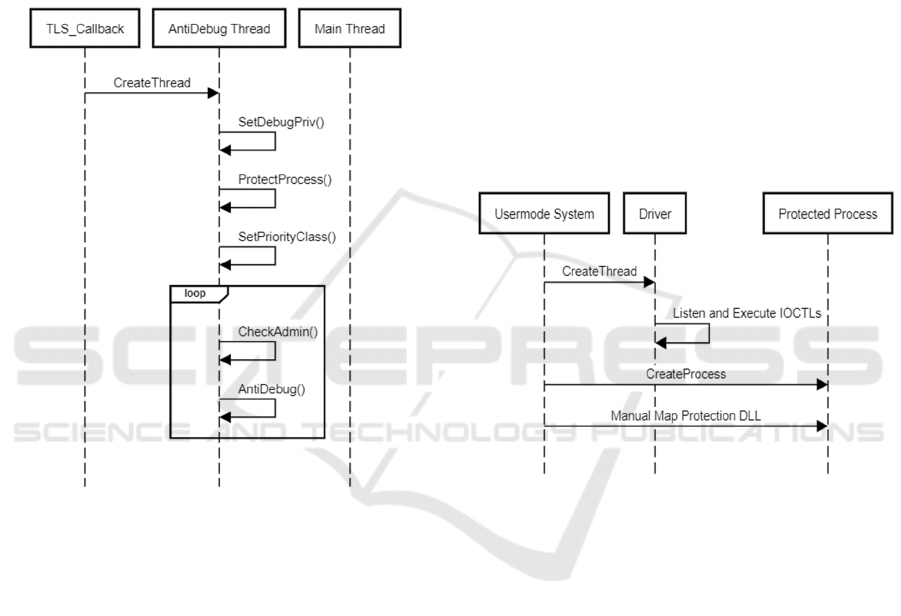

Figure 1: Prototype Execution Flow.

3.2 Final System

This system utilizes the main focus point of this

discussion which is the concept of third party

monitoring similar to that of anti-cheats present in

online gaming leagues. Although the implementation

specifics were detoured from the original concept

idea which was taken from the BattlEye anti-cheat

system, the base idea remains the same. The BattlEye

system consisted of mainly 4 components which were

at both the server side and the client side. Even though

having a server side is the much more viable and fool-

proof option, in this particular implementation the

server side was not taken into consideration. The

main components of this system are as follows,

1. MNS-Console

2. MNS-DLL

3. MNS-Driver

MNS-Console is a console application that is

utilized as the third-party monitoring application.

MNS-DLL component is the DLL that will get

mapped into the process that is being protected by this

system. MNS-Driver is the kernel level

implementation that is responsible for stripping

handle access and providing all the kernel level

detection mechanisms. It is important to understand

that all of these components are interconnected and

use inter process communications (IPC) in order to

determine that they are still running. This is where the

heartbeat implementation comes into place. This

ensures that no component is executing alone at a

time but instead all are executing at all times. The

main functionality of the heartbeat is to ensure the

overall cohesion of the monitoring system.

https://github.com/sank20144/MNS-System.

3.2.1 Program Execution Flow

Figure 2: MNS Execution Flow.

3.2.2 Defects in the System

One of the main defects in the current implementation

is the fact that it is difficult to determine whether a

thread has been completely suspended. The system

mainly relies on several threads in order to implement

the desired functionality and each thread is hidden

using an undocumented method, but it does not mean

that it is not possible for an attacker to discover and

access the particular threads. There are several

restrictions in place to stop such an attempt such as

the callbacks registered using the driver but it is

possible to mitigate them using several methods as

well. The operating system suspends certain threads

periodically with regards to its scheduling algorithm.

Any documented method of obtaining the state of a

thread would produce false positives in this matter

since it cannot determine whether the thread was

suspended by the operating system or by an attacker.

Irreversible Applications for Windows NT Systems

481

A fix would be to monitor the threads for termination

and not suspended state but it is possible to just set

the thread to be suspended indefinitely without

terminating it. A possible solution for this would be

to check the suspended time on each thread and

determine whether they have been suspended for an

unusual amount of time, but the implementation of

this solution would have to be specific since

suspension times can vary due to various reasons

from the operating system as well. In the current

implementation, the only thread that would produce a

detection vector when suspended would be the

heartbeat thread since both the driver and the user

mode application operates upon it. Another defect is

present in the driver. Both the user mode application

and the protected process utilize API functions and

subroutines from the driver to enable their self-

defence mechanisms but the driver does not

implement such features. Due to this fact it is possible

to simply unregister the callbacks registered by the

driver if an attacker is able to map a driver of their

own. The only method preventing rogue mapping of

drivers is checking for test signing policy through the

user mode application. However, it is possible to

manual map drivers into kernel space without a valid

certificate using methods such as through vulnerable

drivers. The implemented heartbeat system is vague

and could be improved upon. This is due to the fact

that only the heartbeat thread is responsible for

carrying out the communication between the driver.

This means that the heartbeat thread could be

terminated or simply suspended in order to bypass the

entire implementation. A solution for this would be to

create a system thread of its own through the driver

and synchronize the heartbeat process through them.

Another major weakness would be the fact that the

monitoring system does not perform any integrity

checks on itself and the files. An attacker would be

able to patch system routines and monitoring system

files in order to circumvent most of the detection

mechanisms. The files include system files as well.

Obtaining hash values for all system modules in each

distribution of Windows would be a tedious and long

task that would not be fruitful when achieving the

ultimate goal of developing this system, which is to

introduce a new method of approach to anti-

debugging and anti-disassembly.

4 TESTING THE SYSTEM

In these scenarios, we will attempt to cloak the

x32dbg debugger using various methods and attempt

to debug a protected application. The effectiveness of

the monitoring application will be decided on the

following criteria.

1. Detection

2. Traceback

3. Termination – Not carried out

Detection refers to the ability of the monitoring

application to detect any debugging attempts done to

the protected application. Detection criteria will be

triggered if Hooks, Suspicious handles to the process,

presence of a dormant (installed but not running)

debugger within the system, injected modules,

manually mapped modules are discovered.

Suspicious handles are handles to the application

created by untrusted processes. Untrusted processes

refer to processes without a valid digital signature or

forged signatures and processes containing

(Microsoft, Debug Privilege, 2017) SE_DEBUG

privileges. System processes are excluded from this

detection vector since most of the system processes

contain this privilege in latest Windows builds.

Furthermore, registry values will be observed in order

to determine whether certain analysis tools and

processes are installed within a system. If a detection

has occurred, the monitoring application would try to

traceback to the process responsible. In the

termination phase, the monitoring application would

try to determine if the process obtained through the

traceback is eligible to be terminated. The termination

would occur in two separate ways by either

terminating the process that triggered the detection or

terminating the protected process itself. The latter

method is used in case the monitoring application is

unable to terminate the debugger. The monitoring

program should only protect the protected

application. It should not prevent debugging attempts

done to other applications which are not protected by

the monitoring system. Therefore, traceback and

termination should not happen in the case of a

debugger debugging another application which is not

protected. The monitoring system is designed to

traceback and log the triggered detection vector and

the actual termination of the responsible process or

tool is not carried out since it will be difficult to

monitor the effectiveness of the system and log the

required details. Therefore, a traceback is determined

as a successful termination. One major issue during

testing was the fact that since thread hiding is enabled

it is difficult to attach a debugger to any application

without it crashing since there are no visible threads

in the process. A way to bypass this would be to byte

patch the executable (timb3r, 2019). However, this

would be impractical in most test scenarios therefore

SECRYPT 2022 - 19th International Conference on Security and Cryptography

482

the thread hiding feature was disabled during the

testing phase for several of the tests that were carried

out.

4.1 Test Cases

The following set of functions will be hooked to

protect the debugger. All of the function hooks will

be achieved using ScyllaHide. There are other plugins

for x32dbg debugger that are used to hide the

debugger but they all utilize at least one of these

functions which are all available to be configured via

ScyllaHide. Local hooks will be placed inside our

predetermined application while global hooks will be

attempted via SetWindowsHookEx. (fisherprice,

2020) VAD hiding will attempt to remove the

debugging application from the current active process

list. The following set of functions will be hooked

individually and as groups at certain test cases. And

finally, the debugger process will be hidden using

VAD hiding and attempted to debug the protected

application with the help of ScyllaHide and all of its

functions.

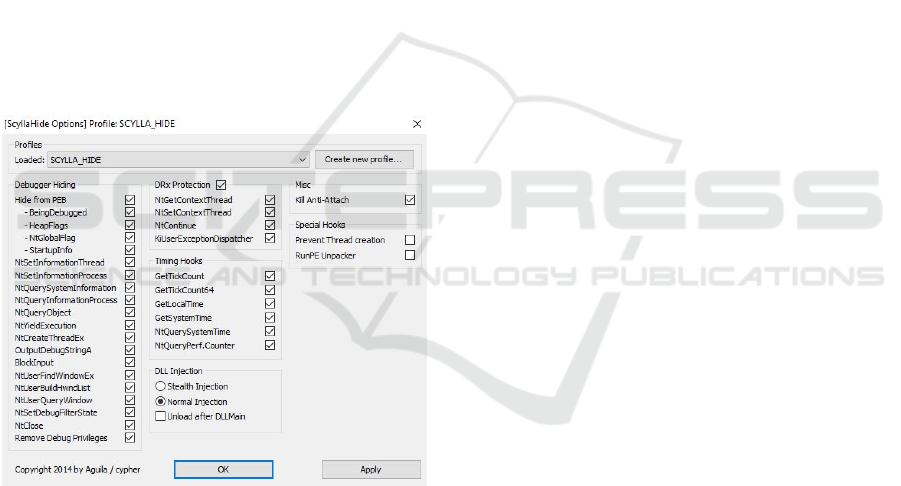

Figure 3: Hooked function list.

4.2 Test Results

The monitoring system and its capabilities were

tested from a reverse engineer’s perspective in order

to determine its effectiveness and it yielded the

expected outcome which was to detect, prevent or

further complicate the process of debugging done to

an application. The tests were carried out targeting

several components of the system such as the user

mode application and the protected process and the

current design was able to prove that the system

accomplishes its designated task in all of the testing

environments. There were 20 test cases carried out

trying to debug the protected process and 3 test cases

trying to circumvent the monitoring system, this

equates to 23 test cases carried out per test

environment and a total of 115 test cases carried out

across all the testing environments.

Out of the 115 test cases that were carried out only

1 test case produced negative results. This was the

Test case 5.14. The test was to open the debugger

using SE_DEBUG privileges and monitor for

detection vectors triggered by the monitoring system.

The monitoring system was unable to detect

processes with SE_DEBUG privileges. However, it is

safe to conclude that the monitoring system achieved

its desired functionality across several builds of

Windows operating system since 114 of the total 115

test cases were successful.

5 CONCLUSION

This research was carried out in inspiration of

introducing a concept from the online gaming

community to the reverse engineering discipline. The

main problem that leads to this research is the

debugging and de compilation of software not

published under the GNU/GPL license. In short,

every product or source code not published under this

license prohibits unauthenticated reversing and

decompilation of the particular software product.

There are mechanisms built by both the operating

system and software developers that can be used to

detect and mitigate these events but they are not very

effective. This can be clearly seen in the prototype

implementation carried out in this research. It

implemented all the known anti-debugging

mechanisms present into an application that

implements them but it presented many drawbacks

within the system that could be easily known and

abused by an experienced reverse engineer. There

were 29 current anti-debug mechanisms discussed in

this paper and all of them posed a cat and mouse game

between the developer and the reverse engineer. As a

simple example in order to show how the same tools,

functions and utilities used by developers in order to

implement anti-debugging features are used by

reverse engineers to easily circumvent we can take

the famous Windows API function

IsDebuggerPresent. This function can be utilized in

many different ways by the developer in order to

detect debuggers for example by simply calling the

function through the API, this would leave artifacts in

the IAT of the process about the existence and the use

of this function. A reverse engineer would then be

Irreversible Applications for Windows NT Systems

483

able to either byte patch the function call by finding

it in the executable. Another way the developer could

use this would be by calling its underlying system

functions, which would be to simply check the

Process environment block in the current process in

order to detect the BeingDebugged flag. This could

then allow a reverse engineer to simply change the

value within the process environment block. This

could go on for several more steps as to patching

previously known detection vectors and introducing

new ones but the ultimate prevention mechanism

currently in place would be to incorporate many

different detection mechanisms together in hopes that

one of them might slip through the patching process.

This was exactly what was achieved in the initial

prototype but to no avail and it is the main reason for

introducing the concept of anti-cheating in online

games in order to prevent debugging and

disassembly. This was achieved to a certain degree in

the implemented monitoring system. The wording is

very specific when saying to a certain degree because

there are many ways this could be improved in order

to achieve better and more consistent results. The

monitoring system discussed in this paper introduced

another variable to the debugging equation. Not only

does a reverse engineer have to deal with protection

mechanisms present in the protected process but also

the monitoring system in order to successfully debug

an application. The monitoring system initiation

method implemented in the paper basically initiates

the monitoring system and its drivers whenever the

protected process is executing and that is one method

of accomplishing it. A much better implementation

would be to have the monitoring system load up at

boot time as in the anti-cheat concept used by Riot

Games for their new title Valorant (Dev, 2020). It is

the best cheat free title to date and its anti-cheat

implementation mechanisms should be observed and

taken into consideration when further developing this

system. More detection vectors can be introduced into

this system by closely observing how debugger

routines are carried out.

The implementation of this concept was strictly

limited to 32-bit Windows Operating systems. All the

development was done in a 32-bit Windows

Environment along with all the testing. The testing

proves that it can be persistent through several

generations and versions of the Windows NT

Operating system. However, this concept could be

implemented in any operating system following the

same outline. Another major objective would be to

understand and implement the server component. In

order to do that, first the operations that could be

carried out server side should be identified and

separately discussed. It would mitigate most of the

problems discussed during the implementation

process regarding the user mode and kernel mode

heartbeat process. This is merely a stepping stone into

the goals that could be achieved by using this concept

properly in reverse engineering and the ultimate goal

would be to develop a monitoring system with solid

self-defence and detection mechanisms that would

detect, prevent and further complicate the process of

reverse engineering protected commercial

applications.

REFERENCES

al, M. K. (2010). Design and Performance Evaluation of

Binary Code Packing for Protecting Embedded

Software against Reverse Engineering. IEEE

International Symposium on Object/Component/

Service-Oriented Real-Time Distributed Computing.

Canzanese, J. M. (2012). "A Survey of Reverse Engineering

Tools for the 32-Bit Microsoft Windows Environment.

ACM.

Dev. (2020, 06 05). Valorant Anti-Cheat: What, Why,

And How. (Riot Games) Retrieved from

https://playvalorant.com/en-us/news/dev/valorant-anti-

cheat-what-why-and-how/

fisherprice. (2020, 08 13). VAD Hiding.

(UnKnoWnCheaTs) Retrieved from https://www.unkn

owncheats.me/forum/c-and-c-/411299-vad-hiding.html

Marpaung, M. S.-J. (2017). Survey on malware evasion

techniques. Busan: Graduate School of General,

Dongseo University.

Microsoft. (2017, 05 23). Debug Privilege. (Microsoft)

Retrieved from https://docs.microsoft.com/en-us/win

dows-hardware/drivers/debugger/debug-privilege

Microsoft. (2017, 12 21). HAL Library Routines.

(Microsoft) Retrieved from https://docs.microsoft.com/

en-us/previous-versions/windows/hardware/drivers/ff5

46644(v=vs.85)

Microsoft. (n.d.). Processes, Threads, and Jobs in the

Windows Operating System. Retrieved from Microsoft

Press Store: https://www.microsoftpressstore.com/

articles/article.aspx?p=2233328

Peter Laurens, R. F. (2007). A Novel Approach to the

Detection of Cheating in Multiplayer Online Games.

ICECCS 2007.

timb3r. ( 2019, 12 27). How to Find Hidden Threads -

ThreadHideFromDebugger - AntiDebug Trick.

(Guided Hacking) Retrieved from https://guided

hacking.com/threads/how-to-find-hidden-threads-

threadhidefromdebugger-antidebug-trick.14281/

SECRYPT 2022 - 19th International Conference on Security and Cryptography

484
