Family Matters: Abusing Family Refresh Tokens to Gain

Unauthorised Access to Microsoft Cloud Services

Exploratory Study of Azure Active Directory Family of Client IDs

Ryan Cobb

, Anthony Larcher-Gore

and Nestori Syynimaa

1,2 c

Secureworks, Counter Threat Unit, U.S.A.

Faculty of Information Technology, University of Jyväskylä, Jyväskylä, Finland

Keywords: Azure Active Directory, Azure AD, OAuth, OIDC, Authentication, Authorisation, Security, FRT, Privilege

Escalation.

Abstract: Azure Active Directory (Azure AD) is an identity and access management service used by Microsoft 365 and

Azure services and thousands of third-party service providers. Azure AD uses OIDC and OAuth protocols for

authentication and authorisation, respectively. OAuth authorisation involves four parties: client, resource

owner, resource server, and authorisation server. The resource owner can access the resource server using the

specific client after the authorisation server has authorised the access. The authorisation is presented using a

cryptographically signed Access Token, which includes the identity of the resource owner, client, and

resource. During the authorisation, Azure AD assigns Access and Id Tokens that are valid for one hour and a

Refresh Token that is valid for 90 days. Refresh Tokens are used for requesting new Access and Id token after

their expiration. By OAuth 2.0 standard, Refresh Tokens should only be able to be used to request Access

Tokens for the same resource owner, client, and resource. In this paper, we will present findings of a study

related to undocumented feature used by Azure AD, the Family of Client ID (FOCI). After studying 600 first-

party clients, we found 16 FOCI clients which supports a special type of Refresh Tokens, called Family

Refresh Tokens (FRTs). These FRTs can be used to obtain Access Tokens for any FOCI client. This non-

standard behaviour makes FRTs primary targets for a token theft and privilege escalation attacks.

1 INTRODUCTION

1.1 Azure Active Directory

Azure Active Directory (Azure AD) is an identity and

access management service (IAM) provided by

Microsoft (Microsoft, 2021f). It is used as IAM by

Microsoft’s own services, such as Microsoft 365 and

Azure, and thousands of third-party service providers

(Microsoft, 2022a). At least 88 per cent of fortune 500

companies and 95 per cent of top 2000 universities

are using Azure AD (Syynimaa, 2022). This makes

Azure AD one of the most critical IAM services

globally.

https://orcid.org/0000-0003-3762-9593

https://orcid.org/0000-0002-7188-4160

https://orcid.org/0000-0002-6848-094X

1.2 OAuth 2.0 and OIDC

Azure AD uses OpenID Connect (OIDC) and OAuth

protocols for authentication and authorisation,

respectively. OAuth 2.0 authorisation framework

allows third-party applications to access HTTP based

services either directly or on-behalf-of users (IETF,

2012). OIDC is an identity layer on top of OAuth 2.0

protocol (OpenID Foundation, 2022). Both protocols

have four parties: OAuth Client (OC), Resource

Owner (RO), Resource Server (RS), and

Authorisation Server (AS). Moreover, both protocols

use bearer tokens to grant access to a bearer, which

typically refers to the RO. A simple authorisation

flow, where RO uses OC to request access from AS

to RS is illustrated in Figure 1.

Cobb, R., Larcher-Gore, A. and Syynimaa, N.

Family Matters: Abusing Family Refresh Tokens to Gain Unauthorised Access to Microsoft Cloud Services Exploratory Study of Azure Active Directory Family of Client IDs.

DOI: 10.5220/0011061200003179

In Proceedings of the 24th International Conference on Enterprise Information Systems (ICEIS 2022) - Volume 2, pages 62-69

ISBN: 978-989-758-569-2; ISSN: 2184-4992

Figure 1: OAuth 2.0 authorisation flow.

Before authorisation can be requested, the used

OC needs to have a consent. This process and the

granularity of the consent depends on the used AS and

RS. Microsoft OAs are generally referred as first-

party clients. Some of these, such as Exchange

Online, are pre-authorised in all Azure AD

environments.

1.3 Tokens

A standard representation of a bearer token is JSON

Web Token, or JWT (IETF, 2015). There are two

flavours of JWT: JSON Web Signature (JWS) and

JSON Web Encrypt (JWE). The former is used to

represent bearer tokens and is also generally used as

a synonym for JWT. JWS consists of three Base64

URL encoded parts: Javascript Object Signing and

Encrypt (JOSE) header, JWS payload, and JWS

signature. The JOSE header contains the information

about the key used to sign the JWS, the payload

contains a set of JWS claims, and the signature

contains the cryptographic signature of the header and

the payload.

Azure AD uses three types of tokens: access

tokens, Id tokens, and refresh tokens (Microsoft,

2021c). Different token types and their properties are

listed in Table 1.

Table 1: Azure AD token types.

Type Standard Lifetime

Id Token OIDC 1 hour

Access Token OAuth2 1 hour

Refresh Token OAuth2 90 days

The Id token contains the user's (i.e., the bearers)

identity information. A sample id token can be seen

in Figure 2. As we can see, it contains different

information about the user, like unique_name on line

18. It also includes information about the issuer (i.e.,

Authorisation Server) on line 2.

Figure 2: A sample id token.

The access token contains the same information

as the identity token, but also information about the

resource the user has been authorised to access. A

sample access token can be seen in Figure 3. As we

can see, the audience (i.e., Resource Server) is

included on line 2. Moreover, the scope is included

on line 19. The scope is used in Azure AD to further

limit access to the resource server by listing different

Application Programming Interface (API) scopes.

The user_impersonation and .default scopes mean

that the user can access all APIs on the RS but can

perform only actions they have permissions on the RS

in question.

Figure 3: A sample access token.

Refresh token is used to obtain a new set of tokens

when access or Id tokens expires (IETF, 2012). In

Azure AD, refresh token is an opaque binary large

object (blob) encrypted with a key known only by

Microsoft (Microsoft, 2021a), delivered as JWE. As

such, its actual content is unknown. A sample refresh

token can be seen in Figure 4.

Resource

Owner

Access resource

with token

Authorise & return

bearer token

Use client

Authenticate &

request access

Resource

Server

Authorisation

Server

OAuth

Client

Family Matters: Abusing Family Refresh Tokens to Gain Unauthorised Access to Microsoft Cloud Services Exploratory Study of Azure

Active Directory Family of Client IDs

Figure 4: A sample refresh token.

1.4 OAuth 2.0 Authentication Flows

OAuth 2.0 standard (IETF, 2012) defines several

different flows for acquiring authorisation:

Authorization Code Grant, Implicit Grant, Resource

Owner Password Credentials Grant, and Client

Credentials Grant.

The Authorization Code Grant is commonly used

to obtain the initial set of tokens (id token, access

token, and refresh token). The Authorization Code

Grant allows the RO to use more secure

authentication mechanisms, such as multi-factor

authentication (MFA), and without the need to share

their credentials with the OC. In contrast, the

Resource Owner Password Credential (ROPC) flow

allows the OC to authenticate using the RO’s

credentials. A sample ROPC request made to Azure

AD’s /token endpoint can be seen in Figure 5 (line

breaks added for readability).

Figure 5: Sample ROPC authorisation request.

After the access and id tokens have expired, a new

set of access tokens can be obtained using the refresh

token. A sample request using refresh token can be

seen in Figure 6 (line breaks added for readability).

Figure 6: Sample refresh token authorisation request.

The OAuth 2.0 standard (IETF, 2012, section 6)

and OAuth 2.0 Threat Model and Security

Considerations (IETF, 2013, section 5.2.2.2.)

specifies that refresh tokens should be bound to the

client id it was issued. Moreover, OAuth 2.0 standard

specifies that refresh tokens can be used to obtain

access tokens “..with identical or narrower scope..”

(IETF, 2012, section 1.5.).

The OAuth implementation in Azure AD deviates

from the standard regarding refresh tokens. Azure AD

does not enforce the requirement that newly issued

access tokens must have the same or narrower scope

as the original authorisation. Microsoft (2021a)

documentation states that:

“Refresh tokens are bound to a combination of

user and client, but aren't tied to a resource or tenant.

As such, a client can use a refresh token to acquire

access tokens across any combination of resource

and tenant where it has permission to do so.”

A recent research article (Syynimaa, 2020)

revealed, however, that the refresh tokens issued to

certain Microsoft first-party clients (later to be known

as FOCI clients) are redeemable for new access

tokens authorised to a different client. This behaviour,

or feature, was unexpected given the Microsoft

documentation and OAuth specifications.

1.5 Research Questions

Our research sought to answer the following research

questions:

1. Which first-party clients are supported by this

feature?

2. What is the purpose of granting access tokens

for other first-party clients using refresh

tokens?

1.6 Structure of the Paper

The rest of the paper is structured as follows. In

Section 2, we describe the research methodology used

in the study. In Section 3, the results of the study are

presented. Finally, in Section 4, implications of the

findings and a conclusion are presented.

2 METHODOLOGY

The research had two distinct research lines, one for

each research question.

To answer the first research question, a list of 450

first-party clients (Seb8iaan, 2020) was acquired and

supplemented with the client ids (~150) harvested

from Azure AD sign-in logs. After that, the initial set

of tokens for each first-party client using various

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

scopes was obtained, and a new set of tokens was

tried to be received with the refresh token. The details

of the experiment are as follows:

1. A new Azure AD tenant with two users (one

admin, one regular user) was provisioned.

Both users were assigned Microsoft E5

license.

2. The initial set of tokens were obtained for each

client using a Jupyter Notebook and the

Microsoft Authentication Library (MSAL) for

Python.

3. ROPC flow was used to authorise each client

for .default, openid, profile, and offline_access

scopes on 40 different resources including:

Microsoft Graph, Microsoft 365 APIs

(Exchange Online, Sharepoint, and Teams),

Azure Resource Manager APIs (Azure

Storage, Vault, Database), and the client

itself. The offline_access scope instructs AS to

issue a refresh token in addition to Id and

access tokens.

4. The results of each authorisation attempt was

logged, including the issued tokens in JSON

format.

5. The refresh tokens obtained in previous steps

were used to request new authorisation via

refresh grant flow for the same combination

of clients, scopes, and resources.

6. The issued access tokens were compared to the

initial set of tokens for each successful refresh

attempt.

To answer the second research question, the

public Microsoft documentation and Github were

studied, and the various Google searches were

conducted. Microsoft was also contacted during the

research, including the findings and comments

regarding the first research question.

3 RESULTS

A subset of the research is available at Github (see

Cobb & Gore, 2022) with interactive demo in form of

a Jupyter Notebook. This allows other researchers to

reproduce and expand upon findings described in the

following sections.

3.1 Family of Client IDs (FOCI) and

Family Refresh Tokens (FRTs)

After running an experiment with ~600 first-party

clients, only 13 clients were found to be supported by

the feature. Later, three additional clients were found

by scraping client ids from various Github sites. All

16 clients are listed in Table 2.

Table 2: List of Azure AD FOCI clients.

Client Client Id

Office 365 Management

(mobile app)

00b41c95-dab0-4487-

9791-b9d2c32c80f2

Azure CLI 04b07795-8ddb-461a-

bbee-02f9e1bf7b46

AZ PowerShell Module 1950a258-227b-4e31-

a9cf-717495945fc2

Teams 1fec8e78-bce4-4aaf-

ab1b-5451cc387264

Windows Search 26a7ee05-5602-4d76-

a7ba-eae8b7b67941

MS MAM Service API 27922004-5251-

4030-b22d-

91ecd9a37ea4

Microsoft Bing Search

for Microsoft Edge

2d7f3606-b07d-41d1-

b9d2-0d0c9296a6e8

Authenticator App 4813382a-8fa7-425e-

ab75-3b753aab3abb

Microsoft Stream

Mobile Native

844cca35-0656-46ce-

b636-13f48b0eecbd

Microsoft Teams –

Device Admin Agent

87749df4-7ccf-48f8-

aa87-704bad0e0e16

OneDrive ab9b8c07-8f02-4f72-

87fa-80105867a763

Microsoft Bing Search cf36b471-5b44-428c-

9ce7-313bf84528de

Office Desktop client d3590ed6-52b3-4102-

aeff-aad2292ab01c

Visual Studio 872cd9fa-d31f-45e0-

9eab-6e460a02d1f1

OneDrive iOS App af124e86-4e96-495a-

b70a-90f90ab96707

Edge ecd6b820-32c2-49b6-

98a6-444530e5a77a

When obtaining the initial set of tokens for the

aforementioned clients, the received JSON responses

had a foci attribute with a value set to “1” (see line 11

in Figure 7). These clients are later referred as FOCI

clients. The foci attribute did not exist for other

clients. The list of known FOCI clients is maintained

in the Github repository associated with this research

(see Cobb & Gore, 2022).

All FOCI clients were so-called public clients

(Microsoft, 2021d) which can only access APIs on

behalf of the user. FOCI clients could exchange their

refresh token for new tokens for any other FOCI

client. The scopes in the newly issued access tokens

were based on the new client and its .default scopes,

Family Matters: Abusing Family Refresh Tokens to Gain Unauthorised Access to Microsoft Cloud Services Exploratory Study of Azure

Active Directory Family of Client IDs

i.e., the client and scopes from the original

authorisation did not matter.

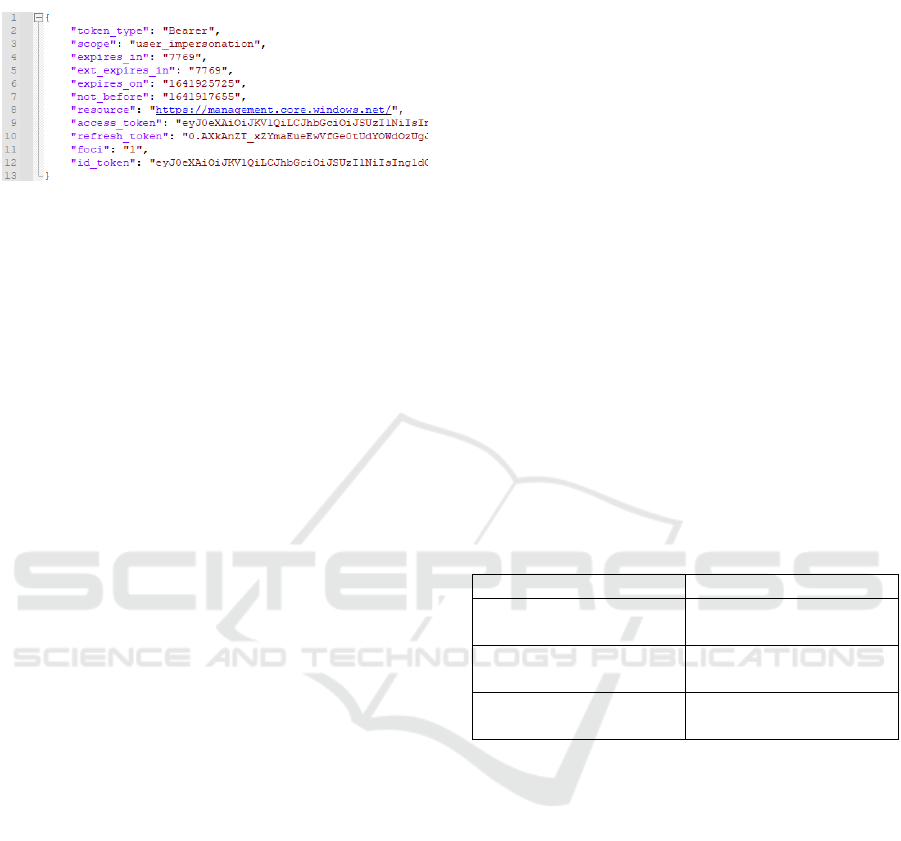

Figure 7: Authorisation response for FOCI client.

Searching for “foci” from internet with Google

resulted to only one hit from Microsoft

documentation (Microsoft, 2021e), which revealed

that FOCI refers to Family of Client IDs. No further

explanation was given what is or what is the purpose

of FOCI. However, some error messages returned

during our experiment led to an Github issue from

2016, which explained the purpose (Pangrle, 2016):

“Future server work will allow client IDs to be

grouped on the server side in a way where a RT for

one client ID can be redeemed for a AT and RT for a

different client ID as long as they're in the same

group. This will move us closer to being able to

provide SSO-like functionality between apps without

requiring the broker (or workplace join).”

Microsoft calls refresh tokens of FOCI clients

Family Refresh Tokens (FRTs), which “…can be

used for all clients part of the family” (Thompson,

2020, line 2281). Currently, only one FOCI client

family, “1”, is used (Microsoft, 2021b, line 1171).

This statement is supported by our empirical findings.

3.2 Communication with Microsoft

The findings and recommendations were shared with

Microsoft Security Response Center (MSRC) on

November 23

2021 (Cobb, 2021).

In their response on December 14

2021, MSRC

(2021) confirms that FOCI is a feature of Azure AD

service. Microsoft “..built this feature to match the

existing practice with mobile platforms of sharing

authentication artifacts, like refresh tokens, along the

publisher (rather than application) boundary”. This

implies that FOCI feature is meant for mobile

devices, but as we have observed, it works on all

platforms. Interestingly, Azure AD allready provides

single sign-on (SSO) functionality for Azure AD

joined and registered (a.k.a. workplace joined)

devices with Primary Refresh Token (PRT)

(Microsoft, 2022b). For these devices, FOCI seems to

be a redundant feature.

Moreover, Microsoft did not consider FRTs being

capable for privilege escalation, as the “Family

refresh tokens can only provide the level of access

that the user has”.

4 DISCUSSION

4.1 Implications

4.1.1 Privilege Escalation

The key finding of the study is that Family Refresh

Tokens (FRTs) can be used to acquire tokens for any

FOCI client. The acquired access tokens will have a

defined resource and scope (see lines 2 and 19 in

Figure 3, respectively), depending on the used client.

The scopes of access tokens of each FOCI client were

documented in a scope lookup table (see Figure 8).

All returned scopes, resources, and FOCI clients used

were included. This helps choosing which FOCI

client to use to obtain tokens. For example, if one

needs to get Calendars.ReadWrite scope, one could

use any client listed in Table 3.

Table 3: FOCI clients with Calendars.ReadWrite scope.

Client Client Id

Teams 1fec8e78-bce4-4aaf-

ab1b-5451cc387264

Office desktop client d3590ed6-52b3-4102-

aeff-aad2292ab01c

MAM Service API 27922004-5251-4030-

b22d-91ecd9a37ea4

NIST (2016) defines privilege escalation as the

“..exploitation of a bug or flaw that allows for a higher

privilege level than what would normally be

permitted” which includes the access the application

(client) has. In the context of an OAuth client, the

level of access affored by FRTs exceeds the

authorisation given to any given client. Furthermore,

the OAuth 2.0 Security Best Current Practice

explicitly states (IETF, 2021, p. 39):

“If refresh tokens are issued, those refresh tokens

MUST be bound to the scope and resource servers as

consented by the resource owner. This is to prevent

privilege escalation by the legitimate client and

reduce the impact of refresh token leakage.”

From the client and attacker perspectives, the

level of access provided by FRTs greatly surpasses

what the RO authorised. Therefore, we consider

abusing FRTs as a form of privilege escalation attack.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

4.1.2 Token Theft

Refresh tokens can be considered long-term

credentials and, thus, are subject to theft (IETF,

2013). The level of access afforded to an attacker

from a stolen refresh token is determined by the

resources and scopes authorised to the access tokens

obtained using the stolen refresh token. FRTs can be

used to acquire access tokens for any FOCI client,

resource, and scope, and thus, are much more

powerful than ordinary refresh tokens.

Some commonly used attack paths the malicious

actors can use to obtain refresh tokens are (IETF,

2013):

• Steal a previously and legitimately issued

refresh token.

• Obtain refresh token through malicious

authorisation.

These attack paths also apply to FRTs. It is

possible to steal FRTs that were previously issued to

FOCI client. For example, if the attacker

compromises the cache where the tokens are stored

(such as the Windows Web Account Manager),

eavesdrops on network traffic during a grant flow, or

finds them serialised on disk in files (like

~/.Azure/accessTokens.json). We focused our

attention, however, on how an attacker could obtain

FRTs by maliciously authorising a FOCI client.

Device Code Phishing is an attack method where

a malicious actor can lure the victim to authorise

access to a resource using device authorisation grant

flow (see IETF, 2013). If the attacker is using a FOCI

client, the user consent is not required, and the

attacker can use whatever FOCI client is most likely

to socially engineer the victim. After successful

authorisation, the attacker can redeem the returned

FRT for a new access token for a different FOCI

client for the desired scopes.

4.1.3 Single Sign-on

Another likely attack path to family refresh tokens is

to abuse SSO on Azure AD joined devices. The

OAuth 2.0 threat model describes a scenario where an

attacker might obtain a refresh token through

exploiting some mechanism that automatically

authorises client applications without knowledge or

intent from the resource owner (IETF, 2013, section

4.4.1.10.). This is trivially possible on Azure AD

joined devices. Processes that execute in the context

of a logged-in Azure AD user on an Azure AD-joined

Windows device can request a pre-signed cookie

from a COM service (Christensen, 2020). This cookie

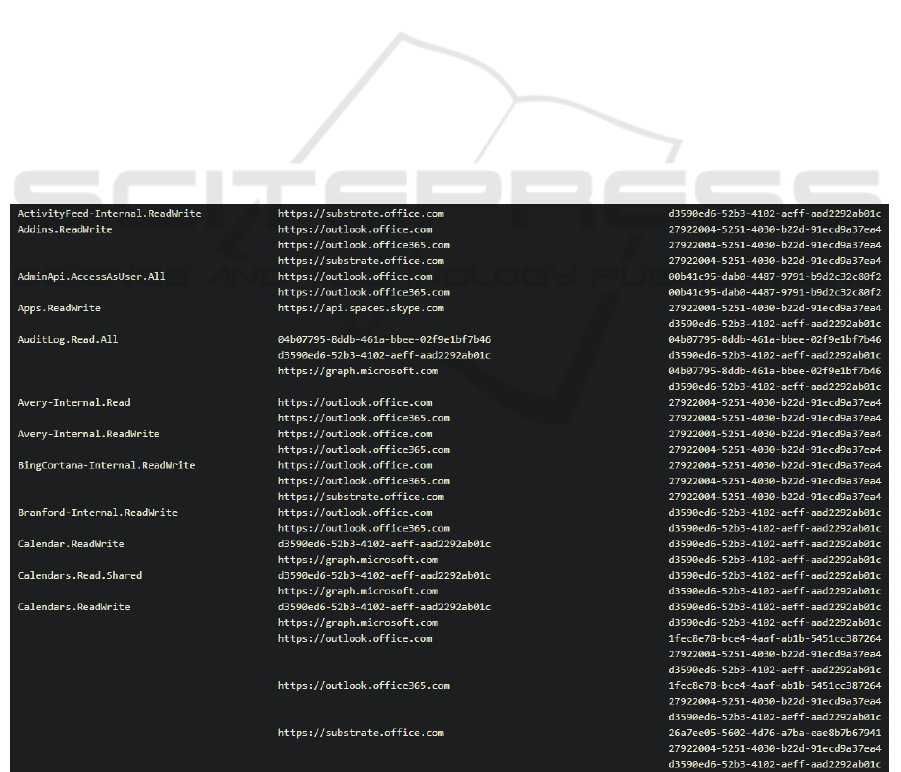

Figure 8: Excerpt from Scope Lookup Table.

Family Matters: Abusing Family Refresh Tokens to Gain Unauthorised Access to Microsoft Cloud Services Exploratory Study of Azure

Active Directory Family of Client IDs

can then be used to complete an authorisation grant

flow for arbitrary client applications, including FOCI

clients.

Typically, the disadvantage of abusing SSO is that

each time the attacker wants access to some scope that

was not authorised for some stolen access token, the

attacker needs to request a new signed cookie or

otherwise complete an authorisation grant flow again

to obtain a new access token with the desired scopes.

In the case of FRTs, even if the attacker only had the

opportunity to generate a single pre-signed cookie,

the attacker can silently exchange the FRT multiple

times for new access tokens for other FOCI clients

and benefit from their authorised scopes.

4.1.4 Zero Trust

FOCI predates the adoption of the Zero Trust security

model at Microsoft. The guiding principals of Zero

Trust require that client authentication and

authorization are based on all available information,

client access is limited to least privilege for the

shortest duration, and that the client is assumed to be

breached, so the blast radius must be minimized

(Microsoft, 2022c). The current implementation of

FOCI is incompatible with the Zero Trust model.

FRTs allow long-term persistent access and privilege

escalation relative to the client application. As there

is only one “family” of Microsoft first-party client

applications means that the level of access afforded

by FRTs is not segmented according to the needs of

legitimate software that require FOCI to function.

4.1.5 Conditional Access Policies

Conditional access policies still apply to FOCI clients

and FRTs. Conditional access policies that require

multi-factor authentication, however, do not impede

attackers from abusing the legitimately issued FRTs

since refresh token grants are always non-interactive,

and usually inherit the authentication method claims

from the original authorisation grant. Furthermore,

conditional access policies based on trusting the

device are ineffective when a FOCI client is

maliciously authorised by abusing SSO because the

request “originates” from the trusted device.

Any conditional access policies (or other controls)

based purely on the FOCI client identifiers are trivial

to bypass if another FOCI client has consent for the

desired scopes.

Refresh token grants are logged in Azure AD non-

interactive user sign-ins log. Currently, the non-

interactive sign-in log events do not contain details

about the client application to which the refresh token

was originally issued. This prevents detecting

exploitation of FRTs.

4.1.6 Anticompetitive Practices

According to United States Federal Trade

Commission (FTC), antitrust laws “prohibit conduct

by a single firm that unreasonably restrains

competition by creating or maintaining monopoly

position” (FTC, 2022). FTC uses a previous

Microsoft case as an example for monopolisation

(FTC, 2022):

Microsoft was able to use its dominant position in

the operating systems market to exclude other

software developers and prevent computer makers

from installing non-Microsoft browser software to

run with Microsoft's operating system software.

FOCI establishes a “family” of first-party

Microsoft client applications that are given special

treatment compared to third-party client applications

in Azure AD. Microsoft does not allow third-party

developers to benefit from the FOCI functionality,

i.e., designate their own “family” of client. As such,

it may have provided Microsoft software with a

competitive advantage over third-party software even

if the third-party used Azure AD as the identity

provider.

4.2 Conclusion

In this paper, we reported our findings related to the

non-standard behaviour of certain Azure AD’s first-

party clients’ refresh tokens.

We found answers to both research questions.

First, we found 16 first-party clients supporting these

special type of refresh tokens, called Family Refresh

Tokens (FRTs). Second, we found out that the clients

supporting FRTs were called Family of Client ID

(FOCI) clients, and that the purpose of FRTs is to

provide singe-sign-on experience without a separate

authentication broker for mobile platforms.

Based on our findings, we recommend Microsoft

to publish the list of FOCI clients, so that Azure AD

customers can protect their environments

accordingly. Further, as FOCI is created for mobile

platforms, its usage should be limited to those

platforms.

4.3 Limitations

The used data set of ~600 first-party applications is

not exhaustive, so the study may not have revealed all

FOCI clients. Also, Microsoft is creating new and

removing old FOCI applications (MSRC, 2021).

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

When building the scope lookup table, only a

limited number of scopes were used when obtaining

tokens. As such, only the scopes that Azure AD

automatically adds were returned. Therefore, the list

of scopes may not be exhaustive.

4.4 Directions for Future Research

As new the FOCI clients are introduced, the list of

known FOCI clients needs to be updated.

The security implications of FOCI clients and

FRTs requires more research, especially in the mobile

platforms. For instance, studying how FRTs are

stored and accessible in mobile devices would be an

interesting research target.

REFERENCES

Christensen, Lee. (2020). RequestAADRefreshToken.

Retrieved from https://github.com/leechristensen/

RequestAADRefreshToken

Cobb, Ryan (2021). [Nov 23rd 2021. Vulnerability report

to MSRC. VULN-057712, Case Number 68674.].

Cobb, Ryan, & Gore, Tony. (2022). Abusing Family

Refresh Tokens for Unauthorized Access and

Persistence in Azure Active Directory. Retrieved from

https://github.com/secureworks/family-of-client-ids-

research

FTC. (2022). Federal Trade Commission. Monopolization

Defined. Retrieved from https://www.ftc.gov/advice-

guidance/competition-guidance/guide-antitrust-

laws/single-firm-conduct/monopolization-defined

IETF. (2012). The OAuth 2.0 Authorization Framework.

Retrieved from https://datatracker.ietf.org/doc/html/

rfc6749

IETF. (2013). OAuth 2.0 Threat Model and Security

Considerations. Retrieved from https://datatracker.

ietf.org/doc/html/rfc6819

IETF. (2015). JSON Web Token (JWT). Retrieved from

https://datatracker.ietf.org/doc/html/rfc7519

IETF. (2021). OAuth 2.0 Security Best Current Practice.

draft-ietf-oauth-security-topics-19. Retrieved from

https://datatracker.ietf.org/doc/html/draft-ietf-oauth-

security-topics

Microsoft. (2021a). Microsoft identity platform refresh

tokens. Retrieved from https://docs.microsoft.com/en-

us/azure/active-directory/develop/refresh-tokens

Microsoft. (2021b). MSAL application.py on Github.

Retrieved from https://github.com/AzureAD/micro

soft-authentication-library-for-python/blob/306277094

8f1961a13767ee85dd7ba664440feb3/msal/application.

Microsoft. (2021c). OAuth 2.0 and OpenID Connect

protocols on the Microsoft identity platform. Retrieved

from https://docs.microsoft.com/en-us/azure/active-

directory/develop/active-directory-v2-protocols

Microsoft. (2021d). Public client and confidential client

applications. Retrieved from https://docs.microsoft.

com/en-us/azure/active-directory/develop/msal-client-

applications

Microsoft. (2021e). Sign-in logs in Azure Active Directory

- preview. Retrieved from https://docs.microsoft.com/

en-us/azure/active-directory/reports-monitoring/conce

pt-all-sign-ins

Microsoft. (2021f). What is Azure Active Directory?

Retrieved from https://docs.microsoft.com/en-

us/azure/active-directory/fundamentals/active-

directory-whatis

Microsoft. (2022a). Azure Active Directory Marketplace.

Retrieved from https://azuremarketplace.microsoft.

com/en-GB/marketplace/apps/category/azure-active-

directory-apps

Microsoft. (2022b). What is a Primary Refresh Token?

Retrieved from https://docs.microsoft.com/en-us/

azure/active-directory/devices/concept-primary-

refresh-token

Microsoft. (2022c). Zero Trust Guidance Center. Retrieved

from https://docs.microsoft.com/en-us/security/zero-

trust/

MSRC (2021). [Email response on Dec 14th 2021 to

VULN-057712 Case Number 68674].

NIST. (2016). Computer Security Resource Center.

Glossary: Privilege Escalation. Retrieved from

https://csrc.nist.gov/glossary/term/privilege_escalation

OpenID Foundation. (2022). Welcome to OpenID Connect.

Retrieved from https://openid.net/connect/

Pangrle, Ryan. (2016). Family of Client IDs Support #453.

Retrieved from https://github.com/AzureAD/azure-

activedirectory-library-for-objc/issues/453

Seb8iaan. (2020). Microsoft Owned Enterprise

Applications Overview. Retrieved from https://github.

com/Seb8iaan/Microsoft-Owned-Enterprise-Applicati

ons/blob/main/Microsoft%20Owned%20Enterprise%2

0Applications%20Overview.md

Syynimaa, Nestori. (2020). Introducing a new phishing

technique for compromising Office 365 accounts.

Retrieved from https://o365blog.com/post/phishing/

Syynimaa, Nestori. (2022). Exploring Azure Active

Directory Attack Surface - Enumerating Authentication

Methods with Open-Source Intelligence Tools. Paper

presented at the ICEIS - 24th International Conference

on Enterprise Information Systems.

Thompson, Jason. (2020). MSAL.PS 4.7.1.1. Retrieved

from https://www.powershellgallery.com/packages/

MSAL.PS/4.7.1.1/Content/Microsoft.Identity.Client.4.

7.1%5Cnetcoreapp2.1%5CMicrosoft.Identity.Client.x

Family Matters: Abusing Family Refresh Tokens to Gain Unauthorised Access to Microsoft Cloud Services Exploratory Study of Azure

Active Directory Family of Client IDs
