Planning for Software System Recovery by Knowing Design Limitations

of Cloud-native Patterns

Alireza Hakamian

, Floriment Klinaku

, Sebastian Frank

, André van Hoorn

and Steffen Becker

Software Quality and Architecture, University of Stuttgart, Germany

Software Engineering and Construction Methods, University of Hamburg, Germany

Keywords:

Cloud-native Patterns, Formal Method, TLA

Abstract:

Context. Application designers use cloud-native architectural patterns such as Circuit Breaker that come with

third-party implementations to improve overall system reliability. Problem. Important quality decisions are

hidden in the codebase and are usually not documented by third-party implementations. Runtime changes

may invalidate, e.g., pattern’s decision assumption(s) and cause the reliant service to face unacceptable quality

degradation with no recovery plan. Objective. The primary goal of this study is to derive important quality de-

cisions of patterns independent of a particular implementation. Method. To achieve our objective, we perform

exploratory research on two architectural patterns, (1) Circuit Breaker and (2) Event Sourcing, which come

with different third-party implementations and that application designers often use. We formally specify the

design and the guarantees of each pattern using Temporal Logic of Actions (TLA) and verify the guarantees,

which guide us in deriving important quality decisions. Result. To show the usefulness of our method, we

systematically generate failure scenarios for third-party implementations of Circuit Breaker and Event Sourc-

ing patterns that compromise Hystrix’ and Kafka’s guarantees on preventing further degradation of protected

services and the loss of committed messages, respectively. Conclusion. The result suggests that important

quality decisions derived from formal models of the patterns help application designers prepare for unaccept-

able system quality degradation by knowing when a third-party implementation of the architectural patterns

fails to maintain its guarantees.

1 INTRODUCTION

Continuous change of system conﬁgurations, e.g.,

new deployments, is the important characteristic of

cloud-native software systems (Davis, 2019). To cope

with the impact of changing environments, applica-

tion designers use architectural patterns, e.g., Cir-

cuit Breaker, or Event Sourcing implemented by Re-

silience4j (Resilience4j Contributors, 2021) (for Java

programmers) and Kafka (Kafka Team, 2021) respec-

tively. However, important quality decisions and re-

lated assumptions remain hidden in the codebase or

informal description (high-level language) in the re-

spective ofﬁcial third-party documentation, books, or

blogs. Real-world incidents such as (Lianza and

Snook, 2020) have shown a lack of understanding

of pattern’s quality decisions, and related assump-

tions implemented by a third-party component come

with the consequence of unacceptable system quality

degradation.

Therefore, our primary goal is to derive impor-

tant quality decisions in cloud-native architectural

patterns independent of a particular implementation,

which beneﬁts the application designers in planning

to retain the system quality when a third-party imple-

mentation of an architectural pattern fails to maintain

the pattern’s guarantee. Kazman et al. (Kazman, Rick

et al., 2000) described that important quality decisions

are decisions that have been made by architects on

sensitivity points, which are design properties that are

critical to quality achievement. For example, service

availability can be sensitive to the number of work-

ing nodes and the repair rate. Moreover, Kazman et

al. describe the situation when no decision has been

made on sensitivity points as architectural risk.

In our study, we specify and use the formal mod-

els of the architectural patterns to derive sensitiv-

ity points and their related decisions. We perform

exploratory research on two architectural patterns,

(1) Circuit Breaker and (2) Event Sourcing. Our re-

search method consists of (1) selecting cloud-native

patterns that come with a variety of implementations

and often are used by application designers, (2) for-

mally specifying the design and requirements of each

pattern (independent of a particular implementation)

using Temporal Logic of Actions (TLA)

, (3) veri-

Hakamian, A., Klinaku, F., Frank, S., van Hoorn, A. and Becker, S.

Planning for Software System Recovery by Knowing Design Limitations of Cloud-native Patterns.

DOI: 10.5220/0011061500003200

In Proceedings of the 12th International Conference on Cloud Computing and Services Science (CLOSER 2022), pages 215-222

ISBN: 978-989-758-570-8; ISSN: 2184-5042

215

fying the requirements against the design speciﬁca-

tion, which guide us in deriving sensitivity points, and

(4) reviewing the design speciﬁcation of the patterns

for respective decision on each sensitivity point.

Mendonça et al. (Mendonça et al., 2020) use prob-

abilistic models for resilience patterns aiming to pre-

dict the impact of a different conﬁguration of re-

silience patterns on the performance and availability

of the overall system. Our primary difference is in our

pragmatism behind modeling architectural patterns.

In order to derive important quality decisions, we con-

sider all relevant context in the design of the archi-

tectural patterns, e.g., modeling threads in the Circuit

Breaker pattern.

We derive two sensitivity points, namely, (1) the

number of active threads and (2) how up-to-date is

the new node joining a leader-based replication group

in the design of Circuit Breaker and Event Sourcing

patterns, respectively. To validate the usefulness of

our method, we create failure scenarios for the Hys-

trix and Kafka implementations of the Circuit Breaker

and Event Sourcing patterns, respectively. Our insight

from the study is that: Application designers can use

the result from our study to plan for recovery from

system quality failure when a third-party implemen-

tation of an architectural pattern fails to maintain its

guarantees.

We summarize our contributions as follows:

• A method to derive sensitivity point(s) from the

design of cloud-native patterns systematically.

• Formal design speciﬁcation of the Circuit Breaker

and Event Sourcing patterns.

• Validating the usefulness of our method by con-

structing failure scenarios. We apply failure sce-

narios against Hystrix and Kafka implementations

of the Circuit Breaker and Event Sourcing pat-

terns respectively.

Due to space limitations, the paper only discusses

the application of the method to the Circuit Breaker

pattern and provides a condensed summary of the re-

sults regarding the Event sourcing pattern. The com-

plete discussion on Event Sourcing pattern is avail-

able as an online appendix (Hakamian, A. et al.,

2022).

2 FOUNDATION: TLA

Lamport introduced TLA mainly for design speciﬁ-

cations of distributed and concurrent systems. The

core idea is to use the language to specify both the de-

sign and the intended properties. The modeler should

think of the system in terms of states and actions to

specify the system’s design (abstracted from the im-

plementation details). The modeler deﬁnes the state

of the system by deﬁning one or more variables. The

state of the system is deﬁned by the values of those

variables at each instance of time. An action makes

the system transition from one state to the next by

changing the value of one or more variables. A se-

quence of states is called behavior.

TLA

(Lamport, 2002) is an extension to

TLA (Lamport, 1994), which makes the language

suitable for writing modular speciﬁcations. In order

to specify architectural pattern’s goals in the form

of (1) what the system must always/never do and

(2) what must eventually happen, we choose TLA

our formal language. Moreover, the language comes

with tooling support, called TLA

Toolbox (Lamport,

2021).

To show the language constructs in specifying ac-

tions and states, we use the simple hour clock exam-

ple provided by Lamport in his book (Lamport, 2002).

We represent the hour by the variable hour, which

takes values [1 − 12]. A sequence of states for hour

clock is hour = 1, hour = 2, .... For specifying the

hour clock system, we specify the initial state of the

system Init , hour ∈ (1..12), which means the system

can start at any hour. After initial state, we specify the

action tick, which creates the sequence of intended

behavior as follow: Tick , hour0 = IF hour 6=

12 T HEN hour + 1 ELSE 1. The formula is an ac-

tion because it changes the value of the variable hour.

The change is shown by using the 0 symbol. We spec-

ify the complete hour clock system using the Formula

HClock , Init ∧ Tick, which describes all valid be-

haviors. The symbol  is a temporal formula that

asserts tick is true for every step in the behavior.

3 SENSITIVITY POINTS IN

ARCHITECTURAL PATTERNS

To derive sensitivity points of architectural patterns

systematically, we devise a method consisting of four

steps (as illustrated in Figure 1), (1) pattern selection

and review, (2) pattern speciﬁcation, (3) veriﬁcation,

and (4) pattern speciﬁcation review. We apply the

method to the two patterns Circuit Breaker and Event

Sourcing. Figure 1 shows the four steps that engi-

neers who are experts in formal methods perform for

each pattern. The outcome of the method is (1) a ver-

iﬁable model and a (2) description of risk(s) and a

decision on sensitivity point(s), which will be stored

in the repository of formal models of the architectural

patterns. In the rest of the section, we explain each

step for the Circuit Breaker pattern.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

216

Pattern

Specification

Review

Goals and

Requirements

Behavioral

Description

Verifiable

Model

Sensitivity

Points

Risks

Formal Method

Experts

Repository

Pattern

Selection and

Review

Pattern

Specification

Verification

Decisions on

Sensitivity Points

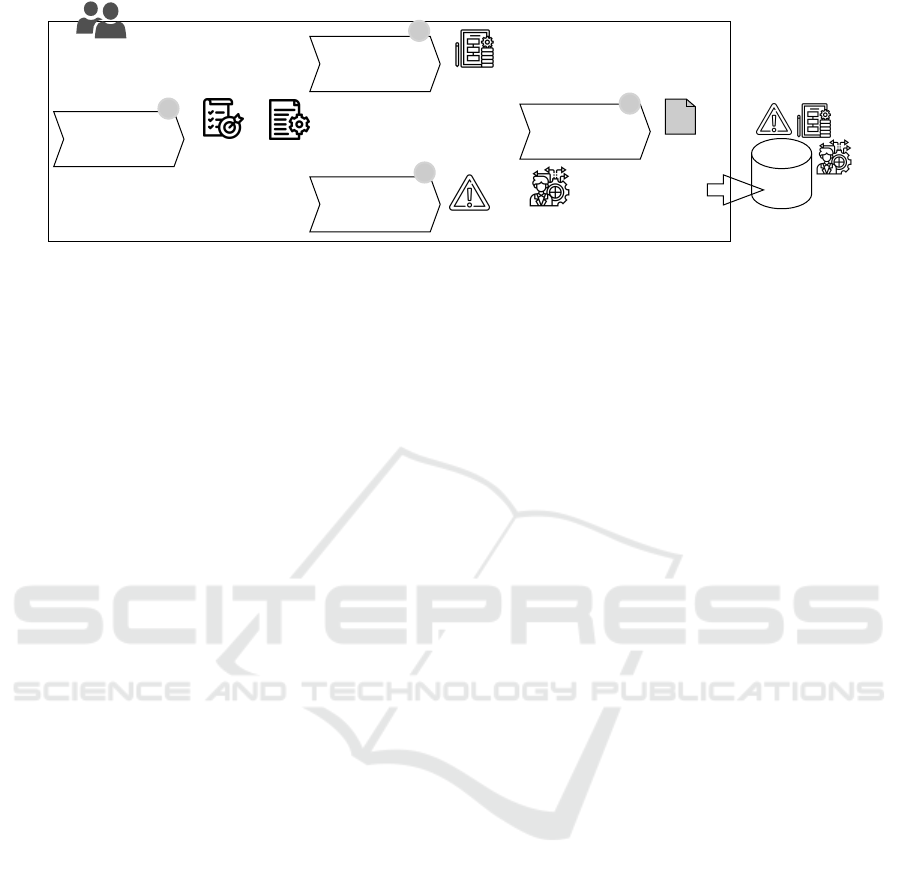

Figure 1: An overview of the method.

3.1 Pattern Selection and Review

We chose the two patterns based on the following

three criteria: (1) application designers frequently

use the pattern in the cloud-native domain, (2) the

pattern’s design requirements are not readily evi-

dent from the pattern description, and (3) the pat-

tern should have different implementations to com-

pare their important quality decisions. In the follow-

ing we provide a high-level description of the Cir-

cuit Breaker and Event Sourcing patterns (Richard-

son, 2021).

Circuit Breaker. In a distributed environment, it is

likely that calling a service fails, e.g., due to network

issues. Resources of the caller get wasted for a non-

responding service, which impacts the service’s qual-

ity. The problem is known as cascading failure. The

Circuit Breaker pattern solves this problem by disal-

lowing further calls to the target service if a certain

failure threshold is reached.

Event Sourcing. Data in cloud-native software

systems reside on multiple and possibly different

databases. Consequently, maintaining a consistent

view of the whole system is problematic. Event

Sourcing solves the problem by providing a single

source of truth called event storage. Services emit

events related to changes in entities and store pro-

jected data from the event storage locally.

After selecting the patterns, we review the behav-

ioral description of each pattern and derive their goals

and requirements. We use the Microsoft cloud-native

patterns collection (Microsoft, 2022) and the Release

It! book (Nygard, 2018) to derive high-level goals and

behavioral descriptions of the Circuit Breaker pattern.

The ﬁrst goal is: The pattern shall protect the client’s

resources from becoming exhausted. The ﬁrst goal

states that the client resources shall not get wasted on

requests that will most likely fail. The second goal is:

The pattern shall protect the already degraded ser-

vice from further degradation. We derive a list of re-

quirements for the pattern considering the high-level

goals and the behavioral descriptions of the Circuit

Breaker pattern. However, from the list, we discuss

one requirement that is important for this paper’s dis-

cussion. The requirement of the Circuit Breaker is:

In the Half-Open state, the system permits only a few

calls to test if the service is back.

3.2 Pattern Speciﬁcation

High-level goals, requirements and behavioral de-

scriptions are the inputs to the pattern speciﬁcation

step. We chose TLA

because of the tooling support,

and its adoption at industry such as Amazon (New-

combe, 2014) and MongoDB (Schvimer et al., 2020).

Regarding the speciﬁcation, we present modeled

variables, initial state formula, and requirements.

The complete formal speciﬁcation for each pattern is

available as an online appendix (Hakamian, A. et al.,

2022).

The following list describes the variables used to

model the behavior of the Circuit Breaker pattern.

calls is a function that maps an OS thread t1 to the

record of the form [reply, permitted, permittedIn-

State]. The reply ﬁeld is either TRUE, which

means the service returns no error, FALSE, which

means the service returns an error, or NULL,

which means the thread has not sent any request

yet. The permitted ﬁeld shows whether (or not)

the thread obtained permission to send a request.

Finally, the permittedInState ﬁeld tracks in which

state the thread t1 obtained a permission.

circuitBreaker takes either the CLOSED, OPEN, or

HALF value to represent the current state of the

Circuit Breaker.

recordedCalls is a sequence of recorded TRUE, or

FALSE when the Circuit Breaker was in either the

OPEN or CLOSED state.

recordedCallsInHalf a same description as record-

edCalls but now for the HALF state.

Planning for Software System Recovery by Knowing Design Limitations of Cloud-native Patterns

217

executed is a sequence of all calls against the service.

Formula 1 is the speciﬁcation of the initial state of

the Circuit Breaker. In the Init state speciﬁcation, the

assignment of values does not require the prime (0)

notation over the variables in the left side of the as-

signment. The Circuit Breaker starts in the Init state,

where the variable circuitBreaker has the CLOSED

value.

Init , calls = [t ∈ T hreads 7→ [reply 7→ NU LL,

permitted 7→ NULL,

permittedInState 7→ NULL]

∧ circuitBreaker = CLOSED ∧ recordedCalls = h i

∧ count = 0 ∧ recordedCallsInHal f Open = h i

(1)

3.3 Veriﬁcation

After the speciﬁcation step, we instantiate a model in

the TLA

Toolbox and verify the model against re-

quirement(s). In the following, we present the veriﬁ-

cation result for the Circuit Breaker pattern.

Formula 2 is the speciﬁcation of the requirement:

In the Half-Open state, the system permits only a

few calls to test if the service is back. The require-

ment belongs to the second high-level goal (the Cir-

cuit Breaker shall protect the already-degraded ser-

vice). The name of the formula is NoFurtherDegra-

dation as the second goal suggests. The output of

the ExecInHalf operator in Formula 2 is a sequence

of all calls when the Circuit Breaker is in the Half-

Open state. The property NoFurtherDegradation

checks the number of calls in the Half-Open state

against the total number of permitted calls during

the Half-Open state. We instantiate a model with

two threads and one permitted call during a Half-

Open state. The time to completion of the model

checker is only a few seconds as the state space of

the model is not large. The model checker shows that

the design speciﬁcation does not satisfy the property

NoFurtherDegradation.

ExecInHal f , LET Count(c) , c = HALF

IN SelectSeq(executed, Count)

NoFurtherDegradation ,

Len(ExecInHal f ) ≤ PermittedCallsInHal f Open

(2)

The counterexample shows that thread t1 asks for per-

mission before the Circuit Breaker switches to the

Open state. The Circuit Breaker switches to the Half-

Open state. The Circuit Breaker permits the thread

t2 to gain permission during the Half-Open state and,

together with the already permitted thread t1, call the

protected service. Hence, the total number of execu-

tions during the Half-Open state is now 2, which is

greater than the constant parameter PermittedCallsIn-

HalfOpen.

There are two options at this stage: either chang-

ing the design to satisfy the property or relaxing the

requirement, which means changing the property to

pass the current design. We decided not to change the

design speciﬁcation as there was no notion of restrict-

ing execution in the general description of the Circuit

Breaker. Formula 3 is the speciﬁcation of the relaxed

requirement. The Cardinality operator gives the num-

ber of elements in the set Threads, which is a con-

stant. A translation of the property into the English

language is In Half-Open, the number of executions

to the service is at most equal to the number of ac-

tive Threads in the client. Therefore, the edge case in

the design of the Circuit Breaker pattern is that: In a

highly concurrent environment, all the active Threads

gain permission before the Circuit Breaker switches

to the Open state and hence further degrade the ser-

vice.

NoFurtherDegradation , Len(ExecInHal f ) ≤

PermittedCallsInHal f Open + Cardinality(T hreads)

(3)

According to the deﬁnition of the sensitivity point

and the help from the identiﬁed edge case, we de-

rive the sensitivity point in the design of the Circuit

Breaker pattern as:

The number of active threads.

3.4 Pattern Speciﬁcation Review

We review the behavioral description and the speci-

ﬁcation of the patterns to ﬁnd out about design deci-

sions on sensitivity points. In Circuit Breaker, there is

no decision on the sensitivity point, which is the risk

in the design of the pattern.

4 VALIDATING USEFULNESS

This section presents a systematic generation of a fail-

ure scenario guided by the derived sensitivity point

against the Hystrix implementation of the Circuit

Breaker pattern. The aim is to validate the derived

sensitivity point of the Circuit Breaker pattern. For

the experiment, we cloned an example application

publicly hosted on GitHub (Davis, 2020), which is

provided by the author of the cloud-native patterns

book (Davis, 2019). Moreover, we discuss the result

of our investigation on the documentation of the third-

party implementation of the Circuit Breaker pattern.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

218

The aim is to check if the documentation explains the

sensitivity point and the related decision.

4.1 Experiment on the Hystrix

We designed an experiment to evaluate how a pro-

tected service by the Circuit Breaker behaves in a

highly concurrent environment. We evaluate whether

the protected service by Circuit Breaker further de-

grades during the Open state in high concurrency or

not. To measure further degradation during the time

the Circuit Breaker is Open, we use the number of

processes waiting for CPU time in the protected ser-

vice as the metric. Another metric we use is the av-

erage system load that is measured by the Linux op-

erating system. The only processes running on the

database container are the MySQL process and sar

that collects system activity information and is a tool

from sysstat (System performance tools for the Linux

operating system).

We installed MicroK8s on our Ubuntu machine

hosted in a private cloud. The machine has 16 GB

of RAM, 8 VCPUs, and 12 GB of storage. We de-

ployed two containerized services, (1) a Post service

responsible for creating and retrieving posts and (2) a

MySQL database service responsible for storing and

retrieving database queries. The call to retrieve posted

items from the Post service is protected by a Hys-

trix Circuit Breaker. The conﬁguration for the Circuit

Breaker is:

• SleepTime 10 seconds. SleepTime shows how

long Circuit Breaker remains open until allowing

one test call.

• ThreadTimeout 1.5 seconds. The variable shows

how long a thread waits for a reply from the

database service.

• ThreadSize 30. We allow up to 30 concurrent

threads to be activated.

We created the following scenario, which is the

expected use case of a Circuit Breaker:

Scenario. We degrade the database service by load-

ing the Post service with around 12 requests per

second. The chosen number is to keep the con-

currency low but at the same time degrade the

database to trigger the Circuit Breaker trip be-

tween the Open and Closed states. We measure

the deﬁned metrics, and afterward, we create a

highly concurrent environment by sending more

than 50 requests per second. We measure the de-

ﬁned metrics for a highly concurrent environment.

Our hypothesis from the scenario is that:

Hypothesis. We hypothesize that when many con-

current threads are active, many threads can send

09:00 09:45 10:30 11:15 12:00

Time(min:sec)

Running proc waiting CPU time

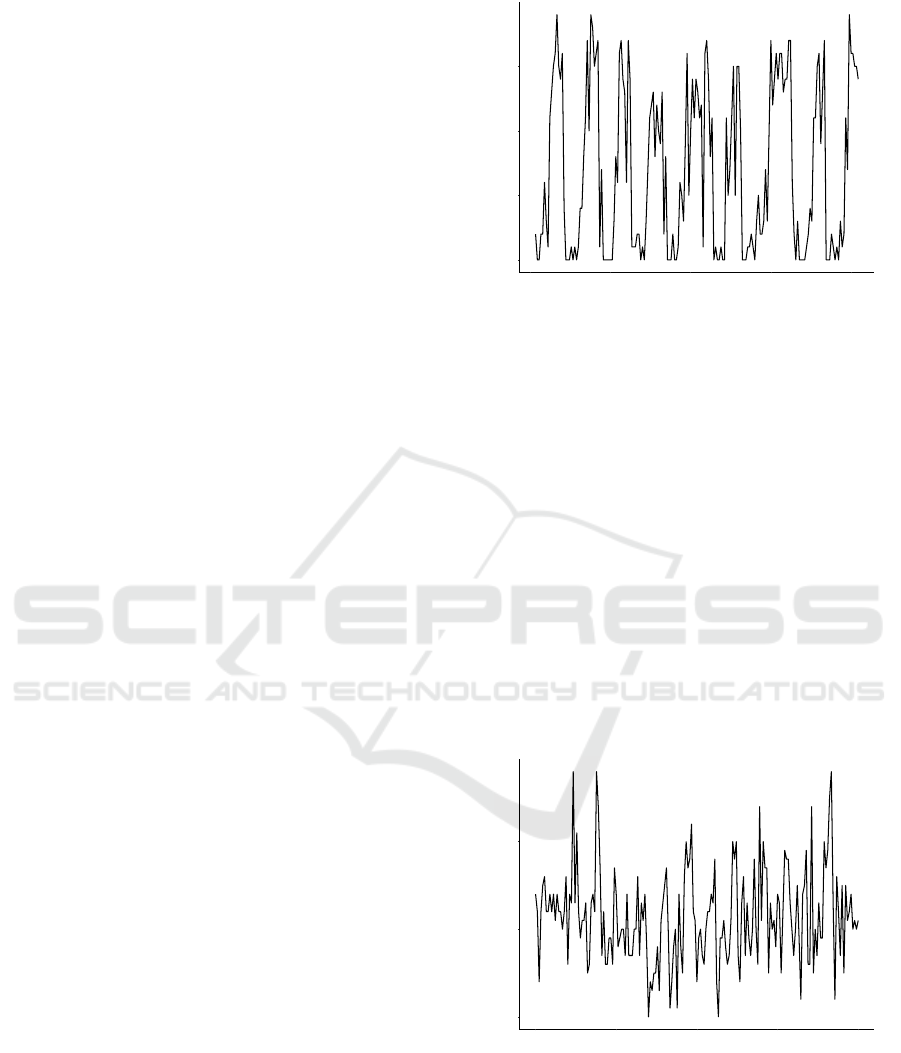

Figure 2: Queue size in low concurrent environment (con-

stant rate 12 reqs/sec).

requests to the database service and cause further

degradation of the service.

Figure 2 shows the behavior of the Circuit Breaker for

3 minutes in a low concurrent environment. The load

to the post service’s API is at a constant rate of 12

requests per second. The Y-axis represents the num-

ber of processes waiting for CPU time. The number

drops to 0 whenever the Circuit Breaker switches to

Open. From Figure 2 it is visible that the number of

processes awaiting CPU time drops to 0 every time

the Circuit Breaker is open, which means the Circuit

Breaker achieves its goal that is protecting the de-

graded service from further degradation. However, in

high concurrency( Figure 3), the line graph shows that

most of the time when the Circuit Breaker is open, the

number of processes awaiting CPU time is above 0.

06:00 06:45 07:30 08:15 09:00

Time(min:sec)

Running proc waiting CPU time

Figure 3: Queue size in highly concurrent env (> 50 req/s).

Finally, regarding the protected database service,

by comparing the average system load (averaged ev-

ery 1 minute) in the low concurrency and high con-

currency scenarios (shown in Figure 4), we conclude

that our hypothesis is true and the Circuit Breaker is,

in fact, sensitive to the number of active threads de-

Planning for Software System Recovery by Knowing Design Limitations of Cloud-native Patterns

219

06:00 07:00 08:00 09:00 10:00 11:00

Time(min:sec)

Average number of proc waiting for CPU time

Legend

High cuncurrency

Low cuncurrency

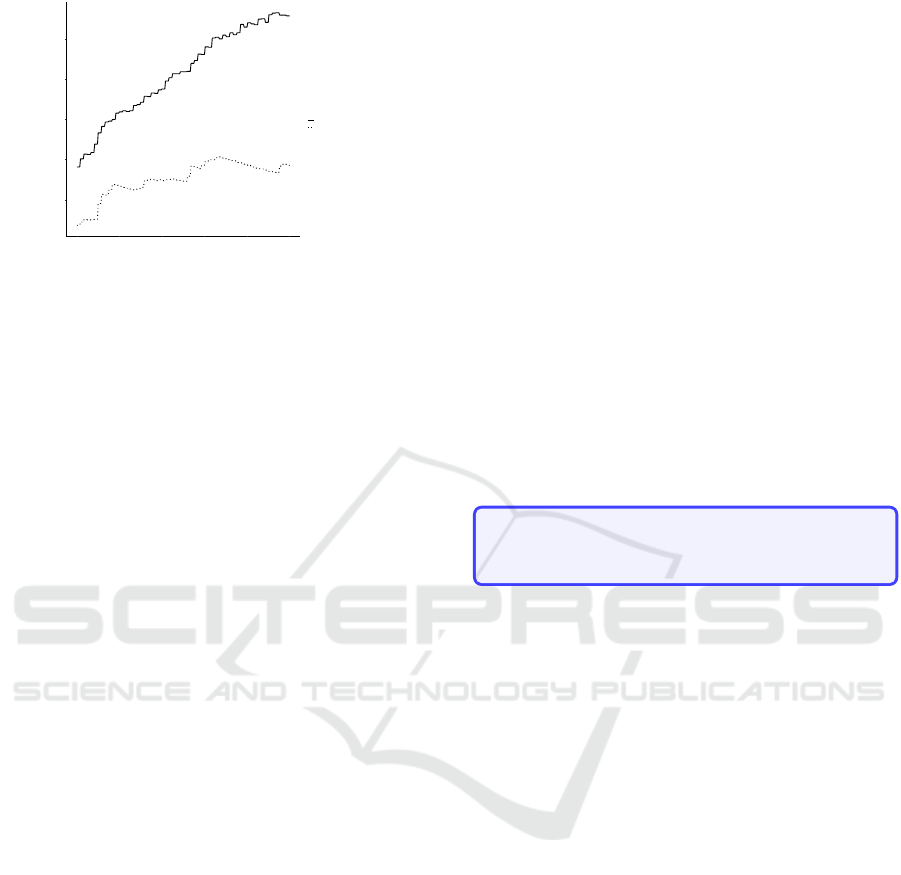

Figure 4: System load average (every 1min)).

rived from our formal analysis.

The design of the Circuit Breaker does not make

any assumption on the number of active threads.

Hence, failure in protecting the target service from

further degradation due to the high number of active

threads is possible, and application designers should

have a recovery plan. Depending on the context, lim-

iting the number of active threads may not be possi-

ble. For such a case, it is essential to ﬁrst detect an

error by looking at indicators such as the number of

trips to Open and Closed states in the Circuit Breaker.

Second, eliminate the error by using a rate limiter at

the protected service during the high load.

4.2 Investigating the Documentation of

Third-party Implementations

For the Circuit Breaker pattern, we looked at the doc-

umentation of Resilience4j, Polly, and Hystrix con-

cerning the Circuit Breaker pattern.

The documentation of Resilience4j refers to a dif-

ferent pattern — bulkhead — to limit the number of

concurrent threads. However, the documentation does

not explain the sensitivity point in the Circuit Breaker

design pattern and the consequences of a high con-

currency level of threads, which overloads an already

degraded service. Hence, Resilience4j has a design

limitation, which is controlling the number of ac-

tive threads. The documentation of Polly on the Cir-

cuit Breaker pattern does not provide any notion on

the number of concurrent threads, its consequence,

and even referring to other patterns such as bulk-

head. On the other hand, the Hystrix design, limits

the number of threads through a conﬁguration param-

eter. However, documentation does not explain the

consequence of a high number of active threads.

5 EVENT SOURCING PATTERN

This section summarizes the application of our pro-

posed method on the Event Sourcing pattern.

We studied the Event Sourcing pattern from

books (Kleppmann, 2016; Davis, 2019). The event

storage (aka event log) design is the heart of the Event

Sourcing pattern. Therefore, our focus in event sourc-

ing is on the design of the event storage. We derive

the goal that: The event storage must guarantee the

integrity of the data. Regarding the behavioral de-

scription of the event storage, we choose the Paci-

ﬁcA protocol proposed by Lin et al. (Lin et al., 2008).

The main reason is that Kafka’s design (Kafka Team,

2021) is based on PaciﬁcA. Kafka is one of the few ex-

isting platforms developers use for the Event Sourcing

pattern, mainly because of Kafka’s no loss of commit-

ted data guarantee that aligns with the event storage

goal.

After the speciﬁcation and veriﬁcation steps, we

derived the sensitivity point in the design of the event

storage as

How up-to-date is the new node joining the

replicaGroup.

Guided by the sensitivity point, we experimented

on a three-node Kafka cluster by testing what hap-

pens when all nodes fail and the most recent leader

does not have the most recent committed messages.

In reality, it happens that data is wiped out due to

hardware error (Junqueira, 2015), or human operators

error (Shea, 2017). After running the experiment, we

observed that the other two nodes became followers

and removed all their committed data to the index of

the current leader. Hence, data integrity is violated.

6 THREATS TO VALIDITY

Conclusion Validity. Deriving a set of high-level

goals and specifying a design that satisﬁes them in-

volves human subjective opinion. Therefore, repeat-

ing the method by someone else may result in dif-

ferent abstractions for individual patterns and, hence,

different sensitivity point(s). To counteract this threat,

we did not use our subjective opinion for deriving

high-level goals and the design. Instead, we use the

literature for deriving goals and the design of each

pattern.

Internal Validity. One threat is that the derived goals

and requirements for the two architectural patterns are

not valid. To counteract this threat, we chose the well-

known books Release It! (Nygard, 2018; Kleppmann,

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

220

2016) for Circuit Breaker, and Event Sourcing pat-

terns, respectively.

Construct Validity. The main threat under this cat-

egory is mono-method bias, which means we did not

use other methods e.g., reviewing codebases to derive

sensitivity point(s). We can not entirely rule out this

threat.

External Validity. One aspect of external validity

is to what degree the proposed method is applicable

for other cloud-native architectural patterns. We use

TLA

for the design speciﬁcation, and hence we sup-

port reliability and availability kind of quality guaran-

tees in architectural patterns. Although, using other

modeling languages should not be an issue. How-

ever, it requires further investigation. Another aspect

is ﬁnding a suitable design abstraction that the model

solver solves in a reasonable time and space.

7 RELATED WORK

We derived sensitivity points of the two architectural

patterns systematically. Research areas that we ﬁt

into are (1) requirements engineering and document-

ing system design for the purpose of quality analysis,

and (2) reliability testing of software systems by fault

injection.

Regarding the ﬁrst area we mention applying for-

mal methods to reason about software design prop-

erties. Vergara et al. (Vergara et al., 2020) propose

formalizing microservice architectural patterns such

as Circuit Breaker using the Event-B language. They

argue that describing a pattern’s behavior through im-

precise language may lead to ambiguity. Therefore,

they use Event-B to formalize few well-known pat-

terns in a microservice-based application, including

Circuit Breaker. In the paper, the authors only dis-

cussed the Circuit Breaker pattern. However, in their

online appendix, there is also the speciﬁcation of ser-

vice registry pattern.

Mendonça et al. (Mendonça et al., 2020) pro-

pose a model-based analysis of resilience patterns

such as Retry and Circuit Breaker. The authors ar-

gue that an informal description of resilience pat-

terns causes difﬁculties for application designers to

know a set of proper conﬁgurations for each pat-

tern, which improves the availability and performance

of the microservice-based system. The core idea is

to (1) specify the design of resilience patterns us-

ing Continuous Time Markov Chain (CTMC) in the

PRISM tool (Marta Z. Kwiatkowska et al., 2011),

(2) specify the availability and performance (execu-

tion time and contention time) of an exemplary sys-

tem through reward functions, and ﬁnally (3) simulate

the ﬁnal model with different values of model param-

eters to obtain availability and performance measure-

ments.

Very close to Mendonça et al. is the work by Ja-

gadeesan et al. (Jagadeesan and Mendiratta, 2020).

The authors raise the challenge in trade-off analy-

sis in microservice-based applications where service

meshes such as Istio (Istio Contributors, 2021) are be-

ing used. The paper focuses on the Circuit Breaker

implementation in service mesh and discusses the ne-

cessity in the analysis of different trade-offs concern-

ing the impact of slow or quick detection of a fail-

ure in downstream services and activating the Circuit

Breaker on availability and the number of processed

requests. To this end, the authors propose a model-

ing framework for such analysis based on CTMC in

PRISM.

Compared to the three previous works, our pri-

mary difference is our pragmatism behind modeling

architectural patterns. The modeling goal in the ﬁrst

work is to make the speciﬁcation non-ambiguous. In

contrast, the goal in the second paper is to predict

the impact of a different conﬁguration of resilience

patterns on performance and availability. In the last

work, the goal is a trade-off analysis of microservice-

based applications. Our work provides different ab-

straction. The goal of the modeling is to derive im-

portant quality decisions in the design of the architec-

tural patterns. We consider all assumptions that indi-

vidual architectural patterns make regarding the envi-

ronment, e.g., modeling threads in the Circuit Breaker

pattern.

The importance of explicit assumptions in the pro-

cess of documenting requirements and architecture

has been discussed by Lago et al. (Lago and van Vliet,

2005). The authors present an exploratory research to

investigate the importance of documenting assump-

tions explicitly. They suggest three important applica-

tions of having explicit assumptions in the documen-

tation process of the architecture that are Traceability,

Assessment and Knowledge management. The au-

thors propose feature modeling for documenting as-

sumptions explicitly. However, their method to come

to assumptions most likely is brainstorming sessions.

Regarding the second research area, the core

idea is to inject fault(s) into the system implemen-

tation while assuming that the system holds speciﬁc

properties after the injection phase. An example is

Jepsen (Jepsen Contributors, 2022), which have been

mainly used by application designers for testing the

correctness of distributed systems. The approach has

successfully found edge cases in production systems

such as etcd, Consul (Kingsbury, 2014) and even the

old version of Kafka.

Planning for Software System Recovery by Knowing Design Limitations of Cloud-native Patterns

221

8 CONCLUSION

We discussed our systematic method in deriving sen-

sitivity points of the Circuit Breaker and Event Sourc-

ing, patterns, independent of a particular implementa-

tion. Through experiments on Hystrix and Kafka, we

demonstrated the usefulness of our method in deriv-

ing important quality decisions of architectural pat-

terns. The repository of the formal models of the

architectural patterns helps the application designers

prepare for unacceptable system quality degradation

when a third-party implementation of the architec-

tural patterns fails to maintain its guarantees.

We extend our method to perform a conformance

check of third-party implementations against their

formal design as ongoing work.

ACKNOWLEDGMENT

This research has received funding from the Baden-

Württemberg Stiftung (Orcas project) and the German

Federal Ministry of Education and Research (Soft-

ware Campus 2.0 — Microproject: DiSpel).

REFERENCES

Davis, C. (2019). Cloud Native Patterns: Designing

Change-tolerant Software. Manning Publications.

Davis, C. (2020). Cloud-native example application. https://

github.com/cdavisafc/cloudnative-abundantsunshine.

Accessed: 2022-January.

Hakamian, A. et al. (2022). Formal models of cloud-native

patterns. https://doi.org/10.5281/zenodo.5905810.

Istio Contributors (2021). istio documentation. https://istio.

io/latest/docs/. Accessed: 2022-January.

Jagadeesan, L. J. and Mendiratta, V. B. (2020). When fail-

ure is (not) an option: Reliability models for microser-

vices architectures. In ISSRE Workshops, pages 19–

24. IEEE.

Jepsen Contributors (2022). Jepsen. https://github.com/

jepsen-io/jepsen. Accessed: 2021-January.

Junqueira, F. (2015). Disk error. https://fpj.systems/2015/

05/28/dude-wheres-my-metadata/. Accessed: 2022-

January.

Kafka Team (2021). Kafka design documentation. https://

kafka.apache.org/documentation/#design. Accessed:

2022-January.

Kazman, Rick et al. (2000). Atam: Method for architecture

evaluation. Technical report, Carnegie-Mellon Univ

Pittsburgh PA Software Engineering Inst.

Kingsbury, K. (2014). Jepsen: etcd

and consul. https://aphyr.com/posts/

316-call-me-maybe-etcd-and-consul. Accessed:

2021-January.

Kleppmann, M. (2016). Designing Data-Intensive Applica-

tions: The Big Ideas Behind Reliable, Scalable, and

Maintainable Systems. O’Reilly.

Lago, P. and van Vliet, H. (2005). Explicit assumptions en-

rich architectural models. In 27th International Con-

ference on Software Engineering (ICSE 2005), pages

206–214. ACM.

Lamport (2021). The TLA+ toolbox. https://lamport.

azurewebsites.net/tla/toolbox.html. Accessed: 2022-

January.

Lamport, L. (1994). The temporal logic of actions. ACM

Trans. Program. Lang. Syst., 16(3):872–923.

Lamport, L. (2002). Specifying Systems, The TLA+ Lan-

guage and Tools for Hardware and Software Engi-

neers. Addison-Wesley.

Lianza, T. and Snook, C. (2020). Cloudﬂare in-

cident report. https://blog.cloudﬂare.com/

a-byzantine-failure-in-the-real-world/. Accessed:

2022-January.

Lin, W., Yang, M., Zhang, L., and Zhou, L. (2008). Paciﬁca:

Replication in log-based distributed storage systems.

Marta Z. Kwiatkowska et al. (2011). PRISM 4.0: Veri-

ﬁcation of probabilistic real-time systems. In Com-

puter Aided Veriﬁcation - 23rd International Confer-

ence, CAV 2011, pages 585–591. Springer.

Mendonça, N. C., Aderaldo, C. M., Cámara, J., and Garlan,

D. (2020). Model-based analysis of microservice re-

siliency patterns. In 2020 IEEE International Confer-

ence on Software Architecture, ICSA 2020, Salvador,

Brazil, March 16-20, 2020, pages 114–124. IEEE.

Microsoft (2022). Microsoft classiﬁcation of de-

sign patterns in cloud-native application domain.

https://docs.microsoft.com/en-us/azure/architecture/

patterns/index-patterns. Accessed: 2022-January.

Newcombe, C. (2014). Why amazon chose TLA +. In Ab-

stract State Machines, Alloy, B, TLA, VDM, and Z -

4th International Conference, ABZ 2014, pages 25–

39. Springer.

Nygard, M. T. (2018). Release it!: design and deploy

production-ready software. Pragmatic Bookshelf.

Resilience4j Contributors (2021). Resilience4j documen-

tation. https://resilience4j.readme.io/docs. Accessed:

2022-January.

Richardson, C. (2021). Patterns for microservice archi-

tectural style. https://microservices.io/patterns/. Ac-

cessed: 2021-October.

Schvimer, J., Davis, A. J. J., and Hirschhorn, M. (2020).

extreme modelling in practice. Proc. VLDB Endow.,

13(9):1346–1358.

Shea, C. (2017). Gitlab incident report.

https://about.gitlab.com/blog/2017/02/10/

postmortem-of-database-outage-of-january-31/.

Accessed: 2022-January.

Vergara, S., González, L., and Ruggia, R. (2020). Towards

formalizing microservices architectural patterns with

event-b. pages 71–74. IEEE.

CLOSER 2022 - 12th International Conference on Cloud Computing and Services Science

222
