REVS: A Vulnerability Ranking Tool for Enterprise Security
Igor Forain
a
, Robson de Oliveira Albuquerque
b
and Rafael Tim
´
oteo de Sousa J
´
unior
c
Professional Program in Electrical Engineering (PPEE), Dept. of Electrical Engineering (ENE),
University of Bras
´
ılia (UnB), Bras
´
ılia, Brazil
Keywords:
Cybersecurity, Vulnerabilities, Pentest, NVD, CNVD, TOPSIS.
Abstract:
Information security incidents currently affect organizations worldwide. In 2021, thousands of companies
suffered cyber attacks, resulting in billions of dollars in losses. Most of these events result from known vul-
nerabilities in information assets. However, several heterogeneous databases and sources host information
about those flaws, turning the risk assessment difficult. This paper proposes a Recommender Exploitation-
Vulnerability System (REVS) with the Technique for Order Preference by Similarity to Ideal Solution (TOP-
SIS) to rank vulnerability-exploit. The REVS is a dual tool that can pinpoint the best exploits to pentest or
the most sensitive vulnerabilities to cybersecurity staff. This paper also presents results in the GNS3 emulator
leveraging data from the National Vulnerability Database (NVD), the China National Vulnerability Database
(CNVD), and Vulners. They reveal that the CNVD, despite data issues, has 23,281 vulnerabilities entries
unmapped in the NVD. Moreover, this work establishes criteria to link heterogeneous vulnerability databases.
1 INTRODUCTION
Today, most organizations need to provide services in
computing environments. Beyond the impact on the
healthcare industry worldwide, the COVID-19 epi-
demic has also had a disruptive effect on the way busi-
nesses operate (Ferreira et al., 2021). Once performed
in person, services and processes had to undergo an
almost instantaneous digital re-adaptation to remote
access (Khan et al., 2020).
The digitalization of processes has been underway
since the Internet became ubiquitous. However, it in-
creased the attack surface (Pimenta Rodrigues et al.,
2017; Chowdhary et al., 2020; Gualberto et al., 2020).
The rush to provide services based on Cloud Com-
puting has been accompanied by the introduction of
a series of vulnerabilities in the IT environments of
organizations, especially with the advent of services
based on the Internet of Things (IoT) (Liu et al., 2019;
Thamilarasu and Chawla, 2019).
Although there is a plethora of data regarding in-
formation security, several heterogeneous databases
and sources host those data, turning the risk assess-
ment difficult (Du et al., 2019). Besides, most or-
ganizations still lack effective methods to choose the
a
https://orcid.org/0000-0002-9965-8077
b
https://orcid.org/0000-0002-6717-3374
c
https://orcid.org/0000-0003-1101-3029
best option and path in real scenarios (Bertoglio and
Zorzo, 2017). The National Vulnerability Database
(NVD) from the National Institute of Standards
and Technology (NIST) provides reliable informa-
tion about software and hardware flaws (Mavroei-
dis and Bromander, 2017; Hemberg et al., 2020).
However, there might be a delay between NVD and
other open sources (Rodriguez et al., 2018). For
this reason, new databases like China National Vul-
nerability Databases (CNVD) (CNCERT/CC, 2021),
Metasploit, and Vulners (VULNERS, 2021) can help
achieve better situational awareness of enterprise
risks.
Also, picking the optimal attack action and exploit
in the wild is still an open question (Kanakogi et al.,
2021a). To this end, Vulnerability Assessment (VA)
and Penetration Testing (PT) are essential steps (Shah
and Mehtre, 2015; Yaqoob et al., 2017; Ghanem and
Chen, 2020; Zhou et al., 2021). However, choosing
the most critical and threatening outcomes provided
by those steps is a decision process subjected to sev-
eral constraints.
There are several approaches to solve decision
process issues. They can use from Markov chain to
Deep Learning algorithms (Awiszus and Rosenhahn,
2018). However, the VA is bounded by several at-
tributes from the Common Vulnerability Scoring Sys-
tem (CVSS) (Cheng et al., 2012). So, it becomes
126
Forain, I., Albuquerque, R. and Sousa Júnior, R.
REVS: A Vulnerability Ranking Tool for Enterprise Security.
DOI: 10.5220/0011068600003179
In Proceedings of the 24th International Conference on Enterprise Information Systems (ICEIS 2022) - Volume 2, pages 126-133
ISBN: 978-989-758-569-2; ISSN: 2184-4992
Copyright
c
 2022 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

an optimization problem that can leverage operations
research methods like the Multi-Criteria Decision-
Making (MCDM) (Do
ˇ
zi
´
c, 2019). The Technique
for Order Preference by Similarity to Ideal Solution
(TOPSIS) is an algorithm of the MCDM family used
for the cybersecurity of 5g networks (Kholidy, 2022),
power control systems (Liu et al., 2010) and Intrusion
Detection System (IDS) (Alharbi et al., 2021)
Based on the described open issues, this work
aims to optimize the vulnerability-exploit choosing
process and integrate new vulnerability databases.
To this end, this work proposes the Recommender
Exploitation-Vulnerability System (REVS) based on
a MCDM approach. It leverages data from the NVD,
CNVD, and Vulners to create a vulnerability-exploit
ranking using the TOPSIS algorithm. REVS is a
dual tool that can pinpoint the best exploits to attack-
ers or the most sensitive vulnerabilities to cyberse-
curity staff. The experimental results reveal that the
CNVD, despite data issues, has 23,281 vulnerabilities
entries unmapped in the NVD. Moreover, this work
establishes criteria to link heterogeneous vulnerabil-
ity databases.
This work is structured as follows. Section 2
presents background and related work. Section 3
describes the proposed architecture. Section 4 uses
GNS3 and open source tools to implement the archi-
tecture. Finally, section 5 concludes this article.
2 LITERATURE REVIEW
This section presents a literature review related to this
work. It presents vulnerabilities and exploits and their
available databases. Besides, it reviews approaches
regarding attack path prediction and pentest automa-
tion. Finally, it shows state-of-the-art recommenda-
tion algorithms applied in the cybersecurity field.
2.1 Vulnerabilities and Exploits
Wang and Guo proposed an Ontology for Vulnerabil-
ity Management (OVM) to achieve knowledge repre-
sentation of the Common Vulnerabilities Exposures
(CVE) of the NVD (Wang and Guo, 2009). It was the
first attempt to create a knowledge base (KB) of vul-
nerabilities, but it did not consider the exploits possi-
bility, different from this work. GAO et al. created a
taxonomy and ontology for network attack classifica-
tion using description logic (DL) (Gao et al., 2013).
Kanakogi et al. used natural language processing
(NLP) to match CVE to Common Attack Pattern Enu-
merations and Classifications (CAPEC) (Kanakogi
et al., 2021a; Kanakogi et al., 2021b). These works
guided the CVE data model that REVS uses for vul-
nerability databases.
Householder et al. evaluated a systematic analysis
of the relation between vulnerabilities and exploits.
By the end of 2019, only around 4.1% of the vulner-
abilities exposed after 2013 had an exploit publica-
tion (Hu et al., 2020). It supported this work in giving
more weight to vulnerability features than exploit.
Rodriguez et al. showed that vulnerability disclo-
sure delay between the NVD and other open sources,
e. g. in SecurityFocus, may reach 244 days (Ro-
driguez et al., 2018). Rytel et al. compared sev-
eral databases of vulnerabilities, like the NVD and
CNVD, but only regarding the IoT devices (Rytel
et al., 2020). They presented the necessity of using
more vulnerability databases besides the NVD.
The works presented in this subsection proposed
vulnerability ontologies or evaluated vulnerability
database assessment. Different from them, this work
leverages and integrates those databases for pentest
and security assessment.
2.2 Attack Path and Pentest
Valea and Oprisa proposed pentest automation us-
ing Nmap and Metasploit. Unlike this work, it cov-
ered only vulnerabilities regarding a root shell with
Meterpreter and used decision trees to avoid overfit-
ting (Valea and Opris¸a, 2020). REVS leverages the
TOPSIS algorithm. Polatidis et al. (Polatidis et al.,
2017; Polatidis et al., 2020) proposed an attack path
prediction algorithm to achieve an information risk
assessment. Their work used only CVE data from the
MITRE Corporation (MITRE, 2021) on IT maritime
infrastructure to generate the attack graphs. This work
uses more databases with a different optimization ap-
proach.
Huo et al. used the multi-host Multi-Stage Vul-
nerability Analysis (MulVAL) algorithm to generate
the attack tree. It leveraged a Deep Q-Learning Net-
work (DQN) to choose the best attack path based on
the CVSS of the CVE as a reward function. Their
experiment evaluated a small topology without speci-
fication about the information assets and exploits only
CVE-2012-0053 (Hu et al., 2020). It showed the high
computational cost of deep learning approaches for
extensive networks and sometimes convergence is-
sues. This work uses an operation research method
and improves the integration between Nmap and ex-
ternal data sources.
REVS: A Vulnerability Ranking Tool for Enterprise Security
127

2.3 Recommender Systems
Pawlicki et al. wrote a comprehensive sur-
vey about recommendation systems for Cybersecu-
rity (Pawlicka et al., 2021). It showed to this work
that type of systems as a promising approach to the
vulnerability-exploit recommendation. Polatidis et al.
used a recommendation system with a multi-level col-
laborative filtering method (Polatidis et al., 2018; Po-
latidis and Georgiadis, 2017) to Microsoft Windows.
REVS leverages TOPSIS targeting any platform.
Some works treated the recommendation problem
with an MCDM approach. It relies on minimizing
or maximizing the geometric distance from an ideal
solution like the classical recommendations systems.
Most of them leveraged the TOPSIS for security as-
sessment and Intrusion Detection System (IDS), but
not for pentesting (Kholidy, 2022; Alharbi et al.,
2021; Liu et al., 2010).
Table 1: Comparison with Related Works.
Work Data Sources Algorithm Scope
(Pawlicka et al., 2021) Doesn’t apply Doesn’t apply Survey
(Polatidis et al., 2018) Mitre CVE CF MS Windows
(Polatidis and Georgiadis, 2017) Mitre CVE CF MS Windows
(Kholidy, 2022) NVD, Metasploit TOPSIS 5G networks
(Alharbi et al., 2021) Doesn’t apply TOPSIS IDS attributes
(Liu et al., 2010) Private TOPSIS Power Systems
This work
NVD, CNVD,
Metasploit, Vulners
TOPSIS IPv4, IPv6
Table 1 presents an outline comparison between
the works cited in this subsection and this work. It
shows that it leverages more vulnerability database
sources to a broader network scope.
3 PROPOSED SYSTEM
This section describes the proposed architecture of
the Recommender Exploitation-Vulnerability System
(REVS). Figure 1 presents the system diagram, which
has four main modules.
Four modules comprise the REVS: database,
scanner, matcher, and recommender. The following
subsections describe these four modules.
3.1 Database
The database module comprises two main sets: vul-
nerabilities and exploits. Their function is to provide
numeric features to feed the TOPSIS decision matrix.
REVS gathers the first set from two sources: the NVD
and CNVD. The second set comes from Metasploit’s
database. This layer is a batch process to set up the
Recommendation Flow
Database
Data
Gathering
Vulnerabilities
Exploits
Scanner
Network
Probing
Start
CPE
Matcher
Vulnerability
Matrix
Vulnerabilities
Exploits
Decision Matrix
Recommender
TOPSIS Stop
Vulnerability-Exploit
Ranking
Figure 1: REVS Diagram Process.
databases before the Matcher step. REVS uses the
NVD and CNVD in an ensemble, matching registers
with the same CVE number and joining the scores of
the two databases.
3.1.1 NVD
The NIST from the USA supports the NVD. It
is a well-known and de facto authority regard-
ing system vulnerabilities for the research commu-
nity (NIST, 2021). That database comprises several
features: Common Weakness Enumeration (CWE),
Common Platform Enumeration (CPE), vendors, and
ratings (MITRE, 2021). The NVD uses the CVSS to
rate the characteristics and severity of system vulner-
abilities. The CVSS has two versions, v2.0 and v3.0,
with a different range for similar attributes. Table 2
shows the features from CVSS used by REVS.
Table 2 presents the six CVSS features that com-
prise the criteria used by the TOPSIS decision matrix.
3.1.2 CNVD
The National Computer Network Emergency Re-
sponse Technical Team/Coordination Center of China
(CNCERT/CC) sponsors the CNVD. China has been
a global actor in the information security field, mak-
ing the CNVD a relevant source of vulnerabili-
ties (CNCERT/CC, 2021). However, it did not pro-
vide an interface for data feeding, nor did it provide
ICEIS 2022 - 24th International Conference on Enterprise Information Systems
128

Table 2: CVSS Features.
CVSSv2 CVSSv3
accessComplexity attackComplexity
accessVector attackVector
availabilityImpact availabilityImpact
confidentialityImpact confidentialityImpact
integrityImpact integrityImpact
authentication privilegesRequired
any documentation. REVS implements a data crawler
to get XML files from the CNVD. Moreover, it is sup-
posed to use CVSS v2.0.
3.1.3 Metasploit
Metasploit works as a framework integrating recon-
naissance tools, exploits, and payloads in the same
environment. The metasploit source is the Exploit-
DB maintained by the Offensive Security (Security,
2021). Moreover, Metasploit implements only a sub-
set of exploits from Exploit-DB, most of them based
on Ruby programming language. Besides, REVS
is responsible for matching the framework’s exploits
with the gathered vulnerabilities because Metasploit
is not entirely CVE oriented.
3.2 Scanner
REVS implements two scanning methods: network
hosts status and CPE for the target services and OSs.
The former uses the Nmap function to detect the net-
work hosts’ situation (up or down). The latter also
leverages Nmap to identify CPEs of the opening ser-
vices in each up machine. The CPE is the key used by
the Matcher step to search for vulnerabilities and ex-
ploits in the gathered database. The more detailed the
CPE information, the more likely the chance to match
vulnerabilities and exploits for the target.
3.3 Matcher
This module uses the results from the Scanner to
search for security data in the following databases:
Vulnerabilities, Exploits, and Vulners API. The last
is a web service provided by Vulners (VULNERS,
2021) an Information Security Company from Rus-
sia. The other two are databases collected by the first
module described in subsection 3.1.
There is an interface to Vulners database em-
bedded in Nmap and coded in Lua programming
language (vulns script). The work of (Valea
and Opris¸a, 2020) leveraged it to carry out the
Metasploit automation. However, REVS requires
more vulnerability features to create the deci-
sion matrix for the TOPSIS algorithm. So,
this work creates a new wrapper to Vulners API
(https://vulners.com/api/v3/burp/software?) through
Python classes.
3.4 Recommender
This work approach chooses the best vulnerability-
exploit pair using a decision-making method. In this
case, REVS uses the TOPSIS algorithm based on
the optimization technique described in (Hwang and
Yoon, 1981; Chen and Hwang, 1992; Opricovic and
Tzeng, 2004). The attack is a one-layer problem of
picking up the best vulnerability-exploit pair, i.e., the
lowest cost and highest impact. So, the decision ma-
trix has m vulnerabilities (rows) compared to n fea-
tures (columns).
A = (a
i j
) i = 1,2,...,m; j = 1,2,...,n (1)
Equation 1 shows that the a
i j
is the jth feature
value of the ith vulnerability. After that, the A is nor-
malized and weighted by columns to its X form:
X = (x
i j
) x
i j
= λ
j
∗ a
i j
/
s
n
∑
j=1
a
2
i j
(2)
The technique requires choosing the best and
worst options from the attacker role.
Z
+
= (z
+
1
,z
+
2
,z
+
3
,...,z
+
n
) (3)
Z
−
= (z
−
1
,z
−
2
,z
−
3
,...,z
−
n
) (4)
It is essential to understand if the column feature
is a benefit or a cost. If it is a benefit, the z
j
value for
the best option is the maximum column value. Oth-
erwise, it must be the minimum value. Equations 5
e 6 indicate the calculus for benefit and cost features,
respectively.
z
+
j
= max(x
i j
) z
−
j
= min(x
i j
) (5)
z
+
j
= min(x
i j
) z
−
j
= max(x
i j
) (6)
Now, there are m vectors with dimension n, which
are the rows of the matrix X. There are also two new
vectors with size n, Z
+
and Z
−
, which are the ideal
solutions. The TOPSIS requires calculating the Eu-
clidean distance between the m vectors and the ideal
solutions.
REVS: A Vulnerability Ranking Tool for Enterprise Security
129

d
+
i
=
q
(Z
i
− X
+
)
2
(7)
d
−
i
=
q
(Z
i
− X
−
)
2
(8)
Finally, calculate the performance ratio to rank
each one of the vulnerabilities, from highest to lowest.
p
i
= d
+
i
/(d
−
i
+ d
+
i
), i = 1,2,3,...,m (9)
4 PRELIMINARY RESULTS
REVS is an ongoing project with preliminary results
regarding the following modules: database, scanner,
and matcher. This section presents the test environ-
ment based on the GNS3 and discusses those results.
4.1 Test Environment
This work emulates a medium enterprise Secu-
rity Operation Center (SOC) using Graphical Net-
work Simulator-3 (GNS3). It uses Quick Emulator
(QEMU) on kernel-based virtual machines (KVM) in
Linux Ubuntu 20.04. Furthermore, KVM in Linux
performs better than type 2 hypervisors like Virtual-
Box and VMware because of hardware acceleration
and kernel embedded commands. Figure 2 presents
the test environment.
REVS
Figure 2: Emulated SOC with QEMU/KVN.
The GNS3 makes it possible to build an environ-
ment with different Operating Systems (OSs): Kali
Linux, Ubuntu 18.04, CentOS 8, Windows Server,
and Metasploitable III (Rapid7, 2021) machine. This
last is a vulnerable public VM based on Ubuntu 14.04.
Table 3 lists the environment hardware and VMs.
Table 3: Environment hardware and VMs.
Machine Description
Host Ryzen 7 4800h / 16gb RAM
Emulator GNS3 2.2.28
Metasploitable III Ubuntu 14.04
Firewall pfSense 2.5.2
Routers VyOS 1.1.8
Switches Open vSwitch 2.4.0
4.2 Database Results
This work implements two data scrapers to collect
vulnerabilities data from the NVD and CNVD. It
downloads the two databases simultaneously on Jan-
uary 24, 2022, for a fair comparison. The first scraper
uses the REST API supported by NIST, which pro-
vides vulnerability registers with unique CVE id and
CVSS v2 and v3 scores. Besides, some of these reg-
isters also contain CPEs and CWEs related to the
vulnerability. REVS makes use of the OPENCVE
tool (Crocfer, 2020) to retrieve data from the REST
API and store it locally in a PostgreSQL relational
database.
The second scraper requires implementation from
scratch. The CNVD does not provide any API to
return vulnerability data. Otherwise, it provides
a set of XML files lacking schema definition with
part of the data scored by CVSS v2. Moreover,
CNCERT/CC generates a new XML file every Mon-
day 18h:00 (CST) with vulnerability registers from
the past week. Different from the work of (Rytel
et al., 2020), REVS uses the python requests library
with custom “User-Agent” tag and cookie parameters
( jsluid and jsl clearance s) to bypass the CNVD
blocking system. Table 4 presents a summary of the
NVD and CNVD.
Table 4: Summary of the National Databases.
Feature NVD CNVD
Vulnerability 178,906 99,261
Missing Weeks 6 0
Duplicated ID 0 88
Without CVE 0 23,281
Duplicated CVE 0 108
Nonexistent CVE 0 193
Table 4 shows that the CNVD dataset has the fol-
ICEIS 2022 - 24th International Conference on Enterprise Information Systems
130

lowing issues: six missing week files, 23,281 vulner-
abilities without corresponding CVE, 88 vulnerabili-
ties with duplicated id, 108 CVEs linked to more than
one vulnerability, and 193 entries linked to nonexis-
tent CVEs. They look like malformed CVEs during
string copy from other databases. Moreover, preced-
ing files are not up-to-date; they started in January
2015, and most of the XML files have scape charac-
ters. REVS corrected these last issues and stored the
CNVD data in a relational database on PostgreSQL.
Figure 3 compares the NVD and the CNVD regarding
the CVSS, CPE, and external references.

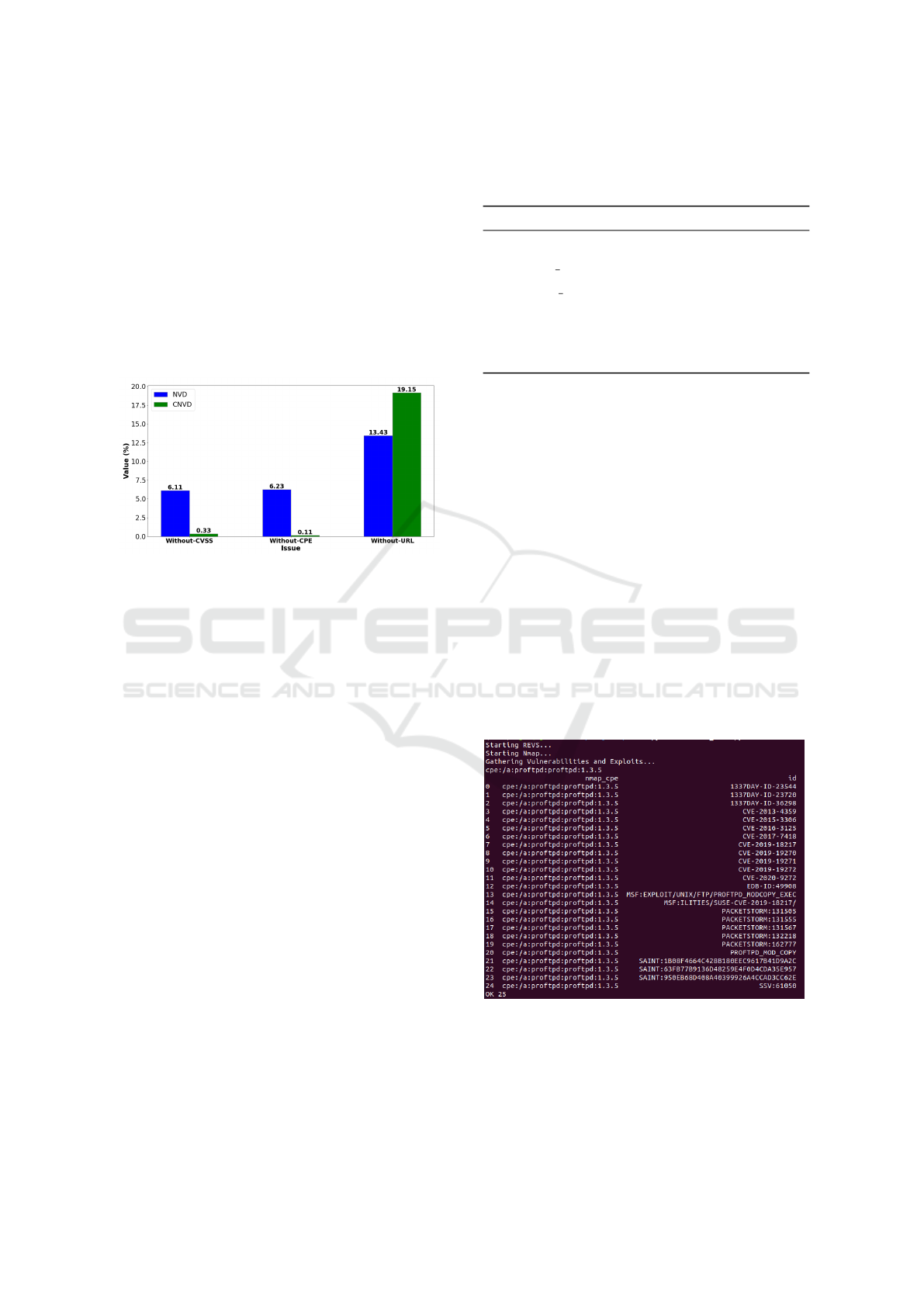

Figure 3: Databases Comparison.
Figure 3 shows that despite being the main respon-
sible for CVE Mitre framework implementation, the
NVD has 6.11% of the entries without any CVSS met-
ric, while the CNVD has 0.33%. Moreover, the NVD
and the CNVD have 6.23% and 0.11% of the entries
without CPE, respectively. This last issue prevents a
comprehensive identification of the vulnerable hard-
ware or software. The NVD carries more information
regarding external URL references, with 13.43% of
the entries without this information, while the CNVD
shows 19.15% missing this feature.
This work uses two approaches for exploits gath-
ering: parsing the entire Metasploit source code and
scraping the Exploit-DB website. The former exe-
cutes a string pattern search looking for CVE men-
tions in the Metasploit source code structure. The lat-
ter scrapes the Exploit-DB website to get the relations
between exploits and CVEs. After that, REVS also
stores the results in PostgreSQL. Moreover, it lever-
ages the Vulners API on the fly to search for vulnera-
bilities and exploits.
4.3 Scanner and Matcher Results
Figure 2 shows that the attack scenario uses REVS
outside the topology against the Metasploitable III
VM on the DMZ. In this scenario, REVS runs in
the host machine against the guest VM emulated by
GNS3 using the NVD and the CNVD as vulnerability
database and Vulners as exploit source. It finds the
results listed in table 5.
Table 5: Vulnerabilities and Exploits per CPE.
CPE NVD CNVD Exploits
proftpd:proftpd:1.3.5 9 8 2
linux:linux kernel 6 1 0
apache:http server:2.4.7 44 38 53
samba:samba 1 1 0
apple:cups:1.7 6 0 1
mysql:mysql 2 0 0
68 48 56
Table 5 shows that most of the vulnerabilities be-
long to the Apache webserver. The table also presents
the same situation about the exploits available in the
Metasploit framework. Table 5 also shows that REVS
found 48 vulnerabilities using the CVE id as the
search key in the CNVD. The 68 vulnerabilities de-
tected by REVS using the NVD include these 48.
The 20 unmatched vulnerabilities in the CNVD
are before 2015. It explains why they are not in
the CNVD. However, a future approach is a new
search for these unmatched results using CPE as
the search key in the CNVD. Furthermore, a sec-
ond official database, the China National Vulnerabil-
ity Database of Information Security (CNNVD), also
requires comparison against NVD and CNVD.
Figure 4 presents the data returned from
REVS-Vulners interface regarding the CPE
proftpd:proftpd:1.3.5.
Figure 4: REVS and Vulners Interface Results.
Figure 4 shows that REVS-Vulners interface re-
turns 9 CVEs and two exploits from Metasploit. Be-
sides, it returns data regarding obsolete zero-days and
forum messages.
REVS: A Vulnerability Ranking Tool for Enterprise Security
131

5 CONCLUSIONS
The CNVD has several protection mechanisms to pre-
vent downloads despite being a public database. Also,
there are missing data files and 23,281 vulnerabilities
without CVE mapping. It indicates process issues or
the existence of vulnerabilities known only to the Chi-
nese community because most of the text data are in
mandarin.
REVS is an ongoing project that is working on the
results of the Recommender module. It has already
downloaded and normalized the NVD and CNVD
databases. Furthermore, REVS integrated those two
national vulnerability databases, Nmap and Vulners,
using CPE and CVE as the search keys. The vul-
nerability assessment against the VM behind a SOC
emulated in GNS3 showed the NVD as a more com-
prehensive database than the CNVD.
As Future work, the authors suggest using the
TOPSIS fuzzy version with attack paths calculated by
the MULVAL algorithm in the recommender module.
The batch translation to English of the already down-
loaded database and an automatic one for new data
are necessary improvements for REVS. This research
will go further into integrating with the CNNVD and
NLP approaches to vulnerability search.
ACKNOWLEDGEMENTS
The authors acknowledge the support of ABIN grant
08/2019. R.d.O.A. gratefully acknowledges the Gen-
eral Attorney of the Union - AGU grant 697.935/2019
and the General Attorney’s Office for the Na-
tional Treasure - PGFN grant 23106.148934/2019-
67. R.T.S.J. gratefully acknowledges the support from
EC Horizon 2020 HEROES project grant 101021801,
CNPq grants 465741/2014-2 and 312180/2019-5, the
Administrative Council for Economic Defense grant
08700.000047/2019-14, and the National Auditing
Department of the Brazilian Health System SUS
(Grant 23106.118410/2020-85).
REFERENCES
Alharbi, A., Seh, A. H., Alosaimi, W., Alyami, H., Agrawal,
A., Kumar, R., and Khan, R. A. (2021). Analyzing the
impact of cyber security related attributes for intrusion
detection systems. Sustainability, 13(22):12337.
Awiszus, M. and Rosenhahn, B. (2018). Markov chain neu-
ral networks. In Proceedings of the IEEE Conference
on Computer Vision and Pattern Recognition Work-
shops, pages 2180–2187.
Bertoglio, D. D. and Zorzo, A. F. (2017). Overview and
open issues on penetration test. Journal of the Brazil-
ian Computer Society, 23(1):1–16.
Chen, S.-J. and Hwang, C.-L. (1992). Fuzzy multiple at-
tribute decision making methods. Fuzzy multiple at-
tribute decision making, pages 289–486.
Cheng, P., Wang, L., Jajodia, S., and Singhal, A. (2012).
Aggregating cvss base scores for semantics-rich net-
work security metrics. In 2012 IEEE 31st Symposium
on Reliable Distributed Systems, pages 31–40. IEEE.
Chowdhary, A., Huang, D., Mahendran, J. S., Romo, D.,
Deng, Y., and Sabur, A. (2020). Autonomous security
analysis and penetration testing. In 2020 16th Interna-
tional Conference on Mobility, Sensing and Network-
ing (MSN), pages 508–515. IEEE.
CNCERT/CC (2021). China National
Vulnerability Database (CNVD).
https://www.cnvd.org.cn/shareData/list. [Online;
accessed 24-January-2022].
Crocfer, N. (2020). CVE Alerting Platform.
https://github.com/opencve/opencve. [Online;
accessed 06-December-2021].
Do
ˇ
zi
´
c, S. (2019). Multi-criteria decision making methods:
Application in the aviation industry. Journal of Air
Transport Management, 79:101683.
Du, G., Long, C., Yu, J., Wan, W., Zhao, J., and Wei, J.
(2019). A real-time big data framework for network
security situation monitoring. In ICEIS (1), pages
167–175.
Ferreira, A., Cruz-Correia, R., et al. (2021). Covid-19
and cybersecurity: finally, an opportunity to disrupt?
Jmirx med, 2(2):e21069.
Gao, J.-b., Zhang, B.-w., Chen, X.-h., and Luo, Z. (2013).
Ontology-based model of network and computer at-
tacks for security assessment. Journal of Shanghai
Jiaotong University (Science), 18(5):554–562.
Ghanem, M. C. and Chen, T. M. (2020). Reinforcement
learning for efficient network penetration testing. In-
formation, 11(1):6.
Gualberto, E. S., De Sousa, R. T., Thiago, P. D. B.,
Da Costa, J. P. C., and Duque, C. G. (2020). From
feature engineering and topics models to enhanced
prediction rates in phishing detection. Ieee Access,
8:76368–76385.
Hemberg, E., Kelly, J., Shlapentokh-Rothman, M., Rein-
stadler, B., Xu, K., Rutar, N., and O’Reilly, U.-M.
(2020). Linking threat tactics, techniques, and pat-
terns with defensive weaknesses, vulnerabilities and
affected platform configurations for cyber hunting.
arXiv preprint arXiv:2010.00533.
Hu, Z., Beuran, R., and Tan, Y. (2020). Automated pene-
tration testing using deep reinforcement learning. In
2020 IEEE European Symposium on Security and Pri-
vacy Workshops (EuroS&PW), pages 2–10. IEEE.
Hwang, C.-L. and Yoon, K. (1981). Multiple attribute deci-
sion making: a state of the art survey. Lecture Notes
in Economics and Mathematical Systems, 186(1).
Kanakogi, K., Washizaki, H., Fukazawa, Y., Ogata, S.,
Okubo, T., Kato, T., Kanuka, H., Hazeyama, A., and
Yoshioka, N. (2021a). Tracing capec attack patterns
ICEIS 2022 - 24th International Conference on Enterprise Information Systems
132

from cve vulnerability information using natural lan-
guage processing technique. In Proceedings of the
54th Hawaii International Conference on System Sci-
ences, page 6996.
Kanakogi, K., Washizaki, H., Fukazawa, Y., Ogata, S.,
Okubo, T., Kato, T., Kanuka, H., Hazeyama, A., and
Yoshioka, N. (2021b). Tracing cve vulnerability infor-
mation to capec attack patterns using natural language
processing techniques. Information, 12(8):298.
Khan, N. A., Brohi, S. N., and Zaman, N. (2020). Ten
deadly cyber security threats amid covid-19 pan-
demic.
Kholidy, H. A. (2022). Multi-layer attack graph analysis in
the 5g edge network using a dynamic hexagonal fuzzy
method. Sensors, 22(1):9.
Liu, N., Zhang, J., Zhang, H., and Liu, W. (2010). Secu-
rity assessment for communication networks of power
control systems using attack graph and mcdm. IEEE
Transactions on Power Delivery, 25(3):1492–1500.
Liu, X., Qian, C., Hatcher, W. G., Xu, H., Liao, W., and Yu,
W. (2019). Secure internet of things (iot)-based smart-
world critical infrastructures: Survey, case study and
research opportunities. IEEE Access, 7:79523–79544.
Mavroeidis, V. and Bromander, S. (2017). Cyber threat in-
telligence model: an evaluation of taxonomies, shar-
ing standards, and ontologies within cyber threat intel-
ligence. In 2017 European Intelligence and Security
Informatics Conference (EISIC), pages 91–98. IEEE.
MITRE (2021). The MITRE Corporation.
https://cve.mitre.org/. [Online; accessed 06-
December-2021].
NIST (2021). National Vulerability Database (NVD).
https://nvd.nist.gov/vuln/data-feeds. [Online; ac-
cessed 24-January-2022].
Opricovic, S. and Tzeng, G.-H. (2004). Compromise so-
lution by mcdm methods: A comparative analysis of
vikor and topsis. European journal of operational re-
search, 156(2):445–455.
Pawlicka, A., Pawlicki, M., Kozik, R., and Chora
´
s, R. S.
(2021). A systematic review of recommender sys-
tems and their applications in cybersecurity. Sensors,
21(15):5248.
Pimenta Rodrigues, G. A., de Oliveira Albuquerque, R.,
Gomes de Deus, F. E., De Oliveira J
´
unior, G. A.,
Garc
´
ıa Villalba, L. J., Kim, T.-H., et al. (2017). Cyber-
security and network forensics: Analysis of malicious
traffic towards a honeynet with deep packet inspec-
tion. Applied Sciences, 7(10):1082.
Polatidis, N. and Georgiadis, C. K. (2017). A dy-
namic multi-level collaborative filtering method for
improved recommendations. Computer Standards &
Interfaces, 51:14–21.
Polatidis, N., Pavlidis, M., and Mouratidis, H. (2018).
Cyber-attack path discovery in a dynamic supply
chain maritime risk management system. Computer
Standards & Interfaces, 56:74–82.
Polatidis, N., Pimenidis, E., Pavlidis, M., and Mouratidis,
H. (2017). Recommender systems meeting security:
From product recommendation to cyber-attack pre-
diction. In International Conference on Engineer-
ing Applications of Neural Networks, pages 508–519.
Springer.
Polatidis, N., Pimenidis, E., Pavlidis, M., Papastergiou, S.,
and Mouratidis, H. (2020). From product recommen-
dation to cyber-attack prediction: generating attack
graphs and predicting future attacks. Evolving Sys-
tems, 11(3):479–490.
Rapid7 (2021). The Metasploitable 3 Linux VM.
https://github.com/rapid7/metasploitable3. [Online;
accessed 10-January-2022].
Rodriguez, L. G. A., Trazzi, J. S., Fossaluza, V., Campiolo,
R., and Batista, D. M. (2018). Analysis of vulnera-
bility disclosure delays from the national vulnerabil-
ity database. In Anais do I Workshop de Seguranc¸a
Cibern
´
etica em Dispositivos Conectados. SBC.
Rytel, M., Felkner, A., and Janiszewski, M. (2020). To-
wards a safer internet of things—a survey of iot vul-
nerability data sources. Sensors, 20(21):5969.
Security, O. (2021). The Exploit Database.
https://www.exploit-db.com/. [Online; accessed
10-January-2022].
Shah, S. and Mehtre, B. M. (2015). An overview of
vulnerability assessment and penetration testing tech-
niques. Journal of Computer Virology and Hacking
Techniques, 11(1):27–49.
Thamilarasu, G. and Chawla, S. (2019). Towards deep-
learning-driven intrusion detection for the internet of
things. Sensors, 19(9):1977.
Valea, O. and Opris¸a, C. (2020). Towards pentesting au-
tomation using the metasploit framework. In 2020
IEEE 16th International Conference on Intelligent
Computer Communication and Processing (ICCP),
pages 171–178. IEEE.
VULNERS, I. (2021). Vulners, inc. https://vulners.com/.
[Online; accessed 10-January-2022].
Wang, J. A. and Guo, M. (2009). Ovm: an ontology for
vulnerability management. In Proceedings of the 5th
Annual Workshop on Cyber Security and Information
Intelligence Research: Cyber Security and Informa-
tion Intelligence Challenges and Strategies, pages 1–
4.
Yaqoob, I., Hussain, S. A., Mamoon, S., Naseer, N., Akram,
J., and ur Rehman, A. (2017). Penetration test-
ing and vulnerability assessment. Journal of Net-
work Communications and Emerging Technologies
(JNCET) www. jncet. org, 7(8).
Zhou, S., Liu, J., Hou, D., Zhong, X., and Zhang, Y. (2021).
Autonomous penetration testing based on improved
deep q-network. Applied Sciences, 11(19):8823.
REVS: A Vulnerability Ranking Tool for Enterprise Security
133
