Modeling the Dynamic Reconﬁguration in Smart Crisis Response

Systems

Akram Seghiri

1,2 a

, Faiza Belala

and Nabil Hameurlain

2 b

LIRE Laboratory, University of Constantine 2 - Abdelhamid Mehri, Constantine, Algeria

LIUPPA Laboratory, University of Pau, Pau, France

Keywords:

Smart Systems-of-Systems, Architecture Description Language, Dynamic Reconﬁguration, Maude Strategy

Language.

Abstract:

Crises response systems form the majority of today’s complex systems; they generate situations characterized

by harmful consequence, low probability, and short decision time. The decision-making in these systems

constitute a challenging issue and must be conscientiously supported. The aim of this paper is twofold, we

derive a referential architecture for crisis response system-of-systems in one hand, the role of communication

and the characteristics of constituent systems that are needed to adapt their dynamic behavior are added to the

architecture standard of IEEE. In the other hand, we deﬁne a formal model on the basis of the Maude Strategy

language, to deal with the dynamic reconﬁguration of these system types.

1 INTRODUCTION

1.1 Context and Problematic

Crises response systems form the majority of today’s

complex systems; they generate situations character-

ized by harmful consequence, low probability, and

short decision time. The crisis response in general

constitutes a challenging issue and must be conscien-

tiously supported. It involves multiple parties, each

with their own autonomy and capabilities, leading

to differentiations in structure, goals, strategies, and

constraints for cooperation (Van Veelen et al., 2008).

Therefore, a crisis response system needs to support

distributed and continuous adaptation due to unpre-

dictable changes in goals and plans for the current cri-

sis management organization. Different approaches

to adaptation and (re-)conﬁguration have to be inte-

grated for dynamically structuring, conﬁguring, and

re-conﬁguring organizations to comply with actual

goals and agreements on plans in crisis management

conditions.

On the other hand, Systems of Systems (SoS), are

a set of independently developed systems that inter-

act to achieve a speciﬁc goal, known as an SoS mis-

sion, which neither of them can solely achieve. They

https://orcid.org/0000-0002-1760-1932

https://orcid.org/0000-0003-3311-4146

are distinguished from large monolithic systems by a

set of eight key ‘dimensions’ of SoS (Nielsen et al.,

2015): autonomy, independence, distribution, evolu-

tion, emergent behavior, dynamic behavior, interde-

pendence and interoperability. Besides these dimen-

sions, we also observe geographic distribution as a re-

current feature for SoS (Nielsen et al., 2015). They

have been classiﬁed by the level of managerial con-

trol.

This systems type is being more used in various

emerging concepts and technologies, such as Inter-

net of Things or Cyber-Physical Systems. Thus, there

is a constant need for a SoS to be more reactive, to

have an adaptive manner, and to be widely recon-

ﬁgurable. This gave birth the concept of Smart SoS

(SSoS). SSoS are particular SoS that inherit their ba-

sic characteristics, but also have the ability to be re-

conﬁgured dynamically in order to respond to exter-

nal events that may affect them, and achieve an SoS

mission, as a response to these multiple events. These

events may happen concurrently and in parallel, and

an SSoS should be able to handle this parallelism.

This is done through a set of actions, which are de-

ﬁned as three key operations: (1) dynamic communi-

cation links between these systems (2) a combination

of their functions to achieve a new function that nei-

ther of them can obtain on its own (3) a mobility on

the SoS, by adding, removing or replacing its con-

stituent systems.

162

Seghiri, A., Belala, F. and Hameurlain, N.

Modeling the Dynamic Reconﬁguration in Smart Crisis Response Systems.

DOI: 10.5220/0011069300003176

In Proceedings of the 17th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2022), pages 162-173

ISBN: 978-989-758-568-5; ISSN: 2184-4895

1.2 Objective

A Smart Crisis Response SoS (SCRSoS) is one of the

possible SSoS. It has the goal of crisis management,

and regroups a set of independent systems that should

cooperate to realize this goal, despite being fully au-

tonomous, independent and heterogeneous complex

systems. Thus, the SoS approach is justiﬁed by their

ability to respond to a crisis that neither of them can

manage on its own. Considering different crisis as ex-

ternal events, that have short decision time and most

of the time may happen without notice, the need of

smart systems that react to these events is essential.

They need to be dynamically adaptive and mobile in

order to have emerging behaviours. Thus, reconﬁgur-

ing their components and natures is vital; they ought

to interact by being linked together and combining

their functions to achieve SoS missions. Systems in

SCRSoS have a hierarchy in which, despite belonging

to a speciﬁc SoS and realizing common goals, con-

stituent systems still maintain their independent and

managerial autonomy, and their own evolutionary na-

ture. SCRSoS has an unpredictable nature, as deci-

sion making on how systems contribute depends on

many factors:

• External events triggering different type of be-

haviours from concerned constituent systems.

• Behavioural constraints prohibiting some systems

from interacting on speciﬁc events, or from shar-

ing some of their functions with other speciﬁc sys-

tems.

By having these factors, we can achieve SoS missions

in an autonomous way, deﬁned as an event trigger-

ing certain interactions (links) between speciﬁc con-

stituent systems, then they combine some of their

roles in order to respond to that event, ensuring co-

herence by not violating behavioural constraints.

In order to design SCRSoS, and to execute and sim-

ulate its behaviours and reconﬁgurations, a formal

model is needed. This model should be enough

generic, thus it will be inspired from a reference

architecture derived from the ISO/IEC/IEEE 42010

standard (ISO/IEC/IEEE, 2011) and also based on

ArchSoS, an existing Architecture Description Lan-

guage (ADL) dedicated to SoS software architectures.

Maude is used to specify, implement and execute this

model. The aim of this paper is twofold, we derive

a referential architecture for crisis response system-

of-systems in one hand, the role of communication

and the characteristics of constituent systems that are

needed to adapt their dynamic behavior are added to

the architecture standard of IEEE. In the other hand,

we deﬁne a formal model on the basis of the Maude

Strategy language, to deal with the dynamic recon-

ﬁguration of these system types. Besides, this model

is very appropriate to formally analyse some relveant

properties of Smart-SoS.

1.3 Related Work

There have been few approaches in the literature deal-

ing with the formal description and analysis of Smart

and reconﬁgurable SoS. Among these works, we are

interested in the study of the following three contribu-

tions, allowing to situate our own.

Authors in (Nielsen and Larsen, 2012) proposed

an extension of VDM-RT formalism to enable the

modeling of evolving SoS, their constituents, and

communication channels that can be added and re-

moved at runtime. It was applied on an intelligent Ve-

hicle Monitoring SoS aiming to improve road safety.

Similarly, the work of (Oquendo, 2016) has pro-

posed an ADL, known as SosADL and based on Π-

calculus. It focused on how organizing the interac-

tions among an SoS constituent systems to enable

the emergence of SoS-wide behaviors derived from

local behaviors. Also, this work has been extended

and enhanced to cover two SoS application examples:

(1) an urban river monitoring SoS illustrating self-

organizing architectures (Oquendo and Legay, 2015),

and (2) an IoV Internet of Vehicles serving as a sup-

port to describe an SoS-based exogenous approach

(Oquendo, 2019).

On the other hand, in (Chaabane et al., 2019),

authors adapted the standard “ISO/IEC/IEEE 42010:

systems and software engineering-architecture de-

scription” and improved it to support SoS software

architectural description. They evaluated their pro-

posal with the Goal-Question-Metric (GQM), as an

effectiveness check. The approach was used to model

a Smart City SoS dealing with structural, behavioral

and requirements aspects.

In our previous work, we have deﬁned ArchSoS

language, as an ADL dedicated to software architec-

tural description of SoS. Its originality lies in the fact

that, its syntax being textual or graphical, is inspired

from Bigraphical Reactive Systems (Milner, 2009)

and its operational semantics is based on rewriting

theories (Meseguer, 1996). Then, obtained ArchSoS

models are naturally executed and analyzed through

Maude system (Clavel et al., ) (McCombs, 2003). In

this paper, we propose to extend ArchSoS in order

to deal explicitly with the principle of reconﬁgura-

tion in SoS, as well as their formal analysis. Indeed,

Smart SoS constituent systems have unpredictable be-

haviours, as they are constantly evolving and have to

coordinate and interact to accomplish global missions

Modeling the Dynamic Reconﬁguration in Smart Crisis Response Systems

163

depending on the events occurring.

1.4 Paper Organization

The reminder of this paper is organized as follows:

Section 2 motivates our case study, which is the SCR-

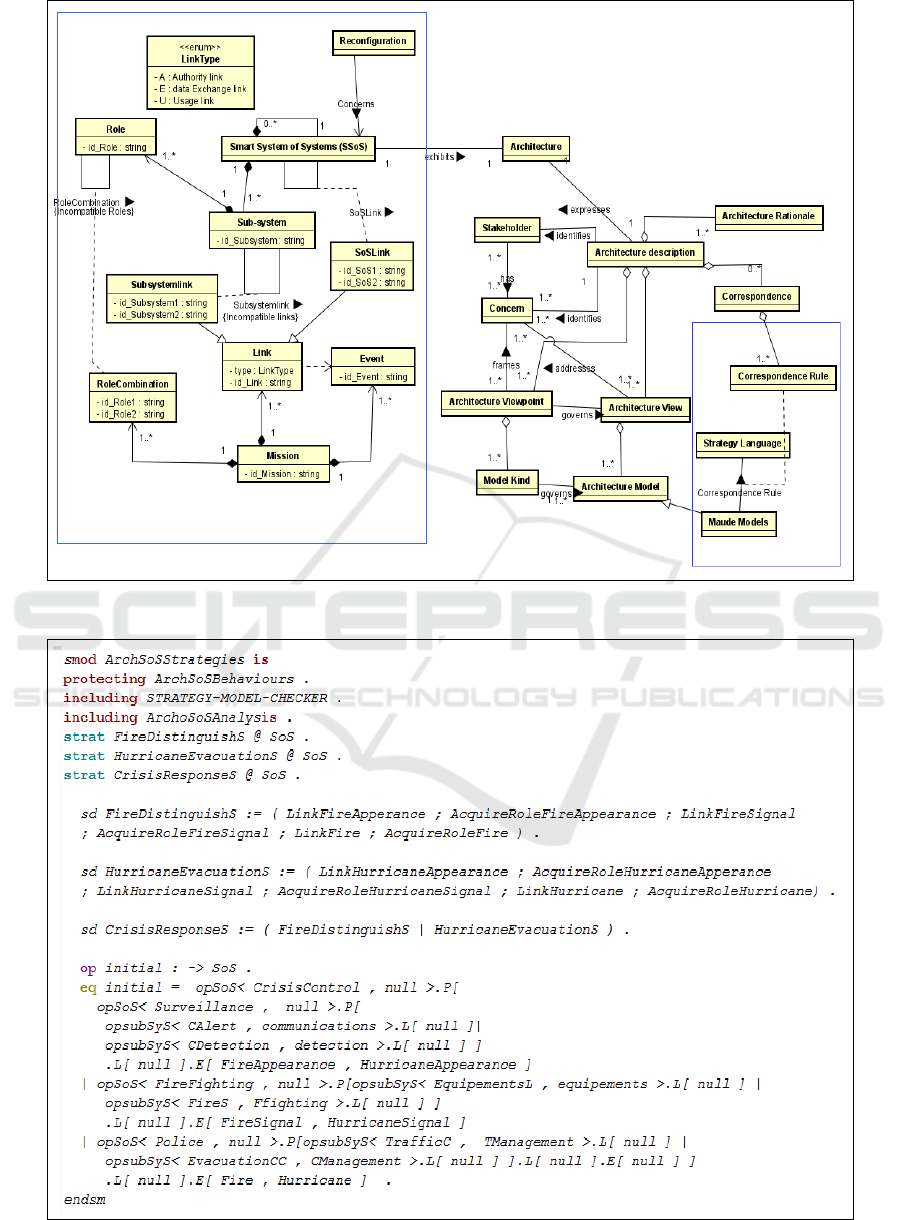

SoS, Section 3 deﬁnes reconﬁgurations in ArchSoS

using a referential architecture inspired from an IEEE

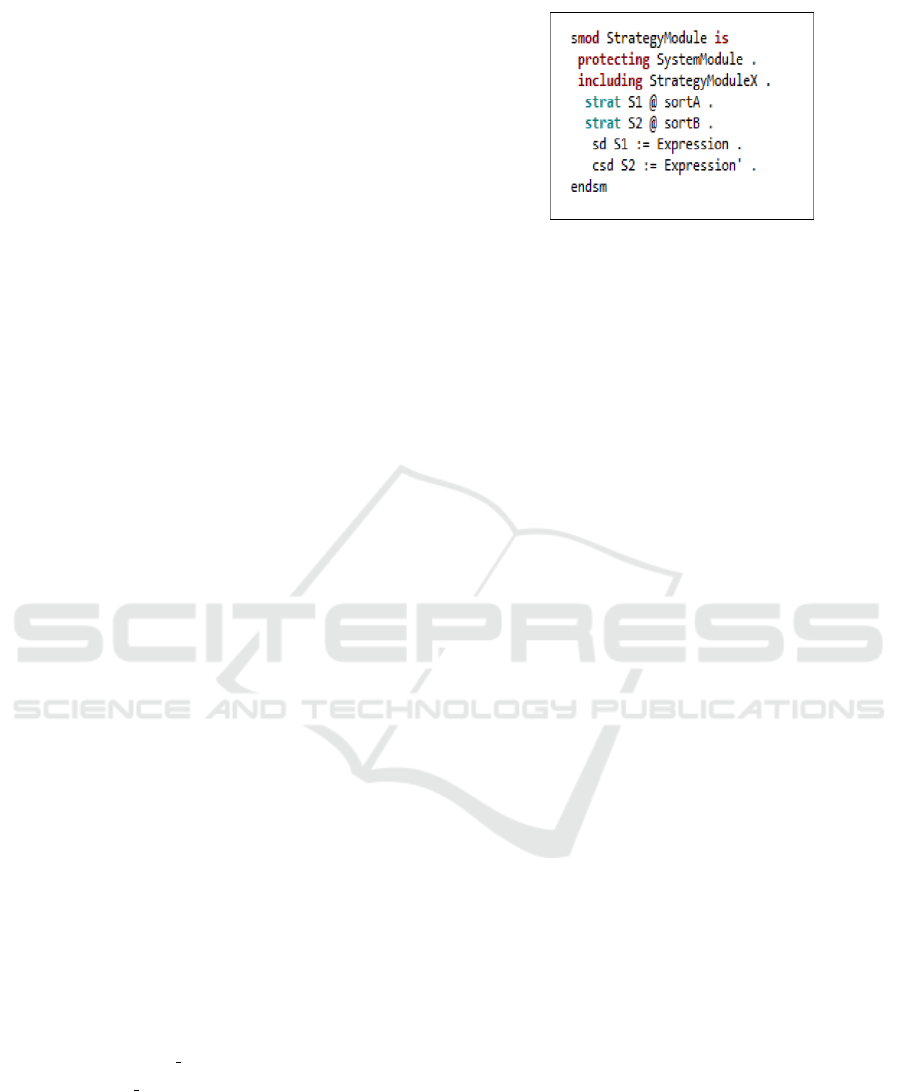

standard. Section 4 gives a review of Maude and its

strategy language extension. Section 5 gives a for-

mal model, centred on Maude strategies, to describe

Smart SoS reconﬁgurations. It is executed by apply-

ing strategies concerning SCRSoS behaviours and its

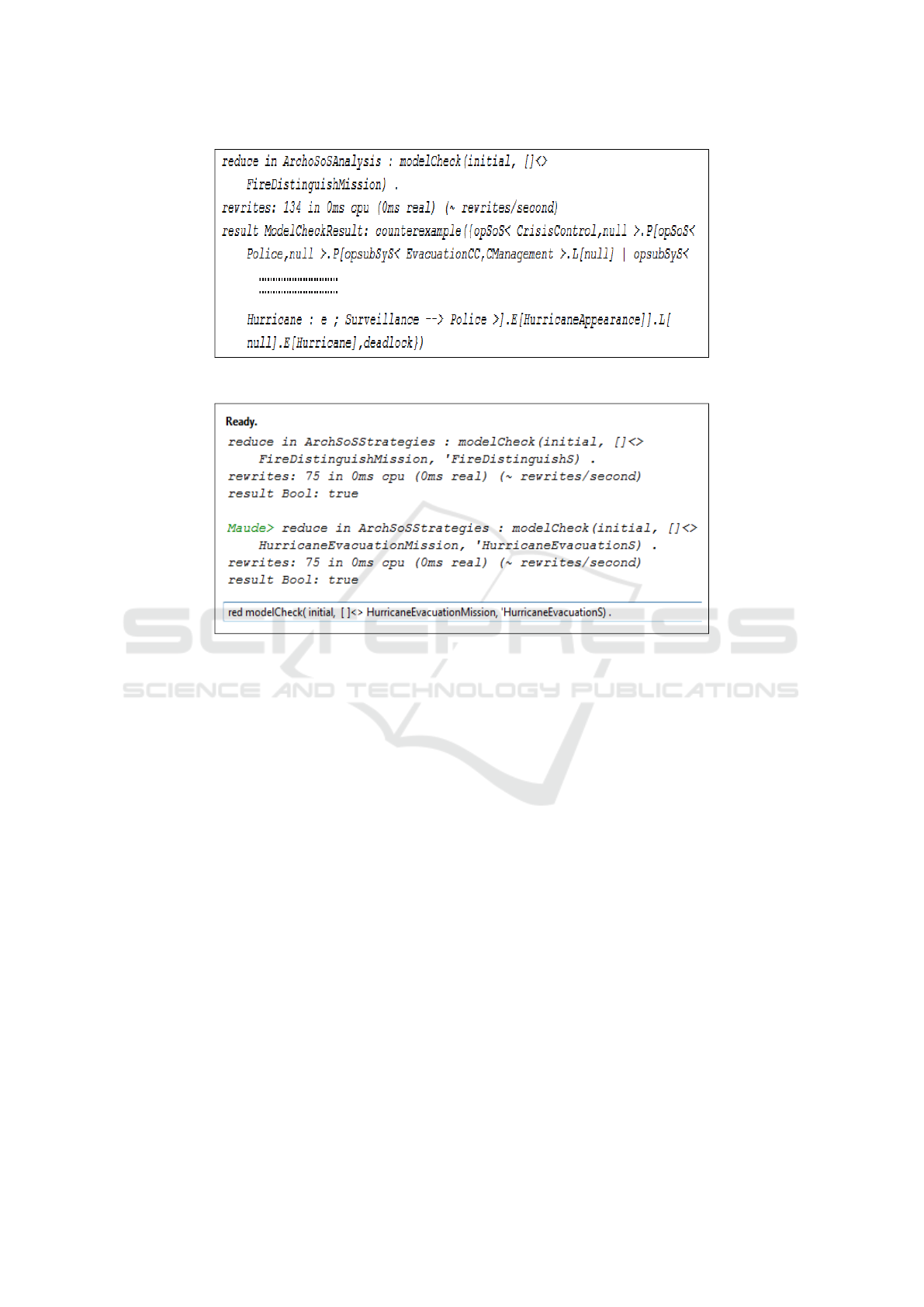

various events. Section 6 gives a formal analysis of

some SoS relevant properties. Finally, we conclude

the paper with some remarks in Section 7.

2 MOTIVATING EXAMPLE:

SMART CRSoS

The Smart Crisis Response SoS (SCRSoS) is an SoS

resulting from the collaboration of many other SoS.

These latter collaborate in order to deal with bigger

crisis and disasters that neither of them can maintain

on its own. The main goal of having a SCRSoS is

to reduce the element of surprise after having a cri-

sis or disaster, resulting in less reaction time needed

to provide immediate assistance, warnings and evac-

uation. By having a responsive and reconﬁgurable

Smart SoS, several solutions to preserve human life

and keep the damage to the minimum. This may

be found and obtained via the cooperation of con-

stituent systems. In this work context, SCRSoS is

speciﬁed using the ArchSoS langage, more appropri-

ate to model the structure of such complex systems

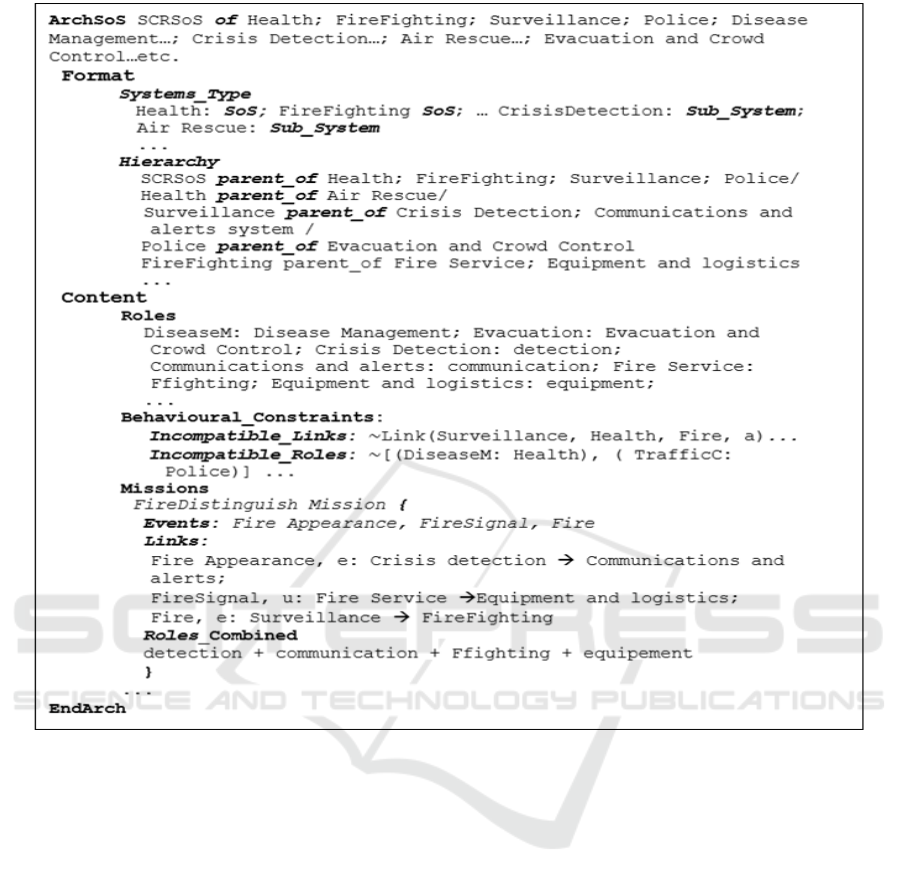

and their behaviours. Figure 1 illustrates this descrip-

tion. We have SCRSoS and all the systems it contains,

followed by two abstraction levels using:

• Format: It contains all the systems belonging to

an SoS; alongside their corresponding types (SoS

or atomic Sub-System) using ’Systems Type’ tag,

followed by the hierarchic structure of the systems

inside an SoS, which is given using the ’parent of’

tag to deﬁne a belonging relation.

• Content: It is divided into :

– Roles: To each atomic sub-system is attached

a role deﬁning its basic and independent func-

tion. Systems may combine their roles in order

to have a new role for the SoS.

– Behavioural Constraints: A set of conditions

that need to be satisﬁed when dealing with

an SoS dynamics and evolution of constituent

systems. We note that these constraints differ

from one SoS to another, and they are divided

into two type of constraints: (1) Incompatible

Links: a set of constraints to indicate that

some systems cannot communicate with each

other. We note the communication between

systems as a link, which has three possible

types: a: Authority link, u: Usage link, e:

data Exchange link. The constraint has the

syntax: ∼Link (Surveillance, Health, Fire, a).

It states that two SoS Surveillance and Health

cannot be linked with a link of type ’a’ in

case of a Fire event. (2) Incompatible Roles:

states the illegal role combinations between

constituent systems, it is noted: ∼[(DiseaseM:

Disease Management), (Evacuation: Evacua-

tion and crowd control)], it states that the roles

DiseaseM and Evacuation, corresponding to

Disease Management and Evacuation and

crowd control respectively, cannot be com-

bined together.

– Missions: a mission is the main goal of an

SoS, and a desired behaviour that is achieved by

combining different roles belonging to speciﬁc

linked systems, according to speciﬁc events.

For instance, the FireDistinguish mission has

three possible events, Fire, FireApperance and

Firesignal, to each event is associated a respec-

tive link stating the systems that are linked in

response to this event. The mission is achieved

when SCRSoS has the speciﬁc role combina-

tion of these linked systems.

As an example of missions and events in SCRSoS, we

deﬁne two possible scenarios of two different crisis

occurring at the same time. SCRSoS has to be recon-

ﬁgured in order to respond to the events and achieve

corresponding missions: FireDistinguish and Hurri-

caneEvacuation. The two corresponding scenarios

are described in Table 1, that shows affected SoS with

due to events, and speciﬁc constituent systems being

reconﬁgured. In this example, This leads two dis-

tinct missions of SCRSoS are achieved. We notice

that multiple reconﬁgurations are needed, to respond

to external events that may happen at the same time.

For instance, in order to achieve the FireDistinguish

mission, SCRSoS needs to respond to three sequential

events, which are FireApperance, FireSignal and Fire.

The concerned constituent systems are linked depend-

ing on the event, and their roles are combined in order

to produce emergent roles indicating that the mission

is achieved. Through these two concurrent scenarios

of SCRSoS, we tackle two main challenges that may

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

164

Figure 1: ArchSoS description of SCRSoS.

occur when having multiple events at the same time:

• SCRSoS may be reconﬁgured and deal with par-

allel events without affecting each other.

• SCRSoS may be reconﬁgured in oder to respond

to a speciﬁc disaster and crisis before others, de-

pending on their gravity or their response or-

der, for instance FireAppearance event need to

be dealt with before the FireSignal event, and the

Fire event should follow after. Another example

would be that the Fire event should be prioritized

over the Hurricane event, because naturally a ﬁre

needs a faster response than a hurricane that takes

times to strike.

3 MODELING SMART SoS IN

ArchSoS

We adapt ArchSoS deﬁnition to the ISO/IEC/IEEE

42010 standard, as an architectural reference to de-

scribe SCRSoS structures, and constraint its be-

haviours. This standard has a conceptual model repre-

senting the notions of systems, components, and their

environment. It contains an architectural description

of a system architecture, represented by architectural

views and architectural models. These models are

built according to speciﬁc formalisms and notations.

However, this standard needs to be adapted in order

to address SoS characteristics and their challenges.

Thereby, allowing the deﬁnition of SoS models in ac-

cordance to this standard.

Authors in (Chaabane et al., 2019) adapted the

ISO/IEC/IEEE 42010 standard and improved it to

deal with SoS by replacing the system of interest as-

Modeling the Dynamic Reconﬁguration in Smart Crisis Response Systems

165

Table 1: SCRSoS Scenarios.

Event Affected

SoS

Reconﬁgured Systems

Scenario 1 : FireDistinguish Mission

Fire-

Appearance

Surveillance Crisis detection

system + Communica-

tions and alerts system

FireSignal FireFighting Fire Service system +

Equipment and logis-

tics system

Fire SCRSoS Surveillance SoS +

FireFighting SoS

Scenario 2 : HurricaneEvacuation Mission

Hurricane-

Appearance

Surveillance Crisis detection

system + Communica-

tions and alerts system

Hurricane-

Signal

Police Evacuation and crowd

control system + Traf-

ﬁc control system

Hurricane SCRSoS Surveillance SoS +

Police SoS

pect of the metric with a constituent systems entity,

linked to a system-of-systems entity. In a similar way,

we extend this standard by replacing the system of in-

terest with a Smart SoS entity containing other Arch-

SoS entities and elements. We also introduce the abil-

ity to reconﬁgure Smart SoS architectures, and the ar-

chitectural models. Figure 2 illustrates this extension

(blue rectangles).

The architecture description is the key element of

the standard conceptual model, it identiﬁes three ele-

ments (1) the stakeholders, which are the most inter-

ested entities in a system, such as developers, main-

tainers, and mostly a designer that deﬁnes an SoS

structure and constraints in ArchSoS. He may also

trigger events to simulate SoS behaviours. (2) The

concerns, representing the purpose of a system and

its potential achievement, its implemention feasibil-

ity and its capacity to evolve. It represents the SCR-

SoS missions. (3) The systems of interest exhibiting

this architecture, which are in our case SSoS. They

are supposed to have their complexity reduced while

having a high abstract software description.

Stakeholders and concerns are identiﬁed by an ar-

chitecture description of an SSoS entity architecure.

A SSoS is composed by of SSoS, and of other sub-

systems entity, delimiting atomic systems that have

no constituent systems. Both SSoS and sub-systems

can be linked to other SSoS or sub-systems respec-

tively, and they may contain roles that can be com-

bined. We note that links and role combinations are

constrained by the SCRSoS behavioural constraints

An architectural view is composed of architecture

models, governed by model kinds. In our case, we

adapt Maude models as an executable rewrite theory

of SSoS. Maude’s strategy language offers additional

speciﬁcations and control over the Maude model exe-

cution.

SoSs are known by their evolutionary nature; ei-

ther on the structural level by changing the SoS hier-

archy and its actual constituent systems, or on the be-

havioural level by deﬁning dynamic interactions and

collaborations between them, leading to ﬂexible re-

conﬁgurations. This evolutionary nature makes it dif-

ﬁcult to capture SoS behaviours, and how they are

conducted relatively to external events that may occur.

We should speciﬁy how SoS missions are achieved,

in a coherent and autonomous way. This is the case

of Smart SoS; no central control on their evolution.

Smart SoS have autonomous constituent systems that

can adapt to external events, and evolve to fulﬁl an

SoS mission.

This paper addresses this challenging issue, by in-

vestigating and focusing on SoS reconﬁgurations. It

deﬁnes a formal approach to guide and constrain SoS

behaviours. We use a Maude extension, known as

the Maude strategy language (Mart

ı-Oliet et al., 2009)

(Rubio et al., 2022) to deﬁne deterministic behaviours

of SoS in ArchSoS, as there is no control on how

Maude rewrite theories are executed. This will ensure

that the SCRSoS constituents can be reconﬁgured ac-

cording to speciﬁc events, in order to achieve the SoS

missions.

4 MAUDE STRATEGY

LANGUAGE REVIEW

Maude (Clavel et al., ) (McCombs, 2003) is a lan-

guage that implements rewriting logic, as formal se-

mantic framework. It allows the deﬁnition of con-

current computations of complex systems, consider-

ing the following two aspects:

• The structural aspect using a mathematical set of

equations deﬁning the syntax of the system.

• The dynamic aspect using rewrite rules, that from

an initial state Si, make a transition to a next state

Sj, thereby changing the general behavior of the

system.

The main unit of programming and specifying in

Maude language is a module. We distinguish two

types of modules in the standard Maude: (1) a Func-

tional module, which uses equational logic, deﬁning

the syntactic structure of a system, (2) a System mod-

ule, to deﬁne a system dynamic evolution, as an ap-

plication of rewrite rules that can be conditioned. The

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

166

Figure 2: Extending ArchSoS according to the ISO/IEC/IEEE 42010 standard.

Figure 3: SCRSoS Strategy module.

Modeling the Dynamic Reconﬁguration in Smart Crisis Response Systems

167

usage of both these modules covers both the structural

and behavioural aspects of a system.

Maude modules extensions may be deﬁned to

make its speciﬁcations more expressive. For instance,

we may cite Object-Oriented Maude (Clave et al.,

2000) which models systems as a multiset of entities

represented as objects with unique identities, com-

municating with message passing. Real Time Maude

(

Olveczky and Meseguer, 2007) is another Maude ex-

tension used to deﬁne real-time/embedded systems,

equipped with timed rewriting for simulations.

In this paper, we are interested by Maude’s strat-

egy language that separates between rewrite rules of

a Maude system module, and their rewrite guidance

using strategies. This language has its own opera-

tional semantics, allowing the manipulation of strate-

gies without the need of being familiar with the reﬂec-

tive concepts of Maude META-LEVEL module. It

deﬁnes internal strategies as rewrite rules (Mart

ı-Oliet

et al., 2009) (Rubio et al., 2022). By using Maude’s

strategy language, we can associate to each Maude

system module a strategy module that contains strat-

egy expressions deﬁning the number, type, and order

of executing rewrite rules. Thus, the semantic of a

system does not only depend on the system module

itself, but also on its deﬁned set of strategies. The

syntax of a strategy module is given by the Figure 4,

that we will detail in the following :

• Strategy module declaration is achieved with the

keyword ’smod’. It contains a set of strategies,

they concern a speciﬁc Maude system module de-

signed by the protecting tag. The module itself

can use and import other strategy modules using

the including tag.

• Strategy declaration is decklared by the keyword

’strat’. It contains two arguments : the identiﬁer

of the strategy (S1, S2 in ﬁgure 4), and the sort

that is affected by this strategy.

• Strategy deﬁnition is also possible using the

sd(strategy deﬁnition) or the csd(conditional strat-

egy deﬁnition) tags, the latter deﬁnes a strategy

that is applied only when a condition is fulﬁlled.

This strategy deﬁnition may have the following

syntax :

sd strategy identi f ier := Expression

csd strategy identi f ier := Expression i f Condition

Expressions are a set of terms deﬁning how ex-

actly rewrite rules are applied.

In Maude strategy language, a possible execution in-

volving the strategy concept is done via the following

command:

srew Term using S1

Figure 4: A Strategy Module syntax.

where Term represents a state of a system, and S1 is

the used strategy to rewrite this state term.

The Maude strategy language also offers the pos-

sibility to organize the execution of strategies and

their rewrite rules, giving a priority to certain ones

above the others, and constraining how they should

be executed according to a set of operators. The main

operators are summarized in Table 2 .

We have to notice that in the operator ”;”, the sys-

tem is constrained to run all rules of the strategy S1

before being able to run the rules of S2. If the order

of the rules is inversed (noted S2; S1), then S2 is exe-

cuted ﬁrst and S1 follows next, if it is possible to run

it after S2. This offers the possibility to force a sys-

tem to have an execution pattern where critical rules

should always be applied.

The operator ”|” constraints the system to run (if

possible) S2 even if S1 cannot be executed. However,

when the rewriting occurs, S1 has a priority over S2

(the opposite way when they are inversed). The se-

mantic of an SoS using this operator offers possibility

to order the execution according to the importance of

the system’s behaviours.

5 RECONFIGURATION FORMAL

MODEL FOR SSoS

In this Section, we show how we associate a strategy-

based rewrite theory to deﬁne the structural and be-

havioural aspects of SCRSoS. We are particularly in-

terested by specifying the reconﬁguration manage-

ment using a set of proposed strategies. Formally, our

model using the strategy language has the following

deﬁnition:

de f

ArchSoS

= {Σ

ArchSoS

,(E ∪ A)

ArchSoS

,SM

ArchSoS

)}

It describes SoS architectures expressed in Arch-

SoS, while specifying their semantics via a set of

Maude strategy modules :

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

168

Table 2: Strategy Language Operators.

Operator Syntax Functionality

; sd Strategy0 := S1, S2 Concatenation (Associative )

| sd Strategy0 := S1 | S2 Union (Associative and Commuta-

tive)

* sd Strategy =: (. . . . . . )* At least 0 iteration

+ sd Strategy =: (. . . . . . )+ At least 1 iteration

! sd Strategy =: (. . . . . . )! All iterations

Table 3: Correspondance table between ArchSoS aspects and Maude.

Aspect ArchSoS entities Maude speciﬁcation

ArchSoS Syntax

SoS,

Sub-Systems

and events

sort SoS idSoS.

subsort subSyS < SoS .

sort Event .

op opSoS < , > .P[ ].L[ ].E[ ] :

IdSoS Role SubSyS Link Event → SoS [ctor] . op null : → SoS

[ctor] .

op | : SoS SoS → SoS [ctor assoc comm id: null] .

sort IdSubsystem .

op opsubSyS < , > .L[ ] :

IdSubsystem Role Link → subSyS [ctor] .

op | : subSyS subSyS → subSyS [ctor assoc comm id: null] .

Roles sort Role .

op ”RoleName” → Role [ctor].

op null : → Role [ctor] .

op + : Role Role → Role [ctor assoc comm id: null] .

Links sorts Link LinkT.

op link < : ; → > :

Event LinkT IdSoS IdSoS →Link [ctor] .

op a : → LinkT [ctor] .

op u : → LinkT [ctor] .

op e : → LinkT [ctor] .

Events sort Event (sort inside the opSoS construct).

ArchSoS Semantic

Control Predicates φ

Maude Conditional Equations:

IsActive(SoS), CompRoles(Rolei, Rolej), NoComp(SoS),

isLinked(Subsystemi), areLinked (Subsystemi, Subsystemj),

PosLink(Subsystemi,Subsystemj,Event, LinkT), NoClinks(Si),

CanAdd(SoS,SubSystemi) CanRemove(SoS,SubSystemi) .

Action Maude Conditioned Rewrite Rule

crl [rewrite-rule-name] : State

→ State

if φ

Mission Strategy deﬁnition S

Reconﬁguration Strategies and rewrite rules combination using operators .

Veriﬁcation Property Maude LTL Property Prop

Modeling the Dynamic Reconﬁguration in Smart Crisis Response Systems

169

• Σ

ArchSoS

and (E ∪ A)

ArchSoS

represent the ArchSoS

syntax using an equational theory giving to each

ArchSoS entity (SoS, sub-systems, roles, links,

events), its rigorous semantics (meaning).

• The semantic S

ArchSoS

is deﬁned by the tuple

ArchSoS

,SM

ArchSoS

– R

ArchSoS

identiﬁes a set of rewrite rules rep-

resenting actions that may affect SSoS be-

haviours, and a set of predicates that constraints

the application of these rewrite rules.

– SM

ArchSoS

is a set of strategies that may be com-

bined via operators to deﬁne ArchSoS possible

reconﬁgurations.

Table 3 deﬁnes the correspondence between ArchSoS

and its Maude speciﬁcation. In the ArchSoS part,

we declare all sorts and operators that serve to deﬁne

ArchSoS entities. The main user-deﬁned operator is

”opSoS”; it constructs a SoS having a clear and for-

mal syntax. The semantic part of this table (Table 3)

illustrates how we associate to each behavioural ele-

ment of ArchSoS, a rigorous semantic. For instance,

one reconﬁguration is deﬁned by a strategy S

, which

containts a set of rewrite rules combined via Maude

strategy language dedicated operators.

Our contribution will be more explained through

the scenarios taken from the proposed case study

(SCRSoS). In order to deal with both SCRoS mis-

sions simultaneously, our previous behavioural model

does not deﬁne this situation, the rewriting of the cor-

responding SCRSoS states must be done sequentially

and separately. In this present work, we use some

strategies deﬁnition to tackle this problem. Figure 3

illustrates the strategy module.

• FireDistinguishS strategy: Is deﬁned to achieve

the FireDistinguish mission, it has six rewrite

rules reconﬁgured sequentially with the ”;” oper-

ator, stating that each rule needs to be executed

before the next one is applied.

• HurricaneEvacuationS strategy: Similarly, it is

proposed to achieve the HurricaneEvacuation

mission.

• CrisisResponseS strategy: It represents the global

reconﬁguration of the SCRSoS, and it is com-

posed of the FireDistinguishS strategy, followed

by the HurricaneEvacuationS strategy using the

operator ”|”. It states that even if the FireDis-

tinguish mission is not achieved where the ﬁre

event does not happen; theHurricaneEvacuationS

strategy still carries on and is executed (a char-

acteristic of the union operator ”|”), there is no

dependency between both strategies. Besides, if

both strategies can be executed when the SCRSoS

strategy is applied, the FireDistinguish one has

higher priority than the HurricaneEvacuationS, it

is executed before the latter.

An initial state of SCRSoS is deﬁned in Figure 3. It

contains all the six events that may be used to describe

both SCRSoS scenarios. Both scenarios can be exe-

cuted with the command:

srew initial using CrisisResponse.

The execution results are shown in Figure 5. They

state that both the FireDistinguishS strategy and the

HurricaneEvacuationS strategy are executed simulta-

neously, and two distinct solutions are available, with

FireDistinguishS being the ﬁrst solution. It is worth

to note that:

• The SCRSoS strategy execution has the ability to

deal with parallel and concurrent events. Thus, it

can respond to many crisis at the same time.

• In addition, while deﬁning strategies in a sequen-

tial order, a priority is given to some scenarios

over others, this is interpreted as dealing with ur-

gent crisis ﬁrst, before crisis that have more reac-

tion time.

6 FORMAL ANALYSIS

Formal models of SoS speciﬁed with this ArchSoS

extension have been executed and prototyped through

Maude system, in order to show how we deal with

dynamic reconﬁguration of Smart SoS. In this sec-

tion, we exploit the model-checker tool of Maude to

express and analyse SoS inherent properties. We de-

velop a new Maude module called ArchSoSAnalysis

containing a set properties deﬁned using LTL syntax

(more details can be found on [Rozier, 2011]) :

• inactivity: Checks if an SoS role is inactive, stated

by the word ’null’.

• roles-violation: Checks if a role combination has

occurred, despite having combined roles that are

not compatible.

• links-violation: Checks if two constituent systems

are linked while being incompatible on that spe-

ciﬁc link;

• vivacity: It ensures that something good will al-

ways happen. It checks that every SoS on which

the inactivity property holds, will always end up

active:

eq vivacity = [ ] <> (inactivity ⇒∼ inactivity).

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

170

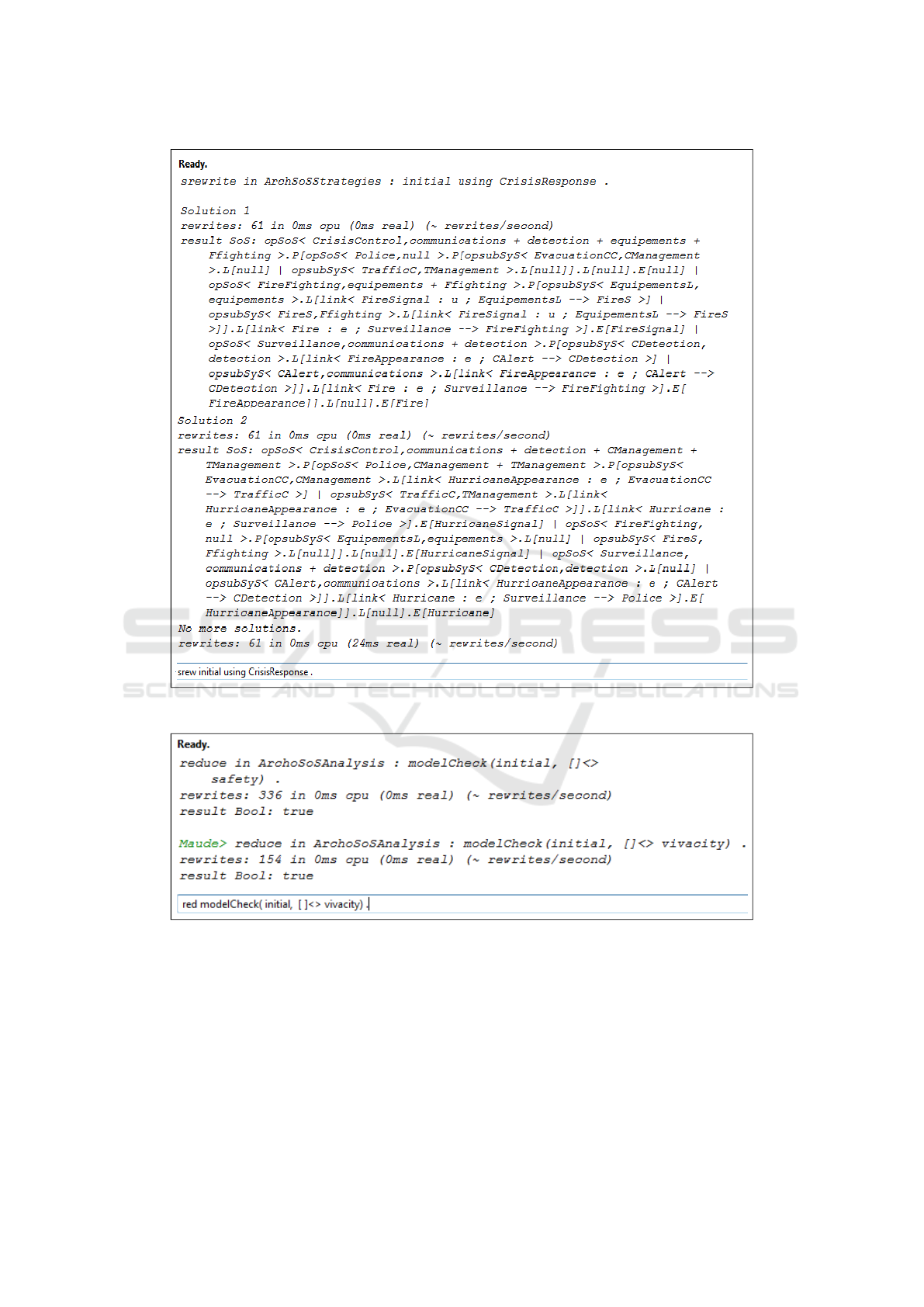

Figure 5: SCRSoS strategy execution.

Figure 6: Safety and Vivacity model-checking results.

• safety: It ensures the correct evolution of SoS be-

haviours, by respecting the deﬁned behavioural-

constraints. It checks that both behavioural-

constraints, for links and roles, are not violated

through all SoS evolution states, it is noted as :

eq sa f ety = [ ](∼ links - violation/\

∼ roles - violation).

• FireDistinguishMission: A property that checks

if SCRSoS will have a state where the roles-

combination required to achieve the FireDistin-

guish mission holds.

• HurricaneEvacuationMission: A property that

checks the presence of the roles needed for the

HurricaneEvacuation mission on a SCRSoS evo-

lution state .

A given Property is executed using the model-checker

Modeling the Dynamic Reconﬁguration in Smart Crisis Response Systems

171

Figure 7: FireDistinguishMission property model-checking using Maude.

Figure 8: SCRSoS missions’ model-checking using Maude strategies.

tool via the command :

red modelCheck(initial, LT Loperators P)

Where P is the property to verify, preceded by a com-

bination of the LTL operators <> and [ ] to deﬁne if

the property needs to hold at least once in the evolu-

tion process, or to always hold for instance. Figure 6

shows the execution results of both the vivacity and

the safety properties. They both return true indicating

that they are valid through the execution of SCRSoS

evolution actions.

However, when executing the FireDistinguishMission

or the HurricaneEvacuationMission, both return a

counterexample stating that both properties are not

valid. This is explained by the fact of having two

disctinct scenarios. Maude can only execute one sce-

nario at once, and since both scenarios have the same

initial state, thus affecting each other when executed.

For instance, Figure 7 shows the counter-example

from the analysis of the FireDistinguishMission prop-

erty, it represents the execution of theHurricane sce-

nario as a situation where the property FireDistin-

guishMission never holds.

In order to deal with this problem and to vali-

date the properties concerning SCRSoS missions, we

need to verify each property by applying the strategy

deﬁned for speciﬁc missions in the model-Checking

process. It will have the following syntax (Rubio

et al., 2022):

red modelCheck(initial,[] <> MissionP,

MissionS)

where MissionP is the property that veriﬁes the mis-

sion validation, and MissionS is the strategy to apply

on the model-checking process, preceded by the sym-

bol ’

’. Figure 8 shows the new execution results for

both properties FireDistinguishMission and Hurrica-

neEvacuationMission. Now, they return true, indi-

cating that they are valid.

We notice that the SCRSoS missions’ proper-

ties that couldn’t be validated using standard Maude

model-checking, are validated when reconﬁguring the

SCRSoS through speciﬁc strategies for each mission.

7 CONCLUSIONS

In this paper, we have extended ArchSoS, an ADL

dedicated to describing SoS architectures in order to

deal with Smart SoS. First, we have deﬁned a concep-

tual model for SoS by adapting ArchSoS concepts to

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

172

the ISO/IEC/IEEE 42010 standard. Then, we have

formalized the extended version of ArchSoS using

rewriting logic. Smart SoS architectures and their

behaviors have been deﬁned through a set of Maude

modules allowing the formal execution and analysis

of these models. Rewriting rules and predicates have

been proposed to give a natural semantics to SoS be-

havior evolution. Dynamic reconﬁguration of Smart

SoS due to many possible external events was well

speciﬁed using the concept of strategy provided by the

Maude Strategy language. Three strategies have been

deﬁned for the considered case study SCRSoS, their

execution has shown that two crisis scenarios may be

applied simultaneously to achieve two SoS missions

at the same time.

In addition, we have proposed a set of proper-

ties that we have checked positively using the model-

checker LTL of Maude. Thus, we have shown the

relevance of Maude strategies while validating some

properties that remain not valid with the previous

model of ArchSoS. In future, we plan to equip Arch-

SoS with temporal constraints in order to check non-

functional properties. Other case studies are also pos-

sible to better illustrate the contributions of this lan-

guage.

REFERENCES

Chaabane, M., Rodriguez, I. B., Colomo-Palacios, R.,

Gaaloul, W., and Jmaiel, M. (2019). A mod-

eling approach for systems-of-systems by adapt-

ing iso/iec/ieee 42010 standard evaluated by goal-

question-metric. Science of Computer Programming,

184:102305.

Clave, M., Dur

an, F., Eker, S., Lincoln, P., Marti-Oliet,

N., Meseguer, J., and Quesada, J. F. (2000). Towards

maude 2.0. Electronic Notes in Theoretical Computer

Science, 36:294–315.

Clavel, M., Dur

an, F., Eker, S., Lincoln, P., Mart

ı-Oliet,

N., Meseguer, J., and Talcot, C. All About Maude

- A High-Performance Logical Framework : How

to Specify, Program, and Verify Systems in Rewrit-

ing Logic. Programming and Software Engineering

, 4350. Springer-Verlag Berlin Heidelberg.

ISO/IEC/IEEE (2011). Systems and software engineering –

architecture description. ISO/IEC/IEEE 42010: 2011

(E)(Revision of ISO/IEC 42010: 2007 and IEEE Std

1471-2000), pages 1—-46.

Mart

ı-Oliet, N., Meseguer, J., and Verdejo, A. (2009). A

rewriting semantics for maude strategies. Electronic

Notes in Theoretical Computer Science, 238(3):227–

247.

McCombs, T. (2003). Maude 2.0 primer. Department of

Computer Science, University of Illinois and Urbana-

Champaign, Urbana-Champaign, Ill., USA.

Meseguer, J. (1996). Rewriting logic as a semantic frame-

work for concurrency: a progress report. In Inter-

national Conference on Concurrency Theory, pages

331–372. Springer.

Milner, R. (2009). The space and motion of communicating

agents. Cambridge University Press.

Nielsen, C. B. and Larsen, P. G. (2012). Extending vdm-rt to

enable the formal modelling of system of systems. In

2012 7th International Conference on System of Sys-

tems Engineering (SoSE), pages 457–462. IEEE.

Nielsen, C. B., Larsen, P. G., Fitzgerald, J., Woodcock, J.,

and Peleska, J. (2015). Systems of systems engineer-

ing: basic concepts, model-based techniques, and re-

search directions. ACM Computing Surveys (CSUR),

48(2):1–41.

Olveczky, P. C. and Meseguer, J. (2007). Semantics and

pragmatics of real-time maude. Higher-order and

symbolic computation, 20(1-2):161–196.

Oquendo, F. (2016). π-calculus for sos: A foundation

for formally describing software-intensive systems-

of-systems. In 2016 11th System of Systems Engineer-

ing Conference (SoSE), pages 1–6. IEEE.

Oquendo, F. (2019). Architecting exogenous software-

intensive systems-of-systems on the internet-

of-vehicles with sosadl. Systems Engineering,

22(6):502–518.

Oquendo, F. and Legay, A. (2015). Formal architecture

description of trustworthy systems-of-systems with

sosadl. ERCIM News, (102).

Rubio, R., Mart

ı-Oliet, N., Pita, I., and Verdejo, A. (2022).

Model checking strategy-controlled systems in rewrit-

ing logic. Automated Software Engineering, 29(1):1–

62.

Van Veelen, J., Van Splunter, S., Wijngaards, N., and Bra-

zier, F. (2008). Reconﬁguration management of cri-

sis management services. In The 15th conference

of the International Emergency Management Society

(TIEMS 2008).

Modeling the Dynamic Reconﬁguration in Smart Crisis Response Systems

173
