Characterizing Technical Debt in Evolving Open-source Software

Arthur-Jozsef Molnar

∗ a

and Simona Motogna

Faculty of Mathematics and Computer Science, Babes¸ -Bolyai University, Cluj-Napoca, Romania

Keywords:

Technical Debt, Software Evolution, Longitudinal Case Study, Open-source Software, Software Maintenance.

Abstract:

Technical debt represents deﬁciencies in software design or implementation often caused by prioritizing fea-

ture development over ﬁxing existing issues. Like its ﬁnancial counterpart, technical debt comprises a princi-

pal and an interest. Not addressing it in time leads to development crises, where focus and resources must be

shifted to address existing issues. Existing software tools allow measuring the level of debt and pinpointing its

sources, which can help practitioners control it. In the present paper we aim to investigate the prevalence, char-

acteristics, and evolution of technical debt in several open-source applications. We used SonarQube to study

112 application versions that covered more than 15 years of development for each application. We studied

the way debt characteristics and source code distribution evolved over the target applications’ lifecycles. We

addressed concerns regarding the accuracy of the analysis and illustrated some of the limitations of existing

tools. We observed that a small number of issue types were responsible for most of the debt. We found that

each application had its own technical debt particularities. As future work, we aim to expand our selection of

analysis tools, leverage open data sets, and extend our investigation to other systems and types of software.

1 INTRODUCTION

The size and complexity of software systems are re-

ﬂected in their development processes. Stakeholder

pressure for continued delivery of features, combined

with time and budgetary restrictions can lead to ne-

glecting internal quality attributes such as maintain-

ability, performance or reliability. This prioritization

of features over quality was ﬁrst named by Cunning-

ham in 1992 (Cunningham, 1992), who coined it tech-

nical debt (TD), in similarity with ﬁnancial debt. It

refers to the typical undesirable outcomes of this pri-

oritization and highlights the difﬁculties of carrying

out long-term software development and maintenance

(Fowler, 2019). TD is divided into the principal,

which represents the effort needed to recover the orig-

inal debt, and the interest, which represents the sup-

plementary effort that corresponds to additional sys-

tem modiﬁcations that were caused by the TD prin-

cipal. When left to accumulate over time, TD can

generate crises that halt development (Martini et al.,

2015) or lead to severe consequences (US. Securities

and Exchange Commission, 2013; Fatemi, 2016).

https://orcid.org/0000-0002-4113-2953

https://orcid.org/0000-0002-8208-6949

∗

The publication of this article was supported by the

2021 Development Fund of the Babes¸-Bolyai University.

Authors of (Li et al., 2014) provide a taxonomy

that classiﬁes TD according to ten coarse-grained

types, which are then further subdivided. Of these,

the authors show code TD to be the one most widely

mentioned, followed by architectural, testing and de-

sign debts. Signiﬁcant effort towards addressing TD

was made over the last decade, with both the re-

search and practitioner communities most often tar-

geting code and architectural debt. Several TD mod-

els were proposed such as SQALE (Letouzey, 2012),

CAST (Curtis et al., 2012) and SIG (Nugroho et al.,

2011). Tools such as SonarQube, NDepend, Kiuwan

or CAST Software were developed to provide solu-

tions for estimating and prioritizing it.

Even so, there still exist open issues that need to

be addressed. One of them refers to ad-hoc and in-

formal decisions regarding debt management caused

by different interpretations from researchers, devel-

opers and managers (Klinger et al., 2011). In many

cases, this results in TD being ignored for as long

as possible, leading to ”the crisis model” (Martini

et al., 2015), where feature development is inter-

spersed with periodic crises during which TD levels

must be lowered.

Other open problems regard insufﬁcient evidence

in several areas of handling TD such as characteriz-

ing its evolution over time, taking into account differ-

174

Molnar, A. and Motogna, S.

Characterizing Technical Debt in Evolving Open-source Software.

DOI: 10.5220/0011073600003176

In Proceedings of the 17th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2022), pages 174-185

ISBN: 978-989-758-568-5; ISSN: 2184-4895

ences between programming paradigms, languages,

or the speciﬁcs of different application types. Provid-

ing evidence supported by data sets can signiﬁcantly

increase the quality of TD evaluation as well as stake-

holder trust in the available tools. Most case studies

targeting TD do not provide a longitudinal view, and

very few cover the entire lifespan of their target appli-

cations. Likewise, while recent research does include

a ﬁne-grained analysis of TD sources (Walkinshaw

and Minku, 2018; Lenarduzzi et al., 2020a; Baldas-

sarre et al., 2020; Lenarduzzi et al., 2020b), this is

not complemented by an analysis regarding its diffu-

sion across application components or its evolution.

Our goal is to provide a long-term view and detailed

characterization of source code technical debt over

the entire lifetime of the target applications. We aim

to focus on how technical debt evolves within the tar-

get applications and to compare our results with those

from existing research.

Our main contributions are to (i) provide a charac-

terization of technical debt in real-life, evolving open-

source software; (ii) investigate how technical debt is

diffused across applications and application packages

and (iii) study how the composition and distribution

of technical debt evolve over the long-term.

2 BACKGROUND

2.1 Technical Debt

The last ten years were marked by a continuous in-

terest in the research pertaining to the prevalence and

effects of TD. Several of the proposed methodologies

for measuring TD were implemented in the form of

software tools. These include the SonarQube

plat-

form and NDepend

, both of which are based on the

SQALE method introduced in 2011 (Nugroho et al.,

2011). These tools implement the SQALE method

by estimating the time required to ﬁx technical debt

items associated with source code. The total time

required to ﬁx all issues represents the TD princi-

pal. Other signiﬁcant approaches include CAST Soft-

ware

, which is based on the eponymous model pro-

posed in 2012 as well as the SIG method

and Ki-

uwan

, both of which implement their own models

for TD estimation. The research community sys-

tematically publishes case studies, experience reports

https://www.sonarqube.org/

https://www.ndepend.com/

https://www.castsoftware.com/

https://www.softwareimprovementgroup.com/

services/software-risk-assessment/

https://www.kiuwan.com/

and comparative evaluations (Izurieta et al., 2017;

Stre

cansk

y et al., 2020; Avgeriou et al., 2021; Verdec-

chia et al., 2018; Zazworka et al., 2013) where these

models and corresponding tooling are evaluated.

Most of the available tools that provide quantita-

tive evaluation employ static code analysis to identify

existing issues based on a number of predeﬁned rules

that correspond to different quality factors such as

maintainability, reliability, security or performance.

Issues are usually weighted by their severity, their re-

medial effort is estimated and analyzed code is cate-

gorized according to the underlying model employed

by the tool. However, the validity and trustworthiness

of these models and their corresponding tools remain

open research issues due to differences in the identiﬁ-

cation and estimation of internal quality attributes to-

gether with the inherent limitations of static analysis

(Stre

cansk

y et al., 2020). Recent research has high-

lighted that in many cases the estimation of remedial

effort lacks accuracy and that generated issues do not

translate to actual software faults (Lenarduzzi et al.,

2020a; Lenarduzzi et al., 2020b). Current key recom-

mendations (Lenarduzzi et al., 2020a; Avgeriou et al.,

2021) are that each organization should tailor how it

conﬁgures and uses these tools according to its own

requirements.

2.2 SonarQube

SonarQube is one of the most widely used static anal-

ysis platforms for code quality and security, as re-

ﬂected both in the research literature as well as on-

line (Avgeriou et al., 2021). It integrates the SQALE

method and is available in several editions. Its free

and open-source Community Edition enables analyz-

ing source code in 17 languages, while commercial

versions extend this to 29.

Language-based analysis features are imple-

mented in the form of plugins, which facilitates

adding support for new languages or improving the

accuracy of analysis for those already supported.

Each plugin deﬁnes a number of language-speciﬁc

rules, to which source code must conform. When

static analysis determines that a rule was violated, an

issue is generated. Issues are characterized by their

exact location in source code and information they

inherit from the generating rule. These include the

type, severity, tags and remediation time. Issue type is

one of code smell (maintainability domain), bug (re-

liability domain), vulnerability and security hotspot

(security domain). For example, Java rule java:S110

described as ”Inheritance tree of classes should not

Documentation for all rules is available within a de-

ployed SonarQube instance or at https://sonarcloud.io/

Characterizing Technical Debt in Evolving Open-source Software

175

be too deep” generates code smells of major sever-

ity tagged ”design”. Remediation time is estimated

to be a constant 4 hours to which a 30 minute offset

is added for each inheritance level beyond a conﬁg-

urable threshold value.

SonarQube considers total technical debt as the

time required to ﬁx all detected code smells. Similar

to existing research (Lenarduzzi et al., 2020a; Lenar-

duzzi et al., 2020b) and in consistency with recent

standards (ISO, 2021), we extend the deﬁnition to in-

clude all detected issues. As such, we refer to tech-

nical debt as the time required to ﬁx all the source

code issues detected by SonarQube across the main-

tainability, reliability and security domains. This time

is normalized to account for application size in the

form of the technical debt ratio: T DR =

TechnicalDebt

DevTime

DevTime represents the estimated time required to

develop the system from scratch, with 30 minutes

required to develop 1 line of production-level code.

The technical debt ratio is then assigned a SQALE

rating between A (best, T DR < 5%) and E (worst,

T DR ≥ 50%).

3 RELATED WORK

A recent systematic literature review (Lenarduzzi

et al., 2021) classiﬁed different contributions to the

domain of TD into prioritization or estimation of TD,

comparison of different estimation approaches and

cross-sectional or longitudinal studies. The study

also concluded that most literature results represented

scattered approaches to TD prioritization and that

there remained a signiﬁcant lack of empirical evi-

dence in tackling TD.

Other works have carried out a comparative eval-

uation between different estimation methods such as

SQALE, the SIG Method, Quamoco or the Maintain-

ability Index (Izurieta et al., 2017; Stre

cansk

y et al.,

2020). Authors of (Amanatidis et al., 2020) evalu-

ated the level of agreement between CAST, Sonar-

Qube and Squore tooling. Statistical correlation re-

vealed strong agreement when the tools were applied

to 50 open source Java and JavaScript programs.

Long term evaluation of three large open source

Java projects was reported in (Molnar and Motogna,

2020a). The study compared SonarQube TD estima-

tion with the Maintainability Index as well as a met-

ric based method. Authors concluded that SonarQube

was the most accurate of the evaluated methods in es-

timating overall TD but that it could be surpassed in

detecting debt hot spots.

We found that many of the published results were

based on cross sectional analyses of TD. In (Al-

fayez et al., 2018), authors used 91 open source

Java projects to investigate the inﬂuence of differ-

ent application characteristics on TD. They concluded

that size, application domain, number of releases and

commits all had a signiﬁcant impact on TD, while no

signiﬁcant relation was identiﬁed between TD and the

number of contributors, branches, or decisions regard-

ing development or management. An investigation

performed on 21 open source Java systems (Lenar-

duzzi et al., 2020a) analyzed the fault proneness of

SonarQube rules. The approach showed that only a

small number of them were harmful and that most of

the issues classiﬁed as bugs were not actually fault

inducing.

Results from an interview-driven empirical study

(Klinger et al., 2011) showed that overall system de-

velopment was inﬂuenced by the introduction of both

intended and unintended TD, that TD management

was in many cases ad-hoc and carried out without any

formalization or a long-term prediction of its impact.

A multiple case study (Martini et al., 2015) accompa-

nied by interviews reported that several factors were

responsible for architectural TD and that in many

cases corrective actions were only applied as a reac-

tion to development problems. Authors also evaluated

several strategies for long-term TD management, con-

cluding that periodical efforts to address TD through

refactoring could lower its impact over the long term

and allow the development process to continue un-

interrupted. Existing literature also includes longitu-

dinal approaches that studied TD. In (Besker et al.,

2018), authors used surveys and interviews to carry

out a study which revealed that on average, 23% of

developer time was wasted to TD, with the interest on

accumulated debt playing an important role. The pa-

per highlighted the importance of introducing strate-

gies to track and manage both the principal and the

interest of debt.

Open source projects represent good candidates

for empirical research, as they facilitate direct access

to source code and complete information about their

development history is usually available. We ﬁnd

most contributions either take a cross-sectional ap-

proach (Lenarduzzi et al., 2020a; Baldassarre et al.,

2020), or they are short-term longitudinal studies

(Nayebi et al., 2019; Lenarduzzi et al., 2020b). Our

approach includes all released versions of the stud-

ied applications, covering their entire development

history. We employ recent work on empirical eval-

uation of software quality (Molnar and Motogna,

2017; Lenarduzzi et al., 2020a; Molnar and Motogna,

2020b; Baldassarre et al., 2020; Lenarduzzi et al.,

2020b) in order to place these results into the proper

context, while the publicly accessible open data pack-

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

176

age (Molnar, 2022) facilitates replicating or extending

our study, as well as carrying out a comparative eval-

uation against other existing or future studies.

4 CASE STUDY DESIGN

The present work is in line with existing research

regarding the prevalence and long-term evolution of

source code maintainability (Molnar and Motogna,

2017; Kapllani et al., 2020) and TD (Molnar and Mo-

togna, 2020b; Nayebi et al., 2019; Arif and Rana,

2020). We aimed to improve existing results in the

study of open-source software TD. As such, each step

of our case study was carried out with consideration

to existing results, which we refer to when appropri-

ate.

We used current best practices from case study re-

search (Runeson et al., 2012) in order to design, carry

out and report our results. We ensured that our work

observed the ACM SIGSOFT’s standards for empiri-

cal research (Ralph, 2021), as well as the methodolog-

ical guidelines for longitudinal research described in

(Kehr and Kowatsch, 2015). We refer to them when

appropriate.

4.1 Objective

The main objective of our case study, deﬁned accord-

ing to the goal question metric approach (Caldiera and

Rombach, 1994) is to ”investigate source code techni-

cal debt for the purpose of evaluating its prevalence,

characteristics and evolution in the context of open-

source software”.

We operationalize our main objective using the

following research questions:

: What is the distribution and composition of

source code technical debt? Technical debt is usu-

ally introduced due to time and budgetary limitations

(Lenarduzzi et al., 2019a); as such, changes to ap-

plication architecture, development pushes for addi-

tional features (Molnar and Motogna, 2017; Martini

et al., 2015) or refactoring efforts have a more pro-

nounced effect than software size (Molnar and Mo-

togna, 2020b). Existing research has shown that a

small number of ﬁles were responsible for the ma-

jority of defects in several large systems (Walkinshaw

and Minku, 2018). In the case of TD, the top ten most

violated SonarQube rules generated 39% of the issues

reported in a large-scale case study (Baldassarre et al.,

2020), as well as over 50% of the TD in an empiri-

cal study (Molnar and Motogna, 2020b) that targeted

open-source software.

We aim to go one step further and characterize TD

in terms of composition and distribution not just at ap-

plication, but also at package level. We aim to inves-

tigate how debt is distributed across application pack-

ages and whether its composition at application level

is maintained at ﬁner granularity.

: How does technical debt distribution and com-

position evolve over the long term? The following

step was to investigate the evolution of TD character-

istics over the application’s entire lifetime. An indus-

try survey (Besker et al., 2018) revealed developers

wasted 23% of the time to TD and were forced to in-

troduce new TD due to already existing issues. An in-

vestigation of architectural TD (Martini et al., 2015)

revealed that its long-term accumulation led to crises

where development was halted until debt was reduced

to manageable levels.

Through RQ

we aimed to improve the long-term

characterization of TD by investigating how factors

leading to important changes in debt levels affected

its distribution and composition. Previous research

showed early application versions to be ﬂaky with re-

gards to their maintainability (Molnar and Motogna,

2017) and TD proﬁles (Molnar and Motogna, 2020a).

Do early application versions provide any indication

of the TD characteristics of later versions?

For both RQs we carried out a comparative eval-

uation across the studied applications. We aimed to

determine which of our ﬁndings might be indicative

of larger trends worth further investigation, as well as

to determine any particularities of these applications

that might improve our understanding of the relation

between TD and software evolution.

4.2 Data Collection

The present work is a ﬁner grained investigation

based on previous results (Molnar and Motogna,

2020b). We maintain the selection of target appli-

cations, which we elaborate in this section. Our lit-

erature survey identiﬁed an abundance of empirical

research targeting complex, widely-used open-source

or commercial systems. Yet, we found research con-

sidering software evolution, especially over the long-

term to be under-represented. This was especially

the case for GUI-based applications. As such, we

decided to include GUI-driven applications having a

well-documented development period and a consis-

tent user base. We restricted the selection to Java soft-

ware, as it enabled comparative evaluation against a

broad range of existing results. We excluded applica-

tions with dependencies to external software or hard-

ware. We disregarded applications that went through

lengthy development hiatuses, or which were aban-

Characterizing Technical Debt in Evolving Open-source Software

177

Table 1: Details for the earliest and most recent version for each application in our study.

Application Version (Released) Packages LOC

Issues (SQALE rating) TD

Bugs Vulnerabilities Code Smells work days

FreeMind

0.0.3 (July 2000) 5 2,770 3

0 A 248

1.1.0Beta2 (Feb 2016) 31 43,269 88 2 E 4,521 78

jEdit

2.3pre2 (Jan 2000) 10 22,311 62

0 A 1,427

5.6.0 (Sep 2020) 31 96,912 270 4 E 8,807 130

TuxGuitar

0.1pre (June 2006) 30 8,960 34

1,188

1.5.4 (May 2020) 239 106,457 170 13 3,692 73

doned by their original developers (Klinger et al.,

2011).

Our process resulted in the inclusion of the Free-

Mind

mind-mapper, the jEdit

text editor and the

TuxGuitar

tablature editor.

FreeMind is a popular mind-mapping application

with a rich user base and a plugin environment. Its

ﬁrst version comprised 5 packages and 2,770 lines of

code

. This made it the least complex release in our

study, which was visible at functionality and user ex-

perience levels. Future versions have improved upon

it greatly, with versions 0.8.0 and 1.0 updating the

user interface and introducing many new functional-

ities. We found a 2

year development hiatus after

version 0.8.0, after which development continued un-

til the most current version, 1.1.0Beta2. While sev-

eral forks exist

, FreeMind itself has remained pop-

ular, having an active user forum and recording 530k

downloads over the last year and over 25 million dur-

ing its lifetime

jEdit is a mature text editor targeted towards soft-

ware developers. Its ﬁrst publicly available version

was 2.3pre2, released in January 2000. Comprising

over 22k lines of code organized across 10 packages,

it is the most mature initial version in our study. As

the application did not record development hiatuses

or large-scale refactoring, its development appears

steady and consistent across releases, with the most

recent version released in September, 2020. jEdit pro-

vides a plugin environment and enjoys continued pop-

ularity attested by over 86k downloads within the last

year, and 9.1 million over the application’s lifetime.

TuxGuitar is a multi-track tablature editor that

supports several GUI toolkits. We tested its releases

using the Standard Widget Toolkit. As illustrated in

Figure 1, TuxGuitar and jEdit had a similar evolu-

tion marked by incremental development. One dif-

http://freemind.sourceforge.net/

http://jedit.org

http://www.tuxguitar.com.ar

All metrics were recorded using SonarQube 9.0.1

https://www.freeplane.org/

Download data points recorded on September 29, 2021

through SourceForge

ference is the development hiatus between versions

1.2 and 1.3, after which development continued, with

the latest version released in mid-2020. In the case

of TuxGuitar we counted 209k downloads within the

last year and 7.1 million over its entire lifetime. Given

the number of plugins included in the default down-

load, TuxGuitar has the largest number of packages,

as well as the most important package-level changes

of the studied applications. Its initial version com-

prised 30 packages and 8,960 lines of code, with over

350 packages used within the application’s lifetime.

In addition to being widely used, several releases

of FreeMind and jEdit were used in previous research

targeting GUI testing (Arlt et al., 2012; Yuan and

Memon, 2010) and software quality (Molnar and Mo-

togna, 2017; Kapllani et al., 2020).

Existing research used either commit (Walkin-

shaw and Minku, 2018; Lenarduzzi et al., 2020a;

Lenarduzzi et al., 2019b; Lenarduzzi et al., 2020b) or

release (Izurieta et al., 2017; Baldassarre et al., 2020)

level granularity for collecting target application data.

Given the timespan and large number of application

releases, we included all publicly-released versions.

This provided sufﬁcient measurement waves (Kehr

and Kowatsch, 2015) to provide answers to the pro-

posed RQs, while helping to mitigate issues such as

missing dependencies, misconﬁguration or even com-

pilation errors, which can sometimes be found in

open-source software (Barkmann et al., 2009).

In the case of both FreeMind and jEdit, we found

several preview versions that were released in the

span of a few days; in this case, we decided to in-

clude the last release from each series, in order to keep

the number of included versions manageable. This

resulted in a total of 112 releases, comprised of 38

FreeMind, 46 jEdit and 28 TuxGuitar versions.

We manually examined and compiled each ver-

sion’s source code. We found TuxGuitar versions

were distributed together with a number of plugins,

which we considered part of the application and in-

cluded in our study. We also discovered instances

where library source code was packaged with appli-

cation code, such as the com.microstar.xml parser or

the BeanShell interpreter present in some jEdit ver-

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

178

sions. We separated this code into external libraries

that were added to the classpath. Existing research

showed that up to 32% (Barkmann et al., 2009) of

open-source software required manual ﬁxes to com-

pile and run; we thoroughly tested that each version

in our study compiled correctly and could be executed

with full functionalities available.

Figure 1 illustrates application versions in our

study and their release dates. We refer to application

releases using the version numbers their developers

assigned to them; at the time of writing, all applica-

tion releases remain available for download and can

be identiﬁed by their version. However, in our analy-

sis we do not attribute additional signiﬁcance to ver-

sion numbers and treat each release in the same way.

We also observed the existence of several develop-

ment hiatuses between some of the studied versions,

as discussed in the previous sections. Again, we did

not factor this into our analysis.

4.3 Data Analysis

We analyzed each application version using a local

instance of SonarQube 9.0.1 that we conﬁgured for

historical analysis. This enabled tracking the location

and status of each detected issue across application

versions; for each version, we determined the propor-

tion of newly introduced debt versus debt that was

carried over from the previous version. The vertical

bar corresponding to each application release in Fig-

ure 1 indicates its TDR, with the darker segment il-

lustrating the portion of debt ratio newly added in that

version. All TD was considered to be newly added in

the ﬁrst release of an application. For context, Table 1

provides more detailed information regarding the ear-

liest and latest version for each application included

in our study.

We employed the default SonarWay proﬁle, rule-

set and associated analysis thresholds. We restricted

our investigation to the Java language. This resulted

in a total of 55,630 issues, estimated at 1,081 days

of TD. These were broken down into 3,131 bugs, 30

vulnerabilities and 52,469 code smells. During the

monitored development period, 38,153 of these issues

were ﬁxed or they no longer appeared in more recent

application versions.

As SonarQube automatically purges detailed issue

and metric information for older analyses, we set up a

second instance, which was conﬁgured to treat each

version as a stand-alone application. We used this

second instance to record and persist detailed ﬁle and

package-level metrics across all application versions

(SonarSource, 2021).

Data analysis was carried out using a number of

custom-written Python scripts that employ the Sonar-

Qube API to extract and process information on

source ﬁles, rules and detected issues. We prepared an

open data package (Molnar, 2022) that allows repli-

cating or extending our investigation. It includes the

database ﬁles for the required instances of Sonar-

Qube, the analysis scripts used together with their out-

put and instructions for conﬁguring the environment

and running the analyses.

5 RESULTS AND DISCUSSION

In this section we detail and discuss our results, or-

ganized according to the previously deﬁned research

questions.

: What is the Distribution and

Composition of Source Code Technical

Debt?

Figure 1 illustrates that most application versions

have a T DR < 5% and receive an A rating accord-

ing to SQALE. The only exception were FreeMind

versions 0.8.*, where signiﬁcant additional debt was

accrued. The amount of technical debt present also

increased signiﬁcantly in jEdit version 4.0pre4, where

important new functionalities were introduced. In the

case of TuxGuitar, early versions already presented a

T DR < 5%, and remained that way in all subsequent

versions.

Next, we investigated how TD was diffused across

application packages. We use Figure 2 to illus-

trate how TD was distributed across the most debt-

intensive packages for each application; the full data

set remains available in our open data package (Mol-

nar, 2022). In the case of FreeMind and jEdit, over

80% of the total debt was diffused across nine and

eight packages, respectively. In both applications,

debt distribution followed the Pareto principle, with

a few code-heavy packages also carrying most of the

existing debt. In contrast, each TuxGuitar plugin had

its own package structure. This contributed to the

large number of application packages illustrated in

Figure 2. It also meant that both source code as well

as debt were distributed more evenly across applica-

tion packages. The 21 TuxGuitar packages illustrated

in Figure 2 only carried half of the application’s total

debt. This is in line with previous ﬁndings (Molnar

and Motogna, 2020b) that showed tight correlation

between the amount of TD and lines of code count

at ﬁle level.

Next we drilled down to SonarQube rule level.

Characterizing Technical Debt in Evolving Open-source Software

179

Figure 1: Studied versions of FreeMind (top), jEdit (middle) and TuxGuitar (bottom); each bar represents the technical debt

ratio for that version, with the darker segment showing the debt newly added to that version (left-side scale). The dotted line

represents the number of packages (right-side scale).

We conﬁrmed that a small number of rules together

generated most of the estimated technical debt. For

each application, we considered the top 10 such rules

which we illustrated in Table 2. We note the signif-

icant degree of overlap, as the selection of 15 rules

illustrated in Table 2 generated more than two thirds

of the TD in each application.

We also noted that the rules which generated

most of the TD were application speciﬁc, and we

could not identify a single rule that was dominant

across all three applications. For example, rule

java:S1948 generated the most TD in FreeMind after

code duplication. Its root cause was the presence of

non-serializable members in serializable classes; this

is a potential bug and security vulnerability in case

containing instances are serialized. Another prevalent

issue was code duplication, which generated signif-

icant debt in FreeMind and TuxGuitar. In the case

of FreeMind, this was the dominating source of debt

in versions 0.8.*, where it was concentrated in the

freemind.controller.actions.generated.instance.impl

package. The spike shown in Figure 2 was caused

by a large amount of generated code that included

duplicated sections, but also non-standard variable

names, usage of labels (java:S1119), classes speciﬁc

to a vendor’s implementation of Java (sun.* pack-

ages, java:S1191), loops with more than one break or

continue statements (java:S135) and other issues.

We compared the composition of debt in the stud-

ied applications against that uncovered in recent ex-

isting research. In (Lenarduzzi et al., 2020b), a case

study targeting 33 Java projects from the Apache

Foundation analyzed the change proneness of classes

encumbered by TD. Authors found duplicated code

to be the most often encountered code smell. Three of

the 10 most commonly violated rules in (Lenarduzzi

et al., 2020b) (duplicated, java:S1192, java:S1948)

were also well represented in our results.

In (Baldassarre et al., 2020), authors also pro-

vided details regarding the type and severity distri-

bution of SonarQube issues, which we found simi-

lar to previous results (Molnar and Motogna, 2020b).

Authors also provided a list of the 22 rules that

each generated more than 300 issues. We found the

following eight also present in our results in Table

2: java:S125, duplicated, java:S3776, java:S1948,

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

180

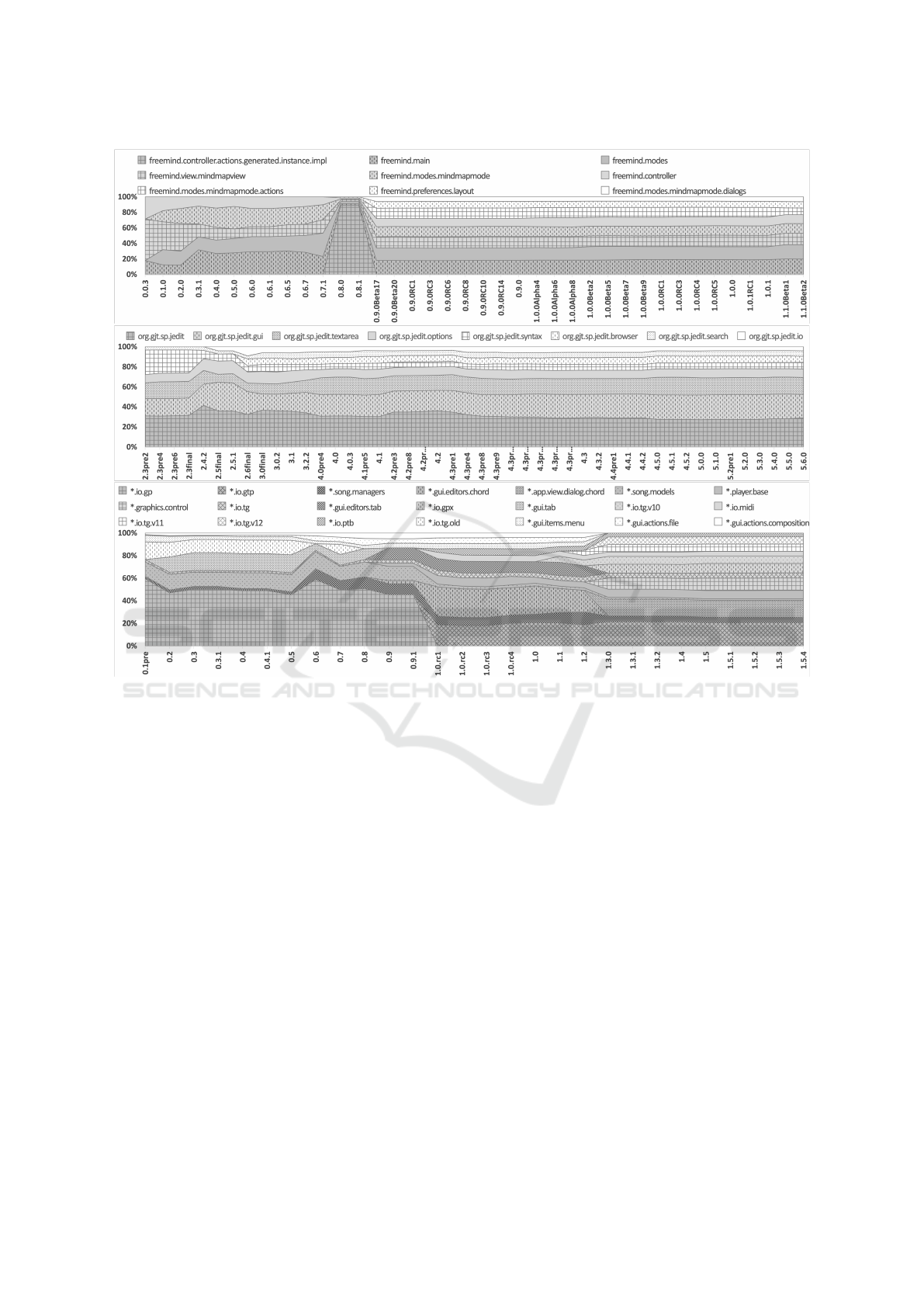

Figure 2: Per package TD in FreeMind (top), jEdit (middle) and TuxGuitar (bottom, * stands for org.herac.tuxguitar) rep-

resenting 80% of total TD for FreeMind and jEdit, and 50% for TuxGuitar; vertical scale relative to represented data for

legibility.

java:S1104, java:S1192, java:S2696 and java:S1117.

In (Lenarduzzi et al., 2020a), authors used ma-

chine learning to investigate whether SonarQube is-

sues predicted actual software faults. While a reli-

able relation between most issues and documented

faults could not be discovered, a number of rules

were found to have some predictive power. Among

them, java:S125, java:S1192 and java:S1117 are also

present in Table 2.

Most of the Apache systems studied in these

works were not GUI-driven, which could represent

an important difference regarding the type and dis-

tribution of TD. There were also differences in how

TD was measured across these studies; our approach

was to measure TD in minutes, while these studies

defaulted to counting the number of issues generating

it. While these differences did not allow us to draw

deﬁnitive conclusions, we observed the existence of

overlap in the composition of TD across the studied

systems.

Empirical research has shown that a limited se-

lection of rules remained responsible for most of the

debt accrued in the studied applications. However,

this selection remains application-speciﬁc. As such,

when making decisions based on the output of analy-

sis tools, developers should be aware both of the tar-

get application’s proﬁle as well as the fault-predictive

power of the rules responsible for the reported debt.

: How Does Technical Debt

Distribution and Composition Evolve over

the Long Term?

We started by investigating the relation between lines

of code and the amount of TD present. For each appli-

cation version, we calculated the Spearman rank cor-

relation between lines of code and TD effort at pack-

age level. We found a high correlation, with mean

values of ρ > 0.8 and σ < 0.067 considered across

each application’s versions. The common trend was

that of lower, but still signiﬁcant (ρ > 0.6) correla-

Characterizing Technical Debt in Evolving Open-source Software

181

Table 2: Percentage of total TD generated by the top 10 rules in each application. Critical issues in bold.

Rule ID FreeMind jEdit TuxGuitar Description

java:S125 4.35% 34.86% 1.75% Sections of code should not be commented out

duplicated 11.71% 2.23% 23.47% Source ﬁles should not have any duplicated blocks

java:S3740 10.22% 3.59% 8.71% Raw types should not be used

java:S3776 3.06% 6.24% 9.72% Cognitive Complexity of methods should not be too high

java:S1948 11.28% 5.53% 0.42% Serializable class ﬁelds should either be transient or serializable

java:S1149 7.47% 5.57% 0.63% Synchronized classes (e.g., Vector, Hashtable) should not be used

java:S1874 4.43% 5.47% 1.85% ”@Deprecated” code should not be used

java:S1161 4.48% 2.94% 4.03% ”@Override” annotation should be used

java:S1854 1.46% 0.76% 5.20% Unused assignments should be removed

java:S1604 0.75% 0.80% 4.54% Single-method anonymous inner classes should become lambdas

java:S1104 3.10% 2.29% 0.52% Class variable ﬁelds should not have public accessibility

java:S1905 0.63% 0.29% 3.80% Redundant casts should not be used

java:S1192 1.34% 2.30% 0.51% String literals should not be duplicated

java:S2696 2.66% 0.83% 0.22% Instance methods should not write to ”static” ﬁelds

java:S1117 0.32% 0.65% 2.09% Local variables should not shadow class ﬁelds

TOTAL 67.27% 74.32% 67.47%

tion in early application versions, followed by high

correlation in mature versions. This conﬁrmed pre-

vious observations (Molnar and Motogna, 2020b) re-

garding the increased volatility of software quality in

early application versions. It also followed existing

results (Walkinshaw and Minku, 2018) that showed

packages rich in source code accumulated the major-

ity of observed issues.

We reported on the composition of TD across each

application’s version in our answer to RQ

. We then

carried out a package-level analysis in order to deter-

mine whether the distribution and composition of TD

remained consistent across application versions at the

package level. If that was not the case, we aimed to

determine the reason for the change and its magni-

tude. The ﬁrst step was to calculate the contribution of

each package to the total TD. For each pair of consec-

utive releases (e.g. FreeMind 0.8.1 and 0.9.0Beta17),

we correlated TD levels across packages using Spear-

man’s rank correlation. Spearman correlation high-

lights changes in rank, namely situations where one

or more packages accumulate or shed TD faster than

others. We obtained very high correlation (ρ > 0.9)

across most version pairs, except the following ver-

sions and their immediate predecessors: FreeMind

0.3.1 (ρ ≈ 0.4), jEdit 2.4.2 (ρ ≈ 0.8) and TuxGuitar

versions 1.0.rc1 (ρ ≈ 0.45). We ascribe these changes

to the introduction of new TD as shown in Figure

1 and discussed in our answer for RQ

. Remaining

version pairs, including all jEdit releases showed TD

to be very consistently distributed across source code

packages.

Figure 1 shows that the versions highlighted above

accrued signiﬁcant additional debt. While additional

debt was taken on in FreeMind 0.9.0Beta17, TuxGui-

tar 1.0.rc1 and 1.3.0, refactoring helped improve the

overall T DR of these versions. In the case of Free-

Mind, the large swath of TD incurred in version 0.8.0

was resolved in 0.9.0Beta17 with the elimination of

the offending package and code refactoring. The in-

troduction of additional debt in the later version was

due to development work resulting in additional func-

tionalities.

In the case of jEdit, we earmarked version 4.0pre4

for further examination, due to its increased T DR.

We found it to be an important update that included

additional functionalities such as improved text area

management, buffer events, an improved document

model and user interface updates. We examined the

debt composition of this version and discovered that

its increased debt ratio was due to a plethora of new

issues, many of which were generated by the inclu-

sion of commented code (java:S125). Closer exami-

nation uncovered that most of these comments were

used for delimiting sections of the source code such

as methods or conditional statement branches using

an annotation speciﬁc to jEdit itself, and were erro-

neously registered as deprecated code by the static an-

alyzer.

As the previous test considered total TD for each

package, we also carried out a ﬁne grained examina-

tion where we examined whether debt composition

varied across releases in individual source code pack-

ages. As expected, we discovered the composition of

TD present in most packages to be consistent across

versions. For each application we encountered ver-

sions where packages were eliminated, introduced or

refactored. One example of the latter was TuxGui-

tar package org.herac.tuxguitar.io.gp, which carried

an important share of TD up to version 1.0.rc1, where

it was refactored into org.herac.tuxguitar.io.gtp; in-

terestingly, as illustrated in Figure 2 the refactored

package carried less than half of the initial version’s

debt, even without signiﬁcant changes to the number

of lines of code.

Our conclusion for RQ

is that the distribution and

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

182

composition of TD remained generally stable across

multiple application versions. Notable exceptions

were early application versions that showed increased

volatility and versions where major refactoring or de-

velopment work have taken place.

6 THREATS TO VALIDITY

Our study was conducted based on existing best prac-

tices for empirical (Ralph, 2021) case study research

(Runeson et al., 2012; Kehr and Kowatsch, 2015).

We ﬁrst deﬁned the main objective, established the

research questions, carried out the target application

selection process, collected, processed and then an-

alyzed the data. We made the collected data from

the studied applications public as part of an open data

package (Molnar, 2022).

Internal threats were addressed by manually ex-

amining and publishing the source code and scripts

that were used in data collection and processing. We

included sanity checks combined with manual exami-

nation of the source code and analysis results. The re-

maining threat regards our reliance on SonarQube it-

self. Previous research has shown that differences ex-

ist between the results obtained when using different

tools (Izurieta et al., 2017; Stre

cansk

y et al., 2020). In

our experience, using different versions of the same

tool can also result in signiﬁcant differences. In pre-

vious work we used SonarQube versions 7.9 (Molnar

and Motogna, 2020a) and 8.2 (Molnar and Motogna,

2020b), which target some of the application versions

included in our study. We found the presence of ad-

ditional rules in newer versions, as well as changes to

estimated remediation times lead to some changes in

reported results. This was most apparent in the case of

discovered vulnerabilities, as improved taint analysis

introduced in SonarQube 8.5

lead to the elimination

of many falsely reported issues.

External threats are related to the selection of ap-

plications and analysis tools in our study coupled with

the inherent limitations of generalizing our conclu-

sions. Restricting our inclusion criteria to a single ap-

plication type improved data triangulation (Runeson

et al., 2012) and the possibility of cross-application

comparison. Conversely, it limited extrapolating our

results to other system and system types. We ad-

dressed external threats by including all released ap-

plication versions in our study and by validating more

general conclusions with relevant results from the lit-

erature.

Previous empirical investigations addressed this

https://www.sonarqube.org/sonarqube-8-5/

issue by creating and analyzing comprehensive stores

of collected data (Lenarduzzi et al., 2019b; Lenar-

duzzi et al., 2020b). In this regard, our focus was on

longitudinal analysis carried out on a curated set of

versions, where the additional requirement of manual

code examination made automating the process difﬁ-

cult.

Construct threats were addressed by using Sonar-

Qube, a well-known and widely used tool for assess-

ing software quality and security. We employed the

default SonarWay Java proﬁle. We drilled down to

rule level and investigated the signiﬁcance of our ﬁnd-

ings. We put our results into the context of similar

research (Walkinshaw and Minku, 2018; Lenarduzzi

et al., 2020a; Lenarduzzi et al., 2020b).

However, an extended analysis regarding the link

between our ﬁndings and actual maintainability or

fault-proneness was beyond our scope. We believe

that SonarQube can provide valuable assistance dur-

ing the development process, but that the set of rules

and their conﬁguration should be customized accord-

ing to requirements.

The decision to restrict the study to released ver-

sions lead to changes discarded between two releases

to not be represented in our study. While denser mea-

surement waves (Kehr and Kowatsch, 2015) would

have alleviated this risk, we considered that covering

all released versions was sufﬁcient to characterize the

evolution of debt. Finally, we must mention the ex-

istence of the survival bias, represented by the possi-

bility that these applications’ TD characteristics and

their long lifecycles were not a coincidence.

7 CONCLUSIONS

We carried out a longitudinal case study targeting

all the released versions of three complex, open-

source applications. In contrast to most existing work

(Walkinshaw and Minku, 2018; Lenarduzzi et al.,

2020a; Baldassarre et al., 2020; Lenarduzzi et al.,

2020b), we investigated the relation between long-

term software evolution and TD characteristics. Our

study covered at least 15 years of development for

each studied application. We carried out a ﬁne grained

analysis regarding the diffusion and composition of

TD across application source code, and studied the

effects of major software changes and refactoring.

We showed that a small number of rules were re-

sponsible for generating most of the technical debt

found in each application. Comparison with exist-

ing results targeting other systems revealed the exis-

tence of a subset of rule violations to be the cause of

signiﬁcant debt across many applications. The most

Characterizing Technical Debt in Evolving Open-source Software

183

prevalent of them were code duplication, high cyclo-

matic complexity of functions and incorrect use of

modiﬁers in serializable classes. Our examination

showed that technical debt ﬂuctuated mostly within

early application versions, as they were most affected

by both software changes and refactoring. Once core

architecture was established, we found very little vari-

ance between versions. One possible explanation is

that the combination between suitable application ar-

chitecture and experienced contributors precludes the

need for making large-scale changes.

Data collection was carried out using the default

rule set and analysis parameters for Java. We believe

some of these rules can provide valuable insight into

software issues such as increased code complexity

(java:S3776, java:S1854 and java:S1604), code du-

plication (duplicated, java:S1192) or the use of lan-

guage features in a discouraged way (java:S1117).

We also discovered problematic issues, such as struc-

tured comments that were erroneously classiﬁed as

commented out code, or custom GUI components

ﬂagged as being too deep within their inheritance hi-

erarchy. We mirror the conclusion from (Lenarduzzi

et al., 2020a), that organizations should use the plat-

form’s customization features in order to select and

conﬁgure a subset of rules that cover their require-

ments. Our results can be beneﬁcial to practitioners

relying on SonarQube regarding the prioritisation and

management of TD in the context of large software

systems.

We aim to extend our investigation by providing

long-term analyses for other system types. Existing

efforts such as the Technical Debt Dataset (Lenar-

duzzi et al., 2019b) or replication packages available

for related works (Herbold et al., 2020; Ferenc et al.,

2018) can be leveraged for analyses at both release

and commit levels.

REFERENCES

Alfayez, R., Chen, C., Behnamghader, P., Srisopha, K.,

and Boehm, B. (2018). An empirical study of tech-

nical debt in open-source software systems. In Madni,

A. M., Boehm, B., Ghanem, R. G., Erwin, D., and

Wheaton, M. J., editors, Disciplinary Convergence

in Systems Engineering Research, pages 113–125.

Springer International Publishing.

Amanatidis, T., Mittas, N., Moschou, A., Chatzigeorgiou,

A., Ampatzoglou, A., and Angelis, L. (2020). Eval-

uating the agreement among technical debt measure-

ment tools: building an empirical benchmark of tech-

nical debt liabilities. Empir. Softw. Eng., 25(5):4161–

4204.

Arif, A. and Rana, Z. A. (2020). Refactoring of code to re-

move technical debt and reduce maintenance effort. In

2020 14th International Conference on Open Source

Systems and Technologies (ICOSST), pages 1–7.

Arlt, S., Banerjee, I., Bertolini, C., Memon, A. M., and

Schaf, M. (2012). Grey-box gui testing: Efﬁcient gen-

eration of event sequences. CoRR, abs/1205.4928.

Avgeriou, P. C., Taibi, D., Ampatzoglou, A., Ar-

celli Fontana, F., Besker, T., Chatzigeorgiou, A.,

Lenarduzzi, V., Martini, A., Moschou, A., Pigazzini,

I., Saarimaki, N., Sas, D. D., de Toledo, S. S., and

Tsintzira, A. A. (2021). An overview and comparison

of technical debt measurement tools. IEEE Software,

38(3):61–71.

Baldassarre, M. T., Lenarduzzi, V., Romano, S., and

Saarim

aki, N. (2020). On the diffuseness of techni-

cal debt items and accuracy of remediation time when

using sonarqube. Information and Software Technol-

ogy, 128:106377.

Barkmann, H., Lincke, R., and L

owe, W. (2009). Quanti-

tative evaluation of software quality metrics in open-

source projects. In 2009 International Conference on

Advanced Information Networking and Applications

Workshops, pages 1067–1072.

Besker, T., Martini, A., and Bosch, J. (2018). Technical

debt cripples software developer productivity: A lon-

gitudinal study on developers’ daily software devel-

opment work. In Proceedings of the 2018 Interna-

tional Conference on Technical Debt, TechDebt ’18,

page 105–114, New York, NY, USA. Association for

Computing Machinery.

Caldiera, V. R. B. G. and Rombach, H. D. (1994). The Goal

Question Metric approach. Encyclopedia of software

engineering, pages 528–532.

Cunningham, W. (1992). The wycash portfolio manage-

ment system. SIGPLAN OOPS Mess., 4(2):29–30.

Curtis, B., Sappidi, J., and Szynkarski, A. (2012). Estimat-

ing the size, cost, and types of technical debt. In 2012

Third International Workshop on Managing Technical

Debt (MTD), pages 49–53.

Fatemi, F. (2016). Technical debt: The

silent company killer. https://www.

forbes.com/sites/falonfatemi/2016/05/30/

technical-debt-the-silent-company-killer/?sh=

1578a2ae4562.

Ferenc, R., T

oth, Z., Lad

anyi, G., Siket, I., and Gyim

othy,

T. (2018). A public uniﬁed bug dataset for java. In

Proc. of the 14th International Conference on Predic-

tive Models and Data Analytics in Software Engineer-

ing, PROMISE’18, page 12–21. ACM.

Fowler, M. (2019). Technical debt. https://martinfowler.

com/bliki/TechnicalDebt.html.

Herbold, S., Trautsch, A., Trautsch, F., and Ledel, B.

(2020). Issues with szz: An empirical assessment of

the state of practice of defect prediction data collec-

tion.

ISO (2021). ISO/IEC 5055:2021 standard for automated

source code quality measures. https://www.iso.org/

standard/80623.html.

Izurieta, C., Grifﬁth, I., and Huvaere, C. (2017). An indus-

try perspective to comparing the sqale and quamoco

software quality models. In 2017 ACM/IEEE Intern.

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

184

Symp. on Empirical Software Engineering and Mea-

surement (ESEM), pages 287–296.

Kapllani, G., Khomyakov, I., Mirgalimova, R., and Sillitti,

A. (2020). An empirical analysis of the maintainabil-

ity evolution of open source systems. In IFIP Inter-

national Conference on Open Source Systems, pages

78–86. Springer.

Kehr, F. and Kowatsch, T. (2015). Quantitative longitu-

dinal research: A review of is literature, and a set

of methodological guidelines. ECIS 2015 Completed

Research Papers.

Klinger, T., Tarr, P., Wagstrom, P., and Williams, C. (2011).

An enterprise perspective on technical debt. In Pro-

ceedings of the 2nd Workshop on Managing Technical

Debt, MTD ’11, page 35–38. ACM.

Lenarduzzi, V., Besker, T., Taibi, D., Martini, A., and Ar-

celli Fontana, F. (2021). A systematic literature review

on technical debt prioritization: Strategies, processes,

factors, and tools. Journal of Systems and Software,

171:110827.

Lenarduzzi, V., Lomio, F., Huttunen, H., and Taibi, D.

(2020a). Are sonarqube rules inducing bugs? In

2020 IEEE 27th International Conference on Software

Analysis, Evolution and Reengineering (SANER),

pages 501–511.

Lenarduzzi, V., Orava, T., Saarimaki, N., Systa, K., and

Taibi, D. (2019a). An empirical study on technical

debt in a ﬁnnish sme. In 2019 ACM/IEEE Interna-

tional Symposium on Empirical Software Engineering

and Measurement (ESEM), pages 1–6, Los Alamitos,

CA, USA. IEEE Computer Society.

Lenarduzzi, V., Saarim

aki, N., and Taibi, D. (2019b). The

technical debt dataset. In 15th Conference on Predic-

tive Models and Data Analytics in Software Engineer-

ing.

Lenarduzzi, V., Saarim

aki, N., and Taibi, D. (2020b). Some

sonarqube issues have a signiﬁcant but small effect

on faults and changes. a large-scale empirical study.

Journal of Systems and Software, 170:110750.

Letouzey, J.-L. (2012). The sqale method for evaluating

technical debt. In Proceedings of the Third Interna-

tional Workshop on Managing Technical Debt, MTD

’12, pages 31–36. IEEE Press.

Li, Z., Avgeriou, P., and Liang, P. (2014). A systematic

mapping study on technical debt and its management.

Journal of Systems and Software, pages 193–220.

Martini, A., Bosch, J., and Chaudron, M. (2015). In-

vestigating architectural technical debt accumulation

and refactoring over time. Inf. Softw. Technol.,

67(C):237–253.

Molnar, A. and Motogna, S. (2017). Discovering maintain-

ability changes in large software systems. In Proc.

of 27th Intern. Workshop on Software Measurement &

12th Intern. Conf. on Soft. Process and Product Mea-

surement, IWSM Mensura ’17, pages 88–93. ACM.

Molnar, A. and Motogna, S. (2020a). Longitudinal

evaluation of open-source software maintainability.

In Proceedings of the 15th International Confer-

ence on Evaluation of Novel Approaches to Software

Engineering (ENASE), pages 120–131. INSTICC,

SciTePress.

Molnar, A.-J. (2022). Open Data Package for ar-

ticle ”Characterizing Technical Debt in Evolving

Open-Source Software”. https://doi.org/10.6084/m9.

ﬁgshare.14601411.v1.

Molnar, A.-J. and Motogna, S. (2020b). Long-term evalua-

tion of technical debt in open-source software. In Pro-

ceedings of the 14th ACM / IEEE International Sym-

posium on Empirical Software Engineering and Mea-

surement (ESEM), ESEM ’20, New York, NY, USA.

Association for Computing Machinery.

Nayebi, M., Cai, Y., Kazman, R., Ruhe, G., Feng, Q., Carl-

son, C., and Chew, F. (2019). A longitudinal study

of identifying and paying down architecture debt. In

Proc. of the 41st Intern. Conf. on Software Engineer-

ing: Software Engineering in Practice, ICSE-SEIP

’19, page 171–180. IEEE Press.

Nugroho, A., Visser, J., and Kuipers, T. (2011). An em-

pirical model of technical debt and interest. In Pro-

ceedings of the 2nd Workshop on Managing Technical

Debt (MTD ’11), pages 1–8.

Ralph, P. (2021). ACM SIGSOFT Empirical Standards Re-

leased. SIGSOFT Softw. Eng. Notes, 46(1):19.

Runeson, P., Host, M., Rainer, A., and Regnell, B. (2012).

Case Study Research in Software Engineering: Guide-

lines and Examples. Wiley Publishing, 1st edition.

SonarSource (2021). Managing project history. https:

//docs.sonarqube.org/latest/project-administration/

managing-project-history/.

Stre

cansk

y, P., Chren, S., and Rossi, B. (2020). Comparing

maintainability index, sig method, and sqale for tech-

nical debt identiﬁcation. In Proceedings of the 35th

Annual ACM Symposium on Applied Computing, SAC

’20, page 121–124, New York, NY, USA. Association

for Computing Machinery.

US. Securities and Exchange Commission (2013).

In the matter of knight capital americas llc.

https://www.sec.gov/whistleblower/award-claim/

award-claim-2013-93.

Verdecchia, R., Malavolta, I., and Lago, P. (2018). Ar-

chitectural technical debt identiﬁcation: The research

landscape. In Proceedings of the 2018 International

Conference on Technical Debt, TechDebt ’18, page

11–20, New York, NY, USA. Association for Com-

puting Machinery.

Walkinshaw, N. and Minku, L. (2018). Are 20% of ﬁles re-

sponsible for 80% of defects? In Proceedings of the

12th ACM/IEEE International Symposium on Empir-

ical Software Engineering and Measurement, ESEM

’18, pages 1–10, New York, NY, USA. Association

for Computing Machinery.

Yuan, X. and Memon, A. M. (2010). Generating event

sequence-based test cases using GUI run-time state

feedback. IEEE Transactions on Software Engineer-

ing, 36(1):81–95.

Zazworka, N., Vetro, A., Izurieta, C., Wong, S., Cai, Y.,

Seaman, C., and Shull, F. (2013). Comparing four

approaches for technical debt identiﬁcation. SOFT-

WARE QUALITY JOURNAL, 22:1–24.

Characterizing Technical Debt in Evolving Open-source Software

185
