Exploring Azure Active Directory Attack Surface: Enumerating

Authentication Methods with Open-Source Intelligence Tools

Nestori Syynimaa

Secureworks, Counter Threat Unit, U.S.A.

Faculty of Information Technology, University of Jyväskylä, Jyväskylä, Finland

Keywords: Azure Active Directory, Azure Ad, OSINT, Attack, Enumeration, SAML, Kerberos.

Abstract: Azure Active Directory (Azure AD) is Microsoft’s identity and access management service used globally by

90 per cent of Fortune 500 companies and many other organisations. Recent attacks by nation-state

adversaries have targeted these organisations by exploiting known attack vectors. In this paper, open-source

intelligence (OSINT) is gathered from organisations using Azure AD to explore the current attack surface.

OSINT is collected from Fortune 500 companies and top 2000 universities globally. The collected OSINT

includes authentication methods used by the organisation and the full name and phone number of the primary

technical contact. The findings reveal that most organisations are using Azure AD and that majority of these

organisations are using authentication methods exploited during the recent attacks by nation-state adversaries.

1 INTRODUCTION

1.1 Azure Active Directory

Azure Active Directory (Azure AD) is Microsoft’s

cloud-based identity and access management (IAM)

service (Microsoft, 2021b). Azure AD is used as IAM

by Microsoft 365 and Azure. As such, all

organisations consuming these services are using

Azure AD. According to Microsoft, in 2017, 90 per

cent of Fortune 500 companies used Azure AD

(Simons, 2017).

Azure AD is often confused with Active Directory

(AD), Microsoft’s on-premises directory service. In

2014, AD was used by 95 per cent of Fortune 500

companies (InfoSecurity Magazine, 2014). The novel

research reported in this paper focuses on Azure AD.

1.2 Hybrid Identities

Azure AD can be used as a cloud-only service, where

users’ identities are stored only in the cloud.

However, many organisations use so-called hybrid

identities, where their on-premises identities are

synchronised to Azure AD. Hybrid identities are

easier for users to use, as they only need to use one

https://orcid.org/0000-0002-6848-094X

set of credentials in both cloud and on-premises based

services. Also, hybrid identities are easier for

administrators to manage, as they only need to

manage one identity per user.

There are multiple different authentication

methods to be used with Azure AD hybrid identities.

These are Password Hash Synchronisation (PHS),

Pass-Through Authentication (PTA), and Federation

(AD FS) (Microsoft, 2021c).

PHS synchronises users’ password hashes from

the on-premises Active Directory (AD) to Azure AD.

This allows users to use the same username and

password in Azure AD they are using with on-

premises AD. If organisations are unwilling to

synchronise their passwords, they can use PTA or AD

FS. PTA is based on an agent installed in the on-

premises environment. The agent connects to Azure

AD, and when users log in to Azure AD, the agent

receives users’ credentials. The agent tries to log in

with the provided credentials and returns the result to

Azure AD. If credentials are correct, the user is

logged in. AD FS authentication is based on trust

between Azure AD and on-premises AD FS. Users

information in the Security Assertion Markup

Language (SAML) token. (Microsoft, 2022c).

142

Syynimaa, N.

Exploring Azure Active Directory Attack Surface: Enumerating Authentication Methods with Open-Source Intelligence Tools.

DOI: 10.5220/0011077100003179

In Proceedings of the 24th International Conference on Enterprise Information Systems (ICEIS 2022) - Volume 2, pages 142-147

ISBN: 978-989-758-569-2; ISSN: 2184-4992

From the hybrid authentication methods, only AD

FS provides a single-sign-on (SSO) functionality as-

is. However, PHS and PTA can be coupled with

Azure AD seamless SSO, a Kerberos based SSO

(Microsoft, 2022a).

1.3 Known Attack Vectors

All hybrid authentication methods have known attack

vectors (see Palhière, 2020; Syynimaa, 2020a; Van

Horenbeeck, Daalmans, Lecomte, & Scoles, 2021),

used in recent attacks by nation-state adversaries

(MSRC, 2020).

The requirement for all hybrid authentication

methods is directory synchronisation, where the

organisation’s users, groups, and devices are

synchronised from on-premises AD to Azure AD

(Microsoft, 2021a).

The credentials used to perform the

synchronisation have elevated privileged permissions

to both on-premises AD and Azure AD. When using

PHS authentication, the synchronisation credentials

can be used to steal password hashes of any AD user,

enabling pass-the-hash attacks (Palhière, 2020). If

Seamless SSO is used with PHS, the credentials can

be used to retrieve the password hash used to encrypt

Kerberos tickets, enabling Silver Ticket attacks.

Finally, compromising the AD FS server allows

exporting token signing certificate, enabling Golden-

SAML attacks. (Syynimaa, 2020c).

1.4 Open-Source Intelligence (OSINT)

Open-Source Intelligence (OSINT) has many

definitions (Glassman & Kang, 2012), but generally,

it refers to intelligence produced from publicly

available information. Azure AD also has public

Application Programming Interfaces (APIs) which

can be used to gather OSINT (Syynimaa, 2020b).

1.5 Research Question

This study aims to find the present attack surface for

the known hybrid-identity attack vectors using OSINT.

Therefore, the research questions of this study are:

• What is the Azure AD adoption rate?

• Which authentication methods organisations

are using?

• What other information is openly available?

1.6 Structure of the Paper

The rest of the paper is structured as follows. The

research method and used tools are described in

Section 2. The research results are presented in

Section 3, followed by a discussion in Section 4.

2 METHODOLOGY

Two datasets with internet domains were acquired to

answer the research questions: The list of Fortune 500

companies (Dofo, 2019) and global universities

(World University Rankings, 2022). The latter list

contains 2000 the most highly ranked universities out

of 19 788 for 2022.

The AADInternals toolkit (Syynimaa, 2022) was

used to perform the OSINT queries for each

organisation. AADInternals is a PowerShell module

based toolkit.

The research took place between Nov 24 2021,

and Jan 26 2022.

2.1 Azure AD Tenant Id

Azure AD Tenant Id is the Global Unique Identifier

(GUID) of the organisation’s Azure AD environment.

If the organisation has Azure AD Tenant Id, it uses

Azure AD. The Get-AADIntTenantId command was

used to retrieve the Tenant Ids (see Figure 1).

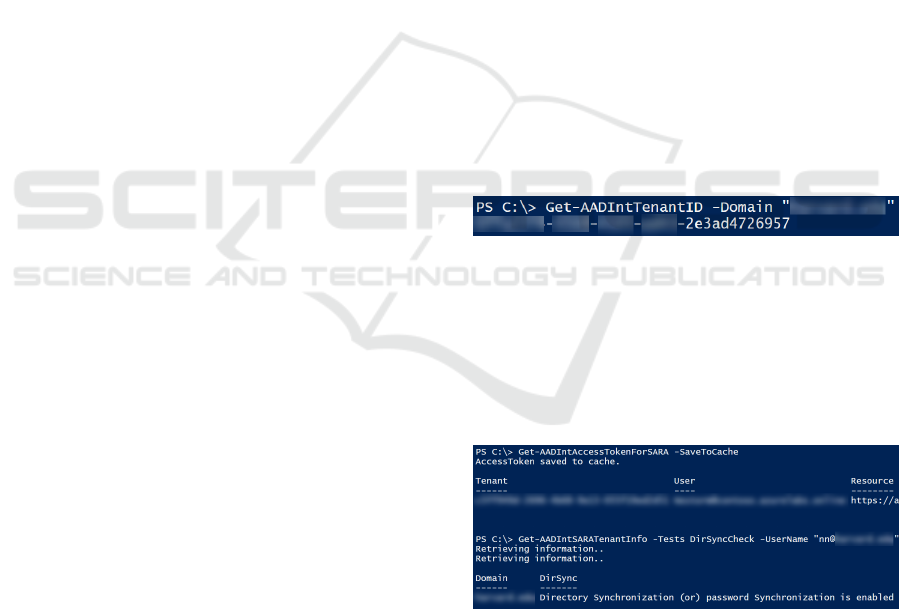

Figure 1: Retrieving Tenant Id.

2.2 Directory Synchronisation

The Get-AADIntSARATenantInfo command was used

to check whether the directory synchronisation was

enabled (see Figure 2). This command requires that

the user is authenticated to any Azure AD tenant.

Figure 2: Checking is directory synchronisation enabled.

2.3 Seamless Single-Sign-on

The Get-CredentialType command was used to check

whether Seamless SSO was enabled (see Table 3).

This command is an internal command of the tool and

not exposed outside it. It can be located at

Exploring Azure Active Directory Attack Surface: Enumerating Authentication Methods with Open-Source Intelligence Tools

143

AccessToken_utils.ps1 from the module installation

location.

Figure 3: Checking is seamless single-sign-on enabled.

2.4 Number and Federation

Information of Domains

Each Azure AD tenant can have multiple domains to

be used as email addresses or login names. If AD FS

is used for a particular domain, its type is federated.

First, the Get-AADIntTenantDomains command was

used to retrieve all tenant domains. After this, the Get-

UserRealmV2 command was used to retrieve the type

of each domain (see Figure 4). This command is also

an internal command located at

AccessToken_utils.ps1.

Figure 4: Retrieving domains and federation info.

2.5 Tenant Organisation Information

Each tenant has a primary technical contact defined

in their Azure AD tenant’s organisation information.

This information is valuable for adversaries, as the

technical contact likely holds the Global Admin

privileges to Azure AD.

Figure 5: Retrieve organisation information.

The Get-AADIntTenantOrganisationInformation

command was used to retrieve this information (see

Figure 5). This command requires that the user is

authenticated to any Azure AD tenant.

3 RESULTS

In this Section, the collected data is presented in

tabular format.

3.1 Azure AD Adoption Rate

From Fortune 500 organisations, 88 per cent use

Azure AD (Table 1). This is two percentage points

less than in 2017. The difference can be explained by

the used dataset, as it may contain outdated or missing

domain names.

Of the top 2000 universities, 95 per cent use

Azure AD (Table 1). The higher adoption rate may be

explained due to pricing, as most Microsoft cloud

licenses are free-of-charge to educational institutions

(Microsoft, 2022b).

Table 1: Azure AD Adoption Rate.

Organisation type Azure AD

Fortune 500 (n=500) 441 88 %

Top 2000 Universities (n=2000) 1892 95 %

3.2 Directory Synchronisation

From Fortune 500 companies using Azure AD, 84 per

cent use directory synchronisation (Table 2). This rate

is lower than anticipated, as hybrid identities are seen

as a productivity improvement (Forrester, 2020). Of

the top 2000 universities using Azure AD, only 52 per

cent use directory synchronisation (Table 2). More

homogenous and complex environments may explain

the big difference to Fortune 500 companies

compared to academic institutions, which typically

already have an identity management system.

Table 2: Directory Synchronisation.

Organisation type Sync

Fortune 500 (n=441) 420 84 %

Top 2000 Universities (n=1892) 1042 52 %

3.3 Seamless Single-Sign-on

From Fortune 500 companies using Azure AD, 27 per

cent use seamless single-sign-on (Table 3). At the

first look, this seems a low percentage. However,

when combined with the other SSO solution (AD FS)

percentage, they cover 95 per cent of companies using

Azure AD. Of the top 2000 universities using Azure

AD, only 14 per cent use directory synchronisation

(Table 3). Even when combined with AD FS

percentage, this covers only 42 per cent of

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

144

universities. This implies that most universities are

not using any SSO solution.

Table 3: Seamless Single-Sign-On.

Organisation type SSO

Fortune 500 (n=441) 118 27 %

Top 2000 Universities (n=1892) 258 14 %

3.4 Domains and Federation

From Fortune 500 companies using Azure AD, 98 per

cent have domains registered to Azure AD (Table 4).

The missing 2 per cent are organisations that haven’t

had any Exchange Online licenses. From the top 2000

universities using Azure AD, practically all have

registered domains to Azure AD (Table 4).

Table 4: Domains.

Organisation type Domains

Fortune 500 (n=441) 432 98 %

Top 2000 Universities (n=1892) 1884 100 %

From Fortune 500 companies using Azure AD, 66 per

cent use federation at least for one domain (Table 5).

Of the top 2000 universities using Azure AD, only 28

per cent use federation (Table 5).

Table 5: Federated Domains.

Organisation type Federation

Fortune 500 (n=432) 293 68 %

Top 2000 Universities (n=1884) 535 28 %

An interesting finding was that some

organisations used both SSO solutions (Table 6).

From Fortune 500 organisations using Azure AD, 11

used both SSOs and from top universities, nine

organisations.

Table 6: Organisations with both SSO solutions.

Organisation type Two SSOs

Fortune 500 (n=441) 11 2,49 %

Top 2000 Universities (n=1892) 9 0,48 %

3.5 Tenant Organisation Information

From Fortune 500 companies using Azure AD, 98 per

cent has organisation information available (Table 7),

including the full name of the primary technical

contact. This was expected to be 100 per cent, but

this information was not available for some

organisations. From the top 2000 universities using

Azure AD, the information was available only for 77

per cent (Table 7).

Table 7: Organisation Information.

Organisation type Information

Fortune 500 (n=441) 434 98 %

Top 2000 Universities (n=1892) 1463 77 %

Organisation information also includes the phone

number of the primary technical contact. From

Fortune 500 companies using Azure AD, 87 per cent

had this information available (Table 8). From the top

2000 universities using Azure AD, the information

was available for 56 per cent (Table 8).

Table 8: Phone number.

Organisation type Phone num.

Fortune 500 (n=441) 383 87 %

Top 2000 Universities (n=1892) 1059 56 %

4 DISCUSSION

4.1 Implications

The study results show that Azure AD is used by a

great majority of Fortune 500 companies and top

2000 universities. This finding is in line with

information shared by Microsoft (see Simons, 2017).

Results also show which authentication methods and

hybrid configuration the studied organisations are

using. This revealed breadth and depth of the attack

surface the adversaries could exploit. For instance,

virtually all Fortune 500 companies using Azure AD

have implemented SSO, a commonly used attack

vector in recent attacks by nation-state adversaries.

Besides exposing the attack surface, OSINT

reveals information that could be used for social

engineering. For instance, technical contact names

and phone numbers can be used in spear-phishing

attacks. Moreover, listing all domains of the

organisation allows searching the internet for existing

email addresses with the same domain. These

accounts can then be used in phishing campaigns.

4.2 Recommendations

By definition, OSINT is intelligence that anyone can

access. As such, organisations using Azure AD can

not prevent access to this information. However, most

tenant organisation information can be freely edited.

To hide the identity of the technical contact,

organisations should use a general name, such as “IT

Department”, instead of the actual name of the

contact. Moreover, the phone number should be

Exploring Azure Active Directory Attack Surface: Enumerating Authentication Methods with Open-Source Intelligence Tools

145

changed to a public number, such as the headquarters'

phone number.

4.3 Future Work

Microsoft has over 140 portals administering their

cloud services, such as Azure and Microsoft 365, and

over 50 portals for consuming them (Fowler, 2022).

Each of these portals uses APIs to access the back-

end services. Studying these APIs could reveal

candidates for gathering new OSINT.

4.4 Limitations

Two openly available data sets were used to conduct

this research. The data sets were not curated, so they

may contain outdated or missing data. However, our

findings are in line with other available information

regarding the Azure AD adoption rate, which

indicates that the datasets were accurate.

4.5 Acknowledgements

This research used an unpublished version (v0.6.7) of

the AADInternals toolkit to gather OSINT. The tool

will be published in March 2022 after Microsoft has

fixed vulnerabilities found and reported during this

research. This paper does not contain any OSINT

gathered exploiting these vulnerabilities. The author

would like to thank Microsoft Security Response

Center (MSRC) for cooperating with reported

vulnerabilities.

4.6 Conclusions

This paper demonstrated how anyone could gather

open-source intelligence (OSINT) from any

organisation using Azure AD. The OSINT was

collected from Fortune 500 organisations and 2000

the most highly ranked universities.

The findings revealed that most of the studied

organisations are using Azure AD. It was possible to

collect information about which hybrid identity

authentication methods organisations were using.

This information is extremely valuable to threat

actors, as it reveals which attack vectors can be used

to compromise the target organisation. Especially

organisations using AD FS and seamless SSO are

exciting targets, as compromising on-premises

environment allows threat actors to impersonate any

user of the target organisation.

For some organisations, information of the

primary technical contact, including full name and

phone number, could be gathered. This information is

also extremely valuable, as these people often have

Global Administrator privileges to Azure AD.

Therefore, they are primary targets for social

engineering attacks.

REFERENCES

Dofo. (2019). Domain Names of Fortune 500 Companies.

Retrieved from https://dofo.com/blog/fortune-500-

domain-names/

Forrester. (2020). The Total Economic Impact™ Of

Securing Apps With Microsoft AzureActive Directory.

28. Retrieved from https://aka.ms/aadtei

Fowler, Adam. (2022). Microsoft Portals. Retrieved from

https://msportals.io/

Glassman, Michael, & Kang, Min Ju. (2012). Intelligence

in the internet age: The emergence and evolution of

Open Source Intelligence (OSINT). Computers in

Human Behavior, 28(2), 673-682. doi:https://doi.org/

10.1016/j.chb.2011.11.014

InfoSecurity Magazine. (2014). Active Directory Flaw

Could Threaten 95% of Fortune 500 with Massive

Information Heist. InfoSecurity Magazine(July 16).

Retrieved from https://www.infosecurity-

magazine.com/news/active-directory-flaw-could/

Microsoft. (2021a). Azure AD Connect sync: Understand

and customize synchronization. Retrieved from

https://docs.microsoft.com/en-us/azure/active-

directory/hybrid/how-to-connect-sync-whatis

Microsoft. (2021b). What is Azure Active Directory?

Retrieved from https://docs.microsoft.com/en-

us/azure/active-directory/fundamentals/active-

directory-whatis

Microsoft. (2021c). What is hybrid identity with Azure

Active Directory? Retrieved from

https://docs.microsoft.com/en-us/azure/active-

directory/hybrid/whatis-hybrid-identity

Microsoft. (2022a). Azure Active Directory Seamless

Single Sign-On. Retrieved from https://docs.micro

soft.com/en-us/azure/active-directory/hybrid/how-to-

connect-sso

Microsoft. (2022b). Get Office 365 free for your entire

school. Retrieved from https://www.microsoft.com/en-

us/microsoft-365/academic/compare-office-365-

education-plans

Microsoft. (2022c). What is a Primary Refresh Token?

Retrieved from https://docs.microsoft.com/en-

us/azure/active-directory/devices/concept-primary-

refresh-token

MSRC. (2020). Customer Guidance on Recent Nation-State

Cyber Attacks. Retrieved from https://msrc-

blog.microsoft.com/2020/12/13/customer-guidance-

on-recent-nation-state-cyber-attacks/

Palhière, Aymeric. (2020). Azure AD Introduction for Red

Teamers. Retrieved from https://www.synacktiv.com/

en/publications/azure-ad-introduction-for-red-teamers.

html

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

146

Simons, Alex. (2017, Nov 13 2017). How organizations are

connecting their on-premises identities to Azure AD.

Retrieved from https://www.microsoft.com/en-

us/microsoft-365/blog/2017/11/13/how-organizations-

are-connecting-their-on-premises-identities-to-azure-

ad/

Syynimaa, Nestori. (2020a). AAD & M365 kill chain.

Retrieved from https://o365blog.com/aadkillchain/

Syynimaa, Nestori. (2020b). Just looking: Azure Active

Directory reconnaissance as an outsider. Retrieved

from https://o365blog.com/post/just-looking/

Syynimaa, Nestori. (2020c). Unnoticed sidekick: Getting

access to cloud as an on-prem admin. Retrieved from

https://o365blog.com/post/on-prem_admin/

Syynimaa, Nestori. (2022). AAD Internals. Retrieved from

https://o365blog.com/aadinternals/

Van Horenbeeck, Michael, Daalmans, Peter, Lecomte,

Thijs, & Scoles, Damian. (2021). Microsoft 365

Security for IT Pros (T. Lecomte Ed. Second edition

(2022) ed.): VH Consulting & Training BV.

World University Rankings. (2022). Global 2000 list by the

Center for World University Rankings, 2021-22

Edition. Retrieved from https://cwur.org/2021-22.php

Exploring Azure Active Directory Attack Surface: Enumerating Authentication Methods with Open-Source Intelligence Tools

147
