Assessment of Dose Reduction Strategies in Wavelength-selective

Neutron Tomography

Victoria H. DiStefano, Jacob M. LaManna, David L. Jacobson, Paul A. Kienzle, Daniel S. Hussey

and Peter Bajcsy

National Institute of Standards and Technology, Gaithersburg, MD 20899, U.S.A.

Keywords: 3D Reconstruction Image Quality, Dose Reduction, Neutron Imaging.

Abstract: The goal of this study is to determine variable relationships and a computational workflow that yield the

highest quality of three-dimensional reconstructions in neutron imaging applications with reduced number of

projections angles. Neutrons interact with matter primarily through the strong nuclear force providing unique

image contrast modes. Accessing many of these contrast modes requires defining the energy of the neutron

beam, resulting in long exposure times for a single two-dimensional projection image. To collect of order

100 tomograms at different neutron wavelengths within a reasonable time frame (less than 1 week) suggests

the use of dose reduction tomography reconstruction algorithms. We identified and evaluated the main factors

affecting the quality of the 3D tomographic reconstruction in the computational image workflow: the

projection number, the reconstruction method, and the post-processing method. This study reports several

relationships between 3D reconstruction quality metrics and acquisition time. Based on the established

relationships, the performance of a seeded simultaneous iterative reconstruction technique (SIRT) yielded

improved image quality and more accurate estimates of the reconstructed attenuation values compared to a

SIRT without a priori information or a trained neural network based on a mixed scale dense network.

1 INTRODUCTION

The properties of the neutron, a massive, neutral spin-

1/2 particle that interacts primarily through the strong

nuclear force, enable one to create images with

unique sources of contrast compared to other

penetrating probes. From the de Broglie relationship,

a massive particle can be thought of as a wave, whose

wavelength is inversely related to its kinetic energy

(Rauch & Werner, 2015). The diverse set of neutron

image contrasts include quantitative imaging of

magnetic and electric fields with polarized neutron

imaging (Hilger et al., 2018; Jau et al., 2020),

characterizing the porosity with sub-pixel resolution

through dark-field or phase imaging (Brooks et al.,

2017; Strobl, 2014), and crystal phase mapping with

Bragg-edge imaging (Vitucci et al., 2018; Woracek et

al., 2014). Common to these sources of image

contrast is the need to define the neutron wavelength

and to acquire image data sets at many (on order of

100) different instrument settings, which we refer to

as a scan parameter. Several of these scan parameters

contribute to extended neutron image acquisition

times which affect image quality and measurement

throughput of samples under scientific investigations.

Neutron sources are already about 1 billion times less

intense than synchrotron X-ray sources. The need to

define the neutron energy in monochromatic beams

results in a factor of 10 to 1000 loss in neutron fluence

rate compared to the full polychromatic beam. Thus,

the exposure time for a single two-dimensional image

is on the order of 1 minute. To acquire 100

tomograms with reasonable experimental

measurement time (beam time at a user facility is

typically about 1 week) thus requires one to sacrifice

spatial resolution, temporal resolution, wavelength

resolution and/or acquiring a reduced number of

angular projections. This work is motivated by

minimizing the acquisition time while maximizing

the quality of 3D tomographic reconstructions.

Another common feature of the wavelength-

selective image contrasts is that the image contrast

varies somewhat slowly for each successive scan

parameter setting. We postulate that it will be

possible to obtain quantitative multiscale data by

proper choice of a dose reduction tomography

reconstruction algorithm using a priori data from a

DiStefano, V., LaManna, J., Jacobson, D., Kienzle, P., Hussey, D. and Bajcsy, P.

Assessment of Dose Reduction Strategies in Wavelength-selective Neutron Tomography.

DOI: 10.5220/0011077600003209

In Proceedings of the 2nd International Conference on Image Processing and Vision Engineering (IMPROVE 2022), pages 66-77

ISBN: 978-989-758-563-0; ISSN: 2795-4943

tomography data set with sufficient angular

projections (that is, the outer edge of the object

traverses about one pixel for a rotation step). To test

this, we will use Bragg-edge imaging to identify the

crystal phases in samples of well-known

composition. There are many dose reduction

algorithms in the literature, as a first step we have

chosen to compare the simultaneous iterative

reconstruction technique (SIRT) as implemented in

the ASTRA Toolbox (Palenstijn et al., 2011b; Van

Aarle et al., 2015a; van Aarle et al., 2016) and a

machine learning algorithm that uses a trained mixed

scale dense convolutional neural network (MS-D)

(Pelt & Sethian, 2017). Our goal is to establish

models and rankings among the factors that affect 3D

reconstruction image quality and acquisition time in

order to guide neutron imaging experimentalists in

maximizing image quality and minimizing

acquisition time. Our approach is to design a

metrology for quantifying the trade-offs between

several image quality metrics and different dose

reduction approaches (acquisition time reduction).

In our experimental design, we varied the number

of projections (60, 80, 360, 600, and 800) and a

chosen 3D tomographic reconstruction method

(SIRT, SIRT + seed). For each combination of these

two variables, the MS-D Neural Network (NN)

training was performed as a post-processing step with

the input training sets consisting of 2D frames. First,

accuracy of reconstructed tomographic volumes is

related to the number of acquired 2D projections via

a theoretical relationship (Kak, A. C., Slaney, M., &

Wang, G., 2002). Next, accuracy by the MS-D NN

was measured using the root mean square error

(RMSE) metric between the training low projection

number input and the training high projection number

output (2400). Finally, quality of 3D reconstructions

was measured by 24 blur metrics per image and by

the signal to noise ratio (SNR) per manually

segmented reference object. The combination of

minimum RMSE, optimal blur, and maximum SNR

metrics defines our evaluation framework for

minimizing the imaging acquisition time (i.e.,

proportional to the number of 2D projections) and

maximizing the quality of 3D tomographic

reconstructions.

The Contributions of Our Work Lie in:

(1) a factorial experimental design to understand

trade-offs between acquisition time and image

quality of 3D tomographic reconstructions from

neutron imaging data,

(2) evaluating (a) reference material-based image

quality such as SNR, (b) imaging quality focused

metrics such as blur, (c) reference 3D

reconstruction acquired for oversampled 2D

projections such as RMSE, and (d) theory for

circularly symmetric objects and the relationship

between intensity variance and the number of 2D

projections.

(3) including the MS-D NN model-based denoising

as a postprocessing step to leverage previously

acquired high quality dataset.

The novelty of this work is in establishing model-

based and ranking relationships between 3D

reconstruction accuracy and acquisition time

represented by intensity variance, SNR, RMSE, blur,

number of 2D projections, number of iterations and

seeding of 3D tomographic reconstruction (SIRT), and

supervised postprocessing denoising model (MS-D Net

model). The relationships are summarized in Table 4.

2 RELATED WORK

Related work to our approach can be found in the

literature about 3D tomographic reconstruction

algorithms and about image quality metrics.

3D Tomographic Reconstruction Algorithms: The

two main computed tomography (CT) reconstruction

algorithms that reconstruct the raw 2D projections

into 3D space are Filtered Back Projection and

Iterative Reconstruction. The mathematical theory for

these algorithms are beyond the scope of this work

but are detailed in (Kak et al., 2002). In simple Back

Projection (BP), a slice is reconstructed by ‘smearing

out’ the line integrals for each angle and summing

them together. The Filtered Back Projection (FBP)

corrects this process by applying a spatial frequency

filter to account for the oversampling in certain areas

(Schofield et al., 2020).

In recent years, improvements in computer

processing have made Iterative Reconstruction (IR)

techniques popular for dose and noise reduction.

There are several types of IR algorithms, but the most

complex algorithms forward-project a reconstruction

image (either initialized with a blank image or a

reconstruction image) and creates a simulated

sinogram (Tayal et al., 2019). The simulated

sinogram is then compared to the sinogram of the raw

data and corrections to the reconstruction image are

made. The algorithm iterates through this process a

set number of times. In the SIRT, the projection

differences and sinogram differences are weighted.

Additional details can be found in (Kak et al., 2002;

Tayal et al., 2019; Van Aarle et al., 2016a). For both

the FBP and SIRT algorithms, the image quality and

accuracy increase with an increasing number of

projections.

Assessment of Dose Reduction Strategies in Wavelength-selective Neutron Tomography

Image Quality in 3D Neutron Imaging: The quality

can be assessed after a 3D tomographic

reconstruction is calculated. The quality metrics can

evaluate (a) the reconstruction against a priori known

reconstruction using the root mean square error

(RMSE), (b) foreground vs. background

discrimination using signal-to-noise ratio (SNR) over

calibration regions, (c) optical focus of imaging on an

object of interest in a camera field of view using blur

metrics, and (d) the reconstruction accuracy as a

function of the number of 2D projections following a

theoretical model. Each quality evaluation requires

some assumptions about a priori knowledge. RMSE

assumes co-registered ground truth 3D

reconstruction. SNR quantification requires known

foreground and background masks. Blur metrics are

derived from intensity histograms using multiple

mathematical models that must be empirically

chosen. In our work, the ground truth 3D

reconstruction is established from over-sampled

angular 2D projections (2400 projections). Next,

foreground and background masks are created

manually for two reference cylindrical objects filled

with known material. Finally, an optimal blur

mathematical model is chosen by maximizing blur

coefficient of variation over 24 models and by

including human assessment (Crete et al., 2007a;

Petruccelli et al., n.d.).

3 MATERIALS AND METHODS

Figure 1 shows an overview of the key components

in evaluating the trade-offs between acquisition time

(dose reduction) and 3D reconstruction quality. These

key components hide the relationships among

variables, such as number of 2D projections (or

acquisition time), number of iterations during 3D

reconstruction, variance of intensities in 3D

reconstructed dataset, SNR, RMSE, blur, and

availability of highly accurate seed for a 3D

reconstruction algorithm and supervised

postprocessing model. Following figure 1, this

section describes each component in our assessment

of dose reduction strategies.

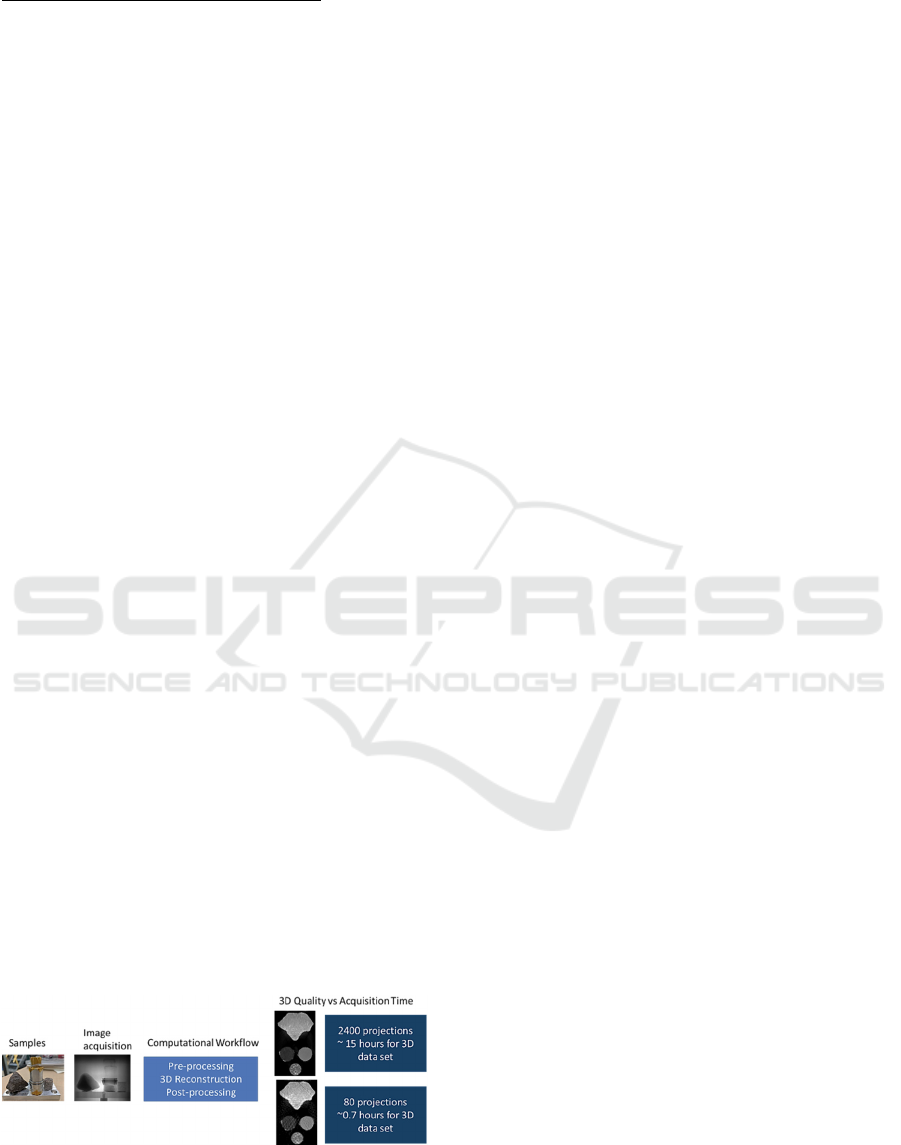

Figure 1: An overview of assessing dose reduction

strategies.

3.1 Samples

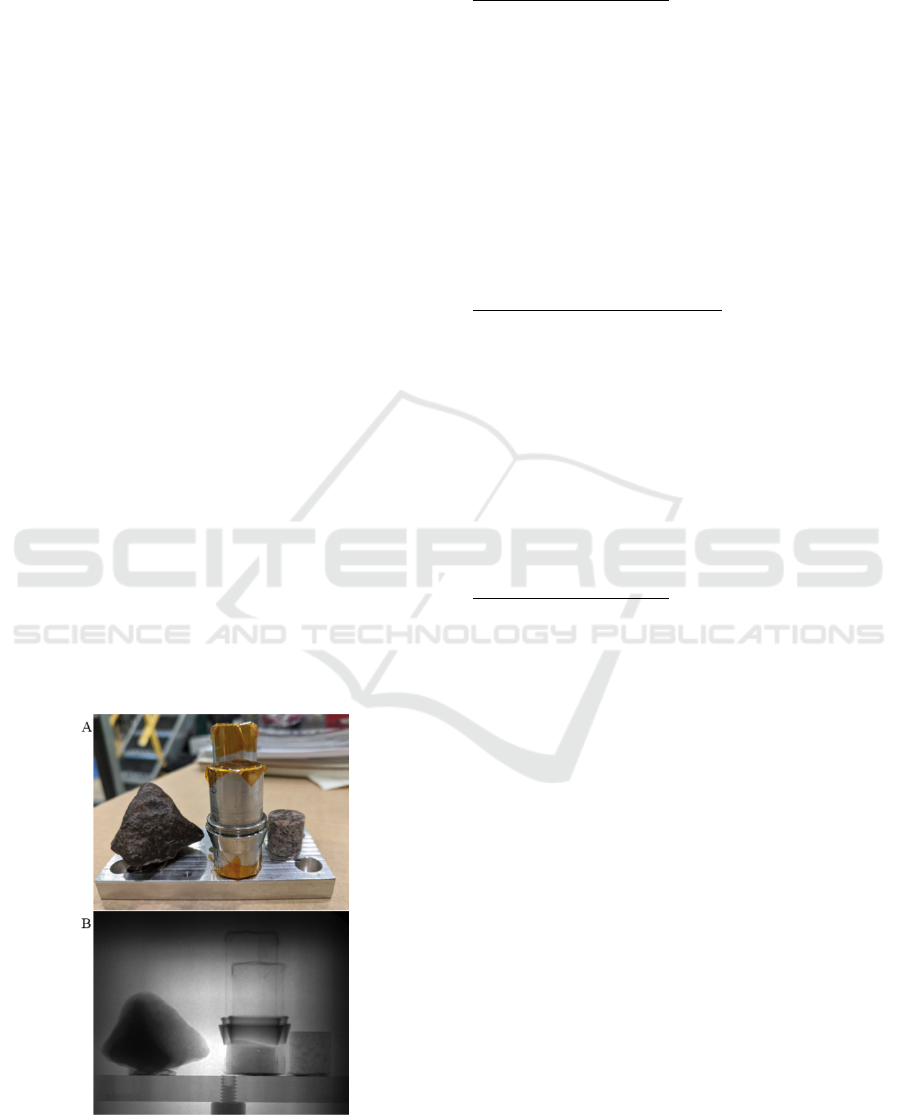

The test sample set consisted of four geological

samples to analyze. The first two samples were a

meteorite of unknown origin and a 1 cm diameter core

of Westerly Granite, which has been extensively

analyzed in (Bingham et al., 2013; Gates et al., 2018).

The other two samples were standard reference

powders obtained from National Institute of

Standards and Technology (NIST) Standard

Reference Material (SRM) collection. Several grams

of these powders were placed in separate 6061-

aluminum tubes, with 316 stainless steel ferrules

around them, and sealed on both ends with polyimide

tape. The powders were not compacted or leveled off

and aluminum tape was used to secure all the samples

in place. Figure 2A shows an image of the samples

before they were placed in the beam.

The SRM powders were used as reference objects

for all the subsequent metric evaluations. The first

powder, SRM 691 – Reduced Iron Oxide, was an iron

powder consisting of 90 % by mass of iron and trace

amounts of oxides and other metals. The second

powder, SRM 70b – Potassium Feldspar, was

prepared from a high-purity feldspar obtained from

pegmatite deposits in the Black Hills of South

Dakota. The material is a mixture of alkali feldspar,

plagioclase feldspar, quartz, and a small amount of

mica. The SRM was blended and bottled at NIST.

3.2 Beam, Detector and Image

Acquisition

Neutron tomography datasets were measured at the

NG-6 Cold Neutron Imaging Instrument at the NIST

Center for Neutron Research (NCNR) (Hussey et al.,

2015). A dataset with many projection angles was

collected, representing the maximum number of 2D

projections for this study, 2400, evenly spaced over

360 degrees (2399 unique projections). This data set

is referred below as the “high-quality” data set and

serves as ground truth. Figure 2B shows an example

projection image. The dataset was collected using a

polychromic neutron beam that can be approximated

from a kinetic molecular theory as a Maxwell-

Boltzmann distribution with characteristic

temperature of about 50 K (Gavin D. Peckham and

Ian J. McNaught, 1992). An Andor NEO scientific

complementary metal oxide semiconductor (sCMOS)

camera operating in 12-bit mode (Oxford

Instruments, n.d.) was used to collect images from a

P43 scintillator detector (i.e. gadolinium oxysulfide

doped with terbium, Gd2O2S:Tb also known as

GadOx ) with a Nikon Nikkor 50 mm f1.2 lens.

Each image was acquired over 4 seconds and the

median of 5 images was taken for each projection,

IMPROVE 2022 - 2nd International Conference on Image Processing and Vision Engineering

leading to maximum intensity around 3500 grey

levels. The pixel pitch of the images was 51.35 µm

(resolution about 100 µm) and the field of view was

2560 pixels by 2160 pixels (~13 cm by 11 cm). This

scan took approximately 16.5 hours to complete.

From this original dataset, several sub-sets were taken

to simulate smaller projection numbers: 60, 80, 360,

600, and 800. Angles from these sets were evenly

taken throughout the 2400 projections in order to span

the same 360-degree sample space. If these datasets

were collected on the beamline, they would take 0.4

hours, 0.6 hours, 2.5 hours, 4.2 hours, and 5.5 hours,

respectively.

Two additional separate datasets using a

monochromatic beam were obtained to validate and

analyze. The first dataset consisted of 720 projections

collected over 360 degrees. Two highly oriented

pyrolytic graphite crystal monochromators were used

to select the wavelength of 0.37 nm and the Δλ/λ was

about 1%. The same camera and lens as above were

used to collect images from a zinc sulfide/lithium

fluoride (ZnS:LiF) scintillator. For this data to be

consistent with the polychromatic datasets in terms of

maximum intensity, the lower incident beam intensity

required each projection image to be acquired over 10

seconds with a median of 3 images (maximum

intensity ~3500 counts). The pixel pitch of the images

was 51.35 µm (resolution about 250 µm) and the field

of view was 2560 pixels by 2160 pixels (about 13 cm

by 11 cm). This scan took approximately 7 hours to

complete. Using this same set up, another scan was

taken with only 80 projections taking approximately

0.8 hours to complete (exposure time is 20 s for the

polychromatic and 30 s for the monochromatic

beam).

Figure 2: Photo of the samples before they were placed in

the beam (A) and a raw neutron projection image (B).

3.3 Computational Workflow

Image Pre-processing: As stated, the images from

each projection angle were combined by taking the

median to remove non-statistical noise such as

gamma streaks and hot spots. An image with the

beam off was used to subtract the additive noise. An

image of the open beam was used to normalize the

projections, and a region of the image that did not

contain a sample was used to correct for any small

drift in beam intensity. The normalized projections

were formed into sinograms, correcting for rotation

axis title. Ring artifacts were removed from the

sinograms by the algorithm developed by Vo et al (Vo

et al., 2018).

Tomographic Reconstruction: We use the SIRT

algorithm, assuming a parallel beam geometry, in the

ASTRA toolbox (Palenstijn et al., 2011b; Van Aarle

et al., 2015a; van Aarle et al., 2016) using the

MATLAB bindings, on a single Nvidia Quadro

RTX5000 GPU card to reconstruct all the of the data

presented (NIST Disclaimer Statement | NIST, n.d.).

The output of the tomography reconstruction is the

average value of the neutron total macroscopic

scattering cross-section, Σ, with units inverse length,

and is analogous to the attenuation coefficient in X-

ray-based measurements.

Image Post-processing: A machine learning post-

processing method was applied to the reconstructions

generated with SIRT. The Mixed-Scale Dense (MS-

D) neural network was trained and validated with

high/low image quality pairs using a Nvidia Quadro

RTX5000 GPU. A total of 5 networks were trained,

varying the low image quality datasets (SIRT60pro,

SIRT80pro, SIRT360pro, SIRT600pro, SIRT800pro)

and using the SIRT2400pro reconstruction for the

high-quality dataset throughout. The MSD net was

run for each network until the root mean square error

(RMSE), computed as the difference from the high-

quality dataset, was below at least 0.00014, taking

anywhere from 1 hour (MS-D Net800) to 288 hours

(MS-D Net80). Each network was then applied to all

the low-quality datasets. We refer to these data as

MS-D NetTT_FFpro, where TT is the number of

projections used to generate the volume used to train

the network, and FF is the number of projections used

to generate the volume that is filtered.

Figure 3 shows an example of the process using

the SIRT-80pro data as the training and validating

dataset (MS-D Net80_80pro).

Assessment of Dose Reduction Strategies in Wavelength-selective Neutron Tomography

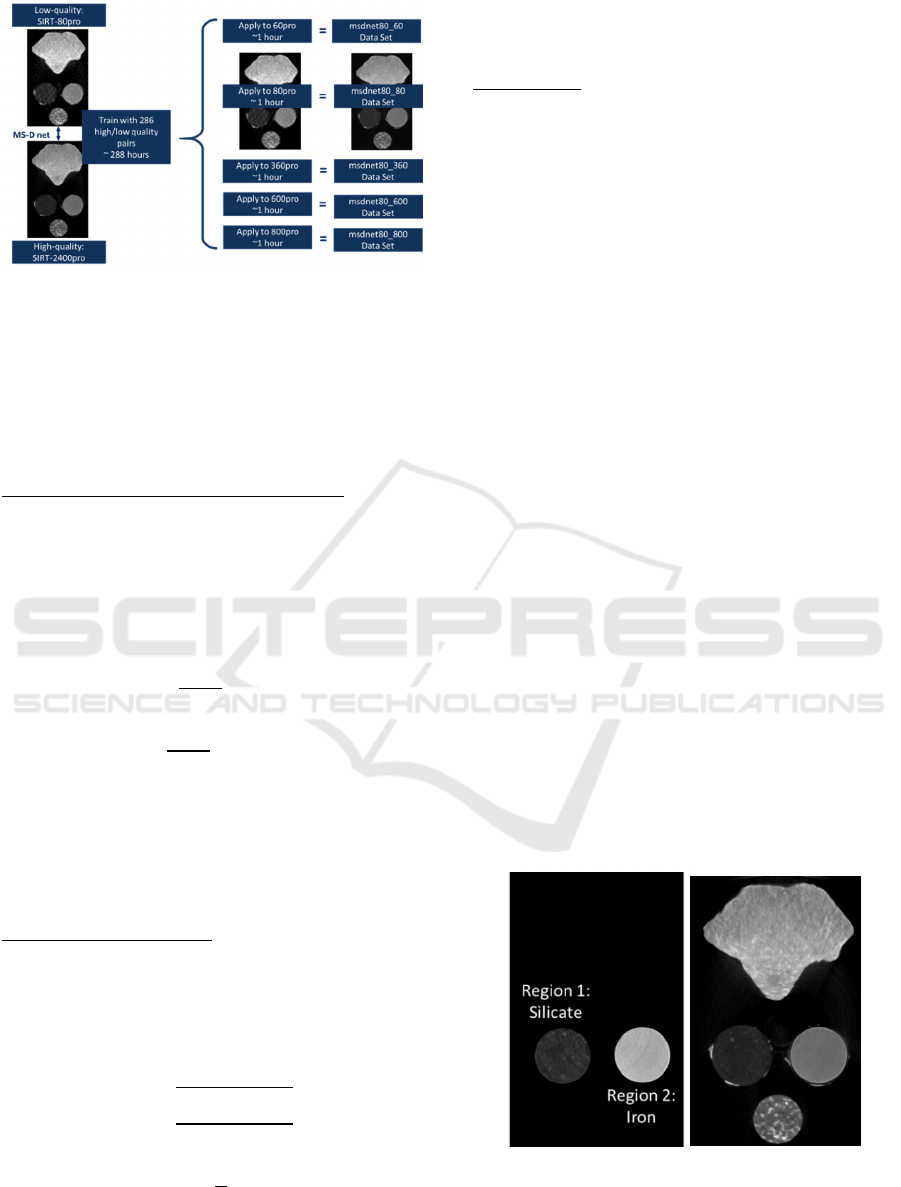

Figure 3: An example of the MSD-Net Post-Processing

Method using the SIRT 80pro/SIRT 2400pro datasets as

high/low quality pairs (MS-D Net80_80pro). After the

neural network was trained, it was applied to all the low-

quality datasets.

3.4 3D Reconstruction Quality versus

Acquisition Time

Accuracy and Number of 2D Projections: To assess

the accuracy of each reconstruction method as a

function of projection number (aliasing distortions;

Kak, A. C., et. al.., 2002), we evaluated the standard

deviation of the reconstructed values of the SRM

powders, as shown in Figure 5 As discussed in Kak

and Slaney (2002), for a circularly symmetric object,

the variance of the reconstruction is approximated as

varf



0,0=



τ

MN

















(1)







0,0=



















/

/

(2)

M the number of projections, N

the number of

neutrons detected in the center of the object, τ is the

sampling width, and h(t) and its Fourier transform

H(w) the filtering window, which is the ramp function

for the SIRT algorithm used in this work.

SNR and RMSE Metrics: RMSE and SNR metrics

were computed by leveraging reference data cons-

tructed via a tomographic reconstruction from 2400

projections and manual annotation of image regions

delineating standard reference materials in the field of

view – see Figure 4. We calculated RMSE and SNR

using common definitions shown in equations below:

=



∑|

















(3)

=

̅



(4)

where 



is the reference value, 



is the measured

value,  is the number of values in a tomographic

reconstruction, ̅ is the average intensity and  is the

sample standard deviation.

Blur Metrics: Blur mostly affects structure and detail,

which are absent in the reference powders. For this

reason, the blur metrics were analyzed for the whole

image over the entire volume, including the meteorite

and granite. To determine the optimal blur metric for

our datasets, we evaluated 24 different blur/focus

metrics from (Crete et al., 2007a; Petruccelli et al.,

n.d.). We evaluated the metrics based on two

different assumptions: (1) that the optimal metric had

the highest coefficient of variation over a set of

diverse image qualities and (2) that the optimal metric

is one that is verified by a human quality assessment.

For Assumption 1, we investigated if the optimal blur

metric selection was dependent on the dataset

analyzed. We then compared the metrics determined

for each assumption to determine if they ranked

datasets in the same order. For Assumption 2, we used

the no-reference perceptual blur metric developed by

Crete et al., henceforth referred to as the CRETE

method, which has been validated with a human

perception test (Crete et al., 2007a), for which, the

higher the blur metric is, the poorer the visual quality

of the image.

4 EXPERIMENTAL RESULTS

To compare the under-sampled data sets with ground

truth (2400 projections), we took samples at a regular

interval from the polychromatic data set to form data

sets with 60, 80, 360, 600, and 800 projections, we

also refer to these data sets as “low-quality”. From

each of these under-sampled data sets we computed

two reconstructed volumes. We formed the SIRT

estimate of the volume using no prior estimate, and

Figure 4: Left - A cross-section of the reference powders

with the mask overlain on top. The powder regions are

labeled. Right – A cross section of 3D tomographic

reconstruction from 2400 projections which was considered

as a reference.

IMPROVE 2022 - 2nd International Conference on Image Processing and Vision Engineering

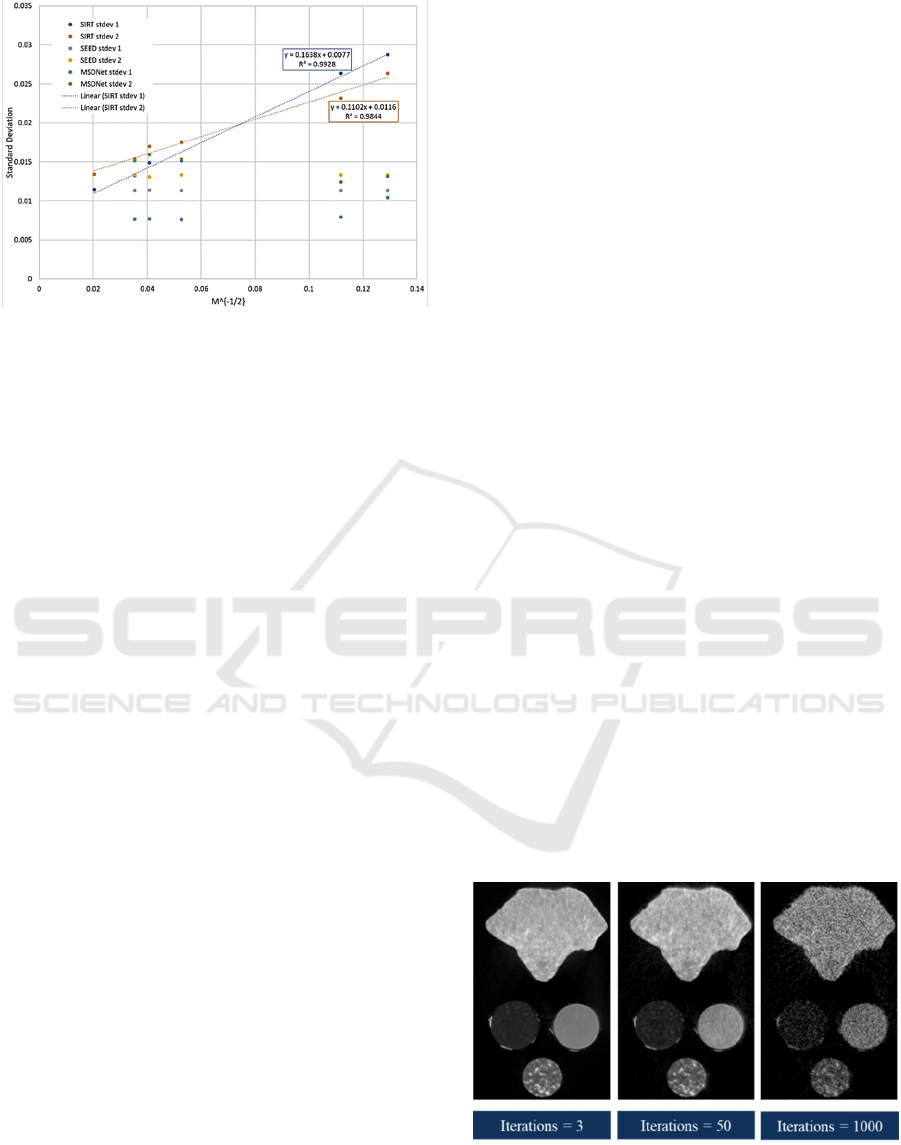

Figure 5: Observed standard deviation for the two

cylindrical regions of interest (SRMs denoted as 1 and 2)

and reconstruction method as a function of number of

projections M. To highlight the linear relationship of the

SIRT data set, the standard deviation is plotted as M

-1/2

contrast to SIRT data sets, the SEED and MS-D Net data

sets show approximately constant standard deviations as a

function of M.

we designate these as SIRT-Xpro (where X = 60, 80,

360, 600, 800, or 2400). The second set of volumes

seed the SIRT with a prior estimate from the highly-

quality (SIRT-2400pro) reconstruction, and we

designate these as SIRT+seed-Zpro (where Z = 60,

80, 360, 600 or 800). The 2400 projection dataset was

used to determine the best approaches to evaluate the

metrics for image quality. In addition, we created a

validation dataset reconstructed using the SIRT

function in the ASTRA toolbox from 720 projections

acquired using a monochromatic beam and by using

500 iterations (Palenstijn et al., 2011a; Van Aarle et

al., 2015b, 2016b).

4.1 3D Reconstruction Time

Reconstruction of the 2400 projection dataset took

about 15 hours, while reconstruction of only 80

projections took 0.7 hours. Time to reconstruct an

example volume using the SIRT + seed

reconstruction method Time

Rec

as a function of the

SIRT iterations was linear with the model parameters

in Equation below.

Time

Rec

[s] = 2.1089 [s] * x + 131.85 [s] (5)

where x is the number of SIRT iterations. Here the

SIRT 2400pro dataset was used as a seed and the 80

projection, 3.7 Å monochromatic dataset was

reconstructed. The impact on image quality is

discussed below, however we note that for when using

a prior estimate, only 3 iterations were required to

achieve significant image clarity, and larger number of

iterations exhibited the well-known behavior of over-

fitting of the noise (Chen et al., 2016).

4.2 Acquisition Time and Estimated

Accuracy of 3D Reconstruction

Acquisition time is directly proportional to the

number of acquired 2D projections M. Following the

Equations (1) and (2), the number of 2D projections

M influence the value of N

, the number of neutrons.

This is shown in Figure 5 by different slopes and

intercept of the fit of the standard deviation as a

function of M

-1/2

. The standard deviation for the

seeded and MSD-Net reconstructions do not possess

the standard deviation dependence on projection

number, but instead are approximately that of the

SIRT-2400pro data set, which is used as the seed or

ground truth -see Figure 5. The slightly suppressed

standard deviation for the MS-D Net data sets

indicates there is strong smoothing occurring. For the

SIRT+seed data, the a priori information, which is in

part derived from the projections used in the under-

sampled data, reduces the overall variance.

4.3 SNR and RMSE based

Comparisons

For the SNR evaluations, we isolated the standard

reference powders to try and determine if there was a

relationship between the average SNR and the

projection number as a function of the reference

powder regions (SNR=f(region, projection)).

Isolation was realized by manually establishing a 2D

mask in the SIRT-2400pro dataset that defined the

reference powders for each 2D cross-sectional z-

frame and then determined the frame z-range that

corresponded to the reference powders. We then

computed the SNR for each reference powder per z-

frame. We could then rank the datasets based on their

average SNR values and try to determine the

predictive relationship among the data.

Figure 6: Reconstructed slices using 3, 50, and 1000

iterations. Visual quality decreases with increasing

iterations.

Assessment of Dose Reduction Strategies in Wavelength-selective Neutron Tomography

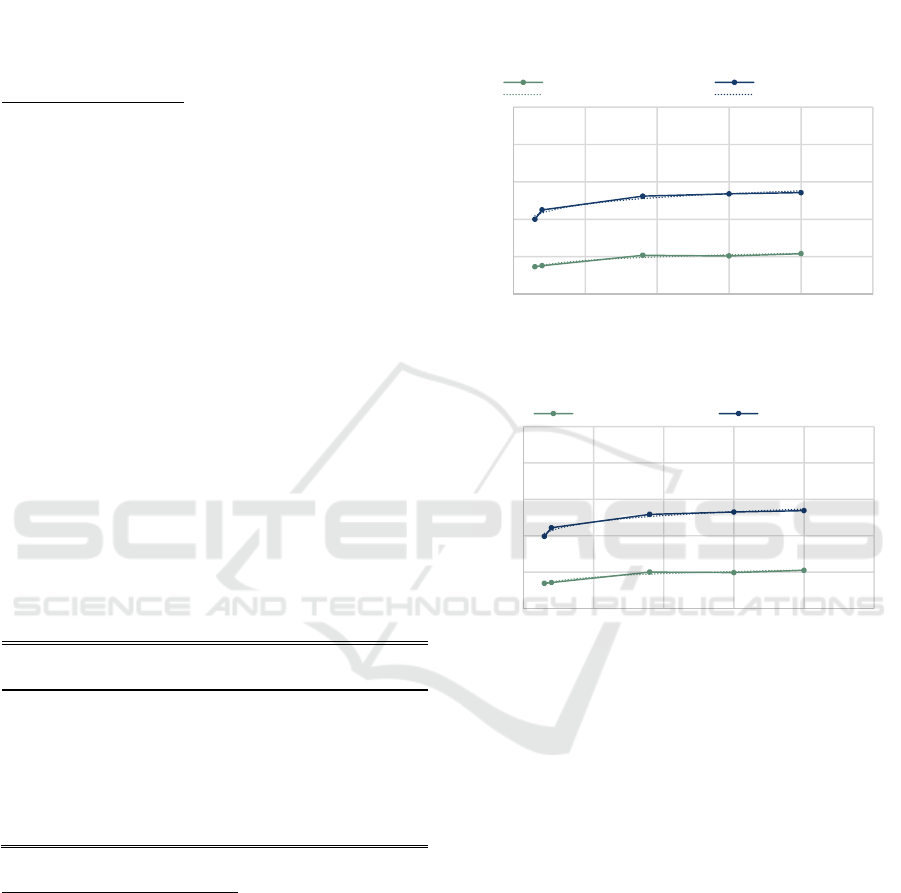

Figure 7: The average SNR as a function of the reference

powder region and the projection number.

Region 1 contained the silicate powder and

Region 2 contained the iron powder. Figure 4(left)

shows a cross-section of the powders with the

corresponding mask overlain on top of the data. To

determine the height of powders in two cylinders, we

assumed that the derivative of the average intensity of

each region per frame in the SIRT-2400pro dataset is

close to zero since the powders are homogeneous

along z-axis (corresponding to the cylinder height

dimension). The choice of a threshold for the derivate

to be close to zero was visually verified (SNR

threshold=0.000389) and resulted in defining the

powder z-slices to be in the [447, 514] range. Finally,

we calculated the signal-to-noise ratio (SNR) using

the definition in Equation (4).

SIRT-Xpro Dataset: The SNR method described

above was applied to the polychromatic datasets

reconstructed with the SIRT algorithm. The

differences in SNR values for Region 1 and Region 2

shown in Figure 4 (left) are due to the difference in

the average attenuation intensity of the regions, a

function of the properties of the reference powders,

and will vary depending on the homogenous material

being analyzed. Ranking both datasets from worst to

best quality we get: SIRT-60pro, SIRT-80pro,

SIRT-360pro, SIRT-600pro, SIRT-800pro, and

SIRT-2400pro. This ranking from lowest to highest

projection number was expected due to the Poisson

noise detailed below and helps validate the use of

SNR based evaluations for the other datasets.

As with most neutron imaging datasets, the noise

in the data is dominated by Poisson counting

statistics. Without any interaction with a sample, the

SNR is governed by the counting statistics according

to:

=



√



(6)

where  is the number of incident neutrons

(Lewandowski et al., 2012). Thus, the increased

counting statistics with increasing number of

projections will increase the SNR value

exponentially. The application of the Beer-Lambert

Law in Equation below due to interaction with the

sample, transforms this into a logarithmic

relationship.

=





=



(7)

where  is the measured intensity, 



the incident

intensity,  is the transmission,  is the thickness, and

 is the attenuation, a product of the neutron cross

section and the atom density (dependent on the

material). A predictive relationship between SNR and

the number of 2D projections can be derived from the

data shown in Figure 7.

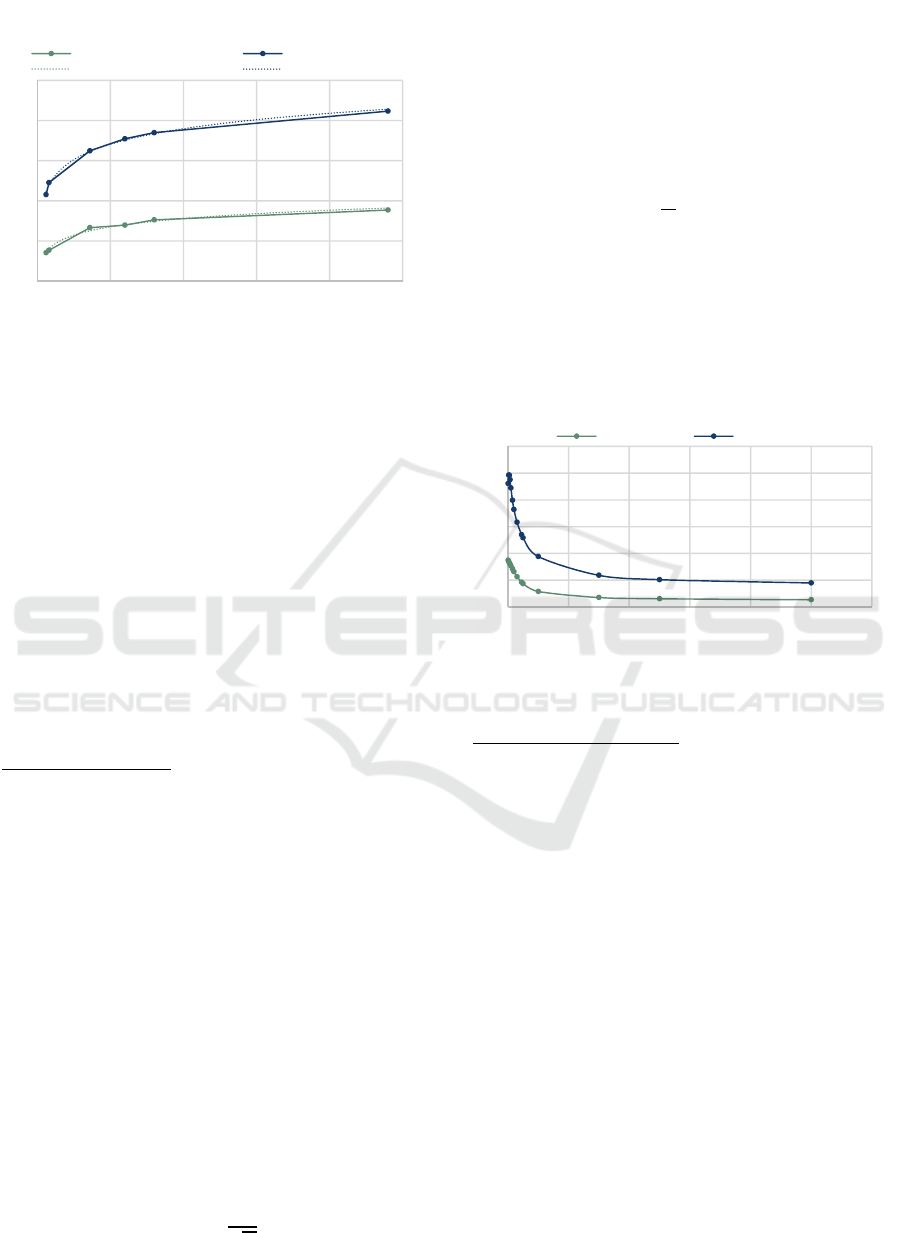

Figure 8: The average SNR value on a single frame as a

function of the number of SIRT iterations with a seed.

SIRT+seed-Zpro Dataset: Applying the SIRT + seed

reconstruction method requires a trade-off between

accuracy, time, and image quality as in Fig. 6, Fig. 8

and Fig. 9 show the dependency of SNR and RMSE on

the SIRT iterations. Fig. 9 indicates that (a) the ground

truth 3D volume we compare against has lower image

quality with respect to RMSE error than the seed

volume, and (b) for the increased number of iterations,

the resulting 3D volume is deviating more from the

seed and converging closer to the 3D reconstruction

from the input projection images without the seed.

Thus, quality of the 3D reconstructed volume will vary

between the quality value of the seed and the quality

value of the input data as a function of the number of

iterations. However, utilizing this method would

dramatically decrease the time required to reconstruct

a dataset of similar quality. Using the SIRT + seed

method with 20 iterations would take about 7 minutes

for reconstruction and about 0.6 hours to collect and

yield image quality similar to the SIRT-360pro data set

that takes about 1.5 hours to reconstruct and 2.5 hours

to collect, a savings of over 3 hours per dataset, 2 hours

of which is expensive neutron acquisition time.

y = 1,4896ln(x) - 2,4873

R² = 0,9875

y = 2,7716ln(x) - 0,1681

R² = 0,9955

0 500 1000 1500 2000 2500

Average SNR

Number of 2D Projections

Average SNR(frames in [447,514])=f(Region,

Projection)

average SNR(R1) average SNR(R2)

Log. (average SNR(R1)) Log. (average SNR(R2))

0 200 400 600 800 1000 1200

Average SNR

SIRT Iterations

Average SNR (single 2D frame)

average SNR(R1) average SNR(R2)

IMPROVE 2022 - 2nd International Conference on Image Processing and Vision Engineering

Fig

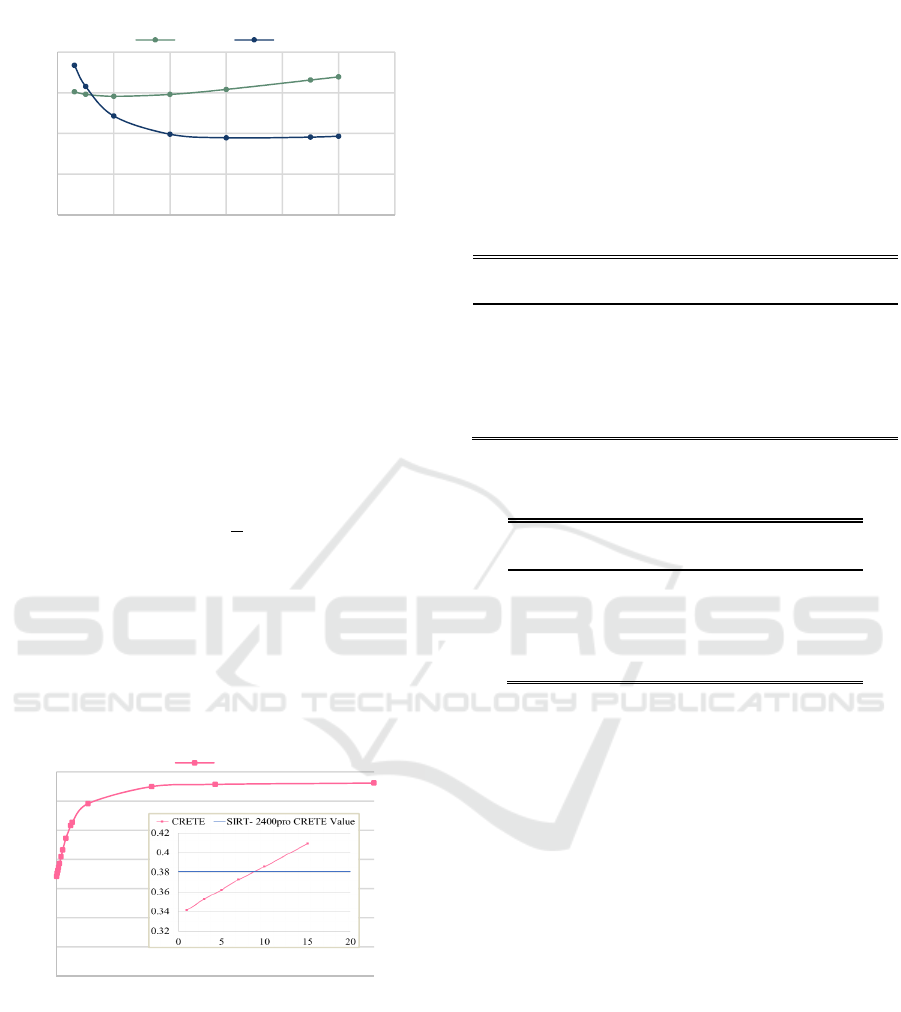

ure 9: The Root Mean Squared Error for the reference

powder regions as a function of the number of SIRT

iterations with a seed.

4.4 Blur based Comparisons

For the choice of optimal blur metric with maximum

variability (Assumption 1 from section 4.4), we

calculated the coefficient of variation (CV) for the

various blur metrics for the SIRT datasets according

to:





=





(8)

where s is the sample standard deviation and ̅ is

the sample mean. The blur metrics with the highest

coefficient of variation for each dataset are selected

to provide the highest discrimination. Out of the six

datasets, the HELM blur metric was optimal for five

and hence it was selected as the optimal metric for

Assumption 1.

Figure 10: The CRETE blur metrics on a single frame

(frame index: 451) as a function of the number of iterations.

The insert shows a zoomed in version of the graph with

iterations from 1 to 15 and the CRETE value for the SIRT-

2400pro for the same frame (between 7 and 10 iterations).

For the choice of optimal blur metric aligned with

human perception (Assumption 2), we used the

CRETE method, which has been validated with a

human perception test (Crete et al., 2007b). As

expected, the dataset with largest number of

projections (SIRT-2400pro) had the lowest blur

metric (the best quality) and the blur metric generally

increased with decreasing projection number. The

exception being SIRT-60pro and SIRT-80pro which,

qualitatively, were similar throughout. Figure 10

illustrates the relationship between CRETE metric

and the SIRT iterations for a fixed z-frame applied to

the 3D reconstruction using monochromatic

SIRT+seed-Zpro dataset.

Table 1: Ranking of Datasets According to the Blur Metric.

Projections

Assumption 1

HELM

Assumption 2

CRETE

60 5 5

80 6 6

360 4 4

600 3 3

800 1 2

2400 2 1

Note: 1-6 from least blur to most blur

Table 2: CRETE Values.

Dataset

CRETE

Value

SIRT + seed: 20 iterations 0.43

SIRT-360pro 0.49

SIRT-600pro 0.48

SIRT-800pro 0.46

SIRT-2400pro 0.38

For both criteria for selecting optimal blur

metrics, the datasets were ranked according to the

average blur metric from 1 to 6, with 1 being the least

blurry. The results are shown in Table 1 . The

rankings for the HELM and blur metrics differed

slightly and were consistent for all but the SIRT-

2400pro and SIRT-800pro datasets. We expected the

SIRT-2400pro dataset to have the lowest blur metric

due to the higher number of projections, which was

the case for the CRETE method (see Table 2), but not

for the HELM metric. This lends credence to the

CRETE method of evaluating blur and will be the

main metric considered for the rest of this work.

Another deviation from the expected results is the

higher ranking of SIRT-60pro compared to SIRT-

80pro. This relationship is consistent in both the

HELM and the CRETE methods and could be due to

a smoothing out of features and boundaries in the

SIRT-60pro.

4.5 SNR and Blur for MS-D Net

Postprocessed Datasets

Lastly, we analyzed the machine learning post-

processing method for each trained network. We then

0,5

1,5

0 102030405060

RMS Error

SIRT Iterations

Root Mean Squared Error

Region 1 Region 2

0,1

0,2

0,3

0,4

0,5

0,6

0,7

0 200 400 600 800 1000

CRETE

…

SIRT Iterations

Blur Values for Single 2D Slice

CRETE

Assessment of Dose Reduction Strategies in Wavelength-selective Neutron Tomography

calculated the average SNR per calibration region for

each network as a function of the number of

projections using the same procedure as before (Fig.

11 A-C). Based on the SNR results, the network

performance can be divided into two groups that

show similar trends, the 60/80 MS-D Net data and the

360/600/800 MS-D Net data.

60/80 MS-D Net Data: The SNR results for these two

networks demonstrate that the best SNR ratio was

achieved when the MS-D Net was applied to the data

set it was trained on (Fig. 11 A). In the training data,

there were various degrees of artifacts due to the low

projection number. Each model was trained to

compensate for the degree of artifacts that were

present in the samples and did not perform as well

when the artifacts were not present or present but to a

lesser extent than the dataset it was trained on. When

compared to the original SIRT datasets, the maximum

SNR values were much higher than the original SNR

values (Table 3) and in the MS-D Net80 case, higher

that the SIRT-2400pro dataset. Thus, these networks

were able to improve the SNR of the original datasets.

The blur results using CRETE are a bit more

difficult to interpret because while the SNR

calculation is only applied to the homogenous

powders, the blur metric is calculated across the entire

volume, including the heterogenous rock samples.

Table 3: SNR Max Values, the SIRT datasets (last four

rows) only had one SNR value, whereas, for the MSD

networks (first three rows), the max SNR value for every

dataset was used.

Dataset/Network

SNR Max Value

Region 1

SNR Max Value

Region 2

MS-D Net360 5.38 13.56

MS-D Net600 5.99 13.25

MS-D Net800 5.24 13.45

SIRT-360pro 6.68 16.26

SIRT-600pro 7.00 17.76

SIRT-800pro 7.65 18.52

SIRT-2400pro 8.87 21.22

360/600/800 MS-D Net Data: The SNR results for the

360/600/800 MS-D Nets all show consistent results.

These networks did not perform well (low SNR

values) when applied to the SIRT- 60pro/80pro

datasets that contained reconstruction artifacts due to

low projection numbers. Since the networks were

trained with datasets that did not have many artifacts,

they were not trained to remove them. These artifacts

were thus still present in the data after the networks

were applied, leading to lower SNR values. The

networks performed best when they were applied to

the SIRT- 360pro/600pro/800pro datasets. When

compared to the original SIRT datasets, the maximum

SNR value for all three networks was below the SNR

value of the initial datasets (Table 3). Thus, these

networks were not able to make any improvements in

the SNR values.

Figure 11: The average SNR values for the MS-D Net

trained networks and 3D datasets reconstructed from 60,

360, and 800 projections.

5 DISCUSSION

This paper presented (1) an experimental design to

understand the trade-offs between acquisition time

and image quality of 3D tomographic reconstructions

from neutron imaging data, (2) evaluations of SNR,

RMSE, blur metrics, and intensity variance as the

measurements of image quality and their

relationships to acquisition parameters, and (3)

integration of the MS-D NN model-based denoising

to leverage previously acquired high quality dataset.

We have created several “ground truth” datasets and

included assumptions, models, and methods to

quantify several image quality metrics as listed in

Table 4.

Table 4 summarizes all relationships documented

in the experimental section. We could classify them

y = 0,6918ln(x) + 0,8131

R² = 0,9578

y = 1,2872ln(x) + 5,1938

R² = 0,9443

0 200 400 600 800 1000

Average SNR

Number of 2D Projections

B. MSDnet360

Average SNR(frames in

[447,514])=f(Region,Projection)

average SNR(R1) average SNR(R2)

Log. (average SNR(R1)) Log. (average SNR(R2))

y = 0,7112ln(x) + 0,5333

R² = 0,9623

y = 1,2819ln(x) + 5,0905

R² = 0,9513

0 200 400 600 800 1000

Average SNR

Number of 2D Projections

C. MSDnet800

Average SNR(frames in

[447,514])=f(Region,Projection)

average SNR(R1) average SNR(R2)

IMPROVE 2022 - 2nd International Conference on Image Processing and Vision Engineering

into linear, non-linear (logarithmic), and content

dependent. Due to a large spectrum of blur

definitions, one must consider ranking the blur

metrics, for example, based on the coefficient of

variation (CV). The ranking order becomes the first

step before a modelled relationship can be

established.

This work examined three separate methods of

improving 3D tomographic reconstructions at

neutron imaging beamlines: (1) one baseline

reconstruction method as a function of varying input

numbers of projections, (2) one method as a function

of incorporated seeds into an iterative 3D

reconstruction algorithm, and (3) one post-processing

method as a function of incorporated non-linear

mappings derived from existing datasets. The first

reconstruction algorithm (SIRT) established baseline

metrics for analyzing neutron tomograms, including

SNR and the CRETE blur metric. The second

reconstruction algorithm (SIRT + seed) used a high-

quality dataset to initialize the SIRT reconstruction.

The final approach, a post-processing method,

applied a machine learning algorithm (MS-D net) to

sharpen and de-noise the reconstruction images.

Using the metrics determined when analyzing the

SIRT datasets, we found that the SIRT + seed method

could utilize a high-quality dataset of similar

attenuation values and the same shape to reconstruct

unknown datasets with trade-offs between accuracy,

time, and image quality. As little as 20 iterations of

an 80-projection dataset was shown to improve image

quality comparable to a dataset with at least 360-

projections. Utilizing this method would dramatically

decrease the time required to reconstruct and collect

datasets, allowing more advanced neutron imaging

methods to be utilized.

The post-processing method using the MS-D Net

demonstrated the benefit of using this method for

low-projection datasets, especially if the algorithm is

trained on a dataset with the same number of

projections. These networks showed improvements in

SNR values and CRETE blur metrics that indicate

higher-quality data. However, as shown in the higher-

projection dataset, care must be taken when applying

machine learning models across multiple

configurations on the neutron imaging beamlines.

6 CONCLUSIONS

This paper presented (1) an experimental design to

understand the trade-offs between acquisition time

and image quality of 3D tomographic reconstructions

from neutron imaging data, (2) evaluations of SNR,

RMSE, blur metrics, and intensity variance as the

measurements of image quality and their

relationships to acquisition parameters, and (3)

integration of the MS-D NN model-based denoising

to leverage previously acquired high quality dataset.

We have created several “ground truth” datasets and

included assumptions, models, and methods to

quantify several image quality metrics as listed in

Table 4.

Table 4: Summary of explored relationships and rankings.

GT is ground truth, “A priori” refers to assumptions &

models, and methods, M denotes the number of 2D

projections, N is the number of SIRT iterations, RM is

reference segmentation mask, RV is reference 2400

projection-based 3D reconstruction, RP is reference

powders, and MS-D is mixed-scale dense neural network

trained model.

Relationship

Dependent

var.

Independent

var.

A priori

Datasets

Linear Acq. time M

Linear:

Eq. (5)

Time to

reconstruct

volume

Linear:

Figure 5

Intensity

Variance

1/M Cylinders RP

Log:

Figure 7

SNR M

RP &

SIRT-Xpro

method

Linear:

Figure 8

SNR N

RP &

SIRT+seed

-Zpro

method

Ranking:

Figure 9

Min RMSE

over

powders

N & intensity

RP &

SIRT+seed

-Zpro

method

RM &

Log:

Figure 10

CRETE

Blur

SIRT+seed

-Zpro

method &

MS-D

Log:

Figure 11

SNR M, RP type

SIRT+seed

-Zpro

method &

MS-D &

RM &

The paper aims at identifying trade-offs between

3D reconstruction quality and acquisition time by

discovering relationships among variables measuring

several aspects of imaging, such as acquisition speed,

imaging focus, object discrimination from

background, 3D reconstruction method, and noise

modelling. Once the models for relationships are

established and parametrized, a user can choose a

compromise between acquisition time and accuracy

of the final measurement depending on 3D

reconstruction quality. Thus, the analysis completed

Assessment of Dose Reduction Strategies in Wavelength-selective Neutron Tomography

here may help users of neutron beam facilities to plan

and carry out experiments at the neutron imaging

beamline. The work is also intended to be an initial

look at how the 3D reconstruction techniques could

be used at neutron imaging facilities to improve 3D

reconstructions with additional seeding and

supervised model-based denoising.

DISCLAIMER

Certain commercial equipment, instruments, or

materials (or suppliers, or software, ...) are identified

in this paper to foster understanding. Such

identification does not imply recommendation or

endorsement by the National Institute of Standards

and Technology, nor does it imply that the materials

or equipment identified are necessarily the best

available for the purpose.

REFERENCES

Bingham, P., Polsky, Y., & Anovitz, L. (2013). Neutron

imaging for geothermal energy systems. In P. R.

Bingham & E. Y. Lam (Eds.), Image Processing:

Machine Vision Applications VI (Vol. 8661, Issue 6, p.

86610K). SPIE. https://doi.org/10.1117/12.2004617

Brooks, A. J., Knapp, G. L., Yuan, J., Lowery, C. G., Pan,

M., Cadigan, B. E., Guo, S., Hussey, D. S., & Butler, L.

G. (2017). Neutron imaging of laser melted SS316 test

objects with spatially resolved small angle neutron

scattering. Journal of Imaging, 3(4), 1–11.

https://doi.org/10.3390/jimaging3040058

Chen, Y., Zhang, Y., Zhang, K., Deng, Y., Wang, S.,

Zhang, F., & Sun, F. (2016). FIRT: Filtered iterative

reconstruction technique with information restoration.

Journal of Structural Biology, 195(1), 49–61.

https://doi.org/10.1016/j.jsb.2016.04.015

Crete, F., Dolmiere, T., Ladret, P., & Nicolas, M. (2007a).

The blur effect: perception and estimation with a new

no-reference perceptual blur metric. In B. E. Rogowitz,

T. N. Pappas, & S. J. Daly (Eds.), Human Vision and

Electronic Imaging XII (Vol. 6492, p. 64920I). SPIE.

https://doi.org/10.1117/12.702790

Crete, F., Dolmiere, T., Ladret, P., & Nicolas, M. (2007b).

The blur effect: perception and estimation with a new

no-reference perceptual blur metric. In B. E. Rogowitz,

T. N. Pappas, & S. J. Daly (Eds.), Human Vision and

Electronic Imaging XII (Vol. 6492, p. 64920I). SPIE.

https://doi.org/10.1117/12.702790

Gates, C. H., Perfect, E., Lokitz, B. S., Brabazon, J. W.,

McKay, L. D., & Tyner, J. S. (2018). Transient analysis

of advancing contact angle measurements on polished

rock surfaces. Advances in Water Resources, 119, 142–

149. https://doi.org/10.1016/j.advwatres.2018.03.017

Hilger, A., Manke, I., Kardjilov, N., Osenberg, M.,

Markötter, H., & Banhart, J. (2018). Tensorial neutron

tomography of three-dimensional magnetic vector

fields in bulk materials. Nature Communications, 9(1),

1–7. https://doi.org/10.1038/s41467-018-06593-4

Hussey, D. S., Brocker, C., Cook, J. C., Jacobson, D. L.,

Gentile, T. R., Chen, W. C., Baltic, E., Baxter, D. V.,

Doskow, J., & Arif, M. (2015). A New Cold Neutron

Imaging Instrument at NIST. Physics Procedia, 69.

https://doi.org/10.1016/j.phpro.2015.07.006

Jau, Y. Y., Hussey, D. S., Gentile, T. R., & Chen, W.

(2020). Electric field imaging using polarized neutrons.

ArXiv, 3.

Kak, A. C., Slaney, M., & Wang, G. (2002). Principles of

Computerized Tomographic Imaging. Medical Physics,

29(1), 107–107. https://doi.org/10.1118/1.1455742

Kak, A.C., S. M. (n.d.). Principles of Tombgraphic

Imaging. Book.

Lewandowski, R., Cao, L., & Turkoglu, D. (2012). Noise

evaluation of a digital neutron imaging device. Nuclear

Instruments and Methods in Physics Research, Section

A: Accelerators, Spectrometers, Detectors and

Associated Equipment, 674, 46–50.

https://doi.org/10.1016/j.nima.2012.01.025

NIST Disclaimer Statement/NIST. (n.d.).

https://www.nist.gov/disclaimer

Palenstijn, W. J., Batenburg, K. J., & Sijbers, J. (2011a).

Performance improvements for iterative electron

tomography reconstruction using graphics processing

units (GPUs). Journal of Structural Biology, 176(2),

250–253.

Palenstijn, W. J., Batenburg, K. J., & Sijbers, J. (2011b).

Performance improvements for iterative electron

tomography reconstruction using graphics processing

units (GPUs). Journal of Structural Biology, 176(2),

250–253. https://doi.org/10.1016/j.jsb.2011.07.017

Pelt, D. M., & Sethian, J. A. (2017). A mixed-scale dense

convolutional neural network for image analysis.

Proceedings of the National Academy of Sciences of the

United States of America, 115(2), 254–259.

https://doi.org/10.1073/pnas.1715832114

Petruccelli, J. C., Tian, L., & Barbastathis, G. (n.d.).

imaging. 2, 2–4.

Rauch, H., & Werner, S. A. (2015). Neutron Interferometry

2nd Edn. In Neutron Interferometry 2nd Edn. Oxford

University Press. https://doi.org/10.1093/acprof:oso/

9780198712510.001.0001

Schofield, R., King, L., Tayal, U., Castellano, I., Stirrup, J.,

Pontana, F., Earls, J., & Nicol, E. (2020). Image

reconstruction: Part 1-understanding filtered back

projection, noise and image acquisition.

https://doi.org/10.1016/j.jcct.2019.04.008

Strobl, M. (2014). General solution for quantitative dark-

field contrast imaging with grating interferometers.

Scientific Reports, 4(1), art. no. 7243.

https://doi.org/10.1038/srep07243

Tayal, U., King, L., Schofield, R., Castellano, I., Stirrup, J.,

Pontana, F., Earls, J., & Nicol, E. (2019). Image

reconstruction in cardiovascular CT: Part 2-Iterative

reconstruction; potential and pitfalls.

https://doi.org/10.1016/j.jcct.2019.04.009

IMPROVE 2022 - 2nd International Conference on Image Processing and Vision Engineering

Van Aarle, W., Palenstijn, W. J., Cant, J., Janssens, E.,

Bleichrodt, F., Dabravolski, A., De Beenhouwer, J.,

Batenburg, K. J., & Sijbers, J. (2016a). Fast and flexible

X-ray tomography using the ASTRA toolbox. Optics

Express, 24(22), 25129–25147.

Van Aarle, W., Palenstijn, W. J., Cant, J., Janssens, E.,

Bleichrodt, F., Dabravolski, A., De Beenhouwer, J.,

Batenburg, K. J., & Sijbers, J. (2016b). Fast and flexible

X-ray tomography using the ASTRA toolbox. Optics

Express, 24(22), 25129–25147.

van Aarle, W., Palenstijn, W. J., Cant, J., Janssens, E.,

Bleichrodt, F., Dabravolski, A., De Beenhouwer, J.,

Joost Batenburg, K., & Sijbers, J. (2016). Fast and

flexible X-ray tomography using the ASTRA toolbox.

Optics Express, 24(22), 25129.

https://doi.org/10.1364/oe.24.025129

Van Aarle, W., Palenstijn, W. J., De Beenhouwer, J.,

Altantzis, T., Bals, S., Batenburg, K. J., & Sijbers, J.

(2015a). The ASTRA Toolbox: A platform for

advanced algorithm development in electron

tomography. Ultramicroscopy, 157, 35–47.

Van Aarle, W., Palenstijn, W. J., De Beenhouwer, J.,

Altantzis, T., Bals, S., Batenburg, K. J., & Sijbers, J.

(2015b). The ASTRA Toolbox: A platform for

advanced algorithm development in electron

tomography. Ultramicroscopy, 157, 35–47.

Vitucci, G., Minniti, T., Di Martino, D., Musa, M., Gori, L.,

Micieli, D., Kockelmann, W., Watanabe, K., Tremsin,

A. S., & Gorini, G. (2018). Energy-resolved neutron

tomography of an unconventional cultured pearl at a

pulsed spallation source using a microchannel plate

camera. Microchemical Journal, 137, 473–479.

https://doi.org/10.1016/j.microc.2017.12.002

Vo, N. T., Atwood, R. C., & Drakopoulos, M. (2018).

Superior techniques for eliminating ring artifacts in X-

ray micro-tomography. Optics Express, 26(22), 28396.

https://doi.org/10.1364/OE.26.028396

Woracek, R., Penumadu, D., Kardjilov, N., Hilger, A.,

Boin, M., Banhart, J., & Manke, I. (2014). 3D Mapping

of Crystallographic Phase Distribution using Energy-

Selective Neutron Tomography. Adv. Mater.

(Weinheim, Ger.), 26(24), 4069–4073.

Gavin D. Peckham and Ian J. McNaught, Applications of

Maxwell-Boltzmann distribution diagrams, Journal of

Chemical Education 1992 69 (7), 554, DOI:

10.1021/ed069p554

Oxford Instruments, Andor’s fast and sensitive sCMOS

cameras, URL: https://andor.oxinst.com/products/fast-

and-sensitive-scmos-cameras

S. Pertuz, D. Puig, and M. A. Garcia, “Analysis of focus

measure operators for shape-from-focus,” Pattern

Recognit., vol. 46, no. 5, pp. 1415–1432, May 2013,

doi: 10.1016/j.patcog.2012.11.011.

Assessment of Dose Reduction Strategies in Wavelength-selective Neutron Tomography
