SIMBIoTA-ML: Light-weight, Machine Learning-based Malware

Detection for Embedded IoT Devices

Dorottya Papp

1 a

, Gergely

Acs

1 b

, Roland Nagy

1 c

and Levente Butty

1,2 d

CrySyS Lab, Budapest University of Technology and Economics, M

uegyetem rkp. 3., H-1111 Budapest, Hungary

ELKH-BME Information Systems Research Group, M

uegyetem rkp. 3., H-1111 Budapest, Hungary

Keywords:

IoT, Embedded Systems, Malware Detection, Machine Learning.

Abstract:

Embedded devices are increasingly connected to the Internet to provide new and innovative applications in

many domains. However, these devices can also contain security vulnerabilities, which allow attackers to

compromise them using malware. In this paper, we present SIMBIoTA-ML, a light-weight antivirus solution

that enables embedded IoT devices to take advantage of machine learning-based malware detection. We show

that SIMBIoTA-ML can respect the resource constraints of embedded IoT devices, and it has a true positive

malware detection rate of ca. 95%, while having a low false positive detection rate at the same time. In

addition, the detection process of SIMBIoTA-ML has a near-constant running time, which allows IoT devel-

opers to better estimate the delay introduced by scanning a ﬁle for malware, a property that is advantageous in

real-time applications, notably in the domain of cyber-physical systems.

1 INTRODUCTION

Embedded devices are special-purpose devices de-

signed to carry out a well-deﬁned set of tasks. Nowa-

days, these devices are increasingly developed with

networking capabilities and are often connected to the

Internet. This technological advancement led to what

is now known as the Internet of Things (or IoT for

short), and embedded devices with networking capa-

bilities are also called embedded IoT devices.

The Internet of Things has enabled a wide range

of new and innovative applications in many modern-

day application domains, including healthcare, trans-

portation and agriculture. Unfortunately, embedded

IoT devices can have security weaknesses (just like

other types of computers). Such weaknesses include

insecure open ports, default or hard-coded passwords,

and software vulnerabilities. Open ports and weak

passwords allow attackers to easily gain access to the

device, while software vulnerabilities, notably those

in the operating system of the device, allow for a

wide range of malicious activities. Moreover, IoT

devices in certain application domains are desirable

https://orcid.org/0000-0002-9976-614X

https://orcid.org/0000-0003-4437-0110

https://orcid.org/0000-0003-2305-3271

https://orcid.org/0000-0003-4233-2559

targets for attacks, because they handle sensitive per-

sonal and business-related data, or control critical

processes. Another reason for attackers to compro-

mise IoT devices is to build a large-scale attack infras-

tructure and leverage the combined computing power

of millions of such compromised devices. Conse-

quently, there has been a rise in the number of mal-

ware targeting embedded IoT devices. One of the

most infamous examples is Mirai (Antonakakis et al.,

2017), which infected hundreds of thousands of IoT

devices and launched one of the largest distributed de-

nial of service attacks against Internet-based services

in 2016. But the IoT threat landscape includes other

malware families as well, such as Gafgyt, Tsunami,

and Dnsamp (Cozzi et al., 2020).

Detection of malware on embedded IoT devices

is a challenging problem. In a recent paper (Tam

as.

et al., 2021), we proposed SIMBIoTA (SIMilarity

Based IoT Antivirus), an effective and efﬁcient an-

tivirus solution for such devices. The operating prin-

ciples of SIMBIoTA are similar to those of traditional

signature-based antivirus solutions, but SIMBIoTA

uses TLSH hash values of known malware instead of

raw binary signatures for detection purposes. TLSH

(Oliver et al., 2013) is a similarity hash algorithm, and

it is different from cryptographic hashes, as it is de-

signed to maximize collisions. This means that small

variations in the input do not alter the TLSH output

Papp, D., Ács, G., Nagy, R. and Buttyán, L.

SIMBIoTA-ML: Light-weight, Machine Learning-based Malware Detection for Embedded IoT Devices.

DOI: 10.5220/0011080200003194

In Proceedings of the 7th International Conference on Internet of Things, Big Data and Security (IoTBDS 2022), pages 55-66

ISBN: 978-989-758-564-7; ISSN: 2184-4976

signiﬁcantly. In other words, similar inputs result in

similar TLSH hash values, and SIMBIoTA takes ad-

vantage of this feature. More speciﬁcally, in case of

SIMBIoTA, embedded IoT devices store only a few

TLSH hash values of known malware, and they com-

pare the TLSH hash values of new ﬁles to these stored

hashes. If the TLSH hash of an unknown ﬁle is sim-

ilar to that of a known malware, the unknown ﬁle is

detected as malware. The main advantage of SIM-

BIoTA is its light-weight requirements for storage,

computation, and bandwidth, as well as its remark-

able detection capabilities. Indeed, according to the

experiments reported in (Tam

as. et al., 2021), SIM-

BIoTA achieved a true positive detection rate of ca.

90%, even for previously unseen malware, and a false

positive detection rate of 0%.

In this paper, we also use TLSH hash values for

malware detection on IoT devices, but in a manner

different from that of SIMBIoTA. Our key observa-

tions are that TLSH hash values can serve as com-

pact representations of binary ﬁles and, thanks to their

well-deﬁned structure, they can be used as feature

vectors for training machine learning models, which

can then be used for malware detection. We show

that this approach can result in interesting trade-offs

in terms of detection performance and resource usage

on embedded devices. More speciﬁcally, our contri-

butions, in this paper, are the following:

• We introduce SIMBIoTA-ML, which replaces

SIMBIoTA’s database of TLSH hash values with

a random forest classiﬁer trained on TLSH hashes

of malware and benign ﬁles.

• We measure the true and false positive detection

rates of SIMBIoTA-ML, as well as its storage re-

quirements and running time.

• We compare SIMBIoTA-ML’s measurement re-

sults to those of SIMBIoTA and discuss the ad-

vantages and disadvantages of both solutions.

Speciﬁcally, we ﬁnd that SIMBIoTA has lower

storage requirements and false positive detection

rate, but SIMBIoTA-ML outperforms SIMBIoTA

in terms of true positive detection rate even for

new, previously unseen malware samples. We

also show that SIMBIoTA’s database of TLSH

hash values increases over time, which has an im-

pact on its detection time. Speciﬁcally, the larger

the database is, the longer it takes for SIMBIoTA

to decide whether an unknown ﬁle is malicious

or not. By contrast, we show that SIMBIoTA-ML

has a near-constant running time, which allows for

better estimation of the delay introduced by the

antivirus solution, and this can be an advantage

in case of real-time applications in the domain of

cyber-physical systems.

The paper is structured as follows: Section 2

provides background information on malware detec-

tion approaches and SIMBIoTA. Section 3 discusses

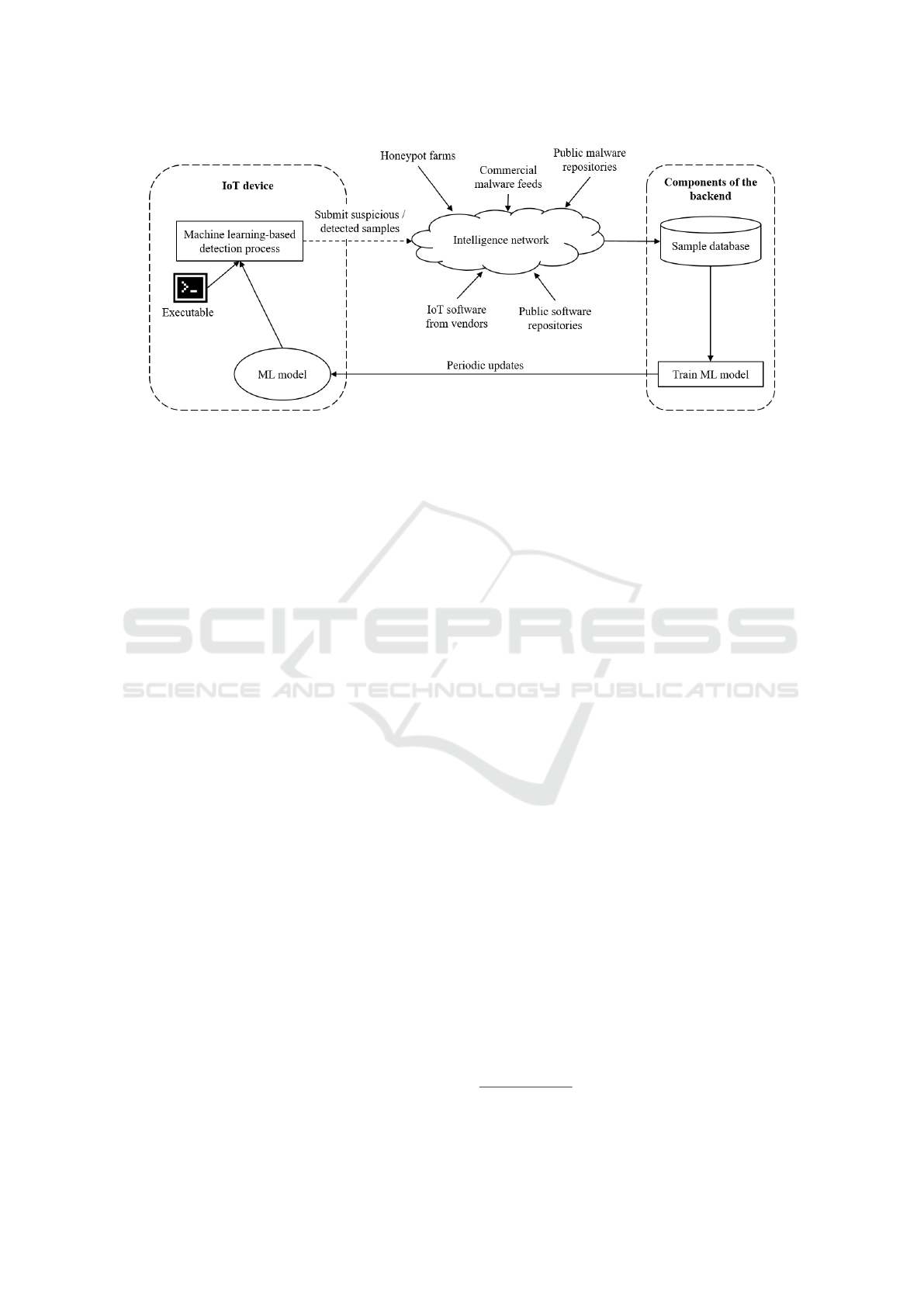

SIMBIoTA-ML and our changes to SIMBIoTA’s ar-

chitecture in order to use machine learning. The per-

formance of SIMBIoTA-ML is evaluated in Section 4.

Finally, Section 5 concludes the paper.

2 RELATED WORK

In this section, we provide background information

on machine learning-based malware detection, and

we summarize the operation of SIMBIoTA.

2.1 Malware Detection with Machine

Learning

Traditionally, antivirus products rely on signatures

and heuristic rules that try to capture complex static

patterns in known malware samples. One problem

with this approach is that, like any method relying

on static features of binaries, it can be evaded by

packing, encryption, obfuscation, and code polymor-

phism. These techniques modify a malware sample’s

binary form in such a way that it cannot be detected by

the same signature or heuristic rule, while, at the same

time, its behavior remains the same. Another prob-

lem, which is more important for our present work,

is that creating signatures and heuristic rules requires

expert knowledge, and often necessitates reverse en-

gineering techniques. As a result, it is a time con-

suming and tedious task. Hence, signature-based and

heuristic approaches have a hard time keeping up with

the constantly evolving threat landscape

, and their

reliance on expert knowledge is a scalability bottle-

neck for antivirus companies.

In response, signiﬁcant research effort has been

dedicated to automate malware detection using ma-

chine learning (Ye et al., 2017; Ucci et al., 2019;

Gibert et al., 2020). Machine learning requires fea-

tures, which are usually automatically extracted using

static and dynamic program analysis techniques (Soli-

man et al., 2017). Features can be derived from a

variety of sources, including the samples’ instruc-

tions (Dovom et al., 2019; Takase et al., 2020), their

control-ﬂow (Alasmary et al., 2019), invoked API

functions and system calls (Abbas and Srikanthan,

2017; Shobana and Poonkuzhali, 2020), and mes-

sages sent over the network (Meidan et al., 2018;

https://www.sophos.com/en-us/medialibrary/pdfs/

technical-papers/sophoslabs-2019-threat-report.pdf (ac-

cessed: Feb 28, 2022)

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

Goyal et al., 2019). Feature extraction can result in

thousands of features, some of which may be redun-

dant and can be eliminated with data mining tech-

niques.

For efﬁcient malware detection, machine

learning-based approaches require lots of benign and

malicious samples to train on. These samples are

often collected from so-called intelligence networks.

Nowadays, users’ machines run only a client-side

antivirus component, which may perform local

detection, but it can also request a server’s assistance

during the detection process. This setup is also

known as cloud-based malware detection. The

client-side component sends suspicious samples to a

server in the cloud, which performs a more in-depth

analysis, e.g., by executing the sample in a sandbox,

makes a decision, and informs the client. At the same

time, the server collects these submitted samples,

which can then be used for training machine learning

models.

Cloud-based malware detection coupled with ma-

chine learning has also been proposed for embedded

IoT devices (Sun et al., 2017; Hussain et al., 2020).

This is an advantageous combination for embedded

IoT devices, because resource-heavy analysis is per-

formed in the cloud and the resource-constrained de-

vices need to run only a light-weight client-side com-

ponent. The client-side component either forwards all

ﬁles to the cloud for analysis or applies a pre-trained

machine learning model to detect malware. Proposed

machine learning models include light-weight con-

volutional neural networks (Su et al., 2018), recur-

rent neural networks (HaddadPajouh et al., 2018),

random forest classiﬁers (Takase et al., 2020), fuzzy

and fast fuzzy pattern trees (Dovom et al., 2019).

Many existing works use static features (Ngo et al.,

2020), including function call graphs (Nguyen et al.,

2020), grey scale images of binaries (Karanja et al.,

2020), strings (Hwang et al., 2020), and instruction

opcodes (Nakhodchi et al., 2020).

2.2 SIMBIoTA

SIMBIoTA was proposed in (Tam

as. et al., 2021).

It is a light-weight antivirus solution with limited re-

quirements for storage, computation, and bandwidth,

hence suitable for embedded IoT devices. SIMBIoTA

relies on a large malware database maintained on a

backend server. This malware database is assumed

to be continuously updated with samples obtained

from an intelligence network as described above. The

server computes the TLSH hash values of the samples

in its database, and pushes a subset of these TLSH

hashes to the client-side antivirus component on the

embedded IoT devices, where a light-weight algo-

rithm uses them to detect malware based on binary

similarity. Therefore, SIMBIoTA requires resource-

constrained embedded IoT devices to store only a

small database with a few TLSH hash values.

In (Tam

as. et al., 2021), SIMBIoTA was evaluated

on a total of 47,937 malicious samples and a total of

14,119 benign samples for the ARM and MIPS archi-

tectures. In the experiments, the set of samples was

divided into two groups: the samples known to the

backend via the intelligence network, and the sam-

ples found only in the wild. The samples known to

the backend were used to construct the database of

TLSH hash values. Based on the metadata of mali-

cious samples available in VirusTotal

, the samples

were also put into so-called “weekly batches”, i.e.,

sets of samples that were ﬁrst submitted to Virus-

Total on the same week. At the beginning of each

week, the database of TLSH hashes were updated and

the detection performance was measured in two ways.

First, we checked the true positive detection rate for

all samples in previous weeks’ weekly batches. Sec-

ond, we also submitted samples from the wild of the

next two weeks’ weekly batch to see SIMBIoTA’s de-

tection performance for new, previously unseen mal-

ware samples. The experiments measured a false pos-

itive detection rate of 0%, a true positive detection rate

above 90% for samples of previous weeks’ weekly

batches, and a true positive detection rate of ca. 90%

for the next two weeks’ weekly batches. Throughout

the experiments, fewer than 200 bytes were necessary

to update the TLSH hashes stored on the embedded

IoT device. By the end of the experiments, the storage

requirement on the embedded IoT device was 10 kB

in the case of ARM and 6.5 kB in the MIPS case.

Despite its remarkable features, SIMBIoTA has

a number of limitations as well. First, similar to

other malware detection solutions relying on static

features, analyzing obfuscated or encrypted samples

is challenging for SIMBIoTA. Second, as we show in

this paper, the bigger the database of similarity hash

values, the longer it takes for SIMBIoTA to decide

whether a given ﬁle is malicious or not. This can be

a challenge in IoT environments where embedded de-

vices must comply with real-time requirements, be-

cause the run time delay introduced by SIMBIoTA is

hard to design for. Last, even though a true positive

detection rate of 90% on average for new, previously

unseen malware samples is surprisingly good, exist-

ing literature suggests that machine learning-based

malware detection approaches can achieve even better

results.

In this paper, we modify SIMBIoTA’s architecture

https://www.virustotal.com/ (accessed: Jan 8, 2022)

SIMBIoTA-ML: Light-weight, Machine Learning-based Malware Detection for Embedded IoT Devices

to enable embedded IoT devices to take advantage of

machine learning-based malware detection. We call

the resulting system SIMBIoTA-ML. Speciﬁcally, we

replace the database of TLSH hash values with a

random forest classiﬁer trained on TLSH hashes of

known malware and benign ﬁles. We show that this

modiﬁcation can increase the true positive detection

rate by 5% on average, even for new, previously un-

seen malware samples. We also show that our trained

random forest classiﬁer has a near-constant run time,

which allows IoT system developers to better estimate

and design for the delay introduced by the antivirus

solution.

3 ARCHITECTURE AND DESIGN

OF SIMBIoTA-ML

We now discuss our proposed solution to improve

SIMBIoTA with machine learning-based malware de-

tection. We discuss our modiﬁcations to SIMBIoTA’s

architecture in Section 3.1 and our design choices for

machine learning in Section 3.2. We call the resulting

antivirus solution SIMBIoTA-ML.

3.1 Architectural Overview

The original architecture of SIMBIoTA consists of

both client-side and server-side components. Client-

side components are located on embedded IoT de-

vices and are responsible for protecting devices from

malware via a detection process. The detection pro-

cess takes as input the unknown ﬁle to be checked and

a database containing TLSH hash values of known

malware samples. The unknown ﬁle’s TLSH hash

value is then compared to the TLSH hash values in

the database in a pairwise manner. If the unknown

ﬁle is determined to be similar to a known malware

sample, it is considered malicious.

The task of server-side components is to keep the

database of TLSH hash values up-to-date. These

components are located on a backend server. The

backend maintains a malware database, which re-

ceives malicious samples from honeypots, malware

feeds, and malware analysis sandboxes via the intel-

ligence network. Samples in the malware database

are represented in a graph, where nodes are the TLSH

hash values of the samples, and an edge connects two

nodes if the corresponding TLSH hashes are simi-

lar enough according to some similarity metric. The

backend then computes a dominating set over this

graph and the TLSH hash values of the nodes in the

dominating set are sent to the client-side as an update.

Our main improvement to SIMBIoTA is to replace

the dominating set construction by machine learning.

The modiﬁed architecture is shown in Figure 1. On

embedded IoT devices, we replace the database of

TLSH hash values with a machine learning model.

Therefore, the modiﬁed detection process takes as in-

put the unknown ﬁle to be checked and the machine

learning model. The modiﬁed detection process ap-

plies the machine learning model to the unknown ﬁle

to decide whether the ﬁle is malicious or not. The ma-

chine learning model is trained on the backend using

both malicious and benign samples. Therefore, we

keep SIMBIoTA’s intelligence network and require it

to supply the backend with benign samples as well.

Benign samples could be received from IoT vendors

or from public software databases.

3.2 Design Choices for Machine

Learning

Machine learning models for malware detection must

be trained using features that represent important

qualities of executable ﬁles. In general, features can

be derived using static or dynamic program analy-

sis. Dynamic program analysis, i.e., monitoring a

program’s execution, however, leads to degraded per-

formance, which is a challenge in the IoT setting.

Therefore, we need features whose extraction is light-

weight and can be done statically.

TLSH (Oliver et al., 2013) hash values can be

considered static features because their calculation in-

volves only the processing of the raw bytes in the pro-

gram ﬁle. Moreover, TLSH has a light-weight calcu-

lation time in the range of milliseconds, which makes

it suitable in the context of malware detection on IoT

devices. More speciﬁcally, computing a TLSH hash

value involves the following steps:

1. Process the raw byte string using a sliding window

of size 5 to populate an array of bucket counts.

2. Calculate quartile points q1, q2, and q3 based on

the buckets’ values.

3. Construct the hash value’s header based on the

quartile points.

4. Construct the hash value’s body.

The ﬁrst three bytes of the resulting TLSH hash value

is a header with following parts

• the ﬁrst byte is a checksum value;

The TLSH implementation at https://github.com/

trendmicro/tlsh (accessed: Jan 9, 2022) appends two extra

bytes to the beginning of the header for versioning purposes.

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

Figure 1: Architecture of SIMBIoTA-ML.

• the second byte stores the so-called L value, which

is calculated from the length of the original byte

sequence;

• the two nibbles of the third byte are called the Q1

and Q2 ratios, and they are computed from the

quartile points q1 and q3, and the quartile points

q2 and q3, respectively.

The rest of the bytes are the binary representations of

the 128 buckets that TLSH uses during the construc-

tion of the hash value quantized to two bits.

As an illustration, let us consider the following

preﬁx of a TLSH hash value, represented in hexadec-

imal format:

82 A4 02 13 79 E2 86 B1 E7 65 18 ...

The ﬁrst byte of the header is a checksum, which has

the value of hexadecimal 82 in our example. This is

followed by the L value, which is hexadecimal A4 in

this case. Next come the Q1 and Q2 ratios, which

are hexadecimal 0 and 2, respectively, in the exam-

ple. The remaining bytes are the binary representa-

tions of the buckets turned into hexadecimal numbers.

As each bucket value is represented by two bits, the

next hexadecimal number 1, in the example, encodes

the 2-bit values 00 and 01 of the ﬁrst two buckets.

Similarly, the next hexadecimal number 3 encodes the

2-bit values 00 and 11 of the next two buckets, etc.

We transform the TLSH hash value into 131 fea-

tures by splitting the hash value into smaller parts.

Speciﬁcally, we take from the header the L value, the

Q1 ratio, and the Q2 ratio. We then split the bytes

representing buckets into bit pairs, which gives us 128

2-bit features for the 128 buckets. We train a random

forest classiﬁer over these extracted features. Choos-

ing a random forest classiﬁer is advantageous because

it automatically ﬁlters non-predictive features.

4 EVALUATION

In this section, we compare SIMBIoTA-ML to SIM-

BIoTA and discuss their advantages and disadvan-

tages. Speciﬁcally, we discuss the experiment design

and the used data set in Section 4.1. Sections 4.2 and

4.3 present the true positive and false positive detec-

tion rates, respectively. We compare the two solu-

tions’ storage requirements in Section 4.4 and their

running times in Section 4.5.

4.1 Experiment Design

We perform all experiments using the same data set

as used for the evaluation of SIMBIoTA. This dataset

is called CrySyS-Ukatemi benchmark dataset of IoT

malware 2021 (or CUBE-MALIoT-2021 for short).

The dataset consists of 29,209 malicious ARM sam-

ples and 18,715 malicious MIPS samples, which we

extended with 4,727 benign ARM samples and 9,392

benign MIPS samples for the purpose of our study.

For malicious samples, metadata is also available,

which details, among others, the date the sample was

ﬁrst seen in the wild (i.e., submitted to VirusTotal).

We made CUBE-MALIoT-2021 publicly available

for use by the IoT malware research community. To

the best of our knowledge, such a large dataset con-

taining raw binaries of IoT malware was not previ-

ously available publicly, and we hope that CUBE-

MALIoT-2021 will become a de facto benchmark

dataset in IoT malware detection, in order to satisfy

the need for the comparability and reproducibility of

results of different research groups.

https://github.com/CrySyS/cube-maliot-2021 (ac-

cessed: Jan 9, 2022)

SIMBIoTA-ML: Light-weight, Machine Learning-based Malware Detection for Embedded IoT Devices

We also follow the same experiment design as

used in (Tam

as. et al., 2021) for SIMBIoTA. The

timeline of the experiment is between January 1st,

2018 and September 15th, 2019, divided into weeks.

We assume that both SIMBIoTA and SIMBIoTA-ML

receive updates for their detection methods at the be-

ginning of each week. Malicious samples are orga-

nized into weekly batches based on the date they were

ﬁrst seen, and each weekly batch is further divided

into two groups. The ﬁrst group, which contains 10%

of that weekly batch’s samples and is called the in-

telligence part, is made available to the backend for

processing. These samples represent the knowledge

obtained by the antivirus company from the intelli-

gence network. The second group, called the wilder-

ness part, contains 90% of that weekly batch’s sam-

ples, and it is assumed to exist only in the wild and is

never revealed to the backend. The wilderness parts

of weekly batches are used to evaluate the antivirus

solutions’ true positive detection rate.

SIMBIoTA-ML also requires benign samples in

order to train the machine learning model on a bal-

anced data set. However, we have no metadata avail-

able for benign samples. Therefore, we randomly as-

sign benign samples to be part of either the training

or test sets for each architecture. In the case of ARM,

the training set contains 2,921 benign ARM samples,

and for MIPS, the corresponding training set contains

1,872 MIPS samples. Each week, we randomly select

the same number of benign samples from the training

sets as the number of malicious samples in the intelli-

gence part of that weekly batch. Selected benign sam-

ples are sent to SIMBIoTA-ML’s backend for training

the machine learning model. Samples in the test sets

are never revealed to the backend and are used to mea-

sure false positive detection rates.

Note that our experiment design results in

SIMBIoTA-ML’s backend having less training data

available than what is usually the case in machine

learning. Researchers often use 80% of their data

sets for training purposes and use the remaining 20%

as the testing set. In our case, however, the backend

can only train on 10% of the malicious samples such

that we can compare its performance to that of SIM-

BIoTA. For SIMBIoTA-ML’s backend to have a bal-

anced data set, it has access to 61.78% of the benign

ARM samples and 19.93% of the benign MIPS sam-

ples.

The random forest classiﬁer trained on the back-

end for SIMBIoTA-ML also needs to be conﬁgured.

Speciﬁcally, the number of decision trees that make

up the random forest has to be speciﬁed. This number

represents a trade-off between the detection capabil-

ity of the machine learning model and the memory

required to apply the model on the embedded IoT de-

vice. The more decision trees there are in the model,

the better the detection capability is. However, hav-

ing more decision trees also increases the model size,

increasing the amount of memory the embedded IoT

device must have in order to apply the model. We

set the number of decision trees to 10, which gave us

a good trade-off between the two conﬂicting require-

ments.

Our method of assigning benign samples to the

training and test sets introduces randomness into the

experiment. To balance this randomness, we repeat

the experiment 12 times and use traditional box plots

to present the results. The data points of our box plots

show the results of the 12 runs of our experiment for

each week.

4.2 True Positive Detection Rate

We measured the true positive detection rate of SIM-

BIoTA and SIMBIoTA-ML with the wilderness parts

of weekly batches. In order to measure the perfor-

mance for existing malware, we submit the wilderness

parts of all previous weekly batches to the embedded

IoT device for detection. We also measure the perfor-

mance of new, previously unseen malware by submit-

ting the wilderness part of the current weekly batch to

the detection process. Note that we assume embed-

ded IoT devices to receive updates to their detection

processes at the beginning of each week. Therefore,

the wilderness part of the current weekly batch con-

tains samples that can be considered coming from the

future.

The measured true positive detection rate for

samples of the wilderness parts of previous weekly

batches is shown in Figure 2. The left-hand side

of the Figure shows the performance of SIMBIoTA

and the right-hand side shows the performance of

SIMBIoTA-ML. Both antivirus solutions show a

learning curve for both the MIPS and the ARM ar-

chitectures, i.e., their true positive detection rate im-

proves as time passes and more samples are made

available to the backend. However, SIMBIoTA-ML

consistently outperforms SIMBIoTA by having a true

positive detection rate above 95% throughout the

measurement.

Figure 3 shows the true positive detection rate for

the wilderness parts of current weeks for both SIM-

BIoTA and SIMBIoTA-ML. The left-hand side de-

picts the performance of SIMBIoTA and the right-

hand side shows the performance of SIMBIoTA-ML.

SIMBIoTA’s performance varies in time and it is only

by the second half of the experiment that its perfor-

mance reaches 90-95%. SIMBIoTA-ML also shows

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

Figure 2: Box plot of the true positive detection rate for samples of the past for SIMBIoTA and SIMBIoTA-ML.

variations in its true positive detection rate but the

variation is smaller than that of SIMBIoTA, and per-

formance stays above and around 95% for the major-

ity of the experiment. Therefore, we conclude that

SIMBIoTA-ML outperforms SIMBIoTA in this re-

gard as well.

4.3 False Positive Detection Rate

In order to measure the false positive detection rate

of SIMBIoTA and SIMBIoTA-ML, we conduct the

following experiment. In the case of SIMBIoTA, the

backend does not need benign samples due to the an-

tivirus solution’s design. Therefore, we submit all be-

nign samples to SIMBIoTA for detection. In the case

of SIMBIoTA-ML, however, the backend requires be-

nign samples in order to train the machine learning

model on a balanced dataset. As a result, SIMBIoTA-

ML’s backend has access to the benign samples in the

training set. Therefore, we only submit benign sam-

ples from the test set to SIMBIoTA-ML’s detection

process.

In our experiments, SIMBIoTA did not detect any

benign samples as malicious, hence achieved a false

positive rate of 0, which is consistent with the results

reported in (Tam

as. et al., 2021). The same cannot be

said for SIMBIoTA-ML, however. Machine learning

classiﬁers have the tendency to sometimes misclassify

inputs and our random forest classiﬁer is no excep-

tion. The weekly false positive detection rate on be-

nign samples is shown in Figure 4. In the case of be-

nign ARM samples, SIMBIoTA-ML’s false positive

detection rate stays below 1% on average through-

out the experiment. For benign MIPS samples, the

false positive detection rate goes slightly above 1%

on average at the beginning of the experiment. It then

steadily decreases as more and more benign MIPS

samples are revealed to the backend. As we discussed

in Section 4.1, our experiment design provides less

training data to the backend than what is usually rec-

ommended in literature. This is especially the case for

benign MIPS samples, because the data set is divided

into 19.93%-80.07% for training and testing, respec-

tively. Taking this into consideration, we conclude

that while SIMBIoTA-ML’s false positive detection

rate is higher than that of SIMBIoTA, it is still ac-

ceptable for malware detection.

4.4 Storage Requirement

Throughout our experiments, we measured the

amount of storage necessary to hold SIMBIoTA’s

SIMBIoTA-ML: Light-weight, Machine Learning-based Malware Detection for Embedded IoT Devices

Figure 3: Box plot of the true positive detection rate for previously unseen samples for SIMBIoTA and SIMBIoTA-ML.

database of similarity hashes and SIMBIoTA-ML’s

machine learning model. In the case of SIMBIoTA,

each similarity hash is 35 bytes, therefore, the total

amount of storage necessary is 35 times the number

of entries in the database. In the case of SIMBIoTA-

ML, our implementation for the random forest classi-

ﬁer uses the scikit-learn

Python module. In order to

measure the amount of storage necessary to hold the

model, we used the pickle

module to transform the

Python object into a byte string that could be written

to disk and later reloaded into memory. We then cal-

culated the length of the byte string to get the number

of bytes necessary to represent the object.

The storage requirements for both SIMBIoTA and

SIMBIoTA-ML are shown in Figure 5. While the

storage requirements of both antivirus solutions in-

crease over time, SIMBIoTA-ML’s requirements are

orders of magnitude higher, going form ca. 40 KB to

ca. 150 KB by the end of our experiment. By contrast,

SIMBIoTA’s database of similarity hashes require less

than 10 KB of storage throughout the experiment.

Therefore, we may conclude that SIMBIoTA-ML is

not ﬁt for very low-end embedded devices, which typ-

https://scikit-learn.org/stable/ (accessed: Jan 11, 2022)

https://docs.python.org/3/library/pickle.html (ac-

cessed: Jan 11, 2022)

ically have only tens of kilobytes of RAM and a few

hundred kilobytes of Flash memory (Ojo et al., 2018).

However, such devices usually do not have an oper-

ating system and they do not handle ﬁles, therefore,

they are not really in the scope of our work. On the

other hand, middle-range and high-end embedded de-

vices with megabytes of memory available would be

able to use SIMBIoTA-ML.

4.5 Run Time Performance

The last aspect by which we compare SIMBIoTA

and SIMBIoTA-ML is their run time performance.

Speciﬁcally, we measure the time it takes for both so-

lutions’ detection process to decide whether a submit-

ted ﬁle is malicious or not. We performed this mea-

surement on a non-real time Linux operating system,

therefore, small ﬂuctuations in the measurements are

possible due to task scheduling in the system.

The run time performance of SIMBIoTA and

SIMBIoTA-ML for determining that a submitted ﬁle

is malicious is shown in Figure 6. SIMBIoTA’s per-

formance microseconds as it only needs to calculate

the difference between TLSH hashes and compare the

result to a threshold value. However, SIMBIoTA has

to do the comparison in a pair-wise fashion, i.e., it has

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

Figure 4: Box plot of the false positive detection rate for benign samples in the test set for SIMBIoTA-ML.

Figure 5: Box plot of the storage requirements for SIMBIoTA and SIMBIoTA-ML.

to compare the TLSH hash value of the unknown ﬁle

to each similarity hash value in its database individ-

ually. It is therefore not surprising that as the size of

the database increases, so does the run time of the de-

tection process. This is also the explanation for the

growing difference between the minimum and maxi-

mum run time we measured. Depending on where the

similar hash value is located in the database of simi-

larity hashes, SIMBIoTA’s detection process needs to

perform a different number of comparisons before a

decision can be made. Unfortunately, in application

areas where the delay caused by an antivirus product

is of importance, e.g., due to real time requirements,

this is an undesirable feature.

SIMBIoTA-ML requires more time to apply the

machine learning model: its run time performance is

a little above 1 ms. While this would result in a larger

delay in real systems than that caused by SIMBIoTA,

this delay is near constant. This is advantageous from

the system operator’s standpoint because this delay is

easy to take into consideration during system design

and operation.

The run time performance of SIMBIoTA and

SIMBIoTA-ML for determining that a submitted ﬁle

is benign is shown in Figure 7. The run time delay that

SIMBIoTA’s detection process would cause on a real

SIMBIoTA-ML: Light-weight, Machine Learning-based Malware Detection for Embedded IoT Devices

Figure 6: Box plot of the run time of the detection process for “malicious” decision for SIMBIoTA and SIMBIoTA-ML.

system is even higher in this case. The reason for this

is that in order for SIMBIoTA’s detection process to

make a decision about an unknown benign ﬁle, it has

to compare the ﬁle’s TLSH hash value to all the sim-

ilarity hash values in its database. SIMBIoTA-ML’s

detection process, however, always applies the same

machine learning model to every ﬁle, therefore, the

run time performance is the same for both malware

and benign ﬁles.

5 CONCLUSION

In this paper, we proposed SIMBIoTA-ML, a light-

weight, machine learning-based malware detection

approach for embedded IoT devices. Our work was

inspired by SIMBIoTA (Tam

as. et al., 2021), which

uses TLSH hashes to detect malware based on bi-

nary similarity of unknown ﬁles to known malicious

binaries. The key difference between SIMBIoTA-

ML and SIMBIoTA is that we use TLSH hashes

as feature vectors to train a random forest classi-

ﬁer, instead of directly measuring the TLSH simi-

larity of ﬁles, and by doing so, we achieve a bet-

ter malware detection performance than that of SIM-

BIoTA. More speciﬁcally, we showed via an exten-

sive experiment on a large dataset of real IoT mal-

ware and benign ﬁles that SIMBIoTA-ML consis-

tently achieves a higher true positive detection rate

than SIMBIoTA, while, at the same time, it also has

a higher, but still acceptable, false positive detection

rate. In terms of storage requirements, SIMBIoTA is

superior to SIMBIoTA-ML, but SIMBIoTA-ML can

still be hosted by mid-range and high-end embedded

devices with megabytes of memory. Finally, we also

showed that the run time delay SIMBIoTA introduces

into the operation of an embedded IoT device is not

constant, making it hard to design for. In contrast,

SIMBIoTA-ML introduces a near-constant, although

somewhat increased, delay into the operation of the

embedded IoT device, which is advantageous when

the device has to satisfy real-time constraints.

ACKNOWLEDGEMENTS

The presented work was carried out within the SETIT

Project (2018-1.2.1-NKP-2018-00004), which has

been implemented with the support provided from

the National Research, Development and Innovation

Fund of Hungary, ﬁnanced under the 2018-1.2.1-NKP

funding scheme. The research was also supported by

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

Figure 7: Box plot of the run time of the detection process for “benign” decision for SIMBIoTA and SIMBIoTA-ML.

the Ministry of Innovation and Technology NRDI Of-

ﬁce within the framework of the Artiﬁcial Intelligence

National Laboratory Program. The authors would like

to thank Zolt

an Iuhos for his help in implementing the

experiments.

REFERENCES

Abbas, M. F. B. and Srikanthan, T. (2017). Low-complexity

signature-based malware detection for IoT devices. In

Batten, L., Kim, D. S., Zhang, X., and Li, G., editors,

Applications and Techniques in Information Security,

pages 181–189, Singapore. Springer Singapore.

Alasmary, H., Khormali, A., Anwar, A., Park, J., Choi, J.,

Abusnaina, A., Awad, A., Nyang, D., and Mohaisen,

A. (2019). Analyzing and detecting emerging Internet

of Things malware: A graph-based approach. IEEE

Internet of Things Journal, 6(5):8977–8988.

Antonakakis, M., April, T., Bailey, M., Bernhard, M.,

Bursztein, E., Cochran, J., Durumeric, Z., Halderman,

J. A., Invernizzi, L., Kallitsis, M., Kumar, D., Lever,

C., Ma, Z., Mason, J., Menscher, D., Seaman, C., Sul-

livan, N., Thomas, K., and Zhou, Y. (2017). Under-

standing the Mirai botnet. In 26th USENIX Security

Symposium (USENIX Security 17), pages 1093–1110,

Vancouver, BC. USENIX Association.

Cozzi, E., Vervier, P.-A., Dell’Amico, M., Shen, Y., Bigle,

L., and Balzarotti, D. (2020). The tangled genealogy

of IoT malware. In Annual Computer Security Appli-

cations Conference (ACSAC2020), Austin, USA.

Dovom, E. M., Azmoodeh, A., Dehghantanha, A., Newton,

D. E., Parizi, R. M., and Karimipour, H. (2019). Fuzzy

pattern tree for edge malware detection and catego-

rization in IoT. Journal of Systems Architecture, 97:1

– 7.

Gibert, D., Mateu, C., and Planes, J. (2020). The rise of

machine learning for detection and classiﬁcation of

malware: Research developments, trends and chal-

lenges. Journal of Network and Computer Applica-

tions, 153:102526.

Goyal, M., Sahoo, I., and Geethakumari, G. (2019). Http

botnet detection in IoT devices using network trafﬁc

analysis. In 2019 International Conference on Recent

Advances in Energy-efﬁcient Computing and Commu-

nication (ICRAECC), pages 1–6.

HaddadPajouh, H., Dehghantanha, A., Khayami, R., and

Choo, K.-K. R. (2018). A deep recurrent neural net-

work based approach for Internet of Things malware

threat hunting. Future Generation Computer Systems,

85:88 – 96.

Hussain, F., Hussain, R., Hassan, S. A., and Hossain, E.

(2020). Machine learning in IoT security: Current so-

lutions and future challenges. IEEE Communications

Surveys & Tutorials, 22(3):1686–1721.

Hwang, C., Hwang, J., Kwak, J., and Lee, T. (2020).

Platform-independent malware analysis applicable to

Windows and Linux environments. Electronics, 9(5).

SIMBIoTA-ML: Light-weight, Machine Learning-based Malware Detection for Embedded IoT Devices

Karanja, E. M., Masupe, S., and Jeffrey, M. G. (2020).

Analysis of Internet of Things malware using image

texture features and machine learning techniques. In-

ternet of Things, 9:100153.

Meidan, Y., Bohadana, M., Mathov, Y., Mirsky, Y., Shab-

tai, A., Breitenbacher, D., and Elovici, Y. (2018). N-

BaIoT — network-based detection of IoT botnet at-

tacks using deep autoencoders. IEEE Pervasive Com-

puting, 17(3):12–22.

Nakhodchi, S., Upadhyay, A., and Dehghantanha, A.

(2020). A Comparison Between Different Machine

Learning Models for IoT Malware Detection, pages

195–202. Springer International Publishing, Cham.

Ngo, Q.-D., Nguyen, H.-T., Le, V.-H., and Nguyen, D.-H.

(2020). A survey of iot malware and detection meth-

ods based on static features. ICT Express, 6(4):280–

286.

Nguyen, H., Ngo, Q., and Le, V. (2020). A novel graph-

based approach for IoT botnet detection. Int. J. Inf.

Sec., 19(5):567–577.

Ojo, M. O., Giordano, S., Procissi, G., and Seitanidis, I. N.

(2018). A review of low-end, middle-end, and high-

end IoT devices. IEEE Access, 6:70528–70554.

Oliver, J., Cheng, C., and Chen, Y. (2013). TLSH – A Lo-

cality Sensitive Hash. In 2013 Fourth Cybercrime and

Trustworthy Computing Workshop, pages 7–13, Syd-

ney NSW, Australia. IEEE.

Shobana, M. and Poonkuzhali, S. (2020). A novel ap-

proach to detect IoT malware by system calls using

deep learning techniques. In 2020 International Con-

ference on Innovative Trends in Information Technol-

ogy (ICITIIT), pages 1–5.

Soliman, S. W., Sobh, M. A., and Bahaa-Eldin, A. M.

(2017). Taxonomy of malware analysis in the IoT.

In 2017 12th International Conference on Computer

Engineering and Systems (ICCES), pages 519–529.

Su, J., Vasconcellos, D. V., Prasad, S., Sgandurra, D., Feng,

Y., and Sakurai, K. (2018). Lightweight classiﬁca-

tion of IoT malware based on image recognition. In

2018 IEEE 42nd Annual Computer Software and Ap-

plications Conference (COMPSAC), volume 02, pages

664–669.

Sun, H., Wang, X., Buyya, R., and Su, J. (2017).

CloudEyes: Cloud-based malware detection with re-

versible sketch for resource-constrained Internet of

Things (IoT) devices. Software: Practice and Experi-

ence, 47(3):421–441.

Takase, H., Kobayashi, R., Kato, M., and Ohmura, R.

(2020). A prototype implementation and evaluation

of the malware detection mechanism for IoT devices

using the processor information. International Jour-

nal of Information Security, 19.

Tam

as., C., Papp., D., and Butty

an., L. (2021). SIMBIoTA:

Similarity-based malware detection on IoT devices. In

Proceedings of the 6th International Conference on

Internet of Things, Big Data and Security - IoTBDS,,

pages 58–69. INSTICC, SciTePress.

Ucci, D., Aniello, L., and Baldoni, R. (2019). Survey of ma-

chine learning techniques for malware analysis. Com-

puters & Security, 81:123 – 147.

Ye, Y., Li, T., Adjeroh, D., and Iyengar, S. S. (2017). A

survey on malware detection using data mining tech-

niques. ACM Computing Surveys, 50(3).

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security
