A Semantic Security Model for Cyber-Physical Systems to Identify

and Evaluate Potential Threats and Vulnerabilities

Andreas Aigner

and Abdelmajid Khelil

Faculty of Computer Science, Landshut University of Applied Science, Landshut, Germany

Keywords: Security, Security Model, Security Engineering, Cyber-Physical Systems, Threat Model, System Model,

Model-based Engineering, Security Analysis, Security Scoring, Security Metric.

Abstract: Establishing and sustaining a sufficient level of security in Cyber-Physical Systems (CPS) proposes a major

challenge for engineers. Key characteristics, like heterogeneity, unpredictability and safety-relevance have

the potential to significantly impact the overall level of security. However, exploited security-related

vulnerabilities may cause malfunction of critical components or result in loss of sensitive information.

Therefore, a toolkit, which is capable to identify vulnerabilities regarding security in CPS, would provide

great benefit. Although a variety of security analysis frameworks exist, they mainly do not address the

challenges proposed by CPS, which limits their applicability or accuracy. We aim to elaborate a more effective

solution for CPS by analysing security on a Systems-of-Systems level. Moreover, we focus on the semantic

relationships between essential security information, like attackers and attacks, towards the actual

specification of the CPS. Our elaborated approach produces a quantitative expression of security, based on a

variety of evaluation criteria and -policies. Ultimately, the generated output provides a quick indication about

potential security-related threats and vulnerabilities. We utilize a prototypical, but realistic car-sharing

application as a prime example for CPS, to illustrate the benefits and ease-of-use of our proposed solution.

1 INTRODUCTION

Industry 4.0, Smart Grid or Connected Vehicles

represent prime examples of Cyber-Physical Systems

(CPS). In these ecosystems, systems from the cyber-

space- and embedded domain must work hand in

hand to fulfill the desired business functionality or to

provide the necessary infrastructure. For example,

vehicles are now enhanced with the ability to

communicate and interact with their environment to

introduce new functionality for drivers.

Nevertheless, CPS also introduce a variety of

challenges (Ashibani and Mahmoud, 2017) –

especially for system engineers and administrators.

One major aspect, refers to establishing and

sustaining a sufficient level of security. The

interaction of heterogeneous systems in a highly

constrained and often unpredictable environment

opens a variety of (new) attack surfaces. As CPS

often implement critical, i.e. safety-relevant,

functionality or provide the infrastructures for such

https://orcid.org/0000-0001-8990-4775

https://orcid.org/0000-0002-4536-8058

services, exploited systems may cause harm to life of

involved humans or end in a loss of sensitive

information (O`Neil, 2016).

To counter this issue, security- or threat analysis

frameworks are used to provide information about

security-related weaknesses of a specification. In

general, they try to express the abstract term of

security based on actual measurements, parameters or

a dedicated rule set. Recent surveys (Pendleton et al.,

2017. Rudolph and Schwarz, 2021) illustrate that

several security analysis frameworks and –metrics are

available. However, the characteristics of CPS, like

(a) the interaction of heterogonous systems in a

dynamic and scalable environment, (b) the need of

reliability in an unpredictable environment or (c)

distinctive physical characteristics, the applicability

and accuracy of existing solutions may be limited.

Although solutions tailored to the application

areas of CPS have been proposed (Shevchenko et al.,

2018), they are not capable to comprehensively

address all the aspects regarding security of a highly

Aigner, A. and Khelil, A.

A Semantic Security Model for Cyber-Physical Systems to Identify and Evaluate Potential Threats and Vulnerabilities.

DOI: 10.5220/0011086300003194

In Proceedings of the 7th International Conference on Internet of Things, Big Data and Security (IoTBDS 2022), pages 249-257

ISBN: 978-989-758-564-7; ISSN: 2184-4976

249

constrained System-of-Systems (SoS). In this work,

we want to address this research gap by elaborating a

security model for CPS, which can effectively be used

in environments to comprehensively analyse and

express security. To achieve this goal, we set our

focus on the semantic relationships between the

interacting systems and their dependencies towards

security-related entities, like attackers and attacks.

In detail, we focus on the most critical aspects and

relationships, which have the ability to affect the level

of security in a negative way from one particular

systems point of view. To obtain this information, we

identify the semantic relationships between all core

security objects on a SoS level, while considering the

actual business logic. The used data is semantic, as it

is (a) directly taken from the business logic and (b)

depends on the currently analyzed system’s role,

meaning and behavior in the SoS context. In contrast

to other solutions, we do not want to interpret the

impact of attacks for all potential types of systems in

a generic way, but focus on the impact one particular

type of attack has on one specific system, within a

given (operational) context. To illustrate and

underline the thinking process of the definitions made

in this work, we utilize a prototypical car sharing

application. The usage of realistic CPS specification

should also allow us to verify the correctness of our

solution, while showcasing the benefits for engineers.

The reminder of the paper is structured as follows.

In Section 2, we start by illustrating the problem

statement regarding security engineering for CPS. In

Section 3, we take a look at existing solutions and

evaluate their effectiveness and accuracy in CPS. In

Section 4, we introduce our concept of how to analyze

security in CPS by elaborating a semantic security

model. Here, we also give insight into our conducted

case study along the made explanations and

definitions. We sum up our work in Section 5.

2 PROBLEM STATEMENT

In order to follow a hands-on approach, we first

define a concrete specification of a prototypical CPS.

This will enable us to identify the most critical

characteristics and aspects, which must be addressed,

as they potentially influence security. To this end, we

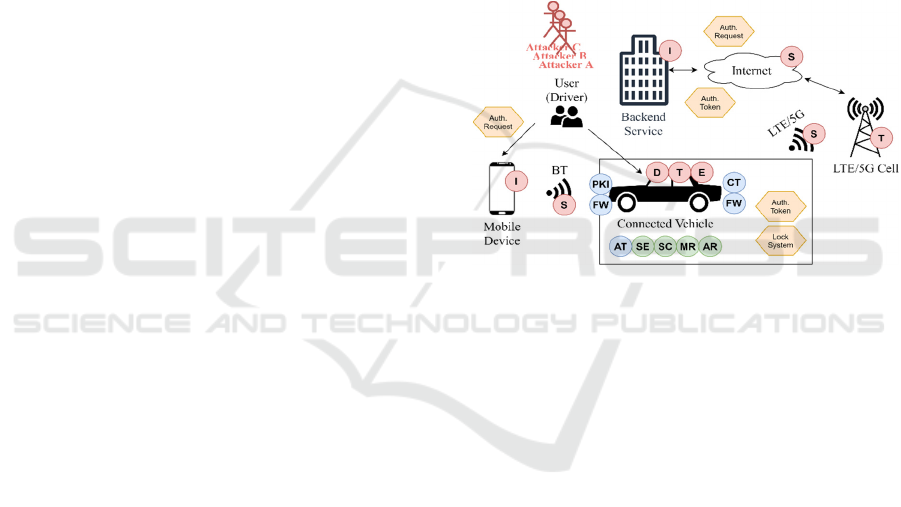

use a realistic car sharing application. Figure 1

illustrates a high-level model of this application.

It couples different types of systems from the

cyber-space- and physical domain, while showcasing

the key CPS aspects of heterogeneity,

unpredictability in an unreliable environment and

critical assets. The car sharing domain consists of

various system types, which offer different (physical)

characteristics. Additionally, human actors are also

involved, who use a mobile phone to enter their

credentials to perform an authentication. A dedicated

application on the mobile phone prepares an

authentication request, which is sent towards the

connected vehicle via Bluetooth. The connected

vehicle forwards the received requests via a 5G/LTE

uplink it has towards the backend service. The

backend service verifies, whether the received

authentication request is valid and prepares an

according response (authentication token), which is

sent back towards the vehicle. Based on the

verification result, the vehicle will be unlocked and

the end user can enter the connected vehicle, as it

unlocks its doors.

Figure 1: A prototypical Car Sharing Application.

Besides the actual business logic, we also integrate

security-related information to learn about the

dependencies between these two types of data. First,

we have added a list of threats on a SoS level. To this

end, we use the well-known STRIDE paradigm,

which defines Spoofing, Tampering, Repudiation,

Information Disclosure, Denial-of-Service and

Elevation-of-Privileges as classification from a high-

level perspective, to insert a list of potential attacks.

In contrast to the threats, we also added several

mitigation concepts. To apply an objective baseline,

we first adopt a list of security requirements (green

background in Figure 1) defined AUTOSAR (Fürst

and Bechter, 2016), i.e. access restriction (AR) at the

physical components, separation (SE) of memory,

processes and persistence and secure channels (SC).

Additionally, we integrate a set of mitigations (blue

background in Figure 1), which seem meaningful

from our point of view for a system type Vehicle. In

detail, we adopt a public-key-infrastructure (PKI),

using ciphered-transmission (CT), installing a

firewall (FW), and implementing an anti-tamper (AT)

mechanism. Later, we illustrate the benefit of our

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

250

proposed solution, which is the ability to compare

multiple specifications of the same CPS.

We now elaborate the challenges proposed by

CPS. First, CPS spawn a SoS environment

(Challenge-01), which consists of multiple systems.

These systems implement various dependencies to

provide the overall functionality. In contrast to

embedded systems, a CPS is not deployed to a closed

environment, but is equipped with the ability to

communicate beyond the area they operate in.

This high level of connectivity in combination

with the increased number of interfaces also extends

the options an attacker might choose from to exploit

one or multiple systems within the SoS. Moreover,

the number of interacting systems cannot be foreseen

in terms of scalability (Challenge-02). Additionally,

CPS consist of heterogeneous systems (Challenge-

03), referring to distinctive physical attributes and

capabilities, e.g. computation power or available

bandwidth. As CPS couple systems from the cyber-

and physical domain, both types must be aware of the

issues regarding security of the other type, as they

might face the same attacking scenarios.

As CPS usually build the backbone of critical

infrastructure, fulfil safety-relevant functionality or

process sensitive data, exploited vulnerabilities

potentially cause major harm. Therefore, the given

multi-criticality (Challenge-04), e.g. real-time

processing, significantly stresses the need to achieve

a sustainable level of security. In the same context,

human actors (Challenge-05) are often directly

affected by the functionality our output of CPS. On

one side, control loops in CPS do often depend on

input or triggers provided by the cyber-space domain

which leads to a critical dependency. On the other

side, they must operate in a highly unpredictable

environment. The disjunctive characteristics of

dependability in a potentially unknown environment

(Challenge-06) may create new attack surfaces, as

communication links may break down spontaneously

or systems do not provide input as expected.

As the systems within CPS are often not fixed to

a geographical area, they must also be context aware

(Challenge-07). As CPS often operate in an unknown

or unsupervised environment, attackers may face no

hurdles to gain (physical) access to the interfaces of

the (geographically) deployed systems.

All these key characteristics of CPS have the

potential to significantly impact the level of security

throughout the SoS.

3 RELATED WORK

As illustrated in Section 2, the characteristics of CPS-

like environments propose critical challenges for

security engineering in CPS engineering, as various,

often distinctive, characteristics and side effects must

be considered simultaneously. Although security has

traditionally been a point of emphasis in cyber-space

engineering, it may not have played a major role

during the design of embedded systems. Although a

number of security analysis frameworks and have

emerged in the cyber-space domain over time,

solutions for CPS (including the physical aspects) are

relatively new on the horizon.

In this work, we want to evaluate a selection of

available security analysis frameworks in terms of

evaluating their applicability, effectiveness and

accuracy in a CPS-like environment. In detail, we use

the elaborated list of key challenges (Challenge-01 to

07) proposed by CPS as evaluation criteria. The

selection of evaluated solutions has been made based

on the first impressions provided by the referenced

surveys (Pendleton et al., 2017. Rudolph and

Schwarz, 2021. Shevchenko et al., 2018), alongside

the potential challenges proposed by a CPS.

Table 1: Evaluation of Related Work in terms of their

effectiveness and accuracy in CPS security engineering.

Framework C

Common Vulnerability

Scoring System

(Chandramouli, 2006)

      

Attack Trees

(Nagaraju, 2017)

      

Attack Surface

(Manadhata, 2011)

      

STRIDE-based

(Khan, 2017)

      

hTTM (Mead, 2018)       

Table 1 provides an overview of our evaluation

results. The first column states the framework,

whereas the following (by row) contain the evaluation

criteria, i.e. the challenges (C) 1 to 7, as introduced in

the previous section. To this end, we use three result

categories as rating schemata – a happy smiley, if the

method is able to handle and support the aspect, a

neutral one, if it is partly able to handle it, and a

frowning smiley, if this aspect is not addressed.

Consequently, we have evaluated the aspects of

applicability, effectiveness and accuracy for each

challenge to determine the overall score for the

corresponding framework. As the results in Table 1

illustrate, none of the evaluated framework is capable

to sufficiently address all of the proposed challenges.

A Semantic Security Model for Cyber-Physical Systems to Identify and Evaluate Potential Threats and Vulnerabilities

251

They either focus on aspects related to the cyber-

space attributes or focus on security derived from

safety-related engineering, whereas a concept to

simultaneously address both domains is missing.

4 SEMANTIC SECURITY MODEL

In essence, we set our goal on elaborating a security

analysis model, which considers all key challenges

and attributes proposed by CPS to provide the most

comprehensive view on security in heterogeneous

SoS-like environments.

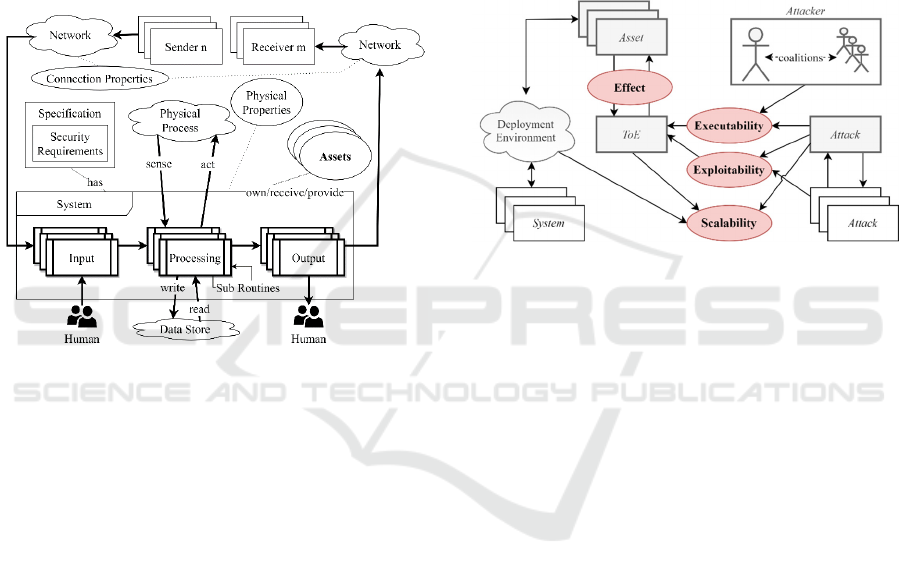

Figure 2: A System Model for CPS.

4.1 General Philosophy

Based on the elements illustrated in Figure 1, we first

generate a system model (Figure 2) for one particular

system operating in a CPS. Ultimately, this system

model allows us to identify the most critical aspects

regarding security in CPS, while also representing the

baseline for a security model for CPS. Essentially,

each system consists of one or multiple input-,

processing and output components, whereas these

components have direct relationships towards the

surrounding environment or additional CPS-related

resources. In detail, the input- and output components

realize the communication with other systems,

whereas the processing unit access physical-, e.g.

sensors, or cyber-space, e.g. data storage, resources.

Furthermore, any component may interact with

assets or human actors while being in operation. It is

important to note, that this system model is structured

to being used for either system within CPS, meaning

physical-, cyber-physical- and cyber-space systems.

Consequently, one particular system may not show all

of the listed characteristics. Based on the identified

elements and interfaces illustrated by the system

model for CPS (Figure 2), we are now able to

generate a security model, as outlined in Figure 3, for

one particular system within the CPS. The currently

analysed system is called Target of Evaluation (ToE).

This model represents an abstract view on the

relationships between the key security objects and

business entities from a SoS perspective. Overall, we

identify four critical aspects – the executability-, the

exploitability- the effect- and the scalability of one

particular attack towards a given system within the

current (semantic) operational context, i.e. the

characteristics of the system and its ecosystem.

Figure 3: A semantic Security Model for CPS.

In contrast to existing solutions, we take a SoS

perspective while analysing security in order to catch

all security-relevant side effects and dependencies.

Although we use commonly used security-relevant

entities within our analysis, i.e. attackers, attacks and

mitigation concepts, we focus on their semantic

interpretation according based on the actual business

logic and context they are analysed in. This shift of

paradigm towards a semantic approach allows us to

handle the challenges of CPS.

In essence, we are going to express security as

product (1) of these four factors. In the following, we

dive into detail about how the factors are determined.

The overall goal is to minimize the result of this

multiplication; meaning a value of zero represents the

best score in terms of security-related weaknesses

within the analysed CPS.

Security = [ Executability * Exploitability * (1 +

Effect) * (1 + Scalability)]

(1)

4.2 The Executability of Attacks

The first critical dependency illustrated in Figure 3

focuses on the fundamental question, whether a

particular attack is theoretically executable within the

current context or not. This question can be answered

by analyzing the relationship between attackers,

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

252

attacks and the ToE within its ecosystem. In general,

a number of attackers, e.g. Attacker A, B and C in Fig.

1, is capable to execute a set of different attacks

within the domain. In a highly constrained SoS-like

environment, multiple attacker entities might be

present. Nevertheless, different attackers may own

different characteristics, capabilities or skill sets. On

the other side, attacks require certain capabilities,

skills or resources in order to being executed by a

concrete attacker entity. In Figure 1, Attacker A

might be able to execute a Spoofing attack, as it has

access to a certain part of the network, while Attacker

B does not fulfil this requirement an can therefore not

perform a Spoofing attempt.

Moreover, the attribute of executability also

depends on the characteristics of the analysed ToE. In

detail, an attack may require fundamental properties,

i.e. a certain condition, provided by the ToE in order

to potentially being executable towards it, like

physical- or network access. Furthermore, these

elements must also be connected towards the

capabilities and resources of the attacker objects.

Exemplary, not only the system may offer physical

access, but the attacker must also be capable to

establish physical access.

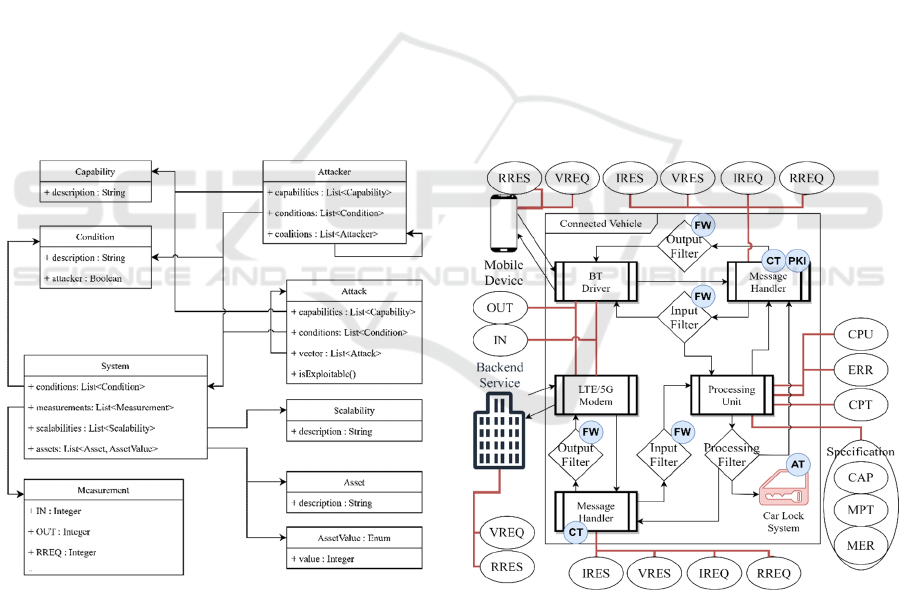

Figure 4: Data Model to store to link Security-relevant

Information and the Specification.

The data model (Figure 4) documents the

relationship between Attacker, Attack and ToE

objects, i.e. the executability. To describe the

semantic dependencies between these three objects,

we introduce two additional objects – the Capability

and Condition attributes. The content of these objects

can be customized according to the actual use case. In

general, the defined statements should be in the form

of yes-/no sentences in order to allow a verification,

i.e. a matching of attributes, between them.

The overall executability factor, which holds a

value of zero or 1, is determined by cross-checking

the capability and condition attributes of the system,

attack and attacker objects of the currently used data

model. Basically, the analysis verifies for each attack-

/system combination, whether the data model

contains a valid combination of these attributes or

not; meaning it contains an attacker object, which is

capable to perform the attack towards this type of

system, while also all condition attributes are met, i.e.

contained in both objects, as well. The attack and

attacker part of the data model can be populated by

using publicly available sources.

4.3 The Exploitability of the

ToE

The second dependency in Figure 3, refers to the

exploitability of the ToE. Besides looking at the

theoretical aspect, i.e. the executability of attacks, we

want to elaborate a verification schema, which

provides an (measureable) indicator, whether the ToE

can actually be exploited by an attack or not.

Figure 6: Abstract Specification of the Connected Vehicle.

First, certain type of attacks, e.g. Elevation of

Privileges in Figure 1, require that other attacks, e.g.

Spoofing, have successfully been performed in

advance in order to being executable themselves.

Therefore, one type of attack enables one or multiple

other types of attacks. We call this sequential

execution of attacks to exploit a system attack vector.

Especially in a highly constrained, unpredictable and

A Semantic Security Model for Cyber-Physical Systems to Identify and Evaluate Potential Threats and Vulnerabilities

253

dynamic ecosystem like CPS, attackers may perform

complete attack vectors in order to exploit the ToE.

Second, we integrate an evaluation criterion,

which indicates, whether a ToE can be exploited by

an attack, if all proceeding requirements are met to

perform the attack towards the ToE based on its

behavior security-wise. In order to construct such

evaluation criteria based on semantic data, we define

a formula for each type of attack, which utilizes actual

(quantitative) measurements. To this end, we refine

the system model (Figure 2) by identifying potential

points of measurements according to the processed

assets, i.e. requests, function calls and response.

In essence, the business process offered by CPS

usually implements a request-response mechanism,

which processing steps within. However, some

system might only provide response or formulate

requests. Based on these fundamental and highly

abstracted entities, i.e. request and response, we are

able to derive additional parameters, which have been

integrated in Figure 5. Initially, we measure the raw

data concerting incoming (IN) and outgoing (OUT)

data, followed by the number of real requests (RREQ)

and responses (VRES), alongside the number of

invalid- (IREQ) and processed requests (CPU), as

well as the number of produced errors (ERR).

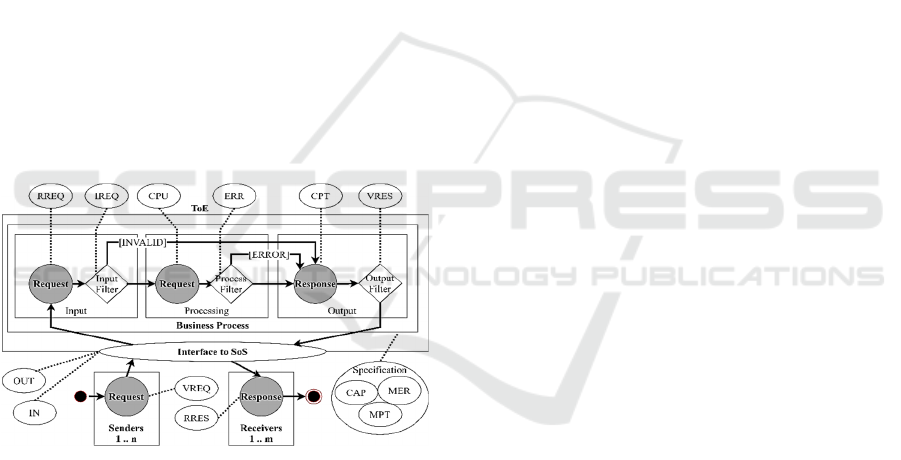

Figure 5: Measurements to determine Exploitability.

Throughout the processing sequence, we measure

the actual time (CPT) from receiving a request to

generating a response. The information about objects

marked as invalid directly reflects on the capabilities

of the ToE to detect potential threats by itself, by

aborting the processing of such request. In order to set

this security enhancing capabilities in contrast, we

utilize additional specification parameters of the ToE

within the formulas, namely the processing

capabilities (CAP), the median error rate (MER) and

the median processing time (MPT). Based on these

data points, we are now able to quantitatively

abbreviate the effects a successful attack would lead

to. This is done by defining a set of binary

expressions, based on the comparison of various

measurements, as required by the associated type of

attack. Consequently, we must identify such

expression for each type of attack we want to include

into our evaluation.

In this work, we have prepared the formulas (2) to

(7), which contain the evaluation rules for the attacks

used in Figure 1. We built these formulas by

considering the impact or outcome a successful attack

would have on the exchanged assets, i.e. requests and

response. For example, a ToE can be exploited via

Spoofing, if a modified request is not detected by the

ToE through the IREQ or ERR parameter within the

input interface or processing unit.

Nevertheless, the generic model (Figure 5)

enables engineers to easily define formulas for

additional attacks. However, the STRDIE

classification should cover a variety of different

potential attacks. In future work, we want to further

shape and refine these evaluation formulas based on

knowledge gained through applying the methodology

in real-life CPS deployments.

The evaluation formulas verify, whether the

security-enhancing capabilities, i.e. the Input-,

Processing- and Output-Filter of the ToE are strong

or sufficient enough to counter the effect of this

particular attack. The values of the measurement, can

be obtained by running a simulation, e.g. by using an

executable UML activity model of the business

process. After running the simulation, the evaluation

formulas, i.e. if-statements, are used to indicate,

whether the Filters have been able to neglect the

effect to the attack based on the conducted

measurements. Alternatively, the actually deployed

systems can be extended with the ability to conduct

the necessary measurements and forward the obtained

information for further analysis. The defined

parameters should be collectable without any user

interaction or dependencies towards other systems.

Spoofing = [(IREQ == 0) && (ERR == 0)] (2)

Tampering = [(IREQ == 0) && (RREQ == CPU) &&

(CPU == ERR * 2=]

(3)

Repudiation = [OUT > CPU] (4)

Information Disclosure = [(OUT > CPU) || (VRES !=

(CPU – ERR)) || ((VRES != (RREQ – IRES) &&

(ERR == 0))]

(5)

Denial-of-Service = [(CPU < RRES) || (CPT > MER) ||

(ERR > MER) || (RRES > CPU)]

(6)

Elevation-of-Privileges = [((RREQ – IREQ) != CPU)

&& (VRES != OUT)]

(7)

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

254

Concluding, the exploitability factor of an attack-

/system combination is defined as produced of two

factors. The first factor is determined by analysing the

attack vector, if applicable. Here, all attacks, which

are required by the currently analysed attack must

have an executability- and exploitability factor of 1.

If the attacks contained in the vectors do also required

other attacks to be performed in advanced, their

factors must also be 1 throughout. If one attack within

the chain holds a value of 0, the vector is not

applicable for this attack-/system combination.

Overall, this can be realized as iterative verification

process. The second parameter of the exploitability

product is determined by the result of the evaluation

formula, which leads to a value of true (=1) or false.

The data model (Figure 4) contains the necessary

attributes to evaluate the relationship between the

system- and attack-objects regarding the

exploitability potential. However, this attribute can

also be empty, which indicates, that this attack does

not require any other attack to being performed in

advance. Additionally, the attack object is extended

with a function (isExploitable), which takes a set of

measurements provided by the system object and

returns true or false by running through the formula.

To illustrate the integration of measurements, we

have refined the system type Vehicle of the car

sharing domain accordingly, as shown in Figure. 6.

4.4 The Scalability of Attacks

As highlighted in the problem statement, CPS

showcase a variety of characteristics, which have the

potential to significantly impact the overall level of

security in a negative way. We integrate these aspects

by extending the attack- and system objects within the

data model (Figure 4) with a Scalability attribute.

This attribute integrates events, properties or

characteristics of the interacting systems, which

increase the likelihood of being exploited by a certain

attack or the severity of them. To this end, we provide

a top-ten list of scalability factors (SF). This list has

been generated based on the previously described key

challenges proposed by CPS, but can easily be

tailored to the needs according to the ecosystem:

- SF-01: The system is geographically constrained

- SF-02: The system is limited in physical resources

- SF-03: The system implements or requires safety-

relevant functionality

- SF-04: The system interacts with humans

- SF-05: The system interacts with other type of

systems

- SF-06: The system processes different type of

assets

- SF-07: The system interacts with an unknown

number of systems or depends on their input

- SF-08: The system uses unsecure, unknown or

unstable communication links

- SF-09: The system changes its operational context

- SF-10: The system implements or depends on a

physical process

Consequently, the scalability attribute of the

system object contains all statements, which are given

for this particular system. However, equal to the

capability and condition attribute, this property can

also be empty. On the other side, these scalability

attributes define, whether they increase the likelihood

or impact of a given attack object. Therefore, to

evaluate this factor, the two scalability attributes of an

attack-/system combination must be cross-checked

for common entries. For each matching entry, the

overall scalability factor for the concluding

evaluation of this attack-/system combination is

increased by 0.1. We advise to use a top-10 list of

scalability statements for each security evaluation.

Consequently, the value of this factor ranges from

zero to 1.

4.5 The Effect of Attacks on Assets

If an attack is eventually able to exploit a system, we

must determine the potential harm this might cause.

If an attack might not be able to lead to any harm, the

necessity to implement counter measurements for this

particular attack might not be given. For this, we

evaluate the concrete effect the attack has on all assets

owned or accessed by the exploited system by using

a set of classification rules. In our definition, an asset

is a piece of information or functionality, which holds

a certain value from the business process perspective.

Table 2: Asset Classification Schemata.

Value Description

High

(=3)

The asset contains sensitive or critical data or

functionality, as the business process cannot be

fulfilled as designed.

Medium

(=2)

The asset holds valuable information, but the core

functionality or data can still be provided.

Low

(=1)

The asset is replaceable or sustainable by other

assets, while it does also not contain sensitive

information or logic.

n/a

(=0)

The asset does not hold any value. Its non-existence

of the asset does not lead to any limitation.

This classification also allows us to highlight the

importance of certain assets, e.g. safety-relevant

functionality. We define four classes, ranging from

not applicable (n/a), Low, Medium to High, as listed

A Semantic Security Model for Cyber-Physical Systems to Identify and Evaluate Potential Threats and Vulnerabilities

255

in Table 2. The system object within the data model

(Figure 4) contains a reference towards the asset

object, which also holds the value. This structure

allows us to display the actual relationship between

the system and asset, as one asset might have different

values for different systems. The overall effect factor

for one system is then calculated by analysing all

references it has towards asset objects. For each asset,

the effect factor is incremented by the value of the

asset. In addition, the effect factor is incremented, if

a referenced asset is also accessed or used by another

system and this system is exploitable. Especially on a

SoS level, this is critical to consider, as assets might

be corrupted by systems, which are considered valid

partners.

4.6 The Big Picture

The four factors (executability, exploitability, effect

and scalability) have now been filled with semantic

information by evaluating the dependencies between

the CPS specification and common security-related

information. In order to utilize our method, two

essential task must be performed: (a) populating the

data model and (b) conduct the measurements

through simulation or from the deployed ToE in order

to determine the exploitability.

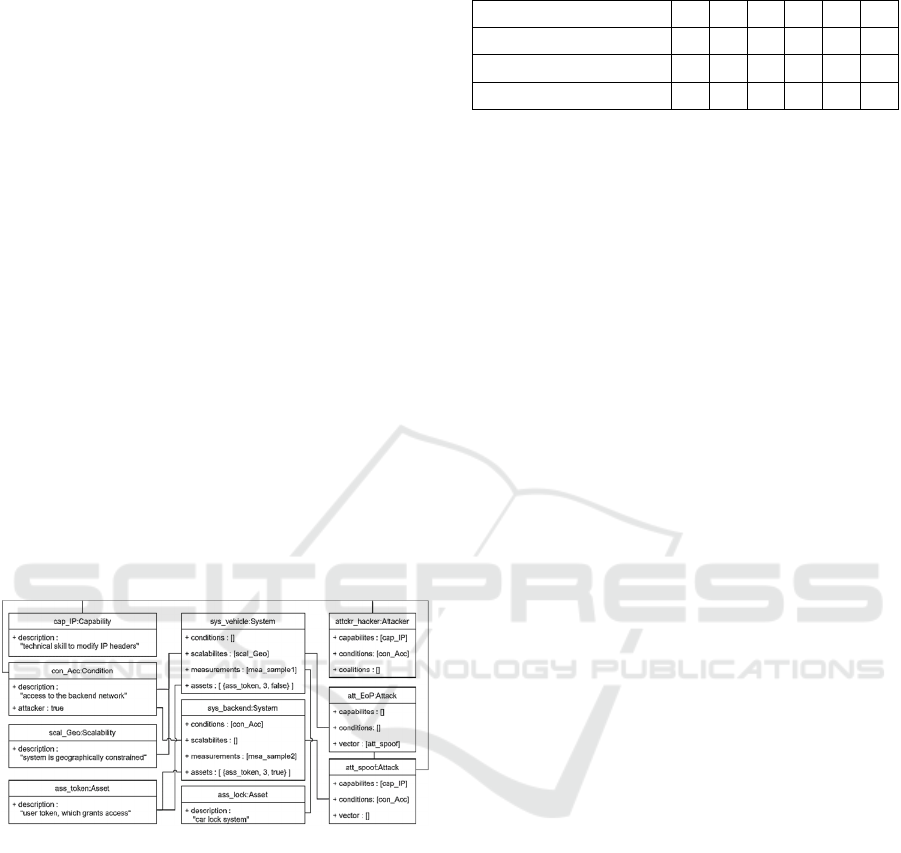

Figure 7: Case Study – Security Data Model (Extract).

For example, Figure 7 shows an extract of the data

model used within the car sharing domain to evaluate

security. Based on this preliminary work, we are now

able to express and evaluate security for all attack-

/system combination within our ecosystem by using

the formula defined in (1). Figure 8 illustrates the

calculated results for the system type Vehicle for all

STRIDE attacks (Figure 1). As our method can

effectively be used as objective and quantitative

baseline to compare various specifications. To

illustrate this aspect, we have generated the results for

three specifications of the Vehicle: worst-case (not

mitigations), AUTOSAR solutions and with our

additional enhancements.

Table 3: Case Study – Output of the Security Model.

Vehicle Specification S T R I D E

Worst Case 20 18 0 15 15 17

AUTOSAR 18 9 0 9 6 9

Additional Enhancements 5 6 0 1 2 2

As the scores (Table 3) indicate, the AUTOSAR

mitigations are indeed capable to reduce the impact

of all attacks, although they are just implemented

within the Vehicle. This refers to the aspect, that they

directly impact the processing of the core assets

within the vehicle. However, a significant impact on

the overall results cannot be achieved. In contrast, the

enhanced solution, i.e. the implementation of

additional mitigations (blue background in Figure 1),

is capable to further lower the score, as they focus on

the way the assets are handled, exchanged and

processed between the Vehicle and the interacting

systems. Moreover, these results should then be used

by engineers to determine the most severe attacks

within the ecosystem to easily identify suitable or

more effective counter measurements.

5 CONCLUSION

In this work, we have introduced a security model for

CPS, which analyses the semantic dependencies

between interacting systems and their relationship

towards key security objects on a SoS level. In detail,

we have taken a straight-forward approach using the

main challenges proposed by CPS to generate a

system- and consequently a security model.

Concluding, this model can efficiently and effectively

be used to quantitively express security based on the

aspects of exploitability, executability, scalability and

effect of attacks on systems and assets in order to

identify actual threats or compare specifications.

Furthermore, we have been able to outline several

potential aspects in the form of mitigations, which

should be considered when engineering a (physical)

system in a connected world.

REFERENCES

Y. Ashibani and Q. H. Mahmoud (2017). Cyber physical

systems security: Analysis, challenges and solutions.

Elsevier Computers & Security 68.

M. O’Neill (2016). Insecurity by Design: Todays IoT

Device Security Problem. Elsevier Journal on

Engineering 2(1).

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

256

M. Pendleton, et al. (2017). A Survey on Systems Security

Metrics. ACM Computing Surveys 49(4).

M. Rudolph and R. Schwarz (2021), A Critical Survey of

Security Indicator Approaches. In Proceedings of the

7th International Conference of Availability, Reliability

and Security.

N. Shevchenko, et al. (2018). Threat Modeling for Cyber-

Physical System-of-Systems: Methods Evaluation.

Technical Report. Carnegie Mellon University.

S. Fürst and M. Bechter (2016). AUTOSAR for Connected

and Autonomous Vehicles: The AUTOSAR Adaptive

Platform. In Proceedings of the 46th Annual IEEE/IFIP

International Conference on Dependable Systems and

Networks Workshops (DSN-W).

R. Chandramouli, et al. (2006). Common Vulnerability

Scoring System. Emerging Standards. IEEE Security &

Privacy 4(6).

V. Nagaraju, et al. (2017). A survey of fault and attack tree

modeling and analysis for cyber risk management. In

Proceedings of the International Symposium on

Technologies for Homeland Security.

P. Manadhata and J. M. Wing (2011). An Attack Surface

Metric. IEEE Transactions on Software Engineering

37(3).

R. Khan, et al. (2017). STRIDE-based Threat Modeling for

Cyber-Physical Systems. In Proceedings of the IEEE

PES Innovative Smart Grid Technologies Conference.

N. R. Mead, et al. (2018). A Hybrid Threat Modeling

Method. Carnegie Mellon University.

A Semantic Security Model for Cyber-Physical Systems to Identify and Evaluate Potential Threats and Vulnerabilities

257
