Building, Controlling and Simulating We-Do Robots

Ahmed Wael

, Ghada Ahmed

and Nada Sharaf

The German University in Cairo, Egypt

The German International University, Egypt

Keywords:

WeDo, Robotics, Simulator, Programming, Children, Computational Thinking.

Abstract:

Robotics is now integrated in the STEM curricula for teaching mathematical concepts, mechanics, physics

and programming skills. However, the presence of the robots and hardware components is always a challenge.

It could be costly and in case of online learning, it is hard to use hardware elements. This is why there is

an increasing need of simulators that display the robot in different environments. Such simulators could pro-

vide feasible solutions. The work presented in the paper introduces “Let’s LEGO”, which is a simulator for

building and constructing robots, controlling them programmatically and seeing them in action based on the

Lego WeDo 2.0 electronic kit. The work presented in this paper builds on the current need of introducing

computational thinking to children from an early age. The goal of this project is to investigate methods for

developing a Simulator for creating and constructing robots, controlling them programmatically, and view-

ing them in operation. Let’s LEGO was evaluated by instructors responsible for teaching programming and

robotics to children in grades 2-4 (7+ years old). They reported that they thoroughly enjoyed the experience

and would like to include it in their teaching techniques. The aim is to strengthen how technology-mediated

learning may be used to provide a better and a more enjoyable learning experience to students with different

proﬁles.

1 INTRODUCTION

Around the world, educational reform is taking place,

and one of the foundations of the reform is the intro-

duction and integration of assistive technology meth-

ods into educational institutions. Motivated by the

possibility of higher economic, social, educational,

and technical advantages, both emerging and devel-

oped countries are implementing this reform, with a

strong emphasis on technology integration in educa-

tion. This research is part of a cluster aiming at exam-

ining how developing nations may absorb, adapt, and

utilize the information obtained by countries that have

already jumped on the bandwagon of technology as-

sistive methods’ integration in their own educational

systems.

Nowadays, we can witness the heavy use of tech-

nological devices by children either for educational or

entertainment purposes. It is inevitable to have them

play games, chat with their friends, have online meet-

ing or solve their homework using their computers

and smart phones. However, learning the true power

of those smart devices should be the desired goal for

our children. They should be the real producers rather

than being consumers.

”A computer is a bicycle for your mind” -Steve jobs.

In the previous quote, Steve jobs referred to the use

of computers to amplify the power of human brains.

This can be attained by learning how computers are

programmed. Programming teaches children how to

think differently and effectively. A programmer needs

to use logical thinking to be able to divide a large

problem and break it down into smaller conquerable

pieces in order to solve it effectively. This divide and

conquer process is called decomposition and is one

of the key features of computational thinking. Com-

putational Thinking (CT) is a collection of cognitive

abilities, habits, and methods that are necessary for

problem solving with a computer and should be in-

creasingly prevalent in education (Barr and Stephen-

son, 2011).

Enhancing the CT for children include some key

skills such as decomposition, pattern recognition, and

algorithmic design (Selby and Woollard, 2013). Lego

models can be a great way to teach children decom-

position, by showing them the ﬁnal model and asking

them to ﬁgure out the steps needed. Lego models as

well can be of great use to teach students about pattern

recognition. They can use their building skills to ex-

plore the repeated patterns for similar parts of models.

376

Wael, A., Ahmed, G. and Sharaf, N.

Building, Controlling and Simulating We-Do Robots.

DOI: 10.5220/0011087300003182

In Proceedings of the 14th International Conference on Computer Supported Education (CSEDU 2022) - Volume 1, pages 376-382

ISBN: 978-989-758-562-3; ISSN: 2184-5026

Pattern recognition is always an important skill for

teaching the looping concept in programming. Fol-

lowing the instruction manual for building a Lego

model as well gives an example for student on algo-

rithmic design. Thus, we can deduce how building

Lego models and programming them can contribute

in teaching students main aspects of Computational

Thinking in an enjoyable way. However, those kits

can be expensive and difﬁcult to attain for personal

use (Cardoso et al., 2018). Moreover, with the current

Covid-19 situation, some parents prefer online learn-

ing which can be difﬁcult when hardware (in our case

programmable Lego kits) are included. All of these

reasons were the main inspirations for Let’s LEGO.

The aim of this project is to investigate the feasibility

and applicability of creating a simulator for building

and constructing robots, controlling them program-

matically, and observing them in different environ-

ments. The work aims at building a simulator for the

well-known Lego Education WeDo 2.0 Robotics con-

struction set, aimed at children aged 7-9. The rea-

son behind that was the lack of presence of any (free)

simulators for this speciﬁc version of the Lego Educa-

tional Kits, to the best of our knowledge. The WeDo

set is simple yet versatile, making it a great candidate

to teach children robotics and programming (Useng

and Bahc¸eci, 2020).

The paper is organized as follows: Section 2 in-

troduces some related work. Section 3 shows more

details about let’s LEGO. The experimental design is

introduced in Section 4. We ﬁnally conclude with di-

rections to future work.

2 RELATED WORK

This section discusses virtual prototyping for the lat-

est Lego Mindstorms robot, the EV3. Lego Mind-

storms is a platform that allows users to operate a

programmable and customizable ’brick.’ This brick

serves as the control center and power station for the

robot and is compatible with a variety of extra con-

nectable modules for a variety of purposes, such as

LEDs, motors, colour sensors, and buttons. These

sensors and actuators can be controlled by creating

code and uploading it to the brick. As of 2013, the

Mindstorms EV3 is the third and most recent addition

to the Mindstorms family, and its software includes an

upgraded brick that runs Linux locally (Cornelissen,

2019).

The Mindstorms series has proven to be success-

ful in education, where it is used to teach program-

ming and computer science (Klassner and Anderson,

2003). However, there are some drawbacks to using

this type of instruction. Mindstorms robots are expen-

sive, making it difﬁcult to provide each student with

their own robot. The frequent swapping of the robot

between students limits the amount of time available

for each student to actively work with it. Further-

more, working with Mindstorms might be inefﬁcient

owing to the substantial effort required to upload code

to the brick on a regular basis. Given the popularity

of the Mindstorms series in education, as well as its

short comings, simulation software for the EV3 series

might be beneﬁcial. As the fundamental idea behind

these robots is real-life interaction (driving around,

ﬂashing LEDs, handling physical input, etc...), the

simulation component would be distinct from tradi-

tional virtual prototyping in that it would need a com-

pletely visual depiction of the brick and its linked

components (Cornelissen, 2019).

A real-world EV3 brick interfaces with its hard-

ware to set and retrieve variables based on software

execution (Cornelissen, 2019).

In the simulation, this concept must be repro-

duced. When programming languages are incompati-

ble, a dilemma arises: the simulation software is cre-

ated in Unity using C#, and Python is utilized to oper-

ate the simulated robot. One solution is to include an

interpreter within the simulation program, allowing

the simulated brick to run suitable code natively. A

more achievable approach is to develop a mechanism

to communicate between the simulation software and

a user-written application running on the same com-

puter (Cornelissen, 2019).

The idea of the work presented in the paper is

to provide an easy to use simulator for lego WeDo.

WeDo has proved to help in teaching children about

robotics and programming (Chalmers, 2018). It tar-

gets an age group that is younger than EV3. Since the

aim is to introduce programming and computational

thinking as early as possible, this was the motivation

to ﬁll int he gap and provide a free simulator that can

allow children to learn about WeDo without having to

own a kit.

There is a difference between ‘input’ and ‘output’

values. The Python application assigns input values,

while the simulation retrieves result values. A LED

module’s ’Colour’ value counts as input, while an ul-

trasonic sensor’s ’Distance’ value counts as output.

The objective is to achieve structural equivalence be-

tween the simulation (in C#) and ev3dev2 in terms

of hardware modelling. In this manner, despite the

language barrier, a connection between the two pro-

cesses may be established. When this model is imple-

mented on the simulator side, it generates a ’virtual’

brick that represents the current state of the simulated

hardware. The simulation may then be performed us-

Building, Controlling and Simulating We-Do Robots

377

ing these variables. There is no locally saved repre-

sentation of the brick in Python. To retrieve and set

values, the re-implemented ev3dev2 methods interact

directly with the simulation. For Communication be-

tween the two processes, a generic framework must

be built. In this connection, the Python software that

is being executed (which is effectively replacing the

EV3 brick operating system) functions as the client,

while the emulated hardware acts as the server. The

link must ﬁrst be established. This is accomplished

by a simple handshake in which the client provides its

name and the simulator responds with its own. The

communication can then begin (Cornelissen, 2019).

3 Let’s LEGO

This section provides a thorough overview of how

to build, operate, and simulate Lego robots virtually.

Unlike past researchers, the proposed approaches in-

volved physically constructing robots and replicating

them through bluetooth or cable. As a result, by vir-

tualizing it, many of the disadvantages of these ap-

proaches may be eliminated.

3.1 Let’s LEGO Engine

Let’s LEGO simulator is implemented on top of a

game engine. Unreal engine, CryEngine, and Unity

3D were among the possible game engines. Unity

is a well-documented game engine featuring 2D and

3D functionality, as well as a multi-platform editor

(Cornelissen, 2019). This editor includes all the tools

needed to create games and other interactive appli-

cations, such as physics and collision systems. In

conjunction with Unity, most developers code in C#

or JavaScript. Unity applications may be exported

to various platforms with similar functionality, in-

cluding Windows, macOS, Linux, Android, iPhone,

and many others. Unity employs what are known

as GameObjects. Different components have been

added to these GameObjects. Components hold data

about parameters like position, rotation, physics, 3D

representation, and much more. Scripts may also be

added to a GameObject, allowing developers to con-

trol elements of that GameObject and other variables

through code (Cornelissen, 2019). With all of these

capabilities, Unity is the clear choice for implement-

ing the Lego robot simulator.

https://unity.com/

3.2 Flow of Let’s LEGO

In this Unity simulator, four scenes were developed,

each with a distinct purpose. Starting with the start

menu screen, moving on to building the Lego robot,

then a scene to control this built robot using code

blocks, and ﬁnally the simulation of the robot con-

trolled by the code blocks added in the previous scene,

which can be re-coded by returning to the control

scene, as shown in Figure 1. Throughout this paper,

each scene will be discussed in further detail, along

with scripts written in C# and integrated with them.

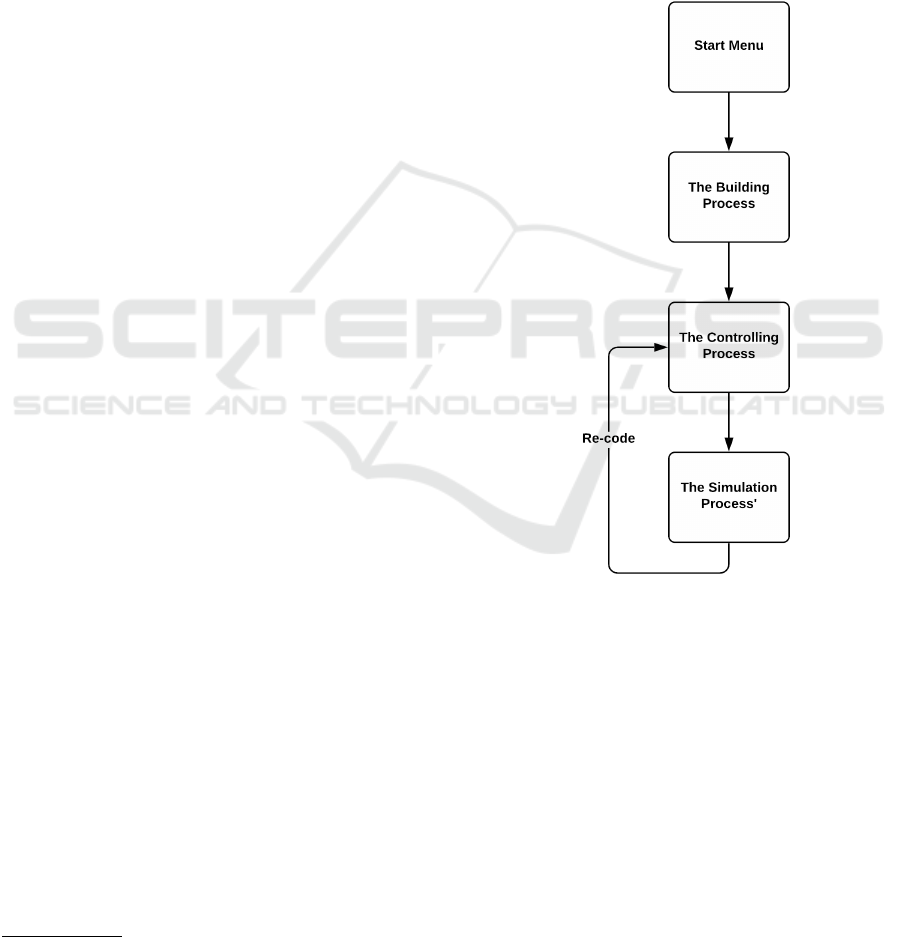

Figure 1: Flow of the Simulator.

3.3 Building The Robot Scene

The key purpose of Let’s Lego simulator is to make

the user interested and engaged as if they were actu-

ally creating a robot with a WeDo Construction Set.

A detailed review of creating the game environment,

the player, and the bricks with their associated scripts

is provided in this section.

3.4 Environment

The game’s environment has a directional light;

which is a sun-like object that gives light to the whole

area dependent on its rotation angle, which can be

CSEDU 2022 - 14th International Conference on Computer Supported Education

378

seen in Figure 2 and Figure 3. The ground is a plane

with a mesh collider linked to it to keep items above

it from falling. The scene’s main camera is set to be

attached to the player, giving the user a First-person

or Third-person perspective by zooming in or zoom-

ing out. This camera adjusts its direction and angle

dependent on the mouse movement in this 3D envi-

ronment, bringing it closer to the real-life, as seen in

Figure 4.

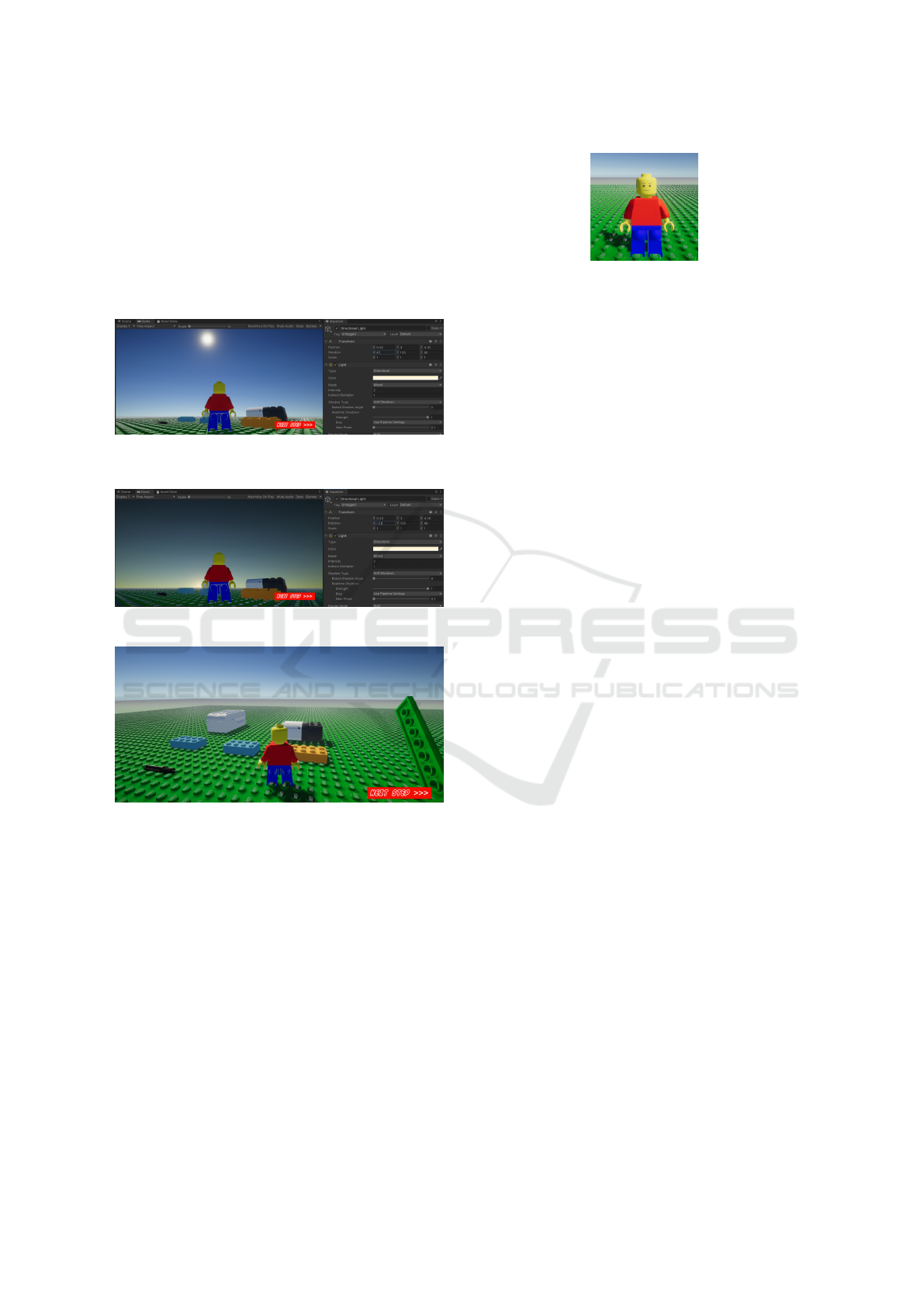

Figure 2: Directional Light with angle 45° (Daylight

Mode).

Figure 3: Directional Light with angle -2.8° (Night Mode).

Figure 4: 3

Person View Camera.

3.5 Player

This scene contains a comprehensive examination of

the player’s animation, movement, and use in the con-

struction of the robot. The player was designed to of-

fer the user a sense of realism. To begin, the player is

a 3D model taken from a GitHub MIT-licensed source

(cit, a), which is made up of the head, hands, body,

chest, and legs as shown in Figure 5. Handles were in-

troduced to the player at each joint so that they could

be utilized in the animation phase when the Animator

is linked to the player. The player may move and jump

in two modes. The movement state has ﬁve states:

idle, forward run, backward run, left and right. Each

state includes a unique animation, such as tilting for-

ward or back, and left or right.

Figure 5: The Lego Player Model.

3.5.1 Lego Bricks

The Lego bricks are designed using Studio 2.0 (cit, b).

Studio 2.0 is a program that includes a library of 3D

Lego bricks of various sizes, forms and colors.Studio

2.0 was used to construct the 3D bricks required for

each model from the Lego models that is driven by a

motor.

3.6 Script

After the bricks were created, a script named Drag3D

was applied to each one. Drag3D is mostly done in

the update function, which is called once every frame.

It has a method that is invoked when the mouse is

pressed, and it places the GameObject in the same lo-

cation as when the mouse is pressed. It stays con-

nected to the mouse wherever it moves as long as it

remains down till it is linked to its attachment point.

The bricks are added one by one until the model is

complete. When the player is done with the model

building, the ”Next Step” button can be clicked to

move to the next scene.

3.7 Programming the Robot Scene

A thorough examination of how the blocks are pro-

grammed in order to generate the appropriate out-

put, as well as how these code blocks are connected,

moved, and copied, is provided in this section. WeDo

2.0 software is used to program an actual Lego model

after it has been built by linking code blocks with a

wire. Some blocks are in charge of the motor’s speed,

while others are in charge of the motor’s direction,

and yet others are in charge of the motor stopping or

changing direction, and so on. These programming

blocks are combined to produce a set of instructions

that are executed by the connected device. The ﬁnal

result is displayed on a Lego model built with real

Lego components rather than virtual Lego parts.

3.7.1 Code Blocks

The code blocks were adopted from the WeDo 2.0

program in order to provide the user with the familiar

WeDo appearance and the same button design. The

Building, Controlling and Simulating We-Do Robots

379

necessary buttons for the prospective code blocks,

summarized in table 1, are added on the screen, as

shown in Figure 6.

Table 1: Blocks Used (cit, c).

Block Name Description

Motor Power Sets the motor power to the speciﬁed level

and starts the motor.

Motor On For Starts the motor for a chosen amount of

time speciﬁed in seconds.

Motor Left Sets the motor to turn the axle clockwise

and starts the motor

Motor Right Sets the motor to turn the axle counter-

clockwise and starts the motor.

Motor Off Stops any movement of the motor.

Play Sound Plays a sound. The sound is chosen from a

list available within the software.

Wait For Use this block to tell the program to wait

for something to happen.

Start When used, always placed at the beginning

of a program string.

3.8 Scripts

Similar to Drag3D, a script named DragAndDrop was

made for the same object, and it is to be able to drag

the block using the mouse to the attachment point that

is added to each block in this scene when it is the

same as the block location. However, an extra item

is included in this script, and it is to instantiate a new

block of the same type if it is attached and above the

line -2 where the set of programming blocks are added

side by side.

The goal of this script, called ”CodeBlocksArray,”

is to create a sorted array with all the blocks arranged

from left to right. If the following set was connected

in the following order, Start - Motor Speed 8 - Wait 5

- Motor Speed 4 - Motor Left, the aim is to do these

movements in the same order each time. However, be-

cause the array is ﬁrst generated by searching for ob-

jects with a speciﬁc tag, ”mygameobjects,” they are

added to an array in the order retrieved rather than

the order required. That is why array sorting is crit-

ical, since it uses the X position of the GameObject

(Block) from left to right to provide the correct result.

In order to transfer variables and data across scenes,

the sorted array is then transferred to another array in

another script named ”GameMaster” that is not de-

stroyed when the next scene is loaded. The sorted

array has now been sent and is ready to be utilized in

the ﬁnal simulation scene.

3.9 Simulation Scene

The last scene of the simulator will be reviewed in this

section. The ﬁnal scene for The Cooling Fan model is

about Max and Mia, two friends who are feeling over-

heated due to the hot weather and need some air from

the cooling fan, as seen in Figure 7. The code blocks

array is moved here, since the GameMaster script is

not destroyed when the scene is loaded. A script

named Simulator is created, and when run, it transfers

the components’ names from the GameMaster array

into a new array called ”steps.” It has two ﬂags, one

for each blade of the Cooling Fan, which are used to

control whether the blades rotate or not. Each item

in ”steps” is tested to determine what should be done;

for example, if the item is Motor Stop, the two ﬂags

are set to false, indicating that both blades will not

rotate.

4 EXPERIMENTAL DESIGN

4.1 Testing Procedure

The testing determines the effectiveness/likeliness of

the virtual robot simulator and if it can replace the real

robot construction. A test is conducted on prospective

instructors who are interested in instructing or assist-

ing youngsters to learn programming. These prospec-

tive instructors are well aware of the software’s bene-

ﬁts and drawbacks, as well as the implications of uti-

lizing a tool like this with children. The major goal

of the testing is to determine if this tool can stand

on its own and offer the youngster with the entire

programming abilities supplied by robot building and

programming.

4.1.1 The Followed Method

The System Usability Scale (SUS) is a basic ten-

item likert scale that provides a global perspective

of subjective usability assessments (Brooks, 1986).

The standard SUS consists of the ten items (odd-

numbered items worded positively; even-numbered

items worded negatively) (Lewis and Sauro, 2009).

The test was held with 25 participants. 64% of the

participants were males and 36% were females of an

average age of 22.5. To ensure reliable results, those

who completed the survey were either graduated or

undergraduate engineers with a solid programming

experience. The sequence was as follows:

1. In an attempt to familiarize the participant with

Let’s LEGO, the user was given the opportunity

to be introduced to the program and start using it.

2. SUS was applied to the program, encompassing

the aforementioned survey items and adding a

question to evaluate the software’s dependability,

whether used alone or as an aid to the physical

one.

CSEDU 2022 - 14th International Conference on Computer Supported Education

380

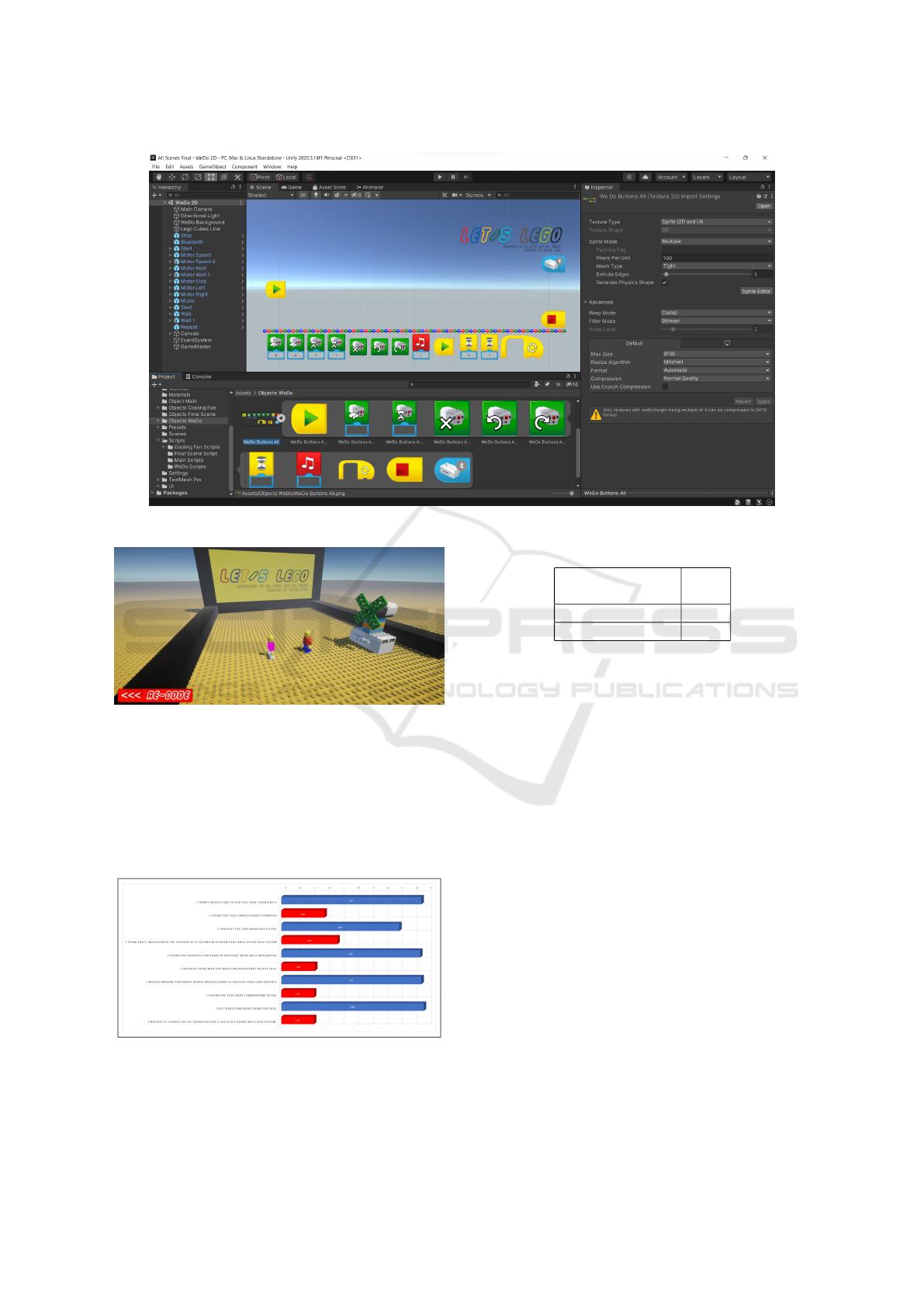

Figure 6: Let’s Lego Code Blocks.

Figure 7: Max And Mia With The Cooling Fan.

4.2 Results

Figure 8 displays the average value for each question.

For odd-numbered questions, the higher values are

better, and vice versa for even-numbered questions.

The SUS formula was used to obtain the maximum,

minimum, and median values as shown in Table 2.

Figure 8: SUS Average Results.

Finally, after exploring all the functionalities Let’s

LEGO software, the participants were asked about the

Table 2: SUS Result.

Maximum

Value

100

Median Value 92.5

Minimum Value 77.5

possibility of relying solely on the software to provide

students with a sufﬁcient understanding of building,

controlling, and simulating robots. 64% of the par-

ticipants chose “yes” as an answer, and the rest 36%

were not that sure, hence choosing “no”.

5 CONCLUSION & FUTURE

WORK

Educational robots proved to help students in different

STEM disciplines. They strengthen students’ creativ-

ity, programming skills, problem solving skills and

much more through the process of designing mod-

els, assembly and coding their functionalities. How-

ever, having those robots in classrooms with the sufﬁ-

cient amount can be expensive and impractical some-

times, especially with the new urge of online learn-

ing in the COVID-19 situation. Let’s Lego aimed

at establishing a simulator for creating, constructing

robots, controlling them programmatically, and view-

ing them operating virtually in different scenarios and

environments. The process of building the simulator,

starting from the design to the implementation is all

discussed in detail throughout the paper. The simu-

lator was based on the well known WeDo construc-

Building, Controlling and Simulating We-Do Robots

381

tion kit, which has been widely used in robotics and

programming classes for children starting 5 years old.

Let’s Lego was tested with computer science instruc-

tors who are interested in teaching children. Based on

the preliminary results of the testing, the software can

be sufﬁciently dependable in teaching robotics classes

for children and provides the learner with a sufﬁcient

grasp of building and programming a robot.

Looking forward, this research provides a good

starting point for different possibilities to extend the

work. First of all, the simulators need to provide all

the building models found in the WeDo software, so

that the student has a wide range of robots to con-

struct. Another aspect that can be added is an open en-

vironment to design and assemble any robot with dif-

ferent ranges of functionalities e.g. moving, lights and

sounds. Furthermore, adding different environments

for experimenting with the robot would be a good

idea. For example, after building a car, the student

can virtually try how it moves in the desert or a jun-

gle and experiment different mechanics and physics

rules. Finally, long-term experiments with students

and teachers in classrooms are needed to test the sys-

tem thoroughly.

REFERENCES

”legogame (mit licensed)”. Available online: https://github

.com/ditzel/LegoGame/blob/master/LEGO/Assets/O

bject/Character/ﬁgure.fbx. (accessed on May 2021).

”studio 2.0”. Available online: https://www.bricklink.com/

v2/build/studio.page. (accessed on May 2021).

”wedo user guide”. Available online: https://le-www-live-

s.legocdn.com/sc/media/files/user-guides/wedo/wedo

-user-guide-80b6e879549d1be595355dc8b6dee075

.pdf?la=en-us. (accessed on May 2021).

Barr, V. and Stephenson, C. (2011). Bringing computational

thinking to k-12: What is involved and what is the role

of the computer science education community? Acm

Inroads, 2(1):48–54.

Brooks, J. (1986). Smart phone applications for people with

brain injury. United Kingdom: Agency for Clinical

Innovation.

Cardoso, A., Ferreira, H. S., and Sousa, A. J. (2018). Pro-

gramming for young children using tangible tiles and

camera-enabled handheld devices. In 11th annual In-

ternational Conference of Education, Research and

Innovation.

Chalmers, C. (2018). Robotics and computational think-

ing in primary school. Int. J. Child Comput. Interact.,

17:93–100.

Cornelissen, L. (2019). Simulating lego mindstorms ev3

robots using unity and python. Radboud University

Nijmegen.

Klassner, F. and Anderson, S. D. (2003). Lego mindstorms:

Not just for k-12 anymore. IEEE robotics & automa-

tion magazine, 10(2):12–18.

Lewis, J. R. and Sauro, J. (2009). The factor structure of the

system usability scale. In International conference on

human centered design, pages 94–103. Springer.

Selby, C. and Woollard, J. (2013). Computational thinking:

the developing deﬁnition. Project report.

Useng

ul, L. and Bahc¸eci, F. (2020). The effect of lego wedo

2.0 education on academic achievement and attitudes

and computational thinking skills of learners toward

science. World Journal of Education, 10(4):83–93.

CSEDU 2022 - 14th International Conference on Computer Supported Education

382
