Conﬁgurable Templates for Assistive Technology Mobile Apps: A

Block-based Programming Approach

ıs Filipe Garcia

, Jo

ao-Paulo Barros

1,2 a

and Candida Viriato

Polytechnic Institute of Beja, Beja, Portugal

Centre of Technology and Systems-UNINOVA, Caparica, Portugal

Keywords:

Special Needs Education, Mobile Computing, Programming.

Abstract:

Simple computer activities have been used for a long time for cognitive and physical training in the context

of rehabilitation or mental stimulation. An example is training the skills needed by users with special needs

to access the computer through scanning access, which is an access method used by persons with major

motor difﬁculties. The increased availability of less expensive mobile devices with large displays provides

an ideal platform for these applications. This work-in-progress paper presents an ongoing work to empower

rehabilitation therapists and special education teachers with no previous computer programming experience

with a set of highly conﬁgurable apps supporting several types of activities for scanning access training. The

apps are made available as open projects written in a block-based programming language. This way, they may

be conﬁgurable by non-programmers while also allowing further changes depending on the programming

skills of each rehabilitation therapist or special education teacher. This study intends to validate this approach

among this group of users and formulate a set of guidelines concerning software architecture and organization

and user interaction, to be used in the development of this kind of application.

1 INTRODUCTION

People with special needs beneﬁt from specially tai-

lored solutions, and scanning access training is a com-

mon activity where customization is useful. This cus-

tomization can allow rehabilitation therapists and spe-

cial education teachers to provide adequate training

for each particular end-user in the context of rehabili-

tation and cognitive stimulation exercises. Moreover,

since the physical and mental condition of users can

change over time, the possibility of adapting training

activities to the current conditions of the user is ex-

tremely important to ensure the continuity of train-

ing and to avoid technology abandonment (Phillips

and Zhao, 1993). In particular, touch screens pro-

vide a platform suitable for those activities. Addition-

ally, mobile devices, most notably tablets, are avail-

able at various prices and sizes and provide out-of-

the-box touch interfaces. These characteristics make

them especially suitable for supporting simple touch-

based apps that are frequently used for those activi-

ties. Here is proposed the use of mobile apps built

with a block-based well-documented programming

https://orcid.org/0000-0002-0097-9883

language to allow a ﬂexible degree of customization

by non-programmers. This study intends to validate

this approach for this group of users and, as a result, to

formulate a set of guidelines concerning block-based

software construction and user interface design that

may be used in the development of this kind of appli-

cations.

The following sections present the background

and the related work while framing this proposal mo-

tivation. Next, it presents how the apps are used and

conﬁgured and show three apps as examples. Finally,

it presents some future work.

2 BACKGROUND AND RELATED

WORK

This section starts presenting scanning access train-

ing, which the rehabilitation activity to be supported

by the proposed approach. The approach proposed

in this study tries to address software customizability

through end-user programming. Therefore, main con-

cepts and related studies in these two areas are pre-

sented. Special attention was taken to two studies that

Garcia, L., Barros, J. and Viriato, C.

Conﬁgurable Templates for Assistive Technology Mobile Apps: A Block-based Programming Approach.

DOI: 10.5220/0011089600003182

In Proceedings of the 14th International Conference on Computer Supported Education (CSEDU 2022) - Volume 2, pages 293-298

ISBN: 978-989-758-562-3; ISSN: 2184-5026

293

apply end-user programming to the assistive technol-

ogy area in the pursuit of strategies and results that

may contribute to reﬁning the proposed approach. Fi-

nally, we present the MIT App Inventor development

platform used to develop the prototypes of these cus-

tomizable mobile apps.

2.1 Scanning Access Training

Access to the computer by people with major mo-

tor difﬁculties may have to be carried out through a

mechanism called scanning. To control this mech-

anism, users should activate one or more switches.

In the case of regular scanning, only one switch is

used. The ﬁrst activation of the switch will start the

scanning, and then the system will automatically step

through all the available options in the user interface.

A second activation of the switch will select the op-

tion highlighted at that moment. Other scanning al-

ternatives, such as step-by-step scanning, require two

switches. One of the switches is used to move be-

tween options manually, and the second switch allows

the user to select highlighted option.

For effective use of scanning access, to control

the computer or other electronic devices, users usu-

ally undergo a training program involving activities

of the following types that should be carried out in a

progressive way (Cook and Hussey, 2002):

1. Cause-Effect Training – Activities where activa-

tion of a switch (or touching the screen) causes

certain effects, such as coloring an image or mov-

ing an element on the screen;

2. Hit on time Training – Activities where an ele-

ment moves on the screen, and the user must acti-

vate the switch at the right moment. For example,

in an activity directed toward children, it may be

necessary to activate the switch when a football

player passes in front of the soccer goal;

3. Symbol Selection Training – Activities where the

user is asked to select a communication symbol

using scanning access.

A past graduation project (Silva, 2003) was de-

veloped in collaboration with the Center of Cerebral

Palsy of ANONYMOUS, a computer application con-

taining activities to train users in these three steps.

In the following work, also another graduation

project, a second application was developed to allow

rehabilitation therapists and special education teach-

ers to create new activities, speciﬁcally adapted to

their students (Coelho, 2007). The creation of new

activities was based on pre-existing models, which

these professionals completed by providing the nec-

essary data through a wizard-like conﬁguration inter-

face. For example, for a cause-effect activity, they

could select the sequence of images to be displayed

to the user.

In this new project, a new approach will be tested,

consisting of letting rehabilitation therapists and spe-

cial education teachers change the program code di-

rectly to better adapt each activity to their students’

needs and capabilities.

2.2 Software Customizability

Customizability is an important usability principle

that consists in the modiﬁability of the user interface

by a user (adaptability) or system (adaptivity) (Dix

et al., 2003). This principle assumes even greater im-

portance for users with special needs since it allows

software and interfaces adaptation to this group of

users’ speciﬁc needs and capabilities.

Personalization through adaptivity is a strategy

that requires a certain degree of intelligence on the

part of the system. Instead of explicit conﬁguration,

the system must infer the users’ needs and adapt its

mode of operation based on collected knowledge. For

example, options can be ordered in a menu according

to their frequency of use, thus optimizing the user’s

effort. In assistive technologies, this strategy is fol-

lowed by augmentative and alternative communica-

tion systems to predict words and sentences that users

intend to speak.

In this work, we explore personalization through

adaptability, meaning that the user will explicitly con-

ﬁgure the software for training scanning access. How-

ever, instead of offering a graphical user conﬁguration

interface consisting of several dialog boxes for user

conﬁguration, an alternative is explored that allows

users to change those options in the code.

This approach has been applied with some nu-

ances in different application areas. (Barricelli

et al., 2019) carried out a systematic mapping

study about this strategy, considering scientiﬁc lit-

erature about End-User Development (EUD), End-

Programming (EUP), and End-User Software En-

gineering (EUSE). They identiﬁed several differ-

ent techniques that were adopted in those stud-

ies: component-based, rule-based, programming by

demonstration/example, spreadsheet-based, natural

language, template-based, natural language, work-

ﬂow and dataﬂow diagrams, model-based, text-based,

digital sketching, annotation-based, assertion-based,

and gesture-based. The authors also identiﬁed several

application domains: business and data management,

web applications and mashups, smart objects and en-

vironments, games and entertainment, education and

teaching, healthcare and wellness, mobile applica-

CSEDU 2022 - 14th International Conference on Computer Supported Education

294

tions, interaction design, and robotics. Many studies

considered a generic user because their main goal was

to present a technique. However, a considerable num-

ber of studies were directed toward a speciﬁc class

of users, such as ofﬁce workers, managers, civil ser-

vants, architects, therapists, physicians, tourism oper-

ators, teachers, interaction designers, and researchers.

The study described in this paper may contribute to

improve the knowledge about the application of this

approach in the area of assistive technologies.

2.3 End-user Programming and

Assistive Technologies

EUP also has been applied to the assistive technolo-

gies area. Next are presented studies relating to these

two areas. Methodologies and results obtained in

these studies are going to be considered in the fol-

lowing stages of the project described in this paper.

In (Barakova et al., 2013) an architecture is proposed

to program robots to be used in therapies for training

social skills to autistic children. To identify the re-

quirements of this platform, therapists were engaged

in the co-creation of scenarios where they would like

to use robots as an augmentation to their practice.

Reusability, modularity, affordances for natural inter-

action, and ease of use were the main principles iden-

tiﬁed to follow in end-user programming. They used

the visual programming environment TiViPE (Tino’s

Visual Programming Environment) to create the end-

user interface because it already had a modular struc-

ture and components for reading sensory informa-

tion, an architecture capable of controlling robots,

and meeting the challenges of the application domain.

Preliminary tests showed that different user groups,

including therapists with general computer skills, and

adolescents with autism, could make simple training,

or general behavioral scenarios, within one hour, by

connecting existing behavioral blocks, and typing tex-

tual robot commands to ﬁne-tune behaviors.

In (Carmien, 2005) authors discuss the develop-

ment of a tool to guide users with cognitive difﬁculties

in the execution of daily tasks, such as getting a bus.

This tool allows familiars and professionals to cre-

ate scripts presenting the steps required to complete

a speciﬁc task. The tool has a dual user interface:

one to be used by familiars or professionals to cre-

ate or edit scripts; persons with cognitive difﬁculties

use the other interface to accomplish speciﬁc tasks.

The creation of new scripts can be based on a pre-

existent script or built from scratch. The script editor

follows the ﬁlmstrip metaphor to present each step of

the task (prompt) graphically and allows several op-

erations to be carried out over each prompt, such as

adding an image, sound, or text note. Preliminary

results showed that adopting a dual user interface to

let familiars and professionals reconﬁgure the scripts

could mitigate some of the causes for device abandon-

ment.

Assistive monitoring systems are another cate-

gory of tools that may require end-user programming.

These systems are usually composed of a network

of sensors and video cameras. For video and sensor

output integration in a monitoring solution that end-

users can program, (Edgcomb and Vahid, 2011) pro-

pose and evaluate a technique called feature extrac-

tors. This technique consists of a programming block

structure that receives video input and produces the

associate feature’s level as output, typically a number

between 0 and 100. Feature extractors were integrated

into a system that authors have previously devel-

oped, the Monitoring and Notiﬁcation Flow Language

(MNFL) (Edgcomb and Vahid, 2012), and evaluated

with users with different technological backgrounds

in the construction of applications with varying levels

of difﬁculty. Results showed that users quickly learn

feature extractors, especially with very brief training

via examples.

2.4 MIT App Inventor

Mobile apps are usually developed by specially

trained computer programmers using complex devel-

opment environments and languages. However, a

well-known development platform provides a much

simpler way to create mobile apps: the MIT App In-

ventor. The MIT App Inventor is a freely available on-

line development platform (MIT, 2022; Patton et al.,

2019). It supports the development of mobile apps

targeting Android and iOS systems. It uses a friendly

block-based programming language built on Google

Blockly (Fraser, 2015), allowing the creation of mo-

bile apps in a much more quick and straightforward

way than is possible with the traditional professional

tools based on textual programming languages. It is

a popular development environment. According to

the site statistics, presently, it has 14.9 million regis-

tered users from 195 countries and around 286 thou-

sand weekly active users (MIT, 2022). Anecdotal ev-

idence shows it is one of the leading platforms for

learning computer programming in different settings

and across all ages. Also, there are many teaching

and learning resources, including more than twenty

books.

Conﬁgurable Templates for Assistive Technology Mobile Apps: A Block-based Programming Approach

295

3 APPS USAGE

The use case diagram in Figure 2 identiﬁes three ac-

tors: (1) the IT Specialist who, together with a reha-

bilitation therapist or special education teacher, has

the skills to build new conﬁgurable apps; (2) the reha-

bilitation therapist and special education teacher that

can conﬁgure existent apps; and (3) the end-user that

simply has to use the conﬁgured and generated apps.

Two use cases were identiﬁed regarding the reha-

bilitation therapist or special education teacher: sim-

ple and advanced conﬁguration. In the simple con-

ﬁguration use case, it is only necessary to change a

minimal and documented set of blocks and know how

to generate the app and deploy it to the mobile de-

vice. It is essential to notice that the changes in the

set of blocks are simple enough to be quickly learned

by any user with minimal computer usage knowledge,

resulting from the regular use of a desktop browser.

Only the advanced conﬁguration demands program-

ming skills, although in the context of a block-based

programming language. This conﬁguration can be as

sophisticated as the user skills allow. In fact, it can

even be used to build new apps: the user becomes an

app developer, similarly to the IT specialist.

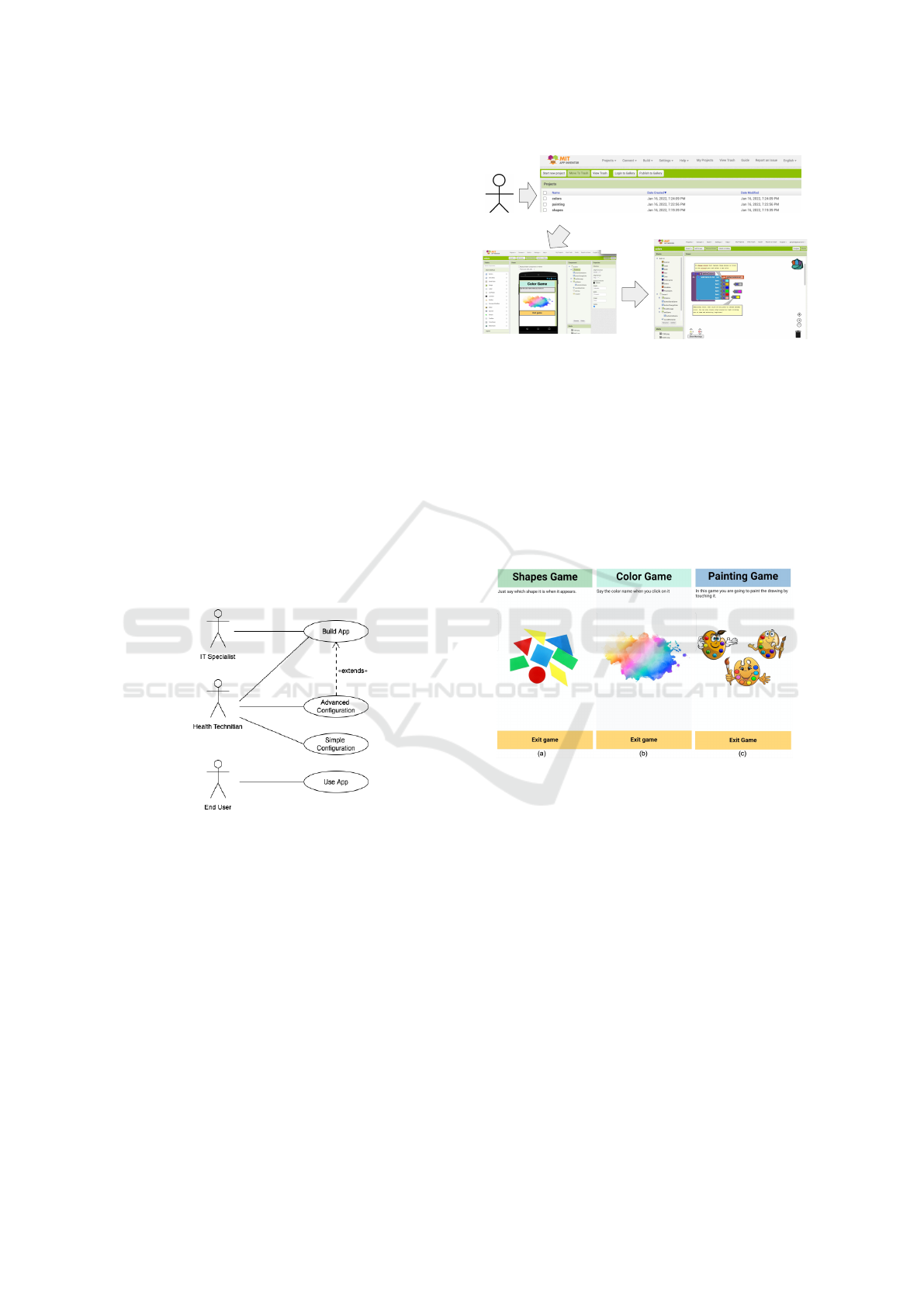

Figure 1: Use case diagram.

The rehabilitation therapist or special education

teacher needs access to an MIT App Inventor online

account. The projects should already be available, as

in the screenshot on the top-right of Figure 2, or be

imported from the local computer. Then, it is possi-

ble to choose one project as illustrated in the bottom

left of Figure 2 where the ”Designer” screen is shown.

This is where the user interface is built.

In the simplest use case, the rehabilitation ther-

apist or special education teacher proceeds immedi-

ately with the ”simple conﬁguration” by going to the

”Blocks” screen (bottom right in Figure 2) where the

code blocks are. There, the user will change only

a minimal part of the blocks, namely those that al-

Figure 2: How the apps are conﬁgured.

low the simple conﬁguration for the app that will

then be generated. More signiﬁcant changes can be

made if the rehabilitation therapist or special edu-

cation teacher already knows some block-based pro-

gramming, as represented by the ”Advanced Conﬁg-

uration” use case.

Next, three simple apps are brieﬂy present. The

”Shapes Game” app (see Fig. 3(a)) shows one shape,

in full screen, sequentially. The user must touch the

device’s screen to see the next shape.

Figure 3: (a) Shapes, (b) Colors, and (c) Painting apps start

screens.

The conﬁguration is straightforward: the rehabil-

itation therapist or special education teacher only has

to change the names of the item blocks in a blocklist

as seen in Figure 4. These images are inserted in the

”Designer” page, which is effortless: select the ﬁles

from the local computer using the desktop operating

system user interface.

The ”Color Game” app is very similar: the user

has to touch the device’s screen to see the next color.

Figure 3(b) shows the start screen.

The conﬁguration does not require external ﬁles:

the colors are readily speciﬁed by color blocks that

are visual values in the block-based programming lan-

guage (see Figure 5).

A third example is the ”Painting App” (see Fig.

3(c)). In this app, a drawing is painted one touch at

a time. The rehabilitation therapist or special educa-

CSEDU 2022 - 14th International Conference on Computer Supported Education

296

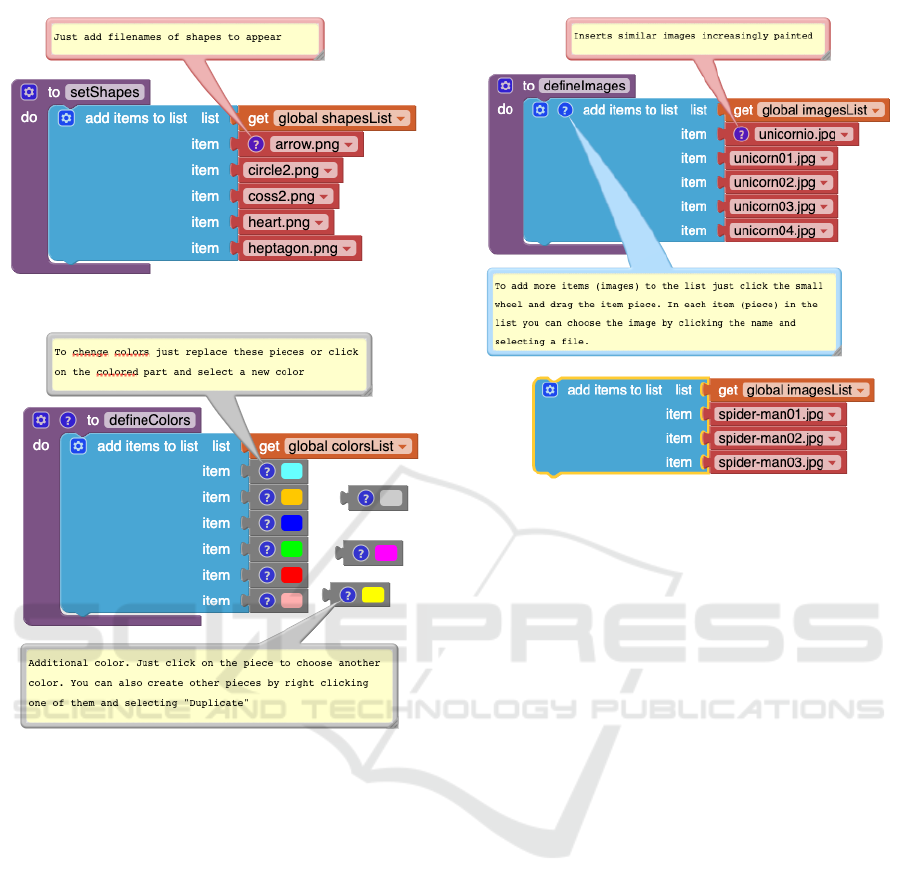

Figure 4: Conﬁguration for shapes identiﬁcation app.

Figure 5: Conﬁguration for colors identiﬁcation app.

tion teacher has to conﬁgure the app by providing a

sequence of increasingly painted images. Hence, the

conﬁguration is similar to the ”Shapes Game” app:

blocks with the image ﬁle names have to be added to

a block list, as illustrated in Fig. 6.

4 CONCLUSIONS AND FUTURE

WORK

The use of end-user programming in the context of as-

sistive technologies is not new. Here, some works in

the area are presented. However, no previous work

has used block-based programming for mobile de-

vices to our best knowledge.

The developed conﬁgurable apps already allow us

to conclude that the MIT App Inventor online devel-

opment platform can effectively build highly conﬁg-

urable mobile apps by users without computer pro-

gramming skills. Also, those same users can take ad-

Figure 6: Conﬁguration for painting app.

vantage of the platform proved adequacy for learning

computer programming to progressively learn how to

make the apps closer to the end-user needs.

In future work, this approach will be tested with a

more extensive set of conﬁgurable apps and a set of

rehabilitation therapists and special education teach-

ers with distinct levels of computer use proﬁciency.

Those tests will provide additional input to improve

the design and usability of this type of app.

REFERENCES

Barakova, E. I., Gillesen, J. C., Huskens, B. E., and

Lourens, T. (2013). End-user programming architec-

ture facilitates the uptake of robots in social therapies.

Robotics and Autonomous Systems, 61(7):704–713.

Barricelli, B. R., Cassano, F., Fogli, D., and Piccinno, A.

(2019). End-user development, end-user program-

ming and end-user software engineering: A system-

atic mapping study. Journal of Systems and Software,

149:101–137.

Carmien, S. (2005). End user programming and context re-

sponsiveness in handheld prompting systems for per-

sons with cognitive disabilities and caregivers. In

CHI’05 extended abstracts on Human factors in com-

puting systems, pages 1252–1255.

Coelho, M. (2007). Conﬁgurable scanning training (gradu-

ation project). Technical report, ***anonymous insti-

tution***.

Cook, A. M. and Hussey, S. M. (2002). Assistive technolo-

gies. Elsevier.

Conﬁgurable Templates for Assistive Technology Mobile Apps: A Block-based Programming Approach

297

Dix, A., Finlay, J., Abowd, G. D., and Beale, R. (2003).

Human-computer interaction. Pearson Education.

Edgcomb, A. and Vahid, F. (2011). Feature extractors for in-

tegration of cameras and sensors during end-user pro-

gramming of assistive monitoring systems. In Pro-

ceedings of the 2nd Conference on Wireless Health,

pages 1–2.

Edgcomb, A. D. and Vahid, F. (2012). Mnﬂ: the monitoring

and notiﬁcation ﬂow language for assistive monitor-

ing. In Proceedings of the 2nd ACM SIGHIT Interna-

tional Health Informatics Symposium, pages 191–200.

Fraser, N. (2015). Ten things we’ve learned from blockly.

In 2015 IEEE Blocks and Beyond Workshop (Blocks

and Beyond), pages 49–50.

MIT (2022). MIT App Inventor. http://appinventor.mit.

edu/. Accessed: 2022-01-17.

Patton, E. W., Tissenbaum, M., and Harunani, F. (2019).

Mit app inventor: Objectives, design, and develop-

ment. In Kong, S.-C. and Abelson, H., editors, Com-

putational Thinking Education, pages 31–49. Springer

Singapore, Singapore.

Phillips, B. and Zhao, H. (1993). Predictors of assis-

tive technology abandonment. Assistive technology,

5(1):36–45.

Silva, A. (2003). Scanning training (graduation project).

Technical report, ***anonymous institution***.

CSEDU 2022 - 14th International Conference on Computer Supported Education

298
