Augmenting Library Development by Mining Usage Data

from Downstream Dependencies

Christoph Thiede, Willy Scheibel, Daniel Limberger and Jürgen Döllner

Hasso Plattner Institute, Digital Engineering Faculty, University of Potsdam, Germany

Keywords:

Mining Software Repositories, Downstream Dependencies, API Usage.

Abstract:

Software and its dependencies build up a graph where edges connect packages with their dependencies. In this

graph, downstream dependencies are all the nodes that depend on a package of interest. Although gathering

and mining such downstream dependencies allow for informed decision-making for a package developer, there

is much room for improvement, such as automation and integration of this approach into their development

process. This paper makes two contributions: (i) We propose an approach for efﬁciently gathering downstream

dependencies of a single package and extracting usage samples from them using a static type analyzer. (ii) We

present a tool that allows npm package developers to survey the aggregated usage data directly in their IDE in

an interactive and context-sensitive way. We evaluate the approach and the tool on a selection of open source

projects and speciﬁc development-related questions with respect to found downstream dependencies, gathering

speed, and required storage. Our methods return over 8 000 downstream dependencies for popular packages

and process about 12 dependencies per minute. The usage sample extraction offers high precision for basic use

cases. The main limitations are the exclusion of unpopular and closed-source downstream dependencies as

well as failing analysis when encountering complex build conﬁgurations or metaprogramming patterns. To

summarize, we show that the tool supports package developers in gathering usage data and surveying the use of

their packages and APIs within their downstream dependencies, allowing for informed decision-making.

1 INTRODUCTION

The continued proliferation and improvement of open-

source software (OSS) platforms such as GitHub or

GitLab and package deployment ecosystems such as

npm, pip, or NuGet support and facilitate software

development on a global scale. Open-source develop-

ment offers many advantages over traditional closed-

source development, including voluntary contributions

from the open-source community, greater transparency

in security-related areas, and a high potential for so-

lution reuse (Saied et al., 2018). These solutions are

typically organized as packages, each solving an iso-

lated problem and providing a higher-level interface.

Packages can depend on existing packages by includ-

ing them in their manifest, i.e., the

package.json

ﬁle

of npm packages or the

requirements.txt

ﬁle of

Python projects. These dependency relations form a

large directed graph connecting signiﬁcant parts of

the software world for today’s programming language

ecosystems. We deﬁne a software ecosystem as a col-

lection of software projects, which are developed and

which co-evolve in the same environment.

Despite this connectedness by design, however,

the development process of many packages is still

characterized by an isolated approach: While OSS

developers commonly submit tickets to or contribute

patches against upstream repositories that they depend

on to solve subproblems, the reverse direction of these

edges – called downstream dependencies and in the

following referred to as dependencies – is often ne-

glected by package developers. This deﬁcit can cause

a wide range of alignment issues, including poorly

suited interfaces (Piccioni et al., 2013), unidentiﬁed

defects (Wong et al., 2017), and compatibility prob-

lems (Bogart et al., 2015). Eventually, all these issues

impair the capabilities of the global OSS community

to build and support high-quality packages.

To tackle these concerns, we propose an ap-

proach to extract API usage samples from downstream-

dependency repositories of individual packages to sup-

port package developers in exploring usages of their

packages. We make these data directly available to

package developers by integrating them into an inte-

grated development environment (IDE).

Our approach consists of three steps: (i) col-

lect downstream dependency repositories from public

Thiede, C., Scheibel, W., Limberger, D. and Döllner, J.

Augmenting Library Development by Mining Usage Data from Downstream Dependencies.

DOI: 10.5220/0011093700003176

In Proceedings of the 17th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2022), pages 221-232

ISBN: 978-989-758-568-5; ISSN: 2184-4895

221

source code repositories, (ii) mine package usage sam-

ples from these dependencies using a type analyzer,

and (iii) aggregate and present these usage data to the

package developer in its development environment.

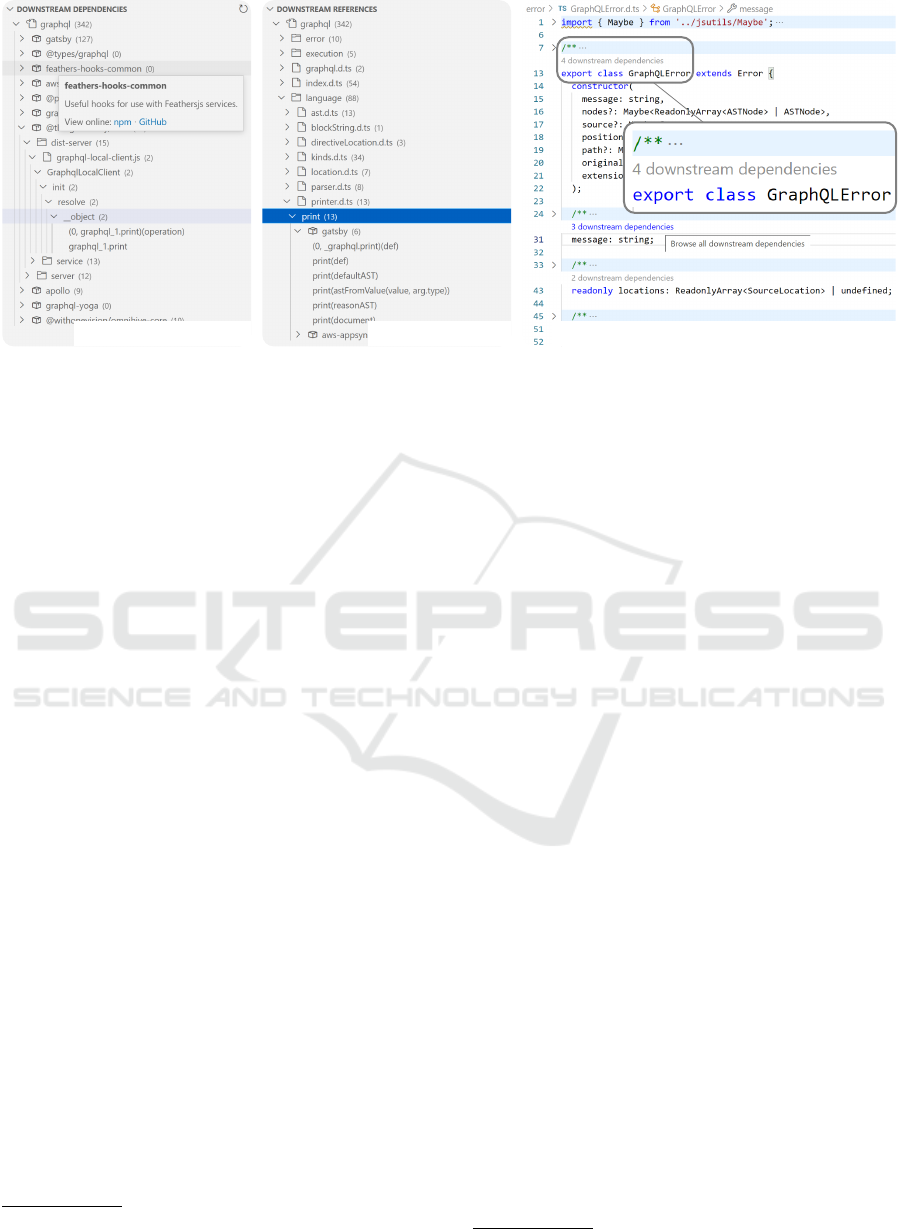

The approach is implemented as a Visual Studio Code

extension

and evaluated on a selection of open source

projects and speciﬁc development-centric questions.

The remainder of this paper is structured as fol-

lows: In section 2, we summarize existing approaches

and in section 3, we outline the overall conditions for

our solution and detail the collection of downstream

dependency repositories and subsequent mining of us-

age data. In section 4, we present an implementation

of our approach and outline design decisions for dis-

playing usage samples to the user. Finally, in section 5,

we examine the ﬁtness of our data mining approach

and the usability of the display solution. Section 6

concludes this paper.

2 RELATED WORK

Proper tooling design for improving package develop-

ers’ knowledge about interface usages in dependencies

has not yet attracted signiﬁcant attention in the scien-

tiﬁc community. Nevertheless, programmatic analy-

sis of dependency graphs and API usage mining are

already standard techniques in the ﬁeld of mining soft-

ware repositories (MSR). Chaturvedi et al. provide a

broad overview of existing achievements and ongoing

research topics in this ﬁeld (Chaturvedi et al., 2013).

Besides source code repositories, they describe data

sources worthwhile to examine, including telemetry

data from IDEs, issue trackers, and discussion plat-

forms, and propose different directions for evaluating

the retrieved data, e.g., classifying or ranking repos-

itories, analyzing the evolution of projects, studying

development communities, but also inspecting the re-

lationships and dependencies between projects. We

further consider related work in the areas of depen-

dency graphs, usage sample extraction, and tooling

support.

Searching Dependency Graphs. A common pur-

pose for analyzing dependency graphs is to discover

transitive upstream dependencies of a project and as-

sess their impact on the stability and vulnerability of

the project (Kikas et al., 2017). Similarly, the spread-

ing of security vulnerabilities along the chain of down-

stream dependencies can be measured (Decan et al.,

2018).

All presented artifacts are available on GitHub:

https://github.com/LinqLover/downstream-repository-

mining (Thiede et al., 2022)

However, existing research on dependency graphs

takes a broad statistical perspective and relies on a

large corpus of downloaded software repositories (Ab-

dalkareem et al., 2017; Kikas et al., 2017; Katz, 2020).

As opposed to this approach, these capacities are not

suitable for scenarios that developers of a single pack-

age occasionally perform. In this case, developers will

often use a public code search service instead, such as

GitHub or Sourcegraph. Liu et al. provide a survey of

methods and trends in code search tools that include

newer approaches such as structural or semantic search

queries, code similarity metrics, or machine learning

methods (Liu et al., 2020).

Extracting Usage Samples. Dependency graphs do

not provide information about package usage at suf-

ﬁcient granularity. For example, insights about refer-

encing package classes or methods are missing. The

process of extracting ﬁne-grained information about

all references to individual elements of an interface is

referred to as API usage analysis (Lämmel et al., 2011).

A simple approach is to perform a string search for

package names or members in the dependencies (Mil-

eva et al., 2010), or to operate on the abstract syntax

tree (AST) of each parsed dependency to avoid false

positive caused by ambivalent identiﬁer names (Qiu

et al., 2016). In addition, one can collect usage data

to analyze the historical importance of certain features

supported by an API (Sawant and Bacchelli, 2017).

However, the precision of ASTs is limited for

dynamically typed languages such as JavaScript or

Python. As opposed to static typing, the value type of

an expression in a dynamically typed language may

be unknown at the compile time of the program. For

this reason, a type analysis can help to predict run-

time types of all expressions in the AST (Jensen et al.,

2009). This is usually accomplished by analyzing

the control ﬂow of a program and inferring possible

types of every variable or function. Another source

for enhancing type information is call graphs that are

either gathered statically, i.e., as a result of a theoret-

ical analysis of the source code, or dynamically, i.e.,

sampled during actual program execution. While the

latter method is better suited to include more contex-

tual information, the former method has the advantage

that it can be applied to a more considerable amount

of source code without requiring concrete entry points,

parameterization, and run-time data. Many solutions

exist that analyze the structure of programs and extract

relevant information to build call graphs:

Collard et al. propose an infrastructure called

SRCML that aims to create a uniﬁed representation

of multilingual source code snippets for arbitrary

analysis purposes, including the construction of call

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

222

graphs (Collard et al., 2013). Another solution utilizes

an island parser to build polyglot call graphs (Bogar.

et al., 2018). Furthermore, Antal et al. compare sev-

eral call graph generators for JavaScript and emphasize

that static call graph generators have limited precision

by design for languages supporting dynamic typing or

meta-programming mechanisms (Antal et al., 2018).

To merge dependency graphs and call graphs,

ecosystem call graphs can be constructed by apply-

ing call graphs to entire ecosystems that cross repos-

itory boundaries. Many approaches apply this con-

cept to different ecosystems, often aiming to conduct

ﬁne-grained impact analysis for security vulnerabili-

ties (Hejderup et al., 2018; Boldi and Gousios, 2020;

Wang et al., 2020; Hejderup et al., 2021; Keshani,

2021; Nielsen et al., 2021). Another approach is

the precise code intelligence feature of Sourcegraph,

which makes code references explorable across repos-

itory boundaries for repositories that provide a meta-

data ﬁle in the Language Server Index Format.

After collecting these usage data, additional pro-

cessing is possible to extract general usage information

from the extensive raw data. Next to basic grouping

and counting operations, such aggregations can be

built by detecting popular usage patterns of API fea-

tures in the downstream dependencies. Zhong et al.

propose such a framework, that, for instance, ﬁnds

sequences of API members that are invoked frequently

and even uses these patterns for guiding API users by

giving them recommendations (Zhong et al., 2009).

Hanam et al. pursue a different goal in their tool that

helps package developers assess the impact of break-

ing API changes on the functionality of downstream

dependencies (Hanam et al., 2019).

Presentation of Results. To establish an adequate

developer experience, any collected usage data still

need to be presented suitably. Due to the hierarchical

structure of source code, a common approach for this

is a hierarchical and navigatable representation of the

collected call tree. An early form of this represen-

tation has been invented as the interactive “message

set” tool for browsing senders and implementors in an

object-oriented system for the Smalltalk programming

environment (Goldberg, 1984). Modern alternatives

include the Stacksplorer (Karrer et al., 2011) or Blaze

(Krämer et al., 2012) that list next to the currently fo-

cused method other methods which are adjacent to this

method in the call graph. With a focus on exploring

references to API members, De Roover et al. pro-

pose a set of additional views, including hierarchical

lists and word clouds for highly referenced identiﬁers

https://docs.sourcegraph.com/code

intelligence/explanat

ions/precise_code_intelligence

(De Roover et al., 2013). Focusing on exploring APIs

in a non-code-centric way, Hora and Valente propose

a dashboard that allows developers to browse exist-

ing APIs and track possibly breaking changes in their

interfaces (Hora and Valente, 2015).

3 DOWNSTREAM DEPENDENCY

MINING

Our approach to improve developers’ knowledge about

the usage of their packages is based on the automatic

gathering of downstream dependency information and

integration into their development environment. This

approach assumes a target package and focuses on

showing a developer actual usage of parts of their

package and, in particular, answering the following

questions: In doing so, we identiﬁed three questions

from package developers about the usage of their pack-

ages:

Which dependencies are using the target pack-

age, and what problems do they try to solve with

them?

By how many dependencies is a particular pack-

age member being used?

In which contexts and constellations is a particu-

lar package member being used?

For an effective integration into the development pro-

cess, we pose three non-functional requirements:

The tool is ready to use out of the box and re-

quires little conﬁguration (less than 5 minutes

for a new user).

The tool consumes sufﬁciently few computa-

tional resources to run on a single machine but

still delivers interactive response times accord-

ing to Shneiderman’s requirement to frequent

tasks (Shneiderman and Plaisant, 2010).

The tool blends in with the usual workﬂow of

package developers at the best possible rate.

On a conceptual level, we separate the approach into

the collection of downstream dependency projects and

mining of usage samples based on a target package.

3.1 Downstream Dependency Collection

In the ﬁrst step, a list of repositories that depend on

the target package has to be assembled. As mentioned

in section 2, many approaches start with a large

downloaded corpus of unspeciﬁc repositories from the

ecosystem, which they then iterate over to ﬁlter the

relevant repositories. However, a major drawback of

Augmenting Library Development by Mining Usage Data from Downstream Dependencies

223

Input:

package: target package

dependencies: downstream dependencies

Output: usage samples (set of strings)

for dependency ∈ dependencies:

asf ← parse(dependency ∪ package)

annotate_types(asf )

for ast ∈ asf :

for node ∈ dfs(ast ):

for pattern ∈ patterns:

if pattern.matches(node)∧ package.declares(pattern.getType(node)):

yield node.text

Algorithm 1: Extraction of usage samples.

this approach is the high resource demand for both

creating and traversing this corpus. This approach is

suited for analyzing repositories on a large scale but

is not conform to requirement R1 because of its large

footprint in terms of computational power, memory,

and time. As an alternative, we have decided to apply

ﬁltering to the set of repositories before downloading

a subset of it to the developers’ machine. For that,

we use two types of data sources that are available as

public web platforms:

(i)

Package repositories that maintain a doubly-

connected edge list of interdependent packages

in an ecosystem.

(ii)

Code search engines that index the source code

of many repositories from OSS platforms. Using

these search engines, we can query all repositories

that declare a dependency on the target package in

their package manifest ﬁle.

3.2 Usage Sample Mining

Having downloaded the selected downstream depen-

dency repositories, the next step is to extract usage

samples for the target package from each dependency

repository. Our goal is to gather ﬁne-grained source

code excerpts that reference individual identiﬁers ex-

posed by the target package. The complete procedure

is displayed in Algorithm 1.

To do so, the source code of every dependency

repository as well as the source code of the target pack-

age are parsed, each into a separate abstract syntax

forest (ASF, i.e., a set of ASTs). In a second step,

static type analysis against each dependency ASF is

performed together with the target package’s ASF. The

results of the type analysis are attached to the ASF so

that every identiﬁer is annotated with a type symbol

that links to the declaration of the type for the identiﬁer.

For instance, after this step, every variable node con-

tains a link to the assignment node of this variable, and

every function call expression contains a link to the

deﬁnition of this function. The operating principle of

this type analysis depends on the kind of programming

language. In statically typed languages, type symbols

can be retrieved from declarations, whereas in dynam-

ically typed languages, a control ﬂow analysis will

be required to identify the origin of every identiﬁer’s

type.

In the ﬁnal step, all nodes whose type is declared

in the target package are collected from each ASF. To

identify these links, we use a set of language-speciﬁc

patterns for AST subtrees that constitute a usage ex-

pression. In particular, each of these patterns expects a

node containing a link to an identiﬁer declaration (see

ﬁg. 1).

4 PROTOTYPE

In our prototype, we focus on analyzing JavaScript

projects for node.js. This decision is motivated by the

large prevalence of JavaScript

as well as the ﬁrst-rate

extent of the npm ecosystem which has been unsur-

passed since 2015

. The prototype instantiates the

downstream dependency collection and the usage sam-

ple mining and allows for the integration of the results

into the development environment.

4.1 Downstream Dependency Collection

The de-facto standard package repository manager for

node.js is npm. To fetch downstream dependency pack-

ages from the npm registry, we use the npm package

npm-dependants

which scrapes the dependents list

from npmjs.com as there does not exist a publicly

GitHut 2.0: A small place to discover languages in GitHub.

https://madnight.github.io/githut/#/pushes

Modulecounts: http://www.modulecounts.com/

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

224

CallExpression

identiﬁer

typeArguments

arguments

(a) Node pattern for a TypeScript

function call, such as in:

result =

fun<T1, T2>(arg1, arg2);

PropertyAccessExpression

identiﬁer

name

(b) Node pattern for a JavaScript prop-

erty access, such as in:

return obj.prop;

JsxOpeningExpression

tagName

typeArguments

attributes

ement (as supported in React or Type-

Script), such as in: or TypeScript

elem = <Button color="blue">

Submit</Button>;

Figure 1: AST patterns for example JavaScript/TypeScript expressions. The highlighted node contains the link to the

declaration of the referenced identiﬁer.

available API for these data. To keep the footprint of

our implementation small, only a part of the depen-

dents list is scraped. Then, basic metadata for each

found package is requested from the npm registry, in-

cluding the tarball URL of the latest package version,

using the package

package-metadata

. Finally, each

tarball is downloaded and extracted using the package

download-package-tarball.

Listing 1: Example

package.json

ﬁle for the

ripple-lib

package specifying multiple dependencies (truncated). The

list of dependencies that are extracted from this exam-

ple contains

bignumber.js

https-proxy-agent

, and

jsonschema.

1 {

2 "name": "ripple-lib",

3 "version": "1.10.0",

4 "description": "An API for the XRP

Ledger",

5 "dependencies": {

6 "bignumber.js": "^9.0.0",

7 "https-proxy-agent": "^5.0.0",

8 "jsonschema": "1.2.2"

9 }

10 }

For the second method – based on a code search

engine –, we have identiﬁed Sourcegraph

as a promis-

ing platform. npm packages specify their dependen-

cies in a

package.json

metadata ﬁle (see listing 1).

To ﬁnd all packages depending on a certain pack-

age, we can search all available

package.json

ﬁles

for a reference to this package identiﬁer. We reﬁne

our search query with some additional constraints

to ﬁlter out package copies from

node_modules

fold-

ers that downstream developers have pushed acciden-

tally, and to limit the number of results retrieved.

We submit this search query to the publicly available

GraphQL API of Sourcegraph

by using the npm pack-

age

graphql-request

. After retrieving a search result,

we download a snapshot of the full repository by using

https://sourcegraph.com/

https://docs.sourcegraph.com/api/graphql

the package download-git-repo.

Additionally, we enrich the metadata of each pack-

age with a few metrics indicating its popularity from

the associated GitHub repository if speciﬁed. The

GitHub API is accessed via the ofﬁcial octokit library

4.2 Usage Sample Mining

For parsing the dependencies, we use the Type-

Script Compiler API

. TypeScript is an extension of

JavaScript that adds strong typing; typing is based on

a combination of implicit type inference and explicit

type declarations. As a side beneﬁt, our implementa-

tion is also able to analyze packages implemented in

true TypeScript.

The TypeScript compiler’s binder component anno-

tates every node of the parsed program with a type sym-

bol if it can resolve one. After performing a type anal-

ysis of the dependency by instrumenting the binder,

we collect all nodes from the type-annotated ASF that

refer to the target package, matching each node against

a list of deﬁned patterns (similar to ﬁg. 1). A lookup

of the node’s type symbol’s declaration is performed

based on the syntax kinds of the node, its ancestors,

and its descendants, and then compared with the source

directory of the target package.

Normally, foreign types can only be resolved if

they are declared in a dependency module that has been

installed into the

node_modules

folder of the repository.

Because downloading and installing all dependency

modules for every downstream repository of the target

package would increase the computational resources

of the usage mining drastically and eventually violate

requirement R2, we skip this step but instead mod-

ify the module resolution strategy of the TypeScript

compiler host. To do so, we extend the

paths

param-

https://octokit.github.io/

https://github.com/Microsoft/TypeScript/wiki/Using-the

-Compiler-API

Augmenting Library Development by Mining Usage Data from Downstream Dependencies

225

(a) The dependency browser. (b) The usage browser.

Figure 2: Screenshots of our VS Code extension used to explore downstream dependencies of the npm package graphql.

eter from the default compiler options

and insert a

new entry that remaps accesses to the target package

name to the separate source code directory of the target

package.

4.3 Presentation of Results

After all references have been collected, a proper user

interface (UI) is still required to provide users easy

access to these data that fulﬁlls the requirements men-

tioned above. To satisfy requirement R1 and require-

ment R3 by making our tool available in the usual

working environment of users, we implement it as

an extension to the Visual Studio Code IDE

. It also

provides a comprehensive set of APIs for extension

developers. To support other researchers in reusing our

solution, we also provide a CLI. The user interface is

divided into three key views, supporting developers in

answering the questions raised in section 3 (see ﬁg. 2):

(i)

The dependency browser allows to explore all

downstream dependencies and, grouped for each

dependency, all references to the target package.

(ii)

The usage browser displays all public package

members and, grouped for each member, all de-

pendencies and their references to this member.

(iii)

The CodeLens integration provides quick access

to a slice of usage samples and is attached to the

deﬁnition of each package member in the source

code editor.

Both references and members are organized each in a

tree view that reﬂects the hierarchical structure of the

original software repository. In addition, we recognize

the effort of browsing large lists of dependency data

https://www.typescriptlang.org/tsconﬁg#paths

https://code.visualstudio.com/

and encounter it by providing an “I’m feeling lucky”

button for every view that redirects the user to a ran-

dom dependency or reference, respectively, to gain a

faster, unbiased impression of usage samples.

To implement each of these views in the VS Code

Extension API (VSCE)

, we use the Tree View API

and the CodeLens API. One challenge has been to de-

liver fast results and not to block the user interface

because even despite the lightweight mining meth-

ods we chose to satisfy requirement R2 from above,

querying, downloading, and analyzing each depen-

dency takes a few seconds (see section 5). To over-

come this issue, we use pagination wherever possible

and push incremental UI updates. As the VSCE API

per se does not provide for multithreading or multipro-

cessing operations but suggests a Promise/A+-driven

dataﬂow, we adopt this style for our object model by

using the JavaScript concepts asynchronous functions,

AsyncIterator

s, and

Promise.all

to avoid busy wait-

ing during the data collection process.

5 EVALUATION

To evaluate our approach, we formulate three research

questions:

RQ1

What is the quality and quantity of the proposed

methods for dependency collection?

RQ2

What is the quality and quantity of the proposed

method for mining usage samples?

RQ3

How well is the proposed tool applicable with

regard to the questions and requirements described

in section 3?

In the following, we will investigate each question.

https://code.visualstudio.com/api

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

226

Table 1: Quantity and false-positive rates (FPR) of downstream dependencies found by the presented methods (using npm and

Sourcegraph) for selected packages.

npm Sourcegraph

Package

GitHub stars

Count

FPR

Count

FPR

Intersection in %

base64id 16 27 0.20 45 1.00 8

nemo 38 1 0.00 1 1.00 0

random-js 556 219 0.14 193 0.36 15

kubernetes-client 902 36 0.13 79 0.21 16

jsonschema 1 547 394 0.00 517 0.18 2

graphql 18 005 396 0.17 8 863 0.68 2

cheerio 24 228 396 0.07 6 779 0.07 0

5.1 RQ1: Dependency Collection

To assess the quality and quantity of dependency col-

lection, we analyze it with respect to extent, precision,

recall, and performance. Table 1 shows the number

of dependencies collected to build an experimental

dataset from each data source following the proposed

methods for a set of manually selected npm packages.

For each package, we have annotated a subset of the

collected dependencies (max. 20 dependencies per

package) to identify and classify false positive hits.

Extent. Regarding the total number of dependencies

collected by each method, no clear trend in favor of

any method can be ascertained for small or medium

packages, i.e., having less than

10,000

stars on GitHub.

For larger packages, i.e., having at least

10,000

stars,

however, the number of dependencies collected from

the npm registry stagnates near to 400 hits. Beyond

this limit, the npm registry returned internal server

errors for our requests. For Sourcegraph, we have

not hit any limitations so far. Currently, they do not

provide any ofﬁcial documentation for the exact rate

limits. As the disjunct proportion of results from both

methods is very small (on average about

6 %

), we

consider a combination of both data sources useful

for maximizing the extent and diversity of the gained

dataset.

Precision. The precision of collected dependencies

is drastically lower for dependencies found on Source-

graph than for such found on npm. Figure 4 collates

the causes we have identiﬁed for false positives; most

frequently, repositories specify a dependency on a tar-

get package in their package manifest ﬁle but do not

import this package at any place.

In some situations, this may happen if the package

is a plugin for another package or if it is invoked as a

CLI from a build script, but in the majority of reposi-

tories, developers trivially appear to have speciﬁed the

upstream dependency by accident (e.g., while copying

package.json

ﬁle over from another package), or to

have forgotten to remove the upstream dependency

after switching away from using the package. Less

common causes are repositories that only add type

deﬁnitions to a package but do not actually import it,

as well as packages required by a repository that de-

clares a peer dependency on the target package, which

needs to be fulﬁlled by the depending repository. We

explain the increased false-positive rate for Source-

graph dependencies by our observation that packages

found on npm are deliberately published and typically

stand out by their higher cohesion and commitment to

maintenance, whereas GitHub-only projects contain a

higher share of hobby or students’ projects. We stress

that a reduced precision does not impair the quality of

results displayed to package developers as all depen-

dencies not containing at least one usage sample can

be easily ﬁltered out, but downloading and analyzing

any irrelevant packages lowers the performance of the

approach.

Recall. Besides the precision of the collected depen-

dencies, their recall is of interest, too. Since dependen-

cies are collected in excerpts from two large datasets,

a quantitative analysis of false negatives would require

costly manual annotation and is target for future work.

Nevertheless, some causes will prevent a dependency

from being found by our methods:

•

Packages without a proper dependency manifest

Augmenting Library Development by Mining Usage Data from Downstream Dependencies

227

0.05

0.1

0.15

0.2

0.25

0.3

0.35

0.4

0.45

package unused

peer dependency

type deﬁnitions only

package.json mismatch

0.39

0.28

0.02

0.27

0.08

0.12

false-positive frequencies

Sourcegraph

npm

Figure 3: Causes for false-positive dependency matches and their frequencies.

Table 2: Performance metrics and remarks for both dependency collection methods using npm and Sourcegraph.

Metric npm Sourcegraph

Search speed

s/pkg 1.58 0.04

Download speed

a,b

s/pkg 0.26 8.80

Storage MB/pkg 5.80 27.20

API limitations max. 400 results none known

Test machine: 7 vCPUs Intel Xeon Cascade Lake at 2.80 GHz, internet down speed 1.8 Gbit/s.

Effective speed downloading multiple packages in parallel to manage latencies.

cannot be detected as our method is based on pars-

ing these metadata.

•

Only published packages are found on npm, lead-

ing to a bias for generic and professional software.

•

On both platforms, results will be sorted based

on intransparent criteria (which, as we speculate,

include the number of direct dependents on npm

and the recent update frequency on Sourcegraph,

respectively). As we only fetch the ﬁrst dependen-

cies from both data sources, this is a likely source

of further biases. These biases could be fought by

always fetching all dependencies, but this would

drastically reduce performance and would require

a workaround for the npm query limitation.

Performance. Table 2 gives some basic metrics com-

paring the performance of both data sources. While

searching downstream dependencies is slower by aver-

age on npm as we use a web scraper instead of an API

for this source, npm packages are usually smaller than

many mono-repositories on OSS platforms that contain

multiple node.js packages. In addition, they are faster

to download since the

download-git-repo

package

that we use for repositories found on Sourcegraph only

uses zipballs instead of tarballs (

.tar.gz

ﬁles), while

the latter would offer a higher compression rate.

5.2 RQ2: Usage Mining

To assess the quality and quantity of usage mining,

we examine this processing step’s precision, recall,

and performance. Due to the complexity of a detailed

annotation process, we only consider the existence of

found usage samples on the dependency level. The

absolute quantity of found usage samples largely varies

for different packages and dependencies based on the

semantic extent of the package and the coupling.

Precision. Under laboratory conditions, false-

positive usage samples cannot be emitted by our

method if we assume the correctness of the TypeScript

compiler. There are only two theoretical exceptions

to this invariant: (i) In case of a name collision be-

tween two packages, invalid or false positive usage

samples may be emitted. However, the npm infras-

tructure attempts to rule out these collisions by using

the package name as a unique ID for every published

package. (ii) If dependency developers deliberately

interfere with the TypeScript compiler (for instance,

by suppressing type errors using

@ts-ignore

com-

ments, both false positive and false negative matches

are possible. Additionally, some npm packages contain

miniﬁed sources only that are still searchable, valid

code but can be signiﬁcantly harder to read.

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

228

Recall. To evaluate the recall of our method, we have

reﬁned the experimental dataset collected in section 5.1

and removed all false-positive dependencies. Within

this cleansed dataset, the overall rate of dependencies

for that our method cannot ﬁnd at least one usage

sample accounts for

47.9 %

. To explain these false

negatives, we have identiﬁed some systematic causes:

•

Many projects on OSS platforms have complex

build conﬁgurations that include additional tran-

spilation or code generation steps before a ﬁnal

version of the source code is reached that is valid

to the node.js interpreter or the TypeScript com-

piler. Unless we add explicit support for such build

conﬁgurations, type analysis and usage mining for

these projects will fail.

•

In some situations, additional type deﬁnitions are

required to perform a complete type inference of

a dependency. This applies to every parametrized

callback from a package for that type deﬁnitions

are not available. This limitation could be resolved

by downloading or generating type deﬁnitions for

all upstream dependencies of every downstream

dependency; however, this would reduce the ap-

proach’s performance.

•

The static type analyzer of TypeScript has some

limitations. For instance, the type analysis will

have a limited recall for certain control ﬂow

patterns or metaprogramming constructs such

as meta-circular evaluation using the

eval()

function or dynamic function binding using

Function.bind()

. These limitations could be

resolved with AST preprocessing and partial eval-

uation of the source code.

Performance. The total time spent performing type

analysis for a repository from the experimental dataset

and mining usage samples averages about

seconds.

The complete ASF of an average parsed repository

consumes between

10 MB

and

500 MB

memory, de-

pending on the size of the repository.

5.3 RQ3: Requirements

To assess the applicability of our tool, we investigate

different options for users who would like to answer

the questions raised in section 3. We further analyze

how far our tool meets the requirements posed above.

Answering User Questions. To answer question Q1

without our tool, users could access the data sources

used by our tool manually to search for and view down-

stream dependencies. The source code of repositories

can be browsed on Sourcegraph, but if an npm package

is not available on an OSS platform, users will need

to download and extract it. With our tool, the data

collection process is condensed into a single button

that incrementally displays all references from both

data sources. Users can hover or click any dependency

to view its documentation or implementation. To an-

swer questions Q2 and Q3 without our tool, users need

to scan each found dependency separately to count

or read all usage samples. If they intend to analyze

the usage of a member with an exact name, they can

perform an expeditious string search. This is possi-

ble using Sourcegraph or another search engine if the

dependency is indexed there; otherwise, users will

need to download the repository and search it locally.

If the member of interest has an ambiguous name,

users will need to download the project and view it

in an IDE such as VS Code that supports reference

search. Alternatively, they can try the precise code in-

telligence mode on Sourcegraph (see section 2); how-

ever, this feature is available for a few repositories

only. All usage samples can be collected automatically

and merged into a single list within our tool. Once

the collected dependencies have been processed, users

can select a member of interest and view all its usage

samples with a single click. For the usage analysis

of Java APIs, the tool Exapus also considers different

kinds of member usages such as instantiation vs. in-

heritance of a class (De Roover et al., 2013); a similar

classiﬁcation could improve the usability of our tool.

Meeting Requirements. To satisfy requirement R1,

the application needs to be easy to set up. As our exten-

sion can be installed with two clicks from the Visual

Studio Code Extension Marketplace and the installa-

tion takes less than 10 seconds on our test machines, it

fulﬁlls this requirement.

We break down requirement R2 into two accep-

tance criteria: application liveness and small resource

footprint. As discussed before, our tool can process

5 up to 12 dependencies per minute while requiring

about

500 MB

memory in total and less than

30 MB

storage per package. After the tool is activated, the

ﬁrst results usually appear after less than 10 seconds

on the UI. This is an acceptable delay regarding Shnei-

derman’s deﬁnition of acceptable application response

times, so the liveness criterion is fulﬁlled. Even if the

tool downloads a few hundred dependencies, it will

occupy less than

10 GB

storage that can be released

at any time, which we consider a small resource foot-

print at a time where modern operating systems require

64 GB

storage; thus, the second criterion is fulﬁlled as

well.

Requirement R3 effectively calls for a minimum

number of context switches that are required to use

Augmenting Library Development by Mining Usage Data from Downstream Dependencies

229

the tool, i.e., for minimizing the temporal, spatial, and

semantic distance (Ungar et al., 1997) between the

downstream dependency UI and the IDE used by pack-

age developers. Once the data are available in the UI,

interaction is possible with the same speed as with

local source ﬁles in the package. This meets Shnei-

derman’s requirement to frequent tasks and indicates

a low temporal distance. The spatial distance varies

for the different views of the tool: A separate tool-

bar has to be opened for the dependency and usage

browsers, which indicates a higher spatial distance;

still, the artifacts are available in the same IDE. Also,

the dependency artifacts have no strong relation to any

existing IDE artifacts, so any closer integration into an

existing view would increase coupling between inde-

pendent domains. The code annotations are displayed

close to the package source code with a small spatial

distance. The semantic distance can be described as

the perceived similarity of artifacts displayed both in

the tool’s UI and in the existing IDE, i.e., the package

and dependency members. Most items in the usage

browser bear the same label as the corresponding iden-

tiﬁer in the source code, which reduces the semantic

distance. However, dependency member path nodes

that refer to anonymous expressions are displayed dif-

ferently compared to the outline view of VS Code (see

ﬁg. 2 (a)), slightly increasing the semantic distance.

With a low temporal distance, a low-to-medium spatial

distance, and a mainly low semantic distance, our tool

also fulﬁlls requirement R3.

6 CONCLUSIONS AND FUTURE

WORK

Downstream dependencies offer a promising perspec-

tive for package developers interested in understanding

how their interfaces are used in practice by other soft-

ware developers. In this paper, we have proposed an

automated approach to making this sort of information

accessible to package developers by automating the de-

pendency collection and mining of usage samples from

every dependency. We have identiﬁed two kinds of

rich data sources for efﬁciently collecting downstream

dependencies: public package repositories, such as

npm, and online code search engines for ﬁnding de-

pendent repositories by their package manifest ﬁles,

namely Sourcegraph. We accomplish the usage min-

ing by scanning the ASTs of every dependency for

certain usage patterns that refer to a type from the

target package; if the dependency uses a dynamically

typed language, we perform a type analysis before.

We have demonstrated the usability of our approach

with a tool that embeds the downstream dependency

data into the VS Code IDE. Our analysis suggests that

the collected dependencies and the extracted usage

samples have a viable quality in terms of precision

and extent and further that the resource requirements

of our prototype are sufﬁciently low for collecting all

data on the local machine of a package developer.

Nevertheless, we have identiﬁed several causes for

false negatives over the whole mining process that can

bias the output usage samples, including the popularity

and recency of dependencies but also the proper decla-

ration of packages and their renunciation of complex

toolchains and metaprogramming patterns. Our anal-

ysis, however, is not yet fully supported by data and

would require further quantitative evaluation to assess

the exact precision and recall of our approach for min-

ing usage samples as well as the efﬁcacy of our tool.

As for the ﬁrst question, manual annotation of source

code repositories with usage samples will be required

to compare them to the outputs of our implementation.

Close insights for the second question could be gained

from a user study that measures the impact of our

tool on the efﬁciency of package developers solving

downstream dependency-related tasks.

We believe that our tool has further potential to

support package developers in surveying downstream

dependencies. As future work, we envision other pur-

poses for analyzing the collected downstream depen-

dency data, including usage pattern mining, automated

convenience protocol suggestions, and the generation

of metrics for classifying downstream dependencies or

measuring the cohesion and impact of libraries within

an ecosystem. By extending the static usage analysis

with a dynamic approach, the detected usage samples

could be enriched with valuable runtime data describ-

ing involved parameters, the ﬁne-grained code cover-

age of package members, or the invocation context

of members. Returning to the abstract problem that

we have formulated in the introduction – how can we

improve developer knowledge about their packages’

usage? –, further data sources next to source code

ﬁles emerge that could be mined for package refer-

ences, too. For instance, we are looking forward to

solutions that mine the change history of projects for

package-related changes (potentially indicating break-

ing changes), search conversation platforms such as

public issue trackers or Q&A forums for mentions of

package members and analyze their sentiments, e.g.,

potentially indicating confusing behavior or bad docu-

mentation), or even scan continuous integration logs

for failure stack traces (e.g., potentially revealing bugs

in the package of interest.

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

230

ACKNOWLEDGEMENTS

We want to thank the anonymous reviewers for their

valuable comments and suggestions to improve this ar-

ticle. This work is part of the “Software-DNA” project,

which is funded by the European Regional Develop-

ment Fund (ERDF or EFRE in German) and the State

of Brandenburg (ILB). This work is also part of the

KMU project “KnowhowAnalyzer” (Förderkennze-

ichen 01IS20088B), which is funded by the German

Ministry for Education and Research (Bundesminis-

terium für Bildung und Forschung).

REFERENCES

Abdalkareem, R., Nourry, O., Wehaibi, S., Mujahid, S., and

Shihab, E. (2017). Why do developers use trivial pack-

ages? an empirical case study on npm. In Proc. 11th

Joint Meeting on Foundations of Software Engineering,

FSE ’17, pages 385–395. ACM.

Antal, G., Hegedus, P., Tóth, Z., Ferenc, R., and Gyimóthy,

T. (2018). Static javascript call graphs: a comparative

study. In Proc. 18th International Working Conference

on Source Code Analysis and Manipulation, SCAM

’18, pages 177–186. IEEE.

Bogar., A. M., Lyons., D. M., and Baird., D. (2018).

Lightweight call-graph construction for multilingual

software analysis. In Proc. 13th International Confer-

ence on Software Technologies, ICSOFT ’18, pages

328–337. INSTICC, SciTePress.

Bogart, C., Kästner, C., and Herbsleb, J. (2015). When it

breaks, it breaks: how ecosystem developers reason

about the stability of dependencies. In Proc. Interna-

tional Conference on Automated Software Engineering

Workshop, ASEW ’15, pages 86–89. IEEE.

Boldi, P. and Gousios, G. (2020). Fine-grained network

analysis for modern software ecosystems. ACM Trans-

actions on Internet Technology, 21(1):1–14.

Chaturvedi, K. K., Sing, V., and Singh, P. (2013). Tools in

mining software repositories. In Proc. 13th Interna-

tional Conference on Computational Science and Its

Applications, ICCSA ’13, pages 89–98. IEEE.

Collard, M. L., Decker, M. J., and Maletic, J. I. (2013).

srcML: an infrastructure for the exploration, analysis,

and manipulation of source code: a tool demonstra-

tion. In Proc. International Conference on Software

Maintenance, ICSM ’13, pages 516–519. IEEE.

De Roover, C., Lämmel, R., and Pek, E. (2013). Multi-

dimensional exploration of api usage. In Proc. 21st

International Conference on Program Comprehension,

ICPC ’13, pages 152–161. IEEE.

Decan, A., Mens, T., and Constantinou, E. (2018). On the

impact of security vulnerabilities in the npm package

dependency network. In Proc. 15th International Con-

ference on Mining Software Repositories, MSR ’18,

pages 181–191. ACM.

Goldberg, A. (1984). Smalltalk-80: the interactive pro-

gramming environment, chapter 10, pages 196–201.

Addison-Wesley Longman Publishing Co., Inc.

Hanam, Q., Mesbah, A., and Holmes, R. (2019). Aiding code

change understanding with semantic change impact

analysis. In Proc. International Conference on Soft-

ware Maintenance and Evolution, ICSME ’19, pages

202–212. IEEE.

Hejderup, J., Beller, M., Triantafyllou, K., and Gousios, G.

(2021). Präzi: from package-based to call-based de-

pendency networks. arXiv preprint arXiv:2101.09563.

Hejderup, J., van Deursen, A., and Gousios, G. (2018). Soft-

ware ecosystem call graph for dependency manage-

ment. In Proc. 40th International Conference on Soft-

ware Engineering: New Ideas and Emerging Technolo-

gies Results, ICSE ’18 – NIER Track, pages 101–104.

IEEE.

Hora, A. and Valente, M. T. (2015). apiwave: keeping track

of api popularity and migration. In Proc, International

Conference on Software Maintenance and Evolution,

ICSME ’15, pages 321–323. IEEE.

Jensen, S. H., Møller, A., and Thiemann, P. (2009).

Type analysis for javascript. In Proc. International

Static Analysis Symposium, SAS ’09, pages 238–255.

Springer.

Karrer, T., Krämer, J.-P., Diehl, J., Hartmann, B., and

Borchers, J. (2011). Stacksplorer: call graph navi-

gation helps increasing code maintenance efﬁciency.

In Proc. 24th Symposium on User Interface Software

and Technology, UIST ’11, pages 217–224.

Katz, J. (2020). Libraries.io open source repository and

dependency metadata.

Keshani, M. (2021). Scalable call graph constructor for

maven. In Proc. 43rd International Conference on

Software Engineering: Companion Proceedings, ICSE-

Companion ’21, pages 99–101. IEEE.

Kikas, R., Gousios, G., Dumas, M., and Pfahl, D. (2017).

Structure and evolution of package dependency net-

works. In Proc. 14th International Conference on Min-

ing Software Repositories, MSR ’17, pages 102–112.

IEEE.

Krämer, J.-P., Kurz, J., Karrer, T., and Borchers, J. (2012).

Blaze: supporting two-phased call graph navigation in

source code. In Proc. Human Factors in Computing

Systems – Extended Abstracts, CHI ’12, pages 2195–

2200. ACM.

Lämmel, R., Pek, E., and Starek, J. (2011). Large-scale, ast-

based api-usage analysis of open-source java projects.

In Proc. Symposium on Applied Computing, SAC ’11,

pages 1317–1324. ACM.

Liu, C., Xia, X., Lo, D., Gao, C., Yang, X., and Grundy, J.

(2020). Opportunities and challenges in code search

tools. arXiv preprint arXiv:2011.02297.

Mileva, Y. M., Dallmeier, V., and Zeller, A. (2010). Mining

api popularity. In Proc. 5th International Academic

and Industrial Conference on Testing – Practice and

Research Techniques, TAIC PART ’10, pages 173–180.

Springer, Springer-Verlag.

Nielsen, B. B., Torp, M. T., and Møller, A. (2021). Modular

call graph construction for security scanning of node.js

Augmenting Library Development by Mining Usage Data from Downstream Dependencies

231

applications. In Proc. 30th SIGSOFT International

Symposium on Software Testing and Analysis, ISSTA

’21, pages 29–41. ACM.

Piccioni, M., Furia, C. A., and Meyer, B. (2013). An em-

pirical study of api usability. In Proc. International

Symposium on Empirical Software Engineering and

Measurement, ESEM ’13, pages 5–14. IEEE.

Qiu, D., Li, B., and Leung, H. (2016). Understanding the api

usage in java. Information and Software Technology,

73:81–100.

Saied, M. A., Ouni, A., Sahraoui, H., Kula, R. G., Inoue, K.,

and Lo, D. (2018). Improving reusability of software

libraries through usage pattern mining. Journal of

Systems and Software, 145:164–179.

Sawant, A. A. and Bacchelli, A. (2017). ﬁne-GRAPE: ﬁne-

grained api usage extractor – an approach and dataset to

investigate api usage. Empirical Software Engineering,

22(3):1348–1371.

Shneiderman, B. and Plaisant, C. (2010). Designing the

user interface: strategies for effective human-computer

interaction. Pearson Education India.

Thiede, C., Scheibel, W., Limberger, D., and Döllner,

J. (2022). dowdep: Software Mining of Down-

stream Dependency Repositories. DOI: 10.5281/zen-

odo.6338060.

Ungar, D., Lieberman, H., and Fry, C. (1997). Debug-

ging and the experience of immediacy. Comm. ACM,

40(4):38–43.

Wang, Y., Chen, B., Huang, K., Shi, B., Xu, C., Peng, X.,

Wu, Y., and Liu, Y. (2020). An empirical study of

usages, updates and risks of third-party libraries in java

projects. In Proc. International Conference on Soft-

ware Maintenance and Evolution, ICSME ’20, pages

35–45. IEEE.

Wong, W. E., Li, X., and Laplante, P. A. (2017). Be more

familiar with our enemies and pave the way forward:

a review of the roles bugs played in software failures.

Journal of Systems and Software, 133:68–94.

Zhong, H., Xie, T., Zhang, L., Pei, J., and Mei, H. (2009).

Mapo: mining and recommending api usage patterns.

In Proc. European Conference on Object-Oriented Pro-

gramming, ECOOP ’09, pages 318–343. Springer.

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

232
