A Supervised Generative Topic Model to Predict Bug-ﬁxing Time on

Open Source Software Projects

Pasquale Ardimento

and Nicola Boffoli

Department of Informatics, University of Bari Aldo Moro, Via Orabona 4, Bari, Italy

Keywords:

SLDA, Latent Topics, Bug-ﬁxing, Repository Mining, Software Maintenance, Text Categorization, SLDA.

Abstract:

During software maintenance activities an accurate prediction of the bug-ﬁxing time can support software

managers to better resources and time allocation. In this work, each bug report is endowed with a response

variable (bug-ﬁxing time), external to its words, that we are interested in predicting. To analyze the bug reports

collections, we used a supervised Latent Dirichlet Allocation (sLDA), whose goal is to infer latent topics that

are predictive of the response. The bug reports and the responses are jointly modeled, to ﬁnd latent topics

that will best predict the response variables for future unlabeled bug reports. With a ﬁtted model in hand,

we can infer the topic structure of an unlabeled bug report and then form a prediction of its response. sLDA

adds to LDA a response variable connected to each bug report. Two different variants of the bag-of-words

(BoW) model are used as baseline discriminative algorithms and also an unsupervised LDA is considered.

To evaluate the proposed approach the defect tracking dataset of LiveCode, a well-known and large dataset,

was used. Results show that SLDA improves recall of the predicted bug-ﬁxing times compared to other BoW

single topic or multi-topic supervised algorithms.

1 INTRODUCTION

”Most defects end up costing more than it would have

cost to prevent them. Defects are expensive when

they occur, both the direct costs of ﬁxing the de-

fects and the indirect costs because of damaged re-

lationships, lost business, and lost development time”

(Beck and Andres, 2005). The later a bug is found,

the later it will be ﬁxed and more time and resources

will be wasted in the present and the form of oppor-

tunities lost in the future. For these reasons, an ac-

curate bug-ﬁxing time prediction can help software

managers to better allocate resources and time. Soft-

ware projects usually use bug tracking systems (BTS)

to store and manage bug reports. A bug report con-

tains a large amount of text information that can help

software developers and maintainers understand bugs

well and complete bug ﬁxing. Many open-source

software projects use BTS. Day by day, the number

of bug reports submitted to BTS increases and, at

the same time, the knowledge stored by BTS (Sun

et al., 2017; Alenezi et al., 2018; Ardimento and Di-

napoli, 2017). For Mozilla, by February 2022, the to-

https://orcid.org/0000-0001-6134-2993

https://orcid.org/0000-0001-9899-6747

tal number of bug reports was just under 1.8 million.

In recent years, lots of work utilized information re-

trieval technology to explore these massive bug repos-

itories to help developers understand, localize and ﬁx

bugs (Mohsin and Shi, 2021; Hamdy and El-Laithy,

2020; Meng et al., 2021). Most of the predictive

models proposed to automatically predict bug-ﬁxing

time are based on traditional machine learning tech-

niques. The basic idea is to extract text information

by bug reports attributes, discarding only those that

are empty or contain numerical values. Once a bug

report is open (not re-open), it is categorized to a dis-

cretized time to resolution, based on the learned pre-

diction model. This work is focused on an idea orig-

inally proposed in (Ardimento et al., 2016) and then

applied and further elaborated in (Ardimento and Di-

napoli, 2017; Ardimento et al., 2020). This idea in-

volves using all the text attributes of a bug report and

to treat the problem of bug-ﬁxing time estimation as a

text categorization problem. In this paper, conversely

from previous experiences, two different variants of

the bag-of-words (BoW) model are used as baseline

discriminative algorithms. Then, supervised and un-

supervised dimensionality reduction techniques are

used on a corpus of textual bug reports extracted from

Bugzilla. In standard unsupervised Latent Dirichlet

Ardimento, P. and Boffoli, N.

A Supervised Generative Topic Model to Predict Bug-ﬁxing Time on Open Source Software Projects.

DOI: 10.5220/0011113100003176

In Proceedings of the 17th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2022), pages 233-240

ISBN: 978-989-758-568-5; ISSN: 2184-4895

233

Allocation (LDA) each word in a document is gen-

erated from a Multinomial distribution conditioned

on its own topic, which is a probability distribution

over a ﬁxed vocabulary representing a particular la-

tent semantic theme (Blei, 2012). Once hyperparam-

eters of the model are learned, posterior topic pro-

portion estimates can be interpreted as a low dimen-

sional summarization of the textual bug reporting. A

linear classiﬁer trained with a SVM with soft mar-

gins can then be used to learn discretized bug-ﬁxing

time class, using such posterior estimates as a reduced

feature vector. It is also considered a supervised La-

tent Dirichlet Allocation (SLDA) generative model

(Blei and McAuliffe, 2010), which adds the discrim-

inative signal into the standard generative model of

LDA. The response variable is an unordered binary

target variable, denoting time to resolution discretized

into FAST (negative class) and SLOW (positive class)

class labels. The proposed models have been eval-

uated on one large-scale open-source project. Re-

sults show that SLDA improves recall. Due to the

imbalance between the number of positive and nega-

tive cases and the importance assumed by the SLOW

class for the prediction task, this measure is more use-

ful than simply measuring the accuracy of classiﬁers.

The rest of the paper is structured as follows. Section

2 brieﬂy presents the lifecycle of bugs in a BTS while

section 3 discusses the main related works of the bug-

ﬁxing time prediction problem. Section 4 describes

the proposed prediction model and its main phases.

Section 5 presents the empirical study and the results

obtained, while section 6 discusses the main threats to

the validity of the proposed model. Finally, section 7

draws the conclusions and sketches the future work.

2 BACKGROUND

The bug life cycle, also called defect workﬂow, is

a process in which a defect goes through different

stages in its entire life. These stages usually are:

UNCONFIRMED, NEW, ASSIGNED, RESOLVED,

VERIFIED, REOPENED, CLOSED. There are many

popular implementations of a defect workﬂow such

as Jira, Bugzilla, FogBugz, The Bug Genie, Man-

tisBt, Request Tracker, and so on. The choice fell on

Bugzilla as a data source for the following reasons:

• there is a consistent number of public Bugzilla

installations, where a public installation is ”one

whose front or login page can be accessed and

viewed over the Internet” (bugzilla.org, 2022).

These installations permit anonymous users to

browse and access bug information; on Febru-

ary 2021, Bugzilla Web ofﬁcial site lists 141 or-

ganizations and organizations that are running

Bugzilla public installations (bugzilla.org, 2022);

• Bugzilla works for both free and open-source soft-

ware and proprietary projects. In this way, it

is possible to evaluate the feasibility of the pro-

posed approach both in open source software and

in commercial software;

• Bugzilla offers a native well-documented REST

API (Bugzilla, 2022) to extract and put informa-

tion from its installations to external programs and

vice versa;

• Existing different implementations of the defect

workﬂow can be considered equivalent to the one

present in Bugzilla. In particular, a Bugzilla

bug that is VERIFIED and FIXED represents a

CLOSED bug.

3 RELATED WORK

Several scientiﬁc papers dealt with the bug ﬁxing

problem. A semi-automatic approach based on ma-

chine learning techniques to decrease the triaging

time was presented in (Anvik et al., 2006). This

method is based on learning the type of reported bug

that can be ﬁxed by a developer. The received bug

is reported to this model and a list with a minimum

number of developers who can ﬁx the bug is reported

as the output. They received up to 75 and 64% pre-

cision in Eclipse and Firefox projects, respectively.

In their method, the text of ‘Summary’ and ‘Descrip-

tion’ ﬁelds are categorized and the name of develop-

ers who can ﬁx the bug is reported as the output. The

features are derived by applying information retrieval

methods and the classiﬁcation is completed through

ıve Bayes (NB), support vector machine (SVM),

and C4.5 methods.

A binary prediction model was presented in

(Giger et al., 2010), based on a Decision Tree algo-

rithm, using both unchangeable ﬁelds, such as ’Re-

porter’, and ﬁelds that can be changed over time,

such as ’Severity’. They evaluated the proposed

model on six of the systems of three open-source

projects: Eclipse, Mozilla, and Gnome. Results ob-

tained show a 0.65 precision and 0.62 recall perfor-

mance in Eclipse. They also state that the inclusion

of post-submission bug report data of up to one month

promises to improve prediction models.

An analysis on how to calculate the time neces-

sary to ﬁx a bug is provided in (Kim and Whitehead,

2006). In this work, the authors identiﬁed, in Ar-

goUML and PostgreSQL projects, when the bugs are

introduced and when the bugs are ﬁxed.

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

234

Authors in (Marks et al., 2011) applied the Ran-

dom Forest algorithm to predict bug-ﬁxing time in

Mozilla and Eclipse projects using a selected subset

of bug reports ﬁelds. They obtained a 65% precision

in classiﬁcation. They also carried out a sensitivity

analysis for parameters of both projects ﬁnding that

bug report time and its location are the most important

features in predicting the bug ﬁx in Mozilla Project,

while in Eclipse, the severity feature is more impor-

tant. Priority, instead, is not very important in both

projects.

Panjer (Panjer, 2007) proposed a method where

they discretized the ﬁx-time values using an equal fre-

quency binning algorithm and identiﬁed seven classes

for bug ﬁx-time. The binary classiﬁcation was carried

out by applying the 0-R, 1-R, C4.5 DT, NB, LR algo-

rithms, and 34% was obtained as the maximum value

of precision.

A Markov-based model to predict the number of

bugs that will be ﬁxed in three consecutive months

was proposed in (Zhang et al., 2013). The historical

bug reports were used to predict the time necessary to

ﬁx the bug by applying the Monte Carlo Algorithm.

Besides, a KNN-based classiﬁcation model was pro-

posed obtaining 72.45% as F-measure.

Bidirectional Encoder Representation from Trans-

formers (BERT) was used to predict the ﬁxing-time

of a bug as slow and fast by (Ardimento and Mele,

2020). Even if ”BERT makes use of a self-attention

mechanism that allows learning the bidirectional con-

text representation of a word in a sentence, which

constitutes one of the main advantages over the previ-

ously proposed solutions” this method requires to be

further applied and investigated before to be consid-

ered as mature to provide a signiﬁcant contribution to

face the bug-ﬁxing prediction problem.

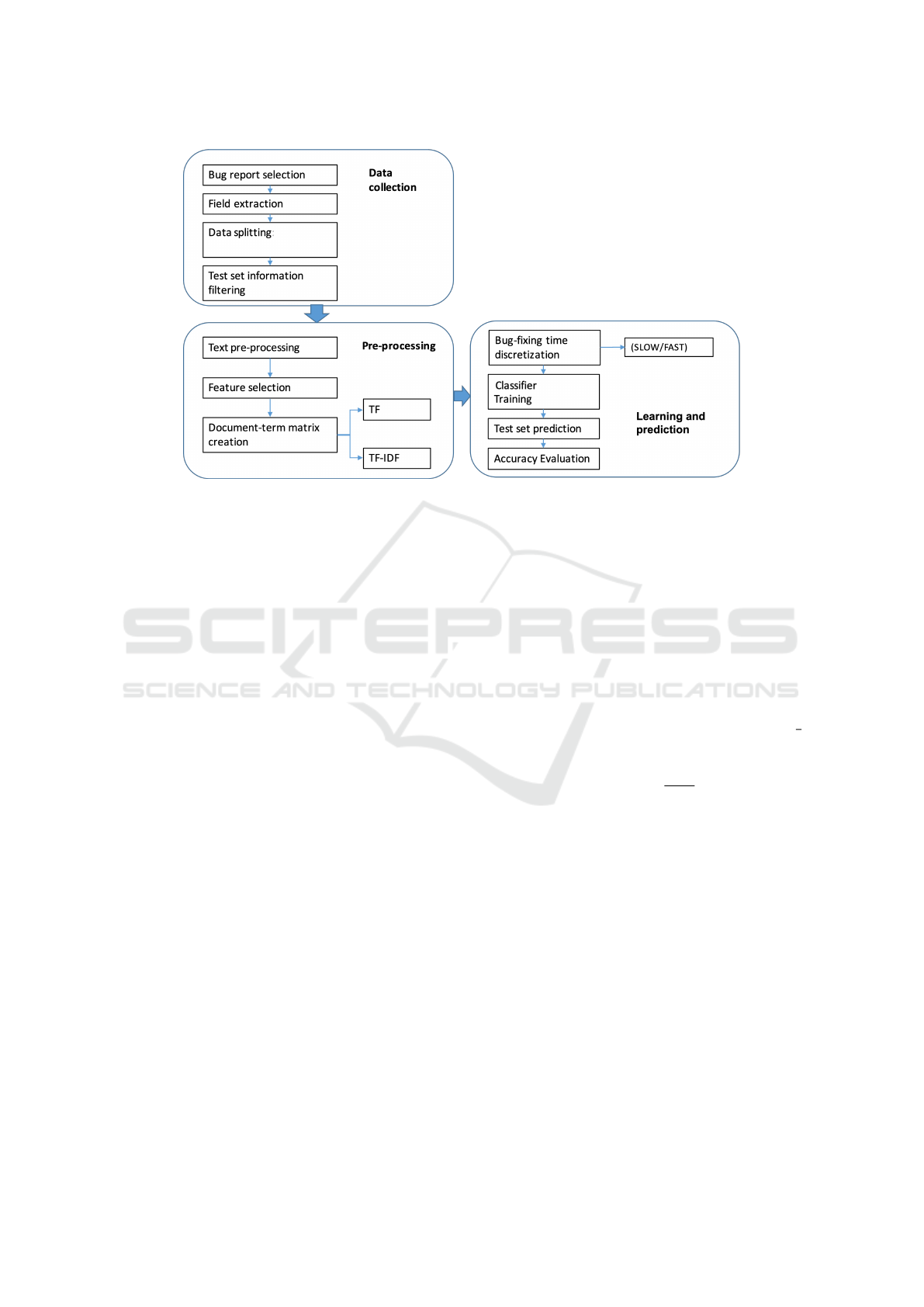

4 PROPOSED MODEL

The proposed prediction model consists of three se-

quential phases (shown in ﬁgure 1): Data Collection,

Pre-processing, Learning and evaluation of bug-ﬁxing

time Prediction.

4.1 Data Collection

The Data Collection activity consists in gathering the

bug reports from any BTS as the proposed model is

BTS independent. The ﬁrst step consists of selecting

only those bug reports that have already been ﬁxed,

by one or more programmers, and successfully veri-

ﬁed, by one or more testers. These bugs are the only

ones useful to, ﬁrst, train the classiﬁer and, then, to

predict the newly unseen bug reports. After select-

ing this subset, for each bug in it, only the attributes

sensible for both tasks were extracted, while resid-

ual attributes were discarded. In particular, the at-

tributes containing only numeric or empty values in

most cases were discarded. Since the bug-ﬁxing time

is rarely publicly available in a BTS, it also happens

in Bugzilla installations, it was calculated as the num-

ber of days elapsed between the date where bug at-

tribute Status was set to RESOLVED and the date on

which the bug report was assigned for the ﬁrst time.

This measure, called Days Resolution, represents the

bug-ﬁxing time, from here on out. Since the Days

Resolution measure does not represent the effective

time spent to ﬁx a bug it could affect the outcomes of

this research. After completing data gathering and at-

tribute extraction, the dataset was split into a training,

test, and validation dataset using a ﬁxed split percent-

age. This operation takes place after extraction at-

tributes because all post-submission information has

to ﬁlter out from both test and validation sets. Test

and validation instances simulate newly opened and

previously unseen bugs and, therefore, attributes that

were not available before the bug was assigned must

be removed from the information set. To this aim, it

is necessary to retrieve the changes history of a bug.

The history permits to know when and who assigned

a value to the attributes. All the attributes whose val-

ues are not ﬁlled by the bug reporter are discarded.

Severity and priority attributes represent an exception

because their values can be ﬁlled by the bug reporter

and, then, changed. For these attributes, only the

initial value, if present, ﬁlled by the bug reporter is

considered and not discarded. Finally, the model dis-

cretizes the bug-ﬁxing times into two classes, conven-

tionally labeled as SLOW and FAST. The SLOW la-

bel indicates a discretized bug-ﬁxing time above some

ﬁxed threshold in the right-tail of the empirical bug-

ﬁxing time distribution. It is assumed that SLOW in-

dicates the positive class, thus SLOW being the tar-

get class of the prediction model. Therefore, increas-

ing the number of true positives for the positive class

cause an overestimation of bug-ﬁxing times. This sit-

uation is preferred to underestimation because it in-

volves a less dangerous error.

4.2 Pre-processing and Learning

Models

Before applying any probabilistic model is necessary

to bring bug reports in a form that is analyzable for

the classiﬁcation task. The steps followed in this pa-

per are the most commonly used in the literature on

text classiﬁcation and Natural Language Processing

A Supervised Generative Topic Model to Predict Bug-ﬁxing Time on Open Source Software Projects

235

Figure 1: Proposed Prediction Model.

(Mogotsi, 2010). The objective is to determine a vo-

cabulary of terms V, by:

• eliminating those words that occur commonly

across all the documents in the corpus which

means these words are not very discriminative,

and focusing on the important words instead (stop

word removal);

• reducing inﬂectional forms to a common base

form and then heuristically complete stemmed

words by taking the most frequent match as com-

pletion (stemming and stem completion);

• using a speciﬁc algorithm, proposed in (Ardi-

mento et al., 2016), for detecting multi-word ex-

pressions. This algorithm consists of a suitable

modiﬁcation of a simple heuristic ﬁrst introduced

in (Justeson and Katz, 1995).

• reducing dimensionality by term space reduction

as it may even result in a moderate increase in

predictive accuracy depending ”on the classiﬁer

used, on the aggressivity of the reduction, and

on the term space reduction used.” (Sebastiani,

2002). In the proposed approach, terms were

sorted (from best to worst) according to their

estimated normalized expected mutual informa-

tion (NEMI, (Mogotsi, 2010)) with the discretized

time to resolution (SLOW/FAST). Only terms

showing a NEMI value greater than the overall av-

erage NEMI were included. In this way, the terms

almost approximately independent with the target

class label were omitted.

4.3 Baseline Model

Two different variants of the bag-of-words (BoW)

model were used to be baseline algorithms. The

BoW model is high-dimensional, as it represents a

document with one dimension per word. Speciﬁ-

cally, it was ﬁrst considered a multivariate Bernoulli

(MB) model with smoothing Laplace parameter λ, ap-

plied to the binary term-document incidence matrix

(Mogotsi, 2010). For each word in V and indepen-

dently of each other (Naive Bayes assumption) the

MB model learns the probabilities π

= P(e

)

that the word represented by e

= (1, 2, ..., |V |) will

occur at least once in any position in any one of the

documents of class y (i.e. y ≡

SLOW

FAST

, with SLOW ≡ 1).

The second alternative was a linear classiﬁer using

unnormalized t f

counts (for token t and document

d), trained with a support vector machine (SVM) with

soft-margin classiﬁcation, ruled by a cost-parameter

C. Inverse document frequency weighting (t f −id f

)

was also used.

4.4 Unsupervised Latent Dirichlet

Allocation (LDA)

The most important thing to know about a document

is the underlying semantic themes rather than words.

Latent Dirichlet Allocation (LDA) is a generative

model of a textual corpus D, that has the potential to

discover topics during the training phase (Blei et al.,

2003; Blei, 2012). Formally, a topic is the probability

distribution over the elements of V. For each docu-

ment we have K underlying semantic themes (topics),

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

236

1:K

= (B

, ..., Bk), where each B

(K = 1, ..., K) is a

| V |-dimensional vector of probabilities over the ele-

ments of V. We also have a vector of K-dimensional

vectors Z

1:N

= (z

d,1

, ..., z

d,N

) of topic assignments,

where Z

d,n

is the topic assignment for the nth word

(n=1,...,N d) in document d. The indicator z of the k-

th topic is represented as a K-dimensional unit-basis

vector such that z

= 1 and z

= 0 for j 6= k. Simi-

larly, words in a document W

1:N

= (w

d,1

, ..., w

d,N

)

are represented using superscripts to denote compo-

nents, that is the th word in |V| is represented as a

unit-basis vector w in RV, such that ω

= 1 and ω

= 0

for υ 6= ν. LDA can be summarized as the following

generative procedure (independently over d and n):

∼ Dirichlet

(α) for d ∈ D (1)

d,n

|θ

∼ Multinomial

(θ

)

for D ∈ D and n ∈ {1, ..., N

}

(2)

d,n

d,n,β

1,K

∼ Multinomial|ν|(β

d,n

)

for d ∈ D and n ∈ {1, ..., N

}

(3)

where B

d,n

≡ B

if z

d,n

= 1. Parameters α and β

1:k

are

treated as unknown hyper-parameters to be estimated,

rather than random variables. In this way, documents

are seen as a realization of a stochastic process, which

is then reversed by standard machine learning tech-

niques that return maximum-a-posteriori estimates of

model parameters for each document (bug) d, given

the value of hyper parameters α and β. Posterior esti-

mates of per-document topic proportions θ

can be in-

terpreted as a low-dimensional summarization of the

document. As LDA is an unsupervised algorithm, we

used a linear classiﬁer trained with an SVM with soft

margins to learn bug-ﬁxing time class y, using poste-

rior θ

estimates as a reduced feature vector.

Unfortunately, exact inference in the LDA model

is NP-hard for a large number of topics (Sontag and

Roy, 2011), and posterior distribution of latent vari-

ables p(Z

1:D

, θ

1:D

|ω

1:D

, α, β

1:K

) has not a closed-form

(here, per-word topic assignments z

d:1:N

are collected

into the z

1:D

vector as d varies over 1,...,D, with D

= |D|, and the same deﬁnition applies to θ

1:D

and

1:D

). In fact, the marginal likelihood is intractable

and cannot be evaluated exactly in a reasonable time

for all possible per-word topic assignments z

d,n

. Con-

sequently, we used a mean-ﬁeld variational Bayes

algorithm (VB) for approximate posterior inference

(Blei et al., 2016). Because the number of topics K

is in general not known, models with several different

numbers of topics were ﬁtted and the optimal number

was determined in a data-driven way by minimizing

the geometric mean per-word likelihood (perplexity)

on test documents (Wallach et al., 2009). Since the

topic assignments for one document are independent

of the topic assignments for all other documents, each

test document can be evaluated separately. Once the

hyper parameters α and β

1:k

are learned and K has

been set, inference can be performed to compute a

posterior θ

vector for each test document (as well as

for each document in the validation set), to obtain the

reduced representation in topic space, which is sub-

sequently used to predict bug bug-ﬁxing time y

in a

supervised fashion.

4.5 Supervised LDA

Supervised Latent Dirichlet Allocation (SLDA) adds

the discriminative signal into the standard generative

model of LDA. For each document d, response label

d≡

SLOW/FAST, with SLOW ≡ 1) is sampled

conditionally on the topic assignments:

d;1:Nd

, η ∼ Bernoulli(

exp(η

)

1 + exp(η

))

) (4)

where z

∑

n=1

d,n

is the vector of empirical

topic frequencies in document d. As previously said,

parameters α; β

1,K

and η are treated as unknown

hyper parameters to be estimated, rather than ran-

dom variables. Documents are generated under full

word exchangeability, and then topics are used to

explain the response. Other speciﬁcations are in-

deed possible, for example y

can be regressed as a

nonlinear function of topic proportions θ

, but (Blei

and McAuliffe, 2007) claim that the predictive per-

formance degrades as a consequence of the fact the

topic probabilistic mass does not directly predict dis-

cretized bug-ﬁx times.

Also in this case posterior inference of latent

model variables is not feasible, as the conditional pos-

terior distribution p(Z

1:D

, θ

1:D

|ω

1:D

, α, β

1:K

) has not

a closed-form. Consequently, a variational Bayes

(VB) parameter under a mean-ﬁeld approximation

was used. The best number of topics K was optimized

through the test set (further details are in Section 5).

5 EXPERIMENT AND RESULTS

Bug report textual information was extracted from

the Bugzilla repository of a large open-source soft-

ware project: LiveCode. Data were automati-

cally collected using software routines written in

PHP/JavaScript/Ajax. Raw textual reports were pre-

processed and analyzed using the R 4.0.5 software

system (RProject, 2022). Five thousand bugs were

randomly drawn and randomly divided into training,

A Supervised Generative Topic Model to Predict Bug-ﬁxing Time on Open Source Software Projects

237

Table 1: Results of best conﬁgurations for accuracy.

Test set - Best accuracy Algorithm Param. TP FN FP TN Acc. Prec. Recall

0,58 NB λ = 0 0 125 88 287 0,57 0 0

0,55 SVM C=0,01 0 125 88 287 0,57 0 0

0,61 LDA+SVM C=0,01 15 110 80 295 0,62 0,16 0,12

0,79 SLDA K=2 112 13 206 169 0,56 0,35 0,89

test and validation subsets, using a 70:20:10 split ra-

tio. Bug-ﬁxing time was categorized into FAST and

SLOW labels according to the third quartile, q

0.75

, of

the empirical distribution of bug resolution times in

the training set. Accuracy, precision and recall were

used to assess the performance of bug-ﬁxing time pre-

diction models. Accuracy indicates the proportion of

correctly predicted bugs:

Accuracy =

T P + T N

T P + FP + T N + FN

(5)

where TP (True Positive) denotes the number of bugs

correctly predicted as SLOW; FP (False Positive) de-

notes the number of bugs incorrectly predicted as

SLOW, TN (True Negative) denotes the number of

bugs reports correctly predicted as FAST, FN (False

Negative) denotes the numbers of bugs incorrectly

predicted as FAST.

Precision, instead, indicates the proportion of cor-

rectly predicted SLOW bugs:

Precision =

T P

T P + FP

(6)

Recall denotes the proportion of true positives of all

SLOW bugs:

Recall =

T P

T P + FN

(7)

The trained set was used to train the classiﬁcation

models, reported in the list below. Then the speciﬁc

free parameters of each model were assessed over the

test set and, ﬁnally, performances measures were re-

calculated over the validation set using the best accu-

racy values obtained from the test set.

• Multivariate Bernoulli (MB), with either no

smoothing, or Laplace λ varying in {1, 2, 3}

(Mogotsi, 2010).

• Support Vector Machine (SVM), with soft-margin

classiﬁcation and cost parameter C varying in

{0.1, 10, 100}.

• Latent Dirichlet Allocation plus Support Vec-

tor Machine (LDA+SVM), with K varying

in {2, 5, 10, 15, 20, 25, 30, 35, 40, 50}, soft-margin

classiﬁcation and cost parameter C varying in

{0.1, 1, 10, 100}.

• Supervised Latent Dirichlet Allo-

cation (SLDA), with K varying in

{1, 2, 5, 10, 15, 20, 25, 30, 35, 40, 45, 50}. With

K=1 it obtains a single-topic model.

Table 1 presents the results obtained, it shows that

SLDA does not achieve the best value for accuracy.

However, it is important to note that accuracy is a mis-

leading measure for imbalanced class distributions.

In the case of our experimentation, the two classes

are not equally distributed. Furthermore, it is evi-

dent that the minority class (SLOW) has more impor-

tance in the context of software maintenance, because

of its larger impact in terms of cost/effectiveness.

Consequently, if it is assumed that a higher recall

(proportion of true positives of all SLOW bugs) is a

more sensible target, the SLDA model has the best

performance. It is also worth noting that a larger

number of FAST bugs are classiﬁed as SLOW un-

der the SLDA model. However, costs incurred in

false-positive are generally very low. Conversely, NB,

SVM and LDA+SVM classiﬁers showed higher ac-

curacies, but they failed to correctly predict most of

SLOW bugs. Overall, these results clearly show that

the use of a supervised topic model highly improves

the recall of bug-ﬁx time prediction.

6 THREATS

The following threats have to be considered to judge

the quality of our research.

• Dataset. The experiment was carried out on

just one data set extracted from LiveCode. This

project is not representative of the population of

all open-source software.

• Non-open-source projects. There is no guarantee

that the proposed model is effective for non-open-

source projects. Typically, in fact, in proprietary

projects a speciﬁc group is responsible for ﬁxing

given bugs based on corresponding features.

• Outliers and noises. Dataset could contain bug re-

ports whose ﬁxing time is not ﬁt with other bug

reports because, for example, it is extremely long.

These bug reports, called outliers, should be re-

moved to both improve the quality of the data

and, maybe, generate a positive impact on the ac-

curacy of the predictions. Moreover, a possible

noise in the dataset could be represented by a bug

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

238

CLOSED more than one time. BTS, in fact, per-

mits that a CLOSED bug could be reopened at any

time. When this happens the calculation of the

time resolution is not more coherent with the time

necessary to ﬁx a bug. Another threat in our ex-

periment concerns the so-called problem of ”pro-

portion of inconsistent samples”. Two bug reports

are inconsistent if they have the same character-

istics but, one is marked as positive class and the

other is marked as negative class. A possible way

to tackle this problem is reported in (Du et al.,

2022), where the authors aim to reduce, by incor-

porating the activity information and time infor-

mation of bug activity transfer, the proportion of

inconsistent samples. This method of bug feature

extraction and model construction is based on a

LSTM-based deep learning model which can not

only achieve sequence prediction, but also learn

sequences interaction through the attention mech-

anism to improve prediction accuracy. The results

are promising even if they are obtained on only

one open data set Firefox.

• Bug-ﬁxing time. A strong assumption about bug-

ﬁxing time was made. The actual amount of time

spent by developers and the distribution in terms

of hours per day to ﬁx a bug are not publicly de-

clared on Bugzilla. It is assumed, therefore, a uni-

form distribution of developers’ work and calcu-

lated effort spent in calendar days. These assump-

tions hide and ignore the real efforts made by the

developers to complete the ﬁxing work.

• Number of developers involved. The number of

developers involved in ﬁxing a bug is not publicly

known. It represents another limitation in calcu-

lating the bug-ﬁxing time. For example, if dif-

ferent bugs have the same calendar days value, it

does not imply that the time spent to ﬁx them is

the same.

7 CONCLUSION

This paper proposes an automatic binary bug-ﬁxing

time prediction model based on SLDA, a supervised

generative topic model. This model signiﬁcantly im-

proves recall compared to other BoW single topic or

multi-topic supervised algorithms. Accuracy, instead,

is lightly lower and, considering all the models used,

not so good. These results are aligned with the need

to maximize recall to detect SLOW classes as much

as possible and the acceptance that the negative class

(FAST) plays a secondary role.

To improve the results obtained and to increase

the external validity of the proposed approach, future

work will require: (i) to carry out a stability analysis

to avoid that results depend on some purely random

factor (in the experimentation carried out, if topic

models were re-run with a different random seed, the

topics will often change); (ii) to carry out a sensitiv-

ity analysis of quantiles to measure the impact of the

inputs over the α-quantile of the output distribution.

(iii) to discover similarities and differences between

open and non-open-source software projects; (iv) to

tackle the problem of ”proportion of inconsistent sam-

ple” to reduce the presence of inconsistent bugs.

REFERENCES

Alenezi, M., Banitaan, S., and Zarour, M. (2018). Using

categorical features in mining bug tracking systems to

assign bug reports. CoRR, abs/1804.07803.

Anvik, J., Hiew, L., and Murphy, G. C. (2006). Who should

ﬁx this bug? In Osterweil, L. J., Rombach, H. D.,

and Soffa, M. L., editors, 28th International Confer-

ence on Software Engineering (ICSE 2006), Shang-

hai, China, May 20-28, 2006, pages 361–370. ACM.

Ardimento, P., Bilancia, M., and Monopoli, S. (2016). Pre-

dicting bug-ﬁx time: Using standard versus topic-

based text categorization techniques. In Calders, T.,

Ceci, M., and Malerba, D., editors, Discovery Science

- 19th International Conference, DS 2016, Bari, Italy,

October 19-21, 2016, Proceedings, volume 9956 of

Lecture Notes in Computer Science, pages 167–182.

Ardimento, P., Boffoli, N., and Mele, C. (2020). A text-

based regression approach to predict bug-ﬁx time. In

Appice, A., Ceci, M., Loglisci, C., Manco, G., Mas-

ciari, E., and Ras, Z. W., editors, Complex Pattern

Mining - New Challenges, Methods and Applications,

volume 880 of Studies in Computational Intelligence,

pages 63–83. Springer.

Ardimento, P. and Dinapoli, A. (2017). Knowledge extrac-

tion from on-line open source bug tracking systems

to predict bug-ﬁxing time. In Proceedings of the 7th

International Conference on Web Intelligence, Mining

and Semantics, WIMS ’17, New York, NY, USA. As-

sociation for Computing Machinery.

Ardimento, P. and Mele, C. (2020). Using BERT to

predict bug-ﬁxing time. In 2020 IEEE Conference

on Evolving and Adaptive Intelligent Systems, EAIS

2020, Bari, Italy, May 27-29, 2020, pages 1–7. IEEE.

Beck, K. L. and Andres, C. (2005). Extreme programming

explained - embrace change, Second Edition. The XP

series. Addison-Wesley.

Blei, D. M. (2012). Probabilistic topic models. Commun.

ACM, 55(4):77–84.

Blei, D. M., Kucukelbir, A., and McAuliffe, J. D. (2016).

Variational inference: A review for statisticians.

CoRR, abs/1601.00670.

Blei, D. M. and McAuliffe, J. D. (2007). Supervised

topic models. In Platt, J. C., Koller, D., Singer,

Y., and Roweis, S. T., editors, Advances in Neu-

ral Information Processing Systems 20, Proceedings

A Supervised Generative Topic Model to Predict Bug-ﬁxing Time on Open Source Software Projects

239

of the Twenty-First Annual Conference on Neural

Information Processing Systems, Vancouver, British

Columbia, Canada, December 3-6, 2007, pages 121–

128. Curran Associates, Inc.

Blei, D. M. and McAuliffe, J. D. (2010). Supervised topic

models.

Blei, D. M., Ng, A. Y., and Jordan, M. I. (2003). La-

tent dirichlet allocation. J. Mach. Learn. Res., 3:993–

1022.

Bugzilla (2022). Webservice api bugzilla. [Online; accessed

16-February-2022].

bugzilla.org (2022). Bugzilla installation list. [Online; ac-

cessed 16-February-2022].

Du, J., Ren, X., Li, H., Jiang, F., and Yu, X. (2022). Predic-

tion of bug-ﬁxing time based on distinguishable se-

quences fusion in open source software. Journal of

Software: Evolution and Process, n/a(n/a):e2443.

Giger, E., Pinzger, M., and Gall, H. C. (2010). Predicting

the ﬁx time of bugs. In Holmes, R., Robillard, M. P.,

Walker, R. J., and Zimmermann, T., editors, Proceed-

ings of the 2nd International Workshop on Recommen-

dation Systems for Software Engineering, RSSE 2010,

Cape Town, South Africa, May 4, 2010, pages 52–56.

ACM.

Hamdy, A. and El-Laithy, A. (2020). Semantic catego-

rization of software bug repositories for severity as-

signment automation. In Jarzabek, S., Poniszewska-

Maranda, A., and Madeyski, L., editors, Integrating

Research and Practice in Software Engineering, vol-

ume 851 of Studies in Computational Intelligence,

pages 15–30. Springer.

Justeson, J. S. and Katz, S. M. (1995). Technical terminol-

ogy: some linguistic properties and an algorithm for

identiﬁcation in text. Nat. Lang. Eng., 1(1):9–27.

Kim, S. and Whitehead, E. J. (2006). How long did it take

to ﬁx bugs? In Proceedings of the 2006 International

Workshop on Mining Software Repositories, MSR ’06,

page 173–174, New York, NY, USA. Association for

Computing Machinery.

Marks, L., Zou, Y., and Hassan, A. E. (2011). Studying the

ﬁx-time for bugs in large open source projects. In Pro-

ceedings of the 7th International Conference on Pre-

dictive Models in Software Engineering, pages 1–8.

Meng, D., Guerriero, M., Machiry, A., Aghakhani, H.,

Bose, P., Continella, A., Kruegel, C., and Vigna, G.

(2021). Bran: Reduce vulnerability search space in

large open source repositories by learning bug symp-

toms. In Cao, J., Au, M. H., Lin, Z., and Yung,

M., editors, ASIA CCS ’21: ACM Asia Conference

on Computer and Communications Security, Virtual

Event, Hong Kong, June 7-11, 2021, pages 731–743.

ACM.

Mogotsi, I. C. (2010). Christopher d. manning, prabhakar

raghavan, and hinrich sch

utze: Introduction to infor-

mation retrieval - cambridge university press, cam-

bridge, england, 2008, 482 pp, ISBN: 978-0-521-

86571-5. Inf. Retr., 13(2):192–195.

Mohsin, H. and Shi, C. (2021). SPBC: A self-paced learn-

ing model for bug classiﬁcation from historical repos-

itories of open-source software. Expert Syst. Appl.,

167:113808.

Panjer, L. D. (2007). Predicting eclipse bug lifetimes. In

Proceedings of the Fourth International Workshop on

Mining Software Repositories, MSR ’07, page 29,

USA. IEEE Computer Society.

RProject (2022). The r project for statistical computing.

[Online; accessed 16-February-2022].

Sebastiani, F. (2002). Machine learning in automated text

categorization. ACM Comput. Surv., 34(1):1–47.

Sontag, D. A. and Roy, D. M. (2011). Complexity of in-

ference in latent dirichlet allocation. In Shawe-Taylor,

J., Zemel, R. S., Bartlett, P. L., Pereira, F. C. N., and

Weinberger, K. Q., editors, Advances in Neural Infor-

mation Processing Systems 24: 25th Annual Confer-

ence on Neural Information Processing Systems 2011.

Proceedings of a meeting held 12-14 December 2011,

Granada, Spain, pages 1008–1016.

Sun, X., Zhou, T., Li, G., Hu, J., Yang, H., and Li, B. (2017).

An empirical study on real bugs for machine learn-

ing programs. In Lv, J., Zhang, H. J., Hinchey, M.,

and Liu, X., editors, 24th Asia-Paciﬁc Software En-

gineering Conference, APSEC 2017, Nanjing, China,

December 4-8, 2017, pages 348–357. IEEE Computer

Society.

Wallach, H. M., Murray, I., Salakhutdinov, R., and Mimno,

D. M. (2009). Evaluation methods for topic models.

In Danyluk, A. P., Bottou, L., and Littman, M. L.,

editors, Proceedings of the 26th Annual International

Conference on Machine Learning, ICML 2009, Mon-

treal, Quebec, Canada, June 14-18, 2009, volume 382

of ACM International Conference Proceeding Series,

pages 1105–1112. ACM.

Zhang, H., Gong, L., and Versteeg, S. (2013). Predicting

bug-ﬁxing time: an empirical study of commercial

software projects. In Notkin, D., Cheng, B. H. C.,

and Pohl, K., editors, 35th International Conference

on Software Engineering, ICSE ’13, San Francisco,

CA, USA, May 18-26, 2013, pages 1042–1051. IEEE

Computer Society.

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

240
