Human Action Recognition using Convolutional Neural Network:

Case of Service Robot Interaction

Souhila Kahlouche

and Mahmoud Belhocine

Ecole Nationale Supérieure d’Informatique (ESI), Oued Smar, Algiers, Algeria

Centre de Développement des Technologies Avancées (CDTA), Baba Hassen, Algiers, Algeria

Keywords: Human Robot Interaction (HRI), Human Activities Recognition (HAR), Deep Learning, Robot Operating

System (Ros).

Abstract: This paper proposes a Human Robot Interaction (HRI) framework for a service robot capable of understanding

common interactive human activities. The human activity recognition (HAR) algorithm is based on end to

end deep Convolutional Neutral Network architecture. It uses as an input a view invariant 3D data of the

skeleton joints, which is recorded from a single Microsoft Kinect camera to create a specific dataset of six

interactive activities. In addition, an analysis of the most informative joint is made in order to optimize the

recognition process. The system framework is built on Robot Operating System (ROS), and the real-life

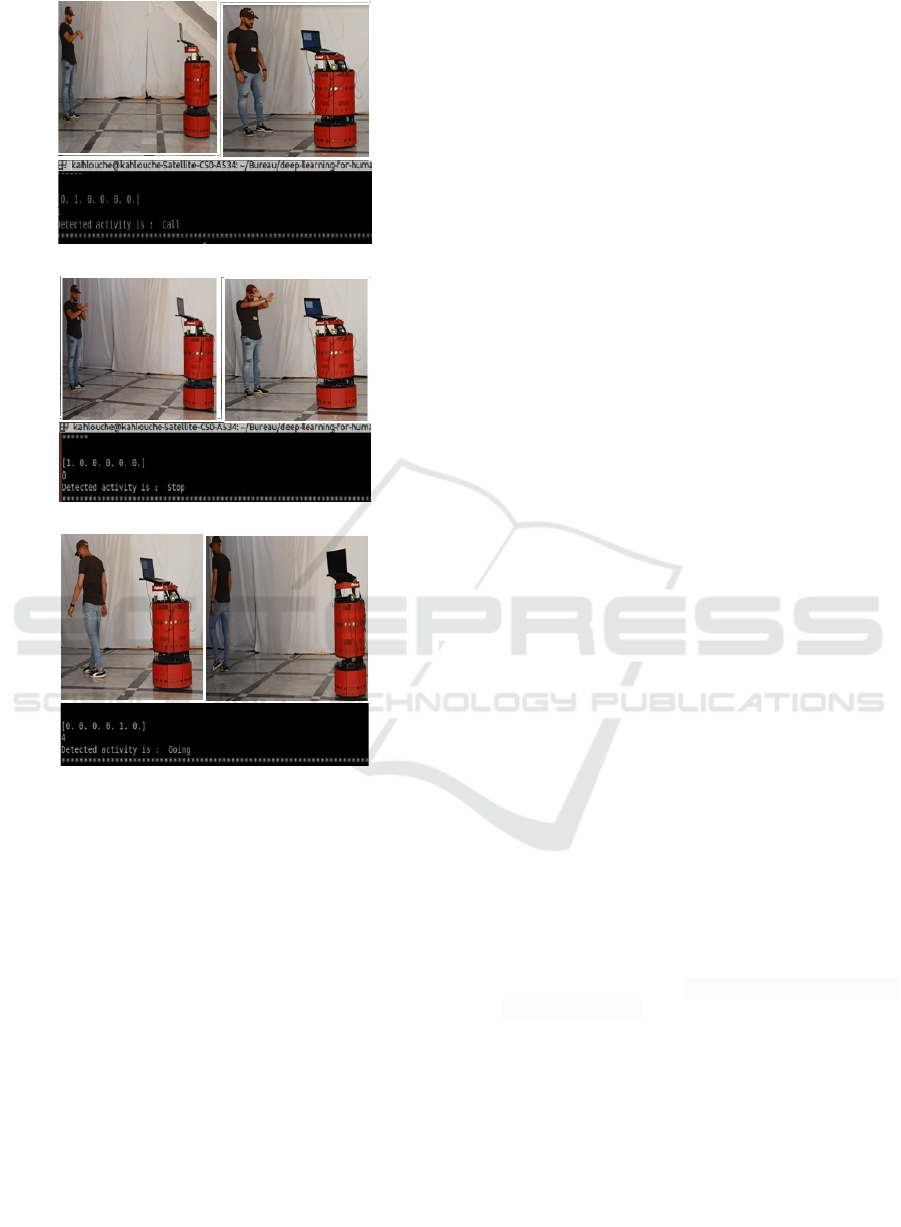

activity interaction between our service robot and the user is conducted for demonstrating the effectiveness

of the developed HRI system. The trained model is evaluated on an experimental dataset created for this work

and also the publicly available datasets Cornell Activity Dataset (CAD-60), and KARD HAR datasets. The

performance of the proposed algorithm is proved when compared to other approaches and the results confirm

its efficiency.

1 INTRODUCTION

Social robots must be able to interact efficiently with

humans, to understand their needs, to interpret their

orders and to predict their intentions. This can be

achieved by translating the sensed human

behavioural signals and context descriptors into an

encoded behaviour. However, it stills a challenge

because of the complex nature of the human actions.

Even if many researches related to human-robot

interaction (HRI) were announced, there were not so

many reports of its successful application to robotic

service task.

Limin in (Limin, M., & Peiyi, Z., 2017) used a

Kinect camera to capture human actions in real time.

They used this information to send commands to the

robot through the Bluetooth communication and

make some movements as turning and forward. Borja

in (Borja et al., 2017) presented an algorithm, which

used depth images from Kinect to control the speed

and angular position of a mobile robot. The algorithm

https://orcid.org/0000-0001-8353-4566

https://orcid.org/0000-0003-3495-7444

used the previous frame for the segmentation of the

current one, thus, a user should extend the hand in

front of the camera and leaves it for a while until the

program recognizes the hand. They also designed a

PID to control the wheel speed of the robot.

In the context of robot assisted living, Zhao in

(Zhao et al., 2014) proposed a gesture recognition

algorithm for taking order service of an elderly care

robot. It was designed mainly for helping non-expert

users like elderly to call a service robot. Faria in

(Faria et al., 2015), designed a skeleton-based

features model, and used it on mobile robot in a home

environment, to recognize daily and risky activities in

real-time and to react for assisting the person.

For Human Action Recognition task, the early

well-known approaches are hand-crafted based

features. In these approaches researchers extract

features such as global or local image features like

texture, edge or other attributes from the frames and

use them within different machine learning

algorithms (Yang, X., & Tian, Y., 2014), (Suriani

2018) and (Kahlouche, S., & Belhocine, 2019).

Kahlouche, S. and Belhocine, M.

Human Action Recognition using Convolutional Neural Network: Case of Service Robot Interaction.

DOI: 10.5220/0011122300003271

In Proceedings of the 19th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2022), pages 105-112

ISBN: 978-989-758-585-2; ISSN: 2184-2809

105

However, hand-crafting features require significant

domain knowledge and careful parameter tuning,

which makes it not robust to various situations.

Recently, with the emergence and successful

deployment of deep learning techniques for image

classification, researchers have migrated from

traditional handcrafting to deep learning techniques

for HAR. Several works employed Convolutional

Neural network CNN, due to its spectacular progress

in extracting spatial correlation characteristics in

image classification tasks (Simonyan, K., &

Zisserman, 2014) and (Hascoet, 2019).

We presented in previous works (Bellarbi, A et

al., 2016), and (Kahlouche, S et al. 2016), ROS based

framework for B21r service robot, including a social

navigation approach where the robot was able to

navigate in indoor environment while detecting and

avoiding humans using several social rules, which are

computed according to its skeleton pose orientations.

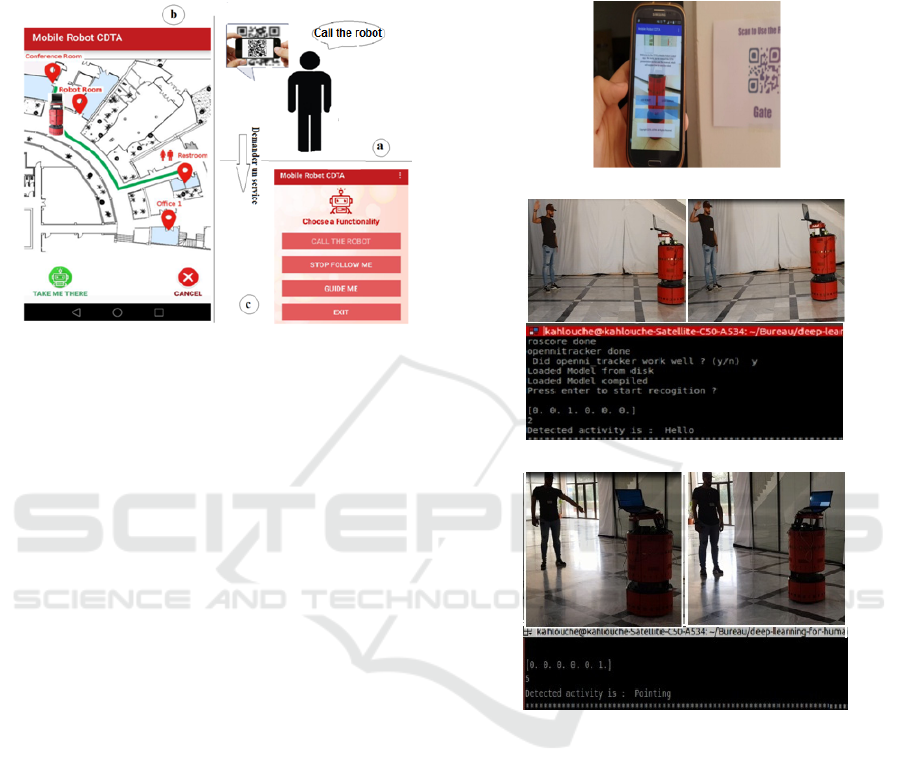

Additionally, a Guide User Interface (GUI) has been

designed to control the robot through its screen touch

which displays some functionality such as Call the

Robot, Follow Me and Guide Me.

In this works, we aim to make the Human-Robot

interaction more natural and more intuitive, by

integrating HAR module to our framework. This is an

alternative solution to the GUI use. We proposed a

deep learning architecture for activity recognition to

help the robot to recognize which service is requested

by the user, and react consequently.

For this purpose, we investigate the usefulness of

using only 3D skeleton coordinates of human body in

end-to-end deep CNN to learn the spatial correlation

characteristics of human activities. Hence, the mains

considered contributions are:

- Data transformations in the pre-processing

step applied on the 3D skeleton data, in order

to reduce observation variations caused by

viewpoint changes.

- An analysis of the Most Informative Joints has

been done to evaluate the informativeness of

each joint in the dataset, which leads to feature

dimensionality reduction when training the

CNN on relevant data.

2 HRI SYSTEM OVERVIEW

Figure 1 shows our proposed architecture block

diagram, it uses mainly offline and online process.

Figure 1: The framework of a human-robot interaction.

2.1 Dataset Creation

Our dataset has been created using OpenNI tracker

framework, which allows the skeleton tracking at30

fps, providing 3D Euclidean coordinates and three

Euler angles of rotation in the 3D space for each joint

with respect to the sensor. The dataset contains six

interactive activities performed by four different

individuals. Among the activities, four are static,

where the user does not move from the camera view

field (Hello, Stop, Call, Pointing), and two dynamic

activities where the user can leave the camera view

field (Going, Coming). A seventh class named "No

Activity" has been added, it is realized with

sequences where the user is immobile or when he

does not express any interaction gestures.

Figure 2 shows some examples of our dataset:

Hello

Stop

Figure 2: Examples of our dataset.

2.2 Features Extraction

In most activities, many joints contribute very little

changes and are not significant for action recognition.

Hence, an analysis is performed to concentrate only

on significant joints which highly contribute to

human activity. According to (Ofli et al., 2014) works

called Sequence of Most Informative Joints (SMIJ)

reported that Shannon entropy represents the higher

entropy related to a maximum contribution of relative

Activit

rediction

SLAM

Social Navigation

Robot Reaction

Motion/Voice interaction

Model Trainin

Dataset creation

Features Extraction

Offline

Online

ICINCO 2022 - 19th International Conference on Informatics in Control, Automation and Robotics

106

joints. Additionally, for Gaussian distribution with

variance

the entropy can be calculated by the

formula of Equation (1).

)12(log

)(

πσ

(1)

With:

)( −

(2)

I : joint position,

: the average joint position

N: the number of significant implications of joint I

in a given temporal sequence.

Figure 3 represents the histogram of the most

informative joints for six (6) types of activities in our

dataset. Therefore, we have selected five significant

joints in the human skeleton and applied suitable

weight on them. On the other hand, we have ignored

the remainder by setting the joints to zero, since they

introduce more noise than useful information to

distinguish activities.

Figure 3: Most Informative Joints of our dataset.

2.2.1 Construction of Feature Vectors

Using the above information, we can compute a set of

features as follows:

- 3D coordinates of the 5 selected joints: (x,y,z)

which are all relative to the torso;

- 3D rotation angles in the space: Ψ ,Ɵ and Φ a

sequence of three rotations according to the three

axes X, Y and Z respectively.

Therefore, the feature vector has the following form:

2.2.2 Feature Pre-Processing

A pre-processing step is applied on the 3D skeleton

data in order, not only to attenuate noise introduced

by the sensor, but also to normalize the data to

accommodate for different users’ heights, limb

lengths, orientations and positions. It consists of the

following steps:

- Translation: to guarantee the same origin of the

coordinates system for all acquired frames, the

reference is set to the torso of the human skeleton;

- Normalization: to reduce the influence of

different users’ heights and limb lengths, first, the

height of the subject is determined; then all

skeleton 3D coordinates are normalized according

to the value of eq.3;

)min()max(

)min(

normali

−

(3)

- Symmetrization: To disambiguate between

mirrored versions of the same activity (e.g.

gestures performed by right and left-handed

people), it is required for activities such as Hello,

Call and pointing. It is just necessary to consider

a new sample based on a mirrored version of the

original 3D skeleton data.

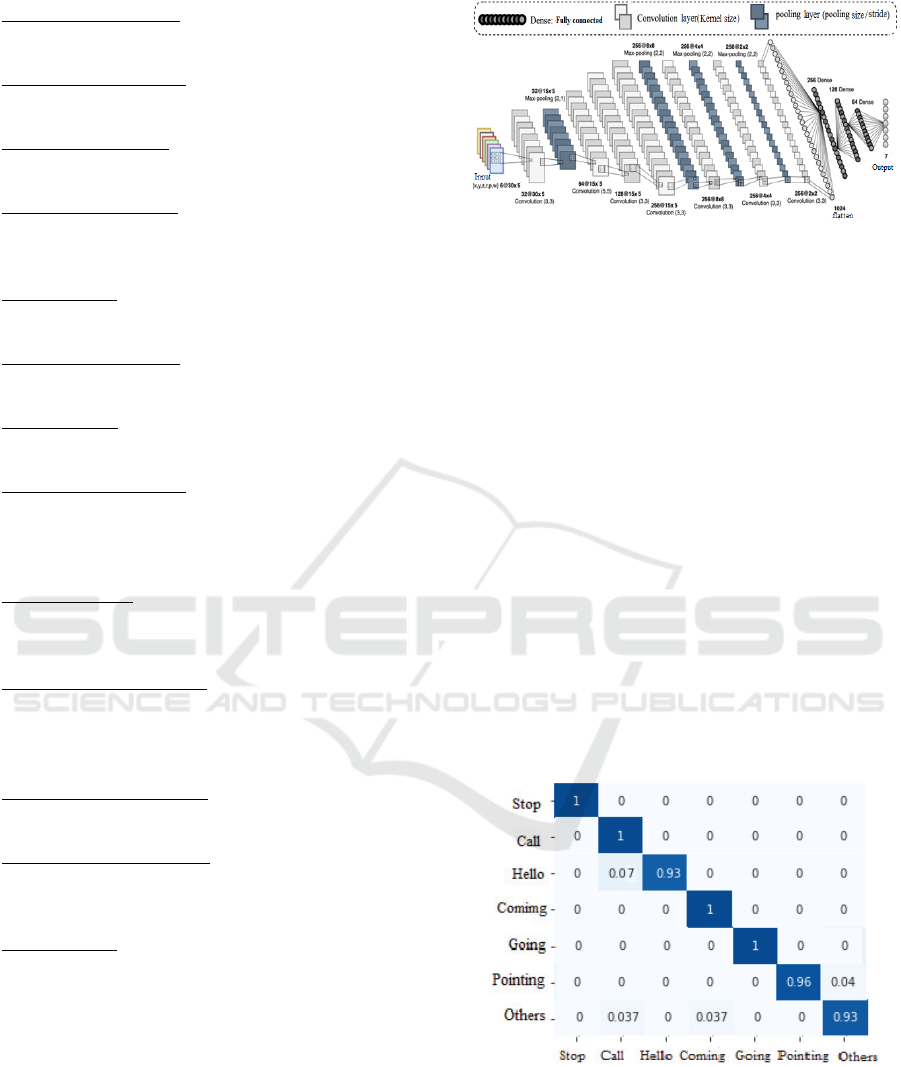

2.3 Model Training

We have used CNN algorithm Network for training

with17 layers. Figure 4 presents the overall structure

of this pipeline.

Input Layer: It is a vector representing sub video

sequences of the 3D skeleton data:

attributes

× N

joint

× N

frames

.Where N

attributes

is a vector

composed of x×y×z×Ɵ×

. While N

joint

is the

number of joints associated with each configuration

in the video sequence of the dataset and it is equal to

5. N

frames

which is the total number of frames in batch

sequences and it is equal to 30; Zero padding is added

to this layer.

Convolutional Layer1: The input layer is scanned

using 32filters of size 3x3. Batch normalization is

used to accelerate the training of the networks; it

consists of performing the normalization for each

training mini-batch. The used activation is Rectified

Linear Unit (ReLU).

Max Pooling1: It is useful to capture the most

important features and reduce the computation in

advanced layer, we have used (2,1) pooling and zero

padding.

Convolutional Layer2: 64 filters of size 5x5, ReLU

function and batch normalisation are used;

Coming

Going

Pointing

Hello

Call

Stop

Time

X Y Z Ɵ 



Human Action Recognition using Convolutional Neural Network: Case of Service Robot Interaction

107

Convolutional Layer3: 128 filters of size (3,3), with

batch normalization and ReLU;

Convolutional Layer4: 256 filters of size (3,3), with

batch normalization and ReLU;

Max Pooling Layer2: We have used 2x2 kernels and

0 padding;

Convolutional Layer5: 256 filters of size (3, 3), batch

normalization, and Elastic-Net (1e-4) regularization

which help for lessening over fitting.

Max Pooling3: Kernel size (2,2), and stride of (2,2),

0 padding;

Convolutional Layer6: 256 filters of size (3,3), 10%

Dropout, and ReLU is applied as activation function;

Max Pooling4: Kernel size (2, 2) and 10% Dropout

are applied;

Convolutional Layer7: 256 filters of size (3,3), zero

padding, 10% Dropout, Elastic-Net (1e-4)

regularization and ReLU is applied as activation

function;

Flattened Layer: Concatenation of 256 feature vectors

into vector of one dimension containing 1024

features.

Fully Connected Layer1: it produces 256 neurons

from the last layer, batch normalization, 30%

Dropout, Regularization Elastic-Net (1e-4) and ReLU

are used;

Fully Connected Layer2: 128 neurons with batch

normalization, ReLU and 30% Dropout are used;

Fully Connected Layer3: 64 neurons, with batch

normalization, ReLU, 30% Dropoutand Elastic-Net

(1e-3) regularization are used;

Output Layer: At the end, it has7 classes with

Softmax

We have used, for training, the Keras deep

learning framework with a Tensor Flow backend on a

laptop with an i5-2320 (3.00GHz) CPU. The network

has been trained using Adam optimizer, and

Categorical Cross Entropy as loss function. After

several attempts of parameter tuning, the best results

are obtained at epoch 2000 using a learning rate of 10-

5 with an initial training rate set to 0.001, a batch size

of 30, 0 padding and stride (1, 1) for all convolution

layers.

Figure 4: The overall structure of the pipeline.

2.3.1 Performance on Collected Dataset

Our dataset is challenging because of the following

reasons:

(i) High interclass similarity: some actions are

very similar to each other, for example,

Coming/Going, and Hello/Call.

(ii) High intra-class variability: the same action is

performed in different ways by the same

subject. For example, using left, right, or both

hands differently.

(iii) The activity sequences are registered from

different views.

Our dataset has been divided into two parts; 75%

for training and 25% for testing.

The performance of HAR has been evaluated

based on the accuracy percentage of activities that are

correctly recognized. The result shown in the

confusion matrix achieves accuracy of 97.42%

(Figure5).

Figure 5: Confusion matrix.

2.4 The Online Processing

- Human Activity Prediction package: The developed

HAR module has been implemented under Robot

Operating System (ROS), to recognize the performed

activity by the service robot.

ICINCO 2022 - 19th International Conference on Informatics in Control, Automation and Robotics

108

- Autonomous Social Navigation package: This is

built from ROS navigation stack, given the current

locations of obstacles; it uses the global planner to

find a path to a desired destination. It then uses a local

planner to compute linear and angular velocities that

need to be executed by the robot to approximately

follow the global path while avoiding obstacles and

humans differently respecting some social rules

(Bellarbi , A, et al., 2016).

- Simultaneous Localization and Mapping (SLAM):

we used Hector Slam package, which provides robot

position and an environment map, for self-

localization.

Once the activity is recognized by the prior step,

the appropriate reaction is taken from the look-up

table to be executed by the mobile robot in real

interaction scenarios (Table1).

The robot can perform motion or voice reaction;

for the voice reaction, we have used a speech

synthesis module to play sound from a given input

text.

Table 1: Six common types of interaction.

Activity Robot reaction

Hello Voice reaction : Hello welcome to CDTA

Call

Voice reaction : Please wait, I am coming

Motion reaction: Approaching user and start

interaction.

Stop

Voice reaction: Ok, I will stop here.

otion: Stop moving.

Pointing

Voice reaction: Ok, I will go there.

otion reaction: Go to the pointed position.

Coming

Voice reaction: How can I help you?

Motion reaction: Step back and prepare to begin

interaction.

Going

Voice reaction: Good-bye, thank you for your visit.

otion: turn

and stop interaction

3 RESULTS AND DISCUSSIONS

3.1 Performance on Public Datasets

We present a comparative performance evaluation on

two public datasets: the CAD-60 and KARD HAR

datasets.

The CAD-60 dataset (Sung, J, et al. 2012) is

performed by 12 different activities, typical of indoor

environments that are performed by four different

people: two males and two females.

The KARD dataset (Gaglio, S. et al. 2014) consists

of 18 activities. This dataset has been captured in a

controlled environment, that is, an office with a static

background, and a Kinect device placed at a distance

of 2-3m from the subject. The activities have been

performed by 10 young people (nine males and one

female), aged from 20 to 30 years, and from 150 to

185cm tall. Each person repeated each activity 3

times in order to create 540 sequences. The dataset is

composed of RGB and depth frames. Additionally, 15

joints of the skeleton in world and screen coordinates

are provided.

Table2 lists the results of the proposed method,

which are applied on the above mentioned datasets.

Despite its simplicity, it is able to achieve good

results when applied to publicly available datasets

Table 2: Comparison of our method on different dataset.

Dataset Accuracy

KARD 95.0%

CAD60 83.19%

Our dataset

97.42%

Table 3 shows a comparison of the proposed

method with other state of the art approaches on

CAD-60. It can be seen from Table3 that despite very

good accuracy obtained with different methods in the

last decade, accuracy of the proposed activity

recognition approach outperforms existing

approaches. The proposed system achieved an

accuracy of 83.19 %.

Table 3: Comparison of accuracy on CAD60 dataset.

Algorithm proposed by Accuracy

Zhu et al. (2014) 62.5%

Yang et al.(2014) 71.9 %

Rahmani et al. (2014) 73.5%

Zhang et al.(2012) 81.8 %

Wang et al.(2013) 74.7%

Gaglio et al. (2014) 77.3%

Koppula et al.(2013) 80.8%

Nunes et al. (2017) 81.8 %

Proposed approach 83.19%

3.2 Performance on Mobile Robot

In order to properly test the system in real scenarios,

we have used the B21r mobile robot, which is able to

map the indoor environment and to self-localizing

and autonomously navigating while avoiding

obstacles and humans. The developed HRI system

has been implemented under Robot Operating System

(ROS). For real time prediction, we used the last

Human Action Recognition using Convolutional Neural Network: Case of Service Robot Interaction

109

recorded sequence during one second, according to

the sensor's refresh rate (30 fps) after being pre-

processed. After that, a final decision is made for

activity recognition and a robot reaction is performed.

Figure 6: Older scenario with GUI.

Figure 6 shows the older scenario of HRI:

a) To call the robot, the user has to scan using his

Smartphone, the QR code associated to its real

word position.

b) The real world map, where some predefined

positions in the environment are predefined such

as: Conference room, Library, Entrance, Robot

room. Hence, the robot must generate an

appropriate collision free trajectory and

navigate until reaching its goal.

c) The Guide User Interface GUI to control the

robot through its screen touch which displays

some functionality such us: Call the robot,

Follow Me, Guide Me.

Figure 7 shows the new scenario where a person

attempts to interact with a service robot:

a) First, the person Calls the robot from its distant

initial position (robot room) by scanning the QR

code associated to its position using its smart

phone.

b) The robot navigate until the user position, detect

the person and start interaction with him, the

user salutes the robot, ‘Hello’ action is

recognized and the robot react with voice mode

and say: ‘Hello, welcome to our Center’.

c) The user is pointing to a specific position; the

activity is recognized as “pointing”, and the

voice reaction of the robot is: “Ok, I will go

there”, and the robot move to the pointed

position.

The proposed framework was capable of

recognizing different interactive activities that

happen sequentially in case of a person transits from

one activity to another.

(a)

(b)

Figure 7: Natural interaction scenario: Distant Call – Hello-

Pointing.

Figure 8 shows a second natural interaction scenario

where:

i) The person is calling the robot in its proximity,

and the activity is recognized as “Call” and

then the robot interacts with voice mode, and

say: “Please wait, I am coming”, while

approaching the user.

ii) The user decides to stop the robot; the activity

is recognized as “Stop”, and the robot stop

moving, and say: “ok, I will stop here”.

iii) The user decides to go away, the activity

“Going” is recognized and the robot react with

voice: “Good- bye, thank you for your visit”,

and turn back and stop interaction.

ICINCO 2022 - 19th International Conference on Informatics in Control, Automation and Robotics

110

(i)

(ii)

(iii)

Figure 8: Scenario b) Proximity Call – Stop – Going.

4 CONCLUSION

We presented a Human Robot Interaction system for

a service robot, able to recognize the performed

activity and to successfully react according to the

situations. In the pre-processing step, we have

proposed a view invariant transformation applied to

the data, captured by a Microsoft Kinect camera to

guarantee view invariant features. To achieve features

dimensionality reduction, an analysis of the most

informative joints has been performed while

concentrating on significant joints which highly

contribute to the human activity. Therefore, five

significant joints in the human skeleton have been

selected and used as input layer of a deep CNN. This

model has been tested in real time successfully,

hence, it presents a promising approach to social

robotics field where natural and intuitive human robot

interaction is needed. However, some further

developments are needed before the system can be

used in a real life. Therefore in the future, we want to

consider the use of other sensor modalities such as

depth maps and RGB sequences in order to add

additional contextual information and see what the

best architecture to fuse all these modalities is. This

should improve the activity recognition accuracy and

consequently will improve the interactivity of our

service robot.

REFERENCES

Bellarbi, A., Kahlouche, S., Achour, N., & Ouadah, N.

(2016, November). A social planning and navigation

for tour-guide robot in human environment. In 2016 8th

International Conference on Modelling, Identification

and Control (ICMIC) (pp. 622-627). IEEE.

https://doi.org/10.1109/ICMIC.2016.7804186.

Borja, J. A. T., Alzate, E. B., & Lizarazo, D. L. M. (2017,

October). Motion control of a mobile robot using kinect

sensor. In 2017 IEEE 3rd Colombian Conference on

Automatic Control (CCAC) (pp. 1-6). IEEE.

Faria, D. R., Vieira, M., Premebida, C., & Nunes, U. (2015,

August). Probabilistic human daily activity recognition

towards robot-assisted living. In 2015 24th IEEE

international symposium on robot and human

interactive communication (RO-MAN) (pp. 582-587).

Gaglio, S., Re, G. L., & Morana, M. (2014). Human activity

recognition process using 3-D posture data. IEEE

Transactions on Human-Machine Systems, 45(5), 586-

597.

Hascoet, T., Zhuang, W., Febvre, Q., Ariki, Y., &

Takiguchi, T. (2019). Reducing the Memory Cost of

Training Convolutional Neural Networks by CPU

Offloading. Journal of Software Engineering and

Applications, 12(8), 307-320. doi: 10.4236/jsea.2019.1

28019.

Kahlouche, S., & Belhocine, M. (2019, November). Human

Activity Recognition Based on Ensemble Classifier

Model. In International Conference on Electrical

Engineering and Control Applications (pp. 1121-1132).

Springer, Singapore. https://doi.org/10.1007/978-

981-15-6403-1_78

Kahlouche, S., Ouadah, N., Belhocine, M., &

Boukandoura, M. (2016, November). Human pose

recognition and tracking using RGB-D camera. In 2016

8th International Conference on Modelling,

Identification and Control (ICMIC) (pp. 520-525).

IEEE. DOI: 10.1109/ICMIC.2016.7804168.

Koppula, H. S., Gupta, R., & Saxena, A. (2013). Learning

human activities and object affordances from rgb-d

videos. The International journal of robotics research,

32(8), 951-970.

Human Action Recognition using Convolutional Neural Network: Case of Service Robot Interaction

111

Limin, M., & Peiyi, Z. (2017, March). The medical service

robot interaction based on kinect. In 2017 IEEE

International Conference on Intelligent Techniques in

Control, Optimization and Signal Processing (INCOS)

(pp. 1-7). IEEE.

Nunes, U. M., Faria, D. R., & Peixoto, P. (2017). A human

activity recognition framework using max-min features

and key poses with differential evolution random

forests classifier. Pattern Recognition Letters, 99, 21-

31.

Ofli, F., Chaudhry, R., Kurillo, G., Vidal, R., & Bajcsy, R.

(2014). Sequence of the most informative joints (smij):

A new representation for human skeletal action

recognition. Journal of Visual Communication and

Image Representation, 25(1), 24-38.

Rahmani, H., Mahmood, A., Du Huynh, Q., & Mian, A.

(2014, September). HOPC: Histogram of oriented

principal components of 3D pointclouds for action

recognition. In European conference on computer

vision (pp. 742-757). Springer, Cham.

Simonyan, K., & Zisserman, A. (2014). Very deep

convolutional networks for large-scale image

recognition. arXiv preprint arXiv:1409.1556.

Sung, J., Ponce, C., Selman, B., & Saxena, A. (2012, May).

Unstructured human activity detection from rgbd

images. In 2012 IEEE international conference on

robotics and automation (pp. 842-849). IEEE.

Suriani, S., Noor, S., Ahmad, F., Tomari, R., Nurshazwani,

W., Zakaria, W. W., & Mohd, M. H. (2018). Human

activity recognition based on optimal skeleton joints

using convolutional neural network. Journal of

Engineering Science and Technology, 7, 48-57.

Wang, J., Liu, Z., Wu, Y., & Yuan, J. (2013). Learning

actionlet ensemble for 3D human action recognition.

IEEE transactions on pattern analysis and machine

intelligence, 36(5), 914-927.

Yang, X., & Tian, Y. (2014). Effective 3d action

recognition using eigenjoints. Journal of Visual

Communication and Image Representation, 25(1), 2-

11.doi.org/10.1016/j.jvcir.2013.03.001

Zhang, C., & Tian, Y. (2012). RGB-D camera-based daily

living activity recognition. Journal of computer vision

and image processing, 2(4), 12.

Zhao, X., Naguib, A. M., & Lee, S. (2014, August). Kinect

based calling gesture recognition for taking order

service of elderly care robot. In The 23rd IEEE

international symposium on robot and human

interactive communication (pp. 525-530). IEEE.

Zhu, Y., Chen, W., & Guo, G. (2014). Evaluating

spatiotemporal interest point features for depth-based

action recognition. Image and Vision computing, 32(8),

453-464.

ICINCO 2022 - 19th International Conference on Informatics in Control, Automation and Robotics

112
