Image-based Lesion Classification using Deep Neural Networks

Ákos Hermann and Zoltán Vámossy

Software Engineering Institute, John von Neumann Faculty of Informatics, Óbuda University,

Bécsi Street, Budapest, Hungary

Keywords: Melanoma Detection, Machine Learning, Deep Neural Network, Image Processing.

Abstract: This research explores the topic of moles in cancer using a machine learning approach, with the aim of

designing and implementing a system that can determine whether a mole shows a melanoma-like abnormality

based on 2D input photographs, and thus whether further examination by a specialist is required. The target

system is built around a general-purpose convolutional network, GoogleNet InceptionV3, which has been

retrained for the task using a transfer learning technique. In addition to the system, an automated pre-

processing phase has been defined to reduce and eliminate anomalies and noise in each sample by means of

image processing operations. In conclusion, the system provided 156 correct diagnoses in 180 test cases,

indicating a test accuracy of 86.67%, making it an effective melanoma diagnostic tool.

1 INTRODUCTION

Today, according to the National Institute of

Oncology, melanoma is the 8th most common type of

cancer in Hungary (National Institute of Oncology,

2016).

Melanoma is a malignant lesion of the black-

brown pigment-producing cells in the skin, known as

melacytomas, and is one of the most aggressive types

of cancer. Although its development is not directly

linked to moles, as it can also occur on conventional

skin surfaces, they are at higher risk due to their

structure. Moles are skin surfaces with a higher

concentration of the aforementioned pigment-

producing cells. They are therefore at increased risk;

it has been estimated that nearly thirty percent of

melanomas develop from pre-existing moles

(Howard K., 1991, Balch, 2019).

As an aggressive type of cancer, melanoma not

only develops rapidly, but also metastasizes to other

organs in a very short period of time. Mainly to the

bones, or even to the brain, but also to other more

distant organs. Its danger lies precisely in this

characteristic. If the underlying disease is diagnosed

in time, the chances of cure are almost one hundred

percent (~99%), and the treatment consists only of

removing the mole and the surrounding tissue. If

detected later, at stage two or three, the former

https://orcid.org/0000-0002-6040-9954

survival rate drops dramatically to around fourteen

percent, and depending on the different metastases,

chemotherapy treatments may be required. Although

melanoma accounts for only one percent of all

diagnosed skin cancers, it alone is responsible for

nearly three quarters of all skin cancer deaths

(Rogers, 2015, American Cancer Society, 2016).

Timely detection is therefore key for healing but

assessing the lesions on moles is often not an easy

task, even for experienced dermatologists.

Identifying moles with cancerous lesions is a complex

problem that involves many factors:

 Shape (possible asymmetry)

 Irregularity of the edges of the mole

 Color

 Diameter

 Increase over time.

Because of the complexity of the symptoms, an

accurate diagnosis can often only be made by biopsy.

However, this procedure not only causes pain, but in

many cases also scarring, among many other

inconveniences. The difficulties associated with the

procedure are often unnecessary if the mole is

diagnosed as benign.

In the case of software diagnostics, the above

factors are not present, so their effective usage could

certainly make the screening process less problematic

and time-consuming, thus contributing to a raised

Hermann, Á. and Vámossy, Z.

Image-based Lesion Classiﬁcation using Deep Neural Networks.

DOI: 10.5220/0011126200003209

In Proceedings of the 2nd International Conference on Image Processing and Vision Engineering (IMPROVE 2022), pages 85-90

ISBN: 978-989-758-563-0; ISSN: 2795-4943

awareness and consciousness to the general public as

the system offers a convenient solution to a problem

that must not be neglected.

2 A DEEP LEARNING

APPROACH

The main complication with the software approach is

the decision issue.

Before the excessive development and spread of

the field of artificial intelligence and machine

learning, the problem of classification was typically

solved using traditional methods. These attempts

mainly used SVM technology or Logistic Regression.

Solutions based on image processing techniques

alone were also encountered. A common feature of

these approaches is that they have not achieved

breakthroughs and have not proved to be more useful

in terms of results than flipping a coin.

The low accuracy of these methods is presumably

due to the difficulty in identifying the complex set of

symptoms of the lesion and the high variability of the

photographic samples. Indeed, the identification of

the visual aspects listed above requires a complex set

of image processing operations and, due to the

diversity of photographs and birthmarks, it is almost

impossible to produce a generally effective solution.

However, in recent years, the explosion in the

field of machine learning has enabled the general and

widespread use of different types of neural networks

(Jenei, 2021). The emergence of convolutional neural

networks, which work well for images and sounds,

also promised efficient classification of photographs

with a high degree of generalization.

The main strength of neural networks lies in their

generalisation ability, which, by their very nature, can

ignore irrelevant factors for classification, given a

sufficiently large learning database. Since the

efficiency of generalisation depends as much on the

size and diversity of the training dataset as on the

accuracy of classification, neural networks can be

considered as an ideal solution when sufficient data

are available (Szegedy, 2016).

A schematic process describing the operation of

the designed system is shown in Figure 1.

2.1 The ISIC Database

The present research is based on the published and

freely available dermatological database of the

International Skin Imaging Collaboration (ISIC)

melanoma project.

The ISIC gallery consists of approximately

53,000 photographs of lesions with a 1:8 ratio of

confirmed melanoma to benign lesions. Although this

imbalance may at first seem worrying, using the same

number of teaching samples from both diagnostic

groups, we can still speak of a sufficient amount of

data.

The gallery is characterised by the fact that it

includes relatively standardised samples according to

a strict set of rules, which helps to use them in

scientific projects.

The project's gallery requirements include only

and exclusively annotated and biopsy-verified

specimens with mostly centrally located lesions of

good quality. There is no restriction on the device

used to take the photograph. Although this is

irrelevant from a medical point of view, it may be

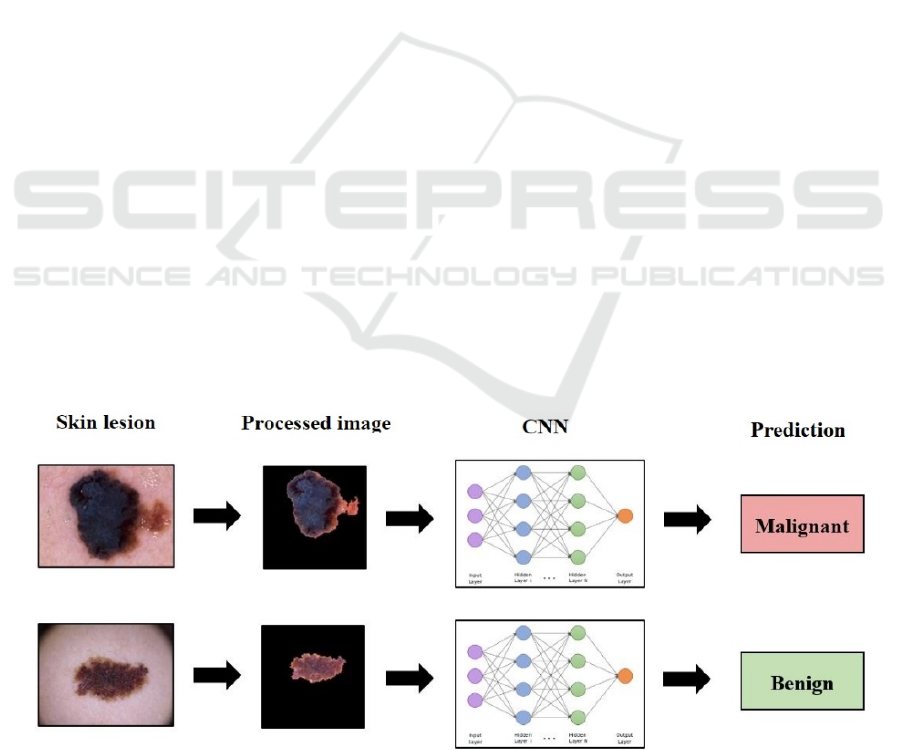

Figure 1: Schematic of the envisaged melanoma diagnostic system (Kalouche, 2016).

IMPROVE 2022 - 2nd International Conference on Image Processing and Vision Engineering

difficult to detect differences due to the specificity of

the devices when processing the images. Having

studied the database, it can be stated that the

following anomalies need to be addressed in the pre-

processing of photographs (International Skin

Imaging Collaboration, 2020):

 Different resolution

 Different image size

 Different illumination

 Different skin color around the lesion

 Presence of vignetting effect in some images

 Presence of hairs in the images.

2.2 Preprocessing of the Data

The ISIC gallery shows a 1:8 bias in favour of benign

lesions in terms of number of samples. When the full

database is used, this imbalance can severely affect

the functioning of the neural network in such a way

that it tends to favour the said diagnostic group. To

avoid this, an equal number of approximately 6,000

photographs from each output category were used.

In order to maximise the accuracy of the

classification, it was necessary to remove anomalies

in the photographs and to remove irrelevant parts and

noise in order to maximise the accuracy of the

classification, given the relatively small number of

samples available.

Consequently, a number of custom-made

functions were implemented to automate the

aforementioned processes (Figure 2). The resulting

set of image processing operations can be considered

as a complete pre-processing phase, suitable for both

the preparation of samples used in training and those

diagnosed in real-time. The phase is also responsible

for the uniformization of the images to form a suitable

input to the neural network.

As a first step in the processing, it is necessary to

check for the presence of the so-called vignetting

effect in the photo before starting the denoising

process. If so, it will need to be removed, which

means cropping the photo. This is essentially

blacking out the edges of the photo in circles to bring

out the essence of the content. However, its presence

is counterproductive from an image processing point

of view, as increasing the contrast value can also

highlight the edge of this circle, consequently fooling

the lesion detection algorithm. In order to avoid

unnecessary operations and possible loss of data due

to cropping, a conditional algorithm iterates over the

images in the database and decides whether the effect

is detectable by evaluating the conditions. If so, the

corners of the sample are clipped along a circle of

radius r from the centre of the image.

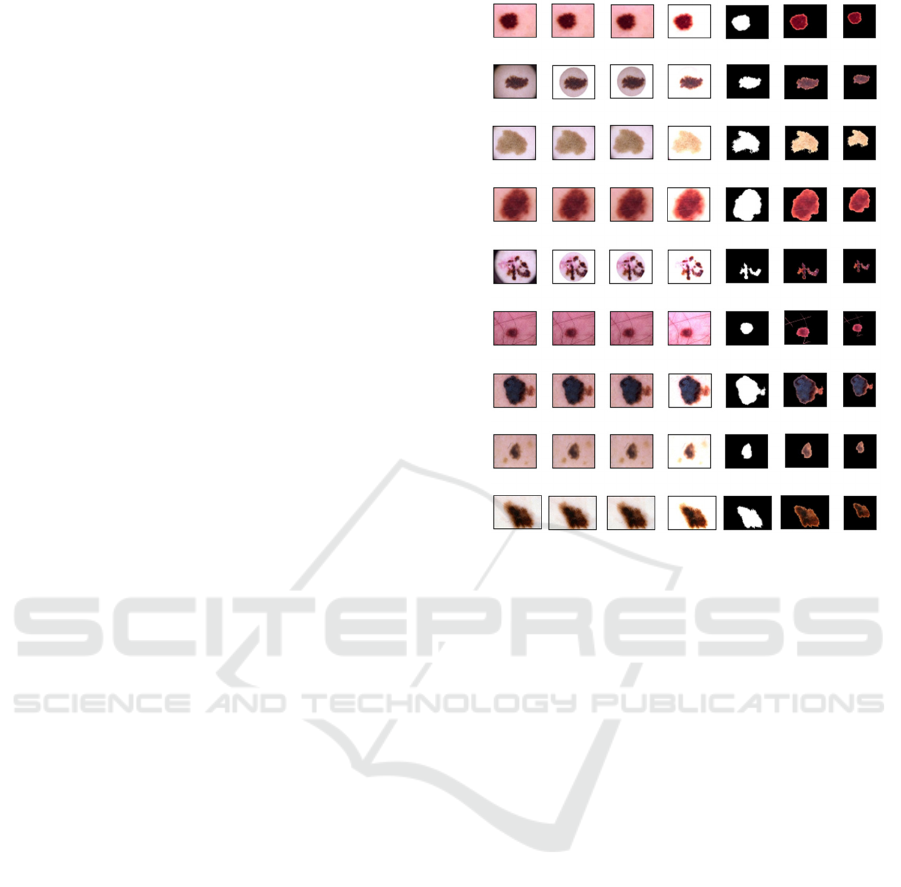

Figure 2: Pre-processing steps of the samples (from left to

right: original image, cropped, blurred, contrast, mask,

located, resized).

The next step is to de-noise the images. The

algorithm solves noise reduction by Gaussian

smoothing and increasing contrast. While the former

is responsible for thinning out the hairs present in the

sample, the latter helps to separate the edges of the

lesion from the background. The size of each

dimension of the filter mask and the amount of

contrast enhancement are both determined based on

the properties of the sample. In practice, this usually

means a 5×5 pixel square mask and a 60% contrast

enhancement. The latter operation not only increases

each pixel value by a multiple, but also increases it by

a constant beta value (1.1).

One of the advantages of real-life tests is that the

diagnosing specialists know exactly which factors are

relevant considering the diagnosis, so they focus only

on those. In contrast, convolutional networks are not

able to filter out irrelevant content clearly, so we have

to do this ourselves during pre-processing. The last

step before formatting is therefore the determination

of the region of interest. To perform this, a shallow

copy of the given photograph is made, and the phase

continues to work with it. The ROI is determined

based on a thresholding that operates on a run-time

value calculated from the sample parameters.

The result of the thresholding is then used to

search for each contour, from which the largest is

Image-based Lesion Classiﬁcation using Deep Neural Networks

selected and the rest are discarded. Drawing the

selected contour line into an array of the same size as

the image, initially containing zero values, results in

a mask containing binary 1 values only at the location

of the pixels representing the lesion. Using a bit-level

AND operation, the mask just created is combined

with the original photograph to obtain the localized

birthmark with a black background color.

In order to use the samples just processed for deep

learning purposes, they need to be formatted

according to the expected input of the neural network.

In practice, this involves two simple steps. The

upright orientation photographs are rotated clockwise

by 90 degrees to ensure that the orientation

differences do not provide false information to the

CNN. The need for this operation is checked simply

by the ratio of the lengths of the sides. Since the

neural network used in this project receives inputs of

248×248 pixels, the last step in the processing is

rescaling. To do this, a black background image of the

same size as the longest side of the image is created

and the contents of the photo to be reduced are copied

onto it, starting from the top left corner. In the

resulting photo, the content is oriented towards the

top left corner, and can therefore be resized easily

without loss of data. (Kalouche, 2016)

2.3 The InceptionV3 based CNN

Architecture

Since during the preprocessing phase all samples are

converted to 248×248 pixels and the network operates

with RGB color space photographs, the base model is

initialized with input parameters of dimension

(248×248×3). In light of the knowledge transfer to be

applied, the top layers of the model are not imported.

The loaded layers use the original weight values set

on the ImageNet database (Russakovsky, 2015).

All the layers of the resulting model are then

frozen to ensure that their weight parameters are not

altered during the learning process.

In order to use the network as intended, it is

necessary to add additional layers: first, a layer with

a ReLU activation function of 1024 neurons is added

to the last, i.e. output ("mixed7") layer, which is

converted to one-dimensional. To obtain the

corresponding output, another layer is added, in this

case with a single neuron, activated by a softmax

function. In between the two layers attached to the

network, a dropout regularisation layer with a 20%

dropout rate is placed to facilitate higher-level

generalisation.

The model uses an RMSProp optimizer to

minimize the value of the loss function, which is an

optimizer that operates in a similar way to the

momentum-based solutions, but actually works by

parameter-level changes. Described by mathematical

equations, the operation of RMSProp is as follows:

(1)

where E[g

] is the moving average of squared

gradients, w is the weight, δC/δw is the gradient of the

cost function with respect to the weight, η is the

learning rate and β is the moving average parameter

(good default value: 0.9).

The corresponding learning rate is initialized at a

lower than usual value of one ten-thousandth.

The actual value of the loss function is calculated

using the binary cross-entropy function, which is

often used in the deep learning domain. To measure

the performance of the resulting network, various

metrics are calculated, which are: accuracy,

validation accuracy, average absolute error.

As a further regularization step, a callback

function implementing Early Stopping was

implemented to stop the teaching in time. The idea is

that it monitors the value of the validation loss

function and monitors the learning process of the

network, stopping it if the value of the function seems

to increase persistently over more than a predefined

number of epochs. In the case of the network, this

tolerance value is three epochs. The learning process

thus runs until it is stopped, or in other cases for 500

epochs.

The complete network configuration is

summarised in Table 1.

Table 1: Parameter values of the network.

Parameters Values

Learning rate 0.001-0.0001

Epoch count 500

Color mode RGB, 3 channels

ut format

(

248 × 248 × 3

)

Data Au

mentation Yes

Activation function ReLU, Softmax

Optimize

RMSprop

Dropout laye

Yes, rate = 0.2

3 RESULTS AND EVALUATION

During the testing phase, we tried to test the

constructed network with as many combinations of

IMPROVE 2022 - 2nd International Conference on Image Processing and Vision Engineering

parameters and complementary methodologies as

possible, with or without them, in order to obtain the

most optimal solution. As a consequence, each

attempt differs in several aspects.

As a first step, the built model was tested both on

the ISIC gallery processed by the demonstrated pre-

processing phase and on the raw database, thus testing

the need for pre-processing and segmentation. In both

cases, the model was instantiated with the same

parameterization as presented, so the results can be

considered representative. The constructed network

produced a segmentation accuracy approximately 6%

higher when using the former dataset, indicating that

the noise filtering phase does help the classification

process.

With this in mind, further experiments were based

on the processed data set alone, in some cases

supplemented by data augmentation steps. This

measure theoretically helps to diversify the database,

thereby increasing the number of cases covered and

improving the generalisation capability of the

network. The results of the two approaches are

summarised in Table 2.

From the analysis of the table just seen, an

interesting observation can be made: although higher

teaching and validation accuracy is observed for the

network that does not augment the data, the testing

accuracy indicates the performance superiority of the

latter. This is presumably due to the better

generalisation ability resulting from the increased

data set.

Table 2: Parameter values of the network.

No data

augmentation

Data

augmentation

applied

Color

mode

RGB RGB

Accuracy 83.07% 81.68%

Validation

accurac

77.22% 72%

Correct

melanoma

prediction

60 / 90 70 / 90

Correct

benign

prediction

88 / 90 86 / 90

All correct

prediction

148 / 180 156 / 180

Total test

accurac

82.22% 86.67%

In addition, it is also noticeable that the first

network was more prone to false-negative diagnosis,

as 30 out of 90 cases were considered benign,

otherwise cancerous lesions. In contrast, the network

learning on the augmented dataset made only 20 such

diagnostic errors, 33% fewer than the case without

data augmentation. It is worth noting that the number

of false positive predictions is almost identical, with

only a minimal difference. The learning process was

also monitored, so that, in addition to the loss

function, the evolution of the average absolute error

was also observed, with a value of 27.68% by the end

of the learning process.

4 CONCLUSIONS AND FUTURE

WORK

In summary, a relatively high classification accuracy

can be achieved using the InceptionV3 convolutional

neural network, even with a relatively small amount

of data. However, it is important to highlight that, as

shown in Table 1, the model tends to prioritise false-

negative diagnoses, even in cases where it is very

likely to be certain of the diagnosis. One possible

explanation for this phenomenon is that, when

examining the database, it can be stated that

photographs showing melanoma lesions contain a

higher degree of noise and are also fundamentally less

accurately segmented due to their asymmetric shape.

This reduced segmentation efficiency, in turn, leads

to an increase in the number of training samples that

become unusable, which in turn leads to a reduction

in the number of photos that can be used in the

learning process. Consequently, there is a minimal

imbalance in the proportion of samples used, which

may explain the phenomenon described.

While the idea of diagnostics relying specifically

on software solutions seems utopian for the time

being, the results of the system described here clearly

indicate the viability of using artificial intelligence in

this way, whether in melanoma diagnostics or other

medical fields.

The primary objective of the improvement is to

increase the classification accuracy achieved. To this

end, a number of steps can be formulated, mostly

aiming at increasing the number of database,

improving the efficiency of the pre-processing phase

or modifying the network architecture.

An obvious solution could be to increase the

number of cases covered. This could be done by

adding another database with similar samples to the

current dataset. On the other hand, resolving the

imbalance in the database could also lead to a

significant improvement, as it would allow the

exploitation of the full ISIC gallery. In the latter case,

Image-based Lesion Classiﬁcation using Deep Neural Networks

the use of one of the Oversampling and T-link

methodologies would seem to be worthwhile.

In terms of the pre-processing phase, the

improvement is to maximise efficiency. The

bottleneck in processing photographs is to determine

the longest contour line needed to locate the lesions.

This can be explained by the sensitivity of the formula

for calculating the threshold used to determine the

contour to certain parameters. For this reason, it

would therefore seem worthwhile to find a solution

that is less dependent on the average intensity of the

photograph and the patient's skin color.

From an architectural point of view, replacing the

currently used classification model could lead to an

improvement in accuracy. It may be worthwhile to

experiment with the VGG-16, a general-purpose

convolutional network, instead of the current

GoogleNet InceptionV3 model. Furthermore, the use

of two convolutional networks in combination, for

verification purposes, could be a more far-reaching

development direction.

In addition to increasing accuracy, it is also worth

focusing on reducing the number of false negative

predictions. The tendency of the system to produce

false-negative results has been mentioned on several

occasions, exposing the user to significant health

risks. To overcome this phenomenon, it may be useful

to implement a loss function that penalizes false-

negative results more than false-positive ones

(International Skin Imaging Collaboration, 2020).

ACKNOWLEDGEMENTS

The authors would like to thank both the GPGPU

Programming Research Group of Óbuda University

and the Hungarian National Talent Program (NTP-

HHTDK-21) for their valuable support.

REFERENCES

American Cancer Society (2016), Cancer Facts & Figures

2016, American Cancer Society, Atlanta, GA, USA.

Balch, Charles M., Atkins, Michael B., Garbe, Claus,

Gershenwald, Jeffrey E., Halpern, Allan C., Kirkwood,

John M., McArthur, Grant A., Thompson, John F.,

Sober, Arthur J.(2019) Cutaneous Melanoma, Springer

International Publishing, ISBN: 978-3-03-005068-9,

978-3-03-005070-2

Howard K. Koh M.D. (1991) Cutaneous Melanoma, In: N

Engl J Med. July 18, 1991, 325 pp. 171-182, DOI:

10.1056/NEJM199107183250306

International Skin Imaging Collaboration (2020) SIIM-

ISIC 2020 Challenge Dataset. International Skin

Imaging Collaboration https://doi.org/10.34970/2020-

ds01.

Jenei, AZ., Kiss, G., Tulics, M G., Sztahó, Z. (2021)

Separation of Several Illnesses Using Correlation

Structures with Convolutional Neural Networks, Acta

Polytechnica Hungarica, vol. 18. no. 7. pp. 47–66.

Kalouche, Simon (2016) Vision-Based Classification of

Skin Cancer using Deep Learning. Stanford

National Institute of Oncology (2016), National Cancer

visited: 2021.02.28

Rogers HW, Weinstock MA, Feldman SR, Coldiron BM.

(2015) Incidence Estimate of Nonmelanoma Skin

Cancer (Keratinocyte Carcinomas) in the U.S.

Population, 2012. JAMA Dermatol. 2015

Oct;151(10):1081-6. DOI: 10.1001/jamadermatol.20

15.1187. PMID: 25928283.

Russakovsky, O. et al. (2015) Imagenet large scale visual

recognition challenge. Int. J. Comput. Vis. 115, pp.

211–252.

Szegedy, C., Vanhoucke, V., Ioffe, S., Shlens, J. and

Wojna, Z. (2016) Rethinking the inception architecture

for computer vision. In: Proc. of the IEEE Conference

on Computer Vision and Pattern Recognition (CVPR),

pp. 2818-2826

IMPROVE 2022 - 2nd International Conference on Image Processing and Vision Engineering
