Risk-driven Model-based Architecture Design

for Secure Information Flows in Manufacturing Infrastructures

Loris Dal Lago

, Fabio Federici

, Davide Martintoni

and Valerio Senni

Applied Research and Technology, Collins Aerospace, Piazza dell’Indipendenza 23, 00185 Rome, Italy

Keywords: Risk Assessment, Information-flow Security, Model-based Design, Industrial Manufacturing Security.

Abstract: Modern manufacturing infrastructures leverage internet and intranet connectivity to guarantee the remote

execution of services at the shopfloor level, continued operations and remote reconfigurability. Nonetheless,

equipment used in industrial plants is not always prepared to withstand the security challenges introduced by

increased connectivity demands, thus exposing the overall system to security threats. We propose a model-

based approach to combine secure design of digital infrastructures for manufacturing with a rigorous security

risk assessment, enabling trusted connectivity for equipment, with a robust analysis method for the evaluation

of their security properties. To that aim, information flow paths are captured between functions and equipment,

assets and threats are identified, mitigations and new security requirements are defined. Mitigations are then

propagated to the level of implementation, where we rely on hardware-enforced isolation to provide trusted

computation and data protection. In this paper we demonstrate our methodological approach using an

extension of the SysML language for threat modelling and by relying on ARM TrustZone for hardware

isolation. Our approach is sufficiently general to be reused for other domains and alternative technologies.

1 INTRODUCTION

In the age of IoT and connected infrastructures, the

security of systems is of paramount importance for

the availability of services and the reputation of

companies providing those services. The domain of

digital manufacturing has started to focus, more and

more, on remote collaboration solutions, rising the

challenge of new connectivity demands and entailing

strong obligations to secure data produced and stored

by manufacturing equipment. At the level of shop

floors, information is essential to optimize operations,

guarantee products quality, support innovation and

reduce costs related to certification (Int. Data Spaces

Assn., 2021). Moreover, manufacturing solutions for

safety-critical products (e.g., for automotive or

aerospace application domains) require a high level

of security assurance, to establish trust in the supply

chain and ensure the safety of the end systems. In this

domain, it is common to use third-party’s equipment,

whose detailed functions and security configurations

https://orcid.org/0000-0001-6098-1793

https://orcid.org/0000-0003-4179-3986

https://orcid.org/0000-0002-1648-0104

https://orcid.org/0000-0002-1131-0384

may be only partially available. It is well known, on

the other hand, that the endpoints of a network

infrastructure are frequently the weakest nodes, due

to their limited computational capabilities and

inevitable presence of legacy, thus becoming easy

vectors for broader attacks (Dragos, 2021).

Motivated by these considerations, we propose a

systematic approach that (1) combines the design of

digital manufacturing infrastructures with their

security risk assessment, by identifying current

threats and evaluating the level of risk associated with

them, (2) supports the identification of mitigations to

the found security threats, (3) helps tracing the

security elements to the architectural components

they relate to and (4) guides the implementation of

security measures, with focus on the protection of

remotely accessible endpoints.

As a first step, our approach leverages model-

based representations of architectures to analyze

information flows and security policies, support the

identification of weaknesses, quantify their induced

Dal Lago, L., Federici, F., Martintoni, D. and Senni, V.

Risk-driven Model-based Architecture Design for Secure Information Flows in Manufacturing Infrastructures.

DOI: 10.5220/0011144700003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 499-506

ISBN: 978-989-758-590-6; ISSN: 2184-7711

499

risks, and propose mitigations for the unacceptable

ones. Mitigations induce new security requirements

and their allocation to elements of the architecture.

The fulfillment of the new security requirements

is then supported by providing guidance and best

practices for the addition of Architectural Patterns

(i.e. architectural solutions for the enforcement of

security properties) and the use of Security Building

Blocks (i.e. SW/HW implementation solutions that

can be used to realize specific security functions). In

the case of reference we will introduce a gateway as

an Architectural Pattern to manage the separation of

information flows of legacy endpoint equipments. We

will further use SW routines on top of hardware-

enforced isolation primitives as the Security Building

Blocks, allowing to protect edge components and

their data during the execution of sensitive processes.

To facilitate adoption and minimize disruption of

existing processes, our approach is developed on top

of well-recognized modeling tools/languages and

established risk analysis practices. We present the

evaluation of the approach on a remote maintenance

case study, where components of different parties and

with different levels of trust access share functions

within the boundaries of the same architecture.

The paper is structured as follows. Section 2

describes our security risk assessment methodology.

Section 3 provides details on the use of SysML

models for risk assessments. Section 4 showcases the

application of our method to a case study inspired by

the manufacturing domain, with details on how the

required mitigations are implemented. Finally, we

discuss related work and future directions.

2 SECURITY RISK ASSESSMENT

The literature offers several approaches to

cybersecurity risk assessment (Rocchetto, Ferrari, &

Senni, 2019) and their terminology vary from one

approach to the other, based on the domain and

community. Our terminology and workflow are

inspired by the cybersecurity risk assessment

guidelines of DO-326A/DO-356A aerospace

standards, whose guiding principles are sufficiently

general to be applied to domains other than aerospace.

With these premises, we start our discussion by

defining the key terms used in the rest of the paper:

Asset: a valuable logical or physical resource that

requires protection from a security perspective.

Security Policy: the rules to determine the allowed

security interactions for a system, including the

identification of trusted flows of information from

assets to internal and external entities.

Attack Vector: an exploitable entry point or interface

on the system architecture for external malicious

actors to perform an attack.

Threat Condition: an unwanted condition (or state) of

an Asset, caused by the activity of external

malicious actors, with consequences to the security

the overall system.

Threat Model: a characterization of a set of Threat

Conditions in terms of target Assets, evaluated

against envisioned activities of external malicious

actors and their accessibility to Attack Vectors.

Threat Scenario: a description of a potential

unauthorized interaction by an external malicious

actor, identifying the Attack Vector and the path in

the architecture leading to a Threat Condition.

Risk: a quantitative account of the Threat Conditions

associated to a specific Asset, in terms of severity

and exposure to the identified Threat Scenarios.

Risk Evaluation: the analysis of all Threat Conditions

affecting an Asset to quantify the associated Risk.

Risk Mitigation: the quantitative reduction of a Risk

by modification of an architecture to reduce the

impact, severity or occurrence of Threat Scenarios.

Security Measure: The response to a Risk Evaluation,

identified by activities of Risk Mitigation.

The methodology and high-level workflow to the

security risk assessment of digital manufacturing

architectures is provided in Figure 1.

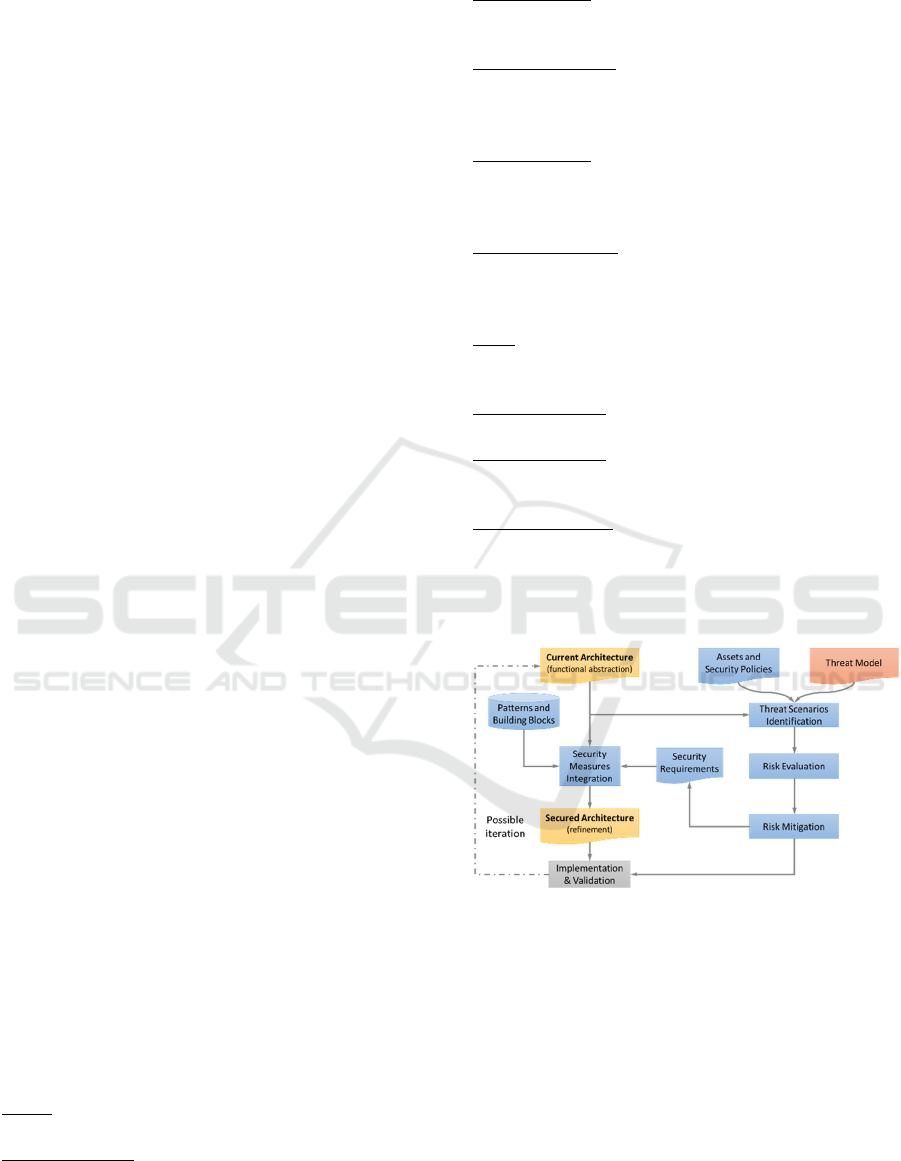

Figure 1: Methodology for risk assessment.

On the left of the picture, we represent the desired

improvement of the Current (potentially unsecure)

Architecture to a final Secured Architecture, achieved

through the integration of appropriate Security

Measures. The initial version of the Current

Architecture is a preliminary description of the

system, representing either a legacy infrastructure, a

new design, or a mix between the two. Improvement

of this architecture may, in some cases, require a few

iterations, until all appropriate mitigations are in

place. In this paper the Current Architecture is

SECRYPT 2022 - 19th International Conference on Security and Cryptography

500

assumed to be available, and we defer to future work

the challenges associated to creating one.

On the right of the picture, we represent the

process through which the Security Measures are

derived, based on the Security Requirements yielded

by the workflow. The key inputs to this process are

Assets, Security Policies, and the Threat Model.

Those inputs, in conjunction with the Current

Architecture, are used to identify the Threat

Scenarios, which are described in terms of elements

of the Current Architecture. Then, Threat Scenarios

are analysed to provide a Risk Evaluation. This step

is performed by aggregating Threat Scenarios by

their cumulative impact on Assets and considering

their realization complexity. This leads to the

systematic identification of potential weaknesses in

the Current Architecture and a characterization of

information flows, which may expose the overall

system to the occurrence of Threat Conditions. Thus,

the final step consists in the selection of the above-

threshold (unacceptable) risks and identification of

appropriate Risk Mitigations to address those risks.

The introduction of Risk Mitigations facilitates

the generation of new Security Requirements,

yielding the refinement of the Current Architecture to

the Secured Architecture. Driven by the experience

of the architect, security requirements may lead to the

reorganization of the information flows, the

introduction of additional (security) functions and the

encapsulation of existing ones in protected context.

Architectural Patterns and Security Building Blocks

are considered at this stage, as defined in the

introduction, to support the refinement process.

At this point, the Secured Architecture will drive

the implementation. Being the implementation more

concrete, it may hide additional weaknesses and

influence security at the level of multiple Risks.

Therefore, to prove the efficacy of mitigations after

the implementation, the identified Security Measures

and their integration are validated. In case this

validation phase finds weaknesses at this level,

further iterations and analyses are induced with

feedback to the Current Architecture, and additional

security improvements are provided by the workflow.

3 MODEL-BASED SECRA

To realize the Security Risk Assessment (SecRA)

workflow presented in Section 2, we present a model-

based approach. We base this work on the SysML

modelling language, extended with a specific profile

for supporting the workflow and analysis. This profile

supports the organization of security concepts on top

of the system architecture, as well as their traceability

to system artifacts and associated requirements.

To that aim, components are represented by

SysML Blocks, instantiated as so-called Parts in

Internal Block Diagrams, and connected by their

Ports via Connectors. SysML also provides the native

notion of Requirements, which we split between

Customer Requirements and System Requirements.

Both types of requirements can be linked to

architectural components via allocation relationships.

This is a very typical and general infrastructure in

SysML modelling, which we employ in our remote

maintenance case study to support the security view.

In the following section, we shall further use the

concept of SysML stereotypes, which are language

primitives to define custom language extensions, by

allowing the definition of a meta-model on top of the

existing SysML constructs. The elements of the new

meta-model are endowed with specific meaning and

the so-called tags to define their properties. More

information about SysML and its constructs can be

found in the related standard (OMG, 2019).

3.1 Language Extension for Security

A selected portion of our meta-model, showing the

most relevant tags and the relationships between

elements, is represented in Figure 2. The lower part

of the figure (green) represents the model elements of

the Current and Secure Architectures, as defined in

Section 2. They include Customer and System

(Security) Requirements, allocated to architectural

components, implementing traceability relationships

to provide assurance evidence in case of certification

or regulatory compliance. As represented on the

rightmost part, the requirements are fed by the Risk

Mitigations identified as an outcome of the Security

Risk Assessment workflow defined in Section 2.

The upper part of Figure 2 (yellow) represents the

security aspects of our methodology. In particular:

Assets – having a tag named “Intangible Asset

Protection” (IAP), which specifies their impact to

immaterial KPIs such as Company Reputation,

Product Quality, Intellectual Property, and others.

Assets also have “Kinds”, indicating whether they

represent Logical Data, Physical Interfaces,

Software, Storage or Logical State.

Threat Conditions – with a tag named “Impact On”,

used to indicate whether the threat condition impacts

Confidentiality, Integrity or Availability of the related

asset. The “Operational Phase” relates the threat

condition to system life-cycle or behavioural phases,

such as Installation, Maintenance, Dismissal,

Nominal, Transient, Faulty. Finally, the “Attack

Risk-driven Model-based Architecture Design for Secure Information Flows in Manufacturing Infrastructures

501

Severity” tag indicates the effect of the attack,

when successful, with values such as Low, Medium,

High, and Critical. The “Involved Asset” relation

indicates the asset involved in the threat condition.

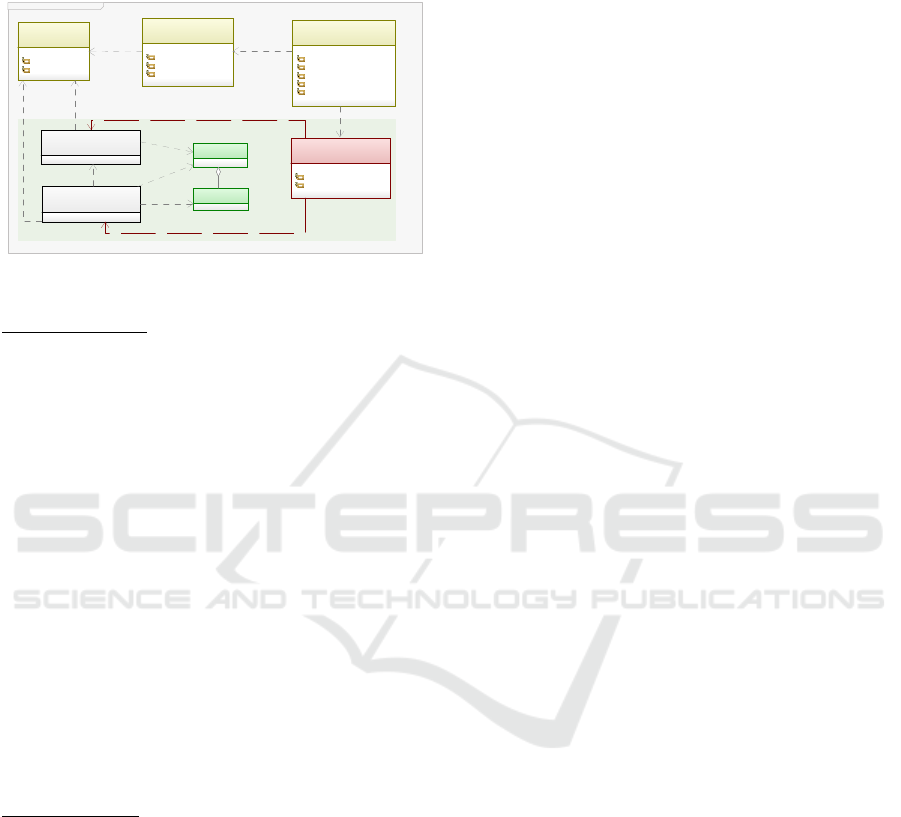

Figure 2: SysML meta-model of the security extension.

Threat Scenarios – with two tags associated to

“Attack Complexity”, populated before and after the

identification of risk mitigations, respectively. In the

initial threat scenario, a mitigation might not be

available and the only attack complexity under

analysis is the default one. When a mitigation is

identified, the attack complexity is updated

accordingly with a new, higher value. Values

available for this tag are Low, Medium, High and

VeryHigh. The tag called “Attack path” is (currently)

a textual description of the scenario. The tag “Attack

sources” is populated from a user-defined and

system-specific set of SysML actors, whereas the

“Attack Vectors” are identified as the ports on the

system model. Finally, the “Threat Condition” and

the “Risk mitigation” relations indicate, respectively,

the threat conditions involved in a specific threat

scenario and the and the mitigations in place to reduce

its impact or complexity. For any new mitigation we

expect an update of the “Attack Complexity” tags.

Risk Mitigations - are provided with a tag called

“Effect”, specifying whether the mitigation is

supposed to have Preventive, Detective, Corrective or

Deterrent role on the security hardening of the design.

The “Kind” indicates whether a mitigation is to be

implemented by Technical means, Process means or

by means of a Guideline. Finally, the “Implemented

By” relation indicates the requirements involved in

the fulfilment of a mitigation. This relationship is

populated with links to security requirements, which

stem out of mitigations identified by our workflow.

We note that in or security language extension we

prefer to use abstract values (such as Low, High, …)

over definite numbers or number ranges representing

specific quantities. On the one hand, this allows to

deal with simpler concepts, not requiring deep levels

of detail to be available during design. On the other

hand, this also keeps the space of possibilities

bounded to a limited size and allows to perform the

security assessment at a higher level of granularity.

The linkage between top and bottom areas of

Figure 2 is captured by the relationships of the system

and customer requirements with the security assets

(on the input side) and with the risk mitigations (on

the output side). In practice, this allows the realization

of the workflow of Section 2 and the execution of the

security risk assessment activities in parallel to the

system definition. Thus, our approach enables (i)

traceability between components, (ii) easy navigation

from one artifact to another in the model and (iii) the

representation of the impact of one artifact to the rest

of the system and its components.

3.2 From Modelling to Risk Evaluation,

Mitigation, and Validation

With all relevant security aspects of the system

captured as part of the model, the Risk Evaluation

task can be executed. Automated tools extensions are

used to navigate the model, extract information, and

quantify Risks by a user-defined multi-objective Risk

Evaluation Function (not shown in our meta-model).

For each of the Threat Scenarios, the Risk is

computed by considering attack severity, attack

impact and attack complexity scores (Rocchetto,

Ferrari, & Senni, 2019). Thus, Threat Scenarios can

be ranked by their Risk, and those whose value is

above a user-defined acceptable thresholds are

identified. Risks can further be combined per-Asset or

per-Threat-Condition, to study their cumulative

impact. By analysing commonalities between Threat

Scenarios associated to the same Risk, architectural

weaknesses causing multiple Threat Scenarios are

also identified. In a longer-term vision, this will

enable trade-off analyses and study alternative

mitigation strategies, where cost, risk-reduction,

architecture impact, and new architecture design

needs are all considered.

It is worth noting that, since a full-blown

behavioural system model is generally unattainable

due to the existence of legacy and third-party

components in the manufacturing environment, we

perform the analysis and derive appropriate

mitigations by only using information available to

engineers at a sufficiently high level, without creating

separate behavioural representations of the security

policies or the threat model. Although this step may

become useful once the architecture is consolidated,

we do not see, for now, the need for that enrichment.

bdd [Pa cka

e ] S e cRA [S ecRA _BDD]

Asset

«Stereot

pe»

Tags

IA P :IA P_ T yp e

Kin d:A ss etTy pe

ThreatScenario

«Stereotype»

Tags

attack_complexity:AttackCom plexity

C_after_miti

ation:AttackComplexi

attack_path:string

at tack _so ur ces :Att ac ker

attack_vector: Port

ThreatCondition

«Stereot

pe»

Tags

impa ct_on:A ttackImpact

op_phase:OperationalPhase

se veri ty:Att ac kS eve rity

threat_condition

involved_as set

ThreatMitigation

«Stereotype»

Tags

effect:ThreatMitigationEffect

kind: ThreatMitiga tionKind

threat_mitigation

CustomerRequirement

«Requirement»

«Associates asset»

<<implemented by>>

stem

«allocate»

SystemRequirement

«Requirement»

«allocate»

«Ass ociates asset»

<<implemented by>>

der ives from

subsystem

«allocate»

System definition

SECRYPT 2022 - 19th International Conference on Security and Cryptography

502

As a final activity, the methodology presented in

Section 2 envisions a validation phase, with the intent

of confirming effectiveness of mitigations after

implementation. After this phase, a reassessment of

the security risks may be required, and additional

mitigations may be introduced. The model and the

traceability relationships support consistency, enable

the insertion of new mitigations and a quick efficient

re-assessment of the architecture security. So far, we

have only performed limited sets of validations on our

implemented reference example. We have not yet

exercised the full approach at-scale.

4 REMOTE MAINTENANCE

The vision of Industry 4.0 revolves around

connectivity, edge intelligence, and data integration.

Two of the major obstacles to the realization of this

vision are (1) the cybersecurity risks inevitably

introduced by increased connectivity, and (2) the

need of retrofitting legacy equipment, unable to offer

the requested capabilities.

Frequently, Industry 4.0 infrastructures are

structured into layers, where Operation Technologies

(OT) and Information Technologies (IT) reside in

separate networks. The OT segment typically hosts

all the manufacturing equipment, while the IT

segment contains all the enterprise services

(engineering, quality, business, process monitoring

and optimization). This infrastructure, inspired by the

Purdue architectural model (Williams, 1994), divides

the IT layer into three sublayers: one dedicated to the

manufacturing plant operations, one dedicated to the

global and cross-plant operations and another,

external, where stakeholders of the overall

manufacturing ecosystem can collaborate.

Partitioning of each layer into segments is typical, to

mitigate the impact of potential attacks (through

lateral movement). Also, communication across

segments and with the external world is regulated

through firewalls, with stringent authorization rules.

The IEC organization defined the 62443 family of

standards (Schneider Electric, 2018) to provide

guidance in applying cybersecurity best-practices to

manufacturing infrastructures. The core notions of

security promoted by the 62443 are those of Zones

and Conduits. The first notion consists in grouping

assets with similar security requirements and

enforcing boundaries of protection with the external

world. The second notion consists in identifying

communication paths between zones with different

security requirements and enforcing controls on

access and exchanged information.

In this section we consider a practical example of

remote maintenance and discuss some of the

challenges to provide access to the equipment of the

plant while enforcing suitable security policies (in

accordance with the notions of zones and conduits).

The security requirements and mitigations identified

during the security risk assessment determine how the

information flows at different levels shall be managed

securely. The use of an Industrial Gateway as an

architectural pattern is a common practice in

manufacturing - e.g., to guarantee interoperability

among different standards or push computations

closer to the edge. Here we are extending its

application to the enforcement of conduit security

requirements, to provide confidentiality and integrity

of manufacturing data and computations.

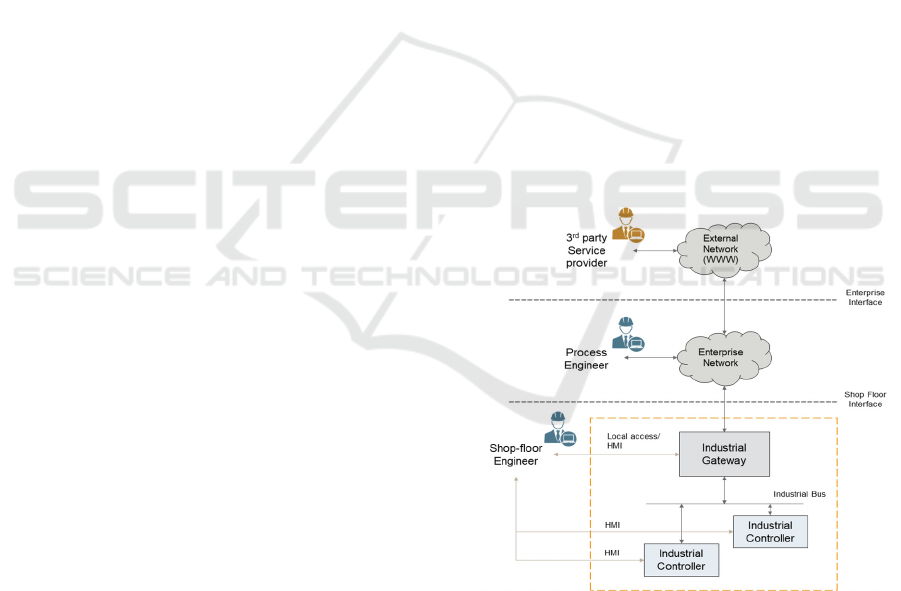

As a reference throughout the section, Figure 3

represents the remote maintenance case study. The

orange box represents the boundary of the risk

analysis. It includes endpoint industrial controllers

(subject to maintenance) and an intermediary

gateway. In the Secured Architecture the gateway

hosts the security measures required to regulate the

flow of information to the controllers. Information

flows may be categorized into “low-security”, such as

periodic maintenance, or “high-security” such as

industrial controllers firmware/configuration updates.

Figure 3: Remote maintenance case study.

The following actors will need interact with the

shop-floor devices: (i) the shop floor engineer, in

charge of routine operation of industrial controllers,

(ii) the process engineer, in charge of process

efficiency and manufacturing quality control by

remote interaction with the shop floor devices, and

(iii) the third-party service provider, in charge of

executing (through remote access) maintenance

Risk-driven Model-based Architecture Design for Secure Information Flows in Manufacturing Infrastructures

503

services, such as execution of diagnostics or firmware

updates of shop-floor devices.

The main security requirement of the case study is

the runtime protection of sensitive data and

computation assets, such as communication

interfaces connecting the gateway and the controllers

and confidential data stored on the gateway, avoiding

unintended interference of third-party activities.

4.1 Method Application

We applied the methodology and modelling approach

described in Section 3 to the remote maintenance case

study. As a first step, we developed a SysML model

(Current Architecture) including actors (shopfloor

and process engineer, third-party service provider)

and main architectural components (industrial

gateway and industrial controllers). The information

flows traversing the industrial gateway are

categorized as: (1) Controllers Diagnostics, (2)

Engineering and Production Data, (3) Controllers

Configuration. We also identified Assets, including

Diagnostic Data (whose integrity is needed for plant

operations), Engineering or Production Data (subject

to confidentiality for IP protection), Configuration of

SW (subject to integrity to guarantee product quality),

and Logs (essential for auditing and security

forensics). In addition, we captured the Security

Policies, specifying what is allowed/forbidden (e.g.,

the flow of Production Data to a third-party service

provider not being allowed). Violation of policies

may cause a damage to one or more assets, realizing

a Threat Condition. Those are captured referring to

Assets and potential events, including (e.g.)

“Diagnostic Data Integrity Compromise”,

“Engineering or Production Data Leaked outside the

company boundaries”, “Configuration of SW

Integrity compromised during Maintenance”. As

prescribed by our meta-model, a Threat Condition has

an associated security impact (Confidentiality,

Integrity, or Availability) and severity (Low to

Critical). The Threat Model is also relevant, as it

describes the entry points used by malicious external

actors, as well as their target Assets.

All information available in the model facilitates

the comprehensive identification of Threat Scenarios,

which describe attack paths (e.g., “An internal user

logs into the gateway as a normal user, bypasses the

access permission mechanism by exploiting

unforeseen information-flow paths”). As prescribed

in our meta-model, Threat Scenarios have an

associated Attack Complexity, ranging from

VeryHigh to Low. Threat Scenarios were

documented in a table within the SysML model and

automatically ranked, using a simple Risk Evaluation

Function defined as a sum of values associated with

the severity, impact, and complexity scores. All

Threat Scenarios with a Risk Evaluation higher than

a critical threshold were selected for mitigation.

The identification of appropriate mitigations was

driven by the analysis of all the critical Threat

Scenarios. Traceability to model elements supported

the identification of some critical sub-functions that

are shared across information flows, subject to

different Security Policies. As an example, different

information flows share the common need of storing

data or SW and retrieving it for later use. Similarly,

both Engineering/Production and Maintenance flows

require access to critical configuration APIs of the

controllers, but with different authorizations. Sharing

such functions/interfaces exposes the system to the

risk of violation of security policies. For this reason,

the Risk Mitigation activity led to the identification

of highly trusted core functions, such as isolation of

process execution and diagnostic data protection.

Security requirements are defined and linked to

those functions: e.g., (r1) Diagnostic and Engineering

Data shall be stored in isolated environments with

non-by-passable access control, (r2) Configuration

APIs access shall be isolated from the main

(untrusted) execution environment. At the software

architecture level (shown in Figure 4), sensitive data

and functions were marked as trusted and placed in

an isolated execution environment endowed with

implementation primitives that we could selectively

use per our methodology as Security Building Blocks.

4.2 Platform Selection

For the enforcement of isolation between the trusted

components of our reference example, we selected a

Trusted Execution Environment (TEE) technology.

TEEs are secure domains of computing platforms that

achieve high-assurance isolation by exploiting

hardware-enforced separation and access control. In

this manner, sensitive data and functions can be

stored, processed, and protected to different levels of

security. The use of TEEs guarantees (1) Isolated

execution, (2) Secure storage, (3) Local and remote

Attestation, (4) Secure provisioning and (5) Trusted

path (Vasudevan & et. al, 2012). TEEs offer

protection against software attacks generated in Rich

Execution Environments (REEs), that are full-fledged

environments with less reliable security protection.

To prototype our implementation, we targeted an

Arm hardware architecture, including Arm TrustZone

as a TEE. Since Arm v6 architecture (Pinto & Santos,

2019), the TrustZone technology introduced two

SECRYPT 2022 - 19th International Conference on Security and Cryptography

504

isolated protection domains (worlds) that the Arm

processors operate in, called secure world and normal

world. We used this technology to run tasks at

different levels of trust (and support the isolation of

information flows), as well as to protect data.

At firmware level, we considered the OP-TEE

framework as a mature supporting solution. OP-TEE

is an open-source framework implementing a TEE on

top of Arm TrustZone for the Arm Cortex-A family.

OP-TEE provides an open-source implementation of

the GlobalPlatform API, currently one of the most

mature industrial TEE specifications.

The architectural model of our case study has been

used to derive (manually, for the moment) the code

structure on top of the OP-TEE runtime. Trusted

components were associated to the TEE primitive of

Trusted Applications, as shown in the SW

architecture in Figure 4. Related assets were mapped

to data items associated to TEE secure storage. Non-

trusted components (e.g., clients for external

interactions) were associated to the primitives of the

REE (Linux), to ensure they did not interfere with the

primitives of the TEE. Finally, ports and connectors

in our architecture were associated to inter-process

communication primitives and those between trusted

and non-trusted components associated to OP-TEE

service calls to uphold the separation between them.

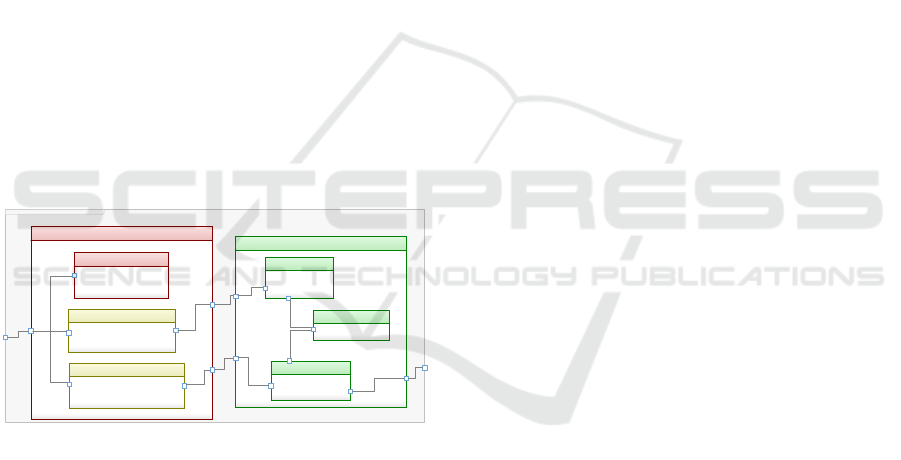

Figure 4: Industrial Gateway software architecture.

5 RELATED WORK

In recent years, the concept of secure remote

maintenance has been explored in various works.

(Schwarz & et. al, 2020) propose a hardware-based

solution to isolate sensitive segments of the network

from the broad internet, exploiting hardware

separation between the external maintainer and the

maintenance target. (Kern & Anderl, 2019) exploits a

software defined network (SDN) design, combined

with an attribute-based policy framework, to

implement secure network management during

remote maintenance sessions. (Kasinathan & et al.,

2021) apply a workflow-based approach to model and

enforce access-control on a remote maintenance

scenario. From a security standpoint, those solutions

focus mostly on network and access control. Our

approach, instead, aims at providing information flow

security enforcement by design, at the level of the

system security architecture, exploiting industrial

gateways at the edge and trusted implementation

building blocks, thus being complementary to those.

The literature also offers several graphical and

model-based approaches to support security

assessments (Jürjens, 2002), (Roudier, 2015), (Gluch,

2019). Although similar in spirit, our approach

extends them by proposing an over-encompassing

workflow that aims at deriving implementations that

can be readily assessed realizing system-level

security policies. The CORAS methodology (Lond &

et al., 2011) was the first to link architectural elements

with cybersecurity risk assessment. In the current

work, we enriched a formal architecture modelling

language with security concepts, while CORAS

proposed the use of independent modelling artefacts.

In previous work (Rocchetto, Ferrari, & Senni, 2019)

we investigated techniques for fully automated threat

scenarios generation, although relying on significant

modelling effort and missing the implementation of

security mitigations. (Enoch & et al., 2021)

summarizes approaches for security attacks

modelling, pointing out the need for hierarchical and

compositional approaches, which is one of the

motivations that led us to use SysML. In this work we

adopt a recognized modelling notation, enabling

future automations, and we also support the design

and implementation of security mitigations by using

a specific security technology (TEEs) and pre-defined

security building blocks, reducing end-user effort.

A limited number of works relate information

flow security to the design and verification of systems

leveraging Trusted Execution Environments.

(Gollamudi & Chong, 2016) analysed the use of

enclaves to enforce information flow security policies

against attackers able to inject arbitrary code outside

enclave boundaries. (Gollamudi A. S., 2019) also

analysed the problem of implementing distributed

application using TEEs. Our approach, instead,

supports design trade-offs evaluation as well as end-

to-end security design and validation, in the context

of a model-driven methodology.

6 CONCLUSIONS

In this paper we described a model-based

methodology to systematically analyse and improve

ibd [Block] IndustrialGateway [Industr ialGateway2]

:REE

:DiagnosticsTEEClient

etworkActivities

PHMInfo

:TouchScreenApp

NetworkActivities

:DeviceConfigTEEClient

etworkActivities

ExtDeviceMgmt

NwkActivities

:TEE

:Diagnostics

read_write

PHMInfo

:DeviceConfig

read_write

DeviceOps

ExtDeviceMgmt

:SecureStorage

read_write

DeviceO perations

Risk-driven Model-based Architecture Design for Secure Information Flows in Manufacturing Infrastructures

505

the security of manufacturing architectures. The

proposed methodology extends typical architecture

development processes, enriching the system-level

view with a security viewpoint. The methodology

guides the analysis of risks and their sources,

supporting structured mitigation, using trusted

architectural patterns and security building blocks.

The approach is effective if executed at the right level

of abstraction, supporting frequent re-assessments.

We demonstrated the approach on a remote

maintenance case study, showing how the identified

mitigations led to a sufficiently detailed design, apt to

derive a possible implementation. TEE primitives

were used as building blocks to realize isolation and

protection of sensitive data and functions.

One shortcoming of this approach is manifested

by the need of an initial architecture model, which

may be unavailable or costly to build for an existing

manufacturing infrastructure. We plan to explore the

use of automation to extract (parts of) the functional

architecture from network logs, including

components, assets, and information flows.

Another limitation of our approach is the large

space of potential threat conditions and scenarios, due

to the number of attributes and values in our meta-

model. Even in this case, we believe that the use of

automation can help in generating and selectively

addressing threat conditions and scenarios.

Finally, although we consider access to the

manufacturing network by third parties as a central

case study of our application, our method relies on the

assumption that the manufacturing architecture itself

is designed and managed by a single organization. An

interesting extension to our methodology is to use the

architectural model to foster security coordination

across different organizations. This scenario would

require a reformulation of the method, considering

collaboration tools and separation of tasks and

ownerships, which is out of the scope of this work.

ACKNOWLEDGEMENTS

This research is founded by the European Union’s

Horizon 2020 Research and Innovation program

COLLABS under grant No. 871518.

REFERENCES

Dragos. (2021). State of Industrial Cybersecurity.

Retrieved from https://hub.dragos.com/hubfs/

Reports/2021-Ponemon-Institute-State-of-Industrial-

Cybersecurity-Report.pdf

Enoch, S., & et al. (2021). Model-based Cybersecurity

Analysis: Past Work and Future Directions. Annual

Reliability and Maintainability Symposium (RAMS).

IEEE.

Gluch, D. (2019). AADL Security Annex [Draft].

Carnegie-Mellon U, US.

Gollamudi, A., & Chong, S. (2016). Automatic

enforcement of expressive security policies using

enclaves. ACM SIGPLAN Int Conf on Object-Oriented

Progr, Systems, Languages, and Appl (OOPSLA).

ACM.

Gollamudi, A. S. (2019). Information flow control for

distributed trusted execution environments. IEEE 32nd

Comp Security Foundations Symp. IEEE.

Int. Data Spaces Assn. (2021). Data Sovereignty – Critical

Success Factors for the Manufacturing Industry.

Retrieved from https://internationaldataspaces.org/wp-

content/uploads/dlm_uploads/IDSA-Position-Paper-D

ata-Sovereignty%E2%80%93Critical-Success-Factor-

for-the-Manufacturing-Industry.pdf

Jürjens, J. (2002). UMLsec: Extending UML for secure

systems development. Int Conf on the Unified Modeling

Language. Springer.

Kasinathan, P., & et al. (2021). Secure Remote

Maintenance via Workflow-Driven Security

Framework. IEEE Blockchain.

Kern, A., & Anderl, R. (2019). Securing Industrial Remote

Maintenance Sessions using Software-Defined

Networking. 6th Int Conf on SW Defined Systems

(SDS).

Lond, M., & et al. (2011). Model-based risk analysis – the

CORAS approach. Springer.

OMG. (2019). OMG System Modeling Language v.1.6.

https://www.omg.org/spec/SysML/.

Pinto, S., & Santos, N. (2019). Demystifying arm trustzone:

A comprehensive survey. ACM Computing Surveys

(CSUR), 1-36.

Rocchetto, M., Ferrari, A., & Senni, V. (2019). Challenges

and Opportunities for Model-Based Security Risk

Assessment of Cyber-Physical Systems. Resilience of

Cyber-Physical Systems (pp. 25-47). Springer.

Roudier, Y. a. (2015). SysML-Sec: A model driven

approach for designing safe and secure systems. 3rd Int

Conf on Model-Driven Eng and SW Devel

(MODELSWARD). IEEE.

Schneider Electric. (2018). Cybersecurity Assessment – The

Most Critical Step to Secure an Industrial Control

System. Retrieved from https://www.se.com/ww/en/

download/document/998-20298472/

Schwarz, K., & et. al. (2020). Conception of a Secure

Remote Maintenance Procedure Using Dedicated

Hardware. Society for Imaging Science and

Technology.

Vasudevan, A., & et. al. (2012). Trustworthy execution on

mobile devices: What security properties can my

mobile platform give me? Int Conf on Trust and

Trustworthy Computing, (pp. 159-178).

Williams, T. J. (1994). The Purdue enterprise reference

architecture. Computers in industry, Vol 24 (2). p.141-

158.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

506
