A Data Augmentation Approach for Improving the Performance of

Speech Emotion Recognition

Georgia Paraskevopoulou

, Evaggelos Spyrou

2,3

and Stavros Perantonis

Department of History & Philosophy of Science, National and Kapodistrian University of Athens, Athens, Greece

Institute of Informatics and Telecommunications, National Center for Scientiﬁc Research - “Demokritos,” Athens, Greece

Department of Computer Science and Telecommunications, University of Thessaly, Lamia, Greece

Keywords:

Emotion Recognition, Convolutional Neural Network, Spectrograms, Data Augmentation.

Abstract:

The recognition of the emotions of humans is crucial for various applications related to human-computer in-

teraction or for understanding the users’ mood in several tasks. Typical machine learning approaches used

towards this goal ﬁrst extract a set of linguistic features from raw data, which are then used to train supervised

learning models. Recently, Convolutional Neural Networks (CNNs), which unlike traditional approaches,

learn to extract the appropriate features of their inputs, have also been applied as emotion recognition clas-

siﬁers. In this work, we adopt a CNN architecture that uses spectrograms, extracted from audio signals as

inputs and we propose data augmentation techniques to boost the classiﬁcation performance. The proposed

data augmentation approach includes noise addition, shifting of the audio signal, and changing its pitch or its

speed. Experimental results indicate that the herein presented approach outperforms previous work which not

use augmented data.

1 INTRODUCTION

The word “emotion” is composed of the preﬁx “e,”

which means “out” and the word “motion,” which

means “to move.” Therefore, emotions are feelings

that make us move. That is, we experience them, we

express them, we recognize them, and use them to un-

derstand each other and make decisions, consciously

or not. It is worth reporting that the beginning of re-

search related to emotions seems to originate from

1872, i.e., when Darwin published his famous work

“The Expression of the Emotions in Man and Ani-

mals” (Darwin, 2015). He argued that all humans,

and even other animals, use similar behaviors to ex-

press their emotions. Nowadays, many psychologists

agree with Darwin that certain emotions are universal

to all humans, regardless of culture. These emotions

are known as the “big six,” i.e., anger, fear, surprise,

disgust, happiness, and sadness (Ekman and Oster,

1979; Cowie and Cornelius, 2003).

According to Cowie et al., when humans inter-

act, two communication channels are used (Cowie

et al., 2001). The speaker transmits explicit messages,

while the listener transmits implicit messages about

the speaker. The ﬁrst explicit channel has been a very

active research area, while the second implicit one has

been little studied in the last two decades. As a mat-

ter of fact, emotion recognition is a difﬁcult task due

to different ways of measuring and categorizing emo-

tions or their dependency on various factors that make

even humans misinterpret them. Nevertheless, emo-

tion recognition is a very important part of our lives

and as a result, it is extended to computers in order

to enrich artiﬁcial intelligence (AI) applications with

emotional intelligence. There are many applications

in human-computer interaction such as lie detection,

clinical diagnosis of schizophrenia, voice production

for synthetic agents, robots, or machines that act as

personal assistants. In addition, automotive environ-

ments use the information regarding the drivers’ emo-

tional state to apply safety strategies. Emotion recog-

nition is also applicable in gaming when the “intelli-

gent” video game recognizes the players’ mood and

makes the game more interesting and intractable if

e.g., they exhibit positive emotions, or easier in case

of negative emotions. All these applications share the

following: they take as input the users’ response or re-

action, detect their emotional state, and subsequently

make the appropriate decision.

Emotion recognition can be realized through the

use of various modalities. Visual signals such as fa-

cial expressions, gestures or body movements, and

Paraskevopoulou, G., Spyrou, E. and Perantonis, S.

A Data Augmentation Approach for Improving the Performance of Speech Emotion Recognition.

DOI: 10.5220/0011148000003289

In Proceedings of the 19th International Conference on Signal Processing and Multimedia Applications (SIGMAP 2022), pages 61-69

ISBN: 978-989-758-591-3; ISSN: 2184-9471

audio signals such as verbal and non verbal sounds

are widely used separately or upon the application

of fusion techniques; this way multimodal recog-

nition is accomplished. Textual features that may

be derived from speech could enhance the perfor-

mance of a system that recognizes emotions (Atmaja

et al., 2019). Moreover, biosignals like blood vol-

ume pulse (BVP) (Jang et al., 2015) or skin conduc-

tivity (Frantzidis et al., 2008) and brain signals from

electroencephalography (EEG) (Song et al., 2018) or

functional magnetic resonance imaging (fMRI) (Han

et al., 2015) have been used in several research works.

Note that it is difﬁcult or even impossible to collect

such signals out of a laboratory environment. Obvi-

ously, speech is the most available modality and in

certain applications e.g., in a call center is the only

one that may be collected. Furthermore, speech car-

ries a signiﬁcant amount of information which reﬂects

emotional content that can result in achieving high

recognition rates. For this reason, there is a ﬁeld of re-

search, namely “speech emotion recognition” (SER)

that aims to design systems that recognize emotions

using only audio signals. Ideally, an ideal SER sys-

tem should be universal and robust against language

or culture differences and variations (Schuller, 2018).

A deﬁnition of a SER system may be stated as “a

collection of methodologies that are used in order to

process and classify speech signals, detecting emo-

tions embedded in them” (Akc¸ay and O

guz, 2020). To

be able to efﬁciently and accurately recognize emo-

tions, a SER system requires a supervised learning

method, particularly a classiﬁer that will be trained

in order to recognize emotional states. For this pur-

pose, the availability of a certain amount of labeled

data is essential. Moreover, given a dataset of speech

signals, pre-processing is necessary; various impor-

tant features can be extracted in order to be given as

input to the classiﬁer. Prosodic, spectral, voice quality

features and features based on the Teager energy oper-

ator are common types of features (Giannakopoulos,

2015). Since these features are typically extracted us-

ing algorithmic approaches, they are often referred to

as “handcrafted” features. A wide range of classiﬁers

is commonly used such as Support Vector Machines,

Hidden Markov Models, Decision Trees, or Ensem-

ble Methods. Deep Learning techniques have been

recently dominating this research area, leading to im-

pressive results, while they are able to learn from raw

speech data, i.e., without the need of handcrafted fea-

tures.

The rest of the paper is organized as follows: re-

lated work is presented in Section 2. Then, in Section

3 the proposed augmentation approach is presented

along with the neural network architecture and the

training strategy that has been adopted. Experiments

are presented in Section 4. Implementation details are

presented in Section 5. Finally in Section 6, we con-

clude the paper with a perspective analysis of possible

future work.

2 RELATED WORK

Emotion recognition approaches typically extract

some low-level features and a classiﬁcation algo-

rithm is then used to map them to emotion classes.

The learning algorithm uses the labeled data and ap-

proximates the mapping function, which helps pre-

dict the class of new input. Hidden Markov Models

(HMMs), Gaussian Mixture Models (GMMs), Sup-

port Vector machines (SVMs), and Artiﬁcial Neu-

ral Networks (ANNs) are the most common classi-

ﬁcation approaches. Classiﬁers based on Decision

Trees (DTs), k-Nearest Neighbor (k-NN), k-means,

and Naive Bayes (NB) are also often used. Lastly,

several SER systems use ensemble methods that com-

bine several classiﬁers so as to obtain better results.

An example of such an approach is the work of

(Shen et al., 2011). They achieved 82.5% accuracy

using a SVM trained on a combination of prosodic

and spectral features, such as energy, pitch, Linear

Prediction Cepstrum Coefﬁcients (LPCC) and Mel

Frequency Cepstrum Coefﬁcients (MFCC). Schuller

et al. (Schuller et al., 2003) compared two methods.

In their ﬁrst method, they used global statistics fea-

tures from the raw pitch and energy contour of the

speech signal and classiﬁed them using GMMs. Each

emotion was modeled by one GMM and the max-

imum likelihood model was considered as the rec-

ognized emotion at a time throughout the recogni-

tion process. In their second method, the temporal

complexity increased by applying continuous HMM

and using low-level instantaneous features rather than

global statistics. The average recognition accuracy of

seven discrete emotional states exceeded 86% using

global statistics, whereas the overall recognition rate

on average of ﬁve human deciders for the same corpus

was 81.3%. In (Koolagudi and Rao, 2012), the au-

thors used auto-associative neural networks (AANN)

to capture the emotion-speciﬁc information from ex-

citation source features, GMMs for developing the

models using spectral features, and SVMs to discrimi-

nate the emotions using prosodic features, separately.

Then, they used fusion techniques in order to com-

bine the three kinds of features, increasing the perfor-

mance up to 79.14% for the Emo-DB dataset.

Unlike most researchers who mainly rely on the

classical frequency and energy-based features there

SIGMAP 2022 - 19th International Conference on Signal Processing and Multimedia Applications

are various works that propose new features, such as

(Yang and Lugger, 2010). Therein, some new har-

monic features have been proposed. Moreover, (Xiao

et al., 2010) also used harmonic features, combin-

ing them with Zipf-based features to enhance speech

emotion recognition. They achieved 71.52% recogni-

tion rate for the Emo-DB dataset, and 81% for the

DES dataset. Similarly, (Wu et al., 2011) attained

91.6% recognition rate using prosodic and modula-

tion spectral features. In (Bitouk et al., 2010), the au-

thors introduced a novel set of spectral features, statis-

tics of Mel-Frequency Cepstral Coefﬁcients com-

puted over three phoneme type classes of interest –

stressed vowels, unstressed vowels and consonants

in the utterance outperforming traditional prosodic or

spectral features. Moreover, their results indicated

that spectral features from consonants may outper-

form the ones of vowels.

A typical problem that is often faced by SER sys-

tems is that typical datasets are recorded in a noise-

free studio environment. However, inputs from prac-

tical applications include noise, whose effect on the

accuracy of recognition may be severe. In (Tawari

and Trivedi, 2010), the authors used a locally col-

lected audio-visual database of effective expression in

a car (LISA-AVDB) presenting a more realistic sce-

nario. They also proposed an adaptive noise can-

cellation scheme which signiﬁcantly improved re-

sults. Moreover, in (Chenchah and Lachiri, 2016)

experiments with audio recordings from IEMOCAP

database (Busso et al., 2008) have been presented

upon adding real world noises (e.g., car, train and

airport) over samples. Results upon denoising were

compared to those before denoising and those with-

out noise to measure the system performance, obtain-

ing better results for the former.

During the last few years, the performance of the

deep learning algorithms exceeded the one of the tra-

ditional machine learning algorithms, hence many

research efforts have focused on deep learning and

have also become the current trend in SER research.

Deep learning is a class of machine learning algo-

rithms that uses complex architectures of many in-

terconnected layers, each consisting of nonlinear pro-

cessing units. Each unit extracts and transforms fea-

tures. Each layer’s input is the output of the pre-

vious one. The advantage of some of these algo-

rithms is that there is no need for handcrafted fea-

tures and feature selection. All features are automat-

ically selected and learned from raw data and typi-

cally lead to higher performance. Of course, this is

achieved with the cost of higher computational time.

The most widely used deep learning algorithms and

architectures, which have been successfully applied to

emotion recognition domain, are Convolutional Neu-

ral Networks (CNNs) and Recurrent Neural Networks

(RNNs).

In (Stuhlsatz et al., 2011), Generalized Discrim-

inant Analysis (GerDA) based on Deep Neural Net-

works (DNNs) has been introduced, showing a highly

signiﬁcant improvement over traditional SVM ap-

proaches. Moreover, in (Huang et al., 2014) the

authors used a semiCNN with two stages. They

achieved superior results even in complex scenes

(e.g., with speaker and environment distortion) out-

performing traditional methods which use hand-

crafted feature extraction. Similarly, in (Trigeorgis

et al., 2016) an approach that learns from the raw time

representation, combining CNNs with long short-

term memory networks (LSTMs) has been presented.

In the work of (Zhao et al., 2019) two convolutional

neural networks and long short-term memory (CNN

LSTM) networks, 1-D and 2-D CNNs with LSTM

network for speech emotion recognition have been

presented. On the Emo-DB database, the 2-D network

obtained validation accuracy of 76.64% and 82.42%

with speaker-dependent and speaker-independent ex-

periments respectively. However, validation accuracy

is 62,97% and 52.14% on IEMOCAP database for

speaker dependent and speaker independent cases, re-

spectively. Finally, in (Zheng et al., 2015) CNNs have

been used on audio spectrograms and their superiority

over classical methods has been demonstrated.

Finally, the authors in (Papakostas et al., 2017)

presented an approach that uses a Convolutional Neu-

ral Network (CNN) as a classiﬁer for emotion recog-

nition. CNNs were responsible for identifying the im-

portant features of the input images. In this paper,

spectrograms were extracted from raw data and no

other extra features were required. Hand-crafted fea-

tures were only extracted for validation purposes and

no linguistic model was required. For their experi-

ments four audio datasets were used, namely Emo-

DB (Burkhardt et al., 2005), EMOVO (Costantini

et al., 2014) , SAVEE (Jackson and Haq, 2014) which

are publicly available, and a custom made one that

includes audio samples gathered from movies. Con-

sidering the absence of noise in typical datasets and

its presence within the real world, they added noise

in three different levels before extracting the spec-

trogram of each training sample. Their SER is not

speciﬁc to any particular language and indicated that

CNNs are able to provide superior results vs. tradi-

tional techniques that use hand-crafted features.

We should herein note that the addition of noise in

the work of (Papakostas et al., 2017) played the role

of data augmentation. Data Augmentation is a widely

used technique to tackle the problem of overﬁtting

A Data Augmentation Approach for Improving the Performance of Speech Emotion Recognition

that occurs due to insufﬁcient number of training sam-

ples. In typical applications, data augmentation may

enhance the extracted information from the original

dataset and is deﬁned as an artiﬁcial increase in the

size of the original training samples, through data

warping or oversampling. Data warping augmenta-

tions transform existing data such that their labels are

preserved. In most computer vision approaches that

utilize deep learning for classiﬁcation, data warping

encompasses augmentations like adding some noise,

horizontally ﬂipping, random crops, or color trans-

formations. Oversampling is the technique that cre-

ates synthetic instances and adds them to the original

training set.

In this paper, we present an approach that extends

the previously mentioned work of (Papakostas et al.,

2017). We also train a CNN with raw data, in an

attempt to conﬁrm that deep learning is indeed able

to replace typical approaches which need feature ex-

traction. However, our work is based on audio data

warping augmentation. This method is inspired from

computer vision data warping techniques; audio train-

ing samples are increased not only by adding noise

but also by shifting, changing pitch, or changing the

speed of the acoustic signal, prior to the extraction of

the spectrogram. To this point, it should be mentioned

that similar augmentation methods have already been

applied to a different task improving its results (Slimi

et al., 2022). Public audio databases are used to train

and test our model.

3 PROPOSED METHODOLOGY

3.1 Emotional Speech Dataset

For the experimental evaluation of our work we used

the EMOVO dataset (Costantini et al., 2014). This

database is the ﬁrst corpus for emotion recognition in

the Italian language. Fourteen sentences (assertive,

interrogative, lists) were performed from six actors,

three men, and three women. Sentences are based

on the big six emotional states plus the neutral state.

The semantic value of the phrases is emotionally neu-

tral in order to abet the actors not to be biased when

trying to express the right emotional state. Further-

more, for spectral analysis, some basic linguistic con-

ditions have been satisﬁed. It is worth noting that only

recordings with anger, fear, happiness, sadness, and

neutral emotional state were used in this work because

we wanted our results to be comparable with the re-

sults of (Papakostas et al., 2017). To sum up, 420

samples (i.e., 14 phrases × 6 actors × 5 emotional

states) were used to train our models

3.2 Data Pre-processing and

Augmentation

Before training, audio samples are randomly cropped

from the original audio signal in order to have the

same duration, i.e., 2 sec. It is well known that deep

learning approaches require large amounts of train-

ing data, in order to overcome the problem of overﬁt-

ting, which in turn leads to poor performance in un-

seen data. As a result, we feel that the aforementioned

420 samples were not enough to achieve satisfactory

classiﬁcation performance.

Assuming that the satisfactory results when using

EMOVO dataset with a deep learning approach (e.g.,

as in (Papakostas et al., 2017) are largely due to the

augmentation of the dataset (e.g., with the addition

of noise on audio samples) and inspired from com-

puter vision data warping techniques, we propose a

quite different approach so as to artiﬁcially augment

the dataset. To this goal, shifting, changing pitch,

or changing the speed of the acoustic signals are the

proposed transformations that we adopt in this work.

More speciﬁcally:

i. Adding Noise. Let x(t) be the original audio

signal, n(t) be a “standard normal” distributed

random value of noise, and N be a noise fac-

tor which depends on the Signal-to-Noise Ratio

(SNR). Then, the noisy signal ˜x(t) is calculated

as:

x(t) = x(t) + N · n(t).

ii. Shifting. The original audio signal is shifted to

left/right with a random time unit. If the audio

signal is shifted to the left for M units, a zero value

will be assigned to the ﬁrst M units. Similarly, if

the audio signal is shifted to the right for M units,

a zero value will be assigned to the last M.

iii. Changing Pitch. This audio deformation ran-

domly changes the pitch of audio signals.

iv. Changing Speed. This audio deformation

stretches time series by a ﬁxed rate. Thus, the

new audio signals are augmented by changing the

speed of the speaker’s voice at the original audio

signals.

We should herein note that augmentation factors

or parameters were appropriately chosen in order to

make subtle but perceptible changes to initial audio

signals. An audio signal example and its correspond-

ing augmented examples due to different kinds of

augmentation are illustrated in Fig. 1. Moreover, in

Fig. 1 the corresponding spectrograms are also illus-

trated for each case. The spectrograms we used in

this work have been extracted with 40 msec. short-

term window size and 20 msec. step. In our case,

we extended the initial training set which consisted of

SIGMAP 2022 - 19th International Conference on Signal Processing and Multimedia Applications

a. b. c. d. e.

f. g. h. i. j.

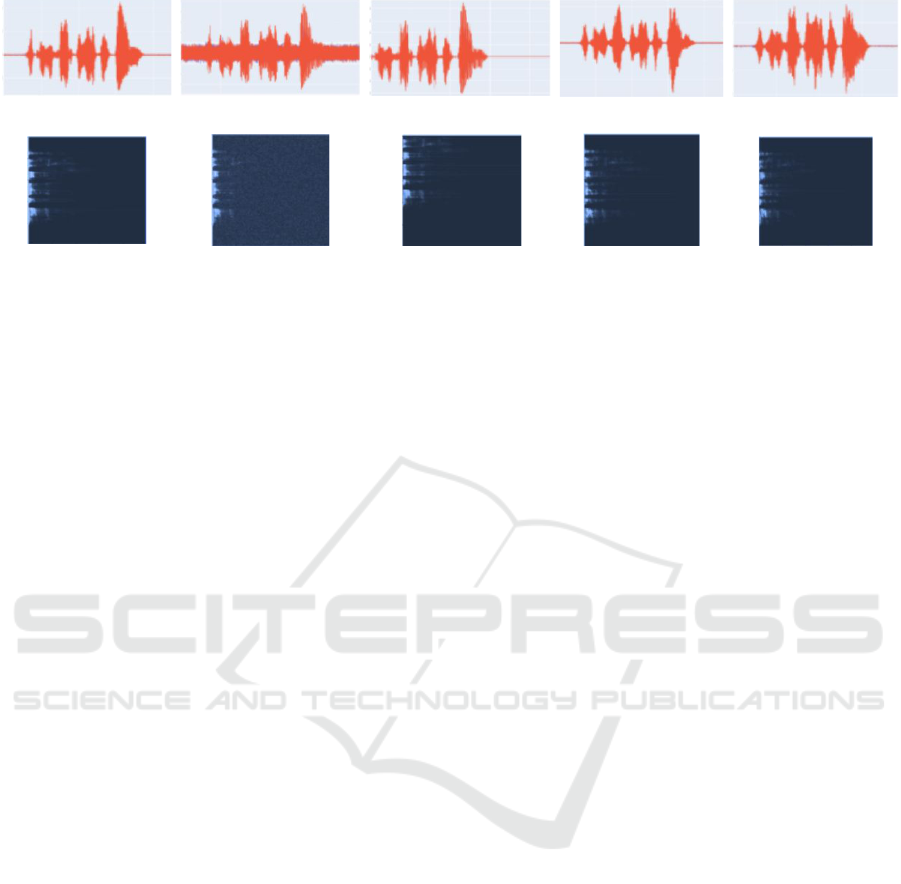

Figure 1: (a) a given (original) audio signal, (b) the original signal upon noise addition, (c) the original signal upon shifting

to the left, (d) the original signal upon changing pitch, (e) the original signal upon changing speed, (f) – (j) spectrograms of

(a) – (e), respectively. Note that spectrograms have been colorized for illustration purposes.

420 samples by adding 420 new samples with random

SNR ratio (N ∈ {3, 4,5}), 420 new samples with ran-

dom shifting (right/left, maximum 1 sec.), 420 new

samples with the random change of pitch (with a ran-

dom factor P ∈ [0.9,1.1]), and 420 new samples with

the random change of speed (with a random factor

S ∈ [0.9,1.1]. Thus, the ﬁnal augmented training set

consists of 5 × 420 = 2100 audio segments of length

2 sec., each.

3.3 Neural Network Architecture and

Training

We adopted the CNN architecture of (Papakostas

et al., 2017), illustrated in Fig. 2. Our network con-

sists of four stacked blocks interlaced of one convolu-

tional layer with stride 2, a batch-normalization layer

followed by the non-linearity function, and a max-

pooling layer, followed by a local response normal-

ization layer. The ﬁrst convolutional layer comprises

96 feature maps and uses a kernel of size 7. The sec-

ond and third convolutional layers comprise 384 ﬁl-

ters with a kernel of size 5. The last convolutional

layer again comprises 384 ﬁlters but uses a kernel of

size 3. Batch-normalization transformation usage be-

fore the application of the activation function operates

as a normalizer of the input batch. All pooling lay-

ers are of stride 2 with their kernel size equal to 3.

The last pooling layer is stacked with two fully con-

nected layers of 4096 units with dropout culminating

in a softmax classiﬁer.

For all the layers ReLu has been adopted as the

activation function and Xavier initialization for the

weights. Standard SGD algorithm has been selected

for the learning process since it provides improved

results compared to others, using categorical cross-

entropy loss function. As a result, the output of the

network is distributed on the ﬁve target classes. Step

decay learning rate scheduler is also adopted, which

drops the learning rate every 20 epochs by a factor

equal to 0.1. The initial learning rate is equal to

0.001. In addition, l2 regularizer was added to each

convolutional and each fully connected layer with pa-

rameter lambda equal to 0.008. These parameters

were the result of extensive experimentation and hy-

perparameter tuning of our model, running 10-fold

Cross-Validation for different combinations of vari-

ous hyperparameters. The best performance arose

from dropout equal to 0.4 and momentum equal to

0.9. The input to the network corresponds to RGB

images of size 250 × 250 and is organized in batches

of 64 samples.

For the ﬁnalized model we ran 10-fold cross-

validation to test its ability to predict new data that

was not used in the training process. In other words,

to give an insight on how generalizable the model

will be to an independent dataset. A signiﬁcant deci-

sion is the stopping criterion of the training process at

each round of cross-validation. That is the appropriate

number of training epochs, for the purpose of prevent-

ing overﬁtting. A simple, effective, and widely used

approach is to separate a portion of the training sam-

ples into a validation set, which is used for the eval-

uation of the model after every epoch of the training

process. When validation performance stops improv-

ing or starts degrading, the training process should

be stopped. After that point, the unseen test sam-

ples from one fold are used for the evaluation of each

round of the 10-fold Cross-Validation. This method is

called early stopping and was used in each round.

We split our training data before data augmenta-

tion, following well-known good practices, i.e., 80%

for training, 10% for validation and the remaining

10% as the unseen test set. However, we applied the

augmentation methodology on both training and vali-

dation sets, which is not a common training strategy,

A Data Augmentation Approach for Improving the Performance of Speech Emotion Recognition

Figure 2: The Convolutional Neural Network architecture that has been used in this work.

yet it surprisingly resulted to a signiﬁcant improve-

ment of performance. Then, we proceeded with hy-

perparameter tuning and selection of the best model.

4 EXPERIMENTAL RESULTS

For the evaluation of our experiments, we opted for

the use of the well known F

score, which is deﬁned as

the harmonic mean of precision (P) and recall (R), i.e.,

= 2 · P · R/(P + R). Moreover, the average F

mea-

sure (also known as macro-averaged F

) is deﬁned as

the arithmetic mean of the per-class F

-scores. It is

used when both true positives and true negatives are

crucial. It is also considered as a very good metric for

imbalanced datasets. For these reasons, the macro-

averaged F

was chosen as metric for evaluation.

For comparison purposes two other methods have

been implemented and evaluated:

• the methodology of (Papakostas et al., 2017);

therein augmentation considers only 3 different

SNRs (i.e., 3, 4 and 5). We have used the exact

hyperparameters

for reproduction of the experi-

ments.

• SVM classiﬁcation based on hand-crafted features

extraction from pyAudioAnalysis (Giannakopou-

los, 2015). In particular, this approach uses as in-

put fusion of 34 mid-term audio feature statistics,

namely: Zero Crossing Rate, Energy, Entropy

of Energy, Spectral Centroid, Spectral Spread,

Spectral Entropy, Spectral Flux, Spectral Rolloff,

MFCCs, Chroma Vector and Chroma Deviation.

The results in terms of the F

scores of the three

compared approaches are presented in Table 1. Obvi-

ously, the proposed augmentation approach achieved

about 10% higher performance compared to the one

https://github.com/MikeMpapa/CNNs-Audio-Emoti

on-Recognition

Table 1: Comparison of the proposed method to other

methodologies, with respect to the macro-averaged f

scores.

macro-averaged F

score

(Papakostas et al., 2017) 0.63

handcrafted features 0.60

proposed approach 0.70

Figure 3: Box-and-whisker plot for macro-averaged F

scores during 10-fold cross-validation of the proposed aug-

mentation approach and the one of (Papakostas et al., 2017).

of (Papakostas et al., 2017) and about 15% higher per-

formance compared to the SVM that has been trained

with handcrafted features.

Moreover, in Fig. 3 we illustrate box-and-whisker

plots of the two deep learning-based approaches. As it

may be observed for the methodology of (Papakostas

et al., 2017), 50% of the rounds of 10-fold cross-

validation of achieved F

scores between 0.58 and

0.69. Also total range is about 22% and positive

skewness can be observed. In contrast, regarding the

proposed approach, its box-and-whisker plot is almost

symmetric and closer to the ideal. Furthermore, 50%

of its cross-validation rounds achieved F

scores be-

tween 0.68 and 0.72 and the total range is about 8%.

These observations indicate that the proposed model

has small variation, and the distribution of perfor-

mances has little dispersion in relation to the median.

SIGMAP 2022 - 19th International Conference on Signal Processing and Multimedia Applications

However, it is signiﬁcant to report an appreciated out-

lier round performance with F

score equal to 0.82.

We believe that this was due to the randomness of

splitting data during the cross-validation process. We

also felt that this is a satisfactory result, indicating the

possibility of the proposed augmentation approach to

perform better upon more exhaustive tuning of its hy-

perparameters, or even a more sophisticated network

architecture.

After the satisfactory performance of our pro-

posed augmentation approach, we moved on to fur-

ther evaluate its robustness with other datasets. For

this purpose, we have used SAVEE and EMO-DB

datasets, recorded in English and German, respec-

tively. SAVEE (Jackson and Haq, 2014) which is

a larger emotional speech dataset in English. 4 na-

tive English male speakers performed each 15 sen-

tences per emotion, representing 6 emotional states,

i.e., disgust, fear, anger, joy, surprise, sadness plus

the neutral state. EMO-DB (Burkhardt et al., 2005)

is an emotional speech dataset in German. 5 male

and 5 female actors performed 493 utterances in total,

simulating anger, boredom, disgust, fear, happiness,

sadness and neutral. Note that at this part of the ex-

periments we used the same CNN architecture, with-

out any further tuning of its hyperparameters. Obvi-

ously. we used the same data augmentation method-

ology and the same approach for cross validation data

split. The results of these experiments are depicted

in Table 2. As it may be seen, the proposed approach

outperformed the one of (Papakostas et al., 2017) also

in the case of the EMO-DB dataset. However, in the

case of the SAVEE dataset its performance was infe-

rior. We believe that the hyperparameters which had

been tuned for the EMOVO dataset caused the bad

result when using the SAVEE dataset.

5 IMPLEMENTATION DETAILS

The entire project has been implemented using

Python 3.6. For the data augmentation a custom

python generator was implemented and the librosa

library was used to accomplish changing pitch and

changing speed. Spectrograms were extracted us-

ing the pyAudioAnalysis library (Giannakopoulos,

2015). CNN models have been trained using the

Keras deep-learning framework (Chollet et al., 2018).

We also used pyAudioAnalysis to extract mid-term

audio feature statistics and run SVM classiﬁcation.

Other python libraries that have been used were

https://librosa.org/

sklearn,

matplotlib,

pandas,

numpy

and scipy.

6 CONCLUSIONS AND FUTURE

WORK

During the last years, speech emotion recognition

constitutes an area of increased interest for re-

searchers. Many applications of voice user interfaces

require emotion recognition solely by using audio in-

formation. Many machine learning approaches have

already been used for this task, but most of them ex-

tract handcrafted features. Deep learning has also

been used to classify emotions. In many research

works (Papakostas et al., 2017) it has been demon-

strated that the most important features of spectro-

grams that have been created by raw audio signals,

may be extracted by using deep neural network ar-

chitectures. This means that a linguistic model is not

required.

In this work we proposed the use augmenta-

tion techniques of audio signals which further en-

hanced previous work and demonstrated superior per-

formance. It is quite important to emphasize that

we did not experimentally verify language indepen-

dence, as it has been shown by several other stud-

ies (Schuller, 2018; Bhaykar et al., 2013). This re-

sult may be justiﬁed by the strong inﬂuence of socio-

cultural and linguistic features on expressing emo-

tions in different languages. Furthermore, it is com-

monly accepted that humans recognize emotions not

only from speech but also from gestures, posture, or

even eye contact. This additional information is very

important for the decision of which is the emotional

state of our discussant. In addition, when a human is

monolingual, she/he is trained to recognize the emo-

tions of his native language speakers. It is difﬁcult for

her/him to understand the emotional state of other lan-

guage speakers. Sometimes, there is also a difﬁculty

in emotion recognition due to sarcasm or irony, even

if the speakers speak the same language. As a result,

recognition of irony or sarcasm seems to be a chal-

lenging task for future work. Another underlying rea-

son for the difﬁculty of SERs in language and cross-

language recognition may be the weakness of most

databases for speech emotion recognition, which are

simulated or elicited, to express all the essential emo-

tional information into recorded samples.

https://scikit-learn.org/stable/

https://matplotlib.org/

https://pandas.pydata.org/

https://numpy.org/

https://scipy.org/

A Data Augmentation Approach for Improving the Performance of Speech Emotion Recognition

Table 2: Experimental results of CNN with New Augmentation are in terms of the means of the achieved f1 measures during

10-fold Cross-Validation.

EMOVO SAVEE EMO-DB average

(Papakostas et al., 2017) 0.57 0.60 0.67 0.61

proposed 0.70 0.51 0.72 0.64

difference +22.8% -15.0% +7.5% +4.9%

Our future goals are focused on various directions.

Firstly, we would like to increase the robustness of the

proposed method in the given datasets, by further op-

timizing the learning process of the CNN. We also be-

lieve that speaker-dependent and speaker-independent

experimental setups will lead to further improvement

of results as recent research has shown. Two such

examples are (Huang et al., 2014) and (Zhao et al.,

2019). Within a speaker-dependent setup, samples

from multiple speakers are used for training; testing

takes place on different samples which belong to the

same set of speakers. Moreover, within a speaker-

independent setup, samples from multiple speakers

are used for training and testing takes place on sam-

ples that belong to a different set of speakers. In con-

clusion, another future goal could be to experiment

with models targeting at language or cultural infor-

mation of the speech or with models that use transfer

learning, which may provide another possible solu-

tion to language independence issues.

ACKNOWLEDGEMENTS

This research has been co-ﬁnanced by the European

Union and Greek national funds through the Oper-

ational Program Competitiveness, Entrepreneurship

and Innovation, under the call RESEARCH – CRE-

ATE – INNOVATE (project code: 1EDK-02070).

REFERENCES

Akc¸ay, M. B. and O

guz, K. (2020). Speech emotion recog-

nition: Emotional models, databases, features, pre-

processing methods, supporting modalities, and clas-

siﬁers. Speech Communication, 116:56–76.

Atmaja, B. T., Shirai, K., and Akagi, M. (2019). Speech

emotion recognition using speech feature and word

embedding. In 2019 Asia-Paciﬁc Signal and Informa-

tion Processing Association Annual Summit and Con-

ference (APSIPA ASC), pages 519–523. IEEE.

Bhaykar, M., Yadav, J., and Rao, K. S. (2013). Speaker

dependent, speaker independent and cross language

emotion recognition from speech using gmm and

hmm. In 2013 National conference on communica-

tions (NCC), pages 1–5. IEEE.

Bitouk, D., Verma, R., and Nenkova, A. (2010). Class-

level spectral features for emotion recognition. Speech

communication, 52(7-8):613–625.

Burkhardt, F., Paeschke, A., Rolfes, M., Sendlmeier, W. F.,

Weiss, B., et al. (2005). A database of german emo-

tional speech. In Interspeech, volume 5, pages 1517–

1520.

Busso, C., Bulut, M., Lee, C.-C., Kazemzadeh, A., Mower,

E., Kim, S., Chang, J. N., Lee, S., and Narayanan,

S. S. (2008). Iemocap: Interactive emotional dyadic

motion capture database. Language resources and

evaluation, 42(4):335–359.

Chenchah, F. and Lachiri, Z. (2016). Speech emotion recog-

nition in noisy environment. In 2016 2nd Interna-

tional Conference on Advanced Technologies for Sig-

nal and Image Processing (ATSIP), pages 788–792.

IEEE.

Chollet, F. et al. (2018). Keras: The python deep learning

library. Astrophysics source code library, pages ascl–

1806.

Costantini, G., Iaderola, I., Paoloni, A., and Todisco,

M. (2014). Emovo corpus: an italian emotional

speech database. In International Conference on Lan-

guage Resources and Evaluation (LREC 2014), pages

3501–3504. European Language Resources Associa-

tion (ELRA).

Cowie, R. and Cornelius, R. R. (2003). Describing the emo-

tional states that are expressed in speech. Speech com-

munication, 40(1-2):5–32.

Cowie, R., Douglas-Cowie, E., Tsapatsoulis, N., Votsis,

G., Kollias, S., Fellenz, W., and Taylor, J. G. (2001).

Emotion recognition in human-computer interaction.

IEEE Signal processing magazine, 18(1):32–80.

Darwin, C. (2015). The expression of the emotions in man

and animals. University of Chicago press.

Ekman, P. and Oster, H. (1979). Facial expressions of emo-

tion. Annual review of psychology, 30(1):527–554.

Frantzidis, C. A., Lithari, C. D., Vivas, A. B., Papadelis,

C. L., Pappas, C., and Bamidis, P. D. (2008). To-

wards emotion aware computing: A study of arousal

modulation with multichannel event-related poten-

tials, delta oscillatory activity and skin conductivity

responses. In 2008 8th IEEE International Confer-

ence on BioInformatics and BioEngineering, pages 1–

6. IEEE.

Giannakopoulos, T. (2015). pyaudioanalysis: An open-

source python library for audio signal analysis. PloS

one, 10(12):e0144610.

Han, J., Ji, X., Hu, X., Guo, L., and Liu, T. (2015).

Arousal recognition using audio-visual features and

SIGMAP 2022 - 19th International Conference on Signal Processing and Multimedia Applications

fmri-based brain response. IEEE Transactions on Af-

fective Computing, 6(4):337–347.

Huang, Z., Dong, M., Mao, Q., and Zhan, Y. (2014). Speech

emotion recognition using cnn. In Proceedings of the

22nd ACM international conference on Multimedia,

pages 801–804.

Jackson, P. and Haq, S. (2014). Surrey audio-visual ex-

pressed emotion (savee) database. University of Sur-

rey: Guildford, UK.

Jang, E.-H., Park, B.-J., Park, M.-S., Kim, S.-H., and Sohn,

J.-H. (2015). Analysis of physiological signals for

recognition of boredom, pain, and surprise emotions.

Journal of physiological anthropology, 34(1):1–12.

Koolagudi, S. G. and Rao, K. S. (2012). Emotion recogni-

tion from speech using source, system, and prosodic

features. International Journal of Speech Technology,

15(2):265–289.

Papakostas, M., Spyrou, E., Giannakopoulos, T., Siantikos,

G., Sgouropoulos, D., Mylonas, P., and Makedon, F.

(2017). Deep visual attributes vs. hand-crafted audio

features on multidomain speech emotion recognition.

Computation, 5(2):26.

Schuller, B., Rigoll, G., and Lang, M. (2003). Hid-

den markov model-based speech emotion recognition.

In 2003 IEEE International Conference on Acous-

tics, Speech, and Signal Processing, 2003. Proceed-

ings.(ICASSP’03)., volume 2, pages II–1. Ieee.

Schuller, B. W. (2018). Speech emotion recognition:

Two decades in a nutshell, benchmarks, and ongoing

trends. Communications of the ACM, 61(5):90–99.

Shen, P., Changjun, Z., and Chen, X. (2011). Automatic

speech emotion recognition using support vector ma-

chine. In Proceedings of 2011 International Confer-

ence on Electronic & Mechanical Engineering and

Information Technology, volume 2, pages 621–625.

IEEE.

Slimi, A., Nicolas, H., and Zrigui, M. (2022). Detection of

emotion categories’ change in speeches. In ICAART.

Song, T., Zheng, W., Song, P., and Cui, Z. (2018). Eeg

emotion recognition using dynamical graph convolu-

tional neural networks. IEEE Transactions on Affec-

tive Computing, 11(3):532–541.

Stuhlsatz, A., Meyer, C., Eyben, F., Zielke, T., Meier,

G., and Schuller, B. (2011). Deep neural networks

for acoustic emotion recognition: Raising the bench-

marks. In 2011 IEEE international conference on

acoustics, speech and signal processing (ICASSP),

pages 5688–5691. IEEE.

Tawari, A. and Trivedi, M. M. (2010). Speech emotion anal-

ysis in noisy real-world environment. In 2010 20th In-

ternational Conference on Pattern Recognition, pages

4605–4608. IEEE.

Trigeorgis, G., Ringeval, F., Brueckner, R., Marchi, E.,

Nicolaou, M. A., Schuller, B., and Zafeiriou, S.

(2016). Adieu features? end-to-end speech emo-

tion recognition using a deep convolutional recurrent

network. In 2016 IEEE international conference on

acoustics, speech and signal processing (ICASSP),

pages 5200–5204. IEEE.

Wu, S., Falk, T. H., and Chan, W.-Y. (2011). Automatic

speech emotion recognition using modulation spectral

features. Speech communication, 53(5):768–785.

Xiao, Z., Dellandrea, E., Dou, W., and Chen, L. (2010).

Multi-stage classiﬁcation of emotional speech moti-

vated by a dimensional emotion model. Multimedia

Tools and Applications, 46(1):119–145.

Yang, B. and Lugger, M. (2010). Emotion recognition from

speech signals using new harmony features. Signal

processing, 90(5):1415–1423.

Zhao, J., Mao, X., and Chen, L. (2019). Speech emotion

recognition using deep 1d & 2d cnn lstm networks.

Biomedical signal processing and control, 47:312–

323.

Zheng, W., Yu, J., and Zou, Y. (2015). An experimental

study of speech emotion recognition based on deep

convolutional neural networks. In 2015 international

conference on affective computing and intelligent in-

teraction (ACII), pages 827–831. IEEE.

A Data Augmentation Approach for Improving the Performance of Speech Emotion Recognition
