CECNN: A Convergent Error Concealment Neural Network for Videos

Razib Iqbal

, Shashi Khanal

and Mohammad Kazemi

Computer Science Department, Missouri State University, Springﬁeld, Missouri, U.S.A.

Department of Electrical Engineering, University of Isfahan, Isfahan, Islamic Republic of Iran

Keywords:

Convolutional Neural Network, Error Concealment, Transfer Learning, Video, Voxel Information.

Abstract:

In video error concealment, we estimate any missing information in the video frames as close to the actual data.

In this paper, we present a video error concealment technique, named Convergent Error Concealment Neural

Network (CECNN), based on Convolutional Neural Network (CNN). CECNN is a two-stage process where

it ﬁrst learns to predict voxel information from the training dataset. It then applies transfer learning using the

pre-trained model from the ﬁrst stage to produce intermediate outputs. CECNN consists of dedicated paths

for the past and future frames to produce the intermediate outputs, which are then combined to ﬁll the missing

information in the errored frame. The quality of the outputs from CECNN is compared with other techniques,

such as motion vector estimation, error concealment using neighboring motion vectors, and generative image

inpainting. The evaluation results suggest that our CECNN approach would be a good candidate for error

concealment in video decoders.

1 INTRODUCTION

Video error concealment techniques refer to the esti-

mation of missing information or lost data as close as

possible to actual data in the video decoder to improve

the viewers’ quality of experience. In conventional

methods, e.g., motion vector estimation (Tsekeridou

and Pitas, 2000) or using the neighboring motion vec-

tors (Chen et al., 1997), the lost data is replaced by

predicting the missing data using the previously re-

constructed error-free frames or the error-free neigh-

boring blocks of the frame. However, the current

advancements in deep learning techniques, such as

Convolutional Neural Network (CNN), have opened

new avenues for researchers to investigate alterna-

tives, e.g., (Xiang et al., 2019) and (Mahmud et al.,

2018), to conventional error concealment techniques.

This paper presents a novel CNN-based video

error concealment network called Convergent Error

Concealment Neural Network (CECNN). Unlike the

commonly used single path neural networks, CECNN

comprises separate paths for preceding and succeed-

ing frames. Various image and video datasets consist-

ing of a variety of objects and backgrounds can train

our CECNN model to conceal errors in video frames

with the help of transfer learning (Torrey and Shavlik,

2009). Transfer learning helps to utilize knowledge

gained from the previous dataset to extract unseen

features in the new dataset. Therefore, CECNN does

not need re-training from scratch to train the model

with various datasets. This approach speeds up the

learning process and offers a more accurate and efﬁ-

cient model for error concealment in any previously

unseen video.

The rest of this paper is organized as follows: Sec-

tion 2 provides a brief overview of the related works.

Section 3 covers our proposed approach. In Section

4, we present our experimental setup and results. Fi-

nally, we give our concluding remarks in Section 5.

2 LITERATURE REVIEW

Traditional error concealment techniques can be di-

vided into spatial and temporal domain techniques,

e.g., (Aign and Fazel, 1995), where the lost area is

concealed using spatially neighboring pixels or avail-

able information from the past or future frames are

used, respectively. Switching between spatial and

temporal domain techniques have also been discussed

in some papers, e.g., (Ho and Chang, 2014). How-

ever, these techniques might not be effective if the

lost area is large. Another approach considered is

motion vector estimation during error concealment in

the decoder, e.g., (Tsekeridou and Pitas, 2000) and

(Shirani et al., 2000b), similar to the motion estima-

Iqbal, R., Khanal, S. and Kazemi, M.

CECNN: A Convergent Error Concealment Neural Network for Videos.

DOI: 10.5220/0011275800003289

In Proceedings of the 19th International Conference on Signal Processing and Multimedia Applications (SIGMAP 2022), pages 23-31

ISBN: 978-989-758-591-3; ISSN: 2184-9471

tion in a video encoder. Error concealment based on

neighboring motion vectors, e.g., (Chen et al., 1997),

assumes that the surrounding motion vectors to the

lost macroblock (MB) are available. Error conceal-

ment using side information, e.g., (Hadizadeh et al.,

2013), sends an additional low-resolution version of

the image frame as side information to assist error

concealment. Pixel-wise post-processing technique,

e.g., (Atzori et al., 2001), is another form of error con-

cealment where inside the loss concealed area, MBs

are reﬁned using mesh-based warping. In error con-

cealment with error propagation, e.g., (Usman et al.,

2016), a missing frame between two received frames

is interpolated using motion trajectory and then the

error concealment quality is improved by adaptive ﬁl-

tering. Furthermore, shape preservation loss conceal-

ment techniques, e.g. (Shirani et al., 2000a), aim to

recover the object’s shape in the lossy frames.

In recent years, researchers have been focusing

on the use of deep neural network for video error

concealment. For example, the FINNiGAN model

(Koren et al., 2017) uses generative adversarial net-

work (GAN) while performing frame interpolation.

Similarly, a GAN consisting of one completion net-

work and one discriminator network is used by the au-

thors in (Xiang et al., 2019) that follows an encoder-

decoder structure. Likewise, an adversarial learning

framework using conditional GAN (cGAN) is pro-

posed in (Mahmud et al., 2018) to reconstruct a frame

when one or more frames are missing in a multi-

camera scenario. However, the FINNiGAN model

produces some unrelated details while trying to ﬁll

in details within the high motion region of the video,

and the GAN in (Xiang et al., 2019) only uses tem-

poral information from the past frames and omits the

information from future frames.

Other works involving neural networks include

image inpainting. The authors in (Liu et al., 2018)

proposed the use of a partial convolution layer with

an automatic mask update. However, this model does

not work well in images which has thin structured

objects in it, e.g., handlebars on the door. The au-

thors in (Radford et al., 2015) introduced a different

class of CNN and called it DCGAN, which works

well for an image classiﬁcation task but not for re-

gression tasks like video error concealment. Sim-

ilarly, the authors in (Yu et al., 2018) proposed a

feed-forward CNN which can process images with

multiple loss at arbitrary locations and with variable

sizes. It is an enhancement of baseline generative

image inpainting network (Iizuka et al., 2017) which

has shown promising visual results for inpainting im-

ages of faces, building facades, and natural images.

However, these image inpainting techniques consider

spatial information and do not use knowledge of tem-

poral information in video sequences. The approach

in (Sankisa et al., 2018) combines convolutional long

short-term memory (LSTM) model and simple con-

volutional layers which predict optical ﬂow using the

existing optical ﬂows of the previous frames. How-

ever, the model needs to know the location of the er-

ror in the frame and it only uses frames from the past

to train the model. Similarly, the authors in (Sankisa

et al., 2020) presented a deep learning framework us-

ing capsule network architecture that uses motion as

an instantiation parameter to encode motion in videos

followed by motion-compensated error concealment

using the extracted motion. However, this network

model has been demonstrated to work with video se-

quences from the same training dataset. Very recently,

a ﬂow-based video completion algorithm is proposed

in (Gao et al., 2020) which maintains the sharpness

of the video but it produces arbitrary content in large

missing regions within the video frames. Similarly,

the authors in (Zeng et al., 2020) proposed a joint

Spatial-Temporal Transformer Network (STTN) for

video inpainting to concurrently ﬁll lost regions in all

video frames. However, STTN fails to generate ac-

curate contents to ﬁll lost regions in the video frames

which have motion contents. Finally, a video inpaint-

ing method is proposed in (Liu et al., 2021) which

aligns the frames at a feature level via implicit motion

estimation and aggregates temporal features to syn-

thesize missing content by aligning reference frames

with target frame. However, this method is not suit-

able for practical applications.

From the above discussion, we can see that there

are existing methods presented by different authors

where GANs, inpainting models, and architectures of

CNNs are used for video error concealment. How-

ever, to the best of our knowledge, there are no works

or experiments in video error concealment using CNN

architecture which uses information from both the

past and future video frames. Also, the existing ap-

proaches did not consider transfer learning to make

use of spatial and temporal information from both the

past and future frames to conceal errors in video data.

3 PROPOSED APPROACH

Figure 1 and Figure 2 jointly represent our CECNN

approach. In Figure 1, we show the model training

stage. In this ﬁrst stage, both the original images and

video frames from the training datasets along with

simulated errors (such as missing blocks and slices)

in those images/frames are passed to the network and

voxel information of error concealed image/frame is

SIGMAP 2022 - 19th International Conference on Signal Processing and Multimedia Applications

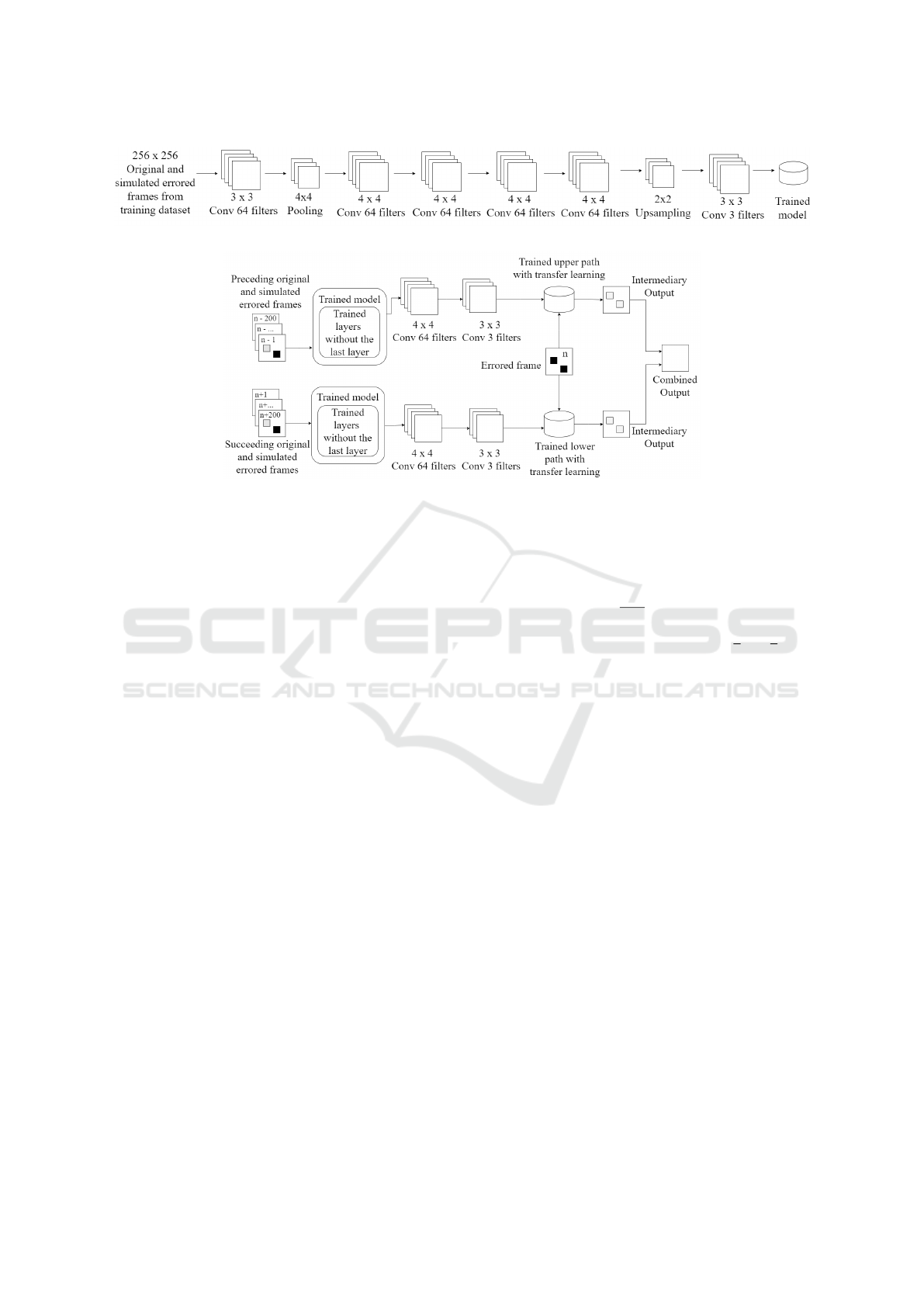

Figure 1: CECNN training stage.

Figure 2: Trained CECNN with upper and lower path models connected via transfer learning.

predicted. During this training stage, the neural net-

work performs regression tasks by operating in the

temporal and spatial dimensions to learn voxel-related

features. The CECNN training stage has eight layers,

including six convolutional layers, a pooling layer,

and an upsampling layer. Except for the last output

layer, all the convolutional layers use relu as the acti-

vation function. The convolution is computed as per

Equation 1. Equation 1 is the summation of dot prod-

ucts of the input image and ﬁlter values. The ﬁrst

layer of CECNN is a convolutional layer with 64 ﬁl-

ters of size 3×3, where 3×3 is the height and width

of convolutions, respectively. It creates feature maps

that help identify different features in an image like

angles, vertical or horizontal lines, edges, etc., by

convolving the ﬁlter over the input image. The sec-

ond layer is a max-pooling layer of size 4×4 which

can be expressed as per Equation 2. In Equation 2,

is input, P is pooling window size, and S is the

stride. This layer steadily reduces the spatial size of

the feature maps produced by the previous layer, and

it reduces the number of parameters and computations

in our network. This reduced dimensionality of fea-

ture maps or image representation is later increased

in the seventh layer. The second layer is followed by

the third, fourth, ﬁfth, and sixth layers, which are all

convolutional layers and each with 64 ﬁlters of size

4×4, where 4×4 is the height and width of convolu-

tions. We stacked four convolutional layers because it

allows hierarchical decomposition of the dimension-

ally reduced feature maps and increases our network’s

performance. The authors in (Sainath et al., 2013)

also attained a similar result by stacking convolutional

layers. The seventh layer is an upsampling layer of

size 2×2 denoted by Equation 3.

y[n] = x[n] ∗ h[n] =

∑

x[k] ∗ h[n + k], kε[−∞, +∞] (1)



−P



+ 1 (2)

O[x

′

, y

′

] = I[(int)(x + 0.5), (int)(y + 0.5)], x =

′

, y =

′

(3)

In Equation 3, O[x

′

, y

′

] is upsampled output, I[x, y]

is input, K is an upsampling factor, and (int) denotes

interpolation, which is followed by the last layer. Our

model reconstructs the dimensionally reduced image

representation during upsampling in the seventh layer.

The last layer is the output layer which is also a con-

volutional layer with three ﬁlters of size 3×3 and uses

sigmoid as the activation function. It receives up-

sampled image representation from the previous layer

and produces the output image of dimension equal to

that of the input image, which is 256×256×3 where

256×256 is height, width, and 3 is the number of color

channels, respectively. The last layer convolves the

upsampled image representation with three ﬁlters of

size 3×3 so that it produces the output image of di-

mension equal to that of the input image. The three

ﬁlters produce three color components of the error

concealed image: red, blue, and green. After the

training, the model is saved for the error concealment

stage.

In Figure 2, we present the error concealment pro-

cess using transfer learning. Transfer learning (Torrey

and Shavlik, 2009) is a technique in machine learning

where a neural network model produced for a task is

reused as the starting position for a model in another

task. We use it in CECNN to re-purpose the already

CECNN: A Convergent Error Concealment Neural Network for Videos

trained model from the training stage. We deploy two

separate paths in this stage, one for the past frames

and one for the future frames with respect to the er-

rored frame, so that the outputs from each of these

two paths can be used to get the ﬁnal error concealed

video frame. For the upper path, past frames with ar-

tiﬁcial errors and the original past frames are given as

input, and the voxel information is predicted. Simi-

larly, future frames with artiﬁcial errors and the orig-

inal future frames are passed into the lower path of

our network. The motivation for including a separate

path for future frames in our proposed approach is to

make CECNN use temporal information from the suc-

ceeding frames because the actual information miss-

ing in the errored frame can be temporally similar to

its succeeding frames. During the transfer learning

process, at ﬁrst, the same pre-trained model from the

training stage is used as starting point for both the up-

per and lower paths. Likewise, both upper and lower

paths are completed by stacking more convolutional

layers at the end of pre-trained models in each path.

While forming these paths, we do not include the last

(output) layer from the saved model from the previ-

ous stage because we add more convolutional layers

at the end of the saved models. Furthermore, layers of

the pre-trained models are frozen to reduce computa-

tional time for training. This architecture in Figure 2

can be treated as a simple non-sequentially stacked

neural network model comprising of CNNs that ﬂows

through two paths and converges at a point. As can

be seen in Figure 2, these saved models are both con-

nected with two other convolutional layers - the ﬁrst

layer with 64 ﬁlters of size 4×4 and the other layer

with three ﬁlters of size 3×3. The newly connected

ﬁrst layer uses relu, and the other layer uses sigmoid

as the activation function. This newly formed network

for transfer learning is trained again on the ﬂy with

available video frames (i.e., past and future frames

with respect to the error frame being processed) with

artiﬁcial errors as training data. The upper path model

in Figure 2 is trained with a maximum of two hundred

past frames or less if fewer past frames are available.

Similarly, the lower path model is trained with a max-

imum of two hundred future frames or less if fewer

future frames are available that come after the errored

frame. A maximum of 200 preceding and 200 suc-

ceeding frames were chosen so that our model takes

less training time but gets sufﬁcient training data to

reasonably produce the output. However, CECNN

does not need to be trained with 200 preceding and

200 succeeding frames for each errored frame in a

practical setting. Instead, a recently trained model can

be used. Also, the respective parameters for the num-

ber of frames for training, frequency of training, and

Input: trained model and video frame

Output: error concealed frame

Step-1:

channel dimension = input frame dimension;

path model = load trained model;

remove last layer from path model;

freeze all the layers from path model;

add convolutional 2D layer with 4×4 conv 64

ﬁlter at the end of path model;

add convolutional 2D layer with 3×3 conv

channel dimension ﬁlter at the end of

path model;

upper path model = path model;

lower path model = path model;

if sufﬁcient frames available or input frame

has error then

load & normalize available frames as

training data;

simulate loss in training data;

train upper path model and

lower path model;

end

Step-2:

if input frame has error then

errored frame = load and normalize input

frame;

generate intermediate outputs using

(upper path model, errored frame) and

(lower path model, errored frame);

generate and return error concealed

output frame by combining the

intermediate outputs;

end

Algorithm 1: Error concealment using transfer learning.

if the newly error concealed frames to be included in

the training can be set depending on the intended use

of the CECNN model.

Now, once CECNN is trained using transfer learn-

ing, the errored video frame is passed through both

upper path and lower path models, and CECNN pro-

duces two corresponding intermediate outputs. We

combine the collocating data blocks from these out-

puts lost in the errored frame. The combination of the

collocating blocks from these intermediate outputs is

performed with a weighted average method (Li et al.,

2017). This method uses root mean square to calcu-

late the average of pixel values, as per Equation 4,

because integer value in Red Green Blue (RGB) color

code is the square root of the actual color value as

per (Hoffman, 1998). Moreover, pixel-level fusion is

the lowest level of image fusion that keeps more raw

data as much as possible to provide rich and accurate

image information, which are not provided by other

SIGMAP 2022 - 19th International Conference on Signal Processing and Multimedia Applications

fusion methods according to the authors in (Hui and

Binbin, 2009). Finally, we ﬁll the missing informa-

tion in the errored frame using these combined blocks,

producing the error concealed video frame. This er-

rored frame can be in any video, from low-resolution

to 4K videos. In Algorithm-1, we give the steps for

error concealing using the transfer learning process

shown in Figure 2.

R =

upper

lower

, G =

upper

lower

, B =

upper

lower

(4)

In Equation 4, upper and lower represent the color of

output images from upper and lower paths for red (R),

green (G) and blue (B) colors.

4 PERFORMANCE EVALUATION

4.1 Dataset and Preprocessing

We used Celeba (Liu et al., 2015) and Hollywood2

(Marszalek et al., 2009) datasets. Celeba is a large-

scale face attributes dataset containing more than

200K celebrity facial images of size 256×256 pix-

els. Hollywood2 is a dataset with 12 types of human

actions (e.g., eating, ﬁghting, running) and 10 types

of scenes (e.g., house, shop, restaurant) distributed

over 3669 video clips. These video clips were con-

verted to thousands of images of size 256×256 pix-

els before training to match the Celeba dataset. We

used OpenCV to extract and convert video frames

into 256×256 sized images. However, the dimension

of the input video can be of any valid dimension for

training and error concealment.

4.2 Training

CECNN can be trained with any number of datasets.

For the results reported in this paper, we selected the

ﬁrst 10,000 images from the Celeba dataset and 200

video clips from the Hollywood2 dataset. For train-

ing, at ﬁrst, 5 to 15 random blocks of size rang-

ing from 5×5 pixels to 30×30 pixels, then 5 to 15

random slices of the image of size 256 (width) × 8

(height) were randomly removed from all the frames.

The number and sizes of the lost blocks were arbi-

trarily chosen to replicate the data loss scenario as

per (Yu et al., 2018). During the training, individ-

ual frames from the video data and their correspond-

ing errored video data are passed into the network

as input. The upper- and lower-paths of the network

model are trained with past and future frames, respec-

tively. Unlike original works on CNN used explicitly

for classiﬁcation, we are using CNN for the regres-

sion task, which is video error concealment. There-

fore, our experiments did not include a classiﬁcation

step. Instead, the models are primarily used for mod-

eling voxel information to ﬁll the missing informa-

tion in the errored video frame. For this reason, we

used mean-squared error (MSE) as the overall loss

function. Likewise, the initial learning rate was set at

0.001 and a momentum decay of 0.9 with adam opti-

mizer, which is also the parameters used in the similar

task like (Sankisa et al., 2020). The training loss sta-

bilized after about 100 epochs. After the training of

upper- and lower-path models, these two trained mod-

els are connected using transfer learning and trained

again as shown in Figure 2. Finally, the errored frame

is passed through the upper and lower paths to gener-

ate the error concealed frame.

4.3 Results

The objective of our performance evaluation is two

folds - ﬁrst, to compare the CECNN error conceal-

ment quality with two conventional error concealment

techniques, MVE (Tsekeridou and Pitas, 2000) and

NMV (Chen et al., 1997), and neural network-based

generative image inpainting (GII) technique (Yu et al.,

2018) and secondly, to show the effectiveness of in-

troducing two separate paths for the past and the fu-

ture frames. In our performance tests, we simulated

errors in the video frames by removing blocks of pix-

els as well as dropping slices. The quality assess-

ment metrics we used for evaluation are PSNR, MS-

SSIM, and MSE. We used Keras

to train our model

on Google Colab. GPUs like NVIDIA K80, P100, P4,

T4, and V100 are provided in Google Colab. More-

over, the standard split ratio for our training and test-

ing data is 80:20.

4.3.1 Comparison with Other Methods

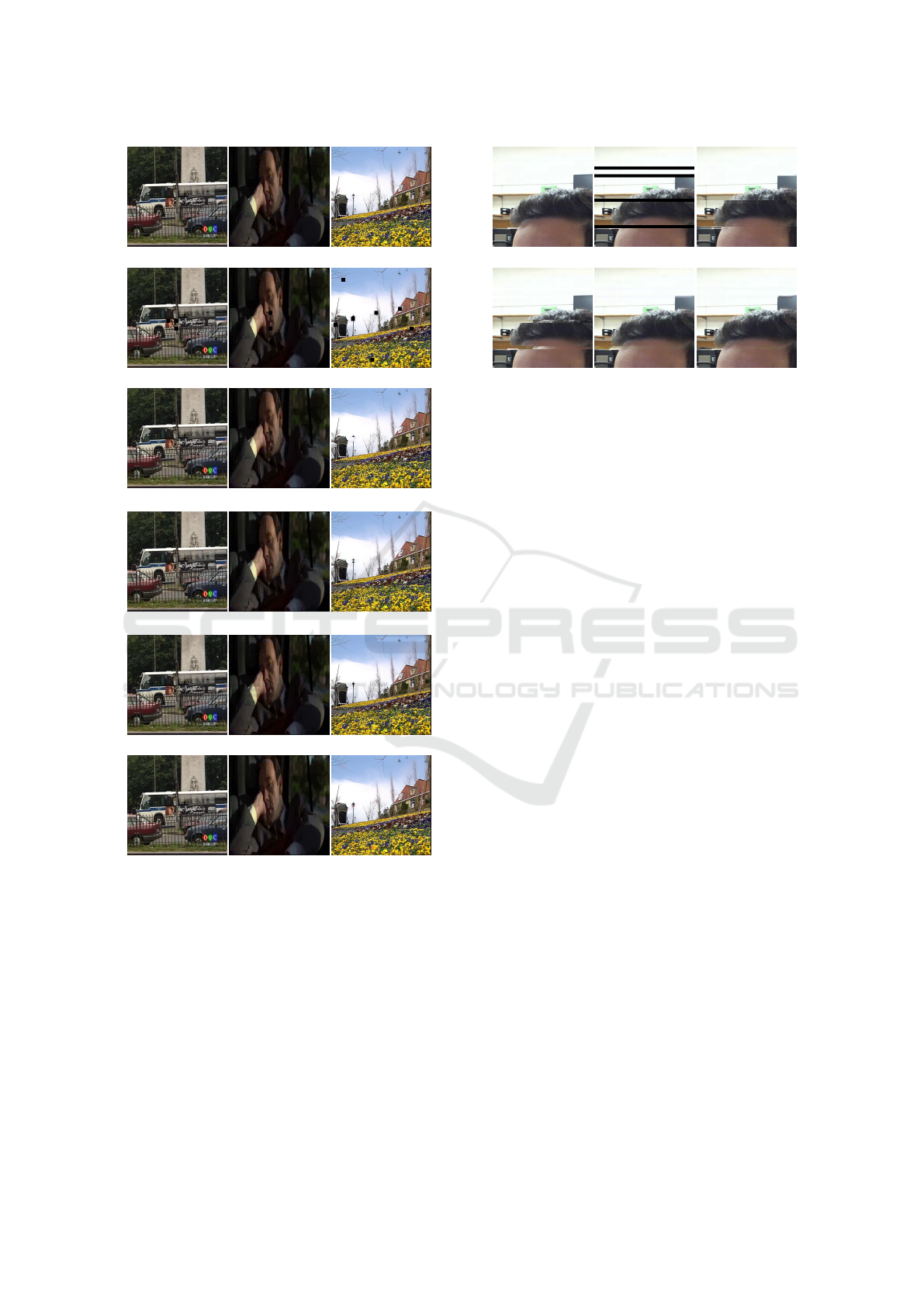

Simulating Random Blocks of Error: In Figure 3, we

show three sample original frames (a,b,c) from Bus

and Flower videos

, and a sample from the Holly-

wood2 dataset, their respective errored frames (d,e,f)

where we have manually removed some blocks of

size ranging from 5×5 pixels to 30×30 pixels, and er-

ror concealed frames using MVE (g,h,i), NMV (j,k,l),

GII (m,n,o), and CECNN (p,q,r) methods. We chose

video samples with action variations in them. For ex-

ample, in Figure 3(a), a moving bus is passing by a

pole. In Figure 3(b), a person is inside a moving car,

and an open ﬂower garden with a lamp post is in the

https://keras.io/api/applications/

http://trace.eas.asu.edu/yuv/index.html

CECNN: A Convergent Error Concealment Neural Network for Videos

a b c

d e f

g h i

j k l

m n o

p q r

Figure 3: Original (a,b,c), errored frames (d,e,f) simulating

random error blocks, error concealed frames using MVE

(g,h,i), NMV (j,k,l), GII (m,n,o), and CECNN (p,q,r).

frame in Figure 3(c). We simulated random data loss

at different visible areas within these original video

frames. For example, there is loss of data on the pole

in Figure 3(d), in between cheek, nostril, and chin on

the person’s face as shown in Figure 3(e), and in the

lamp post, the window of the house and other loca-

tions in the ﬂower garden as shown in Figure 3(f).

In Figure 3(g-r), the resultant error concealed

frames using MVE, NMV, GII, and CECNN are

presented, and their respective PSNR, MS-SSIM,

a b c

d e f

Figure 4: Original (a), errored frame (b) simulating slice

loss, error concealed frame using MVE (c), NMV (d), GII

(e) and CECNN (f).

and MSE values are given in Table 1. Although

CECNN was trained with only Hollywood2 and

Celeba datasets, we get better results with new videos

(e.g. Bus and Flower) which do not belong to these

datasets because we trained our network on the ﬂy

using transfer learning so that the quality of the er-

ror concealed outputs produced by CECNN remains

consistent.

From Figure 3(p,q,r), we can see that our proposed

CECNN produces better results than MVE and NMV,

and it also produces results as good as GII while con-

serving the structure of the object/person in the lost

part of the video frames after error concealment. For

example, the structure of the woman’s face and the

pole is conserved in Figure 3(p) compared to Figure

3(g) and Figure 3(j). In Figure 3(q), the person’s face

is visually better than outputs in Figure 3(h) and Fig-

ure 3(k). Similarly, CECNN ﬁlled up the lost part

of the lamp in the lamp post with lamp-like informa-

tion as shown in Figure 3(r) compared to the outputs

in Figure 3(i) and Figure 3(l). Finally, PSNR, MS-

SSIM, and MSE values presented in Table 1 also sup-

port the above observations.

Simulating Slice Loss: In Figure 4, we show one

sample original frame, its errored frame where we

manually removed four slices of size 256×8 from the

video frame data, and error concealed frame using

MVE, NMV, GII, and CECNN. In Figure 4(a), the

head of a person is moving and a portion of the head

can be seen. Figure 4(b) shows simulated data loss

due to lost slices in Figure 4(a). Similarly, Figure 4(c),

4(d), 4(e) and 4(f) show the error concealed frames

obtained from MVE, NMV, GII, and CECNN, respec-

tively. In Figure 4(f), we can see that error concealed

output frame from our CECNN looks visually better.

For quantitative analysis, we present the PSNR, MS-

SSIM, and MSE values for Figure 4(c-f) in Table 2

SIGMAP 2022 - 19th International Conference on Signal Processing and Multimedia Applications

Table 1: Error concealment quality using MVE, NMV, GII, and CECNN for random loss.

Image Method PSNR MS-SSIM MSE

Figure 3(g) MVE 36.792244 0.998646 13.60994

Figure 3(j) NMV 36.274521 0.997112 15.333038

Figure 3(m) GII 38.579472 0.998062 9.018478

Figure 3(p) CECNN 39.129711 0.998474 7.945282

Figure 3(h) MVE 39.734142 0.996459 6.912994

Figure 3(k) NMV 41.926872 0.997534 4.172470

Figure 3(n) GII 34.303223 0.996068 24.141144

Figure 3(q) CECNN 42.479977 0.998113 3.673523

Figure 3(i) MVE 30.976776 0.991669 5.928131

Figure 3(l) NMV 31.595686 0.992517 45.031021

Figure 3(o) GII 47.734299 0.999495 1.095596

Figure 3(r) CECNN 33.412643 0.994736 29.635757

Table 2: Error concealment quality using MVE, NMV, GII, and CECNN for slice loss.

Image Method PSNR MS-SSIM MSE

Figure 4(c) MVE 28.368511 0.936281 94.673676

Figure 4(d) NMV 28.056870 0.973456 101.716980

Figure 4(e) GII 32.677994 0.983414 25.887426

Figure 4(f) CECNN 35.640781 0.987977 13.086094

Table 3: Error concealment quality for upper, lower, and combined paths of CECNN.

Image Method PSNR MS-SSIM MSE

Figure 5(e) Upper 28.4618 0.9676 68.344

Figure 5(g) Lower 28.5565 0.9680 66.870

Figure 5(i) Combined 28.5629 0.9679 66.772

Figure 5(f) Upper 33.3130 0.9944 30.323

Figure 5(h) Lower 32.8422 0.9934 33.795

Figure 5(j) Combined 33.4126 0.9947 29.635

which shows that the CECNN gives a better result.

4.3.2 Effectiveness of using Two Paths in

CECNN

During the transfer learning process (in Figure 2), as

the ﬁrst step, upper and lower paths are trained with

preceding and succeeding video frames, respectively.

Then an errored video frame is passed through both

paths to obtain two different intermediate outputs -

one from the upper path and another from the lower

path. The ﬁnal error concealed output is obtained

from these two intermediate outputs by combining

the collocating blocks of data from these outputs. To

show the efﬁcacy of this approach, we present two

original frames from a custom video and Flower video

in Figure 5(a) and Figure 5(b). In Figure 5(c) and

Figure 5(d), we show errored versions of the orig-

inal frames representing slice loss and random er-

ror blocks. Figure 5(e) and Figure 5(f) show the er-

ror concealed form of the errored frames in Figure

5(c) and Figure 5(d) respectively using the upper path

only. Similarly, Figure 5(g) and Figure 5(h) show the

error concealed form of the errored frames in 5(c) and

Figure 5(d) respectively using the lower path only. Fi-

nally, error concealed output combining both the in-

termediate outputs from the upper and the lower paths

for each errored frame are produced and shown in

Figure 5(i) and Figure 5(j).

In Table 3, we give the PSNR, MS-SSIM, and

MSE values for the error concealed outputs presented

in Figure 5(e-j). We can see that error concealed

frames combining the intermediate outputs from the

upper and the lower paths give better PSNR, MS-

SSIM, and MSE values compared to the upper or the

lower path separately.

5 CONCLUSION

In this paper, we proposed a CNN-based video error

concealment technique named CECNN. CECNN uses

both the spatial information of the errored frame and

CECNN: A Convergent Error Concealment Neural Network for Videos

a b

c d

e f

g h

i j

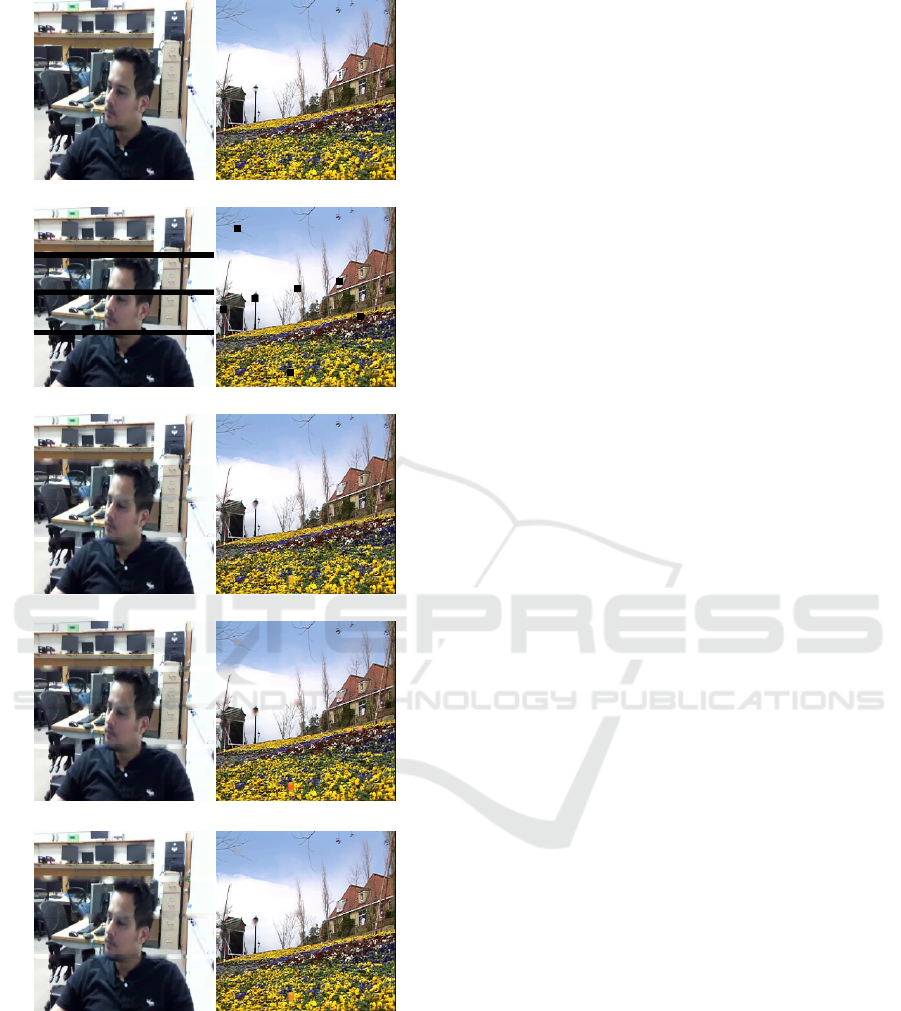

Figure 5: Original (a,b), errored frames (c,d), and error con-

cealed frames from CECNN upper path (e,f), lower path

(g,h), and combined (i,j).

the temporal information from past and future frames,

unlike the existing works that only use either spa-

tial domain information or past frames’ data to pre-

dict the missing part of the errored frame. CECNN

model also consists of two stages - training and trans-

fer learning. CECNN is ﬁrst trained with various im-

age and video datasets, and then the missing informa-

tion is estimated as close as possible in the errored

video frames using transfer learning. This approach

speeds up the learning process and offers a more accu-

rate and efﬁcient model for video error concealment.

When trained with different datasets from various do-

mains, the CECNN learns more variations to conceal

errors more accurately as complex functional relation-

ships between the input and output data can be learned

by neural networks. Given the relatively lightweight

nature of our proposed CECNN model, it would be

a good candidate for error concealment in video de-

coders.

REFERENCES

Aign, S. and Fazel, K. (1995). Temporal and spatial error

concealment techniques for hierarchical mpeg-2 video

codec. IEEE International Conference on Communi-

cations (ICC), 3:1778–1783.

Atzori, L., De Natale, F. G., and Perra, C. (2001). A

spatio-temporal concealment technique using bound-

ary matching algorithm and mesh-based warping

(bma-mbw). IEEE Transactions on Multimedia,

3(3):326–338.

Chen, M.-J., Chen, L.-G., and Weng, R.-M. (1997). Error

concealment of lost motion vectors with overlapped

motion compensation. IEEE Transactions on Circuits

and Systems for Video Technology, 7(3):560–563.

Gao, C., Saraf, A., Huang, J.-B., and Kopf, J. (2020). Flow-

edge guided video completion. European Conference

on Computer Vision, pages 713–729.

Hadizadeh, H., Baji

c, I. V., and Cheung, G. (2013). Video

error concealment using a computation-efﬁcient low

saliency prior. IEEE Transactions on Multimedia,

15(8):2099–2113.

Ho, C.-L. and Chang, L.-W. (2014). Temporal and spatial

error concealment using cooperative game. Interna-

tional Conference on Information Science, Electronics

and Electrical Engineering, 1:380–384.

Hoffman, M. T. (1998). Image ﬁle storage and retrieval

system. US Patent 5,761,655.

Hui, T. and Binbin, W. (2009). Discussion and analyze on

image fusion technology. International Conference on

Machine Vision, pages 246–250.

Iizuka, S., Simo-Serra, E., and Ishikawa, H. (2017). Glob-

ally and locally consistent image completion. ACM

Transactions on Graphics (ToG), 36(4):1–14.

Koren, M., Menda, K., and Sharma, A. (2017). Frame in-

terpolation using generative adversarial networks.

Li, S., Kang, X., Fang, L., Hu, J., and Yin, H. (2017). Pixel-

level image fusion: A survey of the state of the art.

Information Fusion, 33:100–112.

Liu, G., Reda, F. A., Shih, K. J., Wang, T.-C., Tao, A., and

Catanzaro, B. (2018). Image inpainting for irregular

holes using partial convolutions. European Confer-

ence on Computer Vision, pages 85–100.

SIGMAP 2022 - 19th International Conference on Signal Processing and Multimedia Applications

Liu, R., Weng, Z., Zhu, Y., and Li, B. (2021). Temporal

adaptive alignment network for deep video inpainting.

International Joint Conferences on Artiﬁcial Intelli-

gence, pages 927–933.

Liu, Z., Luo, P., Wang, X., and Tang, X. (2015). Deep

learning face attributes in the wild. IEEE International

Conference on Computer Vision, pages 3730–3738.

Mahmud, T., Billah, M., and Roy-Chowdhury, A. K.

(2018). Multi-view frame reconstruction with condi-

tional gan. IEEE Global Conference on Signal and

Information Processing, pages 1164–1168.

Marszalek, M., Laptev, I., and Schmid, C. (2009). Actions

in context. IEEE Conference on Computer Vision and

Pattern Recognition, pages 2929–2936.

Radford, A., Metz, L., and Chintala, S. (2015). Unsu-

pervised representation learning with deep convolu-

tional generative adversarial networks. arXiv preprint

arXiv:1511.06434.

Sainath, T. N., Kingsbury, B., Mohamed, A.-r., Dahl, G. E.,

Saon, G., Soltau, H., Beran, T., Aravkin, A. Y., and

Ramabhadran, B. (2013). Improvements to deep con-

volutional neural networks for lvcsr. Workshop on au-

tomatic speech recognition and understanding, pages

315–320.

Sankisa, A., Punjabi, A., and Katsaggelos, A. K. (2018).

Video error concealment using deep neural networks.

IEEE International Conference on Image Processing

(ICIP), pages 380–384.

Sankisa, A., Punjabi, A., and Katsaggelos, A. K. (2020).

Temporal capsule networks for video motion estima-

tion and error concealment. Signal, Image and Video

Processing, 14(7):1369–1377.

Shirani, S., Erol, B., and Kossentini, F. (2000a). A conceal-

ment method for shape information in mpeg-4 coded

video sequences. IEEE Transactions on Multimedia,

2(3):185–190.

Shirani, S., Kossentini, F., and Ward, R. (2000b). A

concealment method for video communications in an

error-prone environment. IEEE Journal on Selected

Areas in Communications, 18(6):1122–1128.

Torrey, L. and Shavlik, J. (2009). Transfer learning. hand-

book of research on machine learning applications.

IGI Global, 3:17–35.

Tsekeridou, S. and Pitas, I. (2000). Mpeg-2 error con-

cealment based on block-matching principles. IEEE

Transactions on Circuits and Systems for Video Tech-

nology, 10(4):646–658.

Usman, M., He, X., Lam, K.-M., Xu, M., Bokhari, S.

M. M., and Chen, J. (2016). Frame interpolation for

cloud-based mobile video streaming. IEEE Transac-

tions on Multimedia, 18(5):831–839.

Xiang, C., Xu, J., Yan, C., Peng, Q., and Wu, X. (2019).

Generative adversarial networks based error conceal-

ment for low resolution video. IEEE International

Conference on Acoustics, Speech and Signal Process-

ing (ICASSP), pages 1827–1831.

Yu, J., Lin, Z., Yang, J., Shen, X., Lu, X., and Huang, T. S.

(2018). Generative image inpainting with contextual

attention. IEEE Conference on Computer Vision and

Pattern Recognition, pages 5505–5514.

Zeng, Y., Fu, J., and Chao, H. (2020). Learning joint spatial-

temporal transformations for video inpainting. Euro-

pean Conference on Computer Vision, pages 528–543.

CECNN: A Convergent Error Concealment Neural Network for Videos
