Identifying Organizations Receiving Personal Data in Android Apps

David Rodriguez

, Miguel Cozar

and Jose M. Del Alamo

ETSI Telecomunicación, Universidad Politécnica de Madrid, Madrid, Spain

Keywords: Privacy, Data Protection, Personal Data, Data Controller, First-Party, Corporation, Android, Apps.

Abstract: Many studies have demonstrated that mobile applications are common means to collect massive amounts of

personal data. This goes unnoticed by most users, who are also unaware that many different organizations are

receiving this data, even from multiple apps in parallel. This paper assesses different techniques to identify

the organizations that are receiving personal data flows in the Android ecosystem, namely the WHOIS service,

SSL certificates inspection, and privacy policy textual analysis. Based on our findings, we propose a fully

automated method that combines the most successful techniques, achieving a 94.73% precision score in

identifying the recipient organization. We further demonstrate our method by evaluating 1,000 Android apps

and exposing the corporations that collect the users’ personal data.

1 INTRODUCTION

Extensive research (Wongwiwatchai, 2020) (Gamba,

2020) has shown that mobile applications are eager

collectors and leakers of their users’ personal data.

This goes unnoticed by most users (Balebako, 2013)

(Kim, 2015) and even the app developers (Balebako,

2014), who are also unaware that many different

organizations are receiving this data (Razaghpanah,

2018), even from multiple apps in parallel.

Properly identifying the organizations that receive

personal data is becoming increasingly important for

different stakeholders. For example, supervisory

authorities must carry out investigations on the

relationship between the source and destination of

some personal data flows to understand a system's

compliance with e.g., legal requirements for

international transfers of personal data. Similarly,

developers may want to check to which organizations

they are sending their users’ personal data.

Also, privacy researchers can leverage this

information to audit what corporations are avidly

collecting massive amounts of personal data.

However, the apps’ privacy policies often fail to

include the third parties with which personal data are

shared. Although a dynamic analysis of the app can

reveal the personal data flows and the destination

https://orcid.org/ 0000-0002-0911-4608

https://orcid.org/0000-0002-8958-6217

https://orcid.org/0000-0002-6513-0303

Corresponding author

domains, identifying the organizations receiving the

data may become challenging due to e.g., WHOIS

accuracy and reliability issues (Ziv, 2021), or the lack

of details in SSL certificates (“SSL survey”, 2022).

In this context, we aim to advance the

fundamental understanding of the accuracy of

different methods to identify the organizations

receiving personal data. To this end, we have first

gathered a ground truth of domain holders, and then

we have assessed three different methods against it.

To improve the overall performance, we have

integrated them into a new method, showing a high

precision level (94.73%). Finally, to demonstrate its

applicability at scale we have applied the new method

to understand the organizations and corporations that

are receiving personal data on a random sample of

1,000 Android apps.

2 RELATED WORK

WHOIS (“Technical Overview | ICANN WHOIS”,

2022) is the standard protocol for retrieving

information about registered domains and their

registrants, including the domain holder's identity,

contact details, domain expiration date, etc. However,

several issues have been reported (“Current Issues |

592

Rodriguez, D., Cozar, M. and Alamo, J.

Identifying Organizations Receiving Personal Data in Android Apps.

DOI: 10.5220/0011290100003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 592-596

ISBN: 978-989-758-590-6; ISSN: 2184-7711

ICANN WHOIS”, 2022) that threatens WHOIS

reliability and accuracy.

An SSL certificate is another source of

information about the authority holding a domain as

they digitally bind a cryptographic key, a domain,

and, sometimes, the domain holder details. SSL

certificates are usually issued by a Certification

Authority (CA), who checks the right of the applicant

organization to use a specific domain name and may

check some other details depending on the certificate

type issued. However, recent studies report that as

little as 30% of the certificates available contain

details about the applicant (“SSL survey”, 2022).

Due to the limitations of the WHOIS service and

SSL certificates to provide information on a domain

holder some researchers have looked at privacy

policies as an alternative means of identifying an

authority controlling a domain. In many jurisdictions,

the privacy policy must include the identity and the

contact details of the personal information handler, or

first party/data controller in data protection parlance.

For example, the European General Data Protection

Regulation (GDPR) (“Regulation 2016/679 of the

European Parliament and of the Council”, 2016) sets

the requirements (Article 13) for the information to

be provided to data subjects when their personal data

are collected, including “the identity and the contact

details of the controller”. It is reasonable to assume

that the data controller for a given subdomain is also

the authority holding that domain, and vice versa.

Previous work on privacy policy analysis has

focused on determining the presence/absence of

specific information in the text (Torre, 2020)

(Harkous, 2018), mainly to assess compliance with

legal requirements for transparency. We advance

these works further extracting the controller’s identity

by applying Named-Entity Recognition (NER)

techniques. Hosseini et al. (Hosseini, 2020) also used

NER techniques to identify third party entities on

privacy policies, but their goal was to recognize all

entities of a class (i.e. organization) in a policy, while

we aim to get only one output (the data controller)

from all possible organizations (i.e. first party, third

parties) recognized in the policy text.

Similar to our work, WebXray (Libert, 2021) also

provides information about the holder of a given

domain. However, identification is achieved through

information extracted from WHOIS and other

methods (e.g. web search).

The works mentioned above focus on analyzing

privacy policies to identify and extract specific

information. Our work aims to further apply these

https://pypi.org/project/python-whois/

techniques to discover third-party organizations

receiving personal data from Android apps. To

achieve this, it is necessary to intercept and analyze

the outgoing personal data flows. This has been the

subject of previous works too, mainly through static,

dynamic or hybrid analysis techniques (Guaman,

2020). Similar to these works, we have leveraged our

previous research on a platform for the dynamic

analysis of Android apps that allows carrying out

assessments of data protection features in Android

apps at scale (Guaman, 2021).

3 METHOD

WHOIS service consultation, SSL certificates

inspection, and privacy policies analysis are three

different methods to obtain information on an

organization receiving personal data. In all cases, we

depart from the information obtained when

intercepting a personal data flow i.e. a Fully Qualified

Domain Name (FQDN) receiving the data.

We leverage WHOIS records to learn the

organization holding a given domain. Our queries ask

for FQDNs as well as the corresponding Second

Level Domains (SLDs), obtaining better results when

asking for the latter. We tried to retrieve the

information using the python-whois

(over eight

million downloads, 180,000 in the last month)

observing incomplete or missing fields that were not

correctly parsed, particularly those related to the

Registrant Organization identity. This is probably due

to the absence of a consistent schema followed during

the domain registration process, as noted by previous

research. Thus, we developed our own code to query

the WHOIS service using the command line tool and

parsing the Registrant Organization details. We

discarded values hidden for privacy reasons by

detecting keywords such as “redacted” or “privacy”.

To leverage the SSL certificates, we set up

HTTPS connections to the destination FQDN,

intercepted the certificate sent by the server, and

analysed it for the holder details.

Finally, we look for the privacy policy governing

the FQDN and analyse it to extract the data controller

identity. First, we get the SLD from the FQDN and

compose an HTTP URL, to which we send an HTTP

request aiming to be redirected to a valid home page.

Otherwise, we leverage the Google search engine to

find the domain’s home page URL. Once the home

page is found we search for the privacy policy. We

have followed two different approaches to get it: 1)

Identifying Organizations Receiving Personal Data in Android Apps

593

Scraping the home page with Selenium and, in case a

valid policy is not found, 2) searching the policy on

the Google search engine. When a potential privacy

policy is found its text is downloaded and kept for

further analysis. We relied on Selenium to deal with

dynamic JavaScript code displaying the privacy

policy. In our experimental tests, these techniques

correctly found 65% of the privacy policies governing

the target domain.

Once a potential privacy policy is collected, its

language is checked with the langdetect

python

package, and non-English texts are discarded.

Afterwards, a supervised Machine Learning model

based on Support Vector Machines (SVM) checks

whether the text is indeed a privacy policy. We

trained the model with 195 manually annotated texts,

achieving 98.76% precision, 97.56% recall and

98.15% F1 score when evaluated against 100 unseen

English texts.

To identify the data controller in the privacy

policy, we first select the paragraphs of the text where

it is likely to appear. This selection is based on a bag

of words that seeks keywords empirically

demonstrated to be closer to the data controller

mention (e.g. keywords such as “we”, “us” found in

many privacy policies). Then, NER techniques are

applied to the selected paragraphs to identify the data

controller name. We have used SpaCy

for this, which

provides two different trained NER models, one

prioritizing efficiency and another favouring

accuracy. The efficiency model showed poorer results

and therefore the accuracy-based model was

implemented. We validated the combination of the

bag of words and the NER performance with 140

privacy policies achieving 92.14% accuracy, 95.41%

precision, 94.54% recall and 94.97% F1 score.

We used a ground-truth dataset to evaluate the

performance of the three methods in identifying the

controller behind a given domain. The dataset

includes 100 unique domains manually annotated

with the organization holding the domain. The

domains were randomly selected from those obtained

with the experimental setup described in section 4.

The evaluation result for each method is either 1) a

given value for the domain holder, which can be right

(i.e. true positive - TP) or wrong (i.e. false positive -

FP), or 2) no value (i.e. Null), in case the method

cannot determine a specific organization. For this

reason, none of the results can be considered as a False

Negative or True Negative. Thus, no accuracy, recall

or F1-score can be measured and only precision will be

considered to assess each method performance.

https://pypi.org/project/langdetect/

The SSL certificate inspection method retrieved

99 certificates out of the 100 domains fed, with 30 of

them containing the organization name. The missing

certificate could not be obtained because this domain

uses HTTP protocol. After a manual check, only 20

of those organization names were correct and 10 were

wrong. These results translate into a 66.67% precision

score and only 20% identified organizations.

The WHOIS consultation method failed to

retrieve information on 10 out of the 100 SLDs. From

the remaining 90 registries, 37 were correctly

obtained, 2 were wrong, 24 did not contain the

Registrant Organization field, 2 had an empty value

on this field, and 35 included hidden values due to

privacy reasons. This results into a 94.87% precision

and 37% identified organizations.

The privacy policy analysis method obtained the

highest rate of TP (Table 1). The evaluation is applied

to the whole pipeline including the extraction of the

extraction of the data controller name from the policy

text.

Table 1: Evaluation results.

TP FP N Precision

SSL certificate 20 10 69 66.67%

WHOIS 37 2 61 94.87%

Interestingly, the combination of the privacy

policy analysis method as first choice and the WHOIS

consultation as second choice outputs the best results,

showing almost the same precision score (94.73%

against 94.87%) while reducing considerably the

number of null results. We have applied this

combination to the evaluation of 1,000 Android apps.

4 ANDROID APPS EVALUATION

We developed a controlled experiment leveraging our

previous work on personal data flow interception and

analysis in Android apps (Guaman, 2021).

Basically, this is a pipelined microservices-based

platform able to automatically 1) search, download,

install, run, and interact with Android apps, and 2)

intercept and analyse outgoing network connections.

https://spacy.io/

SECRYPT 2022 - 19th International Conference on Security and Cryptography

594

The platform intercepts HTTP/HTTPS

connections established by the app under assessment

through a Man in the Middle (MITM) proxy, logging

information on the destination FQDNs and the

payload of the messages. The platform bypasses most

certificate pinning protections using the Frida tool.

The payload analysis accounts for different

obfuscation, encoding, and hashing techniques (e.g.

Base64, MD5, SHA1, SHA256, etc.) that might be

used by the app developer to evade the detection of

personal data. Finally, the IP address of the personal

data recipient is geolocated (Cozar, 2022), providing

more details for their subsequent analysis.

This platform was fed with a list of 1,000 random

Google Play Store apps, from which 943 managed to

execute. The apps were downloaded and tested

between 23 February and 2 March 2022. They were

installed and executed on a mobile device Xiaomi

Redmi 8 running Android 9 (API 28). The Android

Monkey (“UI/Application Exerciser Monkey”, 2022)

was used to automatically stimulate the app.

4.1 Results

Our platform identified 99,300 personal data flows

from 767 apps to 1,004 unique domains during the

experiment. A huge portion (96.46%) of these data

flows correspond to HTTPS connections. A subset of

1,849 HTTPS data flows could not be analysed due to

their further security protection we could not break.

Interestingly, we found 3,515 (3.54%) HTTP

connections containing personal data, which is an

insecure practice. Also, personal data flows were not

identified in 176 apps.

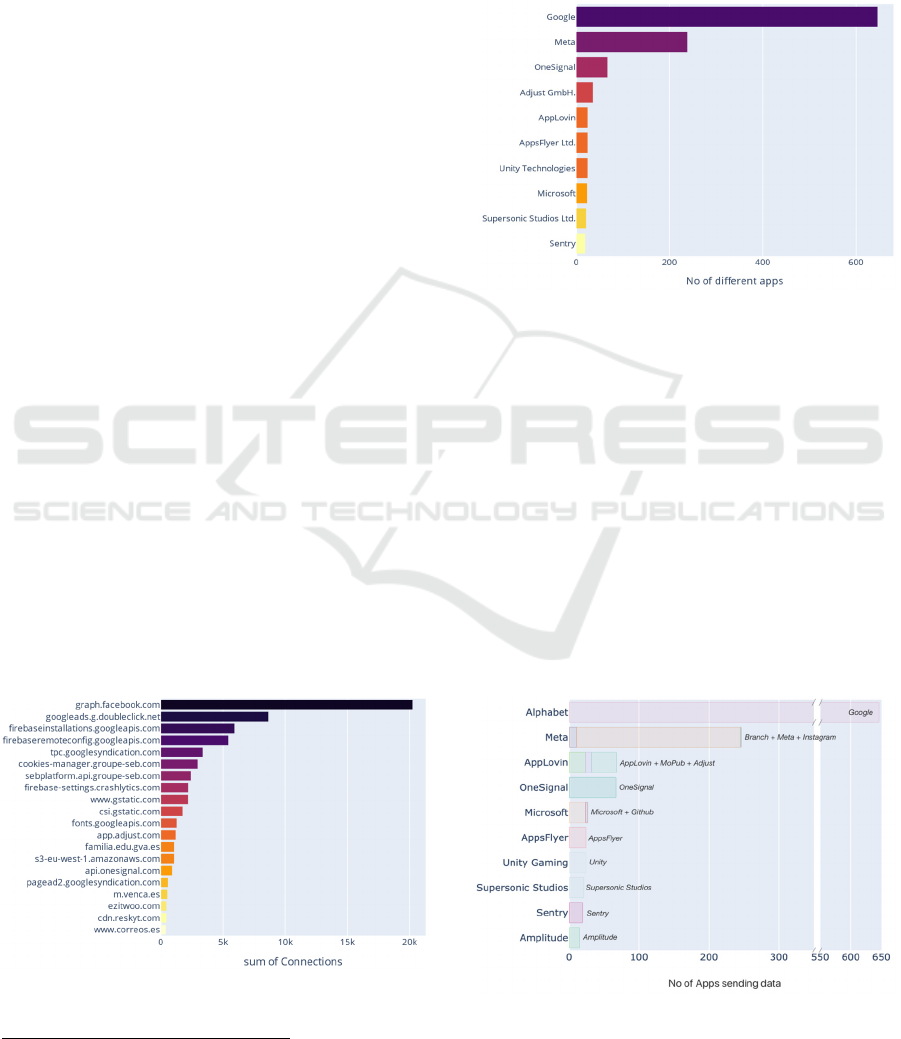

Fig. 1 shows the number of connections sending

personal data to the top-20 destination FQDNs. As

expected, most of these domains serve analytics,

marketing or monitoring purposes.

Figure 1: Personal data flows destinations.

https://www.crunchbase.com/

We further applied our method to identify the

companies receiving personal data (Fig. 2). Overall,

we were able to find them in 77.42% (76,878) of the

personal data flows, representing 68.92% (692) of the

unique destination domains. The top-6 companies to

which most apps send personal data provide analytics

and marketing services. The list is led by Google,

receiving data from 646 apps.

Figure 2: Companies receiving the personal data.

We have leveraged the Crunchbase

database to

further understand which corporations are beneath

these companies, showing the parent company and all

the subsidiaries that collect personal data. Fig. 3

shows how some of them collect data from different

subsidiaries, being the aggregated data higher than

expected as for Fig 2. The example of AppLovin is

quite representative, as it receives personal data

through AppLovin (monetization tools), but also

Adjust (developers’ support) and MoPub

(advertisement). The result is a whole ecosystem of

companies collecting data that situate the corporation

on our top-3. Meta is another example of a company

aggregating subsidiaries and collecting data from

different sources, including Instagram and Branch.

Figure 3: Corporations receiving personal data.

Identifying Organizations Receiving Personal Data in Android Apps

595

5 CONCLUSIONS

This paper has described a new method that combines

information from different sources to identify

organizations receiving personal data. The method

achieves a 94.73% precision and has been applied to

identify the corporations receiving personal data from

1,000 Android apps. We are working on applying

these results at scale to have a clearer picture of the

personal data collectors in the mobile ecosystem.

ACKNOWLEDGEMENTS

This work was partially supported by the Comunidad

de Madrid and Universidad Politécnica de Madrid

through the V-PRICIT Research Programme Apoyo

a la realización de Proyectos de I+D para jóvenes

investigadores UPM-CAM, under Grant APOYO-

JOVENES-QINIM8-72-PKGQ0J. The identification

of the relationships between companies was possible

thanks to Crunchbase, who kindly allowed us free

access to its API for this research.

REFERENCES

Cozar, M., Rodriguez, D., Del Alamo, J., Guaman, D.

(2022). Reliability of IP Geolocation Services for

Assessing the Compliance of International Data

Transfers. In 2022 IEEE European Symposium on

Security and Privacy Workshops (EuroS&PW).

SSL Survey | Netcraft. Retrieved April 5, 2022, from

https://www.netcraft.com/internet-data-mining/ssl-

survey/.

“Technical Overview | ICANN WHOIS.” ICANN

LOOKUP, Internet Corporation for Assigned Names

and Numbers, whois.icann.org/en/technical-overview.

Accessed 27 May 2022.

“Current Issues | ICANN WHOIS.” ICANN | LOOKUP,

Internet Corporation for Assigned Names and

Numbers, whois.icann.org/en/current-issues. Accessed

27 May 2022.

“UI/Application Exerciser Monkey.” Android Developers.

Retrieved May 27, 2022, from https://developer.an

droid.com/studio/test/other-testing-tools/monkey.

Guaman, D. S., Del Alamo, J. M., & Caiza, J. C. (2021).

GDPR Compliance Assessment for Cross-Border

Personal Data Transfers in Android Apps. IEEE Access,

9, 15961-15982.

Libert, T., Desai, A., & Patel, D. (2021). Preserving

Needles in the Haystack: A search engine and multi-

jurisdictional forensic documentation system for

privacy violations on the web.

Ziv, M., Izhikevich, L., Ruth, K., Izhikevich, K., &

Durumeric, Z. (2021). ASdb: a system for classifying

owners of autonomous systems. In Proceedings of the

21st ACM Internet Measurement Conference (pp. 703-

719).

Guaman, D. S., Del Alamo, J. M., & Caiza, J. C. (2020). A

systematic mapping study on software quality control

techniques for assessing privacy in information

systems. IEEE access, 8, 74808-74833.

Torre, D., Abualhaija, S., Sabetzadeh, M., Briand, L.,

Baetens, K., Goes, P., & Forastier, S. (2020). An ai-

assisted approach for checking the completeness of

privacy policies against gdpr. In 2020 IEEE 28th

International Requirements Engineering Conference

(RE) (pp. 136-146).

N. Wongwiwatchai, P. Pongkham, and K. Sripanidkulchai,

(2020). “Detecting personally identifiable information

transmission in android applications using light-weight

static analysis,” Comput. Secur., vol. 99, 2020, doi:

10.1016/j.cose.2020.102011.

Gamba, J., Rashed, M., Razaghpanah, A., Tapiador, J., &

Vallina-Rodriguez, N. (2020, May). An analysis of pre-

installed android software. In 2020 IEEE Symposium on

Security and Privacy (SP) (pp. 1039-1055).

Hosseini, M. B., Pragyan, K. C., Reyes, I., & Egelman, S.

(2020, November). Identifying and classifying third-

party entities in natural language privacy policies. In

Proceedings of the Second Workshop on Privacy in

NLP (pp. 18-27).

Harkous, H., Fawaz, K., Lebret, R., Schaub, F., Shin, K. G.,

& Aberer, K. (2018). Polisis: Automated analysis and

presentation of privacy policies using deep learning. In

27th USENIX Security Symposium (USENIX Security

18) (pp. 531-548).

Razaghpanah, A., Nithyanand, R., Vallina-Rodriguez, N.,

Sundaresan, S., Allman, M., Kreibich, C., & Gill, P.

(2018, February). Apps, trackers, privacy, and

regulators: A global study of the mobile tracking

ecosystem. In The 25th Annual Network and

Distributed System Security Symposium (NDSS 2018).

“Regulation (EU) 2016/679 of the European Parliament and

of the Council of 27 April 2016 on the Protection of

Natural Persons with Regard to the Processing of

Personal Data and on the Free Movement of Such Data,

and Repealing Directive 95/46/EC (General Data

Protection Regulation).” EUR-Lex, Publications Office,

27 Apr. 2016, eur-lex.europa.eu/eli/reg/2016/679/oj.

Balebako, R., Marsh, A., Lin, J., Hong, J. I., & Cranor, L.

F. (2014). The privacy and security behaviors of

smartphone app developers. In The 21st Annual

Network and Distributed System Security Symposium

(NDSS 2014).

Balebako, R., Jung, J., Lu, W., Cranor, L. F., & Nguyen, C.

(2013, July). " Little brothers watching you" raising

awareness of data leaks on smartphones. In

Proceedings of the Ninth Symposium on Usable Privacy

and Security (pp. 1-11).

SECRYPT 2022 - 19th International Conference on Security and Cryptography

596
