JCAlgTest: Robust Identiﬁcation Metadata for Certiﬁed Smartcards

Petr Svenda, Rudolf Kvasnovsky, Imrich Nagy and Antonin Dufka

Masaryk Univesity, Brno, Czech Republic

Keywords:

Certiﬁcation, Smartcard, JavaCard, Cryptography, Forensics.

Abstract:

The certiﬁcation of cryptographic smartcards under the Common Criteria or NIST FIPS140-2 is a well-

established process, during which an evaluation facility validates the manufacturer’s claims and issues a prod-

uct certiﬁcate. The tested card is usually identiﬁed by its name, type, ATR, and Card Production Life Cycle

(CPLC) data. While sufﬁcient to pair the purchased card to its original certiﬁcate when bought from a trust-

worthy seller, such static metadata stored on the card can easily be manipulated. We extend the currently used

card identiﬁcation with a more descriptive set of metadata extracted from supported functionality, performance

proﬁling, and properties of generated cryptographic keys. All of this information can be obtained directly by

the evaluation facility, appended to the certiﬁcate, and later veriﬁed by the end-user with no need for any

special knowledge or equipment, resulting in a better assurance about the purchased product. We developed

a suite of open tools for the extraction of such characteristics and collected results for a set of more than 100

different smartcards. The database, openly available, demonstrates the signiﬁcant variability in the measured

properties and allows us to estimate the trends in support of different cryptographic algorithms as provided by

the JavaCard platform.

1 INTRODUCTION

To facilitate the manufacturing of more trustwor-

thy products and to remove the burden of verify-

ing claims made from the product’s end-user, se-

curity certiﬁcation schemes like Common Criteria

(Common Criteria, 2017) or NIST FIPS 140-2 (NIST,

2014) were introduced. A product is submitted for in-

dependent assessment by an accredited evaluation fa-

cility under a relevant scheme. The evaluation facil-

ity issues the security certiﬁcate after evaluating the

claims made about product security features and the

whole product lifecycle. The certiﬁcate is then pub-

licly available to potential customers and may be con-

sidered or required for their purchasing decision.

Multiple issues became evident over more than

two decades of operation of the certiﬁcation schemes

like Common Criteria. It proved to be time-

consuming, costly, and not agile enough to keep pace

with the product evolution after the initial certiﬁca-

tion was granted. Additionally, the crucial details of

the evaluation are often not publicly available due to

non-disclosure agreements protecting the intellectual

property of both manufacturers as well as the evalu-

ation facility and usage of closed tools. Finally, the

binding between the certiﬁcate product and its certiﬁ-

cate is typically loose. The product usually somewhat

evolved due to natural development like the inclu-

sion of new functionality or the application of security

patches. The evaluation facility typically states not

only the name and type of the product but also other

identifying information like ROM mask versions or

source code tags in a version control system. How-

ever, buyers are severely limited in their options to

verify these identiﬁers as some reported by a device

can be easily changed (e.g., version of the product),

and some are not even available (e.g., source code for

referenced tags). As a result, the buyer has to trust the

seller that the device matches the claimed certiﬁcate.

Such a situation becomes a problem when third-party

resellers have to be considered – a typical situation

for cryptographic smartcards when bought in smaller

quantities or second-hand purchases.

We envision an improved certiﬁcation procedure

where an evaluation facility uses well-deﬁned pro-

cesses and open tools to analyze the claimed security

of the product. Together with the exact settings used

and artifacts obtained, the results are published along

with the standard security certiﬁcate. The buyers can

later repeat the relevant parts of the performed testing

themselves or contract a specialized laboratory.

A suite of open-source tools was developed and

described in this paper. The suite can be used for

the analysis of smartcards with the JavaCard plat-

Svenda, P., Kvasnovsky, R., Nagy, I. and Dufka, A.

JCAlgTest: Robust Identiﬁcation Metadata for Certiﬁed Smartcards.

DOI: 10.5220/0011294000003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 597-604

ISBN: 978-989-758-590-6; ISSN: 2184-7711

597

form, including other usage scenarios like an audit

of the batch of cards purchased, forensic analysis of

unknown or malfunctioning cards, and supporting de-

velopers to select a card with desired supported al-

gorithms and performance. While the proposed ap-

proach might be possible to extend to some of the

other types of certiﬁed devices, the smartcard domain

itself already constitutes the most populous type cer-

tiﬁed under the Common Criteria scheme

Contributions. This paper makes the following

contributions:

• Smartcard Audit Framework: We introduce

a systematic methodology for JavaCard bench-

marking, which comprehensively evaluates the

capabilities and the performance of the examined

card. The primary usage is to verify the similarity

of two or more cards. (Section 2)

• Ecosystem Study: We evaluate a wide variety

of cards from all major smartcard manufacturers

for the supported cryptographic algorithms, their

performance, and information included in the

Card Production Life Cycle, making this the ﬁrst

such large-scale study of the JavaCard ecosystem.

(Section 3)

All presented tools and collected results are pub-

licly available, including their source code, allowing

for independent usage and veriﬁcation by all involved

parties.

2 JCAlgTest TESTING SUITE

In this section, we outline the functional modules of

our testing suite called JCAlgTest, which provides a

means to comprehensively gather, evaluate, and com-

pare the capabilities of cards with the JavaCard plat-

form (JC). The suite is split into several modules

based on the type of gathered data. The modules con-

sist of a host application (written either in Java or

Python) and a small JavaCard applet uploaded on a

card. The collected data is stored as raw text ﬁles,

later processed by analysis and visualization scripts

into various formats like static HTML pages, inter-

active graphs, summary pdf documents, and images.

The on-card testing applet is compatible with cards

starting from JC 2.1.1.

The development of the JCAlgTest suite started in

2007, in parallel with the collection of results from

The category “ICs, Smart Cards and Smart Card-

Related Devices and Systems” contain around 35%

(568 out of 1606) of all currently active certiﬁcates

(Common Criteria, 2020).

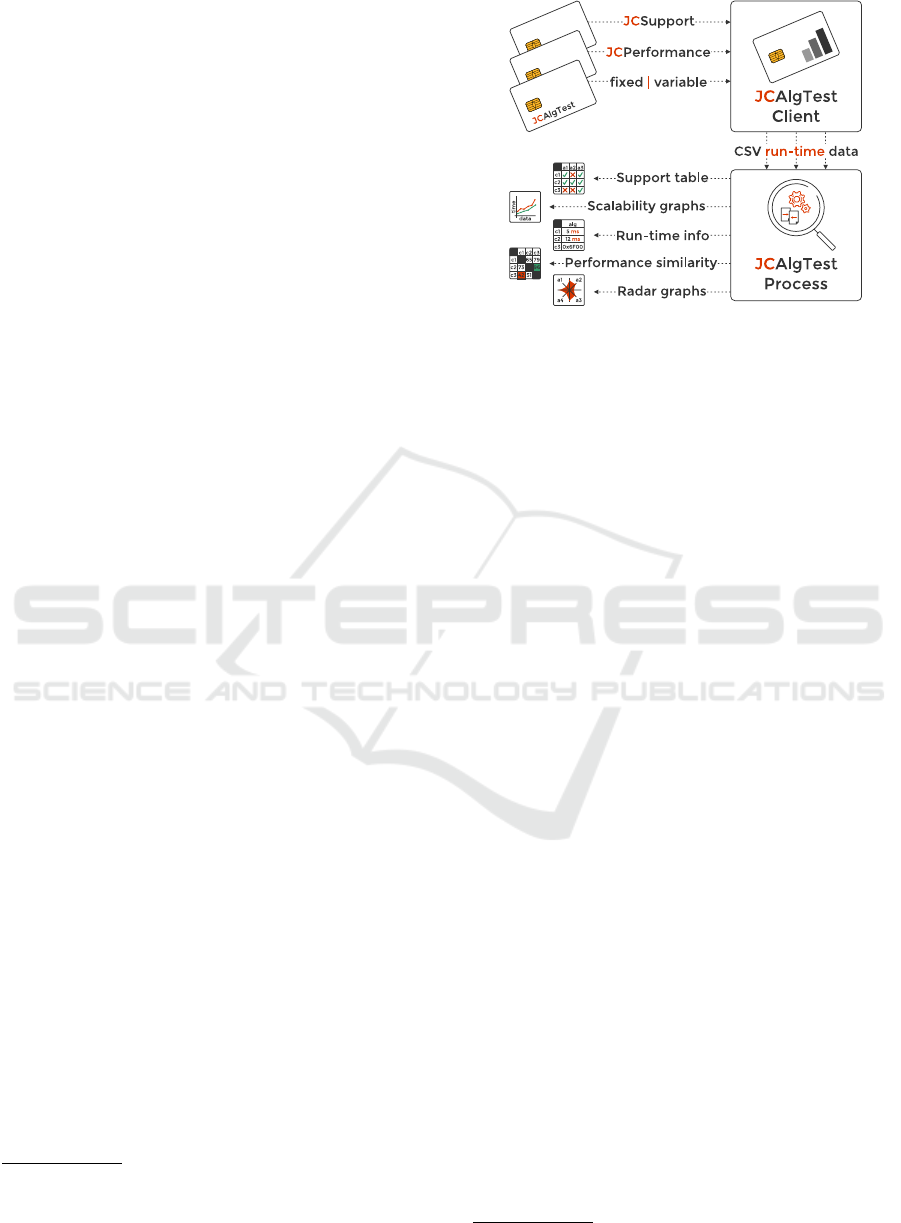

Figure 1: A high-level overview of the components and pro-

cesses of our audit suite. The on-card applets measures the

speciﬁcation compliance and benchmarks the performance.

Then, the client collects and processes the results to extract

a useful information.

the cards available for testing. The initial imple-

mentation was done in C++ (host control application)

and for Windows OS. After the code was ported to

Java in 2012, we also started to obtain community-

provided scans of cards, reaching more than 100 cards

in the second half of 2021. The source code, releases,

and the results collected are all available openly via

GitHub and a dedicated webpage

2.1 How to Identify a Smartcard?

The hardware used in smartcards is, to a great extent,

deﬁned by the ISO/IEC 7816 standard (ISO, 2013)

and can have an outer form of a payment card, SIM

card, or be embedded in a token. According to this

standard, a typical smartcard must be tamper-resistant

and should embed a general-purpose processor (8, 16,

or 32-bits). The typical internal clock is between 20 to

50 MHz. Cards also features three types of memory: a

Read-Only Memory (ROM) for the operating system,

a Random Access Memory (RAM, typically below

10KB), and a larger application memory for binaries

and data (20KB-1MB of EEPROM or FLASH). Typ-

ically, a true random number generator is available

as a source of randomness. Finally, many cards also

incorporate a cryptographic co-processor to provide

hardware acceleration for computationally intensive

cryptographic algorithms. The JavaCard platform es-

tablished itself as the major programming interface,

allowing to write applications (applets) in a restricted

version of Java language portable between cards of

different vendors.

If a user possesses a smartcard of (yet) unknown

origin, there are multiple options on how to identify

http://jcalgtest.org

SECRYPT 2022 - 19th International Conference on Security and Cryptography

598

its manufacturer and type with a different level of ro-

bustness against the intentional manipulation of the

metadata used to estimate the card’s origin.

2.2 ATR and CPLC Collection Module

The main JCAlgTest host application lists all avail-

able readers and offers a connection to a speciﬁc

smartcard. The Answer To Reset (ATR) bytes are

automatically returned by card after the connection

is established. Additionally, two APDU commands

(0x80CA9F7F and 0x00CA9F7F as deﬁned by Glob-

alPlatform and ISO7816, respectively) are issued af-

ter the selection of CardManager entity to retrieve

Card Production Life Cycle (CPLC) metadata. The

retrieval is very fast and ﬁnishes in less than 3 sec-

onds. The large majority of cards contain CPLC data,

though some with obviously invalid/unﬁlled values

like zeroes or invalid ICFabricationDate values.

2.3 Supported JavaCard Algs Module

The JavaCard API speciﬁcation contains a multitude

of packages with security-related classes of cryp-

tographic algorithms (e.g., Cipher, Signature, Mes-

sageDigest, RandomData), further parameterized us-

ing different algorithm types (e.g., ALG AES or

ALG RSA), key lengths, and modes of operation.

In the JC API 3.0.5 (Oracle, 2015), the algorithm–

parameter combinations add up to more than 200.

However, a speciﬁc card product does not need to

support all the algorithms speciﬁed in the documen-

tation. Due to a large number of possible combina-

tions, manual compliance testing is tedious and error-

prone. Instead, JCAlgTest uses an on-card applet,

trying to instantiate all deﬁned classes and their cor-

responding parameters, and reports the results to the

host application. Additionally, generic card informa-

tion like the size of persistent and transient memory,

reported JavaCard version, or maximum transaction

commit capacity is also collected. The testing itself

relies on the exceptions captured on-card, it is fully

automated, and it completes in a relatively short time

– usually within a few minutes. The results collected

from all cards in the database are processed together

to create a single large support matrix, listing all pos-

sible algorithms from speciﬁcation and their support

by a particular card. Selected aggregated results are

provided in Table 1.

2.4 Performance Collection Module

Card performance varies greatly depending on the in-

ternal chip frequency, hardware-accelerated subset of

algorithms, the timings of the memory chips used, and

implementation choices (e.g., primality search algo-

rithm). Despite that, smartcard manufacturers rarely

provide extensive detailed reports on the performance

of their products, or only incomplete ones (e.g., the

raw speed of encryption engine without considering

overhead for transferring data in and out and schedul-

ing key for use).

In order to evaluate and compare cards for a spe-

ciﬁc use case, all individual algorithms are bench-

marked for all possible parameter combination (e.g.,

various key lengths or padding options). Additionally,

all methods of particular class (e.g., setKey(), getKey()

and eraseKey() for class AESKey) are measured, re-

sulting in more than 2300 possible combinations to

be tested.

Unlike Java, JavaCard provides no direct on-card

timer, and thus the time measurements must be per-

formed by the host application on PC. As a result, we

cannot measure only the targeted operation but are

also measuring the time required to transfer data to

and from the card and any other code executed before

and after the operation.

To account for such a situation, we ﬁrst run a cal-

ibration phase, which measures the overhead associ-

ated with all the non-target operations. During that

phase, the target operation is not executed (the con-

trol ﬂag is set to “false”), but all the surrounding code

is. This enables us to measure the overhead of the

functionality not related to the target function. Mul-

tiple calibration rounds are performed to account for

variations in the measurements. Subsequently, the tar-

get operation is enabled (control ﬂag set to “true”),

and multiple experiment rounds are performed again.

The target operation runtime is then obtained by sim-

ply subtracting the average overhead time (calibration

phase) from the average runtime (experiment phase).

Even though this method provides accurate mea-

surements for the great majority of the algorithms and

methods, there are two cases that require special treat-

ment:

• Methods that are preceded by other calls with in-

consistent execution times (e.g., when RSA key-

pair generation is executed before signature oper-

ation).

• Operations with almost negligible overhead

(<1ms) that is below the measurement error.

To address these speciﬁc cases, we increase the

relative time of the target operation by wrapping it

into the loop with a predeﬁned number of iterations

(if necessary, the cryptographic key values used are

alternated to prevent runtime optimizations by using

the same value; compiled bytecode is also checked for

unwanted compiler optimizations). All input buffers

JCAlgTest: Robust Identiﬁcation Metadata for Certiﬁed Smartcards

599

are pre-allocated to the maximum allowed length, and

all objects to be used are pre-initialized to further re-

duce measurement variance. The resulting measure-

ment precision is accurate enough to measure the per-

formance of all the JavaCard methods, including util-

ity methods with very low overhead (e.g., copying

data between two RAM arrays). The whole set of per-

formance experiments typically takes several hours

to ﬁnish and depends not only on the card’s speed

but primarily on the number of supported algorithms,

which increases the number of measurement sessions

to be executed.

The performance testing runs in two modes, both

providing the execution time in milliseconds for the

speciﬁed length of the processed data. The ﬁrst mode

operates with ﬁxed length – where sensible, we use

256 bytes data length, which corresponds to the length

of the full APDU command. The second mode inves-

tigates the operation performed when applied to the

data of different lengths – we test lengths of 16, 32,

64, 128, 256, and 512 bytes.

The performance testing methodology introduces

non-trivial stress on a card and may result in a tempo-

rary freeze of the card (resolved by re-insertion of the

card into a reader) and, in rare cases, also in perma-

nent card blocking.

2.5 Supported JC Packages Module

Same as for cryptographic algorithms, no direct func-

tionality is present to retrieve supported JavaCard

packages. While support for a single algorithm can

be tested by its instantiation and handling an eventual

exception, support for the whole JavaCard package

(e.g., javacardx.crypto) must be tested differently –

testing applet will not even load to the card if it con-

tains unsupported packages.

We instead utilize the behavior of an on-card

veriﬁer testing the bytes of the uploaded applet

(cap ﬁle) during the LOAD command of Glob-

alPlatform speciﬁcation and developed jcAIDScan

tool

. A small, empty applet is ﬁrst compiled

and converted to cap ﬁle, ready to be uploaded

to the card. Before the upload, cap ﬁle is un-

packed (zip ﬁle structure) and internal ﬁle named

Import.cap is (automatically) modiﬁed to reference

additional package we like to test (package AID

and its version, e.g., 0x020107A0000000620201 for

javacardx.crypto v1.2 as deﬁned in JavaCard API

2.2.1). The modiﬁed cap ﬁle with applet is at-

tempted for upload – if no error is detected, the

speciﬁc package and version is supported; other-

wise, the support is missing. We test for all pack-

https://github.com/petrs/jcAIDScan

16 32 64 128 256 512

100

150

200

250

Infineon CJTOP 80K INF SLJ 52GLA080AL M8.4

NXP CJ3A081

NXP JCOP41 v2.2.1 72K

Data length (bytes)

Time of operation (ms)

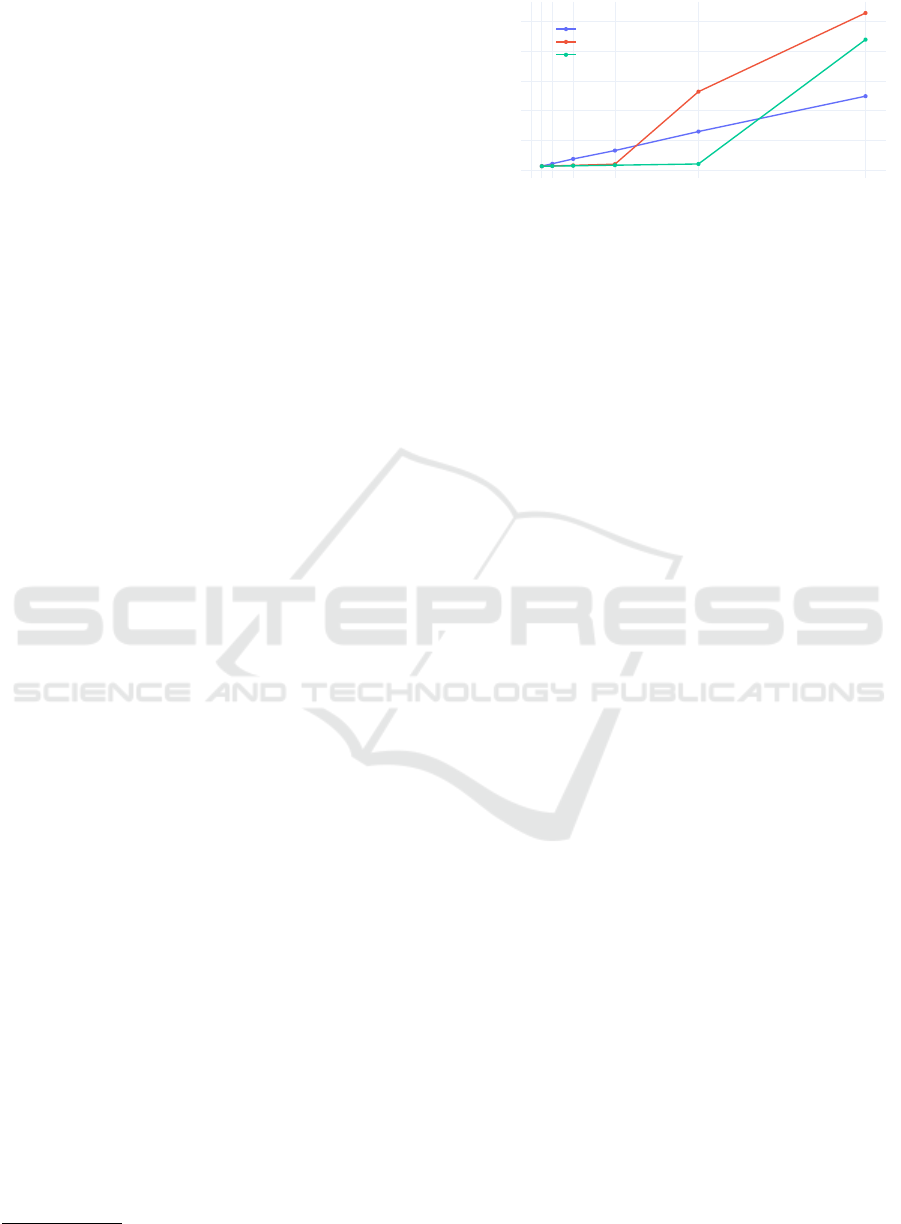

Figure 2: The example relationship between the input

length with the runtime of 3DES with ISO9797 M1 padding

in three different commercial JavaCards. The nonlinear in-

crease for NXP CJ3A081 card between data with 128 and

256 bytes can be explained by memory limits of internal

processing buffers, providing information about the hard-

ware used.

ages speciﬁed in JavaCard speciﬁcation up to version

3.0.5 (javacard.*, javacardx.*, org.globalplatform.*,

visa.openplatform.* and all their sub-packages), test-

ing 120 different packages and versions in total. The

testing can be easily extended to scan also for other

packages if their AID is known. The whole process

usually ﬁnishes below 10 minutes, depending on the

card speed.

2.6 RSA/ECC Keys Collection Module

While mostly random, the keys generated by a spe-

ciﬁc card may contain a small bias stemming from

the implementation of the key generation algorithm

(Svenda et al., 2016). The testing applet repeatedly

calls KeyPair.genKey() method for instances of RSA

and ECC asymmetric ciphers and export both public

and private parts to the host. The extracted keys are

later analyzed for the presence of yet unknown bias

(bias discovery phase) or already known speciﬁc one

(bias identiﬁcation phase). The analysis is performed

by other tools outside the keys collection module. In

general, the discovery phase requires at least hundreds

of thousands of keys and may take days or even weeks

to complete, while the identiﬁcation phase requires

only 100-1000 keys collected within minutes or hours

at most. The collection module supports parallel col-

lection from multiple cards of the same type.

2.7 Presentation Module

The raw data collected from a range of cards by the

previously described modules are processed into a

form more suitable for public display. CPLC meta-

data is parsed and converted into .dot format, later

visualized by GraphViz software to highlight sim-

ilar clusters. Supported algorithms are combined

SECRYPT 2022 - 19th International Conference on Security and Cryptography

600

Athena IDProtect

Feitian JavaCOS 3.0.4 e2

Feitian JavaSD

G+D Smartcafe 3.2 72K

G+D Smartcafe 6.0 80K

Gemplus GXP R4 72K

Infineon CJTOP 80K

JavaCOS A22

JavaCOS A22 CR-ECC-SHA-2

JavaCOS A40

NXP J2D081 80K

NXP JCOP21 v2.4.2R3

NXP JCOP3 J3H145g P60

NXP JCOP4 J3R180 P71

NXP JCOP4 P71D321

Softlock SLCOS InfineonSLE78

10k

15k

20k

25k

512b

1024b

2048b

Time of generation (ms)

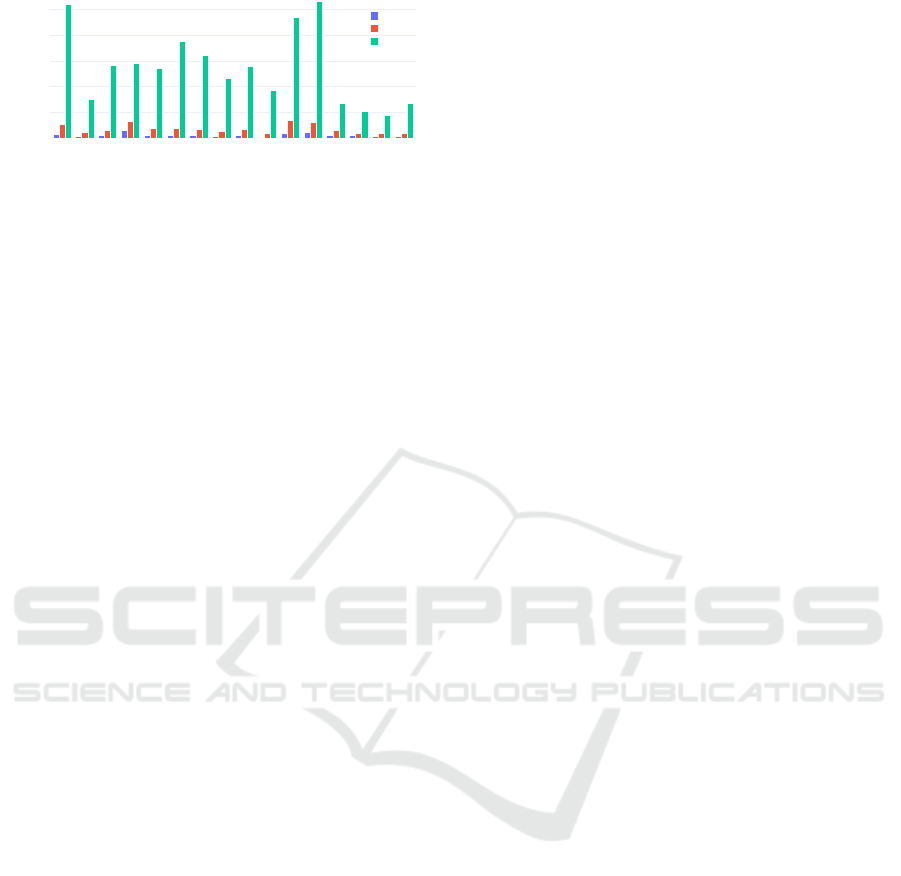

Figure 3: The average time required to generate a single

RSA keypair of varying length on a selected subset of cards

supporting all of the lengths. The observed run-time differ-

ences are due to the prime search algorithms executed in the

cryptographic co-processor (Svenda et al., 2016).

into a large matrix, with rows corresponding to the

particular algorithm from JavaCard speciﬁcation and

columns corresponding to tested cards, all embedded

in a static HTML page (Table 1 presents only aggre-

gated results). Performance results are visualized in

automatically generated HTML tables and graphs like

Figure 2, showing speed dependency on the length of

the data processed, or Figure 3, showing average time

required to generate RSA keypairs of varying lengths.

3 ECOSYSTEM INSIGHTS

Based on a large number of results collected since

2007, we present an insight into the ecosystem as a

whole. Approximately 50% of these cards were tested

directly by us, while the rest were provided by volun-

teers worldwide. The longer and more detailed per-

formance tests were performed only on cards avail-

able in our laboratory. Due to the nature of the study,

we were able to include only smartcards that are com-

mercially available in smaller quantities via third-

party resellers. The on-premise testing was performed

on an ordinary laptop and standard Gemalto IDBridge

CT30 smartcard reader. The testing is designed to be

independent of the host’s performance.

3.1 JavaCard API Support

The open database contains results for supported al-

gorithms collected from more than 100 smartcards

with different basic identiﬁcation (e.g., product mar-

keting title). Out of these, around ninety are different

cards, with the rest being likely duplicates only en-

rolled under a different name. Since 1999 (JC API

v2.1), the JavaCard API has deﬁned DES and 3DES

algorithms and TRNG as a source of random data. As

seen in Table 1, almost all manufacturers provide sup-

port for these algorithms. On the other hand, while

the AES algorithm (standardized by NIST in the year

2000) was speciﬁed already in version JC API v2.2.0

(2002), it was not until 2006 that some cards started

to support it, while it became common only after

the year 2010 (based on ICFabricationDate from the

CPLC info). Almost all cards provide both ECB and

CBC modes of operation for block ciphers, as well as

for the padding schemes PKCS#1 and ISO9797. The

advanced padding methods like OAEP and PSS are

supported by less than 50% of the cards (but almost

all recent ones with JC API v3.0.5).

JC API v2.1 also speciﬁes RSA cryptosystem (up

to 2048-bit keys), and although the majority of mod-

ern cards comply, very few products handle longer

keys (e.g., 4096-bit ones). This is due to both the time

requirements of longer keys generation and the uni-

versal shift towards elliptic curve cryptosystems that

provide the same level of security with fewer key bits.

In the case of DSA, we observe only a small

fraction of the cards with support. Newer cards

seem to abandon DSA for its modern elliptic curve

counterpart, ECDSA. Despite this, the overall pic-

ture is that EC algorithms are not yet fully sup-

ported in newer cards (>3.0.1), as, for instance, only

around 70% of these cards expose EC key lengths

of at least 256 bits. Moreover, only a hashed ver-

sion of the Difﬁe-Hellman Key Agreement protocol

(IEEE P1363) is frequently available, while imple-

mentations outputting both plain coordinates are only

sparsely available (except for the newest JC API 3.0.5

cards). No card with mode for authenticated encryp-

tion (CCS, GCM) was encountered. Finally, manu-

facturers implement all classic hashing functions such

as SHA-1, SHA-2 (256-bit), and RIPEMD-160, while

support for the insecure MD5 seems to be phased out

in the newer cards. The support for SHA-2 (512-bits)

is common in newer cards, but no tested card yet sup-

ports SHA-3.

Additionally, the full-text search performed

on all issued Common Criteria certiﬁcates

(Common Criteria, 2017) for JavaCard-relevant

keywords shows that the ﬁrst card with JC API 2.1

was certiﬁed in 1999. A total of 29 certiﬁcates were

issued for cards with JC API 2.2.2, with the ﬁrst one

certiﬁed in the year 2009. JC API 3.0.4 is now the

dominant version with 19 active certiﬁcates. The

ﬁrst card with JC API 3.0.5 was certiﬁed in 2018,

with a total of 4 certiﬁcates. No card with JC API

3.1 was certiﬁed to date. Performance of operations

and support for higher JavaCard API is typically

correlated, as can be seen in Figure 4.

JCAlgTest: Robust Identiﬁcation Metadata for Certiﬁed Smartcards

601

Table 1: The level of support for algorithms speciﬁed in JavaCard API. For a given feature, the version column speciﬁes

the JavaCard speciﬁcation that deﬁned it ﬁrst, while the subsequent columns show its availability in cards reporting partic-

ular supported version via the JCSystem.getVersion() method and maximally supported version of the javacard.framework

package. Results for smartcards with an unknown version were not included.

Feature First in JC 6 2.2.1 JC 2.2.2 JC 3.0.1/2 JC 3.0.4 JC 3.0.5

version (21 cards) (26 cards) (12 cards) (29 cards) (11 cards)

Truly random number generator

TRNG (ALG SECURE RANDOM) 6 2.1 100% 100% 100% 100% 100%

Block ciphers used for encryption or MAC

DES (ALG DES CBC NOPAD) 6 2.1 100% 100% 100% 100% 100%

AES (ALG AES BLOCK 128 CBC NOPAD) 2.2.0 52% 96% 100% 100% 100%

KOREAN SEED (ALG KOREAN SEED CBC NOPAD) 2.2.2 5% 62% 75% 34% 0%

Public-key algorithms based on modular arithmetic

1024-bit RSA (ALG RSA( CRT) LENGTH RSA 1024) 6 2.1 76% 96% 100% 93% 82%

2048-bit RSA (ALG RSA( CRT) LENGTH RSA 2048) 6 2.1 67% 96% 100% 93% 82%

4096-bit RSA (ALG RSA( CRT) LENGTH RSA 4096) 3.0.1 0% 0% 0% 3% 0%

1024-bit DSA (ALG DSA LENGTH DSA 1024) 6 2.1 5% 8% 8% 10% 0%

Public-key algorithms based on elliptic curves

192-bit ECC (ALG EC FP LENGTH EC FP 192) 2.2.1 5% 62% 83% 66% 82%

256-bit ECC (ALG EC FP LENGTH EC FP 256) 3.0.1 0% 50% 75% 66% 82%

384-bit ECC (ALG EC FP LENGTH EC FP 384) 3.0.1 0% 12% 17% 62% 82%

521-bit ECC (ALG EC FP LENGTH EC FP 521) 3.0.4 0% 4% 8% 45% 82%

ECDSA SHA-1 (ALG ECDSA SHA) 2.2.0 24% 84% 100% 69% 82%

ECDSA SHA-2 (ALG ECDSA SHA 256) 3.0.1 5% 12% 100% 69% 82%

ECDH IEEE P1363 (ALG EC SVDP DH) 2.2.1 29% 81% 100% 69% 82%

IEEE P1363 plain coord. X (ALG EC SVDP DH PLAIN) 3.0.1 5% 4% 67% 48% 82%

IEEE P1363 plain c. X,Y (ALG EC SVDP DH PLAIN XY) 3.0.5 0% 0% 0% 17% 82%

Modes of operation and padding modes

ECB, CBC modes 6 2.1 100% 100% 100% 100% 100%

CCM, GCM modes (CIPHER AES CCM, CIPHER AES GCM) 3.0.5 0% 0% 0% 0% 0%

PKCS1, NOPAD padding 6 2.1 95% 100% 100% 100% 100%

PKCS1 OAEP scheme (ALG RSA PKCS1 OAEP) 6 2.1 14% 31% 8% 41% 82%

PKCS1 PSS sheme (ALG RSA SHA PKCS1 PSS) 3.0.1 14% 19% 83% 41% 100%

ISO14888 padding (ALG RSA ISO14888) 6 2.1 14% 12% 8% 0% 0%

ISO9796 padding (ALG RSA SHA ISO9796) 6 2.1 81% 100% 100% 86% 100%

ISO9797 padding (ALG DES MAC8 ISO9797 M1/M2) 6 2.1 90% 100% 100% 100% 100%

Hash functions

MD5 (ALG MD5) 6 2.1 90% 77% 92% 62% 0%

SHA-1 (ALG SHA) 6 2.1 95% 100% 100% 100% 100%

SHA-256 (ALG SHA 256) 2.2.2 14% 88% 100% 97% 100%

SHA-512 (ALG SHA 512) 2.2.2 5% 23% 25% 90% 100%

SHA-3 (ALG SHA3 256) 3.0.5 0% 0% 0% 0% 0%

3.2 JavaCard Packages Support

In total, 40 cards were analyzed for the available

packages from JavaCard API up to JC API 3.0.5 us-

ing jcAIDScan module. While standard packages like

javacard.framework or javacardx.crypto are always

supported (in version corresponding to the card’s API

compliance), more specialized packages like javac-

ardx.biometry (11x), javacardx.framework.util.intx

(9x) javacardx.framework.math (4x) are supported

SECRYPT 2022 - 19th International Conference on Security and Cryptography

602

AES setKey (256b)

AES256 encrypt (256B)

RSA 1024 CRT Encrypt

RSA 1024 Encrypt

RSA 2048 CRT Encrypt

RSA 2048 Encrypt

RSA 512 CRT Encrypt

SECURE_RANDOM (256B)

SHA-1 hash (256B)

SHA2-256 hash (256B)

JC API Version

2.2.1 2.2.2 3.0.1 3.0.2 3.0.4 3.0.5

Time of operation (ms)

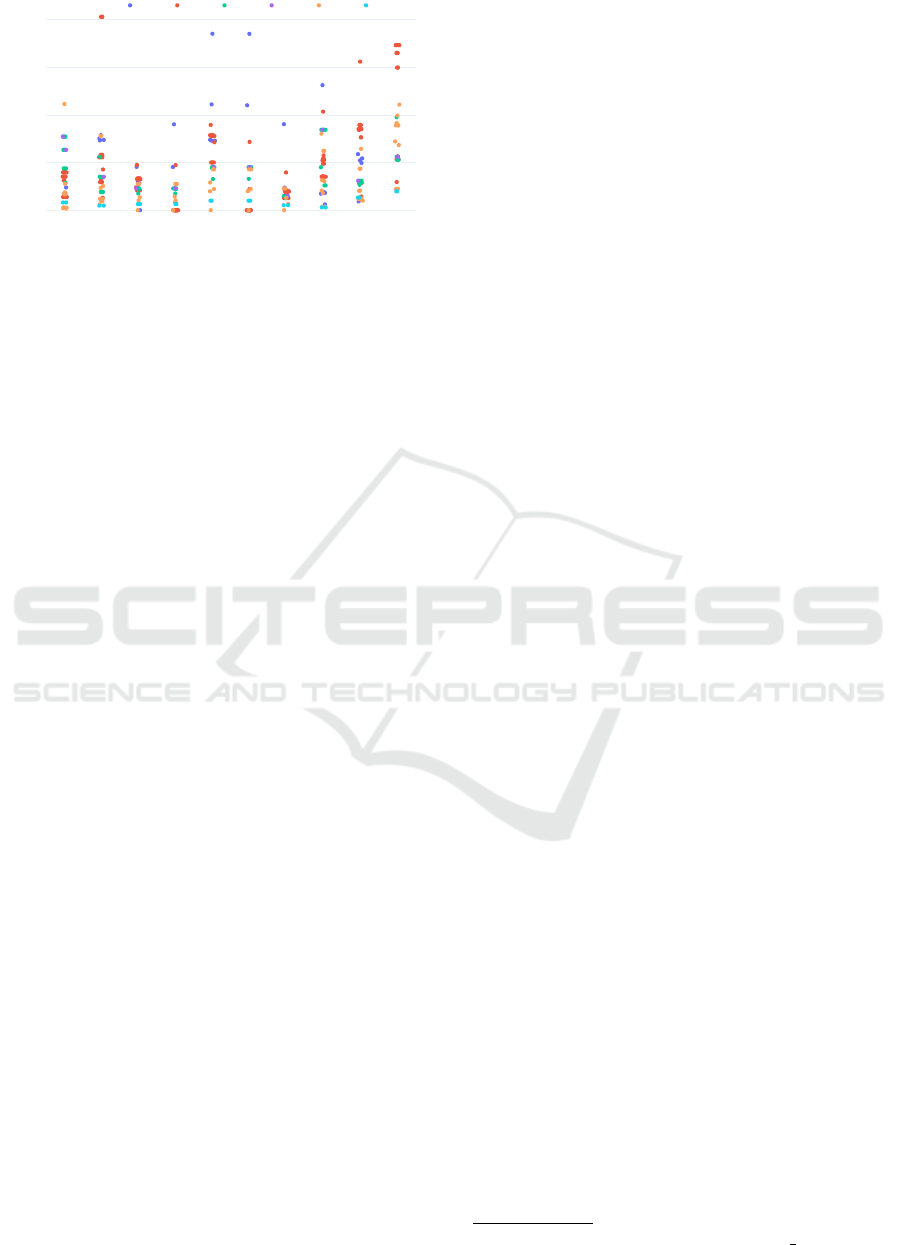

Figure 4: Performance clusters of the most common cryp-

tographic operations that take less than 100 milliseconds to

execute. Every point corresponds to a single operation exe-

cuted on a particular card with a particular version of JavaC-

ard API. Only an example subset of all tested cards is shown

for clarity.

only in relatively small fraction of cards.

The jcAIDScan tool also test packages

from visa.openplatform and its successor

org.globalplatform. However, we have not yet

collected enough results to provide representative

statistics.

3.3 Card Production Life Cycle

Clusters

A total of 71 cards were recorded together with its

Card Production Life Cycle (CPLC) information. We

analyzed the available security certiﬁcates and other

public sources to obtain the mapping between the nu-

meric constants used and their human-readable titles

of manufacturers (ICFabricator), chip type (ICType),

and operating system (OperatingSystemID). In total,

we encountered:

• ICFabricator: Nine different chip fabricators:

Renesas (0003, 3060), Inﬁneon (0005, 4090,

4830), Philips (2050), NXP (4070, 4790), At-

mel (4180), Samsung (4250), STMicro (5354),

Tongxin (008c) and one unidentiﬁed (4220).

• ICType: 45 different chip types with NXP and

Inﬁneon responsible for the large majority of the

chips encountered. While NXP tends to manufac-

ture hardware chips together with the whole soft-

ware stack and market resulting cards under its

own brand, Inﬁneon as a chip manufacturer pro-

vides not only complete cards sold under its brand

but more frequently provides chips to other ven-

dors.

• OperatingSystemID: 23 different codes for op-

erating systems with 52 sub-variants.

We also analyzed the current market situation with

respect to existing vendors after various company

mergers and visualized the resulting aggregate ac-

cordingly. For example, the Gemalto cluster is ag-

gregating not only cards produced under the Gemalto

brand, but also for Gemplus, Axalto and Schlumberger

(now inactive) brands. The full visualization and ad-

ditional artifacts are available

4 RELATED WORK

Many papers are investigating the JavaCard platform,

with the great majority of them examining its se-

curity from either the software perspective (Besson

et al., 2014; Farhadi and Lanet, 2017; Lancia and

Bouffard, 2016; Laugier and Razaﬁndralambo, 2015;

Volokitin and Poll, 2016) or the hardware one (Barbu

et al., 2010; Kasmi et al., 2015; Kocher et al., 1999;

Vermoen et al., 2007). A smaller number of works

focus on performance and capabilities. The per-

formance of basic cryptographic primitives on three

programmable smartcard platforms (JavaCard, .NET,

and MultOS) is examined in (Hajny et al., 2014),

but focused only small subset of operations required

for computation of group signatures. (Bernab

e and

Clarke, 2013) study RSA performance in JavaCards

with a focus on predicting the operation run-time of

RSA-4096 functions. The MESURE project (Bouze-

frane et al., 2008), founded by the French government

and started in 2006, produced a complex benchmark-

ing framework. Exact timing measurements were

not published, only an aggregate score for each card,

likely due to nuances of the performance compar-

ison. Faster computation may also result in less

secure implementations (Nemec et al., 2017; Jan-

car et al., 2020). The open-source GlobalPlatform-

Pro tool by M. Paljak (Martin Paljak, 2020) provides

human-readable output for CPLC data retrieved from

a connected smartcard. The open database of commu-

nity collected mappings between ATR and card name

is maintained (Ludovic Rousseau, 2009).

5 CONCLUSIONS

We proposed an improved certiﬁcation procedure

with additional artifacts collected by evaluation facili-

ties during the certiﬁcation process using open-source

tools, later veriﬁable by end-users without need for

specialized knowledge or privileged access to smart-

card hardware speciﬁcation or software source code

https://crocs.ﬁ.muni.cz/papers/jcalgtest secrypt22

JCAlgTest: Robust Identiﬁcation Metadata for Certiﬁed Smartcards

603

(black-box testing). To support this vision, we devel-

oped a suite of open tools for the collection of meta-

data, functionality, and performance parameters, and

speciﬁc properties of generated cryptographic keys by

the tested cards.

We also continuously maintained the largest open

database with the respective results using a combi-

nation of cards from our laboratory and provided by

community effort, totaling more than 100 cards. Such

a database not only provides insight into the ecosys-

tem of cryptographic smartcards spanning over al-

most two decades but also makes the results for com-

mon smartcards accessible – providing data for end-

user veriﬁcation may be included in the certiﬁcation

process.

ACKNOWLEDGEMENT

P. Svenda and A. Dufka were supported by Ai-

SecTools (VJ02010010) project. Earlier support for

JCAlgTest project was provided by the European cy-

bersecurity pilot CyberSec4Europe.

REFERENCES

Barbu, G., Thiebeauld, H., and Guerin, V. (2010). At-

tacks on java card 3.0 combining fault and logical at-

tacks. Smart Card Research and Advanced Applica-

tion, pages 148–163.

Bernab

e, G. and Clarke, N. (2013). Study of RSA per-

formance in Java Cards. Advances in Communica-

tions, Computing, Networks and Security Volume 10,

page 45.

Besson, F., Jensen, T., and Vittet, P. (2014). Sawjacard:

a static analysis tool for certifying Java Card appli-

cations. In International Static Analysis Symposium,

pages 51–67. Springer.

Bouzefrane, S., Cordry, J., and Paradinas, P. (2008).

A methodology for testing Java Card performance.

In CFSE’08 Conf

erence Franc¸aise en Syst

emes

d’Exploitation, Suisse.

Farhadi, M. and Lanet, J.-L. (2017). Chronicle of a Java

Card death. Journal of Computer Virology and Hack-

ing Techniques, 13(2):109–123.

Hajny, J., Malina, L., Martinasek, Z., and Tethal, O.

(2014). Performance evaluation of primitives for

privacy-enhancing cryptography on current smart-

cards and smart-phones. In Data Privacy Manage-

ment and Autonomous Spontaneous Security, pages

17–33. Springer.

ISO (2013). ISO/IEC 7816-4:2013 - identiﬁcation cards –

integrated circuit cards – part 4: Organization, secu-

rity and commands for interchange. International Or-

ganization for Standardization.

Jancar, J., Sedlacek, V., Svenda, P., and Sys, M. (2020).

Minerva: The curse of ECDSA nonces. IACR Trans-

actions on Cryptographic Hardware and Embedded

Systems, 2020(4):281–308.

Kasmi, M. A., Azizi, M., and Lanet, J.-L. (2015). Side

channel analysis techniques towards a methodology

for reverse engineering of Java Card byte-code. In

Information Assurance and Security (IAS), 2015 11th

International Conference on, pages 104–110. IEEE.

Kocher, P., Jaffe, J., and Jun, B. (1999). Differential power

analysis. In Advances in Cryptology—CRYPTO’99,

pages 388–397. Springer.

Lancia, J. and Bouffard, G. (2016). Fuzzing and over-

ﬂows in Java Card smart cards. In SSTIC Conference,

Rennes, France.

Laugier, B. and Razaﬁndralambo, T. (2015). Misuse of

frame creation to exploit stack underﬂow attacks on

java card. In International Conference on Smart Card

Research and Advanced Applications, pages 89–104.

Springer.

Common Criteria (2017). Common Criteria for

information technology security evaluation,

version 3.1, revision 5, ccmb-2017-04-001.

https://www.commoncriteriaportal.org/ﬁles/ccﬁles/

CCPART1V3.1R5.pdf.

Common Criteria (2020). Certiﬁed products list -

statistics (retrieved 2022-04-11). https://www.

commoncriteriaportal.org/products/stats/.

Ludovic Rousseau (2009). Smart card ATR parsing (re-

trieved 2022-04-11). https://smartcard-atr.apdu.fr/.

Martin Paljak (2020). GlobalPlatformPro v20.01.23. https:

//github.com/martinpaljak/GlobalPlatformPro.

Oracle (2015). Java Card 3.0.5 platform speciﬁcation. https:

//docs.oracle.com/javacard/3.0.5/index.html.

Nemec, M., Sys, M., Svenda, P., Klinec, D., and Matyas, V.

(2017). The return of Coppersmith’s attack: Practical

factorization of widely used RSA moduli. In ACM

CCS 2017, CCS ’17, pages 1631–1648, New York,

NY, USA. ACM.

Svenda, P., Nemec, M., Sekan, P., Kvasnovsky, R., For-

manek, D., Komarek, D., and Matyas, V. (2016).

The million-key question – investigating the origins of

RSA public keys. In The 25th USENIX Security Sym-

posium (UsenixSec’2016), pages 893–910. USENIX.

NIST (2014). Validated FIPS 140-1 and FIPS 140-2 cryp-

tographic modules. http://csrc.nist.gov/groups/STM/

cmvp/documents/140-1/140val-all.htm.

Vermoen, D., Witteman, M., and Gaydadjiev, G. (2007).

Reverse engineering java card applets using power

analysis. Information Security Theory and Practices.

Smart Cards, Mobile and Ubiquitous Computing Sys-

tems, pages 138–149.

Volokitin, S. and Poll, E. (2016). Logical attacks on secured

containers of the java card platform. In International

Conference on Smart Card Research and Advanced

Applications, pages 122–136. Springer.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

604
