On the Efﬁciency and Security of Quantum-resistant Key Establishment

Mechanisms on FPGA Platforms

Lukas Malina

1 a

, Sara Ricci

1 b

, Patrik Dobias

, Petr Jedlicka

1 c

, Jan Hajny

1 d

and Kim-Kwang Raymond Choo

2 e

Department of Telecommunications, Brno University of Technology, Brno, Czech Republic

Department of Information Systems and Cyber Security, University of Texas at San Antonio,

San Antonio, TX 78249-0631, U.S.A.

Keywords:

FPGA, Hardware Implementation, Key Establishment, Post-quantum Cryptography, Security, VHDL.

Abstract:

The importance of designing efﬁcient and secure post-quantum cryptographic algorithms is reinforced in the

recent National Institute of Standards and Technology (NIST)’s Post-Quantum Cryptography (PQC) compe-

titions. Seeking to complement existing studies that evaluate the performance of various PQC algorithms,

we explore current hardware implementations of third-round ﬁnalist key-establishment algorithms (i.e., Ky-

ber, McEliece, NTRU, and SABER) and the ﬁve alternate algorithms (i.e., BIKE, FrodoKEM, HQC, NTRU

Prime, and SIKE) on Field Programmable Gate Array (FPGA) platforms. Further, we present our pure-VHDL

implementation of Kyber and compare it with the hardware implementations of the NIST ﬁnalists. Our design

offers one universal Kyber component that can operate in 6 different modes. The evaluation ﬁndings show that

our pure-VHDL Kyber provides less latency than current VHDL-based implementations.

1 INTRODUCTION

In recent years, there have been efforts from the re-

search community to design quantum-resistant key

establishment, public-key encryption, and digital sig-

nature protocols and schemes, as well as implement-

ing protocols from the NIST’s PQC competition on

FPGA platforms (Nejatollahi et al., 2019; Malina

et al., 2019; Basu et al., 2019; Zhang et al., 2020;

Bisheh-Niasar et al., 2021; Dang et al., 2020; Dang

et al., 2021). It is expected that such quantum-

resistant schemes will eventually replace those based

on the discrete logarithm, RSA and/or other conven-

tional assumptions that are known to be vulnerable to

attacks from a functional quantum computer. It is also

known that post-quantum cryptography schemes are

usually more robust in their parameters and cycles.

Therefore, hardware-based implementations of PQC

schemes should facilitate acceleration, reduce latency,

and increase the number of operations per second.

https://orcid.org/0000-0002-7208-2514

https://orcid.org/0000-0003-0842-4951

https://orcid.org/0000-0003-0833-8068

https://orcid.org/0000-0003-2831-1073

https://orcid.org/0000-0001-9208-5336

1.1 Related Work

In the systematization of knowledge (SOK) study of

(Basu et al., 2019), the High-Level Synthesis (HLS)-

based hardware design methodology was used to im-

plement 26 NIST PQC Competition Round 2 KEM

and Signature algorithms on FPGA platforms, with

the aim of assessing the latency and hardware require-

ments associated with their implementations. How-

ever, the implementation did not use the pure VHSIC

Hardware Description Language (VHDL), a widely

used hardware description language, or evaluate the

security levels. In a more recent study, (Bisheh-Niasar

et al., 2021) empirically evaluated the performance

of SIKEp434 (at Virtex-7), Frodo-640 (at Artix-7),

LightSaber (at UltraScale+) and their Kyber imple-

mentation (at Artix-7). Their ﬁndings suggested that

Frodo-640 requires the lowest area (6.8k LUTs, 16

DSPs) but their Kyber implementation is the fastest

with 31 µs (12/19 µs encapsulation/decapsulation).

In the evaluation work undertaken by (Dang

et al., 2021), the authors focused on high-speed hard-

ware architectures for four lattice-based CCA-secure

Key Encapsulation Mechanisms (KEMs), represent-

ing 3 NIST PQC ﬁnalists: CRYSTALS-Kyber, NTRU

(with two distinct variants, NTRU-HPS and NTRU-

HRSS), and Saber. Their analysis revealed that all

Malina, L., Ricci, S., Dobias, P., Jedlicka, P., Hajny, J. and Choo, K.

On the Efﬁciency and Security of Quantum-resistant Key Establishment Mechanisms on FPGA Platforms.

DOI: 10.5220/0011294200003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 605-613

ISBN: 978-989-758-590-6; ISSN: 2184-7711

605

four NIST PQC ﬁnalists signiﬁcantly outperform the

other alternate candidates in terms of speed on the

hardware platforms. They also found that SABER

and Kyber are more efﬁcient in the main phases in

comparison to both NTRU and McEliece schemes.

However, the security of KEMs is not within the

scope of their evaluation.

1.2 Contributions

Seeking to contribute to the knowledge gaps, we will

focus on both efﬁciency and security of KEM PQC

NIST ﬁnalists and especially on the hardware imple-

mentations of the CRYSTALS-Kyber scheme in this

paper. Speciﬁcally, we seek to answer the follow-

ing research questions: (1) What is the current state

of hardware-based PQC KEMs implementations on

FPGA platforms? (2) Which PQC KEM ﬁnalist(s)

is/are most suitable for FPGA platforms in terms of

efﬁciency and security? (3) How efﬁcient can Kyber

be when implemented on FPGA platforms, and if it is

coded solely in VHDL?

To answer the ﬁrst two questions, we will map

existing hardware implementations of all PQC KEM

NIST ﬁnalists and discuss the current security attacks

and potential problems of PQC-KEM hardware im-

plementations in Sections 3 and 4. To answer the third

question, we will present and discuss the ﬁndings of

our pure VHDL-implementation of the CRYSTALS-

Kyber scheme (Avanzi et al., 2017), as well as present

a comparative summary of its performance with other

related works.

2 BACKGROUND:

HARDWARE-BASED

CRYPTOGRAPHY AND FPGA

PLATFORMS

Hardware-based implementations on FPGA plat-

forms are a common trend, partly due to their po-

tential in outperforming software implementations

in speed, power consumption, and/or energy usage.

In addition, there have been attempts to explore

hardware-based implementations that are high-speed

or lightweight.

Generally, high-speed implementations seek to

minimize the execution times of major opera-

tions via protocol optimization and operations/sub-

components parallelization, whereas lightweight im-

plementations tend to achieve minimum resource uti-

lization (by not exceeding predeﬁned maximum ex-

ecution time). Resource utilization can be repre-

sented by the number of Logic Cells, Look-Up Tables

(LUTs), Flip-Flops (FFs), Digital Signal Processor

(DSP) slices, and Block Random Access Memories

(BRAMs). It is also observed that many FPGA-based

applications seek to ﬁnd a balance between efﬁciency

and having minimal hardware resources.

Table 1 describes the hardware requirements of

chosen Xilinx FPGA platforms in various hardware

implementation studies. We note that small and

medium FPGA platforms are typically used for ac-

celerating some particular operations and processes

at end nodes (embedded devices, user nodes, routers,

servers, etc.), where these boards provide the accel-

eration of particular cryptography schemes. Large

FPGA platforms are often used for high-speed data

processing and high-speed communication. These

platforms can facilitate dense processing of various

computationally heavy cryptography schemes and

protocols, e.g., in cloud-based solutions, backbone

active network devices, and central servers.

3 PQC KEM SCHEMES:

THIRD-ROUND NIST

FINALISTS AND

ALTERNATIVES

In this section, the current size requirements of the

NIST KEM ﬁnalist are summarized. Memory con-

sumption is an essential feature that needs to be

taken into account, particularly when we consider

resource-constrained devices since if the scheme is

too memory-demanding, it cannot be directly imple-

mented on such devices. Table 2 describes the private

key, the public key, and the ciphertext sizes of NIST

KEM schemes which are given in bytes. Note that

only the SIKE scheme presents memory consumption

close to traditional cryptography standards, followed

by Kyber and SABER schemes. In general, lattice-

based schemes require smaller key-pair and ciphertext

sizes compared to code-based schemes.

From Tables 1 and 2, we observe that for a

NIST KEM protocol to be run on an FPGA plat-

form, the device needs to store at least the protocol’s

keys. In other words, the McEliece scheme requires

medium- to large-sized platforms. In fact, Spartan-

6 XC6SLX45T and Artix-7 XA7A12T have 261 000

bytes and 90 000 bytes of total memory, respectively,

and McEliece key size exceeds these values. The to-

tal available memory can be computed by multiplying

the number of BRAMs for the block size. It is essen-

tial to consider that the keys are just one of the compo-

nents that need to be stored in the memory. During the

SECRYPT 2022 - 19th International Conference on Security and Cryptography

606

Table 1: Hardware speciﬁcations of Xilinx FPGA platforms: A comparative summary.

Platform Logic Cells / LUTs FFs DSP BRAMs / Block Size Used in

Large platforms

Virtex UltraScale+ XCVU7P 1 724 100 / 788 160 1 576 320 4 560 1 440 / 36 Kb Our work

Zynq UltraScale+ XCZU9EG 599 550 / 274 080 548 160 2 520 912 / 36 Kb (Dang et al., 2020)

Virtex-7 VC707 XC7VX485T 485 760 / 303 600 607 200 2 800 1 030 / 36 Kb (Huang et al., 2020)

Zynq UltraScale+ ZU7EV-3 504 000 / 230 400 460 800 1 728 312 (96 Ultra BRAMs) (Dang et al., 2021)

Small and medium platforms

Artix-7 XC7A200T 215 360 / 134 600 269 200 740 365 / 36 Kb (Chen et al., 2021)

Artix-7 XC7A100T 101 440 / 63 400 126 800 240 135 / 36 Kb (Henson et al., 2021)

Artix-7 XA7A12T 12 800 / 8 000 16 000 40 20 / 36 Kb (Xing and Li, 2021)

Spartan-6 XC6SLX45T 43 661 / 27 288 54 576 58 116 / 18 Kb (Chen et al., 2020)

Table 2: Traditional cryptography memory consumption

compared with NIST PQC KEM ﬁnalists and alternate can-

didates with 128-bit level of security. The sizes are given in

bytes.

Traditional Cryptography

Scheme Total Key Size Ciphertext

RSA encryption 384 384

Encryption/KEM NIST PQC Finalists

Scheme Type Private Key Public Key Ciphertext

Kyber lattice 1 632 (or 32) 800 768

McEliece code 6 452 261 120 128

NTRU lattice 1 452 1 138 1 138

SABER lattice 1 568 672 736

KEM NIST PQC Alternate Candidates

BIKE code 249 2 541 2 541

FrodoKEM lattice 19 888 9 616 9 720

HQC code 252 6 170 6 234

NTRU Prime lattice 1 125 897 1 025

SIKE isogeny 374 330 346

protocol, there could be more temporary components

that need more memory. Moreover, the numbers of

available LUTs, FFs, and DSP need to be taken into

account. See Section 5 for a more detailed analysis.

3.1 Quantum Resistant Key

Establishment Mechanisms at

FPGA

Several partial or whole FPGA implementations of

NIST KEM schemes are currently published. The

designs can be split into three types, namely: HLS-

based design (e.g., ANSI C/C++, and Matlab),

software-hardware (SW-HW) co-design, and RTL-

based design (e.g., VHDL, Verilog, Chisel). Hard-

ware implementations generally outperform software

ones in at least one of the following aspects: latency

(operation speed), power consumption, or energy us-

age. We refer the interested reader to (Dang et al.,

2020) for more information.

(Basu et al., 2019) implement 11 NIST PQC

semiﬁnalists by using the HLS method and assess

them on Virtex-7. Among the NIST ﬁnalist schemes,

Table 3: Hardware/Software co-design, HLS, and pure

Hardware implementations of NIST PQC KEM ﬁnalists and

alternate candidates. The table shows the number of found

implementations per scheme with the year of publication.

Encryption/KEM NIST PQC Finalists

Scheme HW/SW HLS method Pure Hard-

ware

Kyber 3 (2019, 2020) 2 (2019,

2021)

2 (2021)

McEliece 1 (2021) 1 (2019) 7

NTRU 1 (2018) 7 1 (2018)

SABER 3 (2019, 2020) 1 (2019) 3 (2020, 2021)

KEM NIST PQC Alternate Candidates

BIKE 7 7 3 (2020, 2021)

FrodoKEM 2 (2019) 1 (2019) 2 (2019, 2021)

HQC 7 1 (2018) 7

NTRU Prime 7 7 2 (2020, 2021)

SIKE 1 (2020) 7 3 (2017, 2020,

2021)

Note: 7– no implementation could be found.

the article covers Kyber, McEliece, SABER, and

FrodoKEM. CRYSTALS-Kyber is recognized as the

fastest KEM under pipelining directives.

CRYSTALS-Kyber. (Chen et al., 2021) proposed

a polynomial ring processor for Kyber by using the

HLS method for Artix-7. They developed an opti-

mized Number Theoretic Transform (NTT) that uses

a convolution-based polynomial multiplier. (Banerjee

et al., 2019) proposed a software-hardware co-design

approach based on the lattice cryptography proces-

sor with conﬁgurable parameters (i.e., sapphire) that

can be used to speed up lattice-based protocols such

as Kyber and FrodoKEM. They considered an Opal

Kelly XEM7001 FPGA development board. (Dang

et al., 2020) presented a SW-HW co-design approach

to implementing three NIST semiﬁnalists: Kyber,

NewHope, and Round5 schemes. They combined

C code with Register-Transfer Level (RTL) design

methodology on Artix-7. Also, (Fritzmann et al.,

2020) used a SW-HW co-design with tightly cou-

pled accelerators to speed up lattice-based cryptog-

raphy. They evaluated the accelerator by comparing

On the Efﬁciency and Security of Quantum-resistant Key Establishment Mechanisms on FPGA Platforms

607

Kyber performances. (Huang et al., 2020) proposed a

Kyber hardware design with NTT optimization with

Gentlemen-Sande butterﬂy on the XC7A200T and

XC6SLX45T FPGA platforms. However, no spec-

iﬁcation on the used language was given. In 2021,

(Xing and Li, 2021) and (Dang et al., 2021) devel-

oped a pure VHDL implementation of Kyber. (Xing

and Li, 2021) used the XC7A12TCPG238-1 FPGA

platform, whereas (Dang et al., 2021) used Artix-7

XC7A200T-3 and Zynq UltraScale+ ZU7EV-3.

McEliece. (Kostalabros et al., 2021) proposed

a SW-H co-design acceleration of the Classic

McEliece KEM scheme on the ZCU102 heteroge-

neous CPU+FPGA platform. (Wang et al., 2018) pro-

vided the fully-RTL (Verilog) Niederreiter cryptosys-

tem implementation on the Virtex-6 XC6VLX240T.

This cryptosystem is the dual variant of the Classic

McEliece scheme. However, their solution does not

provide an end-to-end KEM implementation and can-

not be compared with those of (Basu et al., 2019;

Kostalabros et al., 2021).

NTRU. Three variants of the NTRU cryptosystem

were sent to NIST for standardization (Schanck,

2018), namely: NTRUEncrypt, NTRU-HRSS-KEM,

and NTRU Prime. In the third round, NTRU-

Encrypt and NTRU-HRSS-KEM were merged in

NTRU, which is one of the ﬁnalist, whereas NTRU

Prime is an alternate candidate. (Fritzmann et al.,

2018) presented the ﬁrst hardware implementation of

NTRU using the SVE padding. They also proposed a

HW/SW co-design of NTRU where polynomial mul-

tiplication and modulo reduction run on hardware,

Zynq UltraScale+ MPSoC (ZCU102). (Dang et al.,

2021) proposed a hardware implementation of NTRU

(i.e, NTRU-HRSS and NTRU HPS scheme) on two

FPGA platforms, namely: Artix-7 XC7A200T-3 and

Zynq UltraScale+ (ZU7EV-3).

SABER. The HLS method is employed by (Basu

et al., 2019) for SABER on the Virtex-7 FPGA plat-

form. We could identify three HW/SW co-designs.

(Dang et al., 2019) propose a HW/SW co-design with

a speed-up that exceeds a factor of 7 compared to

software implementation. They consider the ZCU102

Evaluation Kit, based on the Zynq UltraScale+ MP-

SoC XCZU9EG2FFVB1156E device. Subsequently,

(Mera et al., 2020) proposed a domain-speciﬁc co-

processor to speed SABER where only the polyno-

mial multiplication, i.e., the most expensive opera-

tion, is ofﬂoaded to the co-processor to obtain a com-

pact design. They consider a Zynq-7000 ARM/FPGA

SoC platform. At last, (Fritzmann et al., 2020) ex-

plored tightly coupled accelerators to speed up lattice-

based cryptography, which was evaluated on SABER

performances. Three fully hardware implementations

of SABER were developed by (Roy and Basso, 2020),

(Dang et al., 2021) and (Zhu et al., 2021). In particu-

lar, (Roy and Basso, 2020) proposed parallel polyno-

mial multiplier architecture to overcome memory ac-

cess bottlenecks common in lattice polynomial mul-

tiplication. They employ UltraScale+ (XCZU9EG-

2FFVB1156). (Dang et al., 2021) presented four im-

plementations of SABER, where two of them out-

performed the best previous design in terms of re-

source utilization. At last, (Zhu et al., 2021) proposed

an energy-efﬁcient conﬁgurable crypto-processor for

SABER with two improvements of the Karatsuba

framework to reduce polynomial multiplication over-

head. They considered Virtex UltraScale+ for their

performance analyses.

BIKE. (Reinders et al., 2020) presented the ﬁrst

complete implementation of BIKE on older param-

eters. However, they designed a simpliﬁcation of the

grey-black decoder that makes it constant time. The

Intel Arria 10 FPGA platform was used for the analy-

sis. The ﬁrst complete hardware design of the current

BIKE version was developed by (Richter-Brockmann

et al., 2021b). Moreover, the ﬁrst implementation

of the black-gray-ﬂip decoder on hardware, an opti-

mized polynomial inversion module, and a scalable

multiplier were introduced. Their implementation

can run on a low-cost Artix7 (XC7A35T) and on a

high-speed XC7A100T FPGA platforms. (Richter-

Brockmann et al., 2021a) improved their previous

work by introducing an optimized polynomial multi-

plier and a novel component for polynomial inversion

based on the extended Euclidean algorithm. Imple-

mentation results run on Artix-7.

FrodoKEM. (Basu et al., 2019) employed the HLS

approach for FrodoKEM on Virtex-7. We identiﬁed

two HW/SW co-designs. (Dang et al., 2019) pre-

sented a HW/SW co-design for FrodoKEM where

matrix multiplication and SHAKE sequence gener-

ations are ofﬂoaded to hardware, ZCU102 Evalu-

ation Kit, based on the Zynq UltraScale+ MPSoC

XCZU9EG2FFVB1156E device. Moreover, (Baner-

jee et al., 2019) proposed a lattice cryptography pro-

cessor with conﬁgurable parameters, namely sap-

phire, to speed up lattice-based protocols and can

be applied to FrodoKEM. The Sapphire crypto-

processor was coupled with an efﬁcient RISC-V

micro-processor. They considered an Opal Kelly

XEM7001 FPGA development board. On the pure

SECRYPT 2022 - 19th International Conference on Security and Cryptography

608

hardware implementation, (Howe et al., 2019) pro-

posed an alternative hardware design for FrodoKEM

that uses an unrolled Trivium as PRNG on Artix-

7. Then, (Howe et al., 2021) optimized FrodoKEM

hardware implementation by paralyzing the matrix

multiplication operation on Artix-7 (XC7A35T).

HQC. A HLS implementation of HQC was pro-

posed by (Melchor et al., 2018) on an Artix-7 FPGA

platform. However, neither HW/SW co-design nor

pure hardware implementation could be found.

NTRU Prime. (Marotzke, 2020) presented the ﬁrst

hardware implementation of NTRU Prime scheme.

The author focused on optimizing the used sources,

and the implementation was run on Zynq Ultrascale+.

Following, (Peng et al., 2021) proposed two variants

of hardware implementations, namely: a high-speed

and high-area one and a slower, low-area one. In

order to improve the performance, they developed a

new batch inversion for key generation, a high-speed

schoolbook polynomial multiplier, an NTT polyno-

mial multiplier, a new DSP-free modular reduction

method, and a high-speed radix sorting module, and

new en- and decoders. They considered Zynq Ultra-

scale+.

SIKE. Due to SIKE small key size and generally

low performance of isogeny-based scheme, several

FPGA hardware implementations were presented.

The ﬁrst hardware proposal is from the author of

SIKE scheme, i.e., (Azarderakhsh et al., 2017). They

used Virtex-7 (xc7vx690tffg1157-3). (Koziel et al.,

2020) proposed a fast isogeny accelerator architec-

ture that is then applied to speed up the SIKE scheme.

They employed Artix-7, Virtex-7, and Kintex Ultra-

Scale+. At last, (Elkhatib et al., 2021) focused on

the improvements Montgomery multiplication algo-

rithm and architecture for prime ﬁelds to speed up

SIKE that is also improved. They considered Artix-

7 and Virtex-7 FPGAs. Moreover, (Massolino et al.,

2020) presented a HW/SW co-design implementation

of SIKE. They focused on making the protocol com-

pact and scalable.

As shown in Table 3, Kyber and SABER schemes

have a higher number of implementations, partly be-

cause of their (practical) memory consumption and

efﬁciency. SIKE is also a good candidate for FPGA

acceleration due to its memory consumption that is

comparable to traditional cryptography and its need

for better performance.

4 ON SECURITY OF

HARDWARE-BASED

IMPLEMENTATIONS OF

QUANTUM RESISTANT KEY

ESTABLISHMENT

MECHANISMS

In this section, we present the recent hardware imple-

mentations of ﬁnalists that add countermeasures and

protection into their design.

CRYSTALS-Kyber. (Jati et al., 2021) focused on

conﬁgurable Kyber hardware implementation with

side-channel protection. The authors claimed that

their implementation is the ﬁrst side-channel at-

tack protected and consumes only 5% of HW re-

sources. Their implementation includes various fault

protection techniques such as Fault Detection Hashes

(FDH), protecting critical signals using Complemen-

tary Duplicate Logic (CDL), and protection against

control ﬂow (FSM state) modiﬁcation. The solution

also deploys a solid true random number generator

and side-channel protection techniques such as ran-

dom delays, address randomization, and instruction

randomization.

SABER. (Abdulgadir et al., 2021) presented a hard-

ware implementation of the Saber scheme that is

resistant against side-channel attacks. Their hard-

ware implementation of SABER deploys the masked

SABER.KEM.Decaps phase that contains masked

CBD Sampler, protected datapath, and masked log-

ical shifting. The complete protection increases

approximately 2.9× LUTs and 1.4× latency com-

pared to the baseline unprotected implementation

of SABER.KEM.Decaps. The authors used mainly

VHDL for hardware description and Chisel for SHA-

McEliece. (Colombier et al., 2022) introduced a

message recovery attack on the Classic McEliece

cryptosystem. They studied power consumption-

based side-channel analysis and machine learning

techniques. The error weight t is small and is report-

edly the Classic McEliece cryptosystem’s main weak-

ness; thus, masking can be used instead to have an er-

ror vector having a more general pattern. The attack

and countermeasure are only general, and the study

does not focus more on hardware-based implementa-

tions.

On the Efﬁciency and Security of Quantum-resistant Key Establishment Mechanisms on FPGA Platforms

609

NTRU. (Braun et al., 2018) proposed a compact, se-

cure hardware-based architecture of NTRU for Zynq-

7000. The NTRU architecture is secure because it

avoids CCA attacks by including the SVES padding

scheme, deﬁned in IEEE-1363.1, and the protection

against SCA attacks using a constant time convolu-

tion.

Currently, there are few ﬁrst hardware-based im-

plementations of Kyber, SABER, and NTRU that

should resist side-channel attacks, but require addi-

tional hardware resources. Future studies could focus

on the detailed practice veriﬁcation of these imple-

mentations and their optimization.

5 ON HARDWARE-BASED

IMPLEMENTATIONS OF

CRYSTALS-KYBER

In this section, we present our implementation design

of the CRYSTALS-Kyber scheme on FPGA, results

and comparison.

5.1 Our Design and Hardware

Implementation

Our CRYSTALS-Kyber implementation is written

solely in VHDL. We design our implementation

to be compact, efﬁcient, and optimized. In or-

der to save HW resources, there is only one

universal component that can operate in 6 dif-

ferent modes - CPAPKE.KeyGen, CPAPKE.Enc,

CPAPKE.Dec, CCAKEM.KeyGen, CCAKEM.Enc

and CCAKEM.Dec. The concrete mode is set through

the input interface and is reset once all data are out-

putted. Our proposed architecture of the universal

component and connections of its internal modules is

shown in Figure 1. To increase throughput, all coef-

ﬁcients are passed in batches of 4 and processed in

a parallel manner. The NTT component used for a

polynomial conversion to and from the NTT domain

is used from the previous work. We assume that NTT

can be further optimized for the Kyber scheme in our

future work. To reduce resources utilization, the NTT

component is used only once. In the related work of

(Dang et al., 2021) NTT is used K times, and opera-

tions as polynomials sampling and polynomials mul-

tiplications are then performed in parallel while NTT

is running to reduce waiting. Each internal part and

function e.g. Keccak, NTT was carefully optimized.

To achieve high frequency, the design was checked

multiple times for critical paths, and techniques like

registering were used to remove those.

Keccak

Reject UniformCBD

NTT

INTT

Decode

Decompress

Compress

Encode

Input Interface

Output Interface

Key FIFO

Controller

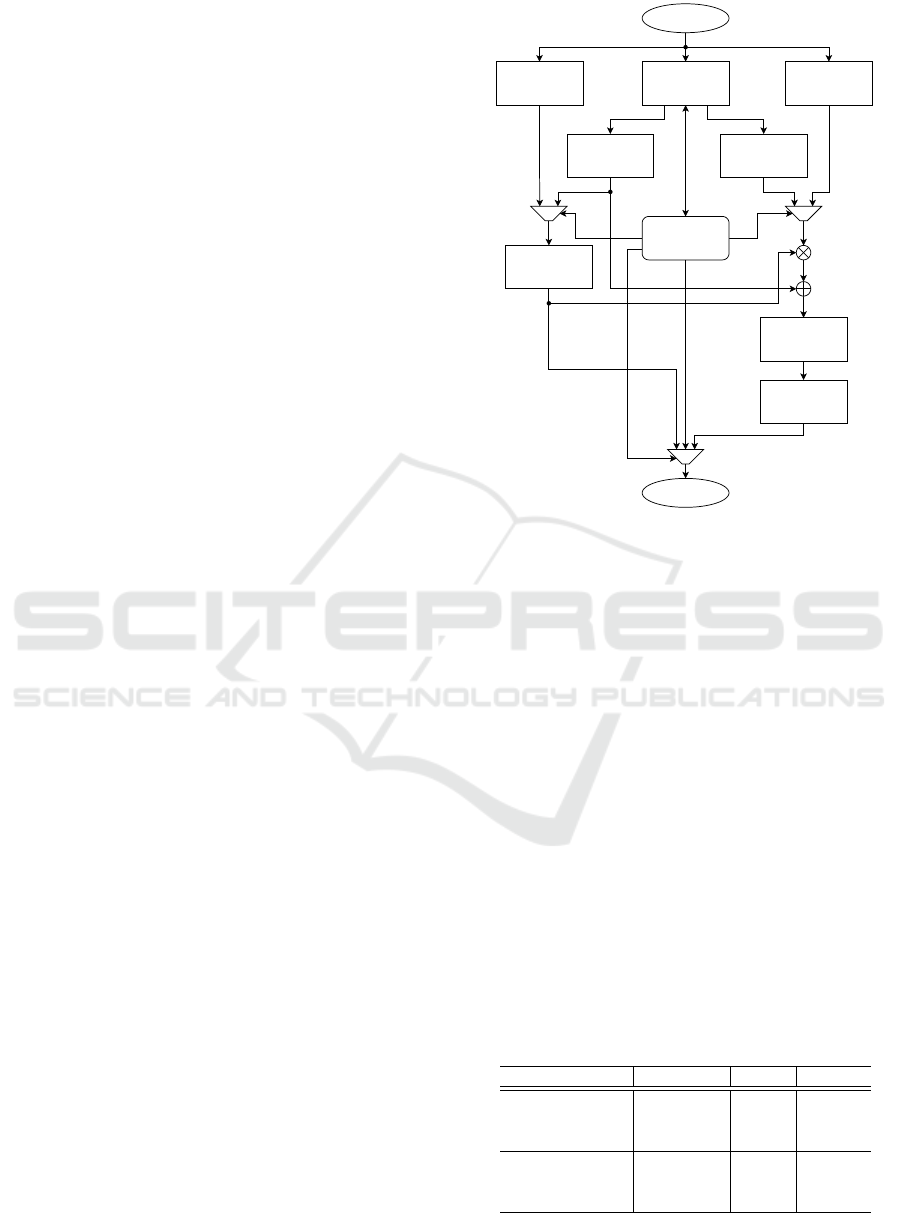

Figure 1: Proposed architecture of universal Kyber compo-

nent.

5.2 Performance Evaluation and

Comparison

Table 4 serves for the performance assessment of our

Kyber-768 scheme and all its modes. The results are

based on theoretical operating frequency 533.9 MHz

obtained using the synthesis targeting the Virtex Ul-

traScale+. Table 5 compares our results with the pre-

vious works presenting PQC KEMs at FPGA. We

show also our results on the Kintex UltraScale+ with

operating frequency 618.8 MHz. *.Enc represents

Encapsulation and *.Dec represents Decapsulation.

The comparison introduces resources utilization (e.g.,

LUTs, FFs, DSP slices, and BRAMs) and latency that

is based on known frequencies and the number of cy-

cles per operation. The compared results are for set-

ting in the security level 3 which is roughly equivalent

to AES-192.

Table 4: Our Kyber-768: Performance of individual modes.

Component Clock cycles Op [µs] # Ops / s

CPAPKE.KeyGen 3297 6.14 162824

CPAPKE.Enc 4059 7.60 131534

CPAPKE.Dec 2339 4.38 228259

CCAKEM.KeyGen 3400 6.36 157029

CCAKEM.Enc 4688 8.78 113886

CCAKEM.Dec 6554 12.27 81461

SECRYPT 2022 - 19th International Conference on Security and Cryptography

610

Table 5: Comparison of PQC KEM NIST ﬁnalists for the security level (3). Notation for FPGA families - A7: Artix-7, K7:

Kintex-7, VUS+: Virtex UltraScale+, KUS+ Kintex UltraScale+, ZUS+: Zynq UltraScale+. * implemented by the Chisel

language.

Work Component FPGA LUT FF DSP BRAM Clock cycles Op [µs]

This work

Kyber.KeyGen

VUS+ / KUS+ 15504 15125 182 16

3400 6.36 / 5.49

Kyber.Enc 4688 8.78 / 7.58

Kyber.Dec 6554 12.27 / 10.59

(Xing and Li, 2021)

Kyber.KeyGen

A7 7412 4644 2 3

6316 39.2

Kyber.Enc 7925 47.6

Kyber.Dec 10049 62.3

(Huang et al., 2020)

Kyber.Enc

97085 - 36 200.5 77481 499.88

Kyber.Dec 110260 - 292 202 102113 658.79

(Dang et al., 2021)

* Kyber.KeyGen

ZUS+ 10590 10458 6 6.5

2600 5.9

Kyber.Enc 3700 8.3

Kyber.Dec 4900 10.9

(Dang et al., 2021)

NTRU.KeyGen

ZUS+

50347 44281 45 6.5 67157 268.6

NTRU.Enc 33698 30551 0 5.5 4576 18.3

NTRU.Dec 38642 33003 45 2.5 10211 24.0

(Peng et al., 2021)

NTRU.KeyGen.HS

ZUS+

39200 25536 23 33.5 64026 447.7

NTRU.Enc.HS 40879 22382 6 4.5 5007 34.8

NTRU.Dec.HS 36789 22700 9 3.5 10989 80.2

(Dang et al., 2021)

SABER.KeyGen

ZUS+

20496 13939 0 1.5 2709 7.3

SABER.Enc 21069 14074 0 1.5 3735 10.1

SABER.Dec 21342 14233 0 1.5 4682 12.7

(Roy and Basso, 2020)

SABER.KeyGen

ZUS+ 23686 9805 0 2

5453 21.8

SABER.Enc 6618 26.5

SABER.Dec 8034 32.1

(Abdulgadir et al., 2021)

SABER.Enc

6713 7363 32 0

46705 373.1

SABER.Dec.U 52758 422.1

SABER.Dec.P 19299 7363 64 0 72005 576.0

(Wang et al., 2018)

McEliece460896

cpa

.KeyGen

A7 38669 74858 0 303

5002044 46704.4

McEliece460896

cpa

.Enc 3360 31.4

McEliece460896

cpa

.Dec 31005 289.5

(Wang et al., 2018)

McEliece460896

cpa

.KeyGen

V7 109484 168939 0 446

515806 3943.5

McEliece460896

cpa

.Enc 3360 25.7

McEliece460896

cpa

.Dec 17931 137.1

The most recent (Xing and Li, 2021)’s hardware

implementation of Kyber has been designed for the

small Artix-7 FPGA chips and achieved interesting

results in terms of required hardware resources (7.4k

LUTs and 4.6k FFs for all levels). Nevertheless, the

frequency of their implementation is only 161 MHz

and the execution times of the phases are higher than

(Dang et al., 2021) and our implementation. To be

noted that (Dang et al., 2021) use Chisel that is an al-

ternative to classic Hardware Description Languages

(HDLs), e.g., VHDL, and it adds hardware construc-

tions to the Scala programming language. Dang’s

Kyber implementation requires fewer clock cycles

than our work. Nevertheless, our design is encoded

solely in VHDL and is currently the fastest among

pure VHDL implementations, to our best knowledge.

There are also more Kyber’s and other scheme im-

plementations in the literature, but we do not include

them in Table 5 as their security level differs. For

instance, (Guo et al., 2021)’s HW-based implementa-

tion of Kyber-1024 (Sec. level 5) evaluated on the

Artix-7 FPGA platform achieves 49.1/52.8/66.0 µs

delay when performing KeyGen/encaps/decaps, re-

spectively, with consumption of 7.9k LUTs, 3.6k FFs,

2.3k slices, 4 DSPs and 16 BRAMs. This implemen-

tation aims at the low usage of HW-resources and is

similar to the (Xing and Li, 2021)’s work, but the la-

tency is less efﬁcient than recent works.

(Jati et al., 2021) present the smallest hardware

implementation of Kyber-1024 requiring only 5269

LUTs, 2422 FFs and 250 MHz at Artix-7 where the

SHA-3 core is deployed as the co-processor. To

be noted that authors also implement multiple side-

channel countermeasures, which consume less than

5% of the HW resources. Nevertheless, their im-

plementation is signiﬁcantly slower than other im-

plementations and performs KeyGen/encaps/decaps

operations in 4.59 ms /4.94 ms /4.69 ms. Further-

more, we compare Kyber implementations with other

NIST ﬁnalists. Table 5 also presents the recent imple-

On the Efﬁciency and Security of Quantum-resistant Key Establishment Mechanisms on FPGA Platforms

611

mentations of Saber, NTRU and McEliece460896

cpa

schemes. (Dang et al., 2021)’s implementation of

Saber can be competitive with Kyber in the combi-

nation of HW resources and execution times. (Abdul-

gadir et al., 2021)’s implementation of SABER adds

side-channel countermeasures into the decapsulation

phase, marked as P (Protected). The countermeasures

require additional 12586 LUTs. On the other hand,

their unprotected version is lightweight and requires

similar numbers of HW resources as balanced Kyber

implementations. (Dang et al., 2021)’s implementa-

tion of NTRU is comparable to Kyber in the runtimes

of the encapsulation and decapsulation phases but re-

quires more HW resources. (Wang et al., 2018)’s im-

plementation of the McEliece460896

cpa

shows that

this scheme is not efﬁcient in the decapsulation phase.

6 CONCLUSIONS

This work studied the current state of hardware-

based implementations of PQC KEM algorithms on

FPGA platforms, and more speciﬁcally on NIST

PQC ﬁnalists and the Kyber scheme implemented

on FPGA platforms. We observed that other than a

few studies that focused on PCQ KEMs hardware-

based implementations from side-channel attack re-

silience, most studies generally focused on perfor-

mance and explored the use of fewer HW resources

on FPGA boards. In general, we found that recent

HW-based Kyber implementations provide promising

results and Kyber is attractive for FPGA implementa-

tion. Furthermore, we presented our hardware design

of Kyber-768 in VHDL, and showed that our imple-

mentation outperforms other pure VHDL Kyber im-

plementations and it is comparable with Dang’s ef-

ﬁcient implementation of Kyber encoded in Chisel.

Our future work will also include side-channel coun-

termeasures in our design, as well as the optimization

of hardware resources.

ACKNOWLEDGEMENTS

This work is supported by Ministry of the Interior of

the Czech Republic under grant VJ01010008.

REFERENCES

Abdulgadir, A., Mohajerani, K., Dang, V. B., Kaps, J.-P.,

and Gaj, K. (2021). A lightweight implementation

of saber resistant against side-channel attacks. In In-

ternational Conference on Cryptology in India, pages

224–245. Springer.

Avanzi, R., Bos, J., Ducas, L., Kiltz, E., Lepoint, T., Lyuba-

shevsky, V., Schanck, J. M., Schwabe, P., Seiler, G.,

and Stehl

e, D. (2017). Crystals-kyber algorithm spec-

iﬁcations and supporting documentation. NIST PQC

Round, 2:4.

Azarderakhsh, R., Campagna, M., Costello, C., Feo, L.,

Hess, B., Jalali, A., Jao, D., Koziel, B., LaMacchia,

B., Longa, P., et al. (2017). Supersingular isogeny key

encapsulation. Submission to the NIST Post-Quantum

Standardization project, 152:154–155.

Banerjee, U., Ukyab, T. S., and Chandrakasan, A. P. (2019).

Sapphire: A conﬁgurable crypto-processor for post-

quantum lattice-based protocols (extended version).

Cryptology ePrint Archive.

Basu, K., Soni, D., Nabeel, M., and Karri, R. (2019).

Nist post-quantum cryptography-a hardware evalua-

tion study. Cryptology ePrint Archive.

Bisheh-Niasar, M., Azarderakhsh, R., and Mozaffari-

Kermani, M. (2021). High-speed ntt-based poly-

nomial multiplication accelerator for post-quantum

cryptography. In 2021 IEEE 28th Symposium on Com-

puter Arithmetic (ARITH), pages 94–101. IEEE.

Braun, K., Fritzmann, T., Maringer, G., Schamberger, T.,

and Sep

ulveda, J. (2018). Secure and compact full

ntru hardware implementation. In 2018 IFIP/IEEE In-

ternational Conference on Very Large Scale Integra-

tion (VLSI-SoC), pages 89–94. IEEE.

Chen, Z., Ma, Y., Chen, T., Lin, J., and Jing, J. (2020). To-

wards efﬁcient kyber on fpgas: A processor for vec-

tor of polynomials. In 2020 25th Asia and South

Paciﬁc Design Automation Conference (ASP-DAC),

pages 247–252. IEEE.

Chen, Z., Ma, Y., Chen, T., Lin, J., and Jing, J. (2021).

High-performance area-efﬁcient polynomial ring pro-

cessor for crystals-kyber on fpgas. Integration, 78:25–

35.

Colombier, B., Dragoi, V.-F., Cayrel, P.-L., and Grosso, V.

(2022). Message-recovery proﬁled side-channel at-

tack on the classic mceliece cryptosystem. Cryptology

ePrint Archive.

Dang, V. B., Farahmand, F., Andrzejczak, M., and Gaj,

K. (2019). Implementing and benchmarking three

lattice-based post-quantum cryptography algorithms

using software/hardware codesign. In 2019 Interna-

tional Conference on Field-Programmable Technol-

ogy (ICFPT), pages 206–214. IEEE.

Dang, V. B., Farahmand, F., Andrzejczak, M., Mohajerani,

K., Nguyen, D. T., and Gaj, K. (2020). Implemen-

tation and benchmarking of round 2 candidates in

the nist post-quantum cryptography standardization

process using hardware and software/hardware co-

design approaches. Cryptology ePrint Archive: Re-

port 2020/795.

Dang, V. B., Mohajerani, K., and Gaj, K. (2021). High-

speed hardware architectures and fpga benchmarking

of crystals-kyber, ntru, and saber. Cryptology ePrint

Archive.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

612

Elkhatib, R., Azarderakhsh, R., and Mozaffari-Kermani, M.

(2021). High-performance fpga accelerator for sike.

IEEE Transactions on Computers.

Fritzmann, T., Schamberger, T., Frisch, C., Braun, K.,

Maringer, G., and Sep

ulveda, J. (2018). Efﬁcient hard-

ware/software co-design for ntru. In IFIP/IEEE Inter-

national Conference on Very Large Scale Integration-

System on a Chip, pages 257–280. Springer.

Fritzmann, T., Sigl, G., and Sep

ulveda, J. (2020). Risq-v:

Tightly coupled risc-v accelerators for post-quantum

cryptography. IACR Transactions on Cryptographic

Hardware and Embedded Systems, pages 239–280.

Guo, W., Li, S., and Kong, L. (2021). An efﬁcient imple-

mentation of kyber. IEEE Transactions on Circuits

and Systems II: Express Briefs.

Henson, T. E., Dawoud, A., and Sherif, A. (2021). Privacy-

aware and hardware acceleration-based authentication

scheme for internet of drones. In 2021 3rd IEEE Mid-

dle East and North Africa COMMunications Confer-

ence (MENACOMM), pages 130–135. IEEE.

Howe, J., Martinoli, M., Oswald, E., and Regazzoni, F.

(2019). Optimised lattice-based key encapsulation in

hardware. In Second NIST Post-Quantum Cryptogra-

phy Standardization Conference 2019, page 13.

Howe, J., Martinoli, M., Oswald, E., and Regazzoni, F.

(2021). Exploring parallelism to improve the perfor-

mance of frodokem in hardware. Journal of Crypto-

graphic Engineering, 11(4):317–327.

Huang, Y., Huang, M., Lei, Z., and Wu, J. (2020). A pure

hardware implementation of crystals-kyber pqc algo-

rithm through resource reuse. IEICE Electronics Ex-

press, pages 17–20200234.

Jati, A., Gupta, N., Chattopadhyay, A., and Sanadhya, S. K.

(2021). A conﬁgurable crystals-kyber hardware im-

plementation with side-channel protection. Cryptol-

ogy ePrint Archive.

Kostalabros, V., Ribes-Gonz

alez, J., Farr

as, O., Moret

M., and Hernandez, C. (2021). Hls-based hw/sw

co-design of the post-quantum classic mceliece cryp-

tosystem. In 2021 31st International Conference on

Field-Programmable Logic and Applications (FPL),

pages 52–59. IEEE.

Koziel, B., Ackie, A.-B., El Khatib, R., Azarderakhsh, R.,

and Kermani, M. M. (2020). Sike’d up: Fast hardware

architectures for supersingular isogeny key encapsu-

lation. IEEE Transactions on Circuits and Systems I:

Regular Papers, 67(12):4842–4854.

Malina, L., Ricci, S., Dzurenda, P., Smekal, D., Hajny, J.,

and Gerlich, T. (2019). Towards practical deployment

of post-quantum cryptography on constrained plat-

forms and hardware-accelerated platforms. In Inter-

national Conference on Information Technology and

Communications Security, pages 109–124. Springer.

Marotzke, A. (2020). A constant time full hardware imple-

mentation of streamlined ntru prime. In International

Conference on Smart Card Research and Advanced

Applications, pages 3–17. Springer.

Massolino, P. M. C., Longa, P., Renes, J., and Batina, L.

(2020). A compact and scalable hardware/software

co-design of sike. Cryptology ePrint Archive.

Melchor, C. A., Aragon, N., Bettaieb, S., Bidoux, L.,

Blazy, O., Deneuville, J.-C., Gaborit, P., Persichetti,

E., Z

emor, G., and Bourges, I. (2018). Hamming

quasi-cyclic (hqc). NIST PQC Round, 2:4–13.

Mera, J. M. B., Turan, F., Karmakar, A., Roy, S. S., and

Verbauwhede, I. (2020). Compact domain-speciﬁc co-

processor for accelerating module lattice-based kem.

In 2020 57th ACM/IEEE Design Automation Confer-

ence (DAC), pages 1–6. IEEE.

Nejatollahi, H., Dutt, N., Ray, S., Regazzoni, F., Banerjee,

I., and Cammarota, R. (2019). Post-quantum lattice-

based cryptography implementations: A survey. ACM

Computing Surveys (CSUR), 51(6):1–41.

Peng, B.-Y., Marotzke, A., Tsai, M.-H., Yang, B.-Y., and

Chen, H.-L. (2021). Streamlined ntru prime on fpga.

Cryptology ePrint Archive.

Reinders, A. H., Misoczki, R., Ghosh, S., and Sastry,

M. R. (2020). Efﬁcient bike hardware design with

constant-time decoder. In 2020 IEEE International

Conference on Quantum Computing and Engineering

(QCE), pages 197–204. IEEE.

Richter-Brockmann, J., Chen, M.-S., Ghosh, S., and

uneysu, T. (2021a). Racing bike: Improved polyno-

mial multiplication and inversion in hardware. Cryp-

tology ePrint Archive.

Richter-Brockmann, J., Mono, J., and Guneysu, T. (2021b).

Folding bike: Scalable hardware implementation for

recongurable devices. IEEE Transactions on Comput-

ers.

Roy, S. S. and Basso, A. (2020). High-speed instruction-

set coprocessor for lattice-based key encapsulation

mechanism: Saber in hardware. IACR Transactions

on Cryptographic Hardware and Embedded Systems,

pages 443–466.

Schanck, J. M. (2018). A comparison of ntru variants. Cryp-

tology ePrint Archive.

Wang, W., Szefer, J., and Niederhagen, R. (2018). Fpga-

based niederreiter cryptosystem using binary goppa

codes. In International Conference on Post-Quantum

Cryptography, pages 77–98. Springer.

Xing, Y. and Li, S. (2021). A compact hardware im-

plementation of cca-secure key exchange mechanism

crystals-kyber on fpga. IACR Transactions on Cryp-

tographic Hardware and Embedded Systems, pages

328–356.

Zhang, N., Yang, B., Chen, C., Yin, S., Wei, S., and Liu, L.

(2020). Highly efﬁcient architecture of newhope-nist

on fpga using low-complexity ntt/intt. IACR Trans-

actions on Cryptographic Hardware and Embedded

Systems, pages 49–72.

Zhu, Y., Zhu, M., Yang, B., Zhu, W., Deng, C., Chen, C.,

Wei, S., and Liu, L. (2021). Lwrpro: An energy-

efﬁcient conﬁgurable crypto-processor for module-

lwr. IEEE Transactions on Circuits and Systems I:

Regular Papers, 68(3):1146–1159.

On the Efﬁciency and Security of Quantum-resistant Key Establishment Mechanisms on FPGA Platforms

613
