A Medical Information System for Personalized Rehabilitation after

Ankle Inversion Trauma

Jonathan Neugebauer

1 a

, Rosemary Dubbeldam

2 b

, My Linh Pham

, Lokman Beser

Luka Gerlach

, Yu Yuan Lee

and Herbert Kuchen

1 c

Department for Information Systems, University of M

unster, M

unster, Germany

Institute of Sport and Exercise Sciences, University of M

unster, M

unster, Germany

Keywords:

Medical Informatics, Clinical Decision Support System, Mobile App, Domain Speciﬁc Language,

Model-driven Software Development.

Abstract:

We have developed FEAL, a mobile app and a corresponding server component supporting personalized re-

habilitation after an ankle inversion trauma. In order to enable the maintenance of the essential parts of the

overall system by health professionals, an easy to understand domain speciﬁc language (DSL) has been de-

signed enabling them to adapt the questionnaires which are essential parts of the app. For the same reason, the

included medical knowledge is not hard coded in a programming language but provided by rules of a business

rules management system. A DSL speciﬁcation is automatically transformed by a correspondingly developed

generator to platform-independent React Native code such that the resulting app can be used on the relevant

platforms iOS and Android.

1 INTRODUCTION

Particularly physically active people frequently suf-

fer from ankle sprains. Up to 40 % of these cases can

eventually escalate to chronic ankle instability (Hertel

and Corbett, 2019). In order to prevent this, patients

need to execute appropriate exercises which should

be adapted to their current state and patients need to

be informed about their injury and the expected reha-

bilitation process. Thus, we have developed FEAL,

a mobile app suggesting and explaining personalized

exercises to the patient and providing injury and re-

habilitation related information. The required med-

ical knowledge cannot be stored on the mobile de-

vice running the app. It rather has to be provided by

a server to which the app connects if needed. The

medical knowledge is on the state of the art. Nev-

ertheless, it has to be updated, if new insights have

been found. This maintenance should ideally be per-

formed by a health professional rather than by a soft-

ware developer. Thus, the medical knowledge has to

be provided in a form which can be maintained by

health professionals. Hence, it cannot be expressed

https://orcid.org/0000-0001-5865-7118

https://orcid.org/0000-0001-7471-9737

https://orcid.org/0000-0002-6057-3551

in a classic programming language. Instead, we use

when-then rules of a business rules management sys-

tem (BRMS) (Boyer and Mili, 2011). In our case,

we use the BRMS Drools

. In addition to the rules,

the server also stores data about the rehabilitation of

the patients, which can later on be used for scientiﬁc

studies.

The mobile app needs to ask patients about the

current state of their ankle impairments and their ex-

periences when performing the suggested exercises.

Based on the answers, new exercises are suggested

after involving the rules engine on the server side. A

large part of the app is a questionnaire. Again, this

questionnaire is also subject to changes which should

ideally be performed by a health professional rather

than by a software developer. Thus, a questionnaire

should be expressed on a high level of abstraction and

in a way health professionals can understand. There-

fore, we have developed a domain speciﬁc language

(DSL) (Voelter et al., 2013) which allows to design

such a questionnaire. Since both, the medical knowl-

edge and the questionnaire, are not hard coded in a

programming language but provided in a form where

they can easily be adapted, our approach is not lim-

ited to the rehabilitation of ankle inversion trauma but

https://www.drools.org

Neugebauer, J., Dubbeldam, R., Pham, M., Beser, L., Gerlach, L., Lee, Y. and Kuchen, H.

A Medical Information System for Personalized Rehabilitation after Ankle Inversion Trauma.

DOI: 10.5220/0011295800003266

In Proceedings of the 17th International Conference on Software Technologies (ICSOFT 2022), pages 319-330

ISBN: 978-989-758-588-3; ISSN: 2184-2833

319

it can also be used in other medical areas with a sim-

ilar combination of app, questionnaires, and medical

knowledge expressed by rules.

Finally, the app needs to be platform-independent,

since patients are using different mobile devices based

on the operating systems iOS and Android. Com-

mon techniques for reaching such independence in-

clude the hybrid, interpreted, and cross-compiled ap-

proach (Biørn-Hansen et al., 2018). In the hybrid ap-

proach, apps are implemented using web technologies

and displayed within a native web component. By

relying on web technologies, the interface can only

imitate the look of native interface elements. The in-

terpreted approach, on the other hand, allows for us-

ing native interface components which are rendered

based on, e.g., JavaScript code interpreted during run-

time. In contrast, the cross-compiled approach does

not perform such transformations to native code dur-

ing run-time but during compile-time.

We have deliberately chosen React Native

which

follows the interpreted approach. Thus, with the same

code base, apps for iOS and Android can be devel-

oped. Following the model-driven software develop-

ment approach (Stahl and V

olter, 2006), DSL speciﬁ-

cations are automatically transformed into React Na-

tive code. This is done by a corresponding generator

which we have developed, too.

In our work, we followed the design science re-

search methodology (Peffers et al., 2007). From a

software engineering point of view, the main contri-

butions of this application paper are:

• development of an architecture for a mobile app

and a corresponding server supporting the reha-

bilitation after an ankle inversion trauma,

• design of a DSL for expressing corresponding

questionnaires on a high level of abstraction,

• development of a generator transforming DSL

speciﬁcations into React Native code,

• development of a set of rules expressing the cor-

responding medical knowledge.

The rest of this paper is organized as follows. In

the next section, we will provide medical background

for our app FEAL. Section 3 presents the overall ar-

chitecture of our approach. More details about the

development will be given in Section 4. In Section 5,

we will discuss our approach. Related work is men-

tioned in Section 6. Finally in Section 7, we conclude

and point out future work.

https://reactnative.dev

2 MEDICAL BACKGROUND

An ankle inversion trauma occurs when the ankle

joints are twisted into a too extreme inverted posi-

tion, frequently combined with extension of the ankle

joints. As a result, the ankle ligaments can be par-

tially damaged or completely torn, depending on the

severity of the trauma. Below, ﬁrst the injury preva-

lence and participation consequences are presented.

Then, measures which inﬂuence injury rehabilitation

are brieﬂy discussed.

2.1 Prevalence and Consequences

Ankle sprains are common, and the potential conse-

quences are unfortunately often downplayed. Most

patients and even health professionals consider an an-

kle sprain as a minor injury, much less severe than

for example a strained or torn cruciate ligament of the

knee. Such opinions are not justiﬁed if one considers

the 35% to 70% recurrence rate. Even 6-12 months

after the injury, 50% of the patients are still suffering

from minor to major chronic impairments, and about

10% of them cannot return to sports or work (Her-

tel and Corbett, 2019; van Putte-Katier et al., 2015).

Hence, the consequences of this underrated ankle in-

jury are severe. Medical practitioners have very lim-

ited time to provide information about the injury and

rehabilitation process and, in general, only prescribe

an ankle brace for the more severe cases and advise

rest for the less severe cases. Physical therapy is

rarely prescribed even though studies report a 60%

reduced risk of re-injury after balance training (Eils

and Rosenbaum, 2001). About half of the patients

may seek help in the form of information in the avail-

able media or online. However, such information is

usually quite general, mostly not scientiﬁcally based,

and certainly not adapted to the individual suffering

from the ankle injury. Bystanders, such as trainers or

coaches, are generally not educated to support injury

rehabilitation.

2.2 Rehabilitation Process

Deviations from the normal regeneration of balance,

gait and jumping or landing abilities predict chroni-

ﬁcation of the ankle injury (Doherty et al., 2016).

Hence, it is important to restore impaired functions.

Several typical impairments can be addressed by the

patient. For example, static stretching has a posi-

tive effect on the ankle dorsiﬂexion range of motion

(Terada et al., 2013); Balance training and muscle

strengthening yield improves balance and reduces re-

current injury risk (Eils and Rosenbaum, 2001). Val-

ICSOFT 2022 - 17th International Conference on Software Technologies

320

Questionnaires

Assessments

Rule

Evaluation

Exercises Feedback

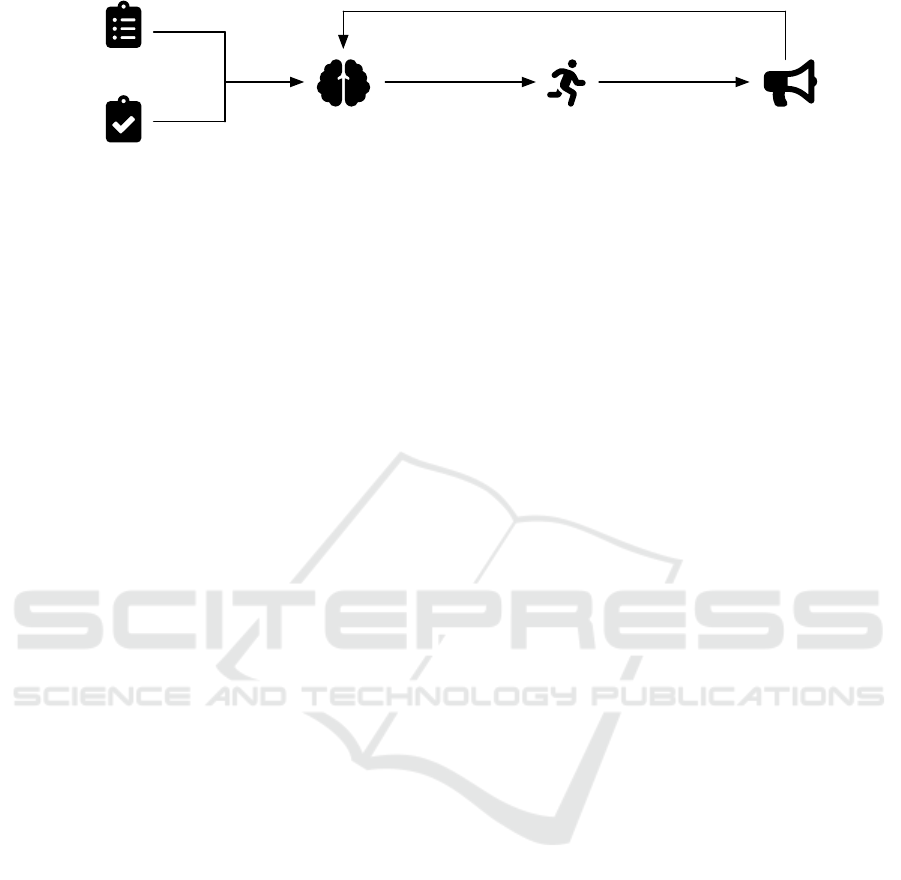

Figure 1: Main phases of the rehabilitation process supported by the medical information system.

idated tools which have been related to the rehabil-

itation process include the Foot and Ankle Ability

Measure (FAAM), the Cumberland Ankle Instabil-

ity Tool (CAIT) and Fear-Avoidance-Beliefs Ques-

tionnaire (FABQ) (Hertel and Corbett, 2019; Hous-

ton et al., 2015). Such tools and simple assessments

of structural function and activities should be used to

monitor the patient’s progress. Thus, our idea was

to develop a mobile app and a corresponding server

backend in order to support the rehabilitation of pa-

tients by suggesting exercises which are tailored to

the current state of the patient.

3 SYSTEM DESIGN

In this section, the medical information system sup-

porting personalized rehabilitation after an ankle in-

version trauma is designed. First, the requirements

are discussed in Subsection 3.1. Based on this, Sub-

section 3.2 outlines the software architecture.

3.1 Requirements Analysis

There are two main stakeholders involved in the re-

habilitation process: the patient and the health pro-

fessional. Throughout the rehabilitation process, the

patient continuously provides information concerning

his or her health condition through the system. The

health professionals, on the other hand, use this infor-

mation to monitor and evaluate the user’s impairments

in structural function and activities and adapt the reha-

bilitation accordingly. Some parts of this adaption can

be done based on rules expressing the current medical

knowledge. Such rules are intended to be evaluated

automatically using a rules engine.

In Figure 1, the main phases of the rehabilitation

process, which the system is intended to support, are

illustrated. The following paragraphs elaborate on

each of these phases.

Questionnaires. At ﬁrst, the patient answers different

questionnaires, e.g., concerning types of physical ac-

tivity the patient has done lately or the pain sensation

in certain situations. Some questionnaires are more

general while others speciﬁcally target ankle impair-

ments. Examples for such questionnaires are the

international physical activity questionnaire (IPAQ)

(Craig et al., 2003), the pain self-efﬁcacy question-

naire (PSEQ) (Nicholas, 2007), or the CAIT (Hiller

et al., 2006) mentioned previously. Some question-

naires allow calculating scores from the given an-

swers which are used by the health professionals to

monitor and adapt the rehabilitation process.

Assessments. In addition to questionnaires, a prior

assessment based on exercises or tests performed by

the patient is required. One example is the weight-

bearing lunge test (WBLT) (Bennell et al., 1998) as-

sessing the mobility of the ankle. After doing the as-

sessment, the patient is asked to answer some ques-

tions. For example, a question could ask for sensation

of pain during the assessment or whether it was too

difﬁcult to perform. Furthermore, the patient could

be asked to do a measurement (e.g., distance or time)

indicating how well the patient was able to perform

an exercise or a test.

Rule Evaluation. Based on information collected

through the questionnaires and assessments, rules ex-

pressing the current medical knowledge are evaluated

to determine appropriate exercises the patient should

do as a further training. These exercises are organized

in exercise groups. An exercise group is a collection

of exercises with different difﬁculty levels regarding

a speciﬁc biomechanical aspect (e.g., balance or fore-

foot stance). The rules are used to determine the start-

ing point within an exercise group, i.e., the exercise

with the appropriate difﬁculty level. Depending on

the assessment, certain exercise groups might be ir-

relevant and, thus, are not recommended for the pa-

tient (e.g., because the patient is able to do the most

difﬁculty exercise variant without any problems). On

the other hand, an exercise group might not be recom-

mended if a required questionnaire or assessment was

not done yet.

After the starting points within the relevant exercise

groups have been determined, the exercises are prior-

itized. This prioritization is done based on a list of

exercises which are ordered from most easy and most

vital exercise to most difﬁcult exercise or least vital

for daily life activities. For instance, the prioritization

A Medical Information System for Personalized Rehabilitation after Ankle Inversion Trauma

321

lists starts with two limb weight-bearing and ankle

mobilization exercises and the list ends with single-

leg jumps and running exercises. A collection of the

three exercises with the highest priorities is then given

to the patient as homework. In our use case, the pri-

orities of the exercises are ﬁxed and do not depend

on the patient’s input. Instead, the priorities are only

used to rank the exercises that have been determined

by the rules.

Exercises. At this stage, the patient performs the

suggested personalized exercises from the homework

collection daily.

Feedback. After each exercise, the patient evaluates

whether the exercise was “too easy”, “too difﬁcult”,

or “exactly right”. This feedback is used as an addi-

tional input for the rule evaluation. Depending on the

patient’s answers the exercises are adapted and a new

collection of three exercises is assembled for the next

day. If the performed exercise was too easy, a more

difﬁcult variant is recommended next (analogously if

the exercise was too difﬁcult). If the exercise’s difﬁ-

culty was exactly right, it stays in the homework col-

lection. Depending on the patient’s progress, an exer-

cise group may be removed from the homework col-

lection given the order of the exercises on the exercise

prioritization list.

In addition to the daily feedback on the exercises, the

patient is asked regularly to repeat speciﬁc question-

naires and assessments throughout the training phase

to allow for a continuous monitoring of the rehabili-

tation progress.

Based on this description of the rehabilitation pro-

cess several requirements can be identiﬁed. They can

be classiﬁed according to which user group they con-

cern.

Patients. First, patients should be able to ﬁll out

questionnaires and do assessments using a mobile

app. Additionally, the mobile app should display

the homework collection and provide the means to

give feedback after having done a homework exercise.

Lastly, the app should present a collection of useful

information to the patient (e.g., general information

on the ankle inversion trauma, advice, or support con-

tacts).

Health Professionals. First, health professionals

require a dashboard to monitor the rehabilitation

progress of their patients. For this purpose, plots pro-

viding a basic analysis of the scores calculated for the

answered questionnaires should be presented. To fa-

cilitate a more detailed statistical analysis, the infor-

mation collected through questionnaires and assess-

ments and with the feedback on the exercises should

be saved in a database. Personalized and appropriate

exercises should be determined automatically based

on user input from the questionnaires and assessment

and on the rules speciﬁed by the health professionals.

Lastly, health professionals should be able to adapt

the questionnaires.

There are different question types which the sys-

tem needs to handle. Firstly, single-choice as well as

multiple-choice questions should be supported. Ad-

ditionally, open-ended questions are required. Lastly,

for the purposes of our use case it should be possi-

ble that patients can answer certain questions using

a visual analogue scale (VAS) (Hayes and Patterson,

1921). Here, the patient can choose an appropriate

value for a rating scale between two opposing cate-

gories (e.g., “not at all conﬁdent” vs. “completely

conﬁdent”). An exemplary question from the previ-

ously mentioned PSEQ involving a VAS is depicted

in Figure 3.

3.2 Software Architecture

Based on the requirements analysis conducted in the

previous subsection, this subsection introduces a suit-

able software architecture. In Figure 2, several core

components are illustrated. On the one hand, there

are parts colored in gray involved in code generation

prior to running the app, while the components col-

ored in black are needed at runtime.

There are two components providing a user inter-

face (UI) for the two main stakeholders: the mobile

app and the dashboard. Both receive data from and

send data to the backend through its application pro-

gramming interface (API). Furthermore, the backend

uses a database for persistent storage of information.

We chose MongoDB

due to the ﬂexibility such a

document-oriented database offers for the schema de-

sign. The rule evaluation is done by a separate com-

ponent representing the rules engine. Also this com-

ponent features an API enabling the communication

to the backend. The rules are saved in speciﬁc rule

ﬁles which are loaded into the rules engine upon ap-

plication start. This way, the rule logic can be adapted

by health professionals without the need of touching

the program code of the rules engine. Drools offers

a DSL called drools rule language (DRL) for the pur-

pose of specifying rules. In addition to using DRL for

deﬁning rules, we implemented a DSL named QuApp

allowing to describe questionnaires and mobile apps

within models. Such models can be fed into a code

generator to generate artifacts corresponding to the

models.

While the app model is transformed to JavaScript

code for React Native, a questionnaire model results

in a JavaScript Object Notation (JSON) document that

https://www.mongodb.com

ICSOFT 2022 - 17th International Conference on Software Technologies

322

App Model

Rules Engine

Database

Dashboard

Mobile App

Rules

Code

Generator

Backend

Questionnaire

Models

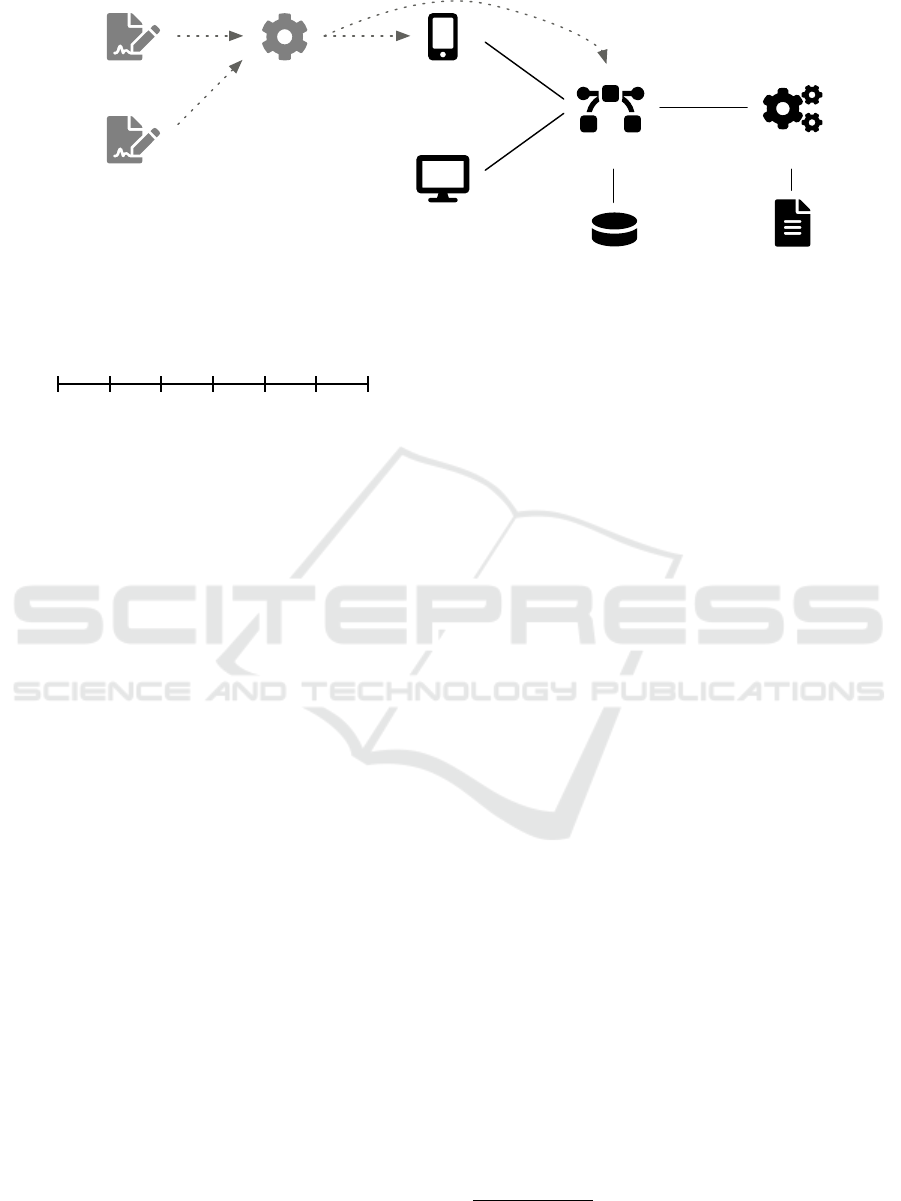

Figure 2: Architecture of the medical information system.

I can enjoy things, despite the pain.

Not at all confident Completely confident

0 6

Figure 3: Exemplary question involving a visual analogue

scale (cf. PSEQ).

can be loaded into the backend. This document en-

compasses the meta information about the question-

naire. Such meta information is used in the mobile

app and dashboard for displaying purposes and in the

rules for the rules engine to express logic. The code

generator is able to cover the requirements for the

questionnaire part of the app well. However, there are

also custom parts which have been realized by cus-

tom code next to the generated code. For instance,

the implementation for the assessments and exercises

were too speciﬁc to our use case, thus, preventing

a meaningful abstraction into language elements for

the QuApp language. Nevertheless, the custom im-

plementations are also based on the mentioned ques-

tionnaire metadata and rules logic. Thus, they do not

pose a limitation towards our goal of making changes

easy for health professionals.

4 PROTOTYPE DEVELOPMENT

Given the requirements and software architecture out-

lined in the previous section, this section gives more

details on the development of the different system

components. First, Subsections 4.1 to 4.4 deal with

the two UI components (mobile app, dashboard) and

the components realizing the API service (backend,

rules engine). Based on this understanding of the pro-

totype, in the last Subsection 4.5, we describe how we

used our QuApp DSL to generate certain aspects of

the system automatically. Exemplary code showcas-

ing our use of the DSL and DRL rules can be found

in a dedicated GitHub repository

4.1 Mobile App

By using the mentioned JavaScript framework React

Native, the mobile app could be realized as a cross-

platform app. Hence, it can be run on both Android

and iOS devices. React Native leans on the JavaScript

library React

and, thus, the UI appearance and be-

havior of an app is implemented through React com-

ponents. Here, a component represents a bundle of

code that can be reused to compose the overall app

(e.g., an input element that is needed on different

screens). At runtime, React Native translates the Re-

act components to native view elements for the re-

spective mobile platform.

Once logged in, the user is presented the app’s

main screen. As depicted in Figure 4a, this screen

contains a tab bar at the bottom. Here, the user is able

to switch between four different sub-screens.

Proﬁle. This screen contains options to view and edit

the information of the user proﬁle. Additionally, the

user can logout from the app.

Questionnaires. Here, a list of available question-

naires is shown. After choosing a questionnaire, the

patient is presented its content step-by-step. A ques-

tionnaire is divided into sections where each section

contains questions and optionally information pages.

An information page can be used to display instruc-

tions before questions. For instance, we use informa-

tion pages to explain when a following block of ques-

tions refers to the same overall topic (e.g., about the

physical activity done in the last seven days).

All required question types mentioned previously

have been implemented. An example can be seen in

Figure 4b. Here, the input for a VAS has been real-

ized as a slider. The other question types look sim-

https://github.com/wwu-pi/ankle-rehab-examples

https://reactjs.org

A Medical Information System for Personalized Rehabilitation after Ankle Inversion Trauma

323

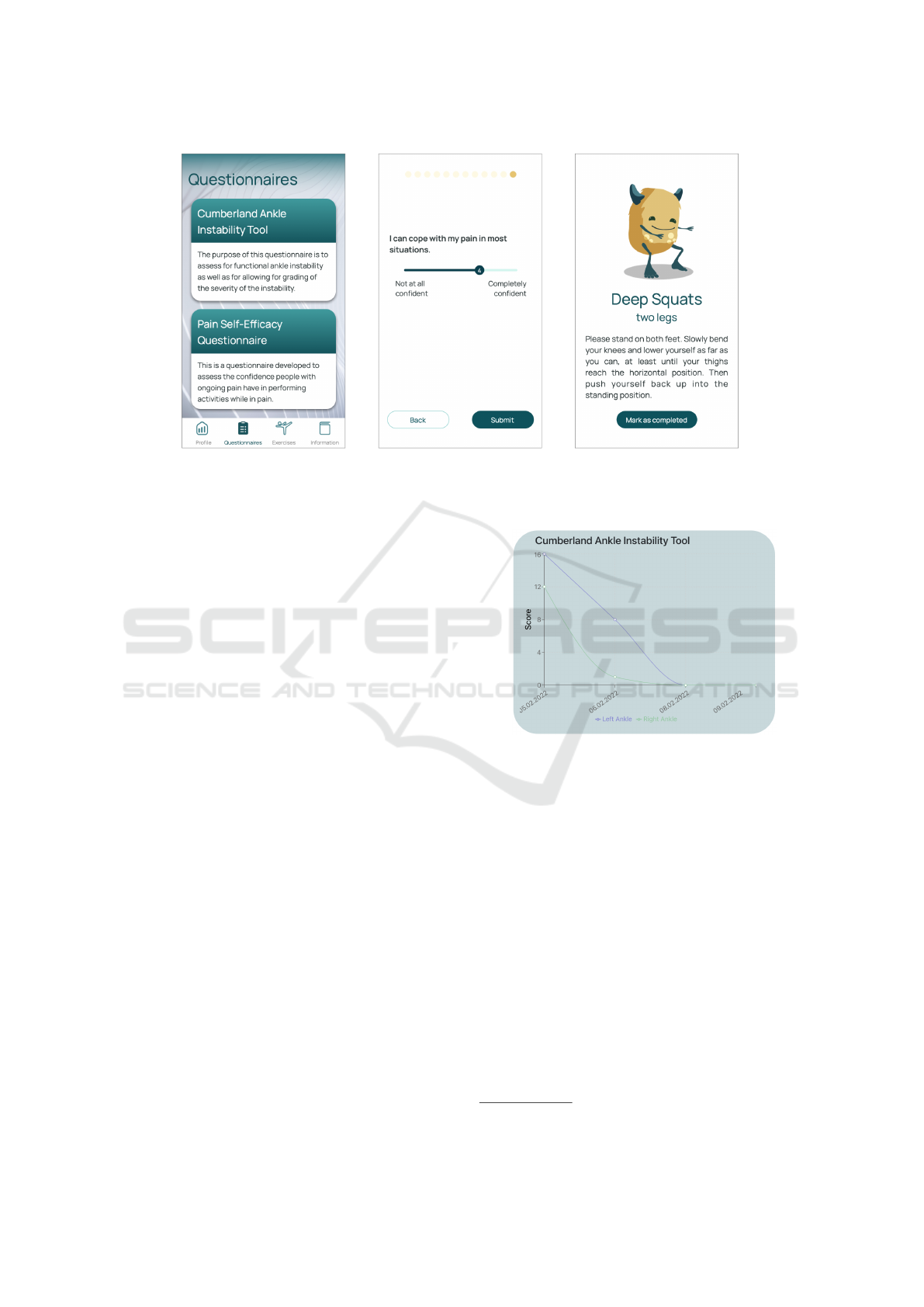

(a) Overview list with avail-

able questionnaires.

(b) VAS input within a ques-

tionnaire realized as a slider.

Figure 4: Exemplary features of the mobile app.

ilarly. While for single-choice questions radio but-

tons are displayed, we use check-boxes for multiple-

choice questions. Finally, for open-ended questions,

a text input ﬁeld is provided.

Exercises. Analogously to the aforementioned ques-

tionnaires list, the patient is presented a list of avail-

able exercises from the homework collection. Once

an exercise has been selected, a corresponding exer-

cise screen is shown (cf. Figure 4c). Here, instruc-

tions on how to do the exercise correctly are given.

After doing the exercise, the patient can mark it as

“completed” and evaluate whether it was too difﬁcult,

too easy, or exactly right.

From the exercise list, the patient also has the option

to access the assessments screen (e.g., in case the ex-

ercise list is still empty because pending assessments

have to be done). The patient can choose from a list of

assessments and is given instructions on how to do the

exercise or test that is going to be assessed. Further-

more, questions are shown similar to questionnaires

(cf. Figure 4b). The question types used for assess-

ments are single- and multiple-choice as well as open-

ended.

Information. The ﬁnal screen provides general in-

formation for the user. Again, a list is used to display

multiple entries from which the patient can choose.

Entries are fetched from the backend as static HTML

code and are displayed accordingly when selected.

4.2 Dashboard

The UI for the dashboard is also implemented using

React components. After logging in, health profes-

Figure 5: Dashboard plot visualizing the CAIT scores for

the left and right ankle over time.

sionals get access to a list of participants. After select-

ing a participant, plots visualizing the questionnaire

scores over time are displayed. A plot with exemplary

data for the CAIT score is depicted in Figure 5. In this

case, the line plot contains two data series for the left

and right ankle. These two series correspond to two

sections in the questionnaire allowing the backend to

compute the scores individually. For other question-

naires such as the PSEQ, only a single score is com-

puted. The score calculation method is speciﬁed in

the questionnaire’s metadata.

4.3 Backend

The dashboard is bundled with the backend within a

single web application. For the backend implementa-

tion, we used the web framework Express

which is

https://expressjs.com

ICSOFT 2022 - 17th International Conference on Software Technologies

324

based on the JavaScript runtime Node.js

The main responsibility of the backend is to pro-

vide an API for the other system components. This

includes endpoints for authentication and data man-

agement.

Endpoints for data management provide the

means to read, insert, update, or delete entities in the

database. For instance, questionnaire metadata is re-

trieved by the mobile app for data collection and by

the dashboard for data visualization. Similarly, the

mobile app sends answers to questionnaires to the

backend via a corresponding endpoint.

In addition to obtaining data from the database,

certain endpoints require evaluating rules. For in-

stance, this is the case after a questionnaire or an as-

sessment has been submitted. Additionally, the rules

engine is consulted when the user evaluates the dif-

ﬁculty of an exercise. Finally, the rules engine deter-

mines which exercises are returned by the backend for

the homework collection.

4.4 Rules Engine

As mentioned earlier, the rules engine was imple-

mented based on the BRMS Drools. It offers an API

for the backend to trigger a rule evaluation based on

the user’s inputs. Hereby, the rules engine is com-

pletely stateless and only depends on the rules loaded

upon start and information provided in a particular re-

quest. Since Drools is implemented in Java, we also

realized the API service of the rules engine with Java

based on the Spring Framework

The rules are organized in several rule ﬁles each

containing a set of rules. Firstly, the assignment of

exercises to groups, the difﬁculty levels as well as the

priorities of exercises are deﬁned using rules. Sec-

ondly, there are rule sets for evaluating which exer-

cise to add to the homework collection given a spe-

ciﬁc questionnaire or assessment input.

In Listing 1, an exemplary rule in DRL syntax

is shown. After the deﬁnition of the rule’s name in

line 3, there are two main blocks. While the when-

block (cf. line 4 ff) speciﬁes the conditions for the

rule to ﬁre, the then-block (cf. line 10 ff) contains

the logic to be executed when the conditions are met.

In this example, the rule is only ﬁred when the VAS

input for the ﬁfth question of the CAIT questionnaire

has a value higher than zero. In this case, an exercise

with ID B2 contained in exercise group G1 is added to

the list of exercises deﬁned in line 1.

https://nodejs.org

https://spring.io

1 global List < Ex ercise > exerc i s es ;

3 rule " R1"

4 when

5 Question n a i r e (

6 questionna i r e I d . equa ls ( " CAIT " ) ,

7 questionnaireAnswer s . get ( " Q5")

8 > 0

9 )

10 then

11 Exerc i se e = new E x ercise () ;

12 e. s e t ExerciseId ( " B2 " ) ;

13 e. s etGroupI d (" G1 " ) ;

14 exerc i s es . add ( e ) ;

15 end

Listing 1: Exemplary rule in DRL syntax deﬁning which

exercise to add to the homework collection based on

questionnaire inputs (simpliﬁed).

When the backend makes a request to the rules en-

gine providing the questionnaire input, the API con-

troller feeds the supplied data as facts to the working

memory of Drools. Additionally, the global variable

exercise (cf. line 1) is initialized with an empty list.

Then, all rules are ﬁred which causes Drools to eval-

uate the rules based on the provided facts and execute

the rule logic where conditions are met. At this stage,

all applicable rules write their corresponding exer-

cises to the global variable. Subsequently, the con-

troller can return this list as a result to the request. The

backend, on the other hand, can then use the speciﬁed

IDs to obtain the exercise entities from the database

to provide them to the mobile app.

4.5 Domain-speciﬁc Language

In this subsection, the main concepts of the QuApp

DSL are presented. We developed the DSL us-

ing the Xtext

language workbench. After deﬁning

the language elements with a grammar, Xtext auto-

matically generates a basic language infrastructure.

For instance, this includes a parser, basic validation,

and a plug-in integrating the language into Eclipse

IDE

. Additionally, Xtext provides an infrastructure

to implement custom code generators transforming

the DSL speciﬁcations to general-purpose code (e.g.,

JavaScript).

There are two concerns the DSL targets: specify-

ing mobile apps and questionnaires. Both aspects will

be discussed subsequently.

https://www.eclipse.org/Xtext

https://www.eclipse.org/eclipseide

A Medical Information System for Personalized Rehabilitation after Ankle Inversion Trauma

325

4.5.1 Mobile App Speciﬁcation

To specify a mobile app, ﬁrst, general properties have

to be deﬁned. This includes the app’s name and ver-

sion. Furthermore, the URL to a data provider must

be set. In our case, this is the API provided by the

backend. Every generated mobile app will have a

questionnaire screen. Next to this basic feature, cus-

tom sub-screens for the tab bar (cf. Figure 4a) can be

created using the keyword CustomTab.

Listing 2 contains an exemplary speciﬁcation of

a custom tab. Here, the functionalities of the infor-

mation screen mentioned in Subsection 4.1 are de-

ﬁned. First, a data model for the static information

fetched from the speciﬁed API endpoint is created.

Based on the deﬁned attributes, an index screen for

a list of multiple entities and a content screen shown

when selecting a single entity is speciﬁed. Here, the

model’s attributes are referenced. The name ﬁeld is

used as a title for the list entries and the data con-

tained in the text ﬁeld is handled as HTML code

and rendered accordingly. Lastly, using the keyword

InitialScreen the ﬁrst screen shown after selecting

the corresponding tab bar button is deﬁned. Besides

the shown HTMLBlock, there are other components

that can be used to display the data of an attribute on

a content screen (e.g., Text, Image, or Video).

1 CustomTab I n f o rmation . .. {

2 Model S t a ticInfo {

3 id

4 na me

5 te xt

6 }

7 FetchPath /"staticInfo"

8 fetchAsList from

9 /"staticInfo/list"

10 identifier

11 Static I n fo . id

12 IndexScreen I n f oIndex ... {

13 Title S t a ticInfo . name

14 DetailScreen I n f oConent

15 }

16 ContentScreen I n f oConent ... {

17 HTMLBlock bind S taticInf o . t ext

18 }

19 InitialScreen I n f oIndex

20 }

Listing 2: Exemplary speciﬁcation of a custom tab

(simpliﬁed).

4.5.2 Questionnaire Speciﬁcation

The implemented system expects the metadata for

questionnaires to be deﬁned in a speciﬁc JSON

schema. While this format is well suited for imple-

menting application logic, it is not easy and concise

to write for a user. Consequently, we use the DSL to

specify questionnaires and generate the correspond-

ing JSON document automatically.

In Listing 3, the main structure of a questionnaire

speciﬁcation is shown. After deﬁning the question-

naire’s ID and name, a rule for the score calculation

must be set. With sumSection, the score corresponds

to the sum of the scores within a section. When mul-

tiple sections are deﬁned, multiple scores are calcu-

lated. Another calculation method is sumAll where

only one score for all sections is determined. For each

section, an ID and name must be set and within the

section, questions and information pages are deﬁned.

1 Questionnaire CAIT "Cumberland Ankle

2 Instability Tool"

3 CalculationRule s u m Section

4 Description "Dear patient..."

6 Section left "Left ankle"

7 Description "The following questions

8 concern your LEFT ankle..."

Question(s) / information page(s)

Additional section(s)

Listing 3: Exemplary questionnaire speciﬁcation.

To deﬁne an information page, only an ID and the

text to display need to be speciﬁed. Question deﬁni-

tions, on the other hand, entail more properties. For

each of the question types implemented in the mo-

bile app (cf. Subsection 4.1), a keyword is deﬁned in

the DSL. In Listing 4, a multiple-choice question is

speciﬁed. Here, each option is assigned an individual

score. Single-choice questions can be deﬁned anal-

ogously using the SCQuestion keyword. However,

for single-choice options, the user can deﬁne cross-

references to a follow-up question. For instance, one

could append the expression “=> S2.Q11” to line 4 to

indicate that when choosing this option the next ques-

tion will be question 11 from section 2. Without such

a cross-reference, questions are shown according to

the order in which they are deﬁned within a section.

1 MCQuestion Q1 "I have pain in my

2 ankle."

3 Choice "Never"

4 Score 5

5 Choice "During sport"

6 Score 4

7 ...

Listing 4: Exemplary multiple-choice question (cf. CAIT).

Listing 5 contains an exemplary slider question,

i.e., a question with a VAS input. Besides deﬁning the

titles for the two opposing categories, the minimum

and maximum values as well as the interval to use for

the slider must be set.

ICSOFT 2022 - 17th International Conference on Software Technologies

326

1 SliderQuestion Q1 "I can enjoy things

2 despite the pain."

3 MinValue 0 : "Not at all confident"

4 MaxValue 6 : "Completely confident"

5 Interval 1

Listing 5: Exemplary slider question (cf. PSEQ).

Finally, an example for an open-ended question is

shown in Listing 6. The input provided to this ques-

tion type is handled as plain text and, thus, is not con-

sidered for the score calculation.

1 OpenEndedQuestion Q26 "During the

2 last 7 days, how much time did

3 you usually spend sitting on a

4 weekday?"

5 InputText "Hours per day"

Listing 6: Exemplary open-ended question (cf. IPAQ).

5 DISCUSSION

In this section, we evaluate and discuss the results of

our work. Subsection 5.1 deals with unit and per-

formance tests evaluating the system’s conformance

to the functional requirements and its responsiveness.

Then, we assess the usability of the dashboard and the

approach of expressing expert knowledge using DRL

rules. In Subsection 5.3, we evaluate the effectiveness

of the DSL-based approach by comparing how much

lines of code (LOC) could be generated automatically

based on manually written DSL code. Lastly, we dis-

cuss limitations of the prototype.

5.1 Unit and Performance Tests

During development of the prototype, we did some

functional testing via unit tests. On the other hand,

we also did non-functional testing evaluating whether

the interaction of the different components introduces

an unacceptable latency. For instance, we measured

the mean response time of the rules engine’s API end-

points given exemplary data. Furthermore, we tested

whether large amounts of documents (up to 100,000)

in the database lead to an unacceptable increase in la-

tency when querying data within the backend’s im-

Table 1: LOC comparison between manually written and

automatically generated code for different types of models.

Model Type Written Generated

PSEQ questionnaire 44 136

IPAQ questionnaire 79 328

CAIT questionnaire 191 597

App with two custom tabs 93 1,706

Sum 407 2,767

plementation. In all cases, we did not observe un-

acceptable response times. The API endpoints re-

sponded within less than 11 ms, while the queries

took less than 200 ms. All measurements were done

on consumer-grade hardware which suggests that run-

ning the software on a server in production should

result in even lower values. Also, we checked how

long it takes to display the dashboard plots for large

amounts of data points (up to 400) which did involve

rending times of less than 34 ms.

5.2 Usability Tests

For assessing the usability of the system we con-

ducted two usability tests based on the system usabil-

ity scale (SUS) (Brooke, 1996). While the ﬁrst test

concerned the dashboard’s usability (5 participants),

the second test assessed the usability of DRL rules

format (7 participants). The SUS is a questionnaire

comprised of ten statements which the participants

rate after having used the software under evaluation.

Each statement is rated on a scale between 1 (strong

disagreement) and 5 (strong agreement). In the end, a

score between 0 and 100 can be calculated after con-

verting and scaling the ratings. Here, higher scores

indicate a superior usability.

In Figure 6, the ratings for the ten statements and

for both tests can be seen. The ﬁnal scores for each

participant are visualized in Figure 7. All partici-

pants had a background in medicine or physical ther-

apy and did not have prior knowledge about program-

ming. On average, the ﬁrst test concerning the dash-

board resulted in a mean score of 88.57 and the sec-

ond test concerning the DRL format yielded a mean

score of 73.00. These results can be interpreted based

on the adjective rating scale suggested by Bangor et

al. (2009). The dashboard’s mean SUS score indi-

cates an “excellent” usability and the DRL format al-

most reached the rating “good”.

5.3 Lines of Code Comparison

To assess the effectiveness of the approach of deﬁn-

ing questionnaires and parts of the mobile app based

on the QuApp DSL, we compared the LOC that had

to be written in the DSL speciﬁcations manually with

the LOC that resulted out of the code generation pro-

cess. In Table 1, the results are summarized. We

deﬁned models of different types. Besides different

models deﬁning questionnaires, our test also included

the speciﬁcation of a mobile app with two custom

tabs. In total, based on 407 manually written LOC

2,767 LOC could be generated.

A Medical Information System for Personalized Rehabilitation after Ankle Inversion Trauma

327

1 2 3 4 5

1. I think that I would like to use this system frequently.

2. I found the system unnecessarily complex.

3. I thought the system was easy to use.

4. I think that I would need the support of a technical person to be able to use this system.

5. I found the various functions in this system were well integrated.

6. I thought there was too much inconsistency in this system.

7. I would imagine that most people would learn to use this system very quickly.

8. I found the system very cumbersome to use.

9. I felt very conﬁdent using the system.

10. I needed to learn a lot of things before I could get going with this system.

1 2 3 4 5

1. I think that I would like to use this system frequently.

2. I found the system unnecessarily complex.

3. I thought the system was easy to use.

4. I think that I would need the support of a technical person to be able to use this system.

5. I found the various functions in this system were well integrated.

6. I thought there was too much inconsistency in this system.

7. I would imagine that most people would learn to use this system very quickly.

8. I found the system very cumbersome to use.

9. I felt very conﬁdent using the system.

10. I needed to learn a lot of things before I could get going with this system.

(a) Ratings concerning

the dashboard (n = 7).

1 2 3 4 5

(b) Ratings concerning

the DRL format (n = 5).

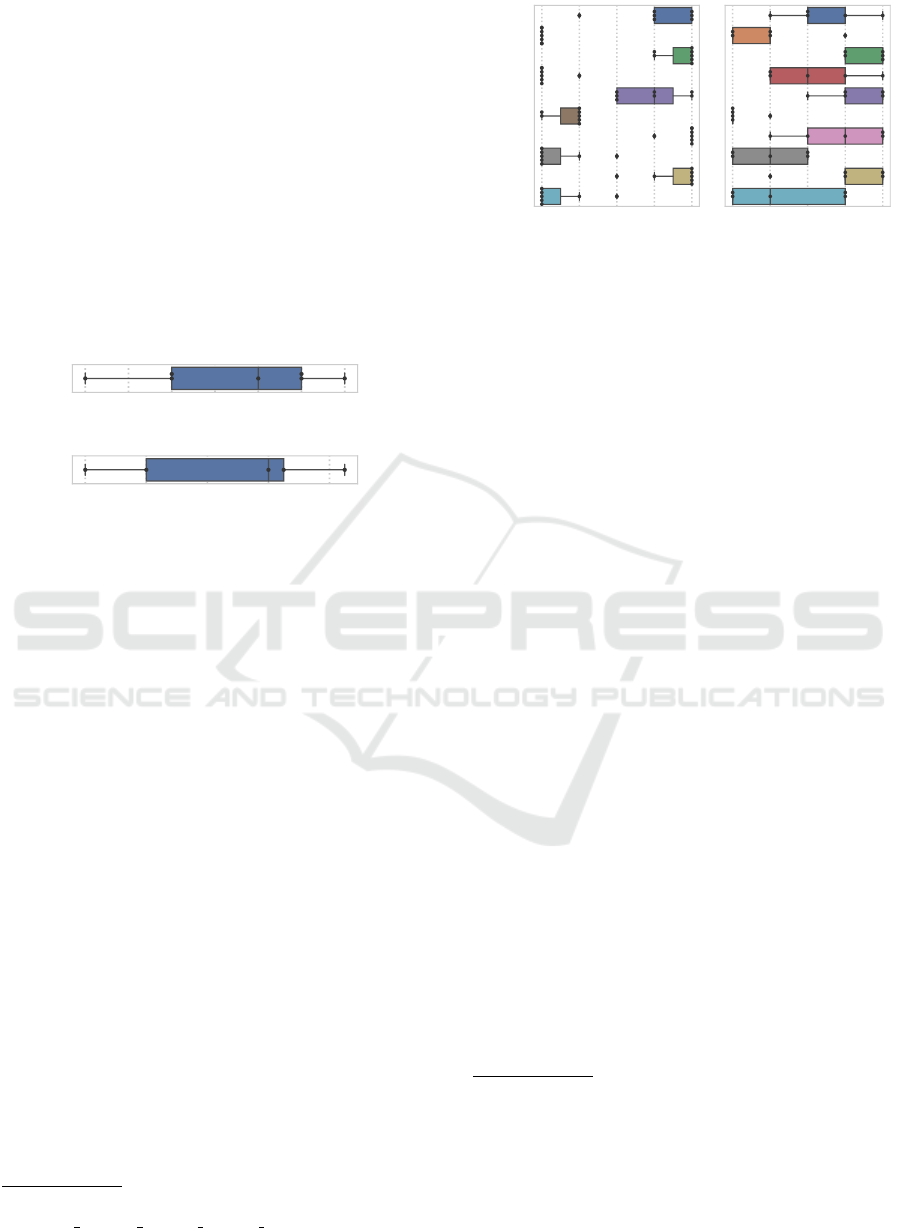

Figure 6: Box plots visualizing the ratings for the SUS statements.

80.0 82.5 85.0 87.5 90.0 92.5 95.0

(a) Scores concerning the dashboard (n = 7).

50 60 70 80 90

(b) Scores concerning the DRL format (n = 5).

Figure 7: Box plots visualizing the SUS scores.

5.4 Limitations

There are some limitations to our prototype. First,

the SUS score obtained for the DRL format suggests

that its usability can still be improved. One reason for

this assessment could be that still some technical un-

derstanding is needed to implement DRL rules. For

instance, in the example in Listing 1, a health profes-

sional has to understand that a global variable is to be

ﬁlled with exercises as part of the rule’s logic. One

way to overcome this limitation is to abstract away

the technical details by deﬁning a simpler language

closer to this use case. Drools offers functionalities to

deﬁne transformations from such custom languages to

DRL constructs

. Furthermore, only the basic ques-

tion types required for our use case have been im-

plemented. This could be extended. Also, the gen-

erated metadata is speciﬁc to our application. One

could consider implementing (partial) compatibility

with a metadata standard such as ODM-XML

. This

standard can be used to specify questionnaires and is

widely supported in various tools used for clinical re-

search.

https://docs.drools.org/7.67.0.Final/drools-

docs/html single/# domain speciﬁc languages

https://www.cdisc.org/standards/data-exchange/odm

6 RELATED WORK

Examples of e-health solutions for musculoskeletal

related disorders are the mobile app or web-based sys-

tems ViViRa

, eCovery

, and Injurymap

. These

systems provide a video-based intervention support.

Other systems such as MeineReha

®16

, SWORD

HEALTH

, Companion

patella

and Kaia

ad-

ditionally incorporate technical devices such as the

mobile phone’s camera and motion sensors, to eval-

uate and monitor the patient’s movements or to pro-

vide direct feedback. So far, the entrance level for

the exercises and advancement through the exercises

is mostly determined by a health professional after

personal contact (Companion

patella, MeineReha

)

or after a remote consult by means of an interac-

tive platform (SWORD HEALTH). eCovery, Kaia,

ViVRa and Injurymap

use a few questions or two-

dimensional video analysis with which they are able

to perform some form of a remote assessment and

monitoring of the patient’s health status. In addi-

tion, a rules based AI system has been included to

advance through the exercises (Injurymap

, ViViRa)

or correct exercises (Kaia). Information concerning

the disorder such as the rehabilitation process and

advice to handle pain, has been provided by a few

systems (Injurymap

, eCovery, Kaia, Companion

patella) or can be gained through chatting remotely

(SWORD HEALTH). First clinical trials with patients

suffering from an acute lateral ankle sprain (with-

https://www.vivira.com/

https://ecovery.de

https://www.injurymap.com

https://www.meinereha.de

https://swordhealth.com

https://www.medi.de/digitale-anwendungen/diga-

companion-patella

https://kaiahealth.com

ICSOFT 2022 - 17th International Conference on Software Technologies

328

out control groups) and user experience studies in-

dicate that users are satisﬁed with the app, but exer-

cise adherence may be low if patients need to exer-

cise independently (Injurymap

) compared to daily

remote biofeedback sessions with a health profes-

sional (SWORD HEALTH) (Bak et al., 2022; Correia

et al., 2021). Although reminders are offered by most

systems, other features such as gamiﬁcation which

enhance exercise motivation have not been included

yet (Croon et al., 2021). In summary, many e-health

systems still depend on (remote) interaction with a

health professional, monitoring and feedback, the sys-

tem may require costly additional equipment, infor-

mation concerning the disorder is limited and person-

alized entrance level and advancement through the ex-

ercises is only based on rules engines in a few sys-

tems. On the contrary in our system FEAL, the per-

sonalized entry level is based on extensive question-

naires as well as an assessment with feedback from

the patient. Extensive information concerning the in-

jury is provided. Furthermore, our system does not

need additional technology and can be easily adapted

by a health professional if needed. Since the App can

store health related data such as patient’s function and

activities as well as answers from questionnaires, it

will also be a useful tool for research.

7 CONCLUSION AND OUTLOOK

Considering that ankle sprains are a frequently occur-

ring injury, this paper dealt with developing FEAL,

a medical information system for personalized reha-

bilitation after ankle inversion trauma. After giving

some medical background on this use case, we pre-

sented requirements and a software architecture for

the system. Then, we described how we developed a

prototype consisting of several components. A mobile

app for the injured person is used to obtain insights on

the user’s rehabilitation based on questionnaires, ex-

ercises, and assessments. For health professionals, on

the other hand, we implemented a dashboard helping

them to monitor and adapt the rehabilitation progress.

As part of the backend components, we developed

a rules engine allowing to recommend exercises to

the user based on the input to the mobile app. Ad-

ditionally, we introduced our DSL QuApp allowing

to specify questionnaires and mobile apps and gener-

ate corresponding code automatically. We evaluated

our work regarding different aspects (e.g., functional

conformance, performance, usability), discussed lim-

itations, and also pointed out related work.

Future work for FEAL should primarily focus on

improving usability and generalizability. We men-

tioned several means to overcome the limitations of

our approach: (1) using a customized language for

specifying Drools rules and (2) implementing com-

patibility with a metadata standard for questionnaires.

REFERENCES

Bak, J., Thorborg, K., Clausen, M. B., Johannsen, F. E.,

Kirk, J. W., and Bandholm, T. (2022). Using the

for people with acute lateral ankle sprains seen at the

hospital emergency department – a mixed-method pi-

lot study.

Bangor, A., Kortum, P., and Miller, J. (2009). Determin-

ing What Individual SUS Scores Mean: Adding an

Adjective Rating Scale. Journal of Usability Studies,

4(3):114–123.

Bennell, K., Talbot, R., Wajswelner, H., Techovanich, W.,

Kelly, D., and Hall, A. (1998). Intra-rater and inter-

rater reliability of a weight-bearing lunge measure of

ankle dorsiﬂexion. Australian Journal of Physiother-

apy, 44(3):175–180.

Biørn-Hansen, A., Grønli, T.-M., and Ghinea, G. (2018).

A survey and taxonomy of core concepts and re-

search challenges in cross-platform mobile develop-

ment. ACM Comput. Surv., 51(5).

Boyer, J. and Mili, H. (2011). Agile Business Rule Devel-

opment. Springer Berlin Heidelberg.

Brooke, J. (1996). SUS: A ’Quick and Dirty’ Usability

Scale. In Jordan, P., Thomas, B., McClelland, I., and

Weerdmeester, B., editors, Usability Evaluation in In-

dustry, pages 189–194. Taylor & Francis, London.

Correia, F. D., Molinos, M., Neves, C., Janela, D., Car-

valho, D., Luis, S., Francisco, G. E., Lains, J.,

and Bento, V. (2021). Digital rehabilitation for

acute ankle sprains: Prospective longitudinal cohort

study. JMIR Rehabilitation and Assistive Technolo-

gies, 8(3):e31247.

Craig, C. L., Marshall, A. L., Sj

ostr

om, M., Bauman, A. E.,

Booth, M. L., Ainsworth, B. E., Pratt, M., Ekelund,

U., Yngve, A., Sallis, J. F., and Oja, P. (2003). Inter-

national Physical Activity Questionnaire: 12-Country

Reliability and Validity. Medicine & Science in Sports

& Exercise, 35(8):1381–1395.

Croon, R. D., Geuens, J., Verbert, K., and Abeele, V. V.

(2021). A systematic review of the effect of gamiﬁca-

tion on adherence across disciplines. In Lecture Notes

in Computer Science, pages 168–184. Springer Inter-

national Publishing.

Doherty, C., Bleakley, C., Hertel, J., Caulﬁeld, B., Ryan, J.,

and Delahunt, E. (2016). Recovery From a First-Time

Lateral Ankle Sprain and the Predictors of Chronic

Ankle Instability. The American Journal of Sports

Medicine, 44(4):995–1003.

Eils, E. and Rosenbaum, D. (2001). A multi-station propri-

oceptive exercise program in patients with ankle in-

stability. Medicine & Science in Sports & Exercise,

33(12):1991–1998.

A Medical Information System for Personalized Rehabilitation after Ankle Inversion Trauma

329

Hayes, M. H. S. and Patterson, D. G. (1921). Experimental

development of the graphic rating method. Psycho-

logical Bulletin, 18:98–99.

Hertel, J. and Corbett, R. O. (2019). An Updated Model of

Chronic Ankle Instability. Journal of Athletic Train-

ing, 54(6):572–588.

Hiller, C. E., Refshauge, K. M., Bundy, A. C., Herbert,

R. D., and Kilbreath, S. L. (2006). The Cumberland

Ankle Instability Tool: A Report of Validity and Re-

liability Testing. Archives of Physical Medicine and

Rehabilitation, 87(9):1235–1241.

Houston, M. N., Hoch, J. M., Gabriner, M. L., Kirby, J. L.,

and Hoch, M. C. (2015). Clinical and laboratory mea-

sures associated with health-related quality of life in

individuals with chronic ankle instability. Physical

Therapy in Sport, 16(2):169–175.

Nicholas, M. K. (2007). The pain self-efﬁcacy question-

naire: Taking pain into account. European Journal of

Pain, 11(2):153–163.

Peffers, K., Tuunanen, T., Rothenberger, M. A., and Chat-

terjee, S. (2007). A design science research method-

ology for information systems research. Journal of

Management Information Systems, 24(3):45–77.

Stahl, T. and V

olter, M. (2006). Model-Driven Software De-

velopment: Technology, Engineering, Management.

John Wiley.

Terada, M., Pietrosimone, B. G., and Gribble, P. A. (2013).

Therapeutic Interventions for Increasing Ankle Dor-

siﬂexion After Ankle Sprain: A Systematic Review.

Journal of Athletic Training, 48(5):696–709.

van Putte-Katier, N., van Ochten, J. M., van Middelkoop,

M., Bierma-Zeinstra, S. M., and Oei, E. H. (2015).

Magnetic resonance imaging abnormalities after lat-

eral ankle trauma in injured and contralateral ankles.

European Journal of Radiology, 84(12):2586–2592.

Voelter, M., Benz, S., Dietrich, C., Engelmann, B., He-

lander, M., Kats, L. C. L., Visser, E., and Wachsmuth,

G. (2013). DSL Engineering - Designing, Imple-

menting and Using Domain-Speciﬁc Languages. dsl-

book.org.

ICSOFT 2022 - 17th International Conference on Software Technologies

330
