From GDPR to Privacy Design Patterns:

The MATERIALIST Framework

Vita Barletta

, Giuseppe Desolda

, Domenico Gigante

, Rosa Lanzilotti

and Marco Saltarella

1,2 e

Computer Science Department, University of Bari Aldo Moro, Via Edoardo Orabona, 4, 70125 Bari BA, Italy

FINCONS SpA, Via Orfeo Mazzitelli, 258/E, 70124 Bari (BA), Italy

Keywords: Privacy Design Patterns, GDPR, ISO 9241-210, Code Vulnerabilities.

Abstract: Privacy is becoming an increasingly important factor in software production. Indeed, besides increasing

software quality, privacy is a mandatory aspect of national and supranational regulations like GDPR.

However, several aspects like lack of knowledge on privacy and data protection regulations ambiguities limit

the adoption of proper privacy implementation mechanisms during the software lifecycle. To fill this gap, this

paper presents a framework, MATERIALIST, which aims to guide developers in choosing privacy design

patterns to be used during software development. In particular, this paper focuses on the selection of privacy

design patterns starting from the GDPR requirements. In this way, what is currently prescribed by GDPR in

a non-technical way becomes a practical solution that software developers can adopt during their work.

1 INTRODUCTION

Despite privacy is increasingly becoming a desired

aspect of software systems, often required by data

protection regulations like the General Data

Protection Regulation (GDPR), different aspects are

still limiting and affecting the right implementation of

privacy features.

First, designers and developers often have

different views toward privacy, which reflects in

different approaches and solutions to implement it

(Martín and Kung 2018). Second, data protection

regulations only provide legal indications on how

systems should be designed but no concrete or

technical indications for developers are reported.

Third, data protection regulations claim to involve the

users (Sobolewski, Mazur, and Paliński 2017), but

their implementations are not user-centric. Fourth,

there is often a lack of privacy and security knowledge

among developers and engineers (Hjerppe,

Ruohonen, and Leppänen 2019). All these aspects

contribute to improper integration of security and

https://orcid.org/0000-0002-0163-6786

https://orcid.org/0000-0001-9894-2116

https://orcid.org/0000-0003-3589-6970

https://orcid.org/0000-0002-2039-8162

https://orcid.org/0000-0002-0021-9972

privacy features during software lifecycles,

determining vulnerable systems or insecure data

protection solutions.

For these reasons, more adequate methodologies

are required to ease the process of integrating privacy

aspects in the software lifecycle without ambiguities,

considering the end-users point of view and limiting

the possible scarce knowledge of the developers and

designers on privacy and security.

This paper presents the results of an ongoing

wider research project whose goal is to support

developers, designers and engineers integrate privacy

aspects during software development. The main result

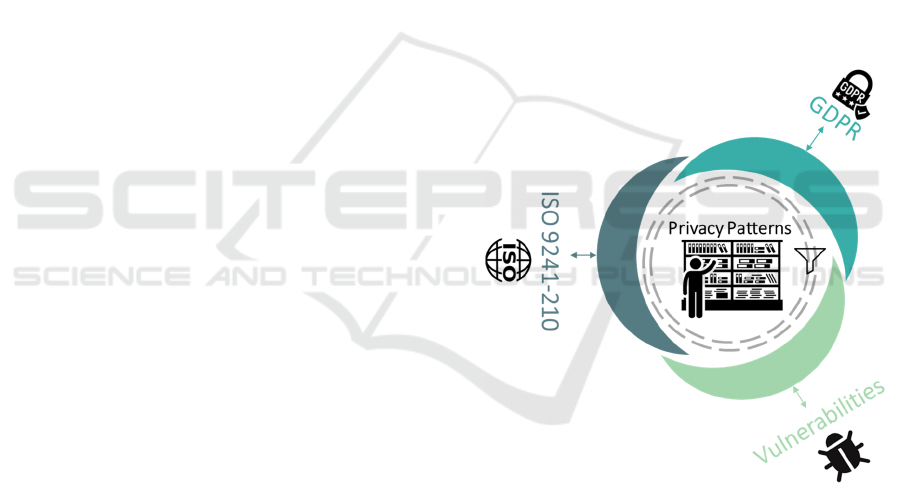

of this project is the definition of a framework,

MATERIALIST (Mapping dATa rEgulation softwaRe

lIfecycle And vuLnerabilitIeS paTterns), which

guides the selection of privacy design patterns (PDP)

starting from three different entry points, i.e., 1)

GDPR articles, 2) phases of the ISO 9241-210

software development lifecycle and 3) vulnerabilities

discovered during static code analysis. The first two

entry points guarantee the possibility to include PDPs

642

Barletta, V., Desolda, G., Gigante, D., Lanzilotti, R. and Saltarella, M.

From GDPR to Privacy Design Patterns: The MATERIALIST Framework.

DOI: 10.5220/0011305900003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 642-648

ISBN: 978-989-758-590-6; ISSN: 2184-7711

when the development process starts from scratch

(forward engineering), while the third entry point

supports the re-engineering of a software system

(backward engineering). To make more concrete the

adoption of the selected PDPs, we are also extending

such PDSs by defining both architectural patterns and

User Interface patterns that better drive designers and

developers.

The contribution of this paper to the

MATERIALIST framework is the definition of the

mapping between 14 GDPR articles and 72 PDPs.

This allows developers to select the right PDPs when

they have to consider specific GDPR articles. We also

present the preliminary results of the ongoing

mapping between PDPs and ISO 9241-210 lifecycle,

and between PDPs and code vulnerabilities. Lack of

space prevents us from presenting other details we are

working on, for example, the architectural patterns

and user interface patterns linked with the 72 PDPs.

The paper is structured as follows. Section 2

presents some existing frameworks for privacy and

security (Section 2.1) and then discusses some

background concepts on which this research was

founded (Section 2.2 and Section 2.3). Then Section

3 presents the MATERIALIST framework and then

illustrates the mapping phase between the privacy

design patterns and the GDPR articles. Section 4

provides an overview of the ongoing works on the

mappings with ISO 9241-210 phases and code

vulnerabilities. Section 5 concludes the paper and

reports some future works.

2 BACKGROUND AND

RELATED WORK

2.1 Integrating Privacy and Security in

Software Development

A growing number of frameworks and approaches

addressing privacy or security aspects in software

development have been proposed. However, very few

solutions face both problems at the same time.

Concerning privacy, one of the most recent

solutions is Security Threat Oriented Requirements

Engineering (P-STORE) a methodology for software

development that proposes 10 mandatory steps,

which starts by defining the software’s data privacy

goals and ends with the privacy elicited requirements.

Another privacy-friendly approach is Structured

Analysis Framework for Privacy (STRAP), which

proposes 4 steps: analysis of the system, refinement

of the found vulnerabilities, evaluation of the

resulting vulnerabilities, and iteration of the entire

process until a reasonable level of risk is reached

(Jensen et al. 2005).

Another interesting framework recently proposed

by Brodin focuses on the GDPR compliance of small

and medium enterprises (Brodin 2019). However, the

proposed framework does not focus on the technical

implementation of the regulation in software. A more

technical work is BPR4GDPR, an H2020 project that

proposes a framework composed of 8 different phases

for supporting the re-engineering approach of

business processes to provide compliance-by-design

(Lioudakis et al. 2020). It includes a compliance

toolkit that integrates different functionalities

spanning from cryptography to notification

mechanisms to support the implementation of

privacy-aware systems.

Concerning the security aspect, we identify two

important approaches, i.e., SQUARE and Microsoft

SDL (which incorporated SQUARE). Security

Quality Requirements Engineering (SQUARE) is a

10-steps sequential process for considering the

security interests of all the stakeholders of the

software system (Mead and Stehney 2005). It also

involves threat agent identification and risk analysis

for effective requirements engineering. In Secure

Development Lifecycle (SDL) the core idea is that, to

build a secure software system, an important aspect is

to consider how an attacker might compromise the

system by exploiting design flaws and, as a

consequence, to build the necessary defense

mechanisms in the system (Adam Shostack 2014).

So, threat modeling plays a key role and SDL has

integrated a systematic approach for security threat

modeling using STRIDE (Microsoft).

An example of an approach facing both privacy

and security at the same time is Restricted Misuse

Case Modeling (RMCM) (Mai et al. 2018). It is a 4-

step method whose output is a misuse case diagram,

use case specifications, security use case

specifications, misuse case specifications, and

mitigation schemes. This method enables engineers to

identify security threats and countermeasures but

considers out-of-scope risk analysis, i.e., ranking and

prioritizing of the resulting security threats.

It is worth mentioning that none of the presented

works proposes an automatic tool to go through the

phases of each approach or focuses on usability

aspects. Our paper contributes to this research area by

proposing a framework that helps developers,

designers and engineers include privacy features in

their software systems through the adoption of PDPs.

The selection of the PDPs can start from the GDPR

articles, the ISO 9241-210 phases, or security and

From GDPR to Privacy Design Patterns: The MATERIALIST Framework

643

privacy vulnerabilities. In the following, the most

important concepts behind the ongoing research are

detailed. In particular, the most important aspects of

source code vulnerabilities, privacy by design

principles, privacy strategies, and privacy design

patterns, are discussed with reference to the literature.

2.2 Code Vulnerabilities, Privacy by

Design Principles and Privacy by

Design Strategies

Cybersecurity vulnerabilities can be detected by

adopting techniques like static analysis, automatic

penetration testing and manual penetration testing.

The current implementation of our framework

considers vulnerabilities derived from static code

analysis. They can be divided into security

vulnerabilities and privacy vulnerabilities.

Security vulnerabilities are categorized according

to OWASP Top 10 2021 standard: this is based on data

and information provided by firms specialized in

application security or collected by using industry

surveys. Its goal is to provide knowledge and

information on the most common and important

application security weaknesses. The vulnerabilities

are divided into ten categories: A1 Broken Access

Control, A2 Cryptographic Failures, A3 Injection, A4

Insecure Design, A5 Security Misconfiguration, 6

Vulnerable and Outdated Components, A7

Identification and Authentication Failures, A8

Software and Data Integrity Failures, A9 Security

Logging and Monitoring Failures, A10 Server-Side

Request Forgery (SSRF) (OWASP).

Privacy vulnerabilities are grouped by tools for

static code analysis like Fortify SCA into four macro-

categories, each one mapped with a single GDPR

article. In particular, these categories are Access

Violation, Indirect Access to Sensitive Data,

Insufficient Data Protection, and Privacy Violation

As proposed in (Baldassarre et al. 2019) these

vulnerabilities can be mapped with Privacy by Design

principles. Privacy by Design (PbD) is a methodology

proposed in 1995 by Ann Cavoukian. This

methodology consists of seven principles, each of

which specifies actions and responsibilities for

assessing “Privacy by Design Compliance”

(Cavoukian 2012). An example of a PbD principle is

Proactive not Reactive, which says that privacy

threats must be anticipated and prevented while

developing and/or running a system, rather than just

reacting to privacy breaches once they have occurred.

https://www.microfocus.com/it-it/products/static-code-

analysis-sast/overview

Each of these principles can be further mapped

with one or more Privacy Strategies (Baldassarre et

al. 2019). A privacy design strategy (PDS) is defined

as an approach to achieve some level of privacy

protection. In this study, the Hoepmann’s PDSs are

considered (Hoepman 2014). These strategies are

divided into two categories:

1) Data-oriented, and the strategies are: minimize,

to reduce to the minimum possible the amount of data

collected and processed; separate, to (physically

and/or logically) separate data processing and

storage; abstract, to limit the level of detail of

processed data; hide, to protect personal data from

unauthorized third parties;

2) Process-oriented, and the strategies are: inform,

to notify users in an exhaustive yet simple way about

the whole data processing lifecycle; control, to

provide users full control over their data; enforce, to

implement privacy-friendly data processing;

demonstrate, to prove the enforcement of compliant

data processing.

2.3 Privacy Design Patterns

Generally speaking, a design pattern provides

knowledge collected by experts in a specific field;

this knowledge is provided in a structured,

documented, and reusable manner (Colesky,

Hoepman, and Hillen 2016) and helps practitioners

build information system. In a cybersecurity context,

PDPs address and provide a common solution to

privacy problems. They can be seen as

a way to

translate “privacy-by-design” into practical

solutions for software engineering: t

hey help

improve the (re-)engineering process by describing

classes, collaborations between objects, and their

purposes, but also can help designers identify and

address privacy concerns during the initial phases of

the Software Development Life Cycle (SDLC).

In our study, we considered the PDPs resulting

from a joint research work between

the U.S.

Department of Homeland Security and the

National Institute of Standards and Technology.

The entire set of patterns is published at

https://privacypatterns.org/.

It consists of 72 privacy

patterns grouped by 7 PDSs (control, abstract,

separate, hide, minimize, inform, enforce) described

in terms of the following dimensions: context,

problem, solution, consequences, and examples.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

644

3 A FRAMEWORK TO SELECT

PRIVACY DESIGN PATTERNS

STARTING FROM GDPR

As reported in the Introduction, this study is part of a

broader research that aims to help developers,

designers and engineers (stakeholders in the

following) include privacy features in their software

systems. The main contribution to this research is the

MATERIALIST (Mapping dATa rEgulation

softwaRe lIfecycle And vuLnerabilitIeS paTterns)

framework summarized in Figure 1. The next sub-

sections present the overall MATERIALIST

framework (Section 3.1) and how it guides

stakeholders in choosing PDSs starting from GDPR

articles (Section 3.2).

3.1 The MATERIALIST Framework

The core of this framework is represented by the set

of 72 privacy design patterns reported at

https://privacypatterns.org/. In addition, to make the

adoption of these patterns more concrete, we are also

working on their extension through architectural and

user interface patterns that guide more practically and

less ambiguously developers in the creation of code

(architectural patterns) and designers in the design of

user interfaces (interface patterns). For sake of

simplicity, in the following, PDPs refer to the

extended set of the original 72 patterns.

The underlying idea is to guide stakeholders in

selecting such PDPs starting from three different

entry points: i) GDPR articles, ii) ISO 9241-210

phases and iii) privacy vulnerabilities discovered

during static code analysis. The use of these PDPs

aims to solve two of the four issues mentioned in the

Introduction, specifically different views about

privacy and lack of privacy and security knowledge.

Indeed, PDPs are intrinsically a standardized

language for privacy aspects, thus they contribute to

providing the same view on privacy. Lack of

knowledge is addressed since patterns have been

created by privacy experts and provide robust and

practical solutions.

In the MATERIALIST framework, we considered

the GDPR instead of other regulations because it is

the main privacy regulation in the European Union,

where the authors of the paper live. The

ISO 9241-210 has been considered since, differently

from other software development processes, it is

human-centered and thus contributes to developing

user-centric software systems. This choice aims to

mitigate the issue implementations are not user-

centric. The vulnerabilities are the ones provided by

OWASP Top 10 2021, which is one of the most

important standard de-facto in this field.

A peculiarity of this framework is that ‘traversing’

is also allowed between any entry points passing

through the privacy patterns. For example, a

stakeholder may require the list of the GDPR articles

violated by a specific vulnerability and vice versa; or,

a stakeholder may need to know which are the ISO

9241-210 phases that can trigger some vulnerabilities

and vice versa. This flexible traversing guarantees the

inclusion of PDPs both when the development

process starts from scratch (forward engineering) and

in case of re-engineerisation of a software system

(backward engineering).

In forward engineering, the entry points are the

GDPR and the ISO 9241-210. In the former case,

PDPs are suggested to comply with the GDPR

articles. In the latter case, to support the stakeholders

along with all the ISO 9241-210 phases, patterns are

suggested for each phase.

Figure 1: The MATERIALIST framework guides

stakeholders in selecting the right privacy design patterns.

In backward engineering, the re-engineering

software process may start from a scan performed by

static code analysis tools such as SonarQube and

Fortify SCA, which detect common security and

privacy vulnerabilities (i.e., OWASP Top 10).

Starting from a specific vulnerability, the framework

suggests the PDPs that, when re-engineering the

software, help mitigate such vulnerability. At the

current stage, the MATERIALIST framework covers

the mapping between the GDPR articles and the

PDPs. In the next section, we detail the process we

From GDPR to Privacy Design Patterns: The MATERIALIST Framework

645

followed to perform this mapping activity, which

represents the main contribution of this paper. The

other mappings between vulnerabilities with patterns

and between ISO 9241-210 with patterns are still in

progress; an overview of the results of these

mappings is reported in Section 4.

3.2 Mappings between the GDPR and

Vulnerabilities

In this paper, we focused on the forward engineering

that starts from the GDPR entry point up to PDPs.

This side of the framework addresses one of the

current limitations reported in the Introduction, i.e.,

data protection regulations only provide legal

indications. To this end, PDPs come in handy as a

way to guide the design of systems by proposing a

common and reusable solution to common privacy

problems. However, PDPs alone do not provide any

indication of how to comply with the GDPR, leaving

developers with no clear references on the regulation.

Moreover, the GDPR is composed of 99 articles, most

of which are about purely legal and bureaucratic

aspects.

To fill this gap and guide stakeholders in selecting

the right privacy design patterns according to the

GDPR articles they must be compliant with, we

performed a systematic mapping between the 72

privacy patterns and the GDPR articles. This activity

has been conducted by two researchers that are

experts in both GDPR and PDPs. In addition, to

increase robustness and reduce the possibility of

biases, this mapping has been performed starting:

1. from each PDP towards the GDPR articles;

2. from each GDPR article towards the PDPs.

The two researchers started by performing

independently the mapping phase. Each of them spent

around 40 hours for this phase. Then, they compared

their results and the reliability value was 67%; thus,

they discussed the differences and reached a full

agreement on the remaining mappings.

This process led to the identification of different

relationships between each privacy pattern and 14

different articles of the GDPR, thus providing a clear

indication of which PDPs can support compliance

with what article. Three patterns, namely

“Incentivized Participation”, “Pay Back” and

“Reciprocity” are left without any assignation

because the GDPR does not incentivize any

remuneration in return for data shared by users. The

result of the mapping represents the main contribution

of this work and, due to the huge amount of content,

the report of this mapping is reported as a Web page

available at http://90.147.170.155/mapping.html.

Stakeholders can exploit this table, as part of the

overall framework, to choose the right PDPs starting

from the GDPR articles they must be compliant to.

4 TOWARD THE EXTENSION OF

MATERIALIST

As reported before, as a work in progress, we are

extending the MATERIALIST framework by

associating PDPs with both vulnerabilities and ISO

9241-210 phases. We are also augmenting

MATERIALIST by extending the 72 PDPs with more

concrete architectural and UI patterns; however, a

lack of space limits the presentation of these details.

In the next sub-sections, we provide an overview of

the mappings with ISO 9241-210 and vulnerabilities.

We also present the adoption of user stories to

furtherly filter PDPs selected starting from any entry

point.

4.1 Mappings with Vulnerabilities and

ISO 9241-210

The mapping between vulnerabilities and PDPs is

inspired by the work of Baldassarre et al. (Baldassarre

et al. 2019): we are performing the same mapping by

considering the updated OWASP Top 10 2021 instead

of the OWASP Top 10 2017 used in the existing

mapping. It is worth noticing that there is not a direct

mapping between vulnerabilities and patterns, indeed

vulnerabilities are mapped first with the PbD

principles, which are mapped with PDSs, and are in

turn mapped with the PDPs. Table 1 reports an extract

of the results of this mapping. In particular, we can

see five OWASP Top 10 2021 vulnerabilities (A1,

A2, A3, A7, A8) mapped with the same PDPs.

Table 1: Mapping between some OWAPS Top 10 2021

vulnerabilities and privacy design patterns.

Vulnerability Privacy Design Pattern

A1 - Broken Access

Control

A2 - Cryptographic

Failures

A3 - Injection

A7 - Identification and

Authentication Failures

A8 - Software and Data

Integrity Failures

Abridged Terms and

Conditions

Ambient Notice

Appropriate Privacy

Icons

Asynchronous notice

SECRYPT 2022 - 19th International Conference on Security and Cryptography

646

Regarding the ISO 9241-210, we are also carrying

out a mapping between all the process phases and

each PDP. The ISO 9241-210 proposes a

complementary and iterative process, divided into an

initial planning phase and 4 iterative phases

(understand and specify the context of use; specify

the user requirements; produce design solutions to

meet user requirements; evaluate the designs against

requirements) that are cycled until the solution

satisfies all the user requirements. To this end, the

mapping aims to identify, during the development

process, when stakeholders should start considering

the implementation of a PDP. This is necessary

because security must be considered as a process

throughout the whole SDLC. Although, one may

think that patterns, being practical solutions, may be

considered only during the coding phase, their

implementation heavily depends on the context and

on the requirements of the system. As an example, the

Data Breach Notification

pattern should be

considered from the requirements phase as it is

mandatory, by the GDPR, that the authorities are

notified of the incident within 72 hours. Hence,

specific requirements must be set to duly implement

this pattern and thus comply with the regulation. On

the other hand, a pattern such as the Aggregation

gateway

, which deals with more architectural and

technical aspects instead, belongs to the design

production phase.

In this way, having a clear view of when engineers

should start considering a pattern, helps in easing the

secure implementation of the system. Moreover, the

adoption of a user-centered development process such

as the ISO 9241-210 further supports the

implementation of more usable approaches in security,

as usability is frequently overlooked in security and

privacy features (Jakobi et al. 2019) (Alpers et al.

2018), thus solving the aforementioned issue.

4.2 Mappings with User Stories

Traversing the MATERIALIST framework from any

entry point to PDPs can undoubtedly simplify the

work of the stakeholders, also avoiding choosing the

wrong PDPs due to missing or different knowledge

on privacy. However, sometimes this traversing leads

to the selection of several patterns, which have to be

further refined by the stakeholders if not properly

guided. For example, starting from the Article 5 of the

GDPR, 23 patterns can be used and the selection of

the right one(s) is in charge of the stakeholders, which

https://privacypatterns.org/patterns/Data-breach-notifi

cation-pattern

has not furthered elements to guide the choice.

To assist the selection of relevant patterns, we

defined an intermediate layer between the three entry

points and the PDPs. This layer consists of a set of

common use case scenarios (e.g., user registration on

a website, user deletion) mapped with the PDPs. We

started from a set of user stories proposed by the

Agency for Digital Italy (AgID), which is the

technical agency of the Presidency of the Council of

Ministers (AgID). Such scenarios represent the

majority of the situations that can cause privacy and

security vulnerability.

To perform this map, an analysis of the privacy

patterns was made to identify which PDPs are

involved in each user story and can be implemented

to provide a secure and GDPR-compliant procedure

(e.g., secure credentials storage during registration).

As an example, we can consider the users'

registration scenario; this is an interactive activity

where users are required to input their data, choose a

secure password and possibly make some choices

regarding how to share their data with the website or

any other related third-party services they are

registering with (e.g., share the email with a third-

party service for marketing purposes). In this context,

the designers not only have to design a privacy-aware

component but also they have to work on the front-

end to provide an intuitive and clear user interface

that can guide users during the whole registration

process and can help take appropriate decisions,

exactly in line with what GDPR asks for.

The PDPs related to this scenario are proposed by

the MATERIALIST framework, for example, the

Protection against Tracking and Strip Invisible

Metadata. In particular, these are the suggested PDPs:

PDP: Protection against Tracking

SUMMARY: Do not collect unnecessary cookies,

especially if they are useful only in the future and not

at the moment

USER STORY: Collecting cookies during the

registration

NOTES: If it is necessary to collect cookies for

system functionality, collect only those strictly

necessary and not the optional ones (i.e. technical and

profiling ones). For each cookie used, keep

correspondence in the DB between the cookie and the

user

PDP: Strip Invisible Metadata

SUMMARY: At least warn the user of what he is

sharing and give him a chance to rectify it

https://privacypatterns.org/patterns/Aggregation-gateway

From GDPR to Privacy Design Patterns: The MATERIALIST Framework

647

USER STORY: Metadata collection during

registration

NOTES: If it is necessary to collect metadata for

system functionality, collect only what is strictly

necessary and inform the user of all information that

can be deduced from the collected metadata.

The stakeholders that start from an entry point thus

can further refine the selection of PDPs considering

the scenarios they have to cover in their system. As

for the ISO 9241-210 and for the vulnerability this is

a work in progress.

5 CONCLUSIONS AND FUTURE

WORK

In this paper, we presented MATERIALIST, a

framework, which supports secure and privacy-aware

forward and backward software engineering

processes with a user-centric approach. Specifically,

we focused on developing the MATERIALIST

component that guides the selection of PDPs starting

from the GDPR articles. This framework is going to

be extended to facilitate the selection of PDPs also

starting from the ISO 9241-210 phases, as well as

from privacy and security code vulnerabilities. Some

results of these extensions are already reported in this

paper.

To improve the selection of PDPs we are also

working on the definition of intermediate layers that

further guide the choice of PDPs selected starting

from any entry point. Further approaches based on

heuristics and metrics are also under development to

suggest proper PDPs also depending on the context of

use. We are also working on the extension of the 72

PDSs by defining, for each of them, architectural

patterns and User Interface patterns, which better

drive designers and developers during software

development activities like coding and design.

REFERENCES

AgID “Linee Guida per Lo Sviluppo Del Software

Sicuro|Agenzia per l’Italia Digitale.”

(https://www.agid.gov.it/it/sicurezza/cert-pa/linee-

guida-sviluppo-del-software-sicuro).

Alpers, S., Oberweis A., Pieper M., Betz S., Fritsch A.

2018. “PRIVACY-AVARE: An Approach to Manage

and Distribute Privacy Settings”. In IEEE International

Conference on Computer and Communications (ICCC

2017), pp. 1460-1468.

Baldassarre, M.T., , Barletta V.S., Caivano D., and Scalera

M. 2019. “Privacy Oriented Software Development”. In

International Conference on the Quality of Information

and Communications Technology, pp. 18-32. Springer,

Cham.

Brodin, M., 2019. “A Framework for GDPR Compliance

for Small- and Medium-Sized Enterprises.” European

Journal for Security Research

Cavoukian, A., 2012. “Operationalizing Privacy by Design:

A Guide to Implementing Strong Privacy Practices.”

Colesky, Michael, Jaap Henk Hoepman, and Christiaan

Hillen. 2016. “A Critical Analysis of Privacy Design

Strategies”. In IEEE Symposium on Security and

Privacy Workshops (SPW '16), pp 33–40.

Hjerppe, K., Ruohonen J., and Leppänen V. 2019. “The

General Data Protection Regulation: Requirements,

Architectures, and Constraints”. In IEEE International

Conference on Requirements Engineering. Vols. 2019-

September.

Hoepman, J.H. 2014. “Privacy Design Strategies.” Pp. 446–

59 in IFIP Advances in Information and

Communication Technology. Vol. 428.

Jakobi, T., Patil, S., Randall, D., Stevens, G., & Wulf, V.

2019. It is about what they could do with the data: A

user perspective on privacy in smart metering. ACM

Transactions on Computer-Human Interaction

(TOCHI), 26(1), 1-44.

Jensen, Carlos, Joe Tullio, Colin Potts, and Elizabeth D.

Mynatt. 2005. “STRAP: A Structured Analysis

Framework for Privacy.” Technology.

Lioudakis, Georgios V., et al. "Facilitating GDPR

compliance: the H2020 BPR4GDPR approach." IOn

Conference on e-Business, e-Services and e-Society.

Springer, Cham, 2019.

Mai, P. X., Goknil, A., Shar, L. K., Pastore, F., Briand, L.

C., & Shaame, S. (2018). Modeling security and

privacy requirements: a use case-driven approach.

Information and Software Technology, 100, 165-182.

Martin, Y. S., & Kung, A. 2018. Methods and tools for

GDPR compliance through privacy and data protection

engineering. In IEEE European symposium on security

and privacy workshops (EuroS&PW), pp. 108-111.

Mead, N. R., & Stehney, T. 2005. Security quality

requirements engineering (SQUARE) methodology.

ACM SIGSOFT Software Engineering Notes, 30(4).

Sobolewski, M., J. Mazur, and M. Paliński. 2017. “GDPR:

A Step towards a User-Centric Internet?”

Intereconomics. 52(4), 207-213.

Shostack, A. 2014. Threat Modeling: Designing for

Security (1st. ed.). John Wiley & Sons.

https://dl.acm.org/doi/10.5555/2829295

SECRYPT 2022 - 19th International Conference on Security and Cryptography

648
