Transient State Signaling for Spectre/Meltdown Transient Cache

Side-channel Prevention

Zelong Li

and Akhilesh Tyagi

Iowa State University, Ames, Iowa, U.S.A.

Keywords:

Branch Predictor, Side-channel, Speculative Execution, Timing Attacks, Cache Hierarchy.

Abstract:

The discovery of Meltdown and Spectre attacks and their variants showed that speculative execution offers

a major attack surface for micro-architectural side channel attacks. The secret data-dependent traces in the

CPU’s micro-architectural state are not cleansed which can be exploited by an adversary to reveal victim’s

secrets. In this paper, we propose a cache control scheme that cooperates with a novel load store queue(LSQ)

unit to nullify the cache side-channel exploited by Meltdown and Spectre attacks and their variants. In our

proposed cache scheme, a new saturating reference counter is added to each cache line to hold the number of

accesses since its arrival from the higher level of the memory hierarchy. For every squashed (uncommitted)

speculative transient load, a corresponding ﬂush request packet is sent to the downstream memory hierarchy.

This ensures that any cache line brought into the cache by a transient load is always evicted soon after the

corresponding mis-speculation commit. A cache side-channel adversary can no longer detect the existence

of a transiently loaded cache block. Our experiment on gem5 shows that by integrating the proposed design,

Meltdown and Spectre variants that uses Flush+Reload attack to create the cache covert channel are completely

closed.

1 INTRODUCTION

By taking advantage of virtual to physical address

translation, operating systems provide each running

process its own isolated virtual address space lead-

ing to memory isolation for user processes. Oper-

ating systems also need to prevent a process which

has a lower privilege level from reading or writing

a memory address that requires a higher privileged

level. For example, the memory address space be-

longing to the kernel can only be accessed by a user

process in a secure way, such as system call. Such

mechanisms have proven their effectiveness on archi-

tecture level security and hence are widely adopted on

billions of devices. However, recently, some micro-

architectural level speculation attacks such as Melt-

down (Lipp et al., 2018) and Spectre (Kocher et al.,

2019) have been shown to break down all security

foundations provided by memory isolation.

In this paper, we propose and evaluate a defense

against Meltdown and Spectre attacks by introduc-

ing a Load/Store Queue Controller (LSQC) cooper-

ating with a novel cache line design. We focus on

https://orcid.org/0000-0003-0006-0145

https://orcid.org/0000-0001-9096-7116

the micro-architectural cache state of the cache sys-

tem which has been the most widely exploited side-

channel component in a processor. Our proposed de-

sign can identify the cache lines that were brought

into the cache by transient instructions. These tran-

siently loaded cache lines are ﬂushed when the corre-

sponding transient load instructions are ﬂushed in the

pipeline. This maintains the performance beneﬁt of

transient execution with minimal modiﬁcations to the

existing underlying cache memory hierarchy. We add

a new meta data element to each cache line. This en-

ables cache controller to decide whether a cache line

should be evicted based on the reference count of each

cache line. We present our approach in detail in Sec-

tion 3.

In Section 4, we analyze the security feature to-

gether with the performance & complexity impact of

our design. We demonstrate that the proposed solu-

tion can successfully defend against Meltdown, Spec-

tre and many of their variants with low performance

loss. The performance difference between the base-

line processor design and our proposed design shows

that the overall performance loss is negligible.

In summary, the main contributions of this work

are:

Li, Z. and Tyagi, A.

Transient State Signaling for Spectre/Meltdown Transient Cache Side-channel Prevention.

DOI: 10.5220/0011307500003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 655-660

ISBN: 978-989-758-590-6; ISSN: 2184-7711

655

• We present a novel cache design that can identify

cache lines which are brought in by transient load

instructions.

• A LSQ unit controller to complement the pro-

posed cache design to keep track of cache-line

non-transient reference count.

• We identify the limitations of our work and pro-

pose solutions to mitigate these limitations.

• We evaluate performance penalty caused by im-

plementing our design in modern CPUs on Gem5

simulator. We show that the performance penalty

is acceptable.

2 BACKGROUND

In this section, we introduce the mechanism and ca-

pabilities of cache timing side-channel attacks. We

discuss the exploitation of cache as a side channel and

then overview how the Meltdown and Spectre attacks

are mounted.

2.1 Timing Side Channel

The signiﬁcant timing difference between a cache hit

and a cache miss has led to a practical measurement

to exploit cache as a side-channel. Cache based side-

channel attacks have been successfully demonstrated

in a wide range of scenarios. It can be mounted

on both inclusive and non-inclusive cache hierar-

chies. Several cache attack techniques have been pro-

posed and implemented based on the timing differ-

ence, including Prime+Probe (Osvik et al., 2006) and

Flush+Reload.

2.2 Meltdown

Meltdown (Lipp et al., 2018) attack exploits the out-

of-order execution performance enhancing specula-

tion that all accesses satisfy the needed access priv-

ilege level. When a user application that is running

at a lower privilege level and tries to access a mem-

ory address that belongs to the kernel, it will not suc-

ceed at the architecture level due to the privilege level

violation. However, the speculative memory access

request to the target address will bring this data into

the cache, even though this data will not be brought

into the processor registers. Since cache is not an ar-

chitecturally visible object, this does not violate the

architecturally visible state. However, these changes

in the cache micro-architecture state can be probed

by an attacker with a side channel to dump the whole

kernel address space.

2.3 Spectre

Spectre attack relies on a covert channel between

two different processes. It breaks the isolation be-

tween the attacker and the victim process. The at-

tacker ﬁrst mistrains the branch predictor so that the

branch prediction will predict the path containing the

secret revealing load. Explicit instructions to delay

the branch resolution are also inserted. The victim

load instructions along the mispredicted path will load

the victim’s secret into cache lines. On branch reso-

lution, the load or the entire mispredicted path will

be squashed. The transiently prefetched data in the

cache lines can be read by the attacker process to ex-

tract the conﬁdential information through the cache

side-channel.

3 THREAT MODEL

We assume that the attacker process is running at user

privilege level. It is trying to leak secret information

in the victim process or kernel through transient exe-

cution. We assume that the attacker process and the

victim process are running on the same logical core

on the same machine in a time-sharing manner and

the system has no software-based defense for tran-

sient execution. It is possible for the attacker to ar-

bitrarily control the history of the branch prediction

unit and know the source code and the address layout

of the victim process.

This paper aims at mitigating the Flush+Reload

attack as it is the most widely used method in the

existing attack variants to decode the secret in the

cache state. We believe the threat model we dis-

cussed above represents a large class of Spectre and

Meltdown attacks and similar variants such as Fore-

shadow (Van Bulck et al., 2018). Yet we acknowl-

edge that other types of cache side channel attacks

such as Prime+Probe and Evict+Reload need also be

mitigated. We will discuss the possible expansion of

our proposed work in Section 6 as future work.

4 PROTECTION AGAINST

MELTDOWN AND SPECTRE

In this section, we discuss our proposed design in de-

tail. The basic principle is to identify and evict the

cache lines loaded into the cache by transient instruc-

tions. Thus, during the reload phase, the attacker will

not be able to detect a cache hit and infer the secret

information.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

656

reference count tag data block flag bits

Figure 1: Cache line organization with reference count.

4.1 Cache Line Reference Count

Along with the payload data, extra bits are stored in

each cache line as meta data to describe some speciﬁc

properties of the corresponding cache line. In this pa-

per, we propose to add one more dimension to each

cache line’s meta data vector. As shown in Figure 1,

the reference count of each cache block is stored in

the meta data together with other bits. It is used to

keep track of the reference count since the last time

this cache line was brought into this level of the cache.

Upon a Last-Level-Cache (LLC) miss, the requested

cache line will be fetched from the main memory to

the CPU and populate all levels of the cache. Initially,

when a cache line is brought into a particular level of

cache, the pending requests that are waiting for this

cache line will be serviced. For each read and write

request that has been serviced by a cache line, the ref-

erence count will be increased by one. In our pro-

posed design, when the data of a cache line arrives

at a particular level of cache, it will ﬁrst be copied

into a temporary cache line buffer. All of the pend-

ing requests stored in the miss status holding register

(MSHR) are also serviced. Upon completion of ser-

vicing the requests to this cache line, it will be stored

into the correct cache set.

To complement the proposed cache line design,

we also propose a novel LSQ unit. Besides the con-

ventional type of memory requests that an LSQ unit

can send to the upstream memory hierarchy, a new

type of request, SpecFlush is also available. It is

designed to help the cache decrement the reference

count of a target cache line on the corresponding load

instruction squashing. In the proposed LSQ unit de-

sign, when a load instruction is later found out to

be transient, and needs to be squashed, the LSQ unit

will send out SpecFlush requests to reduce the refer-

ence count by 1. This negates the +1 reference count

brought about by the speculative, transient load into

the cache line. In summary, for each squashed load

instruction that has sent a load request to the cache, a

corresponding SpecFlush request are sent during the

squashing process. In this paper, we present our pro-

posed design on a two level cache system where L2

is the LLC to simplify the discussion. Following the

same principle, the proposed work can be easily ex-

tended to work on a multi level cache system. Upon

receiving a read request from L1 cache, the L2 will

perform the same operations with respect to the ref-

erence count as L1, where its down stream memory

component is the main memory. L2 cache lines also

maintain a reference count in a manner similar to L1.

For each instruction that reads a memory address,

a load queue entry is placed in the load queue to keep

track of the status of a memory read request. The LSQ

unit will also send out memory read request packets

to the down stream memory hierarchy to request the

data. The packet will ﬁrst arrive at the L1 cache. Two

different scenarios could take place upon receiving

the packet. The L1 cache may have a copy of the re-

quested data which, in turn, results in a cache hit. In

this case, L1 cache can simply satisfy this request by

sending a response to the CPU. It can simultaneously

increase the reference count of the cache line that was

just used to service the request. On the other hand,

a L1 cache miss could happen. In this scenario, two

sub-cases need to be treated differently. In the ﬁrst

case, a prior instruction that requests the same cache

line data may have just sent a request packet to the L1

cache, yet the data has not came back from the down

stream memory hierarchy. In this case, the L1 cache

must have allocated a MSHR entry to hold the infor-

mation about the ongoing memory read request to the

same cache line data. The MSHR can simply append

the current request packet at the back of the packet

list while waiting for the data. In the second sub-

case, upon encountering a cache miss when receiving

a read request packet, there may not be an MSHR en-

try for the requested address which means this packet

is the ﬁrst packet that is requesting this address from

L1 cache. An MSHR entry needs to be allocated for

a corresponding available cache line. This packet will

be the ﬁrst element in the packet list of this MSHR

entry. In order to retrieve the data from the memory,

a down stream packet also needs to be constructed

based on the received packet to be sent out from L1 to

L2 cache. In both of the sub-cases when cache miss

happens, upon receiving the requested data from the

down stream memory hierarchy, a temporary cache

block is used to store the data. All of the pending re-

quests including read, write, SpecFlush, etc. to the

requested cache line are serviced. By executing each

request in the pending request list, the reference count

of temporary cache block will be increased by one

when servicing a read/write request or decreased by

one when encountering a SpecFlush request. If, af-

ter servicing all of the pending requests, the reference

count is larger than 0 or the block is dirty, the cache

line stays valid. This indicates that at least one load

access instruction for this cache line is not squashed

or a write request has accessed this cache line. This

means that this cache line exists due to a non-transient

program behavior and hence should continue to be

part of the cache micro-architecture state.

Transient State Signaling for Spectre/Meltdown Transient Cache Side-channel Prevention

657

However, if the reference count of the temporary

cache block is 0 and it is not in dirty state, implying

that there are a equal number of loads and SpecFlush

requests, this cache line should be invalidated. A ref-

erence count of 0 indicates that the cache line exis-

tence reasons are exclusively transient. It should also

send a SpecFlush request to the cache down stream

to indicate that these caches may also need to evict

the cache block. In summary, after servicing all of

the pending requests at the L1 cache, if the reference

count of the requested cache line becomes 0, the tem-

porary cache line should be evicted. Additionally, a

SpecFlush request needs to be sent to the L2 cache.

Upon receiving the SpecFlush in L2 cache, it will also

decrease the reference count of the transiently loaded

cache line to 0. This forces the L2 cache to also evict

this cache line even if it is not a temporary cache line.

This in turn will send a SpecFlush request to the next

level of the cache if it exists. The SpecFlush request

will percolate through all the levels of the cache and

ﬂush the cache line in every level of the cache. In

case, the transient load instruction is requesting data

that hits in L2 but misses in L1 cache, it increases

the reference count of the requested cache line in L2

from n to n + 1 where n > 0. A copy of the cache line

will be sent to L1. Once L1 services all of the pend-

ing requests using the requested data and invalidates

this cache line based on reference count 0, it sends a

SpecFlush request to L2. This decreases the reference

count of the target cache line in L2 back to n.

For cache lines that are brought into the cache by

retired instructions, the reference count must be larger

than 0. There is a chance for these cache lines may

be accessed by a transient load instruction as well

and temporarily increases their reference count. The

reference count will be restored to the original value

when transient load instructions are squashed result-

ing in SpecFlush request being sent to the cache. Pre-

serving such cache lines in the cache results in a per-

formance beneﬁt due to locality.

While each non-transient memory access will al-

ways increase the reference count by one, it is not

necessary for each cache line to maintain an exact,

large reference count. A saturating 2-bit counter as-

sociated with each cache line may sufﬁce for refer-

ence count. It is also much more resource efﬁcient to

maintain in hardware. For a cache line A with a refer-

ence count of three, which is the maximum saturating

value, a sequence of ﬁve read instructions will keep

the reference count at three, instead of increasing it to

eight. If these ﬁve instructions are ﬁnally determined

to be transient and are squashed in the pipeline, ﬁve

SpecFlush request packets will be sent to the cache,

which effectively reduces the reference count of cache

line A from three to zero. This will evict the cache

line A leading to a performance loss. The program be-

havior however is not altered. In order to reduce the

probability of a false eviction, more reference count

bits are preferred. In our testing and evaluation setup

on the Gem5 simulator, we observe that a maximum

of seven speculative load instruction requests for the

same address can be issued to the cache. This ensures

that a 4 bits wide reference count ﬁeld will sufﬁce to

prevent false evictions to maximize the program per-

formance.

Unlike InvisiSpec (Yan et al., 2018) and Cleanup-

spec (Saileshwar and Qureshi, 2019) that only support

software prefetching due to the lack of knowledge

about the prefetched cache lines, both software and

hardware prefetching are supported by our design. At

the moment when a perfected cache line arrives the

cache, if the prefetched cache line is not accessed by

any pending load or store request, it will have a ref-

erence count of 0. Therefore, prefetched cache line

will be evicted after receiving the response from the

downstream memory hierarchy.

5 EVALUATION

5.1 Evaluation Setup

To evaluate the proposed design, we use Gem5 to

model an x86 system that supports out-of-order and

speculative execution. We integrate our proposed

LSQ unit design and cache scheme in the Gem5 simu-

lator and simulate a subset of SPEC CPU2006 bench-

marks in syscall emulation mode on a single core sys-

tem. To facilitate the simulation process yet capturing

the performance impact of our proposed design with

high accuracy, we used Pinplay(Patil et al., 2010) with

SimPoint(Hamerly et al., 2005) to discover the repre-

sentative simulation locations for SPEC benchmarks.

For each benchmark program we use the reference in-

put size and generate up to ten simulation locations.

For each simulation location, we use 10 million in-

structions to warm up the cache and then execute 1

million instructions to observe the performance. The

CPU and cache conﬁgurations of our evaluation setup

are shown in Table 1.

5.2 Performance Overhead

Figure 2 breaks down the performance overhead of

implementing our proposed design compared to the

baseline CPU. It illustrates normalized IPC values

for the tested SPEC benchmarks. Here, we see that

mcf is hurt the most among the tested benchmarks

SECRYPT 2022 - 19th International Conference on Security and Cryptography

658

0.965

0.97

0.975

0.98

0.985

0.99

0.995

1.005

perlbench bzip2 gcc mcf omentpp h264 bwaves hmmer sjeng astar specrand geomean

Normalized IPC

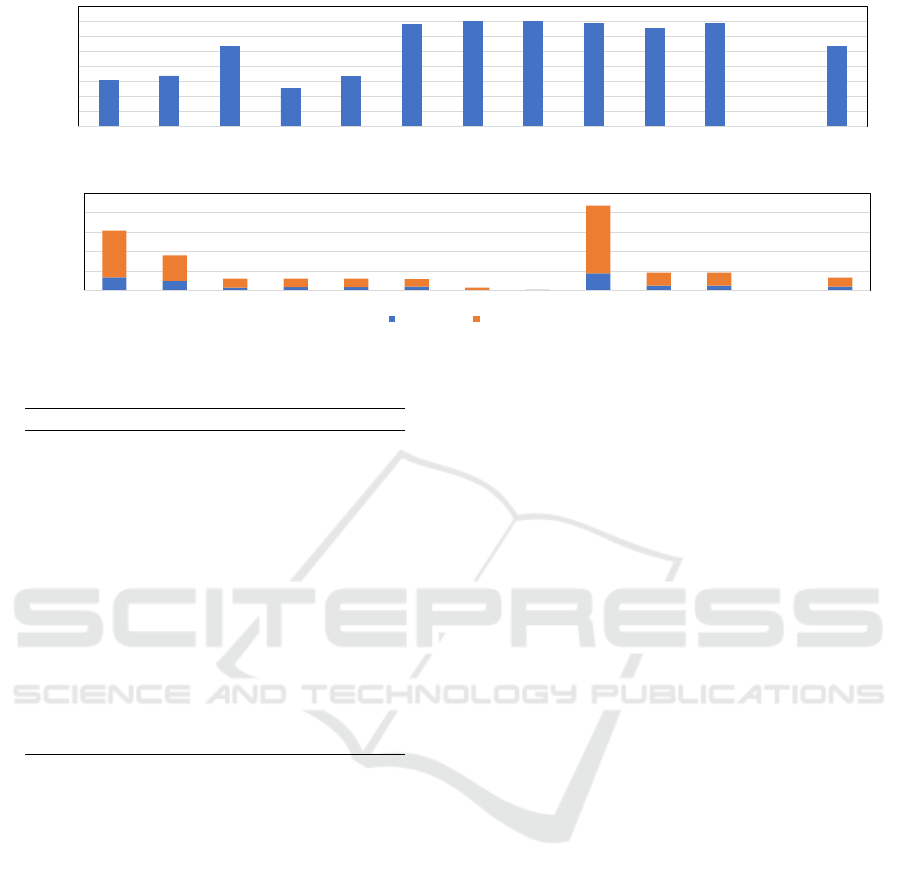

Figure 2: Relative Performance Compared to Baseline CPU.

0.2

0.4

0.6

0.8

perlbench bzip2 gcc mcf omentpp h264 bwaves hmmer sjeng astar specrand geomean

Direct Branch Indirect Branch

Branch Miss

Prediction

Rate

Figure 3: Direct + Indirect Branch Miss-Prediction Rate.

Table 1: Conﬁguration of the Simulated CPU.

Parameter Conﬁguration

Core 1-Core, 8-issue, Out-of-order,

2.0GHz

Pipleline 224 ROB entries, 32 Load

Queue entries, 32 Store Queue

entries, 256 Int and 256 FP phys-

ical registers

Branch Predic-

tor

LTAGE, 4096 BTB, 16 RAS

L1-I Cache 32KB, 64B line, 2-way, 5 cycle

hit, 4 MSHRs

L1-D Cache 32KB, 64B line, 2-way, 5 cycle

hit, 4 MSHRs

L2 Cache 8MB, 64B line, 8-way, 20 cycle

hit, 20 MSHRs

Memory 4GB, DDR4-2400

as its IPC is decreased by 2.7%. While some other

benchmarks such as bwaves and hmmer slow down

by less than 0.1%. The geometric mean of the per-

formance overhead over all the benchmarks in Fig-

ure 2 is 0.8%. We believe the performance over-

head is signiﬁcantly affected by the number of branch

mis-predictions and the number of transiently loaded

cache lines. For benchmarks that have lower mis-

predictions or cache misses counts during the tran-

sient window, intuitively, the performance degrada-

tion should be minimal.

For the baseline processor, when a load instruc-

tion cannot commit in the ROB, the load request may

have already been sent to the memory system and the

cache line will still be brought into the cache. This

is despite the fact that the instruction is squashed in

the pipeline. Due to data locality, this speculatively

loaded cache line is very likely to be accessed in the

near future. A branch is likely to exhibit both its taken

and not-taken paths over a short time window. Hence

a current speculative path is likely to be a commit-

ted path in the near future. This results in a cache

hit on these speculatively loaded data to improve the

performance. However, in the proposed design, such

cache lines must be ﬂushed to eliminate the attack sur-

face. Intuitively, this likely increases the cache miss

count compared to the baseline processor which in

turn causes performance degradation.

To dive deeper in the causes of performance

degradation, Figure 3 shows the branch mis-

prediction rate in the tested SPEC 2006 benchmarks

on the baseline CPU. Due to the extremely low mis-

prediction rate, the IPC performance of benchmarks

such as h264, bwaves and hmmer are barely af-

fected. Though sjeng has a relatively high branch

miss-prediction rate, its performance is barely af-

fected due to its low cache miss rate. For a lower over-

head, it is beneﬁcial to have a branch prediction unit

with a high accuracy. For instance, a branch predictor

with 50% accuracy will request half of the speculative

loaded cache lines to be ﬂushed while a branch pre-

dictor with 95% accuracy will only ﬂush 5% of the

speculative loaded cache lines.

5.3 Hardware Overhead

The extra bits for storing the reference count of each

cache line brings hardware overheads to the CPU

cache. We use CACTI (Muralimanohar et al., 2009)

v6.5 to calculate the area and power overhead that are

needed to implement the proposed design in the L2

cache. The number of extra bits added to the cache tag

vector when simulating in CACTI is the same as the

evaluation setup, which is 4 bits. At 32nm, CACTI

estimates that the area overhead for the L2 cache is

0.18mm

with dynamic access energy increased by

8.9% when accessing the tag. Compared with the L2

cache area size, which is 4.75mm

, the area overhead

is negligible.

Transient State Signaling for Spectre/Meltdown Transient Cache Side-channel Prevention

659

6 LIMITATION AND FUTURE

DIRECTIONS

We recognize that the major limitation of the current

work is that it is only feasible when defending against

transient execution attacks that use side-channels such

as Flush+Reload and Flush+Flush. Attacks, such as

Prime+Probe, can still succeed. The ﬁrst step we take

is to use a temporary cache block to store the latest

loaded cache line instead of putting the data into the

cache directly before servicing all of the pending re-

quests. Very often the temporary cache line will be

evicted after servicing, thus helping to decrease the

success rate and bandwidth of the Prime+Probe at-

tack.

Our discussions of the design details are based

on a single thread model. The proposed design can

be expanded to work with a multi-core system. In a

multi-core system, a cache line loaded during the tran-

sient execution window by one thread can be accessed

by another thread before it is evicted from the cache.

This forms a temporary side channel in the shared L3

cache. We can resolve this problem by taking advan-

tage of the saturating counter associated with each

cache line. For a system with n cores, if a transient

cache line is loaded into the L3 cache and all of the

cores are accessing this cache line transiently during

the same transient window, the reference count of this

transiently loaded cache line in L3 can reach up to

n. Thus, a cache line with a reference count greater

than n has established its bona ﬁdes as a non-transient

data. The L3 cache can respond to requests to this line

in the usual manner. However, if the reference count

of a cache line is less than n, the L3 cache can delay

its response to simulate a cache miss.

7 RELATED WORK

Since the discovery of Spectre and Meltdown, a wide

variety of defenses were proposed by both CPU ven-

dors and other researchers. Most of these proposed

defenses involve either mitigating transient execution

or mitigating the side channel. Adding a fence in-

struction after each branch instruction is the most in-

tuitive approach that can defend against transient exe-

cution. However, this approach abandons the beneﬁts

of speculative execution causing an average of 88%

performance loss (Yan et al., 2018).

To limit the covert channels, hardware mitigation

approaches are also proposed by researchers. Safe-

Spec (Khasawneh et al., 2019) propose to introduce

extra shadow structures for caches and the TLBs to

store speculative states temporarily. If an instruction

is squashed in the pipeline, the corresponding entry

in the shadow structures will be discarded to leave no

traces in the micro-architecture. However, the extra

shadow structure requires a larger area to implement

compared to our proposed design.

REFERENCES

Hamerly, G., Perelman, E., Lau, J., and Calder, B. (2005).

Simpoint 3.0: Faster and more ﬂexible program phase

analysis. Journal of Instruction Level Parallelism,

7(4):1–28.

Khasawneh, K. N., Koruyeh, E. M., Song, C., Evtyushkin,

D., Ponomarev, D., and Abu-Ghazaleh, N. (2019).

Safespec: Banishing the spectre of a meltdown with

leakage-free speculation. In 2019 56th ACM/IEEE

Design Automation Conference (DAC), pages 1–6.

IEEE.

Kocher, P., Horn, J., Fogh, A., Genkin, D., Gruss, D., Haas,

W., Hamburg, M., Lipp, M., Mangard, S., Prescher, T.,

et al. (2019). Spectre attacks: Exploiting speculative

execution. In 2019 IEEE Symposium on Security and

Privacy (SP), pages 1–19. IEEE.

Lipp, M., Schwarz, M., Gruss, D., Prescher, T., Haas, W.,

Mangard, S., Kocher, P., Genkin, D., Yarom, Y., and

Hamburg, M. (2018). Meltdown. arXiv preprint

arXiv:1801.01207.

Muralimanohar, N., Balasubramonian, R., and Jouppi, N. P.

(2009). Cacti 6.0: A tool to model large caches. HP

laboratories, 27:28.

Osvik, D. A., Shamir, A., and Tromer, E. (2006). Cache at-

tacks and countermeasures: the case of aes. In Cryp-

tographers’ track at the RSA conference, pages 1–20.

Springer.

Patil, H., Pereira, C., Stallcup, M., Lueck, G., and Cownie,

J. (2010). Pinplay: a framework for deterministic re-

play and reproducible analysis of parallel programs.

In Proceedings of the 8th annual IEEE/ACM interna-

tional symposium on Code generation and optimiza-

tion, pages 2–11.

Saileshwar, G. and Qureshi, M. K. (2019). Cleanupspec:

An” undo” approach to safe speculation. In Pro-

ceedings of the 52nd Annual IEEE/ACM International

Symposium on Microarchitecture, pages 73–86.

Van Bulck, J., Minkin, M., Weisse, O., Genkin, D., Kasikci,

B., Piessens, F., Silberstein, M., Wenisch, T. F.,

Yarom, Y., and Strackx, R. (2018). Foreshadow: Ex-

tracting the keys to the intel {SGX} kingdom with

transient {Out-of-Order} execution. In 27th USENIX

Security Symposium (USENIX Security 18), pages

991–1008.

Yan, M., Choi, J., Skarlatos, D., Morrison, A., Fletcher, C.,

and Torrellas, J. (2018). Invisispec: Making specula-

tive execution invisible in the cache hierarchy. In 2018

51st Annual IEEE/ACM International Symposium on

Microarchitecture (MICRO), pages 428–441. IEEE.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

660
