On the Practicality of Relying on Simulations in Different Abstraction

Levels for Pre-silicon Side-Channel Analysis

Javad Bahrami

, Mohammad Ebrahimabadi

, Soﬁane Takarabt

, Jean-luc Danger

Sylvain Guilley

2,3

and Naghmeh Karimi

University of Maryland Baltimore County, Baltimore, 21250, U.S.A.

Secure-IC S.A.S., Think Ahead Business Line, Paris, France

LTCI, T

ecom Paris, Institut Polytechnique de Paris, Paris, France

Keywords:

Side-channel Attacks, Pre-silicon Evaluation, Toggle Count, SPICE Simulation, Masked Implementations.

Abstract:

Cryptographic chips are prone to side-channel analysis attacks aiming at extracting their secrets. Side-channel

leakage is particularly hard to remove completely, unless using a bottom-up approach (compositional security).

On the contrary, industrial secure-by-design methods are rather relying on a top-down approach: (would-be)

protected circuits are synthesized by Electronic Design Automation (EDA) tools. Tracking that no leakage ex-

ists at any reﬁnement stage is therefore a challenge. Experience has shown that multiple leakages can resurge

out of the blue when a sound RTL design is turned into a technology-mapped netlist.

Checking for leaks and identifying them is a challenge. When the netlist is unstructured (e.g., it results from

an EDA tool), dynamic checking appears as the most straightforward approach. It is feasible, given only a

few thousand execution traces, to decide with a great certainty whether a leakage hides at some time samples

within the trace or not. In practice, such easy detection is fostered by the fact that the activity of signals in

cryptographic implementations (even more true for masked implementations) is almost maximal (=50%).

The remaining question is about the adequate abstraction level of the simulation. The higher as possible ab-

stractions are preferred, as they potentially capture more situations. However, if the simulation is too abstract,

it may model the reality inappropriately. In this paper, we explore whether or not an evenemential simula-

tion (toggle count) is faithful with respect to a low-level simulation (at SPICE level). Our results show that

both abstraction levels match qualitatively for unprotected implementations. However, abstract toggle count

simulations are no longer connected to real SPICE simulations in masked implementations. The reason is

that the effect of the random mask is to mix evenemential simulations (which only reﬂect “approximately”

the SPICE reality) together, in such a way that the useful information is lost. Therefore, masked logic netlist

implementations shall be analysed only at SPICE level.

1 INTRODUCTION

Electronic circuits which manipulate sensitive infor-

mation must implement cryptographic algorithms.

Typically, such algorithms are block ciphers, whose

security relies on a secret key. Embedded de-

vices, like IoTs, resort to lightweight cryptography,

such as PRESENT. The most realistic threat against

PRESENT is the side-channel analysis (such as power

or electromagnetic analysis). Such attack exploits the

activity which leaks information about (sensitive) in-

ternal signals. Many works attest of the practical fea-

sibility of such attacks (Heuser et al., 2016).

In order to protect the implementation of cryp-

tographic algorithms against Side-Channel Analysis

(SCA), protections are deployed. Random masking

(or simply “masking”) is a protection against such at-

tacks; it consists in mixing the sensitive information

with unpredictable random numbers, also referred to

as “masks”, in a view to decorrelate the observable

side-channel activity from the data handled internally

of the device. There are several ﬂavors of mask-

ing schemes, which differ by their security and cost.

Some schemes are more costly (in terms of gate count

and delay) because they address better the peculiar-

ity of hardware implementations. Indeed, software

masking schemes mainly focus on protecting vari-

ables, whereas hardware masking schemes also pro-

tect relevantly the combinational logic which lays be-

tween the sequential logic carrying the states.

Precisely, all masked logic can be implemented

correctly for registers, which are well identiﬁed and

controlled resources. This is positive as registers are

also the resources which are the most prone to leak-

Bahrami, J., Ebrahimabadi, M., Takarabt, S., Danger, J., Guilley, S. and Karimi, N.

On the Practicality of Relying on Simulations in Different Abstraction Levels for Pre-silicon Side-Channel Analysis.

DOI: 10.5220/0011307600003283

In Proceedings of the 19th International Conference on Security and Cr yptography (SECRYPT 2022), pages 661-668

ISBN: 978-989-758-590-6; ISSN: 2184-7711

661

age. But so, when none of the registers are leak-

ing, the second source of leakage is the combinational

logic. This part of the circuit is less predictable, as:

• before tapeout, it is mapped, most probably re-

structured, and potentially even simpliﬁed, and

• upon execution, it features races which might dif-

fer on the PVTA (Process, Voltage, Temperature,

and Transistor Aging) environmental conditions.

There is therefore the need for tools and methods to

evaluate masked netlists. Obviously, preventing is

better than curing. Therefore, in this paper, we study

pre-silicon techniques. The central question is to de-

termine which pre-silicon technique is reasonable.

2 STATE OF THE ART

Predicting whether an implementation is vulnerable

to side-channel attacks when still at pre-silicon stage

has been addressed by many works. Software sim-

ulators can be beneﬁcial in this respect, since soft-

ware leakage is complex. There are multiple points

of interest that can leak, hence checking those mitiga-

tions in a program which embeds countermeasures is

not trivial. Therefore, multiple simulators have been

designed to extract the power leakage. They can be

dedicated tools, or can consist in a post-processing of

execution traces dumped by a COTS tool.

Program Inferred Power Analysis Simulator (PIN-

PAS) is the ﬁrst exclusive software for analyzing

side-channel power written in JAVA which is pri-

mary designed for testing smart-cards (Hartog et al.,

2003). This tool is able to simulate the execution

of a program (in assembly code) in its virtual envi-

ronment to subsequently analyze its estimated power.

Kirschbaum et al. (Kirschbaum, 2007) designed a

simulator based on the Cadence NCSim to generate

an accurate leakage tracing. The designed tool ex-

tracts power traces based on the gate level netlist,

cell information, and gates propagation time to count

the transitions. However, it requires a lot of infor-

mation of hardware implementation of devices which

is not always accessible. Debande et al. (Debande

et al., 2012) designed a proﬁled simulator based on

the stochastic models and the successive values of de-

vice’s registers. This tool is able to extract leakage

traces close to the real measurement. This simulator

does not need any speciﬁc information of the device,

however, proﬁling step should be performed for ev-

ery new device. SILK was the ﬁrst fully open-source

simulator for side-channel analysis which is unveil in

(Veshchikov, 2014). The ﬂexibility of SILK makes

users capable to use different model such as Ham-

ming Weight (HW), Hamming Distance (HD), and

even user-deﬁned leakage models.

Most of simulations leverage a toggle count leak-

age model (namely, the Hamming Distance between

signals at each trace time sample). Indeed, it has

been acknowledged for long in the ﬁeld of embedded

systems security, for instance, in the seminal paper

about Correlation Power Analyses (Brier et al., 2004,

§2). In this paper, the model focuses on ﬂip-ﬂops.

But it has also been extended to combinational logic

with fair correlation, e.g., to estimate glitching activ-

ity (Liu et al., 2011) (in unprotected circuits tough).

Compared to the aforementioned tools, SPICE

simulations are more realistic. They can be consid-

ered as the most accurate possible simulations, and

are seen as references (Li et al., 2005). Notice that

the Synopsys VCS and HSPICE netlists we consider

are the same, except that Synopsys VCS reports only

an “impulse” for each gate when toggles, whereas

HSPICE produces a complete waveform (illustrations

will be given in Fig. 3 and Fig. 4).

To ﬁll the gap, in this paper, we revisit the use of

toggle count vs SPICE simulations, applied to masked

netlists. More precisely, we address the relevance of

deploying toggle count in evaluating pre-silicon secu-

rity level:

• If there is a signiﬁcant correlation between sensi-

tive variables and the toggle count, then there is

obviously a vulnerability, hence the netlist must

be patched. Notice that, in the past, the compro-

mise in the netlists has been identiﬁed based on

toggle count analyses. For example, the ﬂaw in

(non-glitch resistant) masking of AND gates has

been detected by SPICE in (Mangard et al., 2005,

§4) and subsequently qualiﬁed based on a toggle

count in (Mangard et al., 2006, §2.2.). Recall

that “glitches” are races between signals, which

are likely to generate transient activity observable

through side-channels.

• However, assuming that the toggle count analysis

does not reveal signiﬁcation biases (in terms of

correlation with the underlying sensitive variable

value), can it be claimed that the netlist is secure?

Actually, the absence of correlation can also arise

from the fact that the “toggle count may not be a

valid abstraction” in some cases. To the best of

our knowledge, this question has never been for-

mulated as such and consequently has never been

thoroughly studied. In this paper, we carry out

a meticulous analysis and conclude that, though

SPICE is always suitable a pre-silicon simula-

For the sake of illustration, we use HSPICE from Syn-

opsys Inc. as an electrical simulation tool for SPICE netlists.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

662

tion tool, toggle count might not be indicated as

a deﬁnitive argument to claim the trustworthiness

of masked netlist.

3 PRESENT S-Box

IMPLEMENTATIONS

In this paper, we target PRESENT cipher and mainly

the hardware implementations of 2 unprotected and

5 masking-protected implementations of its S-box

module. Table 1 compares the targeted implementa-

tions regarding the number of gates, equivalent gates

(# gates normalized by the # of equivalent 2-input

NAND gates), random bits, and propagation delay.

PRESENT is a lightweight block cipher with 64-

bit blocks. It includes 31 rounds each consists of a

bitwise XOR operation, a non-linear substitution (S-

box) layer and a linear permutation layer. Being non-

linear and possessing a contrasted confusion coefﬁ-

cient (Fei et al., 2015), the S-box module is a highly

appealing target for adversaries to leak sensitive data.

3.1 Unprotected Implementations

Lookup Table (LUT): This baseline architecture can

be implemented using a 4-bit LUT with 16 different

addressable locations. It is a direct look-up in the

plain table: S-Box : [0xc, 0x5, 0x6, 0xb, 0x9, 0x0,

0xa, 0xd, 0x3, 0xe, 0xf, 0x8, 0x4, 0x7, 0x1, 0x2].

and is subsequently mapped to gates by the synthe-

sizer.

Optimized Implementation (LUT-OPT): This im-

plementation minimizes the number of non-linear

(AND/OR) gates by trying different implementations

using Boolean Satisﬁability (SAT) solvers (Peralta et

al., 2022). It has a longer critical path compared to

LUT. Indeed LUT-OPT critical path includes more

XOR gates, while LUT has more AND/OR gates;

thus LUT-OPT has a longer propagation delay.

3.2 Protected Implementations

Global Lookup Table (GLUT): GLUT masking is

a function F

× F

= F

→ F

satisfying

Y = GLUT (A,MI,MO)

such that:

Y ⊕ MO = S-Box(A ⊕ MI)

here A and Y are the masked input and output, respec-

tively and MI and MO are the input and output masks.

Rotating S-box Masking (RSM): In this ﬁrst-order

secure implementation, even 2nd and 3rd order se-

cure based on (Carlet and Guilley, 2013), to minimize

the required randomness, 1) the masks set is a subset

of the full mask set; 2) the masks used at the S-box

output are deduced deterministically from that at the

input, by using the next one (in a circular manner)

within the mask set.

In our implementation, since there are only 16

masks in the 4-bit PRESENT S-box, we refrain from

using a strict subset of the masks. However, we gen-

erated output masks based on the available input ran-

domness (Nassar et al., 2012), thus the output mask

MO is generated as below:

MO = (MI + 1) mod 16

where MI and MO are integers ∈ {0,1, .. .,15}, com-

puted via M ∈ F

7→

∑

i=0

∈ {0,1, .. ., 15} map-

ping. So, the relationship between RSM and GLUT

can be written as:

RSM(A,MI) = GLUT (A,MI, (MI + 1) mod 16).

From an area perspective, RSM has a more compact

architecture compared to the GLUT. Note that the

genuine version of RSM does not have S-box input

on 8-bit, but solely on 4-bit (Guilley et al., 2017a)

(wherein randomness comes from S-box shufﬂing).

ROM-based RSM (RSM-ROM): A stronger imple-

mentation of RSM can be realized using a Read-Only

Memory (ROM). For this circuit we target logic de-

signs built only from the instantiation of gates in a

Boolean library (Giaconia et al., 2007). Here, ini-

tially, the datapath is synchronized for any input con-

ﬁguration which makes input-related deviations of

leakage small. Then, the structure is designed with

a one-hot strategy, i.e., only the required logic is acti-

vated, which further contributes to reducing the side-

channel footprints.

Gate-Level Masking via Random Sharing (ISW):

Proposed by Ishai, Sahai, and Wagner (Ishai et al.,

2003), this implementation starts from the LUT-OPT

netlist, and gradually replaces the gates with their

gadgets, in order to deal with the non-linear gates. In

this architecture, the gadget for the AND gate requires

1-bit of randomness, i.e., R. Given a random sharing

) of bit A (where A = A

⊕ A

), and a similar

sharing for bit B, the AND of A and B denoted as Y is

computed as below:



= ((A

∧ B

) ⊕ R) ⊕ (A

∧ B

)

= ((A

∧ B

) ⊕ R) ⊕ (A

∧ B

)

In the above equations, the order of operations

should be followed, thus the implementation must

On the Practicality of Relying on Simulations in Different Abstraction Levels for Pre-silicon Side-Channel Analysis

663

preserve the order of gates in the ﬁnal netlist. In our

implementation, we implemented OR via beneﬁting

from De Morgan’s law OR(a,b) = ¬AND(¬a, ¬b).

Since combinational gates evaluate their outputs

whenever their inputs change, preserving the order

can be challenging in ISW due to the race condition.

This can lead to a ﬁrst-order leakage (Roy et al, 2018).

Threshold Implementation (TI): TI is an algorith-

mic countermeasure against power SCA, which bene-

ﬁts from multi-party computation and secret sharing.

TI, alike ISW, divides input bits into d + 1 shares,

however, its underlying logic does not need to pre-

serve gate ordering. Moreover, thanks to its non-

completeness property, in TI any output share only

depends on d shares of each input. Thus, glitches can-

not lead to secret information disclosure in TI. In our

netlist, terms of order 3 are required, hence 4 shares

are needed; we synthesized a TI-compliant fully com-

binational netlist of PRESENT S-box.

Table 1: Gate-level speciﬁcation of the targeted S-box im-

plementations.

LUT LUT-OPT GLUT RSM RSM-ROM ISW TI

# INV 7 1 12 20 750 7 0

# BUF 0 0 0 0 0 1 1

# AND 23 2 580 209 40 10 800

# NAND 0 0 0 0 0 0 0

# OR 11 2 254 102 468 0 0

# NOR 0 0 0 0 0 0 0

# XOR 0 9 0 0 492 26 647

# XNOR 0 0 0 0 0 0 2

# Gates 41 14 846 331 1750 43 1448

# Equ. Gates 36 18 846 317 1322 52 1871

Delay (ps) 160 210 400 330 1710 420 230

# Random Bits 0 0 8 4 4 4 12

4 BACKGROUND ON

WALSH-HADAMARD

TRANSFORM

In practice, glitches may result in leaking sensi-

tive data. However, getting information about when

glitches happen, and what information they leak may

not be easy during the circuit runtime or even in

the SPICE level simulations. To investigate the ex-

ploitability of glitches Bahrami et al. use Fourier base

transformation (the so-called Walsh-Hadamard) to be

able to decompose the device’s power traces into the

unmasked input dependent basis, and in turn identify

different contribution of leakage from ﬁrst-order un-

masked text t (Guilley et al., 2017b). The basis is

denoted as ψ

, for all vector u of n-bits (n = 4 for

PRESENT). By deﬁnition, ψ

function is t ∈ F

7→

(t) =

n/2

(−1)

u·t

, where the operation u · t denotes

the canonical scalar product, i.e., u · t =

i=1

∧ t

This basis is orthonormal, in that hψ

| ψ

i = 0 if

u 6= v and 1 otherwise. In sum, ψ

shows the inter-

action between input bits corresponding to the 1 input

in u. Here, we ignore the zero-th component, which is

the waveform average shape, while extracting all the

nonzero components.

Based on (Bahrami et al., 2022), the leakage f :

t ∈ F

7→ f (t) ∈ R corresponding to (unmasked) S-

Box input t ∈ F

, can be calculated as

f (t) =

∑

h f | ψ

iψ

(t) =

n/2

∑

(−1)

t·u

where a

(below) is the Walsh-Hadamard transform

of f .

n/2

∑

f (t)(−1)

t·u

Using (a

)

u∈(F

)

coefﬁcients we can character-

ize the leakage to ﬁnd out which combination of bits

leaks more (if any). Typically, it can be due to a sin-

gle bit, when w

(u) = 1 (where w

denotes to Ham-

ming Weight) or otherwise to multiple bits leaking

together. The former case is reasonably attributed

to an unfortunate “demasking”, while the latter case

arises upon complex conditions on the unmasked in-

puts (connected to “glitch events“) (Bahrami et al.,

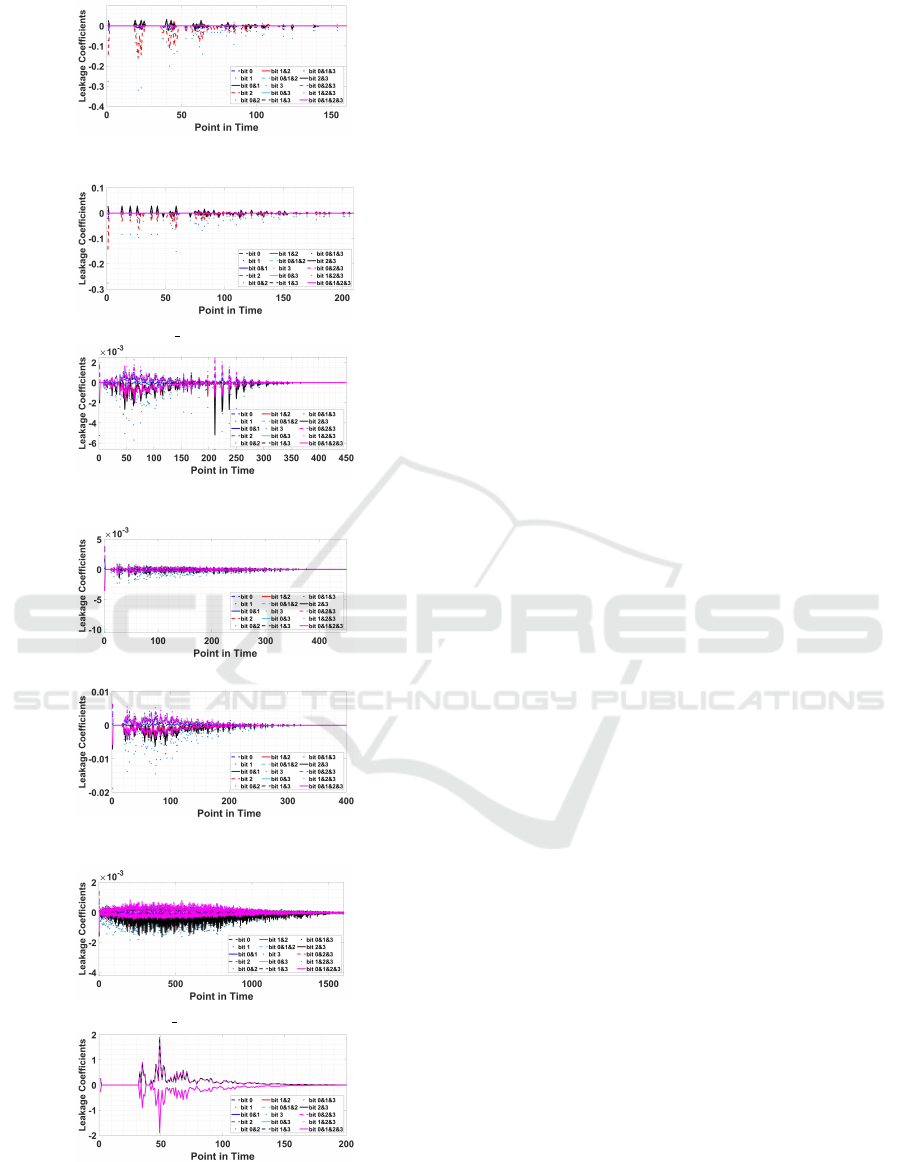

2022). For example in Fig. 3d, the combination of

bit 1 and bit 2 leaks more (shown in solid red).

Interpreting the origin of leakage is out of the

scope of this paper. We rather focus on comparing

the amount of leakage of various implementations.

5 RESULTS AND DISCUSSIONS

We implemented the add-round-key and S-box oper-

ations in the ﬁrst round of the PRESENT cipher with

80-bit keys in the transistor level for the 7 types of S-

box (2 unmasked and 5 masked versions) using a 14-

nm Fin-FET – regular voltage threshold corner (rvt) –

commercial library, and deployed Synopsys HSPICE

for the transistor-level simulations at temperature of

125

◦

C and V

= 0.8 V .

The simulated traces contain two parts: the results

of key addition and S-box outputs for each initial n-

bit value as well as its following n-bit value. For the

analysis, we considered only the power samples of

the second part, i.e., when the cryptographic circuit

transitions from initial to ﬁnal value. We sample the

power every 1ps after feeding the related ﬁnal value

till each circuit gets stable. To have a fair comparison

among all implementations, the ﬁnal values are gen-

erated randomly, yet such that we have equal number

SECRYPT 2022 - 19th International Conference on Security and Cryptography

664

of traces from each class, i.e., equal number of un-

masked inputs. The initial values generated randomly

such that initial unmasked value is ‘0’ (e.g., A initial

⊕ MI initial = 0 in GLUT). For ISW, TI, and GLUT,

totally, we generated 1024 input traces among all pos-

sible input combinations, while for RSM and RSM-

ROM the total input traces are 256 and for the LUT

and LUT-OPT there are 16 traces considering their

input sizes. We categorize the power traces into 16

classes based on the value of the unmasked inputs in

their ﬁnal stage, and use the mean trace of each class

in our leakage assessments.

To assess the leakage from toggle counts occur-

ring during gate-level simulations, we performed our

simulations (using Synopsys VCS) and analysis after

back annotating the timing information (SDF ﬁle) ex-

tracted during the gate-level synthesis.

5.1 Experimental Results

Toggle Count vs. SPICE Power: The ﬁrst set of re-

sults deals with the total power for each class of un-

masked plaintext. Recall that we randomly generated

input patterns such that in all traces the initial un-

masked value is “0000” (referring to class 0) while

the ﬁnal unmasked value can belong to any class (be-

tween 0 and 15 in PRESENT). Moreover, to avoid bi-

ases the ﬁnal input patterns were generated such that

we have similar number of power traces in each class.

Fig. 1 shows the total extracted power values catego-

rized based on the ﬁnal value of the unmasked input.

Obviously, the unmasked circuitries do not re-

veal dynamic power consumption for class 0 input

as the values represent the dynamic power consump-

tion; thus class 0 for unmasked circuits relates to

the case where both initial and ﬁnal value are 0, so,

no dynamic power is consumed. This is in contrast

of masking circuits where even we have power con-

sumption for class 0 since owing to the random masks

not necessarily initial and ﬁnal values match.

Based on Fig. 1, the unprotected circuits depict

an intra-class match between the toggle count and

HSPICE powers, i.e., tentatively class i (0 ≤ i ≤ 15)

in both evaluations follow the same trend. However,

such trend is not observed in the masked circuits ow-

ing to the dependency of power on both input and out-

put masks. The takeaway from these observations is

that for unprotected circuits, the toggle counts carry

exploitable information and can be used as a source of

leakage. However, toggle counts are not exploitable

by the attacker in case of protected implementations.

The inter-class correlation between the HSPICE

and toggle count results are shown in Table 2. As de-

picted, this correlation is high for unmasked circuits

(a) LUT HSPICE (b) LUT Toggle Count

(e) GLUT HSPICE (f) GLUT Toggle Count

(g) ISW HSPICE (h) ISW Toggle Count

(i) RSM HSPICE (j) RSM Toggle Count

(k) RSM-ROM HSPICE (l) RSM-ROM Toggle Count

(m) TI HSPICE (n) TI Toggle Count

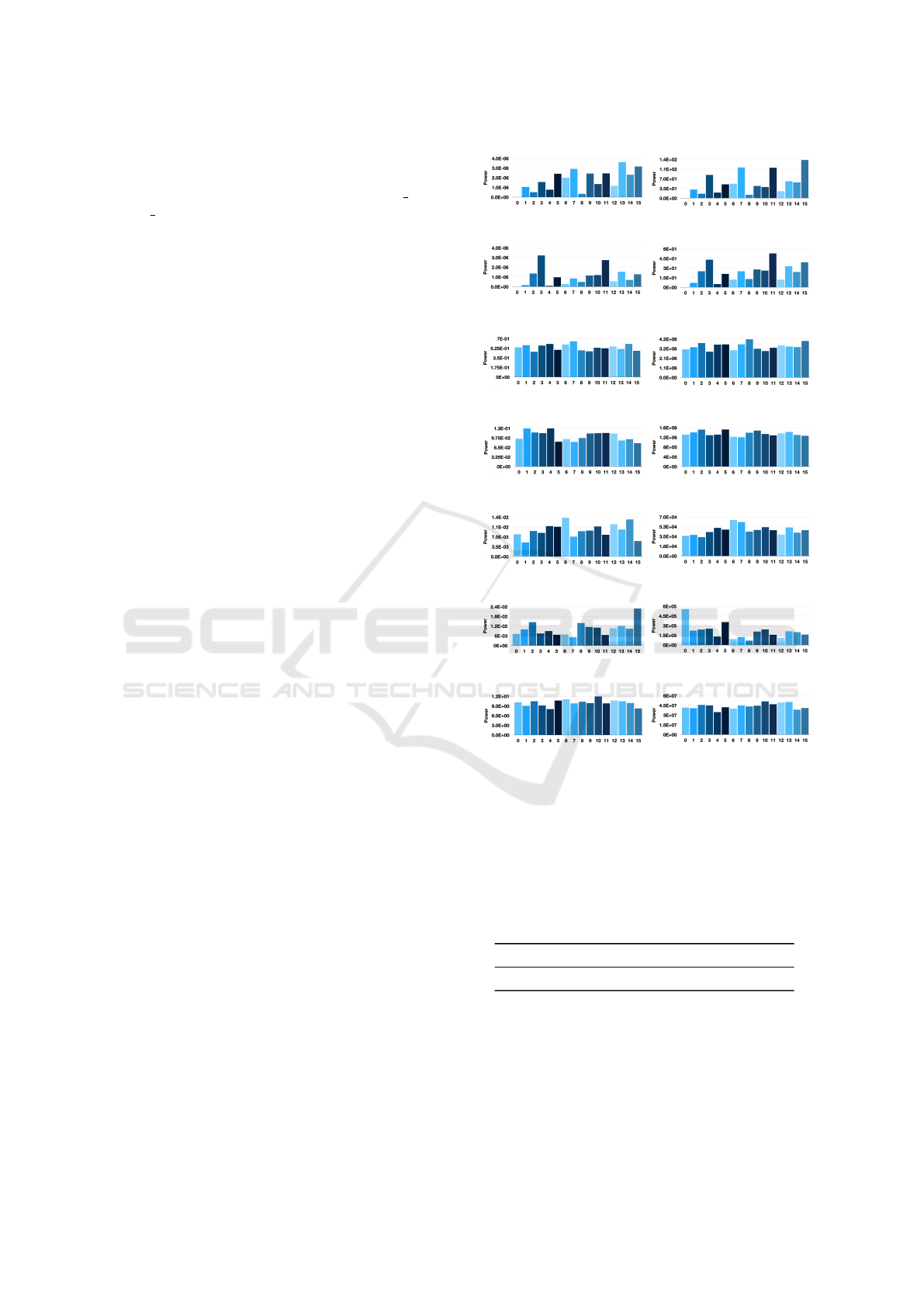

Figure 1: Intra-class powers of the targeted implementa-

tions.

while low for the masked counterparts. This informa-

tion shows the practicality of using toggle counts for

leaking sensitive data in unmasked circuits, yet not in

the masked implementations.

Table 2: Inter-class Pearson Correlation Between Toggle

Count and HSPICE powers for each implemented circuit.

LUT LUT-OPT GLUT RSM RSM-ROM ISW TI

ρ 0.78 0.78 -0.21 -0.23 -0.21 0.21 0.21

In order to validate that our simulations of mask-

ing schemes implementation is correct, we carry out

a sanity check on our simulated results. Namely, the

next set of results depicted in Fig. 2 illustrates the

variance of power values between 16 different classes

of all 7 implementations in a logarithmic scale for

each of HSPICE and toggle count results. Indeed,

On the Practicality of Relying on Simulations in Different Abstraction Levels for Pre-silicon Side-Channel Analysis

665

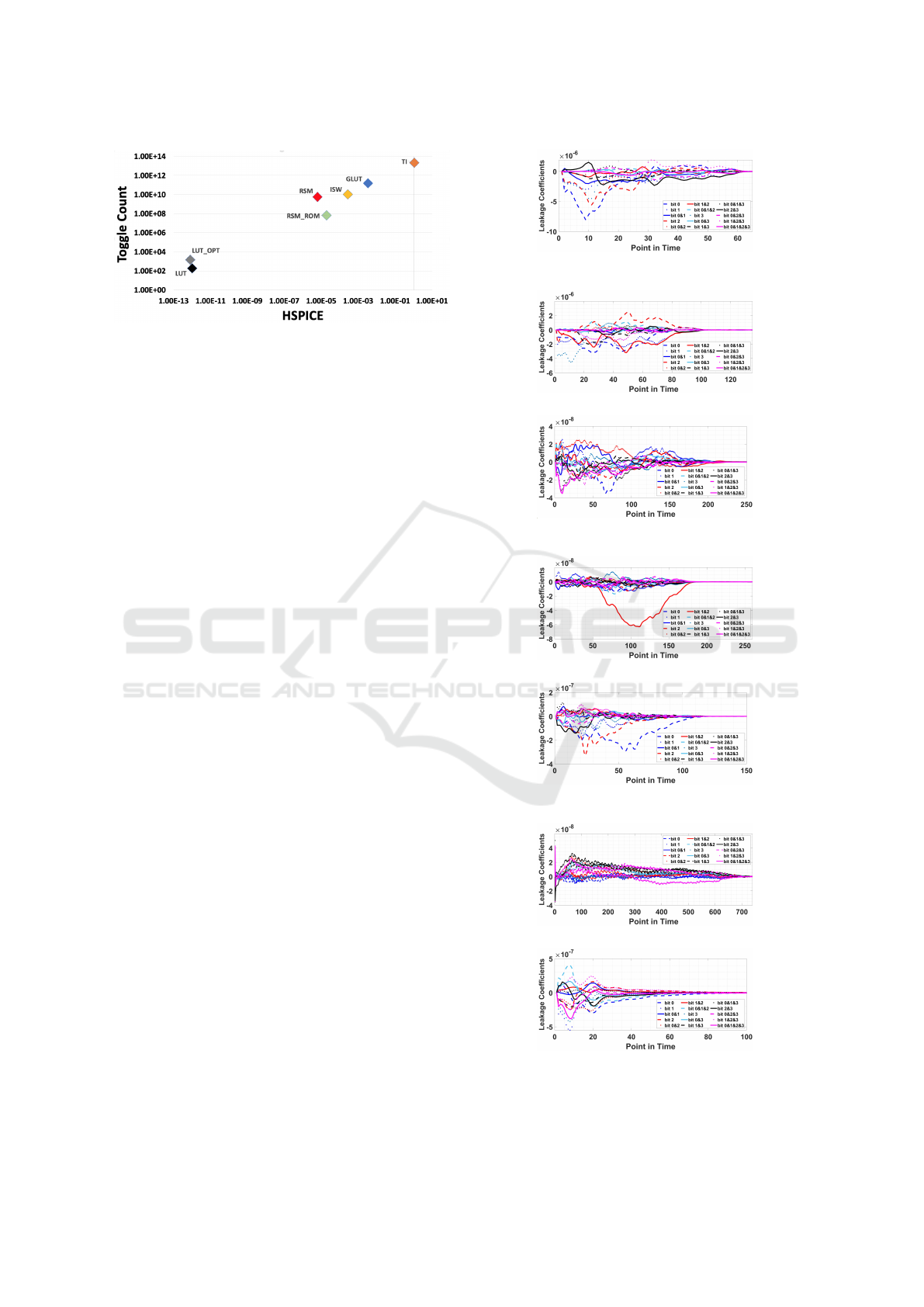

Figure 2: Toggle Count vs. HSpice variances between dif-

ferent input classes.

the results shown in this ﬁgure relate to the variances

of the bars shown in Fig. 1. The 7 points are almost

aligned, which conﬁrms that toggle count is valid esti-

mation of the total HSPICE. This conﬁrms that toggle

count is meaningful to summarize global activity but

it does not accurately capture data dependencies (as

pointed in Table 2) in masked implementations.

Walsh-Hadamard Leakage Analysis using Toggle

Count vs. SPICE Power: As described earlier, the

Walsh-Hadamrd transform is used to extract all vul-

nerabilities as a result of bit interactions (cross-talk)

inside implementations. Fig. 3 and Fig. 4 show the

post Walsh-Hadamard leakage analysis when using

HSPICE and toggle count results, respectively. Inter-

estingly, it is known that TI implementation features

glitches; nonetheless Fig. 4g shows that they do not

leak information (i.e., all the spectrum have the same

magnitude regardless of their polarity which itself

does not convey any relevant information). This is

expected since those glitches mix only at most d = 3

shares of each variable randomly split in d + 1 = 4

shares. As shown, the leakage sources are more dis-

tinguishable in HSPICE results depicted in Fig. 3

while the distinguishably is much less when using

toggle counts. This conﬁrms that it is not always prac-

tical to assess the implementations based on their tog-

gle count data, and more precise simulations such as

HSPICE are required.

Another interesting observation here is the leak-

age of bit 3 (shown in dotted cyan) in most of the im-

plementations when using toggle counts as well as for

unprotected implementations when using HSPICE.

This is due to the fact that bit 3 in PRESENT S-box

has a higher algebraic complexity than other bits.

6 CONCLUSION

Side-channel leakage detection can beneﬁt from fast

“toggle count” simulations when netlists are not im-

plementing a masking countermeasure. Otherwise,

(a) LUT HSPICE

(b) LUT-OPT HSPICE

(d) ISW HSPICE

(e) RSM HSPICE

(f) RSM-ROM HSPICE

(g) TI HSPICE

Figure 3: Walsh-Hadamard coefﬁcients extracted using

HSPICE.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

666

(a) LUT Toggle Count

(b) LUT OPT Toggle Count

(d) ISW Toggle Count

(e) RSM Toggle Count

(f) RSM ROM Toggle Count

(g) TI Toggle Count

Figure 4: Walsh-Hadamard coefﬁcients extracted using

Toggle Counts.

we show on 5 different masked implementations that

toggle count is consistently not related to the ac-

tual netlist leakage, as estimated by SPICE simula-

tions. Therefore, leveraging “toggle count” to assess

a netlist should be used with caution. Should any bias

be found, then obviously the design features a side-

channel vulnerability. However, when leakage anal-

ysis with “toggle count” features no bias, a reﬁned

analysis at SPICE level is required.

REFERENCES

Bahrami et al., J. (2022). Leakage Power Analysis in Dif-

ferent S-Box Masking Protection Schemes. In DATE.

Brier et al.,

E. (2004). Correlation power analysis with a

leakage model. In CHES, pages 16–29.

Carlet, C. and Guilley, S. (2013). Side-channel indistin-

guishability. In Hardware and Architectural Support

for Security and Privacy, pages 1–8.

Debande, N., Berthier, M., Bocktaels, Y., and Le, T.-H.

(2012). Proﬁled model based power simulator for side

channel evaluation. Cryptology ePrint Archive.

Fei et al., Y. (2015). A statistics-based success rate model

for DPA and CPA. J. Cryptographic Engineering,

5(4):227–243.

Giaconia et al., M. (2007). Area and power efﬁcient synthe-

sis of DPA-resistant cryptographic S-boxes. In Int’l

Conf. on VLSI Design, pages 731–737.

Guilley et al., S. (2017a). Codes for Side-Channel Attacks

and Protections. In Codes, Cryptology and Informa-

tion Security (C2SI), pages 35–55.

Guilley et al., S. (2017b). Stochastic side-channel leakage

analysis via orthonormal decomposition. In Informa-

tion Technology and Communications, pages 12–27.

Hartog et al., J. d. (2003). Pinpas: a tool for power analy-

sis of smartcards. In IFIP International Information

Security Conference, pages 453–457. Springer.

Heuser et al., A. (2016). Side-Channel Analysis of

Lightweight Ciphers: Does Lightweight Equal Easy?

In Radio Frequency Identiﬁcation and IoT Security,

pages 91–104.

Ishai, Y., Sahai, A., and Wagner, D. (2003). Private circuits:

Securing hardware against probing attacks. In Annual

Int’l Cryptology Conf., pages 463–481.

Kirschbaum, et al., M. (2007). Evaluation of power estima-

tion methods based on logic simulations. Citeseer.

Li et al., H. (2005). Security Evaluation Against Electro-

magnetic Analysis at Design Time. In CHES, volume

3659, pages 280–292.

Liu et al., H. (2011). The Switching Glitch Power Leakage

Model. Journal of Software (JSW), 6(9):1787–1794.

Academy Publisher.

Mangard et al., M. (2006). Pinpointing the Side-Channel

Leakage of Masked AES Hardware Implementations.

In CHES, volume 4249, pages 76–90.

On the Practicality of Relying on Simulations in Different Abstraction Levels for Pre-silicon Side-Channel Analysis

667

Mangard et al., S. (2005). Side-Channel Leakage of Masked

CMOS Gates. In Menezes, A., editor, CT-RSA, vol-

ume 3376, pages 351–365.

Nassar et al., M. (2012). RSM: A small and fast coun-

termeasure for AES, secure against 1st and 2nd-order

zero-offset SCAs. In DATE, pages 1173–1178.

Peralta et al., R. (2022). Circuit Complexity Project.

NIST, Computer Security Resource Center: https://

csrc.nist.gov/Projects/circuit-complexity. Created De-

cember 29, 2016 – Updated February 08, 2022.

Roy et al, D. B. (2018). CC meets FIPS: A hybrid test

methodology for ﬁrst order side channel analysis.

IEEE Trans. on Computers, 68(3):347–361.

Veshchikov, N. (2014). Silk: high level of abstraction leak-

age simulator for side channel analysis. In Program

protection and reverse engineering workshop, pages

1–11.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

668
