A Methodology for Detecting Programming Languages in Stack
Overflow Questions
Aman Swaraj
and Sandeep Kumar
Indian Institute of Technology, Roorkee, India
Keywords: Software Engineering, Programming Language Detection, Tagging, Stack Overflow, Spacy.
Abstract: Stack Overflow (SO) is the pre-eminent source for knowledge sharing among developers. The Question-
Answer (Q-A) site witnesses a heavy traffic with around 5000 questions being posted every day. Given this
scenario, it has now become mandatory for users to provide at least one tag for their questions for better
discussion. However, novice developers often incorrectly tag their questions which leads to down voting of
the post and eventual loss of information. An automatic tag generation mechanism is therefore needed for
associating the posts with their respective programming languages. In this work, we have presented a rule
based approach for detecting programming languages in question titles. The rules are used to match specific
patterns in question titles and generate programming language tags. We then compare the tags generated by
our proposed model with the pre-existing tags provided by stack overflow in the dataset. Our model is able
to predict languages with an accuracy of 87%. Additionally, our model can detect multiple programming
languages in a post and also identify different versions of a language such Python 2.7, Python 3 etc. We further
record interesting observations with respect to existing approaches.
1 INTRODUCTION AND
RELATED WORK
Stack Overflow (SO) is one of the foremost resource
in software development. In recent years, it has seen
a massive rise in number of queries and by the end of
2019, it was reported to have more than 18 million
questions (Kavuk and Tosun, 2020). Apart from the
huge size of the repository, the diversity of SO posts
is also quite vast and therefore it heavily relies on tags
of the posts for finding potential users to address
those queries.
Today, many neophyte programmers depend on
SO for their technical queries. Often due to
inexperience, negligence, or bias, they tag their posts
incorrectly (Kavuk and Tosum, 2020). This often
leads to down-voting of posts by the moderators,
despite the fact that these questions might contain
relevant information that could add value to the
community (Alrashedy et al., 2020).
Subsequently, tagging of questions has been
recommended as a solution for proper segregation of
posts (Jain and Lodhavia, 2020; Saini and Tripathi,
2018; Wang et al., 2018). Further, it has been reported
that questions with relevant tags stand greater chance
to be answered (Saha et al., 2013). Therefore, it is in
the interest of the questioner and the community at
large to ensure that the questions be assigned relevant
tags.
In general, a post on SO comprises of two parts,
i.e. the title and the body. However, in case of a post
concerning programming languages, the body can
further have some snippet of code attached to it
(figure 1) and many authors make use of the snippets
for generating tags of posts (Alrashedy et al., 2020;
Baquero et al., 2017).
Machine Learning (ML) and Natural Language
Processing (NLP) based methods have performed
quite well in identifying programming languages in
source code files (Dam and Zaytsev, 2016; Gilda,
2017; Khasnabish et al., 2014). However, working on
smaller snippets of code is much more difficult and
subsequently, researchers have tried to combine
features from the body and title of the questions along
with the snippets for more accurate results.
In this connection, (Alrashedy et al., 2020) tried
to predict programming languages in questions and
snippets of SO posts. They achieved an accuracy of
88.9% in classifying programming languages when
the data comprised of a combination of snippets, title
and body of the question. However, their accuracy
478
Swaraj, A. and Kumar, S.
A Methodology for Detecting Programming Languages in Stack Overflow Questions.
DOI: 10.5220/0011310400003266
In Proceedings of the 17th International Conference on Software Technologies (ICSOFT 2022), pages 478-483
ISBN: 978-989-758-588-3; ISSN: 2184-2833
Copyright
c
2022 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

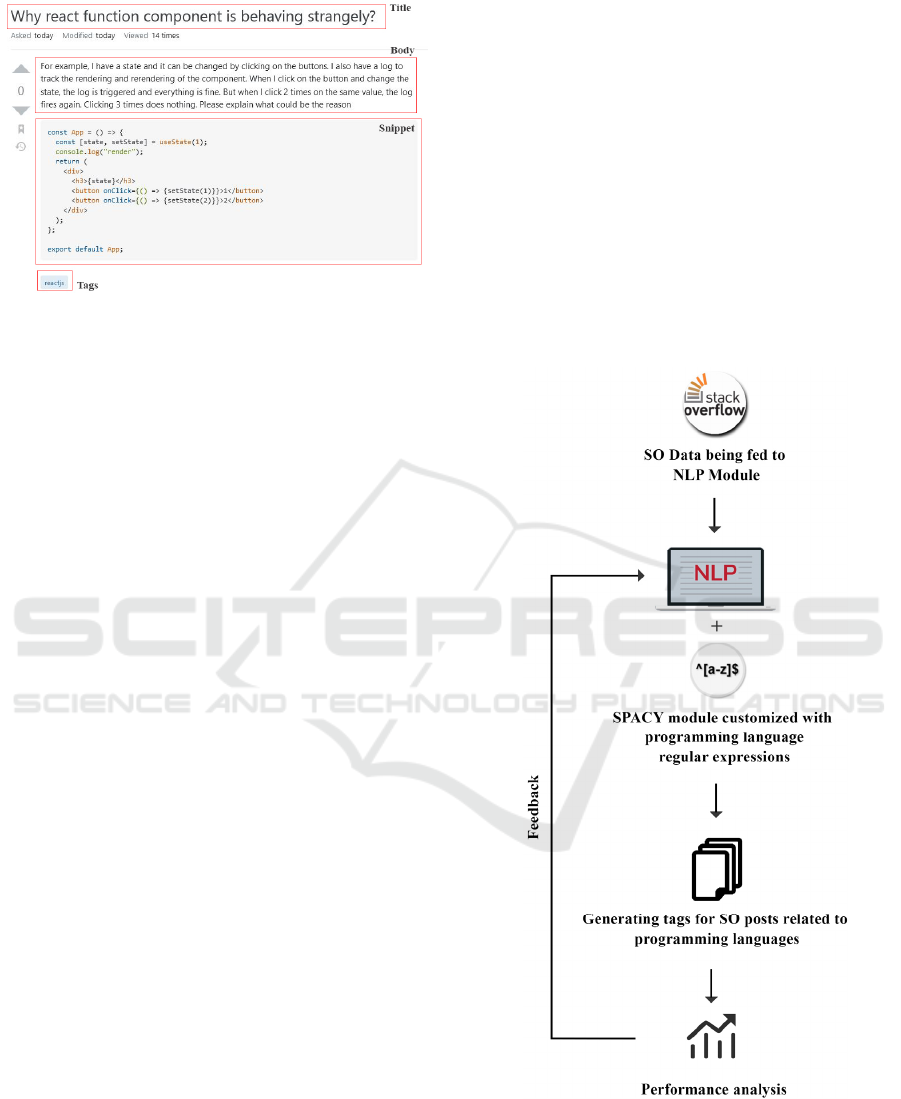

Figure 1: Example of a typical stack overflow post.
dropped to 78.9% when they tried to predict the
language based on title and body alone. This goes to
show that prediction of programming language of a
SO post without considering the snippet is also a non-
trivial task. Similarly in their earlier work also on
source code classification, (Alrashedy et al., 2018)
observed relatively low performance on post title and
body as compared to all three combined.
Further, in most of the studies, researchers have
approached this task as a classification problem,
where the model is trained on labelled data (Jain and
Lodhavia, 2020; Kavuk and Tosun, 2020; Saha et al.,
2013). However, this approach has few drawbacks,
since widely used languages like Java or python have
usually more questions as compared to lesser known
languages such as ‘Go’, and therefore, even though
the overall performance of the model might be decent,
it won’t perform as better for the newer languages.
We discuss it in more detail in later sections when we
introduce our rule based approach.
Besides that, many snippets contain only two to
three lines of code which is quite difficult to classify
and many posts don’t have snippets attached to them
in the first place.
Therefore detection of programming language in
a SO post based on question title alone has also
become a pertinent task for the research community.
With this motivation, we propose a model that can
detect programming languages from the title of
questions without considering the body or snippet
attached to it.
Furthermore, many questions include multiple
languages and it has been reported that queries having
more than one tag gets more views and accepted
answers (Saha et al., 2013). Our model is capable of
identifying multiple languages in a question and it can
also detect different versions of a programming
language such as Python 2.7, Python 3 etc.
Rest of the paper is structured as follows: In
section 2, we describe the methodology carried out in
the study along with the description of the dataset.
Section 3 analyses the performance of the model and
section 4 depicts the conclusion. Finally, in section 5,
we outline potential threats to validity.
2 PROPOSED METHODOLOGY
A brief overview of our proposed framework is
depicted in figure 2. It can be broadly classified into
the following four stages i.e., Dataset collection, NLP
rule formation, Tag generation, and performance
analysis.
Figure 2: Overview of our proposed approach.
Spacy is an open-source library in python used for
advanced NLP. It has a flexible architecture which
allows one to add custom components for specific
language processing tasks.
A Methodology for Detecting Programming Languages in Stack Overflow Questions
479
The Language class, the Vocab and the Doc object
comprises the central data structures of Spacy where
the language class is used for processing text and
coordinating the components of the pipeline.
Complete sequence of tokens and their annotations
are taken care by the doc object. Vocab helps avoid
redundancy and save memory by centralizing strings,
word vectors and lexical attributes, thereby it maintains
a single source of truth.
The default pipeline comprises of multiple
components that are called on the Doc in sequence.
They can contain a statistical model and trained
weights, or only make rule-based modifications to the
Doc (Vasiliev, 2020).
For faster processing, we disabled some of the
components which was not relevant for our work
(figure 3).
Spacy supports matcher components that can
extract information from Doc objects based on
patterns that a user is searching for. We apply the
matcher in our context of detecting programming
languages.
Figure 3: Making changes in the existing pipeline of the
module.
1
https://www.kaggle.com/datasets/stackoverflow/stack
sample/code
First, the raw text is processed and sequence of tokens
is generated. Specific pattern rules similar to regular
expressions are then set up for matching the generated
sequence analogous to respective programming
languages. Some of the rules are described in table1.
Table 1: Some of the languages along with some of their
rules.
Lan
g
ua
g
es Set of Rules
C# [{'LOWER': 'c'}, {'LOWER': '#'}],
[{'LOWER': 'c'}, {'LOWER':
'sharp'}],
[
{
'LOWER': 'c#'
}
],
Go [{'LOWER': 'go', 'POS': {'NOT_IN':
['VERB']}}],
[{'LOWER': 'golang'}],
[{'LOWER': 'go
p
rogramminglang'}],
For detecting
different
versions of a
programming
language
[{'LOWER': name}],
[{'LOWER': {'REGEX':
f'({name}\d+\.?\d*.?\d*)'}}],
[{'LOWER': name}, {'TEXT':
{'REGEX': '(\d+\.?\d*.?\d*)'}}],
Objective-C [{'LOWER': 'objective'},
{'IS_PUNCT': True, 'OP':
'?'},{'LOWER': 'c'}],
[{'LOWER': 'objectivec'}],
In context of our work, in case of a positive match,
the matched language is saved as the tag for the post.
Queries that are not directly related with
programming language generate null tags.
Further regular expressions are set up for
matching different versions of a programming
language.
The whole process is repeated several times to
ensure all languages are covered.
3 RESULT AND COMPARITIVE
ANALYSIS
3.1 Dataset
The total length of data at SO is huge and therefore,
in this study, we have used publicly available dataset
from kaggle.com which consists of 10% of stack
overflow posts.
1
The dataset consists of three separate
files containing questions, answers and tags
respectively having a mutually inclusive column ‘id’.
The data comprises of questions from all domains
of computer science including programming based
questions. However, pertinent to our task are only
ICSOFT 2022 - 17th International Conference on Software Technologies
480
those rows which are related with programming
languages and therefore while generating tags we
focus only on those rows.
‘ISO-8859-1’ encoding scheme served as a pre-
requisite for the dataset to work efficiently.
3.2 System Settings
All the experiments were carried out on Intel i5, 2.20
GHz processor with 8 GB RAM. We use Jupyter
notebook for implementing the spacy library and
making needful changes in it.
3.3 Experimentation
In this section, we discuss the experimentation details
of the proposed methodology.
After generating the named entity recognition
model based on pattern rules, the model was run
iteratively over the dataset for thousand random rows
and resulting tags were studied.
In the first few iterations, the model was not able
to recognize some of the languages as they were
either not included in the rule set or were mentioned
in unusual ways. For example, in the question titled
“Learning Objective-C. Using Xcode 3.2.1. What is
error: Program received signal:
EXC_ARITHMETIC”, the use of ‘Objective-C
involves the hyphen in between Objective and C
which was not matched by the regex. Subsequently,
more rules were added based on the feedback and the
model was rerun over specific examples to ensure the
tags were generated properly.
Additionally, some of the languages such as ‘Go’
that also have a general usage as a verb were detected
out of context. Some of the instances where our
model detected the language incorrectly are
mentioned in table 2.
Table 2: Specific case of the programming language ‘Go’.
Queries Whether ‘Go’
is used as a
programming
lan
g
ua
g
e?
“Removin
g
all event handlers in one
g
o” No
“How do I disable multiple listboxes in
one
g
o usin
g
j
Quer
y
?”
No
“Where does Console.WriteLine go in
ASP.NET?”
No
“makin
g
g
eneric al
g
orithms in
g
o” Yes
“How can I run multiple inserts with
NHibernate in one go?”
No
“How do I allocate memory for an array
in the
o
ro
rammin
lan
ua
e?”
Yes
“Embedding instead of Inheritance in Go” Yes
We selectively kept rules that made sure ‘Go’ was not
used as a verb, but as a noun or had a position
dependency on a noun. For instance, dependency
graph (Figure 4) reveals one of the instances where
‘Go’ has been correctly identified as a programming
language.
Figure 4: Dependency graph depicting the usage of ‘Go’ in
case of successful detection.
Again, the patterns were modified accordingly to
prevent incorrect tag generation.
This is one of the shortcomings of the ML based
classification approach where it fails to include or
exclude specific usage of certain words as it is trained
on a pre-existing dataset, it can only generalise the
existing tags and can’t deal with unknown or
exceptional cases.
The whole iterative process of rule addition was
repeated several times to ensure that model was
equipped with all the necessary patterns.
After a certain saturation, the tags generated by
the model were saved into a separate file along with
the unique id of the post. Later on, these tags were
compared with the pre-existing tags provided in the
dataset as a natural join with unique id of the post
acting as the common column.
Queries not related with programming languages
generate ‘null’ tags, and for a fair comparison, we
removed all such rows so that the intersection of two
files would only include the unique ids of
programming related posts.
Furthermore, the questions in the dataset not just
included tags for programming language being
referred, but also the context of the questions. To
generate tags concerning the context of the question
is a separate task and out of scope of the current work.
Therefore, while matching the tags, we focus only on
the programming language tag and consider it a
success if our model is able to match the language of
the specific post.
3.4 Results and Comparative Analysis
Table 3 gives overview of results for 5000 random
rows.
Except for (Jain and Lodhavia 2020; Saha et al.,
2013) who have previously worked on SO question
titles, most of the researchers have considered
A Methodology for Detecting Programming Languages in Stack Overflow Questions
481
Table 3: Performance of our methodology.
Time 0.18s
Words/sec 59203
Named Entity
Recognition Precision
85.62%
NER Recall 94.11%
NER F1-Score 89.29%
Accurac
y
87.49%
working on a combination of question title, body and
snippet associated with the question. Nevertheless, an
overall comparison can be made on the basis of the
end goal that is to identify programming language in
a given SO post. Table 4 gives a comparative analysis
of the same.
To the best of our knowledge, (Alreshedy et al.,
2018) have achieved the highest accuracy of 91% in
programming language classification for SO posts.
However, along with post title, they also combined
features from the body and snippet associated with
the post. But their accuracy dropped when they
excluded the snippets.
Table 4: Comparative analysis with earlier works
Reference Dataset type Accuracy,
Precision,
Recall, and F1
(Kuo, 2011) Title + Body 47%
(Saha et al.,
2013)
Title 68%
(Stanley et al.,
2013)
Title + Body 65%
(Baquero et al.,
2017)
Title + Body 60.8%, 68%,
60%, and 60%
(Alreshedy et
al., 2018)
Title + Body
Title + Body +
Snippet
81%, 83% 81%,
and 0.81%;
91.1%, 91%,
91% and 91%
(Alreshedy et
al., 2020)
Title + Body
Title + Body +
Snippet
78.9%, 81%,
79% and 79%
88.9%,
88%, 88%
and 88%
(Saini and
Tripathi, 2018)
Title + Body +
Snippet
65%, 59%, 36%,
and 42%
(Jain and
Lodhavia, 2020)
Title 75%, F1 Score-
81%
(Kavuk and
Tosum, 2020)
Title + Body 75%, 62%, 55%
and 39%
(Yang et al.,
2021)
Title + Body +
Snippet
87.2%, 87%,
87%, 87%
Our work Title 87%, 85%,
94% and 87%
Our work is also different in the way that it is not
a classification problem as presented in some of the
earlier works. Rather we assigned tags to a post based
on specific keywords present in the post title itself.
Additionally, our model could detect multiple
languages in a post title and also identify different
versions of a programming language such as python
2.7 and python 3. From Table-4, it can be observed
that our proposed model achieved significantly higher
accuracy compared to not only the best matching
existing works, (Saha et al., 2013; Jain and Lodhavia,
2020) where only title has been used for language
detection, but also performed better than the works
(Stanley et al., 2013; Alreshedy et al., 2018;
Alreshedy et al., 2020; Kavuk and Tosum, 2020)
considering title and body. Our proposed model has
shown comparable results to existing works which
have used title, body as well as snippet.
4 CONCLUSIONS AND FUTURE
WORK
In this work, we propose a model for detecting
programming languages in SO questions based on the
title of the post. We adapt the existing pipeline
structure of the Spacy model to accommodate rules
for matching patterns that indicate the presence of a
programming language in the post. We achieve an
accuracy of 87% on a public dataset. Our model is
also capable of detecting different versions of a
programming language.
In future, we plan to extend the model on body of
SO posts and synchronize them with other ML based
techniques. We also plan to validate our model on
social media sites such as Reddit and Research Gate
for sentiment analysis of programmers towards
specific programming languages.
5 THREATS TO VALIDITY
For comparison, we excluded the rows with null tags,
however this does not ensure that the null tags were
generated accurately. However, since the comparison
was made with respect to the unique ids of the post,
so for all those posts, which our model could detect,
the comparison was fair.
Consider a question with title “I am having error
in the following code, code attached”, in such a case
our model will not predict the language as it is absent
in the question title. For this end, we plan to include
analysis of the body and snippets in our future work.
ICSOFT 2022 - 17th International Conference on Software Technologies
482
REFERENCES
Alreshedy, K., Dharmaretnam, D., German, D. M.,
Srinivasan, V., & Gulliver, T. A. (2018). Predicting the
Programming Language of Questions and Snippets of
StackOverflow Using Natural Language Processing.
arXiv preprint arXiv:1809.07954.
Alrashedy, K., Dharmaretnam, D., German, D. M.,
Srinivasan, V., & Gulliver, T. A. (2020). Scc++:
Predicting the programming language of questions and
snippets of stack overflow. Journal of Systems and
Software, 162, 110505.
Baquero, J. F., Camargo, J. E., Restrepo-Calle, F., Aponte,
J. H., & González, F. A. (2017, September). Predicting
the programming language: Extracting knowledge from
stack overflow posts. In Colombian Conference on
Computing (pp. 199-210). Springer, Cham.
Gilda, S. (2017, July). Source code classification using
Neural Networks. In 2017 14th international joint
conference on computer science and software
engineering (JCSSE) (pp. 1-6). IEEE.
Jain, V., & Lodhavia, J. (2020, June). Automatic Question
Tagging using k-Nearest Neighbors and Random
Forest. In 2020 International Conference on Intelligent
Systems and Computer Vision (ISCV) (pp. 1-4). IEEE.
Kavuk, E. M., & Tosun, A. (2020, June). Predicting Stack
Overflow question tags: a multi-class, multi-label
classification. In Proceedings of the IEEE/ACM 42nd
International Conference on Software Engineering
Workshops (pp. 489-493).
Khasnabish, J. N., Sodhi, M., Deshmukh, J., &
Srinivasaraghavan, G. (2014, July). Detecting
programming language from source code using
bayesian learning techniques. In International
Workshop on Machine Learning and Data Mining in
Pattern Recognition (pp. 513-522). Springer, Cham.
Kuo, D. (2011). On word prediction methods. Technical
report, Technical report, EECS Department.
Saha, A. K., Saha, R. K., & Schneider, K. A. (2013, May).
A discriminative model approach for suggesting tags
automatically for stack overflow questions. In 2013
10th Working Conference on Mining Software
Repositories (MSR) (pp. 73-76). IEEE.
Saini, T., & Tripathi, S. (2018, March). Predicting tags for
stack overflow questions using different classifiers. In
2018 4th International Conference on Recent Advances
in Information Technology (RAIT) (pp. 1-5). IEEE.
Stanley, C., & Byrne, M. D. (2013, July). Predicting tags
for stackoverflow posts. In Proceedings of ICCM (Vol.
2013).
Van Dam, J. K., & Zaytsev, V. (2016, March). Software
language identification with natural language
classifiers. In 2016 IEEE 23rd international conference
on software analysis, evolution, and reengineering
(SANER) (Vol. 1, pp. 624-628). IEEE.
Vasiliev, Y. (2020). Natural Language Processing with
Python and SpaCy: A Practical Introduction. No Starch
Press.
Wang, S., Lo, D., Vasilescu, B., & Serebrenik, A. (2018).
EnTagRec++: An enhanced tag recommendation
system for software information sites. Empirical
Software Engineering, 23(2), 800-832.
Yang, G., Zhou, Y., Yu, C., & Chen, X. (2021). DeepSCC:
Source Code Classification Based on Fine-Tuned
RoBERTa. arXiv preprint arXiv:2110.00914.
A Methodology for Detecting Programming Languages in Stack Overflow Questions
483
