Secure Software Architectural Patterns Designed with Secure

Connectors

Michael Shin

, Taeghyun Kang

and Hassan Gomaa

Department of Computer Science, Texas Tech University, Lubbock, TX, U.S.A.

Department of Computer Science and Math., University of Central Missouri, Warrensburg, MO, U.S.A.

Department of Computer Science, George Mason University, Fairfax, VA, U.S.A.

Keywords: Software Architectural Patterns, Secure Connector, Secure Software Architecture, Component-based

Software Architecture, Secure Software Design, Message Communication Patterns, Security Patterns,

Model-based Design, UML.

Abstract: This paper addresses secure software architectural patterns designed with secure connectors, where security

concerns are encapsulated in secure connectors, separately from application concerns. Because secure

software architectural patterns address security and application concerns, the design of the patterns needs to

blend those concerns; thus, they can be complicated. Secure connectors can reduce the complexity of the

design of secure software architectural patterns by separating security and application concerns. In this paper,

secure connectors are designed for secure software architectural patterns by considering the security patterns

required by application components and the communication patterns between the components. Secure

connectors make the design of secure software architectural patterns more maintainable and evolvable. We

have implemented a secure distributed baseball game application using the secure MVC software architectural

pattern to validate our research.

1 INTRODUCTION

With security becoming a challenge in concurrent and

distributed software applications, secure software

architectural patterns address security concerns and

application concerns together to facilitate the

development of secure software architectures for

applications. Secure software architectural patterns

have been proposed in multiple studies (Schumacher et

al., 2006; Fernandez-Buglioni, 2013), where security

concerns are realized with security components such as

reference monitors or digital signatures, and

application concerns are modeled with application

components containing application logic. However,

the application logic still needs to coordinate security

components for secure communication between

application components. Mixing security concerns

with application concerns makes secure software

architectural patterns more complex, leading to a

challenge in the maintainability or evolution of

architectures. It is therefore necessary to separate

security concerns from application concerns when

designing secure software architectural patterns.

In this paper, we propose that secure software

architectural patterns be re-designed with secure

connectors to reduce the complexity of the

architectural patterns. Secure connectors (Shin et al.,

2012, 2016a, 2016b, 2017, 2018, 2019, 2021)

encapsulate security concerns separated from

application components, handling message

communication and security between application

components. Secure software architectural patterns in

this paper are presented with application components

dealing with only application-specific logic and

secure connectors providing security for secure

interaction between application components. Secure

connectors can make application components have no

direct interaction with security components.

This paper’s secure software architectural patterns

involve secure blackboard, distributed publish/

subscribe, broker, and model-view-controller (MVC)

software architectural patterns for concurrent and

distributed applications. A concurrent and distributed

baseball game application (Fernandez-Buglioni, 2013)

has been implemented to validate our approach using

the secure MVC software architectural pattern

designed with secure connectors.

In this paper, section 2 describes related work.

Section 3 describes secure connectors. Section 4

describes the design of secure software architectural

484

Shin, M., Kang, T. and Gomaa, H.

Secure Software Architectural Patterns Designed with Secure Connectors.

DOI: 10.5220/0011310500003266

In Proceedings of the 17th International Conference on Software Technologies (ICSOFT 2022), pages 484-491

ISBN: 978-989-758-588-3; ISSN: 2184-2833

patterns using secure connectors. Section 5 describes

the validation of our approach, and section 6 concludes

the paper.

2 RELATED WORK

2.1 Software Architectures and Secure

Connectors

This section describes related work for software

architectures and secure connectors. The authors in

(Van den Berghe et al., 2017) present existing

modeling notations to represent security properties in

secure software design models and provides

comparative analysis among the notations. In model-

driven security (Basin et al., 2011), systems are

modeled with security requirements, and the security

infrastructures are generated using the models.

Model-driven security provides a way to bridge a gap

between security and design models of systems.

A distributed component-based software

architecture (CBSA) in (Gomaa et al., 2001; Gomaa,

2011) is composed of components and connectors. In

(Ren et al., 2005), a connector-centric approach is

used to model, capture, and enforce security with

software connectors. The methods in (Al-Azzani et

al., 2012) propose SecArch to evaluate software

architectures with security concerns, which is an

incremental evaluation tool for secure architectures.

The work in (Shin et al., 2012) describes secure

asynchronous and synchronous connectors for

modeling the software architectures for distributed

applications and the design of reusable secure

connectors. The research in (Shin et al., 2016a,

2016b, 2017) addresses the design of secure

connectors in terms of maintainability and evolution

for secure software architectures. The study in (Shin

et al., 2018, 2019) describes the secure connectors for

software product lines. The very recent work of

authors in (Shin et al., 2021) extended the secure

connectors for complex message communications in

software architecture, where secure connectors

provide more than one communication pattern. The

research in (Gomaa et al., 2010; Albassam et al.,

2016) has investigated designing dynamically

adaptable and recoverable connectors.

2.2 Secure Software Architectural

Patterns

Software architectural patterns (Buschmann et al.,

1996; Shaw and Garlan, 1996; Taylor et al., 2010) are

recurring architectural styles used in various software

applications. Software architectural structure patterns

(Gomaa, 2011) address the static structure of the

architecture, whereas the architectural communication

patterns (Gomaa, 2011) describe the dynamic

communication between components.

Security patterns in (Schumacher et al., 2006;

Fernandez-Buglioni, 2013) address the broad range of

security issues that should be considered in the stages

of the software development lifecycle. The authors

describe the problem, context, solution, and

implementation of security patterns in a structured

way with a template.

The secure software architectural patterns for

middleware (Schumacher et al., 2006; Fernandez-

Buglioni, 2013) providing services to applications

have been designed with application and security

classes and the relationships among classes in the

static model. The objects of the classes and their

interaction are modeled in the dynamic model.

Security classes model authentication, authorization,

and digital signature security services. Application

objects contain the sequence logic to interact with

security objects directly to achieve security services.

3 SECURE CONNECTORS

A secure connector is a distributed connector

consisting of a secure sender connector and a secure

receiver connector that communicate with each other.

A secure sender or receiver connector consists of a

security coordinator, zero or more security pattern

components (SPCs), and one or more communication

pattern components (CPCs).

3.1 Security Coordinator Components

A security coordinator, which is either a security

sender coordinator or a security receiver coordinator,

is designed to integrate the communication patterns

and security patterns selected for a secure connector.

The security sender and receiver coordinators need to

be designed for each secure connector whenever one

or more CPCs and zero or more SPCs are selected for

the connector. A template (Shin et al., 2018, 2019) for

the high-level security coordinator can be designed

for each communication pattern. The template is

customized for each secure connector based on the

security pattern(s) selected.

Secure Software Architectural Patterns Designed with Secure Connectors

485

3.2 Security Pattern Components

A security pattern addresses a specific security

technique that realizes a security service, which is

software functionality for realizing a security goal,

such as confidentiality, integrity, or availability. A

security pattern is designed using one or two security

pattern components (SPCs), as depicted in Fig. 1. For

instance, the confidentiality security service can be

realized using the symmetric encryption security

pattern (Fig. 1a) composed of the symmetric

encryption encryptor and decryptor SPCs with their

interfaces (Fig.1d). Another example is shown for the

authenticator and authorization security patterns,

which are realized respectively with the authenticator

SPC (Fig. 1b) and the authorization SPC (Fig. 1c)

with their interfaces (Fig. 1d). Each port of a

component is defined in terms of provided and/or

required interfaces (Gomaa, 2011; Rumbaugh et al.,

2004). Each security pattern component (Fig. 1) has a

provided port through which the component provides

security services to other components.

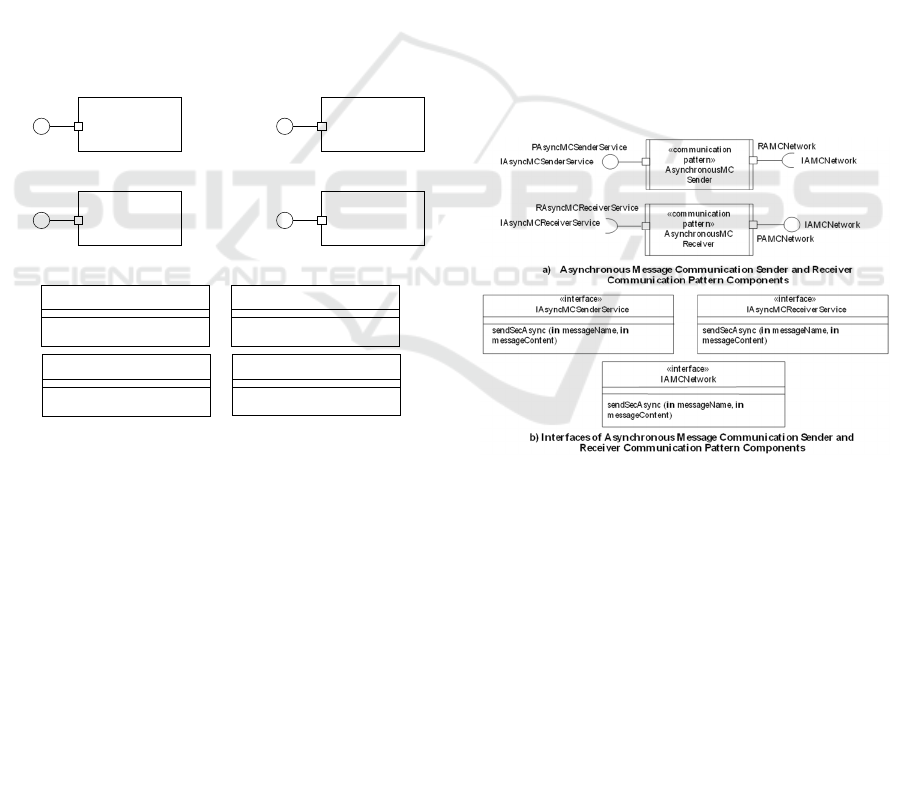

Figure 1: Security Pattern Components and their interfaces.

3.3 Communication Pattern

Components

Each communication pattern is designed with a

sender communication pattern component (CPC) and

a receiver communication pattern component (CPC),

encapsulated in a secure sender connector and a

secure receiver connector, respectively. In

asynchronous message communication, an

asynchronous message is sent from a sender

component to a receiver component and is stored in a

queue if the receiver is busy. The sender component

can continue to send the next message to the receiver

component until the queue is full. Fig. 2a depicts the

Asynchronous Message Communication (AMC)

Sender CPC and Asynchronous Message

Communication (AMC) Receiver CPC for the secure

asynchronous message communication connector.

The AMC Sender CPC (Fig. 2a) has the provided

PAsyncMCSenderService port through which the

Security Sender Coordinator component sends to the

AMC Sender CPC a message being sent to the

receiver application component. In contrast, it

requests a service from the AMC Receiver CPC via

the required RAMCNetwork port. Similarly, the

AMC Receiver CPC (Fig. 2a) has a required

RAsyncMCReceiverService port to communicate

with a receiver component, and the provided

PAMCNetwork port to receive a message from the

AMC Sender CPC. Fig. 2b depicts the interfaces

provided by each port of the AMC Sender and

Receiver CPCs.

In a similar way, the Synchronous Message

Communication with Reply (SMCWR) Sender CPC

and Synchronous Message Communication with

Reply (SMCWR) Receiver CPC for the secure

Synchronous Message Communication with Reply

connector are modeled in (Shin et al., 2019).

Figure 2: Asynchronous Message Communication Sender

and Receiver Communication Pattern Components and

their Interfaces.

4 DESIGN OF SECURE

SOFTWARE ARCHITECTURAL

PATTERNS

4.1 Secure Blackboard Software

Architectural Pattern

The secure blackboard software architectural pattern

(Fernandez-Buglioni, 2013) provides security

measures for the data stored in the blackboard

«secur i t y pat t ern»

Symmetric

Encr y pt i on

Encr y pt or

ISEEncryptor

PSEEn cr y p t or

ISEDecryptor

PSED ecr y p t or

«secur i t y pat t ern»

Authenticator

IAuthenticator

PA u t h e n t i c a t o r

«security pattern»

Authorization

IAuthorization

PA u t h o r i z a t i o n

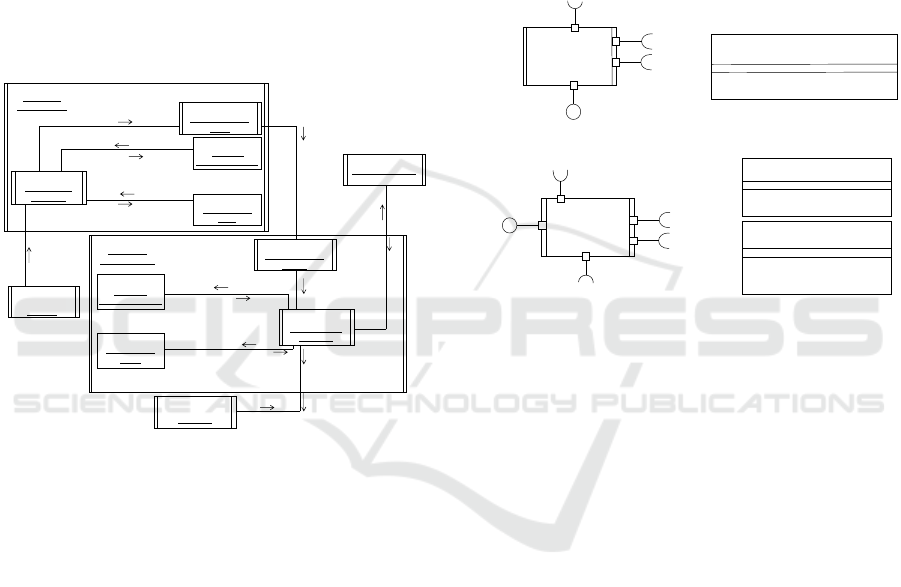

a) Symmetric Encryption Security Pattern

b) Authenti cator Securit y Pat ter n

c) Authorization Security Pattern

«security pattern»

Symmetric

Encr y pt i on

Decryptor

«interface»

ISEEncryptor

encr y pt (in message, in key, in

Algori thm, out encr y pt edM essage)

«interface»

ISEDecryptor

decrypt (in en cr ypt edM essage, in key,

in Algorithm, out message)

«interface»

IAuthenticator

authenticate (in cr edent ials, out result)

«interface»

IAuthorization

aut hor i ze (in Identity, in object, out

permission)

d) Interf aces of security patterns

ICSOFT 2022 - 17th International Conference on Software Technologies

486

component to prevent it from being compromised.

Any knowledge source can update the data in the

blackboard if the control component does not check

the rights of knowledge sources to change the data.

The control component is a gateway to access the

blackboard component, authenticating knowledge

sources to access the blackboard to update the data.

The components in the secure blackboard software

architectural pattern communicate with each other via

secure channels to avoid data breaches in

communication. The blackboard component is

necessary to record all knowledge sources’ actions to

the data for auditing.

The secure blackboard software architectural

pattern (Fernandez-Buglioni, 2013) can be designed

with secure connectors that contain authentication,

authorization, and encryption security patterns

required by the pattern, separately from application

components to reduce the complexity of the pattern.

Fig. 3 depicts the structural view of the interaction

between Knowledge Source and Control components

in the secure blackboard software architectural

pattern, designed with a secure AMC connector to

apply an operation to the blackboard asynchronously

(Fernandez-Buglioni, 2013). A Knowledge Source

component sends the Control component a message

containing its credentials, role, data, and an operation

to be taken on the blackboard. With the message

received from the Knowledge Source component via

a provided PSecAsyncSenderService port, the

Security Sender Coordinator in the secure AMC

sender connector invokes the Symmetric Encryption

Encryptor component (Figs. 1 and 4) via a required

RSEEncryptor port to encrypt the message. And it

then sends the encrypted message to the AMC Sender

Communication pattern component via a required

RAsyncMCSenderService port. The AMC Sender

communication pattern component sends the

encrypted message via a required RNetwork port to

the AMC Receiver communication pattern

component, which forwards the message to the

Security Receiver Coordinator via a required

RSecurityService. The message is decrypted by the

Symmetric Encryption Decryptor component (Figs. 1

and 4) using a secret key retrieved by the Security

Receiver Coordinator from the Control component

via a required RSecAsyncReceiverService port. The

Authenticator component (Figs. 1 and 4) checks the

decrypted credentials to identify the Knowledge

Source component. The Authorization component

(Figs. 1 and 4) verifies that the Knowledge Source

component has a right to access and operate data in

the blackboard. Fig. 4 depicts the security sender and

receiver coordinators in the secure sender and

receiver connectors for Knowledge Source and

Control components and their interfaces.

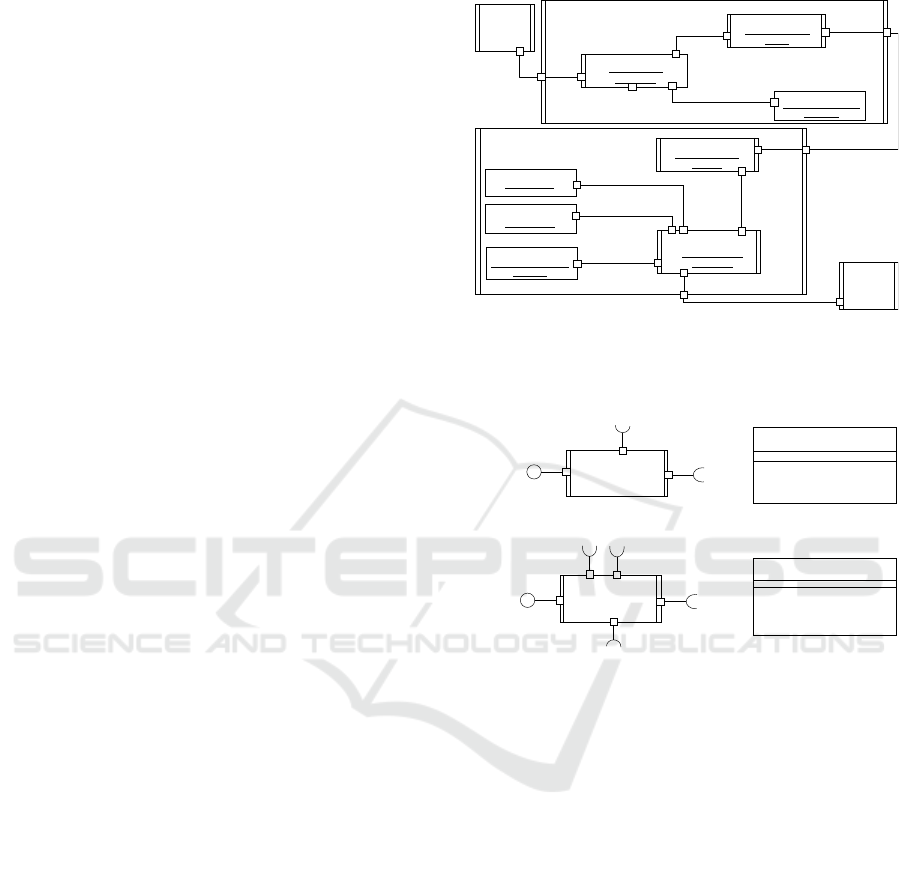

Figure 3: Knowledge Source and Control Components

designed with Secure Connectors in the Secure Blackboard

Architecture.

Figure 4: Security Coordinator Components of Secure

Connectors for Knowledge Source and Control components

and Interfaces.

4.2 Secure Publish/Subscribe Software

Architectural Pattern

The secure publish/subscribe software architectural

pattern (Fernandez-Buglioni, 2013) addresses the

security measures for secure subscription and

notification in the pattern. A publisher must check

each subscriber’s identity who joins a group to

prevent imposters from receiving event notification

messages. A subscriber should verify that each

notification is a genuine message received from the

publisher it has registered. An attacker can read

messages transmitted between a publisher and

subscribers; thus, the messages must be sent or

received through a secure channel.

The secure publish/subscribe software

architectural pattern can be designed with secure

connectors that encapsulate security patterns

«security pattern»

:SymmetricEncryption

Encryptor

«security coordinator»

:SecuritySender

Coordinator

«communication pattern»

:AsynchronousMC

Sender

PSecAsync

SenderService

PSEEncryptor

RSEEncryptor

RNetwork

«secure connector»

SecureAMC

SenderConnector

«security pattern»

:SymmetricEncryption

Decryptor

«security coordinator»

:SecurityReceiver

Coordinator

«communication pattern»

:AsynchronousMC

Receiver

PNetwork

PSEDecryptor

RSEDecryptor

RSecAsyncReceiverService

«secure connector»

SecureAMC

ReceiverConnector

PSecAsync

SenderService

«application

component»

Knowledge

Source

RSecAsync

Sender

Service

«application

component»

Control

PSecAsyncReceiverService

PNetwork

«security pattern»

:Authenticator

«security pattern»

:Authorization

PAuthenticator

RAuthenticator

PAuthorization

PAsyncMCSenderService

RAsyncMCSenderService

RSecurity

Service

PSecurity

Service

ISEEncryptor

RSEEncryptor

«security coordinator»

SecuritySender

Coordinator

ISecAsyncSenderService

PSecAsyncSenderService

a) Security Sender Coordinator and Interface

)

Securit

Receiver Coordinator and Interface

ISEDecryptor

RSEDecryptor

«security coordinator»

SecurityReceiver

Coordinator

RSecAsyncReceiverService

ISecAsyncReceiverService

«interface»

ISecAsyncSenderService

sendSecAsync (in messageName,

in messageContent,

in senderSecurityPatternAttribute)

«interface»

ISecurityService

sendSecAsync (in messageName,

in messageContent)

retrieveSecretKey (out secretKey)

IAuthenticator

RAuthenticator

IAuthorization

RAuthorization

RAsyncMCSenderService

IAsyncMCSenderService

PSecurityService

ISecurityService

Secure Software Architectural Patterns Designed with Secure Connectors

487

separately from the publisher and subscriber

application components. Fig. 5 depicts the secure

publish/subscribe software architectural pattern

designed with a secure AMC connector through

which a publisher component securely notifies a

subscriber component of event messages. The secure

AMC sender and receiver connectors are designed

with Symmetric Encryption (Fig. 1) and Digital

Signature security patterns. The Symmetric

Encryption security pattern encrypts the event

notification messages sent by the publisher

component to the subscriber component for the

confidentiality of the messages in communication.

The Digital Signature security pattern is utilized for

the subscriber component to verify the publisher

component’s authenticity.

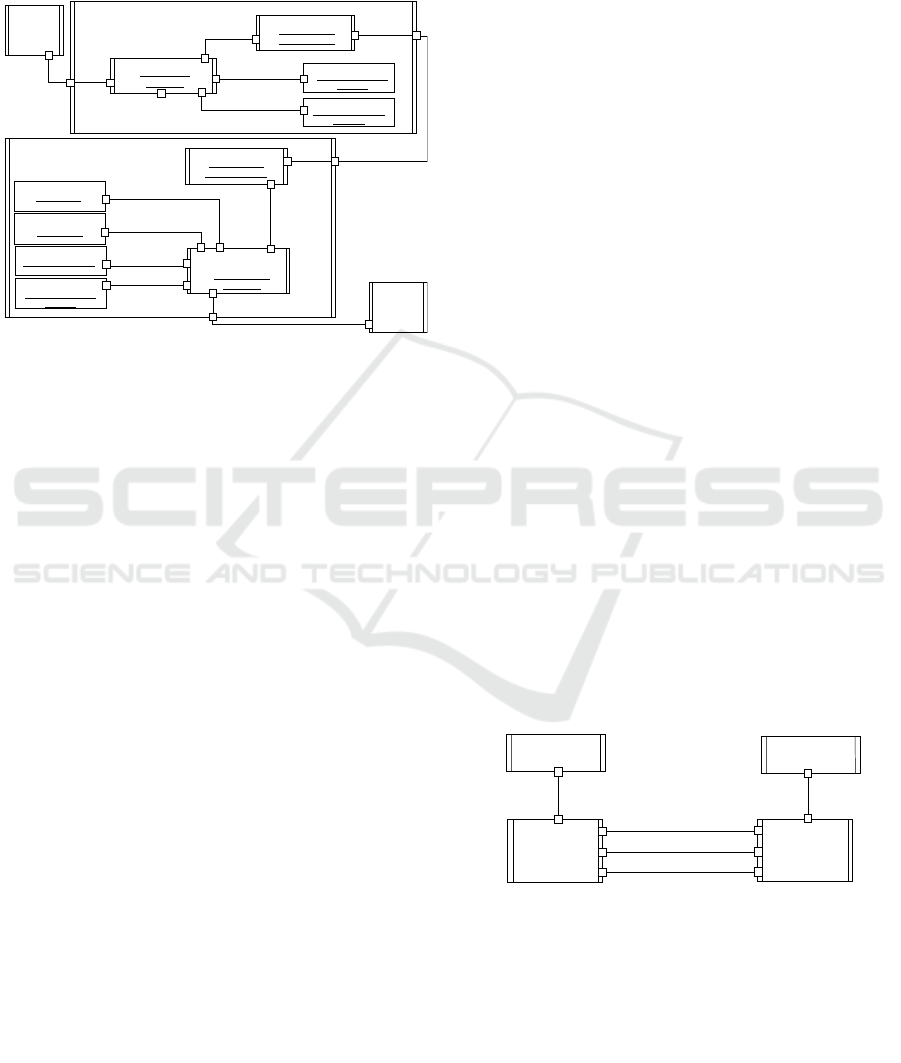

Figure 5: Publisher and Subscriber Components designed

with Secure Connectors in Secure Publish/Subscribe

Architectural Pattern.

Fig. 5 depicts the UML communication diagram

that describes the dynamic behavioral view of event

notification of a publisher component to a subscriber

component. When the publisher component sends a

notification to the subscriber component, the

notification is signed by the Digital Signature Signer

component in the secure AMC sender connector. The

notification and signature are then encrypted by the

Symmetric Encryption Encryptor component (Fig. 1)

in the secure AMC sender connector. The encrypted

notification and signature are sent to the subscriber

component via the secure AMC receiver connector

and then decrypted by the Symmetric Encryption

Decryptor component (Fig. 1) using a secret key

retrieved from the subscriber component. The secure

AMC receiver connector requests the publisher

component’s public key from the Public Key

Repository component, designed for a certificate

authority in the public key infrastructure. The

signature is verified by the Digital Signature Verifier

component in the secure AMC receiver connector

using the publisher’s public key. Fig. 6 depicts the

security sender and receiver coordinator components

and interfaces specification, respectively, in the

secure sender and receiver connectors, designed for

event notification messages between the publisher

and subscriber components. We can specify the

pseudocode for the Security Sender and Receiver

Coordinator components (Shin et al., 2019) in the

secure connector.

Figure 6: Security Coordinator Components of Secure

Connectors for Publisher and Subscriber Components and

Interfaces.

4.3 Secure Broker Software

Architectural Pattern

The secure broker software architectural pattern

requires authentication, access control, and

encryption security (Fernandez-Buglioni, 2013) for

securely brokering the interactions between clients

and servers. To avoid identity spoofing, a secure

broker needs to provide mutual authentication

between clients and servers. A client’s access to a

server should be controlled so that only a client with

a right is allowed to access the server. All messages

communicated among clients, broker, and servers

necessitate cryptographic encryption to prevent

attacks.

The secure broker software architectural pattern

can be designed with secure connectors containing

authentication, authorization, and encryption security

patterns, separately from client, broker, and server

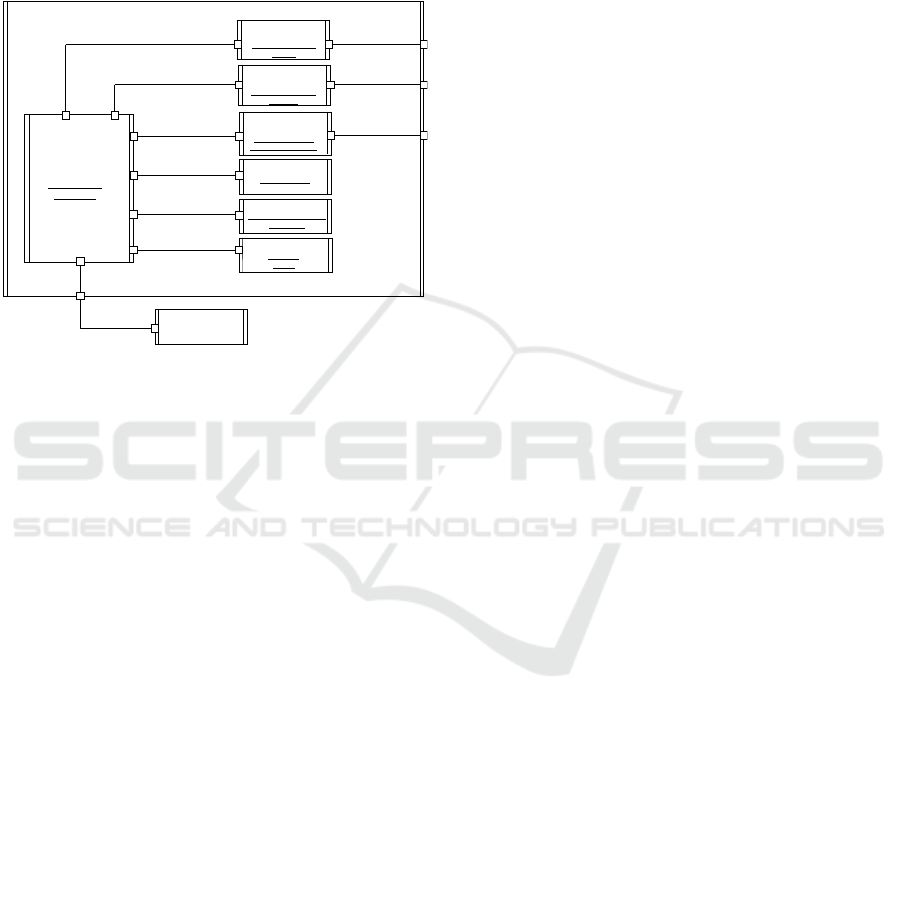

components. The secure (receiver) connector (Fig. 7)

identifies a client’s credentials using the

Authenticator security pattern (Fig. 1), controlling the

client’s access to a server’s service using the

«secure connector»

aSecureAMC

ReceiverConnector

«secure connector»

aSecureAMC

SenderConnector

«application

component»

aPublisher

«application

component»

aSubscriber

«security pattern»

:DigitalSignature

Verifier

E16 [Signature valid]: Valid Signature

E16A [Signature invalid]: Invalid Signature

«security pattern»

:Symmetric

Encryption Decryptor

E11: Decrypt Encrypted

Notification & Signature

«security pattern»

:DigitalSignature

Signer

E4: Encrypt Notification &

Signature

«security pattern»

:Symmetric

Encryption Encryptor

«security coordinator»

aSecuritySender

Coordinator

«communication pattern»

anAsynchronousMC

Sender

«communication pattern»

anAsynchronousMC

Receiver

«security coordinator»

aSecurityReceiver

Coordinator

E6: Send Encrypted

Notification & Signature

E8: Encrypted

Notification &

Signature

E17:

Forward Confirm Shipment

E1:

Notification &

Secret Key &

Private Key

E2: Sign Notification

«security pattern»

aPublicKeyRepository

E9: Retrieve Secret Key

E13: Retrieve Public

Key

E3: Signature

E5: Encrypted Notification & Signature

E12: Notification &

Signature

E10: Secret Key

E14: Public

Key

E15: Verify Signature

E7: Send Encrypted

Notification & Signature

ISEEncryptor

«security

coordinator»

SecuritySender

Coordinator

RAsyncMCSenderService

IAsyncMCSenderService

PSecAsyncSenderService

ISecAsyncSenderService

a) Security Sender Coordinator and Interface Specification

RSEEncryptor

IDSSigner

RDSSigner

«interface»

ISecAsyncSenderService

sendSecAsync (in messageName, in

messageContent, in senderSecurityPatternAttribute)

ISEDecryptor

ISecurityService

PSecurityService

«security

coordinator»

SecurityReceiver

Coordinator

IDSVerifier

RSecAsyncReceiverService

ISecAsyncReceiverService

b) Security Receiver Coordinator and Interface Specification

PSEDecryptor

PDSVerifier

RPKRepository

IPKRepository

«interface»

IPKRepository

retrievePublicKey (in senderID, out

senderPublicKey)

«interface»

ISecurityService

sendSecAsync (in messageName, in

messageContent)

retrieveSecretKey (out secretKey)

ICSOFT 2022 - 17th International Conference on Software Technologies

488

Authorization security pattern (Fig. 1). The

Symmetric Encryption security pattern (Fig. 1)

encrypts a client’s service request being sent by a

client component to the broker and a server’s reply

forwarded by the broker to the client component.

Figure 7: Client and Broker Components designed with

Secure Connectors in Secure Broker Architectural Pattern.

Fig. 7 depicts the structural view of secure broker

forwarding in the secure broker architectural pattern,

designed with secure SMCWR sender and receiver

connectors for the client and broker components,

respectively. When the client component sends a

service request to the broker, the service request with

the client’s credentials and role are encrypted by the

Symmetric Encryption Encryptor SPC in the secure

SMCWR sender connector. The encrypted service

request is decrypted by the Symmetric Encryption

Decryptor SPC in the secure SMCWR receiver

connector, and then the credentials are verified by the

Authenticator SPC. The Authorization SPC

determines whether a client component has a right to

access a server. If all security checks are valid, the

service request message is sent to the broker. A reply

received from a server is encrypted by the Symmetric

Encryption Encryptor SPC in the secure SMCWR

receiver connector. The encrypted reply is decrypted

by the Symmetric Encryption Decryptor SPC in the

secure SMCWR sender connector and then sent to the

Client component.

4.4 Secure MVC Software

Architectural Pattern

The secure Model-View-Controller (MVC) software

architectural pattern (Fernandez-Buglioni, 2013) is

required to maintain an acceptable level of security

among its components against threats, so it needs

authentication, encryption, authorization, log records,

and input validation. Authentication is necessary to

verify that the remote users to access the controller

component are authentic. The secure MVC software

architectural pattern needs encryption to protect the

data transit between components against

eavesdropping. The secure MVC software

architectural pattern should allow only authorized

users to change sensitive data in the model. The

model component necessitates recording all accesses

to sensitive information for auditing. The user input

to the controller component is necessary to be

neutralized to clean corrupted input.

Fig. 8 depicts the secure interaction between the

Model and View components designed with a secure

connector in the secure MVC software architectural

pattern. The Model and View components

communicate via the secure MV sender and receiver

connectors that encapsulate the security patterns

separately from the application components. The

Model component has a provided and required

PRSecSenderService port through which it sends a

data change notification message and receives a view

update confirmation message to/from the secure MV

sender connector asynchronously. The connector

communicates those messages with the secure MV

receiver connector via a required RAMCNetwork

port and a provided PACMNetwork port. The secure

MV receiver connector for the View component

retrieves the data changed in the Model component

through a required RSMCNetwork port that connects

to a provided PSMCNetwork port of the secure MV

sender connector. The View component has a

provided and required PRSecReceiverService

through which it communicates the data change

notification, changed data, and view update messages

with the secure MV receiver connector.

Figure 8: Model and View Components designed with

Secure Connectors in Secure MVC Architectural Pattern.

The internal structural view of the secure MV

sender connector (Fig. 8) is modeled in Fig. 9, where

the model component sends messages to and receives

them from the view component to realize the “change

propagation” use case in the secure MVC software

architecture pattern. The secure MV sender connector

(Fig. 9) is designed with three CPCs: an AMC Sender,

«security pattern»

:SymmetricEncryption

Decryptor

«security pattern»

:SymmetricEncryption

Encryptor

«security coordinator»

:SecuritySender

Coordinator

«communication pattern»

:SynchronousMC

WithReplySender

PSecSync

SenderService

PSEEncryptor

RSEEncryptor

RSEDecryptor

PSEDecryptor

PSyncMCWithReply

SenderService

RSyncMCWithReply

SenderService

RNetwork

«secure connector»

SecureSMCWR

SenderConnector

«security pattern»

:SymmetricEncryption

Decryptor

«security pattern»

:SymmetricEncryption

Encryptor

«security coordinator»

:SecurityReceiver

Coordinator

«communication pattern»

:SynchronousMC

WithReplyReceiver

PNetwork

PSEDecryptor

RSEDecryptor

RSEEncryptor

PSEEncryptor

RSecSyncReceiverService

RSecurity

Service

Psecurity

Service

«secure connector»

SecureSMCWR

ReceiverConnector

PSecSync

SenderService

«application

component»

Client

RSecSync

Sender

Service

«application

component»

Broker

PSecSyncReceiverService

PNetwork

«security pattern»

:Authenticator

«security pattern»

:Authorization

PAuthenticator

RAuthenticator

PAuthorization

«secure connector»

Se c u r eM V

SenderConnector

PRSecSender Servi ce

«component»

Model

Component

RPSecSender Ser vi ce

«secure connector»

Se c u r e M V

Recei verConnector

PA M C N e t w o r k

RA M CN et w or k

PSM CN et w or k

RA M CN et w or k

PA M C N e t w o r k

RSMCN et w o r k

«component»

View

Component

PRSecRecei v er Ser vi ce

RPSecRecei v er Ser v i ce

Secure Software Architectural Patterns Designed with Secure Connectors

489

an AMC Receiver, and an SMCWR Receiver CPCs;

and three security pattern components (SPCs)

required by the Model component, which are an

Authorization, a Symmetric Encryption Decryptor,

and a Hashing Signer SPCs. The Security Sender

Coordinator component and its interfaces to the

Model component is specified in (Shin et al., 2021).

Figure 9: Secure MV Sender Connector for Model

Component.

5 VALIDATION

To validate this research, we implemented the secure

MVC software architectural pattern designed with

secure connectors (in section 4.4) that consist of one

or more security pattern components and more than

one communication pattern component. The secure

connectors for the secure MVC software architectural

pattern are a reusable form of secure connectors. The

secure connectors for the secure blackboard,

publish/subscribe, and broker software architectural

patterns (in section 4) are designed with only one

communication pattern (i.e., either synchronous or

asynchronous communication pattern). However, the

secure MVC software architectural pattern

necessitates the secure connectors that provide more

than one communication pattern component for

application components

For validation, a distributed baseball game

application (Fernandez-Buglioni, 2013) was

developed using the secure MVC software

architectural pattern, structured into the user

interface, controller, model, and view components. A

scorer entered or updated the game scores through the

Android App-based user interface component, which

ran on smartphones, separated from the remote

controller component that received the scorer input

and delivered it to the model component. The game

scores were stored and maintained in the model

component on a server implemented using the Spring

Boot framework. When the game scores in the model

component were changed, the model component

notified the controller and view components of the

changed game scores. The view component

implemented using Android App running on fans’

smartphones read the game scores from the model

component in the game server and redisplayed them

to fans. The controller component also enabled or

disabled user interface menu functions according to

the changed game scores.

The validation was conducted by designing and

implementing three secure connectors among the

scorer interface component, controller component,

model component, and fan’s view component in the

secure MVC-based baseball game application. For

the secure connector between the model component

and view component (Figs. 8 and 9), We

implemented the secure sender connector with three

communication pattern component (CPC) threads in

Java: AMC sender CPC, AMC receiver CPC, and

SMCWR receiver CPC threads, and the secure

receiver connector with three communication pattern

component (CPC) threads in Java: AMC receiver

CPC, AMC sender CPC, and SMCWR sender CPC

threads. We also implemented the Symmetric

Encryption Encryptor and Decryptor security pattern

components (SPCs) using the Data Encryption

Standard (DES) algorithm and the Hashing Signer

and Hashing Verifier security pattern components

(SPCs) using the Secure Hash Algorithm (SHA).

Authorization SPC was implemented to verify the

validity of the view component’s role ID. The

security sender coordinator and the security receiver

coordinator were implemented using each thread to

integrate the CPC threads and SPCs.

Similarly, we implemented the secure connector

between the controller component and model

component, and the secure connector between the

scorer interface component and controller

component.

6 CONCLUSIONS

This paper has described the secure blackboard,

publish/subscribe, broker, and MVC software

architectural patterns, designed with secure

connectors that encapsulate security components

separately from the application components in order

to reduce the complexity of the architectural patterns.

The secure connectors for the architectural patterns

«secure connector»

Se c u r e M V

SenderConnector

«security

coordi nator »

:Secur i t ySender

Coordinator

«communi cati on

patt ern»

:AsynchronousMC

Se n d e r

PRSecSen der Ser v i c e

RA sy n cM C

Sen d e r Se r v i c e

PA s y n c M C

Sen d e r Ser v i c e

RA M C N et w o r k

«communicati on

pattern»

:SynchronousMC

Wi t hRepl y Recei ver

PSyncMCWithReply

Rec ei v er Ser v i c e

RSyncMCWithReply

Recei v er Ser v i ce

«communication

pattern»

:AsynchronousMC

Recei v er

RA sy n cM C

Rec ei v er Ser v i c e

PA M C N e t w o r k

PA s y n c M C

Recei v er

Ser v i c e

RA M CN et w or k

PSM CN et w o r k

PSMCN et w or k

«securi ty pattern»

:Authorizat ion

RAuthorization

PA u t h o r i z a t i o n

«security pattern»

:SymmetricEncryption

Decryptor

RSED ec r y p t o r

PSED ecr y p t or

«security pattern»

:Hashing

Si g n e r

PHashingSinger

RHashingSigner

PRSecSenderServi ce

«component»

Model

Component

RPSec Sen der Ser v i c e

ICSOFT 2022 - 17th International Conference on Software Technologies

490

were designed with zero or more security patterns

required by application components, one or more

communication patterns to realize message

communication between the components, and

security coordinators to integrate security and

communication patterns. The secure software

architectural patterns were designed using a

component-based model depicting the component’s

ports, interfaces, and connectors. Secure connectors

make the secure software architectural patterns more

maintainable and evolvable. We also implemented a

distributed baseball game application using the secure

MVC software architectural pattern designed with

secure connectors to validate our approach.

We envision future work to extend this research.

We can extend our approach to other secure software

architectural patterns. The secure connectors

designed for secure software architectural patterns

could also be further validated using model checkers

to check correctness, deadlock, and security

properties. Our validation would thus become more

concrete with model checking. In addition, we could

investigate the secure connectors adaptable to

changing communication patterns and security

patterns at runtime. Moreover, we could extend this

research to designing secure connectors that recover

the failures to communication or security.

REFERENCES

Al-Azzani, S. and Bahsoon, R., 2012, August. SecArch:

Architecture-level evaluation and testing for security.

In Software Architecture (WICSA) and European

Conference on Software Architecture (ECSA), 2012

Joint Working IEEE/IFIP Conference on (pp. 51-60).

Albassam, E., Gomaa, H. and Menascé, D.A., 2016, July.

Model-based Recovery Connectors for Self-adaptation

and Self-healing. In ICSOFT-EA (pp. 79-90).

Basin, D., Clavel, M. and Egea, M., 2011, June. A decade

of model-driven security. In Proceedings of the 16th

ACM symposium on Access control models and

technologies (pp. 1-10). ACM.

Buschmann, F., Meunier, R., Rohnert, H., Sommerlad, P.,

1996. Pattern Oriented Software Architecture: A

System of Patterns, John Wiley & Sons.

Fernandez-Buglioni, E., 2013. Security patterns in practice:

designing secure architectures using software patterns.

John Wiley & Sons.

Gomaa, H., Menascé, D.A. & Shin, M.E., 2001. Reusable

component interconnection patterns for distributed

software architectures. Proceedings of the 2001

symposium on Software reusability putting software

reuse in context - SSR 01.

Gomaa, H., Hashimoto, K., Kim, M., Malek, S., and

Menascé, D.A., 2010, March. Software adaptation

patterns for service-oriented architectures. In

Proceedings of the 2010 ACM Symposium on Applied

Computing (pp. 462-469). ACM.

Gomaa, H., 2011. Software modeling and design: UML,

use cases, patterns, and software architectures.

Cambridge University Press.

Ren, J., Taylor, R., Dourish, P. and Redmiles, D., 2005,

May. Towards an architectural treatment of software

security: a connector-centric approach. In ACM

SIGSOFT Software Engineering Notes (Vol. 30, No. 4,

pp. 1-7). ACM.

Rumbaugh, J., Booch, G., and Jacobson, I., 2004. The

Unified Modeling Language Reference Manual,

Addison-Wesley.

Schumacher, M., Fernandez, E.B., Hybertson, D.,

Buschmann, F. and Sommerlad, P., 2006. Security

Patterns, Wiley.

Shaw, M., and Garlan, D., 1996. Software Architecture:

Perspectives on an Emerging Discipline, Pearson.

Shin, M.E., Malhotra, B., Gomaa, H. and Kang, T., 2012,

July. Connectors for Secure Software Architectures. In

SEKE (pp. 394-399).

Shin, M.E., Gomaa, H., Pathirage, D., Baker, C. and

Malhotra, B., 2016. Design of Secure Software

Architectures with Secure Connectors. International

Journal of Software Engineering and Knowledge

Engineering, 26(05), pp.769-805.

Shin, M., Gomaa, H. and Pathirage, D., 2016, June.

Reusable Secure Connectors for Secure Software

Architecture. In International Conference on Software

Reuse (pp. 181-196). Springer, Cham.

Shin, M., Gomaa, H. and Pathirage, D., 2017. Model-based

Design of Reusable Secure Connectors. In 4th

International Workshop on Interplay of Model-Driven

and Component-Based Software Engineering

(ModComp) 2017 Workshop Pre-proceedings (p. 6).

Shin, M., H. Gomaa, and D. Pathirage, 2018, July. A

Software Production Line Approach for Feature

Modeling and Design of Secure Connectors. In 14

International Conference on Software Technologies

(ICSOFT2018), Porto, Portugal (Best paper award).

Shin, E. M., H. Gomaa, D. Pathirage, 2019, August. A

Software Product Line Approach to Design Secure

Connectors in Component-Based Software

Architectures. In Communications in Computer and

Information Science, Springer, Communications in

Computer and Information Science book series (CCIS,

Volume 1077).

Shin, M., Kang, T., and Gomaa, H., 2021. Design of Secure

Connectors for Complex Message Communications in

Software Architecture, 2nd European Symposium on

Software Engineering, Nov. 19-21, Larissa, Greece.

Taylor, R. N., Medvidovic, N., and Dashofy, E., 2010,

Software architecture: foundations, theory, and

practice. Wiley.

Van den Berghe, A., Scandariato, R., Yskout, K. et al.,

2017. Design notations for secure software: a

systematic literature review, Software & Systems

Modeling 16, 809–831.

Secure Software Architectural Patterns Designed with Secure Connectors

491
