Towards Security- and IIoT-Aware BPMN: A Systematic Literature

Review

Markus Hornsteiner, Christoph Stoiber and Stefan Sch

onig

University of Regensburg, Regensburg, Germany

Keywords:

Security, Industrial Internet of Things, BPMN.

Abstract:

The Industrial Internet of Things (IIoT) paradigm constitutes the connection of uniquely identiﬁable things to

the internet in an industrial context. Besides providing disruptive capabilities for companies, its connectivity

and heterogeneous setup makes it vulnerable to external attacks. To properly implement security by design in

the IIoT, the underlying business processes must be modelled both IIoT- and security-aware. Business Process

Modeling and Notation (BPMN) is a suitable language for this purpose. In order to present the current state

of research in this area, this study compares the requirements from practice and research on the basis of the

EU security standard IEC62443 and reviews the current state of research in security- and IIoT-aware BPMN

extensions. The ﬁndings contribute to the structured elaboration of this ambiguous research ﬁeld while also

elucidating the interplay of IIoT and security within BPMN. The derived research gaps constitute an agenda

for further research and may guide further research endeavours in enhancing security within the IIoT.

1 INTRODUCTION

The Industrial Internet of Things (IIoT) offers a broad

compendium of technologies from the Internet of

Things (IoT) to automate and intelligently network

production systems (Feki et al., 2013). This network-

ing is achieved by connecting industrial operational

technology (OT) with information technology (IT).

The resulting convergence leads to more efﬁcient sys-

tems and enables new solutions.

However, the convergence of IT and OT has a sig-

niﬁcant drawback: machines and plants become vul-

nerable to external attacks. In the context of digi-

tal production systems, it is essential to understand

that cyber security is a joint and overarching task of

both IT and OT areas. Therefore, security aspects

for IIoT environments require special attention, while

also new solutions for maintaining cyber security are

necessary (Tange et al., 2020).

For this reason, there are regulatory efforts to es-

tablish the implementation of security measures like

IEC62443 in the EU as a standard (Stanton et al.,

2016). According to the IEC62443 standard, respec-

tive organizations should follow a ”security by de-

sign” paradigm (International Electrotechnical Com-

mission, 2009). In this respect, to conduct meaningful

and sustainable security management, it is crucial to

know and deﬁne corporate assets that must be pro-

tected as well as operative processes and their infor-

mation needs. Based thereon, risks can be identiﬁed,

protective measures can be taken, and security inci-

dents can be monitored. Against this background, the

discipline of Business Process Management (BPM)

offers numerous established methods, concepts, and

technologies for the systematic modeling of opera-

tional IIoT processes that can also be exploited for

improving IIoT security (Mayer, 2012; Petrasch and

Hentschke, 2015; Graja et al., 2017; Dumas et al.,

2018; Stoiber and Sch

onig, 2021). While there is

already research on the integration of IoT and BPM

technology in general (Janisch et al., 2020; Sch

onig

et al., 2018; Sch

onig et al., 2020), we claim that

BPM methods represent an unexploited source for im-

proving cyber security in manufacturing companies

(Sch

onig et al., 2022).

A formally deﬁned process modeling notation,

like the de-facto standard Business Process Modeling

and Notation (BPMN) (OMG, 2011), is a fundamen-

tal means for implementing BPM-based security by

design approach. However, since IIoT security is not

yet supported, these notations must be designed or ex-

tended to represent security requirements and possi-

ble protective measures fully. While some notation

extensions already exist for security aspects in the

classical IT domain (Chergui and Benslimane, 2020;

Maines et al., 2016; Zarour et al., 2019), many nec-

Hornsteiner, M., Stoiber, C. and Schönig, S.

Towards Security- and IIoT-Aware BPMN: A Systematic Literature Review.

DOI: 10.5220/0011317700003280

In Proceedings of the 19th International Conference on Smart Business Technologies (ICSBT 2022), pages 45-56

ISBN: 978-989-758-587-6; ISSN: 2184-772X

essary language constructs for IIoT security are still

missing. Both concepts must be represented accord-

ingly to represent security and IIoT aspects in process

models.

This paper is a starting point to ﬁll the identiﬁed

research gap. In a ﬁrst step, we collect and consoli-

date security-aware IIoT modeling requirements from

the latest industry standards like IEC62443 (Interna-

tional Electrotechnical Commission, 2009) as well

as from related academic research endeavors (Tange

et al., 2020). Second, we conduct two Structured

Literature Reviews (SLR) where we explore the cur-

rent state of the art and coverage of the identiﬁed re-

quirements in respective BPMN extensions. The de-

rived research gaps constitute an agenda for further

research and may guide further endeavors in enhanc-

ing IIoT security utilizing BPM methods.

The remainder of this paper is organized as fol-

lows: in section 2 we discuss the theoretical back-

ground of our work and elaborate on related work.

Afterward, in section 3 we discuss our research

methodology and approaches. This is followed in sec-

tion 4 with the merging of security requirements from

science and industry and the description of our per-

formed SLRs. From this, we explain in section 5 the

ﬁndings of our research and potential future research.

Which we conclude in section 6.

2 THEORETICAL BACKGROUND

2.1 Security within the IIoT

The IIoT constitutes a new era in industrial produc-

tion since it marks the beginning of a fundamental

paradigm shift (ENISA, 2018). By utilizing IoT tech-

nologies, it is possible to network machines, peo-

ple, and whole factories. Thereby, new production

processes such as personalized products on an in-

dustrial scale and new business models, like data-

driven services, are possible (Stoiber and Sch

onig,

2022a; Stoiber and Sch

onig, 2022b). Whereas the

IIoT brings new opportunities, networking also has

its downsides. Through the networking of all indus-

trial components, there are new ways for attackers to

inﬁltrate, interrupt or maliciously modify processes

in production (ENISA, 2018). One unique aspect of

IIoT security, in contrast to IT security, is that it is

mainly concerned with the security of OT and in that

the availability (Tange et al., 2020). To ensure that, in

industrial standards like the IEC62443, the security

by design paradigm is required (International Elec-

trotechnical Commission, 2009). That means that the

security of processes and components must be en-

sured as early as in the design process. To consider

security in industrial processes, there is a need for an

inclusive modeling language that enables the model-

ing of security- and IIoT-aware processes.

2.2 Related Work

To the best of our knowledge, only two SLRs deal

with BPMN extensions. The ﬁrst one of Braun and

Esswein (Braun and Esswein, 2014) examined and

classiﬁed 30 existing BPMN extensions. Despite its

extensiveness, it constitutes a general review and does

not explicitly address the IIoT paradigm. Further-

more, it includes articles published before version 2.0

of BPMN and thus obsolete extensions. The second

article in this area was done by (Zarour et al., 2020),

which also deals with BPMN extensions in a gen-

eral manner. They included literature from the year

2014 and ongoing, the year of publication by Braun

and Esswein, and provide a comprehensive overview

of the published BPMN extensions. However, they

also provide a general overview without specializing

in speciﬁc sub-topics. As we explicitly focus on se-

curity and IIoT, the two existing SLRs do not cover

the required literature to unravel the phenomenon un-

der consideration. Hence, we take a deeper look into

the relevant BPMN extensions and provide a valuable

reprocessing and structuring of the existing ones.

3 RESEARCH METHODOLOGY

To explore the current state of security- and IIoT-

aware BPMN extensions, we conducted an extensive

SLR. Methodically, we relied on Okoli (Okoli, 2015)

who proposed an eight-step process to conduct liter-

ature reviews systematically. Following these steps,

we thereby performed a forward and backward ref-

erence search as suggested by Levy and Ellis (Levy

and J. Ellis, 2006). Thus, we present two SLRs in

this paper, performed according to the criteria just dis-

cussed. The ﬁrst one explored the current state of re-

search in security extensions for BPMN. The second

one focused on the current state of research in IIoT

extensions for BPMN. The presentation of the search

process and communication of the results has been

performed using the PRISMA statement (cf. Figure

1) (Page et al., 2021).

To include or exclude literature, Okoli (Okoli,

2015) recommended to deﬁne speciﬁc screens in ad-

vance. These support a goal-oriented inclusion or ex-

clusion of identiﬁed literature. Within the two con-

ducted SLRs we have deﬁned ﬁve screens:

Screen 1 - Duplicates. Articles that appeared more

ICSBT 2022 - 19th International Conference on Smart Business Technologies

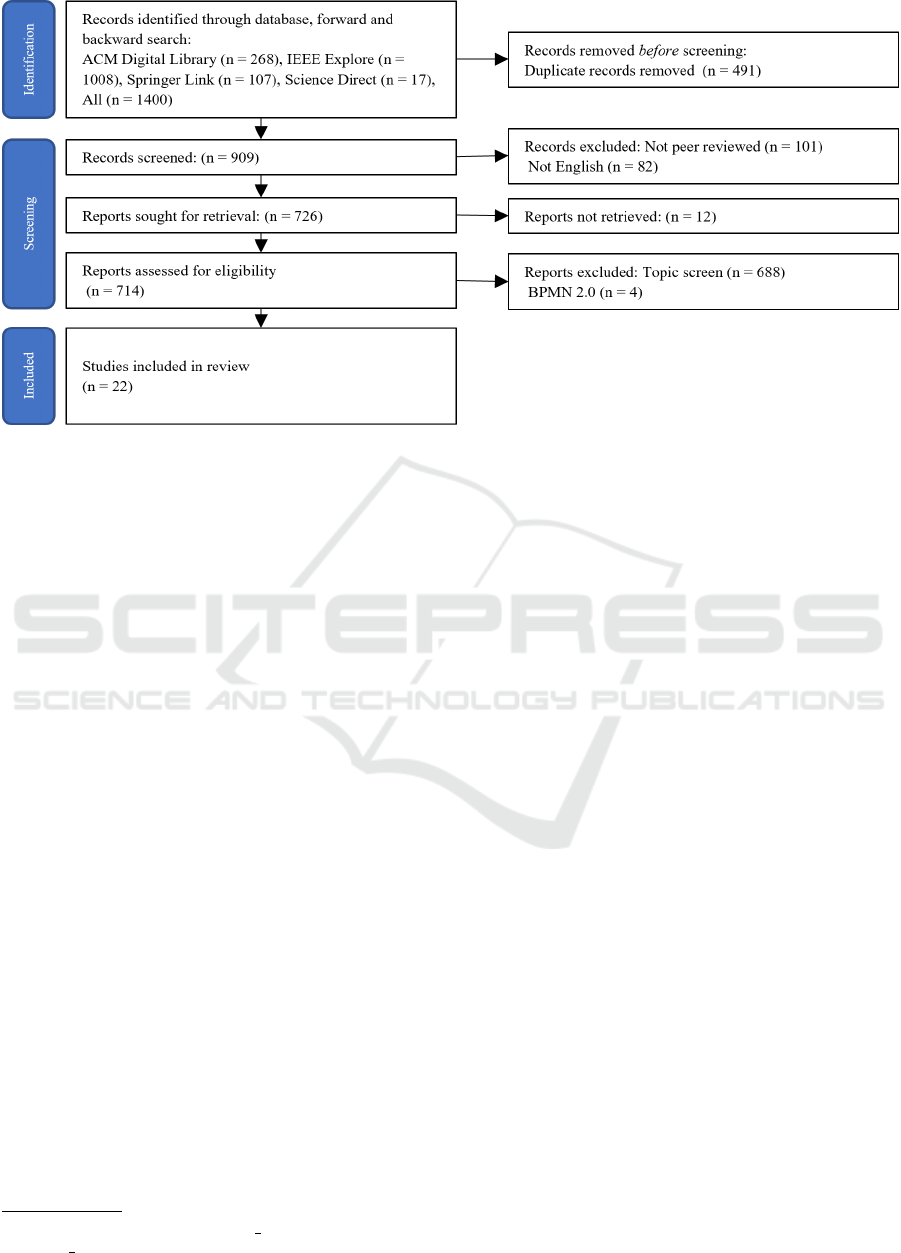

Figure 1: PRISMA ﬂow diagram.

than once were marked as duplicates and only pro-

cessed once. For this purpose, we used a self-

developed Python script

for the automated eval-

uation of duplicates. This script automatically

identiﬁed and marked duplicates.

Screen 2 - Journal or Conference Proceedings.

Only articles that have been published either in

a journal or in conference proceedings were eli-

gible for further analysis. This ensured that only

literature that has been recognized as relevant by

other researchers was listed in the ﬁnal set.

Screen 3 English & Access. Articles must have

been written in English. Furthermore, they

must have been accessible via established online

sources. If this was not the case, we contacted

the authors directly. If an article has not been

accessible, it was marked as not accessible.

Screen 4: Topic Screen. Screen 4 speciﬁed that the

literature ﬁtted the subject area. This means that

the article presented a BPMN extension to ei-

ther a) security or b) IIoT. For example, the term

CPS of our search string would have integrated

work on Clinical Pathways (Braun et al., 2016).

Though, as this research topic does not ﬁt the phe-

nomenon under consideration, screen 4 excluded

it.

Screen 5: BPMN 2.0. The last screen indicated

whether the literature introduced an extension

for BPMN 2.0. Hence, articles that presented

https://github.com/mahopy/slr utils/blob/main/src/

duplicate ﬁnder.py

extensions for earlier versions of BPMN were

excluded.

The queried databases of our SLR were i) ACM

Digital Library, ii) IEEE Xplore, iii) Springer Link,

and iv) Science Direct, as they are relevant databases

in the corresponding research area. Furthermore,

the performed forward, and backward searches also

allowed the consideration of articles from other

databases. To search for eligible literature, we de-

veloped two speciﬁc search strings: i) [BPMN OR

”business process*”] AND [secur*] AND [extension

OR annotation] ii) [BPMN OR ”business process*”]

AND [IIoT OR ”Industrial Internet of Things” OR

”Cyber Physical Systems” OR CPS OR ”Industrie

4.0”] AND [extension OR annotation]. The wild card

operator * has been used to allow a broader query

In total, we found 1400 articles in the initial, back-

ward, and forward searches. We excluded 491 du-

plicates and an additional 101 articles from this set

as they were not published in journals or conference

proceedings. Moreover, 82 articles were excluded be-

cause they were not written in English. Of the 726

remaining articles, 12 could not be accessed. As a re-

sult, 714 articles were assessed for eligibility. The full

text of the articles were analyzed in detail regarding

screens 4 and 5. After applying the screening rules,

22 articles remained and formed the ﬁnal set.

Towards Security- and IIoT-Aware BPMN: A Systematic Literature Review

4 LITERATURE ANALYSIS

4.1 Elicit the Security Concepts

To set up appropriate security requirements, we have

looked at the academic side on the one hand and the

industry side on the other. On the academic side, we

rely on the work of (Tange et al., 2020), which evalu-

ated a total of 218 papers on the topic of IIoT security

requirements. On the industry side, we rely on the

requirements of the IEC62443 standard, which estab-

lishes technical security requirements for components

of industrial automation systems (International Elec-

trotechnical Commission, 2009).

4.1.1 Academic Security Requirements for

BPMN

Authentication is deﬁned as the process of establish-

ing the identity of one party to another (Sandhu

and Samarati, 1996). When a user logs on to

a system, this can be done through knowledge,

e.g., passwords, or possessions, e.g., ﬁngerprints.

However, authentication can also happen between

systems and processes. In addition, authenti-

cation can always occur in both directions, i.e.,

both parties can identify each other. (Tange

et al., 2020) subsume under this term research

approaches to key distribution, mutual authenti-

cation, non-repudiation, anonymity and privacy,

and attestation. They emphasize the special con-

ditions in the IIoT context, such as particularly

lightweight protocols and the number of different

devices.

Access Control describes the permission that one

party gives to another to view or modify resources

and objects (Sandhu and Samarati, 1996). One

precondition is usually authentication. For the

IIoT, (Tange et al., 2020) highlights that also for

access control, the most signiﬁcant challenges lie

in the lightweight nature of the protocols and

methods and in availability. Especially in highly

distributed environments like the IIoT, connec-

tions may fail, and access rules are unavailable.

Maintainability describes an entity’s ability to be

maintained. It expresses how easily, accurately,

safely, and economically an entity can be main-

tained. (Blanchard et al., 1995) In the IIoT, main-

tainability is a mandatory requirement for sys-

tems, as they are exposed to ever new dangers

due to their increasing networking (Tange et al.,

2020). Again, the main challenges are the lim-

ited resources and the dynamic nature of the envi-

ronment, wherefore traditional maintenance solu-

tions reach their limits.

Resilience. Resilience in Business Information Sys-

tems describes the ability of systems to respond to

unexpected impairments and continue to function

uller et al., 2013). In this regard, unexpected

means that these impairments could not have been

planned for beforehand and thus represent an en-

tirely new challenge for the system or the orga-

nization. According to (Tange et al., 2020), re-

silience is also a core component of security in the

IIoT as, depending on the criticality of the system,

failure can have severe consequences. Thus, sys-

tems should function as planned, even if they are

partially compromised. To protect systems, de-

pending on the type of system, redundant design,

different systems, or hardening of systems can be

possible solutions for resilience.

Security Monitoring is deﬁned as a process in

which data is recorded on the one hand and an-

alyzed on the other to derive security-relevant

events, e.g., (Bishop, 1989). Security monitoring

is described by (Tange et al., 2020) who also iden-

tiﬁes security monitoring as an essential aspect of

the IIoT. Here, the focus is primarily on detection

in order to be able to derive responses. This secu-

rity requirement also stems from the fact that old,

less secure systems are often connected to the net-

work in the IIoT. These often have poor maintain-

ability, so monitoring is essential here.

Data security and Data Sharing (Tange et al.,

2020) summarize the aspects of data protection,

data ﬂow control, external parties, and data

transport under data security and data transfer.

This includes conﬁdentiality of data as well as

availability and integrity. In the industrial envi-

ronment, availability and integrity are favored

over conﬁdentiality. Again, the biggest challenge

in this area is the low resource availability, the

heterogeneity of the devices, and the prevalent

distribution. For example, classical cryptographic

methods cannot be used for security as they are

too computationally intensive.

Network Security is a broad ﬁeld and can be seen

as a subset of general computer security (Marin,

2005). It includes intrusion detection, trafﬁc anal-

ysis, and network monitoring. Since these aspects

are already present in the previous requirements,

the network security of (Tange et al., 2020) refers

to network infrastructure security. The biggest

challenges in this area come from the high num-

ber of devices, their distribution, and the low com-

puting power. At the same time, it must be en-

ICSBT 2022 - 19th International Conference on Smart Business Technologies

sured that the devices can also detect and control

disconnections, e.g., while at the same time min-

imizing the management overhead. An important

point that plays a more signiﬁcant role in the IIoT

is wireless communication security.

Models and Methodologies. In this subsection,

(Tange et al., 2020) discuss various models and

methodologies that are available in the existing

literature. These include the security by design

paradigm, which calls for security aspects to be

considered as early as the system design stage.

Furthermore, they deal with works that deal with

risk and threat assessment, especially concerning

the speciﬁc challenges of the IIoT.

4.1.2 IEC62443

The International Electrotechnical Commission (IEC)

is a non-proﬁt, non-governmental organization that

issues internationally recognized standards in elec-

trical engineering and electronics. It has developed

the 62443 series of standards to reﬂect the speciﬁc

requirements of IT security in industrial plants (In-

ternational Electrotechnical Commission, 2009). Al-

though the development of the standard is not yet

complete, its acceptance in the industry is growing

(Pierre Kobes, 2016). The standard consists of four

areas. The ﬁrst deals with general principles, the sec-

ond with organizational measures and processes, the

third with technical components, and the fourth with

requirements for manufacturers of components used

in automation solutions. One of the essential founda-

tions of the standard is the Defense-in-Depth strategy.

This is a strategy from the military context, which

states that individual measures alone cannot be suc-

cessful but that there must be several levels of pro-

tection. A potential attacker must always work his

way through several layers of defense to disrupt one

component. To achieve security in industrial facili-

ties, the standard establishes seven basic requirements

described in the following. The description of each

concept is based on Kobes (Pierre Kobes, 2016):

Identiﬁcation and authentication Control. All

users, whether human, software, or device, must

be identiﬁed and authenticated before gaining

access to a system.

Use Control. Once users have been successfully

identiﬁed and authenticated, their use must be

limited to the actions intended for them. This

means that they may only perform actions for

which they have been granted authorization. In

addition, depending on the implemented security

level, the use of the authorization should be mon-

itored.

System Integrity is the requirement that an indus-

trial system behaves as intended at all times and

that the data of the device cannot be changed un-

noticed. In addition, depending on the security

level, this also includes tracking and monitoring

the component.

Data Conﬁdentiality means that the data generated

by systems is protected from unauthorized access

and modiﬁcation during transmission and storage.

Restricted Data Flow refers to a fundamental re-

quirement of IEC62443 which states that network

parts should be isolated from each other. In partic-

ular, critical networks should be logically or phys-

ically divided into zones so that no communica-

tion can occur between them or only according to

predeﬁned rules.

Timely Response to Events describes that operators

should monitor their facilities to detect and re-

spond to safety incidents with predetermined pro-

cedures and guidelines established based on a risk

assessment. In other words, in the event of a de-

tected security incident, the procedure should al-

ready be straightforward in order to be able to re-

spond to it without delay.

Resource Availability describes that systems should

be resistant to failure due to attack or malfunc-

tion. In particular, critical systems do not fail in

their entirety even if sub-areas fail. Suitable mea-

sures should be in place to withstand and defend

against targeted attacks by outsiders, such as de-

nial of service attacks.

4.1.3 Merging the Requirements from Academic

and Industry

Having previously elaborated on the various aspects

of academics and industry, in the following, we make

a ﬁrst attempt to align them with each other and create

a shared understanding. For this purpose, we use the

basic requirements of Conﬁdentiality, Integrity, and

Availability and extend them by the points jointly re-

quired from academics and industry. Both sides de-

scribe in their requirement that users must be uniquely

authenticated and authorized to access data and sys-

tems. To this end, they describe advanced models

such as two-factor authentication, central user man-

agement, and the like. We subsume these require-

ments under the security basis requirement Conﬁden-

tiality, which describes that resources must be pro-

tected from unauthorized viewing and access. Fur-

ther, both sides describe that data and assets must be

protected from changes being made to them by unau-

thorized people, processes, or devices. We subsume

these requirements under the essential requirement

Towards Security- and IIoT-Aware BPMN: A Systematic Literature Review

integrity, which deﬁnes precisely these requirements.

Both sides describe that processes and components of

systems must be protected against failure. For exam-

ple, IEC62443 explicitly speciﬁes that DDoS attacks

must not lead to failure. In addition to this, the com-

munication networks and data must also be designed

to be fail-safe, according to the requirements. We sub-

sume these requirements under the basic requirement

availability. Another requirement, which can be de-

rived from the requirements of academics and indus-

try, is maintainability. This describes that compo-

nents and software must offer the possibility of be-

ing updated. It has been shown that outdated systems

for which updates are no longer available are particu-

larly susceptible to attacks, especially if they are ac-

cessible from the Internet, as in IIoT. The academic

side explicitly identiﬁes monitoring as one of the se-

curity requirements, while IEC62443 only speciﬁes

fast response to events as a requirement. However,

monitoring is necessary for a fast response, and the

IEC standard speciﬁes components such as ’testable

events and their recording’ in the sub-requirements.

Thus, monitoring is also an explicit fundamental com-

ponent of the IEC, so we identify it as a different se-

curity requirement. Both sides describe that in devel-

oping systems architecture and implementing security

guidelines, one should rely on proven methodologies

and procedures. In addition, procedures should be de-

ﬁned from the outset in the event of an incident to en-

sure the fastest possible action. Both sides cite secu-

rity by design, for example, as an essential fundamen-

tal principle. In order to be able to map these criteria,

we propose the requirement Models and Methodolo-

gies, which on the one hand, means the use of recog-

nized principles and, on the other hand, the prepara-

tion of procedure plans for the mitigation of incidents.

4.2 Security Related BPMN Extensions

The following chapter presents the publications we

found in the SLR with associated publications. For

this purpose, all publications and associated publica-

tions are listed with an ID in table 1. The ID is used in

table 2 to uniquely assign the papers that integrate a

particular element. The Associated Publications col-

umn in table 1 contains papers that have done pre-

liminary work on the papers listed in the Publication

column. These are also found to be relevant in the

SLR, but they contain only abbreviated content that is

also contained in the papers in Publication. Finally,

in the Name of the Extension column, we provide the

name of the extension if the authors mention one.

In table 2 all security aspects are entered, which

are handled by the papers considered relevant. This

table has been shortened for clarity, and only elements

addressed in more than one paper have been included.

The complete table can be obtained from the authors

upon request or from Github

. In table 2, the ID is en-

tered in the ﬁrst row, which refers to the ID in table 1.

Subsequently, the various security aspects covered in

the papers are listed in table 2. If an article contains a

speciﬁc aspect, it is marked with a 3in the table. If an

article does not contain an aspect, it is marked with a

7. The last row of the table shows the number of pa-

pers that contain a certain aspect. This shows that 11

of the 12 papers deal with the aspects Conﬁdentiality

and Integrity. 8 of the 12 papers deal with Integrity

or Authentication. All other aspects are covered in 5

or fewer papers. In the following, we discuss the use

cases of the individual works. In doing so, we refer-

ence them with the ID presented in table 1. The use

case and corresponding specialization of 2, 4, and 8

are related to the healthcare sector. One deals with a

use case from a generic internet store. The specializa-

tion of 1’s work is that they model vulnerabilities and

mitigation in addition to security requirements. Work

3,7,9 and 11 deals with use cases from business ad-

ministration. Work 5 deals with outsourcing business

processes to the cloud and the associated security re-

quirements. Only work 6 refers to a use case from

the manufacturing domain. Here they use the Soft-

ware Quality Requirements Engineering (Mead and

Stehney, 2005) and the Software Requirements Engi-

neering Process (Mellado et al., 2007) to develop a

security requirements engineering framework. Over-

all, however, it can be seen here that none of the works

explicitly deals with the IIoT or integrates aspects of

it. Furthermore, all the work only considers business

processes, and none of the papers considers the pro-

cesses from the IIoT device point of view.

4.3 IoT Related BPMN Extensions

For projects that extend BPMN with IIoT elements,

we found a total of 10, as shown in table 3. Here, the

names of the independent research projects are listed

in the table’s ﬁrst column. The second column lists

the associated publication. In the third column, re-

lated publications are listed. We deﬁne related publi-

cations as follows: Related works by the same author

deal with the same topic and differ only slightly, for

example, by individual added sections. For example,

both (Graja et al., 2016) and (Graja et al., 2017) were

present in our result set. Where (Graja et al., 2016) is

the original paper, and (Graja et al., 2017) extends it

with temporal properties. For IoT-A, both papers ap-

https://github.com/mahopy/IIoTSecBPMN/blob/

master/security extensions.csv

ICSBT 2022 - 19th International Conference on Smart Business Technologies

Table 1: Included publications of SLR with associated publications.

Publication Associated Publications Name of the Extension

1 (Altuhhova et al., 2013)

2 (Chergui and Benslimane, 2020) (Chergui and Benslimane, 2018)

3 (Argyropoulos et al., 2017)

4 (Sang and Zhou, 2015)

5 (Zarour et al., 2019) BPMON

6 (Zareen et al., 2020)

7 (Turki et al., 2012)

8 (Ramadan et al., 2018) (Salnitri et al., 2017; Salnitri

et al., 2016)

SecBPMN2

9 (Brucker, 2013) (Brucker and Hang, 2012) SecureBPMN

10 (Maines et al., 2016)

11 (M

ulle et al., 2011b) (M

ulle et al., 2011a)

12 (Pullonen et al., 2019) PE-BPMN

Table 2: Overview of the covered security aspects.

Conﬁdentiality

Integrity

Availability

Attack / harm detection and prevention

Accountability

Auditability

Non-Repudiation

Authorization

Authentication

Secure Channel

Encrypted Message

Access Control

Separation / Binding of Duty

Anonymity

Privacy

Delegation

3 3 3 7 7 7 7 7 7 7 7 7 7 7 7 7

3 3 3 3 7 3 3 3 3 7 7 7 7 7 7 7

3 3 3 7 7 7 7 3 3 3 7 7 7 7 7 7

3 3 3 3 7 7 3 3 3 3 3 3 7 7 7 7

3 3 3 7 7 7 3 7 3 7 7 7 7 7 7 7

3 3 3 7 3 7 7 7 7 7 7 7 7 7 7 7

3 3 7 7 7 7 3 7 3 7 7 7 3 7 3 7

3 3 3 7 3 3 3 7 3 7 7 7 3 3 3 7

3 7 7 7 7 7 7 7 7 7 7 3 3 7 7 3

7 3 3 3 3 7 7 7 7 7 7 3 7 7 3 7

3 3 7 7 7 3 7 3 3 7 7 7 3 7 7 3

3 3 7 7 7 7 7 7 3 3 3 7 7 3 3 7

∑

11 11 8 3 3 3 5 4 8 3 2 3 4 2 4 2

pearing in our result set are in the Publication column

since they belong to the same research project but

present separate concepts. The article (Meyer et al.,

2013) presents how IoT Devices can be integrated into

BPMN models and (Meyer et al., 2015) presents how

”things” can be represented.

Table 4 shows the extensions presented by each

article. This is an abbreviated representation of the ta-

ble, listing only the elements proposed by more than

one paper. For example, (Graja et al., 2017) presents

an extension that includes temporal properties such as

start and end times. However, since it is the only pub-

lication that considers these aspects, it is not shown in

this overview. An unabridged table can be requested

Towards Security- and IIoT-Aware BPMN: A Systematic Literature Review

Table 3: Included publications of SLR with associated publications.

Name of the extension Publication associated publications

BPMN4CPS (Graja et al., 2017) (Graja et al., 2016)

I4PML (Petrasch and Hentschke, 2016) (Petrasch and Hentschke, 2015)

IoT-A (Meyer et al., 2013) (Meyer et al.,

2015)

(Mayer, 2012)

BPMN4WSN (Sungur et al., 2013)

PyBPMN (Bocciarelli et al., 2017) (Bocciarelli and D’Ambrogio,

2011) (Bocciarelli et al.,

2014)(Bocciarelli et al., 2016)

IOBP 4.0 (Ribeiro et al., 2021)

uBPMN (Yousﬁ et al., 2016)

Cheng et al. (Cheng et al., 2019)

Chiu et al. (Chiu and Wang, 2015)

Table 4: Overview of the covered IoT aspects.

Extension

Actuator

Sensor

Cloud Services

Physical Entity

Mobility aspect

Real Data Store

Real Data Object

IoT Device

BPMN4CPS

3 3 3 3 3 7 7 7

I4PML

3 3 3 7 3 3 3 3

IoT-A

3 3 7 3 3 3 3 3

BPMN4WSN

3 3 7 7 7 7 7 3

PyBPMN

3 3 7 7 7 7 7 7

IOBP 4.0

3 3 7 7 7 7 7 7

uBPMN

7 3 7 7 7 7 3 7

Cheng et al.

7 3 7 7 7 7 7 7

Chiu et al.

3 3 7 7 7 7 7 7

from the authors or can be found at Github

The table again shows the individual publications

line by line. In the ﬁrst column is the name, followed

by if an extension deals with an IoT aspect. If the as-

pect is present in the paper, this is marked with an 3at

the respective position in the table. If the paper does

not cover the aspect, this is marked with a 7. Here, all

but two, uBPMN and Cheng et al. incorporate the ac-

tuator. All works integrate the sensor as an IoT aspect.

The Cloud Services aspect is included by only two

publications, BPMN4CPS and I4PML. Physical En-

tities represent real-world objects, which deliver in-

formation to the digital world, is included by two pa-

pers, BPMN4CPS and IoT-A. BPMN4CPS, I4PML,

and IoT-A represent the mobility aspect, while I4PML

has taken the aspect from IoT-A. The Real Data Store

for storing real-world data recorded by sensors is rep-

https://github.com/mahopy/IIoTSecBPMN/blob/

master/iiot extensions.csv

resented by I4PML and IoT-A, where I4PML refer-

ences IoT-A. The Real Data Object as a representation

of data from the real world, digitized by sensors, is

modeled by I4PML, IoT-A, and uBPMN. I4PML also

references IoT-A as the source here. The IoT Device

as a representation of an IoT Device with capabilities

such as Actuating or Sensing and as an interface of

the real to the digital world is represented by I4PML,

IoT-A, and BPMN4WSN. Here, too, I4PML refers to

IoT-A.

5 FINDINGS AND RESEARCH

OPPORTUNITIES

Having conducted two SLRs, we identiﬁed two ma-

jor research gaps that should be tackled by future re-

search. Currently, there is a gap in the research on in-

clusive consideration of security and IIoT in BPMN.

ICSBT 2022 - 19th International Conference on Smart Business Technologies

This means that currently, there are only extensions

that allow the modeling of either security or IIoT as-

pects. As a result, modeling of security and IIoT has

no interconnections and is done individually by the

corresponding experts in both areas. Joint modeling

is not possible. While it has already been shown that

the integration of different business units by a com-

mon modeling language can help to bridge the com-

munication gap (Zor et al., 2011; Meyer et al., 2013;

Cheng et al., 2019). For example, (Zor et al., 2011)

states that by extending BPMN to represent tasks at

the manufacturing operations level, the communica-

tion gap between management, where BPMN is al-

ready standard, and the shop ﬂoor can be closed. They

see this as an advantage for companies since the two

levels can then exchange information using a com-

mon language, while, e.g., business analysts have the

opportunity to understand and optimize processes on

the shop ﬂoor. In addition, the authors see an advan-

tage in the fact that business analysts have a common

language with engineers and can therefore communi-

cate more effectively with them. This should lead to

better performance for companies. We also see these

beneﬁts of a common modeling language for security

and IIoT experts, as they can use it to optimize pro-

cesses in the IIoT together in a secure manner. To the

best of our knowledge, this approach is only present

in (Ribeiro et al., 2021) since they have additionally

integrated the security elements of private and shared

data and regularities in their IoT extension.

We see another research gap beside the inclusive

representation of security and IIoT in BPMN. Prior

security-aware BPMN extensions are, in some cases,

already based on existing security methods and preva-

lent best practices. However, the requirements from

practice, especially from IEC62443, have not been

included so far. For example, (Chergui and Bensli-

mane, 2020) and (Maines et al., 2016) use the on-

tology of (Maines et al., 2015) to build their exten-

sion on it. However, the problem is that the ontol-

ogy was created based on published BPMN exten-

sions and, thus, only covers the already known aspects

from academics. (Altuhhova et al., 2013) build their

extensions based on the work of (Dubois et al., 2010;

Mayer, 2009), which covers a wide range of security

requirements. Yet, there is no explicit view of the re-

quired aspects on the industry side. (Brucker, 2013)

base their work on the Reference Model of Informa-

tion Assurance and Security (RMIAS), which covers

eight essential security goals based on research on in-

formation security and information assurance. This

is an extension of the CIA baseline requirements and

covers a broad area but does not explicitly target the

requirements of IIoT. Overall, however, the perspec-

tive from practice, particularly IEC62443, is missing,

and thus aspects such as maintainability or monitor-

ing are missing in the extensions as security require-

ments.

6 CONCLUSION AND

IMPLICATIONS

This study provides an overview of the current state

of research in the area of security- and IIoT-aware

extensions for BPMN. By conducting two extensive

SLRs, based on (Okoli, 2015), a comprehensive anal-

ysis of past research and existing research gaps could

be performed. As part of the SLRs, we examined

1400 sources, of which 22 were then identiﬁed as rel-

evant to our research. Twelve of them are for security-

aware BPMN and 10 for IoT-aware BPMN. The core

theoretical implications of our study are twofold as

they structure and elaborate existing knowledge on

security- and IIoT-aware BPMN and lay the founda-

tion for further theorizing and research endeavors. In

this regard, especially two ﬁndings should be high-

lighted. On the one hand, existing security-aware

BPMN extensions do not yet consider the require-

ments of IEC62443, which is an important security

standard in the industrial environment. On the other

hand, no extension enables the joint modeling of secu-

rity and IIoT with the help of BPMN. Consequently,

two potential research areas in this area are compar-

ing security requirements from academics and indus-

try and developing an extension for BPMN that en-

ables security and IIoT aware modeling. The results

of this study may lay the foundation for further re-

search on secure IIoT, while the identiﬁed research

gaps should be starting points.

ACKNOWLEDGEMENTS

This work is funded by the “Bavarian Ministry of

Economic Affairs, Regional Development and En-

ergy” within the project INduStrial IoT Security Op-

erations CenTer (INSIST).

REFERENCES

Altuhhova, O., Matulevi

cius, R., and Ahmed, N. (2013). An

extension of business process model and notation for

security risk management. IJISMD, 4(4):93–113.

Argyropoulos, N., Mouratidis, H., and Fish, A. (2017).

Attribute-Based Security Veriﬁcation of Business Pro-

Towards Security- and IIoT-Aware BPMN: A Systematic Literature Review

cess Models. In Conf. Business Informatics (CBI),

volume 01, pages 43–52.

Bishop, M. (1989). Model of security monitoring. In AC-

SAC, pages 46–52. IEEE Comput. Soc. Press.

Blanchard, B. S., Verma, D. C., and Peterson, E. L. (1995).

Maintainability: A Key to Effective Serviceability and

Maintenance Management. John Wiley & Sons.

Bocciarelli, P. and D’Ambrogio, A. (2011). A BPMN Ex-

tension for Modeling Non Functional Properties of

Business Processes. In Symposium on Theory of Mod-

eling & Simulation, page 160–168.

Bocciarelli, P., D’Ambrogio, A., Giglio, A., and Paglia, E.

(2014). Simulation-based performance and reliability

analysis of business processes. In Proc. Winter Simu-

lation Conference, pages 3012–3023. IEEE.

Bocciarelli, P., D’Ambrogio, A., Giglio, A., and Paglia,

E. (2016). A BPMN extension to enable the explicit

modeling of task resources. In CEUR Workshop Pro-

ceedings, volume 1728, pages 40–47.

Bocciarelli, P., D’Ambrogio, A., Giglio, A., and Paglia,

E. (2017). A BPMN extension for modeling Cyber-

Physical-Production-Systems in the context of Indus-

try 4.0. In Int. Conf. on Networking, Sensing and Con-

trol (ICNSC), pages 599–604.

Braun, R. and Esswein, W. (2014). Classiﬁcation of

domain-speciﬁc BPMN extensions. In Frank, U.,

Loucopoulos, P., Pastor, O., and Petrounias, I., edi-

tors, The Practice of Enterprise Modeling - 7th IFIP

WG 8.1 Working Conference, PoEM 2014, Manch-

ester, UK, November 12-13, 2014. Proceedings, vol-

ume 197 of Lecture Notes in Business Information

Processing, pages 42–57. Springer.

Braun, R., Schlieter, H., Burwitz, M., and Esswein, W.

(2016). BPMN4CP Revised – Extending BPMN for

Multi-perspective Modeling of Clinical Pathways. In

HICSS, pages 3249–3258.

Brucker, A. D. (2013). Integrating Security Aspects into

Business Process Models. it – Information Technol-

ogy, 55(6):239–246.

Brucker, A. D. and Hang, I. (2012). Secure and Compli-

ant Implementation of Business Process-Driven Sys-

tems. In Rosa, M. L. and Soffer, P., editors, Business

Process Management Workshops - {BPM} 2012 In-

ternational Workshops, Tallinn, Estonia, September 3,

2012. Revised Papers, volume 132 of Lecture Notes

in Business Information Processing, pages 662–674.

Springer.

Cheng, Y., Zhao, S., Cheng, B., Chen, X., and Chen, J.

(2019). Modeling and Deploying IoT-Aware Business

Process Applications in Sensor Networks. Sensors,

19(1).

Chergui, M. E. A. and Benslimane, S. M. (2018). A

Valid BPMN Extension for Supporting Security Re-

quirements Based on Cyber Security Ontology. In

Model and Data Engineering, pages 219–232, Cham.

Springer.

Chergui, M. E. A. and Benslimane, S. M. (2020). Towards

a BPMN Security Extension for the Visualization of

Cyber Security Requirements. IJTD, 11(2):1–17.

Chiu, H.-H. and Wang, M.-S. (2015). Extending Event

Elements of Business Process Model for Internet of

Things. In ICCIT; UBICC; DASC; PICom, pages

783–788. IEEE.

Dubois,

E., Heymans, P., Mayer, N., and Matulevi

cius, R.

(2010). A Systematic Approach to Deﬁne the Do-

main of Information System Security Risk Manage-

ment, pages 289–306. Springer.

Dumas, M., La Rosa, M., Mendling, J., and Reijers, H.

(2018). Fundamentals of business process manage-

ment. Springer.

ENISA (2018). Good Practices for Security of Internet of

Things in the context of Smart Manufacturing. Euro-

pean Union Agency for Cybersecurity.

Feki, M. A., Kawsar, F., Boussard, M., and Trappeniers, L.

(2013). The Internet of Things: The Next Technolog-

ical Revolution. Computer, 46(2).

Graja, I., Kallel, S., Guermouche, N., and Kacem, A. H.

(2016). BPMN4CPS: A BPMN extension for mod-

eling cyber-physical systems. In Proceedings - 25th

IEEE Int. Conf. Enabling Technologies: Infrastruc-

ture for Collaborative Enterprises, WETICE 2016,

pages 152–157. IEEE.

Graja, I., Kallel, S., Guermouche, N., and Kacem, A. H.

(2017). Modeling and veriﬁcation of temporal proper-

ties in cyber-physical systems. In CCNC, pages 325–

330. IEEE.

International Electrotechnical Commission (2009). IEC

62443.

Janisch, C., Koschmider, A., et al. (2020). The internet-

of-things meets business process management. a man-

ifesto. IEEE Systems, Man, and Cybernetics Maga-

zine, 6(4):345–44.

Levy, Y. and J. Ellis, T. (2006). A Systems Approach to

Conduct an Effective Literature Review in Support of

Information Systems Research. InformingSciJ, 9.

Maines, C. L., Llewellyn-Jones, D., Tang, S., and Zhou, B.

(2015). A cyber security ontology for BPMN-security

extensions. In ICCIT, pages 1756–1763.

Maines, C. L., Zhou, B., Tang, S., and Shi, Q. (2016).

Adding a Third Dimension to BPMN as a Means of

Representing Cyber Security Requirements. In DeSE,

pages 105–110.

Marin, G. A. (2005). Network security basics.

Mayer, N. (2009). Model-based Management of Informa-

tion System Security Risk. PhD thesis, Universit

e de

Namur, Belgium.

Mayer, S. (2012). Internet of Things Architecture IoT-A

Project Deliverable D2.2 – Concepts for Modelling

IoT-Aware Processes. IoT-A Project.

Mead, N. R. and Stehney, T. (2005). Security quality

requirements engineering (SQUARE) methodology.

ACM SIGSOFT Software Engineering Notes, 30(4).

Mellado, D., Fern

andez-Medina, E., and Piattini, M.

(2007). A common criteria based security require-

ments engineering process for the development of se-

cure information systems. Computer Standards and

Interfaces, 29(2).

Meyer, S., Ruppen, A., and Hilty, L. (2015). The things of

the internet of things in BPMN. In Lecture Notes in

ICSBT 2022 - 19th International Conference on Smart Business Technologies

Business Information Processing, volume 215, pages

285–297. Springer.

Meyer, S., Ruppen, A., and Magerkurth, C. (2013). Internet

of things-aware process modeling: Integrating IoT de-

vices as business process resources. In Lecture Notes

in Computer Science, volume 7908 LNCS, pages 84–

98. Springer.

ulle, J., Stackelberg, S. v., and B

ohm, K. (2011a). A Secu-

rity Language for BPMN Process Models. Technical

Report 9, KIT.

ulle, J., von Stackelberg, S., and B

ohm, K. (2011b).

Modelling and transforming security constraints in

privacy-aware business processes. In SOCA, pages 1–

uller, G., Koslowski, T. G., and Accorsi, R. (2013). Re-

silience - A new research ﬁeld in business information

systems? In Lecture Notes in Business Information

Processing, volume 160, pages 3–14. Springer.

Okoli, C. (2015). A Guide to Conducting a Standalone Sys-

tematic Literature Review. Communications of the As-

sociation for Information Systems, 37(1):43.

OMG (2011). Business Process Model and Notation

(BPMN), Version 2.0.

Page, M. J., McKenzie, J. E., Bossuyt, P. M., Boutron,

I., Hoffmann, T. C., Mulrow, C. D., Shamseer, L.,

Tetzlaff, J. M., Akl, E. A., Brennan, S. E., Chou,

R., Glanville, J., Grimshaw, J. M., Hr

objartsson, A.,

Lalu, M. M., Li, T., Loder, E. W., Mayo-Wilson, E.,

McDonald, S., McGuinness, L. A., Stewart, L. A.,

Thomas, J., Tricco, A. C., Welch, V. A., Whiting, P.,

and Moher, D. (2021). The prisma 2020 statement:

an updated guideline for reporting systematic reviews.

BMJ, 372.

Petrasch, R. and Hentschke, R. (2015). Towards an Internet-

of-Things-aware Process Modeling Method An Ex-

ample for a House Suveillance System Process Model.

In MITiCON), pages 168–172.

Petrasch, R. and Hentschke, R. (2016). Process modeling

for industry 4.0 applications: Towards an industry 4.0

process modeling language and method. In JCSSE,

pages 1–5. IEEE.

Pierre Kobes (2016). Leitfaden Industrial Security

IEC62443 einfach erkl

art. VDE Verlag, Berlin.

Pullonen, P., Tom, J., Matulevi

cius, R., and Toots, A.

(2019). Privacy-enhanced BPMN: enabling data pri-

vacy analysis in business processes models. Software

and Systems Modeling, 18(6):3235–3264.

Ramadan, Q., Str

uber, D., Salnitri, M., Riediger, V., and

urjens, J. (2018). Detecting Conﬂicts Between Data-

Minimization and Security Requirements in Business

Process Models. In Pierantonio, A. and Trujillo,

S., editors, Modelling Foundations and Applications,

pages 179–198, Cham. Springer International Pub-

lishing.

Ribeiro, V., Barata, J., and Rupino Da Cunha, P. (2021). A

BPMN Extension to Model Inter-Organizational Pro-

cesses in Industry 4.0. In ISD.

Salnitri, M., Dalpiaz, F., and Giorgini, P. (2017). Designing

secure business processes with SecBPMN. Software

& Systems Modeling, 16(3):737–757.

Salnitri, M., Paja, E., and Giorgini, P. (2016). Main-

taining Secure Business Processes in Light of Socio-

Technical Systems’ Evolution. In REW, pages 155–

164. IEEE.

Sandhu, R. and Samarati, P. (1996). Authentication, access

control, and audit. ACM Computing Surveys (CSUR),

28(1):241–243.

Sang, K. S. and Zhou, B. (2015). BPMN Security Ex-

tensions for Healthcare Process. In ICCIT; UBICC;

DASC; PICom, pages 2340–2345.

Sch

onig, S., Ackermann, L., Jablonski, S., and Ermer, A.

(2020). Iot meets BPM: a bidirectional communi-

cation architecture for iot-aware process execution.

Softw. Syst. Model., 19(6):1443–1459.

Sch

onig, S., Aires, A. P., Ermer, A., and Jablonski, S.

(2018). Workﬂow support in wearable production in-

formation systems. In Information Systems in the Big

Data Era, volume 317, pages 235–243.

Sch

onig, S., Hornsteiner, M., and Stoiber, C. (2022).

Towards process-oriented iiot security management:

Perspectives and challenges. In Enterprise, Business-

Process and Information Systems Modeling.

Stanton, B., Theofanos, M. F., Prettyman, S. S., and Fur-

man, S. (2016). Security Fatigue. IT Professional,

18(5):26–32.

Stoiber, C. and Sch

onig, S. (2021). Process-aware decision

support model for integrating internet of things appli-

cations using AHP. In Proceedings of the 23rd Inter-

national Conference on Enterprise Information Sys-

tems, ICEIS, pages 869–876.

Stoiber, C. and Sch

onig, S. (2022a). Digital transformation

and improvement of business processes with internet

of things: A maturity model for assessing readiness.

In 55th Hawaii International Conference on System

Sciences, HICSS.

Stoiber, C. and Sch

onig, S. (2022b). Patterns for iot-based

business process improvements: Developing a meta-

model. In Proceedings of the 24th International Con-

ference on Enterprise Information Systems, ICEIS,

pages 655–666.

Sungur, C. T., Spiess, P., Oertel, N., and Kopp, O. (2013).

Extending BPMN for Wireless Sensor Networks. In

2013 IEEE 15th Conf. Business Informatics, pages

109–116.

Tange, K., De Donno, M., Fafoutis, X., and Dragoni, N.

(2020). A Systematic Survey of Industrial Inter-

net of Things Security: Requirements and Fog Com-

puting Opportunities. IEEE Commun. Surv. Tutor.,

22(4):2489–2520.

Turki, S. H., Bellaaj, F., Charﬁ, A., and Bouaziz, R.

(2012). Modeling Security Requirements in Service

Based Business Processes. In Enterprise, Business-

Process and Information Systems Modeling, pages

76–90, Berlin, Heidelberg. Springer Berlin Heidel-

berg.

Yousﬁ, A., Bauer, C., Saidi, R., and Dey, A. K. (2016).

uBPMN: A BPMN extension for modeling ubiquitous

business processes. Inf. Softw. Technol., 74:55–68.

Zareen, S., Akram, A., and Ahmad Khan, S. (2020).

Security Requirements Engineering Framework with

Towards Security- and IIoT-Aware BPMN: A Systematic Literature Review

BPMN 2.0.2 Extension Model for Development of In-

formation Systems. Applied Sciences, 10(14).

Zarour, K., Benmerzoug, D., Guermouche, N., and Drira,

K. (2019). A BPMN Extension for Business Process

Outsourcing to the Cloud. In New Knowledge in In-

formation Systems and Technologies, pages 833–843.

Zarour, K., Benmerzoug, D., Guermouche, N., and Drira,

K. (2020). A systematic literature review on BPMN

extensions. Bus. Process. Manag. J., 26(6):1473–

1503.

Zor, S., Schumm, D., and Leymann, F. (2011). A Proposal

of BPMN Extensions for the Manufacturing Domain.

ICMS 2011, pages 1–6.

ICSBT 2022 - 19th International Conference on Smart Business Technologies
