Spline Modeling and Level of Detail for Audio

Matt Klassen

DigiPen Institute of Technology, Willows Road, Redmond, WA, U.S.A.

Keywords:

Spline, Audio, Signal, Interpolation, Cycle, Level, Detail.

Abstract:

In this paper we propose spline models of audio as the ﬁrst step toward a hierarchical system of level of

detail (LOD) for audio rendering. We describe methods such as cycle interpolation which can produce spline

models and approximations of audio data. These models can be used to render output in realtime, but can

also be mixed prior to rendering. Examples of audio data simpliﬁed to spline models with cycle interpolation

can reduce the data to less than 2% of the full resolution data size, with only minor impact to audio quality.

We present a sequence of such examples with instrument models. We also introduce the idea of pre-rendered

ﬁltering and mixing, based on the B-spline coefﬁcients of the models.

1 INTRODUCTION

Level of Detail (LOD) for graphics has played an im-

portant role in realtime rendering for the past forty

years, beginning with ﬂight simulators in the 1980’s

and culminating in the realtime video game engines of

today (see (Luebke, 2003) section 1.2 History). LOD

can be thought of as a collection of cost-saving meth-

ods, in both memory and computation, based on a

hierarchical approach. A naive example carries the

main idea: A car is in moving in the distance on a

video screen. The viewer cannot perceive any sig-

niﬁcant detail, and neither would they in the real life

experience that the scene is imitating. It is sufﬁ-

cient to represent the car with a very simple low poly-

gon model. This saves in not having to load a com-

plex model into memory, and not having to render

the many vertices and textures of a complex model

through the graphics pipeline. We will refer to this

type of model as a low resolution model. There are

many more aspects to consider, but ﬁrst consider the

analogous question for audio: If the car is also mak-

ing some engine sounds, what is the equivalent low

resolution audio model of this sound?

In order to make the question a bit more precise

we ask: What should a low resolution audio model

consist of, and what should be required of a low res-

olution model? First, it should consist of model data

which has a smaller footprint than the ﬁnal full res-

olution audio stream. Second, an approximation of

the full resolution version should be computable lo-

cally from the model data. Third, this approximation

should be usable as a distant sound, much in the same

way that the low polygon object is usable visually.

Fourth, a low resolution audio model should be mix-

able with other sounds at the same level of detail using

the model data prior to rendering.

It is also important to note what we do not mean

by a low resolution model. First, we do not mean a

compressed audio format. Typical compression al-

gorithms do a marvelous job of conserving storage

space, but in order to use a compressed ﬁle it must ﬁrst

be decompressed. This means that we cannot com-

pute output values locally from the model data, nor

can we mix audio ﬁles in compressed format. By low

resolution model we also do not mean a purely com-

putational model, or what is often called a physical

model. In the best cases, such models may be the ul-

timate replacement for static audio ﬁles, but they can

also take considerable effort to build, maintain and

use, and are in a different class by themselves.

We propose that spline models of audio signals

can satisfy the basic requirements for low resolution

audio models and become the ﬁrst step in hierarchical

level of detail for audio. The basic models and cycle

interpolation are introduced in (Klassen, 2022). In

this paper we introduce a more ﬂexible variant of the

basic model, the delta model, which adapts better to

cycle interpolation and in some cases solves the shape

discontinuity problem from (Klassen, 2022). We also

discuss methods for rendering, mixing, and error cal-

culations.

Since LOD is well established for graphics, we

also continue the analogy between graphics and au-

Klassen, M.

Spline Modeling and Level of Detail for Audio.

DOI: 10.5220/0011321500003289

In Proceedings of the 19th International Conference on Signal Processing and Multimedia Applications (SIGMAP 2022), pages 94-101

ISBN: 978-989-758-591-3; ISSN: 2184-9471

dio. For instance, a high resolution graphics model

may have many vertices, and one way to simplify such

models is to remove vertices but still preserve some

of the geometry. In the case of audio, we can think

of the cycle as playing the role of a vertex. An inter-

esting audio signal, such as a single note played on a

piano or guitar, has many cycles evolving over time

at some approximate fundamental frequency f

. It is

possible with spline modeling and cycle interpolation

to remove many cycles but replace them with interpo-

lated versions when rendering, thus arriving at lower

resolution models.

What problem does LOD for audio solve? In mod-

ern realtime multimedia applications, such as video

games and virtual reality, the demands on computa-

tion and memory continue to rise rapidly. This can

also be compounded by the number of simultaneous

sound sources being used. A common solution is to

use submixes, so that the number of voices (or audio

streams) in play at any time can be limited by group-

ing together voices which share common character-

istics. Higher priority voices, such as those in the

foreground and which are critical to a given scene,

are given more attention. For instance, it may be

that a single key character emits sounds of different

types, say vocalizations, weapon sounds, footsteps,

each with its own audio stream. Each of these sounds

may also have effects ranging from simple ﬁlters to

HRTF for spatial localization. The cost of such high

priority detail must be offset by the savings in treating

low priority sounds more economically. If many low

priority sounds are dynamically being grouped into a

particular submix, say a distant group of characters

or objects, it may be signiﬁcant to work with lower

resolution sounds which can also be mixed prior to

rendering.

2 SPLINE MODELS

The basic spline model is discussed in (Klassen,

2022), which we summarize here. The main enhance-

ment to this model, which we introduce in this pa-

per, is that we allow cycles to be deﬁned without

the requirement that they begin and end with zero-

crossings. We refer to this modiﬁed model as the delta

model, since it amounts to introducing a small vertical

shift to the ends of each cycle. This shift is inserted in

the form of a cubic polynomial which can be thought

of as replacing the time axis over the interval of one

cycle. This delta model arose initially to solve the

“shape discontinuity” problem described in (Klassen,

2022).

As a basic class of sounds or signals, we use in-

strument samples with known fundamental frequency.

This allows us to work with the notion of a cycle, or

period, as a basic signal block. Although this is not

well-deﬁned, given that the length and shape of cycle

can both vary with time, it is often how sound presents

itself, and is quite compelling. (We also note that

these methods can be adapted to work with arbitrary

ﬁxed size audio blocks, but that the methods of cy-

cle interpolation are more clearly demonstrated when

there is an approximate notion of cycle available.) For

example, if we consider a simple recorded sound such

as a single note played on a piano or a guitar, the sig-

nal can be partitioned approximately into cycles based

on zero-crossings. This approach is central to the ba-

sic model in (Klassen, 2022). In the basic model, once

the cycles are determined by the sequence of zeros

, i = 0, ..., p, we do a cubic B-spline ﬁt to the au-

dio sample data. We assume the audio sample data is

given as a piecewise linear function of time t, mean-

ing that we can choose to interpolate between samples

linearly for the purpose of deﬁning zero-crossings. To

specify the spline function, say f (t), we work with

a uniform sequence of k subintervals on the interval

[0,1], and the vector space of C

cubic polynomial

splines with dimension n = k + 3. To specify a basis,

we use the knot sequence:

t = {t

,... ,t

} = {0,0,0,0,

,... ,

k − 1

,1,1,1, 1}.

Writing the B-spline basis functions associated to t as

(t),B

(t),.. . ,B

n−1

(t)

we note that B

(0) = 1 and B

n−1

(1) = 1, and all the

other basis splines vanish at both 0 and 1. So we

set c

= c

n−1

= 0 and solve for the other n − 2 co-

efﬁcients for each cycle. In order to approximate the

audio data in one cycle, we ﬁnd an interpolating cu-

bic spline which matches the (piecewise linear) audio

data function x(t) at n − 2 = k + 1 speciﬁed points. A

simple choice of such points is to use k−1 subinterval

endpoints and then add two more points at the middle

of the ﬁrst and last subintervals.

In Figure 1 is a portion of the graph of an au-

dio sample, cycles 10 through 15 of a guitar pluck

at approximately 450 Hz, with spline model in blue.

Here we are using the default d = 3, interpolating cu-

bic spline on each cycle, with k = 15 subintervals

hence dimension n = 18. This signal is recorded

at 44100 samples per second, so there are around

98 = 44100/450 samples per cycle. The actual num-

ber of samples per cycle is listed at the bottom of each

shaded cycle. Since we are using only 18 data points

to deﬁne the interpolating spline, the match to the au-

dio graph is clearly not exact. For this audio sample,

if we use k = 30 and n = 33, the spline graph is difﬁ-

cult to distinguish from the original.

Spline Modeling and Level of Detail for Audio

Figure 1: Spline model of guitar pluck.

Next, we add the changes for the delta model,

the values y

and y

. It is important to note that to

solve for the spline function f in the delta model, we

use as interpolation targets the difference x(t) − p(t),

with p(t) = y

+ δq(t), where q(t) = 3t

− 2t

, and

δ = y

− y

. We summarize the data per cycle, before

explaining how the choice of y

and y

can be made

in constructing the delta model.

Data per cycle for the delta model:

• degree d = 3

• number of subintervals k

• subinterval sequence: [u

i+1

] = [

i+1

i = 0, ..., k − 1

• endpoint values y

and y

• cubic polynomial p(t) = y

+ δq(t), δ = y

− y

• knot sequence: t = {t

,... ,t

}

= {0,0,0,0,

,... ,

k−1

,1,1,1, 1}

• dimension of the vector space V of B-spline

functions: n = k + 3 = N − 3

• B-spline basis functions: B

(t),.. . ,B

n−1

(t)

• interpolating spline with c

= c

n−1

= 0:

f (t) = c

(t) + · ·· + c

n−2

(t)

• input values: s

= 0,s

, s

= u

i−1

i = 2, ..., n − 2, s

n−2

= 1 −

n−1

= 1

• target values: x(s

) − p(s

), x(s

) − p(s

),...,

x(s

n−1

) − p(s

n−1

)

Now we can deﬁne the delta model to be the se-

quence of cycle endpoints (formerly zero-crossings)

, j = 0, . ..,N, with the accompanying y-values y

x(z

), and the sequence of spline functions f

(t) on

the intervals [z

j+1

]. We also refer to each of these

splines and their associated data as one “cycle” C

, so

that the delta model is the sequence of cycles C

for

j = 0,..., N − 1. Further, let the B-spline coefﬁcients

for cycle C

be c

, i = 0, . ..,n − 1. For the purpose

of analysis we keep the B-spline coefﬁcients separate

from the values of the cubic polynomial p(t), but for

rendering purposes these can be easily combined into

one set of B-spline coefﬁcients by way of the polar

form for q(t). In particular, the B-spline coefﬁcients

for q(t) are computed from its polar form

F[x, y,z] = xy + xz + yz − 2xyz

and knot sequence t as

= F[t

i+1

i+2

i+3

], i = 0, ..., n − 1.

Next we describe how the determination of cycle

endpoints z

and values y

can be made through an

optimization process. The goal is to choose endpoints

for a cycle based on similarity to the previous cycle

shape. In particular, suppose that an initial cycle or

sequence of cycles is chosen based on zero-crossings.

Then we would like to choose cycles going forward

in such a way as to maintain the shape of the curve

from cycle to cycle. This can be achieved through

the measurement of error between successive cycles.

For example, we will deﬁne a weighted error on the

choice of right endpoint of C

to be computed as fol-

lows: First, project the right endpoint for cycle j in

the usual way as in the basic model, by simply let-

ting z

j+1

= z

+ P

where P

is the period length pre-

dicted by the fundamental frequency f

. Next, deﬁne

a spline function f

(t) for C

by using the B-spline co-

efﬁcients from cycle j − 1 with the endpoints of cycle

SIGMAP 2022 - 19th International Conference on Signal Processing and Multimedia Applications

j. Since we work on [0,1], this means to use the y-

values from the endpoints of C

determined from the

signal values there: y

= x(z

) and y

= x(z

j+1

). Next,

compute sample output values on C

with this spline

model f

, and compare to the actual audio sample

data. Call the mean-square difference in these sample

values E

. Then do the same for the derivative f

(t)

and an approximate or discrete derivative for x(t) and

call the mean-square difference in these values E

Deﬁne the error for the choice of z

j+1

= z

+ P

(0) = α

+ α

for some choice of weights α

+ α

= 1. In practice

we have found that the values α

= 0 and α

= 1 al-

ready work quite well in order to solve the shape dis-

continuity problem. Next, we choose a small value

ε > 0 and compute the same error but now for choices

j+1

= z

±rε, for integers r < L, for some bound

L. For these integers r deﬁne

(r) = α

(r) + α

(r).

Finally, choose the value of r that minimizes E

(r)

and set the cycle C

using this z

j+1

One interesting observation with this error mini-

mization is that the cycles in a model can drift. By

this we mean that the error tolerance allows for the

endpoints to shift gradually to the right of the per-

ceived cycle shape when viewed over many cycles.

This can be resolved by putting another term in the

error which is a penalty for increasing value y

, for

instance α

to obtain:

(r) = α

(r) + α

(r).

This approach tends to maintain cycle shape more

consistently, allowing for effective cycle interpola-

tion, especially in the case of shape discontinuities

induced by cycles deﬁned using zero-crossings.

We refer here to the reference example in

(Klassen, 2022) and the shape discontinuity which oc-

curs at cycle number 181. If we use the delta model

as described above, with bound L = 10 samples, and

k = m = 20, the cycle interpolation works well and

the model uses about 1.5% of the full resolution data.

3 INSTRUMENT MODELS

We describe here a sequence of instrument models

for a one second audio sample with fundamental fre-

quency f

somewhere in the octave starting at mid-

dle C, or 261.6 Hz. These models are computed with

our Audio Spline Modeling software written in C++

with JUCE. Each instrument model is computed from

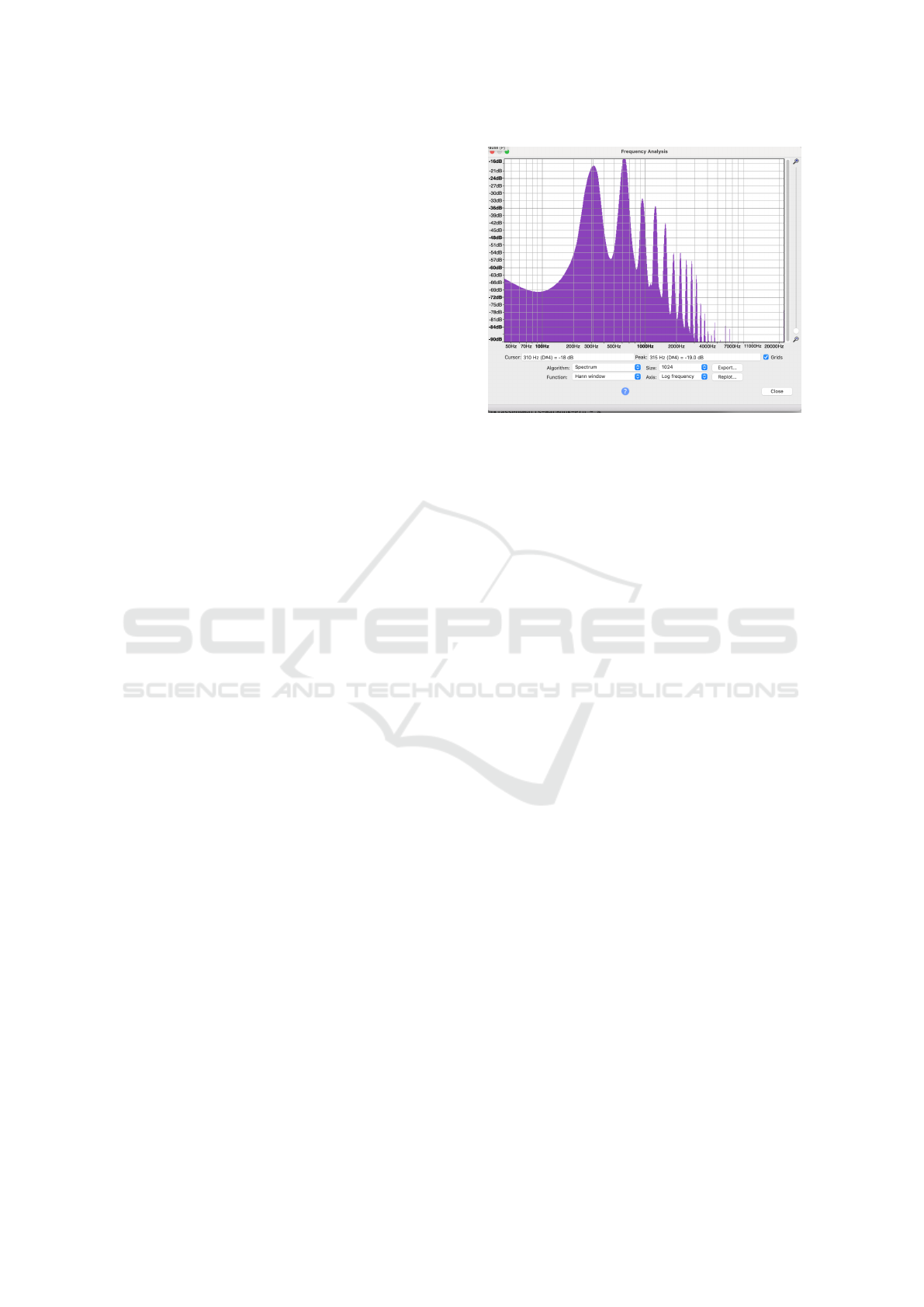

Figure 2: Spectrum of french horn sample.

a short audio sample, with bit depth 16 and sample

rate 44100 Hz, of at least one second in length. The

ﬁrst step is to compute the delta model with frequency

guess f

and k = 30 subintervals. The dimension

of the resulting vector space of cubic splines is then

n = k + 3 = 33. We choose to use the following key

cycle indices, biased towards the attack phase at the

start of the sample:

0,5,10,15, 20, 25,30,40,50, 60, 70,80,

100,120,150,180, 220, f

With these 18 key cycles we use cycle interpolation

(with linear meta-splines) to construct the intermedi-

ate cycles. Additionally we use a linear ramp down

over the last 2/3 of one second. In these models the

data stored, as B-spline coefﬁcients, for the 18 key cy-

cles is 18 · 33 = 594 values. As a percent of the total

number of values at full resolution, this is 594/44100

or about 1.35%.

To see how closely these models can match the

original waveforms, we illustrate this process with a

french horn sample with f

= 315 (E[ above middle

C). In Figures 2 and 3 are graphs of the spectrum

for the french horn sample (with ramp down applied,

for consistency) and the model as described above,

graphed with Audacity software. The FFT size used

is 1024 samples, and the Hann window is used to im-

prove frequency resolution.

In Table 1 we give the magnitude of the ﬁrst ten

harmonic frequencies in decibels. These values are

obtained from the spectrum plots and are indicated

in dB, with 0 as full scale or maximum possible sig-

nal value. Note that the harmonic frequencies, which

are maximum points on the spectrum graphs, are not

strictly harmonic partials since they are not integer

multiples of the fundamental f

We compute two quantities to summarize this ta-

ble: First, the average ∆(dB)

avg

of the absolute differ-

Spline Modeling and Level of Detail for Audio

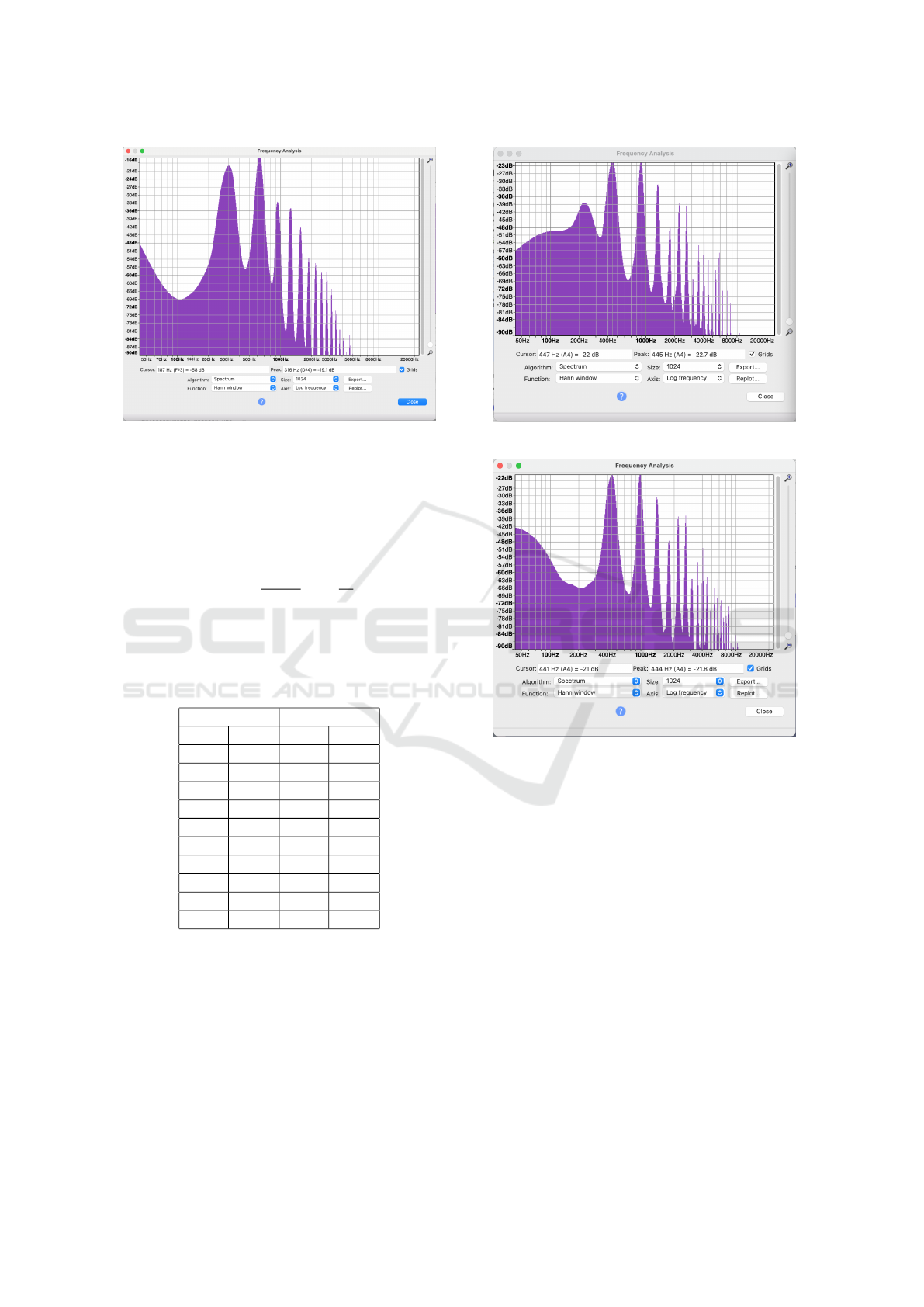

Figure 3: Spectrum of french horn model.

ence in the decibel values at each of the frequencies,

and second, the average ¢

avg

of the absolute cent val-

ues for the frequency ratio of the original and model

harmonic frequencies. Note, the cent value measure-

ment of the interval between two frequencies is de-

ﬁned as:

¢(F

) =

1200

log(2)

log





For this french horn model we ﬁnd that

∆(dB)

avg

= 0.98 and ¢

avg

= 4.51.

Table 1: French horn harmonic amplitudes.

original model

Hz dB Hz dB

315 -19.0 315 -19.1

624 -14.5 624 -14.5

935 -32.2 939 -32.8

1253 -35.2 1259 -34.9

1563 -41.9 1566 -42.1

1873 -53.9 1875 -53.0

2181 -53.6 2192 -55.9

2494 -56.7 2508 -58.9

2811 -57.2 2816 -58.0

3121 -62.7 3126 -65.1

Next we present the same for a guitar pluck sam-

ple and model. The guitar pluck has fundamental

frequency approximately 445 Hz and is recorded at

sample rate 44100 Hz. Note the prominent subhar-

monic in the sample spectrum, at around 220 Hz. This

can already be seen in the pattern of cycles in Fig-

ure 1 where cycles 10 and 11 together form a cycle

which appears to be repeated in cycles 12 and 13. In

fact, we can model this waveform by selecting the fre-

quency guess 220, which restores the subharmonic in

Figure 4: Spectrum of guitar pluck sample.

Figure 5: Spectrum of guitar pluck model.

the model. In that case, as pointed out in (Klassen,

2022), there will be a new subharmonic at around 110

Hz. It is expected that a model which uses cycle in-

terpolation will not preserve submarmonics below the

fundamental frequency, since any oscillatory pattern

between two key cycles, say 100 and 120, will be lost

in the smooth interpolation as cycle 100 evolves into

cycle 120. However, it is shown in (Klassen, 2022)

that the subharmonic with 110 Hz can be simulated

by an alternating pattern of parabolas.

For this guitar pluck model we ﬁnd that

∆(dB)

avg

= 1.12 and ¢

avg

= 5.41.

Finally, we give one more example for a ﬂute sam-

ple and model in Table 3, and we collect the average

errors for comparison in Table 4.

SIGMAP 2022 - 19th International Conference on Signal Processing and Multimedia Applications

Table 2: Guitar pluck harmonic amplitudes.

original model

Hz dB Hz dB

445 -22.7 444 -21.8

883 -21.4 882 -21.3

1328 -31.5 1321 -30.8

1774 -47.7 1764 -47.4

2213 -38.5 2207 -38

2654 -38.2 2648 -37.8

3084 -66.6 3083 -61.8

3548 -54.9 3535 -55.2

3988 -47.1 3978 -48.3

4439 -58.6 4415 -60.6

Table 3: Flute harmonic amplitudes.

original model

Hz dB Hz dB

448 -11.4 447 -11.5

892 -27.8 889 -28.0

1343 -33.0 1344 -33.0

1786 -31.7 1783 -31.8

2227 -47.9 2225 -49.6

2679 -51.4 2675 -51.9

3123 -66.8 3118 -67.1

3560 -72.1 3560 -71.6

4016 -76.7 4010 -77.3

4445 -80.4 4456 -74.9

4 MODEL SIMPLIFICATION

In LOD for graphics there are many ways to do Mesh

Simpliﬁcation (see chapter 2 of (Luebke, 2003)). For

audio, model simpliﬁcation, or data reduction, can be

achieved in at least two different ways: 1) cycle in-

terpolation (compared to vertex removal), and 2) In-

terpolation point removal, which is a ﬁner version of

1). The primary motivation for interpolation point re-

moval within one cycle is the existence of portions of

the cycle which have very small deviation in curva-

ture. The lower such deviation is, the more suitable

it can be to represent such a portion with one cubic

curve, meaning that it is possible to consider remov-

ing many interior knots on the interval deﬁning that

portion of the cycle. Adaptive algorithms for reﬁn-

ing knot sequences of splines have been used in (Park

and Lee, 2007) for B-spline curves in graphics. Sim-

ilar algorithms can be used for the B-spline functions

representing one audio cycle. This can lead to large

savings in amount of data in the model, but at the cost

of regularity.

Table 4: Model average errors for three instruments.

instrument ∆(dB)

avg

french horn 0.98 5.06

guitar 1.12 5.41

ﬂute 0.95 2.77

5 ERROR MEASUREMENTS

When comparing lower resolution models to full res-

olution, whether for graphics or audio, the goal is to

achieve reasonable quality appropriate to the place-

ment of, or role played by, the rendered version in the

ﬁnal scene, or mix. We have indicated how error func-

tions can be useful in computing the cycle endpoints

in the delta model. This achieves some accuracy when

removing cycles with cycle interpolation, since the er-

ror minimization is designed to give minimal changes

to B-spline coefﬁcients from one cycle to the next.

Another approach is make global error measure-

ments for the rendered approximation from the model

in the frequency domain. One such error is the

relative amplitude spectral error used by Horner in

(Horner, 2013) to compare spectral qualities of musi-

cal sounds to resynthesized versions of those sounds

using FM and wavetable synthesis. It is useful to

assume an approximate fundamental frequency f

and to compute time-varying j

harmonic amplitudes

(t) of the full resolution sound, and b

(t) of the low

resolution sound, for various t. Suppose that these

time values are τ

and that the number of audio frames

(or samples) is N

, and the number of harmonic am-

plitudes to compute is N

. Then the error is deﬁned

as:

ε =

∑

i=1

∑

j=1

(τ

) − b

(τ

))

∑

j=1

(τ

)

1/2

6 PRE-RENDERED FILTERING

First we make a few observations on the knot se-

quence we are using for basis B-splines on each cycle.

Since we use 4 equal knots at the beginning and end,

and otherwise regularly spaced knots, then all cubic

B-splines deﬁned by sequences of 5 consecutive knots

are translates of the same C

basis spline, except for

the ﬁrst three B

(t), B

(t), and B

(t), and the last

three B

n−3

(t), B

n−2

(t), and B

n−1

(t). This leads to

some simple observations regarding delaying and ﬁl-

tering of B-spline coefﬁcients. Some of these ﬁltering

methods also coincide with the methods of cellular

automata applied to B-spline coefﬁcients of cycles, as

Spline Modeling and Level of Detail for Audio

in (Klassen and Lanthier, 2022).

For example, suppose that there are ρ samples per

subinterval, so ρ samples in any interval of length L

between knot values, and suppose t is in the inter-

val [t

J+1

). Then to compute the spline value f (t),

by the de Boor algorithm, we use only the coefﬁ-

cients c

J−3

, c

J−2

, c

J−1

and c

. Similarly, to compute

f (t − L) we use the coefﬁcients c

J−4

, c

J−3

, c

J−2

and

J−1

. So if we apply a delay operator to these coefﬁ-

cients, shifting by one index left, then we are comput-

ing values of f by a delay of 5 samples. This is true

as long as the B-splines used to compute values in the

interval [t

J−1

) are exact shifts of those in [t

J+1

which holds if 3 ≤ J < n − 3, or equivalently that the

value t is at least 3/k distance from the cycle end-

points. So the delay by one B-spline coefﬁcient can

be locally viewed as a delay by ρ samples, within one

cycle, with the added restriction that we stay away

from the endpoints.

Now suppose that we apply the ﬁlter equation to

B-spline coefﬁcients, with inputs c

+ c

i−1

and outputs c

. This looks like a low-pass ﬁlter, but

when the result is used to compute samples, it has the

effect

+ x

t−ρ

)

which is an inverse comb ﬁlter, but applied only to the

middle portion of cycles.

7 PRE-RENDERED MIXING

Since B-spline models contain data which can be used

to render the model to samples, locally in time, one

can ask if it is possible mix these models prior to ren-

dering. Since the goal of LOD is often efﬁciency, the

idea of mixing prior to rendering could be an advan-

tage. For example, if there are many voices which

need to be dynamically mixed at a low level of de-

tail, it will take much more memory and computa-

tion to render each voice and add the samples, than it

will to merge the data for each model and then ren-

der one voice, the mix. Under certain circumstances

it is straight-forward to do this type of pre-rendered

mixing. For example, if two cycles are deﬁned for

the same time interval, say [a,b], and have the same k

value and B-spline basis, then mixing these two sig-

nals can be accomplished by simply averaging the two

sets of B-spline coefﬁcients, since the result is no dif-

ferent from rendering the ﬁnal set of rendered samples

and averaging those.

For example, we can easily mix the models of the

instrument samples described in section 3. To mix

two models the process is simply to average the B-

spline coefﬁcients for each of the corresponding pairs

of key cycles. This can be extended to mix any num-

ber of models by using a weighted sum of B-spline

coefﬁcients in key cycles. This works well, for exam-

ple, to create a chromatic scale which begins with one

instrument sound and ends with another, with twelve

steps of linear interpolation, computed as a weighted

mix before each semitone. Examples of the resulting

audio ﬁles for these instrument models and mixes can

be found here: http://azrael.digipen.edu/research/.

8 RENDERING PIPELINE

Audio rendering for realtime multimedia applica-

tions, such as video games, can be summarized in the

following steps:

• audio ﬁles are read from disk, decompressed, and

loaded into memory

• audio streams are grouped and mixed into a lim-

ited number of voices

• effects (reverb, low-pass, spatialization) are added

to voices

• ﬁnal mix is rendered to stereo output

There are of course many more details, but some

of the main challenges can be seen in this summary.

In the documentation for one of the most prominent

commercial game engines, the Unreal Engine of Epic

Software we ﬁnd the following relevant statement

(see (EpicSoftware, 2021)):

“The primary cost for an audio engine is decoding

and rendering sound sources, so one of the primary

tools for reducing CPU cost is limiting the number of

sounds that can play at the same time.”

The proposed LOD for audio suggests that these

limits on numbers of sound sources could be in-

creased by the savings in decoding and mixing at

lower resolution.

The rendering pipeline for the B-spline model is

very simple. First the model is stored with minimal

data consisting of key cycles and missing or interpo-

lated cycles as endpoint data only. If cycle interpola-

tion is to be computed with degree greater than one,

say cubic metasplines, then such metaspline coefﬁ-

cients also need to be stored in the model as meta-

data. The default case of linear interpolation for non-

key cycles is otherwise assumed. In the case of adap-

tively deﬁned segments, it can be that fundamental

SIGMAP 2022 - 19th International Conference on Signal Processing and Multimedia Applications

100

frequency is changing, and even that there are se-

quences of key cycles of varying lengths where no

particular fundamental frequency is deﬁned.

Prior to rendering, the model might be mixed with

another model as described above, by simply averag-

ing B-spline coefﬁcients, for instance. Next, a cir-

cular or ring buffer can be used as an intermediary

between the generation of samples from the B-spline

coefﬁcients and the audio callback running on the sys-

tem. This is especially useful in decoupling these

two buffers, since it is convenient to render the sam-

ples from B-spline coefﬁcients in blocks of one cycle,

which may be quite different from the standard block

size for the audio callback. This process, ﬁlling the

circular buffer, uses the de Boor algorithm, so each

sample is generated from four B-spline coefﬁcients

(assuming d = 3) with nested linear interpolation.

9 CONCLUSIONS AND FUTURE

WORK

In this paper we have made a case for LOD for au-

dio, particularly we have given some examples of low

resolution models for short audio samples, as a ﬁrst

step. Future work should extend to other types of au-

dio samples, such as those without a clear fundamen-

tal frequency, by modifying the delta model to allow

for varying cycle lengths and shapes. Further work

should include adaptive methods for model simpliﬁ-

cation based on reduction of numbers of interpoation

points per cycle and reduction of numbers of key cy-

cles. Additionally, it would be useful to have psy-

choacoustic studies which test the use of lower reso-

lution audio models in the presence of multiple audio

sources at different amplitudes. Finally, the manage-

ment of LOD for audio in software should be tested

in a multimedia context, with at least two levels of de-

tail, to measure the cost savings in the audio rendering

pipeline.

REFERENCES

de Boor, C. (1980). A Practical Guide to Splines, revised

edition. Springer Verlag, New York, 2nd edition.

EpicSoftware (2021). An overview of features in the un-

real audio engine: Global polyphony management and

prioritization. https://docs.unrealengine.com/5.0/en-

US/audio-engine-overview-in-unreal-engine/.

Horner, A. (2013). A comparison of wavetable and FM data

reduction methods for resynthesis of musical sounds.

In Beauchamp, J., editor, Analysis, Synthesis, and Per-

ception of Musical Sounds, pages 228–249. Springer,

New York.

Klassen, M. (2022). Spline modeling of audio signals

and cycle interpolation. In Proceedings of MCM

2022, Mathematics and Computation in Music, LNCS

13267, New York. Springer.

Klassen, M. and Lanthier, P. (2022). Design of timbre with

cellular automata and b-spline interpolation. In Pro-

ceedings of the Sound and Music Computing Confer-

ence, SMC 2022. Sound and Music Computing.

Luebke, D. (2003). Level of Detail for 3D Graphics. Mor-

gan Kaufmann, Elsevier.

Park, H. and Lee, J.-H. (2007). B-spline curve ﬁtting based

on adaptive curve reﬁnement using dominant points.

Computer-Aided Design, 39:439–451.

10 APPENDIX

Here we summarize some facts about B-splines.

The B-spline functions can be deﬁned with di-

vided differences as:

(t) = α(d, i)[t

i+1

,... ,t

i+d+1

](t − x)

with constant α(d, i) deﬁned as

α(d, i) = (−1)

d+1

i+d+1

−t

or using the (de Boor-Cox) recursion formula as

(t) =

t −t

i+d

−t

d−1

(t) +

i+d+1

−t

i+d+1

−t

i+1

d−1

i+1

(t)

with base case:

(t) = 1, t

≤ t < t

i+1

, 0, elsewhere .

We compute values of the B-spline functions, or

of the interpolating spline f , with nested linear inter-

polation, known as the de Boor algorithm:

First, set c

= c

for i = 0, ...,n − 1. Next for

t ∈ [0,1] choose J so that t ∈ [t

J+1

). Then for

p = 1, 2,3, for i = J − 3 + p,. . .,J, set:

t −t

i+3−(p−1)

−t

p−1

i+3−(p−1)

−t

i+3−(p−1)

−t

p−1

i−1

Finally, the output is f (t) = c

. Also note: to solve

for the coefﬁcients

, i = 0, ..., n − 1,

we set up the interpolation problem as a linear sys-

tem by requiring that f (t) agrees with the audio

ouput data x(t) (for the basic model) or x(t) − p(t)

for the delta model at each of the n input values.

Since the input values are evenly distributed, we

are guaranteed a unique solution, according to the

Schoenberg-Whitney Theorem on B-spline interpola-

tion (see (de Boor, 1980) chapter XIII, page 171).

Spline Modeling and Level of Detail for Audio

101
