Real-time Crowd Counting based on Wearable Ephemeral IDs

Daniel Morales

, Isaac Agudo

and Javier Lopez

Network, Information and Computer Security Lab, Department of Computer Science,

ITIS Software, Universidad de M

alaga, M

alaga, Spain

Keywords:

Pandemics, Crowd Counting, Bloom Filter, Privacy, SMPC, Ephemeral ID.

Abstract:

Crowd Counting is a very interesting problem aiming at counting people typically based on density averages

and/or aerial images. This is very useful to prevent crowd crushes, especially on urban environments with

high crowd density, or to count people in public demonstrations. In addition, in the last years, it has become

of paramount importance for pandemic management. For those reasons, giving users automatic mechanisms

to anticipate high risk situations is essential. In this work, we analyze ID-based Crowd Counting, and propose

a real-time Crowd Counting system based on the Ephemeral ID broadcast by contact tracing applications on

wearable devices. We also performed some simulations that show the accuracy of our system in different

situations.

1 INTRODUCTION

Crowd Density Estimation or Crowd Counting has al-

ways been a challenging task for historians. With the

widespread growth of the urban scenario, new prob-

lems have emerged, with many implications on social,

politics or economics areas. A clear example where

Crowd Counting has had a lot of relevance is the es-

timation of participants in demonstrations. The esti-

mated value in this type of events can involve changes

on perception and alignment of people with respect

to politic groups or social movements, so an accu-

rate tool to achieve a real count can help to avoid

manipulation and wrong perception (Janofsky, 1995).

Other paradigm where Crowd Counting is present is

urban management. When many people share urban

resources, conﬂicts and accidents can emerge easily.

If urban services like police, ﬁremen or health entities

have tools to anticipate to crowded events (rush hours,

festivals. . . ) they can handle unexpected events be-

tter and make more organized and efﬁcient protocols

for intervention. This paradigm has evolved to the

next level on recent years, where the rise of the smart

city paradigm has established new use cases for ur-

ban management services, where a massive number of

devices is expected to be interconnected and interact

with each other in an intelligent and automated way,

processing data and statistics to make decisions and

https://orcid.org/0000-0002-6932-7437

https://orcid.org/0000-0002-2911-2300

https://orcid.org/0000-0001-8066-9991

providing services (Santana et al., 2020). However,

another interesting, critical and novel scenario where

Crowd Counting is an essential tool is pandemic man-

agement. Different pandemics have arisen along the

human history and they have been faced in different

ways. In this era, with the growth of the world’s pop-

ulation and urban environments, having automated

tools for both preventive and reactive decisions is fun-

damental. A clear example has been COVID-19, the

disease generated by the virus SARS-CoV-2, which

has been damaging the whole world since its origin

in 2019. Many people have died, and keeping track

of the virus spread has not been an easy task. For

that reason, new tools that help avoiding the risk of

crowd places and those tracking the spreading after

positive tests have been developed in the last years,

mostly based on CO

sensors (Mumtaz et al., 2021)

and smartphones (Troncoso et al., 2020).

In this work, we take advantage of Ephemeral

Pseudo-Random IDs in an innovative way, using them

to estimate crowd density in real time with an efﬁ-

cient and privacy friendly approach. Our solution can

work both indoor and outdoors, in contrast with tradi-

tional approaches that are mainly based on indoor or

short area environments, without any additional de-

vice apart from the citizens’ smartphones.

The key contributions of this work can be summa-

rized as follows:

1. We propose a generic architecture to perform

Crowd Counting based on Ephemeral ID ex-

change which works on the application layer.

Morales, D., Agudo, I. and Lopez, J.

Real-time Crowd Counting based on Wearable Ephemeral IDs.

DOI: 10.5220/0011327200003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 249-260

ISBN: 978-989-758-590-6; ISSN: 2184-7711

249

2. We deﬁne different scenarios where our solution

ﬁts, propose an implementation for a P2P envi-

ronment, and formalize the main parameters that

model the system behavior.

3. We simulate the proposed solution using synthetic

mobility traces and analyze the impact of the pa-

rameters on the accuracy.

4. We analyze the security and privacy aspects of the

proposed solution.

The rest of the paper is organized as follows.

Section 2 summarizes some traditional techniques to

achieve Crowd Counting. In Section 3 we brieﬂy in-

troduce the building blocks upon our proposal is built.

Section 4 describes the general architecture to achieve

Crowd Counting based on Ephemeral IDs and differ-

entiates two application scenarios. Section 5 proposes

a speciﬁc design for the P2P scenario, with imple-

mentation details and privacy protection based on a

trusted proxy. In Section 6, we introduce a tiny pro-

totype and describe some results obtained by simula-

tion. Then, Section 7 proposes a modiﬁcation to avoid

a trusted proxy using SMPC. Finally, Section 8 sum-

marizes some conclusions and future work.

2 RELATED WORK

Crowd Counting techniques have been tradition-

ally approached from computer vision technologies,

where images are processed to estimate the number

of people in a scene.

A typical classiﬁcation of techniques is made on

three primary categories: (1) Detection-based ap-

proaches, (2) Regression-based approaches and (3)

Convolutional Neural Networks (CNN)-based ap-

proaches. In the ﬁrst category, the idea is to ex-

tract different features from images to detect complete

or partial human bodies for counting (Felzenszwalb

et al., 2010; Dollar et al., 2012).

In the second one, a direct mapping is established

between extracted features and crowd estimation (or

density map construction). It overcomes the difﬁculty

for detection-based approaches to develop an accurate

count on images where crowd is very close or there

are considerable levels of occlusion and scene clutter

(Chen et al., 2013; Idrees et al., 2013).

Finally, CNN-based approaches present the most

accepted model because they achieve good accuracy

when processing images with the previous mentioned

problems (Walach and Wolf, 2016; Sindagi and Patel,

2017; Jiang et al., 2020; Wang et al., 2020).

In (Ryan et al., 2015), an evaluation is made over

different models to perform Crowd Counting, as well

as a state of the art review and classiﬁcation. Also,

(Du et al., 2020) compares 14 algorithmic for Crowd

Counting on images taken from drones.

Other recent works propose novel approaches,

which reuse the existent models but apply them to

more realistic and updated scenarios. That is the case

of (Bailas et al., 2018), where authors test three differ-

ent models in an edge computing setup. On the other

hand, (Chen et al., 2019) propose an efﬁcient CNN to

estimate the Crowd Counting directly on embedded

terminals.

Computer vision for Crowd Counting presents

some problems. First, the need to set up special-

ized devices, with computing capabilities to handle

the corresponding technique. Also, the devices need

to be located strategically, because the area covered

by a camera is limited. This problem is more signif-

icant in moving protests. Finally, there are privacy

concerns too. Some techniques can obscure images

and keep people privacy, but people have to trust the

implementation of the system to work according to

privacy and data protection regulations.

Other approaches are based on sensors. These are

typically focused on indoor environments, where a

speciﬁc number of sensors can be strategically posi-

tioned to keep track of people. A common approach

is to use Passive Infrared (PIR) sensors (Wahl et al.,

2012), but other types of sensors can be used. In

(Kannan et al., 2012), the authors propose a model

based on audio tones.

Some proposals go a step further and use sen-

sors not to count people, but their devices. In the

last years is not unusual to see most people carry-

ing a smartphone almost all the time, above all if

they are in a working environment. In (Filippoupoli-

tis et al., 2016), the authors propose a model based

on a combination of distributed Bluetooth Low En-

ergy (BLE) beacons and machine learning. A differ-

ent but very common approach is to use WiFi technol-

ogy. In (Zou et al., 2018), Channel Impulse Response

(CIR) is used to discriminate individual paths in the

time domain. With this approach, features can be ex-

tracted and then sent to a Crowd Counting classiﬁer

trained with machine learning techniques, like Naive

Bayes or Support Vector Machines. Other approach

is presented in (Depatla and Mostoﬁ, 2018), where

a Transmission-Reception model is used to estimate

Crowd Counting based on the distortion that peo-

ple do on Received Signal Strength Indicator (RSSI)

values inside the building, or (Korany and Mostoﬁ,

2021), also based on the WiFi channel state, but only

for stationary crowds. Besides, there are also mobile

network based approaches, like (Di Domenico et al.,

2017), where authors propose crowd estimation based

SECRYPT 2022 - 19th International Conference on Security and Cryptography

250

on LTE signals.

Finally, the last type of techniques used to achieve

Crowd Counting are based on distributed mobile ap-

plications. In (Danielis et al., 2017), authors propose

a privacy preserving method where nodes can esti-

mate the crowd size locally. This approach use an epi-

demically spreading model where devices can share

with others the knowledge they have (shared and left

nodes).

3 PRELIMINARIES

3.1 Pseudo-Random Function

A pseudo-random function (PRF) F : X × K → Y is a

deterministic algorithm that gets as input a key k and a

piece of data x and outputs y = F(k,x). Informally, we

can deﬁne the security of a PRF as the warranty that,

given a randomly chosen key k, the output y should

look like a random function from X to Y, i.e., an ad-

versary can only distinguish between the output from

the PRF and the output from a random function with

negligible probability

3.2 Pseudo-random ID-based Contact

Tracing

The work in (Chowdhury et al., 2020) presents an

analysis about different applications that have been

proposed for contact tracing. The main problem is

to ﬁnd a trade-off between usability and privacy. For

that reason, different approaches have been proposed,

based on a very wide set of technologies and pri-

vacy mechanisms. The different technologies cov-

ered by (Chowdhury et al., 2020) are the following:

GPS, Bluetooth, WiFi, Cellular Network, RFID and

NFC. Also, their system architecture is variate, and

the computation can be carried out in a decentral-

ized or centralized way. Privacy features heavily in-

ﬂuence the architecture and performance of the sys-

tem. Among those privacy techniques are Generic

Multiparty Computation, Private Set Intersection Car-

dinality, Homomorphic Encryption or Blind Signa-

ture. However, on the most popular and widely used

in many countries is the Ephemeral Pseudo-Random

ID (Troncoso et al., 2020). The ID allows the sys-

tem to compute calculations about users without a

direct and personal identiﬁcation of them. The ad-

vantage is that Pseudo-Random IDs are generally

A negligible probability can be analyzed as a very

small one, deﬁned as p = 1/p(x), where p(x) is a poly-

nomial.

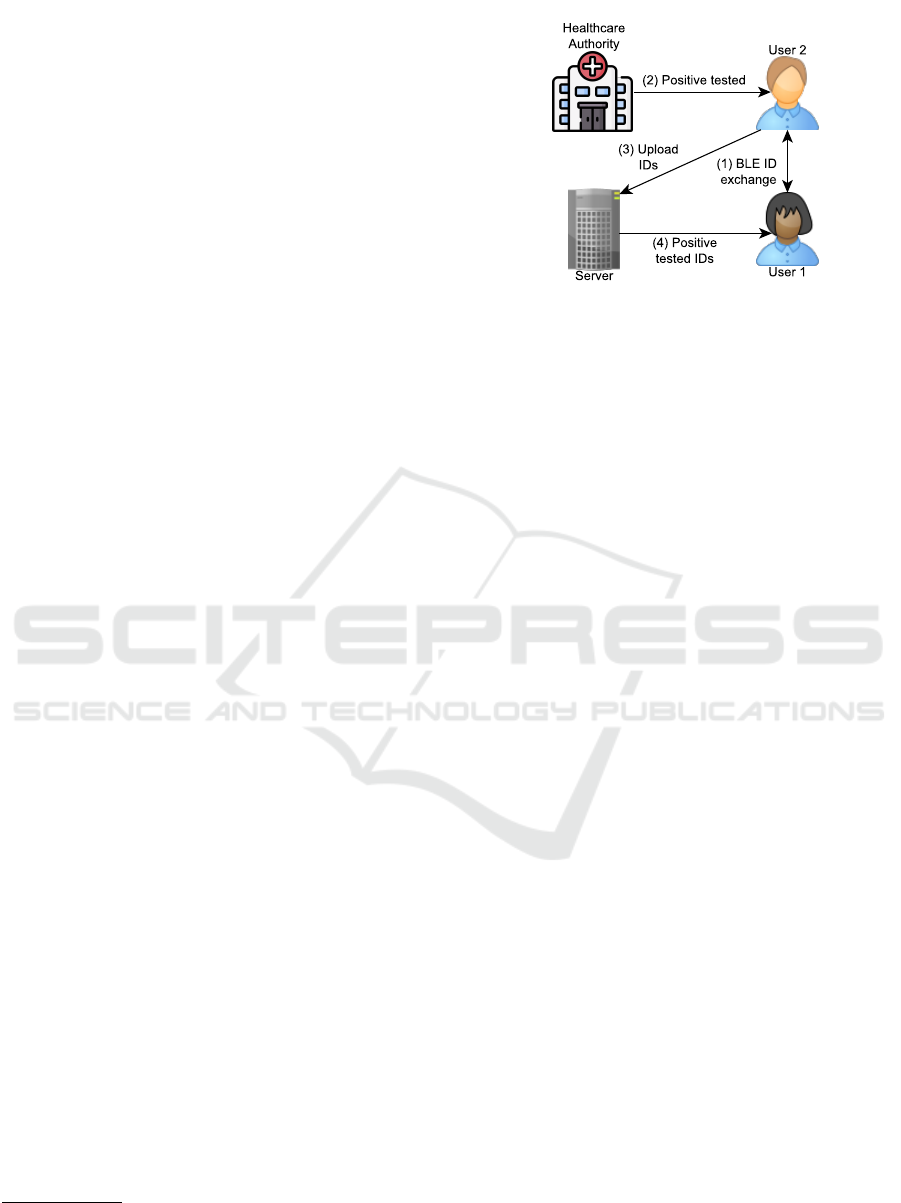

Figure 1: Ephemeral Pseudo-Random ID-based Contact

Tracing.

computed using symmetric cryptographic techniques,

so computations are lightweight, opposite to other

mentioned techniques that require heavy asymmetric

cryptographic computations. More speciﬁcally, the

solution proposed in (Troncoso et al., 2020) generates

a daily seed (Equation 1), where H is a cryptographic

hash function.

= H(SK

t−1

) (1)

Each day, a rotating set of Ephemeral IDs are gen-

erated from SK

, and those IDs are the ones shared

among the closest peers. This is shown in Equation

2, where n is the daily number of IDs, obtained as

n = (24 ∗ 60)/L, being L a conﬁgurable parameter

which sets the length of an epoch in minutes. Also,

is a ﬁxed public string. The rotation mechanism is

implemented to avoid the continue exposure of a user.

E phID

||...||E phID

= PRG(PRF(SK

)) (2)

Pseudo-Random IDs schemes (view Fig. 1), typi-

cally use the identiﬁers in a propagation phase, where

close users exchange them using BLE advertisements.

When a user is reported positive, her identiﬁers are

uploaded to a central authority, where other users

can download them as a list of positive tested iden-

tiﬁers. If any of the identiﬁers that a user has stored

in her device correspond to any other downloaded

from the positive list, the user is alerted with a ex-

posure notiﬁcation. More speciﬁcally, from (Tron-

coso et al., 2020), the positive tested user uploads the

pair (SK

,t), which is distributed to other users who

can compute the list {E phID

}

i∈[n]

and compare them

with their stored EphIDs.

3.3 Bloom Filters

A Bloom Filter (BF) is a privacy-preserving and

space-efﬁcient probabilistic data structure. It encap-

sulates a set of items into a bit array. To achieve this,

Real-time Crowd Counting based on Wearable Ephemeral IDs

251

the bit array of size m is initialized to 0’s and each

item x is hashed to an integer in the range [1, m] with

a set of k hash functions H = {h

,..., h

}. Each

result h

(x) points to a position of the bit array, which

is set to 1. Given only the bit array is not possible

to extract the previous items that have been inserted,

but given an element one can check if it has been in-

serted (with high probability) comparing the 1’s after

computing the hashes. The false positive probability

in Equation (3) is a key parameter in the design phase,

because it relates k and m with the actual number of

items in the ﬁlter n.

≈ (1 − e

−kn/m

)

(3)

An interesting characteristic of BFs is that they

can be aggregated with just the bit-wise OR opera-

tion. Also, given a single BF, an approximation of the

set size can be conducted using Equation (4), from

(Ashok and Mukkamala, 2014), where z represents

the number of 0’s in the BF.

|S| =

ln(z/m)

k ln(1 − 1/m)

(4)

3.4 Adversaries and Security

Deﬁnitions

To model and analyze the security warranties of the

system, we must ﬁrst deﬁne the capabilities of the ad-

versary and the different aspects of the system that

can be protected.

The adversary is deﬁned as the abstract entity that

interact with the elements of the system and can cor-

rupt them to produce some malicious or unusual be-

havior. Plenty of adversary models have been pro-

posed in the literature, but two of them remain as the

most typical.

Semi-honest Adversary: the corrupted elements fol-

low the protocol speciﬁcation, but try to infer more

data than allowed.

Malicious Adversary: the corrupted elements may

deviate from the protocol, changing data, sending ad-

ditional messages, or not sending them at all.

On the other hand, with respect to the system pro-

tection, we differentiate between two main properties,

as different tools may be needed to achieve each of

them.

Privacy: it refers to the property that the system pro-

vides to hide sensitive data from the adversary. Note

that sensitive data may be dependent of the applica-

tion, but it is typically related with user’s personal be-

haviors or patterns exposure. For the proposed sys-

tem, two types of sensitive data are identiﬁed: the

pseudo-random IDs, which may lead to a linkability

attack to track users, and the geolocation data, which

can be used maliciously to track users’ movement.

Security: this notion refers to the warranties that

the system works according to the speciﬁed protocol,

avoiding incorrect results or leading to other threats.

4 GENERIC ARCHITECTURE

FOR CROWD COUNTING

In this paper, we discuss Crowd Counting solutions

that are based on IDs to estimate the count. The archi-

tecture can be proposed from different perspectives,

depending on how the IDs are generated or used. We

ﬁrst deﬁne the general functionalities that must be

present for the system to work.

Pseudo-random ID Generation and Distribution:

a Pseudo-Random ID is generated from a seed value.

It identiﬁes a device during a period of time, but

the real identity of the device cannot be inferred

from it. A Pseudo-Random ID can be persistent, if

once generated it will always be the same value, and

ephemeral, if it changes from time to time, speciﬁed

by the length of an epoch. The seed value is de-

termined by the application or technology employed.

Also, the way to distribute the IDs is speciﬁc for each

technology, and may be viewed as a lower layer of

functionality which serves to our application (it typ-

ically will be a broadcast functionality). A solution

may be to use periodic BLE advertisements, where

the device can embed an ID generated by the applica-

tion. Another possibility is to use the Pseudo-Random

MACs enabled by WiFi, which provides this function-

ality to hide the real static MAC address of devices. In

this case, the seed for the PRF is the network proﬁle.

ID Reporting: this functionality comprises the gen-

eration of a location context based on the speciﬁc IDs.

It can be a partial aggregation of the IDs received in a

speciﬁc device or a report containing a location area

for each device. As it will be later discussed, the

reporting functionality presents a crucial role in the

trade-off between accuracy and efﬁciency.

Facilitator: it refers to an endpoint that receives the

reports emitted by the different reporters and perform

the crowd count using the IDs or the location context

information. This functionality is typically associated

with a server with high capabilities.

As it was previously stated, the architecture can

vary, depending on how the functionalities are de-

ployed. For ﬁxed location scenarios, e.g. indoor

Crowd Counting, static nodes can facilitate the pro-

cess. We identify two main architectures, depicted in

Figure 2, that perform inverse solutions. Speciﬁcally,

in Figure 2a, the static node broadcasts persistent IDs

SECRYPT 2022 - 19th International Conference on Security and Cryptography

252

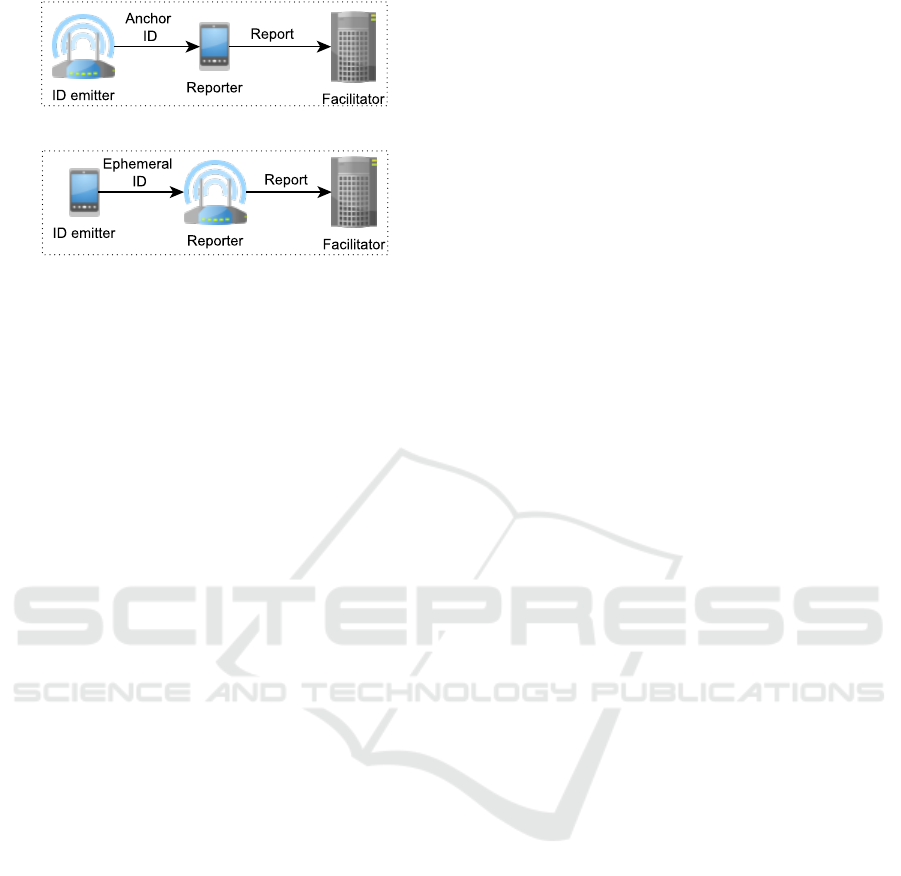

(a) Mobile node as reporter.

(b) Static station as reporter.

Figure 2: Generic architectures for Crowd Counting.

that serve as anchor IDs, e.g., a WiFi AP emitting the

SSID. In this architecture, the mobile nodes send the

anchor ID to the facilitator, which keeps track of the

devices that are located inside the static node’s cover-

age area. On the other hand, in Figure 2b, the mobile

nodes emits Ephemeral IDs and the static nodes are in

charge of collecting them and reporting the facilitator.

The second solution presents the advantage that the

mobile node only has to broadcast the ID and nothing

else, in contrast with the ﬁrst solution where it has

to read IDs from the environment and send them to

the facilitator, increasing the resource consumption.

It is also easier to embed a broadcast-only functional-

ity directly on hardware chip-sets. In addition to that,

using Ephemeral IDs reduces the tracking capabilities

for an adversary along the system.

4.1 Different Scenarios

The proposed functionalities are intended to be

generic and cover the basic aspects needed for the

system to work. However, they can be instantiated

in different ways, depending on the speciﬁc scenario

where the solution is to be applied. We identify and

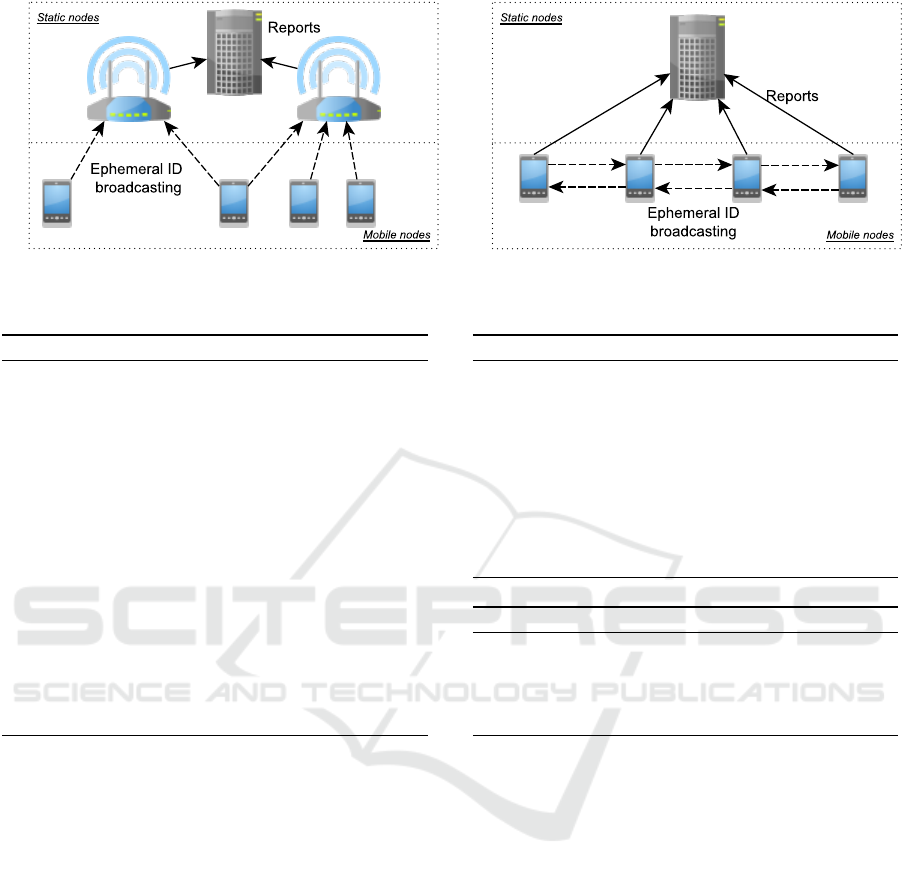

cover two of them, as it is shown in Figure 3.

Enclosed Area: Assume an scheduled event taking

place in some ﬁxed area, e.g., a free big concert, a

demonstration, etc. For such a scenario, a straight so-

lution may be to deploy one or some reporters that

cover the whole place. Those reporters receive the

IDs from the ID emitters, and send them to the facili-

tator. There is only one queried area for this scenario

(the whole place), which is constantly recalculated by

the facilitator. The ID emitters could be a small phys-

ical token, a wearable, a mobile phone, etc.

Peer to Peer Scenario: In this scenario, a very big

area is covered, in such an extension that is not vi-

able to set static reporters, e.g., a whole city. To

achieve Crowd Counting, we propose to embed the

reporter functionality inside the same device that gen-

erates and emits the Ephemeral IDs. In this way, each

single device will emit and receive IDs, and will send

reports to the facilitator. This scenario has sense, e.g.,

in pandemics situations like the COVID-19 pandemic,

where keeping track of contacts and avoiding crowds

is a crucial matter to warranty security and health. In

such a scenario, a contact tracing application can be

reused as a tool for the Ephemeral IDs generation and

management (Section 3.2).

5 IMPLEMENTATION DETAILS

FOR THE P2P SCENARIO

We propose a speciﬁc design for the P2P scenario,

where every ID emitter will also capture IDs and send

reports to the facilitator. There are speciﬁc aspects

to consider for this scenario that are not needed in a

static one.

5.1 Spatial and Temporal Management

As a ﬁrst aspect, the movement of the reporters intro-

duce a constraint. For this scenario, location must be

tagged for each ID, to allow location speciﬁc queries

on the facilitator. If an individual report is sent for

each received ID, the accuracy will be the best pos-

sible, as it will not introduce high errors on location

data. However, this is not very realistic, due to the

high number of connections that the reporters (low

energy devices) may perform with the facilitator.

To ﬁx that, we propose ID batching, i.e., receiv-

ing IDs during a speciﬁc interval of time and sending

them together on a single report at once. This reduces

the number of connections, but introduces a lower ac-

curacy because of temporal and spatial errors.

Let’s assume that a user start receiving IDs when

she is on location l

and keep batching until she

reaches l

, which can be considered “far” from l

If the report is tagged with l

, all the IDs will be ag-

gregated on the facilitator for that location, modifying

the real count. This presents the sampling interval as

a critical parameter that must be taken into account

for a trade-off between accuracy and efﬁciency. Al-

gorithm 1 shows the pseudo-code for the ID batching

procedure, where each batch is tagged with the mean

value of (l

The same approach could be used to handle time,

but in this case it could be better to tag data with the

facilitator reception time. The reason is that if the

sampling interval is higher than 2 times the server his-

torical time (more details in Section 5.4), then data are

never used for queries.

Real-time Crowd Counting based on Wearable Ephemeral IDs

253

(a) Enclosed area architecture (b) Peer to peer architecture

Figure 3: The communication architecture for the two proposed scenarios.

Algorithm 1: Sampling Algorithm.

while true do

Initialization : timer,loc,batch

if read(id

) then

batch.insert(id

)

timer.init(getTimeEnd(loc.getSpeed))

locInit ← loc.getPosition

end if

while timer.notEnd do

if read(id

) then

batch.insert(id

)

end if

end while

locEnd ← loc.getPosition

locMean ← mean(locInit,locEnd)

batch.save(locMean)

end while

5.2 Raw ID vs BF ID Aggregation

We propose another modiﬁcation to improve the man-

agement of IDs, both for batching and aggregation.

Algorithm 2 shows a solution for the aggregation

where the facilitator keeps a timer for each ID. This

solution has the problem of the timer management,

which can be huge for many IDs. Another solution

could be computing the count for each query on de-

mand, retrieving the saved batches which are not older

enough. Following the latter solution, we propose an

encapsulation of the IDs inside of a BF before send-

ing the report to the facilitator, as shown in Algorithm

3. There are three main advantages for this solution:

(1) it may reduce the size of each batch if the number

of IDs is huge, (2) it reduces the count problem to bit-

wise OR operations, and (3) it adds an extra layer of

security, making the IDs opaque to the facilitator.

Algorithm 2: Raw aggregation.

→ Agg: {ID}

Agg: ∀id ∈ {ID}

if id /∈ {ID}

Agg

then

save(ID),count = count + 1

end if

Agg: ∀id ∈ {ID}

Agg

if id timer expired then

delete(ID),count = count − 1

end if

Algorithm 3: BF aggregation.

→ Agg: BF({ID}

)

if new query then

Agg: count =

end if

5.3 Security and Privacy

We have to take privacy into account from the very

beginning, not only because users are more and more

aware about privacy, but also to respect privacy and

data protection regulation. This system has to con-

sider privacy from two points of view: related to user

identiﬁcation and related to user location.

User identiﬁcation is made when an adversary re-

late a Pseudo-Random ID with a speciﬁc user, and can

perform a tracing. This issue is solved with two lay-

ers of security. In the ﬁrst place, if the Ephemeral IDs

are correctly generated, i.e., they are pseudo-random

and the seed is kept private, they cannot be linked to a

speciﬁc user (contact tracing solutions also apply ID

rotation to avoid continuous ID tracking). Secondly,

applying BF encapsulation makes the IDs oblivious to

the facilitator.

On the other hand, user location privacy is harder

to achieve. There are many works that scope privacy

on Location Based Services (Jiang et al., 2021), but it

SECRYPT 2022 - 19th International Conference on Security and Cryptography

254

does not exist consensus on the best solution.

The most typical solution tends to be K-

Anonymity, usually implemented using cloaking

techniques. This approach generalizes the area where

the user is located until she blurs with at least K other

users. The K users will report the same location to

the server, so it is difﬁcult for it to distinguish be-

tween them. The basic K-Anonymity schemes rely

on a trusted server to perform the blurring (Fran-

cisco et al., 2003), but other solutions have been pro-

posed to avoid a single trusted element, both in multi-

server setting (Li et al., 2017), or in P2P environments

(Chow et al., 2011). However, K-Anonymity is not

good for our proposal, because privacy is directly re-

lated to location generalization. When high accuracy

is required, the privacy provided by K-Anonymity

will be low. This problem can be extended to other

obfuscation schemes, like Differential Privacy.

Therefore, we propose a solution with a Trusted

Proxy combined with Space Transformation (Figure

4), as a ﬁrst solution to the problem, which will be ex-

tended later with some cryptographic aspects in Sec-

tion 7 to avoid a single trusted element. Using a proxy

has been proposed in the literature sometimes, over-

all for query privacy, e.g. (Singanamalla et al., 2021)

propose an Oblivious DNS architecture. In our pro-

posed solution, when a report reaches the Proxy, it

maps the location to another space using a Pseudo-

Random Function (PRF) f : L → M, where L is the

original location space and M is the mapping space.

This function can be easily implemented using a sym-

metric cipher with location and the Proxy private key

as inputs. Also, the mapping function can rotate pe-

riodically using different keys. So, the computation

server receives the obfuscated and anonymous loca-

tion reports and saves them into the database. The

same procedure is applied to queries. To handle Space

Transformation a space generalization must be made,

but in contrast to K-Anonymity, it is not directly re-

lated to privacy, and small areas can be considered if

the system allows for them. This solution still needs

trust, like in Trusted Third Party K-Anonymity ap-

proaches, but the advantage is not just that the com-

putation server can’t track the position of users but it

is even not able to determine which exact location is

saving or being queried.

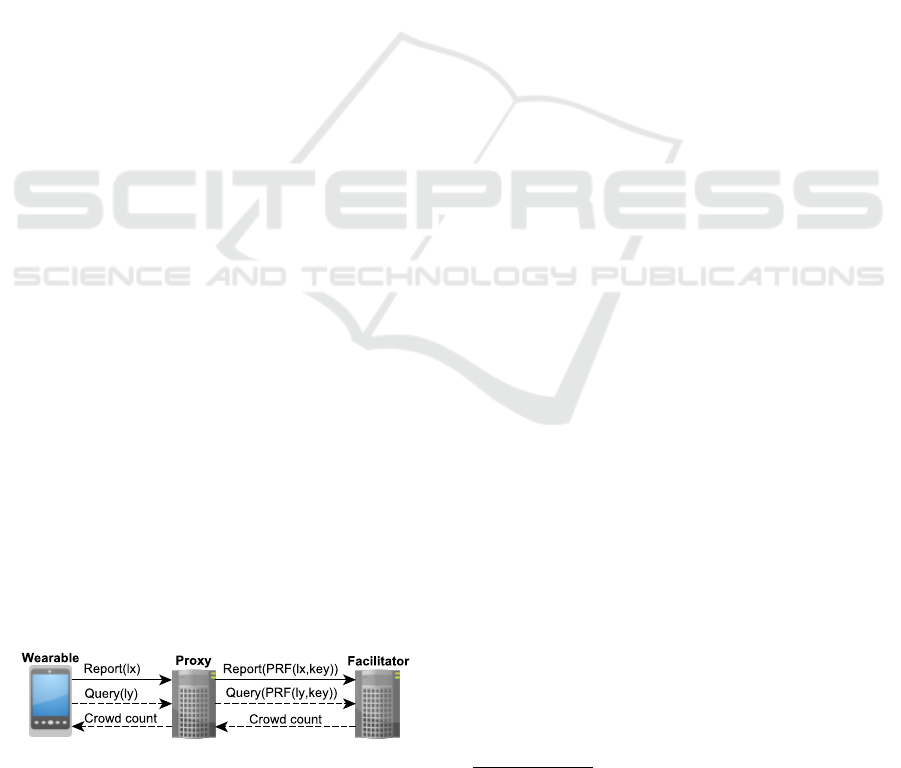

Figure 4: Trusted Proxy to achieve location privacy. The

Key is only known by the Proxy.

The following sections will analyze security and

privacy according to the party that is manipulated by

the adversary.

5.3.1 Semi-honest Adversary

If every entity follows the protocol, there is only one

leakage that can be produced, that is that the trusted

proxy knows the geolocation data of the users. For

that reason, this solution only achieves privacy on the

trusted model.

5.3.2 Malicious Adversary

We analyze the malicious adversary from the different

entities that can be corrupted.

Malicious Reporter. A malicious reporter can mis-

behave in different ways, e.g., sending dummy data

to disrupt the estimated data on the facilitator side,

both changing the location with a fake one or modify-

ing the IDs which are sent inside the BF. The reporter

can also stop sending notiﬁcations at all, deleting their

presence on the server’s counts, or on the contrary,

perform denial of service (DoS) attacks sending noti-

ﬁcations constantly.

Malicious Proxy. A malicious proxy can modify the

received data from reporters, changing it with dummy

data or not sending at all. It can also perform DoS at-

tacks to the server, and send the location data without

applying the PRF, allowing the server to read the lo-

cation data and exposing users’ privacy.

Malicious Facilitator. If both reporters and proxy are

honest or semi-honest, the facilitator has no ability

to retrieve the original location data or the pseudo-

random IDs, as long as the PRF and BF remain se-

cure. It can, however, change the counting data with

totally random data, or cheat in the responses to make

the application believe that a place is poorly crowded,

when it is not true

5.4 System Characterization

In this section, we brieﬂy describe the theoretical

characteristics of the system. From now on, all as-

sumptions are made within a speciﬁed location area,

where people are not supposed to enter or leave it

(a real scenario would imply more considerations).

Equation (5) describes the probability for a device’s

ID to be in the system (for that location area), where

∆

is the previous time from a query reception where

BFs are taken into account on the facilitator and T

Remark that, despite the cheating capacity, it cannot

infer which real location belongs to each mapped location

that has been received

Real-time Crowd Counting based on Wearable Ephemeral IDs

255

the reporting period of a device. The ﬁrst term is re-

lated to the device that reports its ID, but another term

has to be added due to reports of other devices which

include the scoped ID. This is represented with p

other

and it relates the Bluetooth area range B

and the area

where devices are being considered A

. The min(·,1)

function is used to limit the probability which in-

crease theoretically with the inﬂuence of other BFs

but is self-limited on a real implementation by the na-

ture of adding BFs, where the same ID will not appear

twice because of the bit-wise OR operation.

dev

= min



∆

+ p

other



(5)

Other consideration that must be made is that

Ephemeral IDs change periodically. This affects the

accuracy, but if the server tracks the IDs with low

sampling rate, the added error is minimized. In Equa-

tion (6) the probability that an ID has changed is de-

scribed, with T

being the period where the same ID

is periodically sent from a device before changing it

to the next one in the rotation.

∆

(6)

Finally, Equation (7) describes the estimated num-

ber of devices. It can be achieved combining the

previous equations and relating it to the number of

devices that are on the scoped area, determined by

N. The variable ε represents the error rate introduced

by the cardinality estimation made on BFs, which is

negligible. E

in f

represents an increment of the esti-

mated number of devices due to devices that are on

surrounding areas close to those on the scoped area

(the edge), with E

in f

≥ 1.

|Dev| = (1 ± ε)(N · p

dev

(1 + p

))E

in f

(7)

6 SIMULATIONS

To give an approximate idea about the system perfor-

mance, a tiny prototype has been implemented and

some simulations have been performed. While it

should not be taken as an exact example because it

has some limitations (described below), it is still good

enough to give the reader a general perspective of the

expected results.

First of all, a general description is speciﬁed. The

prototype is built upon two main different blocks: (1)

the mobility scenario and (2) the facilitator implemen-

tation. Testing data related to moving users has never

been an easy task, because it is difﬁcult to access to

a wide amount of people simultaneously, and simu-

lation is usually the choice, even with its limitations.

In this work we have used a mobility trace generator

(Mousavi et al., 2007), which generates mobility data

based on some initial parameters, such as mobility

model and simulation map. On the other hand, the fa-

cilitator server has been implemented using Python’s

Flask library

. The proxy has also been implemented,

in regard to anonymize data received previously to

send it to the facilitator. The latter saves data on a

SqLite database

, and retrieves them on demand to

handle queries. To test the real-time functionality a

Python simulator has been developed which takes as

input the mobility traces generated by (Mousavi et al.,

2007) and outputs the tagged BFs in real-time which

ﬁnally reach the proxy and the facilitator.

We will describe now the main limitations for the

simulation. The ﬁrst one is related to mobility models

and it is that they are approximations to real traces,

however accessing real traces on a controlled scenario

is rarely possible. For this work we have tested the

system with a Random Way Point model. The sec-

ond limitation is related to data generation. The real

interaction between users is very dynamic and it im-

plies self timers for each one, in other words, arriving

points for each user data is independent from others

even if they have the same sampling interval. In this

simulation data are statically generated and sent to the

server at discrete time steps, so simulation data prob-

ably converge faster to more accurate results. Other

important consideration is the way that BLE range has

been modeled. In real contact tracing BLE range can

be modiﬁed using the RSSI value as a threshold me-

tric and keeping some counter to relate an ID received

multiple times to a valid device nearby. The BLE con-

siderations are generalized here just setting the range

to 1 meter. As the simulation is discrete in time, an en-

counter is detected when two user’s devices are closer

than the BLE range and it is assumed that they ex-

change IDs in that time step and generate associated

BFs.

There are two main parameters which determine

system accuracy: temporal granularity, modeled with

∆

and spatial device density, modeled with d =

devices/m

. Fig. 5 shows a comparative on the same

scenario with different values for ∆

, where Actual

Count means the total number of devices that are on

the queried area, Actual Contacts means the number

of devices that are closer to others than the speciﬁed

BLE range and Estimated Count means the estimation

made on the server after adding BFs.

Python’s Flask library: https://ﬂask.palletsprojects.c

om/en/2.0.x/

SqLite: https://www.sqlite.org/index.html

SECRYPT 2022 - 19th International Conference on Security and Cryptography

256

0 20 40

80 100

100

Time steps

Actual Count

Actual Contacts

Estimated Count

(a) ∆

= 2s

0 20 40

80 100

100

Time steps

Actual Count

Actual Contacts

Estimated Count

(b) ∆

= 5s

0 20 40

80 100

100

Time steps

Actual Count

Actual Contacts

Estimated Count

= 10s

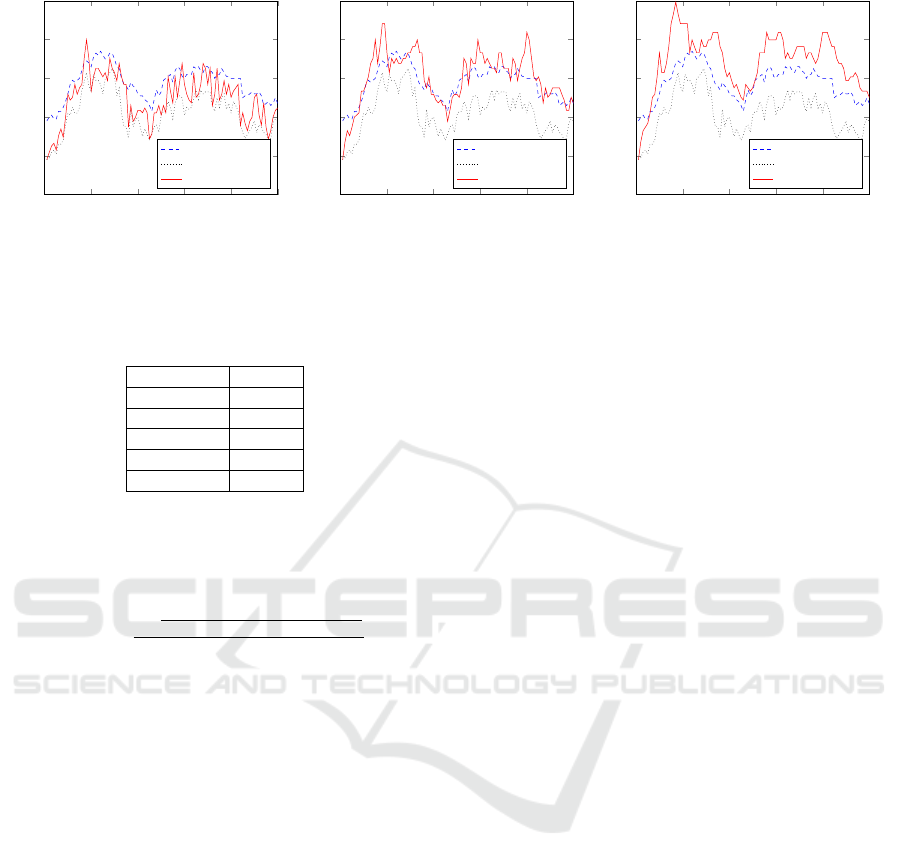

Figure 5: Simulation with 200 people in a 50x50 map with different ∆

values, speed 1 m/s and 20x20 area queried.

Table 1: RME values obtained from different simulations

Simulation RME

Fig. 5a 0.1308

Fig. 5b 0.0620

Fig. 5c 0.1613

Fig. 6a 0.0422

Fig. 6b 0.3391

To measure the results we have used the Relative

Mean Error of Equation (8) and obtained values are

shown in Table 1.

RME =

∑

|ActualCount

−EstimatedCount

ActualCount

(8)

In Fig. 5a Estimated Contacts are closer to Real

Contacts, because they are the ones exchanging IDs,

but alone devices are not taken into account. Fig.

5b shows the most accurate result, while Fig. 5c

count more devices than there are, because the sys-

tem takes into account devices that are not anymore

in the scoped area. This comparative denotes the sig-

niﬁcance about selecting a precise value for ∆

. While

a small value underestimates the number of devices,

because older reports are not taken into account, a big

value overestimates it, counting devices’ IDs that are

not in the queried location anymore.

On the other hand, density implications are shown

in Fig. 6. The two of them are simulated with ∆

= 5,

but while the ﬁrst one gets a good accuracy when esti-

mating the total number of devices within the scoped

area, the second one doesn’t. The reason is the poor

number of ID exchanges carried on the second sce-

nario, so it leads to conclude that the estimation is

more accurate when more devices are closer between

them, i.e., when people density grows.

7 IMPROVING THE TRUSTED

PROXY WITH SMPC

Our ﬁrst design presents a major caveat, which is the

existence of a TTP. This solution is straightforward

to avoid techniques that lower the precision of the

measurements, but lacks of privacy. A distributed K-

anonymity scheme will also involve higher commu-

nication rounds between the users, aspect we want

to minimize because of the usage of low capability

devices. For that reason, a solution to avoid loosing

privacy and accuracy is to perform a distributed PRF.

Distributed cryptography is a wide area of SMPC pro-

tocols (Zhao et al., 2019), where a group of nodes

perform some cryptographic protocol on a privately-

distributed piece of data, e.g., encryption or signa-

tures. In our case, the PRF can be instantiated using

deterministic AES (Harkins, 2008) or another PRF

which has been implemented in a distributed way.

The work in (Keller et al., 2017) proposes a solution

for AES, where they achieve running-times of 0.928

ms for 2-party online phase and LAN setting.

For our proposed solution, the trusted proxy

would be replaced by N ≥ 2 servers which will com-

pute the distributed PRF on the inputs (secret shared

values). The ofﬂine time does not matter because the

precomputation is independent of inputs, and the on-

line phase only introduces some small delays on the

crowd size estimation, which are not so problematic

(just a small temporal right shifting of the estimation

made).

The main problem of this solution is that each user

has to deliver one message to each server, increasing

by N the communication and number of connections

needed. To lower a bit that caveat, the infrastruc-

ture may work with a relay node, which cannot read

the secret shares thanks to a Public Key Infrastructure

(PKI), as shown in Figure 7.

Real-time Crowd Counting based on Wearable Ephemeral IDs

257

0 20 40

80 100

100

150

200

Time steps

Actual Count

Actual Contacts

Estimated Count

(a) 200 devices (d = 0.08 dev/m

)

0 20 40

80 100

Time steps

Actual Count

Actual Contacts

Estimated Count

(b) 50 devices (d = 0.02 dev/m

)

Figure 6: Simulation in a 50x50 map and 40x40 area queried, with different values for device density d.

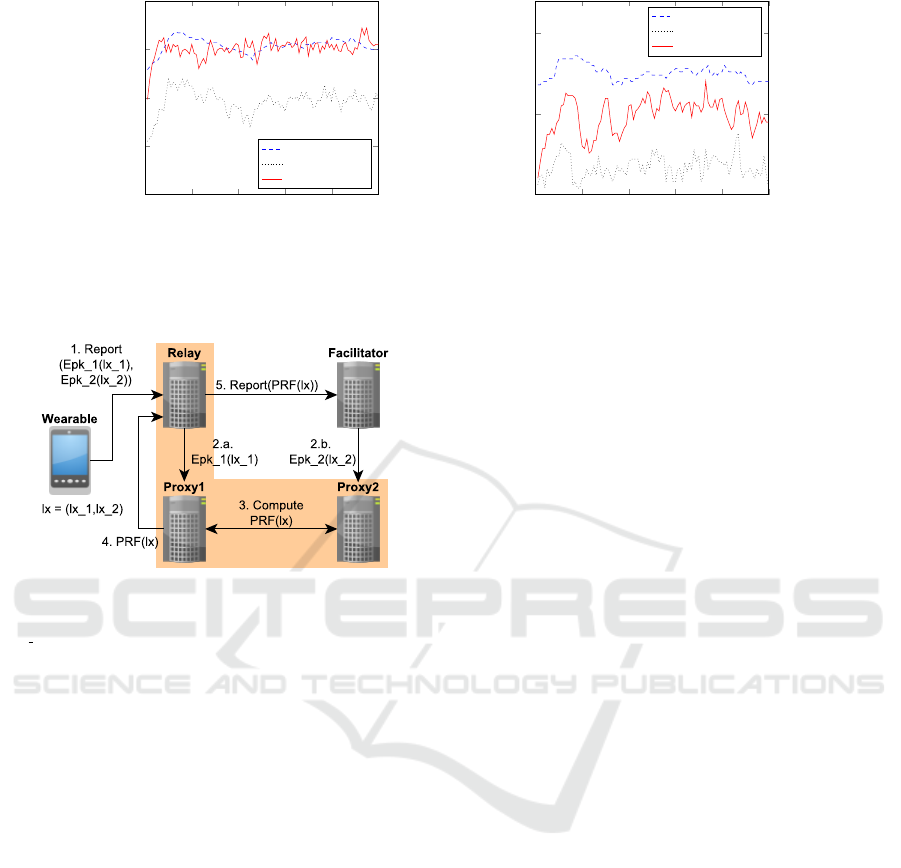

Figure 7: Architecture with SMPC PRF engine and relay

node. The shaded area speciﬁes the role of the “proxy”.

pk X

(Y ) means the encryption of Y using the public key of

the proxy node X.

With respect to the adversary model, the setup

now relies on the threshold scheme. As long as the

adversary does not control more nodes than allowed

for the SMPC scheme to remain secure, it cannot in-

fer neither the PRF distributed secret key or the dis-

tributed input from the users. We can differentiate

for the adversary as being the service provider or an

external adversary. In the ﬁrst case, it is trivial for

the service provider to make n nodes to deviate, with

n > t, however, it is clearly more difﬁcult for an exter-

nal adversary, which has not trivial access to the dis-

tributed computing cluster. In addition to that, privacy

also remains even if the relay behaves maliciously,

whenever the PRF and the PKI remain secure.

More difﬁcult to achieve is general security, where

every party can still introduce dummy data to the sys-

tem. To solve this, more speciﬁc solutions have to be

analyzed, like signatures or time-stamping.

8 CONCLUSIONS

In this work we have presented a novel real-time sys-

tem to estimate Crowd Counting, based on Ephemeral

IDs and location data from wearable devices. This ap-

proach is built on the application layer, so it is easy to

implement and it can be easily embedded, e.g., with

a contact tracing application. Privacy preservation is

a key aspect, but keeping a good trade-off between

privacy and accuracy is not easy. While user identiﬁ-

cation is protected thanks to Pseudo-Random IDs and

BFs, location data are more difﬁcult. A Trusted Proxy

has been used to provide anonymization and space

transformation, and then modiﬁed to a distributed

setup using Secure Multiparty Computation to avoid a

single point of trust. Also, accuracy of estimation has

been analyzed and it’s concluded that it depends on

∆

and d parameters. For a crowded area, ∆

is desir-

able to be relatively small and not overtake the actual

devices count. If d is small, a small ∆

doesn’t work

well, but it is not critical because the main objective

is to detect crowds. However, it would be interesting

as future work to test these conclusions on a scenario

with real people, and also reﬁne security aspects to

prevent malicious behaviors.

ACKNOWLEDGEMENTS

This work has been partially supported by the

projects: SecureEDGE (PID2019-110565RB-I00) ﬁ-

nanced by the Spanish Ministry of Science and Inno-

vation and SAVE (P18-TP-3724) ﬁnanced by ‘Junta

de Andaluc

ıa’. The ﬁrst author has been funded by

the Spanish Ministry of Education under the National

F.P.U. Program (FPU19/01118).

REFERENCES

Ashok, V. G. and Mukkamala, R. (2014). A scalable and

efﬁcient privacy preserving global itemset support ap-

proximation using bloom ﬁlters. In Atluri, V. and Per-

SECRYPT 2022 - 19th International Conference on Security and Cryptography

258

nul, G., editors, Data and Applications Security and

Privacy XXVIII, Lecture Notes in Computer Science,

pages 382–389. Springer.

Bailas, C., Marsden, M., Zhang, D., O’Connor, N. E., and

Little, S. (2018). Performance of video processing at

the edge for crowd-monitoring applications. In 2018

IEEE 4th World Forum on Internet of Things (WF-

IoT), pages 482–487.

Chen, J., Zhang, Q., Zheng, W., and Xie, X. (2019). Efﬁ-

cient and switchable CNN for crowd counting based

on embedded terminal. 7:51533–51541. Conference

Name: IEEE Access.

Chen, K., Gong, S., Xiang, T., and Loy, C. C. (2013). Cu-

mulative attribute space for age and crowd density es-

timation. page 8.

Chow, C. Y., Mokbel, M. F., and Liu, X. (2011). Spa-

tial cloaking for anonymous location-based services

in mobile peer-to-peer environments. GeoInformat-

ica, 15:351–380.

Chowdhury, M. J. M., Ferdous, M. S., Biswas, K.,

Chowdhury, N., and Muthukkumarasamy, V. (2020).

COVID-19 contact tracing: Challenges and future di-

rections. 8:225703–225729. Conference Name: IEEE

Access.

Danielis, P., Kouyoumdjieva, S. T., and Karlsson, G. (2017).

UrbanCount: Mobile crowd counting in urban envi-

ronments. In 2017 8th IEEE Annual Information Tech-

nology, Electronics and Mobile Communication Con-

ference (IEMCON), pages 640–648.

Depatla, S. and Mostoﬁ, Y. (2018). Crowd counting through

walls using WiFi. In 2018 IEEE International Con-

ference on Pervasive Computing and Communications

(PerCom), pages 1–10. ISSN: 2474-249X.

Di Domenico, S., De Sanctis, M., Cianca, E., Colucci, P.,

and Bianchi, G. (2017). Lte-based passive device-free

crowd density estimation. In 2017 IEEE International

Conference on Communications (ICC), pages 1–6.

Dollar, P., Wojek, C., Schiele, B., and Perona, P. (2012).

Pedestrian detection: An evaluation of the state of the

art. 34(4):743–761. Conference Name: IEEE Trans-

actions on Pattern Analysis and Machine Intelligence.

Du, D., Wen, L., Zhu, P., Fan, H., Hu, Q., Ling, H., Shah,

M., Pan, J., Al-Ali, A., Mohamed, A., Imene, B.,

Dong, B., Zhang, B., Nesma, B. H., Xu, C., Duan,

C., Castiello, C., Mencar, C., Liang, D., Kr

uger, F.,

Vessio, G., Castellano, G., Wang, J., Gao, J., Abual-

saud, K., Ding, L., Zhao, L., Cianciotta, M., Saqib,

M., Almaadeed, N., Elharrouss, O., Lyu, P., Wang,

Q., Liu, S., Qiu, S., Pan, S., Al-Maadeed, S., Khan,

S. D., Khattab, T., Han, T., Golda, T., Xu, W., Bai,

X., Xu, X., Li, X., Zhao, Y., Tian, Y., Lin, Y., Xu, Y.,

Yao, Y., Xu, Z., Zhao, Z., Luo, Z., Wei, Z., and Zhao,

Z. (2020). Visdrone-cc2020: The vision meets drone

crowd counting challenge results.

Felzenszwalb, P. F., Girshick, R. B., McAllester, D., and

Ramanan, D. (2010). Object detection with dis-

criminatively trained part-based models. 32(9):1627–

1645. Conference Name: IEEE Transactions on Pat-

tern Analysis and Machine Intelligence.

Filippoupolitis, A., Oliff, W., and Loukas, G. (2016).

Bluetooth low energy based occupancy detection for

emergency management. In 2016 15th International

Conference on Ubiquitous Computing and Commu-

nications and 2016 International Symposium on Cy-

berspace and Security (IUCC-CSS), pages 31–38.

Francisco, S., Gruteser, M., and Grunwald, D. (2003).

Anonymous usage of location-based services through

spatial and temporal cloaking. page 31.

Harkins, D. (2008). Rfc 5297 - synthetic initialization vec-

tor (siv) authenticated encryption using the advanced

encryption standard (aes).

Idrees, H., Saleemi, I., Seibert, C., and Shah, M. (2013).

Multi-source multi-scale counting in extremely dense

crowd images. In 2013 IEEE Conference on Com-

puter Vision and Pattern Recognition, pages 2547–

2554. ISSN: 1063-6919.

Janofsky, M. (1995). Federal parks chief calls ’million man’

count low. The New York times, page 6–6.

Jiang, H., Li, J., Zhao, P., Zeng, F., Xiao, Z., and Iyengar,

A. (2021). Location privacy-preserving mechanisms

in location-based services: A comprehensive survey.

54(1):4:1–4:36.

Jiang, X., Zhang, L., Xu, M., Zhang, T., Lv, P., Zhou, B.,

Yang, X., and Pang, Y. (2020). Attention scaling for

crowd counting. Proceedings of the IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition, pages 4705–4714.

Kannan, P. G., Venkatagiri, S. P., Chan, M. C., Ananda,

A. L., and Peh, L.-S. (2012). Low cost crowd count-

ing using audio tones. In Proceedings of the 10th ACM

Conference on Embedded Network Sensor Systems,

SenSys ’12, pages 155–168. Association for Comput-

ing Machinery.

Keller, M., Orsini, E., Rotaru, D., Scholl, P., Soria-Vazquez,

E., and Vivek, S. (2017). Faster secure multi-party

computation of aes and des using lookup tables. In

Gollmann, D., Miyaji, A., and Kikuchi, H., editors,

Applied Cryptography and Network Security, pages

229–249, Cham. Springer International Publishing.

Korany, B. and Mostoﬁ, Y. (2021). Counting a stationary

crowd using off-the-shelf wiﬁ. MobiSys 2021 - Pro-

ceedings of the 19th Annual International Conference

on Mobile Systems, Applications, and Services, pages

202–214.

Li, J., Yan, H., Liu, Z., Chen, X., Huang, X., and Wong,

D. S. (2017). Location-sharing systems with enhanced

privacy in mobile online social networks. IEEE Sys-

tems Journal, 11:439–448.

Mousavi, S. M., Rabiee, H. R., Moshref, M., and Dabir-

moghaddam, A. (2007). MobiSim: A framework

for simulation of mobility models in mobile ad-hoc

networks. In Third IEEE International Conference

on Wireless and Mobile Computing, Networking and

Communications (WiMob 2007), pages 82–82. ISSN:

2160-4894.

Mumtaz, R., Zaidi, S. M. H., Shakir, M. Z., Shaﬁ, U., Ma-

lik, M. M., Haque, A., Mumtaz, S., and Zaidi, S. A. R.

(2021). Internet of things (iot) based indoor air quality

sensing and predictive analytic—a covid-19 perspec-

tive. Electronics, 10(2).

Real-time Crowd Counting based on Wearable Ephemeral IDs

259

Ryan, D., Denman, S., Sridharan, S., and Fookes, C. (2015).

An evaluation of crowd counting methods, features

and regression models. 130:1–17.

Santana, J. R., S

anchez, L., Sotres, P., Lanza, J., Llorente,

T., and Mu

noz, L. (2020). A privacy-aware crowd

management system for smart cities and smart build-

ings. 8:135394–135405. Conference Name: IEEE

Access.

Sindagi, V. A. and Patel, V. M. (2017). CNN-based cas-

caded multi-task learning of high-level prior and den-

sity estimation for crowd counting. In 2017 14th IEEE

International Conference on Advanced Video and Sig-

nal Based Surveillance (AVSS), pages 1–6. IEEE.

Singanamalla, S., Chunhapanya, S., Hoyland, J., Vavru

sa,

M., Verma, T., Wu, P., Fayed, M., Heimerl, K., Sul-

livan, N., and Wood, C. (2021). Oblivious dns over

https (odoh): A practical privacy enhancement to

dns. Proceedings on Privacy Enhancing Technolo-

gies, 2021:575–592.

Troncoso, C. et al. (2020). Decentralized privacy-

preserving proximity tracing.

Wahl, F., Milenkovic, M., and Amft, O. (2012). A dis-

tributed PIR-based approach for estimating people

count in ofﬁce environments. In 2012 IEEE 15th

International Conference on Computational Science

and Engineering, pages 640–647.

Walach, E. and Wolf, L. (2016). Learning to count with

CNN boosting. In Leibe, B., Matas, J., Sebe, N., and

Welling, M., editors, Computer Vision – ECCV 2016,

volume 9906, pages 660–676. Springer International

Publishing. Series Title: Lecture Notes in Computer

Science.

Wang, P., Gao, C., Wang, Y., Li, H., and Gao, Y. (2020).

Mobilecount: An efﬁcient encoder-decoder frame-

work for real-time crowd counting. Neurocomputing,

407:292–299.

Zhao, C., Zhao, S., Zhao, M., Chen, Z., Gao, C. Z., Li, H.,

and an Tan, Y. (2019). Secure multi-party computa-

tion: Theory, practice and applications. Information

Sciences, 476:357–372.

Zou, H., Zhou, Y., Yang, J., and Spanos, C. J. (2018).

Device-free occupancy detection and crowd counting

in smart buildings with WiFi-enabled IoT. 174:309–

322.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

260
