PASS-P: Performance and Security Sensitive Dynamic Cache

Partitioning

Nirmal Kumar Boran

, Pranil Joshi

and Virendra Singh

Computer Architecture and Dependable Systems Lab (CADSL),

Indian Institute of Technology Bombay, India

Keywords:

Hardware Security, Cache-based Side-channel Attacks, Cache Partitioning.

Abstract:

Cache-based side-channel attacks can cause security breaches like extraction of private keys from various en-

cryption algorithms. Static cache partitioning protocols are widely known to prevent such side-channel attacks.

However, because static partitioning protocols exhibit poor program performance, dynamic partitioning tech-

niques are preferably used in modern systems. This work exposes the vulnerability of dynamic partitioning

protocols such as UCP (Utility-based Cache Partitioning) and SecDCP (Secure Dynamic Cache Partitioning)

to well-known side-channel attacks. We then propose PASS-P protocol which prevents such side-channel at-

tacks without compromising on performance. PASS-P, when implemented to secure the widely used UCP

protocol, results in an average performance drop of only 0.35%. Compared to the inherently secure static

partitioning protocol, PASS-P improves performance by up to 29% (33.4%) and on an average 7.2% (10.6%)

in pairs of memory-intensive benchmarks when implemented on the shared L3 (L2) cache.

1 INTRODUCTION

With increasing utilization of computing systems in

all domains, security of the systems which handle

people’s private data and communication has become

vital. Extensive research is being carried out to iden-

tify security ﬂaws across the stack from hardware

to software, and then to come up with novel ideas

to ﬁx them.While several ideas have been proposed

to to mitigate the exposed vulnerabilities, we limit

ourselves to discussion of hardware security in the

present work.

Prior work in the ﬁeld of hardware security has

shown the security vulnerabilities in such systems,

particularly in the form of side-channel attacks (Per-

cival, 2005; Wang and Lee, 2007; Kong et al., 2008;

Ashokkumar et al., 2016; Tromer et al., 2010; Bo-

ran et al., 2021). In such attacks, the attacker pro-

gram exploits speciﬁc unintended effects of the vic-

tim program. For instance, by using the technique in

(Bernstein, 2005), it was shown that an attacker can

deduce the private encryption key of the AES (Ad-

vanced Encryption Standard) protocol. It did so by

exploiting the fact that the total execution time of the

https://orcid.org/0000-0003-3942-7899

https://orcid.org/0000-0001-7013-3034

algorithm is input-dependent. The different modes

in which an attack can be mounted are referred to as

‘channels’. These channels include analysis of execu-

tion time, memory accesses, power consumption and

electromagnetic radiation of the hardware resources

being used by the victim program. PASS-P, in par-

ticular deals with the kind of attacks in which the at-

tacker tries to analyze the memory accesses made by

the victim to ﬁnd out which parts of the victim pro-

gram have been executed. Flush+Reload (Yarom and

Falkner, 2014) and Prime+Probe (Liu et al., 2015) are

side-channel attacks that use differential cache access

timing-analysis on lines modiﬁed by the victim pro-

cess. The Flush+Reload technique ﬂushes speciﬁc

lines from each cache set and then tries to reload the

ﬂushed addresses, while the Prime+Probe technique

ﬁlls the cache sets with the attacker’s data and then

tries to access the ﬁlled data. Because of the differ-

ence in memory access latency in cases of cache hit

and cache miss, the attacker can deduce the addresses

accessed by the victim.

Some recent work (Yao et al., 2019; Yan et al.,

2016) has shown novel ways for such attacks to be

detected by the system at run-time. COTSknight (Yao

et al., 2019) tries to capture the cache occupancy pat-

terns of running processes to identify suspicious ap-

plications that could pose a security risk. ReplayCon-

Boran, N., Joshi, P. and Singh, V.

PASS-P: Performance and Security Sensitive Dynamic Cache Partitioning.

DOI: 10.5220/0011336900003283

In Proceedings of the 19th International Conference on Security and Cryptography (SECRYPT 2022), pages 443-450

ISBN: 978-989-758-590-6; ISSN: 2184-7711

443

fusion (Yan et al., 2016) replays a program’s execu-

tion with a different cache address mapping to discern

cache miss patterns.

0.2

0.4

0.6

0.8

bzip-milc

gcc-milc

gcc-lbm

gcc-soplex

astar-libq

gcc-libq

leslie-astar

leslie-sphinx

bzip-lbm

libq-milc

omnetpp-libq

wrf-bwaves

mcf-zeusmp

cactusadm-soplex

gmean

Performance normalized to UCP

Figure 1: Speedup of static partitioning scheme normalized

to UCP for memory-intensive benchmark pairs (for Conﬁg-

uration 1 of Table 1).

On the other hand, there has also been exten-

sive research on mitigating such cache-based side-

channel attacks. Approaches to cache security can

be broadly classiﬁed into two types: cache parti-

tioning and cache randomization (Wang and Lee,

2007). PASS-P follows the ﬁrst kind of approach.

One of the na

ıve partitioning techniques proposed to

do this is static partitioning (Page, 2005). Within

each cache set, it enforces a ﬁxed partitioning of the

lines amongst the simultaneously running processes.

Since no cache resources are shared by processes in

this technique, it guarantees security against cache-

based side-channel attacks. However, static partition-

ing comes with a heavy performance penalty because

many lines in the cache set remain under-utilized

(Wang et al., 2016). Cache access behavior of a pro-

gram can change during run-time, and static partition-

ing fails to adapt to this change. To improve perfor-

mance in a multi-processor system, several dynamic

cache partitioning (DCP) methods (Wang et al., 2016;

Qureshi and Patt, 2006; Domnitser et al., 2012a;

Sanchez and Kozyrakis, 2012; Xie and Loh, 2009)

have been proposed. Utility-based Cache Partition-

ing (UCP) (Qureshi and Patt, 2006) dynamically par-

titions the LLC in order to maximize the total util-

ity of cache lines for all the running processes. Our

evaluation (Figure 1) shows that the static partitioning

suffers an average performance degradation of 8.3%

with respect to UCP for memory intensive benchmark

pairs. Figure 1 also shows that UCP performs better

than static partitioning in all experiments.

While these DCP protocols have signiﬁcant per-

formance advantages, we will show in Section 3 that

they are susceptible to cache-based side-channel at-

tacks. For mounting any side-channel attack, the fol-

lowing conditions (Wang and Lee, 2007) must be sat-

isﬁed: 1) attacker and victim processes must share a

resource; 2) both should be able to change the state

of the shared resource; and 3) the attacker should be

able to detect the changes made by the victim in the

shared resource. The LLC is typically shared amongst

all running processes. Since LLC lines are reallocated

periodically by UCP, all of these conditions are satis-

ﬁed and an attack can be mounted through the shared

LLC. Thus, our goal is to provide security to DCP

schemes without incurring a signiﬁcant performance

penalty.

The current work proposes the following contri-

butions:

• We describe a security vulnerability in DCP pro-

tocols and SecDCP (Wang et al., 2016) via the

shared last level cache. The vulnerability allows

an attacker to determine memory accesses made

by ‘victim’ process while running simultaneously

on the same core or on another core in multi-core

system.

• We propose PASS-P, a protocol that mitigates this

vulnerability by invalidating cache lines.

• To recover the performance loss due to invalida-

tion, PASS-P uses the novel Modiﬁed-LRU re-

allocation policy. Our detailed evaluation shows

that PASS-P regains the performance lost and per-

forms comparably to UCP.

While this work focuses on how PASS-P can be

used to make UCP secure, we believe that our tech-

niques can beneﬁt most DCP schemes which are sus-

ceptible to the threat model described in Section 3.1.

The rest of the paper is organized as follows: Sec-

tion 2 summarizes the relevant prior work in this ﬁeld.

Section 3 gives a brief outline of the UCP protocol,

and describes how it is susceptible to side-channel

attacks. Section 4 discusses the proposed PASS-

P method. Section 5 compares the performance of

PASS-P with static partitioning and vanilla UCP. Sec-

tion 6 concludes our work.

2 PRIOR WORK

Prior work for mitigation of cache-based side-channel

attacks can be broadly classiﬁed into two approaches:

(1) cache randomization and (2) cache partitioning

(Wang and Lee, 2007). In the ﬁrst approach (Wang

and Lee, 2007; Qureshi, 2018), the address mapping

from main memory to the cache subsystem is ran-

domized so that no process can precisely detect the

accesses made by any other process. RPCache (Wang

and Lee, 2007) achieves this using a permutation table

SECRYPT 2022 - 19th International Conference on Security and Cryptography

444

to achieve this randomization. In CEASER (Qureshi,

2018), a low-latency block cipher is used to encrypt

the address used to access cache. In the second ap-

proach, the side channel is sealed by partitioning the

cache system amongst the running processes, such

that no process can access the cache lines of any other

process. PASS-P is based on this second kind of ap-

proach.

As discussed in Section 1, the method of static

partitioning (Page, 2005) ensures security against all

cache-based side-channel attacks. However, it comes

with a signiﬁcant performance degradation because of

its inefﬁcient use of the cache system. On the other

hand, dynamic cache partitioning (DCP) protocols,

which were developed to improve performance, are

insecure. Prior research has recognized this insecu-

rity and tried to mitigate the vulnerability.

SecDCP (Wang et al., 2016), a recent work, classi-

ﬁes processes as conﬁdential and public. It follows an

asymmetric security policy: it aims to secure only the

conﬁdential applications from a side-channel attack,

and assumes that the mechanism for classiﬁcation of

processes is not insecure. Though it claims to provide

security to the conﬁdential process, we show in Sec-

tion 3.1 that it is still vulnerable to the Flush+Reload

attack.

Prior work like COTSknight (Yao et al., 2019)

and DAWG (Kiriansky et al., 2018) also address sim-

ilar security concerns. However, unlike PASS-P, both

of these require software and OS support and incur

higher performance penalties. COTSknight makes

novel use of cache monitoring technology (CMT) and

cache allocation technology (CAT) features of mod-

ern processors to identify and isolate suspiciously

behaving processes. However, it does not consider

Flush+Reload attacks. Compared to an insecure LRU

baseline, COTSknight shows a slowdown of up to 5%.

DAWG proposes a generic mechanism for secure way

partitioning to isolate cache accesses and metadata.

Compared to an approximate LRU baseline, DAWG

exhibits slowdown between 0% and 15% for different

experiments. PASS-P, on the other hand, shows an av-

erage slowdown of 0.35% and a maximum slowdown

of 2.2% compared to insecure UCP baseline. Consid-

ering that UCP gives a 10.96% higher performance on

average compared to LRU (Qureshi and Patt, 2006),

we expect PASS-P to also perform favorably when

augmented to UCP.

NoMo (Domnitser et al., 2012b) is an L1-

cache security system which presents a performance-

security tradeoff that can be tuned. Like PASS-P, it

requires no software support and requires only simple

changes to existing cache replacement logic. How-

ever, the NoMo conﬁguration which gives complete

security is identical to static partitioning and may de-

grade performance. Compared to an LRU baseline,

this conﬁguration gives a performance degradation of

up to 5% and 1.2% on average.

Our goal is to devise a method that is completely

secure like static partitioning, yet achieves the perfor-

mance offered by dynamic partitioning schemes.

3 VULNERABILITY IN

DYNAMIC PARTITIONING

Dynamic cache partitioning (DCP) protocols are run-

time algorithms that dynamically distribute cache

lines amongst running processes. UCP (Qureshi and

Patt, 2006), for example, periodically partitions the

cache lines in each set in order to maximize the total

utility of caches for all running processes. The guid-

ing principle behind UCP is that the process that has a

higher ‘utility’ for cache lines should be allotted more

number of cache lines in each set. Utility of a cache

line for a process is deﬁned as the increase in cache

hit-rate if the process was given an additional cache

line. At the beginning of each phase (1 million cy-

cles in our study), UCP computes the optimum parti-

tioning based on the utility behaviour of the processes

in the previous phase and re-partitions the cache sets.

To enforce the new partitioning, UCP may need to

reallocate cache lines amongst processes. Previous

DCP protocols including UCP are designed such that

if some lines are reallocated from a process P1 to a

process P2, then P1 can still access those lines un-

til P2 overwrites them (Wang et al., 2016). This was

done in order to avoid unnecessary cache misses on

reallocated lines in each phase. The prime reason for

a side-channel attack on UCP, or in general on any

DCP scheme, is the reallocation of cache lines from

one process to another.

3.1 Threat Model

Dynamic cache partitioning schemes can be vulnera-

ble to Flush+Reload (Yarom and Falkner, 2014) and

Prime+Probe (Liu et al., 2015) attacks, especially in

cases where an attacker application can inﬂuence the

cache partitioning decisions. In UCP, for example, an

attacker program can artiﬁcially increase or decrease

its utility to cause reallocation of cache lines to and

from itself respectively. Moreover, to mount these at-

tacks, the attacker process does not need any elevated

privileges. The mechanism of the Flush+Reload at-

tack is described ahead and shown in Figure 2.

PASS-P: Performance and Security Sensitive Dynamic Cache Partitioning

445

1. Flush: The attacker takes all but one cache lines

of every set by increasing its utility and ﬂushes

them as shown in step (a) in Figure 2.

2. Execute: The attacker returns all the ﬂushed lines

to the victim by decreasing its utility. It then waits

for the victim to execute as shown in steps (b) &

(c).

3. Reload: Attacker takes all but one lines by in-

creasing its utility again and reloads addresses of

interest as shown in step (d). A cache hit or miss

on these addresses is indicative of the victim’s

memory accesses.

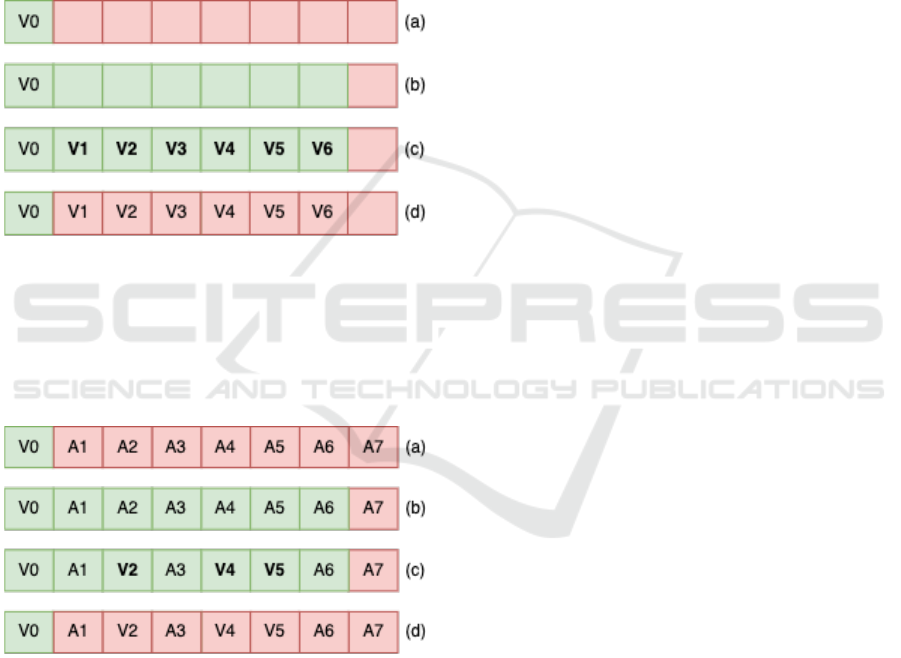

Figure 2: Mechanism for Flush+Reload attack. (a) Attacker

takes lines and ﬂushes them. (b) Attacker returns these

lines. (c) Victim program executes. (d) Attacker takes these

lines back and reloads targeted addresses.

Similarly, the following steps show how an at-

tacker could mount the Prime+Probe attack. It is also

shown pictorially in Figure 3.

Figure 3: Mechanism for Prime+Probe attack. (a) Attacker

takes lines and primes them. (b) Attacker returns these

lines. (c) Victim program executes. (d) Attacker takes these

lines back and probes addresses A1 through A6.

1. Prime: The attacker takes all but one cache lines

of every set by increasing its utility and primes

them with its own data as shown in step (a) in the

Figure 3.

2. Execute: The attacker returns all the ﬂushed lines

to the victim by decreasing its utility. It then waits

for the victim to execute as shown in steps (b) &

3. Probe: Attacker takes all but one lines by increas-

ing its utility and reloads the addresses that were

previously primed as shown in step (d). A cache

hit or miss on these addresses is indicative of the

victim’s memory accesses.

While the attacker and victim must share the

code library for Flush+Reload to be mounted, there

is no such requirement for Prime+Probe. For

Flush+Reload, this ensures that the attacker is able to

get a cache hit in the Reload step for addresses fetched

by the victim in the Execute step.

Note that in most dynamic partitioning protocols,

no process is permitted to possess all cache lines of

a set, in order to prevent starvation of the other pro-

cesses. Despite this, the attacker can extract critical

information from the victim, especially over multiple

iterations of the attack.

To facilitate a more granular analysis of victim’s

memory accesses, it is typical for the attacker to use

well-known methods to slow down victim’s execution

considerably. For example, as described in (Gullasch

et al., 2011) an attacker can achieve this by mounting

a denial of service (DoS) attack on the completely fair

scheduler (CFS) that is used in Linux to divide CPU

time amongst running processes.

SecDCP (Wang et al., 2016), a recent work, clas-

siﬁes processes as conﬁdential and public. It aims to

secure only the conﬁdential applications from a side-

channel attack. Though it claims to provide security

to the conﬁdential process, we show that it is still vul-

nerable to the Flush+Reload attack. SecDCP only in-

validates the lines that are reallocated from a public

application to a conﬁdential application, if and only if

they were fetched by the public application. The lines

which are taken back by the public attacker applica-

tion in Reload step are not invalidated.

Therefore, the attacker can infer about the victim’s

accesses, thus making SecDCP insecure. Moreover,

the partitioning decisions made by SecDCP do not

factor in the demand of the conﬁdential application,

thus leading to a sub-optimal partitioning and conse-

quent performance drop.

4 PASS-P

Performance and Security Sensitive Partitioning

(PASS-P), invalidates cache lines to secure the LLC,

as described in Section 4.1. Section 4.2 then describes

the Modiﬁed-LRU reallocation policy that is adopted

by PASS-P for an improvement in performance.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

446

4.1 Security with Invalidation

To mitigate the side-channel vulnerability described

in Section 3, the attacker must be prevented from suc-

cessfully performing differential timing analysis on

the reallocated lines. To stop the access of shared

resources of other program, PASS-P invalidates all

cache lines that are reallocated from one process to

another. Because of this preemptive invalidation of

lines, no process is able to cause eviction of lines

of any other process. Side-channel attacks cannot be

mounted in such a system, for the reasons described

below.

1. Flush+Reload: All lines reallocated to the at-

tacker after the Execute step are invalidated and

the attacker gets a miss for every targeted address

in Reload step.

2. Prime+Probe: The lines primed by the attacker in

the Prime step are invalidated when they are real-

located to the victim. Hence, in the Probe step the

attacker will get a cache miss for all these invali-

dated lines.

The attacker’s differential timing analysis fails be-

cause all addresses that the attacker attempts to fetch

result in the same cache behavior.

4.2 Modiﬁed-LRU Reallocation Policy

for PASS-P

The invalidation of the cache lines in PASS-P results

in a performance loss. We identify two reasons for

this:

1. In UCP, when a process P1 gives up some lines of

the shared LLC to another process P2, it can still

access the cache lines until P2 overwrites them

with its data. However, in PASS-P, due to inval-

idation of all reallocated lines, P1 will incur ad-

ditional cache misses. As invalidation is critical

for security, the performance drop is inevitable.

We propose a modiﬁcation in the LRU (Least re-

cently used) reallocation policy to address the sec-

ond reason (given below) and regain most of the

lost performance.

2. Our experiments show that 32% of all reallocated

lines are dirty in nature. These must be written to

the main memory before their invalidation in the

LLC. We observe that this invalidation can lead

to a surge in memory trafﬁc at the start of each

UCP phase, as many lines may have to be written

back at once. Hence, the running processes face

additional delays while handling any new cache

misses.

UCP uses the conventional LRU policy to choose

the lines belonging to one process that should be real-

located to other processes. The LRU policy does not

adequately address the above causes of poor perfor-

mance. To ameliorate the effects of the second rea-

son, PASS-P employs the Modiﬁed LRU reallocation

policy.

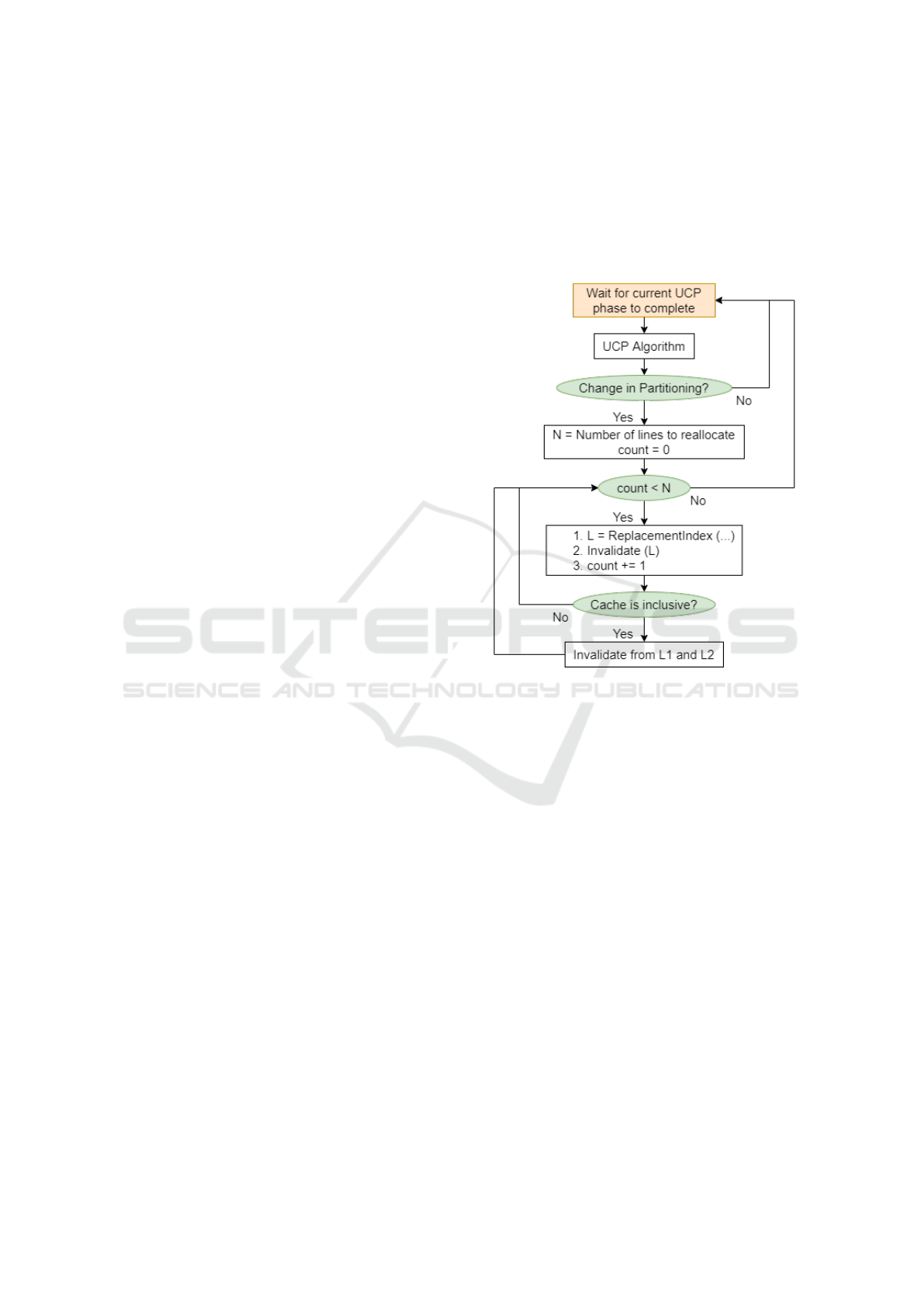

Figure 4: Flow Diagram of PASS-P’s Reallocation Policy.

According to this policy, PASS-P preferentially

reallocates clean lines over dirty lines from a set, if

the clean lines are not recently used, so as to still re-

spect the recency order. This reallocation policy re-

duces the number of writebacks to the main memory.

We deﬁne a ‘threshold fraction’ f ∈ [0,1]. Our real-

location policy is deﬁned as: Reallocate LRU-Clean

line from a set if one exists and only if the clean line

is in the f fraction of the least recently used lines

allocated to the process, else reallocate the (dirty)

LRU line. For instance, consider that a process has

to choose a line for reallocation to another process

among its 8 lines in a cache set, given f = 0.75. The

Modiﬁed-LRU policy will inspect the 6 (= 8∗ f ) least

recently used lines and reallocate the least recently

used clean line amongst them. If all of these 6 lines

are dirty, our policy simply reallocates the least re-

cently used line.

Algorithm 1 describes the selection of lines for re-

allocation and the entire replacement policy is shown

in Figure 4. In this ﬁgure, ’N’ denotes the number

of cache lines to be reallocated at the end of the UCP

phase, as determined by the partitioning algorithm.

PASS-P: Performance and Security Sensitive Dynamic Cache Partitioning

447

Algorithm 1: Choosing a line for reallocation.

Function ReplacementIndex (In: List L

< blockIndex, dirtybit >, f , associativity n;

Out: blockIndex)

l = getIndexLRUCleanLine(L) if (l ! = null &&

l ≤ f ∗ n) then

retur n l

else

retur n 0; //LRU line

Note : getIndexLRUCleanLine(L) gives index o f

LRU clean line

To ﬁnd the best value of f , we evaluated the per-

formance of a few pairs of memory intensive bench-

marks for different values of f . Figure 5 compares the

geometric mean of speedup obtained with respect to

static partitioning for these different values of f .

1.08

1.085

1.09

1.095

1.1

1.105

0 0.25 0.5 0.75 1

Performance wrt to Static Partitioning

Threshold Fraction (f)

Figure 5: Geometric means of speedups of PASS-P for

memory-intensive benchmark pairs with respect to static

partitioning for different values of f . (For Conﬁguration

1 in Table 1).

This graph shows that f = 0.75 performs the best,

giving the highest speedup of 10%. The value of

the f = 0 corresponds to the standard LRU realloca-

tion policy, resembling the one conventionally used

by UCP. The graph clearly shows that the LRU policy

is not well-suited for PASS-P. f = 1 indicates a policy

that always reallocates clean lines even if it is at MRU

(Most recently used) position whenever such a clean

line exists.

5 EVALUATION

We examine the performance of two benchmarks run-

ning simultaneously on two separate cores. We eval-

uate the performance of the two different conﬁgura-

tions shown in Table 1 using the cycle-accurate Sniper

simulator. In each experiment, two benchmarks run

simultaneously on two separate cores. The PASS-P

and UCP algorithms run with a phase length of 1 mil-

lion cycles.

We measure performance using ‘weighted

speedup’ metric that is the most appropriate for such

multi-core systems (Qureshi and Patt, 2006).

WeightedSpeedup =

∑

process

(IPC

/SingleIPC

) (1)

where IPC

is the IPC of the i

process in the

multi-process system, and SingleIPC

is its IPC when

run independently on a single core.

We show the results for twenty-ﬁve pairs of

benchmarks selected from the diverse set present

in the SPEC CPU2006 benchmark suite. In the

ﬁrst eighteen pairs, both benchmarks are memory-

intensive (Navarro-Torres et al., 2019) (‘MM’ pairs).

In the remaining seven pairs, the ﬁrst benchmark

is memory-intensive, while the second is compute-

intensive (‘MC’ pairs) (Navarro-Torres et al., 2019).

MM pairs are of special interest to us, because both

benchmarks contend aggressively for cache lines and

the optimum partitioning for UCP changes more fre-

quently. Hence, higher number of re-allocations and

invalidations take place in the course of their execu-

tion, posing a bigger challenge for the performance of

PASS-P. Since compute-intensive benchmarks are not

sensitive to the cache replacement policies, it is not

insightful to study pairs with both compute-intensive

benchmarks. In our experiments, we observed that

the percentage of reallocated lines which were dirty

dropped to around 22% for PASS-P in comparison to

UCP’s 32%.

0.95

1.05

1.1

1.15

1.2

1.25

1.3

bzip-milc

gcc-milc

gcc-lbm

gcc-soplex

astar-libq

gcc-libq

leslie-astar

leslie-sphinx

libq-milc

bzip-lbm

omnetpp-libq

wrf-bwaves

mcf-zeusmp

cactusadm-soplex

zeusmp-omnetpp

sphinx-cactusadm

omnetpp-mcf

soplex-bzip

gmean(M+M)

bzip-gobmk

gcc-gromacs

astar-h264ref

libq-sjeng

wrf-h264ref

sphinx-gromacs

omnetpp-gromacs

gmean(M+C)

Overall gmean

Speedup wrt to Static Partitioning

Memory-Memory

Memory-Compute

Figure 6: Comparison of Speedup of PASS-P ( f =0.75)

normalized to Speedup of Static partitioning for different

benchmark pairs for Conﬁguration 1 of Table 1.

Figure 6 shows the performance gain of PASS-P

with respect to static partitioning. Our method with

L3 as LLC gives a considerable performance gain of

up to 29% and 7.2% on average for MM pairs of

benchmarks. The overall average performance gain

for all type of combinations is 5.8%. The lower

SECRYPT 2022 - 19th International Conference on Security and Cryptography

448

Table 1: Core conﬁgurations.

Conﬁguration 1 Conﬁguration 2

Last Level Cache (LLC) L3 L2

LLC size, associativity 4 MB, 16 way 256 KB, 8 way

speedup for the combination of MC pairs of bench-

marks is expected, because compute-intensive pro-

grams do not have a high utility of the cache. The

choice of the cache partitioning protocol does not

affect compute-intensive programs’ performance as

much.

For ‘Conﬁguration 2’ mentioned in Table 1, the

performance gain is up to 33.4% and 10.6% on aver-

age as shown in Figure 7. The L2 cache, which has

lower associativity (compared to L3 cache), beneﬁts

more from the proposed PASS-P policy. The higher

gain in this case is because of more efﬁcient utiliza-

tion of the cache sets.

0.95

1.05

1.1

1.15

1.2

1.25

1.3

1.35

bzip-milc

gcc-milc

gcc-soplex

astar-libq

gcc-libq

leslie-astar

leslie-sphinx

libq-milc

omnetpp-libq

mcf-zeusmp

cactusadm-soplex

omnetpp-wrf

zeusmp-omnetpp

sphinx-cactusadm

omnetpp-mcf

soplex-bzip

gmean

Speedup wrt Static Partitioning

Figure 7: Comparison of Speedup of PASS-P ( f =0.75)

normalized to Speedup of Static partitioning for different

benchmark pairs for Conﬁguration 2 of Table 1.

Figure 8 shows the performance of PASS-P (with

f = 0.75) for all benchmark pairs with respect to UCP.

There is a performance drop of 0.50% in case of the

eighteen MM pairs, while the value is even lower at

0.12% for the seven MC pairs. Overall geometric

mean value for the performance drop is 0.35%. Thus,

PASS-P has only a marginal drop in performance with

respect to UCP.

6 CONCLUSION

Through this work, we have shown that side-channel

attacks like Flush+Reload and Prime+Probe can be

mounted on dynamic cache partitioning (DCP) proto-

cols. While static partitioning can mitigate these at-

tacks, it has a huge performance penalty. Through

cache line invalidation and the Modiﬁed-LRU real-

location policy, we are able to overcome the secu-

0.96

0.97

0.98

0.99

1.01

bzip-milc

gcc-milc

gcc-lbm

gcc-soplex

astar-libq

gcc-libq

leslie-astar

leslie-sphinx

libq-milc

bzip-lbm

omnetpp-libq

wrf-bwaves

mcf-zeusmp

cactusadm-soplex

zeusmp-omnetpp

sphinx-cactusadm

omnetpp-mcf

soplex-bzip

gmean(M+M)

bzip-gobmk

gcc-gromacs

astar-h264ref

libq-sjeng

wrf-h264ref

sphinx-gromacs

omnetpp-gromacs

gmean(M+C)

Overall gmean

Speedup wrt UCP

Memory-Memory

Memory-Compute

Figure 8: Comparison of Speedup of PASS-P ( f = 0.75)

normalized to Speedup of UCP for different benchmark

pairs for Conﬁguration 1 of Table 1.

rity vulnerability in DCP protocols like utility-based

cache partitioning (UCP), while gaining a speedup of

up to 29% and on average 7.12% compared to static

partitioning. We also show that this technique has

a marginal performance cost of only 0.35% with re-

spect to UCP on average. PASS-P can be applied

on shared levels of cache for all dynamic partitioning

protocols. Thus, it is an effective method for mitiga-

tion of side channel attacks. Extension of PASS-P to

provide security against newer attacks like Meltdown

(Lipp et al., 2018) and Spectre (Kocher et al., 2019)

is left for future work.

ACKNOWLEDGEMENTS

We are thankful to Indo-Japanese (DST-JST) Joint

Lab Grant on Intelligent CPS for supporting this

project. This work has also been supported by Na-

tional Security Council Secretariat (NSCS), Govt. of

India. We are also thankful to Visvesvaraya PhD

Scheme, Ministry of Electronics and Information

Technology, Government of India for their support.

We are thankful to Prof Bernard Menezes, CADSL

members, ISRDC (Information Security Research &

Development Center) members for their valuable sug-

gestions.

REFERENCES

Ashokkumar, C., Giri, R. P., and Menezes, B. (2016).

Highly efﬁcient algorithms for aes key retrieval in

PASS-P: Performance and Security Sensitive Dynamic Cache Partitioning

449

cache access attacks. In 2016 IEEE European sympo-

sium on security and privacy (EuroS&P), pages 261–

275. IEEE.

Bernstein, D. J. (2005). Cache-timing attacks on aes.

Boran, N. K., Pinto, K., and Menezes, B. (2021). On dis-

abling prefetcher to amplify cache side channels. In

2021 25th International Symposium on VLSI Design

and Test (VDAT), pages 1–6. IEEE.

Domnitser, L., Jaleel, A., Loew, J., Abu-Ghazaleh, N., and

Ponomarev, D. (2012a). Non-monopolizable caches:

Low-complexity mitigation of cache side channel at-

tacks. ACM Transactions on Architecture and Code

Optimization (TACO), 8(4):1–21.

Domnitser, L., Jaleel, A., Loew, J., Abu-Ghazaleh, N., and

Ponomarev, D. (2012b). Non-monopolizable caches:

Low-complexity mitigation of cache side channel at-

tacks. ACM Transactions on Architecture and Code

Optimization (TACO), 8(4):1–21.

Gullasch, D., Bangerter, E., and Krenn, S. (2011). Cache

games–bringing access-based cache attacks on aes to

practice. In 2011 IEEE Symposium on Security and

Privacy, pages 490–505. IEEE.

Kiriansky, V., Lebedev, I., Amarasinghe, S., Devadas, S.,

and Emer, J. (2018). Dawg: A defense against cache

timing attacks in speculative execution processors. In

2018 51st Annual IEEE/ACM International Sympo-

sium on Microarchitecture (MICRO), pages 974–987.

IEEE.

Kocher, P., Horn, J., Fogh, A., Genkin, D., Gruss, D., Haas,

W., Hamburg, M., Lipp, M., Mangard, S., Prescher, T.,

et al. (2019). Spectre attacks: Exploiting speculative

execution. In 2019 IEEE Symposium on Security and

Privacy (SP), pages 1–19. IEEE.

Kong, J., Aciicmez, O., Seifert, J.-P., and Zhou, H. (2008).

Deconstructing new cache designs for thwarting soft-

ware cache-based side channel attacks. In Proceed-

ings of the 2nd ACM workshop on Computer security

architectures, pages 25–34.

Lipp, M., Schwarz, M., Gruss, D., Prescher, T., Haas, W.,

Fogh, A., Horn, J., Mangard, S., Kocher, P., Genkin,

D., et al. (2018). Meltdown: Reading kernel memory

from user space. In 27th {USENIX} Security Sympo-

sium ({USENIX} Security 18), pages 973–990.

Liu, F., Yarom, Y., Ge, Q., Heiser, G., and Lee, R. B. (2015).

Last-level cache side-channel attacks are practical. In

2015 IEEE symposium on security and privacy, pages

605–622. IEEE.

Navarro-Torres, A., Alastruey-Bened

e, J., Ib

nez-Mar

ın,

P., and Vi

nals-Y

ufera, V. (2019). Memory hierarchy

characterization of spec cpu2006 and spec cpu2017 on

the intel xeon skylake-sp. Plos one, 14(8):e0220135.

Page, D. (2005). Partitioned cache architecture as a

eide-

channel defence mechanism.

Percival, C. (2005). Cache missing for fun and proﬁt.

Qureshi, M. (Oct 2018). Ceaser: Mitigating conﬂit-based

cache attacks via encryptedaddress and remapping. In

51st Annual IEEE/ACM International Symposium on

Microarchitecture. IEEE.

Qureshi, M. K. and Patt, Y. N. (2006). Utility-based cache

partitioning: A low-overhead, high-performance, run-

time mechanism to partition shared caches. In 2006

39th Annual IEEE/ACM International Symposium

on Microarchitecture (MICRO’06), pages 423–432.

IEEE.

Sanchez, D. and Kozyrakis, C. (2012). Scalable and ef-

ﬁcient ﬁne-grained cache partitioning with vantage.

IEEE Micro, 32(3):26–37.

Tromer, E., Osvik, D. A., and Shamir, A. (2010). Efﬁcient

cache attacks on aes, and countermeasures. Journal of

Cryptology, 23(1):37–71.

Wang, Y., Ferraiuolo, A., Zhang, D., Myers, A. C., and Suh,

G. E. (2016). Secdcp: secure dynamic cache partition-

ing for efﬁcient timing channel protection. In Pro-

ceedings of the 53rd Annual Design Automation Con-

ference, pages 1–6.

Wang, Z. and Lee, R. B. (2007). New cache designs for

thwarting software cache-based side channel attacks.

In Proceedings of the 34th annual international sym-

posium on Computer architecture, pages 494–505.

Xie, Y. and Loh, G. H. (2009). Pipp: Promotion/insertion

pseudo-partitioning of multi-core shared caches. ACM

SIGARCH Computer Architecture News, 37(3):174–

183.

Yan, M., Shalabi, Y., and Torrellas, J. (2016). Replay-

confusion: detecting cache-based covert channel at-

tacks using record and replay. In 2016 49th Annual

IEEE/ACM International Symposium on Microarchi-

tecture (MICRO), pages 1–14. IEEE.

Yao, F., Fang, H., Doroslova

cki, M., and Venkataramani, G.

(2019). Cotsknight: Practical defense against cache

timing channel attacks using cache monitoring and

partitioning technologies. In 2019 IEEE International

Symposium on Hardware Oriented Security and Trust

(HOST), pages 121–130. IEEE.

Yarom, Y. and Falkner, K. (2014). Flush+ reload: A high

resolution, low noise, l3 cache side-channel attack. In

23rd {USENIX} Security Symposium ({USENIX} Se-

curity 14), pages 719–732.

SECRYPT 2022 - 19th International Conference on Security and Cryptography

450
