A Hybrid Architecture for the Incremental Migration of a Web

Front-end

Benoît Verhaeghe

1,2 a

, Anas Shatnawi

1 b

, Abderrahmane Seriai

, Anne Etien

Nicolas Anquetil

2 c

, Mustapha Derras

and Stéphane Ducasse

Berger-Levrault, France

Univ. Lille, CNRS, Inria, Centrale Lille, UMR 9189 – CRIStAL, France

Univ. Lille, Inria, CNRS, Centrale Lille, UMR 9189 - CRIStAL, France

Keywords:

Software Transformation, Incremental Migration, Hybrid Architecture, GWT, Angular.

Abstract:

Nowadays, software migration is an effective solution to adopt new technologies while reusing the business

value of existing applications. Among other challenges, the size and complexity of large applications are

obstacles that increase the risks of migration projects. Moreover, the migration can imply a switch of pro-

gramming languages. This is the case when migrating from Java to TypeScript. Thus, it is hard to migrate

large and complex applications in one straightforward step. Incremental approaches have been designed to

counter this problem. These approaches are based on hybrid architecture usages. However, none of the ap-

proaches use a hybrid architecture for GUI deﬁned with different programming languages. In this paper, we

propose a new hybrid architecture that enables the incremental migration of web applications. Our architecture

is based on Web Components that allow legacy technology artifacts to work with modern ones. We imple-

ment the architecture and use it in the case of migrating GWT applications to Angular. Then, we validate its

usability in a real context by migrating an industrial web application.

1 INTRODUCTION

In the context of a collaboration with Berger-Levrault,

a major IT company, we work on the migration of web

applications written in GWT (Google Web Toolkit) to

Angular.

Approaches easing the migration of such a front-

end application have already been proposed (Robil-

lard and Kutschera, 2019, Sánchez Ramón et al.,

2014, Verhaeghe et al., 2021). They propose a partial

GUI migration, manually ﬁxing the remaining code,

and delivering the new system. However, the manual

step can require many man-months of effort for large

applications. Thus, the ﬁnal user would not receive

any update during this period and developers would

be unable to develop new functionalities in the legacy

technology (planned to be abandoned) or the new one

(not yet up and running). Such an approach is not fea-

sible in an industrial context with a strong pressure to

deliver.

https://orcid.org/0000-0002-4588-2698

https://orcid.org/0000-0002-5561-4232

https://orcid.org/0000-0003-1486-8399

One solution is to migrate the application incre-

mentally. Kontogiannis et al. (2010), and Teppe

(2009) proposed to migrate a part of an application,

integrating it into a hybrid architecture mixing legacy

and migrated parts, and delivering the hybrid applica-

tion to the ﬁnal user. However, their hybrid archi-

tecture can not be adapted straightforwardly to the

web GUI context. Indeed, communication between

the legacy and migrated parts is based on a foreign

function interface (FFI) (Polito et al., 2020) that en-

ables one programming language to call methods de-

ﬁned in shared libraries. FFI is a common solution for

desktop applications. However, one can not use it for

web applications. Indeed, a website accessing user

personal ﬁles would create a security threat. Robil-

lard and Kutschera (2019) used a hybrid architecture

to mix JavaSwing and JavaFX, but their solution is

simpliﬁed by the use of the same language (Java) in

both frameworks. In our case, GWT uses Java while

Angular uses Typescript. Moreover, their hybrid ar-

chitecture is based on an already existing JavaFX fea-

ture allowing one to integrate JavaSwing components

inside a JavaFX GUI. Such a feature is not available

for several GUI frameworks.

Verhaeghe, B., Shatnawi, A., Seriai, A., Etien, A., Anquetil, N., Derras, M. and Ducasse, S.

A Hybrid Architecture for the Incremental Migration of a Web Front-end.

DOI: 10.5220/0011338900003266

In Proceedings of the 17th International Conference on Software Technologies (ICSOFT 2022), pages 101-110

ISBN: 978-989-758-588-3; ISSN: 2184-2833

 2022 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

101

To support the migration of large industrial web

GUI applications, we designed a hybrid architecture

that authorizes one to mix GUI deﬁned with different

GUI frameworks using different programming lan-

guages. It also allows communication between the

different GUIs.

We implemented the hybrid architecture and used

it during an industrial migration project from GWT to

Angular. The results show that our hybrid architecture

enables the migration of the application. It allows one

to mix GWT and Angular without perceivable perfor-

mance issues.

The contributions of this paper are:

1. a hybrid architecture that allows one to integrate

legacy and modern modules in the same web ap-

plication;

2. an implementation of our hybrid architecture for

the case of migrating GWT applications to Angu-

lar ones; and

3. an evaluation of the usability of the hybrid archi-

tecture on an industrial application.

The remaining of the paper is organized as fol-

lows: In Section 2, we review the literature on hy-

brid architectures. In Section 3, we present our hy-

brid architecture. In Section 4, we present the im-

plementation of our architecture in the case of mix-

ing GWT and Angular. In Section 5, we evaluate our

hybrid architecture by migrating part of an industrial

GWT application to Angular pages. In Section 6, we

present threats to validity. In Section 7, we conclude

and present future work.

2 RELATED WORK

To perform an incremental GUI migration, the solu-

tion proposed in the literature is to use a hybrid appli-

cation mixing both the source and target GUI (Kon-

togiannis et al., 2010, Robillard and Kutschera, 2019,

Teppe, 2009). We identiﬁed various publications re-

lated to designing or using a hybrid architecture.

First, authors report several issues that must be

considered when designing a hybrid architecture.

Terekhov and Verhoef (2000) and Chisnall (2013) de-

tail the challenges to make two programming lan-

guages interoperable and Robillard and Kutschera

(2019) present the challenge raised when mixing

GUIs:

Communication. In the case of a hybrid applica-

tion, several programming languages might be in-

volved in the implementation. Each language has

to communicate with the other(s) (e.g., invoking

methods from one programming language to an-

other). Chisnall (2013) details the difﬁculties of

bridging two programming languages, reporting

the need for C interfaces to enable communica-

tion between Java and C++.

Type Matching. Another major challenge is the

matching of data types (Chisnall, 2013, Terekhov

and Verhoef, 2000). The two programming lan-

guages might have different structure represen-

tations for a type. For instance, Java primitive

types are implemented using speciﬁc Java wrap-

ping classes, whereas, in JavaScript, primitive

types are classic JavaScript types. Thus, a number

in JavaScript can not be directly translated into a

Java Integer.

GUI Mixing. The need to mix GUI has only been

raised by Robillard and Kutschera (2019). In their

context, widgets deﬁned in different GUI frame-

works are present within the same page. Thus, a

strategy must be developed to enable the integra-

tion of one GUI with the other.

Then, we identify existing research projects using

a hybrid architecture and the issues they deal with.

Robillard and Kutschera (2019) work on the mi-

gration of a Java Swing application to JavaFX. They

migrated the application incrementally by mixing

Java Swing and JavaFX components. Because both

framework uses Java, the communication and type

matching issues do not arise. The GUI mixing issue is

overcome using interoperability features of JavaFX

Comella-Dorda et al. (2000) detail different strate-

gies to mix application. To mix user interfaces, they

propose to use a screen scraping technique. It con-

sists of analyzing the source application rendered UI

at runtime, converting it, and wrapping it for the target

platform (web-based or desktop-based). Flores-Ruiz

et al. (2018) and Zhang et al. (2008) use this strat-

egy with different implementations. Although this

approach allows one to present the GUI of an appli-

cation in another context (e.g. desktop-based GUI in-

side a web browser), it does not discuss how enabling

communication between the source GUI and the tar-

get one. Using screen scraping technique, the authors

deal with the GUI mixing constraint but do not con-

sider the communication and the type matching be-

tween the hybridized elements.

Kontogiannis et al. (2010) propose a set of trans-

formation rules to migrate from one programming

language to another. Whereas they do not discuss how

two different languages can communicate, their trans-

formation rules deal with the type matching problem.

https://docs.oracle.com/javase/8/javafx/

interoperability-tutorial/swing-fx-interoperability.htm

ICSOFT 2022 - 17th International Conference on Software Technologies

102

Table 1: Hybrid architectures fulﬁlling issues.

Communication Type matching GUI mixing

Robillard and Kutschera (2019) X X

Comella-Dorda et al. (2000) X

Flores-Ruiz et al. (2018) X

Zhang et al. (2008) X

Kontogiannis et al. (2010) X

Teppe (2009) X

Sneed et al. (2006) X X

Technical: iframe X

To do so, they created a type correspondence table

between PL/IX and C. GUI mixing was out of their

scope.

Teppe (2009) uses an iterative approach to migrate

an SPL

application to C++. When performing the

migration, he had to deal with the type matching prob-

lem. The author uses a type correspondence table and

an intermediate layer that transforms a type deﬁned

in one language to its equivalent type in another lan-

guage. This approach is only detailed for applications

without GUI and running on the desktop (rather than

the browser).

Finally, Sneed et al. (2006) propose to wrap legacy

code to make it available as a web service. This strat-

egy allows one to create communication between dif-

ferent programming languages. Relying on web ser-

vices, they also deal with the type matching problem

by serializing data in XML format.

Additionally, a common way to mix web GUI in

industry is the usage of the iframe tag

. It allows one

to insert inside one web page the content of another

one. This is convenient as it does not require design-

ing a new architecture. However, it comes with sub-

stantial limitations as it is strongly discouraged to en-

able communication with the content of an iframe for

security purposes, and the iframe content should not

access the main page.

Table 1 summarizes the existing migration solu-

tions, none deal with the three problems identiﬁed.

Thus, to enable the incremental migration of large ap-

plications, one needs to consider all these issues and

propose solutions.

3 HYBRID ARCHITECTURE

Our hybrid architecture allows one to mix, inside a

web application, two GUIs deﬁned with two different

web frameworks, possibly in different programming

http://www.clifford.at/spl/

https://developer.mozilla.org/en-US/docs/Web/

HTML/Element/iframe

languages. In the following, we present the architec-

ture we designed to mix two GUIs and how it is used

to build an application.

Section 3.1 presents the hybrid architecture. Sec-

tion 3.2 details the usage of Web Components to mix

GUIs in our hybrid architecture.

3.1 Hybrid Architecture Description

Our hybrid architecture tackles the three issues de-

picted in the literature (Section 2): communication,

type matching, and GUI mixing.

Figure 1 presents the hybrid architecture in which

the front-end is divided into three parts: controller,

original pages (not migrated), and migrated pages.

The controller is the central part of our hybrid ar-

chitecture. It can be developed in any programming

language, independent of the source or target GUI

frameworks. It is the front-end entry point of the web

application. End-users access web pages through the

controller by requesting URLs. The controller also

manages the context of the application (e.g., the cur-

rently logged user, the page currently displayed, etc.).

Finally, it is in charge of rendering web pages header

and footer.

The pages (original and migrated) contain the ac-

tual application GUI. No direct communication be-

tween pages is allowed, navigation and data trans-

fer must go through the controller. For instance, a

page can not request the value of a text ﬁeld from

another page. Pages are migrated one at a time, en-

tirely, i.e., one page does not mix two GUI frame-

works. When a page is migrated, we package it so

that a packaged page includes all the code necessary

to represent the page GUI. We detail how we propose

to package pages in Section 3.2. It allows us to inte-

grate the pages inside the architecture independently

of their programming language. This tackles the GUI

mixing challenge.

Yet, some data needs to be transferred between

pages. For example, when navigating from one page

to another, the source page might need to send data

to the target one if a selected item in the source page

A Hybrid Architecture for the Incremental Migration of a Web Front-end

103

Hybrid web application

Web browser

Manage URL Mapping

Inject Session ID

Render header and Footer

Controller

Original

framework

Original Pages

Migrated

framework

Migrated Pages

Communications

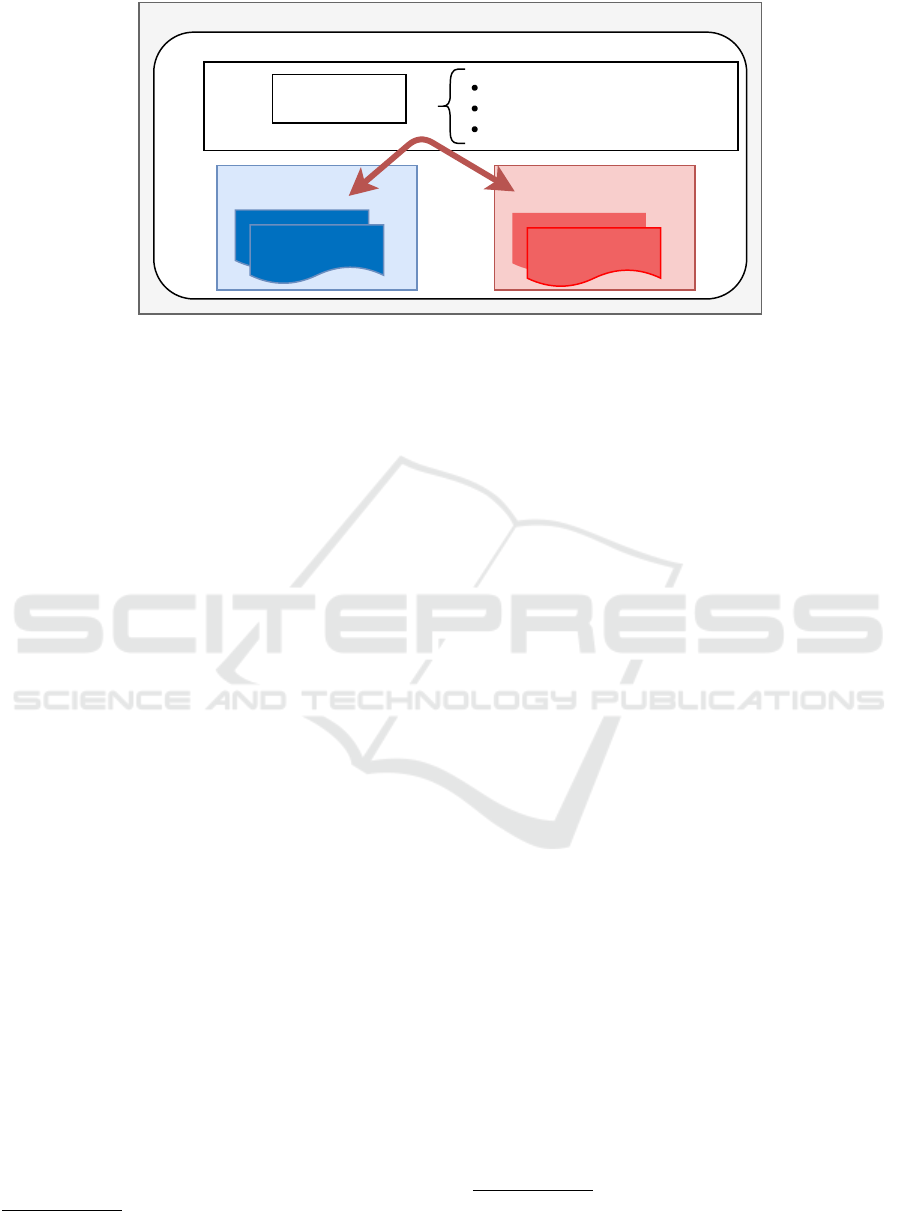

Figure 1: Hybrid architecture.

is detailed in the target page. Such a data transmis-

sion is done through the controller. The source page

sends the data to the controller; then the other page

pulls the data from the controller. The central position

of the controller is thus used to tackle the commu-

nication challenge. Moreover, the controller checks

whether the two pages use the same programming

language. If not, the controller converts data before

sending it. An implementation example of this pro-

cess is described in Section 4.2. Using the controller

as a mandatory gateway when transmitting data and

enabling data conversion by the controller tackles the

type matching challenge.

3.2 Packaging Pages using Web

Components

Our hybrid architecture allows one to mix pages in-

side one web application. Since we are mixing pages

in a web environment, all pages are rendered using

the HTML, JavaScript, and CSS languages. Thus, to

package pages for the hybrid architecture, we used

Web Components

: reusable JavaScript modules in-

cluding a markup structure (HTML), its associated

script (JavaScript), and style (CSS). Any Web Com-

ponent can be inserted into any web application inde-

pendently of its original programming language and

GUI framework.

In the following, we present how we package

pages as Web Components and deploy them into the

hybrid architecture. It consists of four steps.

1 – Select and Migrate Original Page. This step

aims to select and migrate a page to the new frame-

work. Ideally, the migration is (partly) automated

(Verhaeghe et al., 2021), but this is not required. The

Web Component: https://developer.mozilla.org/

en-US/docs/Web/Web_Components

output of this step is the migrated page.

2 – Build the Web Component. This step takes as

input a migrated page and builds a Web Component.

Solutions for this already exist for many web GUI

framework

3 – Register the Web Component. Every web

browser has a registry that contains all the Web Com-

ponents that can be used at runtime. We register each

Web Component with an associated HTML tag. This

tag will then be used to refer to the newly created Web

Component.

4 – Replace Legacy Code by the Web Component

Tag. The ﬁnal step consists in modifying the original

source code by replacing all the content of a page with

the newly created Web Component tag. Thus, when

end-users access the page, the browser injects the Web

Component inside this tag in the HTML page.

Web Components allow one to insert pages inside

an application deﬁned with another GUI framework,

answering the GUI mixing challenge.

We presented the main concepts to mix GUI of

applications inside a hybrid architecture. Our hybrid

architecture tackles the three major issues: communi-

cation, type matching, and GUI mixing. In the follow-

ing, we detail an implementation for the migration of

GWT applications to Angular and detail how it deals

with the three issues.

4 IMPLEMENTATION

Our implementation allows one to mix GWT and An-

gular applications. We used it to enable the migration

of GWT web pages to Angular ones. We ﬁrst present

the operational architecture (Section 4.1) dealing with

For example: http://www.gwtproject.org/doc/latest/

polymer-tutorial/introduction.html, or https://angular.io/

guide/elements#how-it-works

ICSOFT 2022 - 17th International Conference on Software Technologies

104

Hybrid application source code Compilation Runtime

communication

Front-end

Back-end

Angular

compiler

GWT

compiler

Back-end

code

compiler

Back-end Services

Web browser

Angular

JavaScript

Hybrid web application

RPC/Rest

Angular

pages

source

code

GWT

pages

source

code

Controller

source code

Controller

code

compiler

Controller

JavaScript

GWT

JavaScript

Back-

end

code

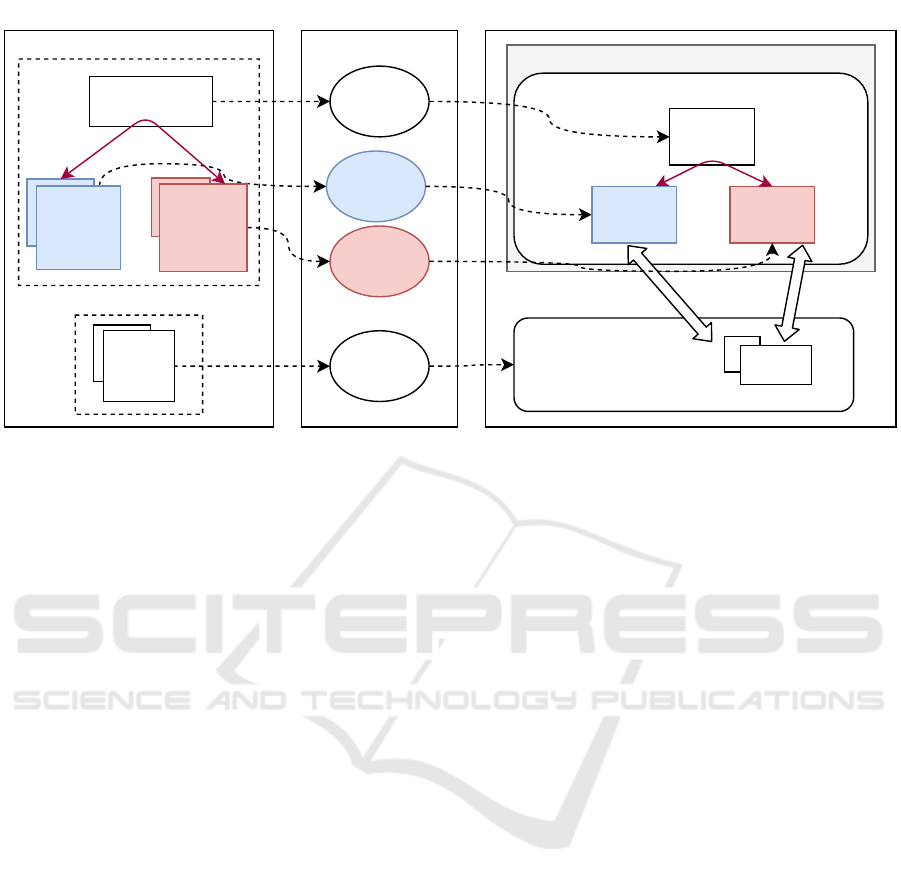

Figure 2: Operational architecture of hybrid application for GWT and Angular.

the GUI mixing challenge. Then we describe how

we enabled communication in the architecture (Sec-

tion 4.2) to deal with the communication and type

matching issues.

4.1 Mixing GWT and Angular GUIs

We now present the operational architecture to mix

GWT and Angular GUIs.

Figure 2 presents the operational architecture for a

GWT and Angular hybrid application. The hybrid ap-

plication source code (left) includes the front-end and

the back-end parts. The front-end contains the source

code of the GWT pages, the source code of the An-

gular migrated pages, and the source code of the con-

troller. Note that the controller can be developed in

any programming language. In our implementation,

we used the existing GWT controller because switch-

ing to an Angular controller would require packaging

every GWT original page as a Web Component and

this is more tedious to do than for Angular. The back-

end can be developed in any other programming lan-

guage.

At compilation time (center), we use one compiler

for each programming language. Thus, GWT pages

are compiled using the GWT compiler, Angular with

the Angular compiler, and the back-end with its own

compiler (i.e., in our case, Java).

At runtime (right), the compilers produce the hy-

brid application using our hybrid architecture pre-

sented Figure 1. Typically, web front-ends are com-

piled to JavaScript to be run in web browsers. This

is the case for GWT and Angular. The hybrid web

application is also linked with the back-end.

When all pages are migrated, only the Angular

pages are used. The back-end does not need to be

migrated. The controller can be migrated in the target

technology (i.e., Angular in our example).

4.2 Enabling Communication between

Angular and GWT Controller

In the hybrid architecture, all communications be-

tween pages go through the controller (see Sec-

tion 3.1). For example, it is the case when one page

displays information selected in another one. To do

so, the pages need to communicate with the controller

in charge of the data transmission. Since we use the

pre-existing GWT controller, we need communica-

tion between the GWT pages and the GWT controller

and between the Angular pages and the GWT con-

troller.

GWT pages to GWT controller communication is

trivially supported.

We faced two challenges to enable communica-

tion between Angular pages and GWT controller:

calling methods, (instanciation of the communication

challenge), and sending/receiving data (instanciation

of the type matching challenge).

Calling Methods. To enable communication, we ﬁrst

need to allow Angular to call methods of the GWT

controller. For example, Angular calls a method of

the controller to navigate to another page or access

some data. To enable method invocation, we stud-

ied the Angular and GWT compilers. We observed

that they both translate source code (Java for GWT,

A Hybrid Architecture for the Incremental Migration of a Web Front-end

105

Typescript for Angular) into JavaScript code to be ex-

ecuted on the client-side (see Section 4.1). This is

a common choice for web frameworks. Thus, both

end up executed in the same programming language

(i.e., JavaScript), in the same runtime (i.e., the web

browser runtime). So, the Angular/JavaScript code

has direct access to the methods of GWT/JavaScript.

However, when GWT is compiled into JavaScript, the

Java types and methods are normally not exposed ex-

ternally, as names are mangled. Thus, they can not be

used by other programs.

To expose Java methods and Java classes exter-

nally, GWT developers created the JSInterop library

It allows developers to add annotations in their Java

code that will tell the GWT compiler to expose the

generated code to other programming languages by

declaring the identiﬁers to use.

1 public c lass PhaseManager {

2 @JsMethod ( name =" dis p l a y P h a s e ")

3 public void displayPhase (

Phase M e t a d a t a pm ) {

4 // ...

5 }

7 public void a d d D a t a ( S t r ing dat a ) {

8 // ...

9 }

10 }

Listing 1: Exposed (displayPhase) and not exposed

(addData) methods to hybrid architecture.

Listing 1 exempliﬁes this with one exposed

method (displayPhase), through the use of the @Js-

Method(<Name>) annotation (line 2), and one not-

exposed (addData). Both methods are exported to

JavaScript, but the not exposed one, addData, will

have a mangled name making it impossible to be

called from any hand-written code. On the contrary,

the exposed method will get the name speciﬁed in the

@JsMethod(<Name>) annotation. Using the JSIn-

terop library, we ensure the calling method capability

and tackle the communication challenge.

In the hybrid architecture for the GWT to Angular

migration, we exposed 14 methods of the controller:

nine for page navigation (including several options),

two to check logged user rights, one to retrieve the

currently opened page, and two to send and receive

data during navigation and deal with the type match-

ing challenge.

Sending/Receiving Data. We implemented a spe-

ciﬁc process to send and receive data between the

http://www.gwtproject.org/doc/latest/

DevGuideCodingBasicsJsInterop.html

pages and the controller. There are two cases: clas-

sic communication when data are sent and received

by pages deﬁned with the same GUI framework,

i.e. GWT/GWT and Angular/Angular communica-

tion; and hybrid communication when data are sent

and received by pages deﬁned with different GUI

frameworks, i.e. GWT/Angular and Angular/GWT

communication.

For classic communication, a page (1) calls the

navigation method of the controller with the data.

Then, the controller (2) stores the data and opens the

navigated page. The navigated page (3) asks the data

to the controller, which, (4) returns it as it was stored.

For hybrid communication, the process is more

complex due to the type matching challenge. Type

matching is achieved through serialization and dese-

rialization of the data. Because of its central position,

this step is implemented in the controller.

:Controller

(4) Serialize

data

:Source page :Target page

(1) Navigate with data

(3) Ask data

(5) Return data

(6) Deserialize

data

(2) Open page

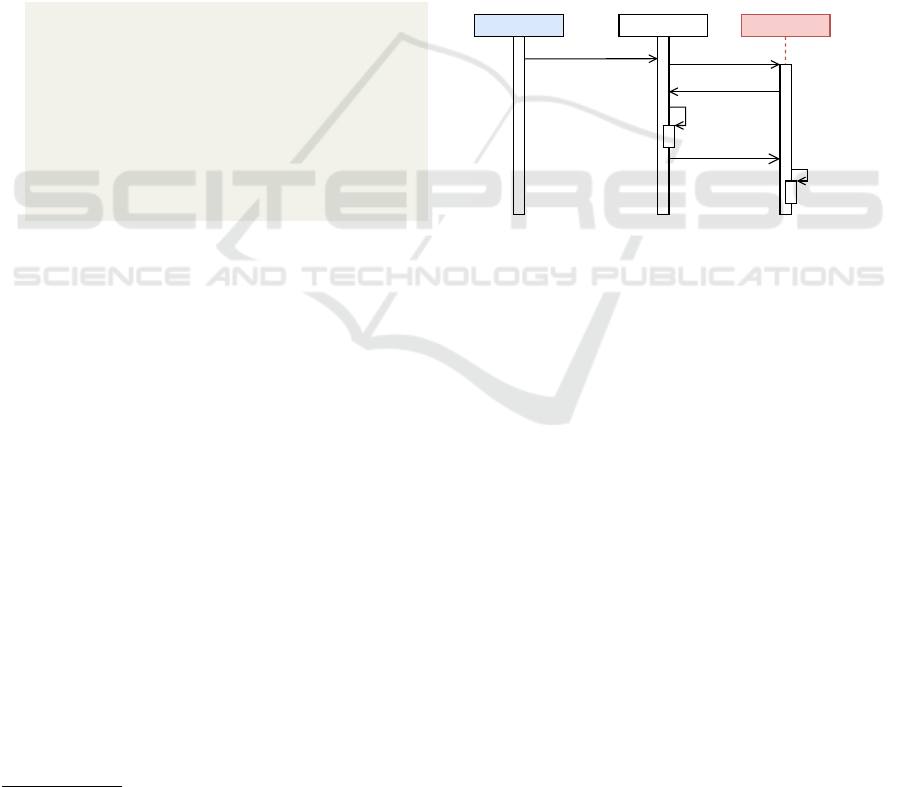

Figure 3: Data transformation process in hybrid communi-

cation.

To present the data transformation, we detail how

the navigation between two pages is done. The data

is sent by a source GWT page, goes through the

controller, and is retrieved by a target Angular page

(Figure 3). There are two exposed methods in the

controller to retrieve the data: one for Angular, the

other for GWT. Thus, based on the called method, the

controller knows which framework, GWT or Angu-

lar, is retrieving the data. The controller also knows

which framework sent the data by analyzing the data

structure (Java instances coming from GWT, or plain

JavaScript objects coming from Angular). Alterna-

tively, two exposed methods to store the data could

be created. Concretely, the source page (1) calls the

navigation method of the controller with the data as a

parameter. The controller stores the data as-is (i.e.,

does not perform any transformation) and (2) per-

forms the navigation. Then, the navigated page (3)

requests the data from the controller. Recognizing

a hybrid communication, the controller (4) serializes

the data in JSON and (5) returns it to the navigated

page. Then, the navigated page (6) deserializes the

data. Using this serialization/deserialization strategy,

we dealt with the type matching challenge.

ICSOFT 2022 - 17th International Conference on Software Technologies

106

5 EVALUATION

5.1 Case Study: Omaje Application

To evaluate our hybrid architecture in a real industrial

set-up, we used it to migrate a GWT application to

Angular at Berger-Levrault. The application is called

Omaje and was selected by its development team as

representative of other Berger-Levrault GWT appli-

cations.

Omaje is a client subscription management appli-

cation used internally and, therefore, a safe case study

for our experiment. The Omaje application includes

20 main web pages distributed into 9 modules built

using 6,683 GWT graphical elements. In total, in its

original version, Omaje weights 191 KLOC in 2,669

Java classes and 14,882 methods.

5.2 Research Questions and Evaluation

Methods

To evaluate our approach, we deﬁned three research

questions. For these RQs, we used three versions of

the Omaje application: a GWT version, an Angular

version, and a hybrid version with a controller written

in GWT, three pages migrated to Angular and inte-

grated into the application, and the remaining pages

still in GWT.

RQ 1. Does data communication overhead impact

the speed of browsing between pages?

This RQ aims to evaluate the impact of the se-

rialization and deserialization approach we used to

tackle the type matching problem. We expect that

GWT to GWT and Angular to Angular communica-

tions are fast since they do not require additional data

manipulation (i.e., they are handled by the controller

of the hybrid architecture but do not require serial-

ization and deserialization). Hybrid communications

might require additional time but need to be imper-

ceptible to the end-user.

To evaluate this RQ, we execute scenarios requir-

ing communications between GWT and Angular. The

scenarios include the transmission of data of different

sizes. Data includes objects with attributes of differ-

ent types: primitives (i.e., string, int, etc.), collections,

dictionaries, and other objects.

We ran the scenarios in a simulated environment,

i.e., not performed by a real end-user, using Microsoft

Edge version 87.0.664.66 on a laptop with 16 Go

RAM and the Intel Core i7-7500U CPU. No other

application was running on the computer during the

experiment. To measure the communication time, we

used the pre-built JavaScript feature console.time().

To avoid bias in the computed times, each scenario is

run 1,000 times, and we report the average time.

RQ 2. Does the build time of the hybrid and Angular

applications deteriorate compared to the GWT one?

To evaluate this RQ, we measure the required time

to build the GWT, the hybrid, and the Angular appli-

cation. Building an application consists of creating

the .class ﬁles and the transpilation of TypeScript (re-

spectively Java) to JavaScript. Build time for large

applications can be signiﬁcant (hours), and it is im-

portant to ensure that building the hybrid application

is not prohibitively long.

RQ 3. Does the GUI performance of the hybrid

application deteriorate compared to the GWT original

and Angular migrated applications?

This RQ aims to compare the performance when

displaying the GUI of pages between the GWT, the

hybrid, and the Angular applications. We measured

the execution time of 4 execution scenarios for each

application. The execution scenarios are:

1. Accessing the ﬁrst page of the application where

initial scripts are run;

2. Accessing a middle-sized page including about

100 widgets;

3. Accessing a large page that requests and displays

a lot of data;

4. Modifying data with several requests to the

database and updating the page UI.

When evaluating performance for the hybrid ap-

plication, the accessed pages are in Angular, whereas

the controller is in GWT. Thus, for the hybrid appli-

cation, this research question evaluates if using Web

Components tackles down the GUI mixing problem.

To measure the execution times, we used the built-

in performance tool of Microsoft Edge browser

It gives us detailed results on the GUI execution.

We report the performance in scripting (executing

JavaScript ﬁle), rendering (computing widgets po-

sition), and painting (displaying the resulting page)

time.

5.3 Results

In the following, we present the result to the research

questions.

RQ 1. Does data communication overhead impact

the speed of browsing between pages?

We compute and report the average time of over

1,000 executions of communications between GWT

and Angular in Table 2. During the communication,

https://docs.microsoft.com/en-us/microsoft-edge/

devtools-guide-chromium/evaluate-performance/

A Hybrid Architecture for the Incremental Migration of a Web Front-end

107

data of different sizes were exchanged, with several

ﬁelds and cyclic references.

Table 2: Communications performance in millisecond (av-

erage on 1,000 executions).

Source

Target

GWT Angular

GWT 2 ms 49 ms

Angular 7 ms 2 ms

For the communications between pages deﬁned

with the same GUI framework, both GWT-to-GWT

and Angular-to-Angular communications need 2 ms.

Classic communication through the controller does

not require additional data manipulation.

For the hybrid communications, GWT-to-Angular

communications require 49 ms, and Angular-to-GWT

communications require 7 ms. So there is a cost for

converting data. After investigation, we found that

GWT-to-Angular communications are slower because

the Angular deserialization library we used is less ef-

ﬁcient than the GWT one. The poor performance of

the Angular deserialization library is a known issue

and might be solved in the future.

Summary: Hybrid communications cost does not

impact the end-user. Although GWT-to-Angular

communication is slower, it remains imperceptible for

the end-user.

RQ 2. Does the build time of the hybrid and Angular

applications deteriorate compared to the GWT one?

Table 3: Building performance in second.

Application Building time

GWT 497 s

Hybrid 526 s

Angular 96 s

We measured the compilation time to build each

application. Table 3 summarizes the time required to

build the GWT, the hybrid, and the Angular applica-

tions. In GWT, there are two compilations: the build

of the Java project and the Java to JavaScript transpi-

lation when ﬁrst accessing the application. Building

the Java project costs 366 seconds, and the transpila-

tion requires 131 seconds. Thus, the complete GWT

compilation costs 497 seconds.

For the hybrid application, the build time is the

same as for GWT (366 seconds). However, the tran-

spilation time requires 160 seconds. The additional

time for the transpilation comes from the usage of

https://github.com/pichillilorenzo/jackson-js/issues/18

the JSInterop library that exposes the GWT controller

methods. Thus, the hybrid architecture required 526

seconds.

The Angular application has a single compilation

that requires 96 seconds.

Summary: This analysis shows that building the hy-

brid architecture is 6% slower than building the orig-

inal GWT application. Thus, using a hybrid archi-

tecture has no important impact on building perfor-

mance. Moreover, building the application is only

done by developers, so end-users are not impacted by

the building performance. It can be used to perform

incremental migration.

RQ 3. Does the GUI performance of the hybrid

application deteriorate compared to the GWT original

and Angular migrated applications?

We compare the performance of each application

for the four scenarios: home page ﬁrst access, middle-

size page ﬁrst access, database request, and large page

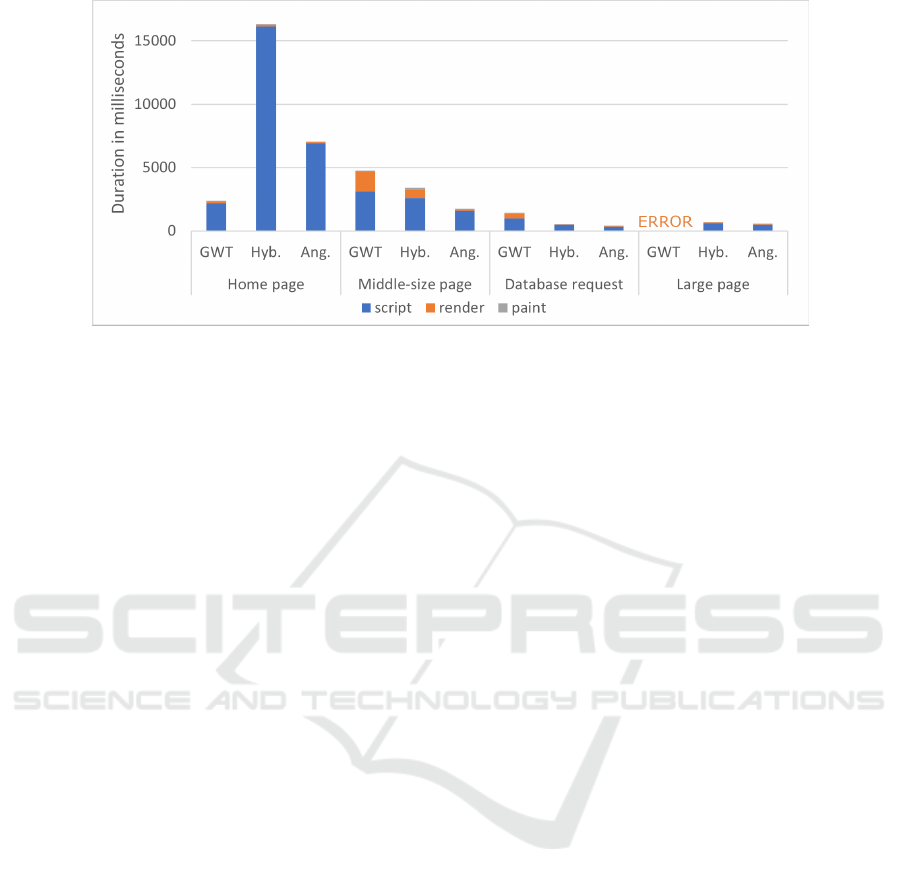

ﬁrst access. Figure 4 presents the results of the per-

formance evaluation. Each bar presents the time in

milliseconds reported when evaluating the GWT ap-

plication, the hybrid application, and the Angular ap-

plication.

For the ﬁrst access to the home page, the GWT ap-

plication is the fastest. GWT pre-compiles the home

page during compilation, thus, home page access is

fast. On the other hand, when accessing the home

page of the Angular application, the Angular runtime

is loaded with the application script. This step is time-

consuming for the Angular application. Finally, the

hybrid application is the worst case because it com-

bines the worst of both worlds. We investigated the

reasons that make home page access slow when using

Angular and discovered that our implementation does

not use the lazy loading feature of Angular. Using this

feature is part of our future work. Additionally, us-

ing the ahead-of-time

compilation option of Angular

could improve further the performances.

For the middle-size web page access, both the hy-

brid and the Angular applications are faster than the

GWT one. The hybrid application beneﬁts from the

Angular speed, and the Web Components usage does

not signiﬁcantly deteriorate the time required to ren-

der the GUI. This scenario also highlights the low per-

formance of GWT to render the GUI as compared to

Angular.

The third group presents the performance of the

application when users request the database (for in-

stance, to update the data). Making a request implies

a scripting step where the data are serialized, sent to

https://angular.io/guide/aot-compiler

ICSOFT 2022 - 17th International Conference on Software Technologies

108

Figure 4: Performance evaluation result.

the back-end, new data are received, and the UI is up-

dated. Again, the hybrid and the Angular applications

are the fastest. It is due to a switch of communication

protocol with the back-end and to the time required by

GWT to render the new UI after retrieving the data.

Finally, the last group presents the performance

when accessing a page displaying a lot of data. In

the case of GWT, the Microsoft Edge built-in plugin

crashed during the evaluation. So, we do not have ex-

ecution time data. This is because GWT took several

minutes to process the received data and the plugin

ran out of memory. When performing the migration

from GWT to Angular, the developers improved the

performance of the page. In fact, they were able to

use already optimized existing Angular widgets to ﬁx

this page. With the ﬁx, the hybrid and Angular appli-

cations have better performances than the GWT one.

We also note that thanks to the optimization, the large

page became the fastest one.

Summary: Except for the ﬁrst page access, the hy-

brid application has better performances than the orig-

inal one. It is also the case of the migrated Angular

application. The hybrid application takes beneﬁts of

the Angular features. RQ3 validates the usage of Web

Components to tackle the GUI mixing problem.

6 THREATS TO VALIDITY

This section discusses the validity of our case study

using the validation scheme deﬁned by Runeson and

Höst (2009). The construct validity, the internal va-

lidity, the external validity, and the reliability are pre-

sented.

6.1 Construct Validity

Construct validity indicates whether the studied mea-

sures really represent what is investigated according

to the research questions. The purpose of this study

is to evaluate the ability to use our hybrid architecture

to migrate applications with GUIs.

For developers, we validated that the build time

of the hybrid architecture is not prohibitively long.

We manually recorded the time needed to compile

and transpile the application, which corresponds to

the time spent by the developer waiting to see the ap-

plication running. The scale of time required to build

the application (more than 8 minutes), ensures that

our conclusion is still valid, even considering some

imprecision in the time manually recorded.

For the end-users, we evaluated the application

usability against four scenarios. We reported the to-

tal time needed to perform the scenarios. To prevent

possible bias, we selected four scenarios with differ-

ent characteristics: size of the page, kind of request

made to the database, and the ﬁrst page in which ini-

tialization scripts are run. Time performances were

recorded automatically and averaged over 1,000 runs

to ensure the reliability of the results.

6.2 Internal Validity

Internal validity indicates whether no other variables

except the studied one impacted the result.

Our validation is one industrial experiment con-

sisting of the migration of a closed-source applica-

tion. Even if we paid extra care to the tools we used

to report the performance results of our hybrid archi-

tecture, it is rather difﬁcult to isolate variables that

might have impacted our results.

A Hybrid Architecture for the Incremental Migration of a Web Front-end

109

6.3 External Validity

External validity indicates whether it is possible to

generalize the ﬁndings of the study.

We are aware that our results can not be easily

generalized. We validated our incremental approach

and its hybrid architecture against a closed-source ap-

plication, and we can not publicly share the hybrid

architecture implementation. Moreover, we describe

a functional implementation to mix GWT and Angu-

lar GUI, but some issues might appear when mixing

GUI deﬁned with other GUI frameworks.

However, our hybrid architecture implementation

is based on Web Components and the JSInterop li-

brary of GWT that are open-source projects. Thus, fu-

ture research can easily reuse these projects for other

hybrid architecture in a web context.

6.4 Reliability

Reliability indicates whether others can replicate our

results.

Since our case study is a closed-source applica-

tion, one can not replicate our result in the exact same

context. Moreover, we do not provide any source

code of the hybrid architecture.

To increase the reliability of our results, we per-

form the validation using standard free-to-use tools

such as Microsoft Edge and pre-built JavaScript fea-

tures. We also detailed our evaluation methods to

ease future researchers reproducing the same evalu-

ation set-up.

7 CONCLUSION AND FUTURE

WORK

In this paper, we proposed a hybrid architecture that

enables the migration of large and complex GUI ap-

plications. In particular, it deals with the communica-

tion, the type matching, and the GUI mixing issues.

The hybrid architecture can be reused for other

web-based GUI migrations. Web Components can

be used for other migration projects since it is nowa-

days a standard feature. However, future research

should pay attention to the communication and the

type matching issues that still might require speciﬁc

work depending on the GUI frameworks.

We implemented our hybrid architecture to enable

the integration of Angular pages inside a GWT appli-

cation. It allows us to successfully perform the mi-

gration of an industrial project and gives good perfor-

mance results.

Future work includes the implementation of our

hybrid architecture to perform other GUI migrations.

For example, we plan to migrate a large AngularJS

application to Angular. We also plan to enable An-

gular features such as lazy loading and ahead-of-

time compilation and evaluate their impact on perfor-

mance.

REFERENCES

Chisnall, D. (2013). The challenge of cross-language inter-

operability. Communications of the ACM, 56(12):50–

56.

Comella-Dorda, S., Wallnau, K., Seacord, R. C., and

Robert, J. (2000). A survey of legacy system mod-

ernization approaches. Technical report, Carnegie-

Mellon univ pittsburgh pa Software engineering inst.

Flores-Ruiz, S., Perez-Castillo, R., Domann, C., and Puica,

S. (2018). Mainframe migration based on screen

scraping. In 2018 IEEE International Conference on

Software Maintenance and Evolution (ICSME), pages

675–684. IEEE.

Kontogiannis, K., Martin, J., Wong, K., Gregory, R.,

Müller, H., and Mylopoulos, J. (2010). Code migra-

tion through transformations: An experience report.

In CASCON First Decade High Impact Papers, pages

201–213. Unknown.

Polito, G., Ducasse, S., Tesone, P., and Brunzie, T. (2020).

Uniﬁed fﬁ - calling foreign functions from pharo.

Robillard, M. P. and Kutschera, K. (2019). Lessons learned

while migrating from swing to javafx. IEEE Software,

37(3):78–85.

Runeson, P. and Höst, M. (2009). Guidelines for Con-

ducting and Reporting Case Study Research in Soft-

ware Engineering. Empirical software engineering,

14(2):131–164.

Sánchez Ramón, O., Sánchez Cuadrado, J., and Gar-

cía Molina, J. (2014). Model-driven reverse engineer-

ing of legacy graphical user interfaces. Automated

Software Engineering, 21(2):147–186.

Sneed, H. M. et al. (2006). Wrapping legacy software for

reuse in a soa. In Multikonferenz Wirtschaftsinfor-

matik, volume 2, pages 345–360. Citeseer.

Teppe, W. (2009). The arno project: Challenges and expe-

riences in a large-scale industrial software migration

project. In 2009 13th European Conference on Soft-

ware Maintenance and Reengineering, pages 149–

158. IEEE.

Terekhov, A. A. and Verhoef, C. (2000). The realities of lan-

guage conversions. IEEE Software, 17(6):111–124.

Verhaeghe, B., Anquetil, N., Etien, A., Ducasse, S., Seriai,

A., and Derras, M. (2021). GUI visual aspect migra-

tion: a framework agnostic solution. Automated Soft-

ware Engineering, 28(2):6.

Zhang, B., Bao, L., Zhou, R., Hu, S., and Chen, P. (2008).

A black-box strategy to migrate gui-based legacy sys-

tems to web services. In 2008 IEEE International

Symposium on Service-Oriented System Engineering,

pages 25–31. IEEE.

ICSOFT 2022 - 17th International Conference on Software Technologies

110
