A New Software Architecture for the Wise Object Framework:

Multidimensional Separation of Concerns

Sylvain Lejamble

1, 2 a

, Ilham Alloui

2 b

, S

ebastien Monnet

2 c

and Flavien Vernier

2 d

SaGa Corp, Paris, France

LISTIC, Universit

e Savoie Mont Blanc, Annecy, France

Keywords:

Self-adaptive Systems, Separation of Concerns, Modularization, Wise Object, Event-driven Architecture.

Abstract:

Adaptive systems represent an appropriate solution to the increasing complexity of software-intensive systems.

We constructed a Wise Object Framework to develop self-adaptive software systems we name “Wise systems”.

Those consist of distributed communicating software objects (Wise Objects) able to autonomously learn on

how they behave and how they are used while demanding little attention from their users. A WO is either

delivering a service (Awake state) or simulating its operation to learn behavior that has not occurred yet (Dream

state). In its ﬁrst version, WO architecture has been designed on the basis of a single component embedding

built-in mechanisms for data monitoring and analysis. This architecture has major drawbacks we encountered

when using WOF to develop new applications: (1) built-in mechanisms embedded within the WO do not allow

using data by other components such as new analyzers, (2) raw data and data resulting from analysis in Awake

or Dream states are not distinguished, (3) mandatory components to self-adaptation are missing especially

those for action plan construction and execution. In this paper, we address those limitations through a MAPE-

K compliant architecture, based on the Separation of Concerns(SoC) and an event-driven publish/subscribe

mechanism. This is related to the general issue of wise system maintenance, reuse and evolution. Separation

of Concerns is done according to different dimensions that are managed using hyperslicing techniques.

1 INTRODUCTION

Adaptive systems represent an appropriate solution to

the increasing complexity of software-intensive sys-

tems. An ideal system is able to adapt to users by re-

ducing the effort required for human-machine interac-

tion. It must also be able to detect unusual situations

(error, unexpected behavior...) and manage them (cor-

rect, alert a suitable person to its resolution...). Self-

adaptive systems are an open area of research that ad-

dress many of these issues with the goal to let IT pro-

fessionals focus on business higher value-added tasks.

For this purpose, we developed WOF, a Wise Object

Framework to build self-adaptive software systems

we name “Wise systems”. A Wise system consists of

a set of distributed communicating software objects

(Wise Objects: WOs), each able to autonomously

learn on how it behaves and how it is used while de-

https://orcid.org/0000-0003-1043-4745

https://orcid.org/0000-0002-3713-0592

https://orcid.org/0000-0002-6036-3060

https://orcid.org/0000-0001-7684-6502

manding little attention from its users. WOs are able

to monitor their functioning in order to acquire ex-

perience on their operation and hence on the use of

the system (“Real logs”). Logs analysis guides the

system towards an action plan (self-correction, adap-

tation, optimization...). Each time a WO is requested

for service delivery, it collects data on this operation

using a monitoring built-in mechanism. When a WO

is not delivering a service, it can disconnect from the

rest of the system to learn on its behavior by launch-

ing operations and analyzing their effects and impact.

We respectively refer to those super-states as “Awake

state” and “Dream state”. The WO ability to discon-

nect from the real world is a strong feature that dis-

tinguishes wise systems from other self-adaptive sys-

tems. WOs may execute some parts of the system

without impacting the real operation (Business do-

main). These “simulations” have several goals: (i)

learn more about rare (fewly used) operations on the

system, (ii) create state-transition behavioral graphs

of the system, and (iii) create credible/realistic data to

help analyzing real functioning of the system. During

this state, the system produces logs different from real

Lejamble, S., Alloui, I., Monnet, S. and Vernier, F.

A New Software Architecture for the Wise Object Framework: Multidimensional Separation of Concerns.

DOI: 10.5220/0011355000003266

In Proceedings of the 17th International Conference on Software Technologies (ICSOFT 2022), pages 567-574

ISBN: 978-989-758-588-3; ISSN: 2184-2833

567

ones, we call them “Dream logs”. The existing WO

architecture in the WOF (Alloui et al., 2018) does not

meet the requirements regarding the adaptation of the

framework to complex applications. Indeed, in its ﬁrst

version, WO architecture has been designed on the

basis of a single component embedding built-in mech-

anisms for data monitoring and analysis. This archi-

tecture has major drawbacks we encountered when

using WOF to develop new applications: (1) built-in

mechanisms embedded within the WO do not allow

using data by other components such as new analyz-

ers, (2) raw data and data resulting from the analysis

be them from Awake or Dream states are not distin-

guished, (3) mandatory components to self-adaptation

are missing especially those for plan construction and

execution. In this paper, we address those limitations

through a MAPE-K compliant architecture, based on

the Separation of Concerns and an event-driven pub-

lish/subscribe mechanism. This is related to the gen-

eral issue of wise system maintenance, reuse and evo-

lution. Separation of Concerns is done according to

different dimensions that are managed using hyper-

slicing techniques. The knowledge acquisition sys-

tem is refactored to separate the different components

involved in the self-adaptation MAPE-K loop.

The paper is organized as follows. Section 2 intro-

duces related work. Section 3 presents the previous

work on the framework. Section 4 describes the lim-

its of the current architecture. Section 5 explains the

solution we propose to handle present limitations. Fi-

nally, Section 6 concludes the paper and opens some

interesting perspectives.

2 RELATED WORK

2.1 Self-Adaptive Systems

To meet the growing demand for more complex prob-

lems, IT professionals are striving to build even more

complex systems. These high-value-added systems

are very efﬁcient but are becoming increasingly difﬁ-

cult and expensive to maintain (Crow, 1990). Further-

more, the maintenance must be performed by profes-

sionals whose expertise is close to the system.

An adaptive system can have several goals: adapt-

ing in response to its changing environment (Brun

et al., 2009), switching models in a multi-model sys-

tem (Ravindranathan and Leitch, 1998), modifying its

components without waiting for the next maintenance

periods to limit human interactions (Naqvi, 2012)

or even evaluating its performance and changing its

strategy when it is not performing enough (Cheng

et al., 2009).

Self-adaptive systems are an open area of research

that can address many of these issues. If the system

can solve a problem itself, then IT professionals can

focus on higher value-added tasks for the business.

Although a system is highly dependent on its appli-

cation domain, all self-adaptive systems have similar

components. These blocks are deﬁned by IBM’s 4-

state loop “Monitor-Analyze-Plan-Execute” (MAPE-

K) (Kephart and Chess, 2003). This loop has a ﬁfth

component named “Knowledge” that communicates

with the other 4.

Monitor: The system must produce comprehensive

operation logs and make them available to the other

components. Analyze: The system must then ana-

lyze its past operations in the manner of an expert and

draw a conclusion: is the system functioning appro-

priately/as usual? Plan: The system uses the analy-

sis results to produce a strategy addressing the prob-

lem/unusual situation. Execute: The execution block

applies this plan to make the system perform a cor-

rective action/adapt to a changing usage. Knowl-

edge: Knowledge is the link between all the software

blocks. It stores what the system knows about itself:

logs, analyzes, metrics, topological information, ac-

tions performed...

2.2 Separation of Concerns

Separation of Concerns (SoC) (Dijkstra and Edsger,

1982) becomes essential while developing very com-

plex software. In a system, each element should have

an exclusive purpose. Ideally, while doing the Sepa-

ration of Concerns, no software element should share

responsibilities with another part of the system. We

must set boundaries that encompass the full range of

responsibilities along dimensions. They are a lot of

types of Separations of Concerns

: (i) horizontal sep-

aration (separation through functionalities), (ii) verti-

cal separation (dividing the application into modules),

(iii) aspect separation...

MAPE-K provides the ability, by deﬁning dis-

tinct blueprints, to separate priorities and thus to ac-

celerate and simplify software development (Parnas,

1972). The multidimensional separation of priorities

is interesting when a system may have to deal with

new concerns (Ossher and Tarr, 2002). It may also

be necessary when several concerns overlap just a

small part of another. The separation can have a huge

impact on maintenance when one part of the soft-

ware has many diverse dependencies (Moreira et al.,

2005). (Tarr et al., 1999) highlighted the multidi-

mensional Separation of Concerns while the literature

http://aspiringcraftsman.com/2008/01/03/art-of-

separation-of-concerns/

ICSOFT 2022 - 17th International Conference on Software Technologies

568

was focusing on an orthogonal separation. They be-

lieve that the future of software development requires

a ”simultaneous separation of overlapping concerns

in multiple dimensions”. They also show that their

work was already partially done in Subject-Oriented

Programming (Harrison et al., 1993)(subjects are hy-

perslices), Aspect-Oriented Programming (Kiczales

et al., 1997)(aspects are hyperslices), Adaptive Pro-

gramming (Gouda et al., 1991)(propagation patterns

are hyperslices)... Aspect Oriented Programming

(AOP) may also help a lot during the Separation of

Concerns process because it highlights non-functional

concerns that might be separated. (Makabee, 2012)

use an Event-driven approach to spot entangled con-

cerns and separate them from other functionalities.

He also compares Event-driven and Aspect-Oriented

approaches and show that Event-driven programming

has several advantages over AOP (more reusable, al-

lowing inheritance and concurrent execution...).

3 PREVIOUS ARCHITECTURE

Wise Object. A WO (Alloui et al., 2015) is a soft-

ware component that is given the ability to learn by

itself from its past experiences. It can also learn about

its environment through the interactions it has with it.

The WO aims at proxifying an existing object

(physical or logical) from the system to add capabil-

ities (wisdom) to it (Figure 1). In the ﬁrst version

of the concept, the proxy was implemented in an in-

trusive way in the business classes. The object also

had to inherit from the WiseObject class in order to

expose its monitoring functions. This caused several

problems, especially in the inheritance chain. To ﬁx

them, we imagined a dynamic proxy that lets process

the data upstream. It avoids unnecessary intrusions in

the business code. The WO will therefore intercept

all the system requests related to the object and create

operation logs.

Switch

WoProxy:WSwitch

System call, ex: up()

state: Down, action: up()

state: Up, action: None

up()

Effect on the system

Log

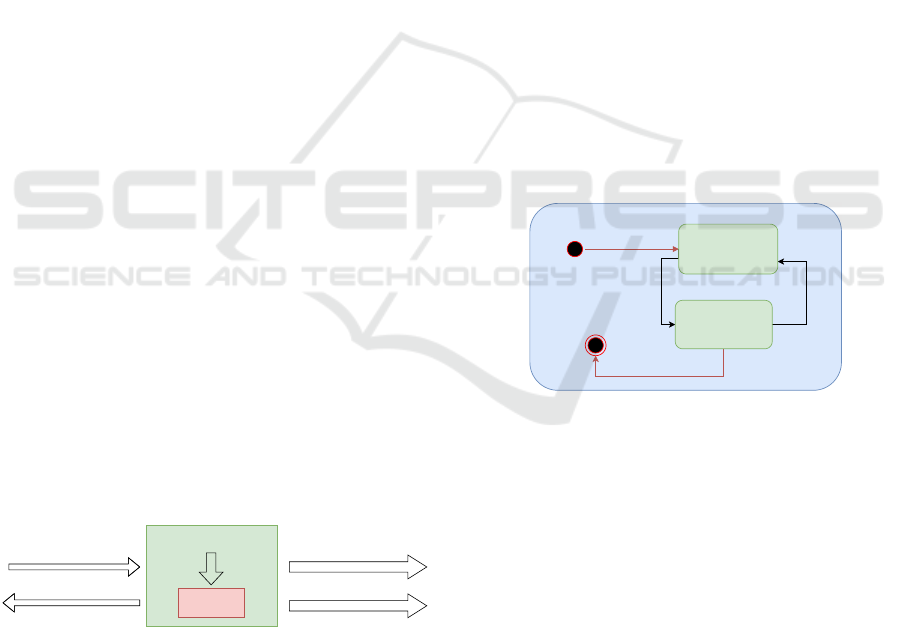

Figure 1: Example of a wise version of a switch. The switch

has 2 states Up/Down and 2 functions up()/down() changing

the business state of the object. WO Proxy intercepts calls

(up() or down()) (1) and monitors them (2). It asks the ob-

ject to act (3). As the state changes, it monitors it again (4).

It sends back the response according to the function call (5).

Wise Object Framework. A framework has been

developed around the notion of WO (Alloui et al.,

2018). This framework opens up the possibility of

using the WO concept in a classical computer appli-

cation. It allows the use of a simple @WiseObject an-

notation in the declaration of the target object to mon-

itor all its status changes. By doing so, a proxy is auto

generated wrapping the original object. It also con-

nects the proxy (logger) to the knowledge database.

This knowledge will be progressively ﬁlled in by the

usage logs. The proxy grants complete control over

the original object. Since it intercepts the calls, it can

modify or cancel a call to avoid an unwanted behavior

if the analysis detects the system call is unusual and

will cause the object to fall into an unwanted state.

Within the framework, WOs are able to commu-

nicate with each other through a software bus (pub-

lish/subscribe). The communication is done through

event condition action rules (ECA) established by a

manager. By detaching components from this soft-

ware bus, it is possible to work with small parts of the

application without impacting the system.

Detaching WO. The WO has two high-level states:

Awake/Dream. During the Awake state, the object acts

normally, and serves the system. When the object is

not busy with a system call, it enters the Dream state

(Figure 2).

WO State diagram

AWAKE

DREAM

service doneservice request

stop

Figure 2: Original WO high-level states.

In the Dream state, we disconnect the WO from

the bus in order to jump to a non-impacting phase. In

order to guarantee this non-impact phase, the applica-

tion must catch every instruction that leads to the writ-

ing of a ﬁle. The reading remains however functional.

In this state the object will simulate system calls to

explore its state transition graph. The goal is to dis-

cover as many as possible business states that have

not yet been discovered during the actual operation

of the system. For example, if our switch has never

been turned on, it is theoretically impossible to know

that the object has two states by analyzing the logs.

As the object knows itself, it knows that it has several

methods. So during the Dream it will randomly try

to use up() and down() from its Down state. When

using down(), the state keeps being Down, so an self-

transition is created in the state diagram. However,

A New Software Architecture for the Wise Object Framework: Multidimensional Separation of Concerns

569

when using up(), the object discovers that it can enter

a different state if it applies the procedure it just dis-

covered. The use of Dream state improves the overall

system perspectives. By analyzing produced logs, we

are able to enrich the knowledge we have about the

system. For example, we can confront the theoreti-

cal model of the system (designed initially by an ex-

pert) with the state transition graph discovered in the

Dream state.

The framework makes possible the usage of inter-

changeable analyzers. These analyzers will scan the

object’s logs and draw a conclusion based on their ex-

pertise. For example, with a statistical analyzer, we

can compute temporal metrics on the functioning of

the object. By interpreting the results, it is possible to

detect anomalies (e.g.: switch unusually Up on 16/03

from 6pm to 7am) and then warn the user.

Application. Extensive research (Alloui et al.,

2018) has been conducted on the use of the WOF for

IoT. The results proved the relevance of WOs in real

world systems such as in classroom unusual use de-

tection.

4 CONSTRAINTS & LIMITS

The precedent framework architecture has several

drawbacks that led us to propose some changes.

WOs embedded Too Much Responsibilities. In

the precedent architecture (Alloui et al., 2018), the

knowledge is represented as a graph that is created

during the monitoring process. Furthermore that

knowledge was part of the WO. It shows that knowl-

edge, its acquisition (monitoring) and the WO were

mixed. The graph was also already an analysis since

the logs are linked together and interpreted (no du-

plication of states in the graph...). We want the raw

knowledge to be available in the memory so we can

process it afterward. It is the main motivation for the

horizontal Separation of Concerns.

Incoherent Dreams & Tangled Logs. In the previ-

ous work, the discovery of the unseen business states

(in the dream) was done in a random way. We called

state-change methods randomly from different initial

states to see their impact on the states and we hoped at

the end of the Dream that all possible business states

and the transitions between them would be discov-

ered. Since we only had a few possible alterations,

the system never ends up in an incoherent state. If

we make the system dream with parameterized meth-

ods in a random way(random function with random

parameter), we risk ﬁnding impossible values when

using the system in a business context. Furthermore,

state change methods were hard-coded with restrict-

ing boundaries (we can call up when the object is

at 100%, but it has no effect). Now let us consider

OpenWindow(normal: from 0 to 100%) as an exam-

ple. As humans we know it is absurd to use it with

OpenWindow(-60%), except that the WO has no se-

mantic and it is not intelligent, it does not know that -

60% is not possible in the business context. The prob-

lem is therefore the following: we want to discover as

many business states of the system as possible and at

the same time we want these ﬁndings to be relevant.

To overcome this problem, we have chosen to ana-

lyze the parameters before asking the Wise Object to

use them (during Dream state). This allows the sys-

tem to get closer to the human, i.e. the human dreams

about his past experience and not randomly. In or-

der to analyze these parameters, we need to be able

to distinguish at the software level what really hap-

pened (real logs) from what we asked the system to

do to discover its states (dream logs). This is not pos-

sible with the current architecture. This modiﬁcation

is the primary motivation for the Separation of Con-

cerns in the WOF. By externalizing some parts of the

application the Separation of Concerns grants a bet-

ter adaptability and re-usability. A multidimensional

separation seems to be necessary at the analysis level

as we would like to stack non-vital part of the appli-

cation. Parameter analysis will not be detailed in this

paper but will surely be the subject of a more detailed

study.

Missing MAPE Components. Finally, the WO had

multiple roles but mandatory components of the

MAPE loop as planning and execution were miss-

ing. It has been a huge problem while adapting to

the framework to other business domains. To address

this issue, we propose a basic architecture enabling

the loop to be self-regulating.

5 CONTRIBUTION

We propose an upgrade of the current WOF archi-

tecture as well as an extension including the last el-

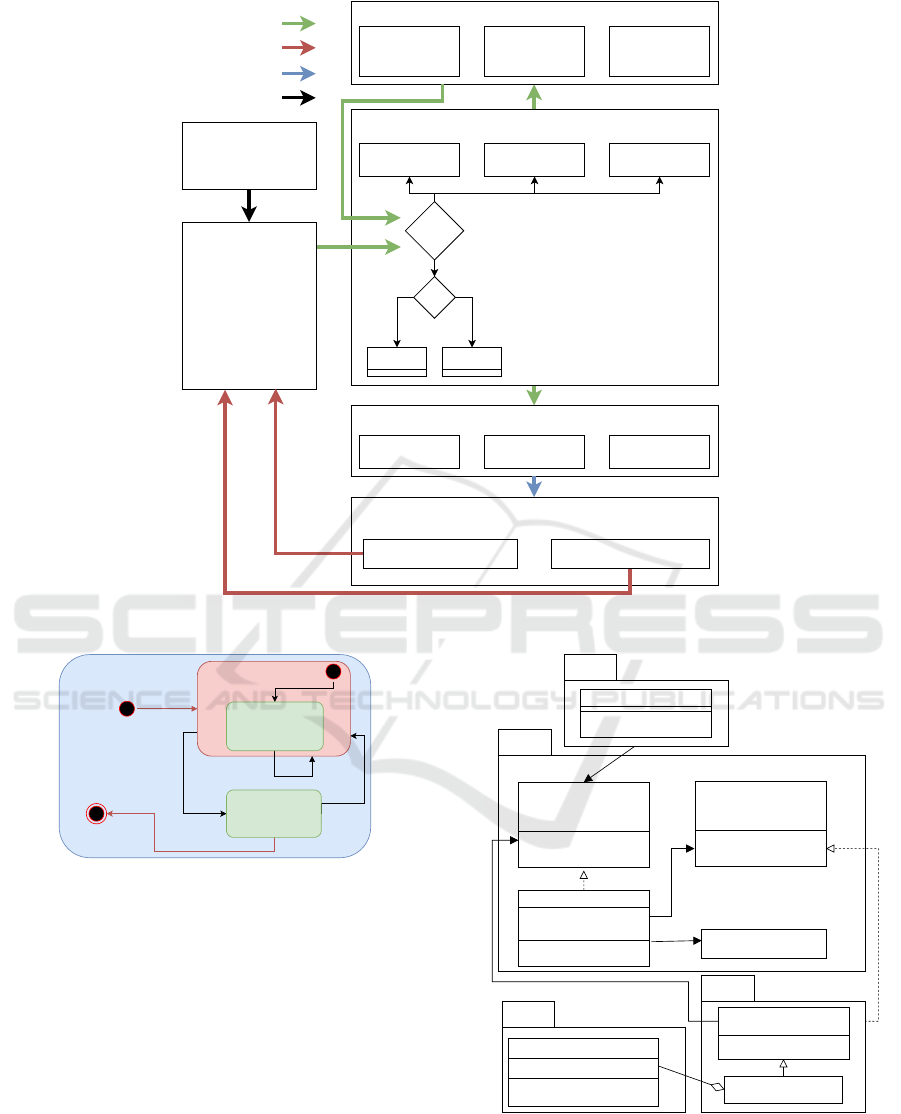

ements of the MAPE loop. We built the meta-model

presented in Figure 3. This model represents only the

interactions between a single WO and its own feed-

back loop. We made the decision not to present the

entire WO System because we did not change inter-

actions between WOs. The meta-model is detailed

ICSOFT 2022 - 17th International Conference on Software Technologies

570

component by component in the next sections.

5.1 Introduction of the Idle Status

In the previous works, we had 2 possible states of the

object: Dream and Awake. While the system is using

the WO, it is in the Awake state. When the object is

freed, it falls directly in the Dream state.

When it was not used, the object was therefore

necessarily in the Dream state (even if it had noth-

ing interesting to dream about). This has several dis-

advantages: consumption of unnecessary resources,

production of redundant logs, higher complexity of

the analysis. So we decided to add a third state Idle.

This state allows the object not to perform any action

when the system does not hold the object.

As shown in Figure 4, the Dream is now included

in the new Idle state. The WO is not allowed to dream

until it knows what it has to dream. The WO can

dream when it is in the Idle state and receives a dream

plan request. Once the dream is ﬁnished, the WO falls

directly into the Idle state.

5.2 MAPE-K Compliance

The MAPE-K architecture has many advantages re-

garding the Separation of Concerns. Most of the

MAPE component were present in the precedent work

but we propose a new architecture to disentangle

them. This is a huge step forward in terms of mainte-

nance and re-usability.

5.2.1 Monitoring, Analysis & Knowledge

In the precedent architecture, the WO shared too

much responsibilities with other parts of the system.

The WO should only do his business job without

worrying about the other components of the MAPE

loop. As shown in Figure 5, we separate the Moni-

toring/Analysis/Knowledge steps because this would

help along interoperability of components.

This job is carried out by a knowledge genera-

tor that monitors the WiseObject. At each interaction

with the WO, the generator will log in the memory the

methods and their effects on the WO states. When the

object is not being used by a system call, it falls in the

Idle state. Idle state is described in Section 5.1.

We chose to use a WiseEventManager from Fig-

ure 3 inside the memory. This manager has the role to

store the data in an appropriate passive storage.

5.2.2 Planner

In the previous architecture, the planner did not exist.

We want the planner to be standalone in order to deal

with the Separation of Concerns. In the Awake state,

the planner uses the results of the analysis in order

to decide if the original call for the object has to be

modiﬁed. If it notices an irregularity, it generates an

action plan to correct it. In the Dream state, the plan-

ner decides to use the parameter analysis to send an

action plan in order to discover new business states.

The planner is mandatory for the WO to dream with a

consistency close to the real use.

As explained in Figure 6, the planner listens to the

analysis results. After consulting the policy, it makes

a decision whether or not it should create an action

plan. Policies (Kephart and Chess, 2003) are deﬁned

as a high-level conﬁguration ﬁle. It contains business

objectives that can be different if we want to use the

same system in diverse environments. For example,

if the policy is set with max unusual uptime=2h, the

planner consumes this plan while looking for the anal-

ysis. A switch unusually Up on 16/03 from 6am to

7am will not generate a plan.

In our architecture, we choose to generate a plan-

ner in parallel to an analyzer, but our architecture is

open enough to deﬁne a speciﬁc planner that takes

into account the results from several analyzers.

5.2.3 Executor

The executor did not exist in the previous version.

It joins all the plans made by the planner so that

the object can understand what it has to do. Un-

like many self-adaptive applications, the executor has

an additional responsibility. It has to call/modify

the calls made for the object according to the states

(Dream/Awake) of the WO (Executor Manager Fig-

ure 3). Following the Event Driven Architecture of

WOF, the executor is a listener of planner (see Fig-

ure 7). The executor parses the plans generated by

the planner in order to assign them to the appropriate

executor. The Reaction Executor has been introduced

to apply Awake plans that have an impact on the real

system. Meanwhile, the Dreamer only applies Dream

plans. The Dreamer’s actions have no impact on the

system since in the Dream state the WO is discon-

nected from the bus.

5.3 Multidimensional SoC

We introduced IAPE-K (Alloui and Vernier, 2017)

in our previous paper. IAPE-K is nothing else than

an adaptation of MAPE-K when the object is in the

Dream state. As we need to track the system states,

we must store them in a different place depending

on their high-level state. Dream logs and real logs

are very similar. It makes sense to store them in the

same data structure. The only difference will be a ﬂag

A New Software Architecture for the Wise Object Framework: Multidimensional Separation of Concerns

571

Business

Memory

KnowledgeListenerAnalyser

GraphAnalyser StatsAnalyser ParameterAnalyser

dream

WEvent

Real Logs Dream Logs

0 1

GraphAnalyser

Result

StatsAnalyser

Result

ParameterAnalyser

Result

WEvent

Manager

WOEvent

AnalyserEvent

Graph

Stats

Parameter

PlannerListener

ExecutorEvent

publish

AnalyserResultListener

ParameterPlannerStatsPlannerGraphPlanner

publish

Planner

WoListener/AnalyserListener

publish

Dream action

Real action

publish

Dreamer

Reaction Executor

Executor

PlanEvent

Business Call

Figure 3: Meta-model of the new architecture.

AWAKE

DREAM

[IDLE]

service request

STOP

WO State diagram IDLE

AWAKE

DREAM

[IDLE]serving request

[IDLE]

stop

dream plan request

Figure 4: New WO high-level states.

containing the state of the object. Since the knowl-

edge generator monitors all the states of the object, it

knows where to store the usage logs.

A manager is thus necessary within the knowl-

edge, it will have the role to allocate the logs to the

right place of the knowledge. It receives data from di-

verse sources WO(Awake/Dream), Analyzers and put

them in their own storage. Note that a manager is not

mandatory in the Plan/Execute steps. As opposed to

Memory, Planner/Executor are active elements. They

can therefore dispatch the data themselves.

Memory

WEvent

+ subscribe(KL)

WEventManager

+ analysersResults: Object

+ planners: Planner[]

Graph

ConcreteAnalyseResult

...

+ addData(Data):

«interface»

KnowledgeGenerator

Listener

+ publish(WEvent)

«interface»

KnowledgeListener

+ newKnowledge(WEvent)

kgl1

kls

logs

+ subscribe(KGL)

Analyse

«abstract»

Analyser

+ subscribe(KGL)

ConcreteAnalyser

kgls

Figure 5: Static model of Monitor, Analysis & Knowledge.

5.3.1 Hyperslicing

In our framework, we need to separate the concerns

horizontally (with the MAPE components) but we

ICSOFT 2022 - 17th International Conference on Software Technologies

572

Memory

«interface»

KnowledgerListener

+ newKnowledge(WEvent)

knowledge: Object

Plan

«abstract»

Planner

+ subscribe(PL)

...

Use

«interface»

PlannerListener

+ newPlan(PlanEvent)

pls

Use

« abstract»

Policy

PlanEvent

ConcretePlanner

...

+ takePlan():

+ getKnowledge(): ConcreteKn

Figure 6: Static model of Knowledge & Plan.

Plan

«interface»

PlannerListener

+ newPlan(PlanEvent)

Executor

ConcreteExecutor

«interface»

ExecutorListener

+newEvent(ExecutorEvent)

els

Use

«abstract»

Executor

...

+ subscrible(EL)

+ takeExecution():

+ getPlan(): ConcretePlan

...

ExecutorEvent

Figure 7: Static model of Plan & Execute.

also need to separate the concerns of interchange-

able modules among different dimensions. (Tarr

et al., 1999) proposes to split the system into ”hyper-

slices”. Hyperslices are hyper-planes that encapsu-

late concerns among multiple dimensions. We chose

to use the hyperslices as a representation for patterns.

For example, we encourage analyzer slices to have

the same entry point i.e. Figure 8 publish(WEvent).

By doing so we have all the beneﬁts of an Event-

Driven system while keeping different functioning in

the boxes below. For example, Analyzers primitive

units (WEvent) are similar but how they update their

knowledge will be different. In Figure 8, we rep-

resent an example of some MAPE loop components

along the horizontal axis. Similar slices are also re-

grouped into hyper-modules where we can see feature

decomposition along the vertical axis. The knowl-

edge hyper-module can be seen as a data dimension.

Even if the methods have the same names, knowledge

slices store their WEvent at different places. It also

publishes to different modules like Planners, Analyz-

ers according to the type of WEvent. It is worth to

note that there is no relation along the vertical axis

between modules.

5.3.2 Analyzers

Analyzers are relatively similar in their operation. For

each generation of knowledge, they receive associated

data and then send back a conclusion. It therefore

makes sense to imagine them in the same dimension

of concerns. However, they must be modular so that

new ones can be easily inserted without redesigning

the whole knowledge block. The multidimensional

Separation of Concerns is very useful in our analysis

management. Each analysis will surely have different

dependencies (statistics, deep learning, set theory...).

Since they do not interact directly with each other,

this makes modularization easier by creating several

independent layers. We will use the notion of Hyper-

Slices from (Tarr et al., 1999) in order to increase di-

mensions with each addition of analyzer. For the mo-

ment the analyzers do not interact with each other as

the problem of knowledge fusion is a vast domain on

which we have not yet worked.

6 CONCLUDING REMARKS

In this paper, we address the maintainability issue of

self-adaptive wise systems. To overcome the problem

of costly reuse and evolution of a monolithic archi-

tecture where a same entity (WO) embed several re-

sponsibilities, we propose a new architecture based on

the separation of concerns and on an even-driven pub-

lish/subscribe mechanism. Separation of concerns is

done according to several dimensions: MAPE-K loop

model, Real knowledgevs. Dream knowledge, com-

ponents with similar responsibilities. To complete the

MAPE-K loop, we also implemented Plan construc-

tion and Execution components that were absent in

the previous version of WOF.

This results in many organized slices that enable

the system reuse, maintenance and evolution. At ex-

ecution time, this architecture allows the system to

easily swap among components with similar respon-

sibility by stacking them in a same dimension. Fur-

thermore, the publish/subscribe mechanism enables

components to interact only with the relevant part of

knowledge they need .

With this new architecture, we plan in the short

term to develop Markovian and deep learning analyz-

A New Software Architecture for the Wise Object Framework: Multidimensional Separation of Concerns

573

Monitor Hypermodule Analyse Hypermodule

publish(WEvent)

Log Monitoring Slice Stats Analyser Slice

publish(WEvent)

createStats(WEvent) recalculate(WEvent)

Graph Analyser Slice

publish(WEvent)

createGraph(WEvent) addEdge(WEvent)

Knowledge Hypermodule

Logs slice

check(WEvent)

store(WEvent) publish(WEvent)

(Other style of

knowledge slices)

Dream logs knowledge slice

check(WEvent)

store(WEvent) publish(WEvent)

Graph knowledge slice

check(WEvent)

store(WEvent) publish(WEvent)

Figure 8: Example of components of the MAPE-K loop using hyperslicing visualization.

ers in addition to the existing graph and statistical an-

alyzers. Developing different analyzers is crucial to

the reliability of self-adaptive systems: analyzers may

either discover faster new states of the monitored ob-

ject or draw better conclusions about its functioning.

Moreover analyzers of operation’s parameters seems

essential for both the credibility of the system and re-

source saving: we can develop a statistical analyzer

that according to the parameter type generates new

values by sampling in the distribution generated in

past analyzes.

As we completed the MAPE-K model, we natu-

rally will implement different Plan and Execute com-

ponents dedicated to both Dream and Awake states

of a WO. A ﬁrst “dreamer” will be a smart dreamer

that takes into account the WO experience (real data)

instead of randomly simulating data. Regarding ex-

ecutors, the ﬁrst one will simply authorize or not exe-

cution of the planned actions.

We also intend to study in future work how

to improve the new architecture, by introducing a

higher level where knowledge related to a WO can be

merged, aggregated or simply used at system level.

REFERENCES

Alloui, I., Benoit, E., Perrin, S., and Vernier, F. (2018).

Wiot: Interconnection between wise objects and iot.

13th International Conference on Software Technolo-

gies.

Alloui, I., Esale, D., and Vernier, F. (2015). Wise objects for

calm technology. 10th International Joint Conference

on Software Technologies.

Alloui, I. and Vernier, F. (2017). A wise object framework

for distributed intelligent adaptive systems. 12th In-

ternational Conference on Software Technologies.

Brun, Y., Serugendo, G. D. M., Gacek, C., Giese, H.,

Kienle, H., Litoiu, M., Muller, H., Pezze, M., and

Shaw, M. (2009). Engineering self-adaptive systems

through feedback loops. Software engineering for

self-adaptive systems.

Cheng, S.-W., Garlan, D., and Schmerl, B. (2009). Eval-

uating the effectiveness of the rainbow self-adaptive

system. ICSE Workshop on Software Engineering for

Adaptive and Self-Managing Systems.

Crow, L. (1990). Evaluating the reliability of repairable sys-

tems. Annual proceedings on reliability and maintain-

ability.

Dijkstra and Edsger, W. (1982). On the role of scientiﬁc

thought. In Selected writings on computing: a per-

sonal perspective, pages 60–66. Springer.

Gouda, G, M., Herman, and Ted (1991). Adaptive program-

ming. IEEE Transactions on Software Engineering,

17(9):911–921.

Harrison, William, Ossher, and Harold (1993). Subject-

oriented programming: a critique of pure objects.

In Proceedings of the eighth annual conference on

Object-oriented programming systems, languages,

and applications, pages 411–428.

Kephart, J. and Chess, D. (2003). The vision of autonomic

computing. Computer, 36(1):41–50.

Kiczales, G., Lamping, J., Mendhekar, A., Maeda, C.,

Lopes, C., Loingtier, J.-M., and Irwin, J. (1997).

Aspect-oriented programming. In European confer-

ence on object-oriented programming, pages 220–

242. Springer.

Makabee, H. (2012). An event-driven approach for the sep-

aration of concerns. In ENASE, pages 122–127.

Moreira, A., Rashid, A., and Ara

ujo, J. (2005). Multi-

dimensional separation of concerns in requirements

engineering. In IEEE International Conference on Re-

quirements Engineering.

Naqvi, M. (2012). Claims and supporting evidence for

selfadaptive systems – a literature review. page 47.

Linnaeus University, School of Computer Science,

Physics and Mathematics.

Ossher, H. and Tarr, P. (2002). Multi-dimensional separa-

tion of concerns and the hyperspace approach. Soft-

ware Architectures and Component Technology.

Parnas, D. (1972). On the criteria to be used in decomposing

systems into modules. Software Pioneers.

Ravindranathan, M. and Leitch, R. (1998). Heterogeneous

intelligent control systems. IEE Proceedings-Control

Theory and Applications.

Tarr, P., Ossher, H., Harrison, W., and Sutton, S. (1999). N

degrees of separation: multi-dimensional separation

of concerns. In International Conference on Software

Engineering (ICSE).

ICSOFT 2022 - 17th International Conference on Software Technologies

574
