Bioinformatics Helps with Drug Discovery for COVID-19 Treatment

Yicheng Lou

, Keyi Shen

, Shihhao Fang

, Zelu Huang

and Yan Lin

Shanghai East Foreign Language School Affiliated to SISU, Shanghai, 200092, China

University of California, Davis, CA 95616, U.S.A.

Fudan International School, Shanghai, 200086, China

School of Chemical and Biomedical Engineering, Nanyang Technological University, 639798, Singapore

Maple Leaf International School-Xi'an, Airport New City, Shaanxi Province, 461000, China

iceylinyan@163.com

Keywords: Drug Discovery, SARS-Cov-2, Spike Protein, Computational Approaches.

Abstract: This paper is a review of the process of drug discovery for COVID-19 treatment based on spike protein. This

work discussed three fundamental approaches: dynamic programming, progressive alignment construction,

and consensus method. Then, the paper used the amino acid sequences (of viral proteins) downloaded from

the UniProt database and applied Clustal Omega (an alignment tool) to conduct multiple alignments on four

spike proteins: SARS-CoV, SARS-CoV-2, MERS-CoV, HCoV-NL63. A brief phylogenetic analysis was also

conducted to support the predicted alignment results. After that, the paper includes a review of applications

of drug discovery based on spike protein alignment—both within the coronaviridae species and with HIV.

1 INTRODUCTION

COVID-19 is a disease caused by the infection of a

novel coronavirus called SARS-CoV-2. Since the

outbreak in December 2019, this devastating

pandemic has widely aroused massive experimental

and analytical investigations into the sophisticated

viral infection pathway and related allopatric treating

methods. Though there existing several approved

vaccines and symptom-oriented treatments for

COVID-19 patients, this might not be enough due to

the high rate of mutation and transmission. Therefore,

there is an increasing demand for potentially more

effective medication to cure the current patients. One

promising method to fulfill this demand is to explore

the existing drugs that may alter the chemical

reactions involving the spike protein of coronavirus.

Spike protein is one of the three major proteins found

in all coronavirus species, which routinely plays an

essential role in penetrating host cells and initiating

the infection process. By applying the multiple

alignment algorithm, similarities can be identified, or

conserved sequences, in the spike proteins within the

coronaviridae family (including SARS, MERS,

SARS-CoV-2). Based on sequence similarity and

information regarding the drugs efficacious against

thoroughly studied coronaviruses such as SARS and

MERS, it is very likely to identify a few multi-

purpose antiviral drugs effective for the treatment of

COVID-19.

2 METHOD

The process of multiple alignment requires input

sequences and an alignment tool. First, from the

UniProt database, amino acid sequences of spike

glycoproteins of four species from the coronaviridae

family were downloaded: SARS-CoV, SARS-CoV-2,

MERS-CoV, and HCoV-NL63. Then, this work used

an alignment tool called Clustal Omega to reveal

similar and conserved segments in their amino acid

sequences.

3 ALIGNMENT ALGORITHMS

AND PHYLOGENY

As the development of computational biology had

boosted in the past few decades, there had been

various methods and algorithms to serve as the

function of multiple sequence alignment. This section

will introduce some fundamental approaches to work

on comparing multiple sequences in the same way.

1104

Lou, Y., Shen, K., Fang, S., Huang, Z. and Lin, Y.

Bioinformatics Helps with Drug Discovery for COVID-19 Treatment.

DOI: 10.5220/0011378100003443

In Proceedings of the 4th International Conference on Biomedical Engineering and Bioinformatics (ICBEB 2022), pages 1104-1111

ISBN: 978-989-758-595-1

3.1 Dynamic Programming

The disadvantage of using the approach of dynamic

programming is obvious. Even though its logic is

quite easy to understand, and it does work when only

aligning two or three sequences at a time, but its time

and computational complexity make it unsuitable to

compare more than tens or hundreds of sequences

simultaneously. If n sequences with equal length are

compared, the code will have to create an n-

dimensional grid to record the value of the two

nucleotides in every two different sequences with the

same index at the same time. The n-dimensional grid

is also known as the n-Manhattan grid.

(https://www.youtube.com/watch?v=CTPiYiTQcuA

)

Additionally, since node value of node M (a1, a2,

a3, …, an) is determined by the largest value of 2n-1

node values from each of 2n-1 incoming edges, which

each index {an} can choose to minus 1 or remain the

same. This indicates that the program has time

complexity N(2nln), where l stands for the length of

each sequence. Such tremendous complexity makes it

unable to compute and align hundreds of sequences at

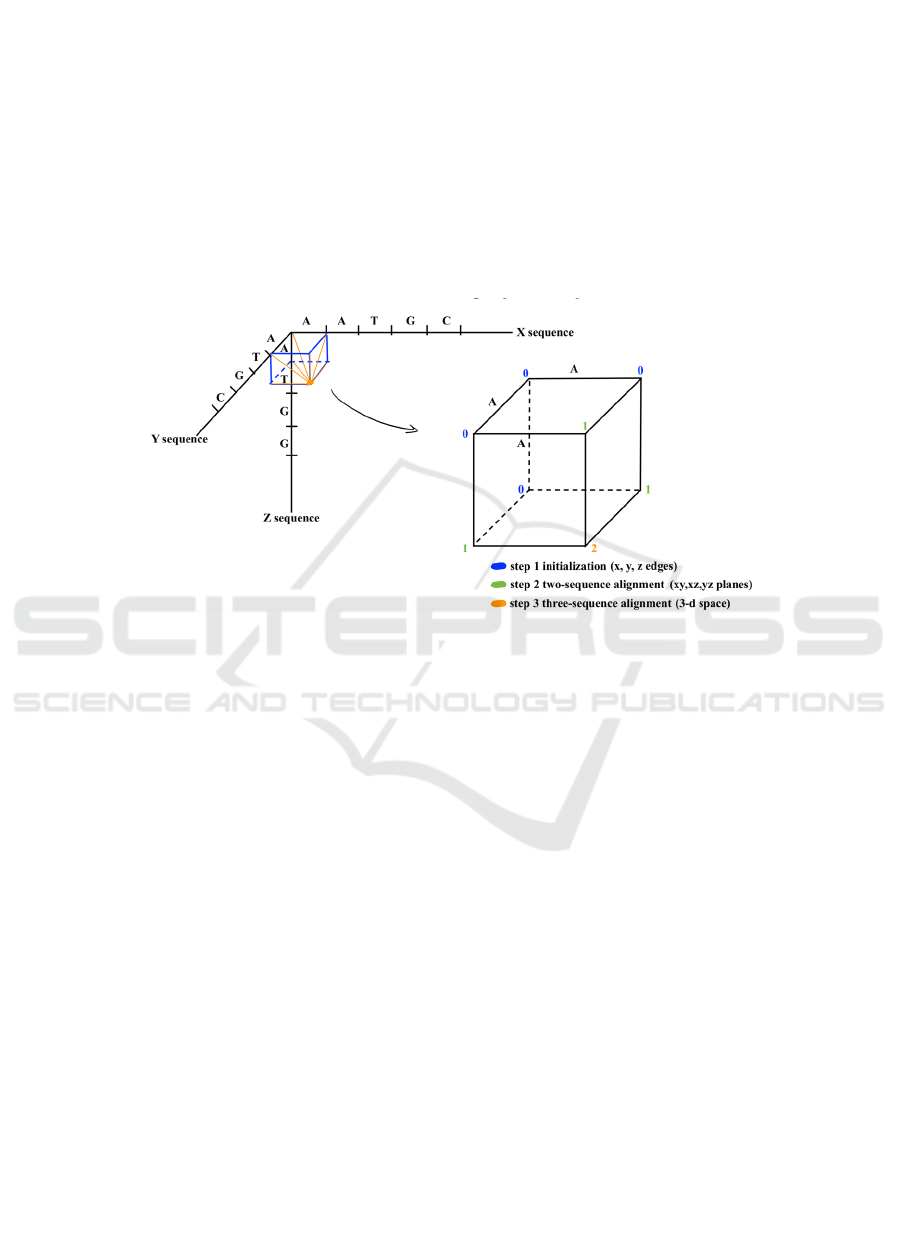

the same time. Figure 1 shows how dynamic

programming works.

Figure 1: Working mechanism dynamic programming.

3.2 Progressive Alignment

Construction

The progressive alignment method is a further

improvement of the previous n-Manhattan grid

approach and is the most widely used approach to

multiple sequence alignment (Feng, Doolittle, 1987)

This alignment algorithm is used by Clustal Omega,

an alignment tool used in the upcoming sections. The

core of this method is based on the idea that

combining sequences into profiles before alignment

would not affect the final alignment result. There are

four main steps for this approach. First, every two

sequences in the dataset would be aligned with each

other. Secondly, a distance matrix will be constructed

based on the results for each pair of alignments. Later

on, a phylogenetic tree, or guide tree, will be drawn

on the basis of the distance matrix constructed

previously. Finally, by the guide of the phylogenetic

tree, the program will first process the alignment that

is most similar to each other and combine them into a

profile, which will later participate in the follow-up

combinations and alignments until all the sequences

are combined into one large profile

(https://www.youtube.com/watch?v=CTPiYiTQcuA

)

Progressive alignment methods are efficient enough

for comparing hundred or thousand of sequences at

the same time. The reason is that it only needs to

construct two-dimensional matrices instead of a

massive n-dimensional matrix described in the

previous dynamic programming approach. But still,

its disadvantage is that it is not guaranteed to be

globally optimal, and a small mistake from the

beginning would be inherited and magnified as the

results are combined into profiles and sub-profiles.

Meanwhile, in conditions that each sequence is

dissimilar to another, its performance is not so well.

There are still a lot of space to optimize the scoring

and weighting functions to increase its accuracy.

(Collingridge, Kelly 2012)

3.3 Consensus Method

Despite improving the process of drawing the n-

dimensional Manhattan matrix, scientists also

propose a method to simplify the alignment task:

applying the consensus sequence of each pair of

sequences. Consensus methods attempt to find the

optimal multiple sequence alignments for the given

multiple alignments according to the IUPAC code.

Bioinformatics Helps with Drug Discovery for COVID-19 Treatment

1105

By finding consensus of every two sequences or even

all sequences together, the time and computational

complexity would be greatly decreased. The most

popular consensus-based algorithms are M-COFFEE

and MergeAlign.

3.4 Experimental Alignment of Four S

Protein Sequences

3.4.1 Selection of S Proteins

This work carefully selected S Protein Sequences

from these four viral species for our experimental

alignment, Table 1 facilitates the comparison among

the four species:

SARS-CoV

SARS-CoV-2

MERS-CoV

HCoV-NL63

The primary reason select these four sequences

are selected is that they are similar yet diverse. First

of all, they all belong to the family of coronaviridae.

Second, viruses (1)-(3) belong to the genera of

betacoronavirus while virus (4) belongs to the genera

of alphacoronavirus. However, virus (1), (2), and (4)

has a common receptor called angiotensin-converting

enzyme 2 (ACE-2) whereas virus (3) has a receptor

called Dipeptidyl peptidase-4 (DPP-4) (Totura,

Bavari 2019). In addition, another recent study

suggests that DPP-4 can also act as a receptor of virus

(1) and (2) (Li, 2020). Thus, it is reasonable to make

a hypothesis that the four sequences share some

conserved segments even though they tend to

diversify to a certain degree. Therefore, existing

drugs targeting one of these four proteins (or their

corresponding receptors), may be efficacious against

the rest of them.

Table 1: Comparison of the coronaviruses of our selection.

Species Genera Recepto

SARS-CoV-2 betacoronavirus

ACE-2

DPP-4

(

act as a co-rece

tor

)

SARS-CoV

etacoronavirus ACE-2

MERS-CoV

etacoronavirus DPP-4

HCoV-NL63 alphacoronavirus ACE-2

3.4.2 Results

Receptor Binding Domain

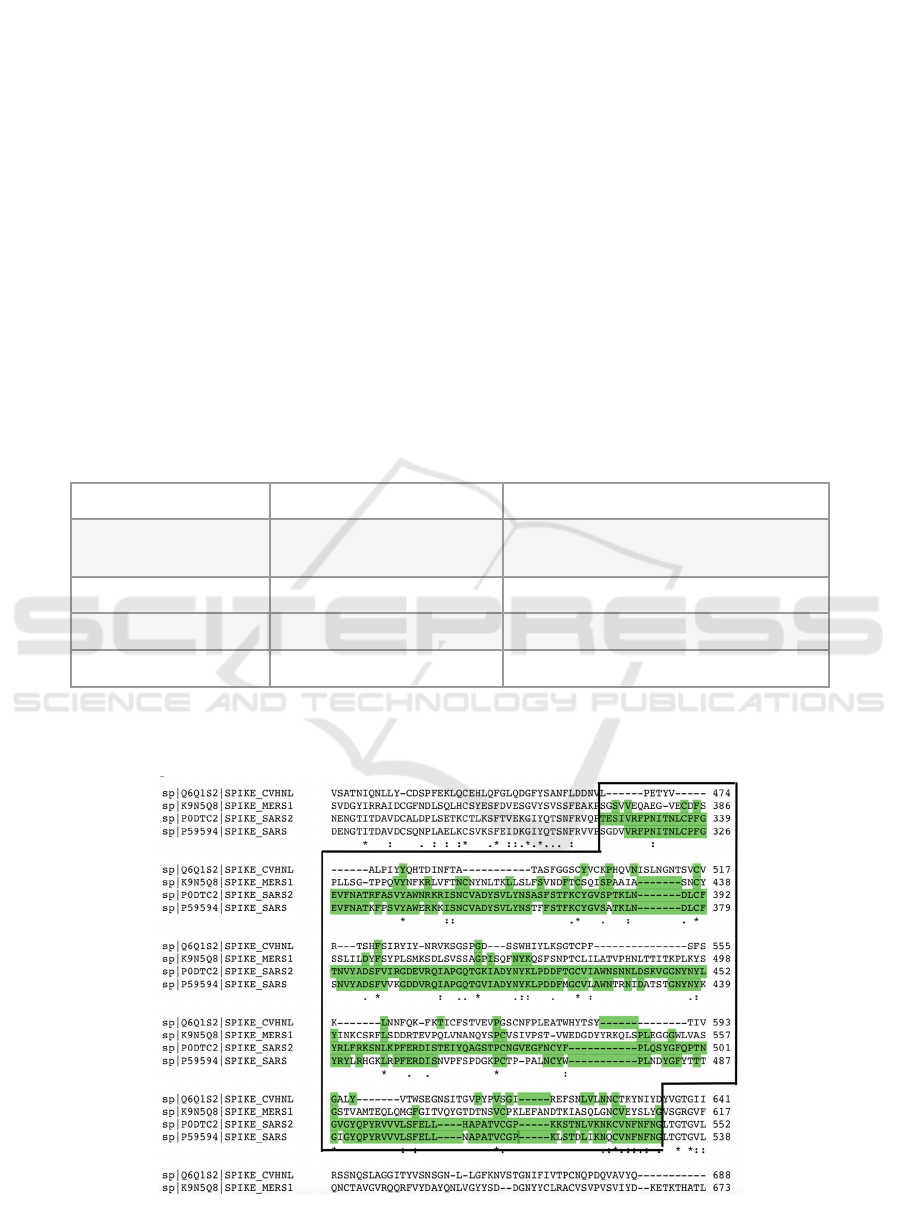

Figure 2: Receptor binding domain aa alignment result.

ICBEB 2022 - The International Conference on Biomedical Engineering and Bioinformatics

1106

According to previous studies, amino acids 323-545

on SARS-CoV-2 spike protein constitute the receptor

binding domain (RBD) (Zhang, 2020); (Pradhan,

2020). Thus, the work focus on this RBD and the

same region in the other three sequences. We

observed that SARS-CoV and SARS-CoV-2 has the

highest level of similarity in their RBD regions, as

shown in Figure 2. Thus, it is reasonable to

hypothesize that SARS-CoV and SARS-CoV-2 can

infect host cells with essentially the same chemical

mechanism. This is confirmed by Zhang et al. by

resolving the molecular structure of S proteins in the

two viral species (Zhang, 2020). In other words, RBD

of SARS-CoV is well preserved in SARS-CoV-2. On

the other hand, unsurprisingly, MERS-CoV and

HCoV-NL63 has significantly lower level of

similarity with SARS-CoV-2 in this region.

Therefore, it is safe to make the prediction that an

existing drug inhibiting the infection of SARS-CoV

is most likely to be efficacious against SARS-CoV-2

as well.

A Brief Discussion on the Phylogeny. Our

prediction can be supported by phylogenetic trees

involving these four viral species. The first step is to

find the distances between species. This work applied

an algorithm called Levenshtein distance

(Levenshtein, 1966). When the input sequences are

limited to their RBD regions, the initial distance

matrix in Table 2 can be obtained. Then, the UPGMA

algorithm is applied for the tree construction (Journal

of Microbiology, 2017). As a result, the phylogenetic

tree obtained is shown in Figure 4.

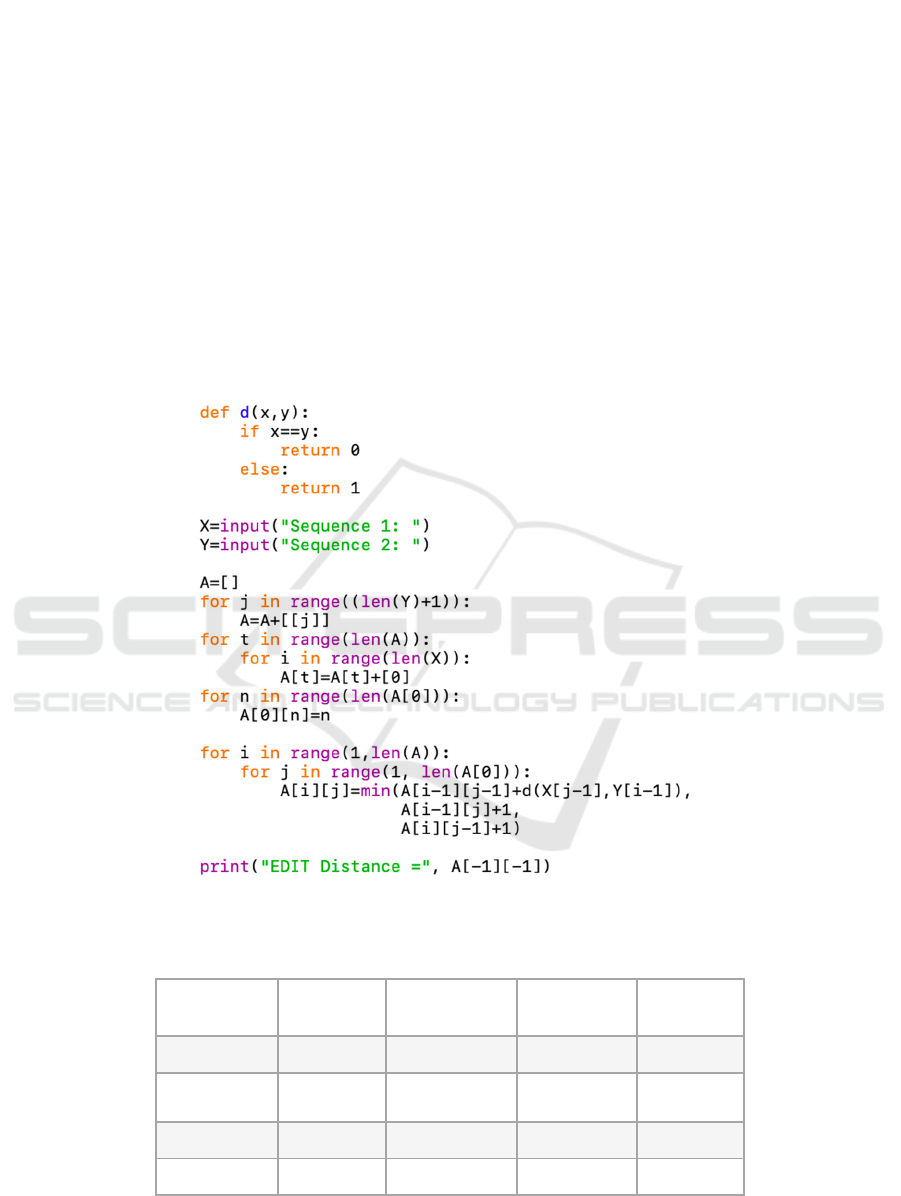

The edit distance code is shown in Figure 3:

Figure 3: Edit distance code.

Table 2: Initial distance matrix when the input sequences are limited to RBD regions.

SARS-CoV SARS-CoV-2 MERS-CoV HCoV-

NL63

SARS-CoV 0

SARS-CoV-2 94

MERS-CoV 184

186 0

HCoV-NL63 170

159 182 0

Bioinformatics Helps with Drug Discovery for COVID-19 Treatment

1107

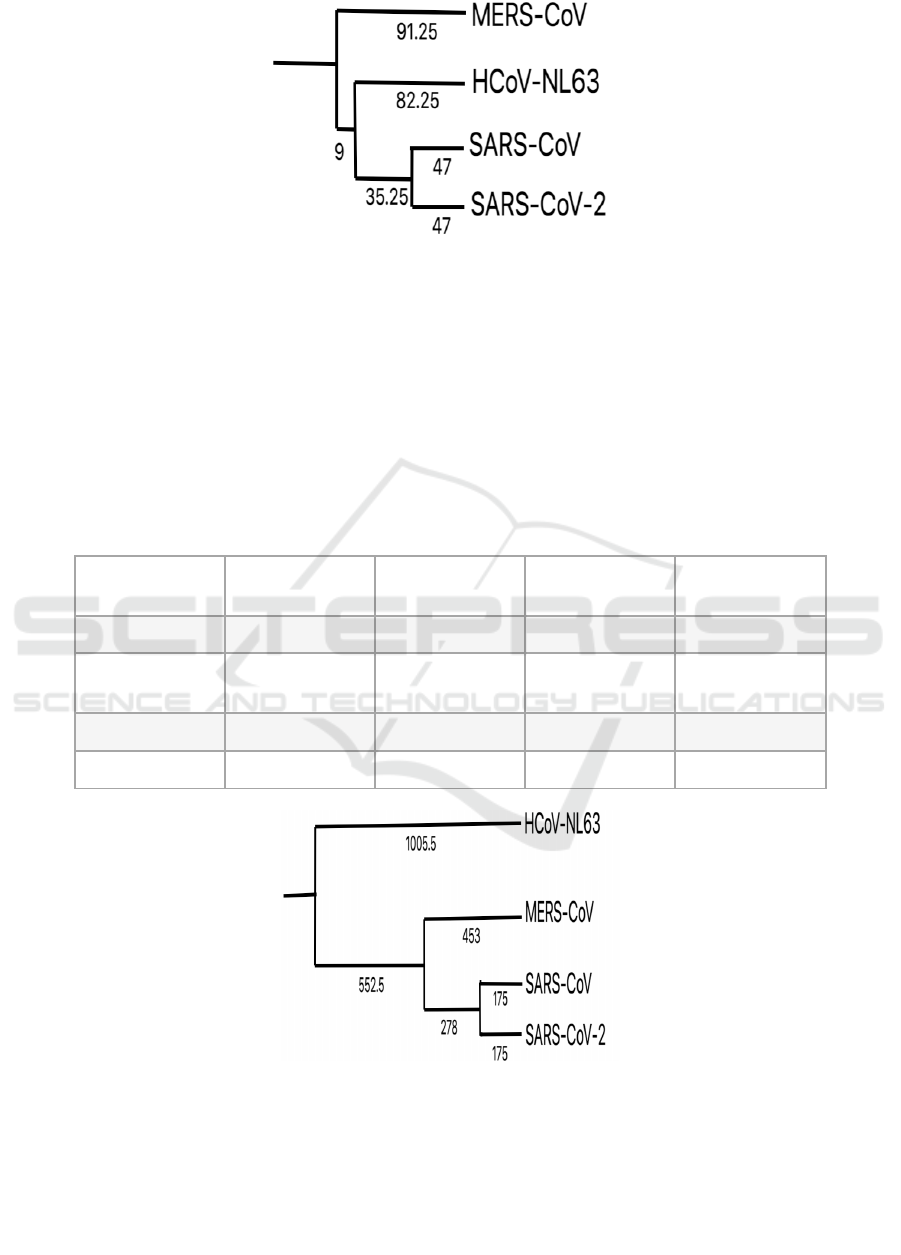

Figure 4: Phylogenetic tree built upon the basis of distance matrix in figure 3.1.

Given that SARS-CoV and SARS-CoV-2 are

betacoronaviruses, it seems surprising that HCoV-

NL63, an alphacoronavirus, is more closely related to

SARS-CoV and SARS-CoV-2 than the MERS-CoV,

a betacoronavirus. This is a result of sample bias

because the input sequences were limited to the RBD

region. Once remove this limit is removed and let the

input sequences be the complete poly-petitde chains,

the distance matrix in Table 3 can be found, and

therefore, construct the phylogenetic tree in Figure 5.

In this less biased tree, HCoV-NL63 is a sister taxon

of all the other viral species. Nevertheless, no matter

which input sequences is used, SARS-CoV is always

the most closely related to SARS-CoV-2 in terms of

similarities in the spike protein. Therefore, it will be

efficient to search for potential drug candidates for

COVID-19 by testing the drugs proved effective to

inhibit the infection of SARS.

Table 3: Distance matrix when the input values are the complete sequences.

SARS-CoV SARS-CoV-2 MERS-CoV HCoV-NL63

SARS-CoV 0

SARS-CoV-2 350 0

MERS-CoV 905 907 0

HCoV-NL63 987 1017 1009 0

Figure 5: Phylogenetic tree based on complete sequences of spike proteins.

Even though this work have already introduced a

potentially efficient method for drug discovery, the

difference between Figure 4 and Figure 5 has not

been discussed. It can be inferred from the difference

in taxa arrangement that the majority of mutations in

the S proteins occur outside their RBD regions. These

mutations are not as important as the ones within the

RBD regions because they do not affect the receptor

binding (or infection) process directly. Thus,

comparing to MERS-CoV, HCoV-NL63 might be

more similar with SARS-CoV-2 in terms of receptor

binding mechanism. Therefore, looking for drug

ICBEB 2022 - The International Conference on Biomedical Engineering and Bioinformatics

1108

candidates among the ones effective for the inhibition

of HCoV-NL63 infection might be the second

efficient method for our drug discovery purpose.

4 DRUG DISCOVERY BASED ON

CONSERVED SPIKE PROTEIN

STRUCTURE

Though different viruses attack different cells and

cause different diseases, there exist some similarities

among different viruses, including similarities in

infection tissue, in transmission vector (Wang, 2020),

and in spike glycoprotein. The latter is the topic that

will be elaborated in this paper. In this part, this work

will identify spike protein structures that are

conserved in multiple coronaviruses. Based on this

information, broad-spectrum antiviral drugs that

might be effective against SARS-CoV -2 can be

found.

4.1 Significance of Spike Protein

For coronavirus, spike protein is a kind of protein on

the surface of the viruses, which is essential for the

virus's combination to receptors. The S protein plays

an essential role in the entry of coronavirus because it

is a class I fusion protein (Wikipedia, 2021).

Moreover, this protein is highly related to antibody

production (Hughes, 2011), making it a crucial focus

on researches related to COVID-19 diagnosis.

What is focused in this paper is how spike protein

of coronavirus can be applied to potential drug

discovery. Efficacy of drugs for certain viral spike

protein may be extended to viruses with similar spike

protein structure. Thus, drug that's proved efficacious

against one or a few species in the coronaviridae

group (e.g. SARS CoV or MERS-CoV) can be

identified, it is very likely to find that the drug is also

effective for the treatment of COVID-19. Moreover,

such approaches of drug discovery is efficient and

less time-costing compared to traditional drug

discovery approaches (Kumar, S, 2020). Therefore,

drug discovery based on spike protein has great

potential in finding drugs during the COVID-19

pandemic.

4.2 Current Applications in Drug

Discovery

After the viral genome of SARS-CoV-2 is released on

10 January 2020, there has been efforts in drug

discovery based on spike protein and its receptors.

Scientists have analyzed chemical characteristics

of the spike protein from the perspective of molecular

weight, number of amino acids, electricity charge,

etc. (Seresh Kumar) (Ibrahim, Ibrahim M, 2020).

4.2.1 Receptor Inhibition

In order to prevent the spike protein of SARS-CoV-2

from binding to ACE-2 receptor. Drugs can either

inhibit the spike protein or inhibit the receptor. As it

is stated in Section 4 of Part III, if a drug can inhibit

the binding between spike protein of SARS-CoV and

ACE-2 receptor, it is very likely to be efficacious

against SARS-CoV-2 by the same mechanism. For

instance, as early as 2005, a group of scientists

discovered in vivo that hydroxychloroquine (HCQ) is

able to inhibit the binding between the spike protein

of SARS-CoV and ACE-2 by interrupting the

glycocylation of ACE-2 in the Golgi apparatus, which

changes the structure of ACE-2 (Vincent, M, 2005).

Inspired by this study, this work reviewed a major

clinical trial on therapeutic use of HCQ in COVID-19

infection (Million, 2020). This study indicates that

over 95% of the patients treated with HCQ were cured

on the tenth day of treatment, and only 2.3% of them

reported mild adverse effects (Million, 2020). Thus,

HCQ seems to be a promising drug for the COVID-

19 treatment. This discovery implies that our drug

discovery strategy is potentially effective.

4.2.2 Spike Protein Inhibition

Through predicting the genome encoding for spike

protein and comparing the SARS-CoV-2 spike

protein with number of database, the research stated

that the spike protein of SARS-CoV-2 has high

similarity with SARS, and that inhibitors of 3C-like

protease(3CLpro) is a potentially effective anti-viral

drug (Kliger, 2003).

Ibrahim M et al. used combined molecular

docking studies and made the prediction that the spike

protein of SARS-CoV-2 can bind to GRP78(Glucose

Regulated Protein 78), which is a host receptor for

SARS (Sokal, Mechener, 1958). Thus, antiviral drugs

for GRP78, which are effective for treating SARS

infections, might be a potential candidate for COVID-

19 treatment (Feng, Doolittle, 1987).

Outside the species of coronaviridae, scientists are

discovering similarities between spike protein of

SARS-CoV-2 and spike protein of another virus--the

HIV. Kliger, Y and Levanon, E.Y applied heptad

repeat analysis and transmembrane domain

prediction to find out similarity between fusion

proteins of SARS-CoV-2 and HIV. However,

sequence comparison algorithms showed little

Bioinformatics Helps with Drug Discovery for COVID-19 Treatment

1109

similarity between the two fusion proteins. The

similarity only exists in the aspect of mechanism, so

that the two fusion proteins are analogous to each

other (Collingridge, Kelly, 2012). This suggests that

drugs effective for repressing HIV fusion, such as

C34, may also repress the fusion of SARS-CoV-2

with host cells. Moreover, this research broadens our

consideration, providing another perspective--

analogous proteins.

4.2.3 Discussion

One things all these applications mentioned is that

biological studies and lab experiments are needed.

Some of the researches have been proved by

experimental data while some others haven't. It is

important to keep in mind that though bioinformatics

approaches are effective, they should always be

proved by lab experiments.

5 CONCLUSION

With the help of bioinformatics, the drug discovery

process based on spike protein multiple alignment is

becoming an effective solution facing the urgent need

for drugs during the COVID-19 pandemic. Multiple

alignment procedure can be verified by applying

several computational approaches or by using

phylogenetic analysis. Such process of drug

discovery reduces both time and costs. Moreover,

besides spike protein alignment within the

coronaviridae species, comparing spike protein of

coronavirus with other viral species, such as HIV,

provides us with new insights. For drug design based

on spike protein, following laboratory experiments

are essential. This work can be a source for future

investigations, including lab verifications and clinical

studies.

REFERENCES

Collingridge PW, Kelly S (2012). "MergeAlign: improving

multiple sequence alignment performance by dynamic

reconstruction of consensus multiple sequence

alignments". BMC Bioinformatics. 13 (117): 117.

doi:10.1186/1471-2105-13-117. PMC 3413523. PMID

22646090.

Collingridge PW, Kelly S (2012). "MergeAlign: improving

multiple sequence alignment performance by dynamic

reconstruction of consensus multiple sequence

alignments". BMC Bioinformatics. 13 (117): 117.

doi:10.1186/1471-2105-13-117. PMC 3413523. PMID

22646090.

Feng DF, Doolittle RF (1987). "Progressive sequence

alignment as a prerequisitetto correct phylogenetic

trees". J Mol Evol. 25 (4): 351–360.

Bibcode:1987JMolE..25..351F.

doi:10.1007/BF02603120. PMID 3118049. S2CID

6345432.

Feng DF, Doolittle RF (1987). "Progressive sequence

alignment as a prerequisitetto correct phylogenetic

trees". J Mol Evol. 25 (4): 351–360.

Bibcode:1987JMolE..25..351F.

doi:10.1007/BF02603120. PMID 3118049. S2CID

6345432.

https://www.youtube.com/watch?v=CTPiYiTQcuA

Hughes, J.P. et al. Principles of early drug discovery.,

British Journal of Pharmacology. (2011)

Ibrahim, Ibrahim M et al. “COVID-19 spike-host cell

receptor GRP78 binding site prediction.” The Journal

of infection vol. 80,5 (2020): 554-562.

doi:10.1016/j.jinf.2020.02.026

Journal of Microbiology (2017) Vol. 55, No. 2, pp. 81–89

Kumar, S. Drug and Vaccine Design against Novel

Coronavirus (2019-nCoV) Spike Protein through

Computational Approach. Preprints 2020, 2020020071

(DOI: 10.20944/preprints202002. 0071.v1).

Kliger, Y., Levanon, E.Y. Cloaked similarity between HIV-

1 and SARS-CoV suggests an anti-SARS strategy.

BMC Microbiol 3, 20 (2003).

https://doi.org/10.1186/1471-2180-3-20

Li, Y. et al. (2020) "The MERS-CoV Receptor DPP4 as a

Candidate Binding Target of the SARS-CoV-2 Spike."

iScience Vol. 23, Issue 6

https://www.ncbi.nlm.nih.gov/pmc/articles/PMC7219414/

Levenshtein, V. (1966) "Binary codes capable of correcting

deletions, insertions, and reversals." Soviet Physics

Doklady (in Russian). Vol. 10, Issue 8, pp. 707–710

http://www.mathnet.ru/links/984d857b9221e734b627f0a9

45fd3d7e/dan31411.pdf

Million, M. et al. (2020) “Early treatment of COVID-19

patients with hydroxy- chloroquine and azithromycin:

A retrospective analysis of 1061 cases in Marseille,

France”. Travel Medicine and Infectious Disease.

Volume 35. Retrieved from:

https://www.sciencedirect.com/science/article/pii/S147789

3920302179?via%3Dihub

Million, M. et al. (2020) “Early treatment of COVID-19

patients with hydroxy- chloroquine and azithromycin:

A retrospective analysis of 1061 cases in Marseille,

France”. Travel Medicine and Infectious Disease.

Volume 35. Retrieved from:

https://www.sciencedirect.com/science/article/pii/S147789

3920302179?via%3Dihub

Pradhan, P. et al. (2020) "Uncanny similarity of unique

inserts in the 2019-nCoV spike protein to HIV-1 gp120

and Gag." BioRxiv

https://www.biorxiv.org/content/10.1101/2020.01.30.9278

71v1

Sokal, R. and Mechener, C. (1958) "A statistical method for

evaluating systematic relationships." University of

Kansas Science Bulletin. Vol. 38, Issue 2, pp. 1409-

ICBEB 2022 - The International Conference on Biomedical Engineering and Bioinformatics

1110

1438

https://archive.org/details/cbarchive_33927_astatisticalmet

hodforevaluatin1902/page/n27/mode/2up

Totura, A. and Bavari S. (2019) "Broad-spectrum

coronavirus antiviral drug discovery." Expert Opinion

on Drug Discovery Vol. 14, Issue 4, pp.397-412

https://www.ncbi.nlm.nih.gov/pmc/articles/PMC7103675/

Vincent, M. et al. (2005) “Chloroquine is a potent inhibitor

of SARS coronavirus infection and spread” Virology

Journal Volume 2. Issue 29.

https://www.ncbi.nlm.nih.gov/pmc/articles/PMC1232869/

Wang, Yuhang et al. “Coronaviruses: An Updated

Overview of Their Replication and Pathogenesis.”

Methods in molecular biology (Clifton, N.J.) vol. 2203

(2020): 1-29. doi:10.1007/978-1-0716-0900-2_1

Wikipedia contributors. "Spike protein." Wikipedia, The

Free Encyclopedia. Wikipedia, The Free Encyclopedia,

6 Sep. 2021. Web. 6 Sep. 2021.

Zhang, C. et al. (2020) "Protein Structure and Sequence

Reanalysis of 2019-nCoV Genome Refutes Snakes as

Its Intermediate Host and the Unique Similarity

between Its Spike Protein Insertions and HIV-1."

Journal of Proteome. Vol. 19, Issue 4, pp. 1351-1360

https://www.ncbi.nlm.nih.gov/pmc/articles/PMC7099673/

Zhang, C. et al. (2020) "Protein Structure and Sequence

Reanalysis of 2019-nCoV Genome Refutes Snakes as

Its Intermediate Host and the Unique Similarity

between Its Spike Protein Insertions and HIV-1."

Journal of Proteome. Vol. 19, Issue 4, pp. 1351-1360

Bioinformatics Helps with Drug Discovery for COVID-19 Treatment

1111
