Experiences with the TinyOS Communication Library

⋆

Paolo Corsini, Paolo Masci and Alessio Vecchio

Dipartimento di Ingegneria della Informazione

Universit

a di Pisa

56122 Pisa, Italy

Abstract. TinyOS is a useful resource for developers of sensor networks. The

operating system includes ready-made software components that enable rapid

generation of complex softwarearchitectures.Inthispaper we describe the lessons

gained from programming with the TinyOS communication library. In particular,

we try to rationalize existing functionalities, and we present our solutions in the

form of a communication library, called TComm-Lib.

1 Introduction

A sensor network is a wireless network of communicating nodes. Each node consists

of an embedded micro-controller with a small amount of memory, a battery, a wireless

transceiver, and may be equipped with various sensing hardware (light, temperature,

etc.). The network is self-organizing and multi-hop communication is used to transport

data collected by nodes to a monitoring base station.

Hardware resources of the nodes are extremely limited because of a set of con-

straints: i) the cost of the nodes must be kept as low as possible since the number of

nodes can be in the order of hundreds or even thousands elements, ii) they must be

energy efﬁcient since the replacement of batteries is often unfeasible or expensive, iii)

their size must be kept small in order to be ubiquitous. For instance, nodes based on

the Telos-B platform are equipped with 48KBytes of instruction memory, 10KBytes of

RAM and the current draw in active and sleep mode is respectively 1.8mA and 5.1µA.

Programming in such environment is not an easy task, not only because of the hard-

ware limitations, but also because developers of applications for sensor networks belong

to different technical areas, from telecommunications to electronics and computer sci-

ence. Fortunately, they do not have to write their own applications with assembly-like

languages, but can leverage on high-level languages and libraries providing basic ser-

vices. The standard platform for sensor networks is TinyOS [1], available for a number

of different hardware architectures, and nesC [2] is the used programming language.

In this paper, we report our experience on developing applications for sensor net-

works, focusing on the communication services provided by TinyOS. Besides highlight-

ing the positive and negative features of the library, we describe the issues encountered,

and provide the adopted solutions in the form of a communication library, TComm-Lib.

⋆

This work is partially supported by Fondazione Cassa di Risparmio di Pisa, Italy (SensorNet

Project).

Corsini P., Masci P. and Vecchio A. (2006).

Experiences with the TinyOS Communication Library.

In Proceedings of the 5th International Workshop on Wireless Information Systems, pages 47-55

 SciTePress

TComm-Lib is not aimed at introducing new network services, instead it tries to ra-

tionalize existing functionalities in order to give a simple user experience for effective

programming with sensor networks. TComm-Lib has been built, almost completely, by

simplifying, re-organizing, and extending the original TinyOS library.

2 TinyOS and nesC

TinyOS is an open-source operating system designed for wireless sensor networks. Ar-

chitecture and implementation of TinyOS applications are component-based, enabling

rapid innovation and modularity. The libraries shipped with the operating system in-

clude a number of ready-made components that can be connected together with user-

deﬁned components.

Applications that run on the TinyOS platform, as well as TinyOS itself, are written

with nesC [2], a component-oriented extension of the C programming language. With

nesC, programmers can deﬁne new components using a C-like syntax, and connect

them together in order to create new components or applications (the act of connecting

is called “wiring”). Each component declares input and output functions, called com-

mands and events, that are used in the wiring process. Commands and events are usually

grouped into interfaces, i.e. labeled sets with a given type.

A component can offer multiple instances of the same interface. Each interface can

be connected to different components, and a speciﬁc interface is selected through the

use of an index. In this case the interface is said to be parametric.

2.1 The TinyOS Communication Library

The TinyOS communication library supports single and multi hop communication with

other nodes (via the wireless transceiver), and serial communication between a sensor

node and the base station (via USB or serial port).

Since our paper focuses on the communication library of TinyOS, in the following

we describe GenericComm, the component used for communication.

GenericComm implements single hop and serial line communication (the last fea-

ture is used only by the node connected to the base station). Moreover, it provides i) a

control interface (StdControl) to initialize, start and stop the component, ii) a para-

metric interface for sending packets (SendMsg[uint8

t id]

), iii) a parametric

interface for receiving packets (ReceiveMsg[uint8 t id]). The implementation

of GenericComm is speciﬁed in the following ﬁle (some details are not shown):

configuration GenericComm{

provides{

interface StdControl;

interface SendMsg[uint8_t id];

interface ReceiveMsg[uint8_t id];

}

This notation means that 256 instances of the SendMsg interface are available (uint8

t is an

unsigned int type coded on 8 bits).

}

implementation{...}

Let us now examine the interfaces for sending and receiving packets of Generic-

Comm. The SendMsg interface declares one command and one event:

interface SendMsg{

command result_t send(uint16_t address,

uint8_t length,

TOS_Msg

msg_ptr);

event result_t sendDone(TOS_Msg

msg_ptr,

result_t success);

}

The send() command has three parameters: the destination address, the length (in

bytes) of the payload, and a pointer to the buffer containing the message to be sent. The

command is non-blocking. The sendDone() event is signaled when the message is

actually transmitted. The event has two parameters: a pointer to the buffer containing

the last message sent, and a ﬂag reporting the success or failure of the sending attempt.

Communication over the serial connection is achieved by using a special and re-

served address (codiﬁed as UART ADDR).

The ReceiveMsg interface declares only one event:

interface ReceiveMsg{

event TOS_Msg

receive(TOS_Msg

msg_ptr);

}

The receive() event is signaled every time a message is successfully received

over the radio or over the serial port. The event has one parameter, that is a pointer to the

buffer containing the received message. The event must return to the caller the buffer

for the next receive operation (a buffer-swap mechanism is used to avoid the overhead

of copying data).

3 Developing Network Applications

3.1 Features and Limits

In this section, we report our experience on using the TinyOS communication library

and explore how unexpected behavior may arise for a number of factors.

Selective Powering of Communication Hardware. Hardware devices are represented

by software components. By calling the start()command of a software component,

the corresponding hardware device is powered on. Similarly, by calling the stop()

command a hardware device can be powered off. In some cases, a single software com-

ponent represents several hardware devices. For example, GenericComm is associated

with both the radio chip and the controller of the serial interface. Nevertheless, if no

dedicated control interface is exported, then selective powering on/off is unfeasible. In

fact, the start()command turns on all the hardware associated with a software com-

ponent, even if only one of the devices is actually needed. Thus, when the start()

command of GenericComm is called, for instance because the application is going to

communicate over the wireless channel, the radio is powered-up, but at the same time

the serial controller is automatically powered-up too.

Management of the Duty Cycle. In many cases, the application running on the nodes

of a sensor network is cyclical: the environment is sensed, acquired information is trans-

mitted, then the application sleeps for a given amount of time before restarting the cycle.

Usually, the sleep time is longer than the active time by several orders of magnitude,

therefore it is of primary importance to reduce the amount of energy consumed dur-

ing the sleep time. Power management can be done at the application level by using

the start() and stop() commands. Nevertheless, hardware devices may present a slow

power-up phase with respect to the clock of the microcontroller (e.g. because the volt-

age regulator of the device needs a certain time to stabilize), and trying to use a com-

ponent during the transition phase may cause unpredictable behavior. In other words,

applications need a view on the power status of hardware devices, but the StdControl

interface does not suit properly to this purpose (the start() and stop() commands

return immediately and do not wait for a complete power-on, or power-off, of the de-

vice). In the context of the communication library, this problem arises because the radio

chip device has a slow power-up phase, but GenericComm provides no interface to

expose the transition process.

Controlling the Transmission Power. The radio installed on the sensor nodes has a

transmission range that is approximately one hundred meters, if used with maximum

power. However, in some scenarios, it can be useful to manually reduce the transmission

power: for example, if the network is particularly dense, by reducing the transmission

range it is possible both to save energy and decrease the number of packet collisions.

Also, during the debugging phase of a network protocol or an application, the reduction

of the transmission range can help to set up a multi hop testbed. The TinyOS library

includes software components for radio range setup, but they are usually hidden inside

complex conﬁgurations that do not expose an interface to access such functionality.

Power Saving Modes. TinyOS automatically switches the microcontroller to a low-

power mode whenever possible, thus extending the life-time of nodes even when the

application does not explicitly take care of it. For example, the TMote sky nodes [3]

automatically go into sleep mode when all the following conditions are satisﬁed: i) the

radio is turned off, ii) all high speed clock outputs are disabled, iii) the serial peripheral

bus is idle, iv) the task queue is empty. Nevertheless, automatic transition to the sleep

mode is disabled by default on almost all platforms. Hence, the programmer has to

explicitly include the activation of the power saving subsystem into the application

code.

3.2 Related Work and Motivations

The TinyOS community is making a big effort to improve and expand the APIs of the

whole TinyOS library. In particular, recent works are proposing solutions to promote a

standard framework across different platforms. In [4] the authors discuss design patterns

useful to solve common problems, and aimed to the development of efﬁcient and robust

program structures. In [5] an abstraction layer is presented in order to standardize the

interfaces of nesC components across different platforms. Both these works reﬂect the

philosophy of the TinyOS Enhancement Proposals (TEPs), basis of TinyOS 2.0. Notice

that sometimes radical changes are required in order to actuate such proposals. In fact,

applications written for TinyOS 2.0 are not backward-compatible with the previous

platform.

Further research work related to the programming paradigms provided by TinyOS

is described in [6], where the authors summarize and analyze the experience of the

TinyOS community in creating software abstractions for the communication layer.

The motivations of our work rely on ﬁnding solutions that balance between new

programming trends of TinyOS 2.0 and the semantic structure of old-style applications

for sensor nodes. In particular, the revisions we propose are backwards compatible, and

enable developers to improve existing programs without actually re-engineering the

entire application.

4 TComm-Lib Solutions

Most of the ideas behind TComm-Lib are the result of our previous research experi-

ence in the context of sensor network. In particular, during the implementation of a

monitoring application, we encountered all the issues previously described.

In the following subsections we show how simple revisions of the TinyOS commu-

nication library may help application developers to gain control over speciﬁc resources

and produce modular architecture for effective code.

4.1 Selective Powering of Communication Hardware

As previously introduced, GenericComm implements communication over the serial

line and over wireless channels. We split GenericComm into two components, on

the basis of the offered function: RfmComm dedicated to wireless transmissions, and

UsbComm used for communication over the serial line.

RfmComm preserves the core interfaces of GenericComm, i.e. SendMsg and

ReceiveMsg. Thus, the component of the TinyOS library can be replaced with the

new component with minor changes to the application code. Besides the interfaces for

sending and receiving packets, RfmComm includes also SplitControl, which re-

places StdControl and is used to safely turn on and off the component, and RFPo-

wer, which adjusts the transmission power. These interfaces are described in Section

4.2 and 4.3.

configuration RfmComm{

provides{

interface SplitControl;

interface SendMsg[uint8_t id];

interface ReceiveMsg[uint8_t id];

interface RFPower;

}

implementation{....}

UsbComm provides the same interfaces of RfmComm, except for RFPower:

configuration UsbComm{

provides{

interface SplitControl;

interface SendMsg[uint8_t id];

interface ReceiveMsg[uint8_t id];

}

implementation{....}

RfmComm and UsbComm offer a clear vision of the hardware devices actually in-

volved and they can be used by developers depending on the needed functionality.

Moreover, as a nice side-effect, there is no need to reserve the UART

ADDR address

for the serial line.

4.2 Management of the Duty Cycle

Events signaling the progress of the power-up phase can be found within a speciﬁc

TinyOS control interface, SplitControl. The SplitControl interface is pro-

vided with the start() and stop() commands of the StdControl interface, but

it also offers the events startDone() and stopDone(), used to signal the comple-

tion of the corresponding command:

interface SplitControl{

command result_t init();

command result_t start();

command result_t stop();

event result_t initDone();

event result_t startDone();

event result_t stopDone();

}

Within TComm-Lib, both RfmComm and UsbComm support the SplitControl

interface. As a consequence, the components can be appropriately turned on and off,

even if they are associated with hardware devices with a slow power-up phase.

4.3 Controlling the Transmission Power

The power used for wireless transmission can be controlled through interfaces that

change on the basis of the used radio chip. For example, the mica and mica2 platforms

use the CC1000 radio, thus the CC1000Control interface must be used, while the

micaZ and Telos-B platforms are equipped with the ZigBee-compliant CC2420 radio

chip, and the CC2420Control interface must be used.

Different control interfaces show common commands but generally they are not

compatible, since different radio chips have different available functions. Moreover,

these interfaces include a number of commands that are actually rarely used by other

components.

We decided to simplify the interface and to expose only the command to control

the transmission range. The new interface is called RFPower and it has only one com-

mand, SetRFPower(uint8

t power), that is platform-independent. The power

parameter speciﬁes the radio range (0 is the shortest, 31 is the longest).

interface RFPower{

command result_t SetRFPower(uint8_t power);

}

Within TComm-Lib, the RFPower interface is provided by the RfmComm compo-

nent.

4.4 Power Saving Modes

The automatic sleep mode of the microcontroller of the sensor nodes can be activated

by calling the enable() command of a low-level software component (HPLPower-

ManagementM).

We transparently changed the default setting of the automatic power-saving sub-

system by extending the Main component of the TinyOS library: when the init()

command is called to initialize the application, the power management module is acti-

vated. The new component, called LpMain, can be transparently incorporated within

existing applications since the interfaces are unchanged.

5 The Importance of Power Management

Energy is the most valuable resource of sensor nodes. Several research studies propose

architectures to optimize energy consumption, where effective solutions are strictly

connected to speciﬁc application scenarios. However, besides the beneﬁts achievable

through architectural solutions, experience highlights the importance of low-level im-

plementation and precise access to hardware resources.

In fact, controlling the power status of hardware devices is a simple, yet effective,

energy saving solution that can be adopted by any software layer. Besides duty cycle

optimizations included inside low-level software components, the whole application for

sensor nodes may also present high level components that can be toggled on and off.

Let us imagine a scenario where a sensor network is used to monitor the level of light

inside a building. The application periodically samples the light and sends a message to

the sink node. Each message contains the ID of the sender node and the corresponding

sampled value. Let us also assume that single hop communication is used for wireless

transmission. This application is characterized by an active period where the application

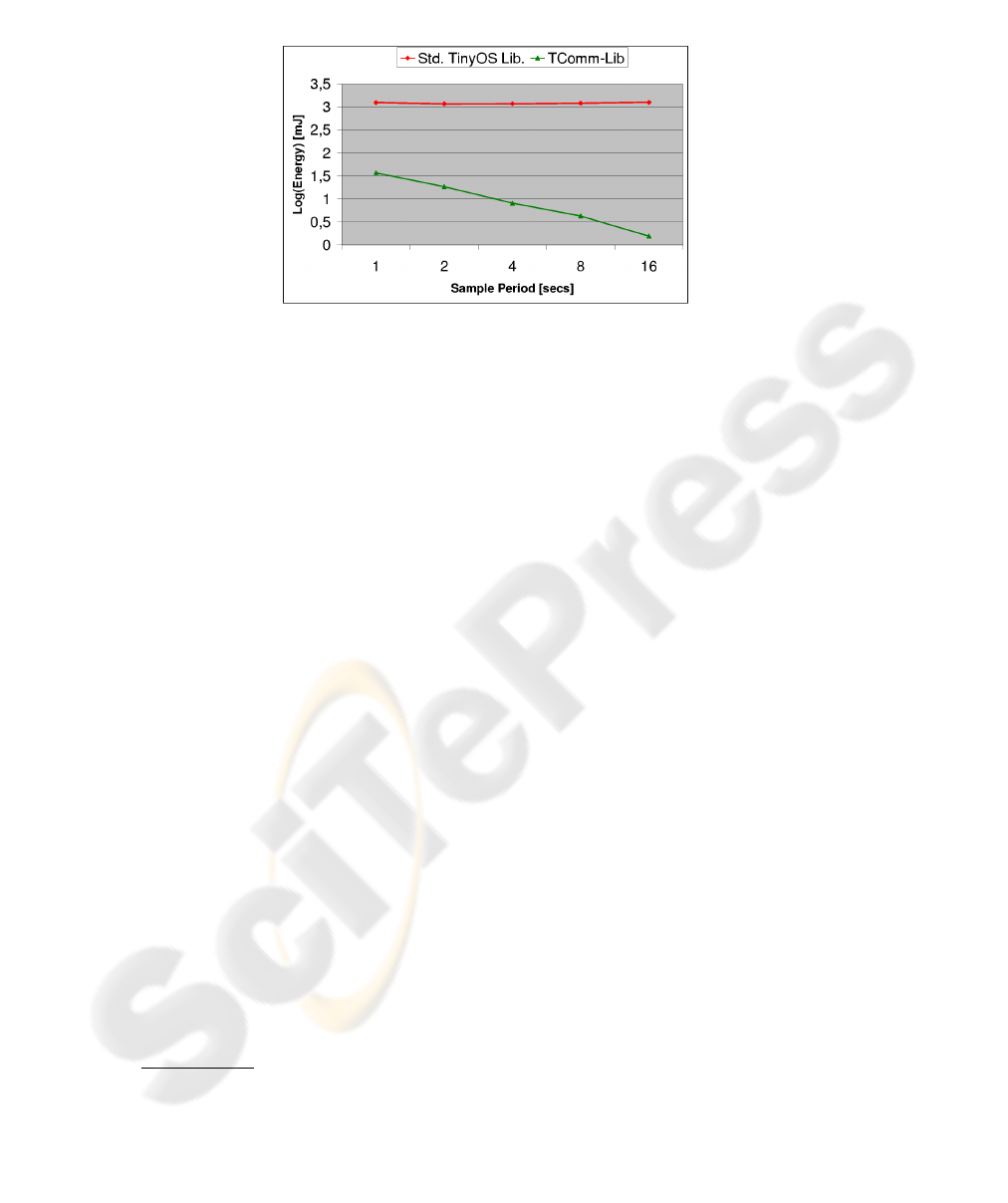

Fig.1. Energy consumption varying the period of operation.

performs data acquisition and communication and an inactive period where the node is

idle. This periodical model of operation is representative of a wide class of applications

for sensor networks.

During the inactive period the node must enter the low power state, in order to save

as much energy as possible. The amount of energy that can be saved by entering the

low power state can be relevant, especially when the inactive period becomes longer.

Figure 1 shows the difference, in terms of energy consumption, of two versions of

the application

: the ﬁrst one uses TComm-Lib to enter the low power state as soon

as possible (i.e., immediately after the transmission of a packet), the second one does

not take care of driving the components used by the application into the low power

state. As expected, when the period of operation of the application becomes longer, the

difference becomes even more relevant.

From the programmer’s perspective, power management can be easily done by us-

ing the TComm-Lib revised components and interfaces: the RfmComm component can

be safely switched on/off as required, since it provides a feedback of its state to the

application, and the UsbComm component is left turned off and will never be activated

since not needed. Power management is more troublesome if using the standard TinyOS

communication library. For example, the USB subsystem cannot be switched off, as it

is hidden within GenericComm. Also, safely switching the radio on and off requires

an additional programming effort to avoid using the radio equipment when it is still in

an inconsistent state.

For testing purposes, we included these mechanisms also within the application im-

plemented with the standard TinyOS communication library. We observed that within

the simulation environment everything worked ﬁne and obtained the same power con-

sumption of TComm-Lib. Nevertheless, after installing this modiﬁed version on real

We used PowerTOSSIM [7] to estimate the energy consumption.

nodes, we experienced that nodes were not able to transmit any message at all, and

sometimes they crashed. We attributed these malfunctions to the incomplete power-up

phase of the radio (these problems are not visible in the simulated environment).

This problem can be avoided, for example, by introducing a delay between the ac-

tivation of the radio subsystem and its usage. However, this requires the programmer

to know the length of the transition phase of the radio component from the low power

state to the operational state, that can be different on the basis of the hardware platform.

6 Conclusions

Creating software abstractions suitable for sensor networks is challenging since the sen-

sor nodes require software architectures radically different from traditional networking

systems.

As known, the application logic is central for deﬁning an effective strategy for en-

ergy saving. To make these strategies real, applications need the cooperation of the un-

derlying layers, which must expose mechanisms for power management. As described

in [8], the strategies adopted by applications are in many cases based on few and recur-

ring principles, for this reason the underlying layers can offer abstractions that appear

to be general and reusable.

In this paper we have described our experience on developing applications for sen-

sor networks, focusing on the abstractions provided by the TinyOS communication li-

brary. On the basis of the lessons learned we rationalized and re-organized the original

communication library, not only to provide cleaner programming abstractions, but also

to generate more energy efﬁcient code.

References

1. TinyOS: (http://webs.cs.berkeley.edu/tos/)

2. Gay, D., Levis, P., von Behren, R., Welsh, M., Brewer, E., Culler, D.: The nesC language: a

holistic approach to networked embedded systems. SIGPLAN Not. 38 (2003) 1–11

3. Moteiv Inc.: (http://www.moteiv.com)

4. Gay, D., Levis, P., Culler, D.: Software Design Patterns for TinyOS. Proceedings of the ACM

SIGPLAN/SIGBED 2005 Conference on Languages, Compilers, and Tools for Embedded

Systems (LCTES’05), Chicago (2005)

5. Handziski, V., Polastre, J., Hauer, J., Sharp, C., Wolisz, A., Culler, D.: Flexible Hardware

Abstraction for Wireless Sensor Networks. Proceedings of the Second European Workshop

on Wireless Sensor Networks (EWSN ’05), (2005)

6. Levis, P., Madden, S., Gay, D., Polastre, J., Szewczyk, R., Woo, A., Brewer, E., Culler, D.:

The Emergence of Networking Abstractions and Techniques in TinyOS. Proceedings of the 1st

USENIX/ACM Symposium on Networked Systems Design and Implementation (NSDI2004)

(2004)

7. Shnayder, V., Hempstead, M., Chen, B., Welsh, M.: PowerTOSSIM: efﬁcient power simula-

tion for tinyos applications. Proceedings of ACM SenSys 2003 (2003)

8. Levis, P., Hill, J., Buonadonna, P., Szewczyk, R., Woo, A.: A Network-Centric Approach to

Embedded Software for Tiny Devices. Lecture Notes in Computer Science (2001)
