Large Scale Similar Song Retrieval using Beat-aligned Chroma Patch

Codebook with Location Verification

Yijuan Lu

and Joseph E. Cabrera

Texas State University, Department of Computer Science, San Marcos, Texas, U.S.A.

Texas A&M University, Department of Computer Science, College Station, Texas, U.S.A.

Keywords: Music Information Retrieval, Similar Song Search.

Abstract: With the popularity of song search applications on Internet and mobile phone, large scale similar song

search has been attracting more and more attention in recent years. Similar songs are created by altering the

volume levels, timing, amplification, or layering other songs on top of an original song. Given the large

scale of songs uploaded on the Internet, it is demanding but challenging to identify these similar songs in a

timely manner. Recently, some state-of-the-art large scale music retrieval approaches represent songs with a

bag of audio words by quantizing local features, such as beat-chroma patches, solely in the feature space.

However, feature quantization reduces the discriminative power of local features, which causes many false

audio words matches. In addition, the location clues among audio words in a song is usually ignored or

exploited for full location verification, which is computationally expensive. In this paper, we focus on

similar song retrieval, and propose to utilize beat-aligned chroma patches for large scale similar song

retrieval and apply location coding scheme to encode the location relationships among beat-aligned chroma

patches in a song. Our approach is both efficient and effective to discover true matches of beat chroma

patches between songs with low computational cost. Experiments in similar songs search on a large song

database reveal the promising results of our approach.

1 INTRODUCTION

Recent years have witnessed the explosive growth of

songs available on the Internet. Many sites such as

YouTube allow users to upload different kinds of

music including songs. Providing accurate and

efficient search throughout a large-scale song dataset

is a very challenging task. Current song retrieval

systems including Google and Youtube commonly

utilize the textual information such as the

surrounding text for indexing. Since textual

information may be inconsistent with the audio

content in songs, content-based song search is

desired and has been attracting increasing attention.

In content-based song search, a hot topic is

similar song retrieval. Similar songs are referred to

as the songs, part of which are usually cropped from

the same original song, but modified by altering the

volume levels, timing, amplification, or layering

other songs on top of another, which are commonly

known as remixes. Given a query song, the

challenge is to find similar versions of the query

song in a large web song database. Applications of

such a system include finding out where a song is

derived from and getting more information about it,

tracking the appearance of a song on the Internet,

detecting song copyright violation, and discovering

modified or edited versions of a song.

Identification of direct similar songs in this

content is trivial since the wave properties of the

direct similar song can easily be used to locate the

original song. However many times users will

modify the original song in a way that makes

detection of original song from the similar song

much more difficult. For example, many times some

songs are remixed together, which introduce a large

amount of noise to the original song.

In recent years, large scale music retrieval

(Bertin-Mahieux et al., 2010; Casey and Slaney,

2007; Maddage et al., 2004; Seyerlehner et al.,

2008) with local features has been significantly

improved based on Bag-of-Audio-Words (BOAW)

model. BOAW model achieves scalability for large-

scale music retrieval by quantizing local features

(such as beat-chroma patch) to audio words and

applying inverted file indexing to index songs via

208

Lu Y. and E. Cabrera J..

Large Scale Similar Song Retrieval using Beat-aligned Chroma Patch Codebook with Location Veriﬁcation.

DOI: 10.5220/0004129802080214

In Proceedings of the International Conference on Signal Processing and Multimedia Applications and Wireless Information Networks and Systems

(SIGMAP-2012), pages 208-214

ISBN: 978-989-8565-25-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

the contained audio words. Although BOAW model

makes it possible to represent, index, and retrieve

songs like documents, it suffers from audio word

ambiguity and feature quantization error. Those

unavoidable problems greatly decrease retrieval

precision and recall, since different features may be

quantized to the same audio word, causing many

false local matches between songs. And with the

increasing size of song database (e.g. greater than

one million songs) to be indexed, the discriminative

power of audio words decreases sharply.

To reduce the quantization error, one solution is

to utilize location information of local features in

songs to improve retrieval precision, since the

location relationship among audio words plays a key

role in identifying songs. However, how to perform

location verification efficiently for large-scale

application is very challenging, considering the

expensive computational cost of full location

verification.

In this paper, we propose to address large-scale

similar song retrieval by using effective music

features and location coding strategies. We define

two songs as similar songs when they share some

similar beat-chroma patches with the same or very

similar location relationship. Our approach is based

on the Bag-of-Audio-Words model. To improve the

discrimination of audio words, we utilize the beat-

aligned chroma feature for codebook construction.

All western music can be represented through a set

of 12 pitches or semitones. Beat-aligned chroma

features record the intensity associated with each of

the 12 semitones for a single octave during a defined

time frame. We measured the intensity of the 12

semitones in the time frame of a beat. To verify the

matched local parts of two songs, we apply location

coding scheme to encode the relative positions of

local features in songs as location maps. Then

through location verification based on location

maps, the false matches of local features can be

removed effectively and efficiently, resulting in

good retrieval precision.

The contribution of this paper can be

summarized as follows: 1) we apply beat-chroma

patterns to build descriptive audio codebook for

large scale similar song retrieval; 2) we utilize

location coding method to encode the relative

location relationships among audio words into

location maps; 3) we apply a location verification

algorithm to remove false matches based on location

maps for similar song search.

The rest of the paper is organized as follows. In

Section 2, related work is introduced. Then, our

approach is illustrated in Section 3. In Section 4,

some preliminary experimental results are provided.

Finally, we make the conclusion in Section 5.

2 RELATED WORK

The codebook approach for large scale music

retrieval is proposed in (Seyerlehner et al., 2008). By

using vector quantization, a large set of local

spectral features are divided into groups. Each group

corresponds to a sub-space in the feature space, and

is represented by its center, which is called an audio

word. All audio words constitute an audio codebook.

With local features quantized to audio words, song

representation is very compact. And by inverted-file

index, all the songs can be efficiently indexed as

bag-of-audio-words, achieving fast search response.

Recently, beat-chroma feature becomes a popular

and useful local feature for music retrieval and

classification. By learning codebook from millions

of beat-chroma features, the common patterns in

beat-synchronous chromagrams of all the songs can

be obtained (Bertin-Mahieux et al., 2010). Each

individual codeword consists of short beat-chroma

patches of between 1 and 8 beats, optionally aligned

to bar boundaries (Bertin-Mahieux et al., 2010). This

approach dug the deeper common patterns

underlying different pieces of songs than the

previous "shingles" (Casey and Slaney, 2007).

However, beat-chroma feature quantization

reduces the discriminative power of local

descriptors. Different beat-chroma features may be

quantized to the same audio word and cannot be

distinguished from each other. On the other hand,

with audio word ambiguity, descriptors from local

patches of different semantics may also be very

similar to each other. Such quantization error and

audio word ambiguity will cause many false matches

of local features between songs and therefore

decrease retrieval precision and recall.

To reduce the quantization error, one solution is

to utilize location information of local features in

songs to improve retrieval precision. Many

geometric verification approaches (Wu et al., 2009;

Zhou et al., 2010) have been proposed for image

retrieval. Among them, spatial coding approach

(Zhou et al., 2010) is an efficient global geometric-

verification method proposed to verify spatial

consistency of features in the entire image, which

relies on visual words distribution in two

dimensional images. Motivated by the spatial coding

algorithm (Zhou et al., 2010), we apply its simpler

version to encode the relative location relationships

Large Scale Similar Song Retrieval using Beat-aligned Chroma Patch Codebook with Location Verification

209

among audio words in a song into one dimensional

location map.

In this paper, we focus on large scale similar

song search, including remix songs. Despite research

in the detection of cover songs (Ellis and Poliner,

2007) and songs with partial missing data (Bertin-

Mahieux et al., 2011), little work yet has focused on

the identification of remix songs. This identification

can be difficult since many times remix versions of

songs introduce a large amount of noise to the

original song. Our motivation is to build an effective

codebook with an efficient global location

verification scheme, which can achieve both

accuracy and efficiency of real-time response.

3 OUR APPROACH

3.1 Feature Extraction

In our approach, we adopt beat-chroma features

(Bertin-Mahieux et al., 2010) for song

representation. In order to extract the beat-chroma

feature, the Echo Nest analyse API

(http://the.echonest.com/) is used. For any song

uploaded to Echo Nest API, it returns a chroma

vector (length 12) for every music segment and a

segmentation of the song into beats and bars. Beats

may span or subdivide segments; bars span multiple

beats. Averaging the per segment chroma over beat

times results in a beat-synchronous chroma feature

representation (Bertin-Mahieux et al., 2010).

Once the chroma features have been extracted,

they are then grouped together based on the time

signature. Grouping the features together based on

their time signature is essentially to develop

comparable features since beats are commonly

grouped into measures dictated by a time signature.

For example, if the song is 4/4 time, there would be

4 chroma-beat features to a group to compose a

chroma-beat patch. The time signature of the song is

also determined using the Echo Nest analyse API.

3.2 Codebook Construction

Gathering good musical features for codebook

generation requires having access to a large set of

songs. In this paper, we use a large song dataset

(LSD) (Bertin-Mahieux et al., 2010), consisting of

43.3 K songs with 3.7 million extracted non-silent

beat-chroma features.

Based on these million-scale features, we

construct a codebook by using hierarchy K-means

clustering (Nister and Stewenius, 2006) with L

levels. The resulting cluster centroids are regarded

as audio words. The standard K-means algorithm

performs a NP hard problem to which the upper

bound is

)(

(Arthur and Vassilvitskii, 2006).

To improve runtime, we use the k-means++

algorithm which uses careful seeding to improve the

performance to

)(logkO

. The final codewords used

to represent the dataset are at the bottom of the tree

structure. This tree structure greatly improves the

efficiency of our indexing, since it can be traversed

in logarithmic time. The entire dataset can then be

represented by the

histograms.

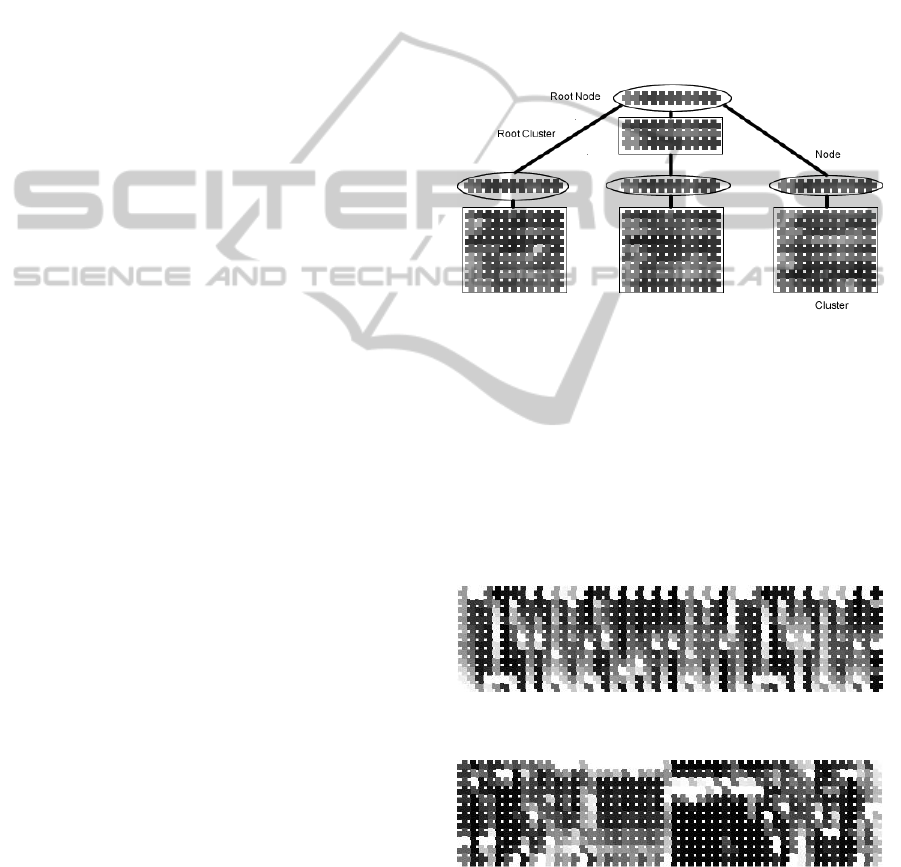

Figure 1: Feature Dendrogram.

In our experiments, we set K to be 10 and vary

our L to produce different amounts of codewords.

The resulting dendrogram is then written to an XML

document and stored on disk. Since we will not be

transforming our dendrogram into an index online,

we would not be losing efficiency in our retrieval

system by writing the dendrogram to a disk. An

example of the feature dendrogram can be seen in

Figure 2 and 3.

Figure 2: Original Song beat-aligned chroma.

Figure 3: Remix Song beat-aligned chroma.

3.3 Feature Quantization

To build a large scale song retrieval system, we need

to quantize all local beat-chroma features into audio

SIGMAP 2012 - International Conference on Signal Processing and Multimedia Applications

210

words. Assuming that the similar songs share similar

beat-chroma patterns and locations in both the target

and query songs, a pair of truely matched features

should share similar beat-chroma values.

All the 3.7 million beat-chroma features are

quantized to audio words based on the built

vocabulary tree (codebook). During the quantization

stage, a novel feature will be assigned to the index of

the closest audio word (centroid). With feature

quantization, any two features from two different

songs quantized to the same audio word will be

considered as a local match across two songs.

3.4 Location Coding and Verification

After feature quantization, matching pairs of local

features between two songs can be obtained.

However, the matching results are usually polluted

by some false matches. To efficiently filter those

false matches without sacrificing accuracy, we apply

location coding scheme for location verification.

Location coding (LC) encodes the location

context between each pair of beat-chroma features in

a song. In LC, with each beat-chroma feature as

reference origin, the song is divided into two parts

(Figure 4). A location coding map, called L-map, is

constructed by checking whether other features

appear before or after this feature in the song. For

instance, given a song

with

features

),,2,1( },{ Mif



, its L-map is defined as

follows:









otherwise1

songthein before appears if0

),(

jiLmap

(

Mji  ,1

)

(1)

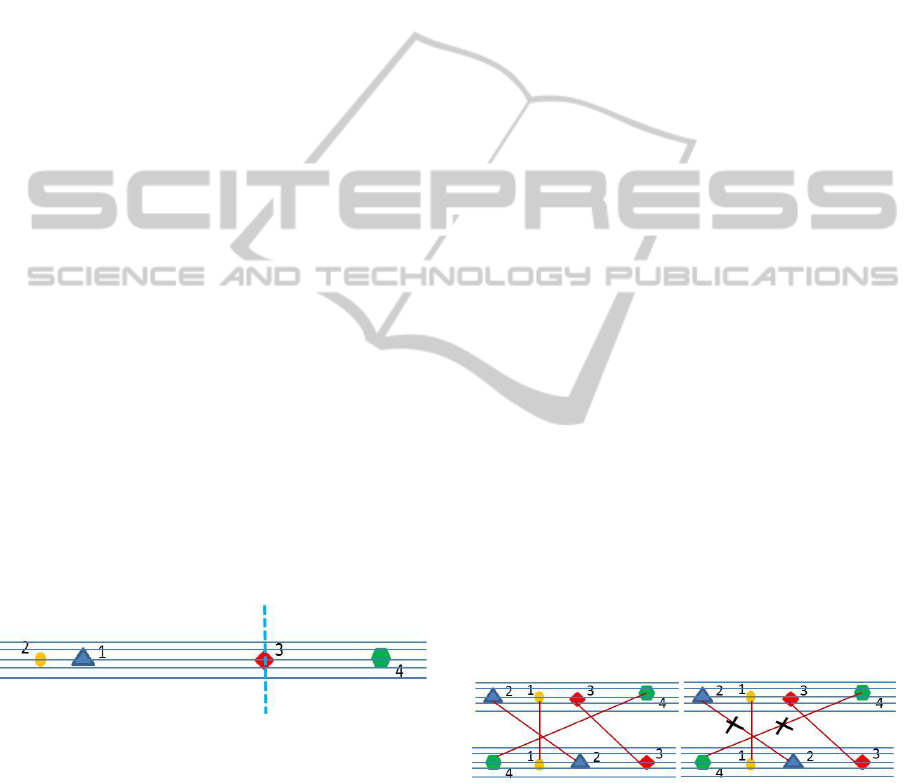

Figure 4: An illustration of location coding for song

features.

Figure 4 gives a toy example of song division

with the key point of feature 3 as reference point.

The resulting L-map is:























1000

1100

1111

1101

Lmap

In row

, feature

is selected as the origin, and

the song is divided into two parts (Figure 4). Then

row

records other features’ location relationships

with feature

in the song. For example,

0)2,1( Lmap

means feature

appears before

feature

in the song. Therefore, one bit either 0 or

1 can encode the relative location position of one

feature to another in one coordinate.

Given that a query song

and a matched

song

are found to share

pairs of matched

features through beat-chroma quantization. Then the

corresponding sub-location maps of these matched

features of both

and

can be generated and

denoted as

and

by Eq. (1). After that, we can

compare these location maps to remove false

matches.

Since the L-map is binary, for efficient

comparison, we can perform logical Exclusive-OR

operation on

and

),(),(),( jiLjiLjiV



Ideally, if all

matches are true,

will be zero for

all their entries. If some false matches exist, the

entries of these false matches on

and

may be

inconsistent. Those inconsistencies will cause the

corresponding exclusive-OR result to be 1.

Denote





jiViS

),()(

(i=1~N)

(2)

If for some

with

0)( iS

we define

)(max arg

iSi



, then the



th pair will be most

likely to be a false match and should be removed.

Consequently, we can iteratively remove such

mismatching pairs, until the maximal values of

zero.

(a)

(b)

Figure 5: An illustration of location verification on a

relevant song pair. (a) Initial matched feature pairs after

quantization; (b) False matches detected by location

verification.

Figure 5 shows an example of the location

verification with location coding on a relevant song

pair. Initially, the relevant song pair has four

matches of local features (Fig.5 (a)). After location

Large Scale Similar Song Retrieval using Beat-aligned Chroma Patch Codebook with Location Verification

211

verification via location coding, two false matches

are identified and removed, while two true matches

are satisfactorily kept (Fig.5 (b)). With those false

matches removed, the similarity between songs can

be more accurately defined and that will benefit

retrieval accuracy. The philosophy behind the

effectiveness of our location verification approach is

that, the probability of two irrelevant songs sharing

many location consistent audio words is very low.

3.5 Indexing

Indexing of songs with the codewords is essential to

improve the runtime of similar songs matching. We

use an inverted file structure to index songs. As

illustrated in Figure 6, each audio word is followed

by a list of indexed features that are quantized to the

audio word. Each indexed feature records the ID of

the song where the audio word appears. Besides, for

each indexed feature, its location information in that

song is also recorded, which will be used for

generating location coding maps for retrieval. This

index is then written to file and will be loaded into

main memory at query time.

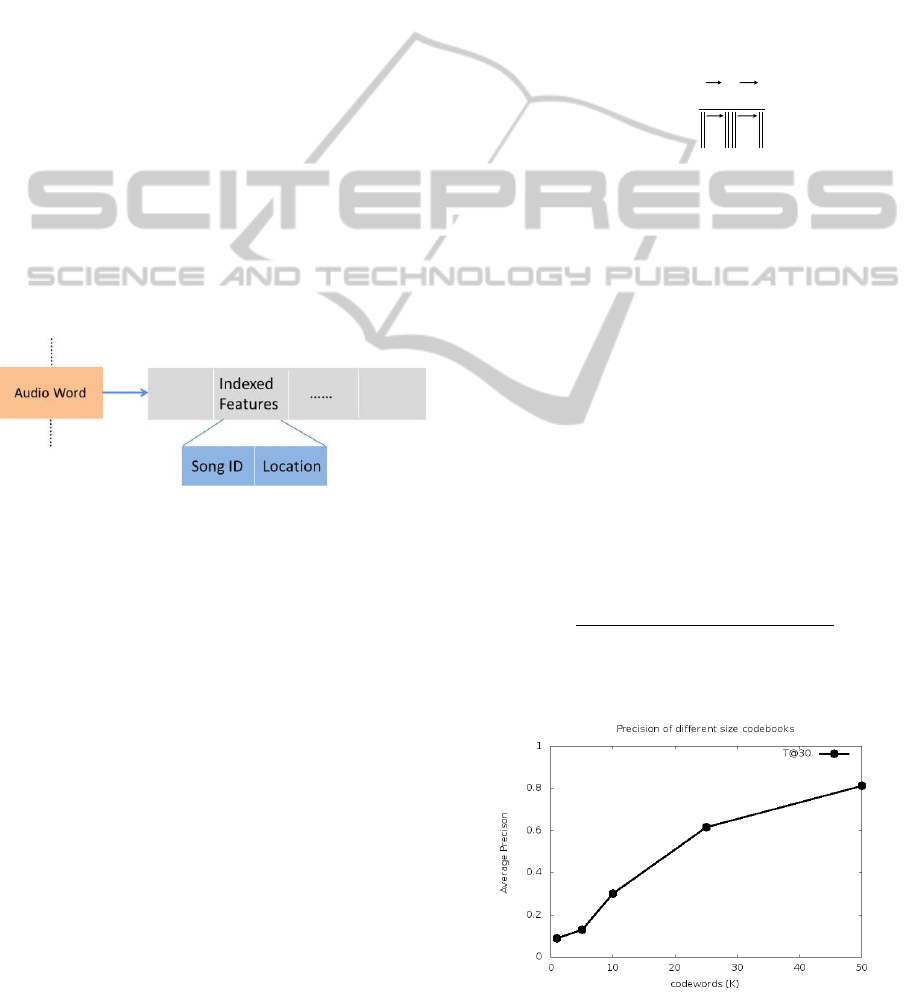

Figure 6: Inverted file structure for index.

4 EXPERIMENTS

4.1 Experimental Setup

We build our basic dataset by using the large song

dataset (LSD) (Bertin-Mahieux et al., 2010),

consisting of 43.3 K songs with 3.7 million extracted

non-silent beat-chroma features. For evaluation of

similar songs retrieval, we select 20 songs from the

US Billboard Hot 100 charts, which encompass 12

different genres. We compile a collection of 72

similar songs to these 20 songs through the Internet.

These 72 similar songs are then appended to the

LSD song dataset to form our similar song dataset

with ground truth labels.

We use beat-chroma feature for song

representation. The Echo Nest API is used to extract

features for the query songs and similar songs. The

similar songs have features extracted prior to query

time. Only the query song has features extracted

online.

4.2 Retrieving Similar Song

Given a query song, the beat-chroma features are

extracted from the query song online by using the

Echo Nest API. Then based on the built codebook,

all the features on the query song are quantized to

their closest audio words using cosine similarity (Eq.

(3)). The most similar song is the song which

contains the largest number of common codewords

with the query song.

 

)(arccos,

qqs





(3)

To find the most similar song, for each codeword

on the query song, we use the inverted feature index

to find the songs which have the same codeword.

These songs receive a vote when they have a

matching feature in common with the query song.

Once we have gone through all the codewords in the

query song, we then return the rank of similar songs

in the order of the number of votes received.

4.3 Preliminary Experimental Results

In our preliminary experiments, we first evaluate our

codebook's accuracy based on the average precision

(AP), which is widely used in information retrieval.

The AP averages the precision values obtained

when each relevant similar song occurs in our

retrieval results. The AP of the top-T ranked songs

AP@T is calculated as follows:

 

songsduplicatepartialrelevant

rrelrP

TAP









)()(

(4)

In our experiments, we consider several different T

values.

Figure 7: Precision for different sized codebooks.

SIGMAP 2012 - International Conference on Signal Processing and Multimedia Applications

212

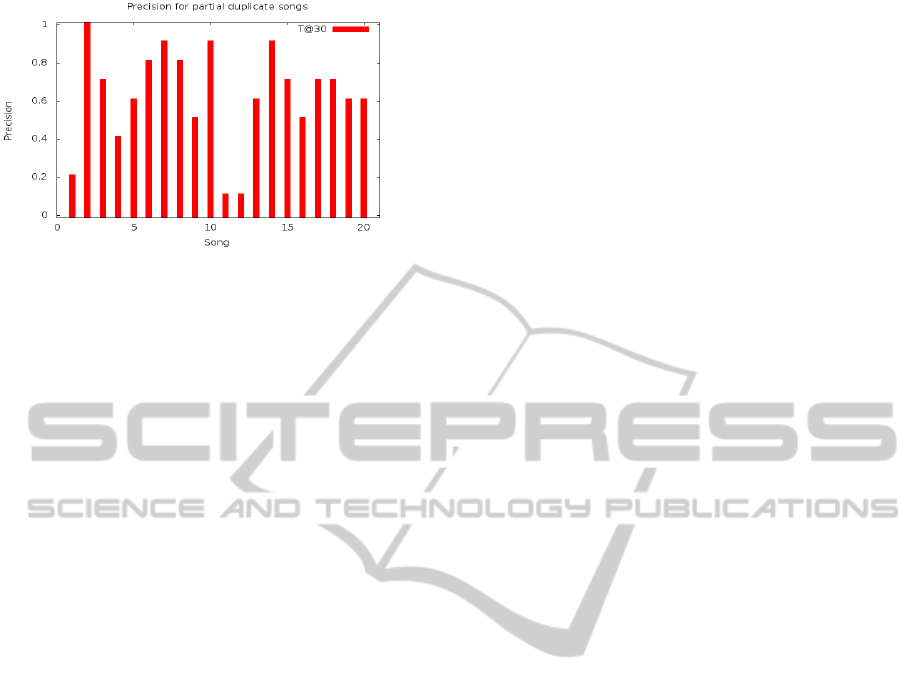

Figure 8: Precision for each query song.

We compile several codebooks of different sizes.

As indicated in (Van Gemert et al., 2010), having

too small of a codebook does not discriminate well

between feature categories or help us build an

understanding of the most important features in a

dataset. For this reason, current state-of-the-art

codebook approaches typically contain several

thousands of codeword (Marszalek et al., 2007). We

evaluate several codebook sizes for our large song

dataset and observe how it affects query

performance by obtaining the average precision and

recall for each.

From Figure 7, we find that as the size of the

codebook becomes larger, the average precision also

increases. This is consistent with the observation in

(Van Gemert et al., 2010), that having too small of a

codebook does not allow us to discriminate well

between feature categories. As shown in Figure 8,

the retrieval of particular songs yields higher

precision than others. In the queries yielding low

levels of precision, it is difficult to accurately extract

the beat-aligned chroma features from these songs.

Based on the preliminary experiments, in the

next step, we will further compare the location

coding method with the traditional bag-of-audio-

words model (baseline) and other state-of-the-art

location verification approaches on search precision,

recall, query time, and computational cost.

5 CONCLUSIONS

In this paper, we apply beat-chroma patterns to build

a descriptive audio codebook for large-scale similar

song retrieval. A location coding scheme is used for

audio words match verification. The location coding

efficiently encodes the relative locations among

features in a song and effectively discovers false

feature matches between songs. Our approach shows

some success however, on remix songs that have

large amounts of bass or drum beats layered over

them. Our approach is also novel since we attempt to

extract features from songs covering a large variety

of musical genres and we do not focus on one

particular genre. The hierarchical K-means

clustering algorithm used performs well given the

size of the large song dataset.

In the future, a more careful analysis of a way to

remove noise from remix songs will be performed,

so that the beat-aligned chroma features can be more

accurately assessed. More comprehensive

experiments on comparing the proposed approach

with the bag-of-audio-words method and other state-

of-the-art location verification approaches will be

conducted. Their retrieval accuracy, storage cost,

and query speed will be fully analysed.

ACKNOWLEDGEMENTS

This work is supported by NSF REU grant 1062439,

NSF-CISE CRI Planning Grant 1058724, Research

Enhancement Program of Texas State University,

and DoD HBCU/MI grant W911NF-12-1-0057.

REFERENCES

Arthur, D. and Vassilvitskii, S., 2006. How slow is the k-

means method? In Proceedings of the twenty-second

annual symposium on Computational geometry, SCG

'06, pages 144-153, New York, NY, USA.

Bertin-Mahieux,T., Grindlay, G., Weiss, R., and Ellis, D.,

2011. Evaluating music sequence models through

missing data. In Proceedings of the IEEE International

Conference on Acoustics, Speech, and Signal

Processing (ICASSP).

Bertin-Mahieux,T., Weiss, R., and Ellis, D., 2010,

Clustering beat-chroma patterns in a large music

database. 11

International Conference on Music

Information Retrieval (ISMIR).

Casey, M., and Slaney, M., 2007. Fast recognition of

remixed music audio. In Proceedings of ICASSP.

Ellis, D. and Poliner, G., 2007. Identifying “cover songs”

with chroma features and dynamic programming beat

tracking. Proceedings of ICASSP.

Maddage, N. C., Xu, C., Kankanhalli, M. S., and Shao, X.,

2004. Content-based music structure analysis with

applications to music semantics understanding. ACM

Multimedia, pages 112-119, New York, NY, USA.

Marszalek, M., Schmid,C., Harzallah,H., and Van De

Weijer, J., 2007. Learning object representations for

visual object class recognition. Visual Recognition

Challenge workshop, in conjunction with ICCV.

Nister, D. and Stewenius, H., 2006. Scalable recognition

with a vocabulary tree. In Proceedings of the IEEE

Large Scale Similar Song Retrieval using Beat-aligned Chroma Patch Codebook with Location Verification

213

Conference on Computer Vision and Pattern

Recognition (CVPR). New York, pages 2161-2168.

Seyerlehner, K., Widmer, G., and Knees, P., 2008. Frame

level audio similarity-a codebook approach.

Proceddings of the 11

International Conference on

Digital Audio Effects.

Van Gemert, J. C., Veenman, C. J., Smeulders, A. W. M.,

and Geusebroek, J.M., 2010. Visual word ambiguity.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 32(7):1271-1283.

Vedaldi, A. and Fulkerson, B., 2010. Vlfeat: an open and

portable library of computer vision algorithms. In

Proceedings of the International Conference on

Multimedia, pages 1469-1472, New York. USA.

Wu, Z., Ke, Q., Isard, M., and Sun, J., 2009. Bundling

features for large scale partial-duplicate web image

search. In Proceedings of CVPR.

Zhou, W., Lu, Y., Li, H., Song, Y., Tian, Q., 2010. Spatial

coding for large scale partial-duplicate web image

search. ACM Multimedia, Florence, Italy.

http://the.echonest.com/platform/

SIGMAP 2012 - International Conference on Signal Processing and Multimedia Applications

214
