TWO APPROACHES FOR A SERVOMECHANISM

CONTROL SYSTEM USING COMPUTER VISION

João Manuel R. S. Tavares, Ricardo Ferreira, Francisco Freitas

Departamento de Engenharia Mecânica e Gestão Industrial, Faculdade de Engenharia da Universidade do Porto,

Rua Dr. Roberto Frias, s/n 4200-465, PORTO, PORTUGAL

Keywords: Servomechanism control, Computational vision, Moments, Orientation histograms

Abstract: In this paper a servomechanism vision control system, based on hand language, is presented. The control

images are acquired by a generic webcam and processed, in the working phase, in quasi real time. For this

processing, two approaches were considered: in the first one, we used the object control moments to identify

the desired order; in the second approach, we used image control orientation histograms. In both

approaches, the preset orders images to be considered are acquired in the learning phase. The used

servomechanism and the two approaches used for the vision control system are described and some

advantages and weakness of each one are indicated. An example of an images control order set, which

works satisfactory, is also presented and some conclusions and future work are also addressed.

1 INTRODUCTION

The main objective of the present work was the

developing of a vision control system for a

servomechanism, equipped with two linear motion

axes, based on hand language. With that goal, we

decided to use a generic webcam, for the image

acquisition, and by the following control philosophy:

the system should in the learning phase associate

control orders to certain images, and in the working

phase recognize the desired order.

In the first approach for the vision control

system, we identified the command orders by the

calculation of the object control moments, (Jain,

1995). This approach, although simple, did not allow

the distinction of a high number of control orders.

We then started using a different approach

(Freeman, 1995, 1996, 1998, 1999), based on image

orientation histograms. This one, although more

complex than the previous, is also very easy to

implement, little demanding in computational

resources (necessary condition for quick processing)

and allows a reasonable number of working orders.

These two approaches will be succinctly described

in this paper.

We have divided this paper in the following

way: In the next section, the used servomechanism is

presented; In the third, we describe the interface

developed to control it through a personal computer;

We then describe both approaches considered for the

vision control system and, by the end of this section,

we present a set of images control orders which

work satisfactorily; In the forth, and last section, are

indicated some conclusions and possible future

work.

2 SERVOMECHANISM

DESCRIPTION

The servomechanism considered it is compose by a

structural static base and a dynamic one, the working

table, Figure 1. Two hydraulic cylinders, one

vertical and one horizontal, of 600 and 350 mm

respectively, manipulate the referred working part.

Fixed

structure

Working

table

User

Interface

Hydraulic

block

Hydraulic

central

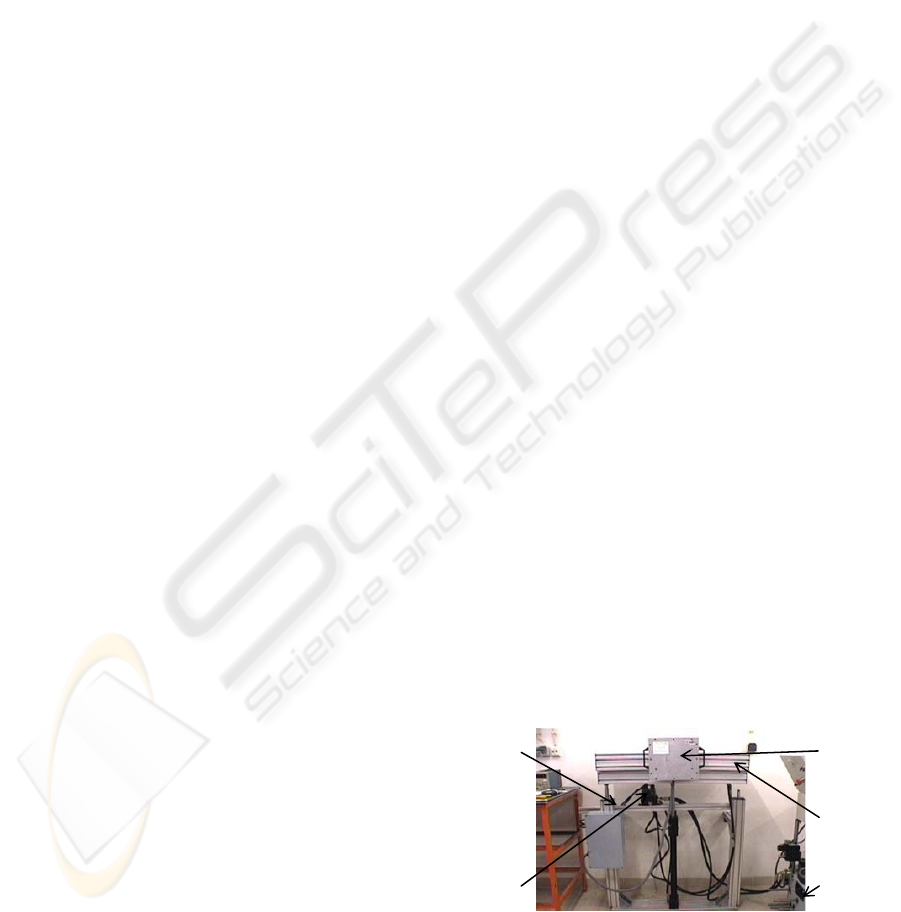

Figure 1: Servomechanism used in this work.

The servomechanism is also equipped with four

sensors that are used to check the limit positioning

of each cylinder.

406

Manuel R. S. Tavares J., Ferreira R. and Freitas F. (2004).

TWO APPROACHES FOR A SERVOMECHANISM CONTROL SYSTEM USING COMPUTER VISION.

In Proceedings of the First International Conference on Informatics in Control, Automation and Robotics, pages 406-409

DOI: 10.5220/0001126704060409

 SciTePress

To enable the interface between the control

personal computer’s board and the electric command

system, an AX757 board was used which has eight

digital signal inputs and eight relays. In this work,

the digital signal inputs were used to monitor the

four sensors referred above, and two of the relays in

the servomechanism command. To send the

command signals from the computer, we had the

AX5411 from which we only used the digital

capabilities (because there was no speed variations

involved but only movement in the imposed ways).

As we can see in Figure 1, the used

servomechanism was already equipped with a user

interface element that allows its manual command.

The main objective of this work was the developing

of another control system based on hand language.

3 SERVOMECHANISM CONTROL

The first step of this work, was the development of a

friendly user interface that allows, through a

personal computer, the totally servomechanism

control and monitoring. This interface was built on a

Microsoft Windows (Richter, 1998) platform, using

the Microsoft Visual C

(Young, 1998)

programming environment, and integrated in an

already existing generic system for image processing

(Tavares, 2000, 2002).

In Figure 2 we present the developed interface

for the servomechanism’s computer control.

Through this interface, we can check the sensors

state, turn on/off the hydraulic central motor, control

the loading valve, move each cylinder, with two

different speeds, and execute an emergency stop.

The next step was the development of the vision

control system based on hand gesture.

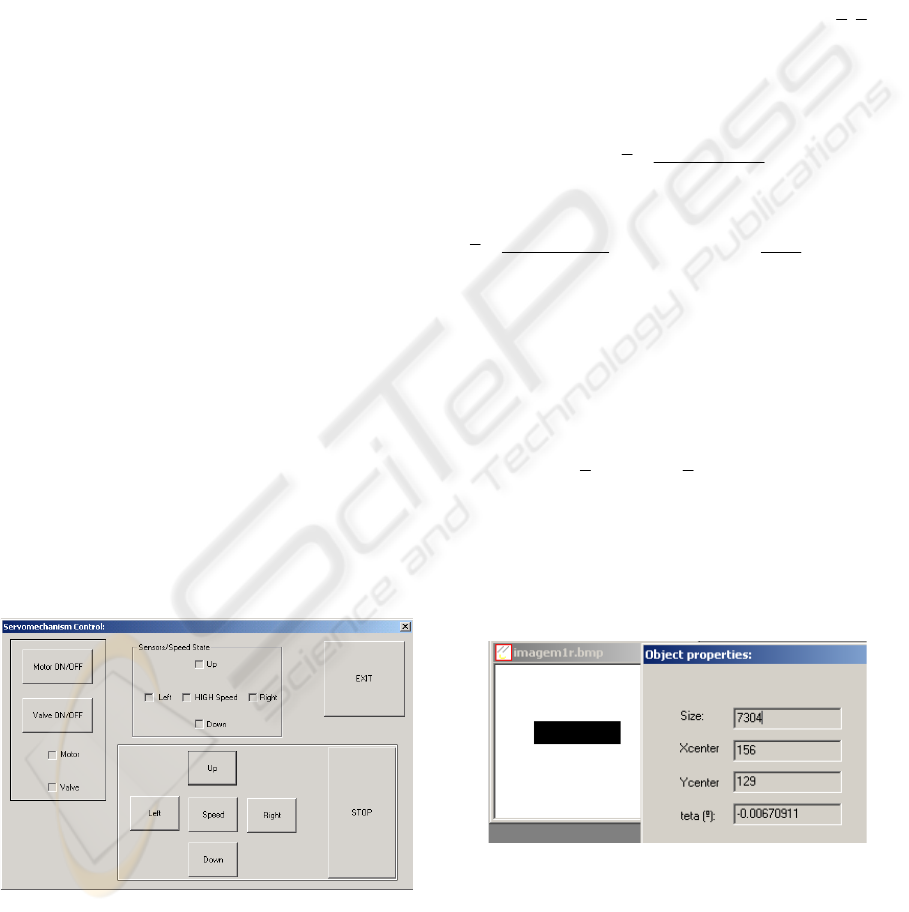

Figure 2: Developed interface for the servomechanism’s

personal computer control.

3.1 Object’s Moments

In image analysis domain, the use of moments

associated with represented objects, (Jain, 1995), to

characterize them (position, size and orientation) and

therefore recognize them, is very common. As our

problem is indeed a recognition problem and, just

referred, due to this common use, we elected this

method to the first approach for our vision control

system.

To compute the object’s shape area

- the zero

order moment, object’s centroid coordinates

()

the first order moments, and the object’s elongation

axis orientation

- the second order moment axis,

we can use the moment’s method:

[]

Bij

∑∑

[]

jB i j

∑∑

[]

iB i j

∑∑

, and

()

tan 2

=±

−

where:

(

)

,nm

are the image’s dimensions,

(

)

,ij

are

the pixel’s coordinates, and

, and are, the

second object’s moments, defined as:

a b c

()

[]

axBij

′

∑∑

[]

ij ij

yBij

′′

∑∑

, bx ,

and

()

[]

cyB

′

∑∑

with

′

−

, yyy

′

− and

[

]

,Bij

set to 1

(one) if the pixel belongs to the object or set to 0

(zero) if not.

In Figure 3 we present an example of getting the

geometric properties of an object using the above

formulated method. The results are, as can been

seen, satisfactory.

Figure 3: Determination of area, centroid coordinates and

orientation of an object using the moment’s method.

However, although simple, this method presents

some disadvantages: the control object has to be

represented by a single region, with shape preferably

rectangular, the image binary and the number of

possible control orders has to be reduced because the

TWO APPROACHES FOR A SERVOMECHANISM CONTROL SYSTEM USING COMPUTER VISION

407

obtained orientation angle is always between 0º and

180º. To overcome these problems, we implemented

a methodology based on image orientation

histograms that will be described in the next section.

3.2 Image’s Orientation Histograms

To overcome the problems associated with the

moments method, previously described, was

implemented a methodology based on orientation

histograms (Freeman, 1995, 1996, 1998, 1999).

Basically, this methodology consists on

calculating the orientation histogram of each

acquired image, and compares it with the histograms

stored in the learning phase (determined from the

images corresponding to the desired orders).

Therefore, it is calculated the orientation histogram

for each 256 grey levels control image and stored in

a 16-component vector. This vector is then

smoothed in order to even its components. The

comparison of the current order image, with the ones

considered along the learning stage, is obtained by

the difference between histograms’ vectors.

In this method, the pixel’s orientation is

calculated as:

[

]

()

,arctan,i j di dj

with:

[

]

[

]

,1,di B i j B i j=−−

[

]

[

]

,,1dj B i j B i j=−−

and

[

]

,Bij

equals the pixel’s intensity level.

In the orientation histograms calculations, we

only consider pixels which have, on one hand, an

intensity level above a predetermined value, thus

neglecting the noise pixels, and, on the other hand, a

contrast value

di dj+

superior to a certain

threshold, thus neglecting pixels from areas with

reduced meaning.

In Figures 4 and 5 we can see the implemented

interfaces for the vision control system, in its

learning and working phases. The considered control

orders were the following: left, right, up, down,

speed change (fast/slow) and stop; in Figure 6, is

presented a working example images set for this six

control orders.

In the implementation done, the control system,

when in automatic working mode, is constantly

acquiring images and cyclically, in predetermined

time intervals, does the active image interpretation

and processes the associated working order, Figure

7. When there is a considerably difference between

the active image’s histogram vector and the ones

stored in the learning phase, the system rejects the

order. The four sensors are also monitored cyclically

which inhibit, or not, the movement in the respective

way.

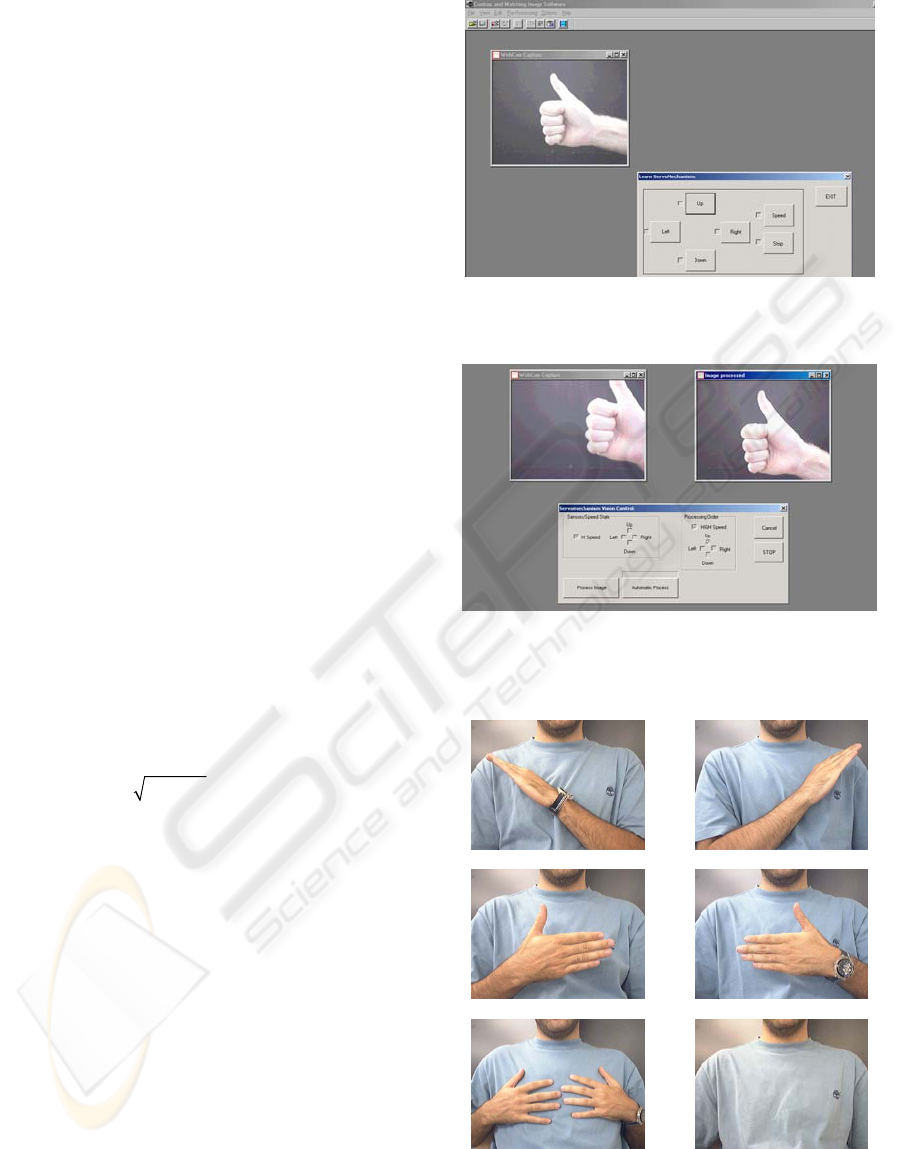

Figure 4: Vision control system interface for the learning

phase. (To the visible image will be associated a command

order by choosing the corresponding button.)

Figure 5: Vision control system interface for the working

phase in manual processing mode. (In the left window is

visible the actual capture image, and in the right

one the last processed image.)

a) Left

b) Right

c) Up

d) Down.

e) Speed change

f) Stop

Figure 6: An example of a satisfactory working orders

image set for the vision control system based

on the orientation histograms methodology.

ICINCO 2004 - ROBOTICS AND AUTOMATION

408

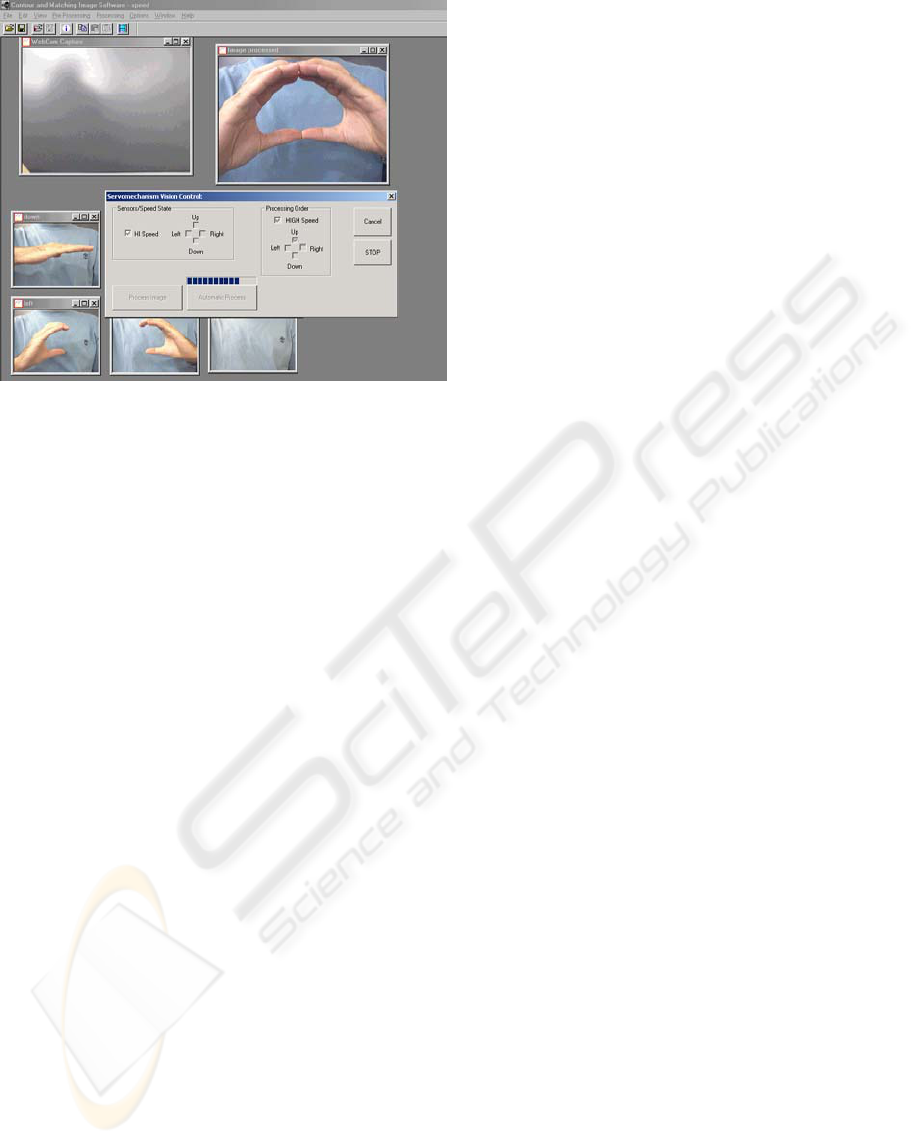

Figure 7: Servomechanism’s vision control system based

on the orientation histograms methodology

in the automatic working mode.

4 CONCLUSIONS AND FUTURE

WORK PERSPECTIVES

In this paper, was presented a servomechanism’s

vision control system based on hand gesture. The

used servomechanism was described, presented the

developed interface to its personal computer control,

and presented both approaches considered to the

control system. The first one, based in the command

object’s moments, is of simple and quick

implementation. However presents some

disadvantages, mainly the reduced number of

possible control orders. The second one is based on

image orientation histograms, and easily overcomes

this problem with a reduced computation cost

increment.

During the several experimental tests done, we

concluded that the methodology based on orientation

histograms presented two great advantages:

implementation simplicity and execution quickness.

The referred approach, works in satisfying manner

controlling the used servomechanism, and could be

considered in other kinds of friendly interfaces:

games, computerized applications, home appliances,

robotic systems, remote controls, etc.. However, we

also found that this approach presents some

limitations as well: As the used webcam does not

compensate lighting changes, the vision control

system does not react the same way if those

variations are significant. Another problem with the

actual version of the vision control system, relates

with the control object’s size and how it domain

each control image. This last problem is augmented

by the lack of an Auto-Focus system in the used

webcam.

For future work, to turn the vision control system

more robust to the problems previously referred, we

can suggest: a) The tracking of the control object

through images sequence using, for example,

Kalman filters, (Tavares, 1995), with active contours

(Blake, 1998; Tavares, 2000, 2002), as indicated in

(Blake, 1993). b) The employ of a more

sophisticated camera, which, by itself, can improve

the robustness of the adopted vision control

methodology.

REFERENCES

Blake, 1993. A. Blake, R. Curwen, A. Zisserman, “A

Framework for Spatiotemporal Control in the Tracking

of Visual Contours”, International Journal of Computer

Vision, 11(2), p. 127/145, 1993.

Blake, 1998. A. Blake, M. Isard, “Active Contours”,

Springer-Verlag, 1998.

Freeman, 1995. W. T. Freeman, M. Roth, “Orientation

histograms for hand gesture recognition”, IEEE Intl.

Workshp. on Automatic Face and Gesture Recognition,

Zurich, June, 1995.

Freeman, 1996. W. T. Freeman, K. Tanaka, J. Ohta, K.

Kyuma, “Computer Vision for Computer Games”, In

2nd International Conference on Automatic Face and

Gesture Recognition, Killington, VT, USA. IEEE,

1996.

Freeman, 1998. W. T. Freeman, D. B. Anderson, P. A.

Beardsley, C. N. Dodge, M. Roth, C. D. Weissman, W.

S. Yerazunis, H. Kage, K. Kyuma, Y. Miyake, K.

Tanaka, “Computer Vision for Interactive Computer

Graphics”, IEEE Computer Graphics and Applications,

Vol. 18, No. 3, pp. 42-53, May-June 1998.

Freeman, 1999. W. T. Freeman, P. A. Beardsley, H. Kage,

K. Tanaka, K. Kyuma, C. D. Weissman, “Computer

Vision for Computer Interaction”, SIGGRAPH

Computer Graphics Magazine, November 1999.

Jain, 1995. R. Jain, R. Kasturi, B. G. Schunk, Brian G.,

“Machine Vision”, McGraw-Hill International

Editions, Computer Science Series, 1995.

Richter, 1998. J. Richter, “Advanced Windows”,

Microsoft Press, 1998.

Tavares, 1995. J. Tavares, MSc Thesis: “Obtenção de

Estrutura Tridimensional a Partir de Movimento de

Câmara”, FEUP, 1995.

Tavares, 2000. J. Tavares, PhD Thesis: “Análise de

Movimento de Corpos Deformáveis usando Visão

Computacional”, FEUP, 2000.

Young, 1998. M. J. Young, “Mastering Microsoft Visual

C++ 6”, Sybex, 1998.

TWO APPROACHES FOR A SERVOMECHANISM CONTROL SYSTEM USING COMPUTER VISION

409
