INTEGRATING A SIGNATURE MODULE IN SSL/TLS

Ibrahim Hajjeh, Ahmed Serhrouchni

Ecole Nationale Supérieure des Télécommunications - LTCI-UMR 5141 CNRS, France

Keywords: SSL/TLS, e-commerce, non-repudiation, data signature.

Abstract: SSL/TLS

is currently the most deployed security protocol on the Internet. SSL/TLS provides end-to-end

secure communications between two entities with authentication and data protection. However, what is

missing from the protocol is a way to provide the non-repudiation service. In this paper, we describe a

generic implementation of the non-repudiation service as an optional module in the SSL/TLS protocol. This

approach provides both parties with evidence that the transaction has taken place and a clear separation with

application design and development. We discuss the motivation for our approach and our proposed

architecture.

There are some slight differences between SSL 3.0 and TLS 1.0, this paper will refer to the protocol as SSL/TLS

1 INTRODUCTION

SSL stands for secure socket layer (Freier, 2000),

was first developed by Netscape Corporation in

1994, and standardized by the Internet Engineering

Task Force “IETF” in 1998 as we know the

Transport Layer Security protocol or “TLS” (Dierks,

1999). SSL/TLS is designed to make use of TCP to

provide a reliable end-to-end secure service with

confidentiality, data integrity and authentication for

one or both entities.

Today, SSL/TLS is the most deployed security

protocol. This is due mainly to its native integration

in browsers and web servers. However like other

security protocol (IPSEC (Kent, 1998), SSH

(Ylonen, 2003), etc.), SSL/TLS does not provide a

non-repudiation service. This is left to the

application layer. The application itself has to

manage the exchange of signed data and its storage

(Wichert, 1999).

In this paper we propose a generic

implementation of the signature service in SSL/TLS

called “SSL-SIGN” that can be used with any

application, in a transparent method and with the

minimum of programmer effort. Our approach is

“generic” because different type of items, such as,

data, signature format, or value can be exchanged

during the Extended SSL/TLS handshake. To keep

interoperability with existing SSL/TLS versions,

SSL-SIGN will be negotiated using the Extended

Client and Server Hello messages defined in (Blake-

Wilson, 2003) and data signature begins at the end

of Extended SSL/TLS handshake. In addition, SSL-

SIGN requires both entities to be authenticated using

their X.509 certificates (ITU-T, 1997). This will

guarantee that the signer of messages is always the

same as the pretended sender.

The rest of this paper is organized as follows. In

section 2 we discuss the motivation behind this

work. In section 3 we give a brief background

description of the Standard and Extended SSL/TLS

protocols. In section 4 we present the signature

module. In section 5 we discuss related work. To

conclude we propose an analysis of this solution and

its prospects, in particular in experimentation and

future deployment.

305

Hajjeh I. and Serhrouchni A. (2004).

INTEGRATING A SIGNATURE MODULE IN SSL/TLS.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 305-310

DOI: 10.5220/0001395903050310

 SciTePress

2 MOTIVATION

Today, e-commerce applications have more specific

needs such as secure data storage and evidence

management. Implementing a non-repudiation

service in a security protocol will lead to more

interoperability between applications and can

provide standard evidence that critical transactions

have taken place. The proof is an S/MIME (Dusse,

1998), PKCS7 (Kalishi, 1998) or XML-DSIG

(W3C, 2000) signed data based on the proposed

IETF Internet standards. The main reasons for

integrating a signature module in the SSL/TLS

security protocol are as follows:

1. Modularity of TLS protocol

The first motivation of our proposal is the

modular nature of SSL/TLS protocol. Since

SSL/TLS is developed in four independent

protocols, our approach can be added without

any change to the SSL/TLS protocol and with

a total reuse of pre-existing SSL/TLS

infrastructure and implementation. To

demonstrate, we implemented SSL-SIGN as a

single package that can be optionally used to

deliver the non-repudiation service and

without any change in other SSL/TLS

protocols. Our work was also improved by the

standardization of (Blake-Wilson, 2003) that

we propose to use to keep interoperability with

existing SSL/TLS versions.

2. Generic non-repudiation service

The first objective of SSL-SIGN is to provide

a generic non-repudiation service that can be

easily used with protocols. SSL-SIGN will

minimize both design and implementation of

the signature service and that of the designers

and implementators who wish to use this

module. Thus, we choose to implement the

signature module with an SSL-like function

(ssl_sign_write & ssl_sign_read) with a

number of input parameters to simplify its

integration with applications.

3. Digital signature of E-business transactions

E-business applications are being more exigent

in security needs and there is an insistent demand

for an electronic equivalent to the handwritten

signature. The technologies needed for this

purpose (S/MIME, PKCS7v1.5, CMS (Housley,

2002)) have been available for several years but

are totally independent of the security protocols

in use like SSL and IPSEC. Integrating a data

signature module in a security protocol especially

SSL/TLS will lead to more secure transaction

between entities and can provide evidence that

can be later presented to a third party to resolve

any disputes between them.

3 THE SSL/TLS PROTOCOL

This section gives a short introduction into the

SSL/TLS protocol. It also explains the specification

of the SSL/TLS handshake protocol and the

proposed SSL/TLS Extensions. However, a detailed

specification of SSL/TLS and SSL/TLS Extensions

is outside the scope of this paper. We only introduce

the two concepts with enough detail to put the

description of our design and architecture in context.

3.1 Background

The standard SSL/TLS Protocol consists of two

layers: the TLS Record Protocol and the TLS

Handshake Protocol. The TLS Record takes

messages to be transmitted from various high level

protocols and encapsulates them in a secure

connection with data integrity and confidentiality.

The TLS Handshake Protocol allows the peer

entities located at both ends of the secure channel to

authenticate one another, to negotiate encryption

algorithms and to exchange secret session keys for

encryption. Once this phase in finished, a protected

connection is established.

3.2 The SSL/TLS Handshake

Protocol

TLS handshake is the most complex part of the

SSL/TLS protocol. In the TLS handshake, the two

entities will create a shared secret and authenticate

each other. However, in most cases, only the server

is authenticated.

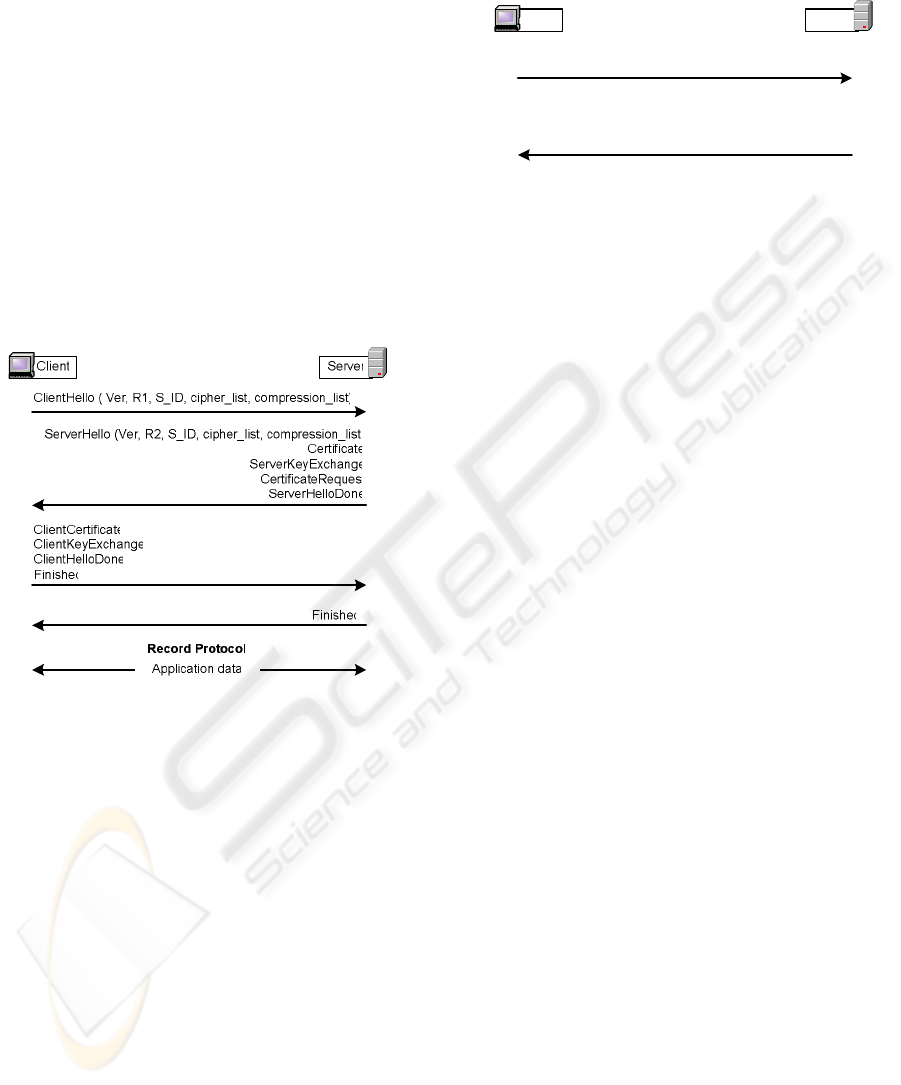

In a typical full handshake (figure 1), the client

will begin the TLS exchange by sending a

ClientHello message which contains a random

number (R1), a session identifier (S_ID), a

compression list (compression_list) and a list of

supported cipher suites (cipher_list). The server

sends the ServerHello message that contains a

generated random number (R2), a session identifier

and the selected cipher suite. The server also sends,

his X509 certificate message containing the server’s

public key. The client verifies the server’s public

key and generates a 48-byte random number, called

the pre-master-secret, encrypts it using the server

public key and sends it to the server in the

ClientKeyExchange message. Upon receiving the

ClientKeyExchange message, the server decrypts the

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

306

pre-master secret using its server’s private key. At

this point, both client and server can calculate a

master-secret computed from the pre-master-secret

and the two exchanged random numbers. This secret

will serve after in deriving the symmetric keys used

in data encryption and authentication. In the last

exchange, the two entities exchange the finished

messages that contain a MAC of all exchanged

messages.

If the client’s certificate is required by the server

(the server send the CertificateRequest message),

then the client sends a CertificateVerify message

including its signature on the hash value of the pre-

master key combined with all past messages

exchanged in the current session.

With the present TLS Handshake, the server is

not able to know the requested client service till a

full handshake has occurred with the client. The

main objective of the TLS Extensions is to permit

the two entities to negotiate an optional service

during the first TLS handshake exchange.

3.3 The Extended TLS Handshake

TLS Extensions proposes a framework to control the

TLS handshake, and extended functions (Blake-

Wilson, 2003). It provides both generic extension

mechanisms for the TLS handshake client and server

hellos, and specific extensions using these generic

mechanisms. (Blake-Wilson, 2003) Defines two

generic messages called ExtendedClientHello and

ExtendedServerHello messages. These two messages

allow the two entities to negotiate new proposed

services in the first SSL/TLS exchange and before

opening a secured session. This work has also

resolved all compatibility problems between TLS

clients that want to negotiate our optional signature

module and servers that do not support this option,

and vice versa.

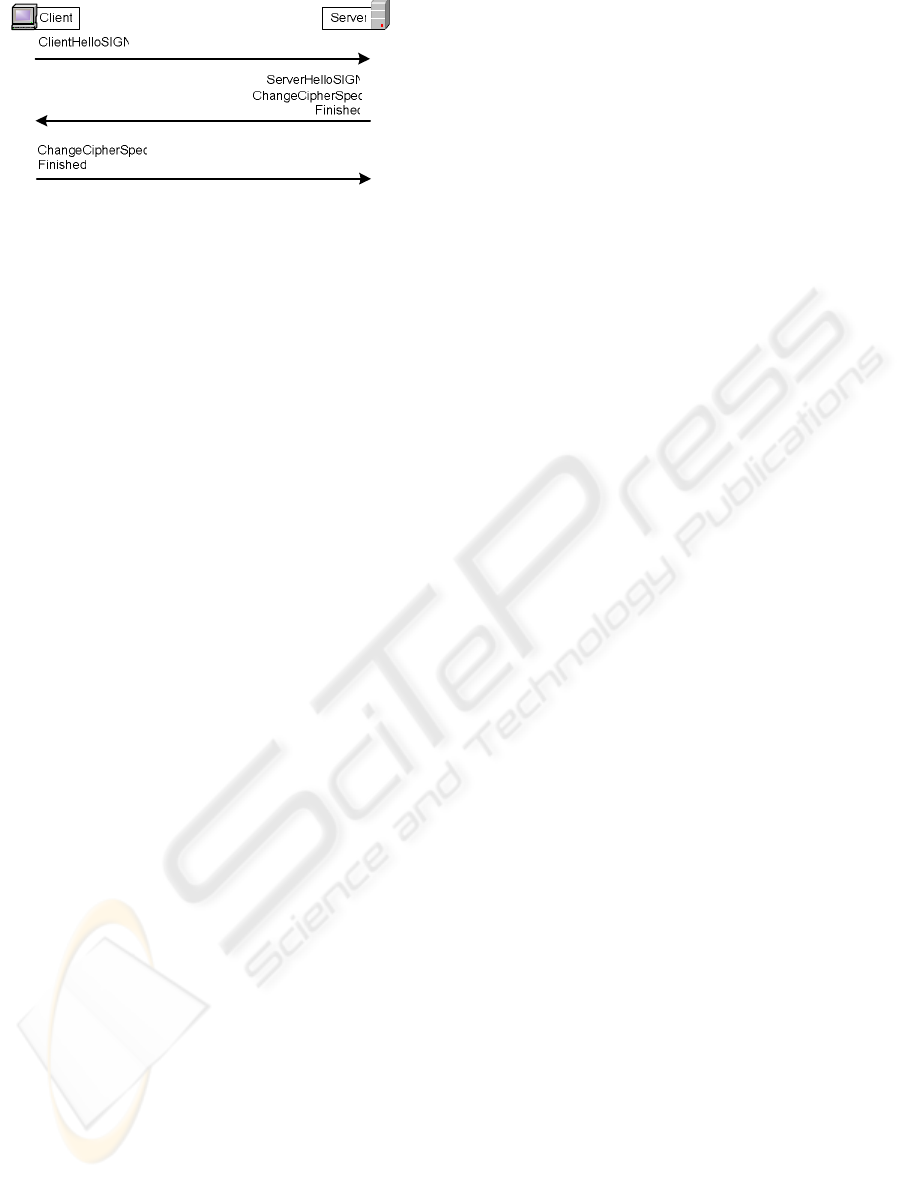

In an Extended TLS Handshake (figure 2), the

client sends the ExtendedClientHello message that

contains the standard ClientHello message and a

proposed extension list (Extension_list). If the server

accepts the proposed new functionalities, he will

respond with the ExtendedServerHello message with

the same Extension_list field sent by the client.

Since the ClientHello message defined in

TLSv1.0 can contain additional information and to

keep interoperability between TLS and the proposed

TLS Extensions, the ExtendedServerHello message

should be sent just in response to an

ExtendedClientHello message and any error in

message format will generate a fatal alert (Blake-

Wilson, 2003). The rest of this exchange is similar

to the standard TLS handshake.

In SSL-SIGN, a specific extension called

signature will be used to negotiate the non-

repudiation service between client and server.

4 OUR APPROACH: SSL-SIGN

4.1 Overview

The SSL/TLS protocol provides authentication and

data protection for communication between two

entities. However, what is missing from the protocol

is a way to provide the non-repudiation service.

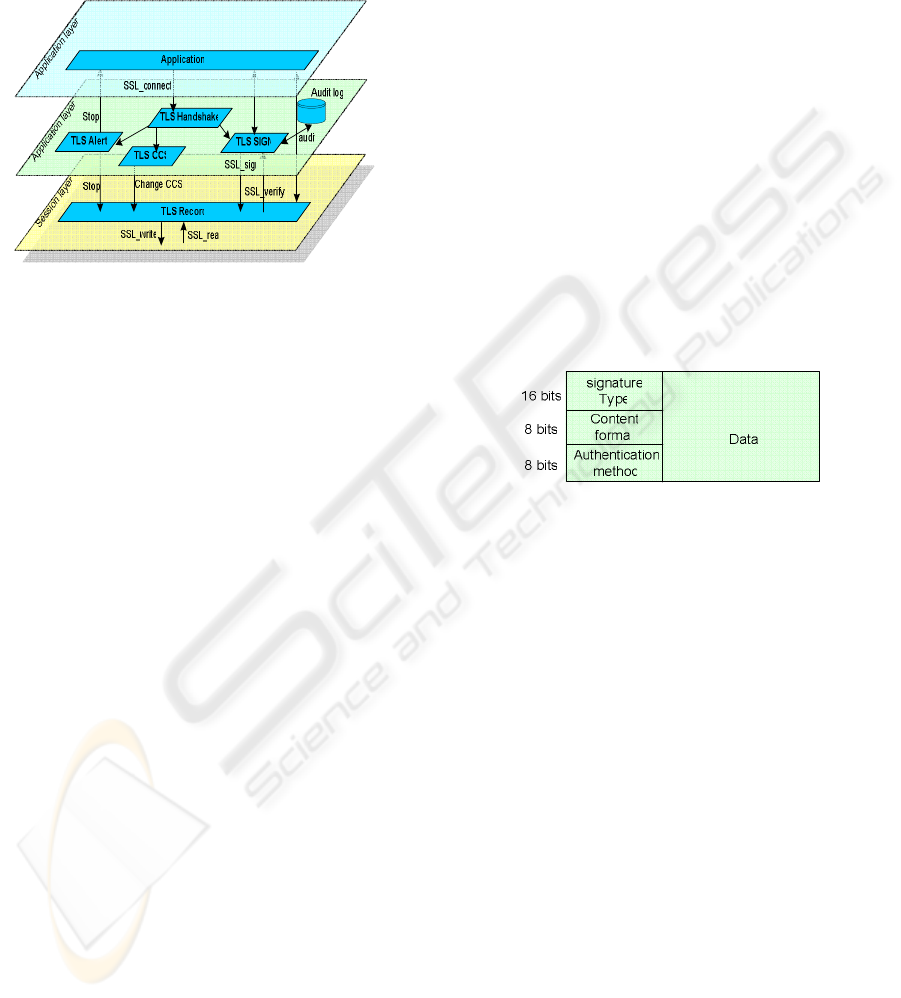

The signature module or ‘SSL-SIGN’ is

integrated as a higher-level module of the TLS

Record protocol (figure 3). SSL-SIGN will be

optionally used if the two entities agree on it during

the Extended TLS handshake. When SSL-SIGN is

negotiated, the following steps are involved:

1. Exchanging SSL-SIGN initiation messages

and negotiates the signature format some

other parameters.

2. Authenticating both TLS client and server

with their X509 public key certificate

ClientHello ( Ver, R1, S_ID, cipher_list, compression_list,

Extension_list)

ServerHello (Ver, R2, S_ID, cipher_list, compression_list,

Extension_list)

Client Server

Figure 2: Negotiation of Extended Client and Server

Hello messages

Figure 1: The SSL/TLS Handshake

INTEGRATING A SIGNATURE MODULE IN SSL/TLS

307

containing the X.509 signature and

encryption extensions.

3. Storing all exchanged and signed data after

the Extended TLS handshake.

The next sections will detail these steps

4.2 Client authentication

Because SSL-SIGN relies on the security properties

of the SSL/TLS session, especially for checking data

integrity, protecting against man-in-the-middle

attacks and preventing replay attacks, and because

the non-repudiation service is viewed as a stronger

version of data authentication service, client

authentications will be mandatory before allowing

then to sign the data. This will also protect the server

against Denial of Service (DOS) attacks, as we do

not force them to verify signed data coming from

anonymous users.

In SSL-SIGN, the server sends the

CertificateRequest message to the client requesting

from him a strong authentication with an X.509

certificate. Client will send his certificate in the

Certificate message and sign all exchanged

parameters with the SSL/TLS server. This can also

be used by the server as a proof of client

communication.

4.3 Digital signature and data storage

The objective of SSL-SIGN is to provide both

parties with evidence that can be stored and later

presented to a third party to resolve disputes that

arise if and when a communication is repudiated by

one of the entities involved. SSL-SIGN provides the

two basic types of non-repudiation service:

Non-repudiation with proof of origin

And non-repudiation with proof of delivery

The non-repudiation with proof of origin

provides the TLS server with evidence proving that

the TLS client has sent him the signed data at a

certain time. The non-repudiation with proof of

delivery provides the TLS client with evidence that

the server has received his signed data at a specific

time. Because SSL/TLS add GMT time in its first

exchange to protect negotiation against replay

attacks and because all handshake TLS are signed by

the client certificate, the time value can be stored

with the signed data as a proof of communication.

For B2C or B2B transactions, non-repudiation with

proof of origin and non-repudiation with proof of

receipt are both important. If the TLS client requests

a non-repudiation service with proof of receipt, the

server should verify and send back to client a

signature on the hash of signed data. All signed data

are enveloped in a new message with a 2-byte

header containing: the signature type (ex.

sign_with_proof_of_receipt), the content format (ex.

signed_smime_file) and the authentication method

(ex. x509_tlsclient_cert).

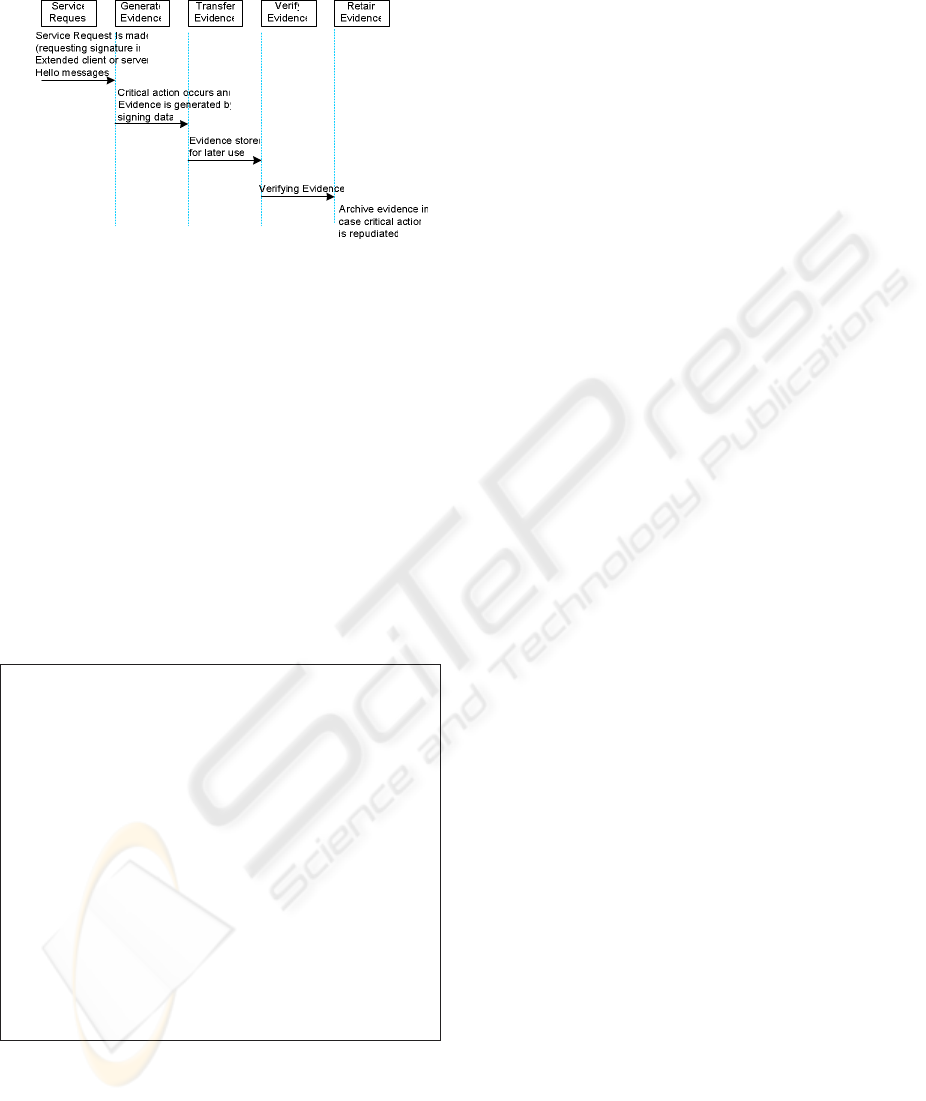

Figure 5 explains the different events for proving

and storing signed data. (Ford, 1994) Uses the term

“critical action” to refer to the act of communication

between the two entities. For a complete non-

repudiation deployment, 5 steps should be respected:

1- Requesting explicit transaction evidence

before sending data. Normally, this action is taken

by the SSL/TLS client

2- If the server accepts, the client will generate

evidence by signing data using his X.509

authentication certificate. Server will go through the

same process if the evidence of receipt is requested.

3 - The signed data is then sent by the initiator

(client or server) and stored it locally, or by a third

party, for a later use if needed.

4 - The entity that receive the evidence process

to verify the signed data.

The evidence is then stored by the receiver entity for a

later use if needed.

Figure 3: The SSL-SIGN Architecture

Figure 4: The SSL/TLS signature message

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

308

With this method, the stored signed data (or

evidence) can be retrieved by both parties, presented

and verified if the critical action is repudiated.

4.4 Initialising the SSL-SIGN module

In order to allow a TLS client to negotiate the

signature module, a new extension type should be

added to the Extended Client Hello and Server Hello

messages. TLS clients and servers may include an

extension of type ‘signature’ in the Extended Client

Hello and Server Hello messages. The

‘extension_data’ field of this extension will contain

a ‘signature_request’ where:

enum {

pkcs7_1.5(0), smime (2), xmldsig(255);

}ContentFormat;

struct {

ContentFormat content_format;

AuthMethode auth_meth;

Boolean bool;

Signature_type

sign_type<1..2^16-1>;

} signature_request;

enum {

x509cert(0), x509cert_url(1), (255);

} AuthMethode;

enum {

false(0), true(1);

} Boolean;

opaque Signature_type<1..2^16-1>;

The client initiates the SSL-SIGN module by

sending the ExtendedClientHello with the

‘signature’ extension containing the signature type

(non-repudiation with proof of origin, etc), the

content format (PKCS7, S/MIME, XMLDSIG etc.),

a Boolean value set to true if the client wants to

negotiate the signature and false when he wants to

stop this service. The client sends his authentication

method (in this proposition, the client will use his

X509 authentication certificate to sign the

exchanged data after the TLS handshake phase, in

other scenarios, a client can use a new certificate, an

RSA public key or a delegated attribute certificates.

The server can reject the connection by sending a

fatal alert and closing the connection or accepting

the negotiation of this module. In the case where the

server accepts the requested service, it should

specify a list of cipher suite that supports data

signature (using RSA for example) and re-sends the

client extension in the ExtendedServerHello

message. Because the client authentication is

compulsory when negotiating SSL-SIGN, the server

sends his certificate, the certificateRequest and the

ServerHelloDone messages. The client will then

send his certificate and all necessary TLS parameters

to finish the TLS handshake negotiation with the

server.

4.5 Resuming SSL/TLS Handshake

SSL Resumed session is a fast SSL Handshake

defined to minimize the SSL cryptographic

operations and a significant number of SSL

messages (Kambourakis, 2002). In the SSL

Resumed session, the client will begin by sending in

its ClientHello message a non-null session ID. If the

server agrees to the resumed handshake, it will open

a secure session based on the old security keys

negotiated in a previous full handshake, otherwise,

the server will generate a different session ID value

and a full handshake will then takes place.

With SSL-SIGN, the SSL Resumed handshake

will also be used to manage the non-repudiation

service. In a real scenario, a client or an enterprise A

connects to a secure site using the standard TLS

handshake to purchase an order. After submitting all

necessary information, it will arrive at a new site

where payment should be confirmed and signature is

requested. At this point a new connection in opened

using the resumed handshake and non-repudiation

service is negotiated using the Extended client and

server hellos messages named respectively

ClientHelloSIGN and ServerHelloSIGN. If A was not

authenticated in his first SSL/TLS exchange or does

not support a signature algorithm, the server will

reject the connection and sends the HelloRequest

message. HelloRequest is a simple notification that

the client should begin the negotiation process anew

by sending a ClientHello message when convenient

(Dierks, 1999).

To stop the generation of evidence, client should

just negotiate a resumed handshake with

Figure 5: Different events for establishing a

complete non-repudiation service between the TLS

client and server.

INTEGRATING A SIGNATURE MODULE IN SSL/TLS

309

ClientHelloSIGN message with the value false in the

Boolean field. After the Extended TLS handshake,

all signed data is encapsulated in a new message

with a signature header containing the negotiated

parameters. This phase begin before data

fragmentation by the TLS Record protocol.

5 CONCLUSION AND FUTUR

WORK

We have presented the benefit of integrating a

signature module in SSL/TLS protocol to protect

exchanged data with a generic non-repudiation

service. We have implemented a first generic

module using the GNUTLS Transport security

Library (GNUTLS) that supports the TLS

Extensions standard.

There are several advantages of our module as

opposed to leaving the non-repudiation service to

applications. Our design adds signature before data

encryption this should not be considered when

seeing the low cost of the symmetric encryption and

decryption at the TLS record layer.

There are still some things that remain to be

added to our prototype in order to offer more

complete functionality:

- Our architecture needs to be integrated in client

web browsers like Mozilla web browser.

- The optional close of SIGN module is currently

not supported.

Finally, our architecture needs to be extended to

deal with X.509 attribute certificate. With the SSL-

SIGN module, attribute certificate will be used for

signature delegating, authentication and access

control mechanisms.

REFERENCES

Kambourakis, G., Rouskas, A.N. and Gritzalis, S., (2002).

Using SSL/TLS in Authentication and Key Agreement

Procedures of Future Mobile Networks. In IEEE

MWCN’02, 4th IEEE Int Conf on Mobile and

Wireless Communications Networks 2002, Stockholm,

Sweden.

Wichert, M., Ingham, D. et al., (1999). Non-repudiation

Evidence Generation for CORBA using XML. In

ACSAC’99, 15th Annual Computer Security

Applications Conference, Scottsdale, AZ, USA.

Jackson K., Tuecke S. and al., (2001). TLS Delegation

Protocol, In GGF1’01, First Global Grid Forum &

European Datagrid Conference, Amsterdam.

Kalishi B., (1998). Cryptographic Message Syntax

Version 1.5, [Request for Comments], IETF, No. 2315.

Dierks, T., (1999). The TLS Protocol Version 1.0,

[Request for Comments], IETF, No. 2246

Housley R., (2002). Cryptographic Message Syntax

(CMS), [Request for Comments], IETF, No. 3369.

Kent, S. and Atkinson, R., (1998). Security Architecture

for the Internet Protocol, [Request for Comments],

IETF, No. 2401.

Dusse, S., Hoffman, P. and al., (1998). S/MIMEv2

Message Spec, [Request for Comments], IETF, No.

2311.

Housley R., (2002). Cryptographic Message Syntax

(CMS), [Request for Comments], IETF, No. 3369.

Freier, A., Karlton, P. and Kocker, P., (1996). The SSL

Protocol, Version 3.0.

Blake-Wilson S., Nystrom, M. and al., (2003). Transport

Layer Security (TLS) Extensions, [Request for

Comments], IETF, No. 3546

Ford, W. and Baum M., (1994). Secure Electronic

Commerce: Building the Infrastructure for Digital

Signatures and Encryption, ISBN 0-13-476342-4.

GNUTLS project,

Available at: http://www.gnu.org/software/gnutls/

ITU-T Recommendation X.509, (1997). Information

Technology – Open Systems Interconnection – The

Directory: Authentication Framework.11

Ylonen, T. and Moffat, D., (2003). SSH Prot. Arch.

[Draft]“draft-ietf-secsh-architecture-15.txt”, IETF.

Figure 6: The SSL-SIGN Resumed Handshake client

and server.

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

310
