A PROTOTYPE FOR TRANSLATING XSLT INTO XQUERY

Ralf Bettentrupp

University of Paderborn, Faculty 5, Fürstenallee 11, D-33102 Paderborn, Germany

Sven Groppe, Jinghua Groppe

Digital Enterprise Research Institute (DERI), University of Innsbruck, Institute of Computer Science, AT-6020 Innsbruck

Stefan Böttcher

University of Paderborn, Faculty 5, Fürstenallee 11, D-33102 Paderborn, Germany

Le Gruenwald

University of Oklahoma, School of Computer Science, Norman, Oklahoma 73019, U.S.A

Keywords: XML, XSLT, XQuery, Source-to-Source Translation.

Abstract: XSLT and XQuery are the languages developed by the W3C for transforming and querying XML data.

XSLT and XQuery have the same expressive power and can be indeed translated into each other. In this

paper, we show how to translate XSLT stylesheets into equivalent XQuery expressions. We especially

investigate how to simulate the match test of XSLT templates by two different approaches which use

reverse patterns or match node sets. We then present a performance analysis that compares the execution

times of the translation, XSLT stylesheets and their equivalent XQuery expressions using various current

XSLT processors and XQuery evaluators.

1 INTRODUCTION

XSLT (W3C, 1999b) and XQuery (W3C, 2005) are

both languages developed for transforming and

querying XML documents. XSLT and XQuery have

the same expressive power. In this paper, we show

how to translate XSLT stylesheets into equivalent

XQuery expressions.

Many commercial as well as freely available

products support the evaluation of XQuery

expressions, but do not support the XSLT language.

Examples include Tamino XML Server (Software

AG, 2004), Microsoft SQL Server 2005 Express

(Microsoft, 2004) and Qizx (Franc, 2004). A

translation module from XSLT stylesheets into

XQuery expressions can make the XSLT language

available for these products.

Another usage scenario is the migration of sub-

systems of legacy systems from their current

language, XSLT, to the new language, XQuery.

Then a translation module can be used to translate

the old XSLT stylesheets so that the translated

XQuery expressions can be applied instead. Note

that XSLT has been used in many companies for a

longer time than XQuery; therefore many

applications already use XSLT. Furthermore, many

XSLT stylesheets for different purposes can be

found on the web, but the new XQuery technology

becomes more and more important in the context of

XML databases and XML enabled databases.

Whenever an application requires concepts primarily

supported by an XML database system or an XML

enabled database system (such as the ACID

properties, improved query processing or improved

security), most of these database systems will

require the application to use the XQuery language

as the query language. Again, our contribution

enables the user to alternatively formulate queries in

the XSLT language and, afterwards, apply our

proposed XSLT to XQuery translator to obtain

equivalent XQuery expressions.

Bettentrupp R., Groppe S., Groppe J., Böttcher S. and Gruenwald L. (2006).

A PROTOTYPE FOR TRANSLATING XSLT INTO XQUERY.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - DISI, pages 22-29

DOI: 10.5220/0002442100220029

 SciTePress

2 TRANSLATION APPROACH

Due to space limitations, we do not describe XSLT

and XQuery in detail here, but refer interested

readers to their specifications published in (W3C,

1999b) and (W3C, 2005) respectively.

2.1 Differences Between XSLT and

XQuery

XSLT 2.0 and XQuery 1.0 are both based on the

XPath data model and both embed XPath as the path

language for determining XML node sets. Therefore,

a majority of the XSLT language constructs can be

translated into XQuery language constructs. For

example,

xsl:for-each has similar functionality as

for, xsl:if has similar functionality as where and

xsl:sort has similar functionality as order by.

However, XSLT uses a template model, where

each template contains a pattern in form of an XPath

expression. A template model is not supported by

XQuery and must be simulated in the translated

XQuery expression.

XSLT and XQuery deal with parameters of

functions in a different way: Whereas XSLT binds

parameters of calls of functions and templates by

parameter names, XQuery binds parameters in

function calls by parameter positions. Thus, we have

to simulate named parameters using a data structure

containing the names and the values of the

parameters.

The given mode in a template definition and in

calls of templates defines in XSLT which templates

can be called.

Many complex XSLT instructions are not

supported by XQuery and must be simulated by

user-defined functions of a runtime library.

The translated XQuery expression has to simulate

different functionalities of XSLT. An example of an

XSLT stylesheet and its translated XQuery

expression is given in Section 2.2. The translated

XQuery expression has to simulate the template

selection process. For the template selection process,

we present two different approaches: the match node

set approach (see Section 2.3.1) and the reverse

pattern approach (see Section 2.3.2). Besides simple

XSLT instructions that can be easily translated into

an XQuery expression, some complex XSLT

instructions do not have corresponding functions

with the same functionality in XQuery. In Section

2.4, we outline how to use an XQuery runtime

library of those functions that simulate these

complex XSLT instructions. The overall translation

process is described in Section 2.5.

2.2 Translation Example

<xsl:stylesheet>

<xsl:template match="table">

<xsl:sort select="firstname"/>

</xsl:apply-templates> </table>

</xsl:template>

<xsl:template match="*">

<xsl:copy><xsl:apply-templates/></xsl:copy>

</xsl:template>

</xsl:stylesheet>

Figure 1: Example XSLT stylesheet stringsort.xslt of the

XSLTMark benchmark.

The XSLT stylesheet of Figure 1, which contains an

XSLT stylesheet of the XSLTMark benchmark

(Developer, 2005), is translated into the XQuery

expression of Figure 2 using the match node sets

approach described in Section 2.3.1.

declare variable $doc_node:=fn:doc("E:/db100.xml");

declare variable $matchBuiltIn1 as node()* :=

$doc_node |

$doc_node/descendant-or-self::node()/child::*;

declare variable $matchBuiltIn2 as node()* :=

$doc_node/descendant-or-self::node()/text()|

$doc_node/descendant-or-self::node()/attribute::node();

declare variable $match1 as node()* := $doc_node/

descendant-or-self::node()(/self::node()|

/attribute::node()|/namespace::node())/table;

declare variable $match2 as node()* := $doc_node/

descendant-or-self::node()(/self::node()|

/attribute::node()|/namespace::node())/*;

declare variable $noValue := <root>NOVALUE</root>;

declare function local:paramTest($name as item()*, $select

as item()*) as item()* {

if(fn:empty($name)) then $select

else if(fn:compare(fn:string($name),xs:string("NOVALUE"))

=0) then () else $name };

declare function local:copy($n as node(), $value as

item()*)as item()*{

if($n instance of element()) then

element {name($n)} { $value }

else if($n instance of attribute()) then

attribute {name($n)} {xs:string($n)}

else if($n instance of text()) then xs:string($n)

else if($n instance of comment()) then

comment{xs:string($n)}

else if($n instance of processing-instruction())

then processing-instruction {name($n)}

{xs:string($n)} else () };

declare function local:builtInTemplate1($t as node(),

$param as item()*) as item()* {

let $gerg:=local:apply_templates($t/child::*,$noValue)

return $gerg };

declare function local:builtInTemplate2($t as node(),

$param as item()*) as item()* {

let $gerg := xs:string($t) return $gerg };

declare function local:template1($t as node(), $param as

item()*) as item()* {

let $zerg1 := element table{

let $erg1 := $t/(row)

let $erg21 := for $t in $erg1 order by $t/firstname

ascending return $t

let $zerg1:=local:apply_templates($erg21,$noValue)

let $gerg := ($zerg1) return $gerg }

let $gerg := ($zerg1) return $gerg };

declare function local:template2($t as node(), $param as

item()*) as item()* {

let $zerg1 :=

let $erg1 := $t/(child::node())

let $erg21 := $erg1

let $zerg1:=local:apply_templates($erg21,$noValue)

let $gerg := ($zerg1)

return local:copy($t, $gerg)

let $gerg := ($zerg1) return $gerg };

A PROTOTYPE FOR TRANSLATING XSLT INTO XQUERY

declare function local:apply_templates($n as node()*,

$param as item()*)as item()* {

for $t in $n

return if($t intersect $match1) then

local:template1($t, $param)

else if($t intersect $match2) then

local:template2($t, $param)

else if($t intersect $matchBuiltIn1) then

local:builtInTemplate1($t, $param)

else if($t intersect $matchBuiltIn2) then

local:builtInTemplate2($t, $param)

else () };

let $doc:=$doc_node

return local:apply_templates($doc,$noValue)

Figure 2: Translated XQuery expression of the XSLT

stylesheet of Figure 1 using the match node set approach

(see Section 2.3.1).

The function local:paramTest is used for the

simulation of parameters in an XSLT stylesheet. The

function

local:copy is a function of the runtime

library that simulates the

<xsl:copy> XSLT

instruction. The functions

local:builtInTemplate1

and

local:builtInTemplate2 simulate the built-in

templates of XSLT.

local:template1 and

local:template2 contain the translation of the user-

defined templates of Figure 1.

local:apply_templates

simulates the

<xsl:apply-templates> XSLT

instruction. The translated XQuery expression does

not consider different modes for the call of templates

as the original XSLT stylesheet does not use

different modes. In general, the function

local:apply_templates must have an additional mode

parameter and must consider the value of

mode and

the modes of the XSLT templates for calling a

template.

When using the reverse pattern approach, the

translated XQuery expression does not contain the

declaration of the variables

$matchBuiltIn1,

$matchBuiltIn2, $match1 and $match2. Furthermore,

we translate the function

local:apply_templates into

the one given in Figure 3 instead of the one given in

Figure 2.

declare function local:apply_templates($n as node()*,

$param as item()*)as item()* {

for $t in $n return

if($t[self::table[self instance of

element()*]/parent::node()])

then local:template1($t, $param)

else if($t[self::*[self instance of

element()*]/parent::node()])

then local:template2($t, $param)

else if($t is root($t) or $t/self::element())

then local:builtInTemplate1($t, $param)

else if($t/self::text() or $t/self::attribute())

then local:builtInTemplate2($t, $param) else () };

Figure 3: Function local:apply_templates when using the

reverse pattern approach (see Section 2.3.2).

2.3 Template Selection Process

XSLT uses a template model, where each template

contains a pattern in form of an XPath expression.

Whenever a current input XML node fulfills the

pattern of a template, the template is executed. An

XSLT processor starts the transformation of an input

XML document with the document node assigned to

the current input XML node. The templates are

again called when the XSLT processor executes the

<xsl:apply-templates select=I/> instructions, which

first select a node set

I and then call the templates

for all nodes in

In this section, we present how a template is

selected for execution.

After initialization, the XSLT processor starts

processing the XSLT stylesheet by applying the

templates to the document node

/. We simulate the

status of the XSLT processor’s input by using two

variables. The first variable,

$n, represents the

current input XML node set of the XSLT processor

and is initialized with a set containing the document

node

/. The second variable, $t, represents the

current input XML node of the XSLT processor. We

use

$t in order to iterate over the current input node

set

$n. Depending on $t, we start the template

selection process, the code of which is generated in

the XQuery function

local:apply_templates as

follows.

We sort the templates according to their priority

(either explicit priority or computed default priority)

and import precedence (see (W3C, 1999b)), where

the built-in templates of XSLT are the templates

with the lowest priority. The selection process of the

templates is then coded in XQuery by first executing

the match test of the template with the highest

priority and, in the case of success, executing the

corresponding translated template. In the case of no

success, the match test of the next template in the

sorted list of templates is executed and, in the case

of success, the corresponding translated template is

processed. The translation generates code of the

template selection analogously for all other

templates in the list in the given order.

XQuery does not support checking the XPath

patterns of XSLT. Thus, we have to simulate the test

whether a pattern

E matches an XML node in

XQuery. The original definition in the XSLT

specification (W3C, 1999b) is as follows:

Definition 1: A pattern is defined to match a node if

and only if there is possible context such that when

the pattern is evaluated as an expression with that

context, the node is a member of the resulting node-

set. When a node is being matched, the possible

contexts have a context node that is the node being

matched or any ancestor of that node, and a context

node list containing just the context node.

We present two different approaches, the match

node sets approach (see Section 2.3.1) and the

reverse pattern approach (see Section 2.3.2), for the

simulation of checking XPath patterns of XSLT in

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

XQuery. Furthermore, we describe in Section 2.3.3

how to simulate the use of parameters in the call of

templates.

2.3.1 The Match Node Set Approach

For the test whether a template t matches an input

XML node

$c, the match node set approach checks

whether

$c is contained in a pre-computed node set,

the match node set of

t. The match node set of t

contains all nodes that could be matched by

Definition 2: An XPath expression

I can be divided

into a relative part

rp(I) and an absolute part ap(I)

(both of which may be empty) in such a way that

rp(I) contains a relative path expression, ap(I)

contains an absolute path expression, and the union

ap(I) and rp(I), i.e. ap(I)|rp(I), is equivalent to

I. This means that applying I and applying

ap(I)|rp(I) will return the same node set for all

XML documents and for all context nodes in the

current XML document.

Example 1: Let

I be (/child::a|child::b) /attribute::c.

The relative part of

I is rp(I)=child::b/attribute::c, the

absolute part of

I is ap(I)=/child::a/attribute::c.

Definition 3: The match node set of a template

<xsl:template match=M> are those XML nodes, which

are matched by

Proposition 1: Given a template

<xsl:template

match=M>

. If the absolute part of M and the relative

part of

M are non-empty, i.e. ap(M)≠{} and rp(M)≠{},

the match node set of the template can be computed

by applying the XPath query

ap(M)|/descendant-or-self::node()(/self::node()|

/attribute::node()|/namespace::node())/rp(M)

ap(M)={} and rp(M)≠{}, the match node set of

the template can be computed by applying the XPath

query

/descendant-or-self::node()(/self::node()|/attribute

::node()|/namespace::node())/rp(M).

ap(M)≠{} and rp(M)={}, the match node set of

the template can be computed by applying the XPath

query

ap(M). If ap(M)={} and rp(M)={}, the match

node set of the template is an empty set.

Proof of Proposition 1: The XPath expression

/descendant-or-self::node()(/self::node()|

/attribute::node()|/namespace::node())

returns all

XML nodes of an input XML document. All XML

nodes, which are matched by

M, are the union

(expressed by using the operator “

|”) of the absolute

part of

M, ap(M), and of those XML nodes which are

returned from the evaluation of

M relative to each

XML node.

⁭

In the case that we only have to check whether

patterns match XML nodes of the input XML

document, we declare a variable for the match node

set of each template so that each match node set is

only computed once in the XQuery expression. In

the case that we have to check whether patterns

match XML nodes of computed variables, we must

compute the match node set of a variable after its

computation. Furthermore, in order to check whether

a current input XML node

$c is in a match node set

$MN, we use the XPath expression $c intersect $MN,

which returns the node

$c if $c is in $MN.

2.3.2 The Reverse Pattern Approach

For the test whether a template t with a match

attribute

E matches a current input XML node $c, the

reverse pattern approach checks whether

$c[E

-1

]≠∅,

where

-1

is the reverse pattern of E.

We present an extended variant of the approaches

in (Moerkotte, 2002) and in (Fokoue, 2005) for a

superset of the XPath patterns of XSLT. In

comparison to the approaches presented in

(Moerkotte, 2002) and (Fokoue, 2005), we present

the general rules for generating the reverse pattern.

To determine the reverse pattern of a given

XPath expression, we first define the reverse axes of

an XPath axis as shown in Figure 4.

Definition 4: The reverse axes of a given XPath axis

are defined in the middle column of Figure 4.

Axis A Reverse Axes of A Additional Test

ncestor

1) descendant

) descendant-or-

elf::node()/attribute

3) descendant-or-

elf::node()/namespace

ncestor-or-self

1) descendant-or-self

) descendant-or-

elf::node()/attribute

3) descendant-or-

elf::node()/namespace

ttribute

arent

[

self instance

f attribute()*]

hild

arent

[

self instance

f element()*]

escendant

ncestor

escendant-or-self

ncestor-or-self

ollowing

receding

ollowing-sibling

receding-sibling

amespace

arent

[

not (self

nstance of

lement()*) an

ot(self

nstance of

ttribute()*)]

arent

1) child

) attribute

3) namespace

receding

ollowing

receding-sibling

ollowing-sibling

elf

Figure 4: Reverse axes and additional test of an XPath

axis.

A PROTOTYPE FOR TRANSLATING XSLT INTO XQUERY

Note that the parent of an attribute or a

namespace node is its element node, but an attribute

or namespace node is not a child of its element node.

Therefore, attribute nodes and namespace nodes

cannot be accessed by the

child or descendant axes,

and also not by the

descendant-or-self axis if the

attribute node or namespace node is not the current

context node. An attribute node can only be accessed

by the

attribute axis and a namespace node only by

the

namespace axis. Thus, there is more than one

reverse axis of the

ancestor, ancestor-or-self or

parent axes (see Figure 4).

The reverse axis of the

attribute axis, of the

child axis and of the namespace axis is the parent

axis, which does not differ for attribute, namespace

and other nodes (in comparison to the original axis).

Therefore, we use an additional test (see Definition

5) in the definition of the reverse pattern (see

Definition 6) to distinguish different node types.

Definition 5: The additional test of a given XPath

axis is defined in the right column of Figure 4.

Definition 6: The reverse pattern of a given XPath

expression is computed as follows: At first, we

transform the XPath expression into its long form. If

there are disjunctions (“

|”) in the XPath expression

outside of a filter expression, then we factor out the

disjunctions and reverse each expression of the

disjunctions separately. The whole reverse pattern is

the disjunction of all separately reversed

expressions. Without disjunctions, a relative XPath

expression

relative

has the form

axis

::test

]…[F

]/axis

::test

]…[F

]/…/

axis

::test

]…[F

and an absolute XPath expression E

absolute

has the

form

/axis

::test

]…[F

]/axis

::test

]…[F

]/…/

axis

::test

]…[F

]

where axis

are XPath axes, test

are node tests and

are filter expressions. The reverse pattern of

relative

and of E

absolute

self::test

]…[F

/(raxis

::test

m-1

|…|

raxis

::test

m-1

)[F

(m-1)1

]…[F

(m-1)n

m-1

/…/

(raxis

::test

|…|raxis

::test

)[F

]…[F

] T

(raxis

::node()|…|raxis

::node()) T

root

where T

root

is [self::node() is root()] for E

absolute

and T

root

is the empty expression for E

relative

, raxis

...

raxis

are the reverse axes of axis

, and T

is the

additional test of

axis

as outlined in Figure 4, or T

is the empty expression if there is no additional test

axis

2.3.3 Simulating the Use of Parameters

Whereas XSLT binds parameters of calls of

functions and of templates by parameter names,

XQuery binds parameters in function calls by

parameter positions. Furthermore, XQuery functions

and, especially the function

local:apply_templates,

do not support an arbitrary number of parameters.

Thus, we have to simulate named parameters using a

data structure containing the names and the values of

the parameters. For an example, for the template call

<xsl:apply-templates select=”*”>

<xsl:with-param name=”a1” select=”$a”/>

<xsl:with-param name=”a2”><xsl:copy-of select=”$a”/>

</xsl:with-param>

</xsl:apply-templates>

we use the following data structure for the

simulation of parameters

<root> <a1> value of $a </a1><a2> value of $a </a2> </root>

This data structure is generated by the following

translated XQuery expression:

let $a := $t/(*) let $erg1 := $t/(*) let $erg21 := $erg1

let $newParam := element root {

element a1 { $a }, element a2 { let $erg1 := $a

let $zerg1 := local:copy_of($erg1)

let $gerg := ($zerg1) return $gerg } }

let $zerg1 :=(local:apply_templates($erg21,$newParam))

return $zerg1

In general, the parameters are stored in an XML

tree with the root element

<root>. The parameters are

children of the root element containing the value of

the parameter. The data structure used is as follows

<root> <PARAM-NAME_1>PARAM_1</PARAM-NAME_1>

… <PARAM-NAME_n>PARAM_n</PARAM-NAME_n> </root>

where PARAM-NAME_i represents the name of the i-th

parameter and

PARAM_i represents its value. In order

to access the parameters, we use the function

local:paramTest(…) given in Figure 2.

Due to the simplicity of the translation approach,

the simulation of parameters for templates does not

work correctly in rare cases. Let us consider the

parameter

a1 in the example above. In XSLT, the

identities of the XML nodes of the variable $a

remain the same, but the identities of the copied

XML nodes in the data structure used for the

translated XQuery expression differ from the ones in

$a. Thus, we do not retrieve the same result when the

XML nodes of the parameter a1 are compared with

the XML nodes of $a by the XPath operators is, <<

>>. In order to avoid this problem, we propose

three different strategies. First, the function

local:apply_templates could have a large list of

parameters to represent all possible parameters in the

XSLT stylesheet. This solution does not work if the

parameter name depends on the input. Second, the

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

function

local:apply_templates could be inlined so

that functions that simulate the templates with

different numbers of parameters could be called. In

general, this solution does not work either if the

parameter name depends on the input. Third, the

identity of an XML node can be stored in an extra

attribute that is copied in the case of parameter

similar to the pre-processing step and post-

processing step discussed in (Klein et al., 2005) and

(Lechner et al., 2001) for XQuery to XSLT

translation. The XPath operators

is, << or >> must

then be replaced by the ones that operate on this

extra identity attribute.

2.4 Runtime Library

The proposed translator uses a runtime library of

XQuery functions, which simulate certain XSLT

instructions. The runtime library includes the

functions simulating

<xsl:copy> and <xsl:copy-of>,

which are given in Figure 2 and Figure 5,

respectively. The complex XSLT instructions

<xsl:number> and <xsl:message> are also candidates

for functions of the runtime library, which have not

yet been implemented in our prototype.

declare function local:copy_of($n as node()*)as item()*{

for $t in $n return

if($t instance of element())then

let $next :=($t/child::node()|$t/attribute::node())

let $new := element {name($t)}{local:copy_of($next)}

return $new

else if($t instance of attribute()) then

let $new := attribute {name($t)}{xs:string($t)}

return $new

else if($t instance of text()) then

let $new := xs:string($t) return $new

else if($t instance of comment())then

let $new := comment {xs:string($t)} return $new

else if($t instance of processing-instruction())

then let $new := processing-instruction{name($t)}

{xs:string($t)} return $new else () };

Figure 5: Function simulating <xsl:copy-of>.

2.5 Translation Process

The translation process is executed in three phases

as follows. In Phase one, we parse the XSLT

stylesheet in order to generate its abstract syntax

tree. For an example, Figure 6 shows the abstract

syntax tree of the XSLT stylesheet of Figure 1. In

Phase two, the function

local:apply_templates is

generated as described in Section 2.3 using the

match node sets approach (see Section 2.3.1) or

using the reverse pattern approach (see Section

2.3.2). In Phase three, we apply an attribute

grammar, which we do not present here due to space

limitations, to the abstract syntax tree of the XSLT

stylesheet. The attribute grammar describes how to

transform XSLT instructions into simple XQuery

statements or into a call to functions of the runtime

library (see Section 2.4).

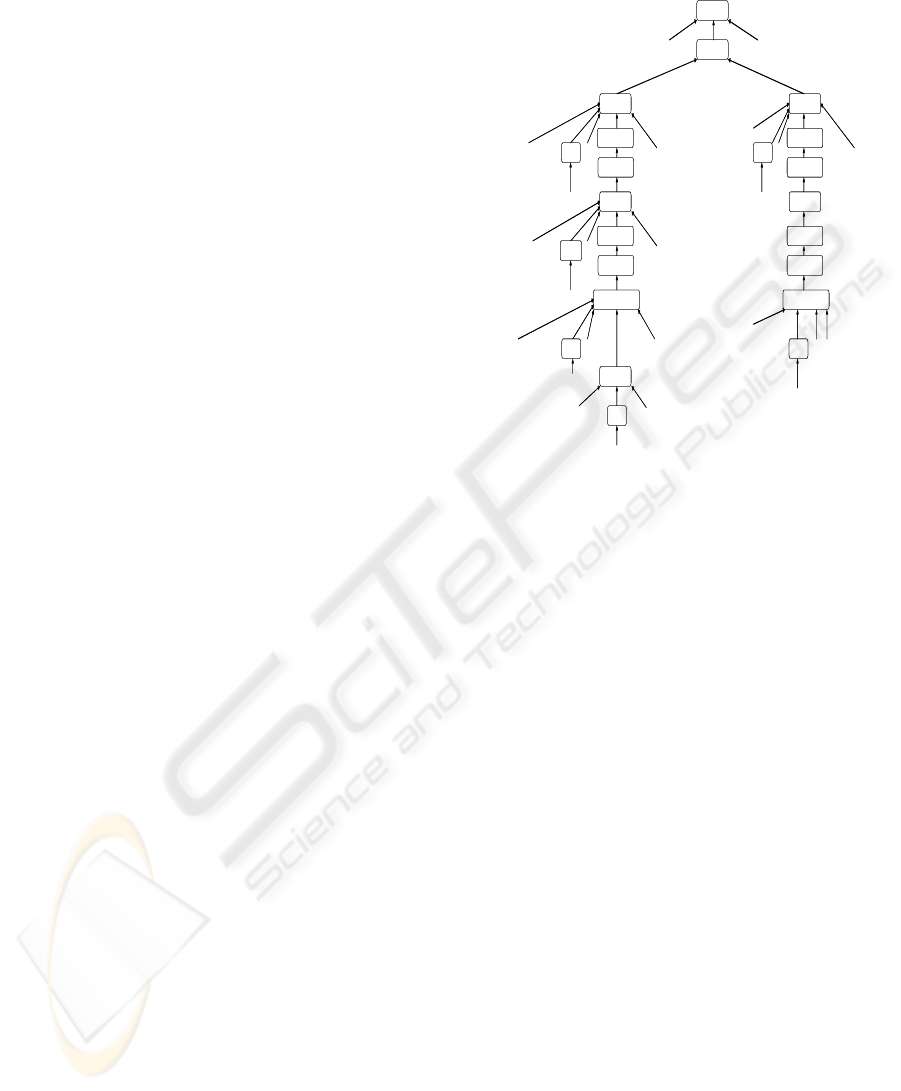

Figure 6: Abstract syntax tree of the XSLT stylesheet of

Figure 1.

3 PERFORMANCE EVALUATION

This section describes the experiments that we have

conducted to compare the execution times of

translated XQuery expressions with the execution

times of the original XSLT stylesheets.

We have run the experiments on an Intel Pentium

4 with 2 GHZ and 512 MB main memory. The

system runs Windows XP and Java 1.5.

For the evaluation of XQuery expressions, we

have used Qizx (Franc, 2004) and Saxon (Kay,

2004), where we have stored the output in a string.

For the execution of the XSLT stylesheets, we have

used Xalan (Apache Software Foundation, 2003)

and Saxon (Kay, 2004). We have used the XSLT

stylesheets of the XSLTMark benchmark

(Developer, 2005) for our experiments.

The XSLTMark benchmark consists of 39

stylesheets, which are divided into two groups of

stylesheets. The first group consists of XSLT

stylesheets, each of which uses one own XML

document. The XSLT stylesheets of the second

group use a data set representing a database table

and vary in their sizes.

We present the average execution times of ten

experiments of the original XSLTMark queries

using the Xalan and Saxon XSLT processor with an

input stream for reading the input XML document as

stylesheet

TopLevel

matchTemp matchTemp

Node Node

element

Node

applyTemp

sort

copy

Node

applyTemp

“<xsl:stylesheet>“

“</xsl:stylesheet>“

XPath

“<xsl:template match=‘“

“‘>“

“</xsl:template>“

“<xsl:element name=‘“

QName

“‘>“

“</xsl:element>“

XPath

“‘>“

“</xsl:template>“

“<xsl:apply-templates select=‘“

XPath

“<xsl:sort select=‘“

“‘/>“

“‘table‘“

“‘row‘“

“‘table‘“

“‘firstname‘“

XPath

“<xsl:template match=‘“

“‘>“

“</xsl:template>“

“‘*‘“

XPath

“‘>“

“</xsl:template>“

“<xsl:apply-templates select=‘“

“‘child::node()‘“

resultFunc

stylesheet

TopLevel

matchTemp matchTemp

Node Node

element

Node

applyTemp

sort

copy

Node

applyTemp

“<xsl:stylesheet>“

“</xsl:stylesheet>“

XPath

“<xsl:template match=‘“

“‘>“

“</xsl:template>“

“<xsl:element name=‘“

QName

“‘>“

“</xsl:element>“

XPath

“‘>“

“</xsl:template>“

“<xsl:apply-templates select=‘“

XPath

“<xsl:sort select=‘“

“‘/>“

“‘table‘“

“‘row‘“

“‘table‘“

“‘firstname‘“

XPath

“<xsl:template match=‘“

“‘>“

“</xsl:template>“

“‘*‘“

XPath

“‘>“

“</xsl:template>“

“<xsl:apply-templates select=‘“

“‘child::node()‘“

resultFunc

A PROTOTYPE FOR TRANSLATING XSLT INTO XQUERY

input. In a variant, we first generate the DOM tree

from the input XML document and use this DOM

tree as input for the XSLT processors. We have

measured the average execution times of ten

experiments of the translated XQuery expressions

(including the time used for translation) with the

reverse pattern approach and with the match node

sets approach using the Saxon and Qizx XQuery

evaluators. We present the faster variant of the

match node sets approach, where we check the

intersection of the current node $t and of the match

node set $MN with the following two different XPath

expressions: (1)

$t intersect $MN and (2) some $tmp

in $MN satisfies $tmp is $t

. The Qizx XQuery

evaluator is faster when using the variant (1) and the

Saxon XQuery evaluator is faster when using (2).

In Figure 7, we present the execution time of the

XSLT stylesheets which use their own XML

documents. Here, the Qizx evaluator is faster than

Saxon most of the time, but processing the translated

XQuery queries is slower than processing the

original XSLT stylesheets in most cases. Processing

the translated XQuery expression is faster than

processing the original XSLT stylesheet e.g. for

html

and

priority using the reverse pattern approach and

Qizx in Figure 7. For the XSLT stylesheets with

their own XML documents and their translated

XQuery expressions, when using the match node

sets approach, the Qizx XQuery evaluator consumes

only 26% of the execution time of the Saxon

XQuery evaluator, but when using the reverse

pattern approach, this figure becomes 61%. The

Qizx (Saxon respectively) XQuery evaluator using

the match node sets approach is 8.69 times (20.66

times respectively) slower than the Qizx (Saxon

respectively) XQuery evaluator using the reverse

pattern approach. The XSLT processors using input

streams as input consume 90% of the execution time

of the XSLT processors using DOM as input. The

Saxon XQuery evaluator using the reverse pattern

approach is 14% slower than the Saxon XSLT

processor using input streams as input.

We present the execution times of the second

group of XSLT stylesheets in Figure 8 using the

db4000.xml input XML document (with size of 785

Kilobytes). Except for rare cases (e.g. XSLTMark

queries,

axis and metric, in Figure 7), the reverse

pattern approach is more efficient than the match

node sets approach because the reverse pattern

approach avoids the pre-computation of the match

node sets. For the XSLT stylesheets with the input

XML document

db4000.xml and their translated

XQuery expressions, the Qizx (Saxon respectively)

XQuery evaluator using the match node sets

approach is 41.6 times (203.36 times respectively)

slower than the Qizx (Saxon respectively) XQuery

evaluator using the reverse pattern approach. The

XSLT processors using input streams as input

consume 96% of the execution time of the XSLT

processors using DOM as input. The Saxon XQuery

evaluator using the reverse pattern approach is 69%

slower than the Saxon XSLT processor using input

streams as input.

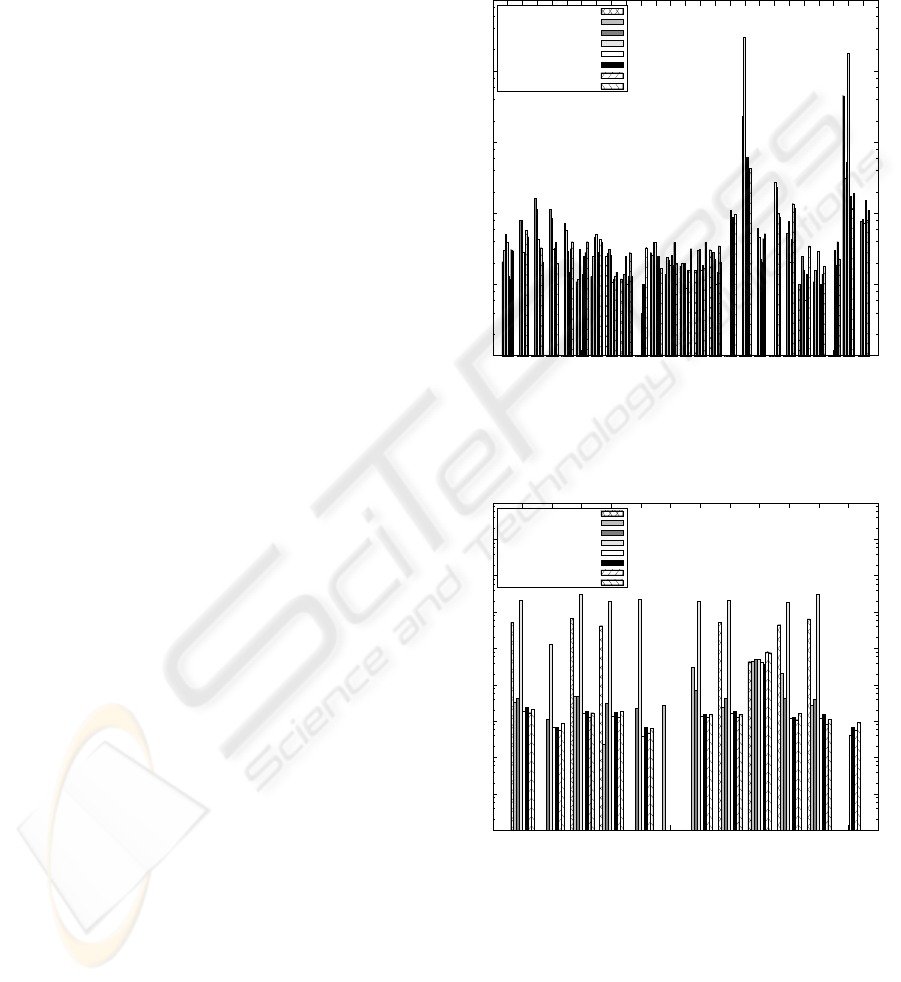

Figure 7: Execution times of XSLTMark queries with their

own XML documents.

Figure 8: Execution times of XSLTMark queries with

db4000.xml document.

4 RELATED WORK

There exist already contributions, which compare

the languages XSLT and XQuery. (Lenz, 2004)

100

1000

10000

100000

xslbench3

xslbench2

xslbench1

xpath

union

trend

tower

total

reverser

queens

products

priority

oddtemplate

metric

inventory

identity

html

game

find

current

chart

brutal

bottles

attsets

axis

Time (msec)

XSLTMark Query

Qizx intersect

Qizx reverse

Saxon XQuery reverse

Saxon XQuery satisfies

Saxon XSLT

Saxon XSLT DOM

XALAN XSLT

XALAN XSLT DOM

100

1000

10000

100000

1e+06

1e+07

1e+08

1e+09

summarize

stringsort

patterns

functions

encrypt

decoy

dbtail

dbonerow

creation

backwards

avts

alphabetize

Time (msec)

XSLTMark Query

Qizx intersect

Qizx reverse

Saxon XQuery reverse

Saxon XQuery satisfies

Saxon XSLT

Saxon XSLT DOM

XALAN XSLT

XALAN XSLT DOM

ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

shows that many XQuery constructs are easily

mappable to XSLT by examples, but does not

provide an algorithm for translating XQuery

expressions into XSLT stylesheets.

(Klein et al., 2005) and (Lechner et al., 2001)

present an algorithmic approach of translating

XQuery expressions into XSLT stylesheets, which is

the opposite direction to our translation.

Saxon (Kay, 2005) is a processor for both, for

XQuery expressions and for XSLT stylesheets,

which uses a mostly common object model.

(Moerkotte, 2002) describes how XSL

processing can efficiently be incorporated into

database management systems. We extend the

reverse pattern approach of (Moerkotte, 2002) by all

axes of XPath. In comparison to (Moerkotte, 2002),

we present a translation method from XSLT

stylesheets into XQuery expressions and introduce

the match node sets approach.

(Fokue, 2005) describes a translation from XSLT

stylesheets into XQuery expressions. In comparison

to (Fokue, 2005), we additionally introduce the

match node set approach. (Groppe, 2005) includes a

chapter dealing with the translation from XSLT

stylesheets to XQuery expressions.

5 CONCLUSIONS

In this paper, we have proposed a translation process

converting XSLT stylesheets to XQuery

expressions. The main difficulty is to simulate the

template selection of XSLT. In order to identify the

template to be executed, we have presented two

different methods for the simulation of the template

selection process. The match node sets approach

checks whether the current XML node is contained

in a pre-computed set of XML nodes and the reverse

pattern approach executes the reversion of the

match patterns of templates. We have developed a

runtime library, which contains functions in order to

simulate XSLT instructions. The remaining XSLT

instructions are inlined by XQuery sub-expressions.

We have carried out several experiments. In rare

cases, the translated XQuery expressions using the

reverse pattern approach with the XQuery evaluator

Qizx are a little bit faster than the execution of the

original XSLT stylesheet. Except of rare cases, the

reverse pattern approach is faster than the match

node sets approach for the XQuery expressions.

Therefore, we have achieved the goal to make

XSLT practically usable for the broad fields of

XQuery tools, XML databases and XML enabled

databases, which support XQuery.

ACKNOWLEDGEMENTS

This material is based upon works supported by the

EU funding under the Adaptive Services Grid

project (FP6 – 004617). Furthermore, this material is

based upon works supported by the Science

Foundation Ireland under Grant No.

SFI/02/CE1/I131. This material is based upon work

supported by (while serving at) the National Science

Foundation (NSF). Any opinion, findings, and

conclusions or recommendations expressed in this

material are those of the authors and do not

necessarily reflect the views of the NSF.

REFERENCES

Apache Software Foundation, 2003. Xalan-Java,

http://xml.apache.org/xalan-j/index.html.

Developer, 2005. XSLT Mark version 2.1.0,

http://www.datapower.com/xmldev/xsltmark.html.

Franc, X., 2004. Qizx/open version 0.4p1,

http://www.xfra.net/qizxopen/.

Fokoue, A., Rose, K., Siméon, J., and Villard, L., 2005.

Compiling XSLT 2.0 into XQuery 1.0, WWW 2005,

Chiba, Japan.

Groppe, S., 2005. XML Query Reformulation for XPath,

XSLT and XQuery, Sierke-Verlag, ISBN 3-933893-

24-0, Göttingen.

Kay, M. H., 2004. Saxon - The XSLT and XQuery

Processor, http://saxon.sourceforge.net.

Klein, N., Groppe, S., Böttcher, S., and Gruenwald, L.,

2005. A Prototype for Translating XQuery

Expressions into XSLT Stylesheets, In ADBIS, Talinn,

Estonia.

Lechner, S., Preuner, G., and Schrefl, M., 2001.

Translating XQuery into XSLT, In ER 2001

Workshops, Yokohama, Japan.

Lenz, E., 2004. XQuery: Reinventing the wheel?

http://www.xmlportfolio.com/xquery.html.

Microsoft, 2004. SQL Server 2005 Express,

http://www.microsoft.com/sql/express.

Moerkotte, G., 2002. Incorporating XSL Processing Into

Database Engines. In VLDB, Hong Kong, China.

Software AG, 2004. Tamino XML Server,

http://www.softwareag.com/tamino/News/tamino_41.

htm.

W3C, 1999a. XML Path Language (XPath) Version 1.0,

W3C Recommendation,

http://www.w3.org/TR/xpath/.

W3C, 2005. XQuery 1.0: An XML Query Language, W3C

Working Draft.

W3C, 1999b. XSL Transformations (XSLT) Version 1.0,

W3C Recommendation,

http://www.w3.org/TR/1999/REC-xslt-19991116.

A PROTOTYPE FOR TRANSLATING XSLT INTO XQUERY
