PHONETIC-BASED MAPPINGS IN VOICE-DRIVEN SOUND

SYNTHESIS

Jordi Janer and Esteban Maestre

Music Technology Group, Pompeu Fabra University, Barcelona

Keywords:

Singing-driven interfaces, Phonetics, Mapping, Sound synthesis.

Abstract:

In voice-driven sound synthesis applications, phonetics convey musical information that might be related to

the sound of an imitated musical instrument. Our initial hypothesis is that phonetics are user- and instrument-

dependent, but they remain constant for a single subject and instrument. Hence, a user-adapted system is

proposed, where mappings depend on how subjects performs musical articulations given a set of examples.

The system will consist of, ﬁrst, a voice imitation segmentation module that automatically determines note-

to-note transitions. Second, a classiﬁer determines the type of musical articulation for each transition from

a set of phonetic features. For validating our hypothesis, we run an experiment where a number of subjects

imitated real instrument recordings with the voice. Instrument recordings consisted of short phrases of sax

and violin performed in three grades of musical articulation labeled as: staccato, normal, legato. The results

of a supervised training classiﬁer (user-dependent) are compared to a classiﬁer based on heuristic rules (user-

independent). Finally, with the previous results we improve the quality of a sample-concatenation synthesizer

by selecting the most appropriate samples.

1 INTRODUCTION

Technology progresses toward more intelligent sys-

tems and interfaces that adapt to users’ capabilities.

New musical applications are not exempt of this sit-

uation. Here, we tackle singing-driven interfaces

as an extension in the musical domain of speech-

driven interfaces. Most known example of singing-

driven interfaces is query-by-humming (QBH) sys-

tems, e.g. (Lesaffre et al., 2003). In particular, we

aim to adapt the mappings depending on the pho-

netics employed by the user in instrument imitation

(syllabling). In this paper, singing is used to con-

trol the musical parameters of an instrument synthe-

sizer (Maestre et al., 2006). Results may lead to the

integration of such learned mappings in digital au-

dio workstations (DAW) and music composition soft-

ware.

1.1 Voice-driven Synthesis

Audio and voice-driven synthesis has been already

introduced by several authors. In (Janer, 2005), the

author carried out a voice-driven bass guitar synthe-

sizer, which was triggered by impulsive voice utter-

ances that simulated the action of plucking. Here,

we aim to extend it to continuous-excitation instru-

ment, which permits more complex articulations (i.e.

note-to-note transitions). To derive control parame-

ters from the voice signal becomes thus more difﬁcult

than detecting voice impulses. As we describe in this

paper, phonetics appears to be a salient attribute for

controlling articulation.

Research in state-of-the-art sound synthesis takes

two main directions: more realism in sound qual-

ity, and a more expressive control. For the for-

mer, basically, most current commercial synthesiz-

ers use advanced sample based techniques (Bonada

and Serra, 2007; Lindemann, 2007). These tech-

niques provide both quality and ﬂexibility, achiev-

ing a realism missing in early sample-based synthe-

sizers. Secondly, in term of expressive control, syn-

thesizers make use of new interfaces such as gestural

controllers (Wanderley and Depalle, 1999), indirect

acquisition (Egozy, 1995), or alternatively, artiﬁcial

intelligence methods to induce a human-like quality

to a musical score (Widmer and Goebl, 2004).

In the presented system, the synthesizer control

parameters involve loudness, pitch and articulation

type. We extract this information from the input voice

109

Janer J. and Maestre E. (2007).

PHONETIC-BASED MAPPINGS IN VOICE-DRIVEN SOUND SYNTHESIS.

In Proceedings of the Second International Conference on Signal Processing and Multimedia Applications, pages 109-115

DOI: 10.5220/0002141401090115

 SciTePress

signal, and apply the mappings to the synthesizer con-

trols, in a similar manner to (Janer, 2005) but here

focusing on note-to-note articulations. The synthesis

is a two-step process: sample selection, and sample

transformation.

1.2 Toward User-adapted Mappings

We claim that the choice of different phonetics when

imitating different instruments and different articula-

tions (note-to-note transitions) is subject-dependent.

In order to evaluate the possibilities of automatically

learning such behaviour from real imitation cases, we

carry out here some experiments. We propose a sys-

tem consisting of two main modules: an imitation seg-

mentation module, and an articulation type classiﬁca-

tion module. In the former, a probabilistic model au-

tomatically locates note-to-note transitions from the

imitation utterance by paying attention to phonetics.

In the latter, for each detected note-to-note transition,

a classiﬁer determines the intended type of articula-

tion from a set of low-level audio features.

In our experiment, subjects were requested to im-

itate real instrument performance recordings, consist-

ing of a set of short musical phrases played by saxo-

phone and violin professional performers. We asked

the musicians to perform each musical phrase using

different types of articulation. From each recorded

imitation, our imitation segmentation module auto-

matically segments note-to-note transitions. After

that, a set of low-level descriptors, mainly based on

cepstral analysis, is extracted from the audio excerpt

corresponding to the segmented note-to-note transi-

tion. Then, we perform supervised training of the ar-

ticulation type classiﬁcation module by means of ma-

chine learning techniques, feeding the classiﬁer with

different sets of low-level phonetic descriptors, and

the target labels corresponding to the imitated musi-

cal phrase (see ﬁgure 1). Results of the supervised

training are compared to classiﬁer of articulation type

based on heuristic rules.

2 IMITATION SEGMENTATION

MODULE

In the context of instrument imitation, singing voice

signal has a distinct characteristics in relation to tra-

ditional singing. The latter is often referred as sylla-

bling (Sundberg, 1994). For both, traditional singing

and syllabling, principal musical information involves

pitch, dynamics and timing; and those are indepen-

dent of the phonetics. In vocal imitation, though, the

Imitation

Segmentation

Module

Articulation Type

Classification

Module

Voice imitation

Target

performances

supervised

training

to synthesizer

parameters

Phonetic features

Figure 1: Overview of the proposed system. After the im-

itation segmentation, a classiﬁer is trained with phonetic

low-level features and the articulation type label of target

performance.

role of phonetics is reserved for determining articu-

lation and timbre aspects. For the former, we will

use phonetics changes to determine the boundaries of

musical articulations. For the latter, phonetic aspects

such as formant frequencies within vowels can signify

a timbre modulation (e.g. brightness). We can con-

clude that unlike in speech recognition, a phoneme

recognizer is not required and a more simple classiﬁ-

cation will fulﬁll our needs.

In Phonetics, one can ﬁnd various classiﬁcations

of phonemes depending on the point of view, e.g.

from the acoustic properties the articulatory gestures.

A commonly accepted classiﬁcation based on the

acoustic characteristics consists of six broad phonetic

classes (Lieberman and Blumstein, 1986): vowels,

semi-vowels, liquids and glides, nasals, plosive, and

fricatives. Alternatively, we might consider a new

phonetic classiﬁcation that better suits the acoustic

characteristics of voice signal in our particular con-

text. As we have learned from section 2, a reduced set

of phonemes is mostly employed in syllabling. Fur-

thermore, this set of phonemes tends to convey mu-

sical information. Vowels constitute the nucleus of

a syllable, while some consonants are used in note

onsets (i.e. note attacks) and nasals are mostly em-

ployed as codas. Our proposal envisages different

categories resulting from the previous studies in syl-

labling (Sundberg, 1994). Taking into account syl-

labling characteristics, we propose a classiﬁcation

based on its musical function, comprising: attack,

sustain, release, articulation and other (additional).

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

110

Table 1: Typical broad phonetic classes as in (Lieberman

and Blumstein, 1986), and proposed classiﬁcation for syl-

labling on instrument imitation. This table comprises a

reduced set of phonemes that are common in various lan-

guages.

CLASS PHONEMES

Speech Phon. classes

Vowels [a] , [e] , [i], [o], [u]

Plosive [p], [k], [t], [b], [g], [d]

Liquids and glides [l], [r], [w], [y]

Fricatives [s], [x],[T], [f]

Nasal [m], [n],[J]

Syllabling Phon. classes

Sustain [a] , [e], [i], [o], [u]

Attack [p], [k], [t], [n], [d]

Articulation [r], [d], [l], [m], [n]

Release [m], [n]

Other (additional) [s],[x],[T], [f]

2.1 Method Description

Our method is based on heuristic rules and looks at

the timbre changes in the voice signal, segmenting it

according to the phonetic classiﬁcation mentioned be-

fore. It is supported by a state transition model that

takes into account the behavior in instrument imita-

tion. This process aims at locating phonetic bound-

aries on the syllabling signal. Each boundary will de-

termine the transition to one of the categories showed

in table 1. This is a three steps process:

1. Extraction of acoustic features.

2. Computation of a probability for each phonetic

class based on heuristic rules.

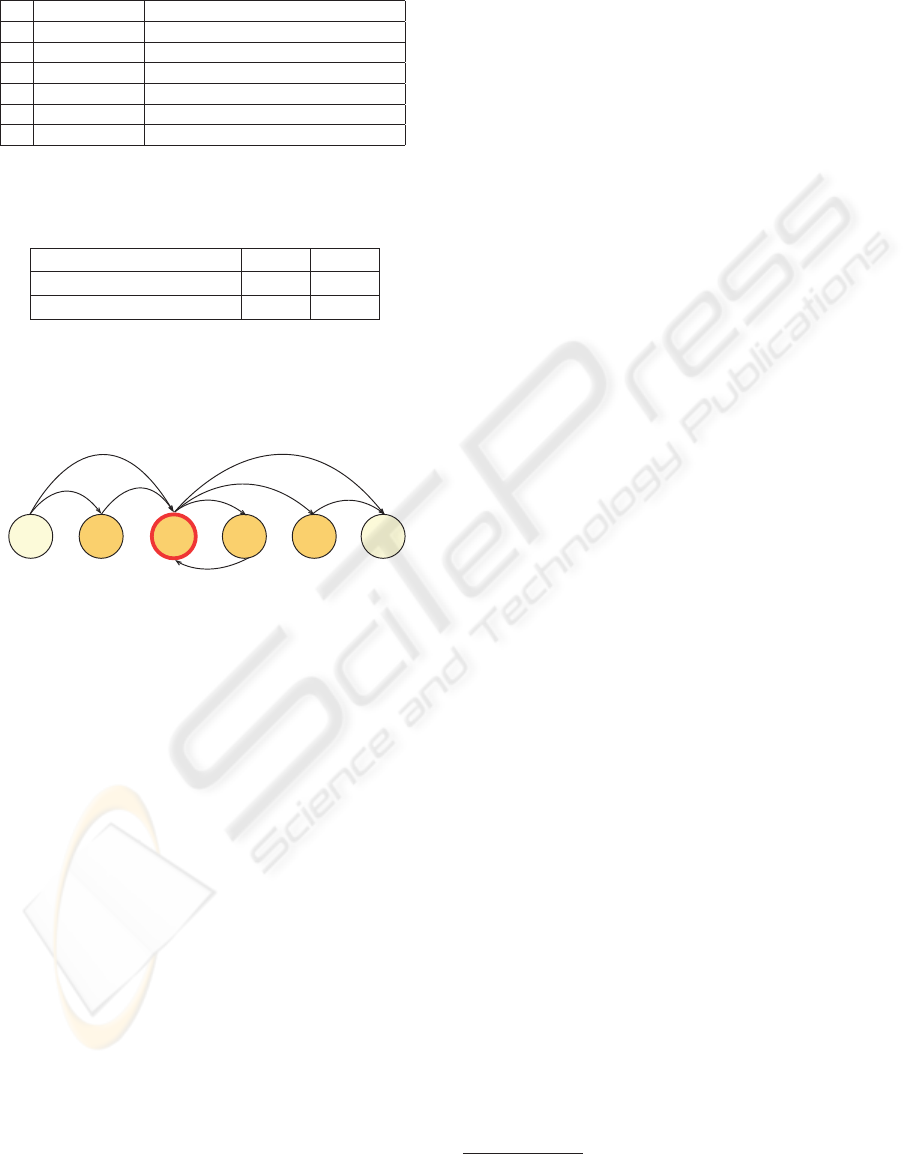

3. Generation of a sequence of segments based an a

transition model (see Fig. 3)

Concerning the feature extraction, the list of low-

level features includes: energy, delta energy, Mel-

Frequency Cepstral Coefﬁcients (MFCC), deltaM-

FCC, pitch and zero-crossing. DeltaMFCC is com-

puted as the sum of the absolute values of the MFCC

coefﬁcients derivative (13 coeffs.) with one frame de-

lay. Features are computed frame by frame, with a

window size of 1024 and a hop size of 512 samples

at 44100Hz. This segmentation algorithm is designed

for a real-time operation in low-latency conditions.

From the acoustic features, we use a set of heuris-

tic rules to calculate boundary probabilities for each

phonetic class. Unlike for an ofﬂine processing, in a

real-time situation, this algorithm is currently not able

to distinguish between Articulation and Release pho-

netic classes.

0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2

−600

−500

−400

−300

−200

−100

Boundary probability for "Intervocalic" class

time (sec)

t i r i r i r i

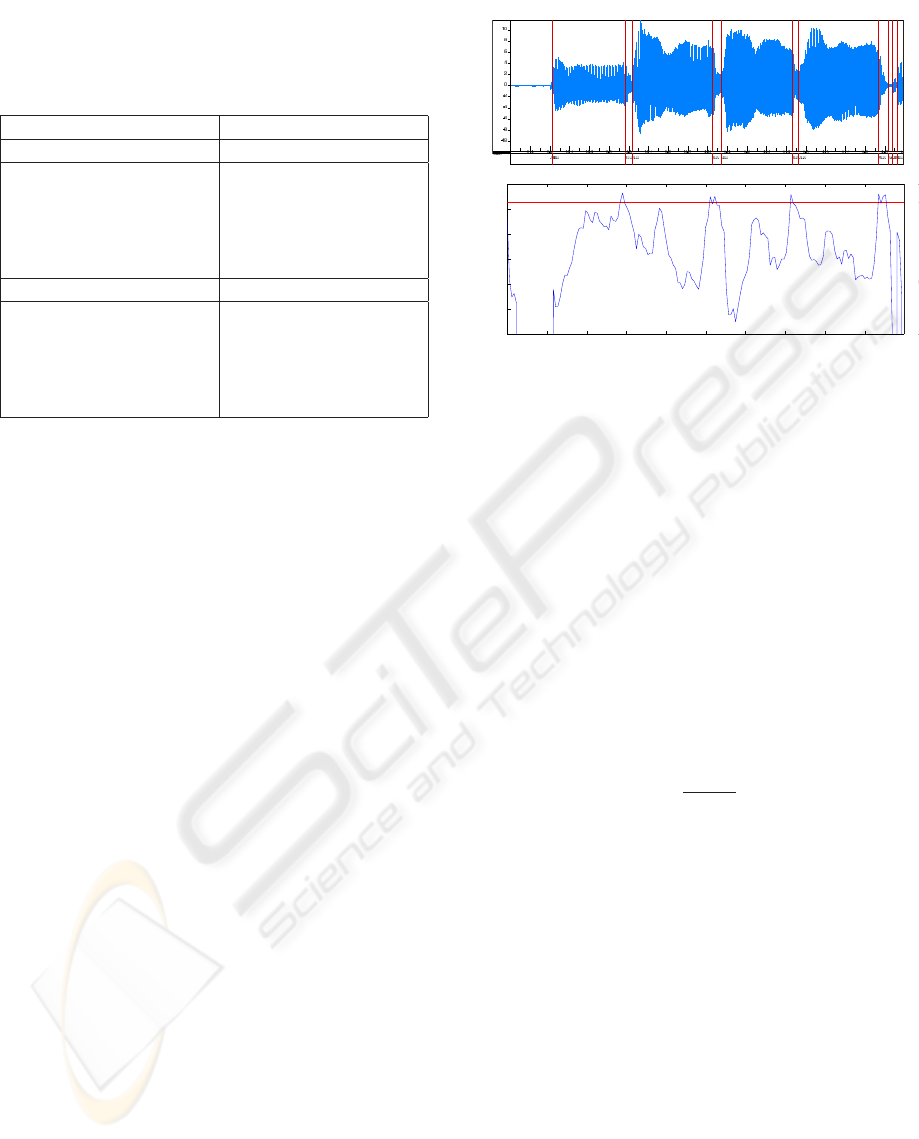

Figure 2: Syllabling Segmentation (from top to bottom):

phonemes, waveform, labels and boundary probability for

intervocalic class (horizontal line representing the threshold

thres

In a ﬁrst step, in order to generate continuous

probabilities, and to attain a more consistent be-

haviour, we employ gaussian operators to compute

a cost probability f

) for each voice feature x

(see

Eq. 1). Observe that for each voice feature x

, func-

tion parameters µ

, σ

and T

are based on heuristics.

In the table 2, we list the voice features used for the

six considered boundary categories B

, j =

{

0...5

}

Then, for each boundary probability B

, a weighted

product of all voice feature probabilities is computed,

with w

= 1 or w

= 1/ f

), whether a given phonetic

class j is affected by a voice feature i.

) =

(

exp

−µ

)

2σ

> T

1, x

≤ T

(1)

∏

· f

) (2)

This is a frame-based approach, computing at

each frame k a boundary probability for each pho-

netic class j, p

(x[k]) = p(B

|x[k]). At each frame,

to decide if a boundary occurs, we take the maximum

of all four probabilities p(B|x[k]) and compare it to a

empirically determined threshold b

thres

p(B|x[k]) = max

0<5

(x[k])]

Finally, in order to increase robustness when de-

termining the phonetic class of each segment in a se-

quence of segments, we use a state transition model.

The underlying idea is that a note consists of an onset,

a nucleus (vowel) and a coda. In addition, a group of

notes can be articulated together, resembling legato

articulations on musical instruments. Thus, we need

PHONETIC-BASED MAPPINGS IN VOICE-DRIVEN SOUND SYNTHESIS

111

Table 2: Description of the attributes use in the boundaries

probability for each category. B

is the boundary probability

for the class j; x

are the voice features.

j B

0 Attack energy, dEnergy

1 Sustain energy, dEnergy, dMFCC, zcross

2 Articulation dEnergy, dMFCC, zcross, pitch

3 Release dEnergy, dMFCC, zcross, pitch

4 Other zerocross, dMFCC

5 Silence energy, dEnergy, pitch

Table 3: Averaged results of the onset detection compared

to a ground-truth collection of 94 ﬁles. The average time

deviations was -4.88 ms.

Mean Stdev

Correct detections (%) 90.78 15.15

False positives (%) 13.89 52.96

to identify these grouped notes, often tied with liq-

uids or glides. The ﬁgure 3 describes the model for

boundary transitions.

Att Sus Art Rel Sil

/t/ /a/ /r/ /m/

Phonetic

example

Sil

Figure 3: Model for the segment to segment transition for

the different phonetic classes.

2.2 Evaluation

With the proposed method, we are able to segment

effectively phonetic changes and to describe a voice

signal in the context of instrument imitation as a se-

quence of segments. An evaluation of the algorithm

was carried out, by comparing automatic results with

a manual annotated ground truth. The ground truth set

consists of 94 syllabling recordings. Syllabling ex-

amples were voice imitations by four subjects of sax

recordings with an average duration of 4.3sec. For the

evaluation, onsets are considered those boundaries la-

beled as sustain, since it corresponds to the beginning

of a musical note. The averaged results for the com-

plete collection is shown in table 3.

3 ARTICULATION TYPE

CLASSIFICATION MODULE

The mapping task aims to associate phonetics to dif-

ferent type of musical articulations. Although, we en-

visage three types of musical articulations: 1) silence-

to-note, 2) note-to-note and 3) note-to-silence, this

paper focuses only on note-to-note transitions. Since,

phonetics are assumed to be user-dependent, our goal

is to automatize this process by learning the phonetics

employed by a particular user. In a real application,

this would be accomplished during a user conﬁgura-

tion stage. We compare the supervised training re-

sults to a user-independent classiﬁer based on heuris-

tic rules.

3.1 Experiment Methodology

For the voice imitation performances, we asked four

volunteers with diverse singing experience to listen

carefully to target performances and to imitate those

by mimicking musical articulations. The supervised

training takes the articulation label of a target perfor-

mances, and a voice imitation performance. Target

performances are sax and violin recordings, in which

performers were asked to play short phrases in three

levels of articulation.The number of variations is 24,

covering:

• articulation (3): legato, medium and staccato.

• instrument (2): sax and violin.

• inter-note interval (2): low and high.

• tempo (2): slow and fast.

All target performance recordings were normal-

ized to an average RMS, in order to let subjects con-

centrate on articulation aspects. Subjects were re-

quested to naturally imitate all 24 variations with no

prior information about the experiment goals. Varia-

tions were sorted randomly in order to avoid any strat-

egy by subjects, and this process was repeated twice,

gathering 48 recordings per subject.

In the Table 4, we can observe the results of user-

dependent supervised training for the four subjects,

using two (staccato and legato) and three (staccato,

normal and legato) classes for articulation type. The

classiﬁcation algorithm used in our experiments was

the J48, which is included the WEKA data mining

software

. Due to the small size of our training set,

we chose this decision-tree algorithm because of its

interesting properties. Namely, due to its simplicity,

this algorithm is more robust to over-ﬁtting than other

http://www.cs.waikato.ac.nz/

ml/weka/

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

112

more complex classiﬁers. The attributes for the train-

ing include phonetic features of note-to-note transi-

tions. Three combinations of phonetic features within

a transition were tested: 1) MFCC(1-5) of the middle

frame; 2) MFCC(1-5) of the left and right frames; and

3) difference of the left and right MFCC frames to the

middle frame.

In addition, we present also in Table 4 the results

of a user-independent classiﬁer (2 classes) based on

heuristic rules. The rules derive from the boundary

information from the imitation segmentation module.

When a note onset is preceded by a articulation seg-

ment, then it is classiﬁed as legato. We observe in the

table 5 that the mean percentage of correctly classiﬁed

instances using different phonetic features as input at-

tributes, and in the last row the results using heuristic

rules.

3.2 Discussion

In a qualitative analysis of the imitation record-

ings, we observed that phonetics are patently user-

dependent. Not all subjects were consistent when

linking phonetics to articulation type on different tar-

get performances. Moreover, none of the subjects

were able to distinguish three but only two types of

articulation in the target performances (staccato and

normal/legato).

From the quantitative classiﬁcation results, we can

also extract some conclusions. Similar results were

obtained classifying in two and three classes, when

compared to the baseline. When looking at the depen-

dency on the imitated instrument, better performance

is achieved by training a model for each instrument

separately. It indicates some correspondence between

imitated instrument and phonetics. Concerning the set

of phonetic features used as input attributes for the

classiﬁer, results are very similar (see table 5). The

heuristic-rule classiﬁer uses the output of the imita-

tion segmentation module. If a silence segment is de-

tected since the last note, the transition is classiﬁed as

staccato, else as legato. This simple rule performed

with an accuracy of 79.121%, combining sax and vi-

olin instances in the test set.

Comparing the overall results of the user-

dependent supervised training, we can conclude that

there is no signiﬁcant improvement over the user-

independent classiﬁer based on heuristic rules.

4 SYNTHESIS

With the output of the modules described in sec-

tions 2 and 3, the system generates corresponding

Table 4: Results of the supervised training with 3

classes(staccato, normal and legato) and 2 classes (staccato

and legato) using ten-fold cross-validation. MFCC (ﬁrst ﬁve

coefﬁcients) are taken as input attributes. Results of a clas-

siﬁer based on heuristic rules with 2 classes(staccato and

legato).

SUPERVISED TRAINING: 3 CLASSES

baseline = 33%

description correct (%)

subject1- sax 57.727

subject1- violin 44.5455

subject1- sax-violin 51.5909

subject2- sax 67.281

subject2- violin 67.2811

subject2- sax-violin 51.2415

subject3- sax 41.7391

subject3- violin 48.7365

subject3- sax-violin 40.2367

subject4- sax 41.7722

subject4- violin 42.916

subject4- sax-violin 38.3648

SUPERVISED TRAINING: 2 CLASSES

baseline = 66%

description correct (%)

subject1- sax 83.1818

subject1- violin 71.3636

subject1- sax-violin 78.6364

subject2- sax 93.5484

subject2- violin 67.699

subject2- sax-violin 80.5869

subject3- sax 70.4348

subject3- violin 72.2022

subject3- sax-violin 69.0335

subject4- sax 64.557

subject4- violin 73.3333

subject4- sax-violin 66.6667

HEURISTIC RULES: 2 CLASSES

baseline = 66%

description correct (%)

subject1- sax-violin 82.2727

subject2- sax-violin 79.684

subject3- sax-violin 76.3314

subject4- sax-violin 78.1971

transcriptions, which feed the sound synthesizer. We

re-use the ideas of the concatenative sample-based

saxophone synthesizer described in (Maestre et al.,

2006). Transcription includes note duration, note

MIDI-equivalent pitch, note dynamics, and note-to-

note articulation type. Sound samples are retrieved

from the database taking into account similarity and

the transformations that need to be applied, by com-

puting a distance measure we describe below. Se-

PHONETIC-BASED MAPPINGS IN VOICE-DRIVEN SOUND SYNTHESIS

113

Table 5: Mean percentage for all subjects of cor-

rectly classiﬁed instances using: 1)MFCC (central frame);

2)MFCC+LR (added left and right frames of the transition);

3)MFCC+LR+DLDR (added difference from left to central,

and right to central frames); 4) Heuristic rules.

attributes sax violin sax+violin

1 77.930 71.698 73.730

2 80.735 72.145 74.747

3 81.067 72.432 75.742

4 − − 79.121

lected samples are ﬁrst transformed in the frequency-

domain to ﬁt the transcribed note characteristics, and

concatenated by applying some timbre interpolation

around resulting note transitions.

4.1 Synthesis Database

We have used an audio sample database consisting

of a set of musical phrases played at different tempi,

played by a professional musicians. Notes are tagged

with several descriptors (e.g. MIDI-equivalent pitch,

etc.), among which we include a legato descriptor for

consecutive notes, that serves as an important param-

eter when searching samples (Maestre et al., 2006).

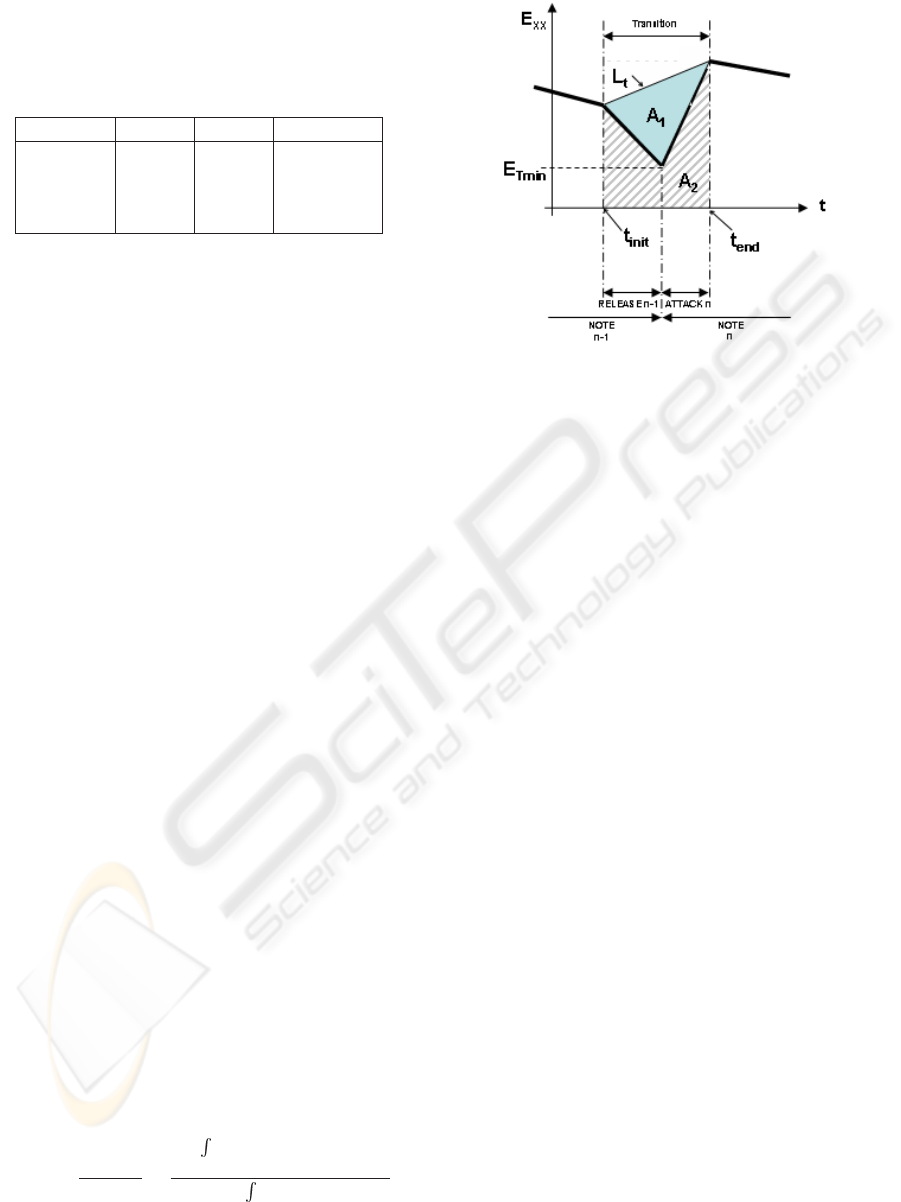

For the legato descriptor computation, as described

in (Maestre and G

omez, 2005), we consider a tran-

sition segment starting at the begin time of the re-

lease segment of the ﬁrst note and ﬁnishing at the end

time of the attack of the following one, computing

the legato descriptor LEG (Eq. 3)by joining start and

end points on the energy envelope contour (see Fig-

ure 4) by means of a line L

that would ideally rep-

resent the smoothest case of detachment. Then, we

compute both the area A

below energy envelope and

the area A

between energy envelope and the joining

line L

to deﬁne our legato descriptor.

The system performs sample retrieval by means

of computing a euclidean feature-weighted distance

function. An initial feature set consisting on MIDI

pitch, duration, and average energy (as a measure

of dynamics), is used to compute the distance vec-

tor. Then, some features will be added depending on

the context. For note-to-note transitions, two features

(corresponding to the left and right side transitions)

are added: legato descriptor and pitch interval respect

to the neighbor note.

LEG

+ A

init

≤t≤t

end

(t) − E

(t))dt

init

≤t≤t

end

(t)dt

(3)

Figure 4: Schematic view of the legato parameter extraction

4.2 Sample Transformation and

Concatenation

The system uses spectral processing techniques (Am-

atriain et al., 2002) for transforming each retrieved

note sample in terms of amplitude, pitch and dura-

tion to match, in the same terms, the target descrip-

tion. After that, samples are concatenated follow-

ing the note sequence given at the output of the per-

formance model. Note global energy is applied ﬁrst

as a global amplitude transformation to the sample.

Then, pitch transformation is applied by shifting har-

monic regions of the spectrum while keeping the orig-

inal spectral shape. After that, time stretch is applied

within the limits of the sustain segment by repeating

or dropping frames.

5 CONCLUSION

The presented work is a proof-of-concept toward

user-adapted singing-driven interfaces. A novel seg-

mentation method is introduced, which beneﬁts from

the phonetic characteristics of vocal instrument imi-

tation signals. Referring to the articulation type, re-

ported results of the classiﬁer of supervised training

that adapts to user behaviour, are comparable to using

a user-independent classiﬁer based on heuristic rules.

In the ﬁnal implementation, the mappings of articu-

lation type to the synthesizer derive from the latter

classiﬁer. The results of this ﬁrst experiment, enlight-

ened us aspects about phonetics and instrument imita-

tion that should be further investigated. For instance,

we could use the introduced syllabling segmentation

module to deﬁne, for each class of Table 1, a subset

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

114

of phonemes employed by a given user.

ACKNOWLEDGEMENTS

This research has been partially funded by the IST

project SALERO, FP6-027122. We would like to

thank all participants in the recordings.

REFERENCES

Amatriain, X., Bonada, J., Loscos, A., and Serra, X. (2002).

DAFX - Digital Audio Effects, chapter Spectral Pro-

cessing, pages 373–438. U. Zoelzer ed., J. Wiley &

Sons.

Bonada, J. and Serra, X. (2007). Synthesis of the singing

voice by performance sampling and spectral models.

IEEE Signal Processing Magazine, 24(2):67–79.

Egozy, E. B. (1995). Deriving musical control features from

a real-time timbre analysis of the clarinet. Master’s

thesis, Massachusetts Institut of Technology.

Janer, J. (2005). Voice-controlled plucked bass guitar

through two synthesis techniques. In Int. Conf. on

New Interfaces for Musical Expression, Vancouver,

pages 132–134, Vancouver, Canada.

Lesaffre, M., Tanghe, K., Martens, G., Moelants, D., Le-

man, M., Baets, B. D., Meyer, H. D., and Martens, J.

(2003). The mami query-by-voice experiment: Col-

lecting and annotating vocal queries for music infor-

mation retrieval. In Proceedings of the ISMIR 2003,

4th International Conference on Music Information

Retrieval, Baltimore.

Lieberman, P. and Blumstein, S. E. (1986). Speech physiol-

ogy, speech perception, and acoustic phonetics. Cam-

bridge University Press.

Lindemann, E. (2007). Music synthesis with reconstructive

phrase modeling. IEEE Signal Processing Magazine,

24(2):80–91.

Maestre, E. and G

omez, E. (2005). Automatic character-

ization of dynamics and articulation of monophonic

expressive recordings. Procedings of the 118th AES

Convention.

Maestre, E., Hazan, A., Ramirez, R., and Perez, A. (2006).

Using concatenative synthesis for expressive perfor-

mance in jazz saxophone. In Proceedings of Inter-

national Computer Music Conference 2006, New Or-

leans.

Sundberg, J. (1994). Musical signiﬁcance of musicians’ syl-

lable choice in improvised nonsense text singing: A

preliminary study. Phonetica, 54:132–145.

Wanderley, M. and Depalle, P. (1999). Interfaces homme

- machine et cr

eation musicale, chapter Contr

ole

Gestuel de la Synth

ese Sonore, pages 145–63. H.

Vinet and F. Delalande, Paris: Herm

es Science Pub-

lishing.

Widmer, G. and Goebl, W. (2004). Computational models

of expressive music performance: The state of the art.

3(33):203–216.

PHONETIC-BASED MAPPINGS IN VOICE-DRIVEN SOUND SYNTHESIS

115
