STATISTICS API: DBMS-INDEPENDENT ACCESS

AND MANAGEMENT OF DBMS STATISTICS

IN HETEROGENEOUS ENVIRONMENTS

Tobias Kraft and Bernhard Mitschang

Institute of Parallel and Distributed Systems, University of Stuttgart, Universit

atsstraße 38, 70569 Stuttgart, Germany

Keywords:

Query optimization, optimizer statistics, database meta data, federation.

Abstract:

Many of todays applications access not a single but a multitude of databases running on different DBMSs.

Federation technology is being used to integrate these databases and to offer a single query-interface to the

user where he can run queries accessing tables stored on different remote databases. So, the optimizer of the

federated DBMS has to decide what portion of the query should be processed by the federated DBMS itself

and what portion should be executed at the remote systems. Thereto, it has to retrieve cost estimates for query

fragments from the remote databases. The response of these databases typically contains cost and cardinality

estimates but no statistics about the data stored in these databases. However, statistics are optimization-critical

information which is the crucial factor for any kind of decision making in the optimizer of the federated

DBMS. When this information is not available optimization has to rely on imprecise heuristics mostly based

on default selectivities.

To ﬁll this gap, we propose Statistics API, a JAVA interface that provides DBMS-independent access to statis-

tics data stored in databases running on different DBMSs. Statistics API also deﬁnes data structures used for

the statistics data returned by or passed to the interface. We have implemented this interface for the three

prevailing commercial DBMSs IBM DB2, Oracle and Microsoft SQL Server. These implementations are

available under the terms of the GNU Lesser General Public License (LGPL). This paper introduces the inter-

face, i.e. the methods and data structures of the Statistics API, and discusses some details of the three interface

implementations.

1 INTRODUCTION

Relational DBMS technology has been used for

decades in all kinds of application areas and there are

multiple relational DBMSs from different vendors on

the market. Furthermore, many of todays applications

access not a single but a multitude of databases run-

ning on different DBMSs. Left side of Figure 1 shows

how such an application scenario looked like in the

early days. Given a query combining data of different

remote databases, the application programmer was

responsible to split this query and decide what por-

tion of the query should be executed on which remote

database. Furthermore, the application had to map

the data structures returned by the remote systems to

its own data structures and to integrate and postpro-

cess the data of the different sources. So, the deci-

sion which parts of the overall query are processed by

which remote system and which parts are processed

by the application itself was coded statically into the

application code.

With the development of federated DBMS tech-

nology, this decision was handed over to the feder-

ated DBMS, in particular to its optimizer. I.e., the

application sends the overall query to a single feder-

ated DBMS server which dynamically splits and dis-

tributes the query among the remote databases (see

the center of Figure 1). The federated DBMS also

covers schema and data mapping issues, thus decreas-

ing the impedance mismatch. The same holds for

Data Grid middleware that provides distributed query

processing in general. Additionally, Data Grid mid-

dleware may also include management of replicas,

data caches, and other resources.

Kraft T. and Mitschang B. (2007).

STATISTICS API: DBMS-INDEPENDENT ACCESS AND MANAGEMENT OF DBMS STATISTICS IN HETEROGENEOUS ENVIRONMENTS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - DISI, pages 5-12

DOI: 10.5220/0002365200050012

 SciTePress

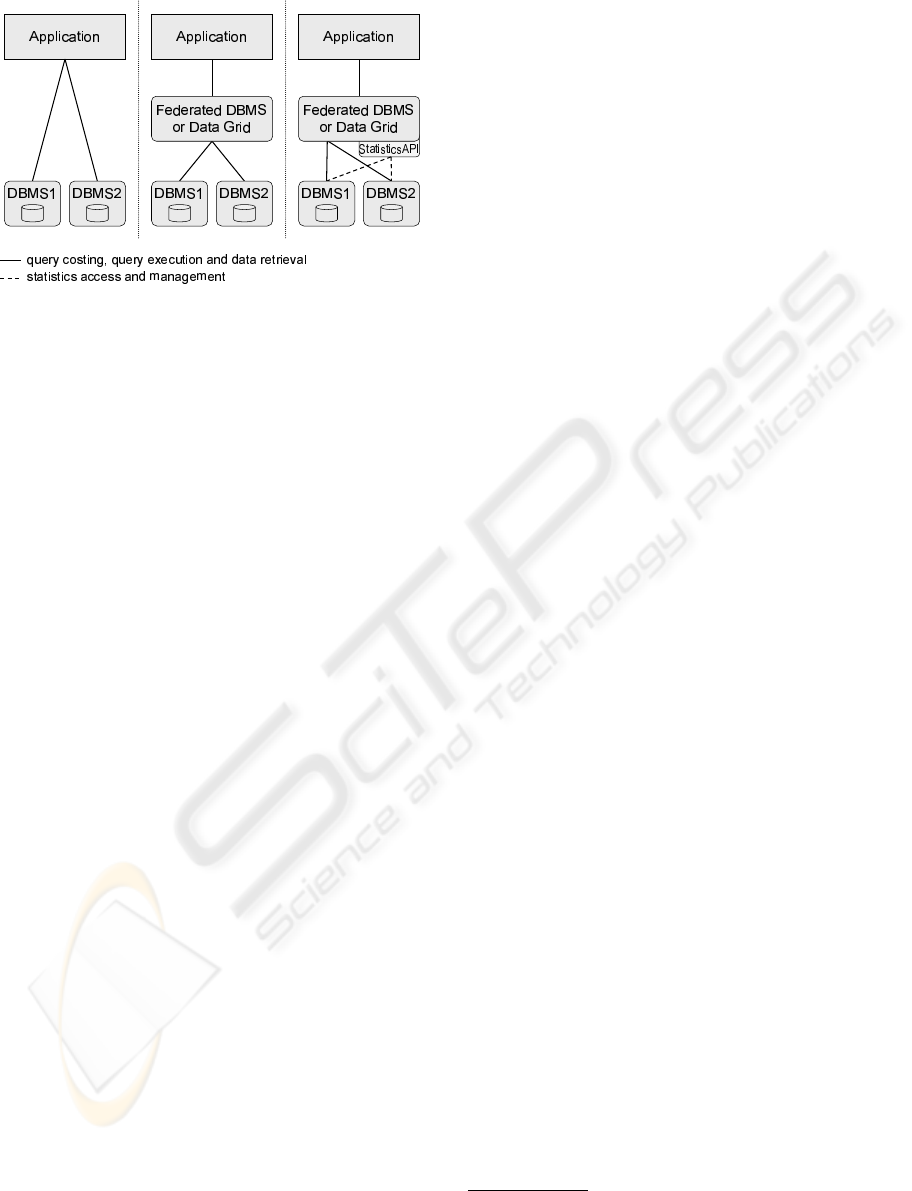

Figure 1: Different stages of data federation.

The distribution decision is typically based on cost

estimates. Thereto, the optimizer of the federated

DBMS sends query fragments to the remote database

for costing. The typical response contains a cardinal-

ity estimate and some cost estimates. However, this

information is not sufﬁcient for the task the optimizer

of the federated DBMS has to do, i.e., query optimiza-

tion for the fragment that ought to be processed at the

federation tier. Since optimization-critical informa-

tion like the number of distinct values or the mini-

mum and maximum value of a column is unavailable,

the optimizer has to rely again on imprecise heuristics

using default selectivities as introduced by Selinger et

al. in 1979 (Selinger et al., 1979). To support the op-

timizer of the federation tier, the access to statistics of

the remote databases would be necessary but this is

not supported by todays federation technology. This

is due to the fact, that the way of storing and accessing

the optimizer statistics of a certain DBMS is very pro-

prietary and standardized formats and interfaces for

the management of statistics data do not exist. Some

DBMSs permit direct access to the respective catalog

tables or views whereas others even provide a pro-

gramming interface for this purpose; in some DBMSs

the user is limited to read access whereas others allow

to modify the statistics data. Furthermore, DBMSs of

different vendors also differ in the amount and type of

statistics they offer.

To ﬁll this gap and to enable proper optimiza-

tion tasks at the federation tier, we propose Statistics

API, a JAVA application programming interface (API)

that enables DBMS-independent access to statistics

data stored in databases running on various DBMSs.

Statistics API provides methods to retrieve, modify

and delete statistics data. It also deﬁnes DBMS-

independent data structures used for the statistics data

returned by or passed to the methods of the API.

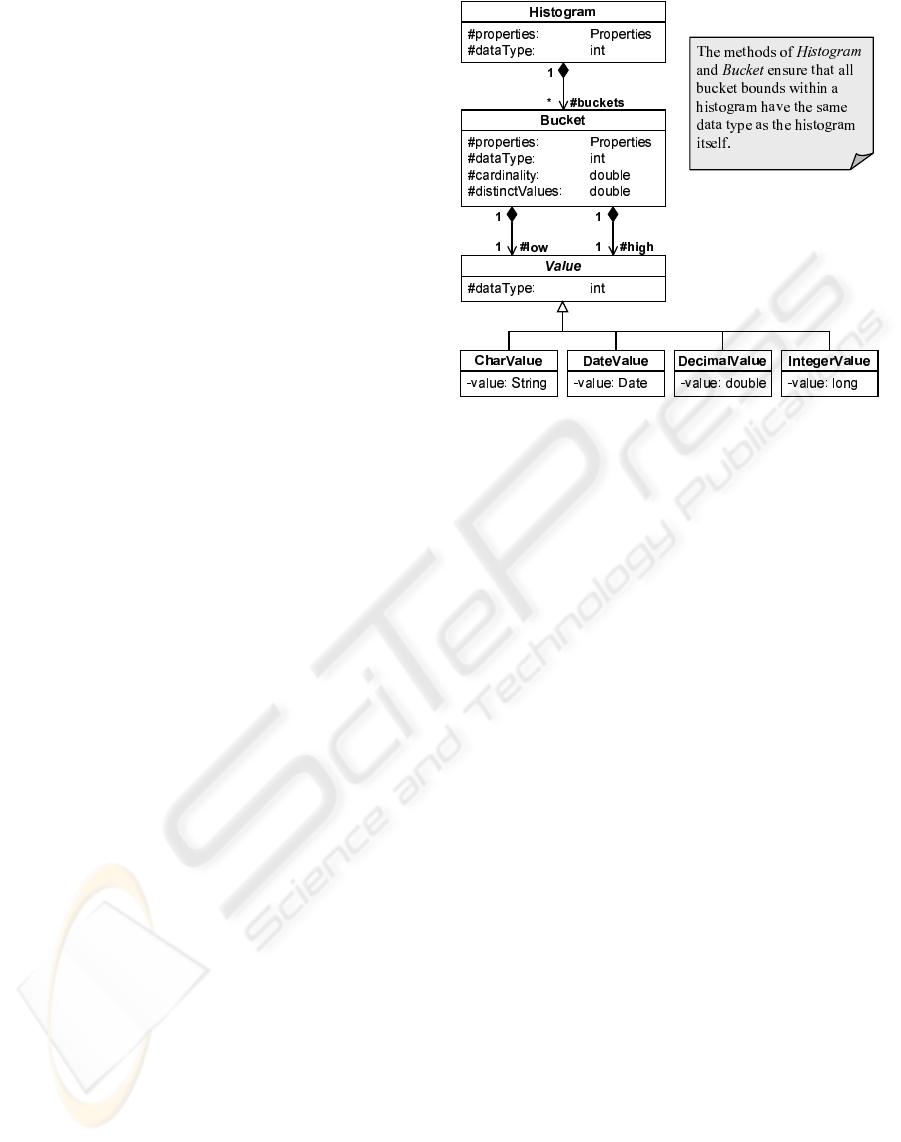

We have chosen a very ﬂexible format for histogram

data to cover all the different types and classes of

histograms (Ioannidis, 2003). Additionally, Statis-

tics API provides methods to retrieve cardinality and

cost estimates for arbitrary SQL statements as well as

further meta data that may be helpful in conjunction

with the offered statistics data. Federated DBMSs

and Data Grid middleware can use the interface to re-

trieve and exploit ﬁne-grained statistics required for

query optimization and query planing purposes (see

right side of Figure 1). The uniform data structures

also allow to compare and exchange statistics data be-

tween different DBMSs. However, the application of

the Statistics API is not restricted to distributed query

processing only. Diverse performance optimization

tools that sit on top of a single database system may

also beneﬁt from this feature. Modifying statistics

and afterwards retrieving the cost estimates based on

these new statistics values allows for what-if analysis,

i.e. this allows to analyze the behavior of cost esti-

mates for different data distributions without modi-

fying the queried tables. Furthermore, the modiﬁca-

tion of statistics also enables to set a data distribution

on tables temporarily used for intermediate results of

query sequences (Kraft et al., 2003) to improve the

quality of the execution plans of the queries that ac-

cess these tables.

We have implemented the Statistics API for the

three commercial DBMSs IBM DB2, Oracle and Mi-

crosoft SQL Server. The Statistics API and its imple-

mentations are freely available under the terms of the

GNU Lesser General Public License (LGPL)

The main contributions of this paper can be sum-

marized as follows:

• An API that complements the JDBC-API by

providing DBMS-independent access to DBMS

statistics, meta data and optimizer estimates.

• DBMS-independent data structures to hold the

meta data and a ﬂexible histogram format that ab-

stracts from the proprietary data structures used in

the different DBMSs.

• Freely available implementations of the API for

the three prevailing commercial DBMSs IBM

DB2, Oracle and Microsoft SQL Server.

The paper is organized as follows. Related work is

discussed in Section 2. Section 3 describes the Statis-

tics API in more detail, i.e. the methods and data

structures provided by this API. Section 4 addresses

the implementations for the three mentioned commer-

cial DBMSs. Section 5 concludes this paper and gives

an outlook on future work.

StatisticsAPI can be downloaded from the following

web page: http://www.ipvs.uni-stuttgart.de/abteilungen/as/

forschung/projekte/CEOPS/ceops/StatisticsAPI

ICEIS 2007 - International Conference on Enterprise Information Systems

2 RELATED WORK

JDBC (Ellis et al., 2001) is a widely-used API for

the JAVA programming language that homogenizes

the client access to different relational DBMSs. It

provides uniform methods for querying and updat-

ing data in a local or remote database. Further-

more, JDBC provides the DatabaseMetaData inter-

face which is an interface to let applications know

the capabilities of a DBMS in combination with the

used JDBC driver. It provides methods to retrieve

database meta data and a small set of statistics. The

Statistics API also uses JDBC connections to com-

municate with the databases and it extends the capa-

bilities offered by JDBC’s DatabaseMetaData inter-

face. It adds read and write access to ﬁne grained

statistics like histograms that cannot be retrieved by

the DatabaseMetaData interface, write access to all

statistics that can be retrieved by the DatabaseMeta-

Data interface, and read access to optimizer estimates.

In practice, DatabaseMetaData interface implementa-

tions provide less information than possible due to the

fact that it’s left to the vendor how much of the meta

data can be retrieved via this interface. Furthermore,

there is no common behavior for different database

systems concerning input parameters of the methods,

e.g. search patterns are treated differently and some

drivers require that the names of database objects are

being passed in upper case letters. The Statistics

API implementation also addresses these problems,

i.e., it provides as much information as possible and

it absolutely shows a common behavior for different

DBMSs.

Federation is based on wrapper technology and

wrappers typically focus on uniform distribution

statistics like cardinality, number of distinct values,

lowest and highest value of a column (Lu et al., 1993).

Some approaches like Garlic (Roth et al., 1999) (Roth

et al., 1996) are able to optionally support more de-

tailed distribution statistics but in practice prototypes

are restricted to uniform distribution statistics. In

standards such as SQL/MED (Melton et al., 2001)

(Melton et al., 2002) and in commercial products like

DB2 (IBM, 2004a) wrappers just provide cost and

cardinality estimates for query fragments but they do

not support the retrieval of statistics. Furthermore,

such approaches only support a very limited subset

of SQL for costing.

Learning approaches like Leo (Ewen et al., 2005)

try to retrieve statistics from remote systems on-the-

ﬂy by piggy-backing on query execution or asyn-

chronously by querying the tables of the remote

databases. These statistics can only be used reactively

for future query planning but not for the ﬁrst time a

query is being executed or only with an appropriate

overhead. So, for the ﬁrst execution such reactive ap-

proaches may beneﬁt from an interface like Statistics

API.

For the implementations, we made use of the man-

uals and optimization-related literature offered by the

DBMS vendors. However, the management of statis-

tics is often sparsely documented and examples that

show how to use these features are hard to ﬁnd. A

short description of the catalog tables of IBM DB2

can be found in the IBM DB2 Universal Database

SQL Reference (IBM, 2004c). Further information,

about the usage of statistics in the optimizer and how

to update the statistics tables can be found in the

IBM DB2 Universal Database Administration Guide:

Performance (IBM, 2004b). Similarly, information

about the usage of statistics in Oracle and their stor-

age in the catalog tables can be found in the Ora-

cle Database Reference (Oracle, 2003b) and in the

Oracle Database Performance Tuning Guide (Ora-

cle, 2003a). The package DBMS

STAT which en-

ables to modify and delete statistics is documented

in the PL/SQL Packages and Types Reference (Ora-

cle, 2003c). Additional information can be found in

Oracle’s web forum AskTom (Oracle, 2006). For Mi-

crosoft’s SQL Server, we made use of the Transact-

SQL Reference (Microsoft, 2006) which is available

online at the Microsoft Developer Network (MSDN).

3 THE STATISTICS API

Statistics API is a JAVA interface that deﬁnes meth-

ods to uniformly access statistics, meta data and op-

timizer estimates of different DBMSs. It is a ’low-

level’ interface that offers a set of basic methods that

can be used to compose more powerful methods con-

sisting of multiple basic method calls. Therefore, the

Statistics API has an explicit connection management

that allows to run multiple methods of the Statistics

API using the same connection, i.e., the application

has to open a connection to the target database before

it can use the access methods and afterwards it has

to close the connection again. This may be helpful,

e.g., for an application that has to retrieve the names

and the statistics data of all columns of a given ta-

ble. This application can open a connection, retrieve

the column names of the table stored as meta data,

retrieve the statistics data by calling the appropriate

method for each column and close the connection. As

Statistics API uses ordinary JDBC connections, they

can also be reused by the application for regular data

management purposes. However, the Statistics API

includes its own connect and disconnect method. In

STATISTICS API: DBMS-INDEPENDENT ACCESS AND MANAGEMENT OF DBMS STATISTICS IN

HETEROGENEOUS ENVIRONMENTS

comparison to JDBC, the connect method doesn’t re-

quire the user to provide the DBMS-speciﬁc connect-

url, it only requires the components necessary to build

this url like the ip address and the port number of the

database server.

3.1 Data Structures

To select the statistics which the Statistics API should

support, we analyzed the three commercial DBMSs

IBM DB2, Oracle and Microsoft SQL Server. Each

of these three DBMSs provides a huge set of statis-

tics and meta data. For the Statistics API, we have

selected those statistics and meta data elements that

are supported by at least two of the three analyzed

DBMSs. Furthermore, we focused on meta data and

statistics about relational structures. The biggest over-

lap we identiﬁed in the area of logical statistics, i.e.

statistics that describe the data distribution and there-

fore directly inﬂuence selectivity and cardinality esti-

mation. Great differences exist in the semantics of

statistics provided for indexes, e.g. DB2 and Ora-

cle both have statistics that reﬂect the degree of in-

dex clustering but their deﬁnition and dimension units

are totally different. This is due to the fact, that dif-

ferent DBMSs support different index types and that

each index type or index implementation has speciﬁc

statistics. Similarly, there exist DBMS-speciﬁc statis-

tics regarding character string data that improve selec-

tivity estimation for preﬁx patterns or postﬁx patterns

used in LIKE predicates. Statistics that describe phys-

ical characteristics of either the data or the hardware

of the underlying system are also DBMS-speciﬁc and

usually not stored in the database catalog.

Table 1 lists all statistics, meta data and optimizer

estimates actually supported by the Statistics API. For

each item the list contains its name, the associated

JAVA data type and a short description. We grouped

the items into seven groups according to the type of

information they provide and according to the type

and granularity of the database object to which they

refer: table statistics, column statistics, index statis-

tics, table meta data, column meta data, index meta

data and estimates. Statistics API provides a JAVA

class for each of these groups that contains the asso-

ciated items as attributes. Statistics, meta data and op-

timizer estimates represented by long, int and boolean

values are stored in attributes of the associated wrap-

per classes. This allows to distinguish whether a value

has been assigned to it or not, i.e., if no value has been

assigned to it the associated attribute is set to null. For

each attribute there exists a get and an isAvailable

method. The get method (e.g. getCardinality) re-

turns the attribute value. The isAvailable method (e.g.

Figure 2: Class diagram of the classes related to histograms

(methods are omitted).

isCardinalityAvailable) returns whether a value for

the attribute is available or the associated attribute

is set to null. In addition, statistic attributes have a

clear and a set method assigned. The clear method

(e.g. clearCardinality) resets the statistic attribute to

null. The set method (e.g. setCardinality) sets the

statistic attribute to the new value passed as parame-

ter. clear and set methods are not available for meta

data and optimizer estimates because the classes asso-

ciated with meta data and estimates are only used as

return values in the methods of the Statistics API but

not as input parameters. Therefore, the values stored

in these classes needn’t be changed by the application.

For histogram data, we provide a ﬂexible data

structure that can store different types of histograms.

Figure 2 shows a UML class diagram of the

histogram-related classes. Independent of their data

type all histograms are represented by instances of

the class Histogram. The Histogram class contains

a vector that stores the buckets of the histogram.

These buckets are instance of the class Bucket. Each

bucket represents an interval in the domain of the

data type associated with the histogram. Therefore,

it has a lower bound and an upper bound. Addition-

ally, each bucket stores the number of distinct val-

ues and the number of rows that fall into this inter-

val. The lower and upper bounds are stored in data-

type speciﬁc classes, i.e., for each data type that is

supported by the Statistics API an appropriate class

exists (CharValue, DateValue, DecimalValue, Inte-

gerValue). These classes cover the data-type spe-

ciﬁc behavior of the value. They inherit from the ab-

stract superclass Value. The NULL value that may

appear in histograms of any data type is represented

ICEIS 2007 - International Conference on Enterprise Information Systems

Table 1: Statistics, meta data and optimizer estimates supported by the Statistics API.

TableStatistics

cardinality long number of rows in the table

pagesAllocated long number of pages allocated for the table (used + unused)

pagesUsed long number of pages containing rows of the table

ColumnStatistics

avgLength long average length of the column (in byte)

histogram Histogram a histogram that approximates the data distribution of the column

IndexStatistics

distinctKeys long number of distinct values in the index key columns

distinctKeysFirstNColumns long[] number of distinct values in subsets of the index key columns

leafPages long number of index leaf pages

levels long number of index levels

TableMetaData

columns String[] array containing the column names of the table

indexes String[][] array containing name and schema of each index on the table

pageSize long size of a page in the associated tablespace (in byte)

ColumnMetaData

dataTypeName String name of the data type of the column in the target DBMS

sqlDataTypeNumber int SQL data type of the column from java.sql.Types

histogramDataTypeNumber int data type of the histogram (indicates which Value class is used)

size int maximum number of characters / precision

digits int number of fractional digits

nullable boolean true if the column allows NULL values, false otherwise

IndexMetaData

indexColumns String[] array containing the column names of the index key

indexColumnsAscending boolean[] array containing the order of the values in the columns of the

index key; true for ascending order, false for descending order

includedColumns String[] array containing the names of the columns that are included in

the index but that are not part of the index key

unique boolean true if the index key is unique, false otherwise

clustered boolean true if the index is a clustered index, false otherwise

pageSize long size of a page in the associated tablespace (in byte)

Estimates

cardinality double estimated cardinality of the result of the given statement

cost double estimated total cost of the given statement (DBMS dependent)

by a bucket where the lower and upper bound is set

to null. This way of handling NULL values like

’normal values’ eases computations on histograms.

The Histogram class also contains methods to trans-

form the stored histogram into a serial histogram, an

equi-width histogram or an equi-height histogram and

methods to reduce the number of buckets by merg-

ing them. The according algorithms assume uniform

distribution within the buckets. These transforma-

tion methods are necessary because some DBMSs can

only store histograms of a certain type or size. At the

moment, we only support unidimensional histograms

due to the fact that this kind of histogram is supported

by nearly all DBMSs on the market whereas multidi-

mensional histograms are not supported or only rudi-

mentary supported by some research DBMSs.

We treat simple column statistics regarding data

distribution also as histograms, i.e., when the lower

bound, the upper bound, the cardinality, the num-

ber of distinct values and the number of NULL val-

ues are available for a given column, we can build a

histogram containing a single bucket made up of the

given bounds and an additional NULL-bucket when

NULL values are present.

Note, that the measuring unit of the cost value de-

pends on the DBMS due to the fact that some DBMS

provide cost estimates in milliseconds whereas others

have their own abstract cost measure.

STATISTICS API: DBMS-INDEPENDENT ACCESS AND MANAGEMENT OF DBMS STATISTICS IN

HETEROGENEOUS ENVIRONMENTS

3.2 API Methods

For each statistics class (see Table 1) there exists a

delete method, a get method, and a set method in

the Statistics API. The delete method (e.g. deleteTa-

bleStatistics) deletes existing statistics data in the tar-

get database. The get method (e.g. getTableStatis-

tics) retrieves statistics from the target database and

returns an appropriate statistics object. Since not ev-

ery DBMS supports all statistics covered by the statis-

tics object or some statistics may not have been gath-

ered yet, some of the statistic values in the returned

statistics object may be unavailable, i.e., the associ-

ated attribute may be set to null. The set method

(e.g. setTableStatistics) replaces the statistics values

in the database with the new values passed in the ap-

propriate statistics object. For all statistics where the

value of the associated attribute in the statistics ob-

ject is null, the value of the associated statistic will

not be deleted in the database but the old value will

be kept. For meta data, only get methods are avail-

able because these data contains information about

the database structure and physical layout that can-

not be changed directly from outside. The same holds

for optimizer estimates.

The methods of the Statistics API are not case sen-

sitive regarding identiﬁers of database objects such

as table names or schema names, i.e., identiﬁers of

database objects can be passed in lower case letters,

upper case letters or a mixture of both. Since in-

dexes and DDL statements regarding indexes are still

not part of the SQL standards, different alternatives

to identify an index exist. In some DBMSs an in-

dex is a separate object that can be stored in another

schema than the associated table. In this case, an in-

dex is identiﬁed by its name and schema. In other

DBMSs an index belongs to the associated table and

therefore is identiﬁed by its name and the associated

table’s name and schema. To support both alternatives

of index identiﬁcation the index related methods of

the Statistics API require the name and schema of the

index as well as the name and schema of the associ-

ated table as input. Even when an index can be iden-

tiﬁed by its name and schema in the target DBMS,

an interface implementation should check whether the

given name and schema of the associated table is cor-

rect. When the index is identiﬁed by its name and the

associated table an implementation should ignore the

value passed as index schema.

The Statistics API provides its own exception

classes StatisticsAPIException, NoSuchObjectExcep-

tion and UnsupportedMethodException. The two lat-

ter ones are specializations of the ﬁrst one. A NoSu-

chObjectException is being thrown when the object

addressed by the input parameters of a method does

not exist. An UnsupportedMethodException is being

thrown when a method of the Statistics API is being

called that is not supported by the chosen implemen-

tation. Additionally, the histogram-related classes

provide their own exception class HistogramExcep-

tion. When such an exception occurs during the exe-

cution of an API method, it is being encapsulated into

a StatisticsAPIException object by this method.

4 IMPLEMENTATIONS

For each DBMS the Statistics API should be used

with, there has to exist an appropriate implementa-

tion. These implementations behave like wrappers

that map the methods of the Statistics API to one or

more DBMS-speciﬁc SQL statements. These SQL

statements directly access catalog tables or execute

stored procedures provided by the target database.

Only for the retrieval of column meta data the JDBC

DatabaseMetaData interface is being used. This is

due to the fact, that we exploit the mapping of DBMS-

speciﬁc data types to the data types of java.sql.Types

which is offered by the JDBC DatabaseMetaData in-

terface.

In the following sections, we discuss our three

Statistics API implementations in more detail.

4.1 IBM DB2 V8.2 Implementation

DB2 offers no special API to access statistics data and

meta data but allows for direct access to the appropri-

ate catalog views. So, retrieving this data can simply

be realized by querying these catalog views. As most

of the columns in these views are updatable, it’s also

possible to delete or modify existing statistic values.

DB2 does some consistency checks when updating

these views to avoid serious inconsistencies within the

database catalog. So, the order in which the tuples are

updated is crucial. Except for histograms, the associ-

ated entries for the statistics already exist in the cata-

log tables and as long as no statistics have been gath-

ered these entries contain a default value that marks

them as not available. However, entries in the his-

togram view syscat.coldist only exist when statistics

have been gathered. So, updates to this view are not

possible as long as RUNSTATS using the WITH DIS-

TRIBUTION option hasn’t been called. Finally, we

use the EXPLAIN tool to get cost and cardinality es-

timates. Thereto, we call EXPLAIN with the given

SQL statement and query the cost and cardinality in-

formation from the appropriate EXPLAIN tables.

ICEIS 2007 - International Conference on Enterprise Information Systems

The identiﬁers of database objects such as table

names or schema names are stored in upper case let-

ters in the catalog tables of DB2. So, the DB2 im-

plementation of the Statistics API converts the iden-

tiﬁers passed as input attributes to upper case before

they are used for comparison within a query. Indexes

can be identiﬁed by their name and schema. Anyhow,

the implementation also asks for the correct name and

schema of the associated table.

As DB2 only stores the second-lowest and second-

highest value of a column in its catalog tables, we

treat the second-lowest as the lowest and the second-

highest as the highest value. Thereto, we assume that

there is no great difference between the second-lowest

and the lowest value and between the second-highest

and the highest value. Furthermore, at the moment the

setColumnStatistics method is restricted to the modi-

ﬁcation of the quantile data in syscat.coldist, frequent

values are not being set.

The API implementation for IBM DB2 V8.2 also

works with IBM DB2 V9. However, the methods

deleteTableStatistics and deleteIndexStatistics do not

reset the values of the statistics columns added in IBM

DB9 V9 to the respective catalog tables.

4.2 Oracle 10g Implementation

In an Oracle database system statistics can reside in

two different locations: in the database catalog tables

or in tables created in the user’s schema for this pur-

pose. Due to the fact, that only statistics stored in the

catalog have an impact on the cost-based optimizer

our API implementation only operates on this loca-

tion. As the catalog views are not updatable, Oracle

provides the DBMS

STATS package that allows to re-

trieve statistics data as well as to set and delete statis-

tics data. At the moment, we store histograms in Ora-

cle as equi-height histograms. Except for the retrieval

of histogram data, our Statistics API implementa-

tion solely uses the procedures of the DBMS

STATS

package. We do not use DBMS

STATS for histogram

retrieval because the associated procedure returns the

histogram data in VARRAYs which can only be re-

trieved when using Oracle’s extensions to JDBC. So,

we decided to query the appropriate statistics table in-

stead of using Oracle’s extended JDBC classes. For

the retrieval of meta data we also make use of the

appropriate catalog views. Finally, we use the EX-

PLAIN PLAN command to retrieve the cost and car-

dinality estimates for a given SQL statement.

The identiﬁers of database objects are stored in

upper case letters in the catalog tables of Oracle. The

procedures of the DBMS

STATS package also ask for

identiﬁers in upper case letters. So, the Statistics API

implementation converts identiﬁers passed as input

attributes to upper case before they are used for com-

parison in a query or as parameter in a procedure call.

Indexes can be identiﬁed by their name and schema.

Anyhow, the implementation also asks for the correct

name and schema of the associated table.

As the index statistic distinctKeysFirstNColumns

is not available in Oracle, it is also not available in

IndexStatistics objects returned by getIndexStatistics

and it is not considered when setting index statistics.

Furthermore, our implementation does not support

object tables and nested tables and we do not provide

an extended support for statistics of partitioned tables

and partitioned indexes. However, getTableMetaData

also retrieves a cluster index when the target table is

part of a cluster which for example is not supported by

the JDBC DatabaseMetaData implementation. Fur-

thermore, getTableMetaData retrieves page size for

’normal’ tables as well as for index organized tables

(IOT) and for partitioned tables as well as for non-

partitioned tables. This is not trivial because depend-

ing on the kind of table and depending on partitioning

the information of the page size is stored in differ-

ent catalog views. Retrieving the columns of an in-

dex meets another problem. For each index column

that is denoted to be sorted in descending order, Ora-

cle internally adds a hidden column to the associated

table which includes the original column as an ex-

pression and uses the hidden column in the index key.

Unlike the JDBC DatabaseMetaData implementation,

we consider this and return the column name included

in the expression and not the name of the generated

hidden column. Similarly, for indexes deﬁned on ex-

pressions we also return the expression instead of the

column name in the IndexMetaData object.

Please note, to get access to the full functionality

of the Statistics API the account used by the applica-

tion to connect to the database must own the neces-

sary rights to access catalog views and to execute the

procedures of the DBMS

STATS package.

4.3 Microsoft SQL Server 2005

Implementation

In SQL Server, the access to catalog views is limited

to retrieval. Documentation about how to manipulate

statistics data has not been disclosed yet and therefore

this functionality is not available in our implementa-

tion for SQL Server. So, when a delete or set method

is being called, an UnsupportedMethodException will

be thrown.

To retrieve statistics and meta data, we make use

of the catalog views introduced in SQL Server 2005.

Due to the fact, that most of the column and in-

STATISTICS API: DBMS-INDEPENDENT ACCESS AND MANAGEMENT OF DBMS STATISTICS IN

HETEROGENEOUS ENVIRONMENTS

dex statistics are not available in these catalog views,

we additionally have to call the DBCC-command

SHOW

STATISTICS. SHOW STATISTICS requires

an index name or the name of a statistics group as

target. Regarding statistics a statistics group in SQL

Server is similar to an index. A column can be part

of multiple statistics groups and a statistics group

can contain multiple columns but detailed information

and a histogram is only available for the ﬁrst column

in a statistics group or index. So, we have to query

the catalog views to get the names of all statistics

groups and indexes where the given column is in the

ﬁrst place. When this query returns multiple occur-

rences, we choose the latest, i.e., the one that has been

updated last. Then we can call SHOW

STATISTICS

with the name of this statistics group or index.

To avoid the execution of a query but to get the

associated cost and cardinality estimate, we must set

SHOWPLAN ALL ON. Afterwards, when we send

a SQL statement to the database, it returns the query

plan including some additional information in a tabu-

lar format as result set. We read the cardinality esti-

mate and the cost estimate contained in the ﬁrst return

row and set SHOWPLAN

ALL back to OFF.

Indexes can be identiﬁed by their name and the

name and schema of the associated table. This is due

to the fact, that in SQL Server an index is tightly cou-

pled with the associated table. Hence, the same name

can be used for multiple indexes as long as they are

not associated with the same table.

To get access to the full functionality of the Statis-

tics API, the account used by the application to con-

nect to the database must own the server-role sysad-

min or the database-role db

owner.

5 CONCLUSION AND FUTURE

WORK

In this paper we proposed a DBMS-independent

JAVA interface that provides read access as well as

write access to statistics stored in databases on dif-

ferent relational DBMSs. This interface provides not

just a set of methods but also a set of data structures to

store the retrieved data in a DBMS-independent for-

mat. It can be viewed as an extension and uniﬁca-

tion of existing interfaces used for statistics retrieval

or costing of statements.

In the future, the Statistics API can be enriched by

additional statistics or meta data elements as needed.

Extension to handle multidimensional histograms are

also possible. Further points for improvements are

already given in the text. Although relational DBMSs

dominate, an extension of our approach to other than

relational backend DBMSs and data stores is another

valuable next step.

REFERENCES

Ellis, J., Ho, L., and Fisher, M. (2001). JDBC(TM) 3.0

Speciﬁcation, Final Release. Sun Microsystems, Inc.

Ewen, S., Ortega-Binderberger, M., and Markl, V. (2005).

A learning optimizer for a federated database manage-

ment system. In Proc. BTW, Karlsruhe, Germany.

IBM (2004a). IBM DB2 Information Integrator, Wrapper

Developer’s Guide, Version 8.2. IBM Corp.

IBM (2004b). IBM DB2 Universal Database, Administra-

tion Guide: Performance, Version 8.2. IBM Corp.

IBM (2004c). IBM DB2 Universal Database, SQL Refer-

ence Volume 1, Version 8.2. IBM Corp.

Ioannidis, Y. (2003). The History of Histograms (abridged).

In Proc. VLDB, Berlin, Germany.

Kraft, T., Schwarz, H., Rantzau, R., and Mitschang, B.

(2003). Coarse-Grained Optimization: Techniques for

Rewriting SQL Statement Sequences. In Proc. VLDB,

Berlin, Germany.

Lu, H., Ooi, B. C., and Goh, C. H. (1993). Multidatabase

Query Optimization: Issues and Solutions. In Proc.

RIDE-IMS, Vienna, Austria.

Melton, J., Michels, J.-E., Josifovski, V., Kulkarni, K. G.,

and Schwarz, P. M. (2002). SQL/MED - A Status Re-

port. SIGMOD Record, 31(3):81–89.

Melton, J., Michels, J.-E., Josifovski, V., Kulkarni, K. G.,

Schwarz, P. M., and Zeidenstein, K. (2001). SQL

and Management of External Data. SIGMOD Record,

30(1):70–77.

Microsoft (2006). SQL Server 2005 Books Online -

Transact-SQL Reference. http://msdn2.microsoft.com/

en-us/library/ms189826.aspx. Microsoft Corp.

Oracle (2003a). Oracle Database Performance Tuning

Guide, 10g Release 1 (10.1). Oracle Corp.

Oracle (2003b). Oracle Database Reference, 10g Release 1

(10.1). Oracle Corp.

Oracle (2003c). PL/SQL Packages and Types Reference,

10g Release 1 (10.1). Oracle Corp.

Oracle (2006). Ask Tom. http://asktom.oracle.com/. Oracle

Corp.

Roth, M. T., Arya, M., Haas, L. M., Carey, M. J., Cody,

W. F., Fagin, R., Schwarz, P. M., Thomas II, J., and

Wimmers, E. L. (1996). The Garlic Project. In Proc.

SIGMOD, Montreal, Quebec, Canada.

Roth, M. T., Ozcan, F., and Haas, L. M. (1999). Cost Mod-

els DO Matter: Providing Cost Information for Di-

verse Data Sources in a Federated System. In Proc.

VLDB, Edinburgh, Scotland, UK.

Selinger, P., Astrahan, M., Chamberlin, D., Lorie, R., and

Price, T. (1979). Access Path Selection in a Relational

Database Management System. In Proc. SIGMOD,

Boston, Massachusetts, USA.

ICEIS 2007 - International Conference on Enterprise Information Systems
